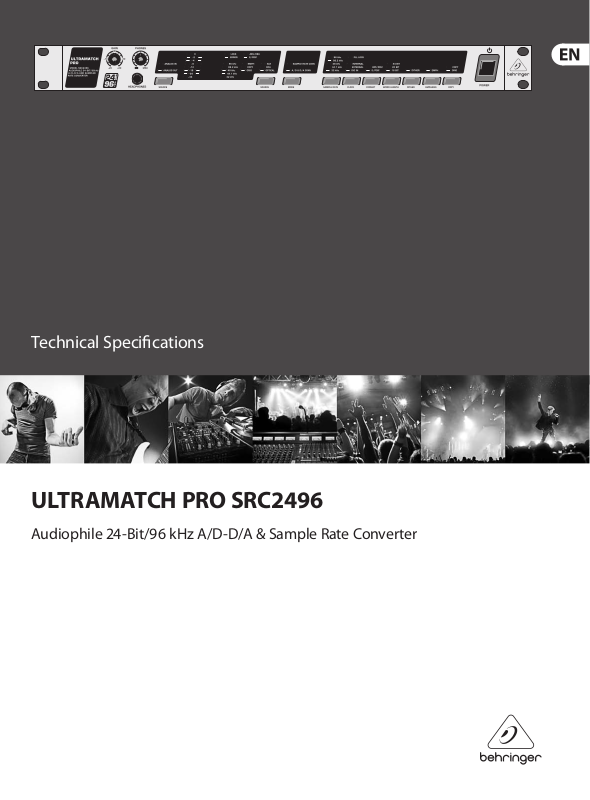

Technical Specications
ULTRAMATCH PRO SRC2496
Audiophile 24-Bit/96 kHz A/D-D/A & Sample Rate Converter
2 ULTRAMATCH PRO SRC2496 Technical Specifications
ULTRAMATCH PRO SRC2496
Audiophile 24-Bit/96 kHz A/D-D/A & Sample Rate Converter
High-end 24-bit/96 kHz A /D and D/A conver ter for ultimate signal integrity
Converts any s ample rate between 31 and 100 kHz into 32, 4 4.1, 48, 88.2 or 96 kHz sample rates
Flexible format conversion between AES/EBU and S/PDIF (coaxial or optic al)
Universal s ample rate synchronization via wordclock or digi tal input
Allows parallel A/D and D/A conversion at identical sample rate
Precise metering for input/output signal and headphone monitoring
Allows direct manipulation of emphasis bits and other signicant, digitally transmitted information in order to record virtually any audio signal
High-precision quartz clock generator removes jitter and correc ts o-tune, incorrect sample rates
Extremely fast tracking support s varispeed applications
Self-adjusting anti-aliasing lter with exceptionally steep edge
All 3 outputs (XLR, RCA, Optic al) simultaneously operational (splitter)
Inputs separately selec table (patchbay functionality)
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
Specications
Synchronization
Internal samp ling rates 32, 44.1, 48, 88.2, 96 kHz
Synchronization via digital input accepts all sampling rates
and wordcloc k between 31 and 100 kHz,
automatic synchronization by PLL
Digital Input 1
Type XLR, transformer-balanced
Input impedance 110 ohms
Nominal input level 0.2 V to 5 V, peak-to-peak
Digital Input 2
Type RCA, transformer-balanced
Input impedance 75 ohms
Digital Input 3
Type Toslink, optical ber cable
Synchronization Input
Type BNC
Input impedance 50 kohms
Standard Wordclock (1 x FS)
Nominal input level 2 V to 6 V peak-to-peak
Digital Output 1
Type XLR, transformer-balanced
Output impedance 110 ohms balanced
Nominal output level 3.5 V peak-to-peak
Nominal input level 0.2 V to 5 V, peak-to-peak
3 ULTRAMATCH PRO SRC2496 Technical Specifications
Digital Output 2
Type RCA, transformer-balanced
Output impedance 75 ohms
Nominal output level 0.5 V, peak-to-peak
Digital Output 3
Type Toslink, optical bre c able
Analog Inputs
Type XLR, balanced
Input impedance 20 kohms
Converter 24-bit/96 kHz 128/64 times
oversampling delta-sigma
AKM A/D conver ter
Input level -4 dBu to +22 dBu for 0 dBFS,
adjustable
S/N-Ratio >105 dB
Analog Outputs
Type XLR, balanced
Output impedance 160 ohms
Channel Status Information in Output Signal
Professional mode Professional, audio use, stereo,
no emphasis or 50/15 µs,
Fs = 32, 44.1, 48, 88.2, 96 kHz
Consumer mode Consumer, audio use, 2-channel,
original material switchable,
copypermit switchable, no emphasis
or 50/15 µs, Fs = 32, 44.1, 48 kHz;
(88.2, 96 kHz not dened)
Power Supply
Mains Voltage
U.S.A./Canada 120 V~, 60 Hz
Europe/U.K./Australia 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
General export model 120/230 V~, 50 - 60 Hz
Power consumption 15 W
Fuse 100 - 120 V~: T 250 mA H 250 V
200 - 240 V~: T 125 mA H 250 V
Mains connection Standard IEC receptacle
Dimensions/Weight
Converter 24 bit/96 kHz 128 times over sampling
delta-sigma AKM D/A converter
Output level +16 dBu @ 0 dBFS
S/N Ratio >108 dB
Dimensions approx. 1.75 x 19 x 8.54"
approx. 44.5 x 483 x 217 mm
Weight approx. 5.06 lbs/2.3 kg
Shipping weight approx. 7.48 lbs/3.4 kg
Jitter Suppression
Jitter permitted at input >40 ns
Internal jit ter at input <2 ns
Internal jit ter with external <20 ns, 10 ns typ.
Synchronization
