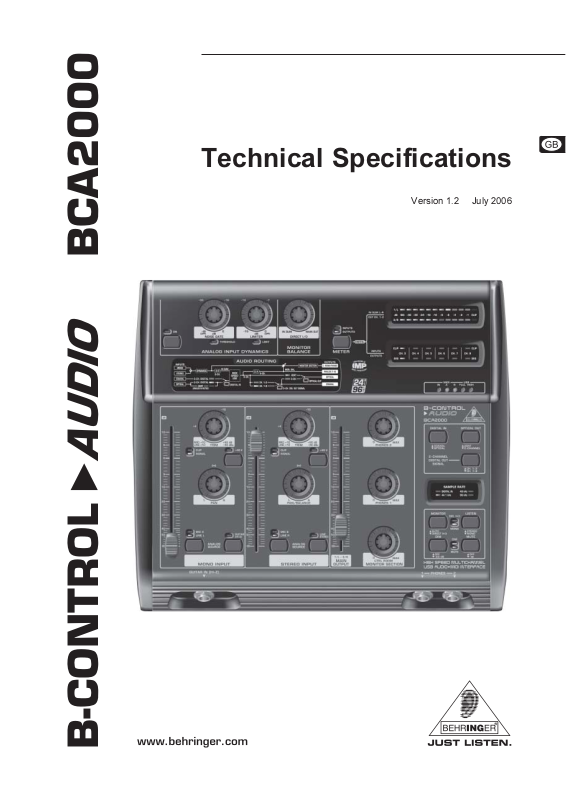

Technical Specifications
Version 1.2 July 2006
B-CONTROL AUDIO BCA2000
B-CONTROL AUDIO BCA2000
B-CONTROL AUDIO
High-Speed USB 2.0 Multi-Channel Audio/MIDI Control Interface with ADAT® Support, Surround
Outputs and Extensive Monitor Control Section
BCA 2000
s High-performance analog input section with 2 state-of-the-art, studio-grade IMP Invisible Mic Preamps,
+48 V phantom power plus Line and Hi-Z Guitar inputs
s Ultra-flexible input/output configuration supported by a comprehensive, audio-routing LED indicator plus
button (status) LEDs
s Adjustable studio-grade analog input dynamic control (noise gate and limiter) prevents distorted input
signals or A/D converter overload
s Fully equipped USB/MIDI interface with 1 MIDI In / 2 MIDI Outs individually selectable for 16 / 32 MIDI
channels
s Versatile digital input and output formats like ADAT®, ADAT® S/MUX, AES/EBU and S/PDIF, including
Dolby® Digital- and DTS® support
s Simultaneous use of 3 analog input sources (1 mono + 1 stereo), digital input sources plus full
multi-channel playback at 24-bit/96 kHz
s High-resolution 2 x 12-segment LED stereo in/out level meter
s High-speed USB 2.0 interface with 24-bit/96 kHz, supports 8 in + 8 out channels simultaneously
(analog and digital) with low-latency ASIO 2 and WDM drivers
s Fully equipped master and monitor sections with 100-mm faders, individual level controls for 2 speakers,
2 phones and Direct monitor function plus separate Dim, Mute and Mono functions
s High-quality components and exceptionally rugged construction ensure long life
s Conceived and designed by BEHRINGER Germany
All Trademarks mentioned belong to their respective owners and are not affiliated with BEHRINGER
2
B-CONTROL AUDIO BCA2000
3
B-CONTROL AUDIO BCA2000
SPECIFICATIONS
AUDIO INPUTS
Microphone inputs (IMP Invisible Mic Preamp)
Type XLR balanced
Gain range +10 to +60 dB
Frequency response 10 Hz - 200 kHz (-3 dB)
Impedance approx. 2.2 kW (balanced)
Max. input level +10 dBu (@ +10 dB Gain)
Signal-to-noise ratio 108 dB (112 dB A-weighted)
Distortion (THD+N) 0.005 % (0.004 % A-weighted)
Line inputs (2)
Type ¼" TRS connector, balanced
Gain range -10 to +40 dBu
Impedance approx. 20 kW (balanced)
Max. input level +26 dBu (@ 0 dB Gain)
Guitar input (1)
Type ¼" TS connector
Gain range -10 to +40 dBu
Impedance approx. 1 MW
Max. input level +20 dBu (@ 0 dB Gain)
AUDIO OUTPUTS
Control Room L/R
Type ¼" TRS stereo
Impedance approx. 120 W
Signal-to-noise ratio 115 dB
Crosstalk -80 dB @ 1 kHz
Max. output level +20 dBu
Main Out
Type (Main 1/2, Cinch 3-6)
Impedance approx. 120 W
signal-to-noise ratio 100 dB
Crosstalk < -80 dBu @ 1 kHz
Max. output level +20 dBu
Headphones outputs (2)
Type ¼" TRS connector with separate
volume controls
Max. output level +20 dBu
INSERTS (2)
Type ¼" TRS connector, unbalanced
DIGITAL INPUTS
Type Cinch coaxial
Standard AES/EBU, S/PDIF
Input impedance 75 W
Nom. input signal level 0.2 - 5 V peak-to-peak
Type TOSLINK optical
Standard AES/EBU, S/PDIF, ADAT®, S/MUX
DIGITAL OUTPUTS
Type Cinch coaxial
Standard AES/EBU, S/PDIF, AC-3/DTS
®
Impedance 75 W
Output signal level 2.5 V peak-to-peak
Type TOSLINK optical
Standard AES/EBU or S/PDIF, AC-3/DTS®, ADAT®,
S/MUX
DIGITAL PROCESSING
Converter 24 Bit/96 kHz
Sample rate 44.1 kHz, 48 kHz, 96 kHz
Signal-to-noise ratio A/D: 100 dB typ.
D/A: 102 dB
USB INTERFACE
Type High-Speed 480 MBit/s
Full-Speed 12 MBit/s
MIDI INTERFACE
Type 5-pin DIN connectors: IN, OUT A,
OUT B/THRU
POWER SUPPLY
Voltage 100 - 240 V~, 50/60 Hz
Power consumption max. 15 W
Fuse T 1 A H 250 V
Mains connection Standard IEC receptacle
DIMENSIONS/WEIGHT
Dimensions
(W x H x D) 13" x 4" x 11 4/5"
(330 mm x 100 mm x 300 mm)
Weight approx. 5 lbs (2.25 kg)
DYNAMIC SECTION
Noise Gate Threshold -¥ to 0 dB
Limiter Threshold -15 to 0 dB
