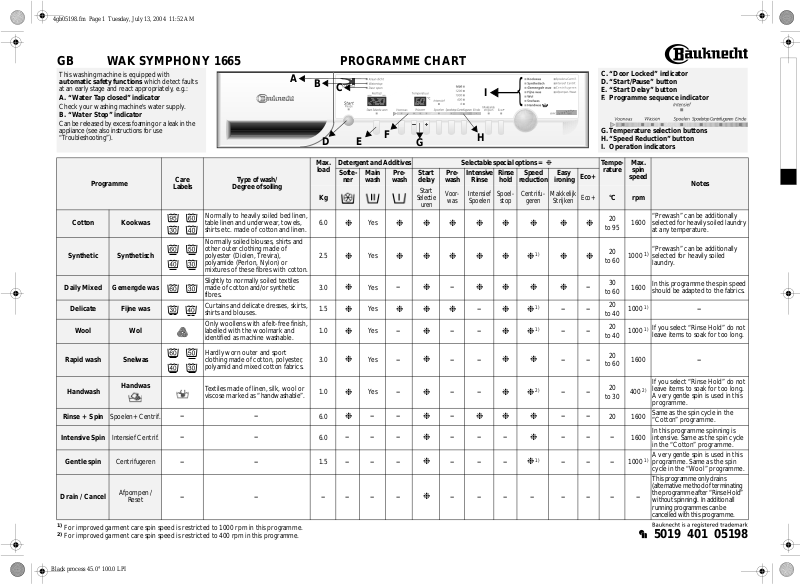

GB WAK SYMPHONY 1665 PROGRAMME CHART

This washing machine is equipped with

automatic safety functions

at an early stage and react appropriately, e.g.:

A. “Water Tap closed” indicator

Check your washing machine's water supply.

B. “Water Stop” indicator

Can be released by excess foaming or a leak in the appliance (see also instructions for use “Troubleshooting”).

Programme

Cotton Kookwas

Synthetic Synthetisch

Daily Mixed

Delicate Fijne was

Wool Wol

Rapid wa sh Snelwas

Handwash

Rinse + Spin

Intensive Spin

Gentle spin

Drain / Cancel

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Gemengde was

Spoelen+Centrif.

Intensief Centrif .

Centrifugeren

which detect faults

Handwas

Afpompen /

Reset

Care

Labels

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or mixtures of these fibres with cotton.

Slightly to normally soiled textiles made of cotton and/or synthetic fibres.

Curtains and delicate dresses, skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

Hardly worn outer and sport clothing made of cotton, polyester, polyamid and mixed cotton fabrics.

Textiles made of linen, silk, wool or viscose marked as “handwashable”.

Type of wash/

Degree of soiling

–– ––

––

––––––

Max.

load

6.0

2.5

3.0

1.5

1.0

3.0

1.0

6.0

1.5

Detergent and Additives Selectable special options =

Softe-

ner

❉

––– –––

Main wash

Yes

Pre-

wash

❉❉❉❉❉❉ ❉❉

❉❉❉❉❉❉

–

❉❉❉

–

––

Start delay

Start

Selectie

uren

❉

❉ ❉

❉

Pre-

wash

Voor-

was

–

––

–– –

––– –––

–––– ––––

{

❉

Intensive

Intensief

Spoelen

Rinse

hold

Spoel-

stop

Speed

reduction

Centrifu-

geren

Easy

ironing

Makkelijk

Strijken

❉❉❉ ❉

–

❉❉

❉❉❉

❉

C. “Door Locked” indicator D.“Start/Pause” button E. “Start Delay” button F. Programme sequence indicator

G. Temperature selection buttons H.“Speed R eduction” button I. Operation indicators

Tempe -

rature

Eco+

–

°C rpm

to 95

to 60

to 40

to 60

to 30

20 1600

Eco+

❉❉

–– ––

––

–– ––

––– –––

Max.

spin

speed

“Prewash” can be additionally

1600

selected for heavily soiled laundry at any temperature.

“Prewash” can be additionally

1000

selected for heavily soiled laundry.

In this programme the spin speed

1600

should be adapted to the fabrics.

1000

If you select “Rinse Hold” do not

1000

leave items to soak for too long.

1600

If you select “Rinse Hold” do not leave items to soak for too long.

400

A very gentle spin is used in this programme.

Same as the spin cycle in the “Cotton” programme.

In this programme spinning is

1600

intensive. Same as the spin cycle in the “Cotton” programme.

A very gentle spin is used in this

1000

programme. Same as the spin cycle in the “Wool” programme.

This programme only drains (alternative method of terminating the programme after “Rinse Hold” without spinning). In addition all running programmes can be cancelled with this programme.

Notes

5019 401 05198

–

Black process 45.0° 100.0 LPI

4gb05198.fm Page 2 Tuesday, July 13, 2004 11:52 AM

CONSUMPTION DATA*

Programme Temper a t u r e

(°C)

Cotton 95 6.0 49*** 1.90 2:00 Cotton 60 6.0 44 1.14 2:20

Cotton with “Eco+”**** 60 6.0 44 1.02 2:30

Cotton 40 5.0 42 0.70 2:00 Synthetic 60 2.5 55*** 0.70 1:30 Synthetic 40 2.5 50 0.50 1:15

Daily Mixed 40 3.0 43 0.55 1:00

Delicate 30 1.5 60 0.50 0:45

Wool 40 1.0 60 0.50 0:40

Rapid wash 30 3.0 37 0.40 0:30

Handwash 30 1.0 45 0.40 0:35

*Consumption ** The

programme duration

and to adapt the programme run time accordingly.

*** To reduce

water out.

*** Reference Programme for Energy Label

were measured in normalized conditions in compliance with Standard IEC/EN 60456.

values

the water temperature

may also vary from the chart values. The washing machine is able to allow for particular household conditions

, some cold water is added at the end of the main wash cycle, before the pump drains the

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1. Turn the

programme selector knob

direction to the desired programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the

button is flashing.

Pause”

2. The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3. The temperature can be altered by pressing the

“+”

button under the corresponding LED

“-”

display.

SELECT SPECIAL OPTIONS The indicator lights go on.

“Prewash” button

• Only for heavily soiled laundry (for example sand

or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

• An additional rinse cycle is carried out.

• This additional option is particularly suitable for

areas with very soft water, for washing baby linen and helping people with detergent allergies.

in any

“Start/

Wash

(kg)

Water

(l)

Energy

(kWh)

Programme duration **

(hours : minutes)

“Rinse Hold” button

• The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

• This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.

• This additional function is particularly useful if you want to postpone spinning to a later time.

The programme has reached the “Rinse

Note:

Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

• If you do not wish to spin the clothes, turn the programme selector knob to “Drain/Cancel” and press the

“Start/Pause”

button again.

“Speed Reduction” button

• A maximum spin speed is assigned to each programme.

• Press the button to set another speed for the spin cycle.

• If the spin speed “0” is selected, the final spin is cancelled. The water is only drained out.

approx.

“Easy Ironing” button

• To lessen creasing, the water quantity is increased and the clothes are spun very gently at reduced power. This makes your laundry significantly damper at the end of the programme.

“Eco+” button

• With a modified temperature profile and a slightly prolonged washing duration, the optimum combination of excellent washing result and even lower energy consumption can be achieved.

START DELAY

The “Start Delay” allows to run the machine at the consumer's convenience, for example at night when electricity is cheaper.

• Press the “Start Delay” button. Select the programme start from 1 to 19 hours ahead by pressing the button again.

•Press the

“Start/Pause”

button. The Start Delay indicator light flashes until the programme starts.

• During programme start the remaining time appears in the digital display.

“Start Delay” correction.

• Before the “Start Delay” has been started: The preset number of hours can be altered by continuously pressing the “Start Delay” button. The number of hours can be reduced by first turning the programme selector switch to the “Off” position. Then set the programme again and select the desired number of hours.

• After the “Start Delay” has been started: The preset number of hours can be reduced by pressing the “Start Delay” button again. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the

“Start/Pause”

start the programme by pressing the

Pause”

button flashes. Turn on the tap and

“Start/

button. Now the indicator light above the

button goes on.

In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCKED

In the first 15 minutes after the start of the “Cotton” and “Synthetic” programmes the door can be opened to add further laundry. This is not possible if “Rapid Wash” is selecte.

PROGRAMME END

• The remaining time display shows “0:00” and the “End” indicator lights up.

1. Turn the programme selector knob to the “Off” position.

2. Turn off the tap.

3. Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1. Press the

“Start/Pause”

button to interrupt the

programme. The indicator light flashes.

2. Select the new programme (with temperature), any additional options and - if you wish - another spin speed.

3. Press the

“Start/Pause”

button again to restart

the programme.

•If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Interrupt/Cancel Programme).

CANCEL/DELETE PROGRAMME

1. Press the

“Start/Pause”

button to interrupt the

programme. The indicator light flashes.

2. Set the programme selector to “Drain/Cancel”. The spin speed

and the remaining time “2

“0”

minutes” are displayed.

3. Press the

“Start/Pause”

button to start the

“Drain/Cancel” programme.
