GB WAK EXCLUSIV 1200
This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:
A.“Close Door” indicator
B.“Pump” indicator
C.“Water Tap closed” indicator
Check your washing machine’s water supply.

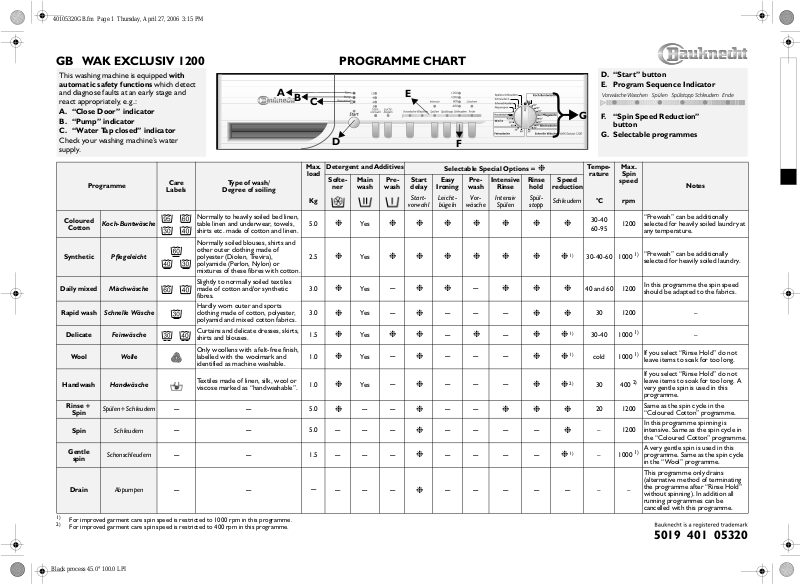

PROGRAMME CHART
A |
B |
E |
|
C |
D F
{
G
D.“Start” button
E.Program Sequence Indicator
F.“Spin Speed Reduction” button
G.Selectable programmes
|
|
|
|
|
|
|
|
|
|
|
|
|
Max. |
Detergent and Additives |
|
Selectable Special Options = |
|
Tempe- |
Max. |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
load |
|
|
|
|
|
|
|
|
|
rature |
Spin |
|
|
|
|
|
Programme |
|
|
Care |
Type of wash/ |
|
Softe- |
Main |
Pre- |
Start |
Easy |
Pre- |
Intensive |
Rinse |
Speed |
|
speed |
Notes |
|
|
|
|
||||||||
|
Labels |
Degree of soiling |
|
ner |
wash |
wash |
delay |
Ironing |
wash |
Rinse |
hold |
reduction |
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Kg |
|
|
|
Start- |
Leicht- |
Vor- |
Intensiv |
Spül- |
Schleudern |
°C |
rpm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
vorwahl |
bügeln |
wäsche |
Spülen |
stopp |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Coloured |
|
|
|
|
|
|
|
|
|
|
|
Normally to heavily soiled bed linen, |
|
|
|
|
|
|
|
|
|
|
30-40 |
|
“Prewash” can be additionally |
|
|
|
|
Koch-Buntwäsche |
|
|
|
|
|
|
|
|
|
|
table linen and underwear, towels, |
5.0 |
Yes |
1200 |
selected for heavily soiled laundry at |
|
|
|
|
||||||||||
Cotton |
|
|
|
|
|
|
|
|
|
|
60-95 |
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
shirts etc. made of cotton and linen. |
|
|
|
|
|
|
|
|
|
|
|
any temperature. |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Normally soiled blouses, shirts and |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
other outer clothing made of |
|
|
Yes |
|
|
|
|
|
|
1) |
30-40-60 |
1000 1) |
“Prewash” can be additionally |
|
|
|
|
Synthetic |
Pflegeleicht |
|
|
|
|
|
|
|
|
|
|
polyester (Diolen, Trevira), |
2.5 |
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
polyamide (Perlon, Nylon) or |
|
|
|
|
|
|
|
|
|
|
|
|
selected for heavily soiled laundry. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
mixtures of these fibres with cotton. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Slightly to normally soiled textiles |
|
|
Yes |
– |
|
|
– |
|
|
|
40 and 60 |
1200 |
In this programme the spin speed |
|
|
|
|
Daily mixed |
Mischwäsche |
|
|
|
|
|
|
|
|
|
|
made of cotton and/or synthetic |
3.0 |
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
should be adapted to the fabrics. |
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
fibres. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Hardly worn outer and sports |
|
|
Yes |
– |
|
– |
– |
– |
|
|
30 |
1200 |
– |
|
|
|
|
Rapid wash |
Schnelle Wäsche |
|
|
|
|
|
|
|
|
|
|
clothing made of cotton, polyester, |
3.0 |
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
polyamid and mixed cotton fabrics. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Delicate |
Feinwäsche |
|
|
|
|
|
|
|
|
|
|
Curtains and delicate dresses, skirts, |
1.5 |
|
Yes |
|
|
– |
|
– |
|
1) |
30-40 |
1000 1) |
– |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
shirts and blouses. |
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Only woollens with a felt-free finish, |
|
|
Yes |
– |
|
– |
– |
– |
|
1) |
cold |
1000 1) |
If you select “Rinse Hold” do not |
|
|
|
|
Wool |
Wolle |
|
|
|
|
|
|
|
|
|
|
labelled with the woolmark and |
1.0 |
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
identified as machine washable. |
|
|
|
|
|
|
|
|
|
|
|
|
leave items to soak for too long. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Textiles made of linen, silk, wool or |
|
|
|
|
|
|
|
|
|
|
|
|
If you select “Rinse Hold” do not |
|
|
|
|
Handwash |
Handwäsche |
|
|
|
|
|
|
|
|
|
|
1.0 |
|
Yes |
– |
|
– |
– |
– |
|
2) |
30 |
400 2) |
leave items to soak for too long. A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
viscose marked as “handwashable”. |
very gentle spin is used in this |
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
programme. |
|
|
|
|
Rinse + |
Spülen+Schleudern |
|
|
|
|
– |
– |
5.0 |
|
– |
– |
|
– |
– |
|
|
|
20 |
1200 |
Same as the spin cycle in the |
|
|
|
|
|||||
Spin |
|
|
|
|
“Coloured Cotton” programme. |
|
|
|
|
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
– |
– |
|
– |
– |
– |
|
– |
– |
– |
– |
|
|
|
In this programme spinning is |
|
|
|
|
|||||
Spin |
Schleudern |
|
|
|
|
5.0 |
– |
1200 |
intensive. Same as the spin cycle in |
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
the “Coloured Cotton” programme. |
|
|
|
|
Gentle |
|
|
|
|
|
– |
– |
|
– |
– |
– |
|
– |
– |
– |
– |
1) |
|
1000 1) |
A very gentle spin is used in this |
|
|
|
|
|||||
Schonschleudern |
|
|
|
|
1.5 |
– |
programme. Same as the spin cycle |
|
|
|
|
||||||||||||||||||
spin |
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
in the “Wool” programme. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
This programme only drains |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(alternative method of terminating |
|
|
|
|
Drain |
Abpumpen |
|
|
|
|
– |
– |
– |
– |
– |
– |
|
– |
– |
– |
– |
– |
– |
– |
the programme after “Rinse Hold” |
|
|
|
|
|||||
|
|
|
|
without spinning). In addition all |
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
running programmes can be |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
cancelled with this programme. |
|
|
|
|
1)For improved garment care spin speed is restricted to 1000 rpm in this programme.
2) For improved garment care spin speed is restricted to 400 rpm in this programme.
5019 401 05320
Black process 45.0° 100.0 LPI
40105320GB.fm Page 2 Thursday, April 27, 2006 3:15 PM
CONSUMPTION DATA *
Programme |
Temperature |
Wash |
Water |
Energy |
Programme |
|
|
|
|
|
duration |
|
|
|
|
|
approx. |
|
(°C) |
(kg) |
(l) |
(kWh) |
(hours : minutes) |
Coloured Cotton |
95 |
5.0 |
46*** |
1.90 |
2:00 |
|
|
|
|
|
|
Coloured Cotton |
60 |
5.0 |
39 |
0.95 |
2:10 |
|
|
|
|
|
|
Coloured Cotton |
40 |
5.0 |
39 |
0.60 |
2:10 |
|
|
|
|
|
|
Synthetic |
60 |
2.5 |
55*** |
0.90 |
1:40 |
|
|
|
|
|
|
Synthetic |
40 |
2.5 |
50 |
0.50 |
1:25 |
|
|
|
|
|
|
Daily Mixed |
40 |
3.0 |
44 |
0.45 |
1:00 |
|
|
|
|
|
|
Rapid wash |
30 |
3.0 |
35 |
0.30 |
0:30 |
|
|
|
|
|
|
Delicate |
40 |
1.5 |
55 |
0.60 |
0:45 |
|
|
|
|
|
|
Wool |
40 |
1.0 |
55 |
0.60 |
0:40 |
|
|
|
|
|
|
Handwash |
30 |
1.0 |
40 |
0.30 |
0:35 |
|
|
|
|
|
|
*The consumption values were measured in normalized conditions in compliance with Standard IEC/EN 60456.
**The programme duration may also vary from the chart values. The washing machine is able to allow for particular household conditions and to adapt the programme run time accordingly.
***To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.
POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME
Add the detergent as described in the chapter “Detergent and Additives” in the instructions for use.
1.Turn the programme selector knob in any direction to the desired programme.
The light above the “Start” button flashes.
2.The programme sequence indicator and the indicator with the maximum possible spin speed light up.
SELECT SPECIAL OPTIONS - The corresponding lights go on (if not selectable: rapid flashing for 3 seconds)
“Easy Ironing” button
•To lessen creasing, the water quantity is increased and the clothes are spun very gently at reduced power. This makes your laundry significantly damper at the end of the programme.
“Prewash” button
•Only for heavily soiled laundry (e.g. sand or granular dirt). Programme duration is increased by some 15 min.
“Intensive Rinse” button
•An additional rinse cycle is carried out.
•This option is particularly suitable for areas with very soft water, washing baby linen and helps people with detergent allergies.
“Rinse Hold” button
•The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.
•This option is particularly recommended for the programme “Synthetics” or “Delicates”.
•This function is particularly useful if you want to
postpone spinning to a later time.
Note: The programme has reached the “Rinse Hold” when the corresponding light flashes.
Terminate the “Rinse Hold” option:
•Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.
•If you do not wish to spin the clothes, turn the programme selector knob to “Drain” and press the “Start” button again.
“Speed Reduction” button
•A maximum spin speed is assigned to each programme.
•Press the button to set another speed for the spin cycle.
•If no light goes on, the final spin is cancelled. The water is only drained out.
START DELAY
With the “Start Delay function the appliance can be run cheaply e.g. at night, when the electricity is cheaper.
•Press the “Start Delay” button. Select the programme start from 3 to 12 hours ahead by pressing the button again.
•Press the “Start” button.
The Start Delay indicator light flashes until the programme starts.
“Start Delay” correction.
•Before the “Start Delay” has been started: The preset number of hours can be altered by continuously pressing the “Start Delay” button.
By pressing the Start Delay button again after the “12” setting, the time delay can be deleted again or set again.
•After the “Start Delay” has been started:
The preset number of hours can be reduced by pressing the “Start Delay” button again; please note, however, that the washing programme starts IMMEDIATELY, as soon as you activate it again with the Start Delay switch 3 setting. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.
PROGRAMME START
After you have selected the programme and the additional option, the indicator light over the “Start” button flashes. Turn on the tap and start the programme by pressing the “Start” button. Now the indicator light above the button goes on. In addition, all programme phases are indicated by the associated lights. After the end of a programme phase, the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme, only the “End” indicator is still on.
“CLOSE DOOR” INDICATOR
If “Start” has been pressed, but the door is not latched, the “Close Door” indicator flashes for 10 seconds. The door must be pushed shut within this time. After the 10 seconds, the “Close Door” indicator goes out and the “Start” button flashes. The door must then be opened and closed again and the “Start” button must be pressed.
PROGRAMME END
• The “End” indicator goes on.
1.Set the programme selector knob to the “Off” position.
2.Turn off the tap.
3.Open the door and unload the machine.
RESELECT AFTER PROGRAMME START
A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.
1.Press the “Start” button to interrupt the programme.
The light flashes.
2.Select the new programme (with temperature), any additional options and - if you wish - another spin speed.
3.Press the “Start” button again to restart the
programme.
•If you are in the “Prewash” programme step, this additional option cannot be deselected as described (to do this see “Delete Option”).
DELETE OPTION
Press the “Delete” button.
The light goes on. Water is drained out and after 1 to 2 minutes the basic setting of the previously selected programme is inserted.
