Bauknecht TRAK 6330, GSI 4643 BW-IN, GSI 4643 BW-BR Quick Reference Guide

GSI 4643

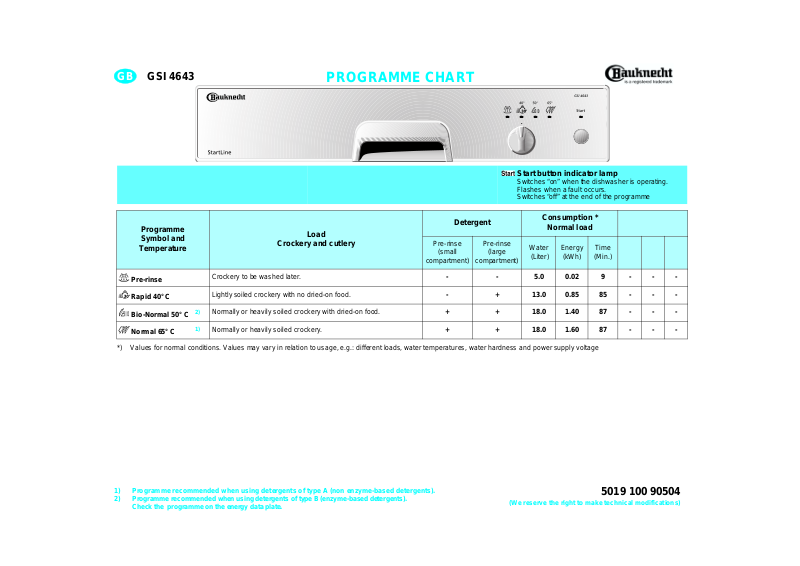

PROGRAMME CHART

Start button indicator lamp

Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches “off” at the end of the programme

Programme Symbol and

Temperature

Pre-rinse

Rapid 40° C

Bio-Normal 50° C

Normal 65° C

*) Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage

1) Programme recommended when using detergents of type A (non enzyme-based detergents).

2) Programme recommended when usingdet ergent soft ypeB(enzyme-based detergents). Check the programme on the energy data plate.

Crockery to be washed later.

Lightly soiled crockery with no dried-on food.

Normally or heavily soiled crockery with dried-on food.

Normally or heavily soiled crockery.

Crockery and cutlery

Load

Detergent

Pre-rinse

(small

compartment)

--5.00.029---

- + 13.0 0.85 85 - - -

+ + 18.0 1.40 87 - - -

+ + 18.0 1.60 87 - - -

Pre-rinse

(large

compartment)

(We reserve the right to make technical modifications)

Consumption *

Normal load

Water

(Liter)

Energy

(kWh)

Time

(Min.)

5019 100 90504

Quick Reference Guide

Daily check list

1. Arrange crockery so that items do not touch each other.

2. Load cups at an inclination to facilitate water circulation.

3. In general, place cutlery in the ba sket with the handles positioned downwards, but ensure that any sharp knives and forks that might cause injury are placed in the basket with the handles positioned upwards.

4. Make sure the water jet can reach all loaded items and that the spray arms turn freely.

5. Turn on the water supply tap before starting the dishwasher.

Important:

• Switch off the dishwasher: once the “Start” indicator lamp has switched off. If you switch off the dishwasher during a wash cycle, when switched on again the dishwasher resumes the cycle from where it was interrupted.

• If a fault occurs or you wish to change the current programme, press the “START” button for about 5 seconds until the Start indicator lamp switches off! Refer to the “Troubleshooting Guide” in these user instructions to remedy any problems.

• If a regeneration salt is to be added, IMMEDIATELY start a washing programme, in order to eliminate any residual salt.

• If a fault occurs or you wish to change the current programme, press the “START” button. Sometimes even when the regeneration salt container is full, the corresponding indicator lamp may illuminate during the first wash cycle.

Crockery Holders:

• Down: cups and long-stemmed glasses.

• Up: plates.

Upper rack

Lower rack

Cutlery Basket:

The cutlery basket can be removed to increase available space.

Also refer to the “Dishwasher Loading Instructions” which contain detailed information and useful tips.
