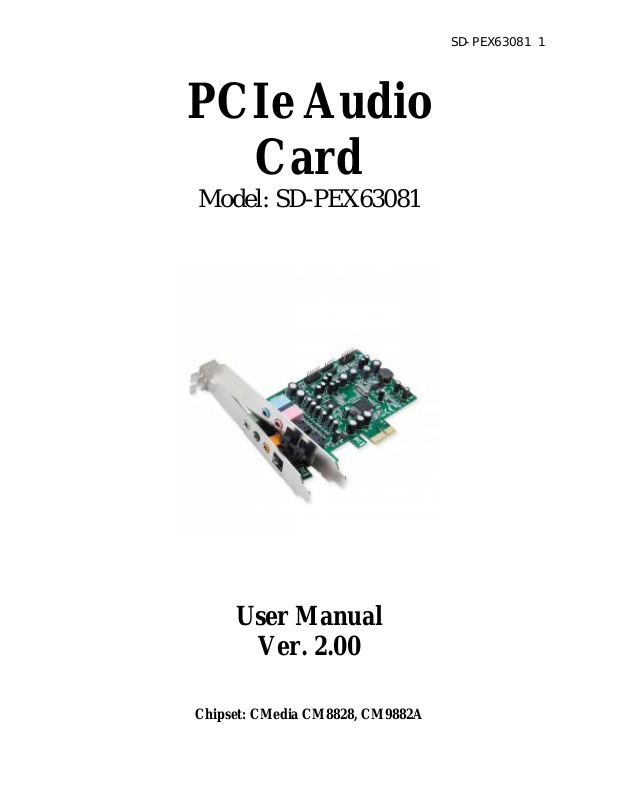

Baldor SD-PEX63081 User Manual

SD-PEX63081 1

PCIe Audio

Card

Model: SD-PEX63081

User Manual

Ver. 2.00

Chipset: CMedia CM8828, CM9882A

SD-PEX63081 2

Product Introduction

This Multi-Channel PCI-Expre ss Sound Card is a versatile 24bit m ulti-channel
audio controller that brings your computer at par with the fidelity of state-of-the-art
home audio e lectronics. I t pr ov ide s sur ro u nd sou nd o ut put a nd crystal-clear audio
quality for playback and recording. Some of the typical applications for thi s part
are computer based high fidelity multi-channel audio, home theater and
entertainment, cost eff e ctive multi-track audio, PC-based data acqu i si ti on,
waveform generation.

Features & Specifications

- Based on CMedia CM8828 Multi-channel audio processor

- Based on CMedia9882A 8-Channel HDA Codec

- Complies w ith PCI-Express base Specification Rev. 1.1

- Sampling Rate up to 24-bit and 192 KHz for both playing back and re cording

- Up to 8-Channel analog outputs

- 2-Channel analog inputs

- 2-Channel m icrophone input

- SPDIF & Coaxial combo input / output

- Supports swapping of Center and LFE audio output channel

- Integrated de -pop function for elimina ting pop noise during PC power-up and
shutdown

- Supports ASIO and WASAPI

- Supports S tandard Prof ile or Low Profile chassis

SD-PEX63081 3

Package Con tents

- 1 x Multi-Channel PCI-Ex pr e ss Sou n d Car d – Main Card

- 1 x Multi-Channel PCI-Ex pr e ss Sou n d Car d – Daughter Card (optional)

- 1 x 10-pin flat cable (optional)

- 1 x User Manual

- 1 x Driver CD

System Requirements

- Supports Windows® XP/Vista/7/8/ME/2000/Server 2003/2008/8

Product Overview

SD-PEX63081 4

A. Analog Left/Right Line in
B. Analog Left/Right microphone input
C. S/PDIF optical input: Connect to S/PDIF optical output of another audio device
D. S/PDIF optica l outpu t: Co nn ec t to digital amplifier or surround sound dec oder
E. Front Left/Right analog output
F. Side Surround left/Right analog output
G. Center/Subwoofer analog output
H. Rear Surround Left/Right analog output
J2. Two 10-pin heade rs for connecting to the daughter card
J4. 9-pin header for connecting to Intel HD front panel audio

1

J10. Analog CD-IN port (Signal: L-G-G-R)
J7. Analog CD-IN port (Signal: G-R-G-L)

1

The red color coded line on the cable should connect to the pin number 1

which is represented by a triangle silkscreen next to the header
