LEAKATOR®10

Combustible Gas Leak Detector

Leak Detection

Headquarters: 621 Hunt Valley Circle, New Kensington, PA 15068 U.S.A.

Phone: [phone] Canada: 1-800-328-5217 E-Mail: [e-mail] Website: www.bacharach-inc.com

Bacharach Makes Leak Detection Easy

Bacharach’s Leakator 10 is a low maintenance combustible gas leak detection unit, small enough to be operated with
just one hand, yet loaded with the kind of advanced features and technology professionals demand.

Powered for up to 30 hours of continuous operation by alkaline C-cell batteries, Leakator 10 comes complete with a
flexible 20-inch long probe for hard-to-reach areas and a solid state sensor that will last for up to five years. Leakator 10
allows you to pinpoint large and small leaks quickly, while checking a relatively large area in a short amount of time.

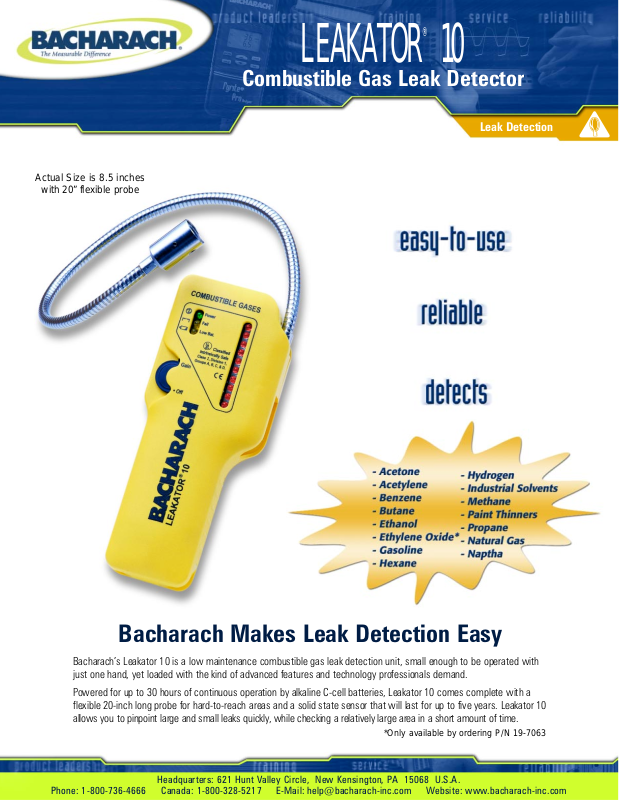

Actual Size is 8.5 inches

with 20” flexible probe

*Only available by ordering P/N 19-7063

Leakator and Bacharach are registered trademarks of Bacharach Inc.
©August, 2002, Bacharach, Inc., all rights reserved. All information herein is subject to verification.
Product Bulletin-4098 08/02 10M DXC

Printed in U.S.A.

Headquarters: 621 Hunt Valley Circle, New Kensington, PA, 15068 U.S.A.

Phone: [phone] Fax: [phone] Email: [e-mail] Website: www.bacharach-inc.com

• Visual Indicator

10 Ultra-bright LEDs

• Audible Indicator

Loud audible ticking rate

• 30 Hour Battery Life

Easily replaced C-cells

• Sensitivity Thumb-Wheel

Aids pinpointing leak detection

• Operational Status LEDs

English and international systems

• Solid State Sensor

Plug-in sensor, five year typical life

• 20 Inch Flexible Probe

For hard to reach locations

• Tough ABS Plastic Housing

Durable and rugged

• Carrying Strap

Easy to use

• UL Listed

Intrinsically safe

• CE Mark

Electronic performance standard

Features &Benefits

PART NO. DESCRIPTION

19-7051 LEAKATOR 10, in custom carrying case, UL Listed,

flexible 20 inch probe for combustible gases and vapors,
with instruction manual (batteries not included)

19-7063 Leakator ETO - For detection of Ethylene Oxide

19-0398 Replacement sensor and matching resistor

19-0397 Replacement rigid carrying case

19-3091 Replacement flexible probe assembly

51-2529 Optional Earphone

Housing Molded, three piece ABS plastic in bright yellow color,

includes carrying strap

Power Five alkaline C-cells, not provided

30 hours typical life for continuous operation

Warm-up Time Automatic, self check, about ten seconds to operational

condition

Sensor Semiconductor type. Five year typical life.

Plug-in replacement

Probe Self storing 20 inch flexible probe. Accommodates

integral sensor

Sensitivity 20 ppm useable sensitivity (methane)

Status indicators Visual: 10 ultra-bright red LED’s. Audible: Variable speed

ticking sound. Earphone available for use in noisy
environments. Power-On ultra-bright green LED, Fail
ultra-bright yellow LED. Low Battery ultra-bright yellow LED

Environments 23

O

to 130O F (-5O to 54OC), 10% to 90% relative humidity,

non-condensing

Dimensions / Leakator: 18 oz. (0.51Kg.), 8.5” x 2.25” x 1.75”
Weight (21.6 cm x 5.7 cm x 4.4 cm)

Case: Black HDPE, 17 oz. (.48Kg), 10.5” x 7” x 3”
(26.7 cm x 17.8 cm x 7.6 cm)

Safety Approvals UL listed, intrinsically safe, for use in Class l, Division 1,

Groups A, B, C, and D classified areas

Warranty One year limited warranty. See warranty card for more

information

Distributed By:

ORDERING INFORMATION

SPECIFICATIONS
