Baby Lock Ellegante BLG Instruction and Reference Guide

IMPORTANT SAFETY INSTRUCTIONS

When using this machine, basic safety precautions should always be taken, including the following: Read all instructions before using.

DANGER - To reduce the risk of electric shock:

1. The machine should never be left unattended while plugged in. Always unplug the machine from the electrical outlet immediately after using and before cleaning.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Do not allow this machine to be used as a toy. Close attention is necessary when the machine is used by or near children.

2. Use this machine only for its intended use as described in this manual. Use only accessories recommended by the manufacturer as contained in this manual.

3. Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the machine to the nearest authorized retailer or service center for examination, repair, electrical or mechanical adjustment.

4. Never operate the machine with any air openings blocked. Keep ventilation openings of the machine and foot control free from the accumulation of lint, dust, and loose cloth.

5. Never drop or insert any object into any opening.

6. Do not use outdoors.

7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

8. To disconnect, turn the main switch to the symbol “ ” position which represents off, then remove plug from outlet.

9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

10. Keep fingers away from all moving parts. Special care is required around the machine needle.

11. Always use the proper needle plate. The wrong plate can cause the needle to break.

12. Do not use bent needles.

13. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.

14. Switch the machine to the symbol “ ” position when making any adjustments in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, and the like.

15. Always unplug the machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.

16. This sewing machine is not intended for use by young children or infirm persons without supervision.

17. Young children should be supervised to ensure that they do not play with this machine.

18. If the LED light unit (light-emitting diode) is damaged, it must be replaced by authorized dealer.

19. Hold the foot controller plug when rewinding into cord reel. Do not allow the plug to whip when rewinding.

SAVE THESE INSTRUCTIONS

This machine is intended for household use.

FOR USERS IN THE UK, EIRE, MALTA

AND CYPRUS ONLY

If this machine is fitted with a three-pin non-rewireable BS plug then please read the following.

IMPORTANT

If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut off and an appropriate three-pin plug fitted. With alternative plugs an approved fuse must be fitted in the plug.

NOTE

The plug served from the main lead must be destroyed as a plug with bared flexible cords is hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying

the mark, rating as marked on plug.

Always replace the fuse cover, never use plugs with the fuse cover omitted.

WARNING DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER ‘E’, BY

THE EARTH SYMBOL OR COLOURED GREEN OR GREEN AND YELLOW.

The wires in this main lead are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wiring in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N’ or coloured black or blue.

The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or coloured red or brown.

Federal Communications Commission (FCC)

Declaration of Conformity (For USA Only)

Responsible Party: Tacony Corporation

1760 Gilsinn Lane, Fenton, Missouri 63026

declares that the product Product Name:

Model Number:

complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Baby Lock Sewing Machine

BLG

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the retailer or an experienced radio/TV technician for help.

• The enclosed interface cable should be used in order to ensure compliance with the limits for a Class

B digital device.

• Changes or modifications not expressly approved by Tacony Corporation could void the user's

authority to operate the equipment.

iii

CONGRATULATIONS ON CHOOSING OUR

MACHINE

Your machine is the most advanced computerized household embroidery and sewing machine. To fully enjoy all the features incorporated, we suggest that you study the manual.

PLEASE READ BEFORE USING THIS MACHINE

For safe operation

1. Be sure to keep your eye on the needle while sewing. Do not touch the handwheel, thread take-up, needle, or

other moving parts.

2. Remember to turn off the power switch and unplug the cord when:

• Operation is completed

• Replacing or removing the needle or any other parts

• A power failure occurs during use

• Maintaining the machine

• Leaving the machine unattended.

3. Do not store anything on the foot controller.

4. Plug the machine directly into the wall. Do not use extension cords.

For a longer service life

1. When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine

near a space heater, iron, halogen lamp, or other hot objects.

2. Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage

the case and machine, and should never be used.

3. Do not drop or hit the machine.

4. Always consult the operation manual when replacing or installing any assemblies, the presser feet, needle, or

other parts to assure correct installation.

For repair or adjustment

In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of the operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your local authorized Baby Lock retailer.

For additional product information and updates, visit our web site at www.babylock.com

The contents of this manual and specifications of this product are subject to change without notice.

WHAT YOU CAN DO WITH THIS MACHINE

SPECIAL FEATURES

Check operations and view advice on the large LCD (liquid crystal display).

Prepare the bobbin thread with one touch.

The automatic thread tension makes trial sewing unnecessary.

Automatic threading makes threading quick and easy.

Getting Ready Sewing Basics

To learn the operation of the principal parts and the screens

To learn how to prepare for sewing and basic sewing operations

Chapter

!"#$%& !"#$%'&

Utility Stitches

Pre-programmed with more than 100 frequently used stitches

Chapter

!"#$%(& !"#$%&&

Embroidery

Maximum 30 cm x 18 cm (approx. 12 x 7 inches) for large embroidery designs

Chapter

!"#$%)*+ !"#$%)++

Chapter

Character/Decorative Stitches

The variety of stitches widen your creativity

Chapter

Embroidery Edit

Designs can be combined, rotated or enlarged

Chapter

Appendix

Caring for your machine and dealing with errors and malfunctions

Chapter

!"#$%*,)

HOW TO USE THIS MANUAL

Chapter 1 and Chapter 2 explain your sewing machine’s basic operation procedures for someone who is using the sewing machine for the first time. If you want to sew utility stitches or character/ decorative stitches, read Chapter 1 and Chapter 2, then go on to Chapter 3 (Utility Stitches) or Chapter 4 (Character/ Decorative Stitches). When you are ready to begin using the embroidery function after reading Chapter 1 and Chapter 2, proceed to Chapter 5 (Embroidery). Once you understand the steps explained in Chapter 5, go on to Chapter 6 (Embroidery Edit) for an explanation about the convenient embroidery edit functions. In the screens that appear in the step-by-step directions the parts that are used for the operation are shown

in . Compare the screen in the directions with the actual screen, and carry out the operation. If, while using the machine, you experience something you do not understand, or there is a function you

would like to know more about, refer to the index at the back of the operation manual in conjunction with the table of contents to find the section of the manual you should refer to.

Chapter 3

To sew utility stitches To sew character or decorative stitches

To do machine embroidery

Chapter 1 Chapter 2

Chapter 4

Chapter 1 Chapter 2 Chapter 5 Chapter 6

vii

Contents

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ..................i

WHAT YOU CAN DO WITH THIS MACHINE .....vi

HOW TO USE THIS MANUAL ............................vii

NAMES OF MACHINE PARTS AND THEIR

FUNCTIONS .........................................................1

Machine .................................................................................1

Needle and Presser Foot Section............................................. 2

Embroidery Unit ..................................................................... 2

Operation Buttons................................................................... 3

Included Accessories ..............................................................3

Options................................................................................... 6

Removing the LCD cover........................................................ 7

Attaching the LCD cover.........................................................7

Chapter 1 Getting Ready 9

TURNING THE MACHINE ON/OFF ...................10

LCD SCREEN .......................................................11

Using the Machine Setting Mode Key .................................. 14

Using the Machine Operation Mode Key ..............................19

Using the Pattern Explanation Key ........................................ 20

LOWER THREADING..........................................21

Winding the Bobbin..............................................................21

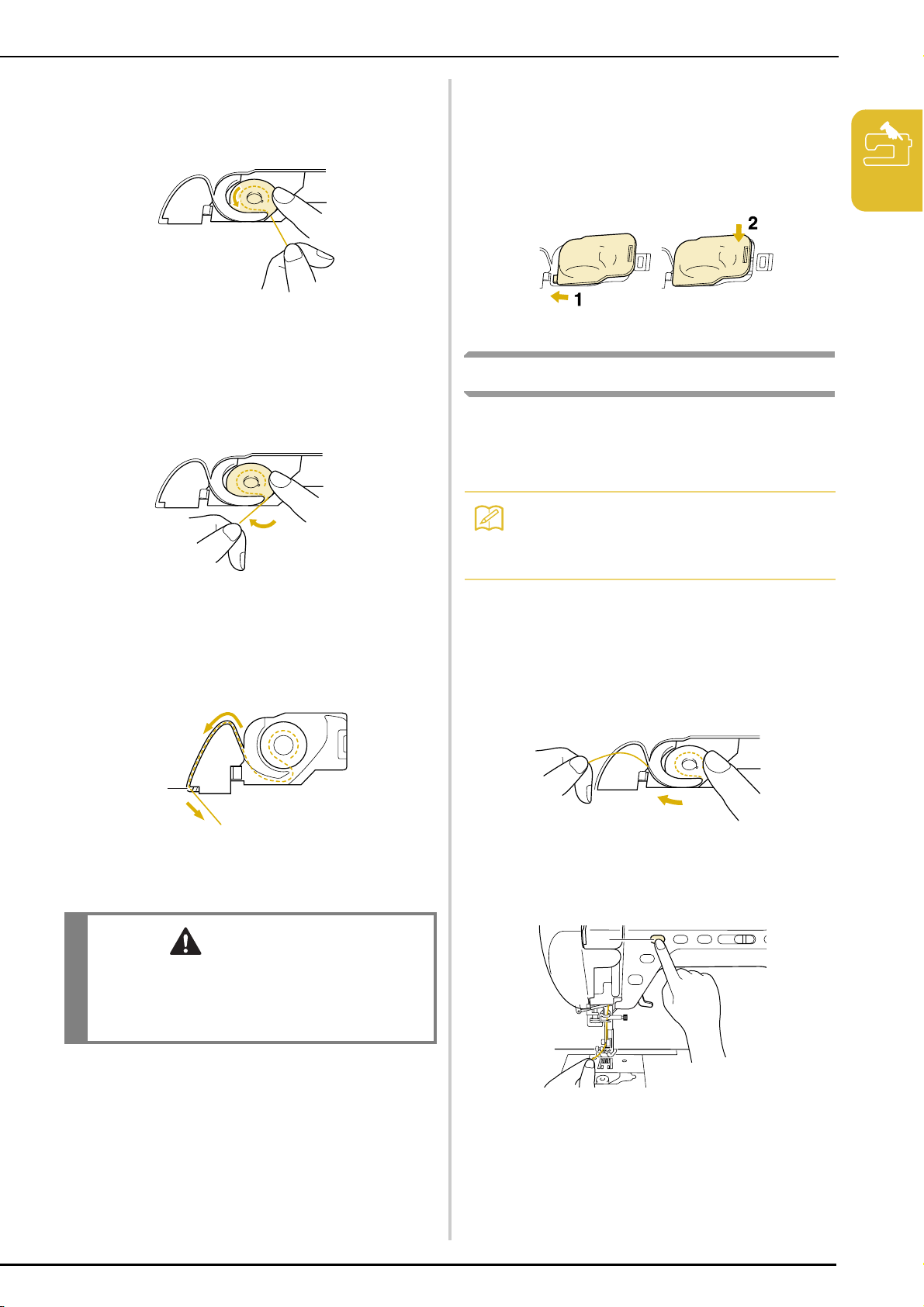

Setting the Bobbin................................................................. 24

Pulling Up the Bobbin Thread............................................... 25

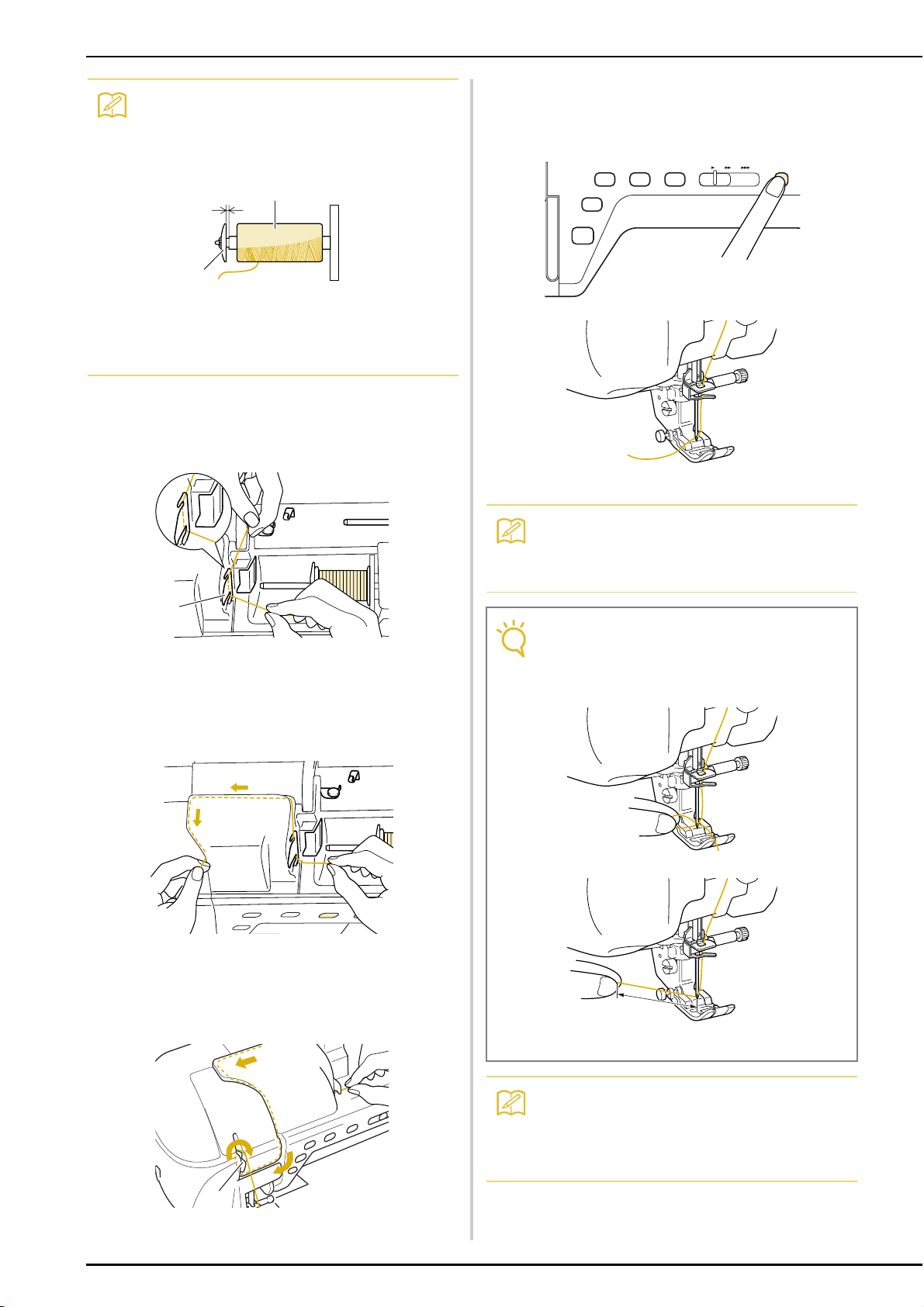

UPPER THREADING ...........................................27

Threading Using the “Automatic Threading” Button..............27

Threading Manually.............................................................. 29

Using the Twin Needle Mode ..............................................31

Using Threads that Unwind Quickly.....................................33

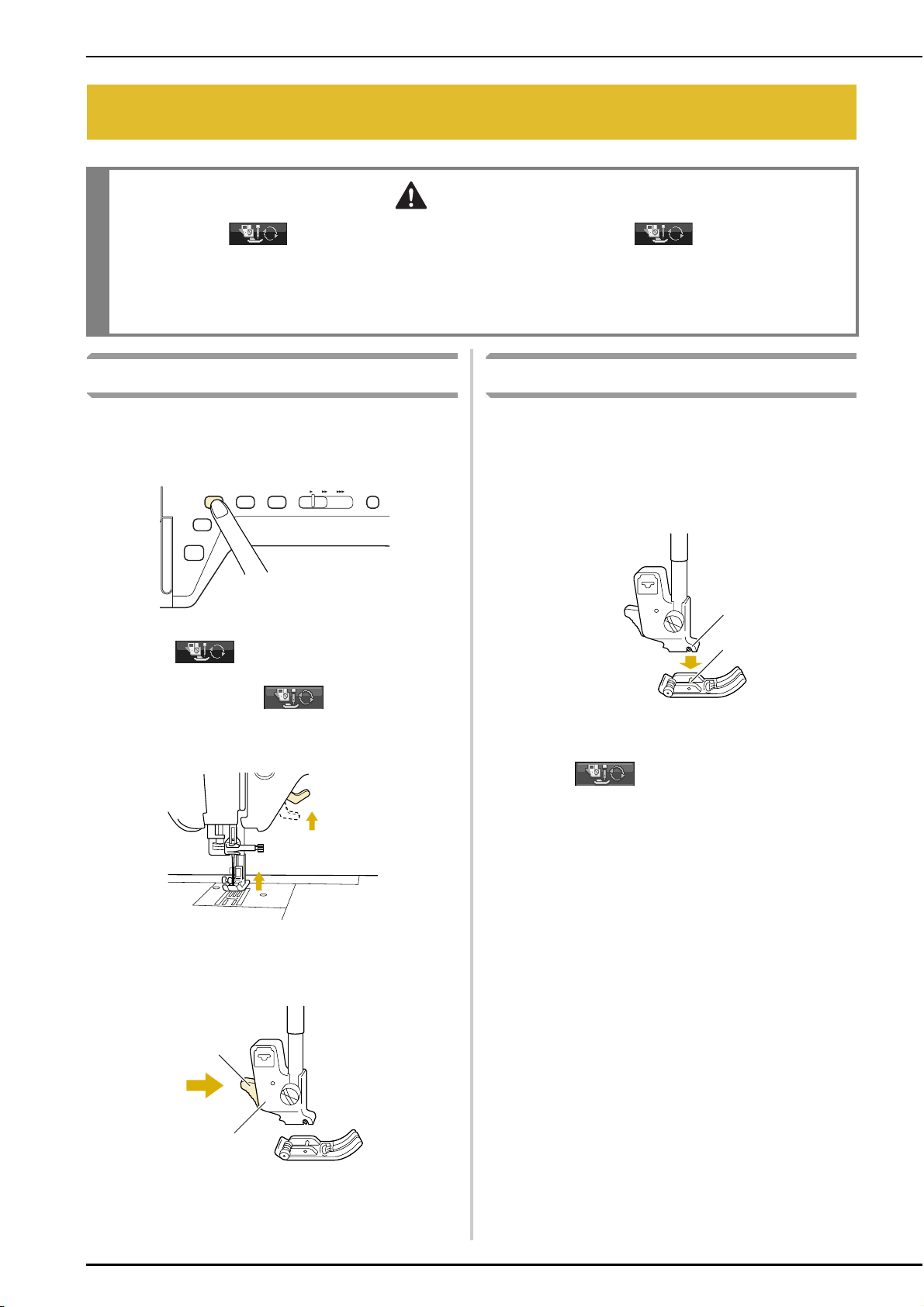

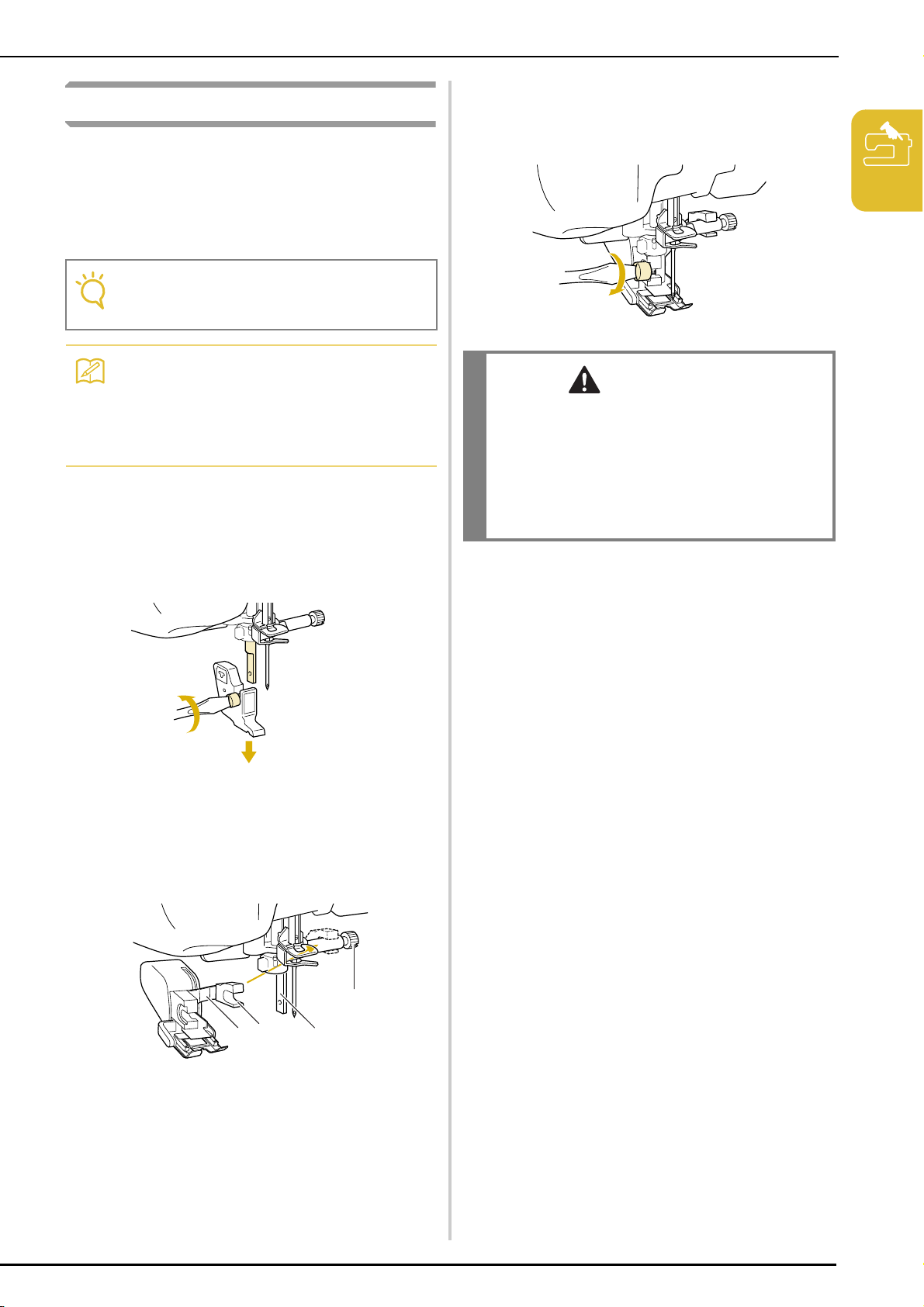

CHANGING THE PRESSER FOOT .......................34

Removing the Presser Foot .................................................... 34

Attaching the Presser Foot..................................................... 34

Attaching the Walking Foot...................................................35

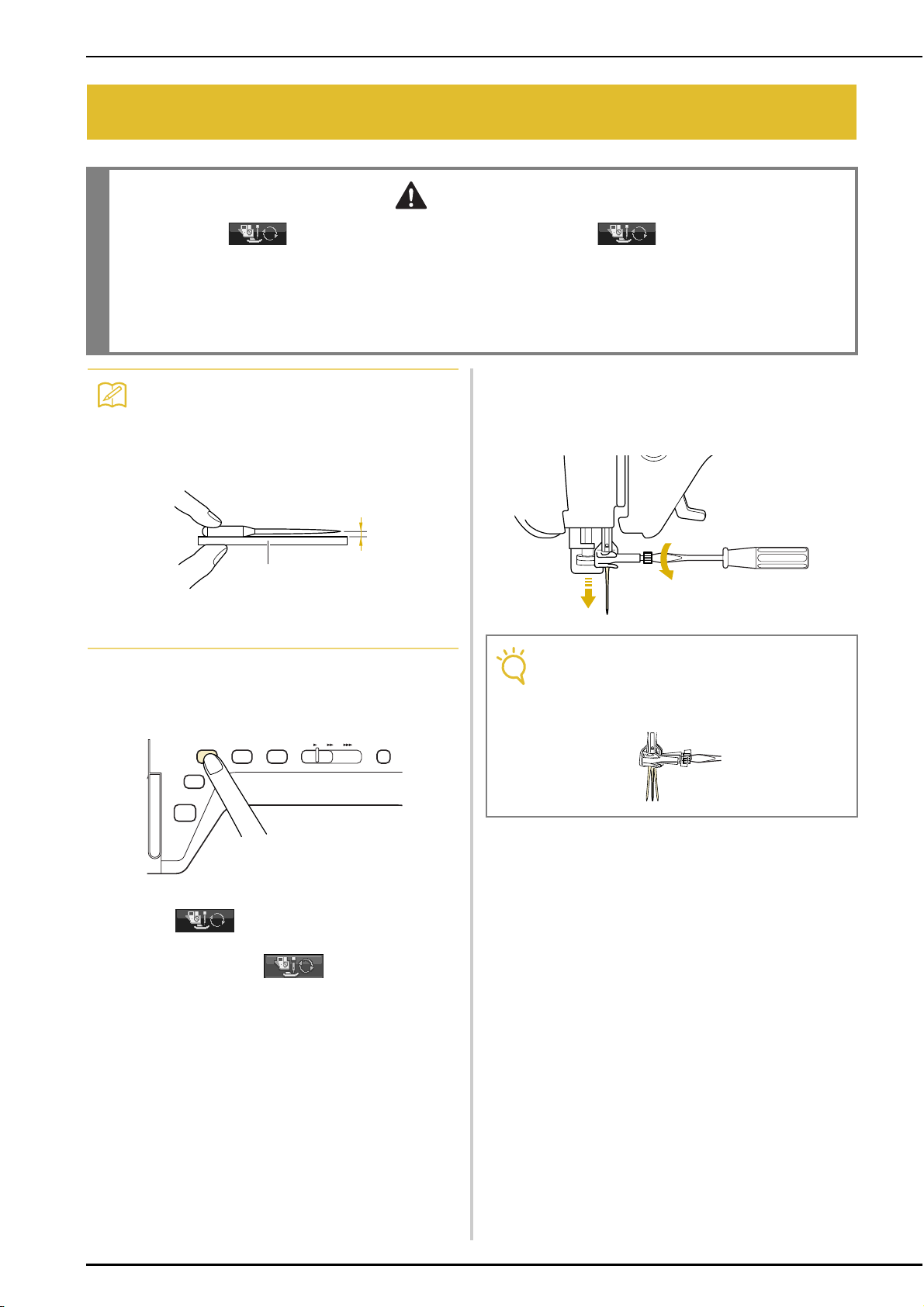

CHANGING THE NEEDLE...................................36

Chapter 2 Sewing Basics 39

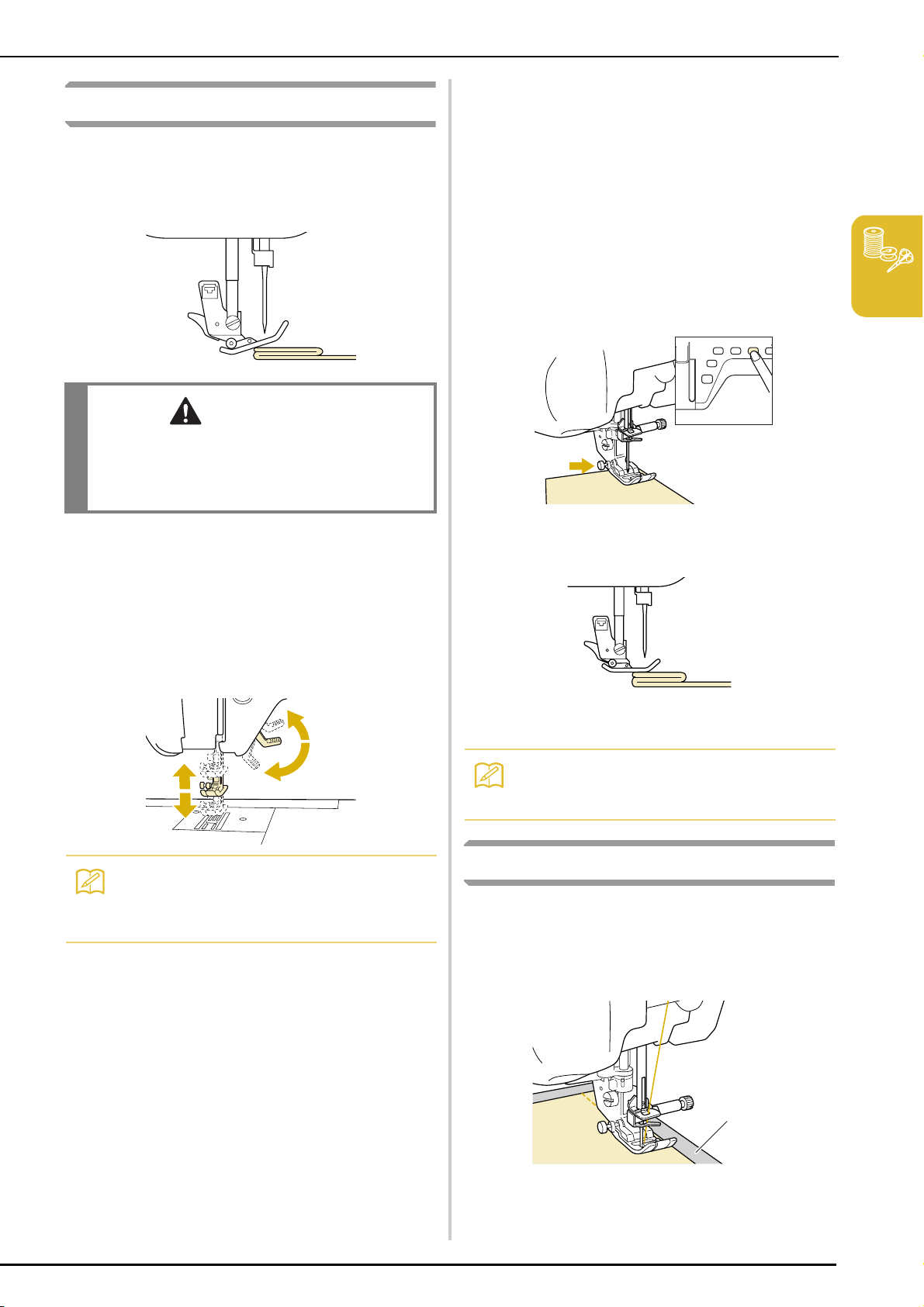

SEWING ..............................................................40

Sewing a Stitch ..................................................................... 40

Sewing Reinforcement Stitches ............................................ 42

Sewing Curves ...................................................................... 42

Changing Sewing Direction .................................................42

Sewing Heavyweight Fabrics ...............................................43

Sewing Lightweight Fabrics .................................................. 43

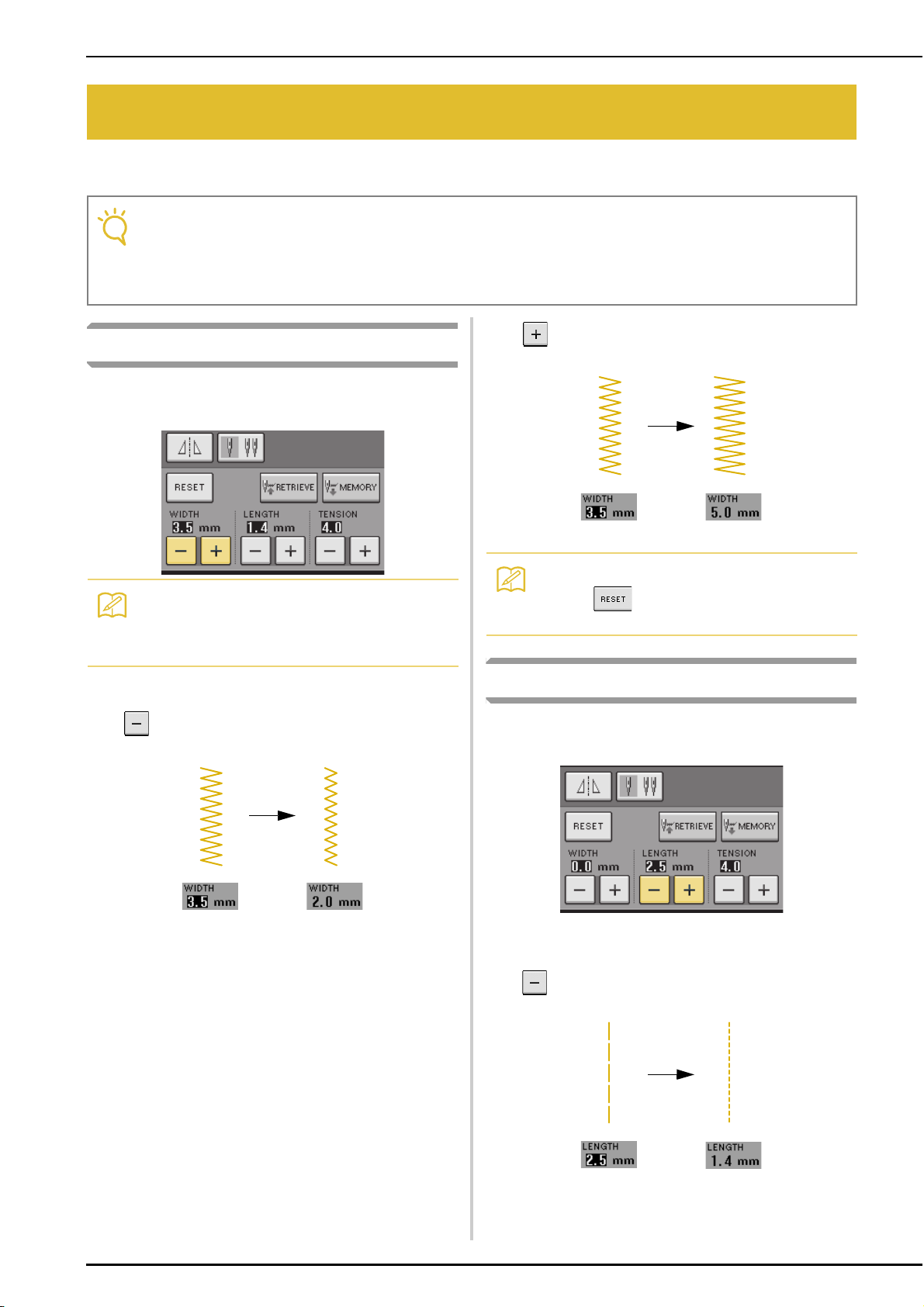

STITCH SETTINGS ..............................................44

Setting the Stitch Width......................................................... 44

Setting the Stitch Length .......................................................44

Setting the Thread Tension ................................................... 45

USEFUL FUNCTIONS..........................................46

Automatic Reinforcement Stitching ...................................... 46

Automatic Thread Cutting..................................................... 47

Locking the Screen ...............................................................48

Chapter 3 Utility Stitches 49

SELECTING UTILITY STITCHES ..........................50

Selecting a Stitch................................................................... 50

Saving Your Stitch Settings ................................................... 52

Using the Sewing Type Selection Key ..................................53

SEWING THE STITCHES .....................................55

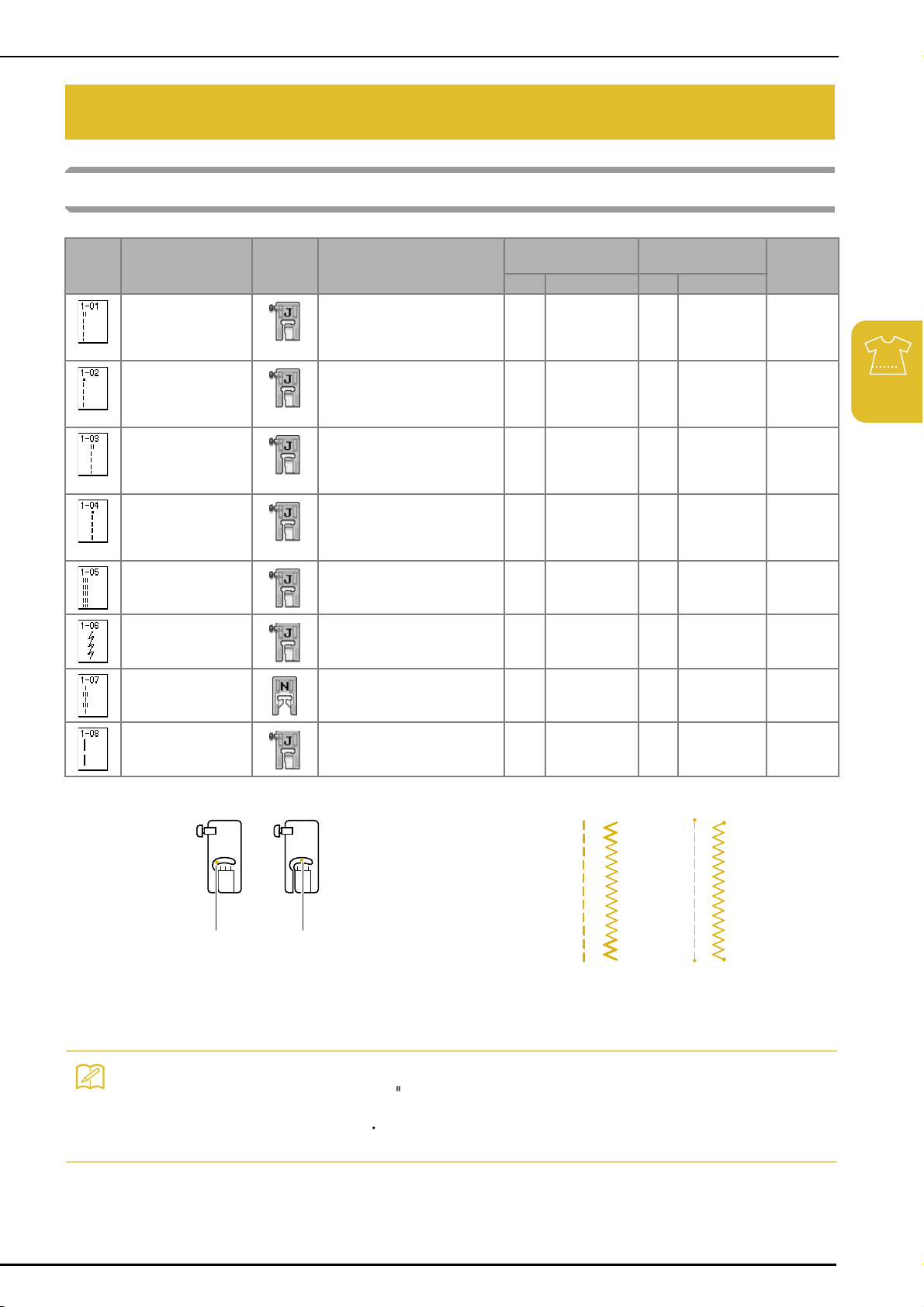

Straight Stitches.....................................................................55

Dart Seam............................................................................. 59

Gathering.............................................................................. 59

Flat Fell Seam .......................................................................60

Pintuck .................................................................................61

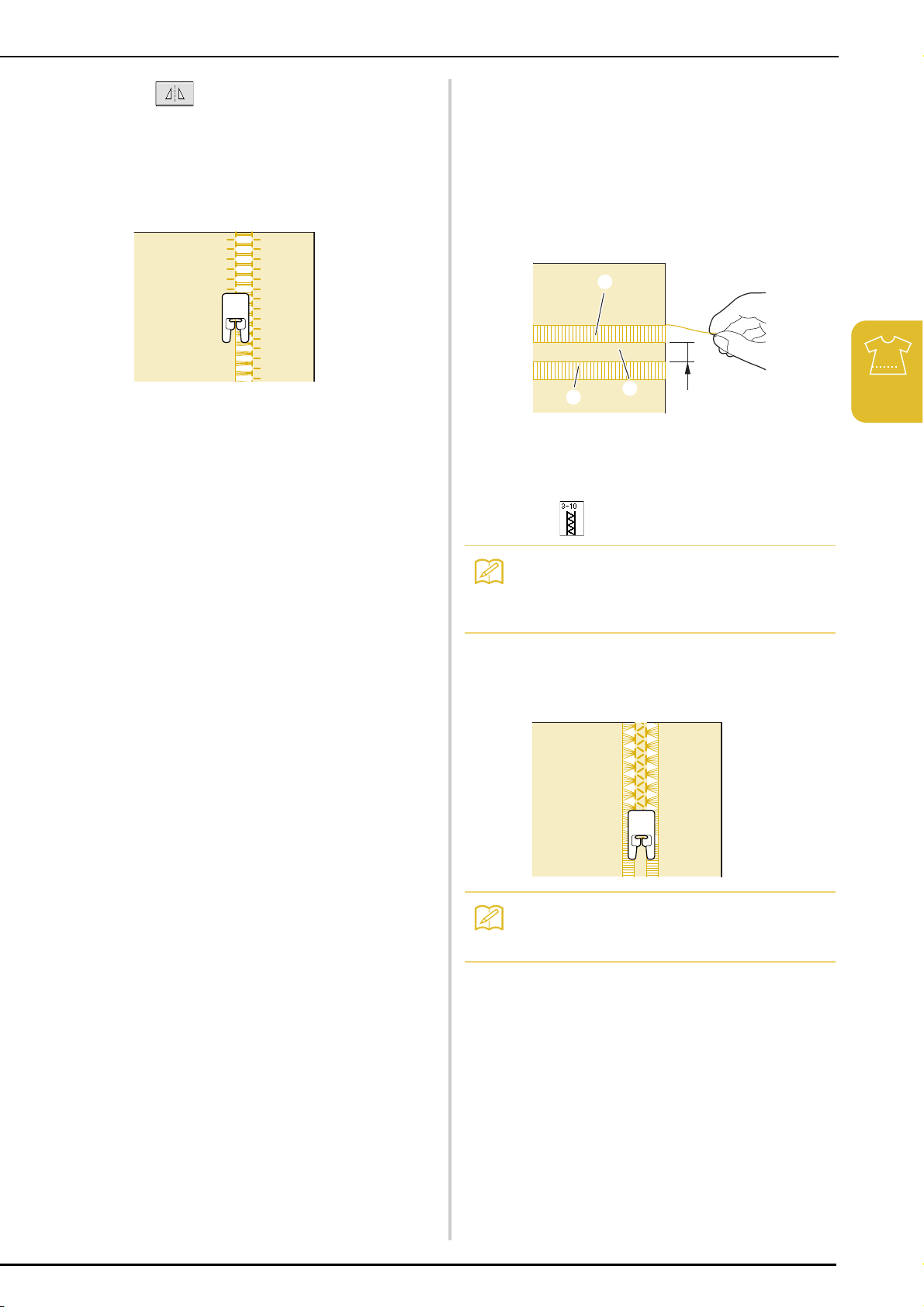

Zigzag Stitches ..................................................................... 62

Elastic Zigzag Stitches .......................................................... 64

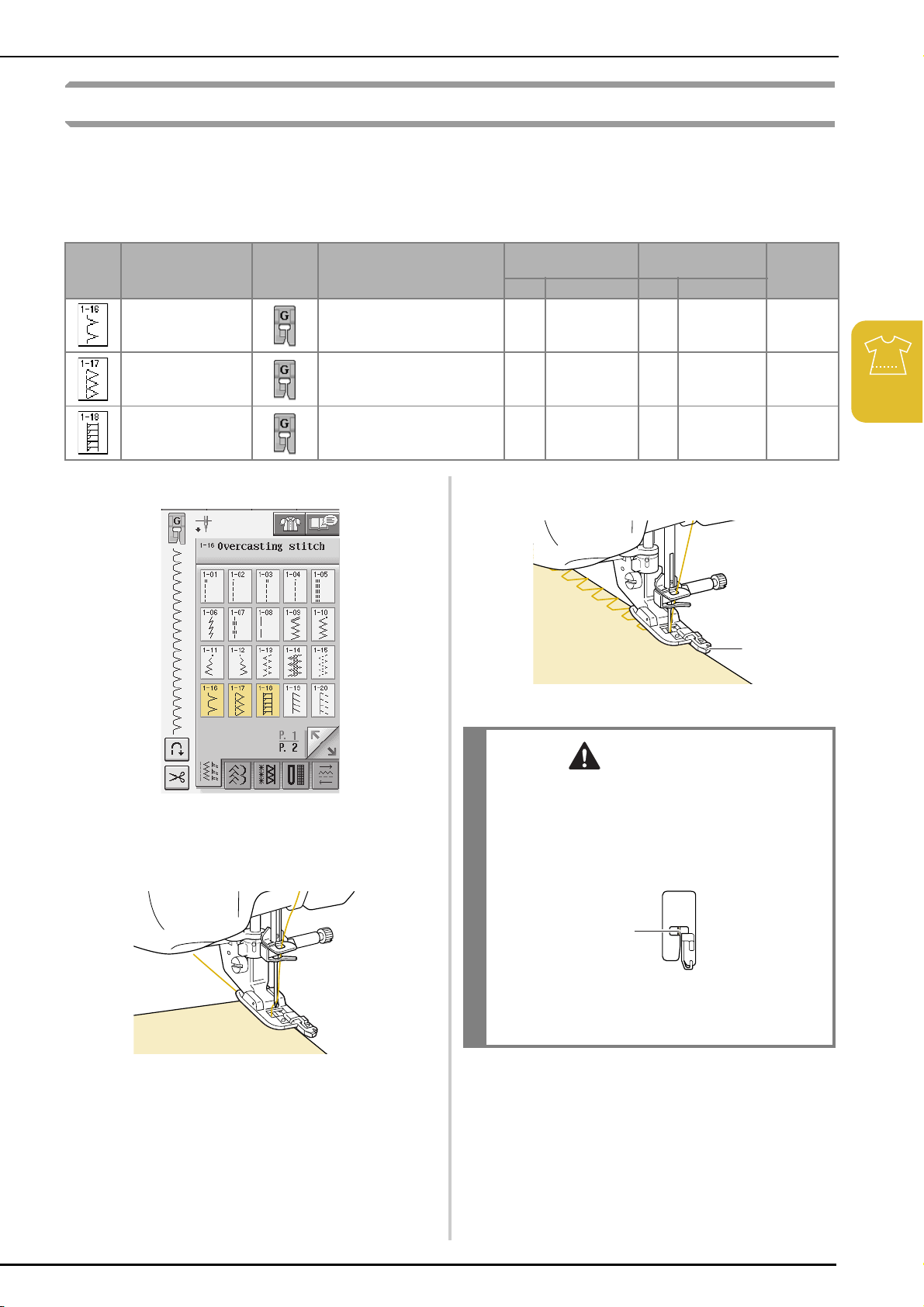

Overcasting .........................................................................65

Quilting ................................................................................69

Blind Hem Stitches ...............................................................74

Appliqué ..............................................................................75

Shelltuck Stitches .................................................................76

Scallop Stitches ....................................................................77

Top Stitching .........................................................................77

Smocking Stitches ................................................................78

Fagoting ...............................................................................78

Tape or Elastic Attaching ......................................................79

Heirloom ..............................................................................80

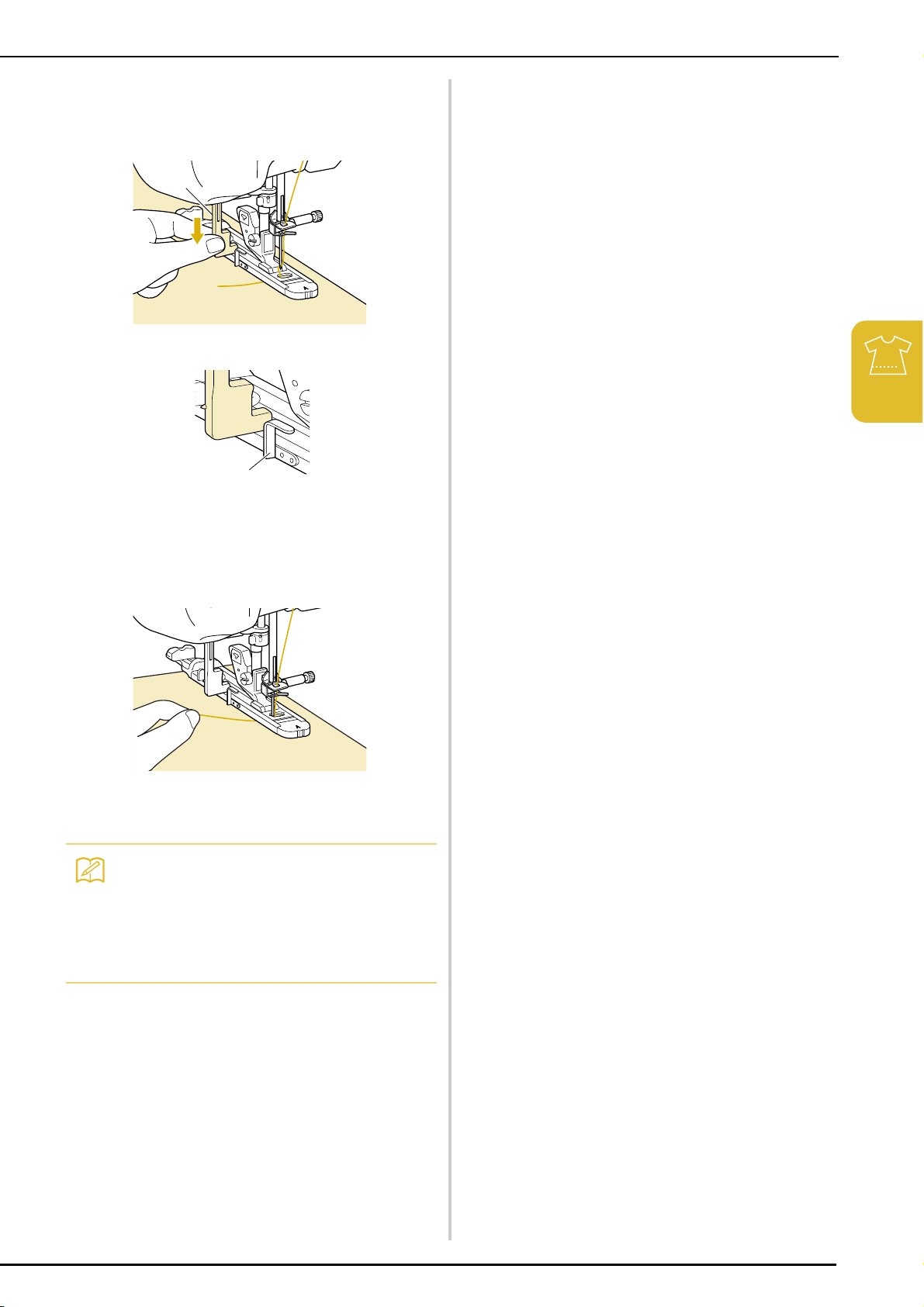

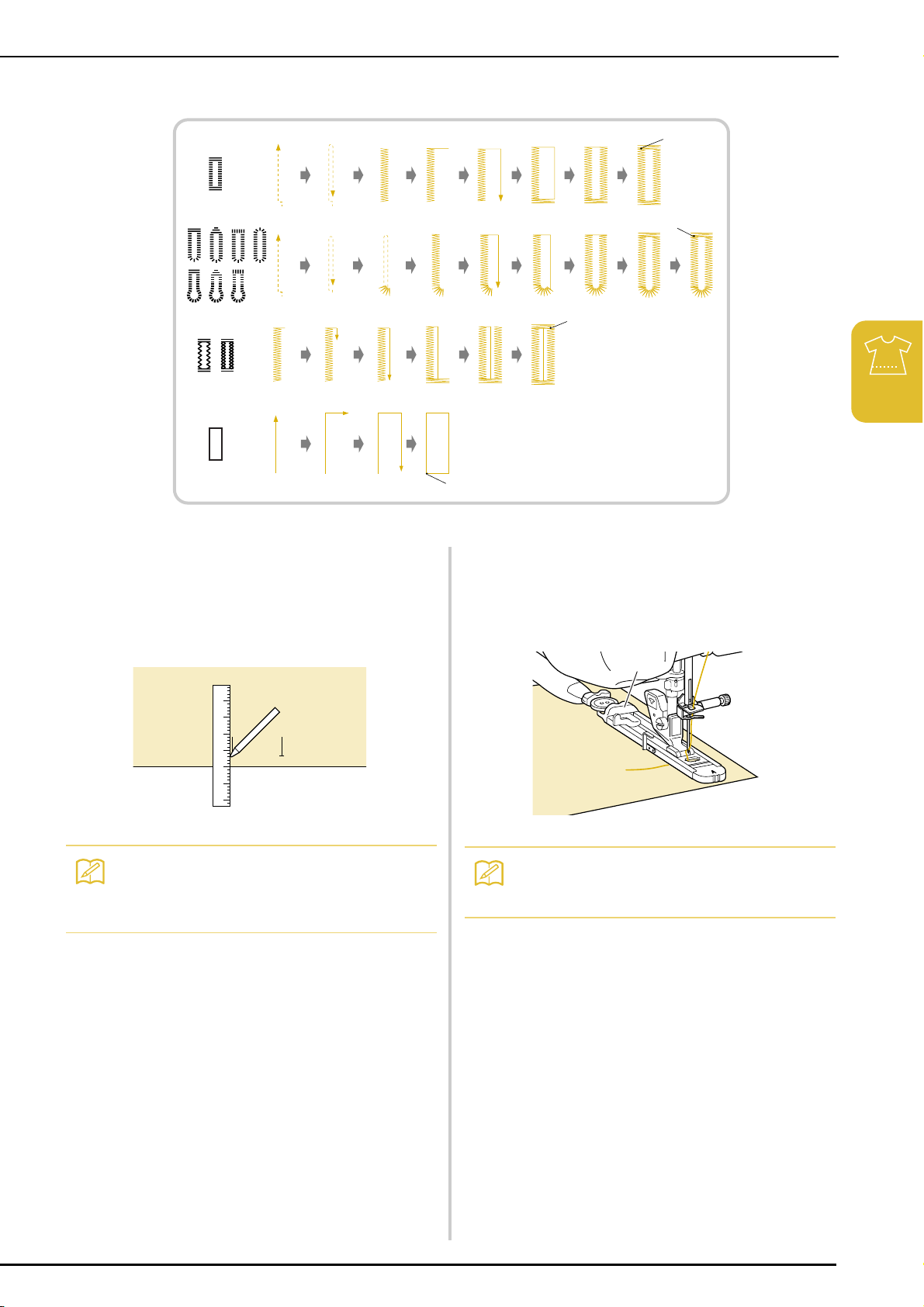

One-step Buttonholes ...........................................................82

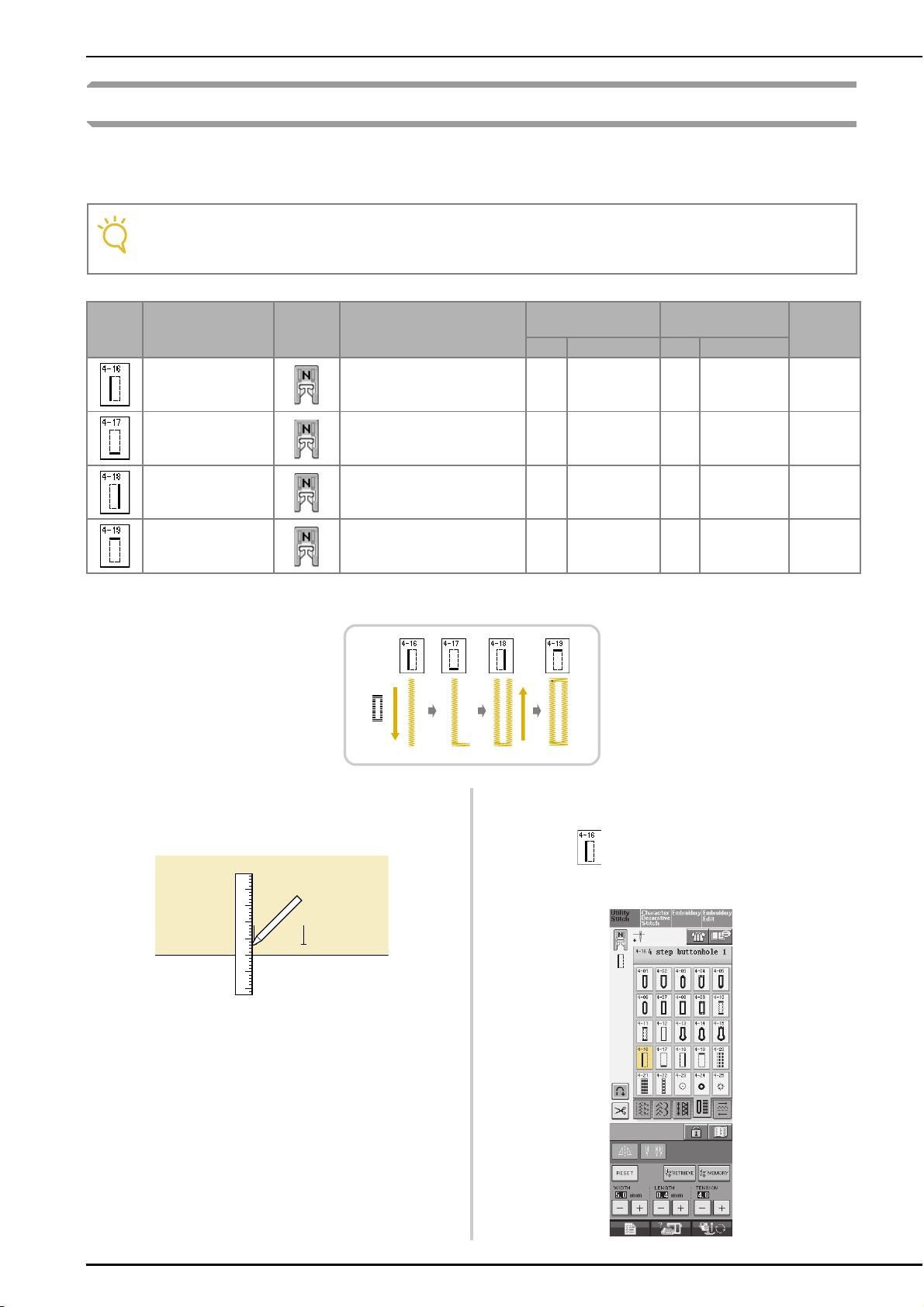

Four-step Buttonholes............................................................86

Bar Tacks .............................................................................90

Button Sewing ......................................................................92

Eyelet ...................................................................................94

Multi-directional Sewing (Straight Stitch and Zigzag Stitch) ..95

Zipper Insertion ....................................................................96

Chapter 4 Character/Decorative Stitches 99

SELECTING STITCH PATTERNS........................ 100

Selecting Decorative Stitch Patterns/7mm Decorative Stitch Patterns/Satin Stitch Patterns/7mm Satin Stitch Patterns/Cross

Stitch/Utility Decorative Stitch Patterns ...............................102

Alphabet Characters ...........................................................102

SEWING STITCH PATTERNS ........................... 104

Sewing Attractive Finishes ..................................................104

Basic Sewing.......................................................................104

Making Adjustments ...........................................................105

EDITING STITCH PATTERNS ........................... 107

Changing the Size ...............................................................108

Changing the Length (for 7mm Satin Stitch Patterns Only) ..109

Creating a Vertical Mirror Image ........................................109

Creating a Horizontal Mirror Image ....................................109

Sewing a Pattern Continuously ...........................................109

Changing Thread Density

(for Satin Stitch Patterns Only) ............................................110

Checking the Image.............................................................110

COMBINING STITCH PATTERNS .................... 112

Before Combining ...............................................................112

Combining Various Stitch Patterns ......................................112

Combining Large and Small Stitch Patterns .........................114

Combining Horizontal Mirror Image Stitch Patterns ............114

Combining Stitch Patterns of Different Length .....................115

Making Step Stitch Patterns

(for 7mm Satin Stitch Patterns Only) ...................................116

USING THE MEMORY FUNCTION .................. 118

Stitch Data Precautions .......................................................118

Saving Stitch Patterns in the Machine’s Memory .................120

Saving Stitch Patterns to USB Media

(Commercially Available) ....................................................122

Saving Stitch Patterns in the Computer ................................123

Retrieving Stitch Patterns from the Machine’s Memory ........124

Recalling from USB Media ..................................................125

Recalling from the Computer...............................................125

Chapter 5 Embroidery 127

BEFORE EMBROIDERING................................. 128

Embroidery Step by Step .....................................................128

Attaching Embroidery Foot “W” .........................................129

Attaching the Embroidery Unit ...........................................130

SELECTING PATTERNS .................................... 132

Selecting Embroidery Patterns/Floral alphabet Patterns/

Baby Lock Exclusive Embroidery Designs............................134

Selecting Alphabet Character Patterns .................................135

Selecting Frame Patterns .....................................................136

Selecting Patterns from Embroidery Cards ..........................137

Selecting Patterns from USB media/Computer .....................137

VIEWING THE SEWING SCREEN ..................... 138

viii

Contents

PREPARING THE FABRIC ..................................140

Attaching Iron-on Stabilizers (backing) to the Fabric ...........140

Hooping the Fabric in the Embroidery Frame .....................141

Embroidering Small Fabrics or Fabric Edges ....................... 143

ATTACHING THE EMBROIDERY FRAME..........145

CONFIRMING THE PATTERN POSITION ........146

Checking the Pattern Position .............................................146

Previewing the Completed Pattern ......................................147

SEWING AN EMBROIDERY PATTERN .............148

Sewing Attractive Finishes ..................................................148

Sewing Embroidery Patterns ................................................149

Sewing Embroidery Patterns Which Use Appliqué ..............150

ADJUSTMENTS DURING THE EMBROIDERY

PROCESS ..........................................................152

If the Bobbin Runs Out of Thread .......................................152

If the Thread Breaks During Sewing.....................................153

Restarting from the Beginning .............................................153

Automatically Resuming Embroidery When the Power

Goes Off .............................................................................154

Manually Resuming Embroidery After Turning Off

the Power ...........................................................................155

MAKING EMBROIDERY ADJUSTMENTS .........156

Adjusting Thread Tension ...................................................156

Using the Automatic Thread Cutting Function

(END COLOR TRIM) ...........................................................157

Using the Thread Trimming Function

(JUMP STITCH TRIM)..........................................................157

Adjusting the Embroidery Speed .........................................158

Changing the Thread Color Display..................................... 159

Changing the Embroidery Frame Display ............................160

REVISING THE PATTERN .................................161

Changing the Pattern Position .............................................161

Aligning the Pattern and the Needle....................................161

Changing the Size ...............................................................162

Rotating the Pattern .............................................................163

Creating a Horizontal Mirror Image ....................................164

Changing the Density (Alphabet Character

and Frame Patterns Only) ...................................................164

Changing the Colors of Alphabet Character Patterns ...........165

USING THE MEMORY FUNCTION ..................166

Embroidery Data Precautions ..............................................166

Saving Embroidery Patterns in the Machine’s Memory ........168

Saving Embroidery Patterns to USB Media

(Commercially Available) ....................................................170

Saving Embroidery Patterns in the Computer ....................... 171

Retrieving Patterns from the Machine’s Memory .................172

Recalling from USB Media ..................................................172

Recalling from the Computer...............................................173

EMBROIDERY APPLICATIONS .........................175

Using a Frame Pattern to Make an Appliqué (1) ..................175

Using a Frame Pattern to Make an Appliqué (2) ..................176

COMBINING PATTERNS .................................. 197

Editing Combined Patterns.................................................. 197

Sewing Combined Patterns ................................................. 199

USING THE MEMORY FUNCTION ..................200

Chapter 7 Appendix 201

CARE AND MAINTENANCE ............................. 202

Cleaning the LCD Screen ................................................... 202

Cleaning the Machine Casing ............................................ 202

Cleaning the Race............................................................... 202

ADJUSTING THE SCREEN ................................ 204

Screen Visibility is Low....................................................... 204

Touch Panel is Malfunctioning ........................................... 204

TROUBLESHOOTING ...................................... 206

ERROR MESSAGES ........................................... 209

SPECIFICATIONS.............................................. 215

UPGRADING YOUR MACHINE’S SOFTWARE. 216

Upgrade Procedure Using USB Media................................ 216

Upgrade Procedure Using Computer .................................. 217

STITCH SETTING CHART ................................. 219

INDEX............................................................... 226

Chapter 6 Embroidery Edit 177

EXPLANATION OF FUNCTIONS .....................178

SELECTING PATTERNS TO EDIT ......................179

Selecting Embroidery Patterns/Floral Alphabet Patterns/

Frame Patterns/Baby Lock Exclusive Embroidery Designs .... 180

Selecting Alphabet Character Patterns .................................180

EDITING PATTERNS .........................................183

Moving the Pattern .............................................................185

Rotating the Pattern ............................................................185

Changing the Size of the Pattern .........................................186

Deleting the Pattern ............................................................187

Changing the Configuration of Alphabet Character Patterns 187

Changing Alphabet Character Spacing ............................... 187

Changing the Color of Each Alphabet Character

in a Pattern .........................................................................188

Changing the Thread Color ................................................189

Creating a Custom Thread Table .........................................190

Choosing a Color from the Custom Thread Table ................191

Designing Repeated Patterns ...............................................192

After Editing ........................................................................196

Contents

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

The names of the various parts of the sewing machine and their functions are described below. Before using the sewing machine, carefully read these descriptions to learn the names of the machine parts.

Machine

■ Front View

i c

a Top cover

Open the top cover to thread the machine and wind the bobbin.

b Thread cutter

Pass the threads through the thread cutter to cut them.

c Thread take-up lever check window

Look through the window to check the upper thread passing through the thread take-up lever.

d Flat bed attachment with accessory compartment

Store presser feet and bobbins in the accessory compartment of the flat bed attachment. When sewing cylindrical pieces, remove the flat bed attachment.

e Operation buttons (6 buttons) and sewing speed

controller

Use these buttons and the slide to operate the sewing machine.

f Knee lifter slot

Insert the knee lifter into the slot.

g Knee lifter

Use the knee lifter to raise and lower the presser foot.

h LCD (liquid crystal display)

Settings for the selected stitch and error messages appear in the LCD.

i Thread guide plate

Pass the thread around the thread guide plate when threading upper thread.

j Spool cap

Use the spool cap to hold the spool in place.

k Spool pin

Place a spool of thread on the spool pin.

l Bobbin winder

Use the bobbin winder when winding the bobbin.

m Supplemental spool pin

Use this spool pin to wind the bobbin thread, or to sew with the twin needle.

n Thread guide for bobbin winding

Pass the thread around this thread guide when winding the bobbin thread.

o Pretension disk

Pass the thread around the pretension disk when winding the bobbin thread.

p LCD cover

Attach the cover when not using the machine.

■ Right-side/Rear View

a Handle

Carry the sewing machine by its handle when transporting the machine.

b Handwheel

Turn the handwheel toward you to raise and lower the needle. The wheel should be turned toward the front of the machine.

c Embroidery card slot

Insert the embroidery cards (sold separately) into the embroidery card slot.

d USB port connector for media

In order to send patterns from/to USB media, plug the USB media directly into the USB port connector.

e USB port connector for computer

In order to import/export patterns between a computer and the machine, plug the USB cable into the USB port connector.

f Touch pen holder

Use the touch pen holder to hold the touch pen when not in use.

g Main power switch

Use the main power switch to turn the sewing machine ON and OFF.

h Jack connector

Insert the power cord into the connector jack.

i Feed dog position switch

Use the feed dog position switch to lower the feed dogs.

j Presser foot lever

Raise and lower the presser foot lever to raise and lower the presser foot.

k Air vent

The air vent allows the air surrounding the motor to circulate. Do not cover the air vent while the sewing machine is being used.

l Foot controller with retractable cord

Depress the foot controller to control the speed of the machine.

m Foot controller jack

Insert the foot controller plug into its jack on the machine.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Needle and Presser Foot Section

a Presser foot holder

The presser foot is attached onto the presser foot holder.

b Presser foot

The presser foot applies pressure consistently on the fabric as sewing takes place. Attach the appropriate presser foot for the selected stitch.

c Feed dogs

The feed dogs feed the fabric in the sewing direction.

d Bobbin cover

Open the bobbin cover to set the bobbin.

e Needle clamp screw

Use the needle clamp screw to hold the needle in place.

f Buttonhole lever

The buttonhole lever is used with the one-step buttonhole foot to create buttonholes.

g Needle bar thread guides

Pass the upper thread through the two needle bar thread guides.

h Needle plate

The needle plate is marked with guides to help sew straight seams.

i Presser foot holder screw

Use the presser foot holder screw to hold the presser foot holder in place.

Embroidery Unit

a Carriage

The carriage moves the embroidery frame automatically when embroidering.

b Release button (located under the embroidery unit)

Press the release button to remove the embroidery unit.

c Feed dog position switch

Use the feed dog position switch to raise and lower the feed dogs while the embroidery unit is attached.

d Embroidery unit connection

Insert the embroidery unit connection into the connection port when attaching the embroidery unit.

e Embroidery frame holder

Insert the embroidery frame into the embroidery frame holder to hold the frame in place.

f Frame-securing lever

Press the frame-securing lever down to secure the embroidery frame.

CAUTION

• After the embroidery frame is set in the frame holder, be sure the frame-securing lever is correctly lowered.

Note

• Be sure that the feed dog position switch on

the embroidery unit is located at right when embroidering.

• You can also sew utility/decorative stitches

with the embroidery unit attached. Set the feed dog position switch on the embroidery unit to the appropriate setting.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Operation Buttons

a “Start/Stop” button

Press this button and the machine will sew a few stitches at a slow speed and then begin sewing at the speed set by the sewing speed controller. Press the button again to stop the machine. Hold the button in to sew at the machine’s slowest speed. The button changes color according to the machine’s operation mode.

Green: the machine is ready to sew or is sewing.

Red: the machine cannot sew.

Included Accessories

Pull the top of the flat bed attachment to open the accessory compartment.

b “Reverse/Reinforcement Stitch” button

Use this button to sew reinforcement stitches at the beginning and end of sewing. Press this button, and the machine sews 3 stitches in the same spot and stops automatically. For straight and zigzag stitch patterns that take reverse stitches, the machine will sew reverse stitches at low speed only while holding down the “Reverse/Reinforcement Stitch“ button (the stitches are sewn in the opposite direction).

c “Needle Position” button

Use this button when changing sewing direction or for detailed sewing in small areas. Press this button to raise or lower the needle position. Press the button twice to sew a single stitch.

d “Thread Cutter” button

Press this button after sewing to automatically trim the excess thread.

e “Presser Foot Lifter” button

Press this button to lower the presser foot and apply pressure to the fabric. Press this button again to raise the presser foot.

f Sewing Speed controller

Use this controller to adjust the sewing speed. Move the slide to the left to sew at slower speeds. Move the slide to the right to sew at higher speeds. Beginners should sew at a slow speed.

g “Automatic Threading” button

Use this button to automatically thread the needle.

CAUTION

• Do not press the thread cutter button after the threads have already been cut. Otherwise, the needle may break, the threads may become tangled, or damage to the machine may occur.

a Storage space b Presser foot storage space c Presser foot storage space

Included Accessories 30-33 are contained in the embroidery unit carrying case. To open the embroidery unit carrying case, raise the lock and unlock the latch out of the position. To re-hook the latches and securely close the case, position the latch on the case and lower the lock till it snaps.

a Latches b Locks

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

! Included Accessories

1 234567

8 9 10 11 12 13

14 15 16 17 18 19

75/11 2 needles 90/14 2 needles 90/14 2 needles: Ball point needle (gold colored)

20 21 22 23 24 25 26 27

28 29 30 31 32 33 34 35

36 37 38 39 40 41 42 43

44 45 46 47 48 49 50

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

No. Part Name Part Code

1 Buttonhole foot “A” X57789-151

2 Embroidery foot “W” XC8156-451

3 Overcasting foot “G” XC3098-051

4 Monogramming foot “N” X53840-351

5 Zipper foot “I” X59370-051

6 Zigzag foot “J” (on machine) XC3021-051

7 Blind stitch foot “R” X56409-051

8 Button fitting foot “M” 130489-001

9 Walking foot X59816-104

10 Free-motion quilting foot XA6928-001

11 Straight stitch foot XD0826-051

12 Seam ripper X54243-001

13 Bobbin " 10 X52860-150

14 Needle set X58358-051

15 Twin needle X59296-151

16 Ball point needle set XD0705-051

17 Scissors 184783-051

18 Chalk pen 184944-001

19 Cleaning brush X59476-051

20 Eyelet punch 135793-001

21 Screwdriver (large) X55467-051

22 Screwdriver (small) X55468-051

23 Spool cap (small) 130013-154

24 Spool cap (medium) " 2 X55260-153

25 Spool cap (large) 130012-054

26 Vertical spool pin XC8619-051

27 Spool felt X57045-051

28 Disc-shaped screwdriver XC1074-051

29 Spool net XA5523-050

30 Embroidery frame set (small)

H 2 cm " W 6 cm (H 1 inch " W 2-1/2 inches)

Embroidery frame set

(medium) H 10 cm (H 4 inches

32 Embroidery frame set (large)

H 18 cm " W 13 cm (H 7 inches " W 5 inches)

33 Embroidery frame set (extra

large) H 30 cm " W 18 cm (H 12 inches " W 7 inches)

34 Foot controller XC8028-051

35 Embroidery needle plate

cover

36 Touch pen (stylus) XA9940-051

37 Knee lifter XA6941-051

38 USB cable XC8897-051

39 Alternate bobbin case (pink

screw)

40 Straight stitch needle plate XC8362-051

41 Cord guide bobbin cover (with

single hole)

42 Embroidery bobbin thread BBT-W

43 Stabilizer material X81176-001

44 Instruction and reference

guide

45 Quick reference guide XD0792-051

46 Additional accessories guide XC8504-051

47 Embroidery unit carrying

case

48 Hard case XC7750-053

49 LCD cover XC8468-051

50 Bobbin center pin XC8661-051

W 10 cm

W 4 inches)

EF73: Frame

EF77: Embroidery sheet

EF74: Frame

EF78: Embroidery sheet

EF75: Frame

EF79: Embroidery sheet

EF76: Frame

EF80: Embroidery sheet

XA9939-051

XC8167-251

XC8449-051

XD0781-051

XC8150-051

Memo

(For U.S.A. only) Foot controller: Model S This foot controller can be used with this

machine model BLG.

Memo

• Always use accessories recommended for this machine.

• The screw of the presser foot holder is available through your authorized retailer (Part code XA4813-051).

• Included accessories 34, 44, 45 and 46 can be stored in the machine’s hard case.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Options

123

No. Part Name Part Code

1 Side cutter foot XC3923-001

2 Seam guide XC8524-051

3 Embroidery bobbin thread

(White)

Embroidery bobbin thread (Black)

4 Table and free motion grip BLG-ET

5 Embroidery card

6 Spool stand BLG-TS

7 Embroidery frame set (extra

large) H 26 cm x W 16 cm (10 – 1/4 inches (H) x 6 – 1/4 inches (W))

EF86: Embroidery sheet

BBT-W

BBT-B

EF81: Frame

Memo

• All specifications are correct at the time of printing. Please be aware that some specifications may change without notice.

Note

• Embroidery cards purchased in foreign countries may not work with your machine.

• Use Baby Lock embroidery cards with your machine. Please see your retailer for availability of additional embroidery cards.

• Visit your Baby Lock retailer for a complete listing of optional accessories available for your machine, or visit the Baby Lock web site at www. babylock. com.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Removing the LCD cover

While pressing down on the latch at the top

of the LCD cover, pull the cover towards you.

a Latch

Remove the LCD cover.

Attaching the LCD cover

Insert the tabs at the bottom of the LCD

cover into the grooves at the bottom of the LCD.

a Tabs b Grooves

While pressing the latch at the top of the

LCD cover, insert the tabs at the top of the LCD cover into the grooves at the top of the LCD.

a Latch b Tabs

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

!"#$%&'!!

Getting Ready

TURNING THE MACHINE ON/OFF....................................................10

LCD SCREEN........................................................................................11

■ Key Functions..................................................................................................................12

Using the Machine Setting Mode Key......................................................................14

■ Adjusting Screen Brightness ............................................................................................17

■ Choosing the Display Language.......................................................................................18

Using the Machine Operation Mode Key ................................................................ 19

Using the Pattern Explanation Key ..........................................................................20

LOWER THREADING ..........................................................................21

Winding the Bobbin ................................................................................................21

■ Using the Supplemental Spool Pin...................................................................................21

■ Using the Spool Pin .........................................................................................................23

Setting the Bobbin...................................................................................................24

Pulling Up the Bobbin Thread ................................................................................. 25

UPPER THREADING............................................................................27

Threading Using the “Automatic Threading” Button...............................................27

Threading Manually ................................................................................................29

Using the Twin Needle Mode ..................................................................................31

Using Threads that Unwind Quickly .......................................................................33

■ Using the Spool Net ........................................................................................................33

■ Using the Vertical Spool Pin............................................................................................33

CHANGING THE PRESSER FOOT .......................................................34

Removing the Presser Foot ...................................................................................... 34

Attaching the Presser Foot ......................................................................................34

Attaching the Walking Foot..................................................................................... 35

CHANGING THE NEEDLE...................................................................36

■ About the Needle ............................................................................................................38

■ Fabric/Thread/Needle Combinations ..............................................................................38

TURNING THE MACHINE ON/OFF

WARNING

• Use only regular household electricity as the power source. Using other power sources may result in fire, electric shock, or damage to the machine.

• Turn the main power to OFF and remove the plug in the following circumstances: When you are away from the machine After using the machine When the power fails during use When the machine does not operate correctly due to a bad connection or a disconnection During electrical storms

CAUTION

• Do not use extension cords or multi-plug adapters with many other appliances plugged in to them. Fire or electric shock may result.

• Do not touch the plug with wet hands. Electric shock may result.

• When unplugging the machine, always turn the main power to OFF first. Always grasp the plug to remove it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock.

• Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the cord, or cause fire or electric shock. If the cord or plug is damaged, take the machine to your authorized retailer for repairs before continuing use.

• Unplug the power cord if the machine is not to be used for a long period of time. Otherwise, a fire may result.

• When leaving the machine unattended, either the main switch of the machine should be turned to OFF or the plug must be removed from the socket-outlet.

• When servicing the machine or when removing covers either the machine or the electrical set must be unplugged.

• For U.S.A. only This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electrical

shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified

electrician to install the proper outlet. Do not modify the plug in any way.

Insert the power cord into the power cord

jack connector, then insert the plug into a wall outlet.

a Main power switch b Power cord

Turn the main power switch to “I” to turn

on the machine.

a OFF b ON

Turn the main power switch to “O” to turn

off the machine.

LCD SCREEN

When switching on the machine, the screen will display the name of the machine. Touch the screen to display the utility stitch. Either “1-01 Straight stitch (Left)” or “1-03 Straight stitch (Middle)” is selected, depending on the setting selected in the setting screen (See page 14). Press a key with your finger to select the stitch pattern, to select a machine function, or to select an operation indicated on the key.

Note

When the straight stitch needle plate is on the machine, the needle will automatically move to the middle position.

Memo

• Only touch the screen with your finger or the included touch pen. Do not use a sharp pencil, screw-

driver, or other hard or sharp object. It is not necessary to press hard on the screen. Pressing too hard or using a sharp object may damage the screen.

a b

Getting Ready

a Shows single or twin needle mode setting, and the needle stop position.

Single needle/down position Single needle/up position

Twin needle/down position Twin needle/up position

b Shows the presser foot code. Attach the presser foot indicated in this display before sewing. c Shows the name and code number of the selected stitch. d Shows a preview of the selected stitch. e Shows the stitch patterns. f Shows additional pages that can be displayed.

* All key functions of the LCD are explained in the “key functions” table on the following page.

LCD SCREEN

■ Key Functions

bcd

j l

m o

No. Display Key Name Explanation Page

a Utility stitch key Press this key to select a straight stitch, zigzag stitch, buttonhole, blind hem

stitch, or other stitches commonly used in garment construction.

b Character/Decorative

stitch key

c Embroidery key Attach the embroidery unit and press this key to sew embroidery. 132

d Embroidery edit key Press this key to combine embroidery patterns. With the embroidery edit

e Sewing type selection

key

f Pattern explanation

key

g Automatic

reinforcement stitch key

h Automatic thread

cutting key

Press this key to select character or decorative stitch patterns. 100

functions, you can also create original embroidery patterns or frame patterns.

Press this key when you need help selecting the appropriate stitch pattern for the sewing application and when you need instructions on how to sew the stitch pattern. This key is very helpful for beginners.

Press this key to see an explanation of the selected pattern. 20

Press this key to use the automatic reinforcement stitching (reverse stitching) setting. If you select this setting before sewing, the machine will automatically sew reinforcement stitches at the beginning and end of sewing (depending on the pattern, the machine may sew reverse stitches).

Press this key to set the automatic thread cutting function. Set the automatic thread cutting function before sewing to have the machine automatically sew reinforcement stitches at the beginning and end of sewing (depending on the pattern, the machine may sew reverse stitches) and trim the threads after sewing.

179

LCD SCREEN

No. Display Key Name Explanation Page

i Stitch selection

display

Press the key of the pattern you want to sew. Use to

change selection screens.

Getting Ready

j Screen lock key Press this key to lock the screen.When the screen is locked, the various

k Image key Press this key to display an enlarged image of the selected stitch pattern. 51

l Mirror image key Press this key to create a mirror image of the selected stitch pattern. If the key

m Needle mode

selection key (single/ double)

n Reset key Press this key to return the selected stitch pattern’s saved settings to the

o Retrieve key Press this key to retrieve a saved pattern. 53

p Manual memory key Change the stitch pattern settings (zigzag width and stitch length, thread

q Stitch width and stitch

length key

r Thread tension key Shows the thread tension setting of the currently selected stitch pattern. The

s Machine setting mode

key

settings, such as the stitch width and stitch length, are locked and cannot be changed. Press this key again to unlock the settings.

display is light gray, a mirror image of the selected stitch pattern cannot be sewn.

Press this key to select twin needle sewing mode. The sewing mode changes between single needle mode and twin needle mode each time you press the key. If the key display is light gray, the selected stitch pattern cannot be sewn in twin needle mode.

original settings.

tension, automatic thread cutting or automatic reinforcement stitching, etc.), then save them by pressing this key. Five sets of settings can be saved for a single stitch pattern.

Shows the zigzag width and stitch length settings of the currently selected stitch pattern. You can use the plus and minus keys to adjust the zigzag width and stitch length settings.

thread tension is usually set automatically. You can use the plus and minus keys to change the thread tension settings.

Press this key to change the needle stop position, turn the buzzer ON/OFF, adjust the pattern or screen, and change other machine settings.

44-45

t Machine operation

mode key

u Presser foot/Needle

exchange key

Press this key to see explanations for upper threading, winding the bobbin, changing the presser foot, and how to use the machine.

Press this key before changing the needle, the presser foot, etc. This key locks or unlocks all key and button functions to prevent operation of the machine.

34-37

LCD SCREEN

Using the Machine Setting Mode Key

Press to change the default machine settings (needle stop position, embroidery speed, opening

display, etc.) Press , or to display the different settings screens.

Memo

• Some of these functions will be available in future technology upgrades.

• Press or to display a different settings screen.

Sewing settings

a Select whether to use the sewing speed controller to determine the zigzag width (see page 72). b Make adjustments to character or decorative stitch patterns (see page 105). c Adjust the presser foot height. (Select the height of the presser foot when the presser foot is raised.) d Adjust the presser foot pressure. (The higher the number, the greater the pressure will be. Set the pressure at 3 for

normal sewing.)

e Change the initial position of the needle when utility stitch is selected. (Choose left or middle position).

General settings

LCD SCREEN

Getting Ready

i j

a Change the brightness of the LCD (see page 17). b Select the needle stop position (the needle position when the machine is not operating) to be up or down. c Turn the buzzer ON/OFF. d Turn the Needle Area and Work Area Lights ON/OFF. e Turn the opening screen display ON/OFF. f Use when running an application. g Change the display language (see page 18). h Display the service count of embroidery stitches. The service count is a reminder to take your machine in for regular

servicing. (Contact your authorized retailer for details.)

i The “NO.” is the number for the embroidery and sewing machine. j Display the program version.

Memo

The latest version of software is installed in your machine. Check with your local authorized Baby Lock retailer or at www.babylock.com for notification of available updates (see page 216).

LCD SCREEN

Embroidery settings

a Select from among 10 embroidery frame displays (see page 160). b Change the thread color display on the embroidery screen; thread number, color name or each time to embroider

(see page 159).

c When the thread number #123 is selected, select among six thread brands (see page 159). d Adjust the maximum embroidery speed setting (see page 158). e Adjust the thread tension for embroidering. f Select the height of the embroidery foot “W” during embroidering (see page 140). g Change the display units (mm/inch). h Change the initial mode of the display (embroidery/embroidery edit). i Customize the thread color numbers (see page 190).

LCD SCREEN

■ Adjusting Screen Brightness

Note

• All or part of the screen may sometimes

become darker or lighter because of changes in the air temperature or other changes in the environment around the screen. This is normal and is not a sign of malfunction. Adjust the screen if it is difficult to read.

• The screen may be dark immediately after

turning on the power. This is a function of the LCD back light screen, and it is not a sign of malfunction. The screen will return to its normal level of brightness after approximately 10 minutes.

• If you are not directly in front of the machine

when you view the LCD, the colors may appear to change or the screen may be difficult to see. This is a characteristic of the LCD, and not a sign of damage or malfunction. For best results operate the screen while sitting in front of the machine.

Press .

! The Sewing settings screen appears.

On the BRIGHTNESS OF LCD display, use

and to adjust the screen

brightness.

* Press to make the screen darker.

* Press to make the screen lighter.

Getting Ready

Press .

! The General settings screen appears.

Memo

a Brightness of LCD display

Press .

• Press or to display a different

settings screen.

LCD SCREEN

■ Choosing the Display Language

Press .

! The Sewing settings screen appears.

Press .

! The General settings screen appears.

Use and to choose the display

language.

* Choose from the following languages: [ENGLISH],

[GERMAN], [FRENCH], [ITALIAN], [DUTCH], [SPANISH], [JAPANESE], [DANISH], [NORWEGIAN], [FINNISH], [SWEDISH], [PORTUGEUSE] or [RUSSIAN].

a Display language

Press .

LCD SCREEN

Using the Machine Operation Mode Key

Press to open the screen shown below. Six categories are displayed at the top of the screen. Press a key to see more information about that category.

Getting Ready

displays information about

the main parts of the machine and their functions. This is the first screen displayed

when you press .

displays information about

the operation buttons.

displays information about

threading the machine, changing presser feet, etc.

displays information about

attaching the embroidery unit, preparing fabric for embroidering, etc.

a Adjusting thread tension information

information.

displays troubleshooting

displays information about

cleaning the machine, etc.

LCD SCREEN

Example: Displaying information about

upper threading

Press .

! The lower half of the screen will change.

Press (upper threading).

Press to return to the original

screen.

Using the Pattern Explanation Key

If you want to know more about the uses of a stitch

pattern, select the pattern and press to see an explanation of the stitch selection.

Example: Displaying information about

Press .

! The screen shows instructions for threading the

machine.

Read the instructions.

* Press to see a video of the displayed

instructions.

* Press to view the next page.

! The screen shows information about .

Press to return to the original

screen.

LOWER THREADING

Winding the Bobbin

Press !!!

! "

LOWER THREADING

Turn the main power to ON.

Align the groove in the bobbin with the spring on the bobbin winder shaft, and set the bobbin on the shaft.

Getting Ready

in that order to display a video example of

bobbin winding on the LCD (see page 20). Follow the steps explained below to complete the operation.

CAUTION

• The enclosed bobbin was designed specifically for this sewing machine. If bobbins from other models are used, the machine will not operate correctly. Use only the enclosed bobbin or bobbins of the same type (part code: X52800-

150).

11.5 mm (approx. 7/16 inch)

This model

■ Using the Supplemental Spool Pin

With this machine, you can wind the bobbin during sewing. While using the main spool pin to sew embroidery, you can conveniently wind the bobbin using the supplemental spool pin.

Actual size

Other models

3, 4

7, 8

a Groove of the bobbin b Spring on the shaft

Set the supplemental spool pin in the “up”

position.

a Supplemental spool pin

Place the spool of thread on the

supplemental spool pin, so that thread unrolls from the front. Then push the spool cap onto the spool pin as far as possible to secure the thread spool.

a Supplemental spool pin

a Spool pin b Spool cap c Thread spool

LOWER THREADING

CAUTION

• If the thread spool and/or spool cap are set

incorrectly, the thread may tangle on the spool pin, the thread will wind uneven on the bobbin and eventually cause damage to the machine.

• Use the spool cap (large, medium, or small)

that is closest in size to the thread spool. If a spool cap smaller than the thread spool is used, the thread may become caught in the slit on the end of the spool and cause damage to the machine.

Pass the thread under the pin, and pass the

thread around the pretension disk making sure that the thread is under the pretension disk.

Memo

When sewing with fine, cross-wound thread, use the small spool cap, and leave a small space between the cap and the thread spool.

a Spool cap (small) b Thread spool (cross-wound thread) c Space

With your right hand, hold the thread near

the thread spool. With your left hand, hold

the end of the thread, and use both hands to pass the thread through the thread guide.

a Pin b Pretension disk

Wind the thread clockwise around the

bobbin 4-5 times.

Pass the end of the thread through the guide

(

slit in the bobbin winder seat, and pull the thread to the right to cut the thread with the cutter.

a Thread guide

a Guide slit b Bobbin winder seat

CAUTION

• Be sure to follow the process described. If the thread is not cut with the cutter, and the bobbin is wound, when the thread runs low it may tangle around the bobbin and cause the needle to break.

LOWER THREADING

Set the bobbin holder to the left, until it

)

clicks into place.

a Bobbin holder (switch)

Memo

When the bobbin holder is set to the left, it works as a switch to make the bobbin wind automatically.

! The bobbin starts winding automatically and stops

rotating when it is done winding. The bobbin holder will return to the original position.

Cut the thread with the cutter and remove

the bobbin.

■ Using the Spool Pin

You can use the main spool pin to wind the bobbin before sewing. You cannot use this spool pin to wind the bobbin while sewing.

Turn the main power to ON.

Align the groove in the bobbin with the

spring on the bobbin winder shaft, and set the bobbin on the shaft.

Getting Ready

Memo

• When removing the bobbin, do not pull on the bobbin winder seat. Doing so could loosen or remove the bobbin winder seat, and could result in damage to the machine.

CAUTION

• Setting the bobbin improperly may cause the thread tension to loosen, breaking the needle and possibly resulting in injury.

a Groove of the bobbin b Spring on the shaft

Pivot the spool pin so that it angles upward.

Set the thread spool on the spool pin so that the thread unwinds from the front of the spool.

a Spool pin b Spool cap c Thread spool

LOWER THREADING

Push the spool cap onto the spool pin as far

as possible, then return the spool pin to its original position.

Setting the Bobbin

Holding the thread with your hands, slide

the thread into the grooves on the thread guide plate.

a Thread guide plate

Pass the thread through the thread guide.

Press ! ! !

in that order to display a video example of

the operation on the LCD (see page 20). Follow the steps explained below to complete the operation.

CAUTION

• Use a bobbin thread that has been correctly wound. Otherwise, the needle may break or the thread tension will be incorrect.

Press the “Presser Foot Lifter” button to

raise the presser foot.

Slide the bobbin cover latch to the right.

a Thread guide

Pass the thread under the pin. Then pass the

thread around the pretension disk making sure that the thread is under the pretension disk.

a Thread guide b Pin c Pretension disk

Follow steps ' through * on page 22

(

through 23.

a Bobbin cover b Latch

! The bobbin cover opens.

Remove the bobbin cover.

Hold the bobbin with your right hand and

hold the end of the thread with your left

hand.

LOWER THREADING

Set the bobbin in the bobbin case so that

the thread unwinds to the left.

Hold the bobbin lightly with your right

hand, and then guide the thread with your left hand.

Insert the tab in the lower-left corner of the

(

bobbin cover, and then lightly press down on the right side to close the cover.

Pulling Up the Bobbin Thread

There may be some sewing applications where you want to pull up the bobbin thread; for example, when making gathers, darts, or doing free motion quilting or embroidery.

Memo

You can pull up the bobbin thread after threading the upper thread (see “UPPER THREADING” on page 27).

Getting Ready

Pass the thread through the guide, and then

pull the thread out towards the front.

a Cutter

! The cutter cuts the thread.

CAUTION

• Be sure to hold down the bobbin with your finger and unwind the bobbin thread correctly. Otherwise, the thread may break or the thread tension will be incorrect.

Guide the bobbin thread through the

groove, following the arrow in the illustration.

* Do not cut the thread with the cutter. * Do not replace the bobbin cover.

While holding the upper thread, press the

needle position button to lower the needle.

a Needle position button

LOWER THREADING

Press the “Needle Position” button to raise

the needle.

Gently pull the upper thread, and a loop of

the bobbin thread will come out of the hole in the needle plate.

Pull up the bobbin thread, then pass it

under the presser foot and pull it about 100 mm (approx. 3-4 inches) toward the back of the machine, making it even with the upper thread.

a b

a Upper thread b Bobbin thread

Replace the bobbin cover.

UPPER THREADING

Threading Using the “Automatic Threading” Button

Press !!!

in that order to display a video example of

the operation on the LCD (see page 20). Follow the steps explained below to complete the operation.

! "

UPPER THREADING

Turn the main power to ON.

Press the “Needle Position” button to raise the needle.

Getting Ready

CAUTION

• Be sure to thread the machine properly. Improper threading can cause the thread to tangle and break the needle, leading to injury.

• When using accessories not included with this machine, attach the accessory to the machine after threading the machine.

Memo

• The automatic threading function can be

used with sewing machine needles 75/11 through 100/16.

• Thread such as transparent nylon monofila-

ment thread and thread with a thickness of 130/20 or thicker cannot be used with the automatic threading function.

• The automatic threading function cannot be

used with the wing needle or the twin needle.

• If the automatic threading function cannot be

used, see “Threading Manually” on page 29.

Note

If you try to thread the needle automatically without raising the needle, the thread may not thread correctly.

Pivot the spool pin so that it angles upward.

Set the thread spool on the spool pin so that the thread unwinds from the front of the spool.

a Spool pin b Spool cap c Thread spool

Push the spool cap onto the spool pin as far

as possible, then return the spool pin to its original position.

CAUTION

3, 4

• If the thread spool and/or spool cap are set incorrectly, the thread may tangle on the spool

pin and cause the needle to break.

• Use the spool cap (large, medium, or small) that is closest in size to the thread spool. If a spool cap smaller than the thread spool is used, the thread may become caught in the slit on the end of the spool and cause the needle to break.

UPPER THREADING

Memo

When sewing with fine, cross-wound thread, use the small spool cap, and leave a small space between the cap and the thread spool.

Press the “Automatic Threading” button to

(

have the machine automatically thread the needle.

a Spool cap (small) b Thread spool (cross-wound thread) c Space

Holding the thread with your hands, slide

the thread into the grooves on the thread

guide plate.

a Thread guide plate

While holding the thread in your right

hand, pass the thread through the thread guide in the direction indicated.

! The upper threading is finished.

Memo

When the “Automatic Threading” button is pressed, the presser foot will be automatically lowered.

Note

In case the needle is not completely thread, slowly pull the loop of the thread through from the back of the needle.

When finished pulling the thread through

the thread guide, cut the thread and leave the thread in position.

a Cutter

a About 50mm (approx. 2 inches)

Memo

If the needle could not be threaded or the thread was not passed through the needle bar thread guides, perform the procedure again starting from step

Note

When the “Automatic Threading” button is pressed, the presser foot will be automatically lowered. If you are using an incorrect needle and thread combination, the hook may sometimes get caught in the needle. If this happens, remove the hook from the needle as described below.

CAUTION

• The needle thread carrier will automatically thread the needle when the “Automatic Threading” button is pressed. Be sure to keep your hands and other items away from the needle area, otherwise injuries may occur.

UPPER THREADING

Turn the main power to ON.

Turn the handwheel so that the line on the

machine is aligned with the line on the handwheel.

a Line on handwheel

Memo

If the line on the machine is not aligned with the line on the handwheel, the sewing machine cannot be threaded. Check that the line on the handwheel is facing up as shown in the illustration above.

Press .

! The key appears as .

Getting Ready

Threading Manually

Automatic threading cannot be used when using the wing needle, the twin needle, or special thread with a thickness of 130/20 or thicker. In these cases, thread the needle as described below.

4, 12

5, 6

Raise the presser foot lever.

Pivot the spool pin so that it angles upward.

Set the thread spool on the spool pin so that the thread unwinds from the front of the spool.

a Spool pin b Spool cap c Thread spool

UPPER THREADING

Push the spool cap onto the spool pin as far

as possible, then return the spool pin to its original position.

CAUTION

• If the thread spool and/or spool cap are set

incorrectly, the thread may tangle on the spool pin and cause the needle to break.

• Use the spool cap (large, medium, or small)

that is closest in size to the thread spool. If a spool cap smaller than the thread spool is used, the thread may become caught in the slit on the end of the spool and cause the needle to break.

Holding the thread with both hands, slide

the thread into the grooves on the thread guide plate.

Pull the thread under the thread path guide.

)

(A)

a Thread path guide

Pull back up the thread along the left side of

the thread path guide to the top left corner of the threading path cover.

a Thread guide plate

While holding the thread in your right

(

hand, use your left hand to pull the thread toward the threading path cover, then pass it along the thread path as shown in the illustration. Be sure to pass the thread along the right side of the thread path guide.

(B)

a Top left corner b Threading path cover

Pull the thread back down to the needle bar

along the left side of the thread path guide.

* Make sure the thread is hooked at the top corner

and positioned behind the transparent front cover.

(C)

a Thread take-up lever check window b Transparent front cover

a Threading path cover b Thread path guide

Memo

a Take-up lever b Thread

Look through the thread take-up lever check window and check that the thread is correctly fed through the take-up lever, turning the handwheel toward you.

Lower the presser foot lever.

Holding the thread with both hands, pass

the thread through both the upper and lower needle bar thread guides.

a Needle bar thread guide (upper) b Needle bar thread guide (lower)

Pass the thread through the eye of the

needle from front to back.

UPPER THREADING

Using the Twin Needle Mode

The twin needle can only be used for patterns that

show after being selected. Before you select a stitch pattern, make sure the stitch can be

sewn in the twin needle mode (refer to the “STITCH SETTING CHART” at the end of this manual).

CAUTION

• Use only twin needles made for this machine (part code X59296-151). Other needles could break, resulting in damage.

• Be sure to set the twin needle mode when using the twin needle. Using the twin needle while the machine is in single needle mode could cause the needle to break, resulting in damage.

• Do not sew with bent needles. The needle could break and cause injury.

• When using the twin needle, be sure to use presser foot “J”.

• When the twin needle is used, bunched stitches may occur depending on the types of fabric and thread that are used. If this occurs, use monogramming foot “N”.

Getting Ready

Pass the thread through the presser foot,

and then pull out about 100-150 mm (approx. 4-6 inches) of thread toward the back of the machine.

a 100-150 mm (approx. 4-6 inches)

Press and install the twin needle

(see “CHANGING THE NEEDLE” on page 36).

Manually thread the machine.

* Follow the steps for threading a single needle for the

first threading (see “Threading Manually” on page

29).

Press to unlock all keys and

buttons.

UPPER THREADING

Pass the thread through the needle bar

thread guides on the needle bar, then thread the needle on the left side.

a Needle bar thread guides

Note

• The “Automatic Threading” button cannot be used. Manually thread the twin needle from front to back. Using the “Automatic Threading” button may result in damage to the machine.

Pull up the supplemental spool pin and set it

in the up position.

Hold the thread from the spool with both

hands, and place the thread in the thread guide.

* Do not place the thread in the bobbin winding

thread guide.

a Thread guide

Pass the thread through the thread guide

plate, following the sequence as described below.

a Supplemental spool pin

Place the additional spool of thread on the

supplemental spool pin, so that the thread unwinds from the back. Then push the spool cap onto the spool pin as far as possible to secure the thread spool.

a Spool pin b Spool cap c Thread spool

Do not pass the thread in the needle bar

(

thread guides on the needle bar. Thread the needle on the right side.

Press .

)

UPPER THREADING

Select a stitch pattern. (Example: )

* Refer to the “STITCH SETTING CHART” at the end

of this manual for proper stitch to use with presser foot “J”.

! The Selected stitch is displayed.

Note

If the key is light gray after selecting

the stitch, the selected stitch cannot be sewn in the twin needle mode.

Press to select the twin needle

mode.

Using Threads that Unwind Quickly

■ Using the Spool Net

If using transparent nylon thread, metallic thread, or other strong thread, place the included spool net over the spool before using it. When using these threads, threading must be done manually. If the spool net is too long, fold it once to match it to the spool size before placing it over the spool.

a Spool net b Thread spool

Memo

• When threading the spool with the spool net on, the thread may not come out enough. Make sure that 5-6 cm (approx. 2 - 2-1/2 inches) of thread are pulled out.

• It may be necessary to adjust the thread tension when using the spool net.

c Spool pin d Spool cap

Getting Ready

a Single needle/twin needle setting

! appears.

CAUTION

Be sure to set the twin needle mode when using the twin needle. Using the twin needle while the machine is in single needle mode could cause the needle to break, resulting in damage.

Start sewing.

Sample of Twin Needle Sewing

■ Using the Vertical Spool Pin

Use the vertical spool pin when using an irregularly shaped thread spool, and when sewing or embroidering with metallic thread.

Insert the vertical spool pin into the end of

the bobbin winder shaft.

Install the spool felt and the thread spool in

that order, and then thread the upper thread.

Memo

• When setting the thread spool, set it so that the thread winds off from the front of the spool.

• If using metallic thread, we recommend that you use a 90/14 home sewing machine needle.

• This method keeps the thread from twisting as it comes off the spool pin.

a Bobbin winder shaft b Vertical spool pin c Spool felt d Thread spool

CHANGING THE PRESSER FOOT

CAUTION

• Always press on the screen before changing the presser foot. If is not pressed and the “Start/Stop” button or another button is pressed, the machine will start and may cause injury.

• Always use the correct presser foot for the selected stitch pattern. If the wrong presser foot is used, the needle may strike the presser foot and bend or break, and may cause injury.

• Only use presser feet made for this machine. Using other presser feet may lead to accident or injury.

Removing the Presser Foot

Press the “Needle Position” button to raise

the needle.

Press .

! The key appears as .

Raise the presser foot lever.

Attaching the Presser Foot

Place the new presser foot under the

holder, aligning the foot pin with the notch in the holder. Lower the presser foot lever so that the presser foot pin snaps into the notch in the holder.

a Notch b Pin

Press to unlock all keys and

buttons.

Press the black button on the presser foot

holder and remove the presser foot.

a Black button b Presser foot holder

Raise the presser foot lever.

Attaching the Walking Foot

The walking foot holds the fabric between the presser foot and the feed dogs to feed the fabric. This enables you to have better fabric control when sewing difficult fabrics (such as quilting or velvet) or fabrics that slip easily (such as vinyl cloth, leather, or synthetic leather).

Note

• When sewing with the walking foot, sew at

medium to low speeds.

Memo

• The walking foot can only be used with

straight or zigzag stitch patterns. Reverse stitches cannot be sewn with the walking foot. Only select straight or zigzag stitch patterns with reinforcement stitches.

Follow the steps in “Removing the Presser

Foot” on the previous page.

Loosen the screw of the presser foot holder

to remove the presser foot holder.

CHANGING THE PRESSER FOOT

Lower the presser foot lever. Insert the

screw, and tighten the screw securely with the screwdriver.

CAUTION

• Use the screwdriver to tighten the screw securely. If the screw is loose, the needle may strike the presser foot and cause injury.

• Be sure to turn the handwheel toward the front of the machine to check that the needle does not strike the presser foot. If the needle strikes the presser foot, injury may result.

Getting Ready

Set the operation lever of the walking foot

so that the needle clamp screw is set between the fork, and position the walking foot on the presser foot bar.

a Operation lever b Needle clamp screw c Fork d Presser foot bar

CHANGING THE NEEDLE

CAUTION

• Always press on the screen before changing the needle. If is not pressed and the Start/ Stop button or another operation button is pressed accidentally, the machine will start and injury may

result.

• Use only sewing machine needles made for home use-type 130/705H needle. Other needles may bend or break and may cause injury.

• Never sew with a bent needle. A bent needle will easily break and may cause injury.

Use the screwdriver to turn the screw

Memo

To check the needle correctly, place the flat side of the needle on a flat surface. Check the needle from the top and the sides. Throw away any bent needles.

toward the front of the machine and loosen the screw, then remove the needle.

a Parallel space b Level surface (bobbin cover, glass, etc.)

Press the “Needle Position” button to raise

the needle.

Press .

! The key appears as .

Note

• Do not apply pressure to the needle clamp screw. Doing so may damage the needle or machine.

With the flat side of the needle facing the

back, insert the new needle all the way to the top of the needle stopper (viewing window) in the needle clamp. Use a screwdriver to securely tighten the needle clamp screw.

CHANGING THE NEEDLE

Getting Ready

a Needle stopper b Hole for setting the needle c Flat side of needle

CAUTION

• Be sure to push in the needle until it touches the stopper, and securely tighten the needle clamp screw with a screwdriver. If the needle is not completely inserted or the needle clamp screw is loose, the needle may break or the machine may be damaged.

Press to unlock all keys and

buttons.

CHANGING THE NEEDLE

■ About the Needle

The sewing machine needle is probably the most important part of the sewing machine. Choosing the proper needle for your sewing project will result in a beautiful finish and fewer problems. Below are some things to keep in mind about needles.

• The smaller the needle number, the finer the needle. As the numbers increase, the needles get thicker.

• Use fine needles with lightweight fabrics, and thicker needles with heavyweight fabrics.

• To avoid skipped stitches, use ball point needle (golden colored) 90/14 with stretch fabrics.

• To avoid skipped stitches, use ball point needle (golden colored) 90/14 when sewing character or decorative stitches.

• Use needle 75/11 for embroidery. Use ball point needle HA × 130 for embroidering patterns with short jump stitches such as alphabet characters when the thread trimming function is turned on. Ball point needles (golden colored) 90/14 are not recommended for embroidery, as they may bend or break, causing injury.

• It is recommended that a 90/14 needle should be used when embroidering on heavyweight fabrics or stabilizing products (for example, denim, puffy foam, etc.). A 75/11 needle may bend or break, which could result in injury.

• A home sewing machine needle 75/11 is inserted in the sewing machine.

■ Fabric/Thread/Needle Combinations

The following table provides information concerning the appropriate thread and needle for various fabrics. Please refer to this table when selecting a thread and needle for the fabric you wish to use.

Fabric Thread Size of needle

Type Size

Medium weight fabric Broadcloth Cotton 60 - 80 75/11 - 90/14

Taffeta Synthetic mercerized 60 - 80

Flannel, Gabardine Silk or silk finished 50

Lightweight fabric Lawn, Batiste Cotton 60 - 80 65/9 - 75/11

Georgette Synthetic mercerized 60 - 80

Challis, Satin Silk 50

Heavyweight fabric Denim Cotton 30 - 50 90/14 - 100/16

Corduroy Synthetic mercerized 50

Tweed Silk 50

Stretch fabric Jersey Thread for knits 50 - 60 Ball point needle

Tr i c o t

For top stitching Synthetic mercerized 30 90/14 - 100/16

Silk 30

(golden colored)

75/11 - 90/14

Memo

For transparent nylon thread, always use needle 90/14 - 100/16. The same thread is usually used for the bobbin thread and upper threading.

CAUTION

• Be sure to follow the needle, thread, and fabric combinations listed in the table. Using an improper combination, especially a heavyweight fabric (i.e., denim) with a small needle (i.e., 65/9 - 75/11), may cause the needle to bend or break, and lead to injury. Also, the seam may be uneven, the fabric may pucker, or the machine may skip stitches.

!"#$%&'!"

Sewing Basics

SEWING ..............................................................................................40

Sewing a Stitch........................................................................................................40

■ Using the Foot Controller................................................................................................41

Sewing Reinforcement Stitches ............................................................................... 42

Sewing Curves ......................................................................................................... 42

Changing Sewing Direction .....................................................................................42

Sewing Heavyweight Fabrics................................................................................... 43

■ If the Fabric does not Fit under the Presser Foot.............................................................43

■ If the Fabric does not Feed at the Beginning of Stitching.................................................43

Sewing Lightweight Fabrics .....................................................................................43

STITCH SETTINGS...............................................................................44

Setting the Stitch Width ..........................................................................................44

Setting the Stitch Length .........................................................................................44

Setting the Thread Tension...................................................................................... 45

■ Proper Thread Tension ....................................................................................................45

■ Upper Thread is Too Tight...............................................................................................45

■ Upper Thread is Too Loose..............................................................................................45

USEFUL FUNCTIONS..........................................................................46

Automatic Reinforcement Stitching ........................................................................ 46

Automatic Thread Cutting .......................................................................................47

■ Using the Knee Lifter.......................................................................................................48

Locking the Screen ..................................................................................................48

SEWING

CAUTION

• To avoid injury, pay special attention to the needle while the machine is in operation. Keep your hands away from moving parts while the machine is in operation.

• Do not stretch or pull the fabric during sewing. Doing so may lead to injury.

• Do not use bent or broken needles. Doing so may lead to injury.

• Take care that the needle does not strike basting pins or other objects during sewing. Otherwise, the needle may break and cause injury.

• If stitches become bunched, lengthen the stitch length setting before continuing sewing. Otherwise, the needle may break and cause injury.

Sewing a Stitch

Turn the main power to ON, and push the

“Needle Position” button to raise the needle.

Press the key of the stitch you want to sew.

! The symbol of the correct presser foot will be

displayed in the upper left corner of the LCD.

Install the presser foot (see “CHANGING

THE PRESSER FOOT” on page 34).

Set the fabric under the presser foot. Hold

the fabric and thread ends in your left hand, and turn the handwheel to set the needle in the sewing start position.

Memo

The black button on the left side of presser foot “J” should be pressed only if the fabric does not feed or when sewing thick seams (see page 43). Normally, you can sew without pressing the black button.

Lower the presser foot.

* You do not have to pull up the bobbin thread.

CAUTION

• Always use the correct presser foot. If the wrong presser foot is used, the needle may strike the presser foot and bend or break, possibly resulting in injury.

Adjust the sewing speed with the speed

control slide.

* You can use this slide to adjust sewing speed during

sewing.

a Slow b Fast

Press the “Start/Stop” button to start

sewing.

* Guide the fabric lightly by hand.

SEWING

Note

• When cutting thread thicker than #30, nylon thread, or other decorative threads, use the thread cutter on the side of the machine.

Press the “Start/Stop” button again to stop

(

sewing.

Press the “Thread Cutter” button to trim

)

the threads.

! The needle will return to the up position

automatically.

When the needle has stopped moving, raise

the presser foot and remove the fabric.

Memo

This machine is equipped with a bobbin thread sensor that warns you when the bobbin thread is almost empty. When the bobbin thread is nearly empty, the machine automatically stops. However, if the “Start/Stop” button is pressed, a few stitches can be sewn. If the warning displays, re-thread the machine immediately.

■ Using the Foot Controller

You can also use the foot controller to start and stop sewing.

CAUTION

Do not allow fabric pieces and dust to collect in the foot controller. Doing so could cause a fire or an electric shock.

Memo

• When the foot controller is being used, the “Start/Stop” button has no effect on sewing.

• The foot controller cannot be used when embroidering. The foot controller can be used for sewing utility and decorative stitches when the embroidery unit is attached.

Sewing Basics

CAUTION

• Do not press the “Thread Cutter” button after the threads have been cut. Doing so could tangle the thread or break the needle and damage the machine.

• Do not press the “Thread Cutter” button when there is no fabric set in the machine or during machine operation. The thread may tangle, possibly resulting in damage.

Pull the retractable cord out from the foot

controller to the desired length, and then insert the foot controller plug into its jack on the machine.

a Foot controller b Foot controller jack

Note

Do not pull retractable cord out beyond the red mark.

SEWING

Slowly depress the foot controller to start

sewing.

Memo

The speed set using the sewing speed controller is the foot controller’s maximum sewing speed.

Sewing Curves

Sew slowly while keeping the seam parallel with the fabric edge as you guide the fabric around the curve.

Release the foot controller to stop the

machine.

Memo

(For U.S.A. only) Foot controller: Model S This foot controller can be used with model

BLG

Sewing Reinforcement Stitches

Reverse/reinforcement stitches are generally necessary at the beginning and end of sewing. You can use the “Reverse/Reinforcement Stitch” button to sew reverse/reinforcement stitches manually (see page 3).

If the automatic reinforcement stitch is selected on the screen, reverse stitches (or reinforcement stitches) will be sewn automatically at the beginning of sewing when the “Start/Stop” button is pressed. Press the “Reverse/Reinforcement Stitch” button to sew reverse stitches (or reinforcement stitches) automatically at the end of sewing (see page 46).

Changing Sewing Direction

Stop the machine. Leave the needle in the fabric, and press the “Presser Foot Lifter” button to raise the presser foot. Using the needle as a pivot, turn the fabric so that you can sew in the new direction. Press the “Presser Foot Lifter” button to lower the presser foot and start sewing.

When edge stitching a short stitch length close to the edge of the fabric, the presser foot may not cover enough fabric for proper feeding. Before you begin to sew, sew a basting thread at the corner point. When you change direction at the corner, start sewing as you pull the basting thread toward the back.

a 5 mm (approx. 3/16 inch)

Sewing Heavyweight Fabrics

The sewing machine can sew fabrics up to 6 mm (approx. 1/4 inch) thick. If the thickness of a seam causes sewing to occur at an angle, help guide the fabric by hand and sew on the downward slope.

CAUTION

• Do not forcefully push fabrics more than 6 mm (approx. 1/4 inch) thick through the sewing machine. This may cause the needle to break and cause injury.

SEWING

■ If the Fabric does not Feed at the Beginning of Stitching

If the fabric does not feed when starting to sew or when sewing thick seams, press the black button on the left side of presser foot “J”.

Raise the presser foot.

While keeping the black button on the left

side of presser foot “J” pressed in, press the “Presser Foot Lifter” button to lower the presser foot.

Sewing Basics

■ If the Fabric does not Fit under the Presser Foot

If the presser foot is in the up position, and you are sewing heavyweight or multiple layers of fabric which do not fit easily under the presser foot, use the presser foot lever to raise the presser foot to its highest position. The fabric will now fit under the presser foot.

Memo

You cannot use the presser foot lever after the presser foot has been raised using the “Presser Foot Lifter” button.

Release the button.

! The presser foot remains level, enabling the fabric to

be fed.

Memo

Once the trouble spot has been passed, the foot will return to its normal position.

Sewing Lightweight Fabrics

Place thin paper or tear away embroidery stabilizer under thin fabrics to make sewing easier. Gently tear off the paper or the stabilizer after sewing.

a Thin paper

STITCH SETTINGS

When you select a stitch, your machine automatically selects the appropriate stitch width, stitch length, and upper thread tension. However, if needed, you can change any of the individual settings.

Note

• Settings for some stitches cannot be changed (refer to the “STITCH SETTING CHART” at the end of this manual).

• If you turn off the machine or select another stitch without saving stitch setting changes (see “Saving Your Stitch Settings” on page 52), the stitch settings will return to their default settings.

Setting the Stitch Width

Follow the steps below when you want to change the zigzag stitch pattern width.

Memo

• For an alternate method of changing the stitch width using the speed controller, see page 72.

Example:

Press to narrow the zigzag stitch pattern width.

Press to widen the zigzag stitch pattern width.

! The value in the display gets bigger.

Memo

• Press to return the stitch width to the original setting.

Setting the Stitch Length

Follow the steps below when you want to change the stitch pattern length.

! The value in the display gets smaller.

Example:

Press to shorten the stitch length.

! The value in the display gets smaller.

STITCH SETTINGS

Press to lengthen the stitch length.

! The value in the display gets bigger.

Memo

• Press to return the stitch length to the original setting.

CAUTION

If the stitches get bunched together, lengthen the stitch length and continue sewing. Do not continue sewing without lengthening the stitch length. Otherwise, the needle may break and cause injury.

■ Proper Thread Tension

The upper and lower threads should cross near the center of the fabric. If the thread tension is not properly set, the seam may have a poor finish or the fabric may pucker.

a Wrong side b Surface c Upper thread d Bobbin thread

■ Upper Thread is Too Tight

If the bobbin thread can be seen on the surface of

the fabric, press .

Sewing Basics

Setting the Thread Tension

You may need to change the thread tension, depending on the fabric and thread being used. Follow the steps below to make any necessary changes.

a Bobbin thread b Upper thread c Surface d Locks appear on surface of fabric

■ Upper Thread is Too Loose

If the upper thread can be seen on the wrong side of

the fabric, press .

a Upper thread b Bobbin thread c Wrong side d Locks appear on wrong side of fabric

Memo

• Press to return the thread tension to the original setting.

USEFUL FUNCTIONS

Automatic Reinforcement Stitching

After selecting a stitch pattern, turn on the automatic reinforcement stitching function before sewing, and the machine will automatically sew reinforcement stitches (or reverse stitches, depending on the stitch pattern) at the beginning and end of sewing.

Select a stitch pattern.

Press to set the automatic

reinforcement stitching function.

Set the fabric in the start position and start

sewing.

a Reverse stitches (or reinforcement stitches)

! The machine will automatically sew reverse stitches

(or reinforcement stitches) and then continue sewing.

! The key will display as .

Memo

Some stitches, such as buttonholes and bar tacks, require reinforcement stitches at the beginning of sewing. If you select one of these stitches, the machine will automatically turn on

this function (the key appears as when

the stitch is selected).

Memo

If you press the “Start/Stop” button to pause sewing, press it again to continue. The machine will not sew reverse reinforcement stitches again.

Press the “Reverse/Reinforcement Stitch”

button.

a Reverse stitches (or reinforcement stitches)

! The machine will sew reverse stitches (or

reinforcement stitches) and stop.

Memo

To turn off the automatic reinforcement stitch-

ing function, press again, so it appears

as .

Automatic Thread Cutting

After selecting a stitch pattern, turn on the automatic thread cutting function before sewing, and the machine will automatically sew reinforcement stitches (or reverse stitches, depending on the stitch pattern) at the beginning and end of sewing, and trim the threads at the end of sewing. This function is useful when sewing buttonholes and bar tacks.

Select a stitch pattern.

Press to set the automatic thread

cutting function.

USEFUL FUNCTIONS

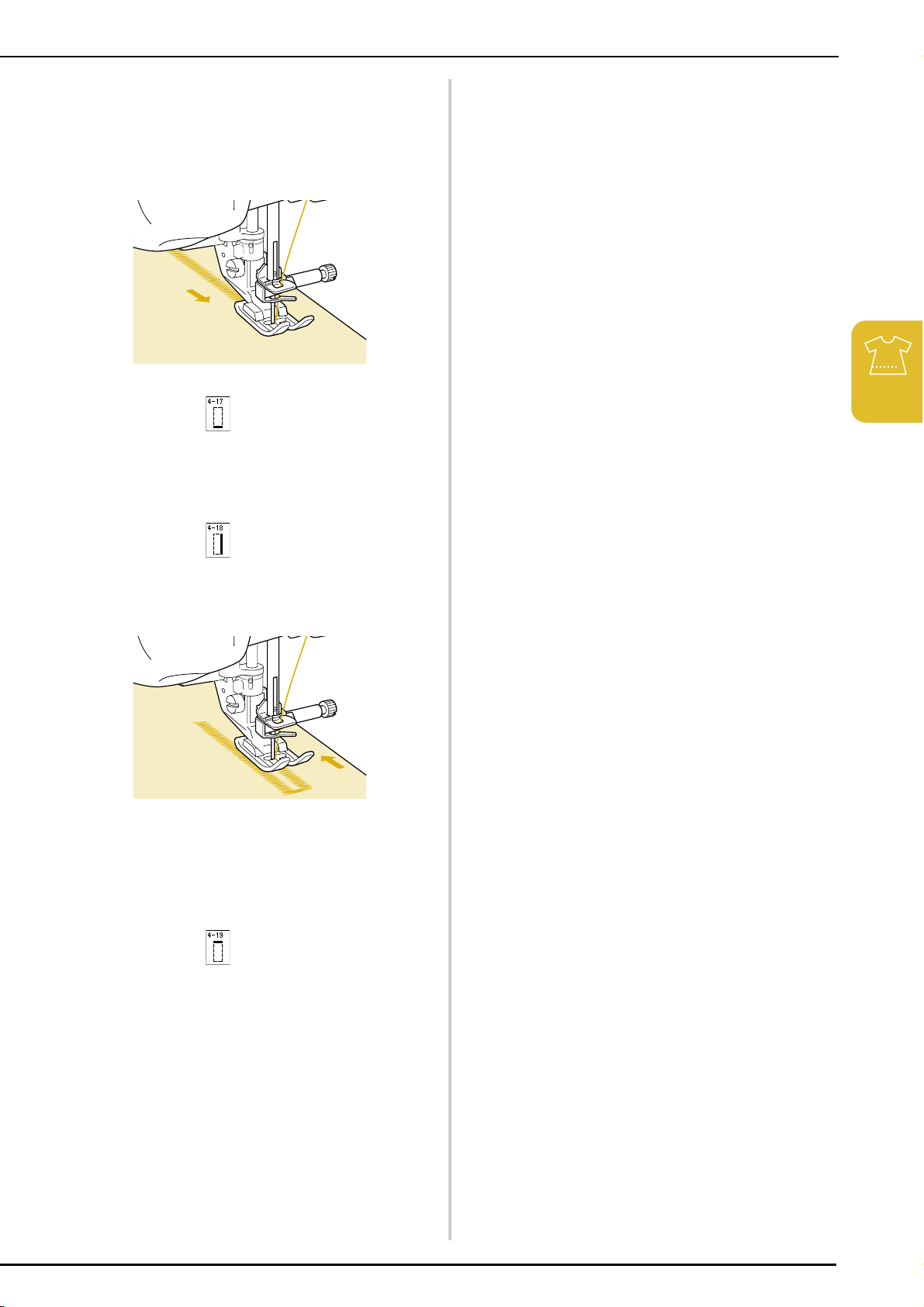

Set the fabric in the start position and start

sewing.

a Reverse stitches (or reinforcement stitches)

! The machine will automatically sew reverse stitches

(or reinforcement stitches) and then continue sewing.

Memo

If you press the “Start/Stop” button to pause sewing, press the same button again to continue. The beginning reverse/reinforcement stitches will not be sewn again.

Sewing Basics

! The key will display as .

Memo

This function is set automatically when sewing embroidery.

Press the “Reverse/Reinforcement

Stitching” button.

a Reverse stitches (or reinforcement stitches)

! The machine will sew reverse stitches (or

reinforcement stitches), then trim the thread.

Memo

To turn off the automatic thread cutting func-

tion, press again, so it appears as .

USEFUL FUNCTIONS

■ Using the Knee Lifter

Using the knee lifter, you can raise and lower the presser foot with your knee, leaving both hands free to handle the fabric.

Align the tabs on the knee lifter with the

notches in the jack, and then insert the knee lifter as far as possible.

Locking the Screen

If the screen is locked before starting to sew, the various settings such as the stitch width and stitch length are locked and cannot be changed. This prevents screen settings from accidentally being changed or the machine from being stopped while large pieces of fabric or projects are being sewn. The screen can be locked when sewing utility stitches and character decorative stitches.

Select a stitch pattern.

If necessary, adjust any settings such as the

stitch width and stitch length.

Press to lock the screen settings.

Note

If the knee lifter is not pushed into the mounting slot as far as possible, it may come out during use.

Use your knee to move the knee lifter to the

right in order to raise the presser foot. Release the knee lifter to lower the presser foot.

CAUTION

Be sure to keep your knee away from the knee lifter during sewing. If the knee lifter is pushed during machine operation, the needle may break or the thread tension may loosen.

! The key appears as .

Sew your project.

When you are finished sewing, press

again to unlock the screen settings.

CAUTION

• If the screen is locked ( ), unlock the

screen by pressing . While the screen is locked, no other key can be operated.

• The settings are unlocked when the machine is

turned off and on.

!"#$%&'!#

Utility Stitches

SELECTING UTILITY STITCHES......................50

Selecting a Stitch .............................................................. 50

■ Stitch Selection Screens............................................................ 50

■ Using the Mirror Image Key.....................................................51

■ Using the Image Key................................................................. 51

Saving Your Stitch Settings ............................................... 52

■ Saving Settings.......................................................................... 52

■ Retrieving Saved Settings..........................................................53

Using the Sewing Type Selection Key ............................... 53

SEWING THE STITCHES.................................55

Straight Stitches ................................................................ 55

■ Changing the Needle Position (Left or Middle Needle Position

Stitches Only) .......................................................................... 57

■ Using the Straight Stitch Needle Plate and the Straight Stitch

Foot..........................................................................................57

■ Basting ..................................................................................... 58

Dart Seam......................................................................... 59

Gathering.......................................................................... 59

Flat Fell Seam.................................................................... 60

Pintuck.............................................................................. 61

Zigzag Stitches.................................................................. 62

■ Overcasting (Using a Zigzag Stitch) ......................................... 62

■ Appliqué (Using a Zigzag Stitch) ..............................................62

■ Patchwork (for Crazy Quilt).....................................................63

■ Sewing Curves (Using a Zigzag Stitch) .....................................63

■ Cord Guide Bobbin Cover (Using a Zigzag Stitch) ................... 63

Elastic Zigzag Stitches ....................................................... 64

■ Tape Attaching .........................................................................64

■ Overcasting..............................................................................64

Overcasting ...................................................................... 65

■ Overcasting Using Presser Foot “G” ........................................ 65

■ Overcasting Using Presser Foot “J”.......................................... 66

■ Overcasting Using the Optional Side Cutter............................ 67

■ When Sewing Straight Stitches While Using the Side Cutter.... 68

Quilting ............................................................................ 69

■ Piecing ..................................................................................... 70

■ Quilting....................................................................................70

■ Appliqué...................................................................................71

■ Quilting with Satin Stitches...................................................... 72

■ Free-motion Quilting................................................................73

Blind Hem Stitches ........................................................... 74

■ If the Needle does not Catch the Fold...................................... 75

■ If the Needle Catches Too Much of the Fold............................ 75

Appliqué ........................................................................... 75

■ Sewing Sharp Curves................................................................ 76

Shelltuck Stitches.............................................................. 76

Scallop Stitches................................................................. 77

Top Stitching..................................................................... 77

Smocking Stitches ............................................................. 78

Fagoting ............................................................................ 78

Tape or Elastic Attaching .................................................. 79

Heirloom .......................................................................... 80

■ Hemstitching (1) (Daisy Stitch) ................................................80

■ Hemstitching (2) (Drawn Work)............................................... 80

■ Hemstitching (3).......................................................................81

One-step Buttonholes ....................................................... 82

■ Sewing Stretch Fabrics..............................................................85

■ Odd Shaped Buttons/Buttons that do not Fit into

the Button Holder Plate............................................................85

Four-step Buttonholes........................................................ 86

■ Darning.....................................................................................88

Bar Tacks ...........................................................................90

■ Bar Tacks on Thick Fabrics........................................................91

Button Sewing ...................................................................92

■ Attaching 4 Hole Buttons..........................................................93

■ Attaching a Shank to the Button ...............................................93

Eyelet.................................................................................94

Multi-directional Sewing (Straight Stitch and

Zigzag Stitch).....................................................................95

Zipper Insertion .................................................................96

■ Centered Zipper........................................................................96

■ Inserting a Side Zipper..............................................................97

SELECTING UTILITY STITCHES

Selecting a Stitch

■ Stitch Selection Screens

There are 5 categories of Utility Stitches. indicates that there is more than one stitch selection screen

for that category.

Straight/Overcasting/Quilting Stitches Decorative Stitches

Heirloom Stitches Buttonholes/Bar tacks Multi-directional Sewing

SELECTING UTILITY STITCHES

Turn the main power to ON.

! Either “1-01 Straight stitch (Left)” or “1-03 Straight

stitch (Middle)” is selected, depending on the setting selected in the setting screen.

Use to select the

category you want.

* Press to view this screen if another screen

displays.

* Press to view the next page.

■ Using the Mirror Image Key

Depending on the type of utility stitch you select, you may be able to sew a horizontal mirror image of the stitch.

If is lit when you select a stitch, it will be

possible to make a mirror image of the stitch.

Note

If is light gray after you select a stitch, you cannot create a horizontal mirror image of

the selected stitch (this is true of buttonholes, multi-directional sewing, and others).

Press to create a horizontal mirror image of

the selected stitch.

The key will display as .

Utility Stitches

a Preview of the selected stitch b Stitch selection screen

Press the key of the stitch you want to sew.

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

■ Using the Image Key

You can display an actual size image of the selected stitch. You can also check and change the colors of the image on the screen.

Press .

! An image of the selected stitch is displayed.

SELECTING UTILITY STITCHES

Press to change the thread color of

the stitch on the screen.

* Press to display an enlarged image of the

stitch.

Memo

• The color changes every time you press

• The units of the stitch display area are in mm.

Saving Your Stitch Settings

The settings for the zigzag stitch width, stitch length, thread tension, automatic thread cutting, automatic reinforcement stitching, etc., are preset in the machine for each stitch. However, if you have specific settings that you wish to reuse later for a stitch, you can change the settings so that they can be saved for that stitch. Five sets of settings can be saved for a single stitch.

■ Saving Settings

Select a stitch. (Example: )

a Stitch screen

Press to go back to the original

screen.

Specify your preferred settings.

SELECTING UTILITY STITCHES

Press .

! The settings are saved and the original screen

automatically appears.

Memo

If you try to save settings when there are already 5 sets of settings saved for a stitch, a message will appear. Follow the directions in the message to erase one set of currently saved settings and save the new settings.

■ Retrieving Saved Settings

Select a stitch.

Memo

When a stitch is selected, the last settings retrieved are displayed. The last settings retrieved are retained even if the machine was turned off or a different stitch was selected.

Press the numbered key of the settings to be

retrieved.

* Press to return to the original screen

without retrieving settings.

a Numbered keys

Press .

Memo

You can delete the selected settings by press-

ing .

! The selected settings are retrieved, and the original

screen automatically appears.

Using the Sewing Type Selection Key

Utility Stitches

Press .

You can also select utility stitches using . Use this key when you are not sure which stitch to

use for your application, or to get advice about sewing particular stitches. For example, if you want to sew overcasting, but you do not know which stitch to use or how to sew the stitch, you can use this screen to get advice. We recommend that beginners use this method to select stitches.

SELECTING UTILITY STITCHES

Example: Displaying information about

overcasting

Press .

! The advice screen is displayed.

Read the explanations and select the

appropriate stitch.

* Press or to scroll the page.

! The screen displays directions for sewing the

selected stitch.

Press .

* Press to return to the original screen.

! The upper part of the screen displays a selection of

buttonholes with explanations.

Follow the directions to sew the stitch.

* Press to view the next page.

SEWING THE STITCHES

Straight Stitches

SEWING THE STITCHES

Stitch Stitch name

Straight stitch (Left) General sewing, gather, pintuck,

Straight stitch (Middle)

Triple stretch stitch General sewing for

Stem stitch Reinforced stitching, sewing and

Decorative stitch Decorative stitching, top

Presser

foot

Applications

etc. Reverse stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

etc. Reinforcement stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

General sewing, gather, pintuck, etc. Reverse stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

General sewing, gather, pintuck, etc. Reinforcement stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

reinforcement and decorative topstitching

decorative applications

stitching

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

0.0 (0)

3.5

(1/8)

3.5

(1/8)

0.0 (0)

1.0

(1/16)

0.0 (0)

0.0 - 7.0 (0 - 1/4)

1.0 - 3.0

(1/16 - 1/8)

0.0 - 7.0 (0 - 1/4)

Stitch length

[mm (inch.)]

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

0.2 - 5.0

(1/64 - 3/16)

0.2 - 5.0

(1/64 - 3/16)

0.2 - 5.0

(1/64 - 3/16)

0.2 - 5.0

(1/64 - 3/16)

1.5 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

Twin

needle

( J )

Utility Stitches

Basting stitch Basting

0.0 (0)

0.0 - 7.0 (0 - 1/4)

20.0

(3/4)

5.0 - 30.0

(3/16 - 1-3/16)

J J

a Left needle position b Middle needle position

a Reverse stitch b Reinforcement stitch

Memo

If the selected stitch has a double mark “ ” at the top of the key display, you can sew reverse stitches holding the “Reverse/Reinforcement Stitch” button.

If the selected stitch has a dot mark “ ” at the top of the key display, you can sew reinforcement stitches holding the “Reverse/Reinforcement Stitch” button (see page 42).

SEWING THE STITCHES

Select a stitch.

Attach presser foot “J”.

Hold the thread tails and fabric with your

left hand, and turn the handwheel with your right hand to insert the needle into the fabric.

CAUTION

Be sure the needle does not strike a basting pin, or any other objects, during sewing. The thread could tangle or the needle could break, causing injury.

When sewing is completed, hold the

“Reverse/Reinforcement Stitch” button to sew 3-4 reverse stitches (or reinforcement stitches) at the end of the seam.

After sewing, press the “Thread Cutter”

button to trim the threads.

a Sewing start position

Lower the presser foot, and hold the

“Reverse/Reinforcement Stitch” button to sew 3-4 stitches.

! The machine sews reverse stitches (or reinforcement

stitches).

Press the “Start/Stop” button to sew

forward.

a Reverse stitches

! The machine will begin sewing slowly.

Memo

When the automatic thread cutting and automatic reinforcement stitch keys on the screen are selected, reverse stitches (or reinforcement stitches) will be sewn automatically at the beginning of sewing when the “Start/Stop” button is pressed. Press the “Reverse/Reinforcement Stitch” button to sew reverse stitches (or reinforcement stitches) and trim the thread automatically at the end of sewing.

SEWING THE STITCHES

■ Changing the Needle Position (Left or Middle Needle Position Stitches Only)

When you select left or middle needle position

stitches, you can use and in the stitch

width display to change the position of the needle. Match the distance from the right edge of the presser foot to the needle with the stitch width, then align the edge of the presser foot with the edge of the fabric during sewing for an attractive finish.

a Stitch width

Example: Left/Middle needle position stitches

■ Using the Straight Stitch Needle Plate and the Straight Stitch Foot

The straight stitch needle plate and the straight stitch foot can only be used for straight stitches (middle needle position stitches). Use the straight stitch needle plate and the straight stitch foot when sewing thin fabrics or when sewing small pieces which tend to sink into the hole of the regular needle plate during sewing. The straight stitch foot is perfect to reduce puckering on lightweight fabrics. The small opening on the foot provides support for the fabric as the needle goes through the fabric.

CAUTION

Always use the straight stitch foot in combination with the straight stitch needle plate.

Press the “Presser Foot Lifter” button to

raise the presser foot and turn the main power to OFF.

Remove the flat bed attachment or the

embroidery unit if either are attached.

Grasp both sides of the needle plate cover,

and then slide it toward you.

Utility Stitches

12.0 mm (approx. 1/2 inch)

8.5 mm

(approx.

11/32

inch)

6.5 mm (approx. 1/4 inch)

Memo

For a standard 16 mm (approx. 5/8 inch) seam allowance, set the width to 0 mm on the screen. While sewing, align the edge of the fabric with the 16mm (approx. 5/8 inch) mark on the needle plate.

5.0 mm

(approx. 3/

16 inch)

a Needle plate cover

Grasp the bobbin case, and then pull it out.

a Bobbin case

Use the screwdriver included with the

machine to unscrew and remove the regular needle plate.

a 16 mm (approx. 5/8 inch)

SEWING THE STITCHES

Set the straight stitch needle plate in place

and use the screwdriver to tighten the plate.

Insert the bobbin case in its original

position (see page 203), and then attach the needle plate cover.

Note

Align the two screw holes on the needle plate with the two holes on the machine and screws in the needle plate.

After reinstalling the needle plate cover,

(

select any of the straight stitches.

Memo

When using the straight stitch needle plate, all straight stitches become middle needle position stitches. You cannot change the needle position using the width display.

■ Basting

Select and attach presser foot “J”.

Press the “Reverse/Reinforcement Stitch”

button to sew reinforcement stitches, then continue sewing.

Memo

If you do not want to use a reinforcement stitch at the beginning; you should lift the presser foot, rotate the handwheel, pull up the bobbin thread and pull a length of top and bobbin thread out from the rear of the machine.

You can set the stitch length between 5 mm (approx. 3/16 inch) and 30 mm (approx. 1-3/16 inches)

a Between 5 mm (approx. 3/16 inch) and 30 mm

(approx. 1-3/16 inches)

CAUTION

• Selecting other stitches will cause an error message to be displayed.

• Be sure to turn the handwheel slowly in your direction before sewing and make sure that the needle is not contacting the straight stitch foot and straight stitch needle plate.

Attach the straight stitch foot.

)

Start sewing.

* After sewing, make sure to remove the straight stitch

needle plate and the straight stitch foot, and reinstall the regular needle plate, the needle plate cover and the presser foot “J”.

Memo

To prevent puckering on fine fabrics, use a fine needle, size 75/11, and a short stitch length. For heavier fabrics, use a heavier needle, size 90/14, and longer stitches.

Sew while keeping the fabric straight.

End the basting with reinforcement stitches.

Dart Seam

Select and attach presser foot “J”.

Sew a reverse stitch at the beginning of the

dart and then sew from the wide end to the other end without stretching the fabric.

* If automatic reinforcement stitching is preset, a

reinforcement stitch will automatically be sewn at the beginning of sewing.

SEWING THE STITCHES

Iron the dart to one side so that it is flat.

Gathering

a Basting

Cut the thread at the end leaving 50 mm

(approx. 1-15/16 inches), and then tie both ends together.

* Do not sew a reverse stitch at the end.

Use on waists of skirts, sleeves of shirts, etc.

Select a straight stitch and attach presser

foot “J”.

Set the stitch length to 4.0 mm (approx.

3/16 inch) and the thread tension to approximately 2.0 (weaker tension).

Utility Stitches

Insert the ends of the thread into the dart

with a needle.

* If you press after pressing , the

stitch length will be set automatically to 4.0 mm (approx. 3/16 inch) and the thread tension will be automatically set to 2.0.

Pull the bobbin and upper threads out by

50 mm (approx. 1-15/16 inches) (see page

25).

a Upper thread b Bobbin thread c About 50 mm (approx. 1-15/16 inches)

SEWING THE STITCHES

Sew two rows of straight stitches parallel to

the seam line, then trim excess thread leaving 50 mm (approx. 1-15/16 inches).

Flat Fell Seam

Use for reinforcing seams and finishing edges neatly.

a Seam line b 10 to 15 mm (approx. 3/8 inch to 9/16 inch) c About 50 mm (approx. 1-15/16 inches)

Pull the bobbin threads to obtain the

desired amount of gather, then tie the

threads.

Smooth the gathers by ironing them.

Select and attach presser foot “J”.

With right sides of the fabric together, sew

the seam line, then cut half of the seam allowance from the side on which the flat fell seam will lie.

* When the automatic thread cutting and automatic

reinforcement stitching are preset, reinforcement stitches will be sewn automatically at the beginning of sewing. Press the “Reverse/Reinforcement Stitch” button to sew a reinforcement stitch and trim the thread automatically at the end of sewing.

a About 12 mm (approx. 1/2 inch) b Wrong side

Spread the fabric out along the seam line.

Sew on the seam line and remove the

basting stitch.

a Seam line b Wrong side

Lay both seam allowances on the side of the

shorter seam (cut seam) and iron them.

a Wrong side

Fold the longer seam allowance around the

shorter one, and sew the edge of the fold.

SEWING THE STITCHES

Select and attach presser foot “I”.

Sew a straight stitch along the fold.

* When the automatic thread cutting and automatic

a Wrong side

Finished flat fell seam

a Surface

Pintuck

Mark along the folds on the wrong side of

the fabric.

a Width for pintuck b Wrong side c Surface

Iron the folds in the same direction.

Utility Stitches

a Wrong side

Turn the fabric and iron the folded parts

only.

a Surface

SEWING THE STITCHES

Zigzag Stitches

Zigzag stitches are useful for overcasting, appliqué, patchwork, and many other applications.

Select a stitch, and attach presser foot “J”.

If the stitch which you select has a double mark “ ” at the top of the key display, you can sew reverse stitches by holding the “Reverse/Reinforcement Stitch” button.

If the stitch which you select has a dot mark “ ” at the top of the key display, you can sew reinforcement stitches by holding the “Reverse/Reinforcement Stitch” button (see page 42).

Stitch Stitch name

Zigzag stitch For overcasting, mending.

Zigzag stitch (right) Start from right needle position,

Zigzag stitch (left) Start from left needle position,

Select a stitch.

Presser

foot

Applications

Reverse stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

Reinforcement stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

zigzag sew at left.

zigzag sew at right.

■ Overcasting (Using a Zigzag Stitch)

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

3.5

(1/8)

3.5

(1/8)

3.5

(1/8)

3.5

(1/8)

0.0 - 7.0 (0 - 1/4)

2.5 - 5.0

(3/32 - 3/16)

2.5 - 5.0

(3/32 - 3/16)

Stitch length

[mm (inch.)]

1.4

(1/16)

1.4

(1/16)

1.4

(1/16)

1.4

(1/16)

0.0 - 4.0

(0 - 3/16)

0.0 - 4.0

(0 - 3/16)

0.3 - 4.0

(1/64 - 3/16)

0.3 - 4.0

(1/64 - 3/16)

Twin

needle

( J )

Sew the overcasting along the edge of the fabric while positioning the right-hand side needle drop point just outside the edge of the fabric.

Attach presser foot “J”.

a Needle drop position

■ Appliqué (Using a Zigzag Stitch)

Attach the appliqué using a temporary spray adhesive or basting, then sew it.

* Sew a zigzag stitch while positioning the right-hand

side needle drop point just outside the edge of the fabric.

SEWING THE STITCHES

■ Patchwork (for Crazy Quilt)

Turn back the desired width of fabric and position it over the lower fabric, then sew so that the stitch bridges both pieces of fabric.

■ Sewing Curves (Using a Zigzag Stitch)

Shorten the stitch length setting to obtain a fine stitch. Sew slowly, keeping the seams parallel with the fabric edge as you guide the fabric around the curve.

Snap the cord guide bobbin cover into

place, making sure that the gimp thread can be fed freely.

* Make sure there are no restrictions when feeding the

thread.

Set the zigzag width from 2.0-2.5 mm

(approx. 1/16 - 3/32 inch).

Attach presser foot “N”.

Position the fabric right side up on top of

the cord and place the cord to the rear of the machine under the presser foot.

Utility Stitches

■ Cord Guide Bobbin Cover (Using a Zigzag Stitch)

Remove the bobbin cover from the machine

(see page 24).

Thread gimp thread through the hole in the

cord guide bobbin cover from top to bottom. Position the thread in the notch at the back of the cord guide bobbin cover.

a Fabric (right side) b Gimp thread

Lower the presser foot and start sewing to

make a decorative finish.

a Notch b Gimp thread c Hole

SEWING THE STITCHES

Elastic Zigzag Stitches

Use elastic zigzag stitches for tape attaching, overcasting, darning, or a wide variety of other uses.

Stitch Stitch name

2 step elastic zigzag Overcasting (medium weight

3 step elastic zigzag Overcasting (medium,

Select a stitch.

Presser

foot

Applications

and stretch fabrics), tape and elastic

heavyweight and stretch fabrics), tape and elastic

■ Tape Attaching

Stretch the tape flat. While stretching the tape flat, sew the tape to the fabric.

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

5.0

(3/16)

5.0

(3/16)

5.0

(3/16)

1.5 - 7.0

(1/16 - 1/4)

1.5 - 7.0

(1/16 - 1/4)

1.5 - 7.0

(1/16 - 1/4)

Stitch length

[mm (inch.)]

1.0

(1/16)

1.0

(1/16)

1.0

(1/16)

0.2 - 4.0

(1/64 - 1/16)

0.2 - 4.0

(1/64 - 1/16)

0.2 - 4.0

(1/64 - 1/16)

Twin

needle

( J )

Attach presser foot “J”.

a Tape

■ Overcasting

Use this stitch to sew overcasting on the edge of stretch fabrics. Sew the overcasting along the edge of the fabric while positioning the right-hand side needle drop point just outside the edge of the fabric.

SEWING THE STITCHES

Overcasting

Use for the beginning and end of seams in skirts or trousers, and the beginning and end of all cuttings. Use presser foot “G”, presser foot “J”, or the optional side cutter attachment depending on the kind of overcasting stitch you select.

■ Overcasting Using Presser Foot “G”

Stitch Stitch name

Overcasting stitch Reinforcing of light and medium

Overcasting stitch Reinforcing of heavyweight

Overcasting stitch Reinforcing of medium,

Select a stitch and attach presser foot “G”.

Presser

foot

weight fabrics

fabric

heavyweight and easily frayable fabrics or decorative stitching.

Applications

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

3.5

(1/8)

5.0

(3/16)

5.0

(3/16)

Sew along the presser foot guide.

2.5 - 5.0

(3/32 - 3/16)

2.5 - 5.0

(3/32 - 3/16)

3.5 - 5.0

(1/8 - 3/16)

2.0

(1/16)

2.5

(3/32)

2.5

(3/32)

Stitch length

[mm (inch.)]

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

Twin

needle

Utility Stitches

Lower the presser foot so that the presser

foot guide is set flush against the edge of the fabric.

a Guide

CAUTION

• After the stitch width is adjusted, turn the handwheel toward you by hand and check that the needle does not touch the presser foot. If the needle hits the presser foot, the needle may break and cause injury.

a The needle should not touch

• If the presser foot is raised to its highest level, the needle may strike the presser foot.

SEWING THE STITCHES

■ Overcasting Using Presser Foot “J”

Stitch Stitch name

Overcasting stitch Reinforced seaming of stretch

Overcasting stitch Reinforcing of medium stretch

Overcasting stitch Reinforcement of stretch fabric

Overcasting stitch Stretch knit seam

Single diamond overcast

Select a stitch and attach presser foot “J”.

Presser

foot

fabric

fabric and heavyweight fabric, decorative stitching

or decorative stitching

Reinforcement and seaming stretch fabric

Reinforcement of stretch fabric

Applications

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

5.0

(3/16)

5.0

(3/16)

4.0

(3/16)

5.0

(3/16)

6.0

(15/

64)

6.0

(15/

64)

0.0 - 7.0

(0 - 9/32)

0.0 - 7.0

(0 - 9/32)

0.0 - 7.0 (0 - 1/4)

1.0 - 7.0

(1/16 - 1/4)

1.0 - 7.0

(1/16 - 1/4)

Stitch length

[mm (inch.)]

2.5

(3/32)

2.5

(3/32)

4.0

(3/16)

4.0

(3/16)

3.0

(1/8)

1.8

(1/16)

0.5 - 4.0

(1/32 - 3/16)

0.5 - 4.0

(1/32 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

Twin

needle

( J )

Sew with the needle dropping slightly off

the edge of the fabric.

a Needle drop position

SEWING THE STITCHES

■ Overcasting Using the Optional Side Cutter

By using the side cutter, you can do overcasting while cutting the fabric.

CAUTION

• Make sure to only select one of the stitches listed below. Using another stitch may cause the needle to hit the presser foot and break, possibly causing injury.

Memo

Thread the needle manually when using the side cutter, or only attach the side cutter after threading the needle using the “Automatic Threading” button.

Stitch Stitch name

With side cutter Straight stitch while cutting

With side cutter Zigzag stitch while cutting fabrics

With side cutter Overcasting stitch while cutting

Follow the steps on page 34 to remove the

presser foot.

Position the fork on the side cutter’s

operating lever onto the needle clamp

Presser

foot

fabrics

screw.

Applications

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

0.0 (0)

3.5

(1/8)

3.5

(1/8)

5.0

(3/16)

5.0

(3/16)

Position the side cutter so that the side

cutter pin is aligned with the notch in the

0.0 - 2.5

(0 - 3/32)

3.5 - 5.0

(1/8 - 3/16)

3.5 - 5.0

(1/8 - 3/16)

3.5 - 5.0

(1/8 - 3/16)

3.5 - 5.0

(1/8 - 3/16)

Stitch length

[mm (inch.)]

2.5

(3/32)

1.4

(1/16)

2.0

(1/16)

2.5

(3/32)

2.5

(3/32)

0.2 - 5.0

(1/64 - 3/16)

0.0 - 4.0

(0 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

presser foot holder, and then lower the presser foot.

Twin

needle

Utility Stitches

a Needle clamp screw b Operating lever

Memo

Make sure that the fork of the operating lever is set onto the needle clamp screw firmly.

a Notch in presser foot holder b Pin

! The side cutter is attached.

SEWING THE STITCHES

Select a stitch.

Make a cut of approximately 20 mm

(approx. 3/4 inch) in the fabric.

Start sewing.

(

! A seam allowance is cut while the stitching is sewn.

Note

If the width has been adjusted, turn the handwheel by hand to check that the needle does not touch the side cutter. If the needle touches the side cutter, it might cause the needle to break.

■ When Sewing Straight Stitches While Using the Side Cutter

The seam margin should be approximately 5 mm (approx. 3/16 inch).

a 20 mm (approx. 3/4 inch)

Position the fabric so that the right side of

the cut is on top of the guide plate and the left side of the cut is underneath the presser foot.

a Guide plate (lower knife) b Presser foot

Thread the needle manually and pull out a

long section of the upper thread. Pass it below the presser foot and pull it out in the fabric feed direction.

a Seam margin

Memo

• The fabric will not be cut if the whole fabric is simply spread out underneath the presser foot guide plate. Set the fabric as explained in step then start sewing.

from the previous section, and

a Presser foot b Upper thread

• One layer of 13 oz. denim can be cut.

• Clean the side cutter after use to avoid having dust and scraps of thread build up on it.

• Add a small amount of oil as required to the cutting edge of the cutter.

SEWING THE STITCHES

Quilting

You can make beautiful quilts quickly and easily with this machine. When making a quilt, you will find it convenient to use the knee lifter and foot controller to free your hands for other tasks (see “Using the Foot Controller” on page 41 and /or see “Using the Knee Lifter” on page 48).

If there is a “P” or “Q” at the bottom of the key display, the indicated stitch is intended for quilting.

Pattern Name of pattern

Piecing stitch (Right) Piecework/patchwork

Piecing stitch (Middle)

Piecing stitch (Left) Piecework/patchwork

Hand-look quilting Quilting stitch made to look like

Quilting appliqué zigzag stitch

Quilting appliqué stitch

Quilting stippling Background quilting

Type of

presser

foot

Use

6.5 mm (approx. 1/4 inch) right seam allowance

Piecework/patchwork

6.5 mm (approx. 1/4 inch) left seam allowance

hand quilting stitch

Zigzag stitch for quilting and sewing on appliqué quilt pieces

Quilting stitch for invisible appliqué or attaching binding

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

5.5

(7/32)

— —

1.5

(1/16)

0.0 (0)

3.5

(1/8)

1.5

(1/16)

7.0

(1/4)

0.0 - 7.0 (0 - 1/4)

0.5 - 5.0

(1/64 - 3/16)

1.0 - 7.0

(1/16 - 1/4)

Stitch length [mm

(inch.)]

2.0

(1/16)

2.0

(1/16)

2.0

(1/16)

2.5

(3/32)

1.4

(1/16)

1.8

(1/16)

1.6

(1/16)

0.2 - 5.0

(1/64 - 3/16)

0.2 - 5.0

(1/64 - 3/16)

0.2 - 5.0

(1/64 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

0.0 - 4.0

(0 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

Twin

needle

possibility

Utility Stitches

SEWING THE STITCHES

■ Piecing

Sewing two pieces of fabric together is called piecing. When cutting pieces for quilt blocks, make sure the seam allowance is 6.5 mm (approx. 1/4 inch).

Select or and attach presser foot

“J”.

Align the edge of the fabric with the edge of

the presser foot, and start sewing.

* To sew a 6.5 mm (approx. 1/4 inch) seam allowance

along the right edge of the presser foot with

selected, the width should be set to 5.5 mm (approx. 7/32 inch).

■ Quilting

Sewing together the quilt top, batting, and backing is called quilting. You can sew the quilt with the walking foot to keep the quilt top, batting, and backing from sliding. The walking foot has a set of feed dogs that move together with the feed dogs in the needle plate during sewing. For straight line quilting, use the walking foot and the straight stitch needle plate. Always select a straight stitch (middle needle position) when using the straight stitch needle plate.

Select , or .

Attach the walking foot (see page 35).

a 6.5 mm (approx. 1/4 inch)

* To sew a 6.5 mm (approx. 1/4 inch) seam allowance

along the left edge of the presser foot with

selected, the width should be set to 1.5 mm (approx. 1/32 inch).

a 6.5 mm (approx. 1/4 inch)

* To change the needle position, use or in

the width display.

Place one hand on each side of the presser

foot to hold the fabric secure while sewing.

Memo

• Sew at slow to medium speed.

• Do not sew in reverse or use stitches that require side ways or reverse feeding. Always check to be sure that your quilting surface is securely basted before beginning to sew. Specialized machine quilt needles and threads are also available for machine quilting.

Memo

Using a straight stitch (middle needle position) makes it easier to sew smoothly (see page

55).

SEWING THE STITCHES

■ Appliqué

Trace the pattern onto the appliqué fabric

and then cut around it, leaving a 3 to 5 mm (approx. 1/8 to 3/16 inch) seam allowance.

a Seam allowance: 3 to 5 mm

(approx. 1/8 to 3/16 inch)

Place a piece of thick paper or stabilizer cut

to the finished size of the appliqué design onto the fabric, and then fold over the seam margin using an iron. Clip curves when necessary.

Select and attach presser foot “J”.

Use the quilting appliqué stitch to attach

the appliqué. Sew around the edge while dropping the needle as close to the edge as possible.

Utility Stitches

Turn the appliqué over, and attach the thick

paper with basting pins or a basting stitch.

a Needle drop position

CAUTION

• Be careful that the needle does not strike a basting pin during sewing. Striking a pin can cause the needle to break, resulting in injury.

You can use the appliqué technique to attach appliqué designs like the three pictured below.

a Dresden plate b Stained glass c Sunbonnet sue

SEWING THE STITCHES

■ Quilting with Satin Stitches

Use the foot controller to sew with satin stitches. If you set the speed control slide to control the stitch width, you can make subtle changes in the stitch width during sewing.

Attach the foot controller (see page 41).

Select and attach presser foot “J”.

Press in the length display to shorten

the stitch length.

Press to use the speed control slide

to control the stitch width.

Set the width control to “ON”.

Memo

The setting will vary according to the kind of fabric and the thickness of the thread, but a length of 0.3 to 0.5 mm (approx. 1/64 to 1/32 inch) is best for satin stitches.

Memo

You can use the speed control slide to adjust the stitch width. Use the foot controller to adjust the sewing speed.

Press .

! The display will return to the original screen.

Start sewing

* You can adjust the stitch width during sewing by

moving the sewing speed controller. Slide the lever to the left, and the stitch width becomes narrower. Slide it to the right, the stitch width becomes wider. The size of the width changes equally on both sides of the middle needle position.

a narrower b wider

Rough sketch (line)

SEWING THE STITCHES

■ Free-motion Quilting

With free-motion quilting, the feed dogs can be lowered (using the feed dog position switch) so that the fabric can be moved freely in any direction. The quilting foot is needed for free-motion quilting. We recommend attaching the foot controller and sewing at a consistent speed.

Memo

In order to sew a balanced stitch, it may be necessary to lower the upper thread tension.

Select .

Remove the presser foot holder (see page

35).

Align the quilting foot with the lower-left

side of the presser bar.

Memo

The pin on the quilting foot should be positioned over the needle clamp screw.

Hold the quilting foot in place with your

right hand, and then tighten the presser foot holder screw using the screwdriver in your left hand.

Lower the feed dog position switch, located

at the rear of the base of the machine, to

a Rear of machine b Feed dog position switch

(as seen from the rear of the machine)

c Up d Down

Use both hands to stretch the fabric taut,

and then move the fabric at a regular pace in order to sew uniform stitches roughly

2.0-2.5 mm (approx. 1/16 - 3/32 inch) in length.

Utility Stitches

a Pin on quilting foot b Presser foot holder screw c Needle clamp screw

CAUTION

• Be sure to securely tighten the screws with the screwdriver. Otherwise, the needle may touch the presser foot, causing it to bend or break.

a Stitch

! Reinforcement stitches are sewn at the beginning

and end of sewing.

After sewing is finished, raise the feed dog

position switch to to raise the feed dogs.

Memo

Normally, the feed dog position switch is in the up position.

SEWING THE STITCHES

Blind Hem Stitches

Select from these stitches to sew the hems or cuffs of dresses, blouses, pants, or skirts.

Stitch Stitch name

Blind hem stitch Hemming woven fabrics

Blind hem stitch stretch

Select a stitch.

Presser

foot

Applications

Hemming stretch fabric

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

0.0

3 # - ! 3

(0)

0.0

3 # - ! 3

(0)

Attach blind hem stitch foot “R”, and lower

the presser foot. Position the fabric so the

Stitch length

[mm (inch.)]

2.0

(1/16)

2.0

(1/16)

1.0 - 3.5

(1/16 - 1/8)

1.0 - 3.5

(1/16 - 1/8)

folded edge touches the guide of the presser foot.

Twin

needle

Place the fabric wrong side up, and fold and

baste the fabric.

a 5 mm (approx. 3/16 inch) b Basting stitches c Wrong side of fabric

Fold the fabric again.

a Guide b Fold

Sew the fabric, keeping the folded edge in

contact with the presser foot.

a Needle position

a 5 mm (approx. 3/16 inch) b Wrong side of fabric c Basting stitches

Remove the basting stitches and turn the

fabric over.

a b

SEWING THE STITCHES

Appliqué

Use a temporary spray adhesive, fabric glue

or a basting stitch to attach the appliqué to the fabric.

* This will keep the fabric from moving during

sewing.

a Wrong side of fabric b Right side of fabric

Memo

Blind hem stitches cannot be sewn if the left needle drop point does not catch the fold. If the needle catches too much of the fold, the fabric cannot be unfolded and the seam appearing on the right side of the fabric will be very large, leaving an unattractive finish. If you experience either of these cases, follow the instructions below to solve the problem.

■ If the Needle does not Catch the Fold

Adjust the width so that the needle slightly catches

the fold by pressing in the width display.

a Appliqué b Fabric glue

Select or .

* Adjust the stitch length and width to correspond to

the appliqué shape, size, and quality of material (see page 44).

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

Attach presser foot “J”. Check that the

needle drops slightly off the edge of the appliqué, then start sewing.

Utility Stitches

■ If the Needle Catches Too Much of the Fold

Adjust the width so that the needle slightly catches

the fold by pressing in the width display.

a Appliqué material

a Needle drop position

SEWING THE STITCHES

■ Sewing Sharp Curves

Stop the machine with the needle in the fabric outside the appliqué. Raise the presser foot and turn the fabric a little bit at a time while sewing for an attractive finish to the seam.

Memo

Placing a lightweight tear away stabilizer beneath the stitching area will improve the stitch placement along the edge of the appliqué fabric.

Shelltuck Stitches

To make rows of shell tuck stitches, fold the

fabric in half along the bias.

Memo

Use a thin fabric.

Attach presser foot “J”. Set the needle drop

point slightly off the edge of the fabric, and start sewing.

Shelltuck stitches give an attractive appearance to shells along the curve of a collar. This stitch pattern can be used for edging the neckline or sleeves of dresses and blouses.

Select .

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

Increase the upper thread tension for an

attractive scallop finish to the shelltuck stitches (see page 45).

Memo

If the upper thread tension is too weak, the shelltuck stitches will not scallop.

a Needle drop position

Unfold the fabric, and iron the tucks to one

side.

Memo

To make shell tucks at the edge of a collar or neckline, follow the pattern’s instructions and then use this stitch to make a decorative finish on the collar or neckline.

SEWING THE STITCHES

Scallop Stitches

This wave-shaped running stitch is called the scallop stitch. Use this stitch to decorate the edges of blouse collars and handkerchiefs or use it as a hem accent.

Memo

A temporary spray adhesive may be necessary for lightweight fabrics. Test sew the fabric before sewing a project.

Select .

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

Attach presser foot “N”. Sew scallop

stitches along the edge of the fabric.

* Do not sew directly on the edge of the fabric.

Top Stitching

For a decorative look called “Crazy Quilting”, the following stitches can be sewn on top of a pressed seam allowance.

Select a straight stitch and attach presser

foot “J”.

With the right sides facing each other, sew

two pieces of fabric together, and then press open the seam allowance.

a Straight stitch b Seam margins c 6.5 mm (approx. 1/4 inch) d Wrong side

Utility Stitches

Trim along the seam, making sure not to cut

the stitches.

Memo

Use a seam sealant to secure the edges of the scallop stitches.

Select a stitch for top stitching.

Place the fabric right side up in the

machine, and center the presser foot over the seam when sewing.

a Right side of fabric

SEWING THE STITCHES

Smocking Stitches

Use smocking stitches for decorative sewing on clothes, etc.

Select a straight stitch and attach presser

foot “J”.

Set the stitch length to 4.0 mm (approx.

3/16 inch) and loosen the upper thread tension to approximately 2.0 (See pages 44 through 45).

Pull the bobbin and upper threads out by

50 mm (approx. 1-15/16 inches).

Sew the seams, leaving approximately

10 mm (approx. 3/8 inch) between the seams, then trim excess thread, leaving 50 mm (approx. 1-15/16 inches).

Sew the spaces between the straight seams.

Pull out the straight stitch threads.

(

a Approximately 10 mm (approx. 3/8 inch)

Pull the bobbin threads to obtain the

desired amount of gather, and then smooth the gathers by ironing them.

Select or .

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

Fagoting

When there is a space between two fabrics with thread sewn over the space to join the fabrics together, it is called fagoting. Use this stitch when sewing blouses or children’s clothes.

Baste two pieces of fabric onto thin paper,

leaving a space of 4 mm (approx. 3/16 inch) between the fabrics.

a 4 mm (approx. 3/16 inch) b Paper c Basting stitches

Select or .

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

SEWING THE STITCHES

Attach presser foot “J”. Align the center of

the presser foot with the middle of the space between the fabrics and begin sewing.

a Basting stitches

Memo

Use a thick thread.

When sewing is finished, gently tear the

paper away.

Tape or Elastic Attaching

Place the tape over the gather, and hold it

in place with basting pins.

a Tape

Select or .

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

Sew over the tape (or elastic).

Utility Stitches

Select a straight stitch and attach presser

foot “J”.

Set the stitch length to 4.0 mm (approx.

3/16 inch), and loosen the upper thread tension to 2.0 (See pages 44 through 45).

Memo

Be sure that neither automatic reinforcement

nor automatic thread cutting is

selected.

Sew two rows of straight stitches on the

right side of the fabric, then pull the bobbin thread to create the necessary gather.

CAUTION

Be sure the needle does not strike a basting pin, or any other objects, during sewing. The thread could tangle or the needle could break, causing injury.

Pull out the straight stitch threads.

Memo

Before sewing the straight stitch, rotate the handwheel and pull up the bobbin thread. Holding the top and bobbin thread, pull a length of thread out from the rear of the machine. (Be sure that the presser foot is raised.)

SEWING THE STITCHES

Heirloom

■ Hemstitching (1) (Daisy Stitch)

Use for sewing tablecloths, decorative hems, and decorative stitching on shirt fronts.

Memo

Use a light to medium weight homespun fabric with a little stiffness.

Insert a type 130/705H, size 100/16 Wing

needle.

Start sewing.

Example: Illustration of finished product

■ Hemstitching (2) (Drawn Work)

CAUTION

• The “Automatic Threading” button cannot be used. Thread the wing needle by hand, from front to back. Using the “Automatic Threading” button may result in damage to the machine.

• A more attractive finish can be obtained if you use a “130/705H Wing” needle when sewing these patterns. If using a wing needle and the stitch width has been set manually, check that the needle will not touch the presser foot by carefully rotating the handwheel before starting sewing.

Select a stitch and attach presser foot “N”.

* Select any stitch between 3-01 and 3-25.

Pull out several threads from one area on a

piece of fabric to open the area.

* Pull out 5 or 6 threads to leave a 3 mm

(approx. 1/8 inch) area open.

Memo

Loosely woven fabrics work best for this.

Select .

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

Memo

• For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this manual.

Attach presser foot “N”. With the right side

of the fabric facing up, sew one edge of the open area.

SEWING THE STITCHES

Press to create a mirror image of the

stitch.

Sew the opposite side to keep the stitch

symmetrical.

■ Hemstitching (3)

Pull out several threads from both sides of

the 4 mm (approx. 3/16 inch) area which are not yet open.

* Pull out four threads, leave five threads, and then

pull out four threads. The width of five threads is approximately 4 mm (approx. 3/16 inch) or less.

a Approx. 4 mm (approx. 3/16 inch) or less b Four threads (pull out) c Five threads (leave)

Select .

Utility Stitches

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

Sew the decorative stitch in the center of

the five threads created above.

Memo

A wing needle can be used for Hemstitching (3).

SEWING THE STITCHES

One-step Buttonholes

With one-step buttonholes, you can make buttonholes appropriate to the size of your button.

Stitch Stitch name

Narrow rounded buttonhole

Wide round ended buttonhole

Tapered round ended buttonhole

Round ended buttonhole

Round double ended buttonhole

Narrow squared buttonhole

Wide squared buttonhole

Presser

foot

Applications

Buttonhole on light to medium weight fabrics

Buttonholes with extra space for larger buttons

Reinforced waist tapered buttonholes

Buttonholes with vertical bar tack in heavyweight fabrics

Buttonholes with bar tack

Buttonholes for fine, medium to heavyweight fabrics

Buttonholes for light to medium weight fabrics

Buttonholes with extra space for larger decorative buttons

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

5.0

(3/16)

5.5

(7/32)

5.0

(3/16)

5.0

(3/16)

5.0

(3/16)

5.0

(3/16)

5.0

(3/16)

5.5

(7/32)

3.0 - 5.0

(1/8 - 3/16)

3.5 - 5.5

(1/8 - 7/32)

3.0 - 5.0

(1/8 - 3/16)

3.0 - 5.0

(1/8 - 3/16)

3.0 - 5.0

(1/8 - 3/16)

3.0 - 5.0

(1/8 - 3/16)

3.0 - 5.0

(1/8 - 3/16)

3.5 - 5.5

(1/8 - 7/32)

Stitch length

[mm (inch.)]

0.4

(1/64)

0.4

(1/64)

0.4

(1/64)

0.4

(1/64)

0.4

(1/64)

0.4

(1/64)

0.4

(1/64)

0.4

(1/64)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

Twin

needle

Squared buttonhole Heavy-duty buttonholes with

vertical bar tacks

Stretch buttonhole Buttonholes for stretch or woven

Heirloom buttonhole Buttonholes for heirloom and

Bound buttonhole The first step in making bound

Keyhole buttonhole Buttonholes in heavyweight or

Tapered keyhole buttonhole

Keyhole buttonhole Buttonholes with vertical bar

fabrics

stretch fabrics

buttonholes

thick fabrics for larger flat buttons

Buttonholes in medium to heavy weight fabrics for larger flat buttons

tack for reinforcement in heavyweight or thick fabrics

5.0

(7/32)

6.0

(15/

64)

6.0

(15/

64)

5.0

(3/16)

7.0

(1/4)

7.0

(1/4)

7.0

(1/4)

3.0 - 5.0

(1/8 - 3/16)

3.0 - 6.0

(1/8 - 15/64)

3.0 - 6.0

(1/8 - 15/64)

0.0 - 6.0

(0 - 15/64)

3.0 - 7.0

(1/8 - 1/4)

3.0 - 7.0

(1/8 - 1/4)

3.0 - 7.0

(1/8 - 1/4)

0.4

(1/64)

1.0

(1/16)

1.5

(1/16)

2.0

(1/16)

0.5

(1/32)

0.5

(1/32)

0.5

(1/32)

0.2 - 1.0

(1/64 - 1/16)

0.5 - 2.0

(1/32 - 1/16)

1.0 - 3.0

(1/1 - 1/8)

0.2 - 4.0

(1/64 - 3/16)

0.3 - 1.0

(1/64 - 1/16)

0.3 - 1.0

(1/64 - 1/16)

0.3 - 1.0

(1/64 - 1/16)

SEWING THE STITCHES

One-step buttonholes are sewn from the front of the presser foot to the back, as shown below.

Utility Stitches

a Reinforcement stitching

Select a buttonhole stitch, and attach

buttonhole foot “A”.

Mark the position and length of the

buttonhole on the fabric.

Memo

The maximum buttonhole length is about 28 mm (approx. 1-1/16 inches) (diameter + thickness of the button).

Pull out the button holder plate on the

presser foot, and insert the button that will be put through the buttonhole. Then tighten the button holder plate around the button.

a Button holder plate

Memo

The size of the buttonhole is decided by the button holder plate holding the button.

SEWING THE STITCHES

Align the presser foot with the mark on the

fabric, and lower the presser foot.

a Mark on the fabric b Marks on the presser foot

Note

• Pass the thread underneath the presser

foot.

• Slide the outside frame of the buttonhole

foot backward as far as possible as shown in the illustration, making sure that there is no gap behind the part of the foot marked “A”. If the buttonhole foot is not slid back as far as possible, the buttonhole will not be sewn at the correct size.

Gently hold the end of the upper thread,

and then start sewing.

* Feed the fabric carefully by hand while the

buttonhole is sewn.

! Once sewing is completed, the machine

automatically sews reinforcement stitches, and then stops.

Memo

If automatic thread cutting is turned on before you start sewing, both threads are automatically cut after the reinforcement stitches are sewn. If the fabric does not feed (for example, because it is too thick), increase the stitch length setting.

Lower the buttonhole lever so that it is

positioned behind the metal bracket on the buttonhole foot.

a Buttonhole lever

Insert a pin along the inside of one of the

bar tacks, and then insert the seam ripper into the center of the buttonhole and cut towards the pin.

a Basting pin b Seam ripper

CAUTION

When using the seam ripper to open the buttonhole, do not put your hand or finger in the path of the ripper. The ripper may slip and cause injury.

a Metal bracket

Memo

For keyhole buttonholes, use the eyelet punch to make a hole in the rounded end of the buttonhole. Then insert a pin along the inside of one of the bar tacks, insert a seam ripper into the hole made with the eyelet punch, and cut towards the pin.

SEWING THE STITCHES

Once sewing is completed, gently pull the

gimp thread to remove any slack, and trim off any excess.

a Eyelet punch b Basting pin

■ Sewing Stretch Fabrics

When sewing on stretch fabric with or ,

sew the buttonhole stitches over a gimp thread.

Hook the gimp thread onto the back of

presser foot “A”. Insert the ends into the grooves at the front of the presser foot, and then temporarily tie them there.

Memo

After using the seam ripper to cut open the threads over the buttonhole, trim off the threads.

■ Odd Shaped Buttons/Buttons that do not Fit into the Button Holder Plate

Use the markings on the presser foot scale to set the size of the buttonhole. One mark on the presser foot scale equals 5 mm (approx. 3/16 inch). Add the button diameter and thickness together, and then set the plate at the calculated value.

Utility Stitches

a Upper thread

Lower the presser foot and start sewing.

Memo

Set the width of the satin stitches to the width of the gimp thread, and set the buttonhole width to be 2-3 times the width of the gimp thread.

a Presser foot scale b Button holder plate c Completed measurement of diameter + thickness d 5 mm (approx. 3/16 inch)

Memo

For example, for a button with a diameter of 15 mm (approx. 9/16 inch) and a thickness of 10 mm (approx. 3/8 inch), the scale should be set at 25 mm (approx. 1 inch).

a 10 mm (approx. 3/8 inch) b 15 mm (approx. 9/16 inch)

SEWING THE STITCHES

Four-step Buttonholes

You can sew 4-step buttonholes using the following 4 stitches together. You can sew any desired length for the buttonhole when using 4-step buttonholes. 4-step buttonholes are a good option when attaching oversize buttons.

Note

When changing the stitch settings for the left side of the buttonhole, make sure that all setting should be changed to match.

Stitch Stitch name

4 step buttonhole 1 Left side of 4 step buttonhole

4 step buttonhole 2 Bar tack of 4 step buttonhole

4 step buttonhole 3 Right side of 4 step buttonhole

4 step buttonhole 4 Bar tack of 4 step buttonhole

Presser

foot

Applications

(Forward stitching)

(Reverse stitching)

Four-step buttonholes are sewn as shown below.

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

5.0

(7/32)

5.0

(7/32)

5.0

(7/32)

5.0

(7/32)

1.5 - 7.0

(1/16 - 1/4)

1.5 - 7.0

(1/16 - 1/4)

1.5 - 7.0

(1/16 - 1/4)

1.5 - 7.0

(1/16 - 1/4)

Stitch length

[mm (inch.)]

0.4

(1/64)

0.4

(1/64)

0.4

(1/64)

0.4

(1/64)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

0.2 - 1.0

(1/64 - 1/16)

Twin

needle

Mark the position and length of the

buttonhole on the fabric.

Attach monogramming foot “N”, and select

stitch to sew down the left side of the

buttonhole.

Press the “Start/Stop” button to start

sewing.

Sew the desired length for the buttonhole

and press the “Start/Stop” button again.

SEWING THE STITCHES

Select stitch to sew the bar tack and

press the “Start/Stop” button.

! The machine will automatically stop after sewing

the bar tack.

Select stitch to sew up the right side of

the buttonhole, and press the “Start/Stop” button to begin sewing.

Sew the right side of the buttonhole and

press the “Start/Stop” button again.

* Sew the right side of the buttonhole the same length

as the left.

Utility Stitches

Select stitch to sew the bar tack and

(

then press the “Start/Stop” button.

! The machine will automatically sew the bar tack, tie

and stop when the bar tack is complete.

Raise the presser foot and remove the

)

fabric.

Refer to page 84 to open the buttonhole.

SEWING THE STITCHES

■ Darning

Use darning stitches for mending and other applications.

Stitch Stitch name

Darning Darning of medium weight fabric

Darning Darning of heavyweight fabric

Presser

foot

Applications

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

7.0

(1/4)

7.0

(1/4)

2.5 - 7.0

(3/32 - 1/4)

2.5 - 7.0

(3/32 - 1/4)

Stitch length

[mm (inch.)]

2.0

(1/16)

2.0

(1/16)

Darning is performed by sewing from the front of the presser foot to the back as shown below.

0.4 - 2.5

(1/64 - 1/16)

0.4 - 2.5

(1/64 - 1/16)

Twin

needle

a Reinforcement stitches

Select a stitch, and attach buttonhole foot

“A”.

Set the scale to the desired length of the

darning.

a Presser foot scale b Completed length measurement c Width 7 mm (approx. 1/4 inch) d 5 mm (approx. 3/16 inch)

Memo

The maximum length for darning is 28 mm (approx. 1-1/16 inches).

Check that the needle drops at the desired

position and lower the presser foot, making sure the upper thread passes underneath the buttonhole foot.

Note

• Pass the thread underneath the presser foot.

• Set the presser foot so that there is no gap behind the section marked with an “A” (the shaded area in the illustration below). If there is a gap, the size of the darning will not be correct.

Lower the buttonhole lever so that it is

positioned behind the metal bracket on the buttonhole foot.

a Buttonhole lever

a Metal bracket

SEWING THE STITCHES

Utility Stitches

Gently hold the end of the upper thread,

and then press the “Start/Stop” button to start the machine.

! Once sewing is completed, the machine

automatically sews reinforcement stitches, and then stops.

Memo
