Baby Lock Ellegante2 BLG2 Instruction and Reference Guide

IMPORTANT SAFETY INSTRUCTIONS

When using this machine, basic safety precautions should always be taken, including the following: Read all instructions before using.

DANGER - To reduce the risk of electric shock:

1. The machine should never be left unattended while plugged in. Always unplug the machine from the electrical outlet immediately after using and before cleaning.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Do not allow this machine to be used as a toy. Close attention is necessary when the machine is used by or near children.

2. Use this machine only for its intended use as described in this manual. Use only accessories recommended by the manufacturer as contained in this manual.

3. Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the machine to the nearest authorized retailer or service center for examination, repair, electrical or mechanical adjustment.

4. Never operate the machine with any air openings blocked. Keep ventilation openings of the machine and foot control free from the accumulation of lint, dust, and loose cloth.

5. Never drop or insert any object into any opening.

6. Do not use outdoors.

7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

8. To disconnect, turn the main switch to the symbol “ ” position which represents off, then remove plug from outlet.

9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

10. Keep fingers away from all moving parts. Special care is required around the machine needle.

11. Always use the proper needle plate. The wrong plate can cause the needle to break.

12. Do not use bent needles.

13. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.

14. Switch the machine to the symbol “ ” position when making any adjustments in the needle area.

15. Always unplug the machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.

16. This sewing machine is not intended for use by young children or infirm persons without supervision.

17. Young children should be supervised to ensure that they do not play with this machine.

18. If the LED light unit (light-emitting diode) is damaged, it must be replaced by authorized retailer.

19. Hold the foot controller plug when rewinding into cord reel. Do not allow the plug to whip when rewinding.

20. When lifting the sewing machine, be careful not to make any sudden or careless movements, otherwise you may injure your back or knees.

21. When transporting the sewing machine, be sure to carry it by its handle. Lifting the sewing machine by any other part may damage the machine or result in the machine falling, which could cause injuries.

SAVE THESE INSTRUCTIONS

This machine is intended for household use.

FOR USERS IN THE UK, EIRE, MALTA

AND CYPRUS ONLY

If this machine is fitted with a three-pin non-rewireable BS plug then please read the following.

IMPORTANT

If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut off and an appropriate three-pin plug fitted. With alternative plugs an approved fuse must be fitted in the plug.

NOTE

The plug served from the main lead must be destroyed as a plug with bared flexible cords is hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying

the mark, rating as marked on plug.

Always replace the fuse cover, never use plugs with the fuse cover omitted.

WARNING DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER ‘E’, BY

THE EARTH SYMBOL OR COLOURED GREEN OR GREEN AND YELLOW.

The wires in this main lead are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wiring in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N’ or coloured black or blue.

The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or coloured red or brown.

Federal Communications Commission (FCC)

Declaration of Conformity (For USA Only)

Responsible Party: Tacony Corporation

1760 Gilsinn Lane, Fenton, Missouri 63026

declares that the product Product Name:

Model Number:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Baby Lock Sewing Machine BLG2-NZ/BLG2

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the retailer or an experienced radio/TV technician for help.

• The enclosed interface cable should be used in order to ensure compliance with the limits for a Class

B digital device.

• Changes or modifications not expressly approved by Tacony Corporation could void the user's

authority to operate the equipment.

iii

CONGRATULATIONS ON CHOOSING OUR

MACHINE

Your machine is the most advanced computerized household embroidery and sewing machine. To fully enjoy all the features incorporated, we suggest that you study the manual.

PLEASE READ BEFORE USING THIS MACHINE

For safe operation

1. Be sure to keep your eye on the needle while sewing. Do not touch the handwheel, thread take-up, needle, or

other moving parts.

2. Remember to turn off the power switch and unplug the cord when:

• Operation is completed

• Replacing or removing the needle or any other parts

• A power failure occurs during use

• Maintaining the machine

• Leaving the machine unattended.

3. Do not store anything on the foot controller.

4. Plug the machine directly into the wall. Do not use extension cords.

5. Do not place or store the machine near heaters or other hot appliances, in any location exposed to extremely

high or low temperatures, high humidity or dusty locations. Doing so could cause the machine to malfunction.

6. Never operate the machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped

or damaged, or water is spilled on the unit. Return the machine to the nearest authorized retailer or service center for examination, repair, electrical or mechanical adjustment.

7. The sewing machine plastic bag should be kept out of the reach of children or disposed of. Never allow

children to play with plastic bags due to the danger of suffocation.

8. Do not place this sewing machine on an unstable surface, such as an unsteady or slanted table; otherwise the

sewing machine may fall, resulting in injuries.

For a longer service life

1. When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine

near a space heater, iron, halogen lamp, or other hot objects.

2. Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage

the case and machine, and should never be used.

3. Do not drop or hit the machine.

4. Always consult the operation manual when replacing or installing any assemblies, the presser feet, needle, or

other parts to assure correct installation.

5. Use only the interface cable (USB cable) included with this machine.

For repair or adjustment

In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of the operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your local authorized Baby Lock retailer.

For additional product information and updates, visit our web site at www.babylock.com

The contents of this manual and specifications of this product are subject to change without notice.

WHAT YOU CAN DO WITH THIS MACHINE

SPECIAL FEATURES

Check operations and view advice on the large LCD (liquid crystal display).

Prepare the bobbin thread with one touch.

The automatic thread tension makes trial sewing unnecessary.

Automatic threading makes threading quick and easy.

Getting Ready Sewing Basics

To learn the operation of the principal parts and the screens

To learn how to prepare for sewing and basic sewing operations

Chapter

Page 9 Page 43

Utility Stitches

Pre-programmed with more than 100 frequently used stitches

Chapter

Page 57 Page 115

Embroidery

Maximum 30 cm x 18 cm (approx. 12 x 7 inches) for large embroidery designs

Chapter

Page 143 Page 197

Chapter

Character/Decorative Stitches

The variety of stitches widen your creativity

Chapter

Embroidery Edit

Designs can be combined, rotated or enlarged

Chapter

Appendix

Caring for your machine and dealing with errors and malfunctions

Chapter

Page 225

HOW TO USE THIS MANUAL

Chapter 1 and Chapter 2 explain your sewing machine’s basic operation procedures for someone who is using the sewing machine for the first time. If you want to sew utility stitches or character/ decorative stitches, read Chapter 1 and Chapter 2, then go on to Chapter 3 (Utility Stitches) or Chapter 4 (Character/ Decorative Stitches). When you are ready to begin using the embroidery function after reading Chapter 1 and Chapter 2, proceed to Chapter 5 (Embroidery). Once you understand the steps explained in Chapter 5, go on to Chapter 6 (Embroidery Edit) for an explanation about the convenient embroidery edit functions. In the screens that appear in the step-by-step directions the parts that are used for the operation are shown

in . Compare the screen in the directions with the actual screen, and carry out the operation. If, while using the machine, you experience something you do not understand, or there is a function you

would like to know more about, refer to the index at the back of the operation manual in conjunction with the table of contents to find the section of the manual you should refer to.

Chapter 3

To sew utility stitches To sew character or decorative stitches

To do machine embroidery

Chapter 1 Chapter 2

Chapter 4

Chapter 1 Chapter 2 Chapter 5 Chapter 6

vii

Contents

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ..................i

FOR USERS IN THE UK, EIRE, MALTA

AND CYPRUS ONLY.............................................................. ii

Federal Communications Commission (FCC) Declaration of

Conformity (For USA Only).................................................... iii

CONGRATULATIONS ON CHOOSING OUR MACHINE ..... iv

WHAT YOU CAN DO WITH THIS MACHINE .....vi

HOW TO USE THIS MANUAL ............................vii

NAMES OF MACHINE PARTS

AND THEIR FUNCTIONS.......................................1

Machine ................................................................................. 1

Needle and Presser Foot Section ............................................. 2

Embroidery Unit .....................................................................3

Operation Buttons...................................................................3

Included Accessories .............................................................. 4

Options................................................................................... 7

Removing the LCD cover........................................................ 7

Attaching the LCD cover.........................................................8

Chapter 1 Getting Ready 9

TURNING THE MACHINE ON/OFF ...................10

LCD SCREEN .......................................................11

Screens Operations Performed Using a USB Mouse ..............14

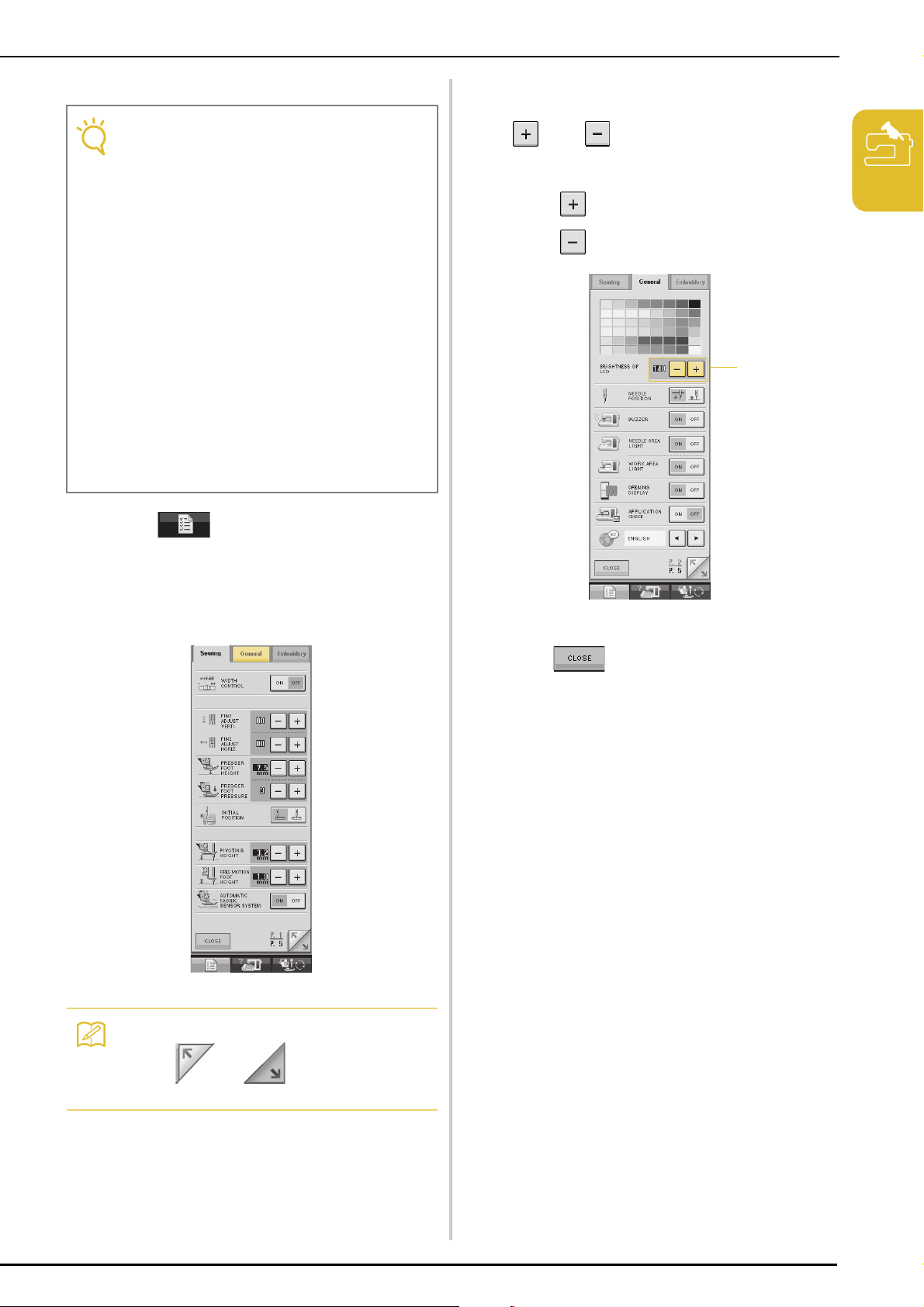

Using the Machine Setting Mode Key ..................................16

Using the Machine Operation Mode Key .............................. 21

Using the Pattern Explanation Key ........................................ 22

LOWER THREADING..........................................23

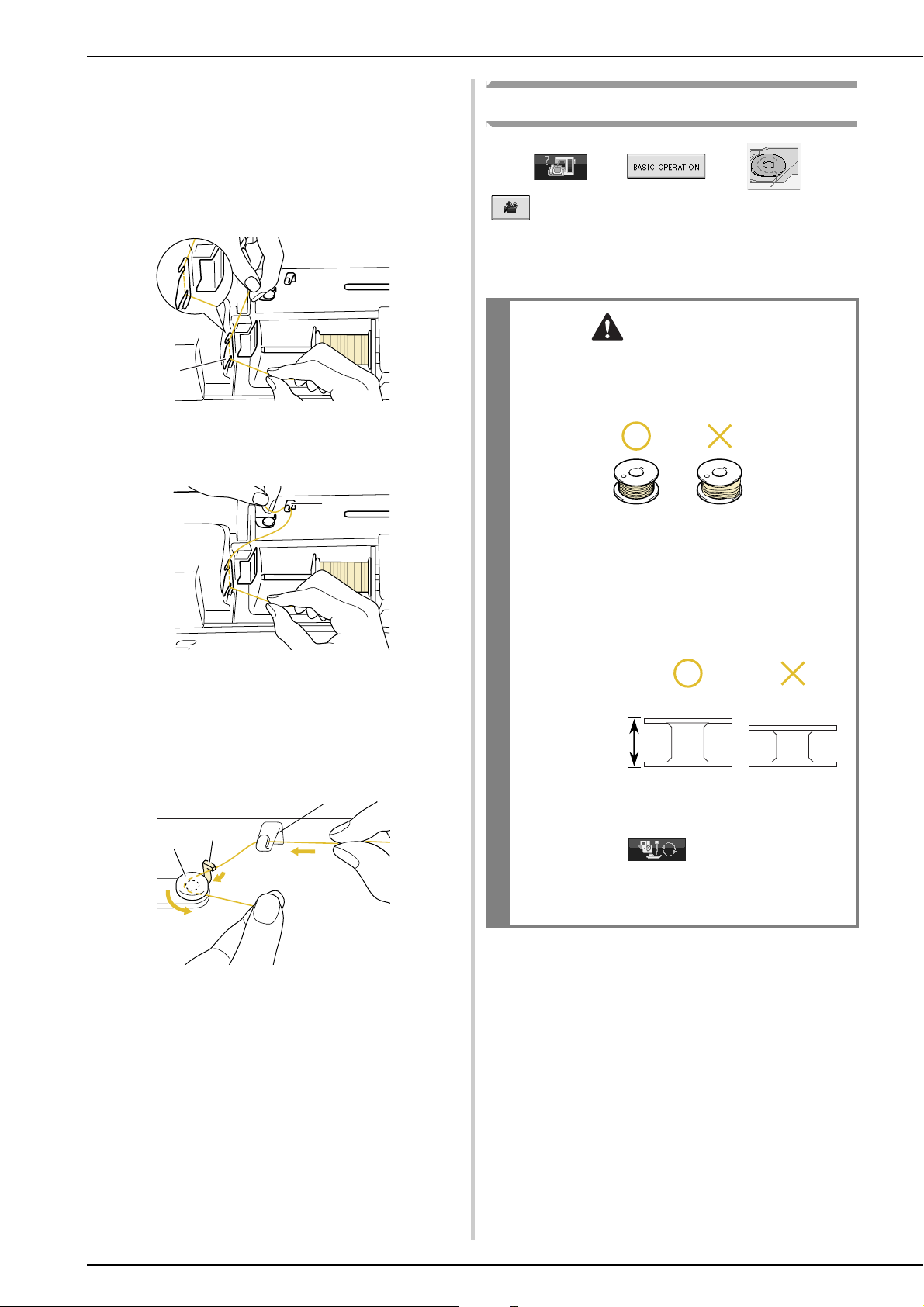

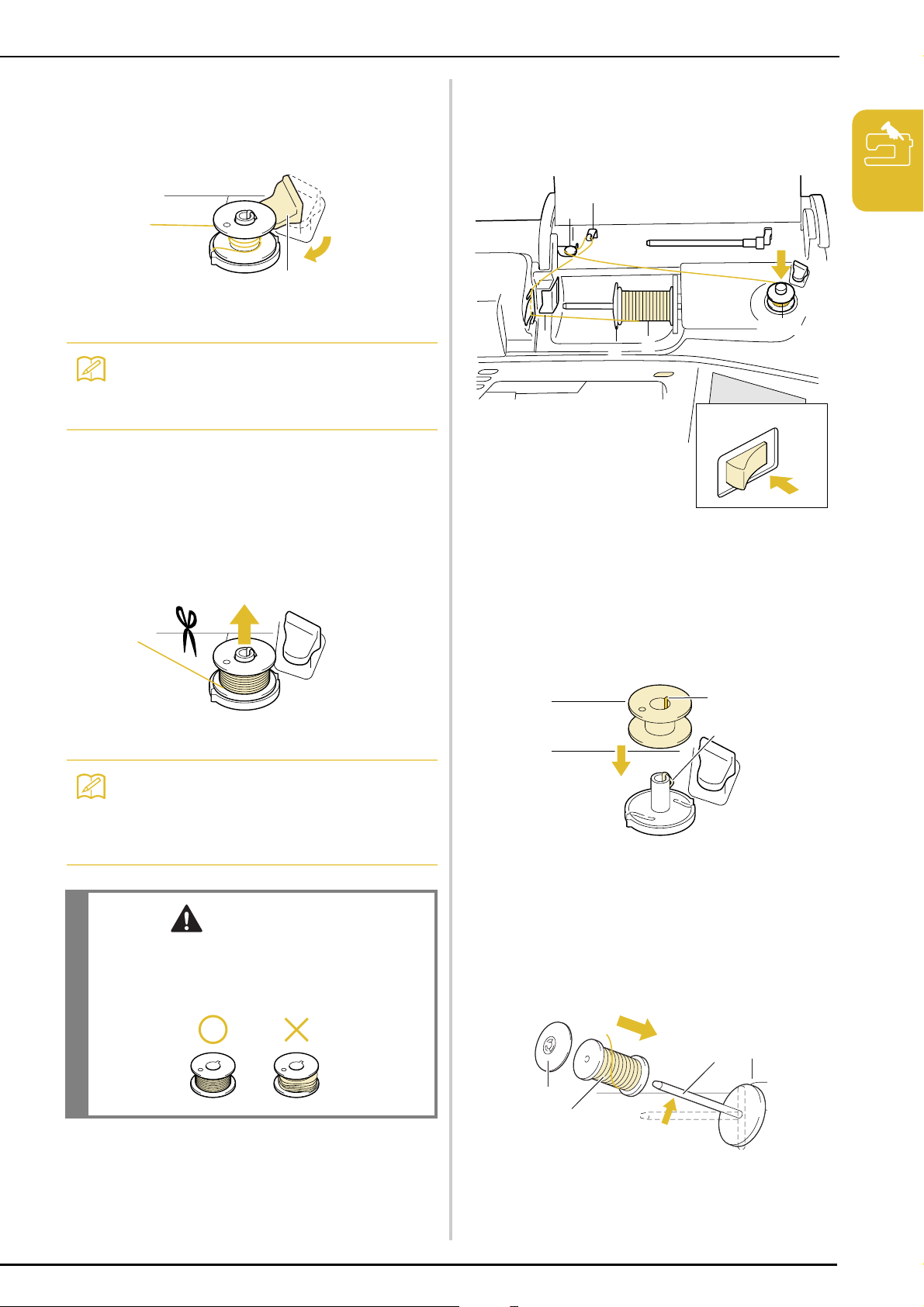

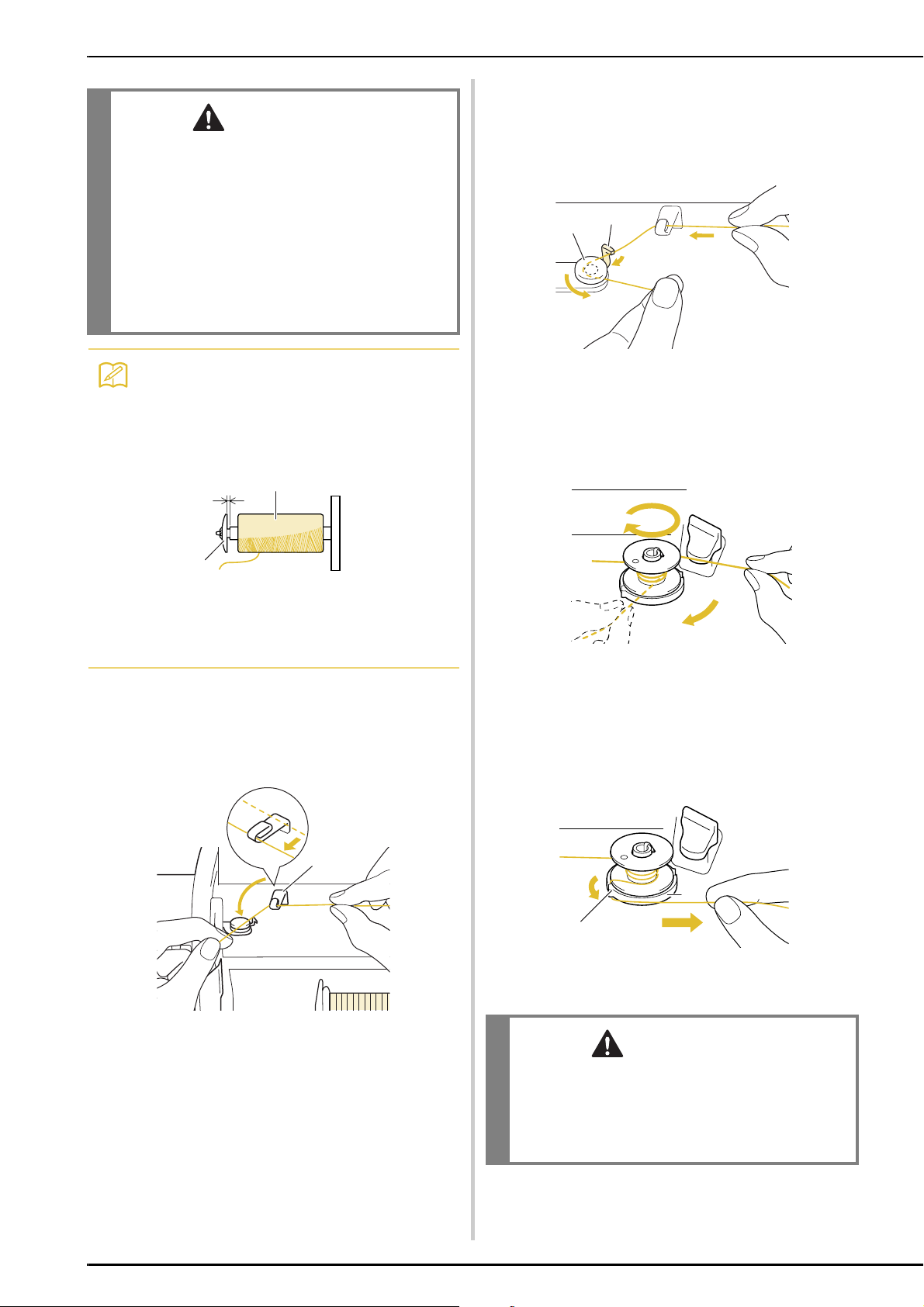

Winding the Bobbin.............................................................. 23

Setting the Bobbin................................................................. 26

Pulling Up the Bobbin Thread............................................... 28

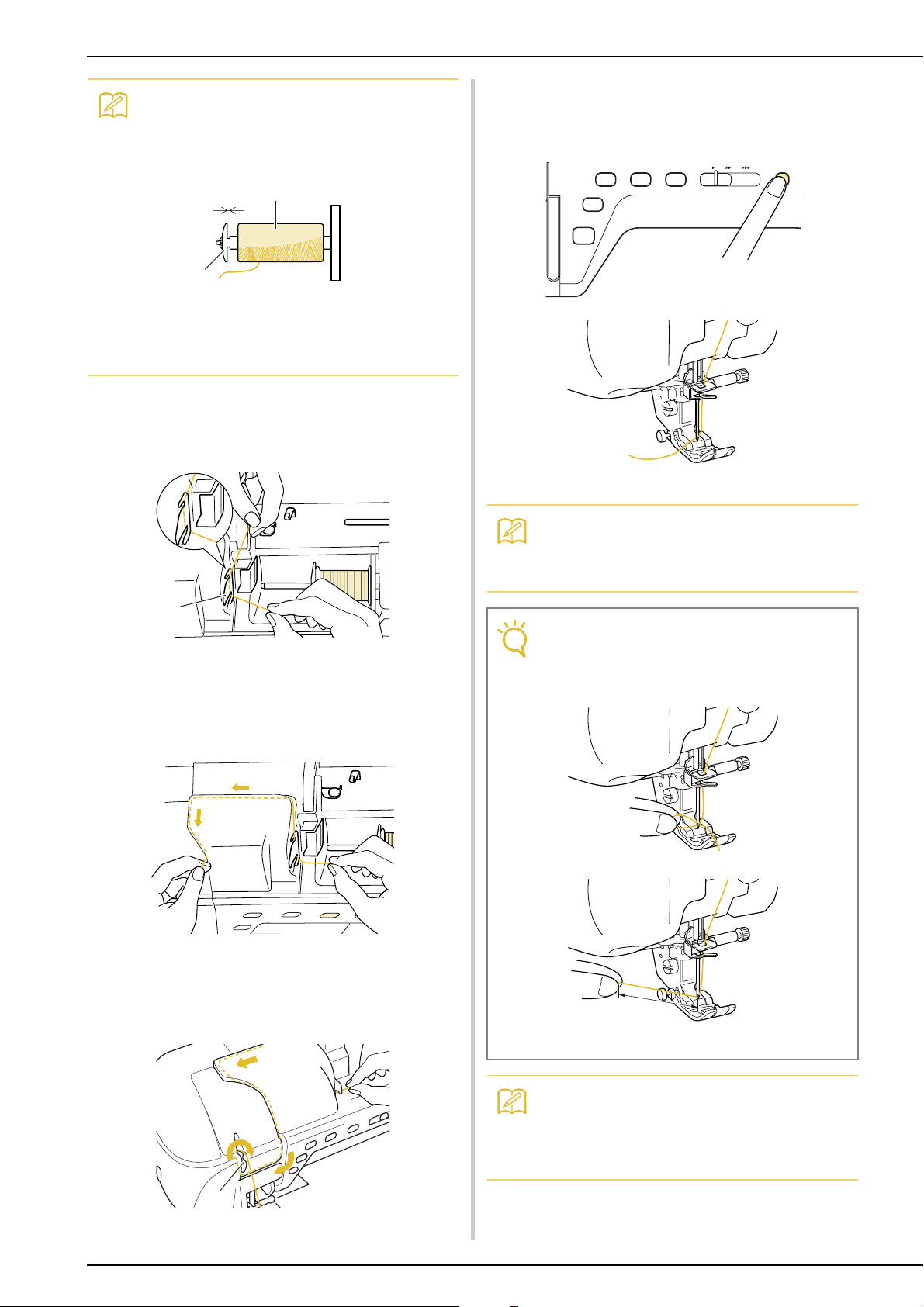

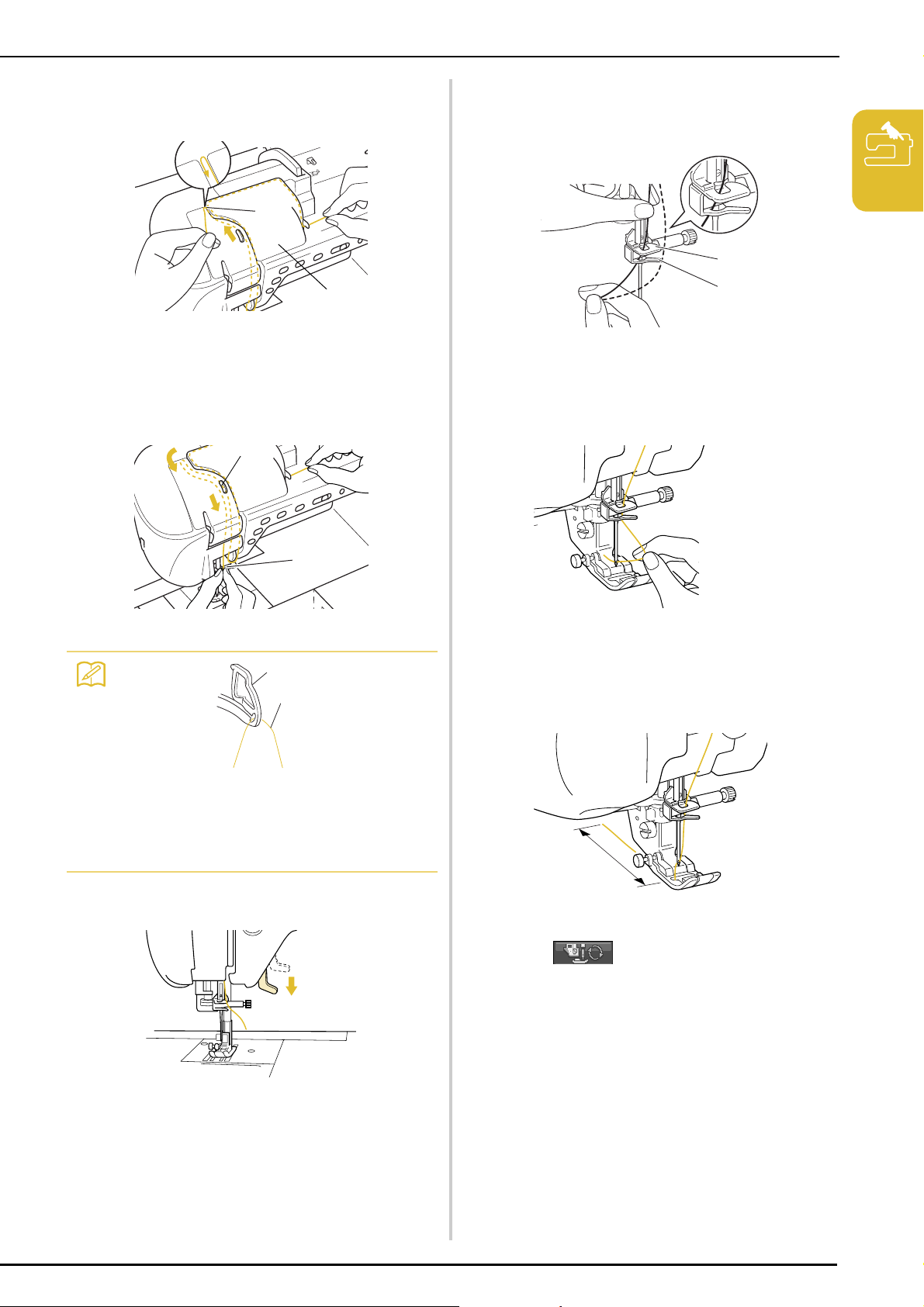

UPPER THREADING ...........................................29

Threading Using the “Automatic Threading” Button.............. 29

Threading Manually..............................................................31

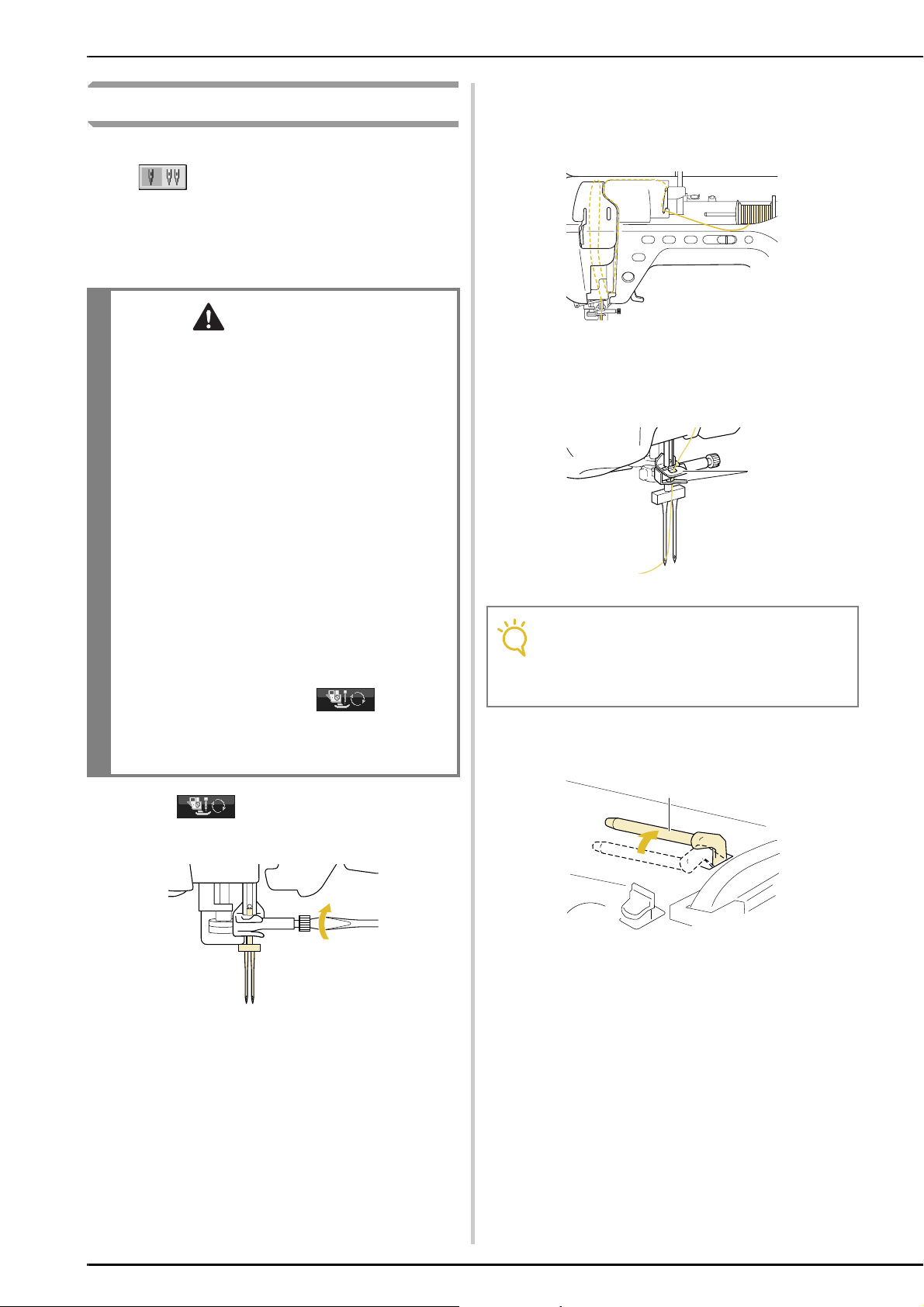

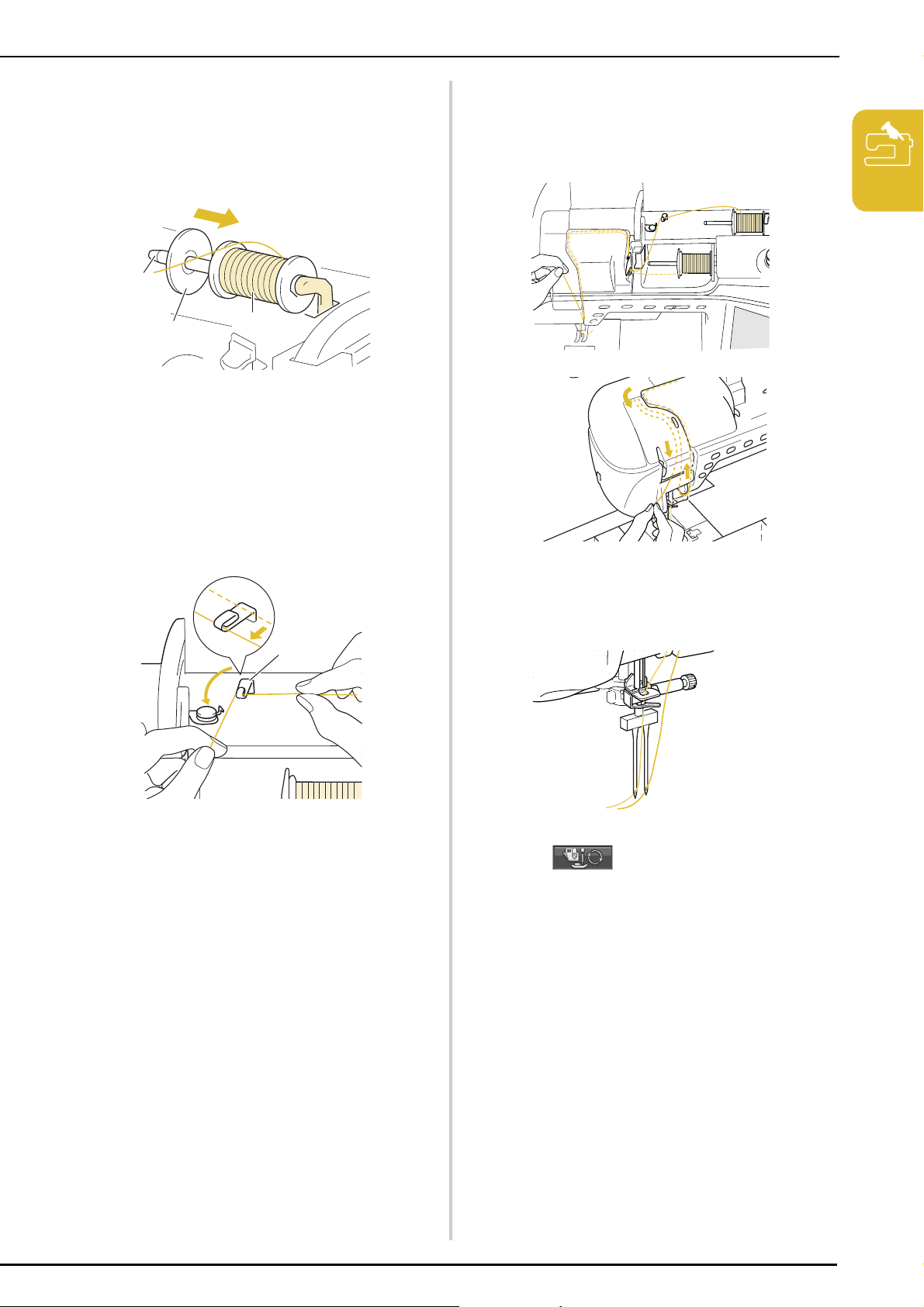

Using the Twin Needle Mode ...............................................34

Using Threads that Unwind Quickly ..................................... 36

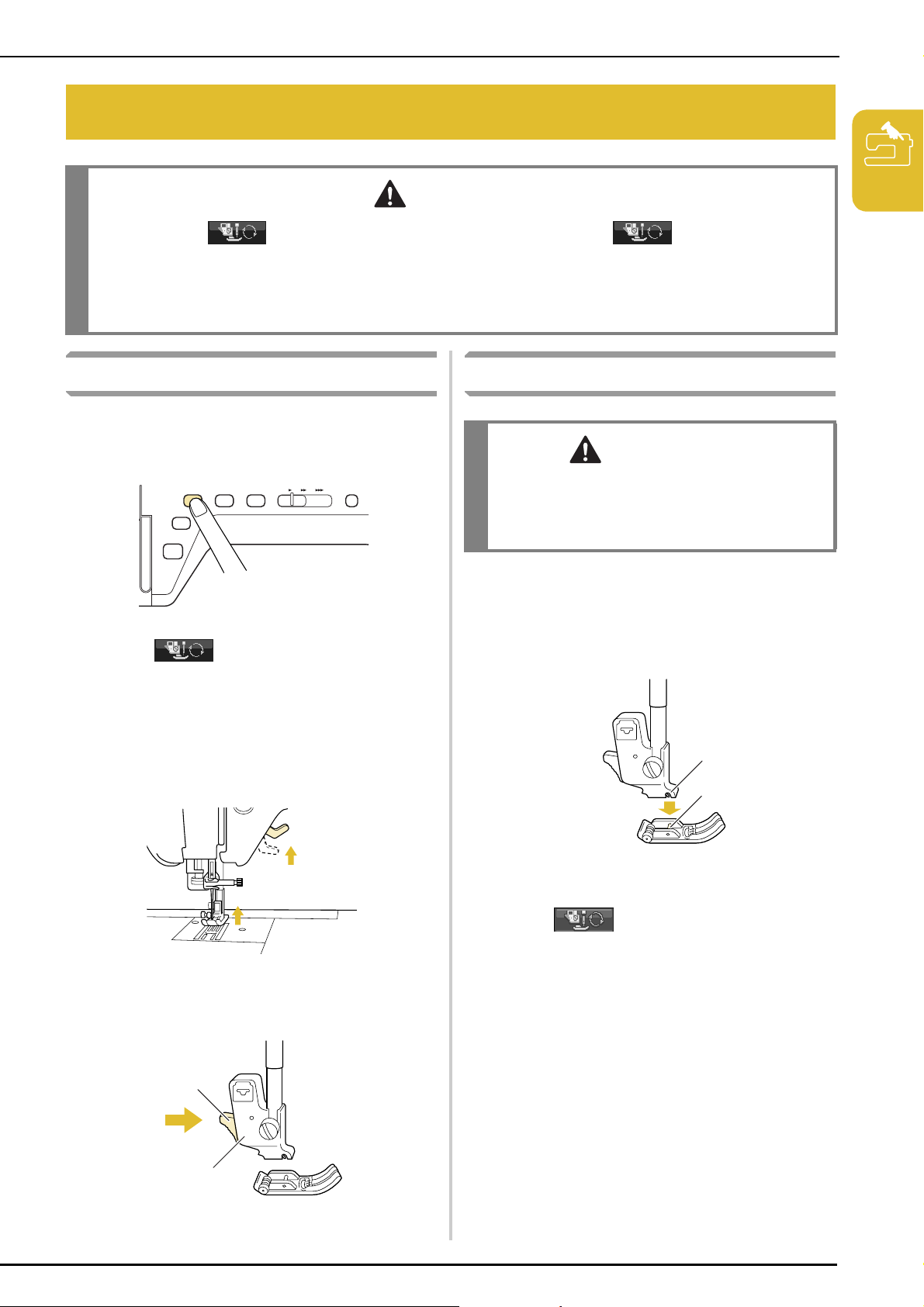

CHANGING THE PRESSER FOOT .......................37

Removing the Presser Foot ....................................................37

Attaching the Presser Foot ..................................................... 37

Attaching the Walking Foot................................................... 38

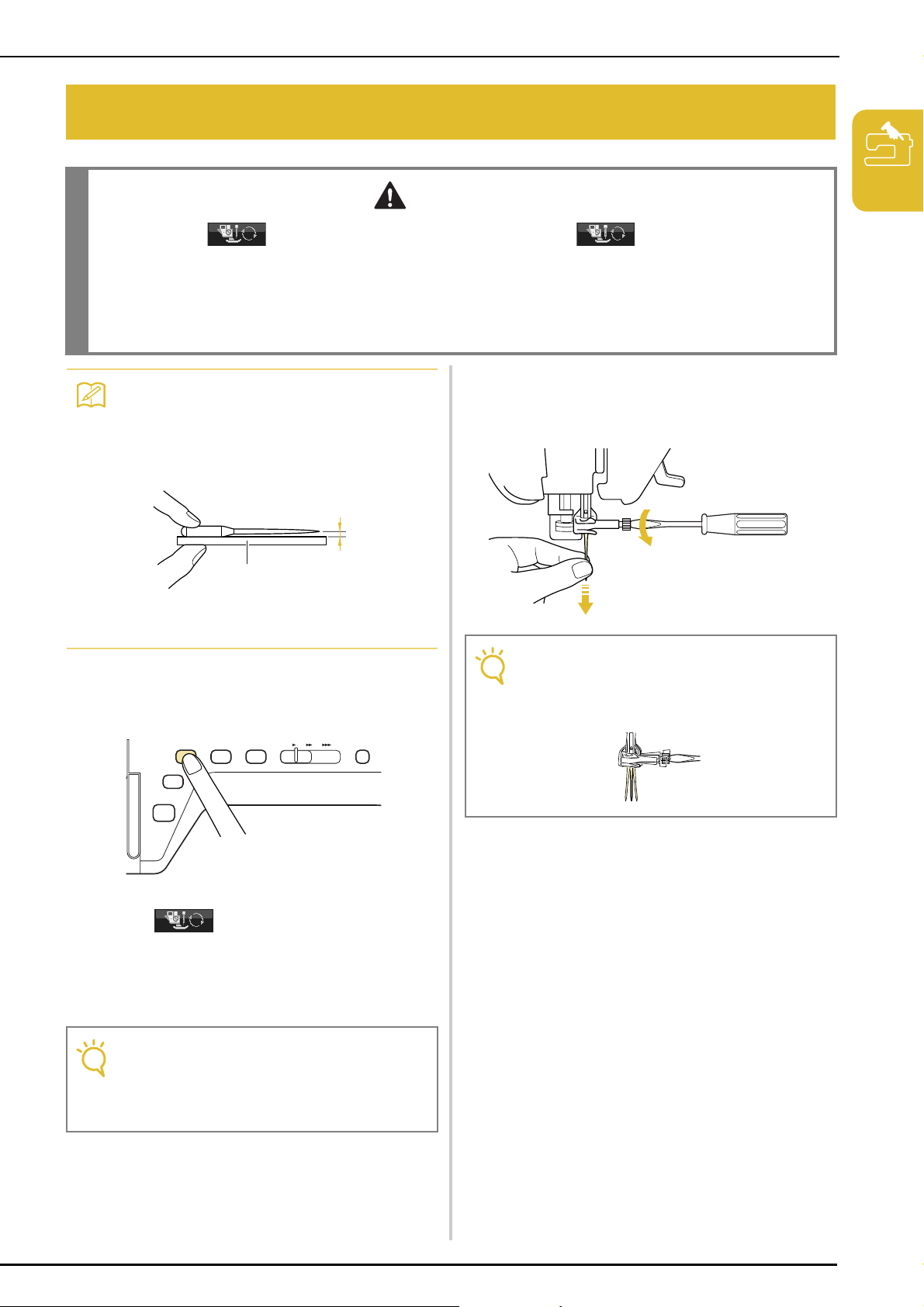

CHANGING THE NEEDLE...................................39

Chapter 2 Sewing Basics 43

SEWING ..............................................................44

Sewing a Stitch ..................................................................... 44

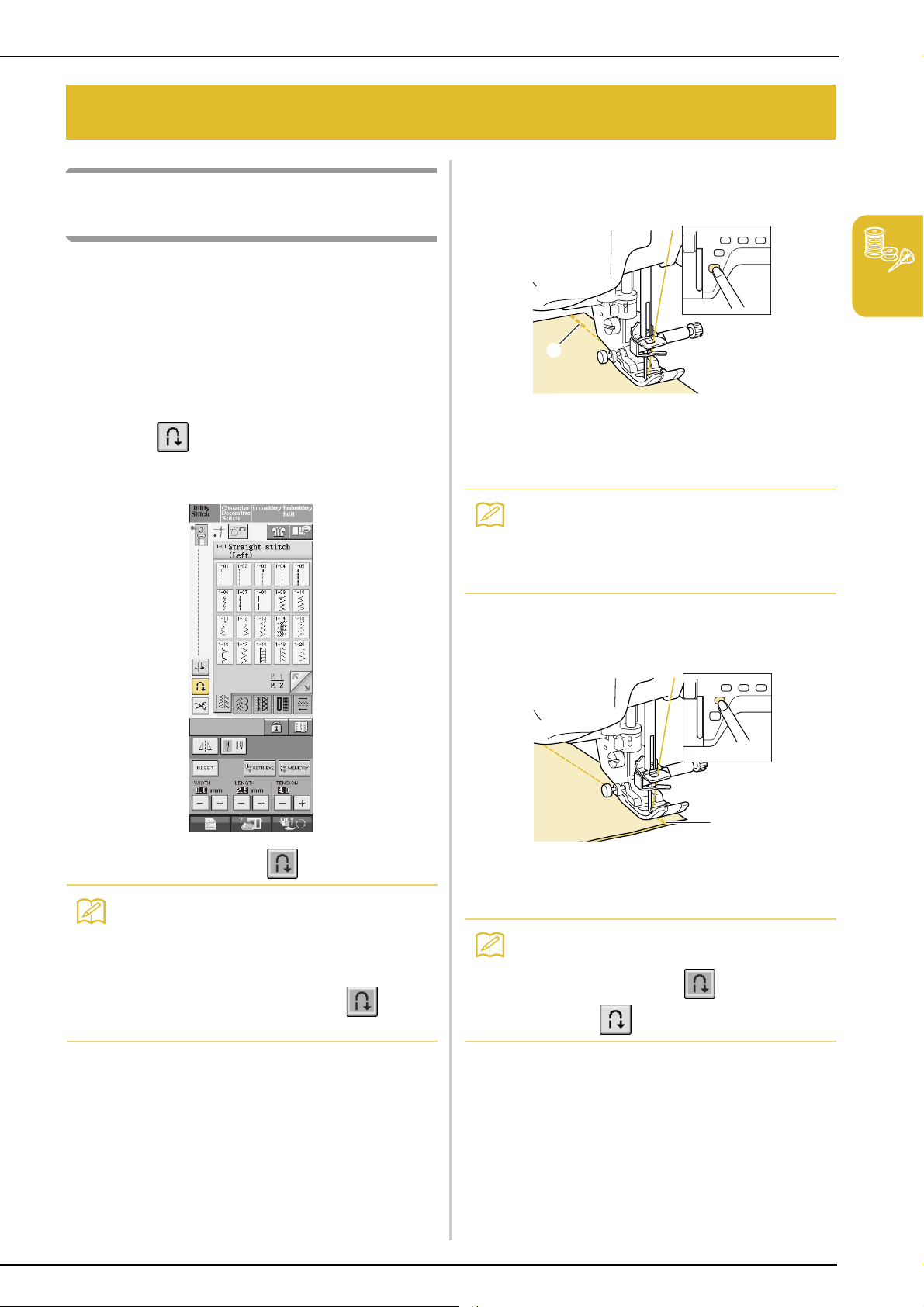

Sewing Reinforcement Stitches ............................................. 46

Sewing Curves ......................................................................46

Changing Sewing Direction .................................................. 46

Sewing Heavyweight Fabrics ................................................ 47

Sewing Lightweight Fabrics................................................... 48

Sewing Stretch Fabrics .......................................................... 48

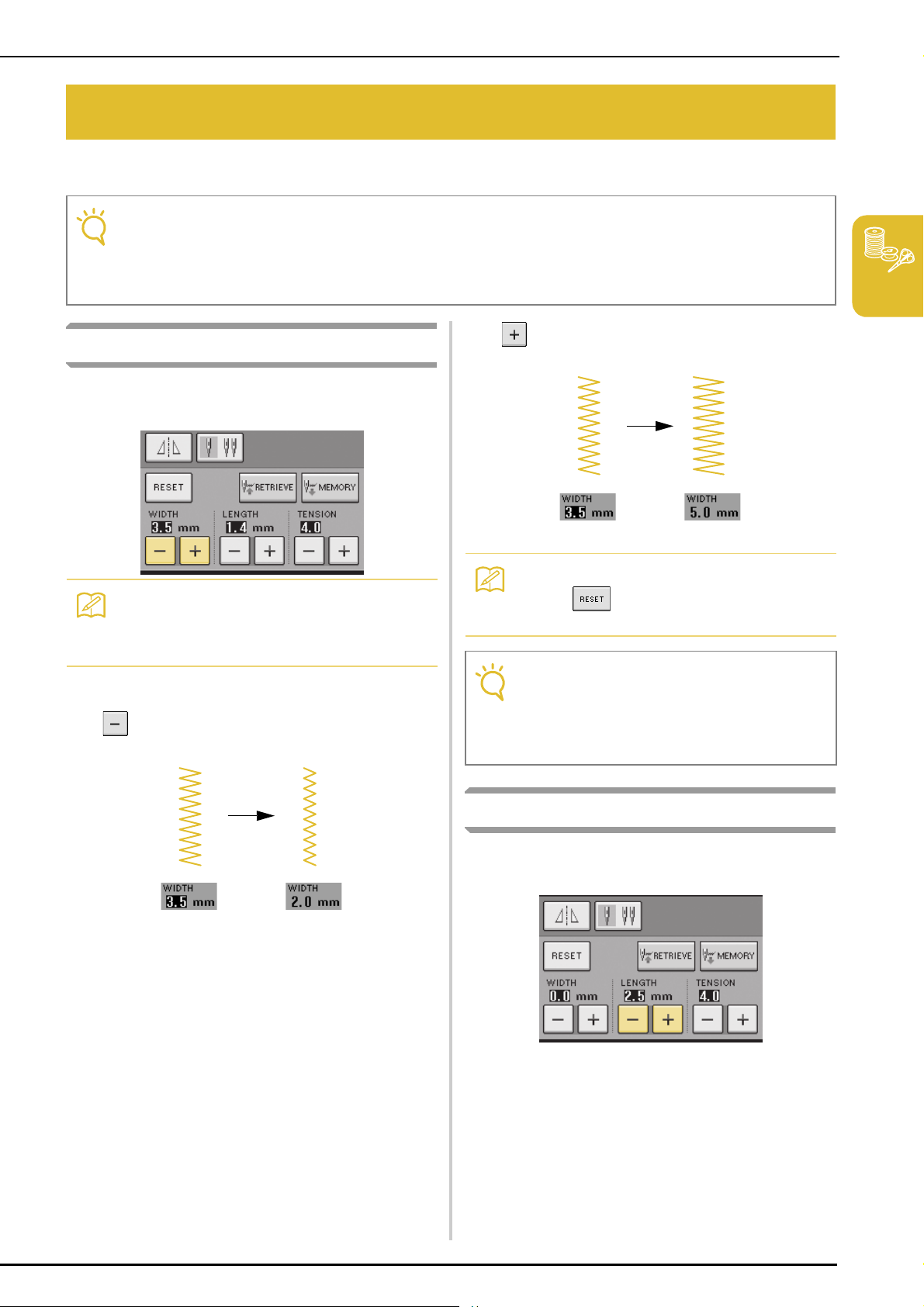

STITCH SETTINGS...............................................49

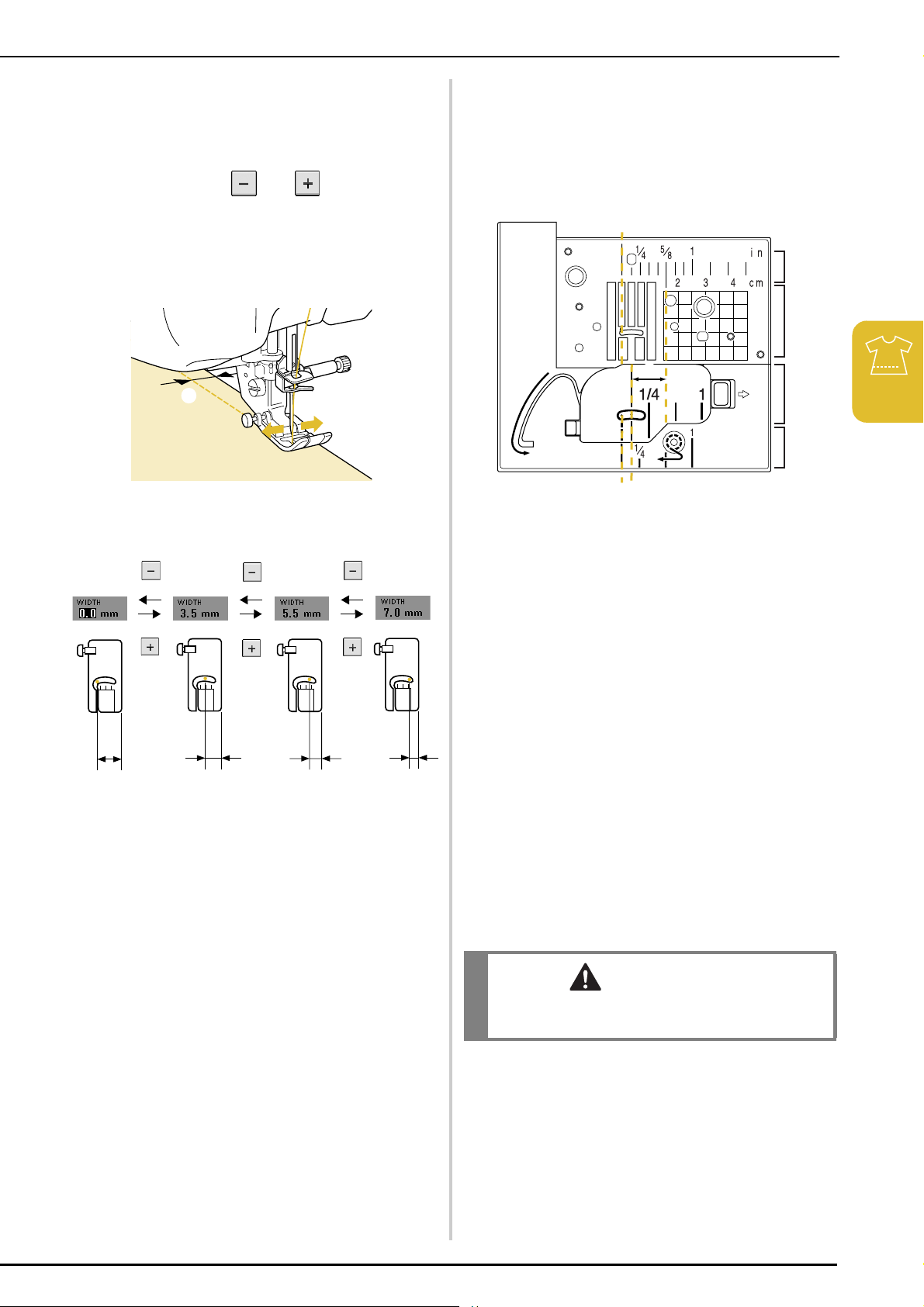

Setting the Stitch Width......................................................... 49

Setting the Stitch Length........................................................49

Setting the Thread Tension....................................................50

USEFUL FUNCTIONS..........................................51

Automatic Reinforcement Stitching.......................................51

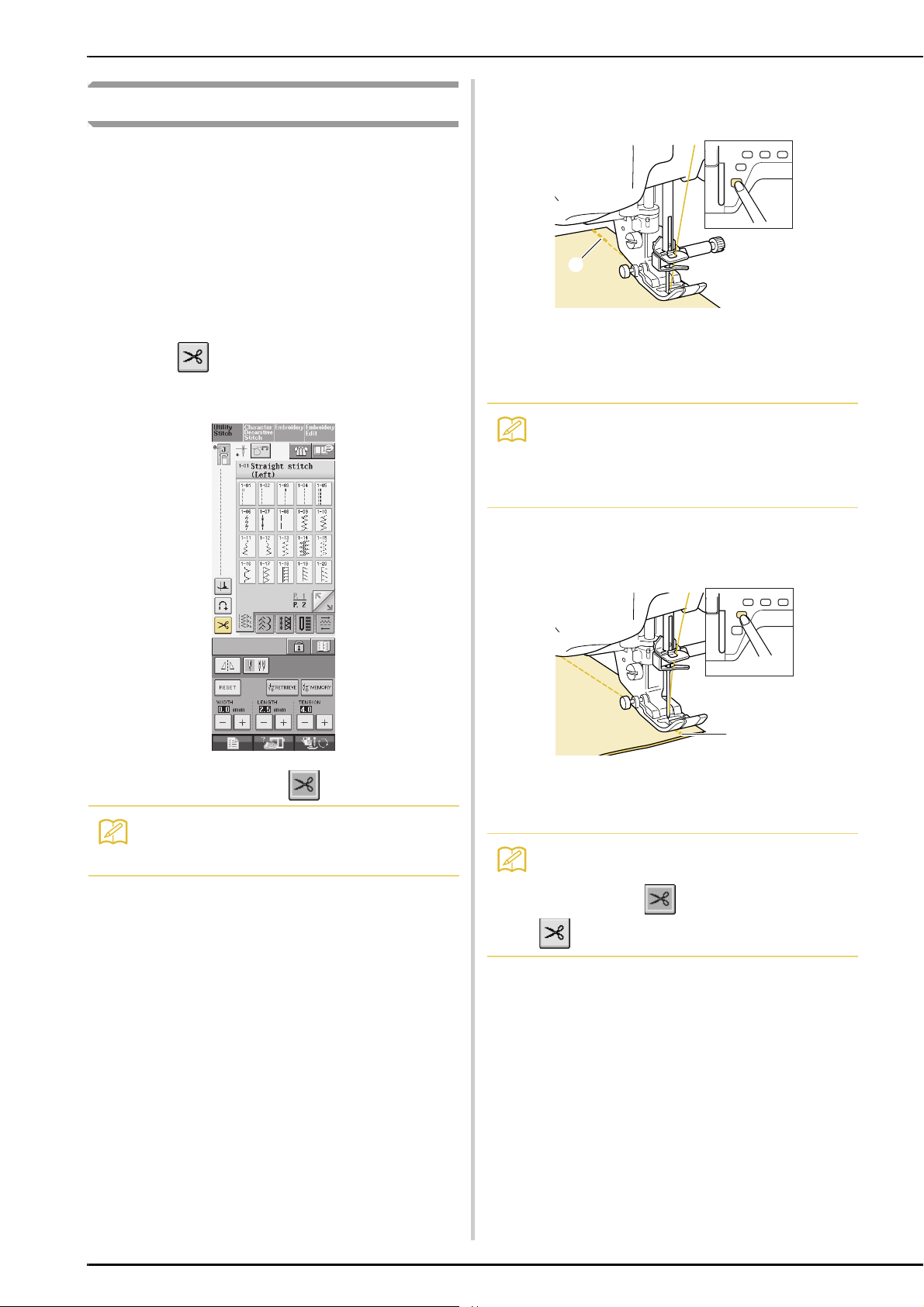

Automatic Thread Cutting .....................................................52

Pivoting ................................................................................ 53

Automatic Fabric Sensor System (Automatic Presser Foot

Pressure) ...............................................................................55

Locking the Screen................................................................55

Chapter 3 Utility Stitches 57

SELECTING UTILITY STITCHES...........................58

Selecting a Stitch...................................................................59

Saving Your Stitch Settings ....................................................60

Using the Sewing Type Selection Key ...................................61

SEWING THE STITCHES ..................................... 63

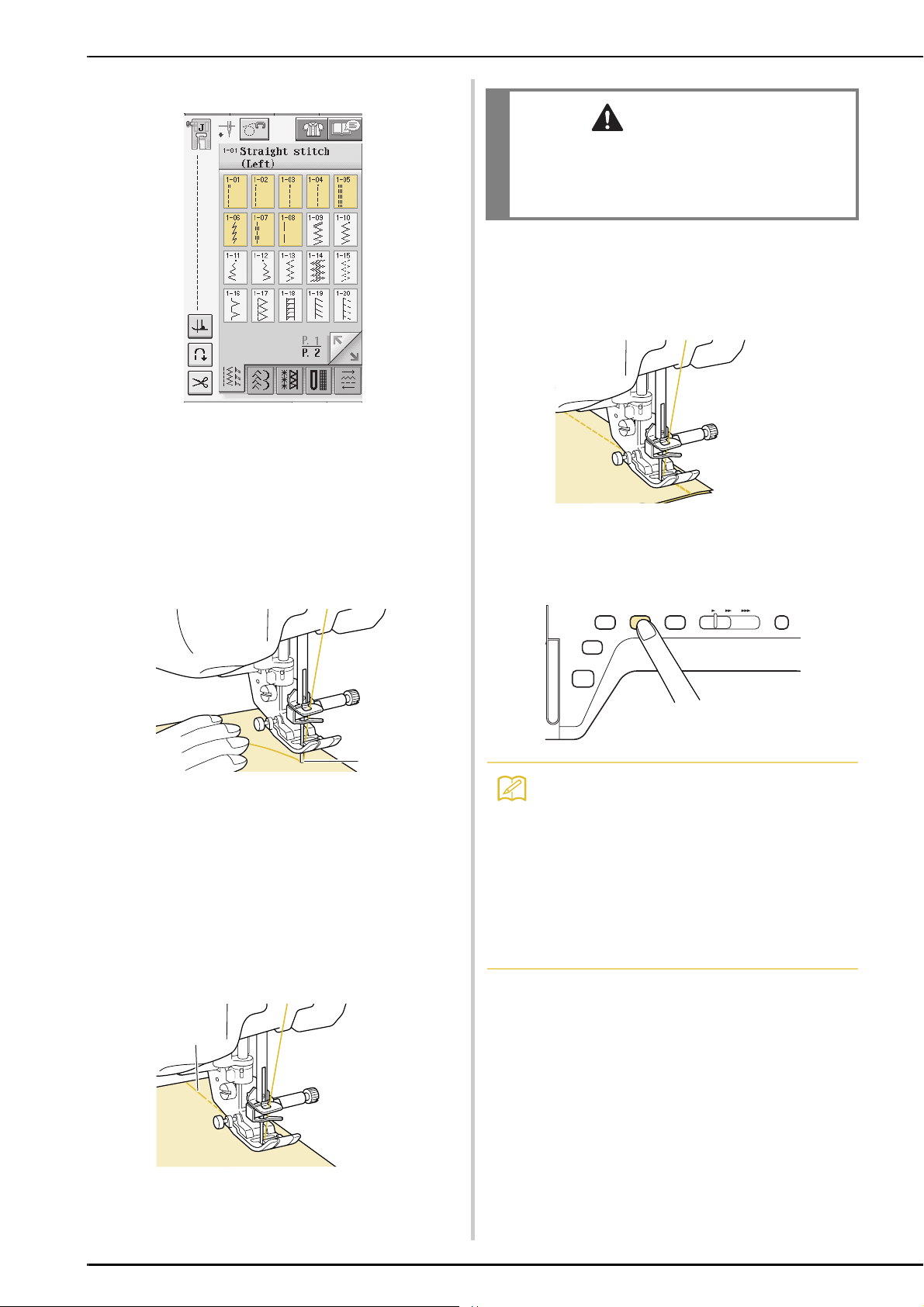

Straight Stitches .....................................................................63

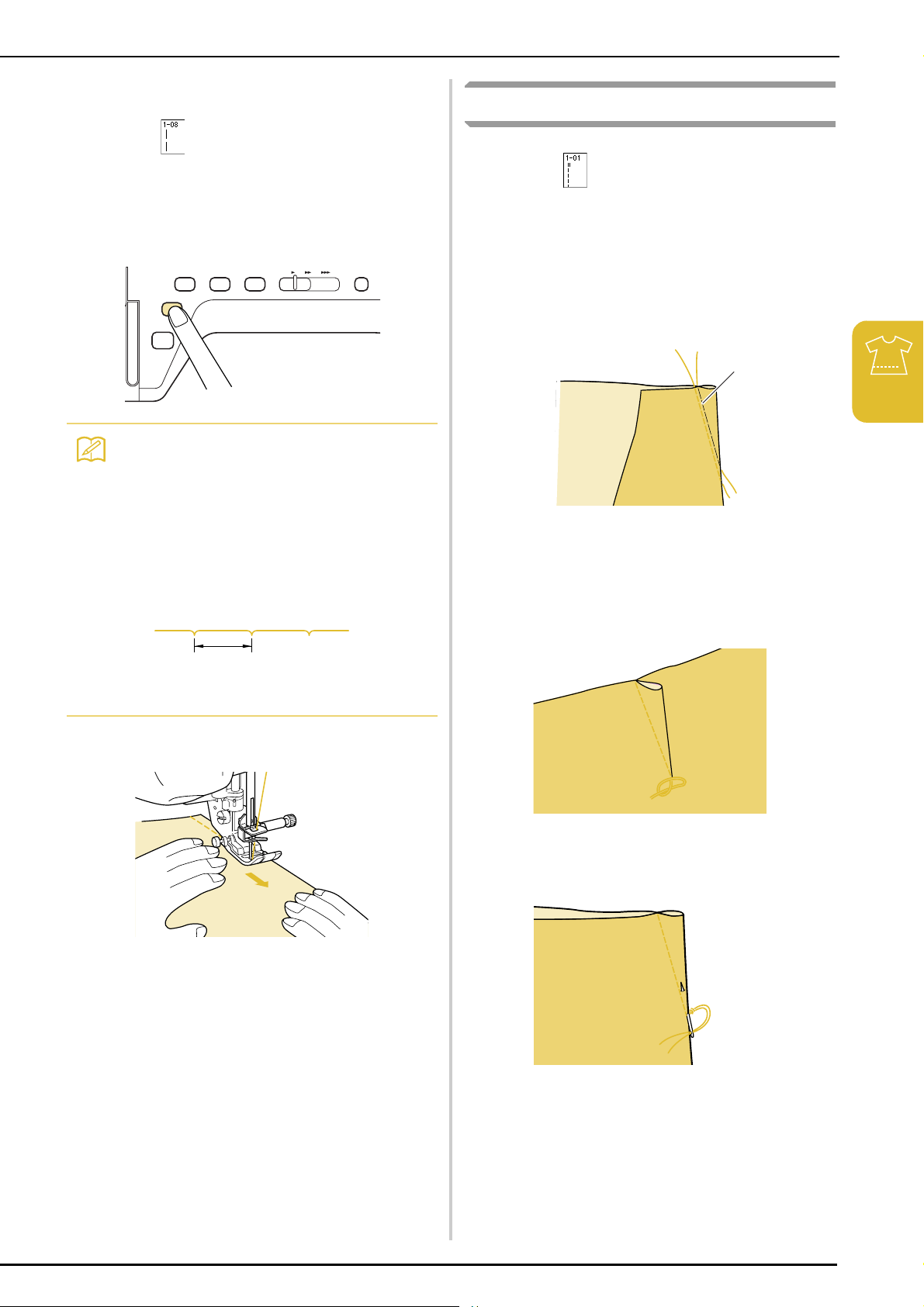

Dart Seam .............................................................................67

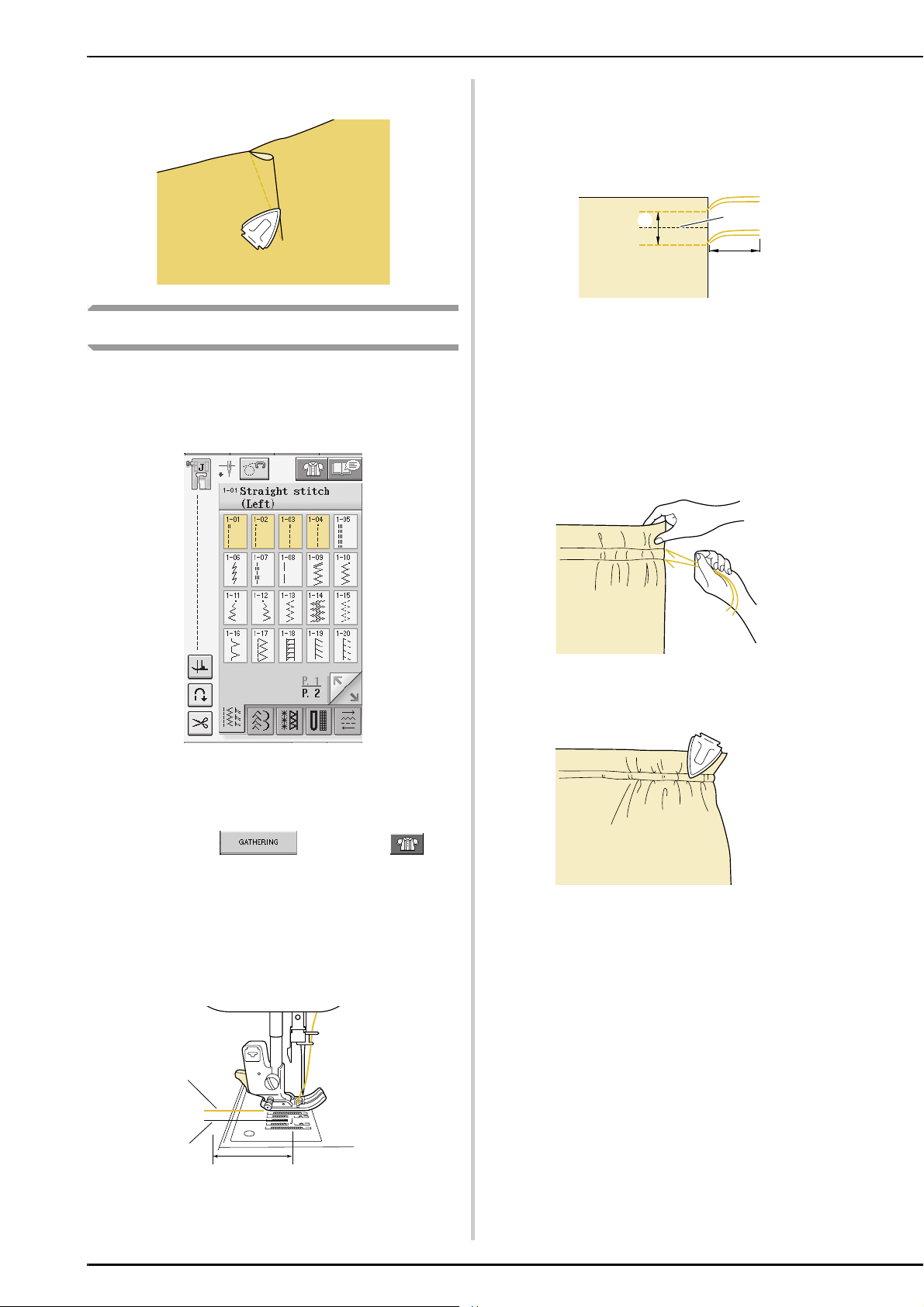

Gathering..............................................................................68

Flat Fell Seam........................................................................69

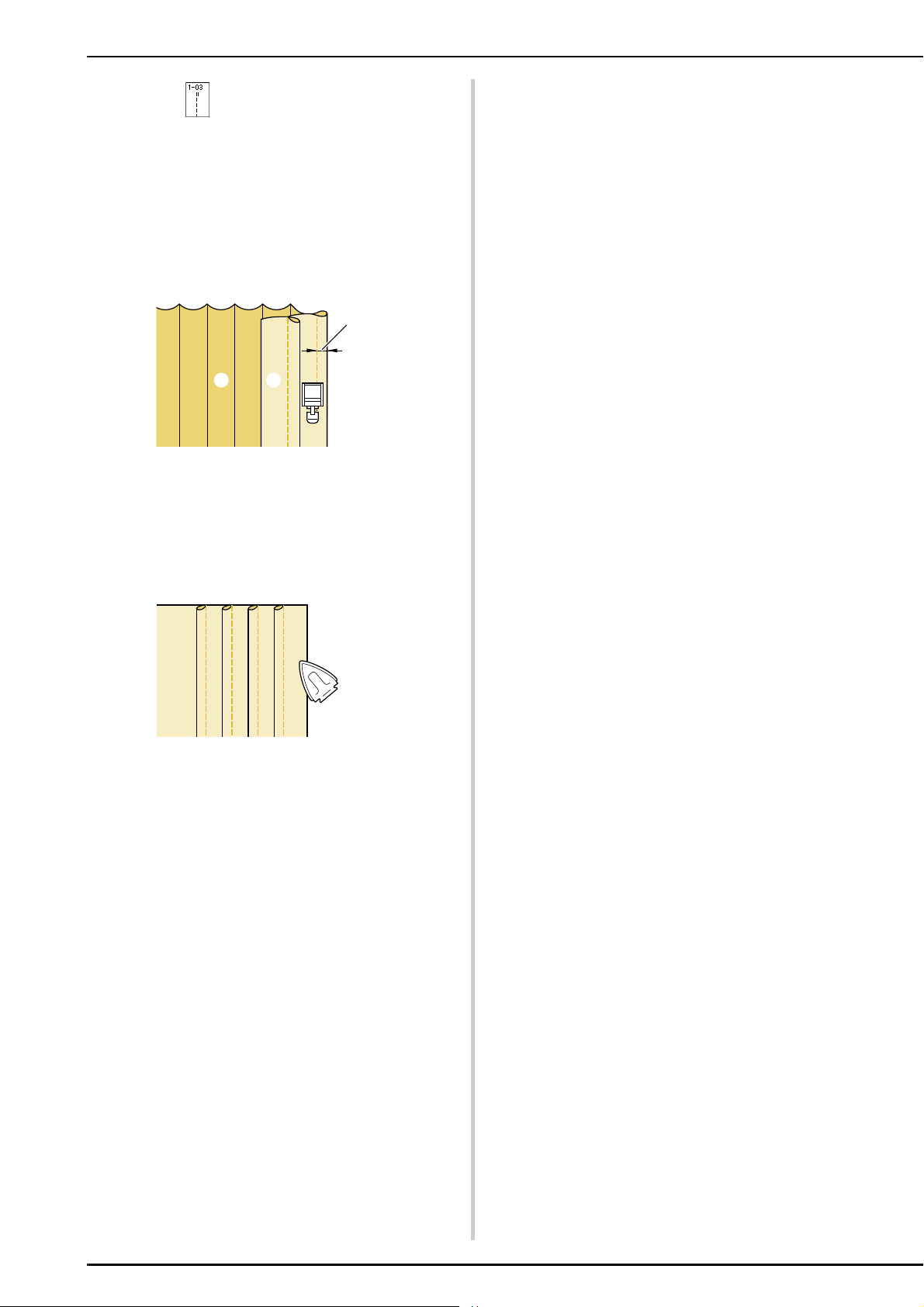

Pintuck..................................................................................69

Zigzag Stitches ......................................................................71

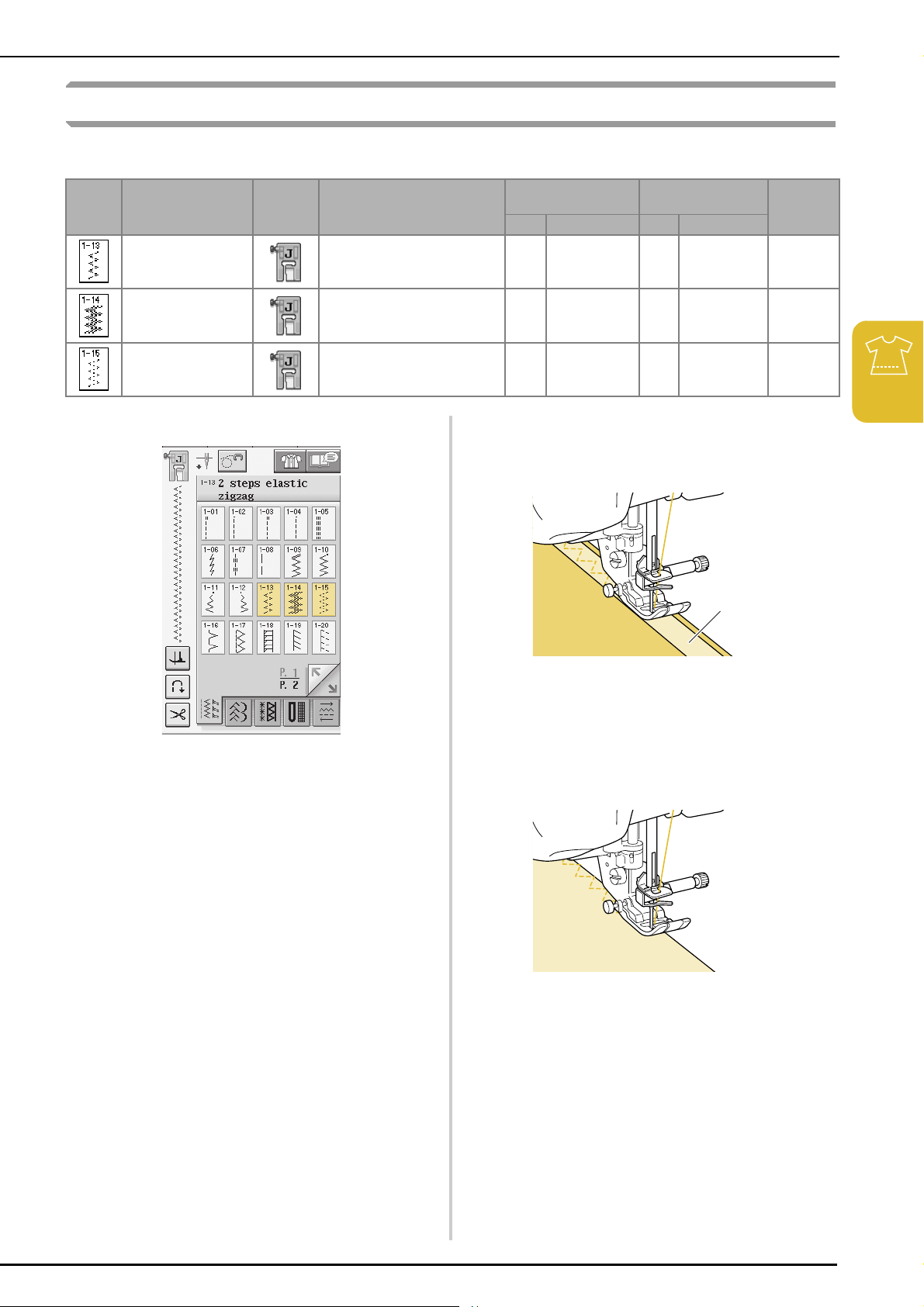

Elastic Zigzag Stitches ...........................................................73

Overcasting...........................................................................74

Quilting.................................................................................79

Blind Hem Stitches................................................................89

Appliqué ...............................................................................90

Shelltuck Stitches ..................................................................91

Scallop Stitches .....................................................................92

Top Stitching .........................................................................92

Smocking Stitches .................................................................93

Fagoting ................................................................................93

Tape or Elastic Attaching....................................................... 94

Heirloom...............................................................................95

One-step Buttonholes............................................................97

Four-step Buttonholes..........................................................101

Bar Tacks ............................................................................105

Button Sewing.....................................................................107

Eyelet ..................................................................................109

Multi-directional Sewing (Straight Stitch and Zigzag Stitch) .110

Zipper Insertion...................................................................111

Chapter 4 Character/Decorative Stitches 115

SELECTING STITCH PATTERNS........................ 116

Selecting Decorative Stitch Patterns/7mm Decorative Stitch Patterns/Satin Stitch Patterns/7mm Satin Stitch

Patterns/Cross Stitch/Utility Decorative Stitch Patterns.........118

Alphabet Characters ............................................................118

SEWING STITCH PATTERNS ............................ 120

Sewing Attractive Finishes ...................................................120

Basic Sewing.......................................................................120

Making Adjustments............................................................121

EDITING STITCH PATTERNS............................ 123

Changing the Size ...............................................................124

Changing the Length (for 7mm Satin Stitch Patterns Only) ...125

Creating a Vertical Mirror Image .........................................125

Creating a Horizontal Mirror Image.....................................125

Sewing a Pattern Continuously............................................125

Changing Thread Density

(for Satin Stitch Patterns Only).............................................126

Returning to the Beginning of the Pattern ............................ 126

Checking the Image.............................................................127

COMBINING STITCH PATTERNS..................... 128

Before Combining ...............................................................128

Combining Various Stitch Patterns.......................................128

Combining Large and Small Stitch Patterns.......................... 130

Combining Horizontal Mirror Image Stitch Patterns.............130

Combining Stitch Patterns of Different Length .....................131

Making Step Stitch Patterns

(for 7mm Satin Stitch Patterns Only)....................................132

USING THE MEMORY FUNCTION .................. 134

Stitch Data Precautions .......................................................134

Saving Stitch Patterns in the Machine’s Memory..................136

Saving Stitch Patterns to USB Media

(Commercially Available)....................................................138

Saving Stitch Patterns in the Computer ................................139

Retrieving Stitch Patterns from the Machine’s Memory ........140

Recalling from USB Media ..................................................141

Recalling from the Computer...............................................142

viii

Contents

Chapter 5 Embroidery 143

BEFORE EMBROIDERING .................................144

Embroidery Step by Step......................................................144

Attaching Embroidery Foot “W” ..........................................145

Attaching the Embroidery Unit ............................................ 146

SELECTING PATTERNS......................................149

Selecting Embroidery Patterns/Floral alphabet Patterns/

Baby Lock Exclusive Embroidery Designs............................151

Selecting Alphabet Character Patterns .................................152

Selecting Frame Patterns......................................................153

Selecting Patterns from Embroidery Cards ...........................154

Selecting Patterns from USB media/Computer ..................... 154

VIEWING THE SEWING SCREEN ......................155

PREPARING THE FABRIC ..................................157

Attaching Iron-on Stabilizers (backing) to the Fabric............157

Hooping the Fabric in the Embroidery Frame ......................158

Embroidering Small Fabrics or Fabric Edges ........................ 160

ATTACHING THE EMBROIDERY FRAME..........162

CONFIRMING THE PATTERN POSITION .........163

Checking the Pattern Position..............................................163

Previewing the Completed Pattern.......................................164

SEWING AN EMBROIDERY PATTERN ..............165

Sewing Attractive Finishes ...................................................165

Sewing Embroidery Patterns ................................................166

Sewing Embroidery Patterns Which Use Appliqué...............168

ADJUSTMENTS DURING THE EMBROIDERY PROCESS

If the Bobbin Runs Out of Thread ........................................170

If the Thread Breaks During Sewing................................................ 171

Restarting from the Beginning..............................................171

Automatically Resuming Embroidery

When the Power Goes Off ..................................................172

Manually Resuming Embroidery

After Turning Off the Power ................................................173

MAKING EMBROIDERY ADJUSTMENTS ..........174

Adjusting Thread Tension....................................................174

Using the Automatic Thread Cutting Function

(END COLOR TRIM) ...........................................................175

Using the Thread Trimming Function

(JUMP STITCH TRIM)..........................................................175

Adjusting the Embroidery Speed..........................................176

Changing the Thread Color Display.....................................177

Changing the Embroidery Frame Display.............................178

REVISING THE PATTERN ..................................179

Changing the Pattern Position..............................................179

Aligning the Pattern and the Needle ....................................180

Changing the Size ...............................................................181

Rotating the Pattern.............................................................182

Creating a Horizontal Mirror Image.....................................183

Changing the Density

(Alphabet Character and Frame Patterns Only) ....................183

Changing the Colors of Alphabet Character Patterns............184

USING THE MEMORY FUNCTION...................185

Embroidery Data Precautions ..............................................185

Saving Embroidery Patterns in the Machine’s Memory ........187

Saving Embroidery Patterns to USB Media

(Commercially Available) ....................................................189

Saving Embroidery Patterns in the Computer .......................190

Retrieving Patterns from the Machine’s Memory..................191

Recalling from USB Media .................................................. 191

Recalling from the Computer...............................................192

EMBROIDERY APPLICATIONS..........................194

Using a Frame Pattern to Make an Appliqué (1)...................194

Using a Frame Pattern to Make an Appliqué (2)...................195

...........................................................170

EDITING PATTERNS ......................................... 203

Moving the Pattern ............................................................. 205

Rotating the Pattern ............................................................ 205

Changing the Size of the Pattern ......................................... 206

Deleting the Pattern............................................................ 207

Changing the Configuration of Alphabet Character

Patterns............................................................................... 207

Changing Alphabet Character Spacing ................................ 207

Reducing Character Spacing............................................... 208

Changing the Color of Each Alphabet Character

in a Pattern......................................................................... 209

Changing the Thread Color................................................. 209

Creating a Custom Thread Table......................................... 210

Choosing a Color from the Custom Thread Table................ 212

Designing Repeated Patterns............................................... 213

After Editing........................................................................ 217

COMBINING PATTERNS .................................. 219

Editing Combined Patterns.................................................. 219

Sewing Combined Patterns ................................................. 222

USING THE MEMORY FUNCTION .................. 223

Chapter 7 Appendix 225

CARE AND MAINTENANCE ............................. 226

Cleaning the LCD Screen .................................................... 226

Cleaning the Machine Casing ............................................. 226

Cleaning the Race............................................................... 226

Cleaning the Bobbin Case................................................... 227

ADJUSTING THE SCREEN ................................ 228

Screen Visibility is Low....................................................... 228

Touch Panel is Malfunctioning ........................................... 228

TROUBLESHOOTING ...................................... 230

ERROR MESSAGES............................................ 233

SPECIFICATIONS.............................................. 239

UPGRADING YOUR MACHINE’S

SOFTWARE ....................................................... 240

Upgrade Procedure Using USB Media................................ 240

Upgrade Procedure Using Computer .................................. 241

STITCH SETTING CHART ................................. 243

INDEX............................................................... 250

Chapter 6 Embroidery Edit 197

EXPLANATION OF FUNCTIONS ......................198

SELECTING PATTERNS TO EDIT .......................199

Selecting Embroidery Patterns/Floral Alphabet Patterns/

Frame Patterns/Baby Lock Exclusive Embroidery Designs ....200

Selecting Alphabet Character Patterns .................................200

Contents

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

The names of the various parts of the sewing machine and their functions are described below. Before using the sewing machine, carefully read these descriptions to learn the names of the machine parts.

Machine

■ Front View

i c

a Top cover

Open the top cover to thread the machine and wind the bobbin.

b Thread cutter

Pass the threads through the thread cutter to cut them.

c Thread take-up lever check window

Look through the window to check the upper thread passing through the thread take-up lever.

d Flat bed attachment with accessory compartment

Store presser feet and bobbins in the accessory compartment of the flat bed attachment. When sewing cylindrical pieces, remove the flat bed attachment.

e Operation buttons (6 buttons) and sewing speed

controller

Use these buttons and the slide to operate the sewing machine.

f Knee lifter slot

Insert the knee lifter into the slot.

g Knee lifter

Use the knee lifter to raise and lower the presser foot.

h LCD (liquid crystal display)

Settings for the selected stitch and error messages appear in the LCD.

i Thread guide plate

Pass the thread around the thread guide plate when threading upper thread.

j Spool cap

Use the spool cap to hold the spool in place.

k Spool pin

Place a spool of thread on the spool pin.

l Bobbin winder

Use the bobbin winder when winding the bobbin.

m Supplemental spool pin

Use this spool pin to wind the bobbin thread, or to sew with the twin needle.

n Thread guide for bobbin winding

Pass the thread around this thread guide when winding the bobbin thread.

o Pretension disk

Pass the thread around the pretension disk when winding the bobbin thread.

p LCD cover

Attach the cover when not using the machine.

■ Right-side/Rear View

a Handle

Carry the sewing machine by its handle when transporting the machine.

b Handwheel

Turn the handwheel toward you to raise and lower the needle. The wheel should be turned toward the front of the machine.

c Embroidery card slot

Insert the embroidery cards (sold separately) into the embroidery card slot.

d USB port connector for media

In order to send patterns from/to USB media, plug the USB media directly into the USB port connector.

e USB port connector for computer

In order to import/export patterns between a computer and the machine, plug the USB cable into the USB port connector.

f Touch pen holder

Use the touch pen holder to hold the touch pen when not in use.

g Main power switch

Use the main power switch to turn the sewing machine ON and OFF.

h Power cord receptacle

Insert the power cord into the machine receptacle.

i Feed dog position switch

Use the feed dog position switch to lower the feed dogs.

j Presser foot lever

Raise and lower the presser foot lever to raise and lower the presser foot.

k Air vent

The air vent allows the air surrounding the motor to circulate. Do not cover the air vent while the sewing machine is being used.

l Foot controller with retractable cord

Depress the foot controller to control the speed of the machine.

m Foot controller jack

Insert the foot controller plug into its jack on the machine.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Needle and Presser Foot Section

Measurements on the needle plate, bobbin cover and needle plate cover

The measurements on the bobbin cover are references for patterns with a middle (center) needle position. The measurements on the needle plate and the needle plate cover are references for stitches with a left needle position.

a Presser foot holder

The presser foot is attached onto the presser foot holder.

b Presser foot

The presser foot applies pressure consistently on the fabric as sewing takes place. Attach the appropriate presser foot for the selected stitch.

c Feed dogs

The feed dogs feed the fabric in the sewing direction.

d Bobbin cover

Open the bobbin cover to set the bobbin.

e Needle clamp screw

Use the needle clamp screw to hold the needle in place.

f Buttonhole lever

The buttonhole lever is used with the one-step buttonhole foot to create buttonholes.

g Needle bar thread guides

Pass the upper thread through the two needle bar thread guides.

h Needle plate

The needle plate is marked with guides to help sew straight seams.

i Presser foot holder screw

Use the presser foot holder screw to hold the presser foot holder in place.

j Needle plate cover

Remove the needle plate cover to clean the race.

a For stitches with a middle (center) needle position b For stitches with a left needle position c Left needle position on the needle plate <inch> d Left needle position on the needle plate <cm> e Middle (center) needle position on the bobbin cover

<inch>

f Left needle position on the needle plate cover <inch>

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Embroidery Unit

a Carriage

The carriage moves the embroidery frame automatically when embroidering.

b Release button (located under the embroidery unit)

Press the release button to remove the embroidery unit.

c Feed dog position switch

Use the feed dog position switch to raise and lower the feed dogs while the embroidery unit is attached.

d Embroidery unit connection

Insert the embroidery unit connection into the connection port when attaching the embroidery unit.

e Embroidery frame holder

Insert the embroidery frame into the embroidery frame holder to hold the frame in place.

f Frame-securing lever

Press the frame-securing lever down to secure the embroidery frame.

CAUTION

• After the embroidery frame is set in the frame holder, be sure the frame-securing lever is correctly lowered.

Note

• Be sure that the feed dog position switch on

the embroidery unit is located at right when embroidering.

• You can also sew utility/decorative stitches

with the embroidery unit attached. Set the feed dog position switch on the embroidery unit to the appropriate setting.

Operation Buttons

a “Start/Stop” button

Press this button and the machine will sew a few stitches at a slow speed and then begin sewing at the speed set by the sewing speed controller. Press the button again to stop the machine. Hold the button in to sew at the machine’s slowest speed. The button changes color according to the machine’s operation mode.

Green: the machine is ready to sew or is sewing.

Red: the machine cannot sew.

b “Reverse/Reinforcement Stitch” button

Use this button to sew reinforcement stitches at the beginning and end of sewing. Press this button, and the machine sews 3 stitches in the same spot and stops automatically. For straight and zigzag stitch patterns that take reverse stitches, the machine will sew reverse stitches at low speed only while holding down the “Reverse/Reinforcement Stitch” button (the stitches are sewn in the opposite direction).

c “Needle Position” button

Use this button when changing sewing direction or for detailed sewing in small areas. Press this button to raise or lower the needle position. Press the button twice to sew a single stitch.

d “Thread Cutter” button

Press this button after sewing to automatically trim the excess thread.

e “Presser Foot Lifter” button

Press this button to lower the presser foot and apply pressure to the fabric. Press this button again to raise the presser foot.

f Sewing Speed controller

Use this controller to adjust the sewing speed. Move the slide to the left to sew at slower speeds. Move the slide to the right to sew at higher speeds. Beginners should sew at a slow speed.

g “Automatic Threading” button

Use this button to automatically thread the needle.

CAUTION

• Do not press the thread cutter button after the threads have already been cut. Otherwise, the needle may break, the threads may become tangled, or damage to the machine may occur.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Included Accessories

Pull the top of the flat bed attachment to open the accessory compartment.

Included Accessories 35-38 are contained in the embroidery unit carrying case. To open the embroidery unit carrying case, raise the lock and move the latch out of position. To re-hook the latches and securely close the case, position the latch on the catch of the unit lid and lower the lock till it snaps.

a Lock b Latch c Catch

a Storage space b Presser foot storage space c Presser foot storage space

1 234567

8 9 10 11 12 13 14* 15*

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

16* 17 18 19 20 21 22

75/11 2 needles 90/14 2 needles 90/14 2 needles: Ball point needle (gold colored)

23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38

39 40 41 42 43 44 45 46

47 48 49 50 51 52 53

54 55 56 57

* See Additional Accessories Guide for presser foot instruction. **Included Accessories 35-38 are contained in the embroidery unit carrying case.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

No. Part Name Part Code

1 Buttonhole foot “A” X57789-151

2 Embroidery foot “W” XC8156-451

3 Overcasting foot “G” XC3098-051

4 Monogramming foot “N” X53840-351

5 Zipper foot “I” X59370-051

6 Zigzag foot “J” (on machine) XC3021-051

7 Blind stitch foot “R” X56409-051

8 Button fitting foot “M” 130489-001

9 Walking foot X59816-104

10 Free-motion quilting foot “C” XE0765-001

11 Free-motion open toe quilting

foot “O”

12 Free-motion echo quilting foot

“E”

13 Straight stitch foot XD0826-051

14 Blind stitch foot (with guide)* XA0059-001

15 Narrow hemmer foot* 184600-001

16 Cording foot (3 cord guide)* XA6871-001

17 Seam ripper X54243-001

18 Bobbin × 10 X52860-150

19 Needle set X58358-051

20 Twin needle X59296-151

21 Ball point needle set XD0705-051

22 Scissors 184783-051

23 Chalk pen 184944-001

24 Cleaning brush X59476-051

25 Eyelet punch 135793-001

26 Screwdriver (large) X55467-051

27 Screwdriver (small) X55468-051

28 Spool cap (small) 130013-154

29 Spool cap (medium) × 2 X55260-153

30 Spool cap (large) 130012-054

31 Vertical spool pin XC8619-051

32 Spool felt X57045-051

33 Disc-shaped screwdriver XC1074-051

34 Spool net XA5523-050

35 Embroidery frame set (small)

H 2 cm × W 6 cm (H 1 inch × W 2-1/2 inches)

Embroidery frame set

(medium) H 10 cm (H 4 inches

37 Embroidery frame set (large)

H 18 cm × W 13 cm (H 7 inches × W 5 inches)

38 Embroidery frame set (extra

large) H 30 cm × W 18 cm (H 12 inches × W 7 inches)

39 Foot controller XC8028-051

40 Embroidery needle plate

cover

41 Touch pen (stylus) XA9940-051

42 Knee lifter XA6941-051

43 USB cable XD0745-051

44 Alternate bobbin case (pink

screw)

45 Straight stitch needle plate XC8362-051

46 Cord guide bobbin cover (with

single hole)

47 Embroidery bobbin thread BBT-W

48 Stabilizer material X81176-001

49 Instruction and reference

guide

50 Quick reference guide BLG2-NZ: XE2640-001

W 10 cm

W 4 inches)

XE0767-001

XE0766-001

EF73: Frame

EF77: Embroidery sheet

EF74: Frame

EF78: Embroidery sheet

EF75: Frame

EF79: Embroidery sheet

EF76: Frame

EF80: Embroidery sheet

XA9939-051

XC8167-251

XC8449-051

BLG2-NZ: XE2638-001

BLG2: XE2542-001

BLG2: XE2543-001

No. Part Name Part Code

51 Additional accessories guide BLG2-NZ: XE2639-001

52 Embroidery unit carrying

case

53 Hard case XC7750-053

54 LCD cover XC8468-051

55 Bobbin center pin XC8661-051

56 Bobbin cover XE0756-001

57 Power cord XC6052-051

BLG2: XE2554-001

XC8150-051

* See Additional Accessories Guide for presser foot instruc-

tion.

Memo

(For U.S.A. only) Foot controller: Model S This foot controller can be used with this

machine models: BLG2-NZ/BLG2.

Memo

• Always use accessories recommended for this machine.

• The screw of the presser foot holder is available through your authorized retailer (Part code XA4813-051).

• Included accessories 39, 49, 50 and 51 can be stored in the machine’s hard case.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Options Removing the LCD cover

123

456

789

While pressing down on the latch at the top

of the LCD cover, pull the cover towards you.

a Latch

Remove the LCD cover.

No. Part Name Part Code

1 Side cutter foot XC3923-001

2 Seam guide BLG-SG

3 1/4” quilting foot with guide XC6800-251

4 Embroidery bobbin thread

(White)

Embroidery bobbin thread (Black)

5 Table and free motion grip BLG-ET

6 Embroidery card

7 Spool stand BLG-TS

8 Embroidery frame set (extra

large) H 26 cm x W 16 cm (10 – 1/4 inches (H) x 6 – 1/4 inches (W))

9 2-thread spool stand BLG-STS

EF86: Embroidery sheet

BBT-W

BBT-B

EF81: Frame

Memo

• All specifications are correct at the time of printing. Please be aware that some specifications may change without notice.

Note

• Embroidery cards purchased in foreign countries may not work with your machine.

• Use Baby Lock embroidery cards with your machine. Please see your retailer for availability of additional embroidery cards.

• Visit your Baby Lock retailer for a complete listing of optional accessories available for your machine, or visit the Baby Lock web site at www. babylock. com.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Attaching the LCD cover

Insert the tabs at the bottom of the LCD

cover into the grooves at the bottom of the LCD.

a Tabs b Grooves

While pressing the latch at the top of the

LCD cover, insert the tabs at the top of the LCD cover into the grooves at the top of the LCD.

a Latch b Tabs

Chapter 1

Getting Ready

TURNING THE MACHINE ON/OFF....................................................10

LCD SCREEN........................................................................................11

■ Key Functions..................................................................................................................12

Screens Operations Performed Using a USB Mouse ................................................14

■ Clicking a key..................................................................................................................14

■ Changing pages ...............................................................................................................15

Using the Machine Setting Mode Key...................................................................... 16

■ Adjusting Screen Brightness ............................................................................................19

■ Choosing the Display Language.......................................................................................20

Using the Machine Operation Mode Key ................................................................21

Using the Pattern Explanation Key ..........................................................................22

LOWER THREADING ..........................................................................23

Winding the Bobbin ................................................................................................23

■ Using the Supplemental Spool Pin...................................................................................23

■ Using the Spool Pin .........................................................................................................25

Setting the Bobbin...................................................................................................26

Pulling Up the Bobbin Thread ................................................................................. 28

UPPER THREADING............................................................................29

Threading Using the “Automatic Threading” Button...............................................29

Threading Manually ................................................................................................31

Using the Twin Needle Mode ..................................................................................34

Using Threads that Unwind Quickly .......................................................................36

■ Using the Spool Net ........................................................................................................36

■ Using the Vertical Spool Pin............................................................................................36

CHANGING THE PRESSER FOOT .......................................................37

Removing the Presser Foot ...................................................................................... 37

Attaching the Presser Foot ......................................................................................37

Attaching the Walking Foot.....................................................................................38

CHANGING THE NEEDLE...................................................................39

■ About the Needle ............................................................................................................41

■ Fabric/Thread/Needle Combinations ..............................................................................41

TURNING THE MACHINE ON/OFF

WARNING

• Use only regular household electricity as the power source. Using other power sources may result in fire,

electric shock, or damage to the machine.

• Make sure that the plugs on the power cord are firmly inserted into the electrical outlet and the power

cord receptacle on the machine.

• Do not insert the plug on the power cord into an electrical outlet that is in poor condition.

• Turn the main power to OFF and remove the plug in the following circumstances:

When you are away from the machine After using the machine When the power fails during use When the machine does not operate correctly due to a bad connection or a disconnection During electrical storms

CAUTION

• Use only the power cord included with this machine.

• Do not use extension cords or multi-plug adapters with many other appliances plugged in to them. Fire or

electric shock may result.

• Do not touch the plug with wet hands. Electric shock may result.

• When unplugging the machine, always turn the main power to OFF first. Always grasp the plug to remove

it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock.

• Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled.

Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the cord, or cause fire or electric shock. If the cord or plug is damaged, take the machine to your authorized retailer for repairs before continuing use.

• Unplug the power cord if the machine is not to be used for a long period of time. Otherwise, a fire may result.

• When leaving the machine unattended, either the main switch of the machine should be turned to OFF or

the plug must be removed from the socket-outlet.

• When servicing the machine or when removing covers either the machine or the electrical set must be unplugged.

• For U.S.A. only

This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way.

If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.

Insert the power cord into the power cord

receptacle, then insert the plug into a wall outlet.

Turn the main power switch to “I” to turn

on the machine.

a Main power switch b Power cord

a OFF b ON

Turn the main power switch to “O” to turn

off the machine.

LCD SCREEN

When switching on the machine, the screen will display the name of the machine. Touch the screen to display the utility stitch. Either “1-01 Straight stitch (Left)” or “1-03 Straight stitch (Middle)” is selected, depending on the setting selected in the setting screen (see page 16). Press a key with your finger to select the stitch pattern, to select a machine function, or to select an operation indicated on the key.

Note

• When the straight stitch needle plate is on the machine, the needle will automatically move to the middle position.

Memo

• Only touch the screen with your finger or the included touch pen. Do not use a sharp pencil, screwdriver, or other hard or sharp object. It is not necessary to press hard on the screen. Pressing too hard or using a sharp object may damage the screen.

a b

Getting Ready

a Shows single or twin needle mode setting, and the needle stop position.

Single needle/down position Single needle/up position

Twin needle/down position Twin needle/up position

b Shows the presser foot code. Attach the presser foot indicated in this display before sewing. c Shows the name and code number of the selected stitch. d Shows a preview of the selected stitch. e Shows the stitch patterns. f Shows additional pages that can be displayed.

* All key functions of the LCD are explained in the “key functions” table on the following page.

LCD SCREEN

■ Key Functions

a e f

bcd

l n

No. Display Key Name Explanation Page

a Utility stitch key Press this key to select a straight stitch, zigzag stitch, buttonhole, blind hem

b Character/Decorative

stitch key

c Embroidery key Attach the embroidery unit and press this key to sew embroidery. 149

d Embroidery edit key Press this key to combine embroidery patterns. With the embroidery edit

e Free-motion mode key Press this key to enter free-motion sewing mode.

stitch, or other stitches commonly used in garment construction.

Press this key to select character or decorative stitch patterns. 116

functions, you can also create original embroidery patterns or frame patterns.

The presser foot is raised to a height appropriate for free-motion quilting.

o q

199

f Sewing type selection

key

g Pattern explanation

key

h Pivot key Press this key to select the pivot setting. When the pivot setting is selected,

Press this key when you need help selecting the appropriate stitch pattern for the sewing application and when you need instructions on how to sew the stitch pattern. This key is very helpful for beginners.

Press this key to see an explanation of the selected pattern. 22

stopping the machine lowers the needle and slightly raises the presser foot automatically. In addition, when sewing is restarted, the presser foot is automatically lowered.

• If this key appears as , it cannot be used.

• Be sure the needle position on page 2 of Machine Settings is set in the down position.

LCD SCREEN

No. Display Key Name Explanation Page

i Automatic

reinforcement stitch key

j Automatic thread

cutting key

k Stitch selection

display

Press this key to use the automatic reinforcement stitching (reverse stitching) setting. If you select this setting before sewing, the machine will automatically sew reinforcement stitches at the beginning and end of sewing (depending on the pattern, the machine may sew reverse stitches).

Press this key to set the automatic thread cutting function. Set the automatic thread cutting function before sewing to have the machine automatically sew reinforcement stitches at the beginning and end of sewing (depending on the pattern, the machine may sew reverse stitches) and trim the threads after sewing.

Press the key of the pattern you want to sew. Use to

change selection screens.

Getting Ready

l Screen lock key Press this key to lock the screen.When the screen is locked, the various

m Image key Press this key to display an enlarged image of the selected stitch pattern. 59

n Mirror image key Press this key to create a mirror image of the selected stitch pattern. If the key

o Needle mode

selection key (single/ double)

p Reset key Press this key to return the selected stitch pattern saved settings to the original

q Retrieve key Press this key to retrieve a saved pattern. 61

r Manual memory key Change the stitch pattern settings (zigzag width and stitch length, thread

s Stitch width and stitch

length key

t Thread tension key Shows the thread tension setting of the currently selected stitch pattern. The

u Machine setting mode

key

settings, such as the stitch width and stitch length, are locked and cannot be changed. Press this key again to unlock the settings.

display is light gray, a mirror image of the selected stitch pattern cannot be sewn.

Press this key to select twin needle sewing mode. The sewing mode changes between single needle mode and twin needle mode each time you press the key. If the key display is light gray, the selected stitch pattern cannot be sewn in twin needle mode.

settings.

tension, automatic thread cutting or automatic reinforcement stitching, etc.), then save them by pressing this key. Five sets of settings can be saved for a single stitch pattern.

Shows the zigzag width and stitch length settings of the currently selected stitch pattern. You can use the plus and minus keys to adjust the zigzag width and stitch length settings.

thread tension is usually set automatically. You can use the plus and minus keys to change the thread tension settings.

Press this key to change the needle stop position, turn the buzzer ON/OFF, adjust the pattern or screen, and change other machine settings.

49-50

v Machine operation

mode key

w Presser foot/Needle

exchange key

Press this key to see explanations for upper threading, winding the bobbin, changing the presser foot, and how to use the machine.

Press this key before changing the needle, the presser foot, etc. This key locks or unlocks all key and button functions to prevent operation of the machine.

37-40

LCD SCREEN

Screens Operations Performed Using a USB Mouse

If a USB mouse (sold separately by computer retailers) is connected to the sewing machine, the mouse can be used to perform operations in the screens. In addition, a USB hub can be connected so that USB media and a USB mouse can be used at the same time.

■ Clicking a key

When the mouse is connected, the pointer appears in the screen. Move the mouse to position the pointer over the desired key, and then click the left mouse button.

Memo

• Double-clicking has no effect.

a USB port connector for media b USB mouse c USB hub d USB media

Note

• Some mouse types cannot be used to operate the machine. For details on the USB mouse types that are compatible, check www.babylock.com.

• Do not perform operations with the mouse while also touching the screen with your finger or the included touch pen.

• A USB mouse and USB hub can be connected or disconnected at any time.

• Only the left mouse button and its wheel can be used to perform operations. No other buttons can be used.

• Do not insert two or more USB media into a USB hub. Only one USB media can be recognized.

a Pointer

■ Changing pages

Rotate the mouse wheel to switch through the tabs of the pattern selection screens.

Memo

• If for additional pages is displayed,

rotate the mouse wheel to display the next

page. In the or , click the

left mouse button with the pointer on or

to move down to the next part of a

page.

LCD SCREEN

Getting Ready

LCD SCREEN

Using the Machine Setting Mode Key

Press to change the default machine settings (needle stop position, embroidery speed, opening

display, etc.) Press , or to display the different settings screens.

Memo

• Some of these functions will be available in future technology upgrades.

• Press or to display a different settings screen.

Sewing settings

a Select whether to use the sewing speed controller to determine the zigzag width (see page 82). b Make adjustments to character or decorative stitch patterns (see page 121). c Adjust the presser foot height. (Select the height of the presser foot when the presser foot is raised.) d Adjust the presser foot pressure. (The higher the number, the greater the pressure will be. Set the pressure at 3 for

normal sewing.)

e Change the initial position of the needle when utility stitch is selected. (Choose left or middle position).

f Change the height of the presser foot when sewing is stopped when the pivot setting is selected (see page 53).

Adjust the presser foot to one of the three heights (3.2 mm, 5.0 mm and 7.5 mm).

g Change the height of the presser foot when the machine is set to free-motion sewing mode (see page 83).

h When set to “ON”, the thickness of the fabric is automatically detected by an internal sensor while sewing, so the

fabric can be fed smoothly (see pages 47 and 55).

General settings

LCD SCREEN

Getting Ready

i j

a Change the brightness of the LCD (see page 19). b Select the needle stop position (the needle position when the machine is not operating) to be up or down.

Select the down position when using the pivot key.

c Turn the buzzer ON/OFF. d Turn the Needle Area and Work Area Lights ON/OFF. e Turn the opening screen display ON/OFF. f Use when running an application. g Change the display language (see page 20). h Display the service count of embroidery stitches. The service count is a reminder to take your machine in for regular

servicing. (Contact your authorized retailer for details.)

i The “NO.” is the number for the embroidery and sewing machine. j Display the program version.

Memo

• The latest version of software is installed in your machine. Check with your local authorized Baby Lock retailer or at www.babylock.com for available updates (see page 240).

LCD SCREEN

Embroidery settings

a Select from among 10 embroidery frame displays (see page 178). b Change the thread color display on the embroidery screen; thread number, color name or each time to embroider

(see page 177).

c When the thread number #123 is selected, select among six thread brands (see page 177). d Adjust the maximum embroidery speed setting (see page 176). e Adjust the thread tension for embroidering. f Select the height of the embroidery foot “W” during embroidering (see page 157). g Change the display units (mm/inch). h Change the initial mode of the display (embroidery/embroidery edit). i Customize the thread color numbers (see page 210).

LCD SCREEN

■ Adjusting Screen Brightness

Note

• All or part of the screen may sometimes become darker or lighter because of changes in the air temperature or other changes in the environment around the screen. This is normal and is not a sign of malfunction. Adjust the screen if it is difficult to read.

• The screen may be dark immediately after turning on the power. This is a function of the LCD back light screen, and it is not a sign of malfunction. The screen will return to its normal level of brightness after approximately 10 minutes.

• If you are not directly in front of the machine when you view the LCD, the colors may appear to change or the screen may be difficult to see. This is a characteristic of the LCD, and not a sign of damage or malfunction. For best results operate the screen while sitting in front of the machine.

Press .

→ The Sewing settings screen appears.

On the BRIGHTNESS OF LCD display, use

and to adjust the screen

brightness.

* Press to make the screen darker.

* Press to make the screen lighter.

Getting Ready

Press .

→ The General settings screen appears.

Memo

a Brightness of LCD display

Press .

• Press or to display a different

settings screen.

LCD SCREEN

■ Choosing the Display Language

Press .

→ The Sewing settings screen appears.

Press .

→ The General settings screen appears.

Use and to choose the display

language.

* Choose from the following languages: [ENGLISH],

[GERMAN], [FRENCH], [ITALIAN], [DUTCH], [SPANISH], [JAPANESE], [DANISH], [NORWEGIAN], [FINNISH], [SWEDISH], [PORTUGEUSE] or [RUSSIAN].

a Display language

Press .

LCD SCREEN

Using the Machine Operation Mode Key

Press to open the screen shown below. Six categories are displayed at the top of the screen. Press a key to see more information about that category.

Getting Ready

displays information about

the main parts of the machine and their functions. This is the first screen displayed

when you press .

displays information about

the operation buttons.

displays information about

threading the machine, changing presser feet, etc.

displays information about

attaching the embroidery unit, preparing fabric for embroidering, etc.

a Adjusting thread tension information

information.

displays troubleshooting

displays information about

cleaning the machine, etc.

LCD SCREEN

Example: Displaying information about

upper threading

Press .

→ The lower half of the screen will change.

Press (upper threading).

Press to return to the original

screen.

Using the Pattern Explanation Key

If you want to know more about the uses of a stitch

pattern, select the pattern and press to see an explanation of the stitch selection.

Example: Displaying information about

Press .

→ The screen shows instructions for threading the

machine.

Read the instructions.

* Press to see a video of the displayed

instructions.

* Press to view the next page.

→ The screen shows information about .

Press to return to the original

screen.

LOWER THREADING

Winding the Bobbin

Press → → →

in that order to display a video example of

bobbin winding on the LCD (see page 22). Follow the steps explained below to complete the operation.

CAUTION

• The enclosed bobbin was designed specifically for this sewing machine. If bobbins from other models are used, the machine will not operate correctly. Use only the enclosed bobbin or bobbins of the same type (part code: X52800-

150).

11.5 mm (approx. 7/16 inch)

Actual size

LOWER THREADING

Turn the main power to ON and open the

top cover.

Align the groove in the bobbin with the

spring on the bobbin winder shaft, and set the bobbin on the shaft.

a Groove of the bobbin b Spring on the shaft

Set the supplemental spool pin in the “up”

position.

Getting Ready

This model

Other models

■ Using the Supplemental Spool Pin

With this machine, you can wind the bobbin during sewing. While using the main spool pin to sew embroidery, you can conveniently wind the bobbin using the supplemental spool pin.

a Supplemental spool pin

3, 4

7, 8

a Supplemental spool pin

Place the spool of thread on the

supplemental spool pin, so that thread unrolls from the front. Then push the spool cap onto the spool pin as far as possible to secure the thread spool.

a Spool pin b Spool cap c Thread spool

LOWER THREADING

CAUTION

• If the thread spool and/or spool cap are set

incorrectly, the thread may tangle on the spool pin, the thread will wind uneven on the bobbin and eventually cause damage to the machine.

• Use the spool cap (large, medium, or small)

that is closest in size to the thread spool. If a spool cap smaller than the thread spool is used, the thread may become caught in the slit on the end of the spool and cause damage to the machine.

Pass the thread under the pin, and pass the

thread around the pretension disk making sure that the thread is under the pretension disk.

Memo

• When sewing with fine, cross-wound thread, use the small spool cap, and leave a small space between the cap and the thread spool.

a Spool cap (small) b Thread spool (cross-wound thread) c Space

With your right hand, hold the thread near

the thread spool. With your left hand, hold

the end of the thread, and use both hands to pass the thread through the thread guide.

a Pin b Pretension disk

Wind the thread clockwise around the

bobbin 5-6 times.

Pass the end of the thread through the guide

slit in the bobbin winder seat, and pull the thread to the right to cut the thread with the cutter.

a Guide slit (with built-in cutter) b Bobbin winder seat

a Thread guide

CAUTION

• Be sure to follow the process described. If the thread is not cut with the cutter, and the bobbin is wound, when the thread runs low it may tangle around the bobbin and cause the needle to break.

LOWER THREADING

Set the bobbin holder to the left, until it

clicks into place.

a Bobbin holder (switch)

Memo

When the bobbin holder is set to the left, it works as a switch to make the bobbin wind automatically.

→ The bobbin starts winding automatically and stops

rotating when it is done winding. The bobbin holder will return to the original position.

Cut the thread with the cutter and remove

the bobbin.

■ Using the Spool Pin

You can use the main spool pin to wind the bobbin before sewing. You cannot use this spool pin to wind the bobbin while sewing.

Turn the main power to ON and open the

top cover.

Getting Ready

Memo

• When removing the bobbin, do not pull on the bobbin winder seat. Doing so could loosen or remove the bobbin winder seat, and could result in damage to the machine.

CAUTION

• Setting the bobbin improperly may cause the thread tension to loosen, breaking the needle and possibly resulting in injury.

Align the groove in the bobbin with the

spring on the bobbin winder shaft, and set the bobbin on the shaft.

a Groove of the bobbin b Spring on the shaft

Pivot the spool pin so that it angles upward.

Set the thread spool on the spool pin so that the thread unwinds from the front of the spool.

a Spool pin b Spool cap c Thread spool

LOWER THREADING

Push the spool cap onto the spool pin as far

as possible, then return the spool pin to its original position.

Setting the Bobbin

Holding the thread with your hands, slide

the thread into the grooves on the thread guide plate.

a Thread guide plate

Pass the thread through the thread guide.

Press → → →

in that order to display a video example of

the operation on the LCD (see page 22). Follow the steps explained below to complete the operation.

CAUTION

• Use a bobbin thread that has been correctly wound. Otherwise, the needle may break or the thread tension will be incorrect.

150).

a Thread guide

Pass the thread under the pin. Then pass the

thread around the pretension disk making sure that the thread is under the pretension disk.

a Thread guide b Pin c Pretension disk

Follow steps g through j on page 24

through 25.

11.5 mm (approx. 7/16 inch)

This model

• Before inserting or changing the bobbin, be

sure to press in the LCD, otherwise injuries may occur if the “Start/Stop” button

or any other button is pressed and the machine starts sewing.

Press the “Presser Foot Lifter” button to

raise the presser foot.

Actual size

Other models

LOWER THREADING

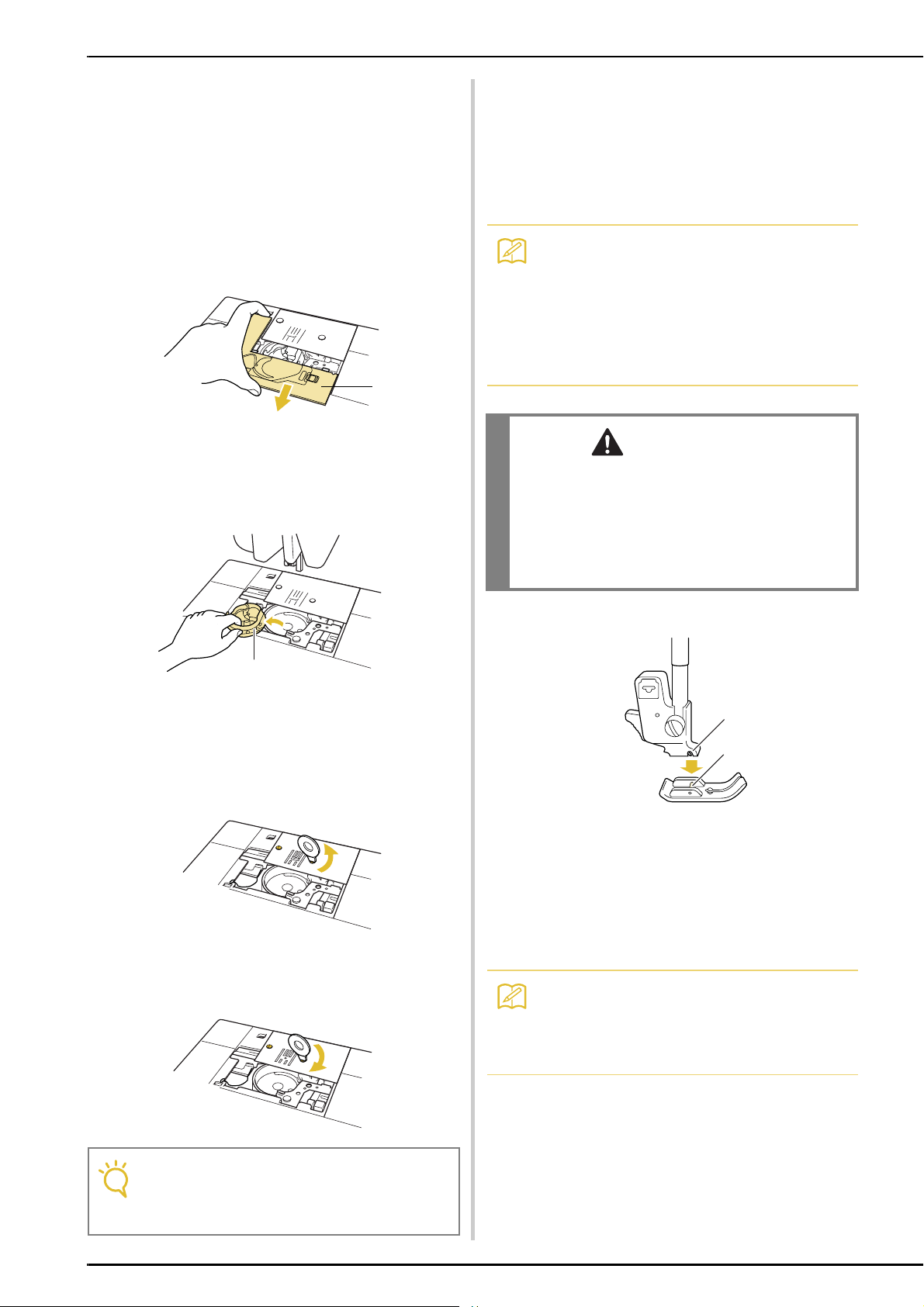

Slide the bobbin cover latch to the right.

a Bobbin cover b Latch

→ The bobbin cover opens.

Remove the bobbin cover.

Hold the bobbin with your right hand and

hold the end of the thread with your left

hand.

Pass the thread through the guide, and then

pull the thread out towards the front.

a Cutter

→ The cutter cuts the thread.

Note

Make sure that the thread is correctly inserted through the tension-adjusting spring of the bobbin case. If it is not inserted correctly, reinsert the thread.

Getting Ready

Set the bobbin in the bobbin case so that

the thread unwinds to the left.

Hold the bobbin lightly with your right

hand, and then guide the thread with your left hand.

a Tension-adjusting spring

CAUTION

• Be sure to hold down the bobbin with your finger and unwind the bobbin thread correctly. Otherwise, the thread may break or the thread tension will be incorrect.

Insert the tab in the lower-left corner of the

bobbin cover (1), and then lightly press down on the right side to close the cover (2).

LOWER THREADING

Pulling Up the Bobbin Thread

There may be some sewing applications where you want to pull up the bobbin thread; for example, when making gathers, darts, or doing free motion quilting or embroidery.

Pull up the bobbin thread, then pass it

under the presser foot and pull it about 100 mm (approx. 3-4 inches) toward the back of the machine, making it even with the upper thread.

Memo

You can pull up the bobbin thread after threading the upper thread (see “UPPER THREADING” on page 29).

Guide the bobbin thread through the

groove, following the arrow in the illustration.

* Do not cut the thread with the cutter. * Do not replace the bobbin cover.

While holding the upper thread, press the

needle position button to lower the needle.

a b

a Upper thread b Bobbin thread

Replace the bobbin cover.

a Needle position button

Press the “Needle Position” button to raise

the needle.

Gently pull the upper thread, and a loop of

the bobbin thread will come out of the hole in the needle plate.

UPPER THREADING

Threading Using the “Automatic Threading” Button

Press → → →

in that order to display a video example of

the operation on the LCD (see page 22). Follow the steps explained below to complete the operation.

UPPER THREADING

Turn the main power to ON.

Press the “Needle Position” button to raise

the needle.

Getting Ready

CAUTION

• Be sure to thread the machine properly. Improper threading can cause the thread to tangle and break the needle, leading to injury.

• When using accessories not included with this machine, attach the accessory to the machine after threading the machine.

Memo

• The automatic threading function can be

used with sewing machine needles 75/11 through 100/16.

• Thread such as transparent nylon

monofilament thread and thread with a thickness of 130/20 or thicker cannot be used with the automatic threading function.

• The automatic threading function cannot be

used with the wing needle or the twin needle.

• If the automatic threading function cannot be

used, see “Threading Manually” on page 31.

Note

If you try to thread the needle automatically without raising the needle, the thread may not thread correctly.

Pivot the spool pin so that it angles upward.

Set the thread spool on the spool pin so that the thread unwinds from the front of the spool.

a Spool pin b Spool cap c Thread spool

Push the spool cap onto the spool pin as far

as possible, then return the spool pin to its original position.

CAUTION

3, 4

• If the thread spool and/or spool cap are set incorrectly, the thread may tangle on the spool

pin and cause the needle to break.

• Use the spool cap (large, medium, or small) that is closest in size to the thread spool. If a spool cap smaller than the thread spool is used, the thread may become caught in the slit on the end of the spool and cause the needle to break.

UPPER THREADING

Memo

When sewing with fine, cross-wound thread, use the small spool cap, and leave a small space between the cap and the thread spool.

Press the “Automatic Threading” button to

have the machine automatically thread the needle.

a Spool cap (small) b Thread spool (cross-wound thread) c Space

Holding the thread with your hands, slide

the thread into the grooves on the thread

guide plate.

a Thread guide plate

While holding the thread in your right

hand, pass the thread through the thread guide in the direction indicated.

→ The upper threading is finished.

Memo

When the “Automatic Threading” button is pressed, the presser foot will be automatically lowered.

Note

In case the needle is not completely threaded, slowly pull the loop of the thread through from the back of the needle.

When finished pulling the thread through

the thread guide, cut the thread and leave the thread in position.

a Cutter

a About 5 cm (approx. 2 inches)

Memo

If the needle could not be threaded or the thread was not passed through the needle bar thread guides, perform the procedure again starting from step

Note

When the “Automatic Threading” button is pressed, the presser foot will be automatically lowered. If you are using an incorrect needle and thread combination, the hook may sometimes get caught in the needle. If this happens, remove the hook from the needle as described below.

4, 12

UPPER THREADING

5, 6

Getting Ready

CAUTION

• The needle thread carrier will automatically thread the needle when the “Automatic Threading” button is pressed. Be sure to keep your hands and other items away from the needle area, otherwise injuries may occur.

Threading Manually

Automatic threading cannot be used when using the wing needle, the twin needle, or special thread with a thickness of 130/20 or thicker. In these cases, thread the needle as described below.

CAUTION

• Before manually threading the machine, be

sure to press in the LCD, otherwise injuries may occur if the “Start/Stop” button

or any other button is pressed and the machine starts sewing.

Turn the main power to ON.

Turn the handwheel so that the line on the

machine is aligned with the line on the handwheel.

a Line on handwheel

Memo

If the line on the machine is not aligned with the line on the handwheel, the sewing machine cannot be threaded. Check that the line on the handwheel is facing up as shown in the illustration above.

Press at the lower right of the LCD

screen.

→ The entire screen becomes white, and all keys and

operation buttons are locked.

UPPER THREADING

Raise the presser foot lever.

CAUTION

• If the presser foot is not raised, the sewing

machine cannot be threaded correctly.

Pivot the spool pin so that it angles upward.

Set the thread spool on the spool pin so that the thread unwinds from the front of the spool.

Holding the thread with both hands, slide

the thread into the grooves on the thread guide plate.

a Thread guide plate

While holding the thread in your right

hand, use your left hand to pull the thread toward the threading path cover, then pass it along the thread path as shown in the illustration. Be sure to pass the thread along the right side of the thread path guide.

a Spool pin b Spool cap c Thread spool

Push the spool cap onto the spool pin as far

as possible, then return the spool pin to its original position.

CAUTION

• If the thread spool and/or spool cap are set

incorrectly, the thread may tangle on the spool pin and cause the needle to break.

• Use the spool cap (large, medium, or small)

that is closest in size to the thread spool. If a spool cap smaller than the thread spool is used, the thread may become caught in the slit on the end of the spool and cause the needle to break.

a Threading path cover b Thread path guide

Pull the thread under the thread path guide.

(A)

a Thread path guide

UPPER THREADING

Pull the thread up along the left side of the

thread path guide to the top left corner of the threading path cover.

(B)

a Top left corner b Threading path cover

Pull the thread down to the needle bar

along the left side of the thread path guide.

* Make sure the thread is hooked at the top corner

and positioned behind the transparent front cover.

Holding the thread with both hands, pass

the thread through both the upper and lower needle bar thread guides.

a Needle bar thread guide (upper) b Needle bar thread guide (lower)

Pass the thread through the eye of the

needle from front to back.

Getting Ready

a Thread take-up lever check window b Transparent front cover

Memo

a Take-up lever b Thread

Look through the thread take-up lever check window and check that the thread is correctly fed through the take-up lever, turning the handwheel toward you.

Lower the presser foot lever.

(C)

Pass the thread through the presser foot,

and then pull out about 100-150 mm (approx. 4-6 inches) of thread toward the back of the machine.

a 10 cm-15 cm (approx. 4-6 inches)

Press to unlock all keys and

buttons.

UPPER THREADING

Using the Twin Needle Mode

The twin needle can only be used for patterns that

show after being selected. Before you select a stitch pattern, make sure the stitch can be

sewn in the twin needle mode (refer to the “STITCH SETTING CHART” at the end of this manual).

CAUTION

• Use only twin needles made for this machine

(part code X59296-151). Other needles could break, resulting in damage.

• Be sure to set the twin needle mode when

using the twin needle. Using the twin needle while the machine is in single needle mode could cause the needle to break, resulting in damage.

• Do not sew with bent needles. The needle

could break and cause injury.

• When using the twin needle, be sure to use

presser foot “J”.

Manually thread the machine.

* Follow the steps for threading a single needle for the

first threading (see “Threading Manually” on page

31).

Pass the thread through the needle bar

thread guides on the needle bar, then thread the needle on the left side.

• When the twin needle is used, bunched

stitches may occur depending on the types of fabric and thread that are used. If this occurs, use monogramming foot “N”.

• Before changing the needle or threading the

machine, be sure to press LCD, otherwise injuries may occur if the

“Start/Stop” button or any other button is pressed and the machine starts sewing.

Press and install the twin needle

in the

(see “CHANGING THE NEEDLE” on page 39).

a Needle bar thread guides

Note

• The “Automatic Threading” button cannot be used. Manually thread the twin needle from front to back. Using the “Automatic Threading” button may result in damage to the machine.

Pull up the supplemental spool pin and set it

in the up position.

a Supplemental spool pin

UPPER THREADING

Place the additional spool of thread on the

supplemental spool pin, so that the thread unwinds from the back. Then push the spool cap onto the spool pin as far as possible to secure the thread spool.

a Spool pin b Spool cap c Thread spool

Hold the thread from the spool with both

hands, and place the thread in the thread

guide.

* Do not place the thread in the bobbin winding

thread guide.

Pass the thread through the thread guide

plate, following the sequence as described below (or refer to “Threading Manually” on page 31).

Do not pass the thread in the needle bar

thread guides on the needle bar. Thread the needle on the right side.

Getting Ready

a Thread guide

Press .

UPPER THREADING

Select a stitch pattern. (Example: )

* Refer to the “STITCH SETTING CHART” at the end

of this manual for proper stitch to use with presser foot “J”.

→ The Selected stitch is displayed.

Note

If the key is light gray after selecting

the stitch, the selected stitch cannot be sewn in the twin needle mode.

Press to select the twin needle

mode.

Using Threads that Unwind Quickly

■ Using the Spool Net

If using transparent nylon thread, metallic thread, or other strong thread, place the included spool net over the spool before using it. When using these threads, threading must be done manually. If the spool net is too long, fold it once to match it to the spool size before placing it over the spool.

a Spool net b Thread spool

d c

Memo

• When threading the spool with the spool net on, the thread may not come out enough. Make sure that 5-6 cm (approx. 2 - 2-1/2 inches) of thread are pulled out.

• It may be necessary to adjust the thread tension when using the spool net.

c Spool pin d Spool cap

a Single needle/twin needle setting

→ appears.

CAUTION

Be sure to set the twin needle mode when using the twin needle. Using the twin needle while the machine is in single needle mode could cause the needle to break, resulting in damage.

Start sewing.

Sample of Twin Needle Sewing

■ Using the Vertical Spool Pin

Use the vertical spool pin when using an irregularly shaped thread spool, and when sewing or embroidering with metallic thread.

Insert the vertical spool pin onto the bobbin

winder shaft.

Install the spool felt and the thread spool in

that order, and then thread the upper thread.

Memo

• When setting the thread spool, set it so that the thread winds off from the front of the spool.

• If using metallic thread, we recommend that you use a 90/14 home sewing machine needle.

• This method keeps the thread from twisting as it comes off the spool pin.

a Bobbin winder shaft b Vertical spool pin c Spool felt d Thread spool

CHANGING THE PRESSER FOOT

CAUTION

• Always press on the screen before changing the presser foot. If is not pressed and the “Start/Stop” button or another button is pressed, the machine will start and may cause injury.

• Always use the correct presser foot for the selected stitch pattern. If the wrong presser foot is used, the needle may strike the presser foot and bend or break, and may cause injury.

• Only use presser feet made for this machine. Using other presser feet may lead to accident or injury.

Removing the Presser Foot

Press the “Needle Position” button to raise

the needle.

Press .

* If “OK to automatically lower the presser foot?”

appears on the LCD screen, press OK to continue.

→ The entire screen becomes white, and all keys and

operation buttons are locked.

Raise the presser foot lever.

Attaching the Presser Foot

CAUTION

• Make sure that the presser foot is installed in the correct direction, otherwise the needle may strike the presser foot, breaking the needle and causing injuries.

Place the new presser foot under the

holder, aligning the foot pin with the notch in the holder. Lower the presser foot lever so that the presser foot pin snaps into the notch in the holder.

Getting Ready

Press the black button on the presser foot

holder and remove the presser foot.

a Black button b Presser foot holder

a Notch b Pin

Press to unlock all keys and

buttons.

Raise the presser foot lever.

CHANGING THE PRESSER FOOT

Attaching the Walking Foot

The walking foot holds the fabric between the presser foot and the feed dogs to feed the fabric. This enables you to have better fabric control when sewing difficult fabrics (such as quilting or velvet) or fabrics that slip easily (such as vinyl cloth, leather, or synthetic leather).

Note

• When sewing with the walking foot, sew at medium to low speeds.

Memo

• The walking foot can only be used with straight or zigzag stitch patterns. Reverse stitches cannot be sewn with the walking foot. Only select straight or zigzag stitch patterns with reinforcement stitches.

Follow the steps in “Removing the Presser

Foot” on the previous page.

Loosen the screw of the presser foot holder

to remove the presser foot holder.

Lower the presser foot lever. Insert the

screw, and tighten the screw securely with the screwdriver.

CAUTION

• Use the included screwdriver to tighten the screw securely. If the screw is loose, the needle may strike the presser foot and cause injury.

• Be sure to turn the handwheel toward the front of the machine to check that the needle does not strike the presser foot. If the needle strikes the presser foot, injury may result.

Set the operation lever of the walking foot

so that the needle clamp screw is set between the fork, and position the walking foot on the presser foot bar.

a Operation lever b Needle clamp screw c Fork d Presser foot bar

CHANGING THE NEEDLE

CAUTION

• Always press on the screen before changing the needle. If is not pressed and the Start/ Stop button or another operation button is pressed accidentally, the machine will start and injury may

result.

• Use only sewing machine needles made for home use-type 130/705H needle. Other needles may bend or break and may cause injury.

• Never sew with a bent needle. A bent needle will easily break and may cause injury.

Use the screwdriver to turn the screw

Memo

To check the needle correctly, place the flat side of the needle on a flat surface. Check the needle from the top and the sides. Throw away any bent needles.

a Parallel space b Level surface (bobbin cover, glass, etc.)

Press the “Needle Position” button to raise

the needle.

toward the front of the machine and loosen the screw, then remove the needle.

Note

• Do not apply pressure to the needle clamp screw. Doing so may damage the needle or machine.

Getting Ready

Press .

* If “OK to automatically lower the presser foot?”

appears on the LCD screen, press OK to continue.

→ The entire screen becomes white, and all keys and

operation buttons are locked.

Note

• Before replacing the needle, cover the hole in the needle plate with fabric or paper to prevent the needle from falling into the machine.

CHANGING THE NEEDLE

With the flat side of the needle facing the

back, insert the new needle all the way to the top of the needle stopper (viewing window) in the needle clamp. Use a screwdriver to securely tighten the needle clamp screw.

a Needle stopper b Hole for setting the needle c Flat side of needle

CAUTION

• Be sure to push in the needle until it touches

the stopper, and securely tighten the needle clamp screw with a screwdriver. If the needle is not completely inserted or the needle clamp screw is loose, the needle may break or the machine may be damaged.

Press to unlock all keys and

buttons.

CHANGING THE NEEDLE

■ About the Needle

The sewing machine needle is probably the most important part of the sewing machine. Choosing the proper needle for your sewing project will result in a beautiful finish and fewer problems. Below are some things to keep in mind about needles.

• The smaller the needle number, the finer the needle. As the numbers increase, the needles get thicker.

• Use fine needles with lightweight fabrics, and thicker needles with heavyweight fabrics.

• To avoid skipped stitches, use ball point needle (golden colored) 90/14 with stretch fabrics.

• To avoid skipped stitches, use ball point needle (golden colored) 90/14 when sewing character or decorative stitches.

• Use needle 75/11 for embroidery. Use ball point needle HA × 130 for embroidering patterns with short jump stitches such as alphabet characters when the thread trimming function is turned on. Ball point needles (golden colored) 90/14 are not recommended for embroidery, as they may bend or break, causing injury.

• It is recommended that a 90/14 needle should be used when embroidering on heavyweight fabrics or stabilizing products (for example, denim, puffy foam, etc.). A 75/11 needle may bend or break, which could result in injury.

• A home sewing machine needle 75/11 is inserted in the sewing machine.

■ Fabric/Thread/Needle Combinations

The following table provides information concerning the appropriate thread and needle for various fabrics. Please refer to this table when selecting a thread and needle for the fabric you wish to use.

Fabric Thread Size of needle

Type Size

Medium weight fabric Broadcloth Cotton 60 - 80 75/11 - 90/14

Taffeta Synthetic mercerized 60 - 80

Flannel, Gabardine Silk or silk finished 50

Lightweight fabric Lawn, Batiste Cotton 60 - 80 65/9 - 75/11

Georgette Synthetic mercerized 60 - 80

Challis, Satin Silk 50

Heavyweight fabric Denim Cotton 30 - 50 90/14 - 100/16

Corduroy Synthetic mercerized 50

Tweed Silk 50

Stretch fabric Jersey Thread for knits 50 - 60 Ball point needle

Tr i c o t

Easily frayed fabrics Cotton thread 50 - 80 65/9 - 90/14

Synthetic thread

Silk thread 50

For top stitching Synthetic mercerized 30 90/14 - 100/16

Silk 30

(golden colored)

75/11 - 90/14

Getting Ready

Memo

For transparent nylon thread, always use needle 90/14 - 100/16. The same thread is usually used for the bobbin thread and upper threading.

CAUTION

• Be sure to follow the needle, thread, and fabric combinations listed in the table. Using an improper combination, especially a heavyweight fabric (i.e., denim) with a small needle (i.e., 65/9 - 75/11), may cause the needle to bend or break, and lead to injury. Also, the seam may be uneven, the fabric may pucker, or the machine may skip stitches.

TURNING THE MACHINE ON/OFF

Chapter 2

Sewing Basics

SEWING ..............................................................................................44

Sewing a Stitch ........................................................................................................ 44

■ Using the Foot Controller................................................................................................45

Sewing Reinforcement Stitches ............................................................................... 46

Sewing Curves ......................................................................................................... 46

Changing Sewing Direction .....................................................................................46

■ Sewing a Seam Allowance of 0.5 cm or Less ...................................................................46

Sewing Heavyweight Fabrics................................................................................... 47

■ If the Fabric does not Fit under the Presser Foot.............................................................47

■ If the Fabric does not Feed..............................................................................................47

Sewing Lightweight Fabrics ..................................................................................... 48

Sewing Stretch Fabrics ............................................................................................48

STITCH SETTINGS...............................................................................49

Setting the Stitch Width ..........................................................................................49

Setting the Stitch Length .........................................................................................49

Setting the Thread Tension ......................................................................................50

■ Proper Thread Tension ....................................................................................................50

■ Upper Thread is Too Tight...............................................................................................50

■ Upper Thread is Too Loose..............................................................................................50

USEFUL FUNCTIONS..........................................................................51

Automatic Reinforcement Stitching ........................................................................51

Automatic Thread Cutting ....................................................................................... 52

■ Using the Knee Lifter.......................................................................................................53

Pivoting ...................................................................................................................53

Automatic Fabric Sensor System (Automatic Presser Foot Pressure) .......................55

Locking the Screen ..................................................................................................55

SEWING

CAUTION

• To avoid injury, pay special attention to the needle while the machine is in operation. Keep your hands

away from moving parts while the machine is in operation.

• Do not stretch or pull the fabric during sewing. Doing so may lead to injury.

• Do not use bent or broken needles. Doing so may lead to injury.

• Take care that the needle does not strike basting pins or other objects during sewing. Otherwise, the

needle may break and cause injury.

• If stitches become bunched, lengthen the stitch length setting before continuing sewing. Otherwise, the

needle may break and cause injury.

Sewing a Stitch

Turn the main power to ON, and push the

“Needle Position” button to raise the needle.

Press the key of the stitch you want to sew.

→ The symbol of the correct presser foot will be

displayed in the upper left corner of the LCD.

Install the presser foot (see “CHANGING

THE PRESSER FOOT” on page 37).

Set the fabric under the presser foot. Hold

the fabric and thread ends in your left hand, and turn the handwheel to set the needle in the sewing start position.

Memo

The black button on the left side of presser foot “J” should be pressed only if the fabric does not feed or when sewing thick seams (see page 47). Normally, you can sew without pressing the black button.

Lower the presser foot.

* You do not have to pull up the bobbin thread.

CAUTION

• Always use the correct presser foot. If the

wrong presser foot is used, the needle may strike the presser foot and bend or break, possibly resulting in injury.

Adjust the sewing speed with the speed

control slide.

* You can use this slide to adjust sewing speed during

sewing.

a Slow b Fast

Press the “Start/Stop” button to start

sewing.

* Guide the fabric lightly by hand.

SEWING

Note

• When cutting thread thicker than #30, nylon thread, or other decorative threads, use the thread cutter on the side of the machine.

Press the “Start/Stop” button again to stop

sewing.

Press the “Thread Cutter” button to trim

the threads.

→ The needle will return to the up position

automatically.

When the needle has stopped moving, raise

the presser foot and remove the fabric.

Memo

This machine is equipped with a bobbin thread sensor that warns you when the bobbin thread is almost empty. When the bobbin thread is nearly empty, the machine automatically stops. However, if the “Start/Stop” button is pressed, a few stitches can be sewn. If the warning displays, re-thread the machine immediately.

■ Using the Foot Controller

You can also use the foot controller to start and stop sewing.

CAUTION

Do not allow fabric pieces and dust to collect in the foot controller. Doing so could cause a fire or an electric shock.

Memo

• When the foot controller is being used, the “Start/Stop” button has no effect on sewing.

• The foot controller cannot be used when embroidering. The foot controller can be used for sewing utility and decorative stitches when the embroidery unit is attached.

Sewing Basics

CAUTION

• Do not press the “Thread Cutter” button after the threads have been cut. Doing so could tangle the thread or break the needle and damage the machine.

• Do not press the “Thread Cutter” button when there is no fabric set in the machine or during machine operation. The thread may tangle, possibly resulting in damage.

Pull the retractable cord out from the foot

controller to the desired length, and then insert the foot controller plug into its jack on the machine.

a Foot controller b Foot controller jack

Note

Do not pull retractable cord out beyond the red mark.

SEWING

Slowly depress the foot controller to start

sewing.

Memo

The speed set using the sewing speed controller is the foot controller’s maximum sewing speed.

Sewing Curves

Sew slowly while keeping the seam parallel with the fabric edge as you guide the fabric around the curve.

Release the foot controller to stop the

machine.

Memo

(For U.S.A. only) Foot controller: Model S This foot controller can be used with models:

BLG2-NZ/BLG2

Sewing Reinforcement Stitches

Reverse/reinforcement stitches are generally necessary at the beginning and end of sewing. You can use the “Reverse/Reinforcement Stitch” button to sew reverse/reinforcement stitches manually (see page 3).

If the automatic reinforcement stitch is selected on the screen, reverse stitches (or reinforcement stitches) will be sewn automatically at the beginning of sewing when the “Start/Stop” button is pressed. Press the “Reverse/Reinforcement Stitch” button to sew reverse stitches (or reinforcement stitches) automatically at the end of sewing (see page 51).

Changing Sewing Direction

Stop the machine. Leave the needle in the fabric, and press the “Presser Foot Lifter” button to raise the presser foot. Using the needle as a pivot, turn the fabric so that you can sew in the new direction. Press the “Presser Foot Lifter” button to lower the presser foot and start sewing.

The pivot setting is useful when changing the sewing direction. When the machine is stopped at the corner of the fabric, the machine stops with the needle in the fabric and the presser foot is automatically raised so the fabric can easily be rotated (see “Pivoting” on page 53

■ Sewing a Seam Allowance of 0.5 cm or Less

Baste the corner before sewing, and then, after changing the sewing direction at the corner, pull the basting thread toward the back while sewing.

a 5 mm (approx. 3/16 inch)

Sewing Heavyweight Fabrics

The sewing machine can sew fabrics up to 6 mm (approx. 1/4 inch) thick. If the thickness of a seam causes sewing to occur at an angle, help guide the fabric by hand and sew on the downward slope.

CAUTION

• Do not forcefully push fabrics more than 6 mm (approx. 1/4 inch) thick through the sewing machine. This may cause the needle to break and cause injury.

■ If the Fabric does not Fit under the Presser Foot

If the presser foot is in the up position, and you are sewing heavyweight or multiple layers of fabric which do not fit easily under the presser foot, use the presser foot lever to raise the presser foot to its highest position. The fabric will now fit under the presser foot.

SEWING

■ If the Fabric does not Feed

If the fabric does not feed when starting to sew or when sewing thick seams, press the black button on the left side of presser foot “J”.

Raise the presser foot.

While keeping the black button on the left

side of presser foot “J” pressed in, press the “Presser Foot Lifter” button to lower the presser foot.

Release the button.

→ The presser foot remains level, enabling the fabric to

be fed.

Sewing Basics

Memo

You cannot use the presser foot lever after the presser foot has been raised using the “Presser Foot Lifter” button.

Memo

• Once the trouble spot has been passed, the foot will return to its normal position.

• When “AUTOMATIC FABRIC SENSOR SYSTEM” (Automatic Presser Foot Pressure) in the machine settings screen is set to “ON”, the thickness of the fabric is automatically detected by the internal sensor so the fabric can be fed smoothly for best sewing results. (See page 55 for details.)

SEWING

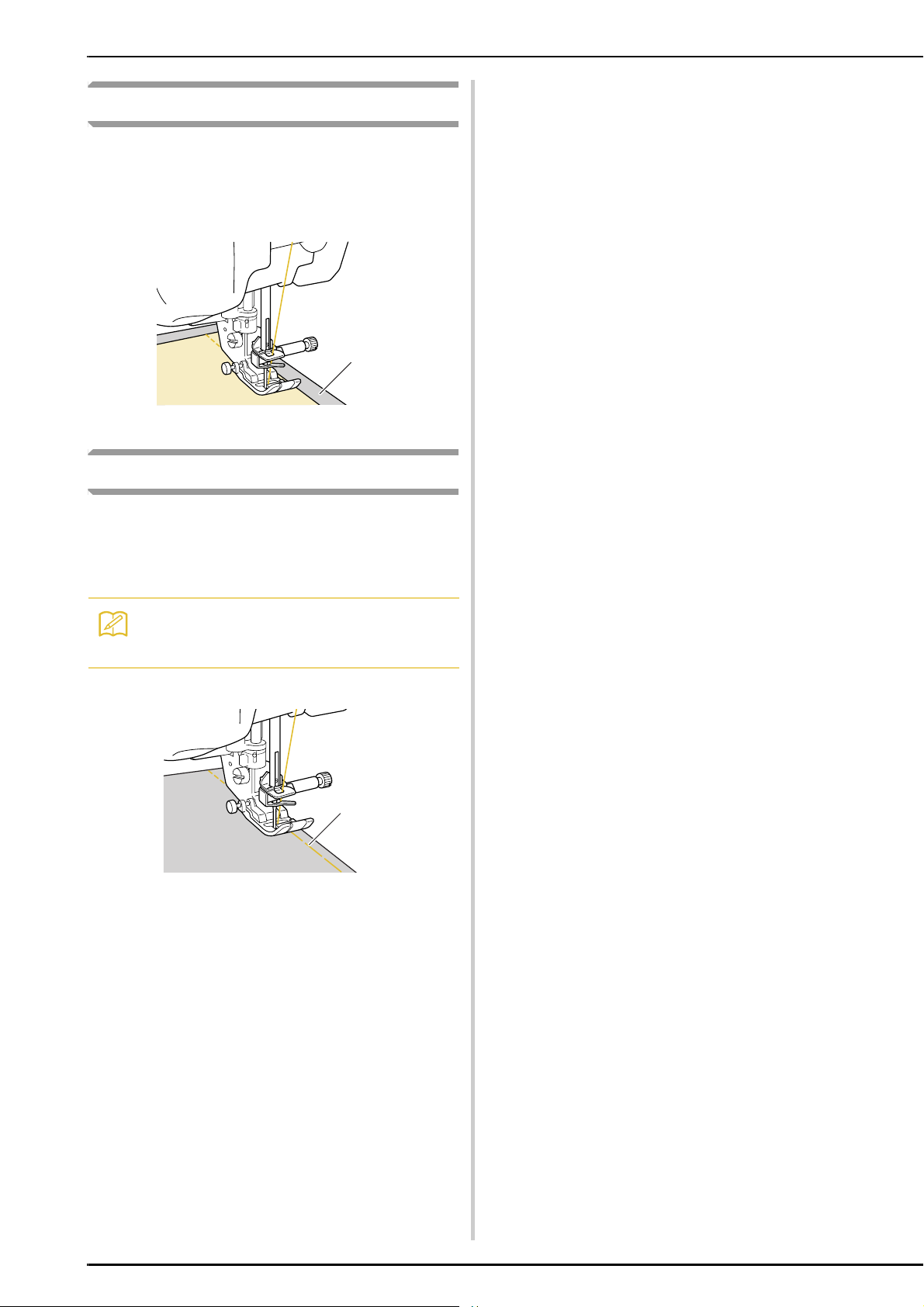

Sewing Lightweight Fabrics

Place thin paper or tear away embroidery stabilizer under thin fabrics to make sewing easier. Gently tear off the paper or the stabilizer after sewing.

a Thin paper

Sewing Stretch Fabrics

First, baste together the pieces of fabric, and then sew without stretching the fabric.

In addition, a better result can be achieved by using thread for knits or a stretch stitch.

Memo

• For best results when sewing stretch fabrics, decrease the pressure of the presser foot.

a Basting stitching

STITCH SETTINGS

When you select a stitch, your machine automatically selects the appropriate stitch width, stitch length, and upper thread tension. However, if needed, you can change any of the individual settings.

Note

• Settings for some stitches cannot be changed (refer to the “STITCH SETTING CHART” at the end of this manual).

• If you turn off the machine or select another stitch without saving stitch setting changes (see “Saving Your Stitch Settings” on page 60), the stitch settings will return to their default settings.

Press to widen the zigzag stitch pattern width.

Setting the Stitch Width

Follow the steps below when you want to change the zigzag stitch pattern width.

Sewing Basics

Memo

• For an alternate method of changing the stitch width using the speed controller, see page 82.

Example:

Press to narrow the zigzag stitch pattern width.

→ The value in the display gets smaller.

→ The value in the display gets bigger.

Memo

• Press to return the stitch width to the original setting.

Note

After adjusting the stitch width, slowly turn the handwheel toward you (counterclockwise) and check that the needle does not touch the presser foot. If the needle hits the presser foot, the needle may bend or break.

Setting the Stitch Length

Follow the steps below when you want to change the stitch pattern length.

STITCH SETTINGS

Example:

Press to shorten the stitch length.

→ The value in the display gets smaller.

Press to lengthen the stitch length.

■ Proper Thread Tension

The upper and lower threads should cross near the center of the fabric. If the thread tension is not properly set, the seam may have a poor finish or the fabric may pucker.

a Wrong side b Surface c Upper thread d Bobbin thread

■ Upper Thread is Too Tight

If the bobbin thread can be seen on the surface of

the fabric, press .

→ The value in the display gets bigger.

Memo

• Press to return the stitch length to the original setting.

CAUTION

If the stitches get bunched together, lengthen the stitch length and continue sewing. Do not continue sewing without lengthening the stitch length. Otherwise, the needle may break and cause injury.

Setting the Thread Tension

You may need to change the thread tension, depending on the fabric and thread being used. Follow the steps below to make any necessary changes.

a Bobbin thread b Upper thread c Surface d Locks appear on surface of fabric

■ Upper Thread is Too Loose

If the upper thread can be seen on the wrong side of

the fabric, press .

a Upper thread b Bobbin thread c Wrong side d Locks appear on wrong side of fabric

Memo

• Press to return the thread tension to the original setting.

USEFUL FUNCTIONS

Automatic Reinforcement Stitching

After selecting a stitch pattern, turn on the automatic reinforcement stitching function before sewing, and the machine will automatically sew reinforcement stitches (or reverse stitches, depending on the stitch pattern) at the beginning and end of sewing.

Select a stitch pattern.

Press to set the automatic

reinforcement stitching function.

USEFUL FUNCTIONS

Set the fabric in the start position and start

sewing.

a Reverse stitches (or reinforcement stitches)

→ The machine will automatically sew reverse stitches

(or reinforcement stitches) and then continue sewing.

Sewing Basics

→ The key will display as .

Memo

Some stitches, such as buttonholes and bar tacks, require reinforcement stitches at the beginning of sewing. If you select one of these stitches, the machine will automatically turn on

this function (the key appears as when

the stitch is selected).

Memo

If you press the “Start/Stop” button to pause sewing, press it again to continue. The machine will not sew reverse reinforcement stitches again.

Press the “Reverse/Reinforcement Stitch”

button.

a Reverse stitches (or reinforcement stitches)

→ The machine will sew reverse stitches (or

reinforcement stitches) and stop.

Memo

To turn off the automatic reinforcement

stitching function, press again, so it

appears as .

USEFUL FUNCTIONS

Automatic Thread Cutting

After selecting a stitch pattern, turn on the automatic thread cutting function before sewing, and the machine will automatically sew reinforcement stitches (or reverse stitches, depending on the stitch pattern) at the beginning and end of sewing, and trim the threads at the end of sewing. This function is useful when sewing buttonholes and bar tacks.

Select a stitch pattern.

Press to set the automatic thread

cutting function.

Set the fabric in the start position and start

sewing.

a Reverse stitches (or reinforcement stitches)

→ The machine will automatically sew reverse stitches

(or reinforcement stitches) and then continue sewing.

Memo

If you press the “Start/Stop” button to pause sewing, press the same button again to continue. The beginning reverse/ reinforcement stitches will not be sewn again.

→ The key will display as .

Memo

This function is set automatically when sewing embroidery.

Press the “Reverse/Reinforcement

Stitching” button.

a Reverse stitches (or reinforcement stitches)

→ The machine will sew reverse stitches (or

reinforcement stitches), then trim the thread.

Memo

To turn off the automatic thread cutting

function, press again, so it appears as

■ Using the Knee Lifter

Using the knee lifter, you can raise and lower the presser foot with your knee, leaving both hands free to handle the fabric.

Align the tabs on the knee lifter with the

notches in the jack, and then insert the knee lifter as far as possible.

Note

If the knee lifter is not pushed into the mounting slot as far as possible, it may come out during use.

Use your knee to move the knee lifter to the

right in order to raise the presser foot. Release the knee lifter to lower the presser foot.

USEFUL FUNCTIONS

Pivoting

If the pivot setting is selected, the machine stops with the needle lowered (in the fabric) and the presser foot is automatically raised to an appropriate height when the “Start/Stop” button is pressed. When the “Start/Stop” button is pressed again, the presser foot is automatically lowered and sewing continues. This function is useful for stopping the machine to rotate the fabric.

Sewing Basics

CAUTION

• When the pivot setting is selected, the machine starts when the “Start/Stop” button is pressed or the foot controller is pressed down even if the presser foot has been raised. Be sure to keep your hands and other items away from the needle, otherwise injuries may occur.

Memo

When the pivot setting is selected, the height of the presser foot when sewing is stopped can be changed according to the type of fabric

being sewn. Press to display

“PIVOTING HEIGHT” on P. 1 of the settings

screen. Press or to select one of the

three heights (3.2 mm, 5.0 mm or 7.5 mm). To raise the presser foot further, increase the setting. (Normally, 3.2 mm is set.)

CAUTION

Be sure to keep your knee away from the knee lifter during sewing. If the knee lifter is pushed during machine operation, the needle may break or the thread tension may loosen.

USEFUL FUNCTIONS

Note

• The “NEEDLE POSITION” (P. 2 of the settings screen) must be set in the down

position for the pivot function to be used. When “NEEDLE POSITION” is set in

the raised position, appears as light gray and cannot be used.

• When the setting is selected, the pivot function can only be used with stitches where presser foot J or N is indicated in the upper-left corner of the screen. If any other

stitch is selected, appears as light gray and is not available.

• Since the presser foot is fully raised when the automatic thread cutting key is pressed, press the “Presser Foot Lifter” button to lower the presser foot, and then press the “Start/Stop” button to continue sewing.

• If the pivot setting is selected, or beside “PRESSER FOOT HEIGHT” in the

settings screen are not available and the setting cannot be changed.

Place the fabric under the presser foot with

the needle at the starting point of the stitching, and then press the “Start/Stop” button. The machine will begin sewing.

Memo

If you press the “Start/Stop” button to pause sewing, then press it again to continue, reverse stitches (or reinforcement stitches) will not be sewn.

Press the “Start/Stop” button to stop the

machine at the point where the sewing direction changes.

Select a stitch.

Press to select the pivot setting.

→ The key appears as .

→ The machine stops with the needle in the fabric, and

the presser foot is raised.

Rotate the fabric, and then press the “Start/

Stop” button.

→ The presser foot is automatically lowered, and

sewing continues.

USEFUL FUNCTIONS

Automatic Fabric Sensor System (Automatic Presser Foot Pressure)

The thickness of the fabric is automatically detected and the presser foot pressure is automatically adjusted with an internal sensor while sewing, so your fabric is fed smoothly. The fabric sensor system works continuously while sewing. This function is useful for sewing over thick seams (see page 47), or quilting (see page

80).

Locking the Screen

If the screen is locked before starting to sew, the various settings such as the stitch width and stitch length are locked and cannot be changed. This prevents screen settings from accidentally being changed or the machine from being stopped while large pieces of fabric or projects are being sewn. The screen can be locked when sewing utility stitches and character decorative stitches.

Select a stitch pattern.

If necessary, adjust any settings such as the

stitch width and stitch length.

Press to lock the screen settings.

→ The key appears as .

Sew your project.

When you are finished sewing, press

again to unlock the screen settings.

Sewing Basics

Press .

→ The settings screen appears.

Set “AUTOMATIC FABRIC SENSOR

SYSTEM” to “ON”.

CAUTION

• If the screen is locked ( ), unlock the

screen by pressing . While the screen is locked, no other key can be operated.

• The settings are unlocked when the machine is turned off and on.

Press to return to the original screen.

USEFUL FUNCTIONS

Chapter 3

Utility Stitches

SELECTING UTILITY STITCHES......................58

■ Stitch Selection Screens............................................................58

Selecting a Stitch .............................................................. 59

■ Using the Mirror Image Key ..................................................... 59

■ Using the Image Key.................................................................59

Saving Your Stitch Settings ............................................... 60

■ Saving Settings..........................................................................60

■ Retrieving Saved Settings..........................................................61

Using the Sewing Type Selection Key ............................... 61

SEWING THE STITCHES.................................63

Straight Stitches ................................................................ 63

■ Changing the Needle Position (Left or Middle Needle

Position Stitches Only)............................................................. 65

■ Needle Plate and Needle Plate Cover Marks ............................ 65

■

Using the Straight Stitch Needle Plate and the Straight Stitch Foot

■ Basting ..................................................................................... 67

Dart Seam......................................................................... 67

Gathering.......................................................................... 68

Flat Fell Seam.................................................................... 69

Pintuck.............................................................................. 69

Zigzag Stitches.................................................................. 71

■ Overcasting (Using a Zigzag Stitch) .........................................71

■ Appliqué (Using a Zigzag Stitch) .............................................. 71

■ Patchwork (for Crazy Quilt)..................................................... 72

■ Sewing Curves (Using a Zigzag Stitch) ..................................... 72

■ Cord Guide Bobbin Cover (Using a Zigzag Stitch) ...................72

Elastic Zigzag Stitches ....................................................... 73

■ Tape Attaching .........................................................................73

■ Overcasting .............................................................................. 73

Overcasting ...................................................................... 74

■ Overcasting Using Presser Foot “G” ........................................ 74

■ Overcasting Using Presser Foot “J”.......................................... 75

■ Overcasting Using the Optional Side Cutter ............................ 76

■ When Sewing Straight Stitches While Using the Side Cutter.... 78

Quilting ............................................................................ 79

■ Piecing ..................................................................................... 80

■ Quilting .................................................................................... 80

■ Appliqué...................................................................................81

■ Quilting with Satin Stitches...................................................... 82

■ Free-motion Quilting................................................................83

■

Echo Quilting Using the Free-motion Echo Quilting Foot “E”

Blind Hem Stitches ........................................................... 89

■ If the Needle does not Catch the Fold...................................... 90

■ If the Needle Catches Too Much of the Fold............................ 90

Appliqué ........................................................................... 90

■ Sewing Sharp Curves ................................................................91

Shelltuck Stitches.............................................................. 91

Scallop Stitches ................................................................. 92

Top Stitching..................................................................... 92

Smocking Stitches ............................................................. 93

Fagoting ............................................................................ 93

Tape or Elastic Attaching .................................................. 94

Heirloom .......................................................................... 95

■ Hemstitching (1) (Daisy Stitch) ................................................ 95

■ Hemstitching (2) (Drawn Work (1)) .........................................95

■ Hemstitching (3) (Drawn Work (2)) .........................................96

.... 65

....... 86

One-step Buttonholes ........................................................97

■ Sewing Stretch Fabrics ............................................................100

■ Odd Shaped Buttons/Buttons that do not Fit into

the Button Holder Plate..........................................................100

Four-step Buttonholes......................................................101

■ Darning...................................................................................103

Bar Tacks .........................................................................105

■ Bar Tacks on Thick Fabrics......................................................106

Button Sewing .................................................................107

■ Attaching 4 Hole Buttons........................................................108

■ Attaching a Shank to the Button .............................................108

Eyelet...............................................................................109

Multi-directional Sewing (Straight Stitch and Zigzag Stitch)

Zipper Insertion ...............................................................111

■ Centered Zipper......................................................................111

■ Inserting a Side Zipper............................................................112

.....110

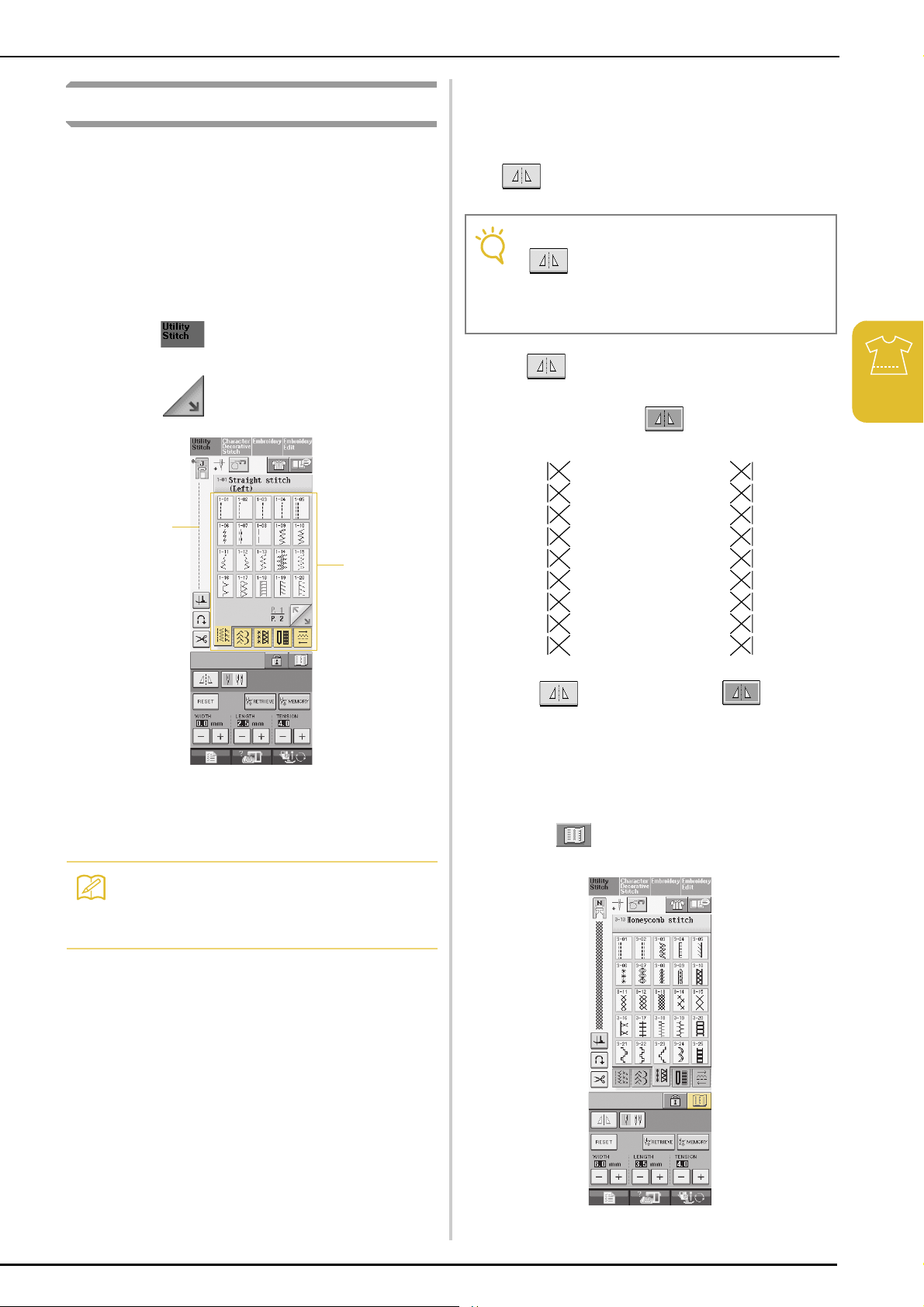

SELECTING UTILITY STITCHES

■ Stitch Selection Screens

There are 5 categories of Utility Stitches. indicates that there is more than one stitch selection screen

for that category.

Straight/Overcasting/Quilting Stitches Decorative Stitches

Heirloom Stitches Buttonholes/Bar tacks Multi-directional Sewing

Selecting a Stitch

Turn the main power to ON.

→ Either “1-01 Straight stitch (Left)” or “1-03 Straight

stitch (Middle)” is selected, depending on the setting selected in the setting screen.

SELECTING UTILITY STITCHES

■ Using the Mirror Image Key

Depending on the type of utility stitch you select, you may be able to sew a horizontal mirror image of the stitch.

If is lit when you select a stitch, it will be

possible to make a mirror image of the stitch.

Note

Use to select the

category you want.

* Press to view this screen if another screen

displays.

* Press to view the next page.

If is light gray after you select a stitch, you cannot create a horizontal mirror image of

the selected stitch (this is true of buttonholes, multi-directional sewing, and others).

Press to create a horizontal mirror image of

the selected stitch.

The key will display as .

Utility Stitches

a Preview of the selected stitch b Stitch selection screen

Press the key of the stitch you want to sew.

Memo

For details on each stitch, refer to the “STITCH SETTING CHART” at the end of this manual.

■ Using the Image Key

You can display an image of the selected stitch. You can also check and change the colors of the image on the screen.

Press .

→ An image of the selected stitch is displayed.

SELECTING UTILITY STITCHES

Press to change the thread color of

the stitch on the screen.

* Press to display an enlarged image of the

stitch.

Memo

• The color changes every time you press

• The units of the stitch display area are in mm.

Saving Your Stitch Settings

The settings for the zigzag stitch width, stitch length, thread tension, automatic thread cutting, automatic reinforcement stitching, etc., are preset in the machine for each stitch. However, if you have specific settings that you wish to reuse later for a stitch, you can change the settings so that they can be saved for that stitch. Five sets of settings can be saved for a single stitch.

■ Saving Settings

Select a stitch. (Example: )

a Stitch screen

Press to go back to the original

screen.

Specify your preferred settings.

SELECTING UTILITY STITCHES

Press .

→ The settings are saved and the original screen

automatically appears.

Memo

If you try to save settings when there are already 5 sets of settings saved for a stitch, the message “The pockets are full. Delete a pattern” will appear. Close the message and refer to “Deleting Saved Settings” on this page.

■ Retrieving Saved Settings

Select a stitch.

Press the numbered key of the settings to be

retrieved.

* Press to return to the original screen

without retrieving settings.

a Numbered keys

Press .

→ The selected settings are retrieved, and the original

screen automatically appears.

Memo

Deleting Saved Settings You can delete the selected setting by press-

Utility Stitches

Memo

When a stitch is selected, the last settings retrieved are displayed. The last settings retrieved are retained even if the machine was turned off or a different stitch was selected.

Press .

ing . Press the numbered key of the

setting to be deleted. Press , press

and then . The new setting

will be saved in place of the recently deleted setting.

Using the Sewing Type Selection Key

You can also select utility stitches using . Use this key when you are not sure which stitch to

use for your application, or to get advice about sewing particular stitches. For example, if you want to sew overcasting, but you do not know which stitch to use or how to sew the stitch, you can use this screen to get advice. We recommend that beginners use this method to select stitches.

SELECTING UTILITY STITCHES

Example: Displaying information about

overcasting

Press .

→ The advice screen is displayed.

Read the explanations and select the

appropriate stitch.

* Press or to scroll the page.

→ The screen displays directions for sewing the

selected stitch.

Press .

* Press to return to the original screen.

→ The upper part of the screen displays a selection of

overcasting stitches with explanations.

Follow the directions to sew the stitch.

* Press to view the next page.

SEWING THE STITCHES

Straight Stitches

SEWING THE STITCHES

Stitch Stitch name

Straight stitch (Left) General sewing, gather, pintuck,

Straight stitch (Middle)

Triple stretch stitch General sewing for

Stem stitch Reinforced stitching, sewing and

Decorative stitch Decorative stitching, top

Presser

foot

Applications

etc. Reverse stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

etc. Reinforcement stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

General sewing, gather, pintuck, etc. Reverse stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

General sewing, gather, pintuck, etc. Reinforcement stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

reinforcement and decorative topstitching

decorative applications

stitching

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

0.0 (0)

3.5

(1/8)

3.5

(1/8)

0.0 (0)

1.0

(1/16)

0.0 (0)

0.0 - 7.0 (0 - 1/4)

1.0 - 3.0

(1/16 - 1/8)

0.0 - 7.0 (0 - 1/4)

Stitch length

[mm (inch.)]

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

2.5

(3/32)

0.2 - 5.0

(1/64 - 3/16)

0.2 - 5.0

(1/64 - 3/16)

0.2 - 5.0

(1/64 - 3/16)

0.2 - 5.0

(1/64 - 3/16)

1.5 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

Twin

needle

( J )

Utility Stitches

Basting stitch Basting

0.0 (0)

0.0 - 7.0 (0 - 1/4)

20.0

(3/4)

5.0 - 30.0

(3/16 - 1-3/16)

J J

a Left needle position b Middle needle position

a Reverse stitch b Reinforcement stitch

Memo

If the selected stitch has a double mark “ ” at the top of the key display, you can sew reverse stitches holding the “Reverse/Reinforcement Stitch” button.

If the selected stitch has a dot mark “ ” at the top of the key display, you can sew reinforcement stitches holding the “Reverse/Reinforcement Stitch” button (see page 46).

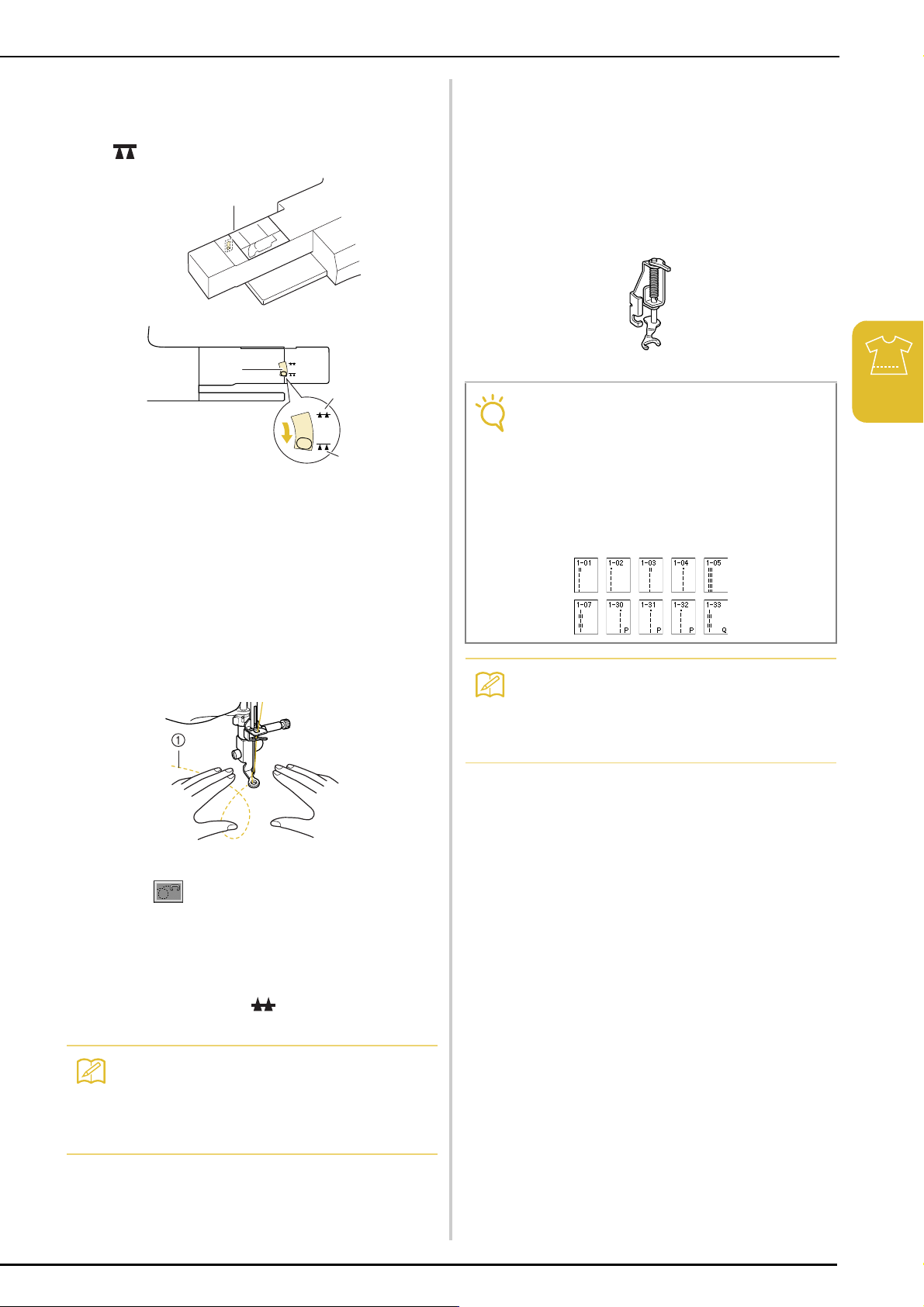

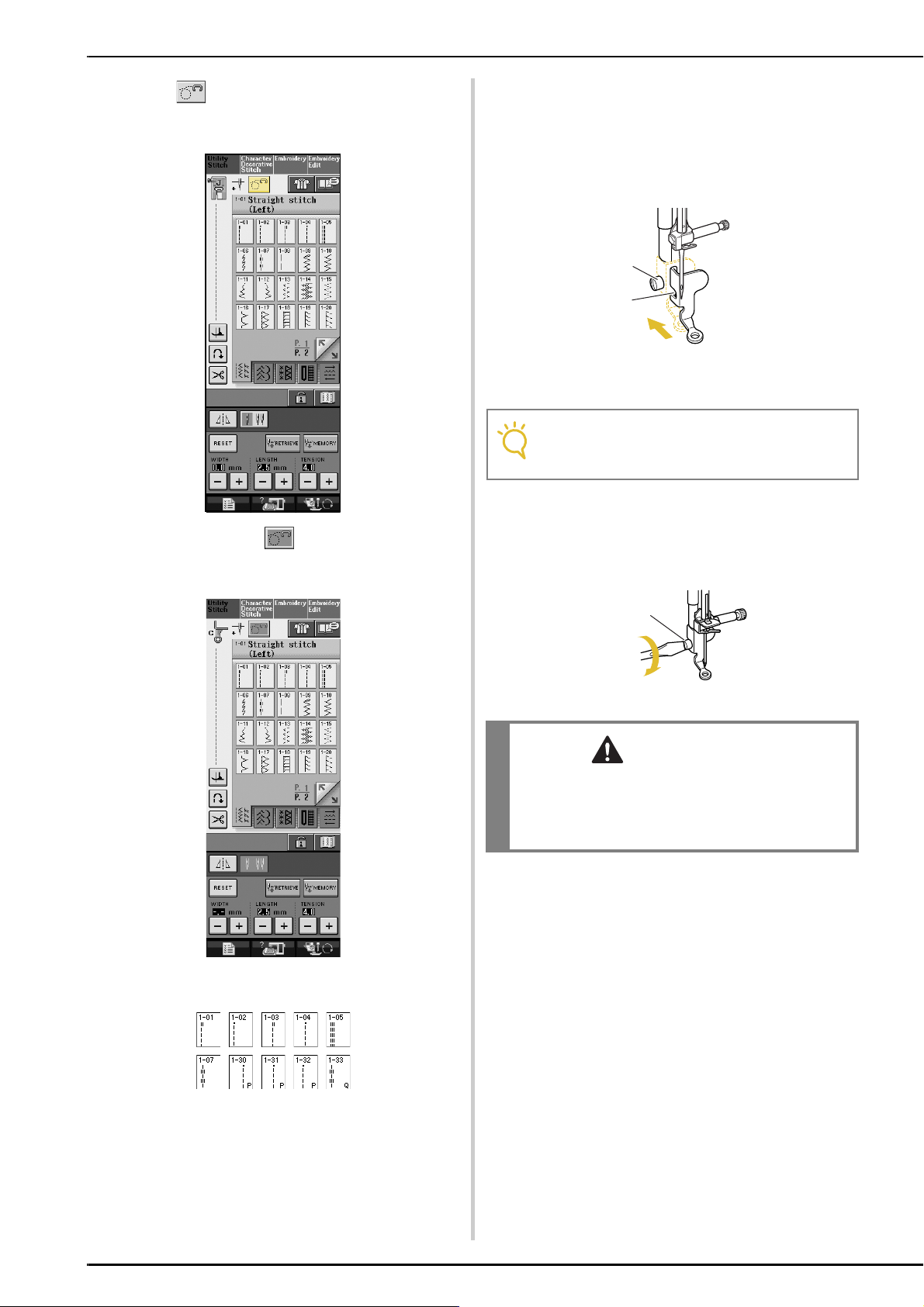

SEWING THE STITCHES

Select a stitch.

Attach presser foot “J”.

* Attach presser foot “N” when you select .

CAUTION

Be sure the needle does not strike a basting pin, or any other objects, during sewing. The thread could tangle or the needle could break, causing injury.

When sewing is completed, hold the

“Reverse/Reinforcement Stitch” button to sew 3-4 reverse stitches (or reinforcement stitches) at the end of the seam.

Hold the thread tails and fabric with your

left hand, and turn the handwheel with your right hand to insert the needle into the fabric.

a Sewing start position

Lower the presser foot, and hold the

“Reverse/Reinforcement Stitch” button to sew 3-4 stitches.

→ The machine sews reverse stitches (or reinforcement

stitches).

Press the “Start/Stop” button to sew

forward.

After sewing, press the “Thread Cutter”

button to trim the threads.

Memo

When the automatic thread cutting and automatic reinforcement stitch keys on the screen are selected, reverse stitches (or reinforcement stitches) will be sewn automatically at the beginning of sewing when the “Start/Stop” button is pressed. Press the “Reverse/Reinforcement Stitch” button to sew reverse stitches (or reinforcement stitches) and trim the thread automatically at the end of sewing.

a Reverse stitches

→ The machine will begin sewing slowly.

SEWING THE STITCHES

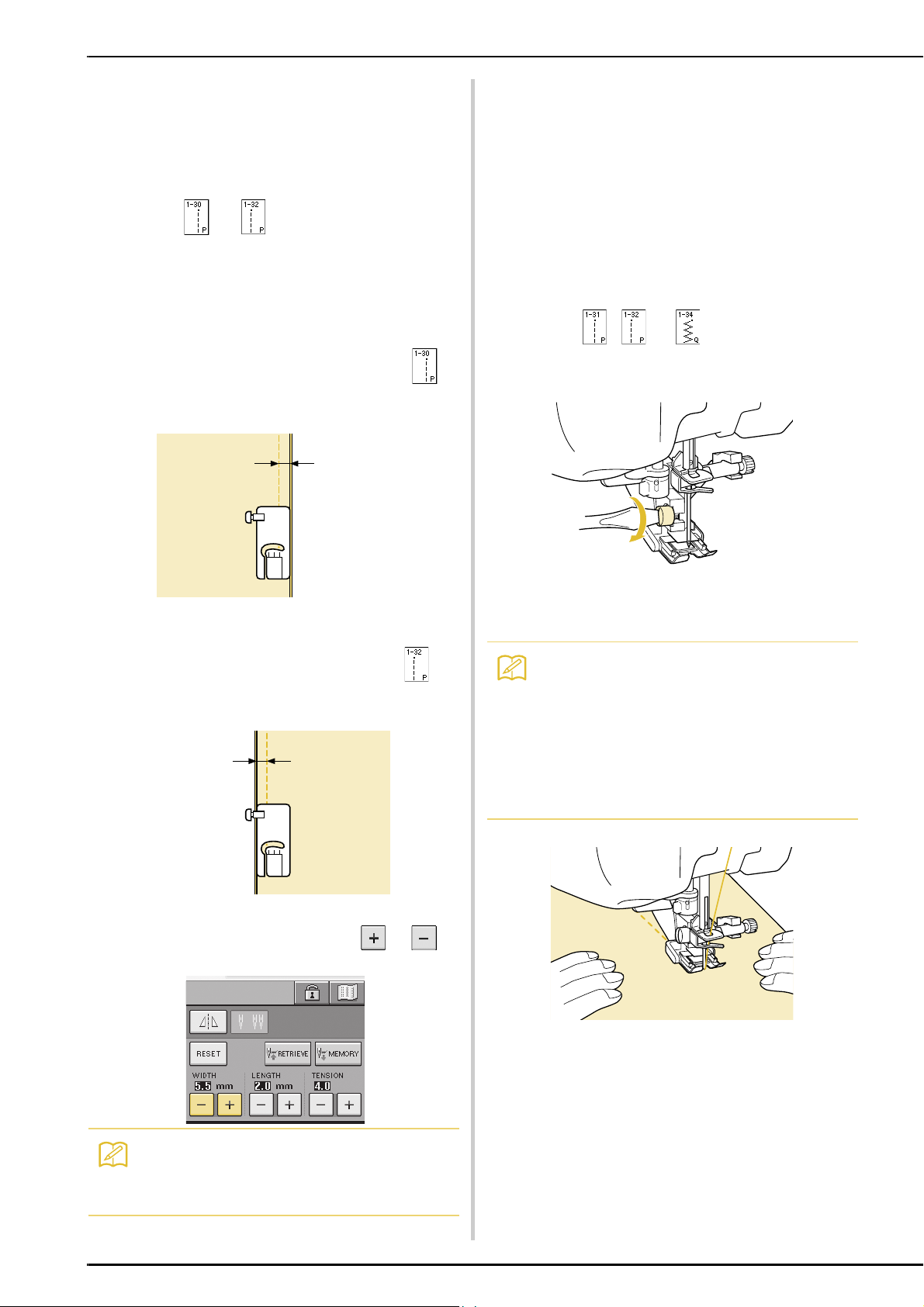

■ Changing the Needle Position (Left or Middle Needle Position Stitches Only)

When you select left or middle needle position

stitches, you can use and in the stitch

width display to change the position of the needle. Match the distance from the right edge of the presser foot to the needle with the stitch width, then align the edge of the presser foot with the edge of the fabric during sewing for an attractive finish.

a Stitch width

Example: Left/Middle needle position stitches

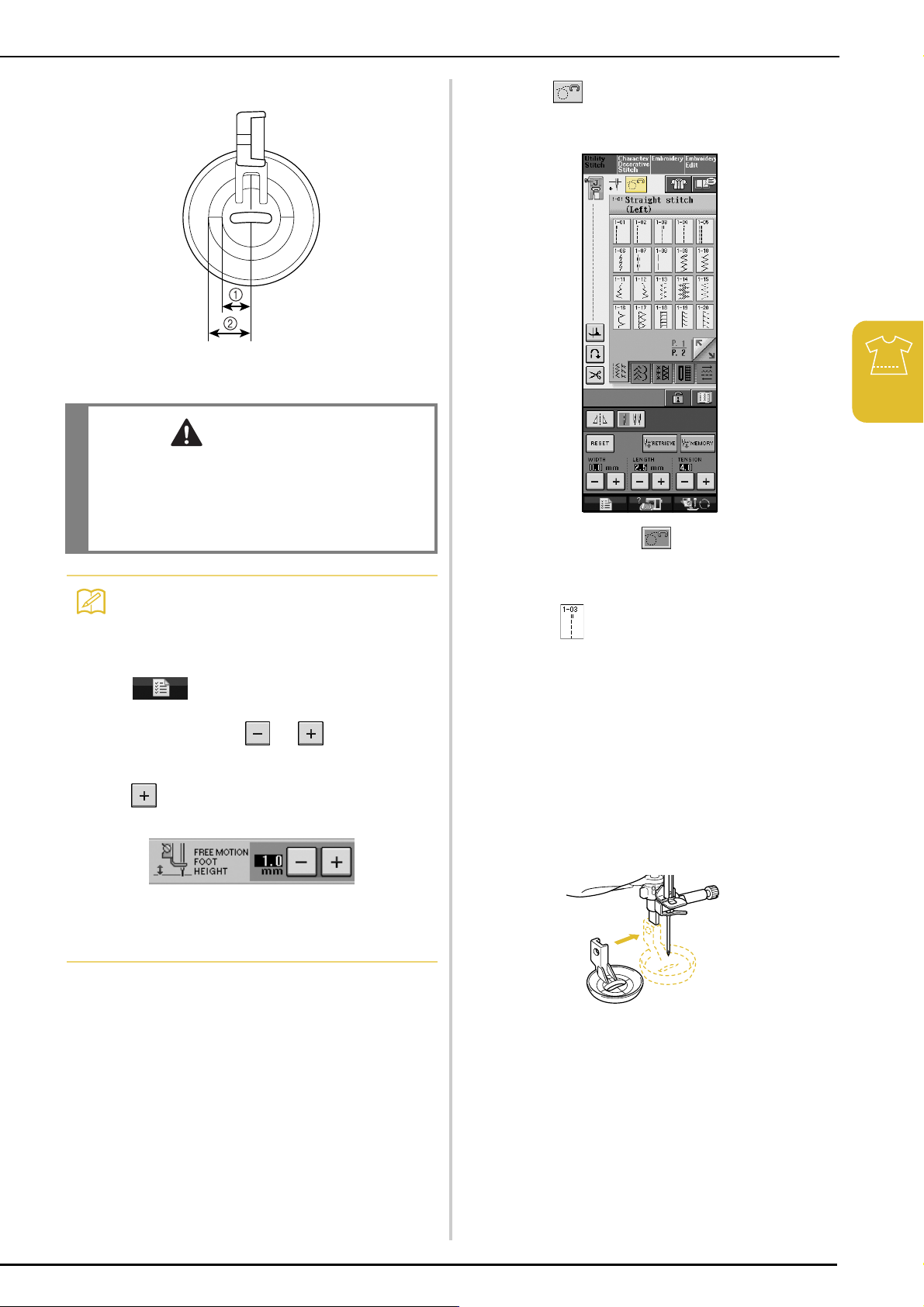

■ Needle Plate and Needle Plate Cover Marks

For a standard 16 mm (approx. 5/8 inch) seam allowance, set the width to 0.0 mm on the screen. While sewing, align the edge of the fabric with the 16 mm (approx. 5/8 inch) mark on the needle plate.

a 16 mm (approx. 5/8 inch)

b For stitches with a middle (center) needle position

c For stitches with a left needle position

d Left needle position on the needle plate <inch>

e Left needle position on the needle plate <cm>

f Middle (center) needle position on the bobbin

cover <inch>

g Left needle position on the needle plate cover

<inch>

Utility Stitches

12.0 mm (approx.

1/2 inch)

8.5 mm

(approx.

11/32

inch)

6.5 mm

(approx.

1/4 inch)

5.0 mm

(approx. 3/

16 inch)

■ Using the Straight Stitch Needle Plate and the Straight Stitch Foot

The straight stitch needle plate and the straight stitch foot can only be used for straight stitches (middle needle position stitches). Use the straight stitch needle plate and the straight stitch foot when sewing thin fabrics or when sewing small pieces which tend to sink into the hole of the regular needle plate during sewing. The straight stitch foot is perfect to reduce puckering on lightweight fabrics. The small opening on the foot provides support for the fabric as the needle goes through the fabric.

CAUTION

Always use the straight stitch foot in combination with the straight stitch needle plate.

SEWING THE STITCHES

Press the “Presser Foot Lifter” button to

raise the presser foot and turn the main power to OFF.

Remove the flat bed attachment or the

embroidery unit if either are attached.

Grasp both sides of the needle plate cover,

and then slide it toward you.

a Needle plate cover

Grasp the bobbin case, and then pull it out.

Insert the bobbin case in its original

position (see page 227), and then attach the needle plate cover.

After reinstalling the needle plate cover,

select any of the straight stitches.

Memo

• When using the straight stitch needle plate, all straight stitches become middle needle position stitches. You cannot change the needle position using the width display.

• Always secure the needle plate before inserting the bobbin case into its original position.

CAUTION

• Selecting other stitches will cause an error message to be displayed.

• Be sure to turn the handwheel slowly in your direction before sewing and make sure that the needle is not contacting the straight stitch foot and straight stitch needle plate.

a Bobbin case

Use the screwdriver included with the

machine to unscrew and remove the regular needle plate.

Set the straight stitch needle plate in place

and use the screwdriver to tighten the plate.

Attach the straight stitch foot.

a Notch b Pin

Start sewing.

* After sewing, make sure to remove the straight stitch

needle plate and the straight stitch foot, and reinstall the regular needle plate, the needle plate cover and the presser foot “J”.

Memo

To prevent puckering on fine fabrics, use a fine needle, size 75/11, and a short stitch length. For heavier fabrics, use a heavier needle, size 90/14, and longer stitches.

Note

Align the two screw holes on the needle plate with the two holes on the machine and screws in the needle plate.

■ Basting

Select and attach presser foot “J”.

Press the “Reverse/Reinforcement Stitch”

button to sew reinforcement stitches, then continue sewing.

Memo

If you do not want to use a reinforcement stitch at the beginning; you should lift the presser foot, rotate the handwheel, pull up the bobbin thread and pull a length of top and bobbin thread out from the rear of the machine.

You can set the stitch length between 5 mm (approx. 3/16 inch) and 30 mm (approx. 1-3/16 inches)

SEWING THE STITCHES

Dart Seam

Select and attach presser foot “J”.

Sew a reverse stitch at the beginning of the

dart and then sew from the wide end to the other end without stretching the fabric.

* If automatic reinforcement stitching is preset, a

reinforcement stitch will automatically be sewn at the beginning of sewing.

a Basting

Cut the thread at the end leaving 50 mm

(approx. 1-15/16 inches), and then tie both ends together.

* Do not sew a reverse stitch at the end.

Utility Stitches

a Between 5 mm (approx. 3/16 inch) and 30 mm

(approx. 1-3/16 inches)

Sew while keeping the fabric straight.

End the basting with reinforcement stitches.

Insert the ends of the thread into the dart

with a needle.

SEWING THE STITCHES

Iron the dart to one side so that it is flat.

Gathering

Use on waists of skirts, sleeves of shirts, etc.

Select a straight stitch and attach presser

foot “J”.

Sew two rows of straight stitches parallel to

the seam line, then trim excess thread leaving 50 mm (approx. 1-15/16 inches).

a Seam line b 10 to 15 mm (approx. 3/8 inch to 9/16 inch) c About 50 mm (approx. 1-15/16 inches)

Pull the bobbin threads to obtain the

desired amount of gather, then tie the

threads.

Set the stitch length to 4.0 mm (approx.

3/16 inch) and the thread tension to approximately 2.0 (weaker tension).

* If you press after pressing , the

stitch length will be set automatically to 4.0 mm (approx. 3/16 inch) and the thread tension will be automatically set to 2.0.

Pull the bobbin and upper threads out by

50 mm (approx. 1-15/16 inches) (see page

28).

Smooth the gathers by ironing them.

Sew on the seam line and remove the

basting stitch.

a Upper thread b Bobbin thread c About 50 mm (approx. 1-15/16 inches)

Flat Fell Seam

Use for reinforcing seams and finishing edges neatly.

Select and attach presser foot “J”.

With right sides of the fabric together, sew

the seam line, then cut half of the seam allowance from the side on which the flat fell seam will lie.

* When the automatic thread cutting and automatic

reinforcement stitching are preset, reinforcement stitches will be sewn automatically at the beginning of sewing. Press the “Reverse/Reinforcement Stitch” button to sew a reinforcement stitch and trim the thread automatically at the end of sewing.

SEWING THE STITCHES

Fold the longer seam allowance around the

shorter one, and sew the edge of the fold.

a Wrong side

Finished flat fell seam

Utility Stitches

a About 12 mm (approx. 1/2 inch) b Wrong side

Spread the fabric out along the seam line.

a Seam line b Wrong side

Lay both seam allowances on the side of the

shorter seam (cut seam) and iron them.

a Surface

Pintuck

Mark along the folds on the wrong side of

the fabric.

a Wrong side

Turn the fabric and iron the folded parts

only.

a Wrong side

a Surface

SEWING THE STITCHES

Select and attach presser foot “I”.

Sew a straight stitch along the fold.

* When the automatic thread cutting and automatic

a Width for pintuck b Wrong side c Surface

Iron the folds in the same direction.

SEWING THE STITCHES

Zigzag Stitches

Zigzag stitches are useful for overcasting, appliqué, patchwork, and many other applications.

Select a stitch, and attach presser foot “J”.

If the stitch which you select has a double mark “ ” at the top of the key display, you can sew reverse stitches by holding the “Reverse/Reinforcement Stitch” button.

If the stitch which you select has a dot mark “ ” at the top of the key display, you can sew reinforcement stitches by holding the “Reverse/Reinforcement Stitch” button (see page 46).

Stitch Stitch name

Zigzag stitch For overcasting, mending.

Zigzag stitch (right) Start from right needle position,

Zigzag stitch (left) Start from left needle position,

Select a stitch.

Presser

foot

Applications

Reverse stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

Reinforcement stitch is sewn while pressing “Reverse/ Reinforcement Stitch” button.

zigzag sew at left.

zigzag sew at right.

■ Overcasting (Using a Zigzag Stitch)

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

3.5

(1/8)

3.5

(1/8)

3.5

(1/8)

3.5

(1/8)

0.0 - 7.0 (0 - 1/4)

2.5 - 5.0

(3/32 - 3/16)

2.5 - 5.0

(3/32 - 3/16)

Stitch length

[mm (inch.)]

1.4

(1/16)

1.4

(1/16)

1.4

(1/16)

1.4

(1/16)

0.0 - 4.0

(0 - 3/16)

0.0 - 4.0

(0 - 3/16)

0.3 - 4.0

(1/64 - 3/16)

0.3 - 4.0

(1/64 - 3/16)

Twin

needle

( J )

Sew the overcasting along the edge of the fabric while positioning the right-hand side needle drop point just outside the edge of the fabric.

Utility Stitches

Attach presser foot “J”.

a Needle drop position

■ Appliqué (Using a Zigzag Stitch)

Attach the appliqué material using a temporary spray adhesive or basting, and then sew it.

* Sew a zigzag stitch while positioning the right-hand

side needle drop point just outside the edge of the fabric.

SEWING THE STITCHES

■ Patchwork (for Crazy Quilt)

Turn back the desired width of fabric and position it over the lower fabric, then sew so that the stitch bridges both pieces of fabric.

■ Sewing Curves (Using a Zigzag Stitch)

Shorten the stitch length setting to obtain a fine stitch. Sew slowly, keeping the seams parallel with the fabric edge as you guide the fabric around the curve.

Snap the cord guide bobbin cover into

place, making sure that the gimp thread can be fed freely.

* Make sure there are no restrictions when feeding the

thread.

Set the zigzag width from 2.0-2.5 mm

(approx. 1/16 - 3/32 inch).

Attach presser foot “N”.

Position the fabric right side up on top of

the cord and place the cord to the rear of the machine under the presser foot.

■ Cord Guide Bobbin Cover (Using a Zigzag Stitch)

Remove the bobbin cover from the machine

(see page 27).

Thread gimp thread through the hole in the

cord guide bobbin cover from top to bottom. Position the thread in the notch at the back of the cord guide bobbin cover.

a Fabric (right side) b Gimp thread

Lower the presser foot and start sewing to

make a decorative finish.

a Notch b Gimp thread c Hole

SEWING THE STITCHES

Elastic Zigzag Stitches

Use elastic zigzag stitches for tape attaching, overcasting, darning, or a wide variety of other uses.

Stitch Stitch name

2 step elastic zigzag Overcasting (medium weight

3 step elastic zigzag Overcasting (medium,

Select a stitch.

Presser

foot

Applications

and stretch fabrics), tape and elastic

heavyweight and stretch fabrics), tape and elastic

■ Tape Attaching

Stretch the tape flat. While stretching the tape flat, sew the tape to the fabric.

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

5.0

(3/16)

5.0

(3/16)

5.0

(3/16)

1.5 - 7.0

(1/16 - 1/4)

1.5 - 7.0

(1/16 - 1/4)

1.5 - 7.0

(1/16 - 1/4)

Stitch length

[mm (inch.)]

1.0

(1/16)

1.0

(1/16)

1.0

(1/16)

0.2 - 4.0

(1/64 - 1/16)

0.2 - 4.0

(1/64 - 1/16)

0.2 - 4.0

(1/64 - 1/16)

Twin

needle

( J )

Utility Stitches

Attach presser foot “J”.

a Tape

■ Overcasting

Use this stitch to sew overcasting on the edge of stretch fabrics. Sew the overcasting along the edge of the fabric while positioning the right-hand side needle drop point just outside the edge of the fabric.

SEWING THE STITCHES

Overcasting

Use for the beginning and end of seams in skirts or trousers, and the beginning and end of all cuttings. Use presser foot “G”, presser foot “J”, or the optional side cutter attachment depending on the kind of overcasting stitch you select.

■ Overcasting Using Presser Foot “G”

Stitch Stitch name

Overcasting stitch Reinforcing of light and medium

Overcasting stitch Reinforcing of heavyweight

Overcasting stitch Reinforcing of medium,

Select a stitch and attach presser foot “G”.

Presser

foot

weight fabrics

fabric

heavyweight and easily frayable fabrics or decorative stitching.

Applications

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

3.5

(1/8)

5.0

(3/16)

5.0

(3/16)

Sew along the presser foot guide.

2.5 - 5.0

(3/32 - 3/16)

2.5 - 5.0

(3/32 - 3/16)

3.5 - 5.0

(1/8 - 3/16)

2.0

(1/16)

2.5

(3/32)

2.5

(3/32)

Stitch length

[mm (inch.)]

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

Twin

needle

Lower the presser foot so that the presser

foot guide is set flush against the edge of the fabric.

a Guide

CAUTION

• After the stitch width is adjusted, turn the handwheel toward you by hand and check that the needle does not touch the presser foot. If the needle hits the presser foot, the needle may break and cause injury.

a The needle should not touch

• If the presser foot is raised to its highest level, the needle may strike the presser foot.

■ Overcasting Using Presser Foot “J”

SEWING THE STITCHES

Stitch Stitch name

Overcasting stitch Reinforced seaming of stretch

Overcasting stitch Reinforcing of medium stretch

Overcasting stitch Reinforcement of stretch fabric

Overcasting stitch Stretch knit seam

Single diamond overcast

Select a stitch and attach presser foot “J”.

Presser

foot

Applications

fabric

fabric and heavyweight fabric, decorative stitching

or decorative stitching

Reinforcement and seaming stretch fabric

Reinforcement of stretch fabric

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

5.0

(3/16)

5.0

(3/16)

4.0

(3/16)

5.0

(3/16)

6.0

(15/

64)

6.0

(15/

64)

0.0 - 7.0

(0 - 9/32)

0.0 - 7.0

(0 - 9/32)

0.0 - 7.0 (0 - 1/4)

1.0 - 7.0

(1/16 - 1/4)

1.0 - 7.0

(1/16 - 1/4)

Stitch length

[mm (inch.)]

2.5

(3/32)

2.5

(3/32)

4.0

(3/16)

4.0

(3/16)

3.0

(1/8)

1.8

(1/16)

0.5 - 4.0

(1/32 - 3/16)

0.5 - 4.0

(1/32 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

1.0 - 4.0

(1/16 - 3/16)

Twin

needle

( J )

Utility Stitches

Sew with the needle dropping slightly off

the edge of the fabric.

a Needle drop position

SEWING THE STITCHES

■ Overcasting Using the Optional Side Cutter

By using the side cutter, you can do overcasting while cutting the fabric.

CAUTION

• Make sure to only select one of the stitches listed below. Using another stitch may cause the needle to hit the presser foot and break, possibly causing injury.

Memo

Thread the needle manually when using the side cutter, or only attach the side cutter after threading the needle using the “Automatic Threading” button.

Stitch Stitch name

With side cutter Straight stitch while cutting

With side cutter Zigzag stitch while cutting fabrics

With side cutter Overcasting stitch while cutting

Select a stitch.

Presser

foot

fabrics

Applications

Stitch width [mm (inch.)]

Auto. Manual Auto. Manual

0.0 (0)

3.5

(1/8)

3.5

(1/8)

5.0

(3/16)

5.0

(3/16)

Position the fork on the side cutter’s

operating lever onto the needle clamp

0.0 - 2.5

(0 - 3/32)

3.5 - 5.0

(1/8 - 3/16)

3.5 - 5.0

(1/8 - 3/16)

3.5 - 5.0

(1/8 - 3/16)

3.5 - 5.0

(1/8 - 3/16)

Stitch length

[mm (inch.)]

2.5

(3/32)

1.4

(1/16)

2.0

(1/16)

2.5

(3/32)

2.5

(3/32)

(1/64 - 3/16)

(1/16 - 3/16)

screw.

0.2 - 5.0

0.0 - 4.0

(0 - 3/16)

1.0 - 4.0

Twin

needle

Follow the steps on page 37 to remove the

presser foot.

a Needle clamp screw b Operating lever

Memo

Make sure that the fork of the operating lever is set onto the needle clamp screw firmly.

SEWING THE STITCHES

Position the side cutter so that the side

cutter pin is aligned with the notch in the presser foot holder, and then lower the presser foot.

a Notch in presser foot holder b Pin

→ The side cutter is attached.

Make a cut of approximately 20 mm

(approx. 3/4 inch) in the fabric.

Thread the needle manually and pull out a

long section of the upper thread. Pass it below the presser foot and pull it out in the fabric feed direction.

a Presser foot b Upper thread

Start sewing.

Utility Stitches

a 20 mm (approx. 3/4 inch)

Position the fabric so that the right side of

the cut is on top of the guide plate and the left side of the cut is underneath the presser foot.

a Guide plate (lower knife) b Presser foot

Memo

If the fabric is not positioned correctly, the fabric will not be cut.

→ A seam allowance is cut while the stitching is sewn.

Note

If the width has been adjusted, turn the handwheel by hand to check that the needle does not touch the side cutter. If the needle touches the side cutter, it might cause the needle to break.

SEWING THE STITCHES

■ When Sewing Straight Stitches While Using the Side Cutter

The seam margin should be approximately 5 mm (approx. 3/16 inch).

a Seam margin

Memo

• The fabric will not be cut if the whole fabric is simply spread out underneath the presser foot guide plate. Set the fabric as explained in step then start sewing.

f from the previous section, and

• One layer of 13 oz. denim can be cut.

• Clean the side cutter after use to avoid having dust and scraps of thread build up on it.

• Add a small amount of oil as required to the cutting edge of the cutter.

SEWING THE STITCHES

Quilting

You can make beautiful quilts quickly and easily with this machine. When making a quilt, you will find it convenient to use the knee lifter and foot controller to free your hands for other tasks (see “Using the Foot Controller” on page 45 and /or see “Using the Knee Lifter” on page 53).

If there is a “P” or “Q” at the bottom of the key display, the indicated stitch is intended for quilting.

Pattern Name of pattern

Piecing stitch (Right)

Piecing stitch (Middle)

Piecing stitch (Left)

Hand-look quilting

Quilting appliqué zigzag stitch

Quilting appliqué stitch

Quilting stippling

Type of presser

foot

Use

Piecework/patchwork

6.5 mm (approx. 1/4 inch) right seam allowance

Piecework/patchwork

6.5 mm (approx. 1/4 inch) left seam allowance

Quilting stitch made to look like hand quilting stitch

Zigzag stitch for quilting and sewing on appliqué quilt pieces

Quilting stitch for invisible appliqué or attaching binding

Background quilting

Stitch width

[mm (inch.)]

Auto. Manual Auto. Manual

5.5

(7/32)

(1/16)

(1/8)

(1/16)

(1/4)

0.0 - 7.0 (0 - 1/4)

— —

1.5

0.0 - 7.0 (0 - 1/4)

0.0

0.0 - 7.0

(0)

3.5

1.5

7.0

(0 - 1/4)

0.0 - 7.0 (0 - 1/4)

0.5 - 5.0

(1/64 - 3/16)

1.0 - 7.0

(1/16 - 1/4)

Stitch length

[mm (inch.)]

2.0

(1/16)

(1/64 - 3/16)

2.0

(1/16)

(1/64 - 3/16)

2.0

(1/16)

(1/64 - 3/16)

2.5

(3/32)

(1/16 - 3/16)

1.4

(1/16)

1.8

(1/16)

(1/16 - 3/16)

1.6

(1/16)

(1/16 - 3/16)

0.2 - 5.0

1.0 - 4.0

0.0 - 4.0

(0 - 3/16)

1.0 - 4.0

Twin

needle

Utility Stitches

SEWING THE STITCHES

■ Piecing

Sewing two pieces of fabric together is called piecing. When cutting pieces for quilt blocks, make sure the seam allowance is 6.5 mm (approx. 1/4 inch).

Select or and attach presser foot

“J”.

Align the edge of the fabric with the edge of

the presser foot, and start sewing.

* To sew a 6.5 mm (approx. 1/4 inch) seam allowance

along the right edge of the presser foot with

selected, the width should be set to 5.5 mm (approx. 7/32 inch).

■ Quilting

Sewing together the quilt top, batting, and backing is called quilting. You can sew the quilt with the walking foot to keep the quilt top, batting, and backing from sliding. The walking foot has a set of feed dogs that move together with the feed dogs in the needle plate during sewing. For straight line quilting, use the walking foot and the straight stitch needle plate. Always select a straight stitch (middle needle position) when using the straight stitch needle plate.

Select , or .

Attach the walking foot (see page 38).

a 6.5 mm (approx. 1/4 inch)

* To sew a 6.5 mm (approx. 1/4 inch) seam allowance

along the left edge of the presser foot with

selected, the width should be set to 1.5 mm (approx. 1/32 inch).

a 6.5 mm (approx. 1/4 inch)

* To change the needle position, use or in

the width display.

Place one hand on each side of the presser

foot to hold the fabric secure while sewing.

Memo

• Sew at slow to medium speed.

• Do not sew in reverse or use stitches that require side ways or reverse feeding. Always check to be sure that your quilting surface is securely basted before beginning to sew. Specialized machine quilt needles and threads are also available for machine quilting.

Memo

Using a straight stitch (middle needle position) makes it easier to sew smoothly (see page

63).

SEWING THE STITCHES

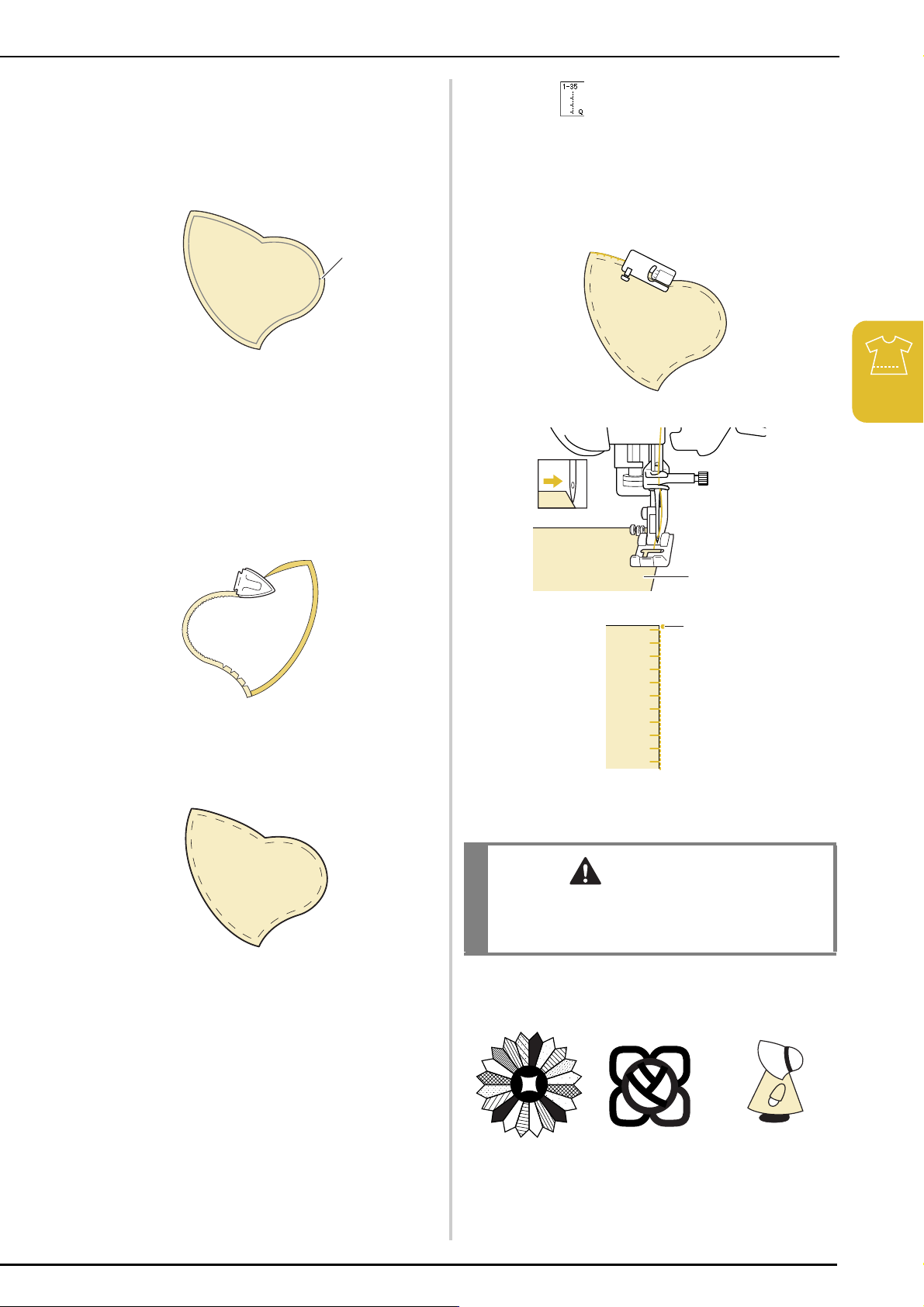

■ Appliqué

Trace the pattern onto the appliqué fabric

and then cut around it, leaving a 3 to 5 mm (approx. 1/8 to 3/16 inch) seam allowance.

a Seam allowance: 3 to 5 mm

(approx. 1/8 to 3/16 inch)

Place a piece of thick paper or stabilizer cut

to the finished size of the appliqué design onto the fabric, and then fold over the seam margin using an iron. Clip curves when necessary.

Select and attach presser foot “J”.

Use the quilting appliqué stitch to attach

the appliqué. Sew around the edge while dropping the needle as close to the edge as possible.



Utility Stitches

Turn the appliqué over, and attach the thick

paper with basting pins or a basting stitch.

a Appliqué b Needle drop position

CAUTION

• Be careful that the needle does not strike a basting pin during sewing. Striking a pin can cause the needle to break, resulting in injury.

You can use the appliqué technique to attach appliqué designs like the three pictured below.

a Dresden plate b Stained glass c Sunbonnet sue

SEWING THE STITCHES

■ Quilting with Satin Stitches

Use the foot controller to sew with satin stitches. If you set the speed control slide to control the stitch width, you can make subtle changes in the stitch width during sewing.

Attach the foot controller (see page 45).

Select and attach presser foot “J”.

Press in the length display to shorten

the stitch length.

Set the width control to “ON”.

Memo

You can use the speed control slide to adjust the stitch width. Use the foot controller to adjust the sewing speed.

Memo

The setting will vary according to the kind of fabric and the thickness of the thread, but a length of 0.3 to 0.5 mm (approx. 1/64 to 1/32 inch) is best for satin stitches.

Press to use the speed control slide

to control the stitch width.

Press .

→ The display will return to the original screen.

Start sewing.

* You can adjust the stitch width during sewing by

moving the sewing speed controller. Slide the lever to the left, and the stitch width becomes narrower. Slide it to the right, the stitch width becomes wider. The size of the width changes equally on both sides of the middle needle position.

a narrower b wider

Rough sketch (line)

When you are finished sewing, set the

width control back to “OFF”.

■ Free-motion Quilting

With free-motion quilting, the feed dogs can be lowered (using the feed dog position switch) so that the fabric can be moved freely in any direction. For free-motion quilting, use free-motion quilting foot “C” or free-motion open toe quilting foot “O” depending on the stitch that is selected, and set the machine to free-motion sewing mode. In this mode, the presser foot is raised to the necessary height for free-motion sewing. We recommend attaching the foot controller and sewing at a consistent speed. You can adjust the sewing speed with the speed control slide on the machine.

Using Free-motion Quilting Foot “C”

The free-motion quilting foot “C” is used for freemotion sewing using the straight stitch needle plate.

SEWING THE STITCHES

Memo

• When starting to sew, the internal sensor

detects the thickness of the fabric, and the quilting foot is raised to the height specified in the machine settings screen. Press

to display “FREE MOTION FOOT

HEIGHT” on P. 1 of the settings screen.

Press or to select the height that the quilting foot is raised above the fabric.

Increase the setting by pressing , for example, when sewing very stretchy fabric,

so that it is easier to sew.

• In order to sew with a balanced tension, it

may be necessary to adjust the upper thread tension. Test with a sample piece of fabric that is similar to your chosen fabric.

Utility Stitches

Free-motion quilting foot “C”

CAUTION

• With free-motion quilting, control the feeding speed of the fabric to match the sewing speed. If the fabric is moved faster than the sewing speed, the needle may break or other damage may result.

• When using free-motion quilting foot “C”, be sure to use the straight stitch needle plate and sew with the needle in middle (center) needle position. If the needle is moved to any position other than the middle (center) needle position, the needle may break, which may result in injuries.

Attach the straight stitch needle plate (see

page 65).

a Round hole

Memo

Notice that there is a round hole in this needle plate.

SEWING THE STITCHES

Press to set the machine to free-

motion sewing mode.

→ The key appears as , and the quilting foot is

raised to the necessary height for free-motion sewing.

Remove the presser foot holder (see page

38).

Attach free-motion quilting foot “C” at the

front with the presser foot holder screw aligned with the notch in the quilting foot.

a Presser foot holder screw b Notch

Note

Make sure that the quilting foot is attached properly and not slanted.

Hold the quilting foot in place with your

right hand, and tighten the presser foot holder screw using the screwdriver with your left hand.

Select any of the following stitches.

a Presser foot holder screw

CAUTION

• Be sure to securely tighten the screws with the included screwdriver. Otherwise, the needle may touch the quilting foot, causing it to bend or break.

→ Free-motion quilting foot “C” is indicated in the

upper-left corner of the screen.

SEWING THE STITCHES

Lower the feed dog position switch, located

at the rear of the base of the machine, to

a Rear of machine b Feed dog position switch

(as seen from the rear of the machine)

c Up d Down

Using Free-motion Open Toe Quilting Foot “O”

The free-motion open toe quilting foot “O” is used for free-motion quilting with zigzag or decorative stitches or for free-motion quilting of straight lines on fabric with an uneven thickness. Various stitches can be sewn using free-motion open toe quilting foot “O”. For details on the stitches that can be used, refer to the “Stitch Setting Chart” at the end of this manual.

Free-motion open toe quilting foot “O”

Note

Free-motion open toe quilting foot “O” can also be used with the straight stitch needle plate. We recommend using free-motion open toe quilting foot “O” with free-motion sewing of fabrics of uneven thicknesses. For details on installing the straight stitch needle plate, refer to page 65. Select one of the following stitches when using the straight stitch needle plate.

Utility Stitches

Use both hands to stretch the fabric taut,

and then move the fabric at a consistent pace in order to sew uniform stitches roughly 2.0-2.5 mm (approx. 1/16 - 3/32 inch) in length.

a Stitch

Press to cancel the free-motion sewing

mode.

After sewing is finished, raise the feed dog

position switch to to raise the feed dogs.

Memo

In order to sew with a balanced tension, it may be necessary to adjust the upper thread tension (see page 50). Test with a sample piece of quilting fabric.

Memo

• Normally, the feed dog position switch is in the up position.

• Do not be discouraged with your initial results. The technique requires practice.

SEWING THE STITCHES

Press to set the machine to free-

motion sewing mode.

→ The key appears as , and the quilting foot is

raised to the necessary height for free-motion sewing.

Hold the quilting foot in place with your

right hand, and tighten the presser foot holder screw using the screwdriver with your left hand.

a Presser foot holder screw

CAUTION

• Be sure to securely tighten the screws with the included screwdriver. Otherwise, the needle may touch the quilting foot, causing it to bend or break.

Use both hands to stretch the fabric taut,

and then move the fabric at a consistent pace in order to sew uniform stitches roughly 2.0-2.5 mm (approx. 1/16 - 3/32 inch) in length.

Select a stitch.

Memo

Free-motion open toe quilting foot “O” is indicated in the upper-left corner of the screen. When using the straight stitch needle plate, free-motion quilting foot “C” is indicated.

Remove the presser foot holder (see page

38).

Attach free-motion open toe quilting foot

“O” by positioning the pin of the quilting foot above the needle clamp screw and aligning the lower-left of the quilting foot and the presser bar.

a Pin b Needle clamp screw c Presser bar

a Stitch

Press to cancel the free-motion sewing

mode.

Memo

Do not be discouraged with your initial results. The technique requires practice.

■ Echo Quilting Using the Free-motion Echo Quilting Foot “E”

Sewing quilting lines at equal distances around a motif is called echo quilting. The quilting lines, which appear as ripples echoing away from the motif, are the distinguishing characteristic of this quilting style. Use the free-motion echo quilting foot “E” for echo quilting. Using the measurement on the presser foot as a guide, sew around the motif at a fixed interval. We recommend attaching the foot controller and sewing at a consistent speed.

Note

Make sure that the quilting foot is not slanted.

SEWING THE STITCHES

Free-motion echo quilting foot “E” measurement

a 6.4 mm (approx. 1/4 inch) b 9.5 mm (approx. 3/8 inch)

CAUTION

• With free-motion quilting, control the feeding speed of the fabric to match the sewing speed. If the fabric is moved faster than the sewing speed, the needle may break or other damage may result.

Memo

• When starting to sew, the internal sensor

detects the thickness of the fabric, and the quilting foot is raised to the height specified in the machine settings screen. Press

to display “FREE MOTION FOOT

HEIGHT” on P. 1 of the settings screen (see

page 16). Press or to select the height that the quilting foot is raised above

the fabric. Increase the setting by pressing

, for example, when sewing very soft

fabric, so that it is easier to sew.

Press to set the machine to free-

motion sewing mode.

→ The key appears as , and the quilting foot is

raised to the necessary height for free-motion sewing.

Select .

Follow the steps on page 37 “Removing the

Presser Foot” to remove the presser foot.

Remove the presser foot holder (see page

38) and the screw.

Position the free-motion echo quilting foot

“E” on the left side of the presser bar with the holes in the quilting foot and presser bar aligned.

Utility Stitches

• In order to sew with a balanced tension, it

may be necessary to adjust the upper thread tension (see page 50). Test with a sample piece of quilting fabric.

SEWING THE STITCHES

Tighten the screw with the included

screwdriver.

CAUTION

• Be sure to securely tighten the screws with the

included screwdriver. Otherwise, the needle may touch the quilting foot, causing it to bend or break.

Finished project

Press to cancel the free-motion sewing

mode.

Using the measurement on the quilting foot

as a guide, sew around the motif.

a 6.4 mm (approx. 1/4 inch)
