Baby Lock BL200A User Manual

CONGRATULATIONS ON CHOOSING

OUR MACHINE

Your machine is the most advanced computerized household sewing machine. To fully enjoy all the features incorporated, we suggest that you study the manual.

PLEASE READ BEFORE USING THIS MACHINE

For safe operation

1. Be sure to keep your eye on the needle while sewing. Do not touch the handwheel, thread takeup lever, needle, or other moving parts.

2. Remember to turn off the power switch and unplug the cord when:

• Operation is completed

• Replacing or removing the needle or any other parts

• A power failure occurs during use

• Maintaining the machine

• Leaving the machine unattended.

3. Do not store anything on the foot controller.

4. Plug the machine directly into the wall. Do not use extension cords.

For a longer service life

1. When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine near a space heater, iron, halogen lamp, or other hot objects.

2. Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage the case and machine, and should never be used.

3. Do not drop or hit the machine.

4. Always consult the operation manual when replacing or installing any assemblies, the presser feet, needle, or other parts to assure correct installation.

For repair or adjustment

In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of the operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your local authorized Baby Lock retailer.

The contents of this manual and specifications of this product are subject to change without notice.

For additional product information and updates, visit our web site at www.babylock.com

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

IMPORTANT SAFETY INSTRUCTIONS

Please read these safety instructions before attempting to use the machine.

DANGER - To reduce the risk of electric shock:

1Always unplug the machine from the electrical outlet immediately after using, when cleaning,

when making any user servicing adjustments mentioned in this manual, or if you are leaving the

machine unattended.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons.

2Always unplug the machine from the electrical outlet when removing covers, lubricating, or

when making any adjustments mentioned in the instruction manual:

• To unplug the machine, switch the machine to the symbol “O” position to turn it off, then grasp

the plug and pull it out of the electrical outlet. Do not pull on the cord.

• Plug the machine directly into the electrical outlet. Do not use an extension cord.

• Always unplug your machine if the power is cut.

3 Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has

been dropped or damaged, or water is spilled on the unit. Return the machine to the nearest

authorized retailer or service center for examination, repair, electrical or mechanical adjustment.

While the machine is stored or in use if you notice anything unusual, such an odor, heat,

discoloration or deformation, stop using the machine and immediately unplug the power cord.

4 Always keep your work area clear:

• Never operate the machine with any air openings blocked. Keep ventilation openings of the

sewing machine and foot control free from the build up of lint, dust, and loose cloth.

• Do not store objects on the foot controller.

• Do not use extension cords. Plug the machine directly into the electrical outlet.

• Never drop or insert any object into any opening.

• Do not operate where aerosol (spray) products are being used or where oxygen is being

administered.

• Do not use the machine near a heat source, such as a stove or iron; otherwise, the machine,

power cord or garment being sewn may ignite, resulting in fire or an electric shock.

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

5 Special care is required when sewing:

• Always pay close attention to the needle. Do not use bent or damaged needles.

• Keep fingers away from all moving parts. Special care is required around the machine needle.

• Switch the sewing machine to the symbol “O” position to turn it off when making any adjustments

in the needle area.

• Do not use a damaged or incorrect needle plate, as it could cause the needle to break.

• Do not push or pull the fabric when sewing, and follow careful instruction when freehand stitching

so that you do not deflect the needle and cause it to break.

6 This machine is not a toy:

• Your close attention is necessary when the machine is used by or near children.

• Do not use outdoors.

7 For a longer service life:

• When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store

the machine near a space heater, iron, halogen lamp, or other hot objects.

• Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders

can damage the case and machine, and should never be used.

• Always consult the operation manual when replacing or installing any assemblies, the presser feet,

needle, or other parts to assure correct installation.

8 For repair or adjustment:

• If the Light unit (light-emitting diode) is damaged, it must be replaced by authorized retailer.

• In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table

in the back of the operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your local authorized Baby Lock retailer.

Use this machine only for its intended use as described in this manual. Use accessories recommended by the manufacturer as contained in this manual. The contents of this manual and specifications of this product are subject to change without notice. For additional product information, visit our web site at www.babylock.com

SAVE THESE INSTRUCTIONS

This machine is intended for household use.

FOR USERS IN AC INPUT 220-240V

COUNTRIES AND MEXICO

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Contents

IMPORTANT SAFETY INSTRUCTIONS ...............................................................................1

Introduction ........................................................................................................................ 6

Sewing Machine Features .................................................................................................... 6

Accessories ..........................................................................................................................7

Included accessories .........................................................................................................................................7

Optional accessories......................................................................................................................................... 8

Names of Machine Parts and Their Functions ..................................................................... 9

Front view.........................................................................................................................................................9

Needle and presser foot section ..................................................................................................................... 10

Right-side/rear view ........................................................................................................................................10

Operation buttons...........................................................................................................................................11

Operation panel..............................................................................................................................................12

GETTING READY 13

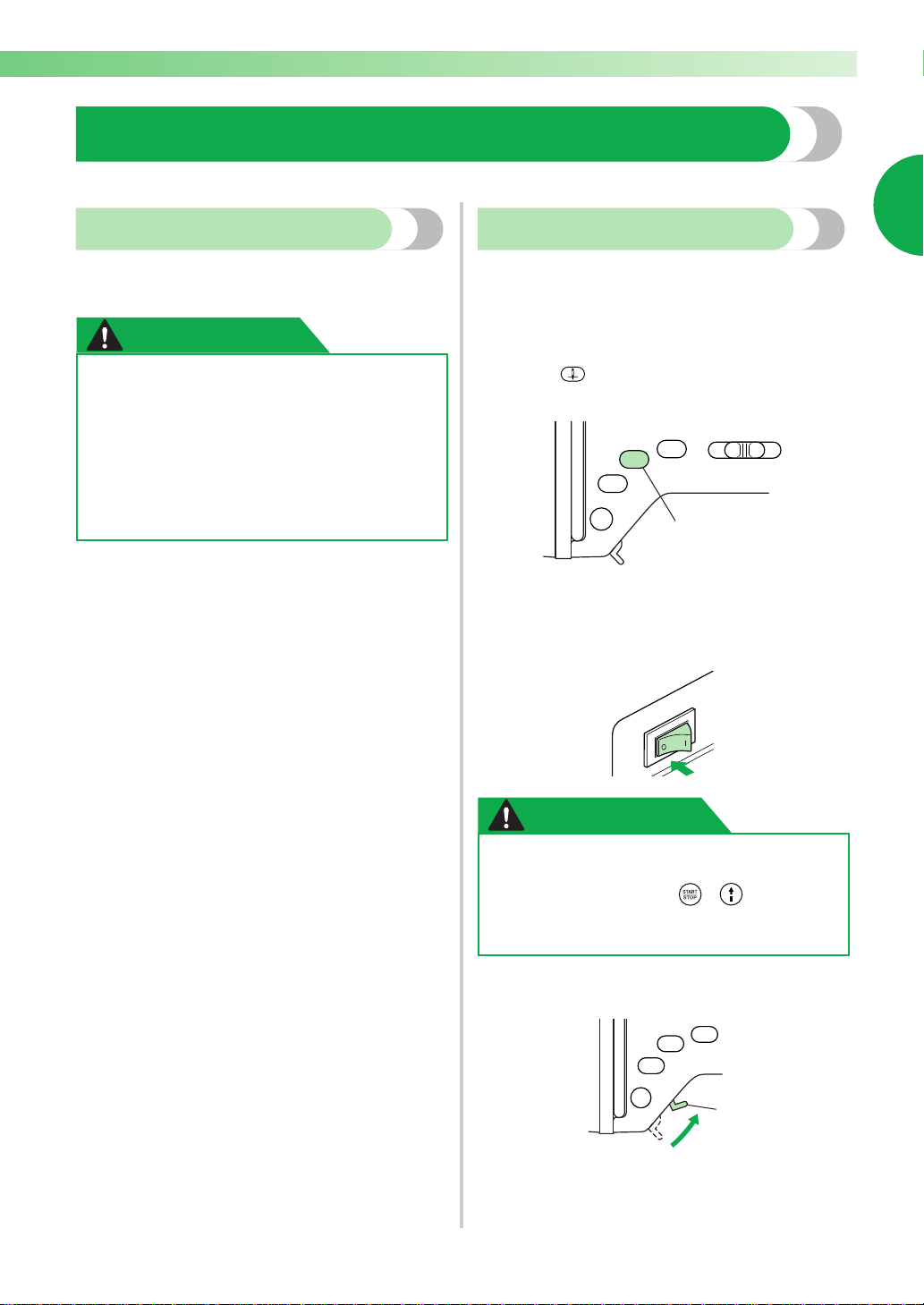

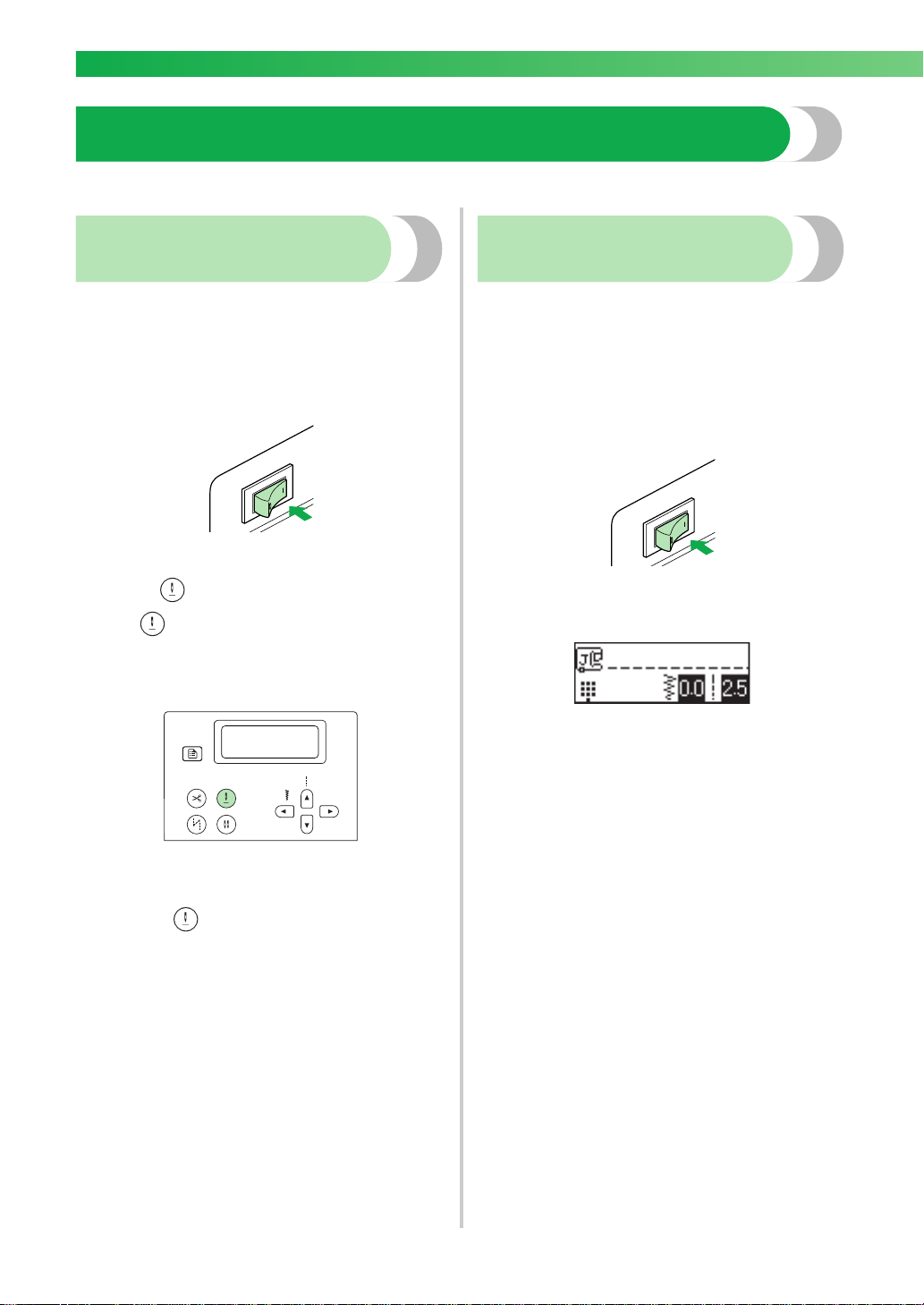

Turning the Machine On/Off............................................................................................. 14

Power supply precautions ...............................................................................................................................14

Turning on the machine.................................................................................................................................. 15

Turning off the machine..................................................................................................................................15

Understanding the LCD Screens........................................................................................ 16

Changing the Machine Settings .........................................................................................17

Changing the settings ......................................................................................................................................17

Adjusting the brightness of the LCD ............................................................................................................... 19

Changing the screen language......................................................................................................................... 19

Winding/Installing the Bobbin...........................................................................................20

Bobbin precautions ......................................................................................................................................... 20

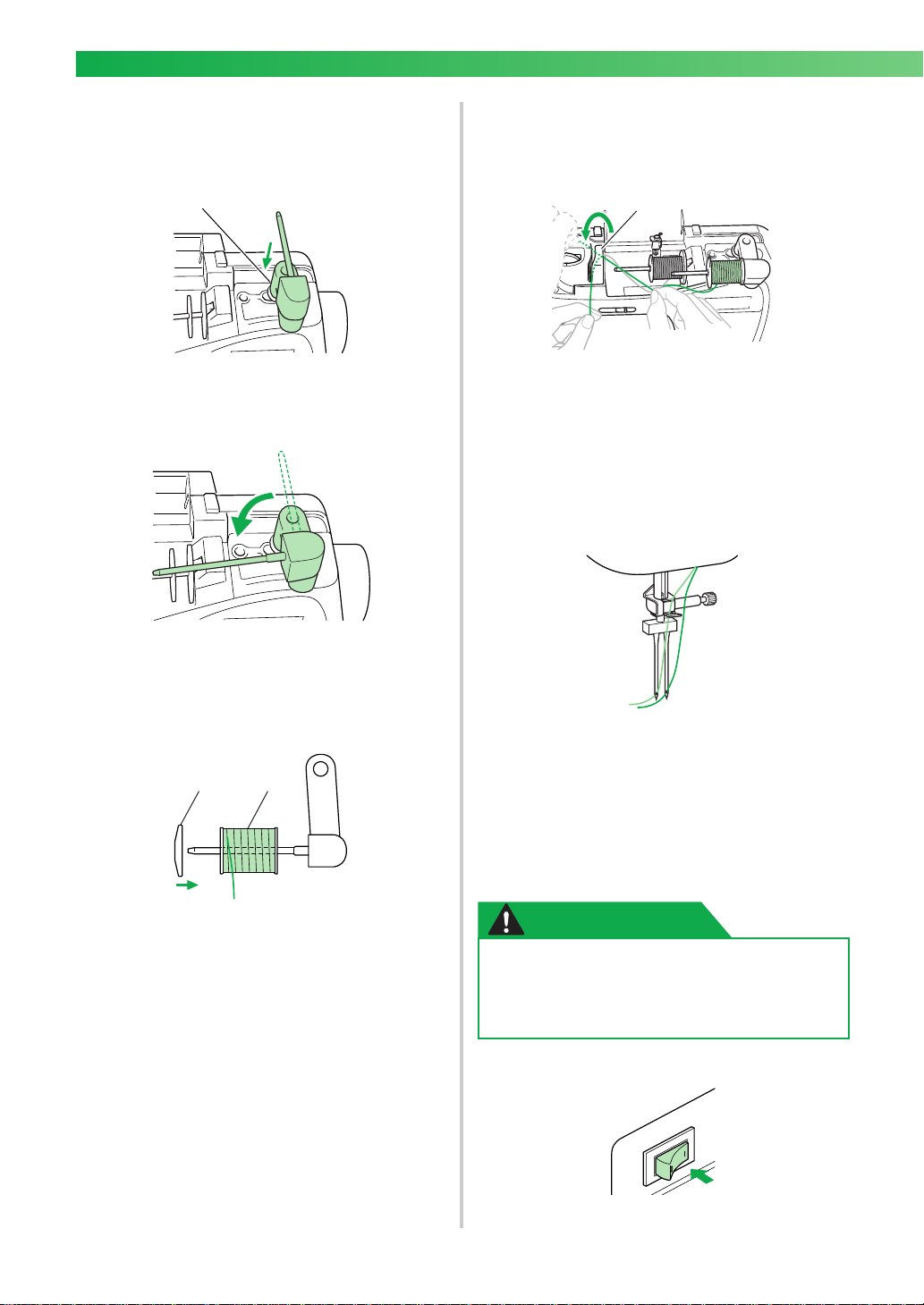

Winding the bobbin ........................................................................................................................................20

Installing the bobbin .......................................................................................................................................24

Upper Threading ............................................................................................................... 26

Threading the upper thread .............................................................................................................................26

Threading the needle ...................................................................................................................................... 29

Threading the needle manually (without using the needle threader) ...............................................................31

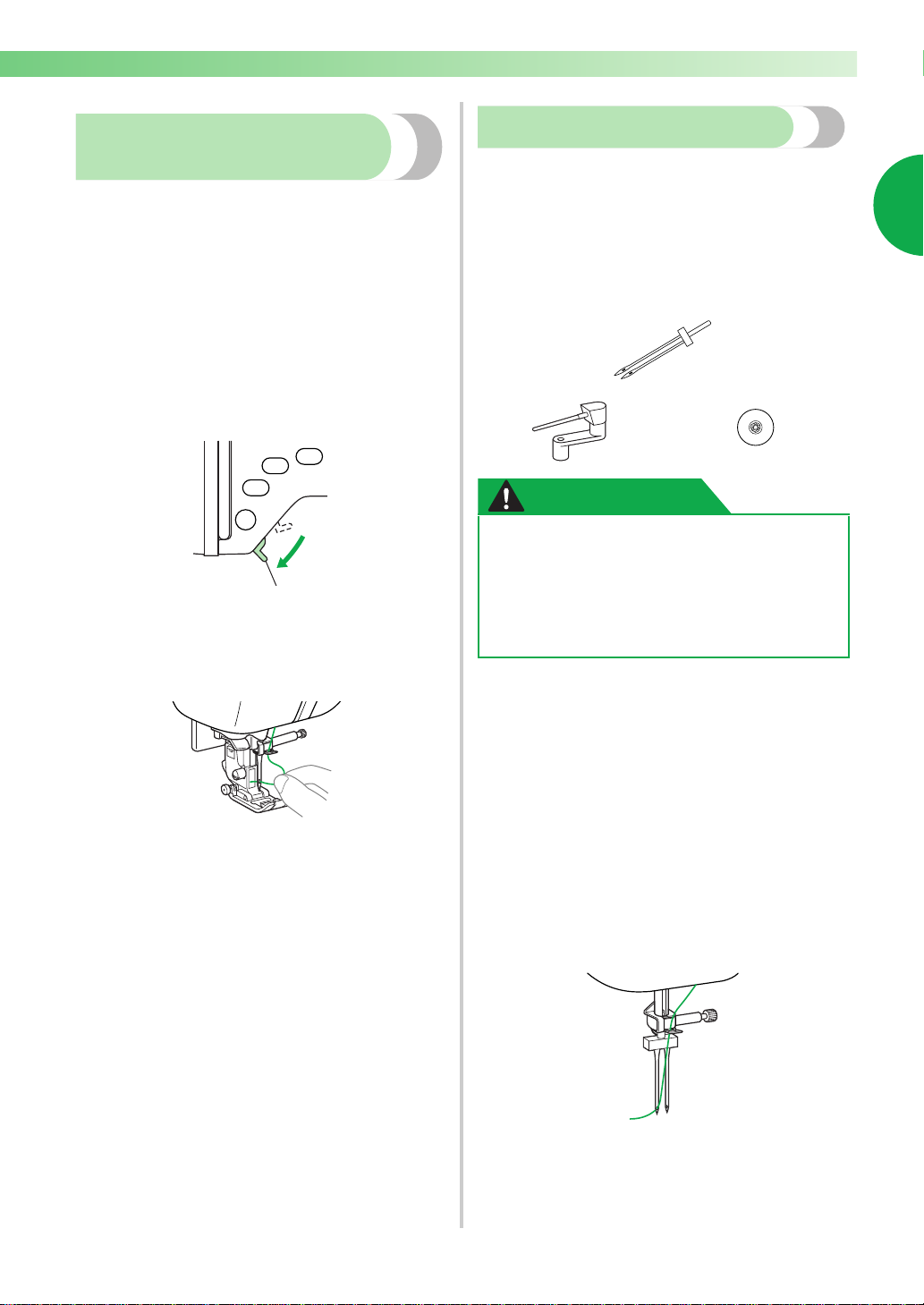

Using the twin needle ..................................................................................................................................... 31

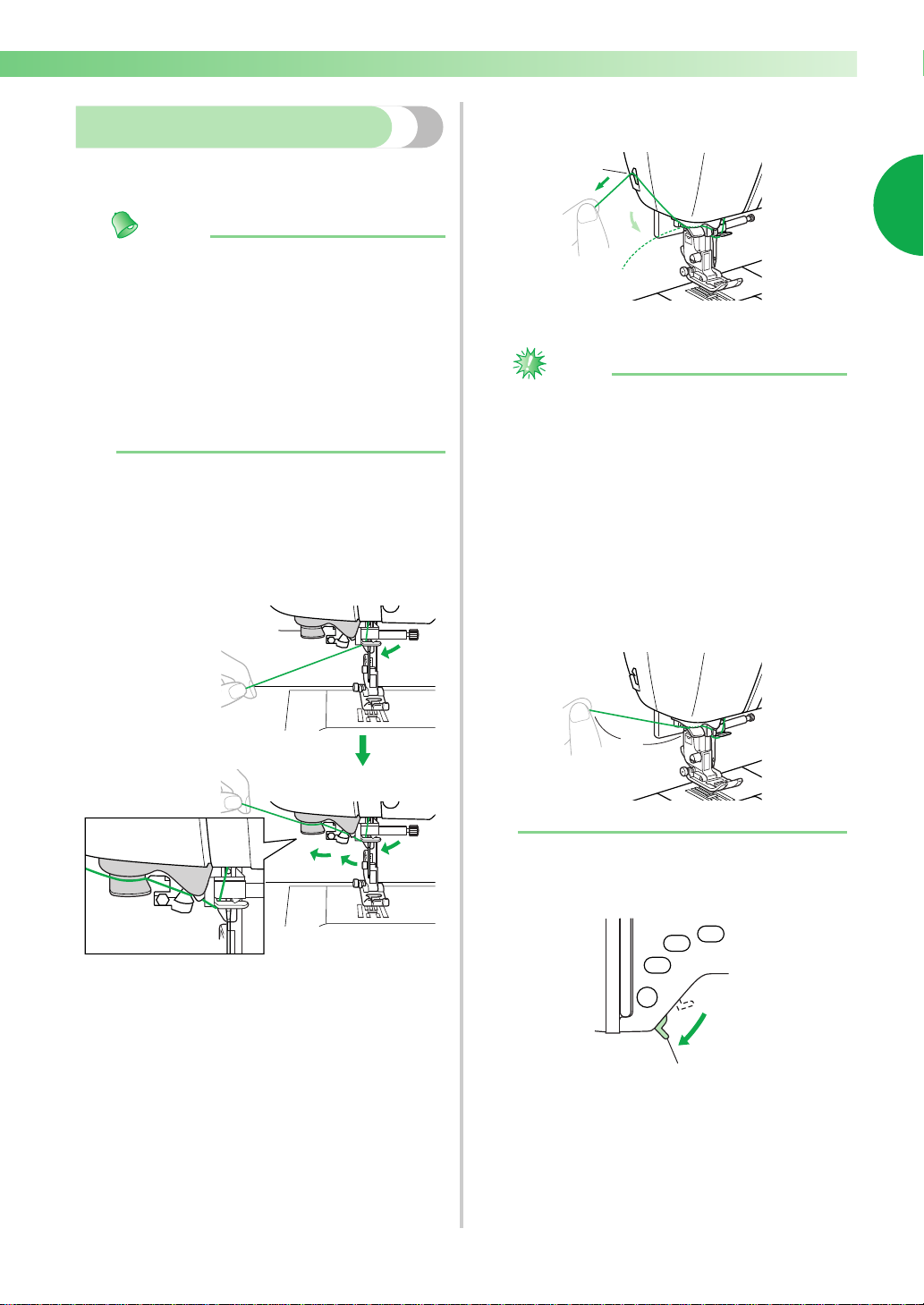

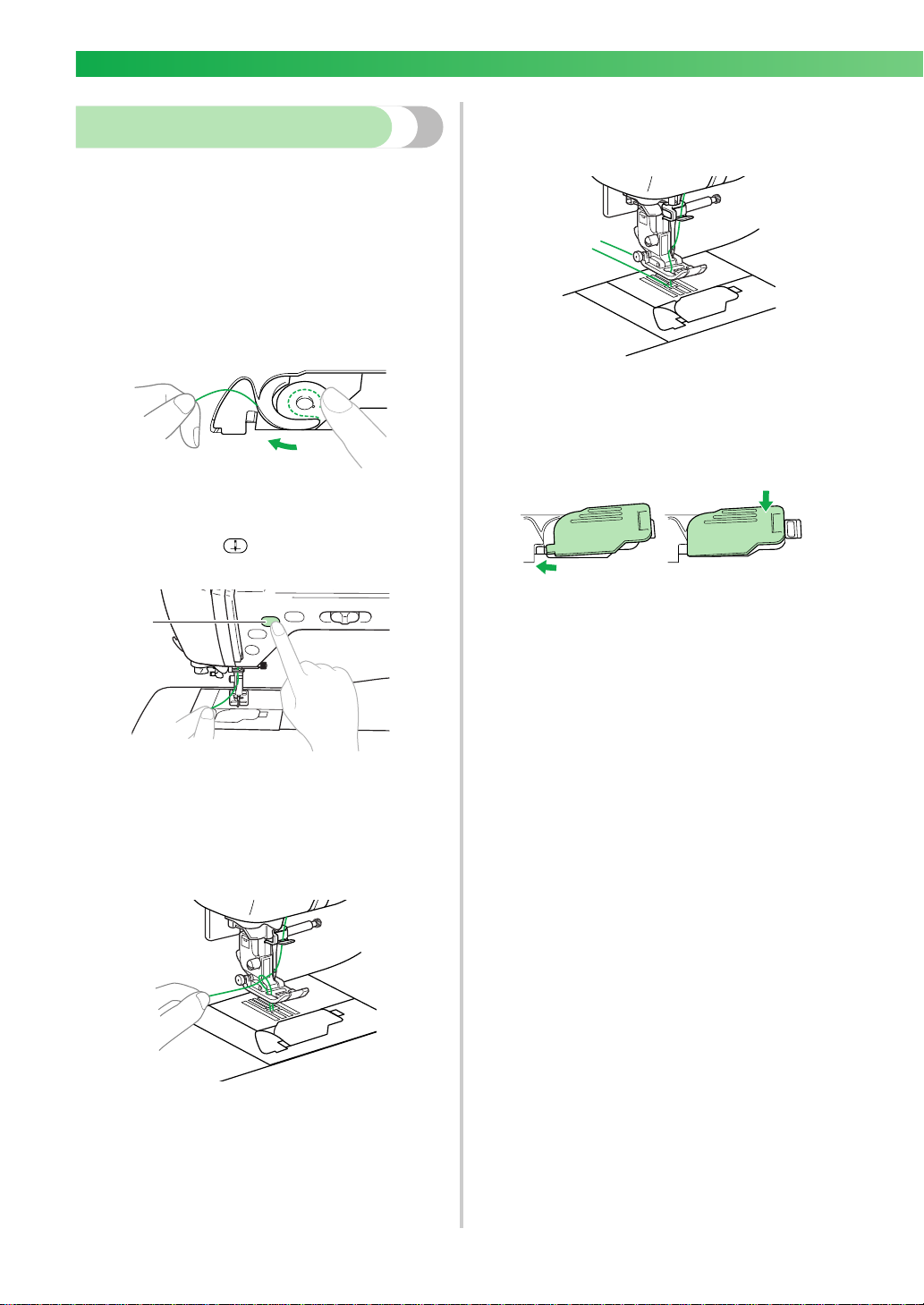

Pulling up the bobbin thread........................................................................................................................... 34

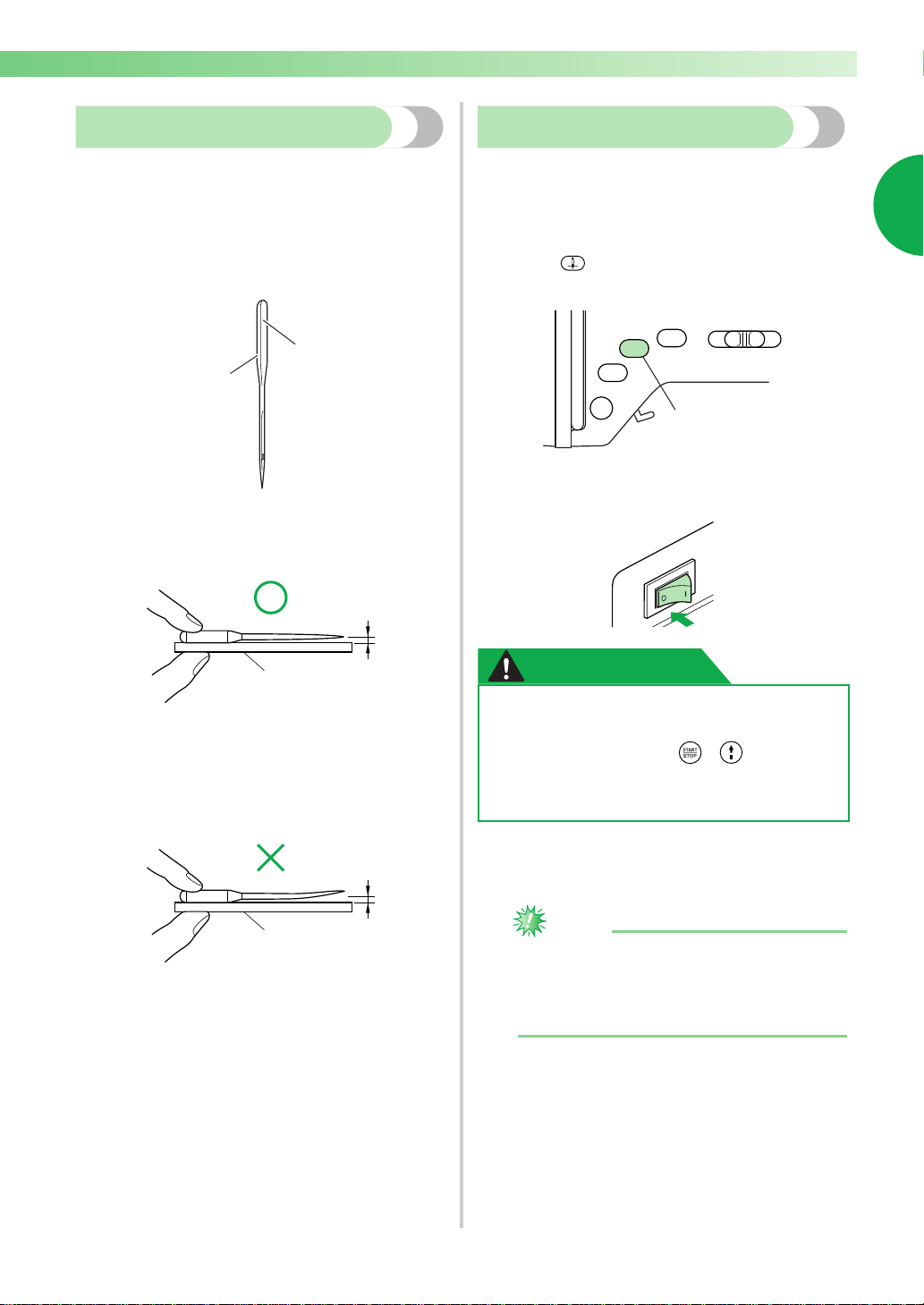

Replacing the Needle ........................................................................................................35

Needle precautions.........................................................................................................................................35

Needle types and their uses............................................................................................................................. 36

Checking the needle .......................................................................................................................................37

Replacing the needle.......................................................................................................................................37

Replacing the Presser Foot ................................................................................................39

Presser foot precautions .................................................................................................................................. 39

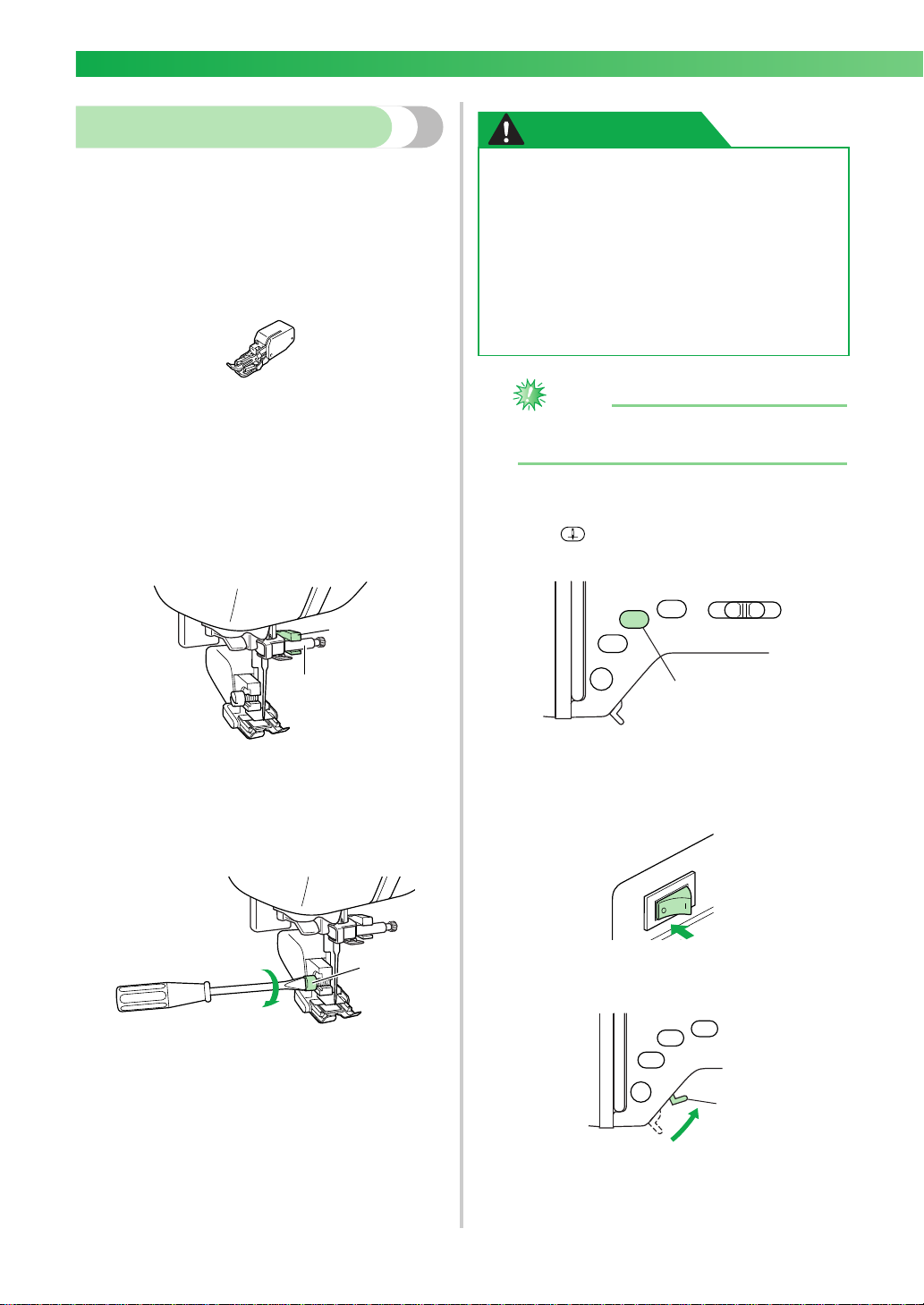

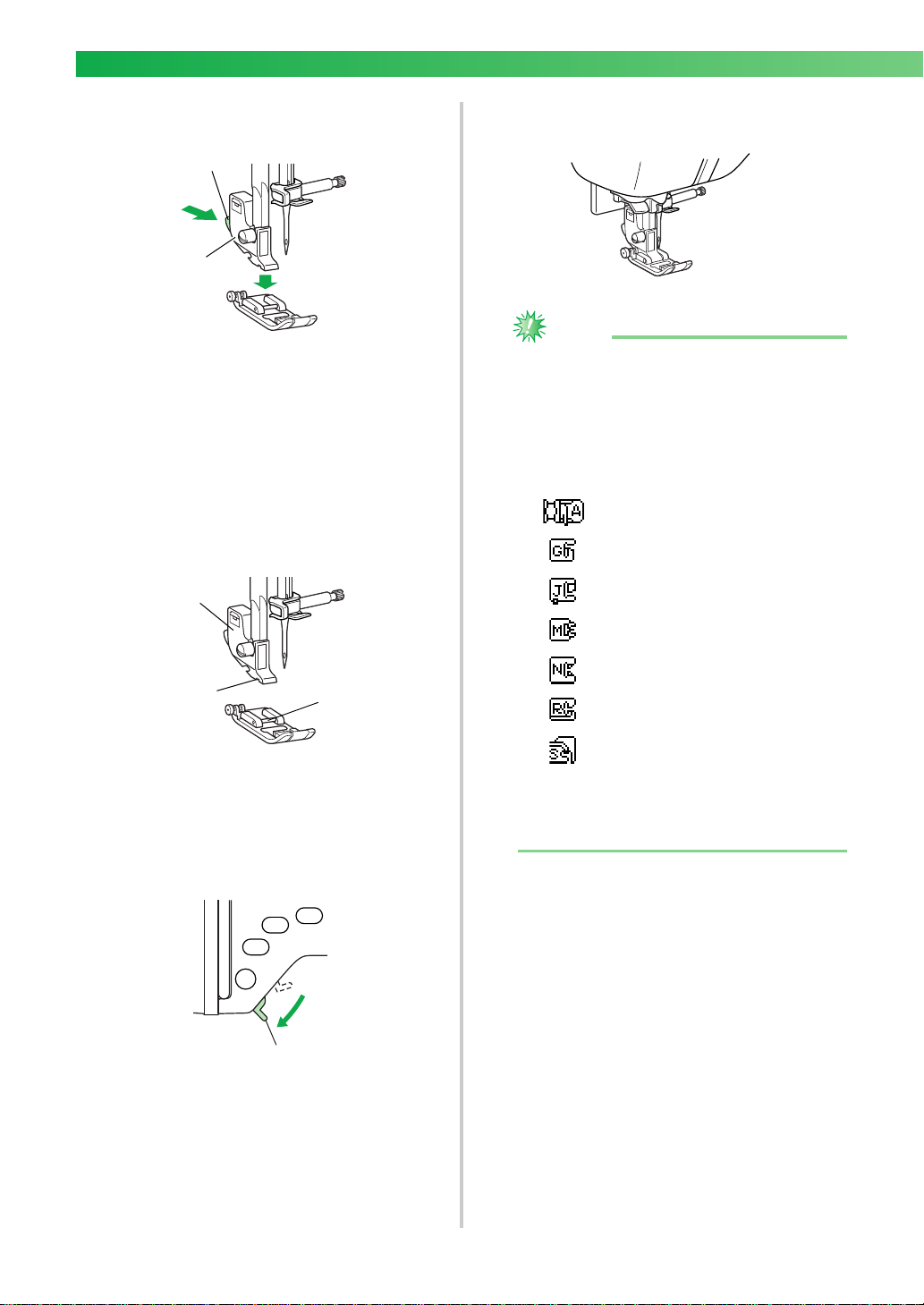

Replacing the presser foot ............................................................................................................................... 39

Adjusting the pressure of the presser foot ....................................................................................................... 41

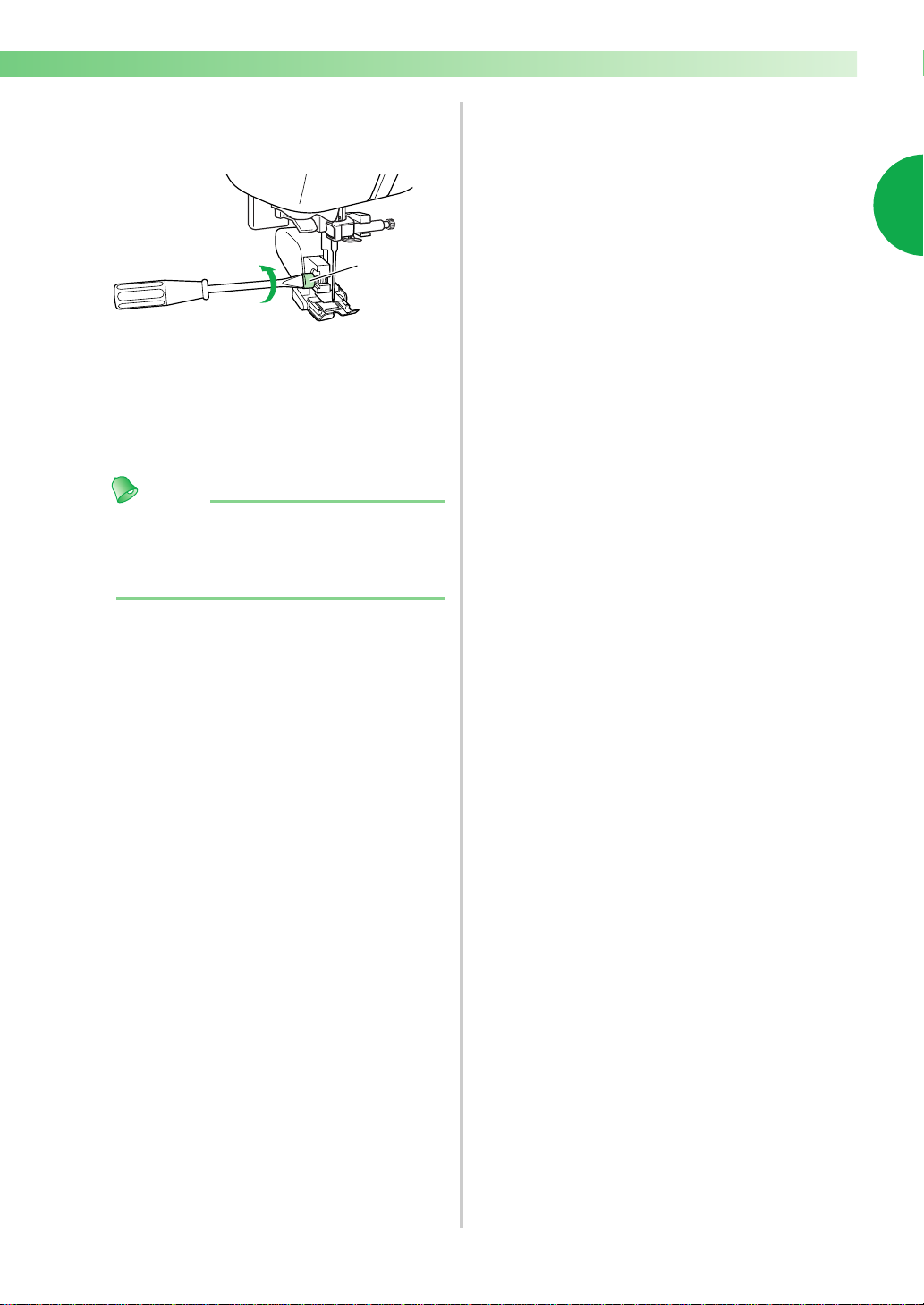

Removing the presser foot holder ................................................................................................................... 41

Using the walking foot .................................................................................................................................... 42

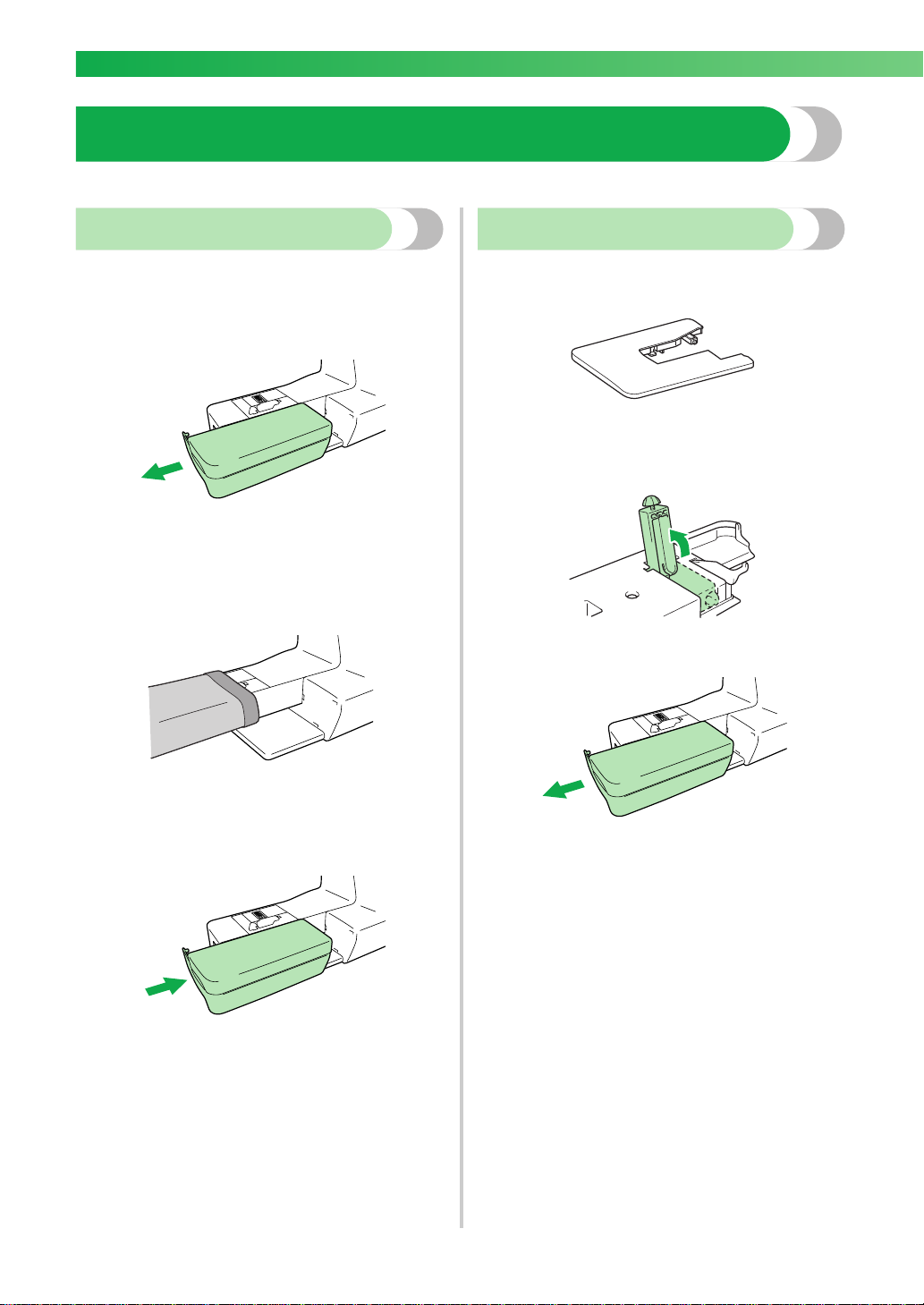

Sewing Cylindrical or Large Pieces.................................................................................... 44

Stitching cylindrical pieces.............................................................................................................................. 44

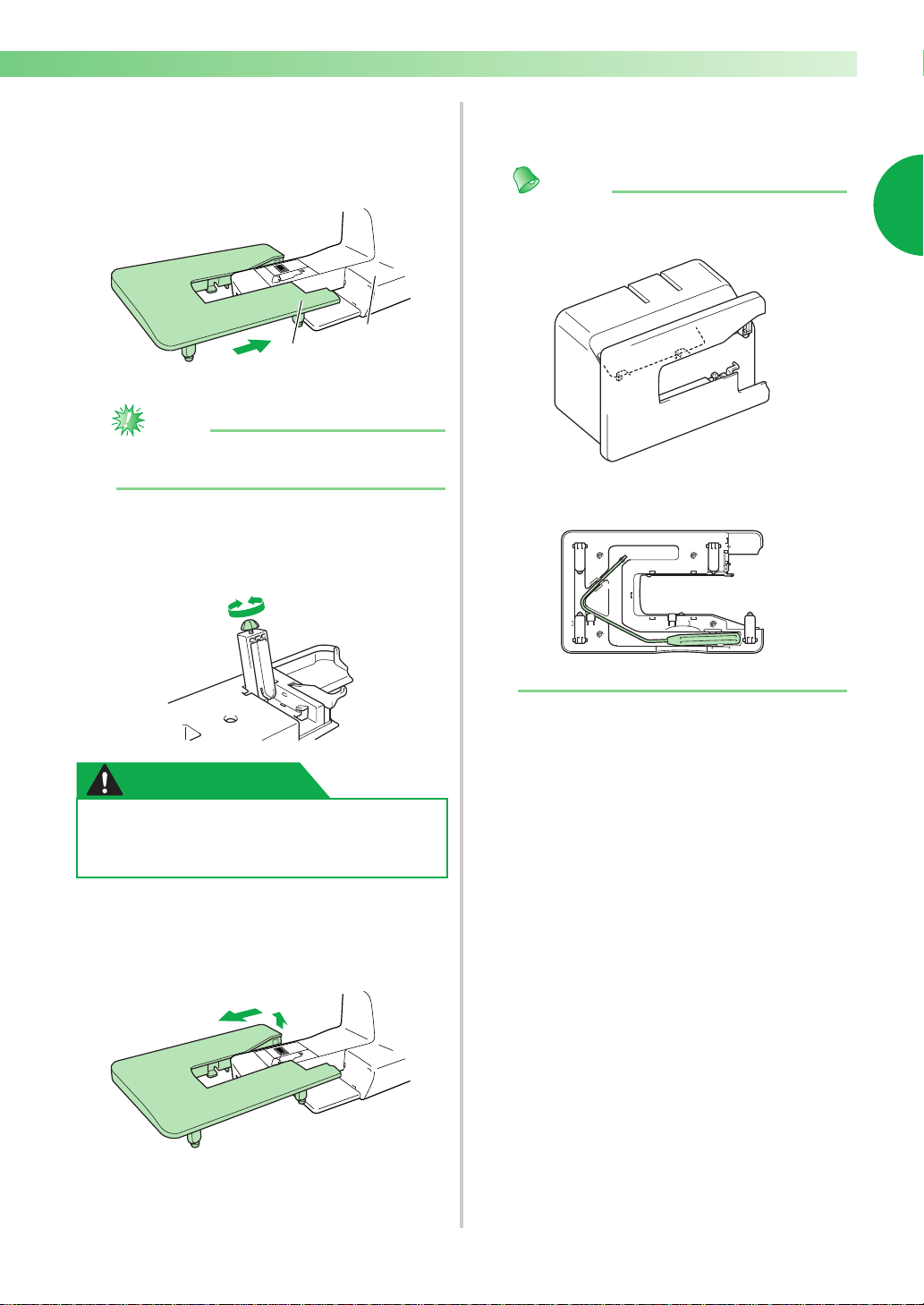

Sewing large pieces of fabric ........................................................................................................................... 44

SEWING BASICS 47

Sewing...............................................................................................................................48

General sewing procedure .............................................................................................................................. 48

Positioning the fabric ......................................................................................................................................49

Starting to sew.................................................................................................................................................50

Securing the stitching......................................................................................................................................52

Cutting the thread ...........................................................................................................................................53

Adjusting the Thread Tension ............................................................................................ 55

Changing the tension of the upper thread ....................................................................................................... 55

Adjusting the Stitch Width and Length .............................................................................. 56

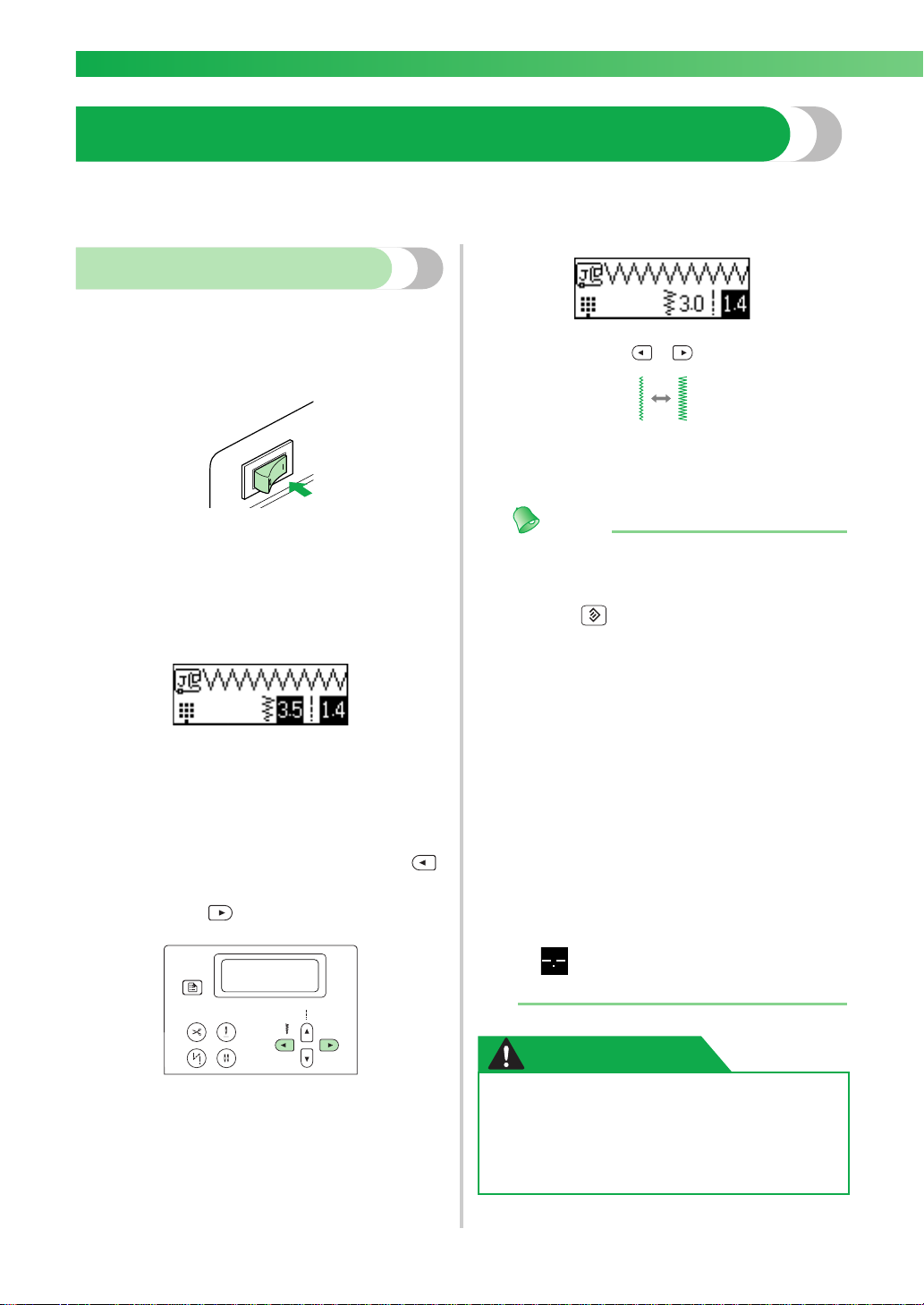

Adjusting the stitch width ................................................................................................................................ 56

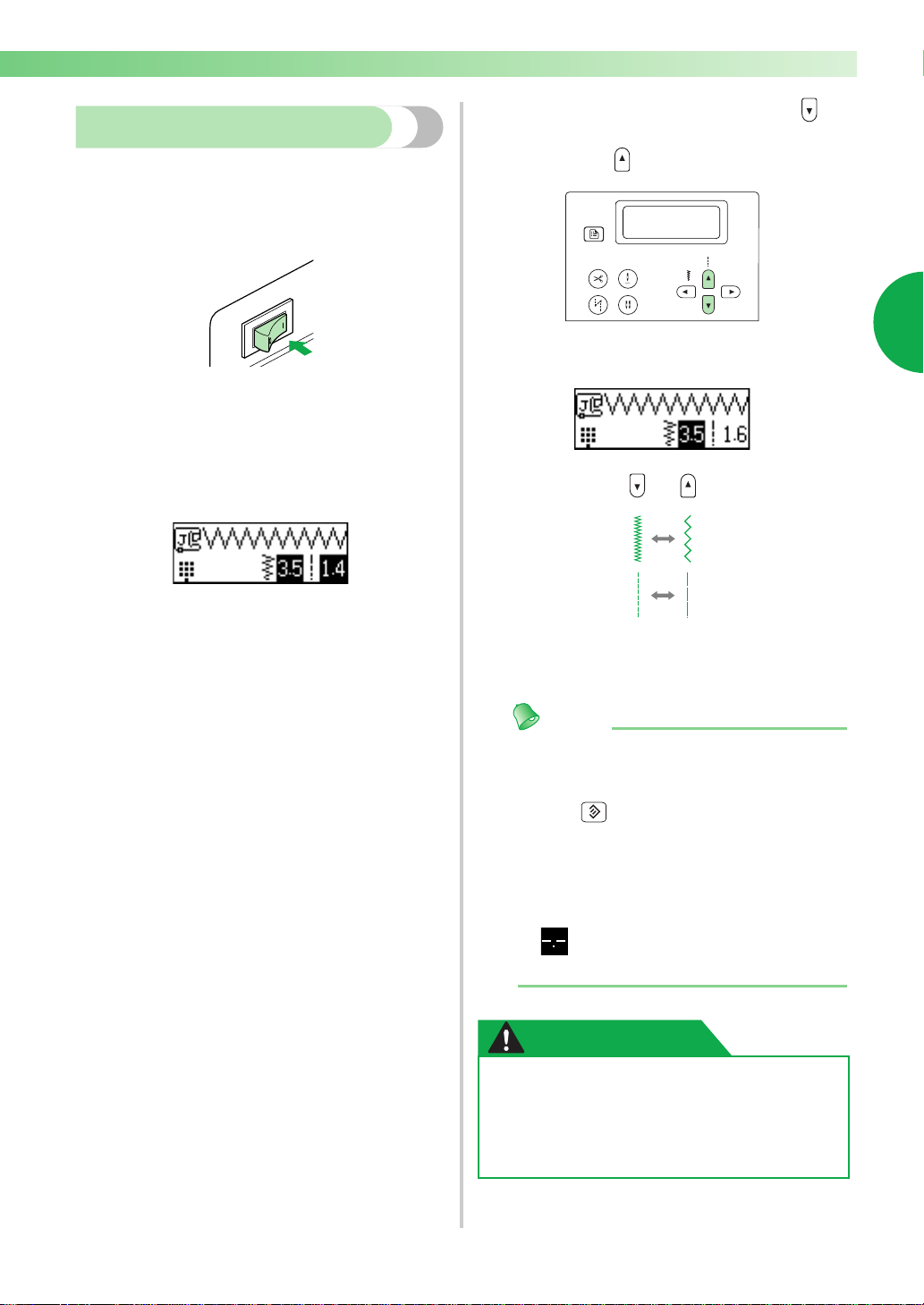

Adjusting the stitch length ............................................................................................................................... 57

Useful Functions................................................................................................................58

Changing the needle stop position .................................................................................................................58

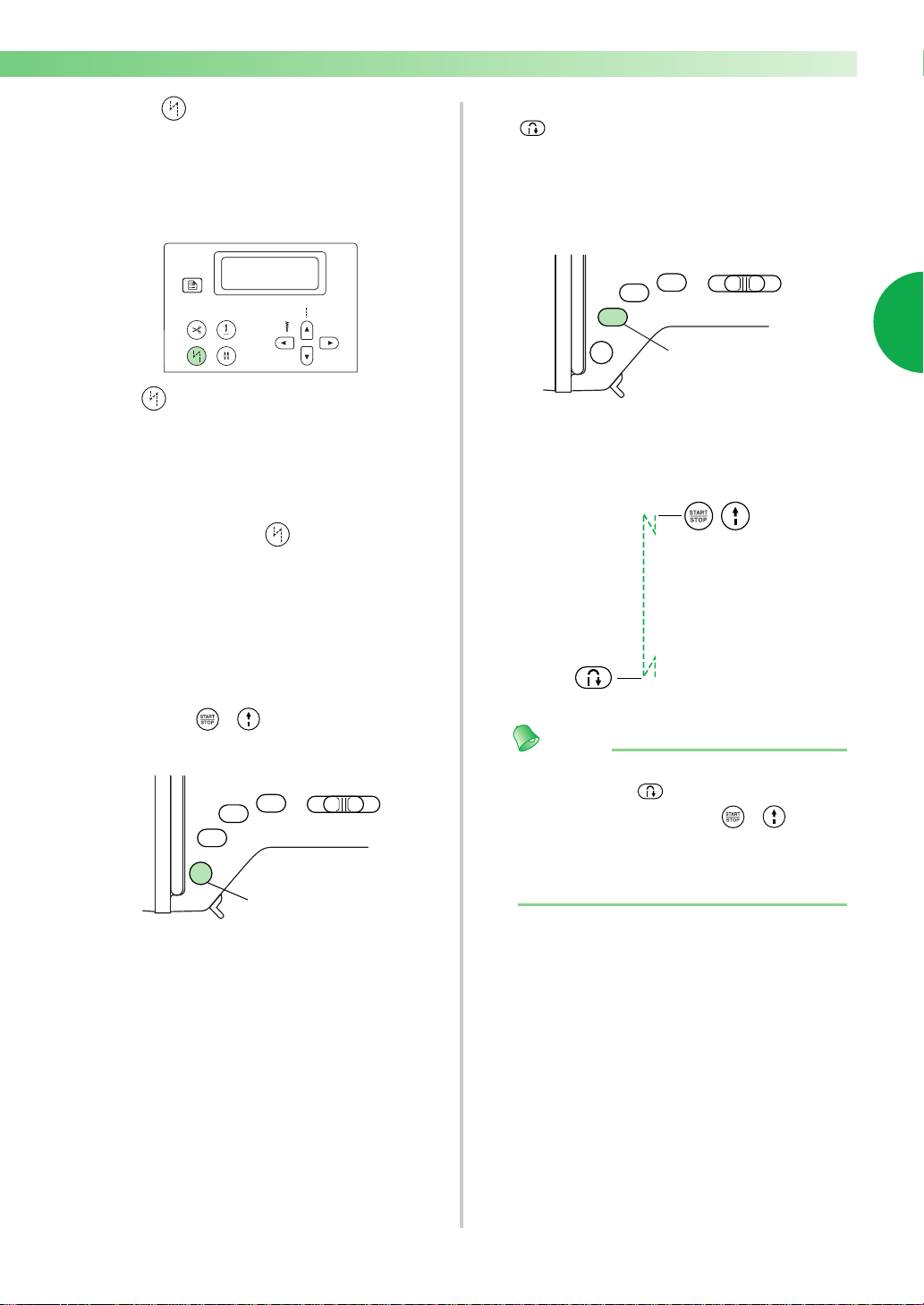

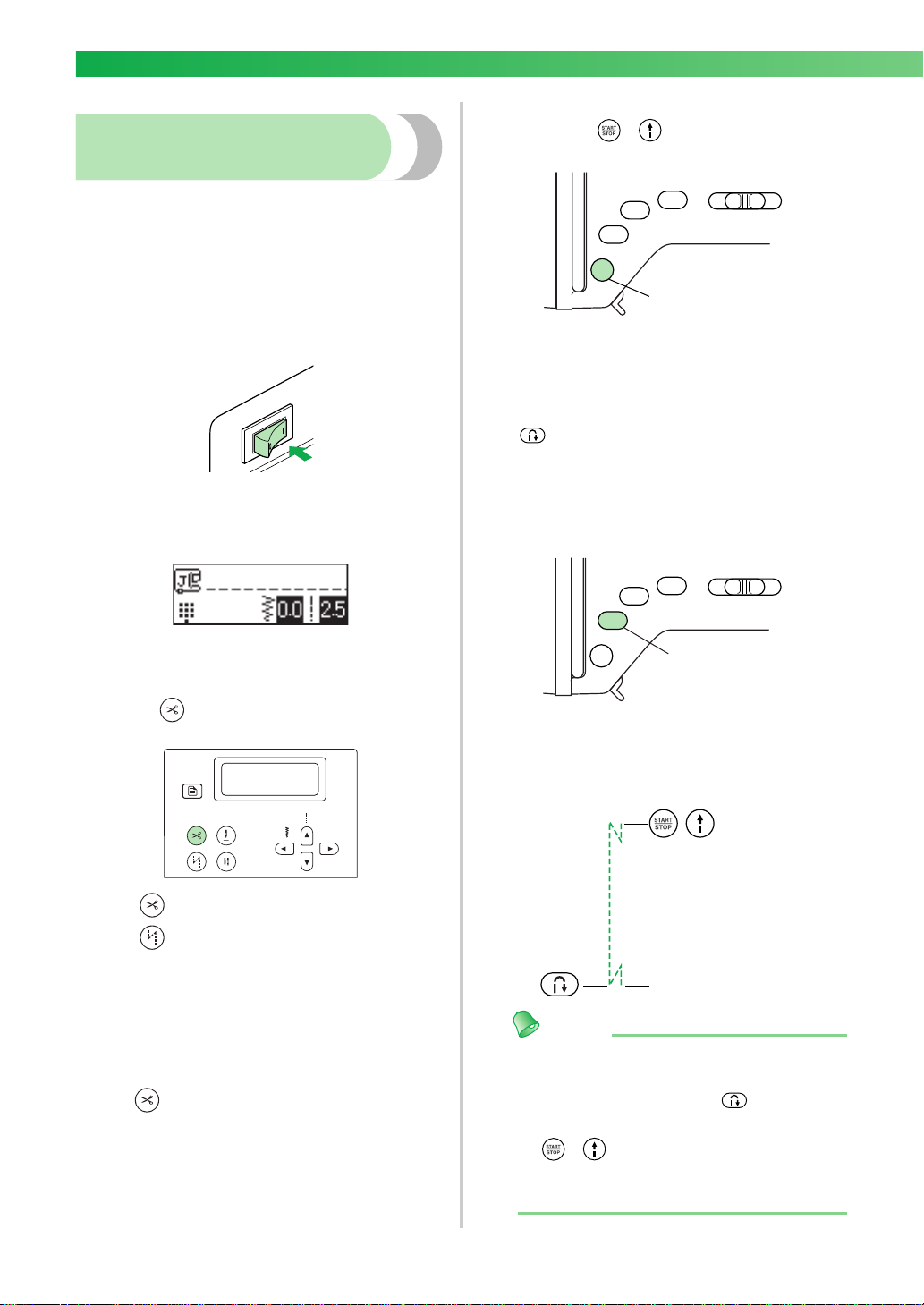

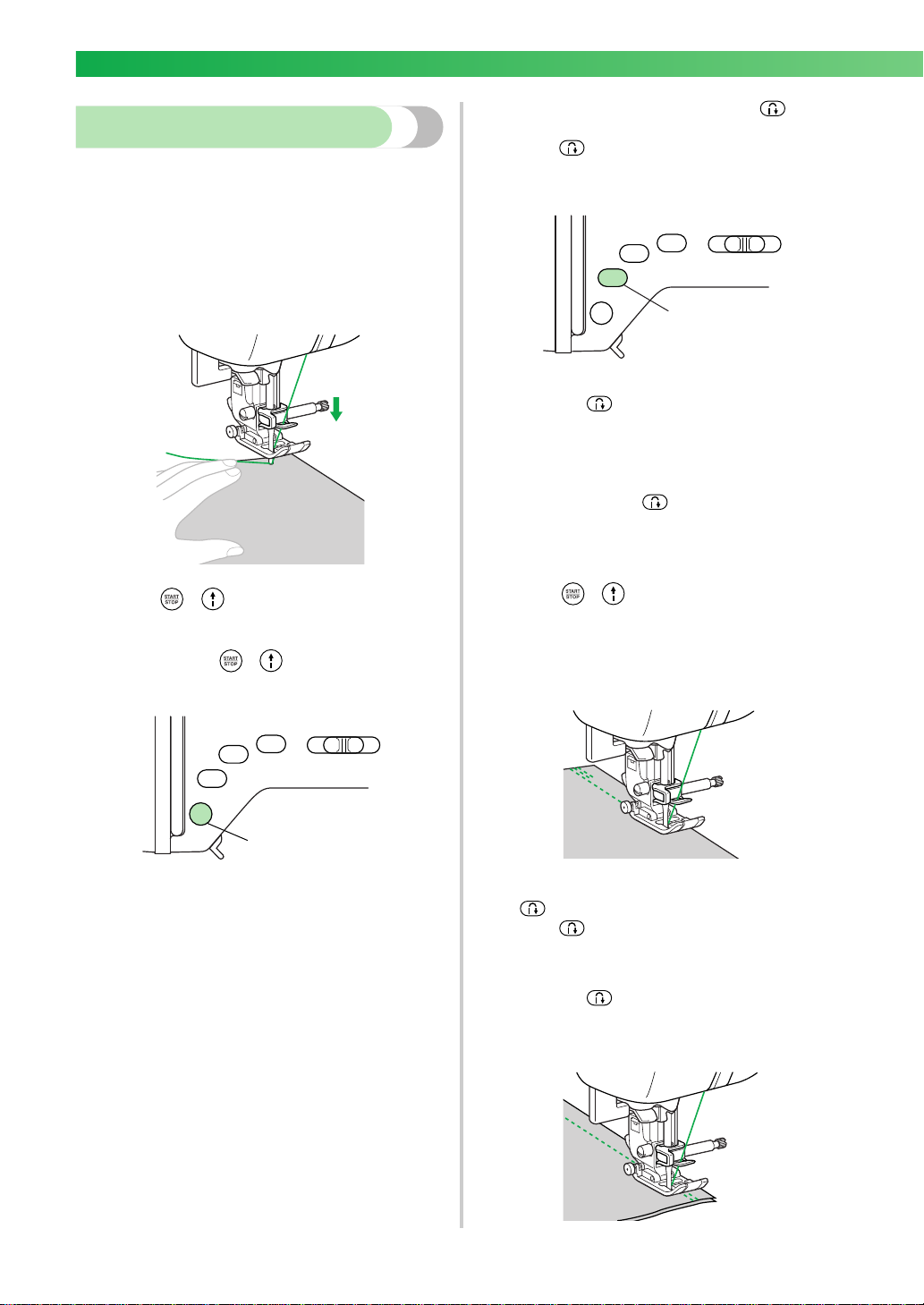

Automatically sewing reverse/reinforcement stitches...................................................................................... 58

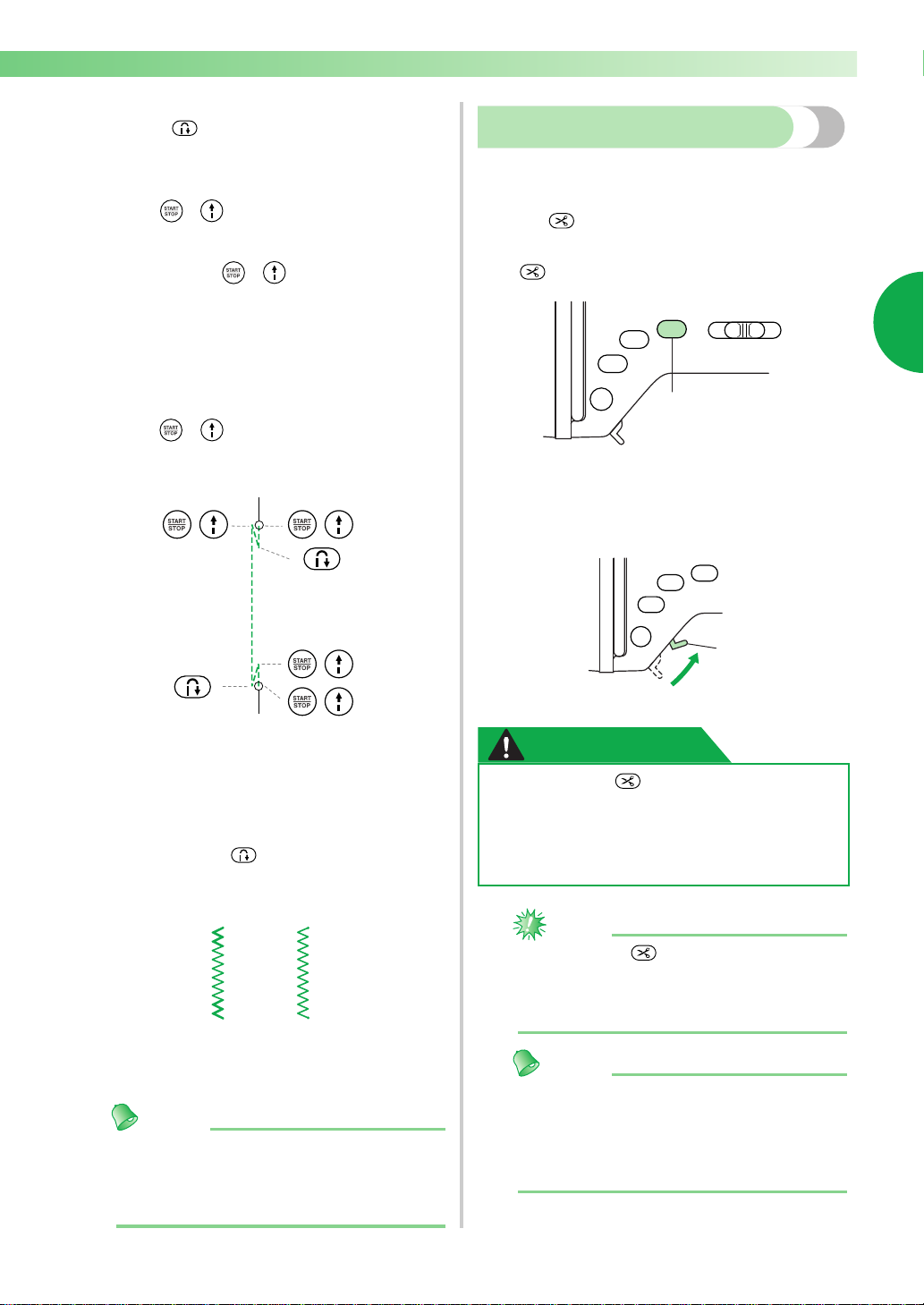

Automatically cutting the thread .................................................................................................................... 60

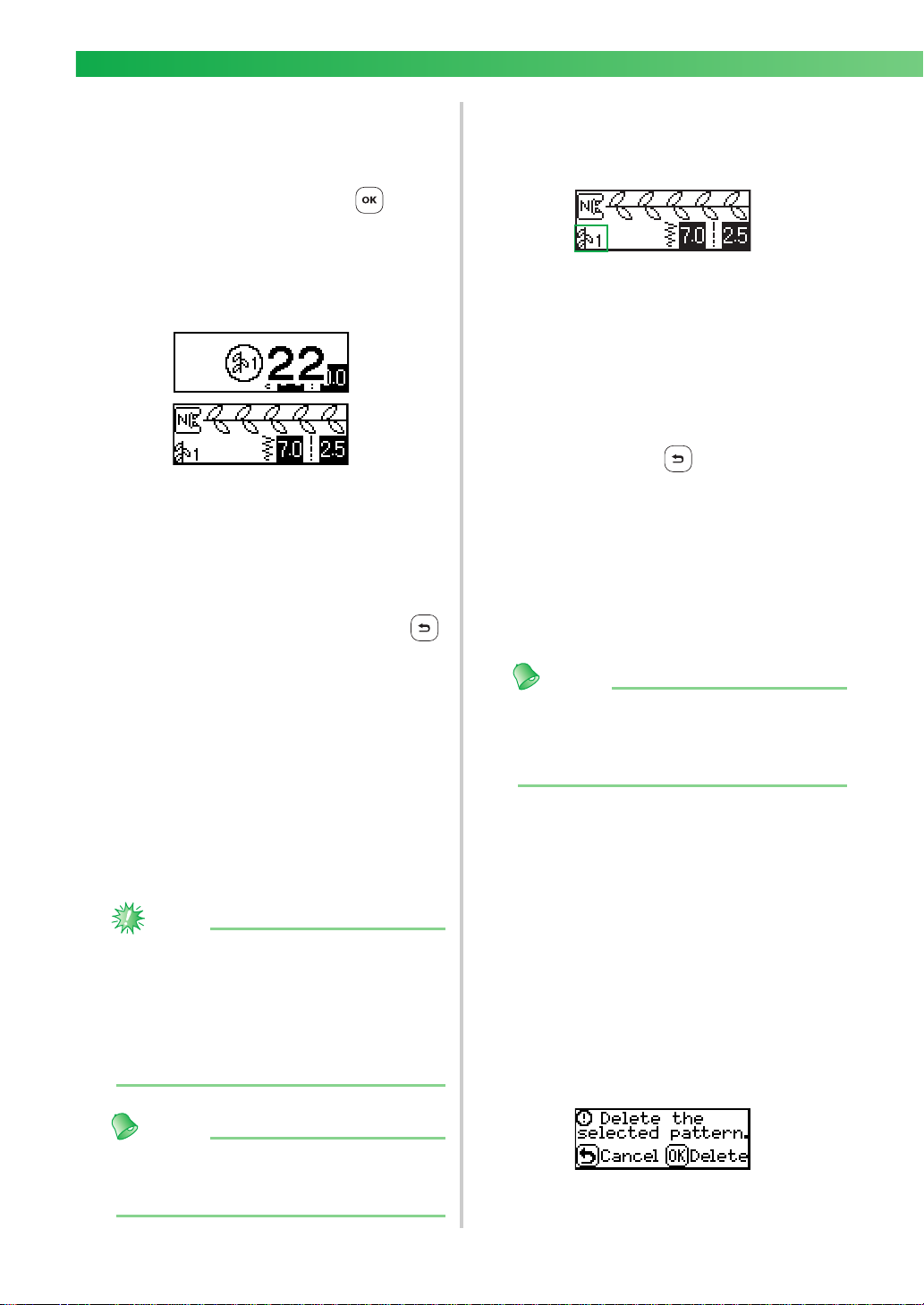

Saving stitch settings .......................................................................................................................................61

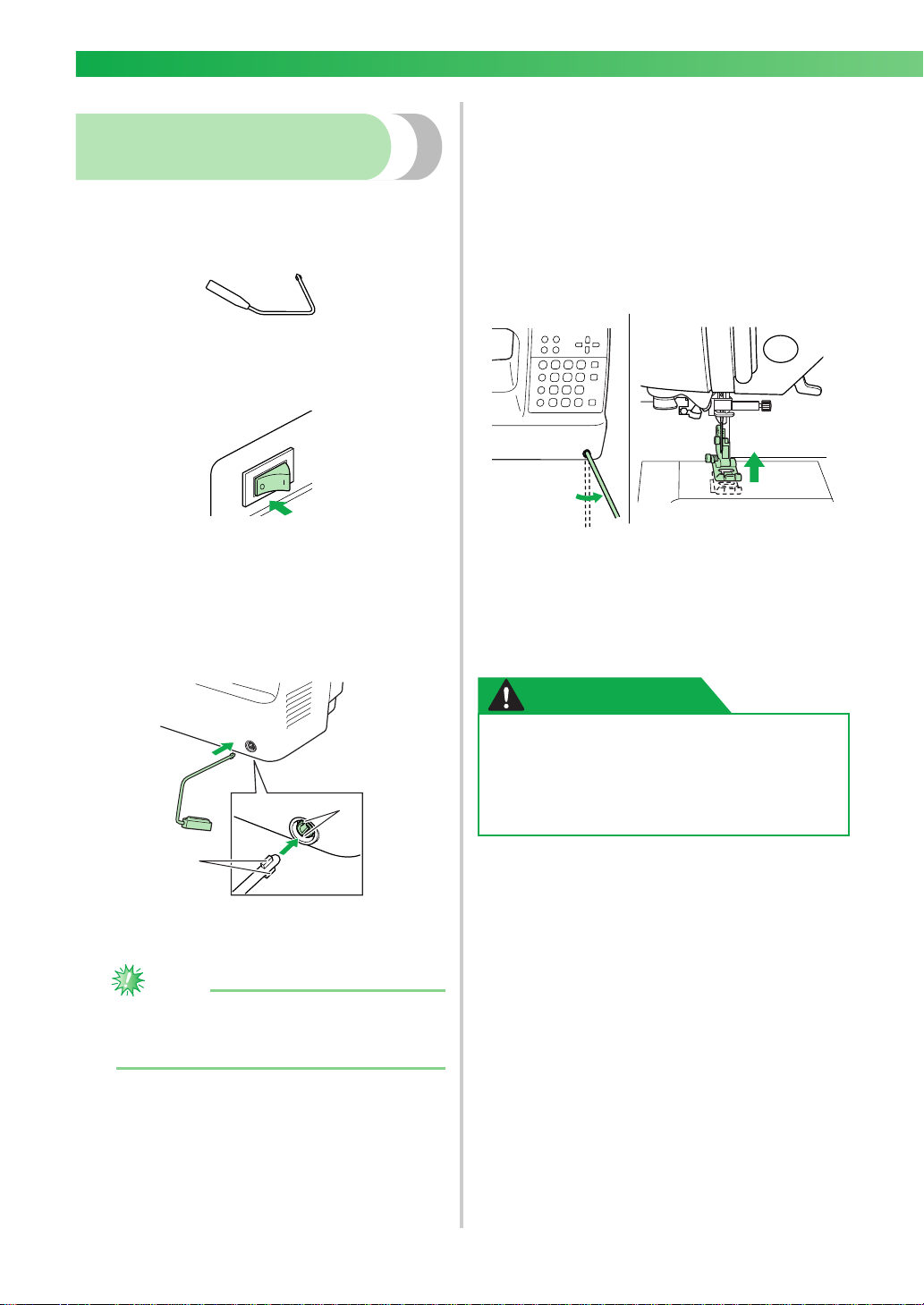

Hands-free raising and lowering of the presser foot ........................................................................................62

Useful Sewing Tips ............................................................................................................ 63

Trial sewing ....................................................................................................................................................63

Changing the sewing direction ........................................................................................................................63

Sewing curves.................................................................................................................................................63

Sewing thick fabrics ........................................................................................................................................ 64

Sewing thin fabrics..........................................................................................................................................64

Sewing stretch fabrics......................................................................................................................................64

Sewing leathers or vinyl fabrics ......................................................................................................................65

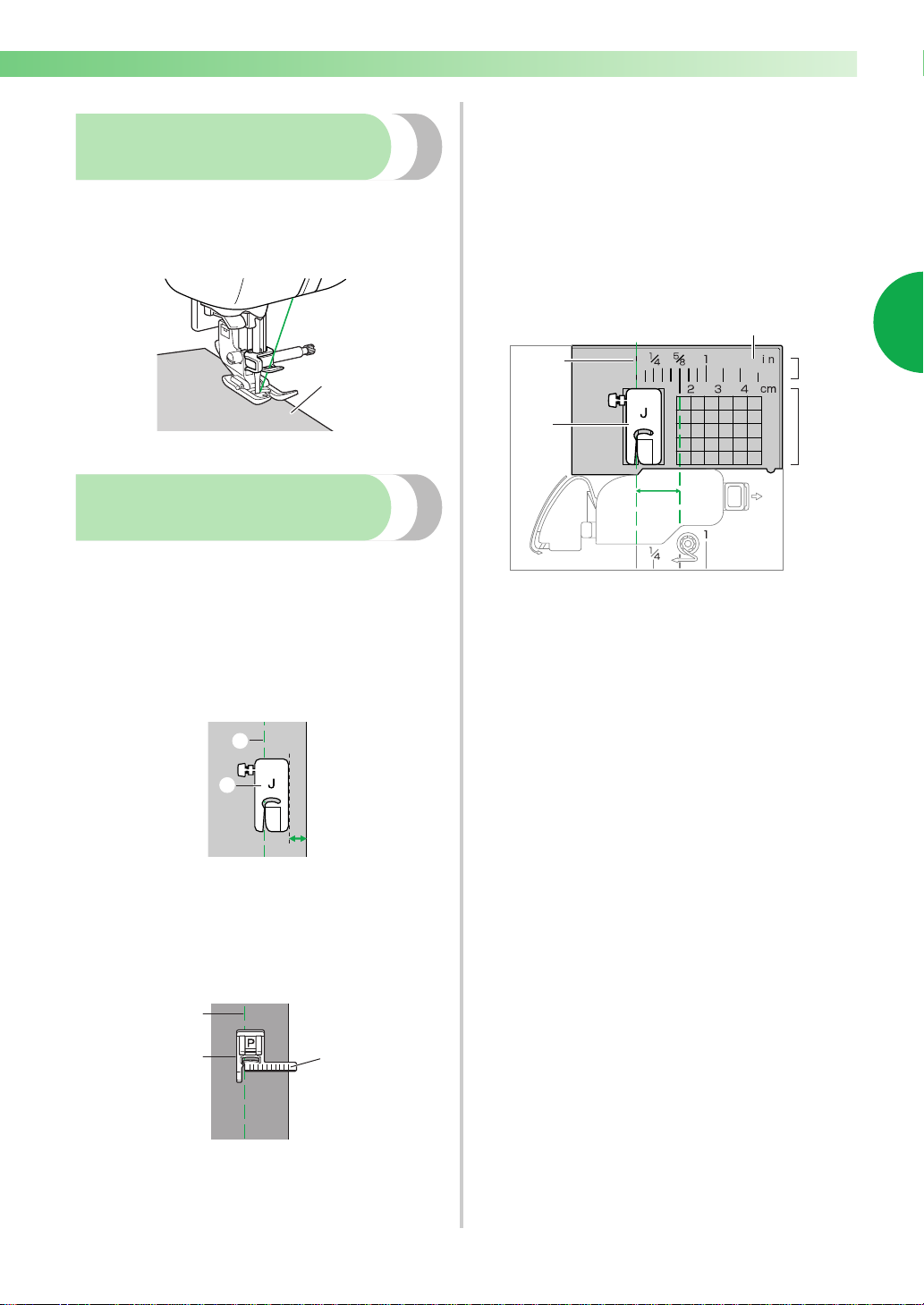

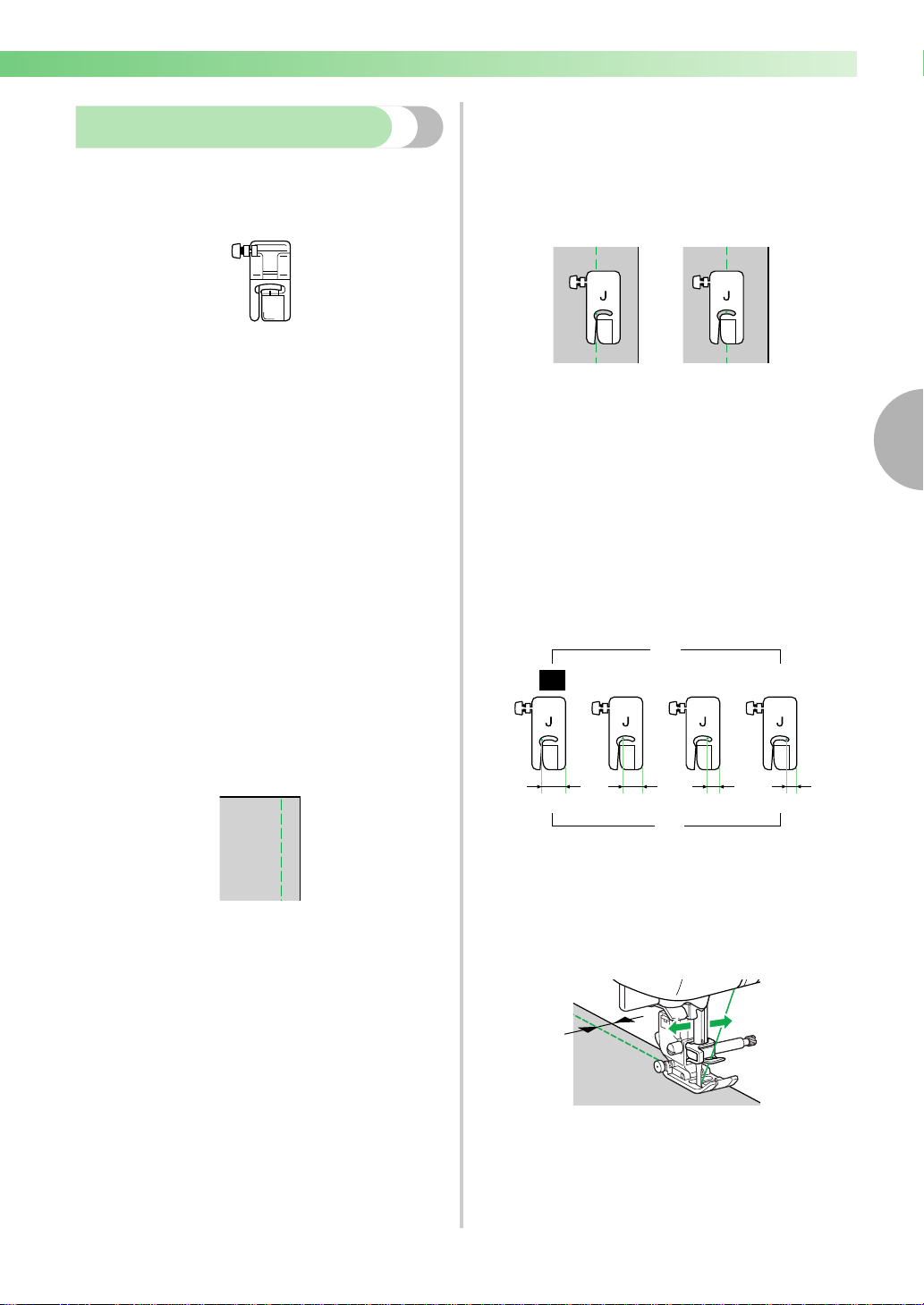

Sewing an even seam allowance .................................................................................................................... 65

UTILITY STITCHES 67

Selecting Stitching .............................................................................................................68

Selecting stitch types and patterns .................................................................................................................. 68

Selecting stitching ...........................................................................................................................................70

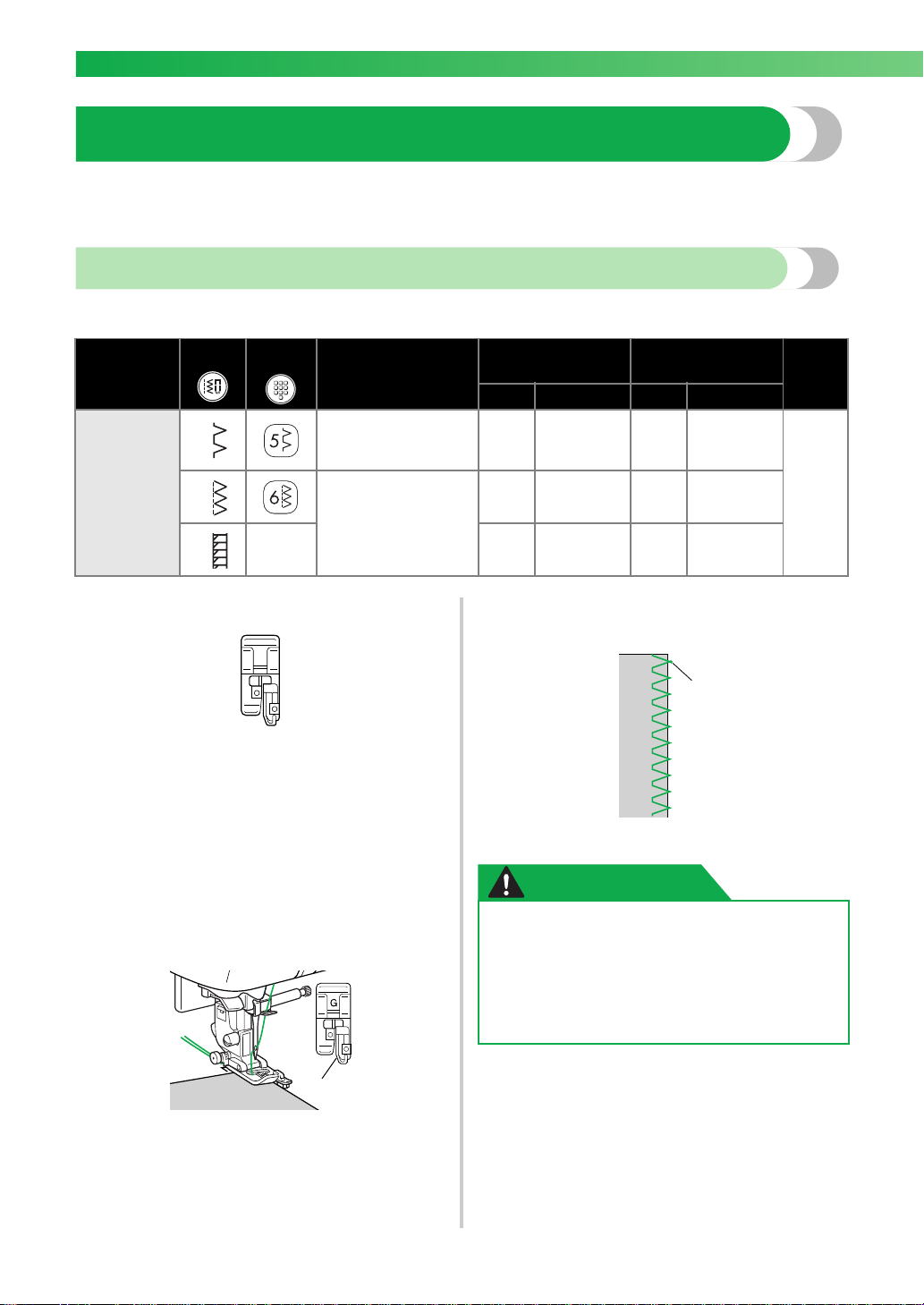

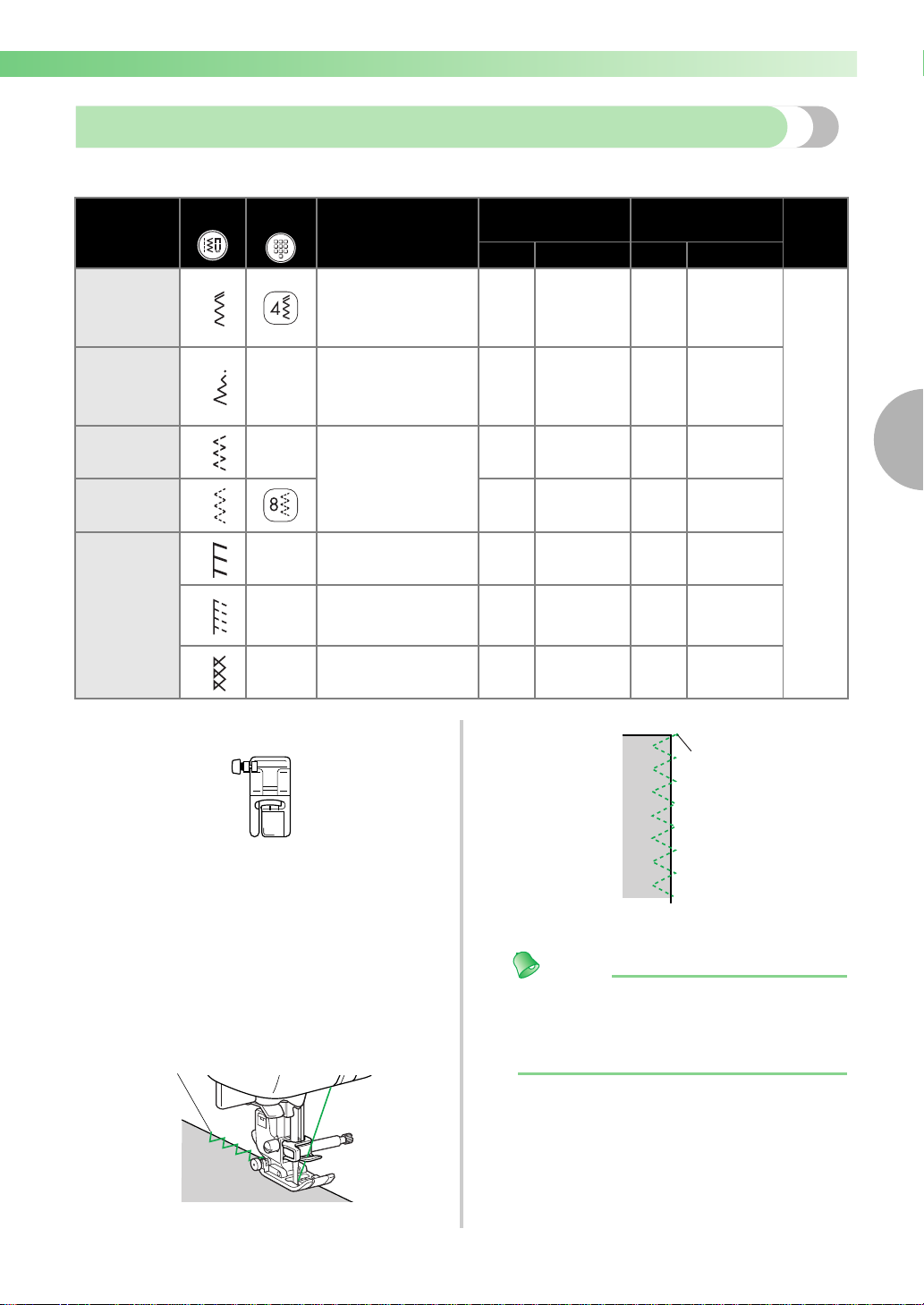

Overcasting Stitches ..........................................................................................................74

Sewing overcasting stitches using overcasting foot “G” ................................................................................... 74

Sewing overcasting stitches using zigzag foot “J”............................................................................................. 75

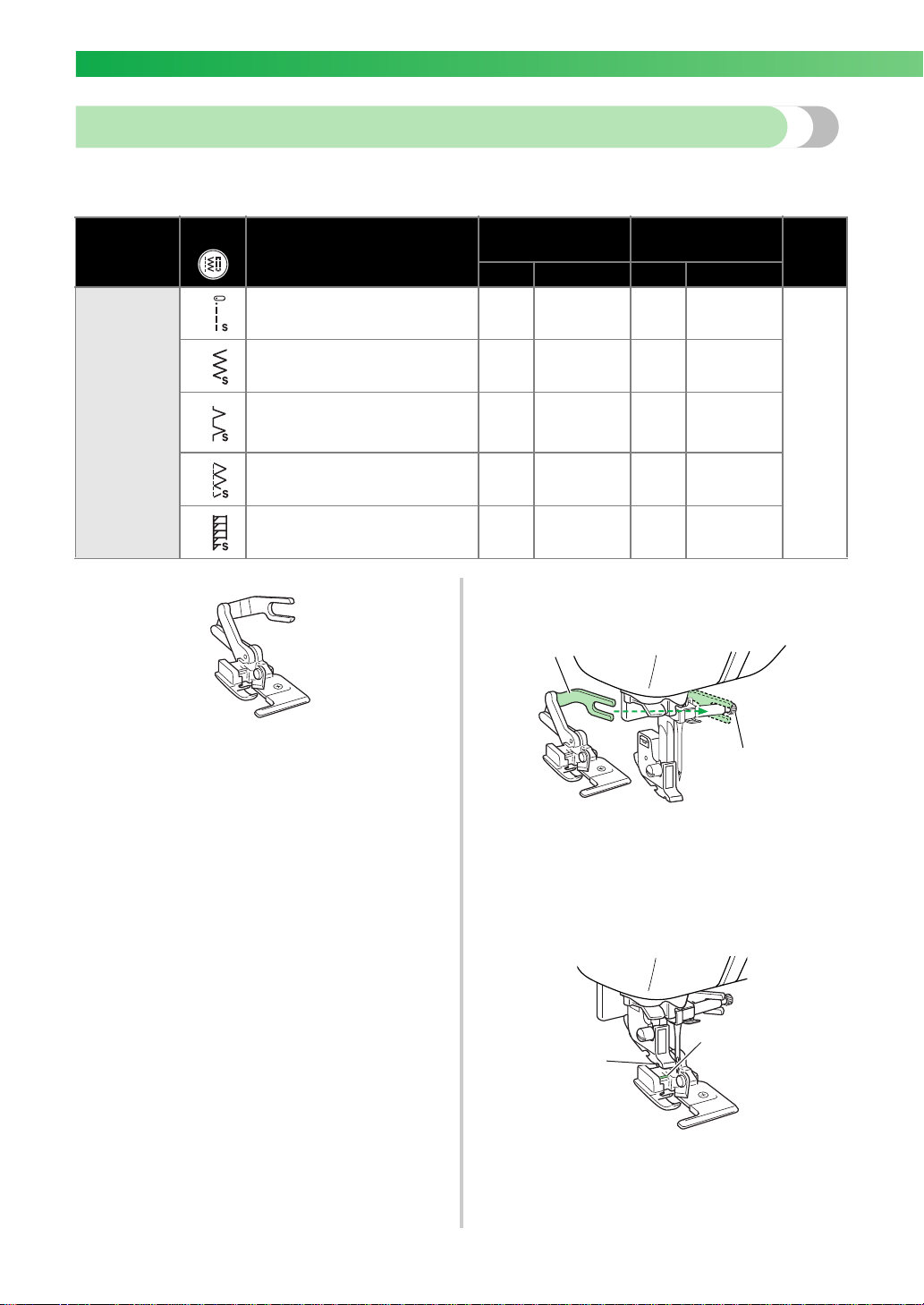

Sewing overcasting stitches using the optional side cutter ...............................................................................76

Basic Stitching ................................................................................................................... 78

Basting ............................................................................................................................................................78

Basic stitching................................................................................................................................................. 79

Blind Hem Stitching ..........................................................................................................80

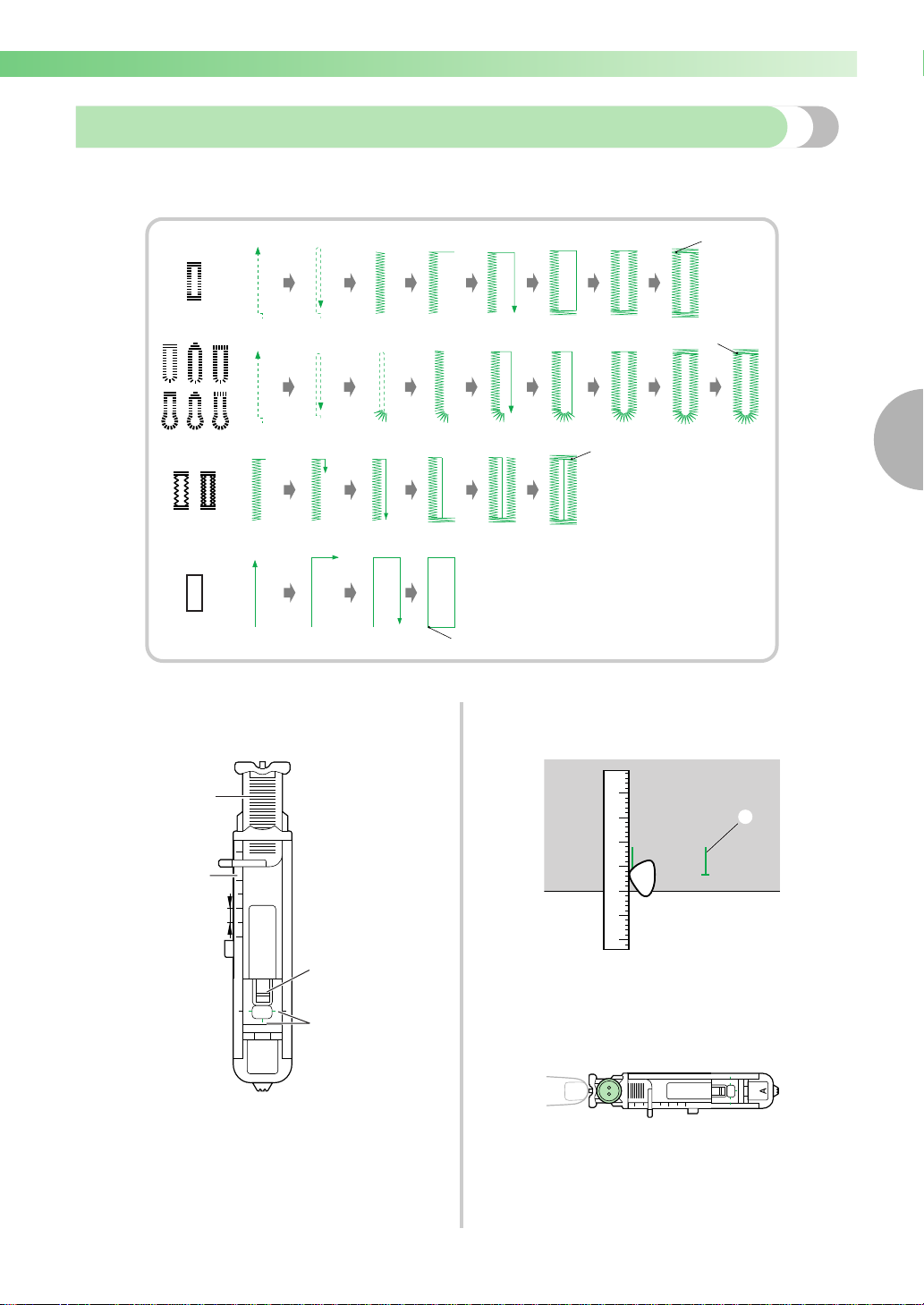

Buttonhole Stitching/Button Sewing..................................................................................82

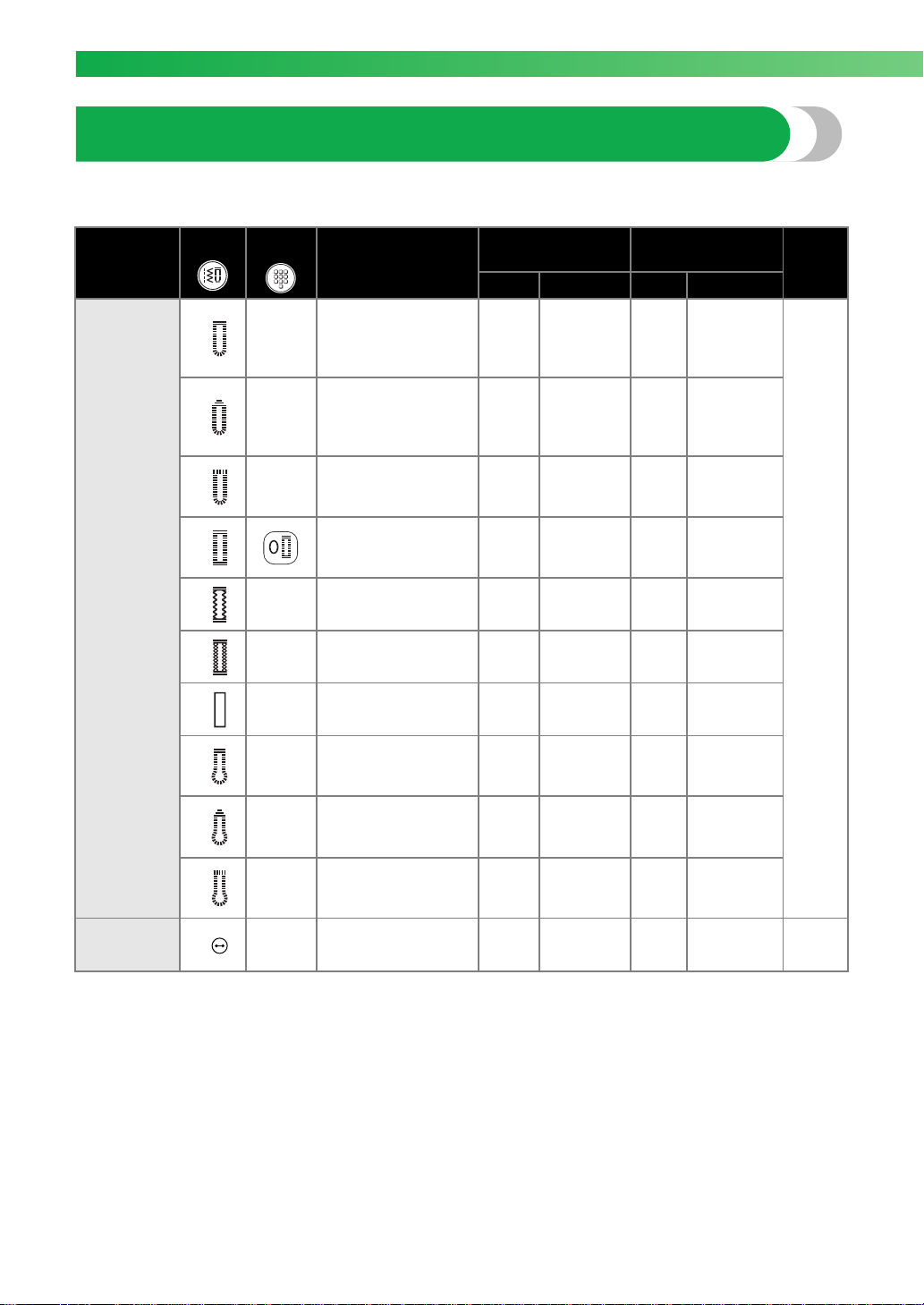

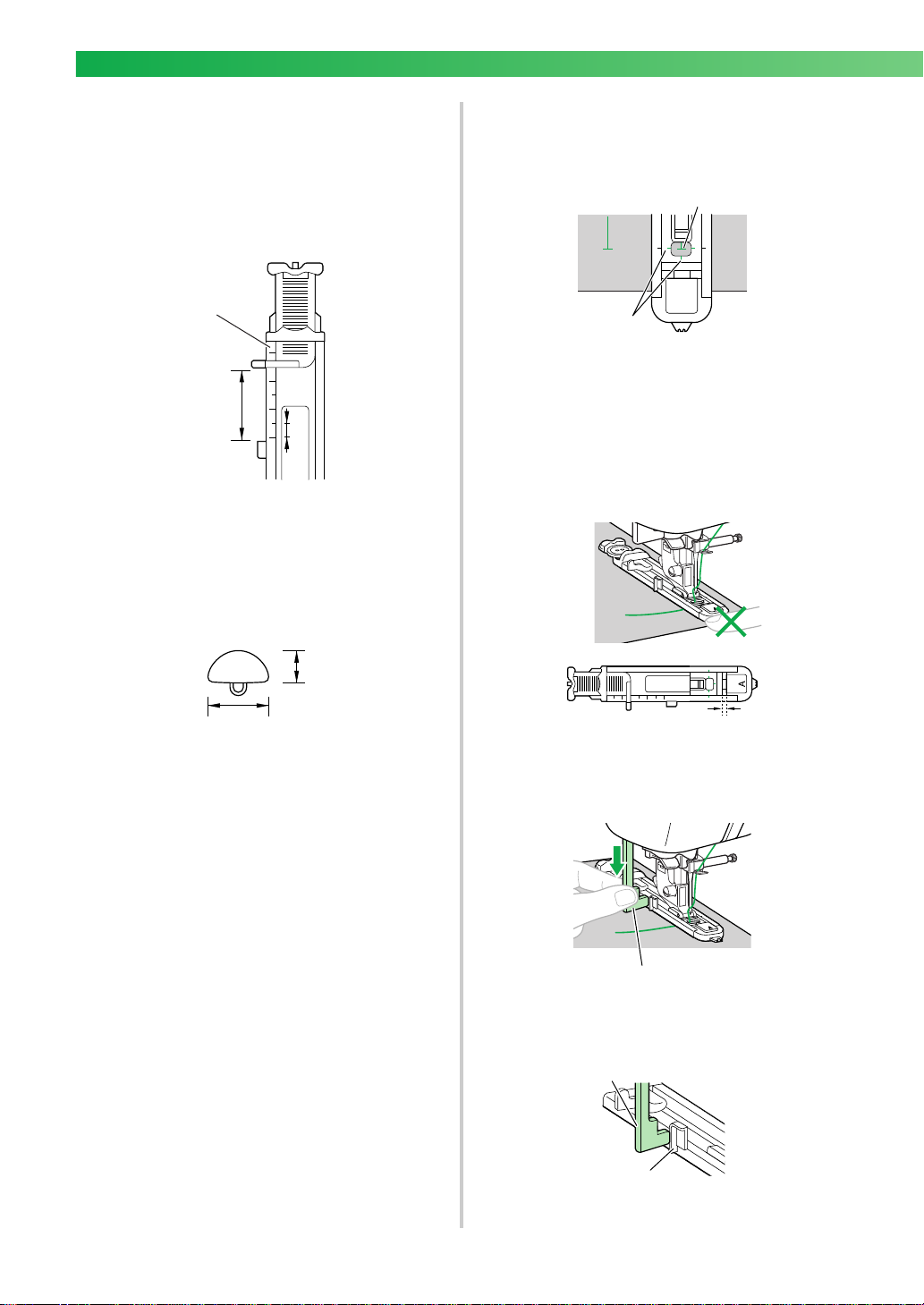

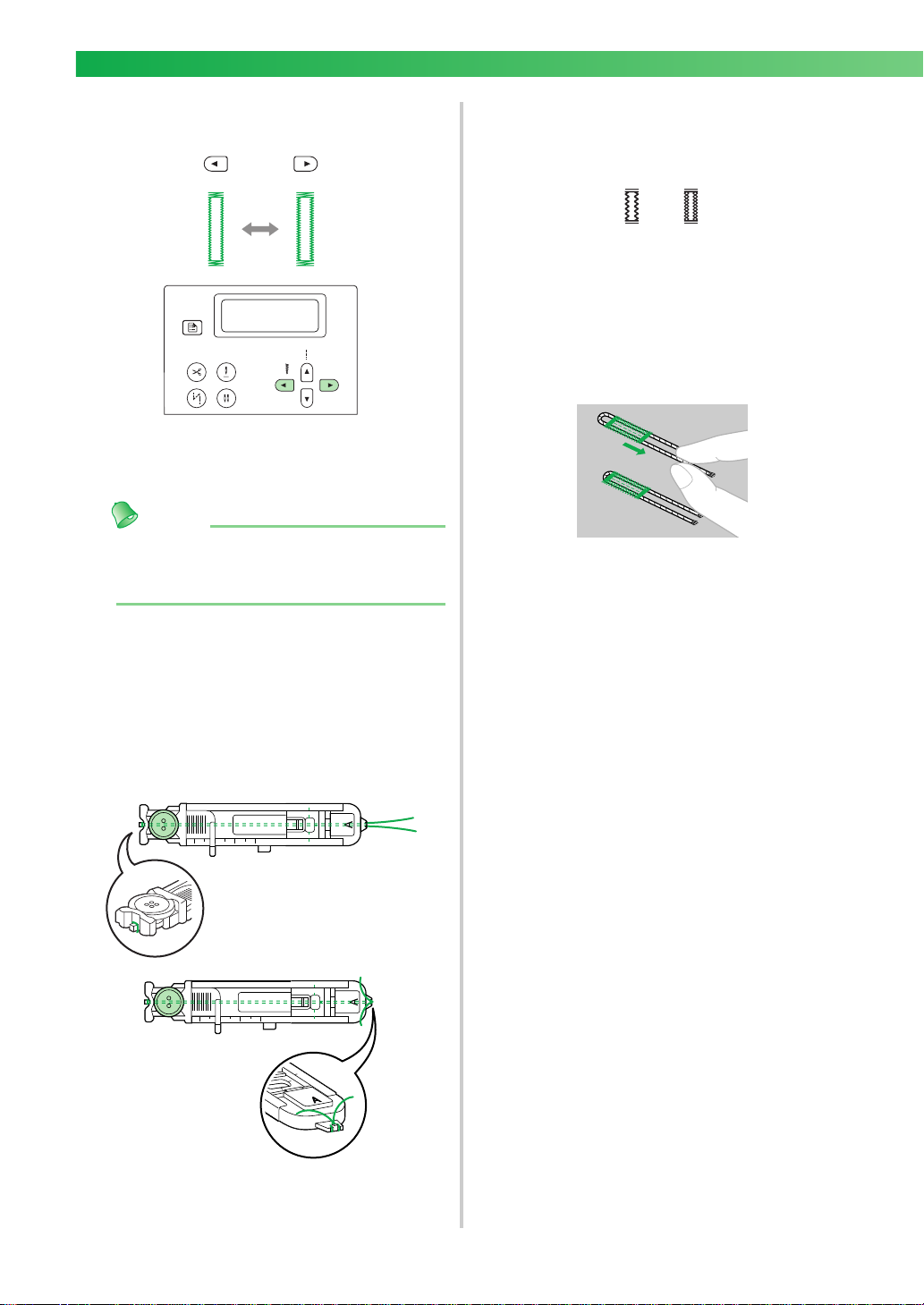

Buttonhole sewing ..........................................................................................................................................83

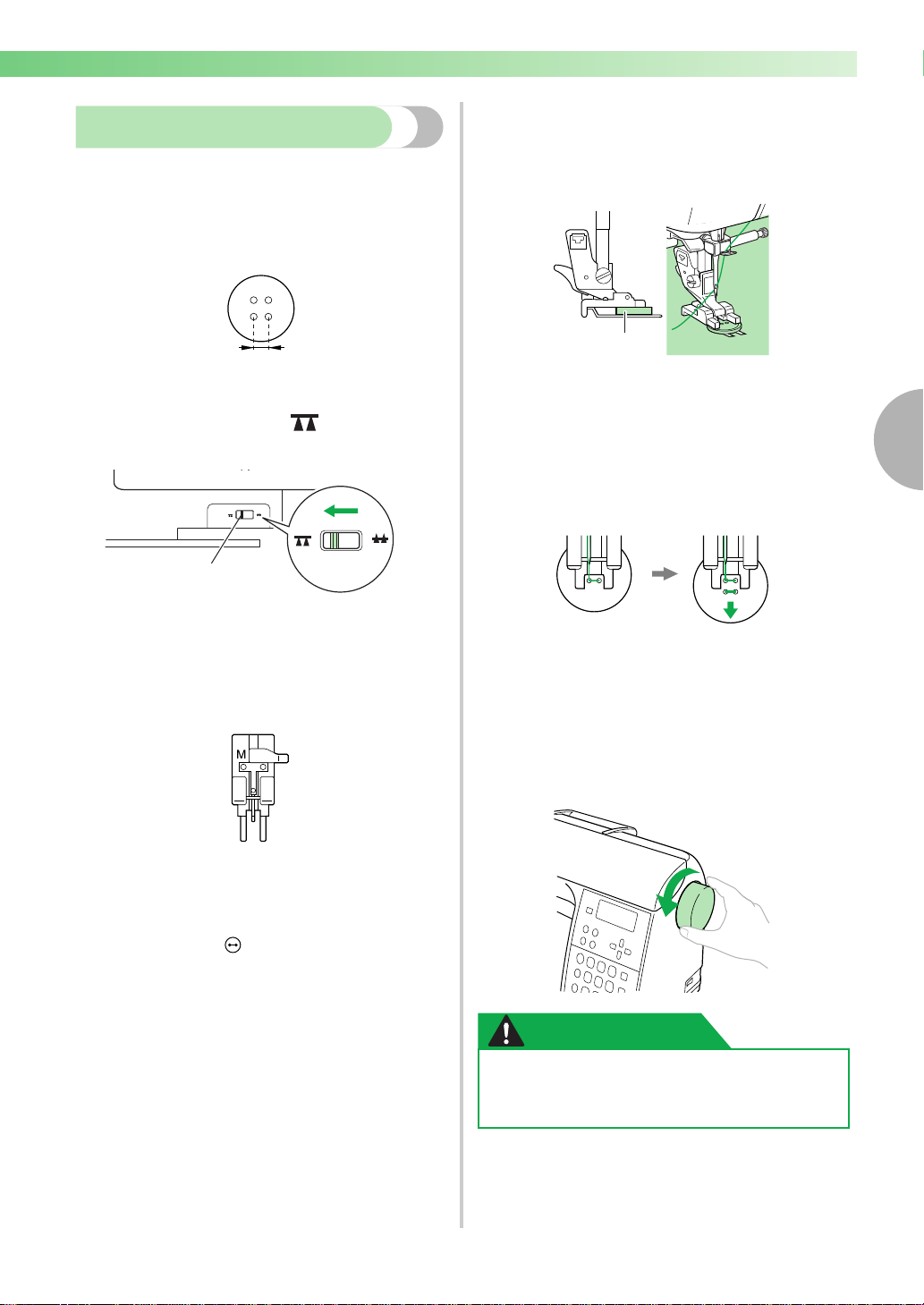

Button sewing .................................................................................................................................................87

Zipper Insertion.................................................................................................................89

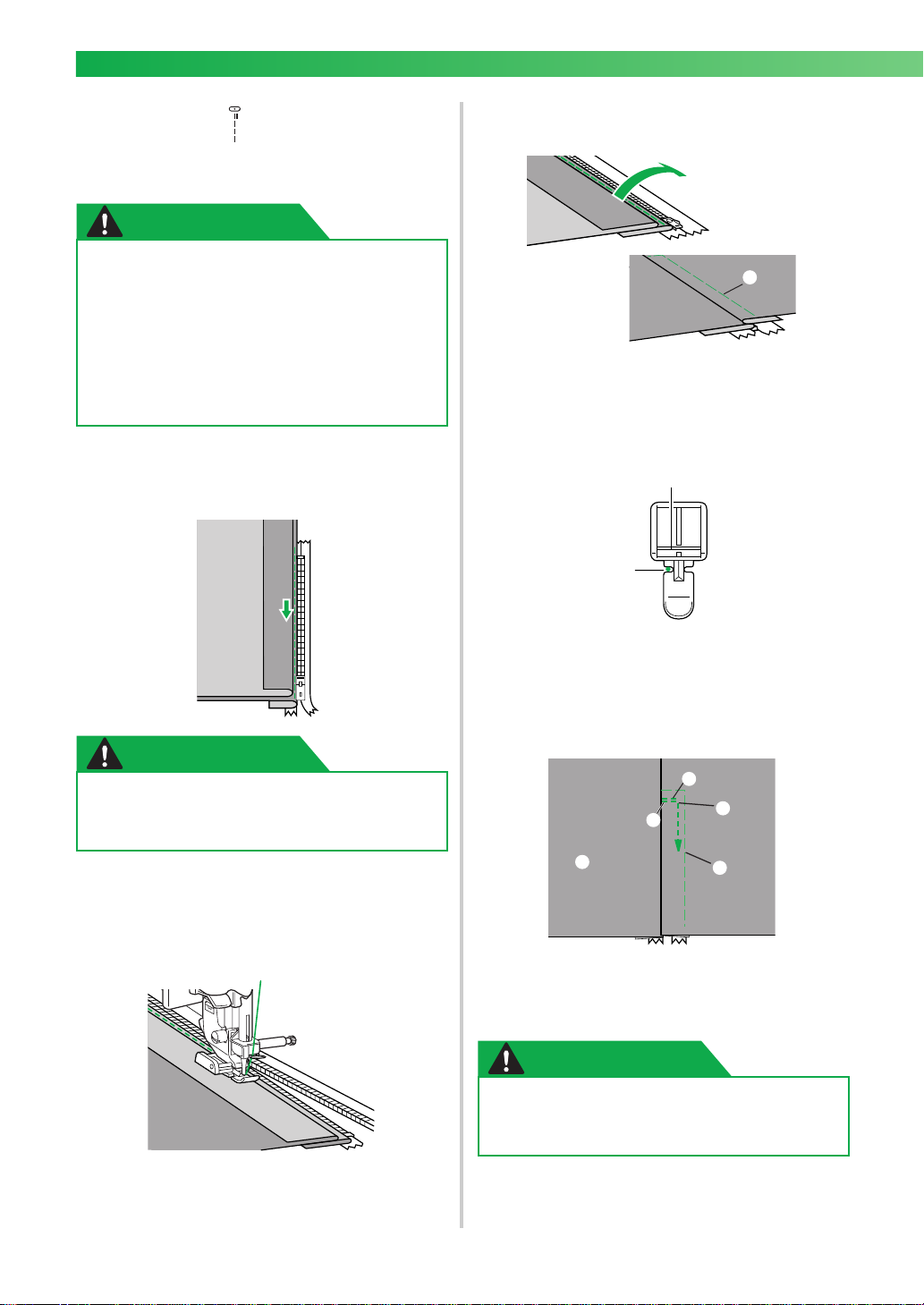

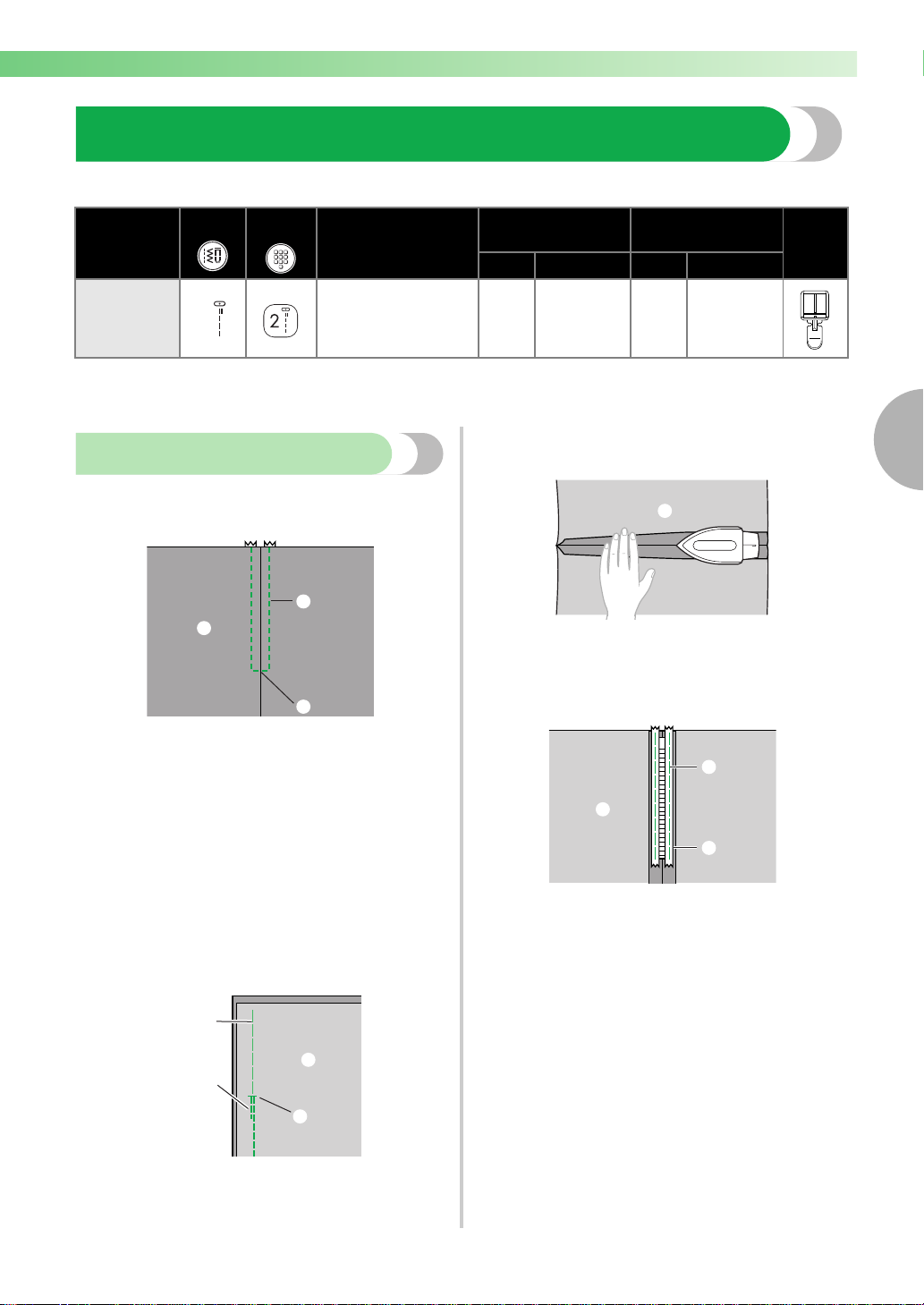

Inserting a centered zipper ..............................................................................................................................89

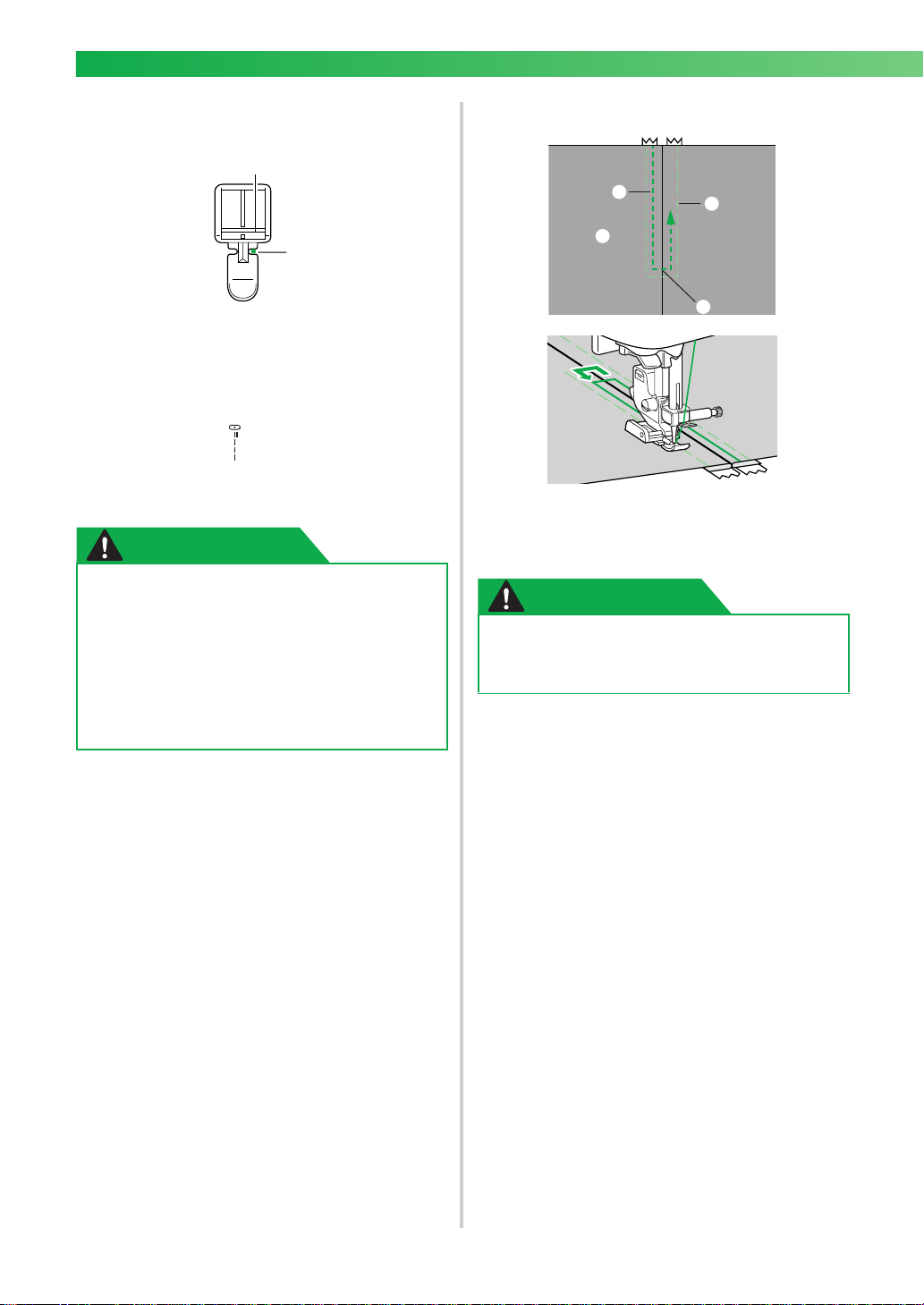

Inserting a side zipper ..................................................................................................................................... 91

Zipper/piping Insertion .....................................................................................................94

Inserting a centered zipper ..............................................................................................................................94

Inserting a piping ............................................................................................................................................ 95

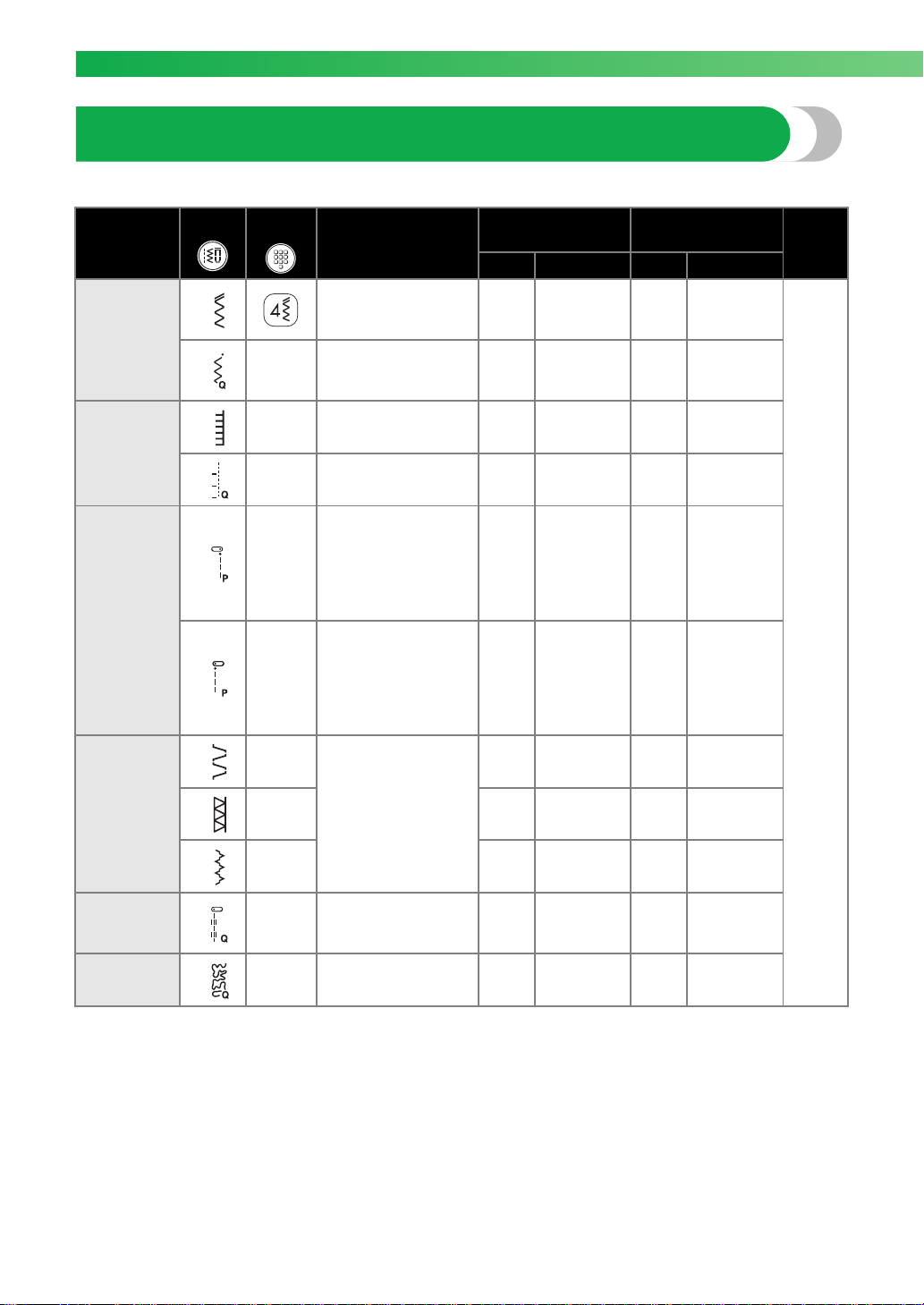

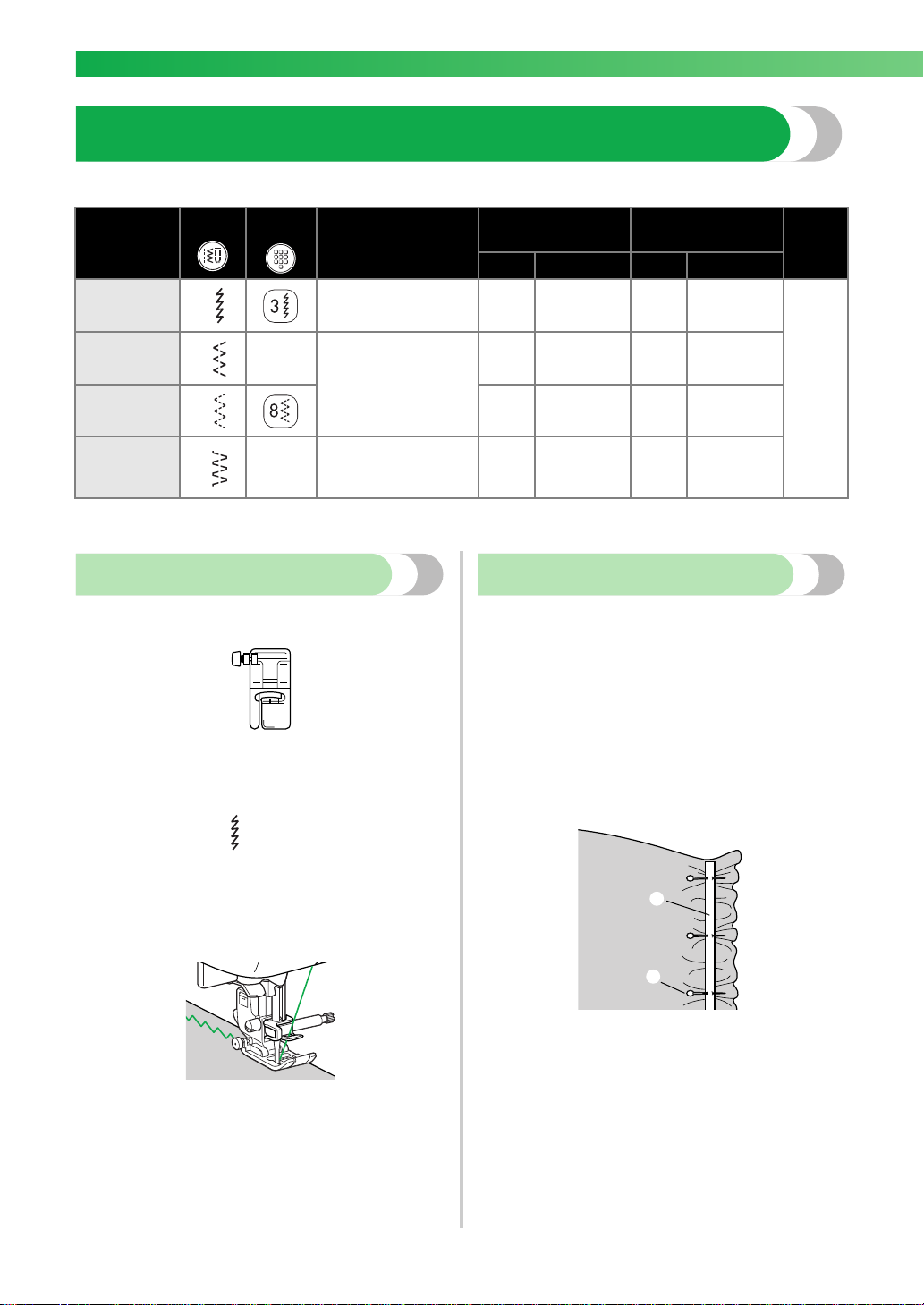

Sewing Stretch Fabrics and Elastic Tape ............................................................................ 96

Stretch stitching............................................................................................................................................... 96

Elastic attaching ..............................................................................................................................................96

Appliqué, Patchwork and Quilt Stitching ..........................................................................98

Appliqué stitching ...........................................................................................................................................99

Patchwork (crazy quilt) stitching ..................................................................................................................100

Piecing..........................................................................................................................................................100

Quilting ........................................................................................................................................................101

Free-motion quilting......................................................................................................................................102

Satin stitching using the sewing speed controller .......................................................................................... 103

Reinforcement Stitching .................................................................................................. 105

Triple stretch stitching ...................................................................................................................................105

Bar tack stitching...........................................................................................................................................105

Darning......................................................................................................................................................... 107

Eyelet Stitching ................................................................................................................109

Decorative Stitching ........................................................................................................110

Fagoting........................................................................................................................................................ 111

Scallop stitching............................................................................................................................................112

Smocking......................................................................................................................................................112

Shell tuck stitching ........................................................................................................................................113

Joining ..........................................................................................................................................................114

Heirloom stitching ........................................................................................................................................114

Sewing the Various Built-In Decorative Patterns .............................................................117

Sewing beautiful patterns ..............................................................................................................................117

Sewing patterns.............................................................................................................................................117

Combining patterns.......................................................................................................................................118

Repeat sewing patterns.................................................................................................................................. 119

Checking the selected pattern ....................................................................................................................... 119

Changing the pattern size..............................................................................................................................120

Changing the stitch density ........................................................................................................................... 121

Changing the pattern length .......................................................................................................................... 122

Mirror imaging the pattern ............................................................................................................................ 123

Saving patterns..............................................................................................................................................124

Retrieving a pattern .......................................................................................................................................124

Realigning the pattern ...................................................................................................................................125

APPENDIX 127

Stitch Settings.................................................................................................................. 128

Utility stitches ...............................................................................................................................................128

Other stitches................................................................................................................................................134

Care and Maintenance ....................................................................................................138

Cleaning the machine surface ....................................................................................................................... 138

Cleaning the race..........................................................................................................................................138

Troubleshooting ..............................................................................................................140

Error messages .............................................................................................................................................. 144

Nothing appears in the LCD.......................................................................................................................... 145

Operation beep.............................................................................................................................................145

Cancelling the operation beep ......................................................................................................................145

Index ................................................................................................................................ 147

Introduction

Thank you for purchasing this sewing machine. Before using this sewing machine, carefully read the “IMPORTANT SAFETY INSTRUCTIONS” (page 1), and then study this manual for the correct operation of the various functions. In addition, after you have finished reading this manual, store it where it can quickly be accessed for future reference.

Sewing Machine Features

a Easy upper threading

Since the spool can be installed at the front of the sewing machine, the upper thread can easily be threaded. In addition, the needle can be threaded with a simple operation (page 26).

b Automatic thread-cutting

The sewing machine can be set to automatically cut the thread at the end of the stitching (page 60).

c One-touch lower threading

You can start sewing without pulling up the bobbin thread (page 24).

d Simple bobbin-winding

The bobbin can quickly and easily be wound with thread (page 20).

e Built-in stitches

You can select from the built-in stitches available, including utility stitches, character stitches and decorative stitches (page 70).

f Knee lifter

Use the knee lifter to raise and lower the presser foot with your knee, leaving both hands free to handle the fabric (page

62).

Note

Accessories

After opening the box, check that the following accessories are included. If any item is missing or damaged, contact your retailer.

Included accessories

The following items should also be included in the box.

(For U.S.A. only)

z Foot controller: Model N5V

This foot controller can be used on this machine model BL200A.

z The screw for the presser foot holder is available

through your authorized retailer. (Part code: XA4813-051)

z The organized accessory tray is available through your

authorized retailer. (Part code: XC4489-051)

■ Attaching the stitch pattern plate

The stitch pattern plate shows the stitch numbers and the patterns available with each stitch mode. Attach the stitch pattern plate to the handle as shown in the illustration below.

Accessories 7

Memo

1. 2. 3. 4.

10. 11. 12. 13. 14. 15. 16.*

20. 21. 22. 23. 24.

29.

30.

31. 32. 33. 34.

25.

6. 7.

17.

18. 19.

26. 27. 28.

*75/11 2 needles 90/14 2 needles 90/14 2 needles: Ball point needle (gold colored)

No. Part Name Part Code No. Part Name Part Code

1 Buttonhole foot “A” XC2691-023 18 Cleaning brush X59476-021 2 Overcasting foot “G” XE6305-101 19 Eyelet punch XZ5051-001 3 Monogramming foot “N” XD0810-031 20 Screwdriver (large) XC8349-021 4 Zipper foot “I” X59370-021 21 Screwdriver (small) X55468-021 5 Zigzag foot “J” (on machine) XC3021-031 22 Spool cap (large) 130012-024 6 Blind stitch foot “R” XE2650-001 23 Spool cap (medium)(2) XE1372-001 7 Button fitting foot “M” XE2643-001 24 Spool cap (small) 130013-124 8 Walking foot XE1678-201 25 Extra spool pin XC4654-051

9 Quilting foot XE8786-001 26 Spool net XA5523-020 10 Stitch guide foot “P” X51804-001 27 Foot controller XC6651-221 11 Adjustable zipper/piping foot 103561-002 28 Knee lifter XA6941-052 12 Non stick foot XA4783-001 29 Operation manual XE8895-001 13 Open toe foot XA7869-001 30 Quick reference guide XE8896-001 14 Seam ripper X54243-051 31 Hard case XC9701-053 15 Bobbin (4) X52800-120 32 Accessory bag XC4487-021 16 Needle set X58358-021 33 Disc-shaped screwdriver XC1074-051 17 Twin needle X59296-121 34 Stitch pattern plate XE8893-001

Optional accessories

The following are available as optional accessories.

1. 2.

1. Side cutter

Part code: FA10

2. Quilting guide

Part code: FA11

3. Extension table

Part code: BLR-ET

z Visit your Baby Lock retailer for a complete listing of optional accessories available for your machine.

3. 4. 5.

4. 1/4 inch quilting foot

Part code: FA1

5. 1/4 inch quilting foot with guide

Part code: ESG-QGF

Names of Machine Parts and Their Functions

The names of the various parts of the sewing machine and their functions are described below. Before using the sewing machine, carefully read these descriptions to learn the names of the machine parts.

Front view

a Thread guide plate

Pass the thread under the thread guide plate.

b Thread guide cover

Pass the thread behind the thread guide cover when threading the upper thread.

c Spool pin

Place a spool of thread on the spool pin.

d Bobbin winding thread guide and pretension disk

Pass the thread under this thread guide and around the pretension disk when winding the bobbin thread.

e Top cover

Open the top cover to place the spool of thread on the spool pin.

f Bobbin winder

Use the bobbin winder when winding the bobbin.

g Operation panel

Use for stitch selection and various stitch functions. (page 12)

h Knee lifter mounting slot

Insert the knee lifter into the knee lifter mounting slot.

i Operation buttons and sewing speed controller

Use these buttons and the slide to operate the sewing machine. (page 11)

j Flat bed attachment with accessory compartment

Store presser feet and bobbins in the accessory compartment of the flat bed attachment. When sewing cylindrical pieces, remove the flat bed attachment.

k Thread cutter

Pass the threads through the thread cutter to cut them.

l Needle threader lever

Use the needle threader to thread the needle.

m Thread take-up lever check window

Look through the window to check the position of the take-up lever.

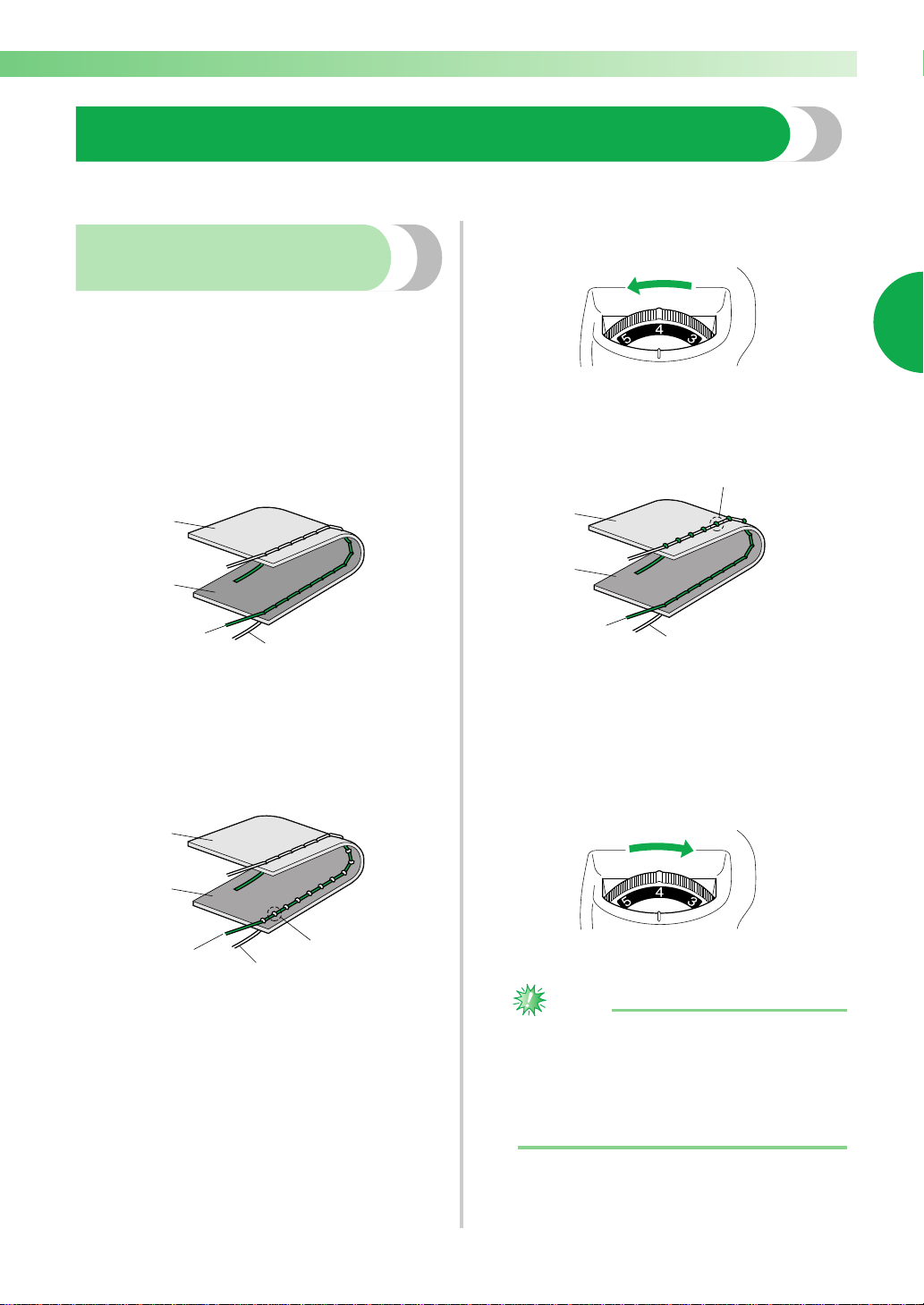

n Thread tension dial

Use the thread tension dial to adjust the tension of the upper thread.

Names of Machine Parts and Their Functions 9

Memo

Needle and presser foot

section

a Buttonhole lever

The buttonhole lever is used with the one-step buttonhole foot to create buttonholes.

b Thread guide disk

Pass the thread through the thread guide disk when using the needle threader to thread the needle.

c Needle bar thread guide

Pass the upper thread through the needle bar thread guide.

d Needle plate

The needle plate is marked with guides to help sew straight seams.

e Needle plate cover

Remove the needle plate cover to clean the bobbin case and race.

f Bobbin cover

Open the bobbin cover to set the bobbin.

g Feed dogs

The feed dogs feed the fabric in the sewing direction.

h Presser foot

The presser foot applies pressure consistently on the fabric as sewing takes place. Attach the appropriate presser foot for the selected stitch.

i Presser foot holder

The presser foot is attached onto the presser foot holder.

Right-side/rear view

a Presser foot dial

Use the presser foot dial to adjust the amount of pressure that the presser foot applies to the fabric.

b Handle

Carry the sewing machine by its handle when transporting the machine.

c Handwheel

Turn the handwheel toward you to raise and lower the needle. The handwheel should be turned towards you (counterclockwise).

d Air vent

The air vent allows the air surrounding the motor to circulate. Do not cover the air vent while the sewing machine is being used.

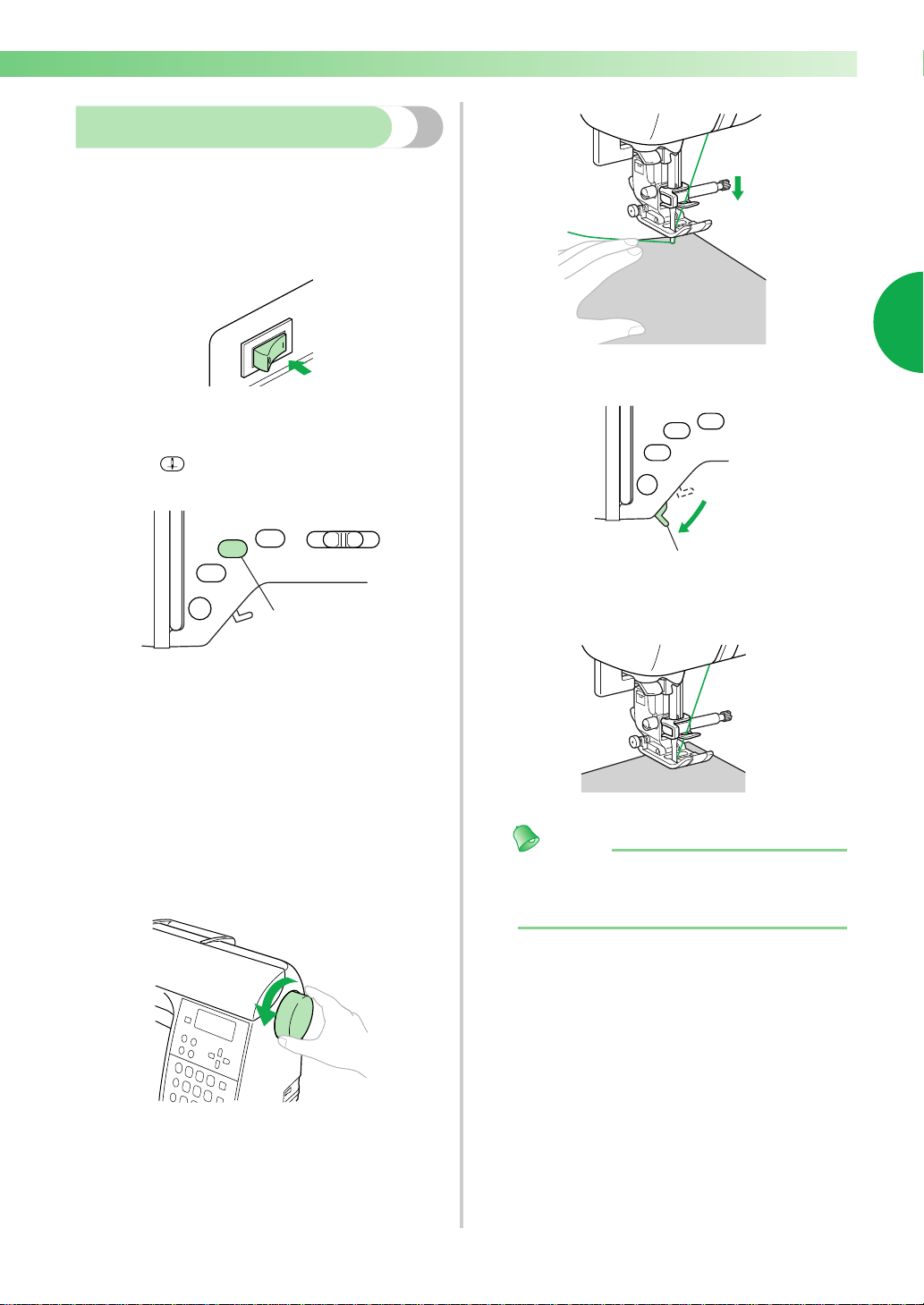

e Main power switch

Use the main power switch to turn the sewing machine ON and OFF.

f Foot controller jack

Insert the plug on the end of the foot controller cable into the foot controller jack.

g Power supply jack

Insert the plug on the power cord into the power supply jack.

h Feed dog position switch

Use the feed dog position switch to lower the feed dogs.

i Presser foot lever

Raise and lower the presser foot lever to raise and lower the presser foot.

z Refer to pages 9 through 12 while you are

learning to use your machine.

CAUTION

Note

Operation buttons

The operation buttons help you to easily perform various basic sewing machine operations.

a “Start/Stop” button /

Press the “Start/Stop” button to start or stop sewing. The machine sews at a slow speed at the beginning of sewing while the button is depressed. When sewing is stopped, the needle is lowered in the fabric. For details, refer to “Starting to sew” (page 50). The button lights up in green, red or orange, depending on how the sewing machine is being operated.

Green: When the machine is ready to start

sewing or while it is sewing

Red: When the machine is not ready to

start sewing

Orange: When the bobbin winder shaft is

moved to the right for winding the bobbin thread onto the bobbin

b “Reverse/Reinforcement Stitch” button

Press the “Reverse/Reinforcement Stitch” button to sew reverse stitches or reinforcement stitches. Reverse stitches are sewn by keeping the button pressed down to sew in the opposite direction. Reinforcement stitches are sewn by sewing 3 to 5 stitches on top of each other. For details, refer to “Securing the stitching” (page 52).

c “Needle Position” button

Press the “Needle Position” button to raise or lower the needle. Pressing the button twice sews one stitch.

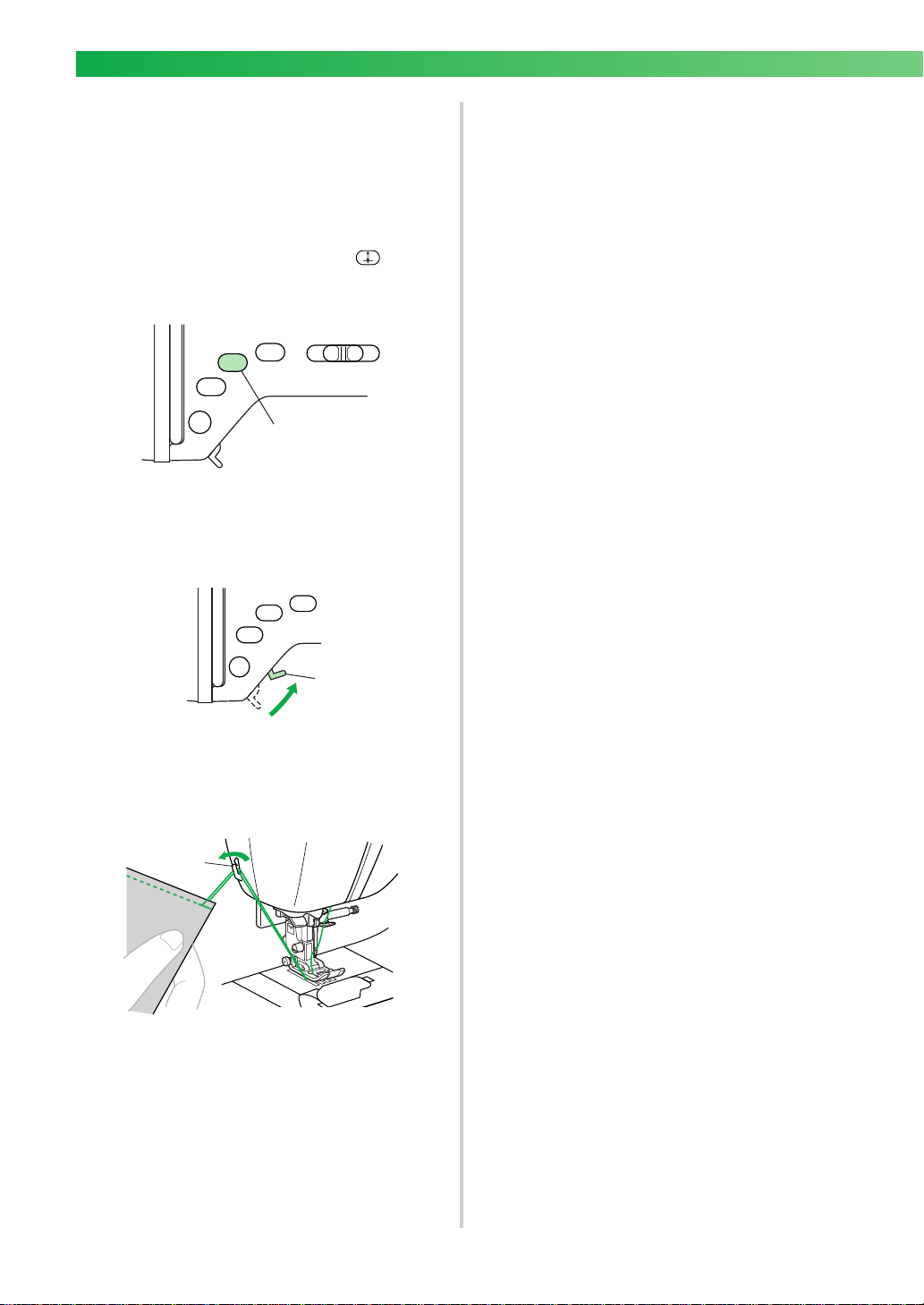

d “Thread Cutter” button

Press the “Thread Cutter” button after stopping sewing to cut both the upper and the bobbin threads. For details, refer to “Cutting the thread” (page 53).

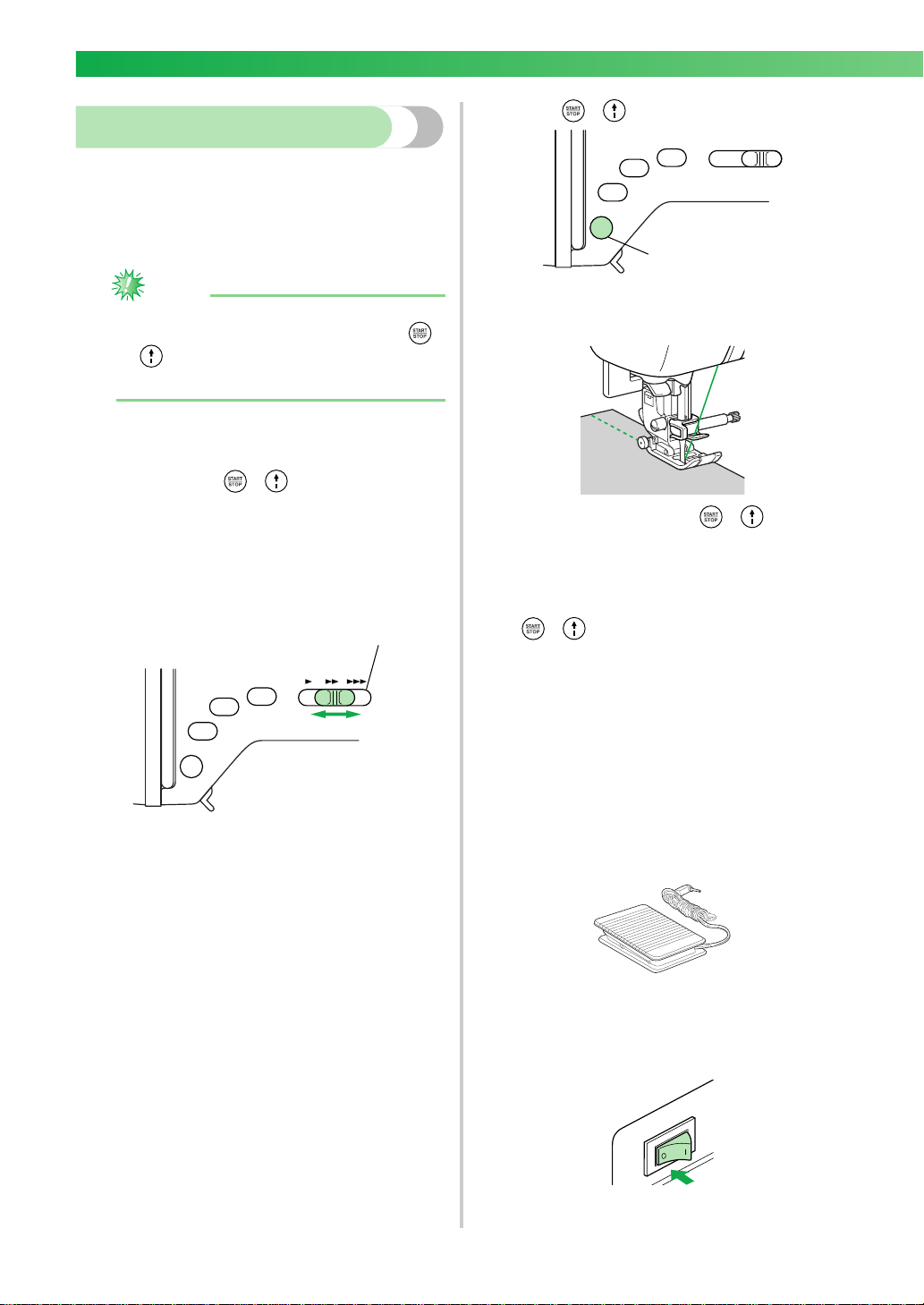

e Sewing speed controller

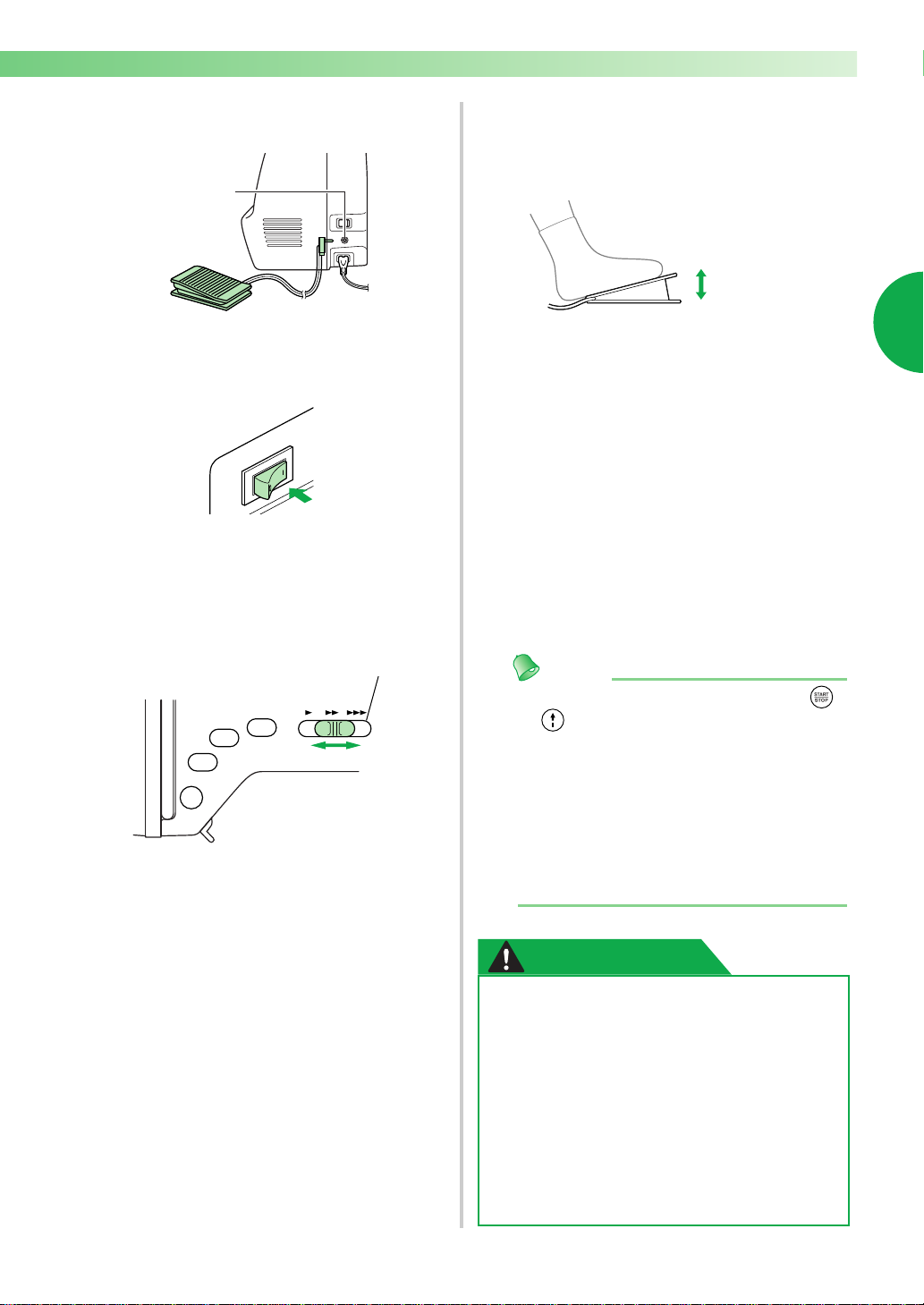

Slide the sewing speed controller to adjust the sewing speed.

● Do not press (“Thread Cutter” button) after the threads have already been cut, otherwise the needle may break, the threads may become tangled or damage to the machine may occur.

z Do not press (“Thread Cutter” button) if

there is no fabric under the presser foot or while the machine is sewing, otherwise damage to the machine may occur.

z When cutting thread thicker than #30, nylon

thread or other special threads, use the thread cutter on the side of the machine. For details, refer to “Cutting the thread” (page

53).

Names of Machine Parts and Their Functions 11

1 2

3 4

5 6

E F

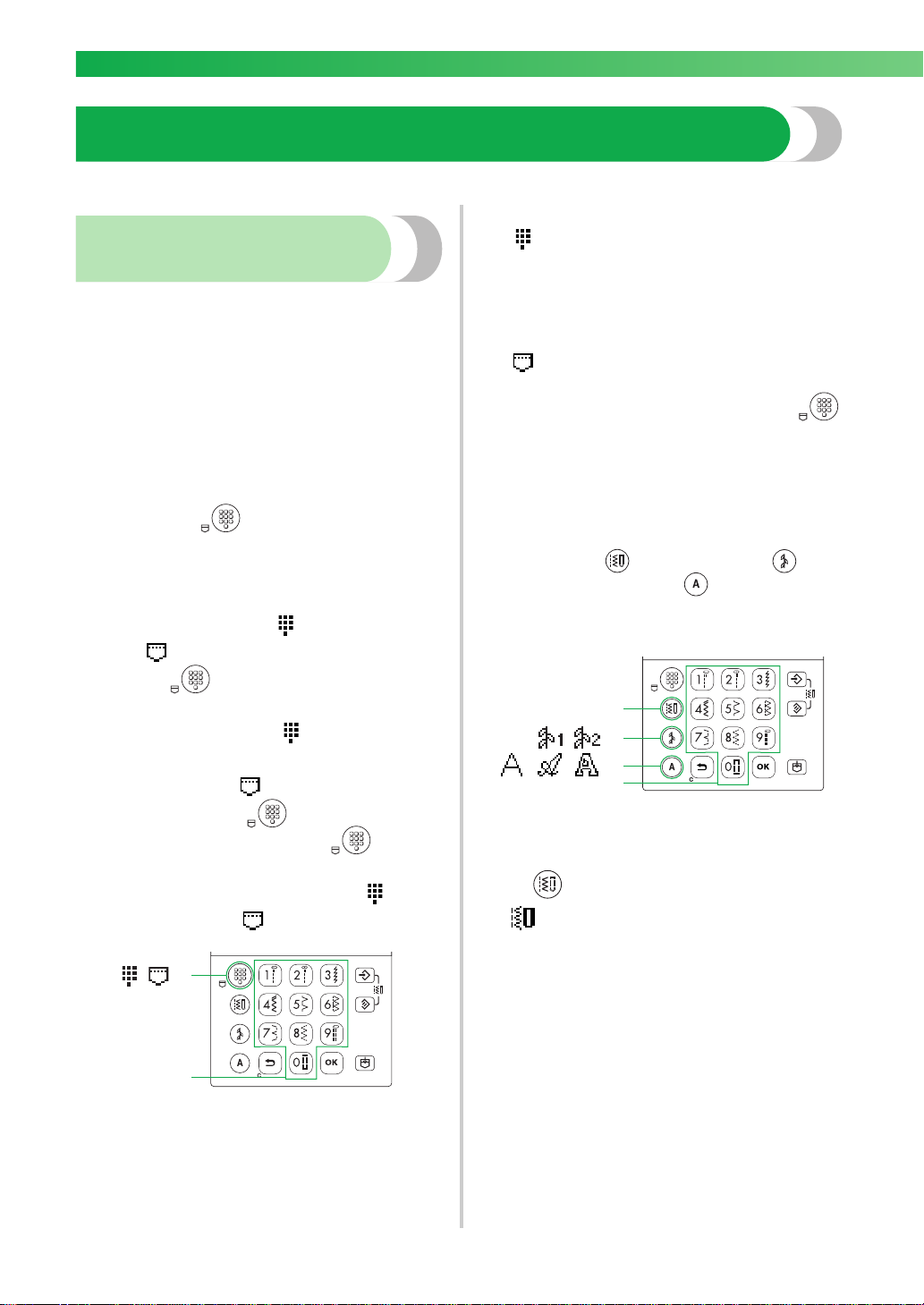

Operation panel

The operation panel, located on the front at the right of the sewing machine, consists of the LCD (liquid crystal display) and keys for specifying various sewing settings.

a LCD (liquid crystal display)

Settings for the selected stitch and error messages for incorrect operations appear in the LCD. Use keys b and g through r, described below, to display various items and select the settings. For details, refer to “Understanding the LCD Screens” (page 16).

b Settings key

Press this key to select sewing settings, such as for left/ right mirror imaging, or other settings such as the operation beep.

c Needle stop position key

Press this key to select where the needle is positioned when the sewing machine is stopped.

d Automatic thread cutting key

Press this key to select the automatic thread cutting setting. Press this key again to cancel the setting.

e Automatic reverse/reinforcement stitch key

Press this key to select the automatic reverse/ reinforcement stitching setting. Press this key again to cancel the setting.

f Needle mode selection key (single/twin)

Press this key to select the twin needle sewing setting. Each time this key is pressed, the setting switches between that for single needle sewing and for twin needle sewing.

g Stitch width keys

Press or to adjust the stitch width setting.

h Stitch length keys

Press or to adjust the stitch length setting.

■ Stitch mode keys (i-l)

i Preset utility stitch/saved pattern key

Press this key to select the utility stitch assigned to a numeric key or to retrieve a pattern that has been saved. Each time this key is pressed, the machine switches between the preset utility stitch mode and the saved pattern mode.

j Utility stitch key

Press this key to select a straight stitch, zigzag stitch, buttonhole, blind hem stitch, or other stitches commonly used in garment sewing. Use the numeric keys to type in the number of the desired stitch.

k Decorative stitch key

Press this key to select a decorative stitch, satin stitch, crossstitch or decorative satin stitch. Each time this key is pressed, the stitch group switches between and .

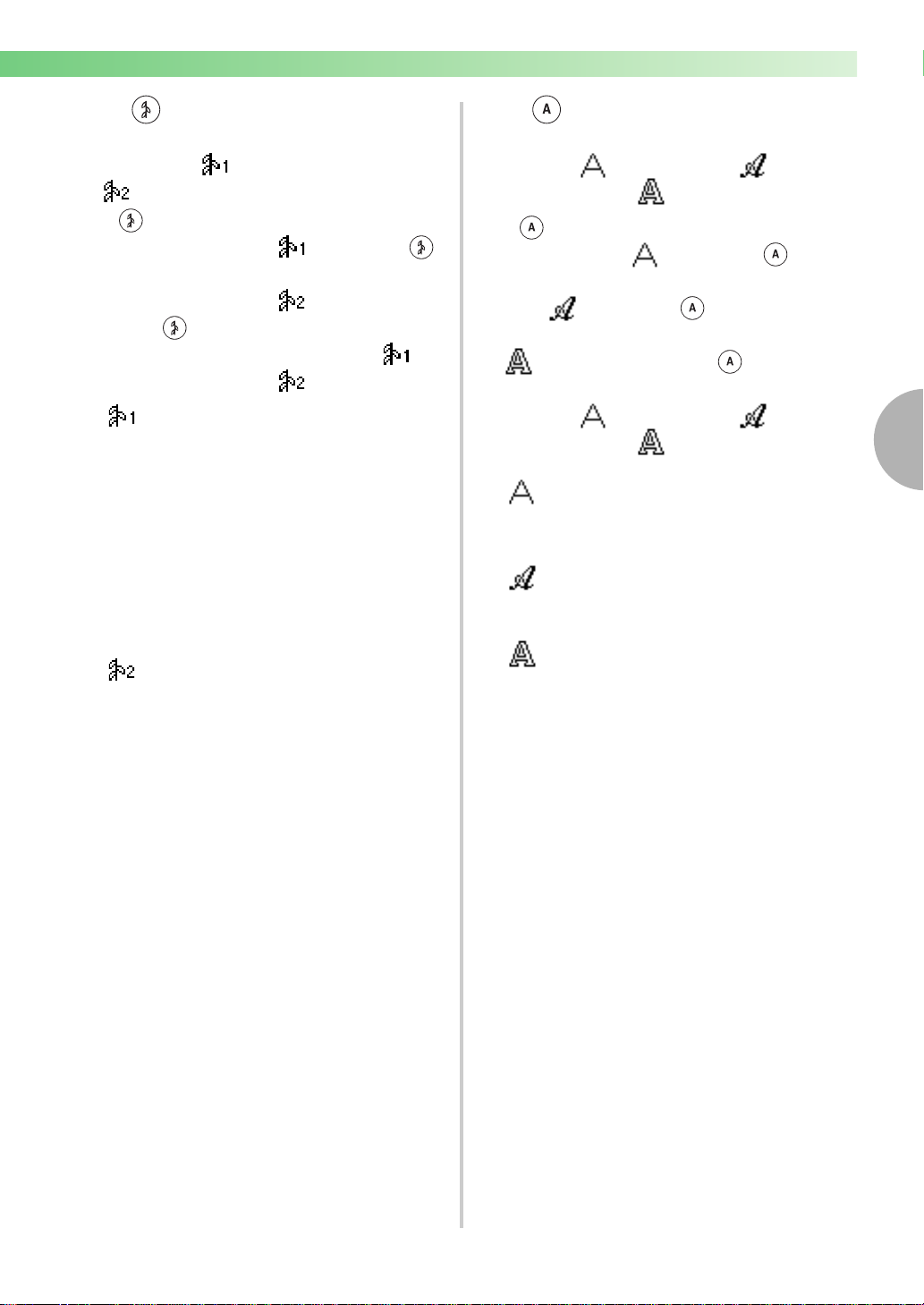

l Character stitch key

Press this key to select a character stitch. Each time this key is pressed, the font switches to one of the three available.

m Manual memory key

Press this key to save the adjusted stitch width and length settings.

n Reset key

Press this key to reset the selected stitch to its original settings.

o Memory key

Press this key to save stitch patterns, such as combined patterns, in the sewing machine's memory.

p OK key

Press this key to apply the selection or perform the operation.

q Cancel/clear key

Press this key to cancel the operation and return to the previous screen. In addition, pressing this key removes the last pattern added when combining characters or decorative stitches.

r Numeric keys

Use these keys to quickly select one of the ten most often used stitches. When selecting other stitches, use these keys to type in the number of the desired stitch.

1 GETTING READY

The various preparations required before starting to sew are described in this chapter.

TTurning the Machine On/Off ..................................................................................14

Power supply precautions .................................................................................. 14

Turning on the machine ..................................................................................... 15

Turning off the machine .....................................................................................15

Understanding the LCD Screens..............................................................................16

Changing the Machine Settings ...............................................................................17

Changing the settings ......................................................................................... 17

Adjusting the brightness of the LCD ................................................................... 19

Changing the screen language

Winding/Installing the Bobbin.................................................................................20

Bobbin precautions ............................................................................................ 20

Winding the bobbin ...........................................................................................20

Installing the bobbin ..........................................................................................24

Upper Threading ..................................................................................................... 26

Threading the upper thread................................................................................26

Threading the needle..........................................................................................29

Threading the needle manually (without using the needle threader)..................31

Using the twin needle ........................................................................................31

Pulling up the bobbin thread..............................................................................34

Replacing the Needle ..............................................................................................35

Needle precautions ............................................................................................ 35

Needle types and their uses................................................................................36

Checking the needle........................................................................................... 37

Replacing the needle ..........................................................................................37

Replacing the Presser Foot ......................................................................................39

Presser foot precautions ..................................................................................... 39

Replacing the presser foot .................................................................................. 39

Adjusting the pressure of the presser foot .......................................................... 41

Removing the presser foot holder ......................................................................41

Using the walking foot .......................................................................................42

Sewing Cylindrical or Large Pieces..........................................................................44

Stitching cylindrical pieces.................................................................................44

Sewing large pieces of fabric..............................................................................44

..............................................................................19

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

WARNING

CAUTION

Turning the Machine On/Off

This section explains how to turn the sewing machine on and off.

Power supply precautions

Be sure to observe the following precautions concerning the power supply.

● Use only regular household electricity for the power source. Using other power sources may result in fire, electric shock, or damage to the machine.

• Make sure that the plugs on the power cord are firmly inserted into the electrical outlet and the power supply jack on the machine.

• Do not insert the plug on the power cord into an electrical outlet that is in poor condition.

● Turn off the main power and remove the plug in the following circumstances:

• When you are away from the machine

• After using the machine

• When the power fails during use

• When the machine does not operate correctly due to a bad connection or a disconnection

• During electrical storms

● Use only the power cord included with this machine.

● Do not use extension cords or multi-plug adapters with many other appliances plugged in to

them. Fire or electric shock may result.

● Do not touch the plug with wet hands. Electric shock may result.

● When unplugging the machine, always turn off the main power first. Always grasp the plug to

remove it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock.

● Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the cord and cause fire or electric shock. If the cord or plug is damaged, take the machine to your authorized retailer for repairs before continuing use.

● Unplug the power cord if the machine is not to be used for a long period of time. Otherwise a fire may result.

Note

Turning on the machine

Prepare the included power cord.

Make sure that the sewing machine is turned

off (the main power switch is set to “ ”), and then plug the power cord into the power supply jack on the right side of the machine.

Insert the plug of the power cord into a

household electrical outlet.

a Power supply jack

Press the right side of the main power switch

on the right side of the machine (set it to “|”).

Turning off the machine

When you are finished using the sewing machine, turn it off. In addition, before transporting the sewing machine to another location, be sure to turn it off.

Make sure that the machine is not sewing.

Press the left side of the main power switch on

the right side of the machine (set it to “ ”).

X The sewing lamp and the LCD go off when

the machine is turned off.

Unplug the power cord from the electrical

outlet.

Grasp the plug when unplugging the power cord.

Unplug the power cord from the power supply

jack.

X The sewing lamp and the LCD come on

when the machine is turned on.

z If a power outage occurs while the sewing

machine is being operated, turn off the sewing machine and unplug the power cord. When restarting the sewing machine, follow the necessary procedure to correctly operate the machine. (For U.S.A. only)

z This appliance has a polarized plug (one

blade wider than the other). To reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.

Turning the Machine On/Off 15

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Memo

Understanding the LCD Screens

The LCD screen, located on the front at the right of the sewing machine, displays the settings for the selected stitch and error messages if operations are performed incorrectly.When the sewing machine is turned on, the LCD comes on and the following screen appears.

a Presser foot that should be used b Stitch mode c Selected stitch d Stitch length (mm) e Stitch width (mm)

z For details on the error messages that appear when an operation is performed incorrectly, refer to “Error

messages” (page 144).

Changing the Machine Settings

Various sewing machine operations and sewing settings can be changed.

Press or (Stitch length keys) until the

Changing the settings

The general procedure for changing machine settings is described below.

Turn on the sewing machine.

X The LCD comes on.

Press (Settings key) in the operation

panel.

X The settings screen appears.

stitch or machine attribute that you wish to set

is displayed.

a Stitch length keys

Press or (Stitch width keys) until the

desired setting is selected.

X The setting is changed.

Press (OK key) or (Cancel/clear

key).

X The initial stitch screen appears again.

Changing the Machine Settings 17

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Memo

■ List of stitch or machine attributes

The stitch or machine attributes that can be set are listed below. For details on each attribute, refer to the corresponding reference page.

Attribute Icon Details Reference

Check pattern Allows combined patterns to be checked. page 119

Mirror imaging Mirror images patterns along a vertical axis. page 123

Pattern length Adjusts the length of satin stitches. page 122

Pattern size Sets the size of patterns to be large or small. page 120

Repeated/ single sewing

Stitching density

Initial needle position

Stitch width control

Language

Buzzer

LCD brightness Adjusts the brightness of the LCD. page 19

Vertical pattern adjustment

z The icon shown highlighted above is the default setting. z The default display language is English.

Specifies whether the pattern will be sewn once or repeatedly.

Specifies the sewing density of the stitching. page 121

Select the straight stitch that is automatically selected when the machine is turned on.

Allows the stitch width to be adjusted with the sewing speed controller.

Allows the language used in the screens to be changed.

Specifies whether or not a beep is sounded with each operation.

Adjusts the up and down position of the pattern. page 125

page 119

page 103

page 19

page 145

Adjusting the brightness of the LCD

The brightness of the LCD can be adjusted.

Press (Settings key) in the operation

panel, and then press or (Stitch length

keys) until is displayed.

X The screen for changing the brightness of the

LCD appears.

To make the LCD brighter, press (Stitch

width key). To make the LCD darker, press

(Stitch width key).

Changing the screen language

The language used in the screens that are displayed can be changed to one of the many available.

Press (Settings key) in the operation

panel, and then press or (Stitch length

keys) until the language is displayed.

X The screen for changing the language of the

screens appears.

Press or (Stitch width keys) until the

desired language is selected.

The language can be changed to one of the available: English, French, German, Dutch, Spanish, Italian, Danish, Norwegian, Finnish, Swedish, Portuguese, Russian, Japanese, Korean or others.

X The brightness of the LCD is changed.

Press (OK key) or (Cancel/clear

key).

X The initial stitch screen appears again.

X The language of the screens is changed.

Press (OK key) or (Cancel/clear

key).

X The initial stitch screen appears again.

Changing the Machine Settings 19

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

CAUTION

Memo

11.5 mm

Actual size

This model

Other model

(7/16 inch)

Winding/Installing the Bobbin

This section describes how to wind the thread onto the bobbin, and then insert the bobbin thread.

Bobbin precautions

Be sure to observe the following precautions concerning the bobbin.

● Only use the bobbin (part code: X52800-150) designed specifically for this sewing machine. Use of any other bobbin may result in injuries or damage to the machine.

● The included bobbin was designed specifically for this sewing machine. If bobbins from other models are used, the machine will not operate correctly. Use only the included bobbin or bobbins of the same type (part code: X52800-150 ).

Winding the bobbin

Wind the thread around the bobbin to prepare the bobbin thread.

a Bobbin winder

z The order that the machine should be threaded for winding the bobbin is indicated by a broken line on

the sewing machine. Be sure to thread the machine as indicated.

CAUTION

Turn on the sewing machine.

Open the top cover.

Place the bobbin on the bobbin winder shaft so

that the spring on the shaft fits into the notch in the bobbin. Press down on the bobbin until it snaps into place.

Place the spool of thread for the bobbin onto

the spool pin.

Slide the spool onto the pin so that the spool is horizontal and the thread unwinds to the front at the bottom.

• If the spool is not positioned so that the thread unwinds correctly, the thread may become tangled around the spool pin.

Slide the spool cap onto the spool pin.

Slide the spool cap as far as possible to the right, as shown, with the rounded side on the left.

a Notch b Bobbin winder shaft spring

Slide the bobbin winder in the direction of the

arrow until it snaps into place.

• / (“Start/Stop” button) lights up in

orange.

Remove the spool cap that is inserted onto the

spool pin.

● If the spool or the spool cap is not positioned correctly, the thread may become tangled around the spool pin and the needle may break.

● Three spool cap sizes are available (large, medium and small), allowing you to choose a spool cap that best fits the size of spool being used. If the spool cap is too small for the spool being used, the thread may catch on the slit in the spool and the needle may break.

a Spool pin b Spool cap

Winding/Installing the Bobbin 21

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Memo

Note

Pass the thread under the thread guide plate,

and then pull it to the right.

z When sewing with fine, cross-wound thread,

use the small spool cap, and leave a small space between the cap and the spool.

a Spool cap (small) b Spool (cross-wound thread) c Space

a Thread guide plate

z When using thread that winds off quickly,

such as transparent nylon thread or metallic thread, place the spool net over the spool before placing the spool of thread onto the

Pass the thread under the hook on the thread

guide, and then wind it counterclockwise under the pretension disk.

spool pin. If the spool net is too long, fold it to fit the size of the spool. When the spool net is used, the tension of the upper thread will slightly increase. Be sure to check the thread tension. For details, refer to “Adjusting the Thread Tension” (page 55).

a Spool net b Spool c Spool cap d Spool pin

While holding the thread near the spool with

your right hand, as shown, pull the thread with your left hand, and then pass the thread behind the thread guide cover and to the front.

a Thread guide cover

a Thread guide and pretension disk

z Make sure that the thread passes under the

pretension disk.

Note

CAUTION

While holding the thread with your left hand,

wind the thread that was pulled out clockwise around the bobbin five or six times with your right hand.

z Make sure that the thread between the spool

and the bobbin is pulled tight.

z Be sure to wind the thread clockwise around

the bobbin, otherwise the thread will become wrapped around the bobbin winder shaft.

Pass the end of the thread through the guide

slit in the bobbin winder seat, and then pull the thread to the right to cut it.

Slide the sewing speed controller to the right

to increase the bobbin winding speed and slide to left to decrease.

a Sewing speed controller

Press / (“Start/Stop” button) once.

a “Start/Stop” button

• When the bobbin winding becomes slow,

press / (“Start/Stop” button) once

to stop the machine.

a Guide slit in bobbin winder seat

(with built-in cutter)

X The thread is cut to a suitable length.

● Be sure to cut the thread as described. If the bobbin is wound without cutting the thread using the cutter built into the slit in the bobbin winder seat, the thread may become tangled in the bobbin and the needle may bend or break when the bobbin thread starts to run out.

● When the bobbin winding becomes slow, stop the machine, otherwise the sewing machine may be damaged.

Use scissors to cut the end of the thread

wound around the bobbin.

Slide the bobbin winder shaft to the left.

Winding/Installing the Bobbin 23

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Memo

CAUTION

Memo

CAUTION

Memo

Actual size

11.5 mm

This model Other model

(7/16 inch)

Remove the bobbin from the shaft.

z When the sewing machine is started or the

handwheel is turned after winding the bobbin, the machine will make a clicking sound; this is not a malfunction.

Installing the bobbin

Install the bobbin wound with thread.

● Use a bobbin that has been correctly wound with thread, otherwise the needle may break or the thread tension will be incorrect.

Slide the bobbin cover latch to the right.

a Bobbin cover b Latch

X The bobbin cover opens.

Remove the bobbin cover.

Hold the bobbin with your right hand and hold

the end of the thread with your left.

• Be careful not to drop the bobbin.

Insert the bobbin into the bobbin case so that

the thread unrolls to the left.

●

The bobbin was designed specifically for this sewing machine. If bobbins from other models are used, the machine will not operate correctly. Use only the included bobbin or bobbins of the same type (part code: X52800-150).

z The order that the bobbin thread should be

passed through the bobbin case is indicated by marks around the bobbin case. Be sure to thread the machine as indicated.

• Be sure to insert the bobbin correctly.

● Be sure to install the bobbin so that the thread unwinds in the correct direction, otherwise the thread may break or the thread tension will be incorrect.

z The order that the bobbin thread should be

passed through the bobbin case is indicated by marks around the bobbin case. Be sure to thread the machine as indicated.

CAUTION

Note

Memo

Lightly hold down the bobbin with your right

hand, and then guide the thread as shown with your left hand.

● When installing the bobbin, be sure to hold it down with your finger. If the bobbin is not correctly installed, the thread tension will be incorrect.

Pass the thread through the slot as shown, and

then pull the thread out toward the front.

Reattach the bobbin cover.

Insert the tab in the lower-left corner of the bobbin cover, and then lightly press down on the right side.

X The lower threading is finished.

Next, thread the upper thread. Continue with the procedure in “Upper Threading” (page 26).

z You can begin sewing without pulling up the

bobbin thread. If you wish to pull up the bobbin thread before starting to sew, pull up the thread according to the procedure in “Pulling up the bobbin thread” (page 34).

a Cutter

X The cutter cuts the thread.

z Make sure that the thread is correctly

inserted through the tension-adjusting spring of the bobbin case. If it is not inserted correctly, reinsert the thread.

a Tension-adjusting spring

Winding/Installing the Bobbin 25

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

CAUTION

Memo

Note

Upper Threading

In this section, the procedures for positioning the spool for the upper thread and threading the needle are described.

● When threading the upper thread, carefully follow the instructions. If the upper threading is not correct, the thread may become tangled and the needle may bend or break.

z The order that the machine should be

threaded is indicated by a solid line on the sewing machine. Be sure to thread the machine as indicated.

Threading the upper thread

Set the spool of thread on the spool pin, and then thread the machine.

Turn on the sewing machine.

Raise the presser foot lever to raise the presser

foot.

a Presser foot lever

z If the presser foot is not raised, the sewing

machine cannot be threaded.

CAUTION

Press (“Needle Position” button) once or

twice to raise the needle.

a “Needle Position” button

X The needle is correctly raised when the mark

on the handwheel is at the top, as shown below. Check the handwheel and, if this mark is not at this position, press (“Needle Position” button) until it is.

a Mark on handwheel

Open the top cover.

Remove the spool cap that is inserted onto the

spool pin.

Place the spool of thread onto the spool pin.

Slide the spool onto the pin so that the spool is horizontal and the thread unwinds to the front at the bottom.

Slide the spool cap onto the spool pin.

Slide the spool cap as far as possible to the right, as shown, with the rounded side on the left.

● If the spool or the spool cap is not positioned correctly, the thread may become tangled around the spool pin and the needle may break.

a Spool pin b Spool cap

Upper Threading 27

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Note

While holding the thread lightly with your

right hand, pull the thread with your left hand, and then pass the thread behind the thread guide cover and to the front.

a Thread guide cover

Pass the thread under the thread guide plate,

and then pull it up.

z This machine is equipped with a window

that allows you to check the position of the take-up lever. Look through this window and check that the thread is correctly fed through the take-up lever.

Pass the thread behind the needle bar thread

guide.

The thread can easily be passed behind the needle bar thread guide by holding the thread in your left hand, then feeding the thread with your right hand, as shown.

a Thread guide plate

While using your right hand to lightly hold the

thread passed under the thread guide plate, pass the thread through the thread path in the order shown below.

a Shutter

z If the presser foot has been lowered and the

shutter is closed, the machine cannot be threaded. Be sure to raise the presser foot and open the shutter before threading the machine. In addition, before removing the upper thread, be sure to raise the presser foot and open the shutter.

a Needle bar thread guide

Next, use the needle threader to thread the needle. Continue with the procedure in “Threading the needle” (page 29).
