Aztech WL592USB User Manual

Aztech WL592USB
450 Mbps Wireless AC
Dual Frequency USB Adapter
User Manual
No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission. We reserve the right to revise this document at any time without the obligation to notify any person and/or entity. All other company or product names mentioned are used for identification purposes only and may be trademarks of their respective owners.
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED "AS IS," BASIS. THE
MANUFACTURER AND MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTIES ARISING FROM COURSE OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE. IN NO EVENT WILL THE SELLERS BE LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL WILLFUL, PUNITIVE, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS, OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR THE SOFTWARES, INCLUDING BUT NOT LIMITED TO THOSE RESULTING FROM DEFECTS IN THE PRODUCT OR SOFTWARE OR DOCUMENTATION, OR LOSS OR INACCURACY OF DATA OF ANY KIND, WHETHER BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY, EVEN IF THE PARTIES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE PRODUCT OR ITS SOFTWARE IS ASSUMED BY CUSTOMER. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE LIABILITY OF EACH AND EVERY KIND IN RELATION TO THE PRODUCT OR ITS SOFTWARE EXCEED THE AMOUNT PAID BY CUSTOMER FOR THE PRODUCT.
Page 2 of 38
User Manual
Contents
Getting Started ............................................................................................................. 5
Check Package Contents .......................................................................... 6
Device Overview .......................................................................................... 6
Configuring Internet Properties .................................................................. 7
Removing Temporary Internet Files ............................................................ 7
Software Installation .................................................................................................... 8
Hardware Installation ................................................................................................ 13
Connect to a Network .............................................................................................. 14
Connecting to a Non-Secured Wireless AP ............................................ 15
Connecting to WEP-Secured Wireless AP ............................................... 16
Connecting to WPA-PSK-Secured Wireless AP ....................................... 17
Regional Channel in the Computer settings ......................................................... 20
About the WL592USB Utility ....................................................................................... 22

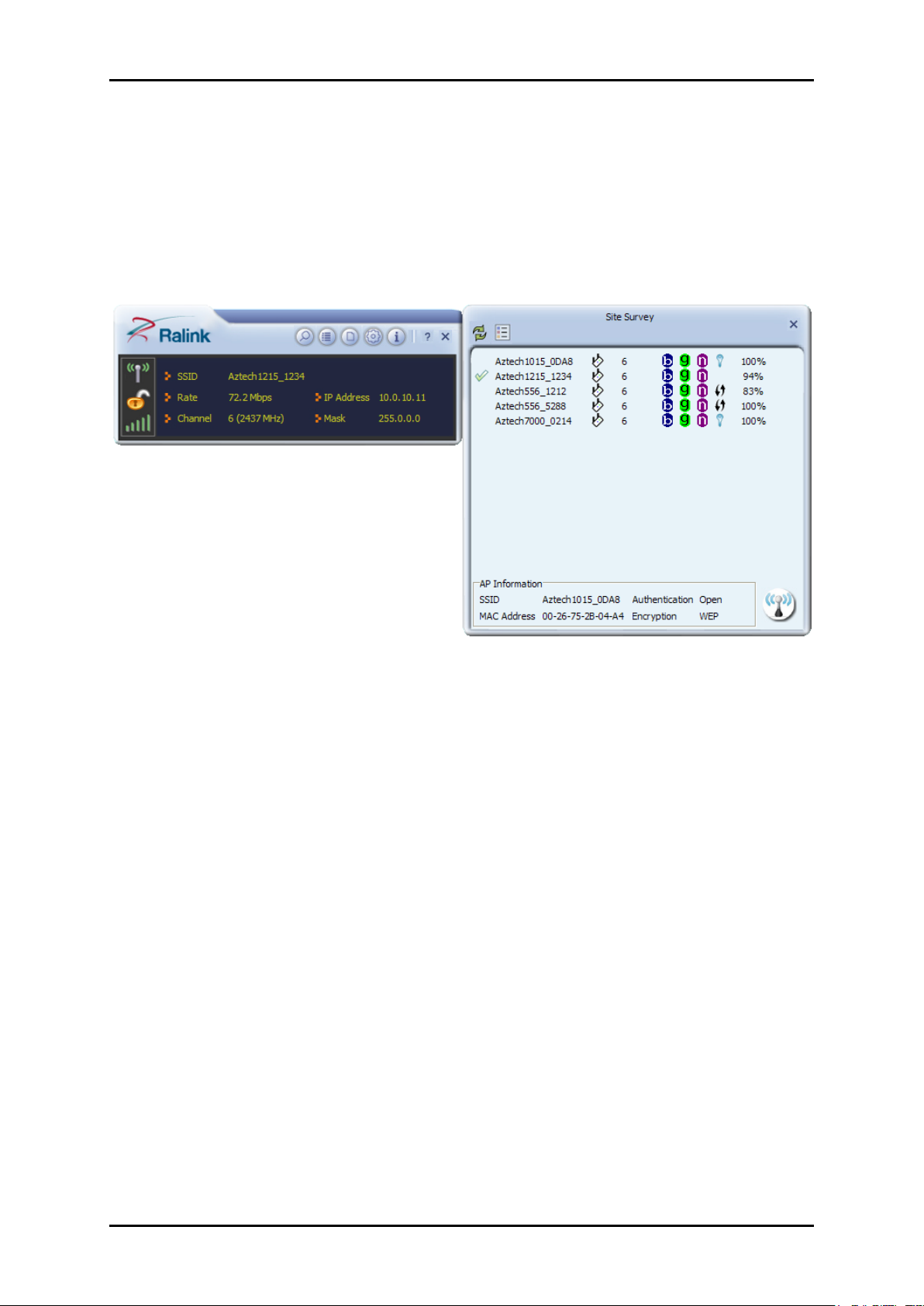

Available Network Page ........................................................................... 24

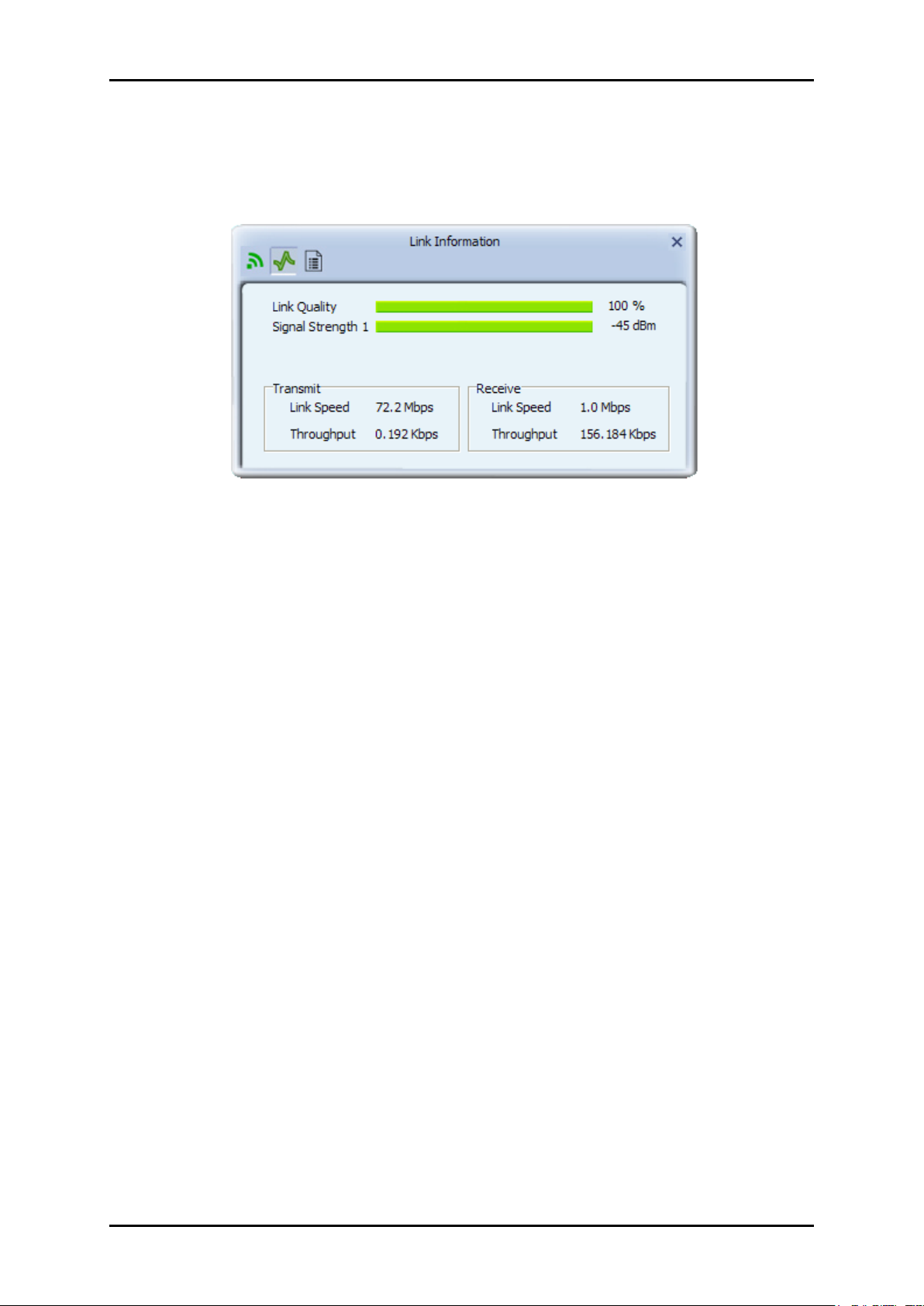

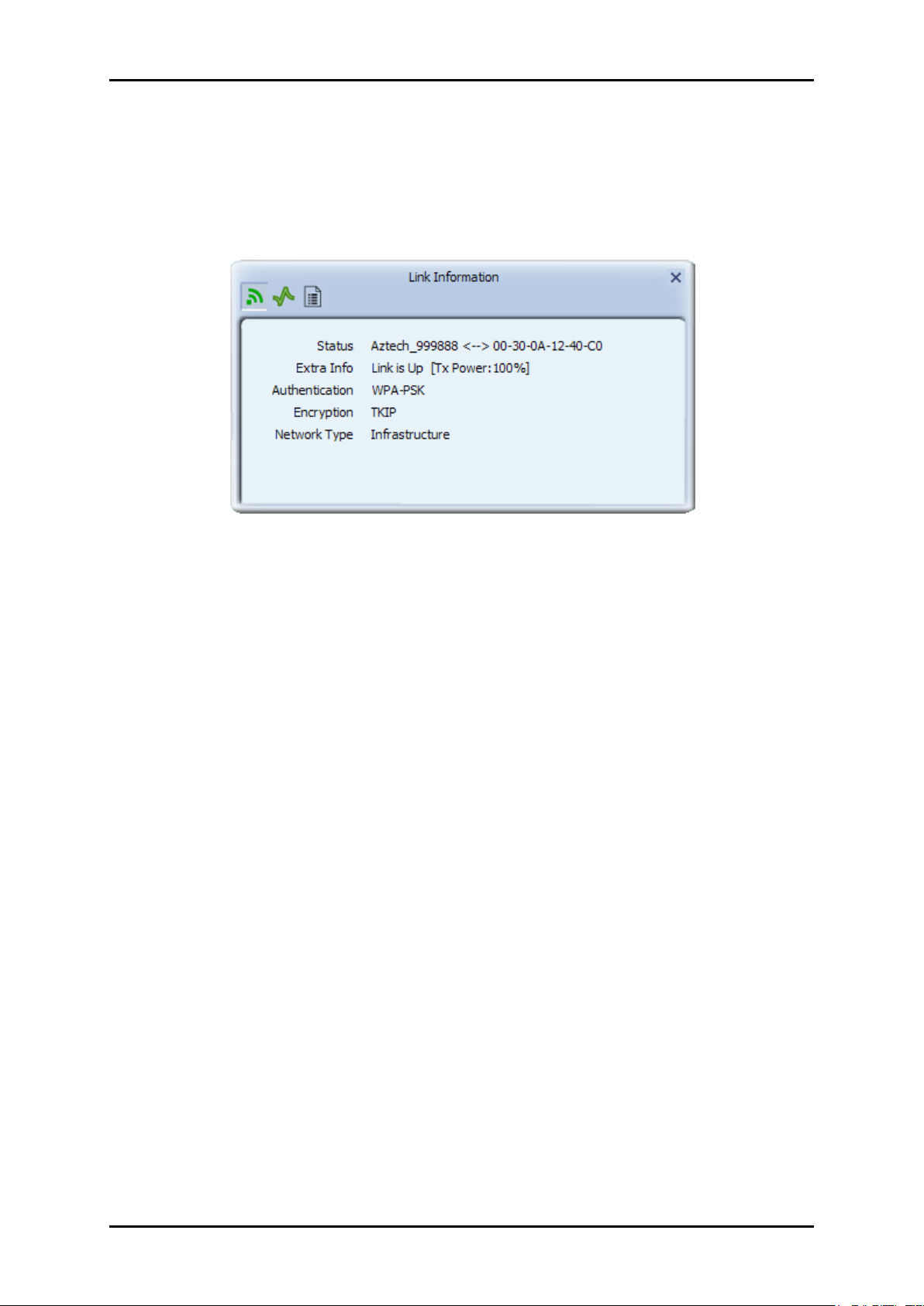

Link Information Page ................................................................................ 25
Throughput .................................................................................................. 26
Statistics ........................................................................................................ 26
Transmit Statistics ......................................................................................... 27
Received Statistics ...................................................................................... 27
Profile Settings Page ................................................................................... 28

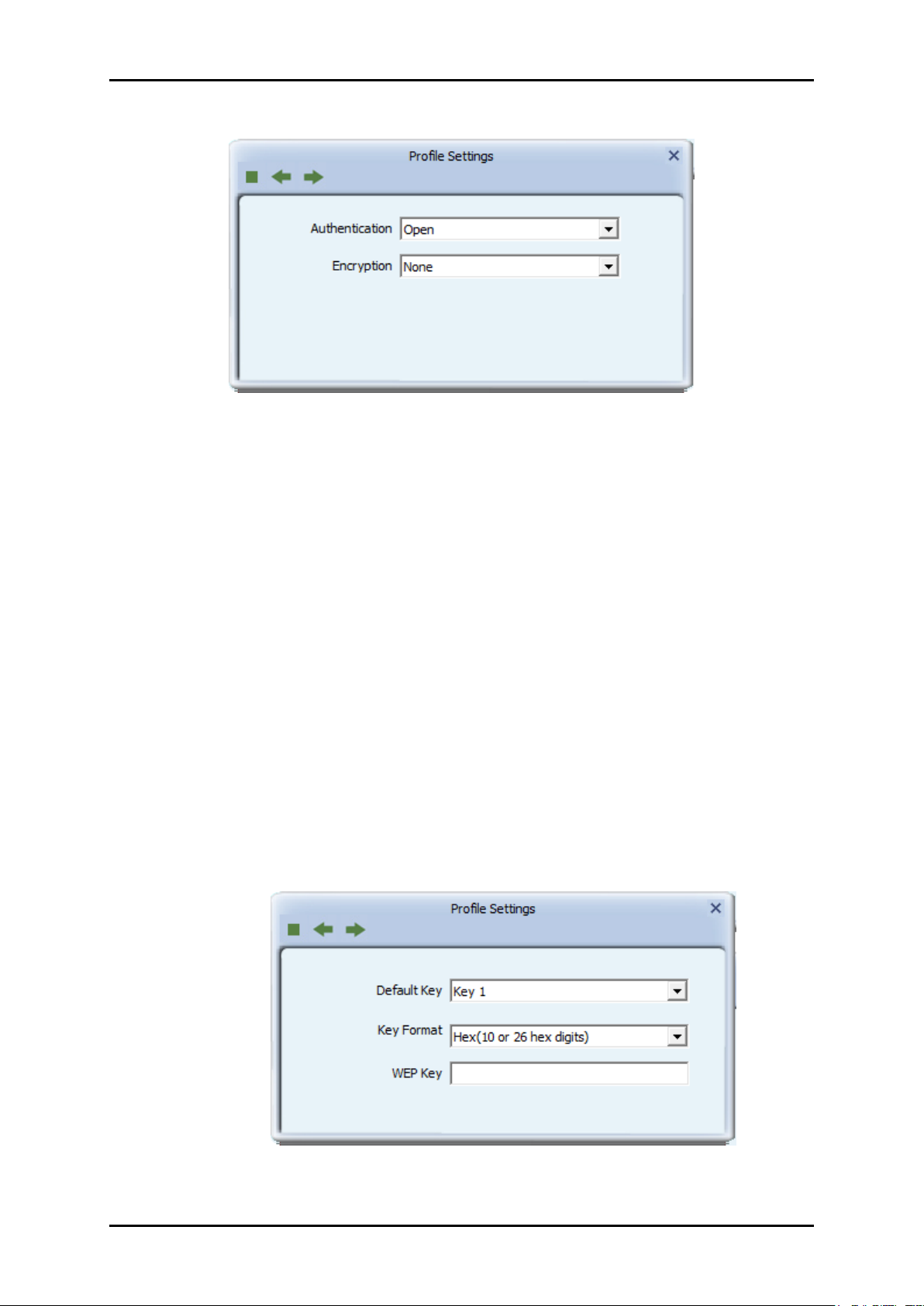

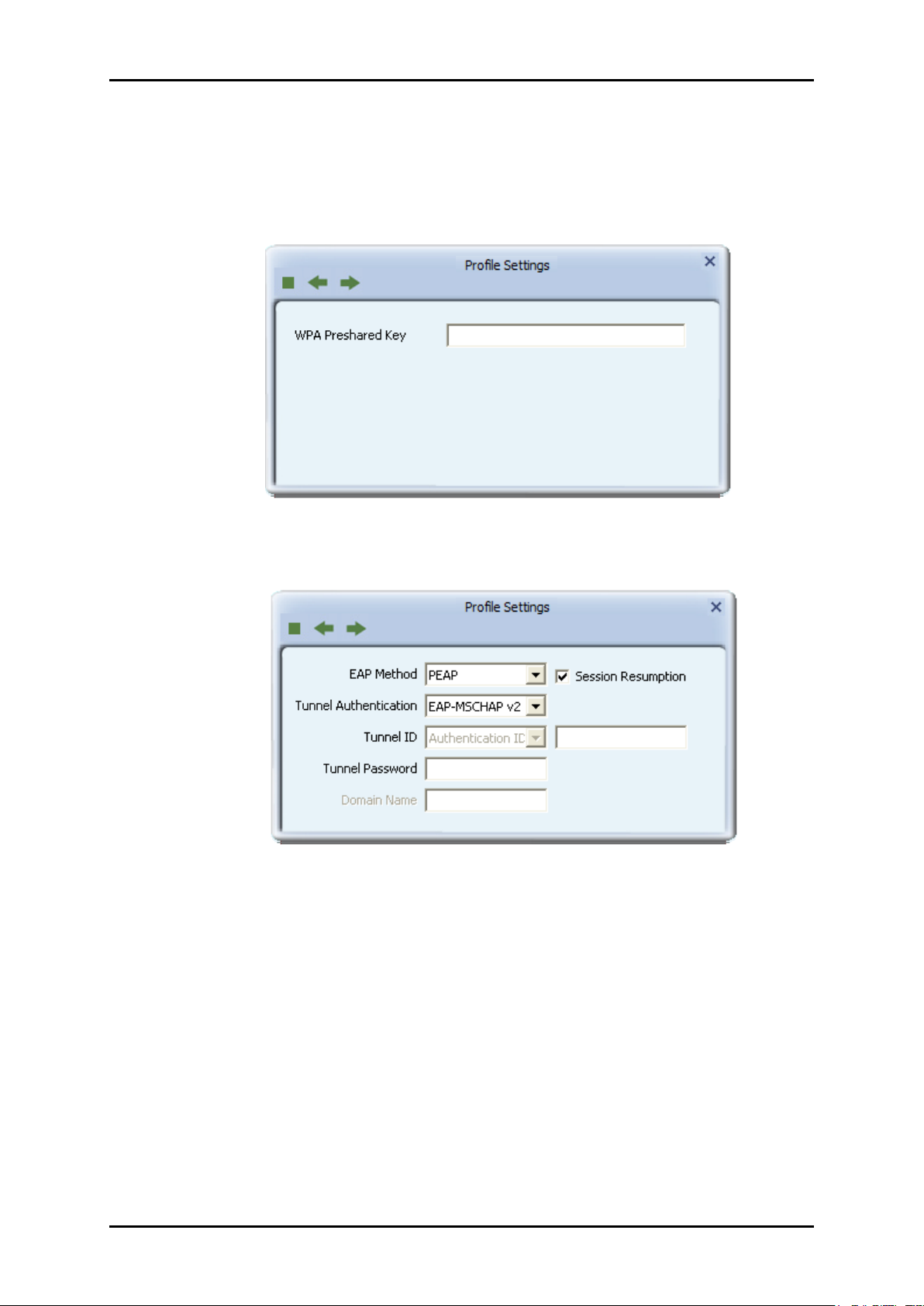

Add/Edit Profile ........................................................................................... 29
EAP Methods ............................................................................................... 31
Session Resumption .................................................................................... 32
Tunnel Authentication ................................................................................ 32
Tunnel ID / PASSWORD ............................................................................... 32

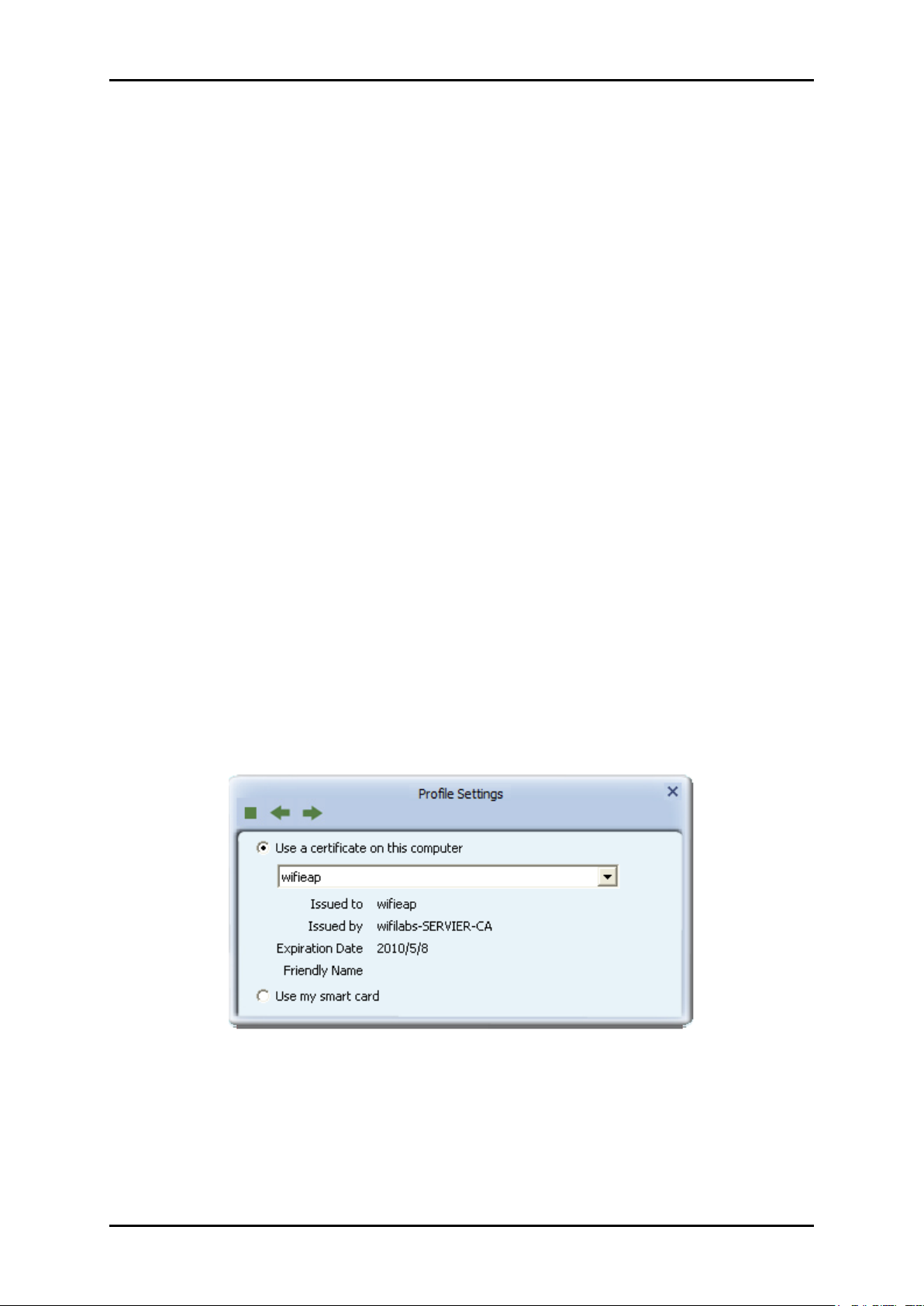

Client Certification ..................................................................................... 32
Server Certification ..................................................................................... 33
WPS ............................................................................................................... 34
About Page ................................................................................................. 37
Page 3 of 38
User Manual
About the Product
WL592USB provides wireless connectivity to desktop or notebook computers. The device
performs the function of a radio broadcaster and receiver to communicate with a wireless
network. This gives the computer connected with WL592USB the capability to communicate
with other devices and use the Internet service available in the wireless network.
WL592USB is capable of connecting with wireless networks that utilize the 802.11ac Wireless
protocol. This device also supports connection to other wireless network standards like
Wireless G, Wireless B and Wireless N. WL592USB is easy to setup - install the necessary driver
software, connect it to an available USB slot, and then connect to a wireless network. The
device comes with Windows-based software called WL592USB Utility that can be used to
connect to wireless networks and create profiles which remembers the configuration details
for a wireless network.
Note: Wireless connection speed is not correlated to Internet access speed. Internet access
speed from popular broadband DSL or cable Internet services normally provides up to 3
Mbps connection, which can be easily handled even by the slower Wireless B protocol.
Page 4 of 38
User Manual
Remove/Disable
Conflicts
Check Package
Contents
Software Installation
Connect to a
Network
Hardware Installation
Getting Started
Setting up the device is easy. The flowchart below provides an outline of the steps needed to
complete the installation. Detailed instructions are provided in the subsequent pages.
Page 5 of 38
User Manual
WPS Button
Check Package Contents
Make sure that you have the following items. If any of the items is damaged or missing,
please contact your dealer immediately.
WL592USB Easy Start Guide Warranty Card Resource CD – contains WL592USB Utility installer, User Manual and Easy Start Guide
Note: You may also download the Utility installer, the Easy Start Guide, and the User Manual
by visiting this link: http://www.aztech.com/support/
Device Overview
Remove or Disable Conflicts
To make sure the device installation moves on smoothly, you need to remove or disable
conflicts that may interfere the installation. Probable conflicts may include:
Internet sharing applications Proxy software Security software Internet properties Temporary Internet files
Page 6 of 38
User Manual
Internet Sharing Applications
Proxy Software
Security Software
Microsoft Internet Sharing
WinGate
Symantec
WinProxy
Zone Alarm
Internet Sharing, Proxy, and Security Applications
Internet sharing, proxy software, and firewall applications may interfere with the installation.
These should be removed or disabled before starting the installation.
If you have any of the following or similar applications installed on your computer, remove or
disable them according to the manufacturer’s instructions.
Configuring Internet Properties
To set the Internet Properties:
1. Click the Start button, and then click Run. This opens the Run dialog box.
2. Type ‘control inetcpl.cpl’ and then click OK. The Internet Properties window would
appear.
3. Click the ‘Connections’ tab.
4. In Dial-up and Virtual Private Network settings, check ‘Never dial a connection’.
5. To close Internet Properties, click OK.
Removing Temporary Internet Files
Temporary Internet files are files from Web sites that are stored in your computer. Delete
these files to clean the cache and remove footprints left by the Web pages you previously
visited.
To remove temporary Internet files:
1. Click the Start button and then click Run.
2. On the Run dialog box, type ‘control’ and then click OK to open the Control Panel.
3. Double-click Internet Options. Open Internet Options to open the Internet Properties
window.
4. In the Temporary Internet Files pane, click Delete Cookies.
5. Click Delete Files.
6. To close Internet Properties, click OK.
Page 7 of 38
User Manual
Software Installation
Here are the instructions on how to install the driver software for Windows Vista, 7 and 8.
Note: Do not connect the device until the Utility is completely installed.
To install the driver software:
1. Insert the Resource CD to the CD-ROM and open the folder with the same name as
your product. Then double click Setup.exe in the proper folder to start
the installation. If the Utility does not open automatically, click the Start button and
then click Run. Enter d:\setup.exe where ‘d’ is the CD-ROM drive.
Page 8 of 38
User Manual
2. Wizard will now move to the next step, License Agreement. Check the option ‘I
accept the terms of the license agreement’.
3. Click Next.
4. Select either of the options available:
a. Install driver and Ralink WLAN Utility. This will install driver for the adaptor and the
wireless utility.
b. Install driver only. This will install only the driver for the adaptor.
Page 9 of 38
User Manual
5. Click Next.
6. If you selected the first option, please select either one of the options available:
a. Ralink Configuration Tool
b. Microsoft Zero Configuration Tool
Page 10 of 38
User Manual
7. Click Next.
8. Click Install, required driver/utility is now being installed into the PC.
Page 11 of 38
User Manual
9. Click Finish to exit the wizard. Installation is now complete.
Note: After the installation, an icon will appear at the bottom of the screen in your
system tray. Otherwise, maybe there are some problems with the installation. Please check
carefully.
Page 12 of 38
