Aztech WIPC401 Owner Manual
WIPC401
Wireless N Pan/Tilt IP Camera
User Manual
© Copyright 2012 All rights reserved. Ver 1.1
No part of this document may be reproduced, republished, or retransmitted in any form or by any means
whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying,
recording, information recording, or through retrieval systems without the express written permission. We
reserve the right to revise this document at any time without the obligation to notify any person and/or entity.
All other company or product names mentioned are used for identification purposes only and may be
trademarks of their respective owners.
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED "AS IS," BASIS. THE MANUFACTURER AND
MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTIES ARISING
FROM COURSE OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE. IN NO EVENT WILL THE
SELLERS BE LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL
WILLFUL, PUNITIVE, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF
BUSINESS PROFITS, OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING
OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR THE SOFTWARES, INCLUDING BUT NOT LIMITED
TO THOSE RESULTING FROM DEFECTS IN THE PRODUCT OR SOFTWARE OR DOCUMENTATION, OR LOSS OR
INACCURACY OF DATA OF ANY KIND, WHETHER BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY,
EVEN IF THE PARTIES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE ENTIRE RISK AS TO
THE RESULTS AND PERFORMANCE OF THE PRODUCT OR ITS SOFTWARE IS ASSUMED BY CUSTOMER. BECAUSE
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABLITY FOR DAMAGES, THE ABOVE
LIMITATION MAY NOT APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE LIABILITY
OF EACH AND EVERY KIND IN RELATION TO THE PRODUCT OR ITS SOFTWARE EXCEED THE AMOUNT PAID BY
CUSTOMER FOR THE PRODUCT.
Page 2 of 96
User Manual
Table of Contents
About the Device ....................................................................................................................... 5
Requirements ............................................................................................................ 6
Package Contents ...................................................................................................... 6
Device Design ............................................................................................................ 7
Getting Started ........................................................................................................................... 8
Planning Your Network ............................................................................................. 9
Remove or Disable Conflicts ................................................................................... 10
Internet Sharing, Proxy, and Security Applications ................................................. 10
Configuring TCP/IP Settings..................................................................................... 11
Configuring Internet Properties .............................................................................. 11
Removing Temporary Internet Files ........................................................................ 12
Setup the Device ..................................................................................................... 13
Installing the Utility ................................................................................................. 14
Requirements .......................................................................................................... 14
Installation ............................................................................................................... 14
About the Web User Interface ................................................................................................. 17
Menus ...................................................................................................................... 17
Home ....................................................................................................................... 18
Quick Setup ............................................................................................................. 20
View ......................................................................................................................... 22
Network ................................................................................................................... 24
Alarm ....................................................................................................................... 30
Advanced ................................................................................................................. 34
Management ........................................................................................................... 37

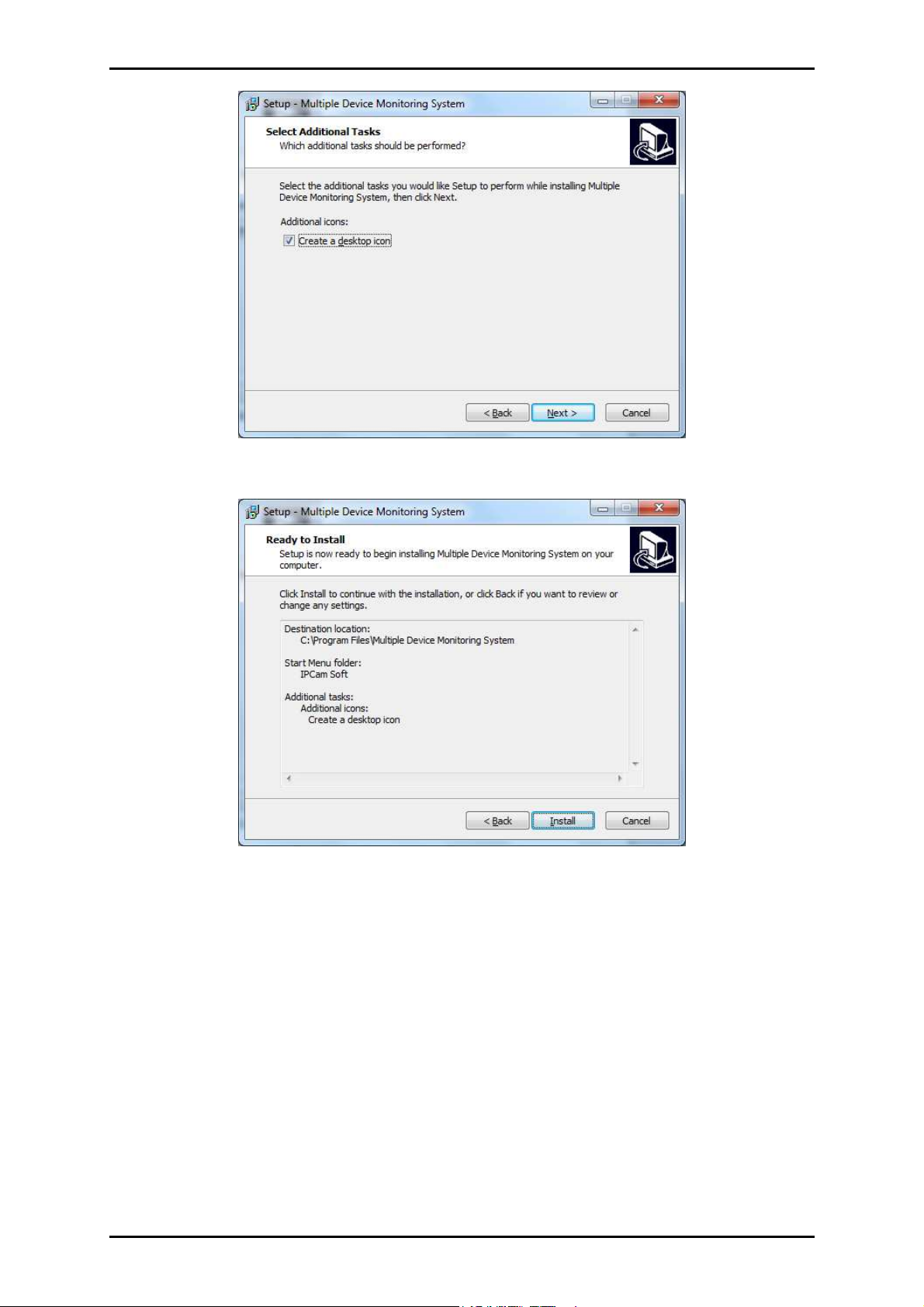

Multiple Device Monitoring System ........................................................................................ 41
Installation ............................................................................................................... 41
Multiple Device Monitoring System WEB UI .......................................................... 44
View your IP Camera from the Internet .................................................................................. 50
Wireless Connection ............................................................................................... 50
Setting Port Forwarding on 2wire 5012NV-002 ...................................................... 54
Setting Port Forwarding on Aztech DSL1015EW(S) ................................................ 61
Setting Port Forwarding on 2Wire 2700HGV-2/2701HGV-E ................................... 64
Wired Connection ................................................................................................... 72
Page 3 of 96
User Manual
Setting Port Forwarding on 2wire 5012NV-002 ...................................................... 76
Setting Port Forwarding on Aztech DSL1015EW(S) ................................................ 82
Setting Port Forwarding on 2Wire 2700HGV-2/2701HGV-E ................................... 83
Frequently Asked Questions .................................................................................................... 89
Safety Instructions ................................................................................................................... 96
Page 4 of 96
User Manual
About the Device
Aztech WIPC401 is a Wireless N Pan/Tilt IP Camera that supports 802.11
b/g/n targeted at providing good video quality to the end users via wired and
wireless connection. Wireless supports WEP/WPA /WPA2 encryption.
The video is compressed by MJPEG and allows user to change video
resolution according to their demands to satisfy their own visual preferences.
With built-in Microphone, it enables user to monitor the sounds by
connecting an external speaker to the IP camera. The device also supports two-
way intercom function to allow user to communicate to the person on the
other location.
With Motion detection, Alarm notification and Infrared feature, it allows
user a 24 hours monitoring. The device can capture video snapshots to
automatically send to your FTP server or send email notification.
Hassle free Manufacturer's DDNS which is unique for every device. The
Web User Interface is accessible to any Web browser and mobile phone to
view video anywhere. It supports three levels of user authority to access the
Web User Interface.
WIPC401 supports dynamic UPnP* that allows port forwarding
automatically on the router.
* Ensure that your router supports dynamic UPnP for this feature to work properly.
Page 5 of 96
User Manual
Requirements
Your computer must meet the following minimum requirements.
Any operating system can be used
Web Browser
CD-ROM drive
233MHz processor
Ethernet network adapter
Package Contents
Package contents are listed below. For any missing items, please contact your dealer
immediately. Product contents vary for different models.
WIPC401
Ethernet cable
Camera Stand
5V 2.0A DC Power Adapter
Easy Start Guide
Resource CD
Warranty Card
Page 6 of 96
Device Design
User Manual
Label Description
A
B Camera Lens CMOS sensor with Fixed focus Lens
C Infrared LED Automatically activates for night vision.
Network LED
Indicator
This LED blinks when there is activity.
D Light Sensor Automatically activates Infrared LED for night vision.
E Microphone Built-in microphone.
F Audio out Port Connecting your external speaker
G Ethernet Port Connecting your modem/router using an Ethernet cable.
H Wireless Antenna Connecting the detachable antenna
I I/O Port Connecting an external alarm device.
J Power Jack Connect the 5v 2.0A Power adapter.
Page 7 of 96
User Manual
Remove/Disable
Ready to Use
Setup the IP
Installing the
Getting Started
Setting up the device is easy. The flowchart below provides an outline of the steps needed
to complete the installation. Brief descriptions appear beside each step. Detailed
instructions are provided in the subsequent pages.
Plan your Network
You may need to check some
setting or disable some application
Conflicts
before installation.
Camera
Utility
Web Interface
Use Quick Setup
Connect the Ethernet cable and
power adaptor.
Use the Quick Setup Web GUI to
configure the network connection.
Page 8 of 96
User Manual
Wired Connection
Wireless Connection
Planning Your Network
Before moving ahead to setup your network, it is a good idea to draw out a network
diagram to help identify your network devices and plan out how to connect these devices.
The illustration below is an example of a network diagram.
Page 9 of 96
User Manual
Remove or Disable Conflicts
To make sure the router installation moves on smoothly, you need to remove or disable
conflicts that may interfere the installation. Probable conflicts may include:
Internet sharing applications
Proxy software
Security software
TCP/IP settings
Internet properties
Temporary Internet files
Internet Sharing, Proxy, and Security Applications
Internet sharing, proxy software, and firewall applications may interfere with the router
installation. These should be removed or disabled before start the installation.
If you have any of the following or similar applications installed on your computer, remove
or disable them according to the manufacturer’s instructions.
Internet Sharing Applications Proxy Software Security Software
Microsoft Internet Sharing WinGate Symantec
WinProxy Zone Alarm
Page 10 of 96
User Manual
Configuring TCP/IP Settings
Check if your computer uses the default TCP/IP settings.
To check the TCP/IP properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control ncpa.cpl and then click OK. This opens the Network Connections in
your computer.
3. Right-click LAN and then select Properties. This opens the Local Area Connection
Properties dialog box.
4. Select Internet Protocol (TCP/IP) and then click Properties. This opens the Internet
Protocol (TCP/IP) dialog box.
5. Select Obtain an IP address automatically.
6. Click OK to close the Internet Protocol (TCP/IP) dialog box.
7. Click OK to close the Local Area Connection Properties dialog box.
Configuring Internet Properties
To set the Internet Properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control inetcpl.cpl and then click OK. This opens Internet Properties.
3. Click Connections tab.
4. In the Dial-up and Virtual Private Network settings pane, select Never dial a
connection.
5. Click OK to close Internet Properties.
Page 11 of 96
User Manual
Removing Temporary Internet Files
Temporary Internet files are files from Web sites that are stored in your computer. Delete
these files to clean the cache and remove footprints left by the Web pages you visited.
To remove temporary Internet files:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control and then click OK. This opens Control Panel.
3. Double-click Internet Options. This opens Internet Options.
4. In the Temporary Internet Files pane, click Delete Cookies.
5. Click Delete Files.
6. Click OK to close Internet Properties.
Page 12 of 96
User Manual
Setup the Device
When installing the IP Camera, find an area where there are enough electrical outlets for
the IP Camera, router, the main computer, and your other Ethernet devices.
1. Connect your Aztech WIPC401 into your Modem/Router's Ethernet LAN port with an
Ethernet cable.
Make user that your Modem/Router's Internet connection is UP to allow you to
access your IP camera via the Internet.
2. Connect the Power Adapter to your Aztech WIPC401 and plug it into the power
outlet then switch it ON.
3. Connect your computer to the same router wherein Aztech WIPC401 is connected
then launch the WIPC401 utility.
Page 13 of 96
User Manual
Installing the Utility
WIPC401 Utility is a software application that allows you to configure your IP Camera.
Requirements
Your computer must meet the following minimum requirements.
Any operating system can be used
Web Browser
CD-ROM drive
233MHz processor
Ethernet network adapter
Installation
For Windows XP/Vista/7
1. Insert the WIPC401 Resource CD into the CD-ROM drive.
2. Click the Start button on your computer, and then select My Computer.
3. Right click on the D drive (where D: is your CD-ROM drive) then select Explore.
4. Copy and paste WIPC401 Utility into your computer’s desktop.
5. To launch the utility double click WIPC401 Utility then click Search (F3)
Page 14 of 96
User Manual
6. Device List table will automatically be populated. Select your IP camera, and then
click Browse (F4).
7. This will launch the IP Camera’s WEB User Interface. Input admin for both username
and password then click OK.
For Mac OSX
1. Insert the WIPC401 Resource CD into the CD-ROM drive.
2. Click the Start button on your computer, and then select My Computer.
3. Right click on the D drive (where D: is your CD-ROM drive) then select Explore.
Copy and save MAC Search Tool on your computer’s desktop.
4.
Page 15 of 96
User Manual
5. Open the MAC Search Tool folder then double click IP Camera tool .
6. This will launch the IP Camera tool; ensure that your IP camera and PC are connected
to the same router.
7. Double click on the IP Camera’s IP address to launch the Web User Interface.
Authentication page will appear, input admin for both username and password then
click Ok to login to the Web User Interface.
Page 16 of 96
User Manual
About the Web User Interface
User has two options in accessing the Web User Interface, use the utility or set a static IP
address on your computer to launch the Web User Interface to configure the IP camera’s
settings.
Menus
The Web User Interface includes the following menus:
Home
Quick Setup
View
Network
Advanced
Management
Page 17 of 96
User Manual
Home
1. For first time use click Download and install Player (first use) to view the Video
smoothly.
2. DVM_IPCam2.exe Message will pop up click Run to install application.
Page 18 of 96
3. Right click on the pop-up message and select Run Add-on.
User Manual
4. DVM_IPCam2 ActiveX Control Module message will appear then click Run.
Page 19 of 96
User Manual
Quick Setup
Quick Setup will allow user configure the basic settings of the device to be connected to the
Internet.
Date and Time Settings
• Select the Timezone that you would like to set on your IP camera.
Network Settings
DHCP/STATIC
• By default your IP camera is set to DHCP wherein it will automatically get an IP
address from the DHCP server.
• Uncheck the box to set Static IP address for the IP camera.
Port Number
• Input the port number that you would like to use for the IP camera (It is
recommended to use the default port number as some router is using port 80).
Page 20 of 96
User Manual
Wireless Settings
• Click Scan for the IP camera to search all the available Wireless Access Point.
• Select your Wireless Access Point then input the password on the required field.
DDNS Settings
• You may use the default Manufacturer’s DDNS for remote access into your IP camera
or you can select the Third party DDNS.
• In selecting a Third party DDNS, it is required to have an active DDNS account for you
to access the IP camera via the Internet.
Once you have completed the required information click Submit for the settings to take
effect.
Note
Note: It is required to configure Port Forwarding
NoteNote
When using the Manufacturer’s DDNS do not include the port number when accessing the IP camera
(example: http://WIPCxxxxxx.nwsvr.com where xxxxxx is unique for every device).
In using a Third Party DDNS it is required that you have an active DDNS account for you to access the
IP camera via the Internet else use the Manufacturer’s DDNS. You may refer to the Third Party DDNS
server on How to register and create an account.
Check on the Frequently Asked Questions
configure port forwarding on some routers.
Frequently Asked Questions on how to access the IP camera on a smart phone and
Frequently Asked QuestionsFrequently Asked Questions
Port Forwarding on your router for you to access the IP camera via Internet.
Port ForwardingPort Forwarding
Page 21 of 96
User Manual
View
This section allows user to monitor and capture live videos.
Play
• Press this to start Live Video.
Stop
• Press this to stop Live Video.
Audio
• Press this to enable Audio and allows you to hear the sound coming from the
live video.
• Press this to disable Audio.
Page 22 of 96
User Manual
Microphone
• Press this to enable Microphone and allows you to transmit voice via the IP
camera.
• Press this to disable Microphone
Recording
• Press this to enable Recording.
• Press this to disable and stop Recording.
Snapshot
• Press this to capture a snapshot of the live video.
Device Control Monitor
• Allows user to control IP camera’s Horizontal and Vertical view. Press
the Center icon for the IP camera to rotate 1 circle view.
• Press arrow UP/Down icon to enable Vertical patrol. Click the Stop icon
to disable Vertical patrol.
• Press arrow Left/Right icon to enable Horizontal patrol. Click the Stop
icon to disable Horizontal patrol.
• Press to Switch Off external Alarm device.
• Press to Switch On external Alarm device.
Allows user to view and record video up to 9 devices
• Green device is connected to the network and currently active.
Page 23 of 96
User Manual
• Red blinking device is connected to the network and Alarm is Active.
• Yellow device is not connected to the network
• Add Timestamp on record – displays Time and date during video recording.
• OSD – Allows user to enable the device name and color display.
• Reversal – controls vertical display of the video.
• Mirror – control horizontal display of the video.
• Fps – allows user to set quality of the video. Full speed displays highest video quality.
• Resolution – allows user to choose from different video resolutions 640*480,
320*240, and 160*120.
• Mode – allows user to adjust lighting frequency depending on the environment.
• Brightness – allows user to adjust brightness of the video displayed.
• Contrast – allows user to adjust contrast of the video being displayed.
• Default all – click this to set video display to its factory default.
Network
This section allows user to configure Network and Port number settings.
Page 24 of 96
User Manual
Network Settings
DHCP/Static
• By default your IP camera is set to DHCP wherein it will automatically get an IP
address from the DHCP server.
• Uncheck the DHCP/Static box to set Static IP address on the IP camera.
• Static IP – select this option if you have the following information IP address, Subnet
Mask, Default Gateway, Primary and Secondary DNS. This information can be
obtained from your network administrator.
Port Number
• Input the port number that you would like to use for the IP camera (It is
recommended to use the default port number as some router is using port 80).
Note
Note: If you have more than 1 IP Camera it is required to use different port number for each camera.
NoteNote
Example IP camera-1 port number 8081; IP camera-2 port number 8082
Page 25 of 96
User Manual
Wireless Settings
This section allows user to configure the wireless settings of the IP camera.
1. Click Scan for the IP camera to search all the available Wireless Access Point.
2. Select your Wireless Access Point then input the password on the required field then
3. Click Submit for the settings to take effect.
Note
Note: Disconnect the Ethernet cable ONLY after the IP Camera reboots. Your IP Camera will automatically
NoteNote
connect to your Wireless Access Point within 2 minutes.
UPnP Settings
• Enable UPnP – tick the box then click Submit to enable UPnP.
Page 26 of 96
User Manual
DDNS Settings
This section allows user to configure the DDNS account. User may choose from
Manufacturer’s DDNS or Third Party DDNS.
Manufacturer’s Domain
xxxxxx.nwsvr.com
• Use the Manufacturer’s DDNS if you don’t have an active Third Party DDNS account.
•
Note
Note: It is required to configure Port Forwarding on your router for you to access the IP camera via Internet.
NoteNote
•
When using the Manufacturer’s DDNS do not include the port number when accessing the IP camera
(example: http://xxxxxx.nwsvr.com where xxxxxx is unique for every device).
Third Party DDNS
Page 27 of 96
User Manual
1. DDNS Service – select the DDNS server that you would like to use.
2. DDNS Username – input your DDNS username on the required field.
3. DDNS Password – input your DDNS password on the required field.
4. DDNS Host – input your DDNS hostname on the required field.
5. Click Submit for the settings to take effect.
Note
Note: It is required to configure Port Forwarding on your router for you to access the IP camera via Internet.
NoteNote
MSN Config
This section allows the IP camera to send its WAN IP address to the MSN friend List.
In using a Third Party DDNS it is required that you have an active DDNS account for you to access the IP
camera via the Internet. You may refer to the Third Party DDNS server on How to register and create
an account.
Page 28 of 96
User Manual
• Input the 1
st
MSN account under User which will serve as your IP camera’s email
address.
• Input the 1
st
MSN account Password on the required field.
• Input your friend's email address on the MSN friends list to allow them to receive the
IP camera's WAN IP address
• Using the 2
nd
MSN account, login to messenger and ensure that the IP camera’s
email address is added on the contacts.
• Once you see that the IP camera is Online on your messenger send url? For the IP
camera to reply its WAN IP address.
Note
Note: It is required to have 2 MSN account for this feature to work. It is recommended to create an email
NoteNote
account for the IP camera.
Page 29 of 96
Loading...
