Axis S1032, S1038, S1048 Installation Manual

INSTALLATION GUIDE

AXIS Camera Station S1032 Recorder

AXIS Camera Station S1048 Recorder

About this Document

This document includes instructions for installing
AXIS Camera Station S1032 Recorder and AXIS Camera

Station S1048 Recorder on your network. Previous
experience of networking will be beneficial when installing
the product.

Legal Considerations

Video and audio surveillance can be regulated by laws that
vary from country to country. Check the laws in your local
region before using this product for surveillance purposes.

Liability

Every care has been taken in the preparation of this
document. Please inform your local Axis office of any
inaccuracies or omissions. Axis Communications AB cannot
be held responsible for any technical or typographical errors
and reserves the right to make changes to the product and
manuals without prior notice. Axis Communications AB
makes no warranty of any kind with regard to the material
contained within this document, including, but not limited
to, the implied warranties of merchantability and fitness for
a particular purpose. Axis Communications AB shall not be
liable nor responsible for incidental or consequential
damages in connection with the furnishing, performance or
use of this material. This product is only to be used for its
intended purpose.

Intellectual Property Rights

Axis AB has intellectual property rights relating to
technology embodied in the product described in this
document. In particular, and without limitation, these
intellectual property rights may include one or more of the
patents listed at www.axis.com/patent.htm and one or more
additional patents or pending patent applications in the US
and other countries.

Equipment Modifications

This equipment must be installed and used in strict
accordance with the instructions given in the user
documentation. This equipment contains no
user-serviceable components. Unauthorized equipment
changes or modifications will invalidate all applicable
regulatory certifications and approvals.

• download user documentation and firmware updates

• find answers to resolved problems in the FAQ database.
Search by product, category, or phrases

• report problems to Axis support by logging in to your
private support area

• chat with Axis support staff (selected countries only)

• visit Axis support at www.axis.com/techsup

Copyright

©2014 Axis Communications AB, © 2013 Dell Inc. All rights
reserved. This product is protected by U.S. and international
copyright and intellectual property laws. AXIS
COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are
registered trademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and
products are trademarks or registered trademarks of their
respective companies. We reserve the right to introduce
modifications without notice.

Trademark Acknowledgments

Dell™ is a trademark of Dell Inc. Ethernet, Internet Explorer,
WWW are registered trademarks of the respective holders.
Microsoft®, Windows®, MS-DOS®, Windows Vista®, the
Windows Vista start button, and Office Outlook® are either
trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Java and all Java-based trademarks and logos are
trademarks or registered trademarks of Oracle and/or its
affiliates.

Contact Information

Axis Communications AB
Emdalavägen 14
223 69 Lund
Sweden
Tel: [phone]
Fax: [phone]
www.axis.com

Support

Should you require any technical assistance, please contact
your Axis reseller. If your questions cannot be answered
immediately, your reseller will forward your queries through
the appropriate channels to ensure a rapid response. If you
are connected to the Internet, you can:

AXIS S1032/AXIS S1048 Installation Guide Page 3

AXIS S1032/AXIS S1048 Installation
Guide

This installation guide provides instructions for installing AXIS Camera Station S1032 Recorder and
AXIS Camera Station S1048 Recorder. For more information about how to use the product, go to
www.axis.com

Installation Steps

1. Hardware overview. See page 4.

2. Connect the cables:

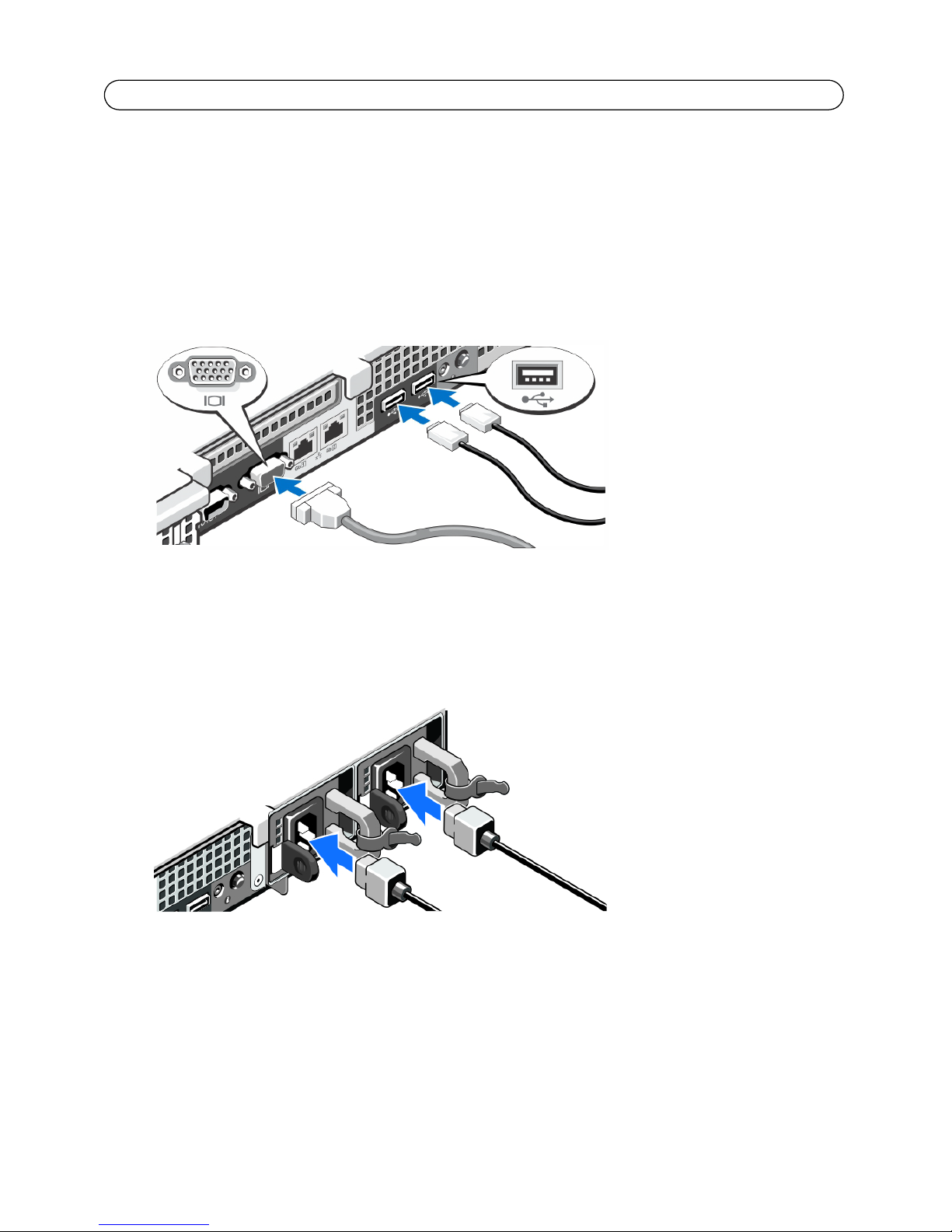

• AXIS S1032. See page 6.

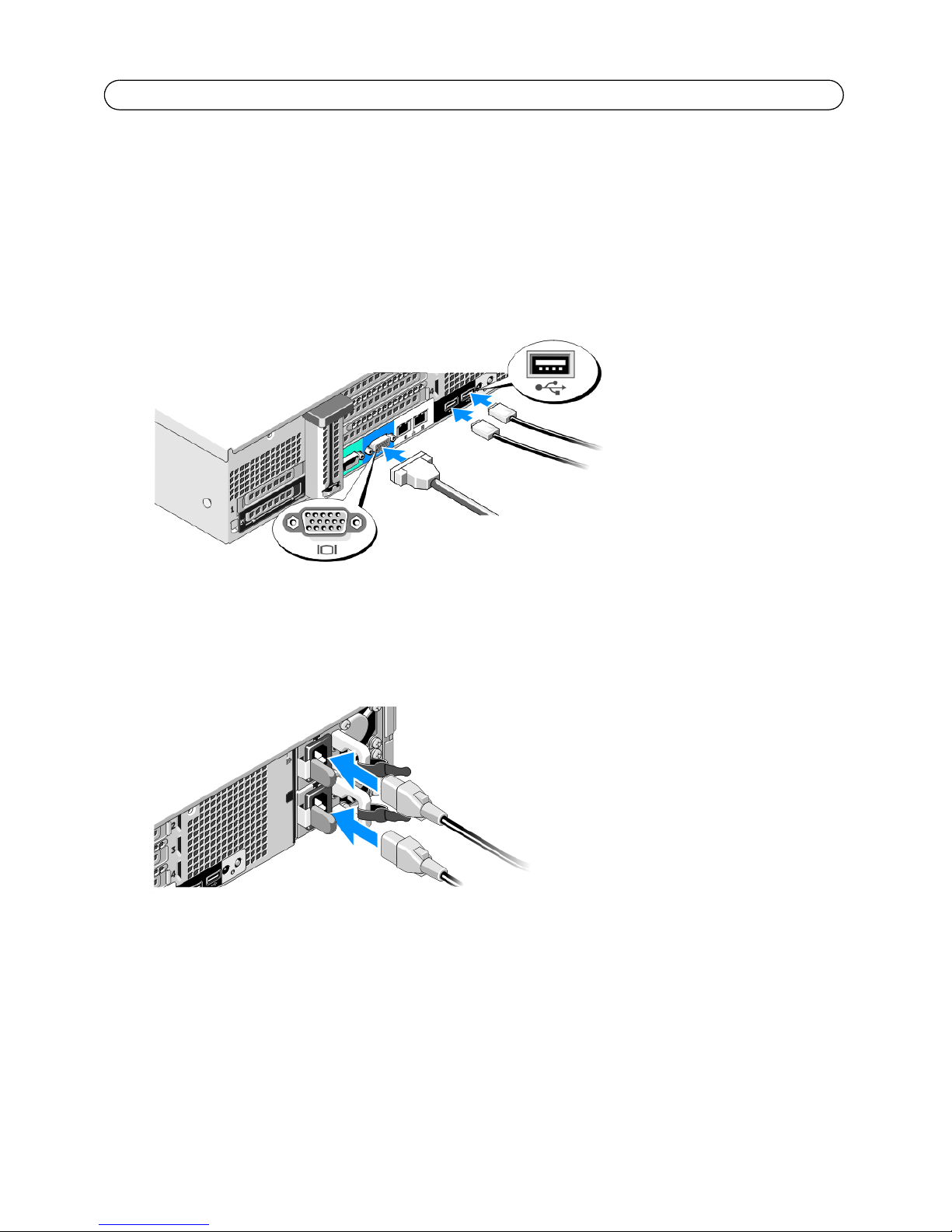

• AXIS S1048. See page 8.

3. Set up software. See page 10.

4. Network configuration. See page 10.

5. Get Started. See page 10.

Package Contents

• AXIS Camera Station S1032 Recorder or AXIS Camera Station S1048 Recorder

• Power cables

• Rails mount kit

• Bezel and bezel key

•Cable straps

• Safety Regulation document

• Installation Guide (this document)

Page 4 AXIS S1032/AXIS S1048 Installation Guide

Hardware Overview - AXIS S1032

Back Panel

1 PCIe expansion card slot 1 7 Ethernet connectors (2)

2 vFlash media card slot (Optional) 8 USB connectors (2)

3 Do not use -iDRAC port 9 System identification connector

4 Serial connector 10 System identification button

5 PCIe expansion card slot 2 11 Power supply (PSU1)

6 Video connector 12 Power supply (PSU2)

Hardware Overview - AXIS S1048

Back Panel

1 PCIe expansion card slot 1 7 Ethernet connectors (2)

2 vFlash media card slot (Optional) 8 USB connectors (2)

3 Do not use - iDRAC port 9 System identification connector

4 PCIe expansion card slots (3) 10 System identification button

5 Serial connector 11 Power supply (PSU2)

6 Video connector 12 Power supply (PSU1)

AXIS S1032/AXIS S1048 Installation Guide Page 5

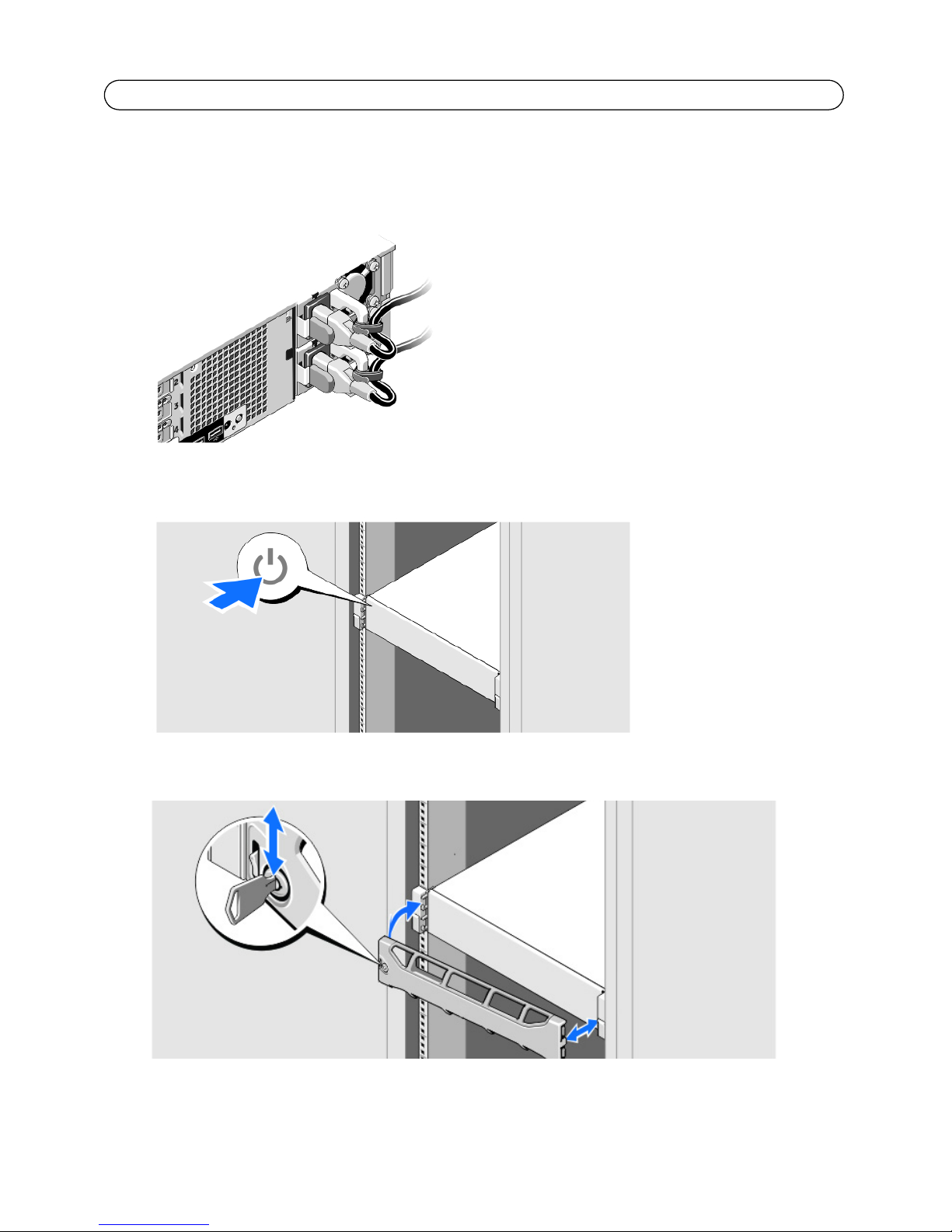

Unpack and Install the Recorder

Unpack your system and identify each item, see Package Contents on page 3.

Assemble the rails and install the Axis recorder in the rack following the safety instructions and the
rack installation instructions provided with your system.
