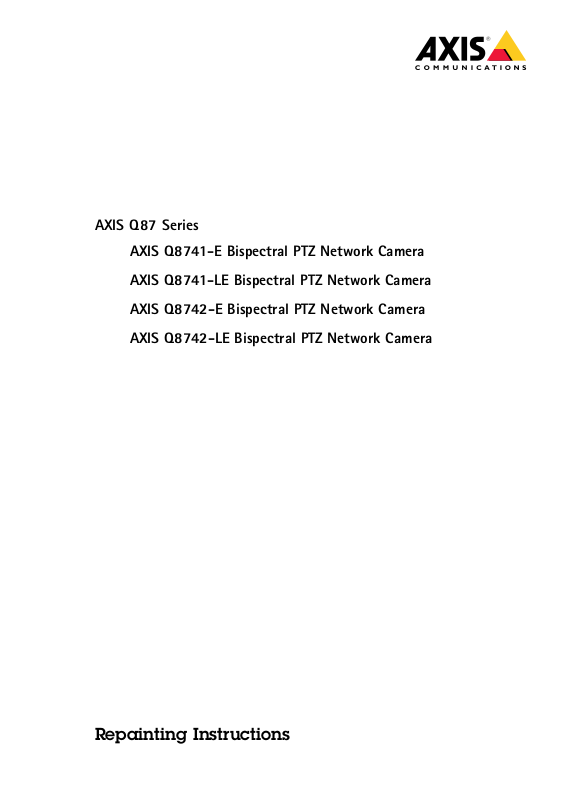

Axis Q8741-E, Q8741-LE, Q8742-LE, Q8742-E Repainting Instructions

AXISQ87Series

AXISQ8741-EBispectralPTZNetworkCamera

AXISQ8741-LEBispectralPTZNetworkCamera

AXISQ8742-EBispectralPTZNetworkCamera

AXISQ8742-LEBispectralPTZNetworkCamera

RepaintingInstructions

AXISQ87Series

Impactonwarranty

Impactonwarranty

ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat

www.axis.com/warranty-implication-when-repainting

Riskswithrepainting

ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training
ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:

ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD
damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheequipment.

Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.
Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.

Paintoverspray-Maskingthedifferentcomponentsoftheequipmentiscritical.Failuretomasksensitiveareascancauseproblems
withassemblingtheequipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe
parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.

2

AXISQ87Series

Howtorepainttheproduct

Howtorepainttheproduct

Preparations

•Ifapplicable,disassembletheequipmentaccordingtotheinstructionsinthisdocument.

•Removegaskets,screws,electricalcomponents,connectorsandplugs,windows,anddomesfromthepartstoberepainted.

•Cleanallpartstoberepaintedthoroughlytoremovegrease,dust,oroil.

•Toensurereassemblyandfunctionalityoftheproduct,maskopeningsforscrews,LEDindicators,ormicrophonesbefore
painting.

Pretreatmentofparts

Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto
adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.

Formoreinformationonthematerialsusedintheproduct,seeitsdatasheetatwww.axis.com

Powdercoatedparts-Usingnesandpaper,removetheoriginalpowdercoatingdowntothebasematerialandcleantheparts
beforepainting,oruseaprimer.

Anodisedandchromatedparts-Useaprimer .

Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.

Plastic-Useaprimer.

Disassembly

Important

Removinganyotherpartsthanspeciedheremeansthattheingressprotection(IP)ratingofyourproductcannotbe
guaranteed.Removinganyadditionalpartswillresultinlapseofwarranty.

3

AXISQ87Series

Howtorepainttheproduct

1

Sunshieldscrew(2x)

2

Sunshield

1.Removethesunshieldscrews.

2.Removethesunshield.

4

AXISQ87Series

Howtorepainttheproduct

Masking

Maskthefollowingparts:

•Allvisiblescrews,screwholesandventilationholes

•Shaftopeningsinthepanunit

•Openingbetweenthebaseunitandthepanunit

•Labelsandfrontwindow(includingthewiper)

5

AXISQ87Series

Howtorepainttheproduct

Repainting

1.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer,andletthepaintdry.

2.Ifyouwishtogetabettercoverageandclearercolor ,applyasecondlayerofspraypaint.

3.Whenthepaintisdry,removethemasking.

6

AXISQ87Series

Howtorepainttheproduct

Reassembly

1

Sunshieldscrew(2x)

2

Sunshield

1.Installthesunshield.

2.Attachandtightenthesunshieldscrews(torque0.8Nm).

NO

TICE

NO NO

TICE TICE

Forinstructionsonhowtorepaintilluminatorbrackets,seetheproduct’srepaintinginstructionsavailableataxis.com.

7

RepaintingInstructionsVer.M1.3
AXISQ87Series
©AxisCommunicationsAB,2018

Date:May2018

PartNo.T10128007
