Axis Q8642-E PT User Manual

Datasheet

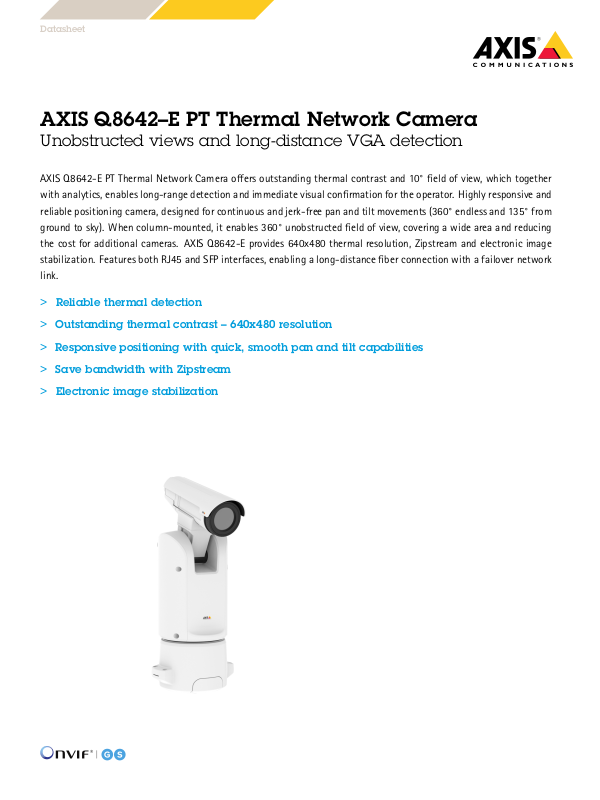

AXISQ8642–EPTThermalNetworkCamera

Unobstructedviewsandlong-distanceVGAdetection

AXISQ8642-EPTThermalNetworkCameraoffersoutstandingthermalcontrastand10°eldofview,whichtogether
withanalytics,enableslong-rangedetectionandimmediatevisualconrmationfortheoperator.Highlyresponsiveand
reliablepositioningcamera,designedforcontinuousandjerk-freepanandtiltmovements(360°endlessand135°from
groundtosky).Whencolumn-mounted,itenables360°unobstructedeldofview,coveringawideareaandreducing
thecostforadditionalcameras.AXISQ8642-Eprovides640x480thermalresolution,Zipstreamandelectronicimage
stabilization.FeaturesbothRJ45andSFPinterfaces,enablingalong-distanceberconnectionwithafailovernetwork
link.

>Reliablethermaldetection

>Outstandingthermalcontrast–640x480resolution

>Responsivepositioningwithquick,smoothpanandtiltcapabilities

>SavebandwidthwithZipstream

>Electronicimagestabilization

AXISQ8642–EPTThermalNetworkCamera

Models

AXISQ8642-E60mm30fps24V
AXISQ8642-E60mm8.3fps24V

Camera

ImagesensorUncooledMicrobolometer640x480,pixelsize:17µm

LensAthermalized

Sensitivity
Pan/TiltPan:360°endless,0.05°–120°/s

Spectralrange:8-14μm

Horizontaleldofview:10°,F1.25
NETD<50mK

Tilt:–90to+45°,0.05°–60°/s.
Jerk-freemovementsatlowspeed:σ<0.01°/s(at0.05°/s)
De-icingcontrol
Presetaccuracy:0.05°
256presetpositions,guardtour,controlqueue,on-screen
directionalindicator,de-icingcontrol,dynamicloadbalancing

a

Video

Video
compression

Resolution

H.264(MPEG-4Part10/AVC)Baseline,MainandHighProles
MotionJPEG

Sensoris640x480.Imagecanbescaledupto800x600(SVGA).

FramerateUpto8.3fpsand30fps

Videostreaming

Imagesettings

Network

SecurityPasswordprotection,IPaddressltering,HTTPS

Supported
protocols

AtleastthreeH.264andMotionJPEGstreams,simultaneousand
individuallyconguredinmax.resolutioninfullframerate
AxisZipstreamtechnologyinH.264
Controllableframerateandbandwidth
VBR/MBRH.264

Compression,brightness,sharpness,contrast,exposurezone,
textandimageoverlay,mirroringofimages,electronicimage
stabilization,multiplepalettes

networkfail-overlink
digestauthentication,useraccesslog,centralizedcerticate
management,bruteforcedelayprotection,signedrmware

IPv4,IPv6USGv6,HTTP,HTTPS
FTP,CIFS/SMB,SMTP ,Bonjour,UPnP
DNS,DynDNS,NTCIP,NTP,RTSP,RTP,SFTP,TCP,UDP,IGMP,RTCP,
ICMP,DHCP,ARP,SOCKS,SSH

e

,IEEE802.1X

c

networkaccesscontrol,

c

,SSL/TLS

TM

c

c

,QoSLayer3DiffServ,

,SNMPv1/v2c/v3(MIB-II),

Systemintegration

Application
Programming
Interface

AnalyticsIncluded

EventtriggersDetectors:livestreamaccessed,videomotiondetection,shock

EventactionsVideorecordingtoedgestorage,pre-andpost-alarmvideo

OpenAPIforsoftwareintegration,includingVAPIX®and
AXISCameraApplicationPlatform;specicationsataxis.com
AXISGuardianwithOne-ClickConnection
ONVIF®ProleGandONVIF®ProleS,specicationatonvif.org

AXISVideoMotionDetection,AXISMotionGuard,AXISFence
Guard,shockdetection

Supported

AXISPerimeterDefender
SupportforAXISCameraApplicationPlatformenabling
installationofthird-partyapplications,seeaxis.com/acap

detection
Hardware:network,temperature
Inputsignal:digitalinput,manualtrigger ,virtualinputs
PTZ:moving,presetreached,ready
Storage:disruption,recording
System:systemready
Time:recurrence,useschedule

buffering,externaloutputactivation,sendSNMPtrap,overlay
text
PTZcontrol:presetposition,guardtour
Fileupload:FTP,HTTP,HTTPS,SFTP ,networkshare,email
Notication:HTTP,HTTPS,TCP,email

DatastreamingEventdata

Built-in
installationaids

Pixelcounter

General

Casing

IP66–andNEMA4X-ratedpowdercoatedaluminum
Color:whiteNCSS1002–B
Frontwindow:germanium

Sunshield:high-impactUV-stabilizedthermoplastic

SustainabilityPVCfree
Memory512MBRAM,256MBFlash

Power

Connectors

Storage

b

Operating
conditions

Storage
conditions

Approvals

encryption,

Dimensions

Weight

Included
accessories

Optional
accessories

Video
management
software

Languages

Warranty

ExportcontrolThisproductissubjecttoexportcontrolregulations.You

a.Internalheaterstodefrosticebuild-up.Automaticforcameraandactivatedby

HTTPAPI(VAPIX)forpositioningunit.

b.Panandtiltmotorsactivelycompensateforchangesinloadconditionsinduced

byexternalforcessuchashighwinds.Thisallowsminimumpowerconsumption
atlowwind.

c.ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseinthe

OpenSSLToolkit.(openssl.org),andcryptographicsoftwarewrittenbyEricYoung
([e-mail]).

d.IPdataandhomepositionretained,andguardtourandothereventsresumed.
e.IfanetworklinkisestablishedviaboththeSFPslotandtheRJ45connector,the

formeractsastheprimarylinkandthelatterasthefailoverlink.

f.Whenusingthe22m(72ft)AXISCable24VDC/24–240VAC,apowersupply

capableofdelivering220Wisrequiredtocompensateforthepowerlossinthecable.

24VAC/DC
Typical:16W.Max:182W
Powerlossrecovery

I/Oconnector

Outputpower:12VDC.Maxload:50mA

SFPslot(SFPmodulenotincluded)
RJ4510BASE-T/100BASE-TX/1000BASE-Tnetworkconnector
Powerconnector
I/Oconnector:6-pinterminalblockwith4congurable
inputs/outputs

SupportformicroSD/microSDHC/microSDXCcard
SupportforSDcardencryption
Supportforrecordingtonetwork-attachedstorage(NAS)
ForSDcardandNASrecommendationsseeaxis.com

-40°Cto60°C(–40°Fto140°F)
Humidity10–100%RH(condensing)

WindloadwhenPToperational

47m/s(106mph).
Maximumeffectiveprojectedarea(EPA):0.105m

d

,TVS2kVsurgeprotection

e

2

-40°Cto65°C(-40°Fto149°F)

EMC

EN55032ClassA,EN55024,EN61000-6-1,EN61000-6-2,
EN61000-3-2,EN61000-3-3,FCCPart15SubpartBClassA,
VCCIClassAITE,ICES-003ClassA,RCMAS/NZSCISPR32ClassA,
EN50121-4,IEC62236-4

Safety

IEC/EN/UL62368-1,IEC/EN/UL60950-22

Environment

IEC/EN60529IP66,NEMA250Type4X,IEC60068–2–1,
IEC60068–2–2,IEC60068–2–6,IEC60068–2–27

Network

NISTSP500-267

557x229x289mm(22x9x1 1in)

12.2kg(27lb)
Installationguide,Windowsdecoder1-userlicense

Powerconnector,I/Oconnector,Torx®bitsT20andT30
AXIST94J01AWallMount

AXIST94N01GPoleMount
AXIST95A64CornerBracket
AXISCable24VDC/24-240VAC22m
AXIST861 1SFPModuleLC.LX
AXIST8612SFPModuleLC.SX
AXIST8613SFPModule1000BASE-T
Formoreaccessories,seeaxis.com

AXISCompanion,AXISCameraStation,videomanagement
softwarefromAxis’ApplicationDevelopmentPartnersavailable
onaxis.com/support/downloads

English,German,French,Spanish,Italian,Russian,Simplied
Chinese,Japanese,Korean,Portuguese,TraditionalChinese

Axis3-yearwarrantyandAXISExtendedWarrantyoption,see

axis.com/warranty

shouldalwaysconsultandcomplywiththeregulationsofthe
appropriatelocalexportcontrolauthorities.
