AXISQ7414VideoEncoder

UserManual

Aboutthisdocument

ThismanualisintendedforadministratorsandusersoftheAXISQ7414
VideoEncoder,andisapplicabletormware5.50andlater.Itincludes
instructionsforusingandmanagingtheproductonyournetwork.
Previousexperienceofnetworkingwillbeofusewhenusingthis
product.SomeknowledgeofUNIXorLinux-basedsystemsmayalsobe
benecial,fordevelopingshellscriptsandapplications.Laterversionof
thisdocumentwillbepostedtotheAxiswebsite,asrequired.Seealso
theproduct’sonlinehelp,availableviatheweb-basedinterface.

LegalConsiderations

Videoandaudiosurveillancecanberegulatedbylawsthatvaryfrom
countrytocountry .Checkthelawsinyourlocalregionbeforeusing
thisproductforsurveillancepurposes.

Thisproductincludesone(1)H.264decoderlicenseandone(1)AAC
decoderlicense.Topurchasefurtherlicenses,contactyourreseller.

Liability

Everycarehasbeentakeninthepreparationofthisdocument.Please
informyourlocalAxisofceofanyinaccuraciesoromissions.Axis
CommunicationsABcannotbeheldresponsibleforanytechnicalor
typographicalerrorsandreservestherighttomakechangestothe
productandmanualswithoutpriornotice.AxisCommunicationsAB
makesnowarrantyofanykindwithregardtothematerialcontained
withinthisdocument,including,butnotlimitedto,theimplied
warrantiesofmerchantabilityandtnessforaparticularpurpose.Axis
CommunicationsABshallnotbeliablenorresponsibleforincidentalor
consequentialdamagesinconnectionwiththefurnishing,performance
oruseofthismaterial.Thisproductisonlytobeusedforitsintended
purpose.

IntellectualPropertyRights

AxisABhasintellectualpropertyrightsrelatingtotechnologyembodied
intheproductdescribedinthisdocument.Inparticular,andwithout
limitation,theseintellectualpropertyrightsmayincludeoneormore
ofthepatentslistedatwww .axis.com/patent.htmandoneormore
additionalpatentsorpendingpatentapplicationsintheUSandother
countries.

Thisproductcontainslicensedthird-partysoftware.Seethemenuitem
“About”intheproduct’suserinterfaceformoreinformation.

ThisproductcontainssourcecodecopyrightAppleComputer,
Inc.,underthetermsofApplePublicSourceLicense2.0(see

www.opensource.apple.com/apsl).Thesourcecodeisavailablefrom
https://developer.apple.com/bonjour/

EquipmentModications

Thisequipmentmustbeinstalledandusedinstrictaccordancewiththe
instructionsgivenintheuserdocumentation.Thisequipmentcontains
nouser-serviceablecomponents.Unauthorizedequipmentchangesor
modicationswillinvalidateallapplicableregulatorycertications
andapprovals.

TrademarkAcknowledgments

AXISCOMMUNICATIONS,AXIS,ETRAX,ARTPECandVAPIXare
registeredtrademarksortrademarkapplicationsofAxisABinvarious
jurisdictions.Allothercompanynamesandproductsaretrademarksor
registeredtrademarksoftheirrespectivecompanies.

Apple,Boa,Apache,Bonjour,Ethernet,InternetExplorer,Linux,
Microsoft,Mozilla,Real,SMPTE,QuickTime,UNIX,Windows,Windows
VistaandWWWareregisteredtrademarksoftherespectiveholders.
JavaandallJava-basedtrademarksandlogosaretrademarksor
registeredtrademarksofOracleand/oritsafliates.UPnP

TM

isa

certicationmarkoftheUPnP

TM

ImplementersCorporation.

RegulatoryInformation

Europe

ThisproductcomplieswiththeapplicableCEmarkingdirectives

andharmonizedstandards:

•ElectromagneticCompatibility(EMC)Directive2004/108/EC.See

ElectromagneticCompatibility(EMC)onpage2.

•LowVoltage(LVD)Directive2006/95/EC.SeeSafetyonpage2.

•RestrictionsofHazardousSubstances(RoHS)Directive201 1/65/EU.

SeeDisposalandRecyclingonpage3.

Acopyoftheoriginaldeclarationofconformitymaybeobtainedfrom
AxisCommunicationsAB.SeeContactInformationonpage3.

ElectromagneticCompatibility(EMC)

Thisequipmenthasbeendesignedandtestedtofulllapplicable
standardsfor:

•Radiofrequencyemissionwheninstalledaccordingtothe

instructionsandusedinitsintendedenvironment.

•Immunitytoelectricalandelectromagneticphenomenawhen

installedaccordingtotheinstructionsandusedinitsintended
environment.

USA

Thisequipmenthasbeentestedusingashieldednetworkcable(STP)
andfoundtocomplywiththelimitsforaClassBdigitaldevice,
pursuanttopart15oftheFCCRules.Theselimitsaredesigned
toprovidereasonableprotectionagainstharmfulinterferenceina
residentialinstallation.Thisequipmentgenerates,usesandcanradiate
radiofrequencyenergyand,ifnotinstalledandusedinaccordance
withtheinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterference
willnotoccurinaparticularinstallation.Ifthisequipmentdoes
causeharmfulinterferencetoradioortelevisionreception,which
canbedeterminedbyturningtheequipmentoffandon,theuseris
encouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfrom

thattowhichthereceiverisconnected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Theproductshallbeconnectedusingashieldednetworkcable(STP)
thatisproperlygrounded.

Canada

ThisdigitalapparatuscomplieswithCANICES-3(ClassB).Theproduct
shallbeconnectedusingashieldednetworkcable(STP)thatis
properlygrounded.Cetappareilnumériqueestconformeàlanorme
CANNMB-3(classeB).Leproduitdoitêtreconnectéàl'aided'uncâble
réseaublindé(STP)quiestcorrectementmisàlaterre.

Europe

ThisdigitalequipmentfulllstherequirementsforRFemission
accordingtotheClassBlimitofEN55022.Theproductshallbe
connectedusingashieldednetworkcable(STP)thatisproperly
grounded.

Thisproductfulllstherequirementsforimmunityaccording
toEN61000-6-1residential,commercialandlight-industrial
environments.

Thisproductfulllstherequirementsforimmunityaccordingto
EN61000-6-2industrialenvironments.

Thisproductfulllstherequirementsforimmunityaccordingto
EN55024ofceandcommercialenvironments.

Australia/NewZealand

ThisdigitalequipmentfulllstherequirementsforRFemission
accordingtotheClassBlimitofAS/NZSCISPR22.Theproductshall
beconnectedusingashieldednetworkcable(STP)thatisproperly
grounded.

Japan

この装置は、クラスB情報技術装置です。この装置は、家
庭環境で使⽤することを⽬的としていますが、この装置が
ラジオやテレビジョン受信機に近接して使⽤されると、受
信障害を引き起こすことがあります。取扱説明書に従って
正しい取り扱いをして下さい。本製品は、シールドネット
ワークケーブル(STP)を使⽤して接続してください。また
適切に接地してください。

Korea

이기기는업무용(A급)전자파적합기기로서판매자또는사
용자는이점을주의하시기바라며,가정외의지역에서사용
하는것을목적으로합니다.적절히접지된STP(shielded
twistedpair)케이블을사용하여제품을연결하십시오.

Safety

ThisproductcomplieswithIEC/EN/UL60950-1,SafetyofInformation
TechnologyEquipment.Ifitsconnectingcablesareroutedoutdoors,
theproductshallbegroundedeitherthroughashieldednetworkcable
(STP)orotherappropriatemethod.

Battery

LowbatterypoweraffectstheoperationoftheRTC,causingittoreset
ateverypower-up.Whenthebatteryneedsreplacing,alogmessage
willappearintheproduct’sserverreport.Formoreinformationabout
theserverreport,seetheproduct´ssetuppagesorcontactAxissupport.

Thebatteryshouldnotbereplacedunlessrequired,butifthebattery
doesneedreplacing,contactAxissupportatwww.axis.com/techsupfor
assistance.

Lithiumcoincell3.0Vbatteriescontain1,2-dimethoxyethane;ethylene
glycoldimethylether(EGDME),CASno.110-71-4.

WARNING

•Riskofexplosionifthebatteryisincorrectlyreplaced.

•Replaceonlywithanidenticalbatteryorabatterywhichis

recommendedbyAxis.

•Disposeofusedbatteriesaccordingtolocalregulationsor

thebatterymanufacturer'sinstructions.

DisposalandRecycling

Whenthisproducthasreachedtheendofitsusefullife,disposeof
itaccordingtolocallawsandregulations.Forinformationabout
yournearestdesignatedcollectionpoint,contactyourlocalauthority
responsibleforwastedisposal.Inaccordancewithlocallegislation,
penaltiesmaybeapplicableforincorrectdisposalofthiswaste.

Europe

Thissymbolmeansthattheproductshallnotbedisposedof
togetherwithhouseholdorcommercialwaste.Directive2012/19/EU
onwasteelectricalandelectronicequipment(WEEE)isapplicablein
theEuropeanUnionmemberstates.Topreventpotentialharmto
humanhealthandtheenvironment,theproductmustbedisposed
ofinanapprovedandenvironmentallysaferecyclingprocess.For
informationaboutyournearestdesignatedcollectionpoint,contact
yourlocalauthorityresponsibleforwastedisposal.Businessesshould
contacttheproductsupplierforinformationabouthowtodispose
ofthisproductcorrectly.

ThisproductcomplieswiththerequirementsofDirective2011/65/EUon
therestrictionoftheuseofcertainhazardoussubstancesinelectrical
andelectronicequipment(RoHS).

China

Thisproductcomplieswiththerequirementsofthelegislative
actAdministrationontheControlofPollutionCausedbyElectronic
InformationProducts(ACPEIP).

ContactInformation

AxisCommunicationsAB
Emdalavägen14
22369Lund
Sweden

Tel:[phone]
Fax:[phone]

www.axis.com

Support

Shouldyourequireanytechnicalassistance,pleasecontactyourAxis
reseller.Ifyourquestionscannotbeansweredimmediately,your
resellerwillforwardyourqueriesthroughtheappropriatechannelsto
ensurearapidresponse.IfyouareconnectedtotheInternet,youcan:

•downloaduserdocumentationandsoftwareupdates

•ndanswerstoresolvedproblemsintheFAQdatabase.Search

byproduct,category,orphrase

•reportproblemstoAxissupportstaffbyloggingintoyourprivate

supportarea

•chatwithAxissupportstaff

•visitAxisSupportatwww.axis.com/techsup/

LearnMore!

VisitAxislearningcenterwww .axis.com/academy/forusefultrainings,
webinars,tutorialsandguides.

AXISQ7414VideoEncoder

TableofContents

HardwareOverview..........................................6

ConnectorsandButtons..........................................6

PinAssignmentsfortheI/OConnectoroftheAXIS2911UVideoServerRack7

PinassignmentsfortheI/OConnectoroftheAXISQ7920Chassis........7

PinAssignmentsforRS485Connector-AXISQ7920Chassis............8

LEDIndicators..................................................8

AccesstheProduct..........................................1

0

Access

fromaBrowser...........................................10

AccessfromtheInternet..........................................11

SettheRootPassword...........................................11

TheLiveViewPage..............................................12

MediaStreams.............................................15

HowtoStreamH.264............................................15

MJPEG........................................................15

AXISMediaControl(AMC)........................................15

AlternativeMethodsofAccessingtheVideoStream....................16

AccessAudioStreams............................................16

SetUptheProduct..........................................18

BasicSetup....................................................18

VideoandAudio............................................19

SetUpVideoStreams............................................19

StreamProles.................................................21

CameraSettings................................................21

Aboutoverlays..................................................22

PrivacyMask...................................................24

SetUpAudio...................................................24

AudioClips....................................................26

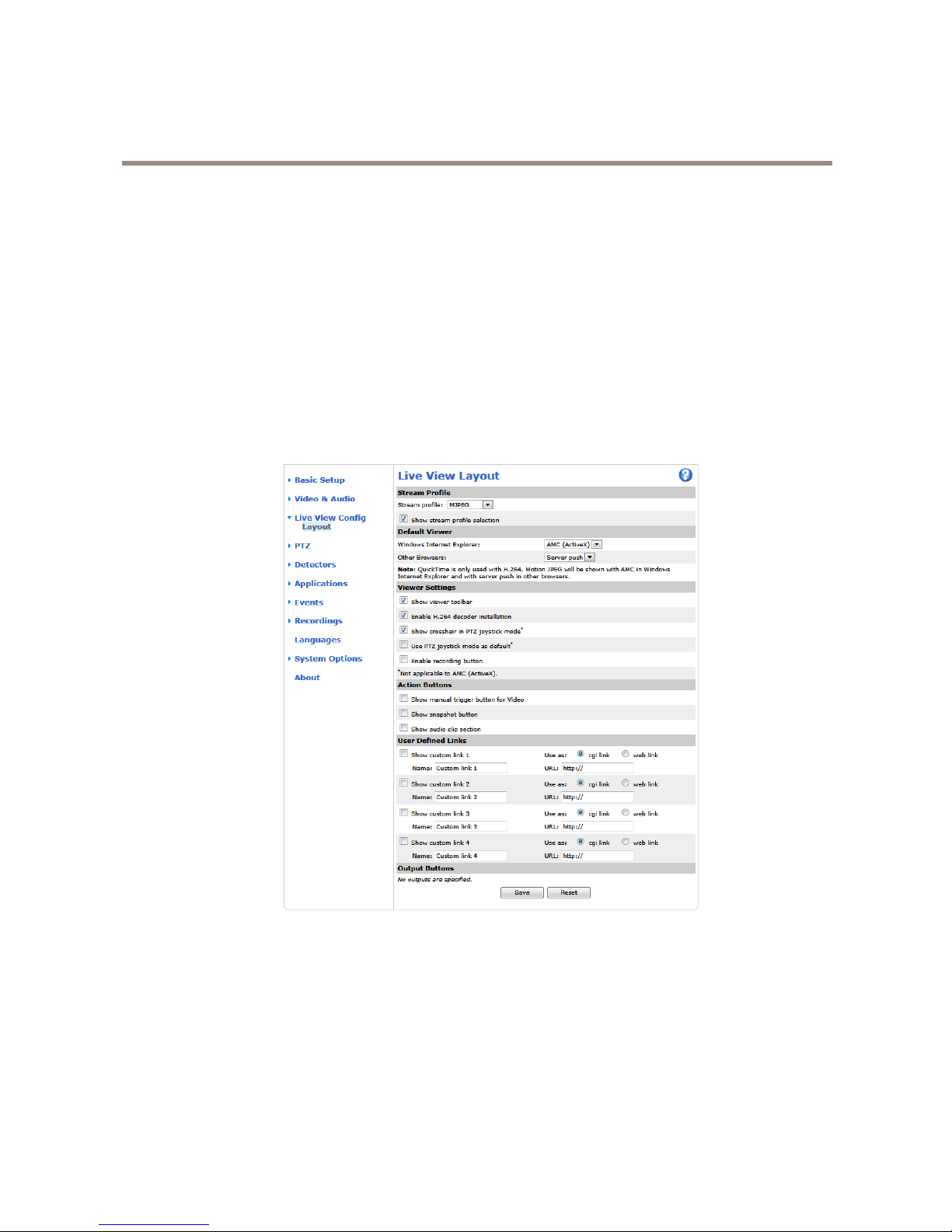

ConguretheLiveViewPage.................................27

PTZ(PanTiltZoom).........................................29

PresetPositions.................................................29

GuardTour.....................................................29

Advanced......................................................30

InstallPTZDriver................................................30

ControlQueue..................................................31

Detectors..................................................32

CameraTampering..............................................32

MotionDetection...............................................32

AudioDetection................................................34

Applications...............................................35

ApplicationLicenses.............................................35

UploadApplication..............................................35

ApplicationConsiderations........................................35

Events....................................................37

SetUpActionRules.............................................37

AddRecipients..................................................39

CreateSchedules................................................40

SetUpRecurrences..............................................40

Recordings.................................................42

RecordingList..................................................42

ContinuousRecording............................................42

Languages.................................................44

SystemOptions.............................................45

Security.......................................................45

Date&Time....................................................47

Network.......................................................48

Storage.......................................................53

Ports&Devices.................................................53

Maintenance...................................................54

Support.......................................................54

Advanced......................................................55

ResettoFactoryDefaultSettings...................................56

4

AXISQ7414VideoEncoder

TableofContents

Troubleshooting............................................57

ChecktheFirmware.............................................57

UpgradetheFirmware...........................................57

Symptoms,PossibleCausesandRemedialActions.....................58

TechnicalSpecications......................................6

1

Connectors

....................................................63

PerformanceConsiderations.......................................63

5

AXISQ7414VideoEncoder

HardwareOverview

HardwareOverview

1.

Busconnectors

2.

PowerLED

3.

BNCconnectors1–4

4.

Restartbutton

5.

Controlbutton

6.

StatusLEDs1–4

7.

MichrophonepowerLEDs1–4

8.

Audioinput/output1–4

9.

Audiomountingnut

ConnectorsandButtons

Fortechnicalspecications,seepage6

1.

BusConnector

Thebusconnectorsarethephysicalinterfacestothevideoencoderchassisthatprovidepower,network,RS485,andI/Oterminal
connections.

BNCConnector

Eachvideoinputisterminatedusingacoax/BNCconnector.

Connecta75Ohmcoaxialvideocable;therecommendedmaximumlengthis250m(800ft).

Note

75Ohmvideoterminationcanbeenabled/disabledforthevideoinputthroughtheproduct'swebpageatVideo&Audio
>CameraSettings>Videotermination.Videoterminationisenabledonfactorydefault.Iftheproductisconnectedin
parallelwithotherequipment,foroptimumvideoquality,itisrecommendedthatvideoterminationisenabledonlyforthe
lastdeviceinthevideosignalchain.

6

AXISQ7414VideoEncoder

HardwareOverview

AudioConnector

TheAxisproductisequippedwith3.5mmaudioinputandoutputconnectorscombined.Theconnectorsarecompatiblewith
M6x0.5threadedlockingcollars.

ControlButton

Forlocationofthecontrolbutton,seeHardwareOverviewonpage6.

Thecontrolbuttonisusedfor:

•Resettingtheproducttofactorydefaultsettings.Seepage56.

•ConnectingtoanAXISVideoHostingSystemservice.Seepage49.Toconnect,pressandholdthebuttonforabout3
secondsuntiltheStatusLEDashesgreen.

•ConnectingtoAXISInternetDynamicDNSService.Seepage49.Toconnect,pressandholdthebuttonforabout3seconds.

RestartButton

Presstherestartbuttontorestarttheproduct.

PinAssignmentsfortheI/OConnectoroftheAXIS2911UVideoServerRack

PinFunctionDescription

1

+12Vout,100mA

2

GND

3

Channel1,CongurableI/O1

4

Channel2,CongurableI/O1

5

Channel3,CongurableI/O1

6

Channel4,CongurableI/O1

7

Channel1,CongurableI/O2

8

Channel2,CongurableI/O2

9

Channel3,CongurableI/O2

10

Channel4,CongurableI/O2

Digitalinput-ConnecttoGNDtoactivate,
orleaveoating(orunconnected)to
deactivate.
Digitaloutput-UsesanopendrainNFET
transistorwiththesourceconnectedto
GND.Ifusedwithanexternalrelay,adiode
mustbeconnectedinparallelwiththeload,
forprotectionagainstvoltagetransients.

Mininput=–40VDC
Maxinput=+40VDC
Maxload=100mA
Maxvoltage=+40VDC
(tothetransistor)

11

RS485A

12

RS485B

Ahalf-duplexRS485interfaceforcontrollingauxiliaryequipmentsuchasPTZ
devices.

PinassignmentsfortheI/OConnectoroftheAXISQ7920Chassis

PinFunctionDescription

1

Channel1,CongurableI/O1

2

Channel2,CongurableI/O1

3

Channel3,CongurableI/O1

4

Channel4,CongurableI/O1

5

Channel1,CongurableI/O2

6

Channel2,CongurableI/O2

Digitalinput-ConnecttoGNDtoactivate,
orleaveoating(orunconnected)to
deactivate.
Digitaloutput-UsesanopendrainNFET
transistorwiththesourceconnectedto
GND.Ifusedwithanexternalrelay,adiode
mustbeconnectedinparallelwiththeload,
forprotectionagainstvoltagetransients.

Mininput=–40VDC
Maxinput=+40VDC
Maxload=100mA
Maxvoltage=+40VDC
(tothetransistor)

7

AXISQ7414VideoEncoder

HardwareOverview

7

Channel3,CongurableI/O2

8

Channel4,CongurableI/O2

9

Notused

10

Notused

11

Notused

12

Notused

PinAssignmentsforRS485Connector-AXISQ7920Chassis

PinFunctionDescription

1

Channel1,RS485A

2

Channel1,RS485B

3

Channel2,RS485A

4

Channel2,RS485B

5

Channel3,RS485A

6

Channel3,RS485B

7

Channel4,RS485A

8

Channel4,RS485B

9

Notused

10

Notused

11

Notused

12

Notused

Ahalf-duplexRS485interfaceforcontrollingauxiliary
equipmentsuchasPTZdevices.

LEDIndicators

Note

•TheStatusLEDcanbeconguredtoashwhileaneventisactive.

•TheStatusLEDcanbeconguredtoashforidentifyingtheunit.GotoSetup>SystemOptions>Maintenance.

StatusLED

Indication

GreenSteadygreenfornormaloperation.

Amber

Steadyduringstartup,duringresettofactorydefaultorwhenrestoringsettings.

Red

Steadyforhardwareerroronthecorrespondingchannel.

Green/Red

Flashesforidenticationpurposes.Tocongure,gotoSetup>SystemOptions>Maintenance.
Seetheonlinehelpformoreinformation.

RedFlashesredforrmwareupgradefailure.

PowerLEDIndication

Green

Normaloperation.

Amber

Flashesgreen/amberduringrmwareupgrade.

8

AXISQ7414VideoEncoder

HardwareOverview

MicrophonepowerLEDIndication

UnlitPhantompoweroff.

Blue

Steadywhenthephantompowerisonandthemicrophoneisconnected.

Flasheswhenthephantompowerisonandthemicrophoneisdisconnected.

9

AXISQ7414VideoEncoder

AccesstheProduct

AccesstheProduct

ToinstalltheAxisproduct,seetheInstallationGuidesuppliedwiththeproduct.

Theproductcanbeusedwithmostoperatingsystemsandbrowsers.Werecommendthefollowingbrowsers:

•InternetExplorer

®

withWindows

®

•Safari

®

withOSX

®

•Chrome

TM

orFirefox

®

withotheroperatingsystems.

ToviewstreamingvideoinInternetExplorer,allowinstallationofAXISMediaControl(AMC)whenprompted.

TheAxisproductincludesone(1)H.264decoderlicenseforviewingvideostreamsandone(1)AACaudiolicense.Thelicensesare
automaticallyinstalledwithAMC.Theadministratorcandisabletheinstallationofthedecoderstopreventinstallationofunlicensed
copies.

Note

•QuickTime

TM

isalsosupportedforviewingH.264streamsandforaudio.

AccessfromaBrowser

1.Startawebbrowser.

2.EntertheIPaddressorhostnameoftheAxisproductinthebrowser’sLocation/Addresseld.

ToaccesstheproductfromaMaccomputer(OSX),gotoSafari,clickonBonjourandselecttheproductfromthe
drop-downlist.

IfyoudonotknowtheIPaddress,useAXISIPUtilitytolocatetheproductonthenetwork.Forinformationabout
howtodiscoverandassignanIPaddress,seethedocumentAssignanIPAddressandAccesstheVideoStreamonAxis
Supportwebatwww.axis.com/techsup

Note

ToshowBonjourasabrowserbookmark,gotoSafari>Preferences.

3.Enteryourusernameandpassword.Ifthisisthersttimetheproductisaccessed,therootpasswordmustrstbe
congured.Forinstructions,seeSettheRootPasswordonpage1

1.

4.Theproduct’sLiveViewpageopensinyourbrowser.

Note

ThecontrolsandlayoutoftheLiveViewpagemayhavebeencustomizedtomeetspecicinstallationrequirementsand
userpreferences.Consequently,someoftheexamplesandfunctionsfeaturedheremaydifferfromthosedisplayedin
yourownLiveViewpage.

10

AXISQ7414VideoEncoder

AccesstheProduct

AccessfromtheInternet

Onceconnected,theAxisproductisaccessibleonyourlocalnetwork(LAN).ToaccesstheproductfromtheInternetyoumust
congureyournetworkroutertoallowincomingdatatrafctotheproduct.Todothis,enabletheNAT-traversalfeature,which
willattempttoautomaticallyconguretheroutertoallowaccesstotheproduct.ThisisenabledfromSetup>SystemOptions>
Network>TCP/IPAdvanced.

Formoreinformation,seeNATtraversal(portmapping)forIPv4onpage5

1.SeealsoAXISInternetDynamicDNSServiceat

www.axiscam.net

ForTechnicalnotesonthisandothertopics,visittheAxisSupportwebatwww.axis.com/techsup

SettheRootPassword

ToaccesstheAxisproduct,youmustsetthepasswordforthedefaultadministratoruserroot.ThisisdoneintheCongureRoot
Passworddialog,whichopenswhentheproductisaccessedforthersttime.

Topreventnetworkeavesdropping,therootpasswordcanbesetviaanencryptedHTTPSconnection,whichrequiresanHTTPS
certicate.HTTPS(HypertextTransferProtocoloverSSL)isaprotocolusedtoencrypttrafcbetweenwebbrowsersandservers.The
HTTPScerticateensuresencryptedexchangeofinformation.SeeHTTPSonpage46.

Thedefaultadministratorusernamerootispermanentandcannotbedeleted.Ifthepasswordforrootislost,theproductmustbe
resettothefactorydefaultsettings.SeeResettoFactoryDefaultSettingsonpage56.

TosetthepasswordviaastandardHTTPconnection,enteritdirectlyinthedialog.

TosetthepasswordviaanencryptedHTTPSconnection,followthesesteps:

1.ClickUseHTTPS.

11

AXISQ7414VideoEncoder

AccesstheProduct

Atemporarycerticate(validforoneyear)iscreated,enablingencryptionofalltrafctoandfromtheproduct,andthe
passwordcannowbesetsecurely.

2.Enterapasswordandthenre-enterittoconrmthespelling.

3.ClickOK.Thepasswordhasnowbeencongured.

TheLiveViewPage

ThecontrolsandlayoutoftheLiveViewpagemayhavebeencustomizedtomeetspecicinstallationrequirementsanduser
preferences.Consequently,someoftheexamplesandfunctionsfeaturedheremaydifferfromthosedisplayedinyourownLiveView
page.Thefollowingprovidesanoverviewofeachavailablecontrol.

ControlsontheLiveViewPage

SelectastreamprolefortheLiveViewpagefromtheStreamProledrop-downlist.Forinformation
abouthowtocongurestreamproles,seepage21.

ClickPulsetoactivatetheproduct’soutputportforadenedperiodoftime.Forinformationabouthow
toenableandcongureoutputbuttons,seepage28.Theoutputbuttonnamemaydifferdependingon
thenameenteredintheI/OPortsconguration.

ClicktheActive/Inactivebuttonstomanuallyactivateandinactivetheproduct’soutputport.For
informationabouthowtoenableandcongureoutputbuttons,seepage28.

UsetheManualTriggerbuttontotriggeranactionrulefromtheLiveViewpage.Forinformationabout
howtocongureandenablethebutton,seeManualTriggeronpage12.

ClickSnapshottosaveasnapshotofthevideoimage.Thisbuttonisprimarilyintendedforusewhen
theAXISMediaControlviewertoolbarisnotavailable.EnablethisbuttonfromLiveViewCong>
ActionButtons.

TheAudioclipdrop-downlistallowsyoutoplayanaudioclipfromtheLiveViewpage.Selectthe
audioclipandclickthePlaybutton.

ManualTrigger

TheManualTriggerisusedtotriggeranactionrulefromtheLiveViewpage.Themanualtriggercanforexamplebeusedto
validateactionsduringproductinstallationandconguration.

Tocongurethemanualtrigger:

1.GotoSetup>Events.

2.ClickAddtoaddanewactionrule.

3.FromtheTriggerdrop-downlist,selectInputSignal.

4.Fromtheseconddrop-downlist,selectManualTrigger.

5.Selectthedesiredactionandconguretheothersettingsasrequired.

Formoreinformationaboutactionrules,seeEventsonpage37.

ToshowthemanualtriggerbuttonsintheLiveViewpage:

12

AXISQ7414VideoEncoder

AccesstheProduct

1.GotoSetup>LiveViewCong.

2.UnderActionButtons,selectShowmanualtriggerbutton.

AXISMediaControlviewertoolbar

TheAXISMediaControlviewertoolbarisavailableinInternetExploreronly.SeeAXISMediaControl(AMC)onpage15formore
information.Thetoolbardisplaysthefollowingbuttons:

ThePlaybuttonconnectstotheAxisproductandstartsplayingamediastream.

TheStopbuttonstopsthemediastream.

TheSnapshotbuttontakesasnapshotofthevideoimage.

ClicktheViewFullScreenbuttonandthevideoimagewilllltheentirescreen.PressESC(Escape)onthecomputer
keyboardtocancelfullscreenview.

TheRecordbuttonisusedtorecordthecurrentvideostreamonyourcomputer.Thelocationwheretherecordingissaved
canbespeciedintheAMCControlPanel.EnablethisbuttonfromLiveViewCong>ViewerSettings.

AMCAudioControls

AMCaudiobuttonscontrolthespeakersandmicrophoneconnectedtotheclientcomputer.Thebuttonsareonlyvisiblewhen
audioisenabled.

Forinformationabouthowtocongureaudio,seeSetUpAudioonpage24.

Speakerbutton—Clicktoturnthespeakersonoroff.

Microphonebutton–Clicktomuteorunmutethemicrophone.InSimplex-speakeronlymode,theMicrophoneandTalk

buttonsmustbothbeactivetosendaudiototheAxisproduct.Clickeitherbuttontostopaudiotransmission.

Usetheslidertocontrolthevolumeofthespeakersandthemicrophone.

Half-duplexmode

TheTalk/Listenbuttonisusedtoswitchbetweensendingandreceivingaudio.Thebuttoncanbecongured
fromtheAudiotabintheAMCControlpanel:

•Push-To-Talkmode:Clickandholdthebuttontotalk/send.Releasethebuttontolisten.

•Togglemode:Clickoncetoswitchbetweentalkingandlistening.

Simplex–speakeronlymode

Tosendaudio,theTalkandMicrophonebuttonsmustbothbeactive.Clickeitherbuttontostopaudio
transmission.

TheLiveViewpagealsodisplaysPan/Tilt/Zoom(PTZ)controls.Theadministratorcanenable/disablecontrolsforspeciedusersunder
SystemOptions>Security>Users.

WiththePTZControlQueueenabledthetimeeachuserisincontrolofthePTZsettingsislimited.Clickthebuttonstorequestor
releasecontrolofthePTZcontrols.ThePTZControlQueueissetupunderPTZ>ControlQueue.

13

AXISQ7414VideoEncoder

AccesstheProduct

ClicktheEmulatejoystickmodebuttonandclickintheimagetomovethecameraviewinthedirectionofthe
mousepointer.

ClicktheCentermodebuttonandclickintheimagetocenterthecameraviewonthatposition.

Thecentermodebuttoncouldalsobeusedtozoominonaspecicarea.Clickintheimageanddragtodrawa
rectanglesurroundingtheareatobemagnied.Tozoomout,rotatethemousewheel.

ClicktheCtrlpanelbuttontoopenthePTZcontrolpanelwhichprovidesadditionalPTZcontrols.
User-denedbuttonscanalsoappearintheControlpanel.SeeControlsonpage30.

SelectthevideochanneloraPTZpresetpositiontosteerthecameraviewtothesavedposition.See
PresetPositionsonpage29.

PanandTiltbars–Usethearrowstopanandtiltthecameraview,orclickonapositiononthebartosteerthecameraviewto
thatposition.

Zoombar–Usethearrowstozoominandout,orclickonapositiononthebartozoomtothatposition.

Focusbar–Usethearrowstofocusthecamera,orclickonapositiononthebartosetthefocusposition.Usingthefocusbarwill
disabletheproduct’sautofocus.Tore-enable,usethePTZcontrolpanelwhichisopenedbyclickingtheCtrlpanelbutton(seeabove).

Irisbar–Clickonapositiontosetamanualexposureleveltomaketheimagebrighterordarker .Thiswilldisableautoiris(automatic

exposure)andsetxedlevelsoniris,gainandshutterspeed.Tore-enableautoiris,usethePTZcontrolpanelwhichisopenedby
clickingtheCtrlpanelbutton(seeabove).Ifautoirisisenabled,AutoisvisiblenexttotheIrisbarbar.

Important

InanenvironmentwithvaryinglightconditionsitisrecommendedtousetheBrightnessbarinsteadoftheIrisbartoadjust
imagebrightnesssincechangingthebrightnesslevelwillnotdisableautoiris(automaticexposure).

ThePTZcontrolscanbedisabledunderPTZ>Advanced>Controls,seeControlsonpage30.

14

AXISQ7414VideoEncoder

MediaStreams

MediaStreams

TheAxisproductprovidesseveralaudioandvideostreamformats.Yourrequirementsandthepropertiesofyournetworkwill
determinethetypeyouuse.

TheLiveViewpageintheproductprovidesaccesstoH.264andMotionJPEGvideostreams,audiostreamsandtothelistofavailable
streamproles.Otherapplicationsandclientscanaccessvideoandaudiostreamsdirectly,withoutgoingviatheLiveViewpage.

HowtoStreamH.264

H.264can,withoutcompromisingimagequality,reducethesizeofadigitalvideolebymorethan80%comparedwiththeMotion
JPEGformatandasmuchas50%morethantheMPEG-4standard.Thismeansthatmuchlessnetworkbandwidthandstoragespace
arerequiredforavideole.Orseenanotherway,muchhighervideoqualitycanbeachievedforagivenbitrate.

Decidingwhichcombinationofprotocolsandmethodstousedependsonyourviewingrequirements,andonthepropertiesof
yournetwork.TheavailableoptionsinAXISMediaControlare:

UnicastRTP

Thisunicastmethod(RTPoverUDP)isused
forliveunicastvideo,especiallywhenitis
importanttohaveanup-to-datevideostream,
evenifsomeframesaredropped.

RTPoverRTSP

Thisunicastmethod(RTPtunneledoverRTSP)
isusefulasitisrelativelysimpletocongure
rewallstoallowRTSPtrafc.

RTPoverRTSPoverHTTP

Thisunicastmethodcanbeusedtotraverse
rewalls.Firewallsarecommonlyconguredto
allowtheHTTPprotocol,thusallowingRTPto
betunneled.

Unicastingisusedforvideo-on-demand
transmissionsothatthereisnovideotrafc
onthenetworkuntilaclientconnectsand
requeststhestream.
Notethatthereareamaximumof20
simultaneousunicastconnections.

MulticastRTP

Thismethod(RTPoverUDP)shouldbeusedforlivemulticastvideo.Thevideostreamisalways
up-to-date,evenifsomeframesaredropped.
Multicastingprovidesthemostefcientusageofbandwidthwhentherearelargenumbersof
clientsviewingsimultaneously.Amulticastcannothowever,passanetworkrouterunlessthe
routerisconguredtoallowthis.ItisnotpossibletomulticastovertheInternet,forexample.
Notealsothatallmulticastviewerscountasoneunicastviewerinthemaximumtotalof20
simultaneousconnections.

AXISMediaControlnegotiateswiththeAxisproducttodeterminethetransportprotocoltouse.Theorderofpriority,listedinthe
AMCControlPanel,canbechangedandtheoptionsdisabled,tosuitspecicrequirements.

Note

H.264islicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Installingadditionalunlicensed
copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

MJPEG

ThisformatusesstandardJPEGstillimagesforthevideostream.Theseimagesarethendisplayedandupdatedataratesufcient
tocreateastreamthatshowsconstantlyupdatedmotion.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage
containedinthestream.TherecommendedmethodofaccessingMotionJPEGlivevideofromtheAxisproductistousetheAXIS
MediaControlinInternetExplorerinWindows.

AXISMediaControl(AMC)

AXISMediaControl(AMC)inInternetExplorerinWindowsistherecommendedmethodofaccessinglivevideofromtheAxisproduct.

15

AXISQ7414VideoEncoder

MediaStreams

TheAMCControlPanelcanbeusedtocongurevariousvideoandaudiosettings.PleaseseetheAXISMediaControlUser’s
Manualformoreinformation.

TheAMCControlPanelisautomaticallyinstalledonrstuse,afterwhichitcanbecongured.OpentheAMCControlPanelfrom:

•WindowsControlPanel(fromtheStartscreenorStartmenu)

•Alternatively,right-clickthevideoimageinInternetExplorerandclickSettings.

AlternativeMethodsofAccessingtheVideoStream

YoucanalsoaccessvideoandimagesfromtheAxisproductinthefollowingways:

•MotionJPEGserverpush(ifsupportedbytheclient,ChromeorFirefox,forexample).ThisoptionmaintainsanopenHTTP
connectiontothebrowserandsendsdataasandwhenrequired,foraslongasrequired.

•WindowsMediaPlayer.ThisrequiresAXISMediaControlandtheH.264decodertobeinstalled.Thefollowingpaths
canbeused:

•QuickTime

TM

.Thefollowingpathscanbeused:

Note

•<ip>=IPaddress

•TheAxisproductsupportsQuickTime6.5.1andlater.

•QuickTimemayaddlatencytothevideostream.

•ItmaybepossibletouseotherplayerstoviewtheH.264streamusingthepathsabove,althoughAxisdoesnotguarantee

this.

AccessAudioStreams

TheLiveViewpageprovidesaccesstoaudiothroughAXISMediaControl;inadditionaudiocanbeaccessedinthefollowingways:

•VAPIX®ApplicationProgrammingInterface(API)Formoreinformation,visitwww.axis.com/developer

•WindowsMediaPlayersupportssimplexaudio.Thefollowingpathscanbeused:

-UnicastviaRTP:axrtpu://<ip>/axis-media/media.amp

16

AXISQ7414VideoEncoder

MediaStreams

-UnicastviaRTSP:axrtsp://<ip>/axis-media/media.amp

-UnicastviaRTSP,tunneledviaHTTP:axrtsphttp://<ip>/axis-media/media.amp

-Multicast:axrtpm://<ip>/axis-media/media.amp

•QuickTime

TM

supportsG.7 1 1andAACaudioencoding.Thefollowingpathscanbeused:

-rtsp://<ip>/axis-media/media.amp

-rtsp://<ip>/axis-media/media.3gp

17

AXISQ7414VideoEncoder

SetUptheProduct

SetUptheProduct

TheAxisproductcanbeconguredbyuserswithadministratororoperatorrights.Toopentheproduct’sSetuppages,clickSetupin
thetopright-handcorneroftheLiveViewpage.

•Administratorshaveunrestrictedaccesstoallsettings.

•Operatorshaverestrictedaccesstosettings,seeUsersonpage45

Seealsotheonlinehelp

.

BasicSetup

BasicSetupprovidesshortcutstothesettingsthatshouldbemadebeforeusingtheAxisproduct:

1.Users.Seepage45.

2.TCP/IP.Seepage48.

3.Date&Time.Seepage47.

4.VideoStream.Seepage19.

5.AudioSettings.Seepage24.

TheBasicSetupmenucanbedisabledfromSystemOptions>Security>Users.

18

AXISQ7414VideoEncoder

VideoandAudio

VideoandAudio

Thevideoandaudiosettingscanbeusedtooptimizevideoandaudioquality.Youcancongurethefollowing:

•Videostreamsettings.Seepage19.

•Streamproles.Seepage2

1.

•

Camerasettings.Seepage21.

•Overlayimage.Seepage22.

•Privacymask.Seepage24.

•Audiosettings.Seepage24.

•Audioclips.Seepage26.

SetUpVideoStreams

Tosetuptheproduct’svideostreams,gotoVideo&Audio>VideoStream.

Thevideostreamsettingsaredividedintothefollowingtabs:

•Image.Seepage20.

•Audio.Seepage24.

•H.264.Seepage20.

•MJPEG.Seepage21.

PixelCounter

Thepixelcountershowsthenumberofpixelsinanareaoftheimage.Thepixelcounterisusefulinsituationswherethereis
aspecicsizerequirement,forexampleinfacerecognition.

19

AXISQ7414VideoEncoder

VideoandAudio

Thepixelcountercanbeused:

•Whensettingupavideostream,seeSetUpVideoStreamsonpage19.UnderPreview,clickOpenandselecttheShow
pixelcounteroptiontoenabletherectangleintheimage.Usethemousetomoveandresizetherectangle,orenterthe
numberofpixelsintheWidthandHeighteldsandclickApply.

•WhenaccessingtheLiveViewpageinInternetExplorerwithAXISMediaControl(AMC)inWindows.Right-clickinthe
imageandselectPixelcounter.Usethemousetomoveandresizetherectangle.


ThedefaultimagesettingscanbeconguredunderVideo&Audio>VideoStream.SelecttheImagetab.

Thefollowingsettingsareavailable:

•Resolution.Selectthedefaultresolution.

•SelectAspectratiocorrectiontoimprovetheappearanceofimagesinthebrowserwhenthevideostreamhasadifferent
aspectratio.Pixelscomprisingtheimagearerearrangedsoastoprovideamoreaccuraterepresentationoftheimage.

•Compression.Thecompressionlevelaffectstheimagequality,bandwidthandlesizeofsavedimages;thelowerthe
compression,thehighertheimagequalitywithhigherbandwidthrequirementsandlargerlesizes.

•Mirrorimage.Ifrequired,theimagecanbemirrored.

•Rotateimage.Ifrequired,theimagecanberotated.

•Colorsetting.SelecteitherColororBlack&White.Black&WhiteuseslessbandwidththanColor.

•Maximumframerate.Toavoidbandwidthproblems,theframerateallowedtoeachviewercanbeLimitedtoaxed
amount.Alternatively,theframeratecanbesetasUnlimited,whichmeanstheAxisproductalwaysdeliversthehighest
frameratepossibleunderthecurrentconditions.

•Overlaysettings.SeeAboutoverlaytextonpage22.

ClickSavetoapplythenewsettings.

H.264

H.264,alsoknownasMPEG-4Part10/AVC,isavideocompressionstandardthatprovideshighqualityvideostreamsatlowbitrates.
AnH.264videostreamconsistsofdifferenttypesofframessuchasI-framesandP-frames.AnI-frameisacompleteimagewhereas
P-framesonlycontainthedifferencesfrompreviousframes.

TheH.264streamsettingscanbeconguredfromtheVideo&Audio>VideoStreampage.SelecttheH.264tab.Thesettings
denedinthispagewillapplytoallH.264streamsthatdonotuseastreamprole.

TheGOPlengthisthenumberofframesbetweentwoconsecutiveI-frames.IncreasingtheGOPlengthmaysaveconsiderablyon
bandwidthrequirementsinsomecases,butmayalsohaveanadverseaffectonimagequality.

TheAxisproductsupportsthefollowingH.264prole(s):

ThebitratecanbesetasVariablebitrate(VBR)orConstantbitrate(CBR).VBRadjuststhebitrateaccordingtotheimage
complexity,usingupmorebandwidthforincreasedactivityintheimage,andlessforlowerimageactivity.Whentheactivityin
thesceneincreases,thebitratewouldusuallyincreaseaswell.Ifthereisasurplusinbandwidth,thismaynotbeanissueand
selectingVariablebitrate(VBR)willbesufcient.Butifbandwidthislimited,itisrecommendedtocontrolthebitratebyselecting
Constantbitrate(CBR).Whentheactivityinthesceneincreases,VBRadjuststhebitrateaccordingtothecomplexity,usingup
morebandwidthforincreasedactivityinthescene,andlessforlowersceneactivity.CBRallowsyoutosetatargetbitratethat
limitsthebandwidthconsumption.

TheCBRtargetbitrateworksliketheceilingofatent.Itlimitsthebitrate,whilemaintainingsomeexibility.Thebitratemaybounce
upanddownwithinthesettargetbutwhenitnearsthesettargetvalue,thelimitationkicksin.However,becauseCBRwillalways
prioritizeacontinuousvideostream,itallowstemporaryovershootsfromthetargetbitrate.Becausesettingatargetvalueprevents
thebitratefromincreasing,framerateandimagequalityareaffectednegatively.Topartlycompensateforthis,selectwhichvariable
shallbeprioritized,framerateorimagequality.Notsettingaprioritymeansthatframerateandimagequalityareequallyaffected.

20

AXISQ7414VideoEncoder

VideoandAudio

Thecurrentbitratecanbesettoappearastextoverlay.UnderOverlaySettings,selectIncludetextandenterthemodier
#bintheeld.

Toapplythesettings,clickSave.

MJPEG

Sometimestheimagesizeislargeduetolowlightorcomplexscenery.Adjustingthemaximumframesizehelpstocontrolthe
bandwidthandstorageusedbytheMotionJPEGvideostreaminthesesituations.SettingtheframesizetotheDefaultsetting
providesconsistentlygoodimagequalityattheexpenseofincreasedbandwidthandstorageusageinlowlight.Limitingtheframe
sizeoptimizesbandwidthandstorageusage,butmaygivepoorimagequality.Topreventincreasedbandwidthandstorageusage,
themaximumframesizeshouldbesettoanoptimalvalue.

StreamProles

Astreamproleisasetofpredenedstreamsettingsincludingresolution,compression,framerateandoverlaysettings.Stream
prolescanbeused:

•Whensettinguprecordingusingactionrules.SeeEventsonpage37.

•Whensettingupcontinuousrecording.SeeContinuousRecordingonpage42.

•IntheLiveViewpage–selectthestreamprolefromtheStreamproledrop-downlist.

Forquicksetup,useoneofthepredenedstreamproles.Eachpredenedprolehasadescriptivename,indicatingitspurpose.If
required,thepredenedstreamprolescanbemodiedandnewcustomizedstreamprolescanbecreated.

Tocreateanewproleormodifyanexistingprole,gotoSetup>Video&Audio>StreamProles.

ToselectadefaultstreamprolefortheLiveViewpage,gotoSetup>LiveViewCong.

CameraSettings

TheVideo&Audio>CameraSettingspageprovidesaccesstoadvancedimagesettingsfortheAxisproduct.

ImageAppearance

TochangeImageAppearancegotothemenusunderSetup>Video&Audio>CameraSettings.

IncreasingtheColorlevelincreasesthecolorsaturation.Thevalue100givesmaximumcolorsaturationandthevalue0gives
minimumcolorsaturation.

TheimageBrightnesscanbeadjustedintherange0–100,whereahighervalueproducesabrighterimage.

TheContrastchangestherelativedifferencebetweenlightanddark.Itcanbeadjustedusingtheslidebar.

Videoinput

•EnteradescriptivenameforyourvideosourceintheVideosourcenameeld.

•ThevaluesintheOffsetAdjustmentseldsaffectthehorizontalandverticalsynchronizationfortheimage.Thiscan
beusedtoeliminateanyblackbordersurroundingtheimage.Highvalues,bothnegativeandpositivecanputthe
imageoutofsync.

•De-interlacing-isusedtoimprovevideostreamimagequalityfromanalogdevices.Selectanyofthefollowingoptions
fromtheDe-interlacingdrop-downlist.SelectNoneifde-interlacingisnotnecessary;Blendingforimprovedimage
qualitythatisnotasprocessorintensive;AdaptiveInterpolationperformsde-interlacingofthevideostreambyapplying
differentltersontheimage.ThismaygiveabetterresultthanMotionAdaptiveInterpolationinrarecases;Motion
AdaptiveInterpolationperformsde-interlacingofthevideostreambyapplyingdifferentltersdependingonthemotion
indifferentpartsoftheimage.Thiswillinmostcasesresultinthebestimagequality.

21

AXISQ7414VideoEncoder

VideoandAudio

•Antialiasingwillminimizedistortionknownasaliasing,whichhappenswhenahigh-resolutionimageisrepresentedat
alowerresolution.

75Ohmvideoterminationcanbeenabled/disabledviatheproduct'swebpageatVideo&Audio>VideoInput>Videotermination.

Videoterminationisenabledonfactorydefault.Iftheproductisconnectedinparallelwithotherequipment,foroptimumvideo
quality,itisrecommendedthatvideoterminationisenabledonlyforthelastdeviceinthevideosignalchain.

Aboutoverlays

Overlaysaresuperimposedoverthevideostream.Theyareusedtoprovideextrainformationduringrecordings,suchasatimestamp,
orduringproductinstallationandconguration.

Aboutoverlaytext

Anoverlaytextcandisplaythecurrentdateandtime,oratextstring.Whenusingatextstring,so-calledmodierscanbeusedto
displayinformationsuchasthecurrentbitrateorthecurrentframerate.

Itisalsopossibletodisplaytextwhenanactionruleistriggered,seeHowtoincludeoverlaytextinanactionruleonpage22.

Howtoincludeoverlaytext

1.GotoVideo&Audio>VideoStreamandselecttheImagetab.

2.Toincludedateandtime,selectIncludedateandIncludetime.

3.Toincludeatextstring,selectIncludetextandenterthetextintheeld.Modierscanbeused,seeFileNaming&

Date/TimeFormatsintheonlinehelp

.

4.Selectsize,color ,andplacementofthetextstring.

5.ClickSave.

Tomodifythedateandtimeformat,gotoSystemOptions>Date&Time.SeeDate&Timeonpage47.

Howtoincludeoverlaytextinanactionrule

Example
Todisplaythetext“Motiondetected”whenmotionisdetected,enter#DintheIncludetexteldandenter“Motiondetected”in

theTexteldwhensettinguptheactionrule.

1.GotoVideo&Audio>VideoStreamandselecttheImagetab.

2.UnderOverlaySettings,selectIncludetext.

3.Enterthemodier#D.Whentheruleistriggered,#Disreplacedbythetextspeciedintheactionrule.

Additionaltextinthiseldwillbedisplayedalsowhentheactionruleisnotactive.

4.GotoEvents>ActionRulesandcreateyouractionrule.

5.FromtheActionslist,selectOverlayText.

6.EnterthetexttodisplayintheTexteld.

7.SpecifytheDuration.Thetextcanbedisplayedwhiletheruleisactiveorforaxednumberofseconds.

22

AXISQ7414VideoEncoder

VideoandAudio

Howtodisplaythepanortiltpositionasatextoverlay

Itmaybeusefultoretrieve,forinstancefromarecordedvideo,thepanortiltposition(indegrees)inwhichaneventhastaken
place.Thiscanbeobtainedbyincludingthepositionintheimageasatextoverlay ,usingamodier.Todisplaythepanpositionasa
textoverlay:

1.GotoSetup>Video>VideoStream.

2.UnderOverlaysettings,selectIncludetext.

Enter#xtoshowthepanposition.

Enter#ytoshowthetiltposition.

3.Conguretheoptionalsize,colorandpositionofthetextoverlay.

4.ClickSave.

5.GototheLiveViewpagetoconrmthesetting.

Aboutoverlayimages

Anoverlayimageisastaticimagesuperimposedoverthevideostream.Theimage,forexampleacompanylogo,isrstuploadedto
theAxisproductandthenusedtoprovideextrainformationortomaskapartoftheimage.

Imagespecications:

•TheuploadedimageshouldbeaWindows24-bitBMPimagewithmaximum250colors.

•Theimagewidthandheight,inpixels,mustbeexactlydivisiblebyfour.

•Theimagecannotbelargerthanthemaximumimageresolution.

•Ifcombiningtextandimageoverlays,takeintoconsiderationthatthetextoverlayoccupies16or32pixelsinheight
(dependingontheresolution)andhasthesamewidthasthevideoimage.

Sinceitisstatic,thepositionandsizeofanoverlayimagewillremainthesameregardlessofresolutionandpan,tiltorzoom
movements.

Toalwayscoveraselectedpartofthemonitoredarea,useaprivacymask.SeePrivacyMaskonpage24.

Howtouploadanoverlayimage

1.GotoVideo&Audio>OverlayImage.

2.ClickBrowseandbrowsetothele.

3.ClickUpload.

4.TheTransparencySettingspageisnowdisplayed:

-Tomakeacolorintheoverlayimagetransparent,selectUsetransparencyandentertheRGBhexadecimalvalue
forthecolor.Example:Tomakewhitetransparent,enterFFFFFF.

Formoreexamplesofhexadecimalvalues,seetheonlinehelp

.

-Toscaletheimageautomatically,selectScalewithresolution.Theimagewillbescaleddowntotthe
resolutionusedbytheAxisproduct.

5.ClickSave.

Howtoincludeanoverlayimage

1.GotoVideo&Audio>OverlayImage.

23

AXISQ7414VideoEncoder

VideoandAudio

2.SelecttheimagetousefromtheUseoverlayimagelistandclickSave.

3.GotoVideo&Audio>VideoStreamandselecttheImagetab.

4.UnderOverlaySettings,selectIncludeoverlayimageatthecoordinates.

5.Tocontroltheimage’sposition,entertheX(horizontal)andY(vertical)coordinates.TheX=0andY=0positionis
thetopleftcorner.Ifapartoftheimageispositionedoutsidethevideoimage,theoverlayimagewillbemovedso
thatthewholeimageisvisible.

6.ClickSave.

PrivacyMask

Aprivacymaskisauser-denedareathatpreventusersfromviewingpartsofthemonitoredarea.Privacymasksappearasblocks
ofsolidcolorandareappliedonthevideostream.PrivacymaskscannotbebypassedusingtheVAPIX®applicationprogramming
interface(API).

ThePrivacyMaskList(Video&Audio>PrivacyMask)showsallthemasksthatarecurrentlyconguredintheAxisproductand
indicatesiftheyareenabled.

Youcanaddanewmask,re-sizethemaskwiththemouse,chooseacolorforthemask,andgivethemaskaname.

Formoreinformation,seetheonlinehelp

Important

Addingmanyprivacymasksmayaffecttheproduct’sperformance.

SetUpAudio

Tochangetheproduct’saudiosettings,gotoVideo&Audio>AudioSettings.

Toincludeanaudiostreaminavideostream,gotoVideo&Audio>VideoStream.UndertheAudiotab,selectEnableaudio.
Thenselectthedesiredaudiochannelfromthedrop-downlist.

Eachstreamproleisaseparatevideostream.Toincludetheaudiostreaminallstreamproles,gototheaudiotabineachstream
prolesettingspageandenableaudio.Formoreinformation,seeStreamProlesonpage2

1.

AudioModes

TheAxisproductsupportsthefollowingaudiomodes:

•Fullduplex–Simultaneoustwo-wayaudioallowingtheAxisproducttotransmitandreceiveaudioatthesametime.

Thereisnoechocancellation;iffeedbackloopsappear,trymovingthemicrophoneorthespeaker.

•Half-duplex–AudiocanbetransmittedtoandfromtheAxisproductbutonlyinonedirectionatatime.Totransmit
audiousingtheLiveViewpage,usetheTalkandListenbuttons,seeAMCAudioControlsonpage13.

•Simplex–NetworkCameraspeakeronly-AudioistransmittedfromaclienttotheAxisproductandcanbeplayedby
aspeakerconnectedtotheproduct.TotransmitaudiousingtheLiveViewpage,theTalkandMicrophoneonbuttons
mustbothbeactive,seeAMCAudioControlsonpage13.

•Simplex–NetworkCameramicrophoneonly-Audiocapturedbytheproductmicrophoneistransmittedfromthe
Axisproducttooneormoreclients.

Tosettheaudiomode,gotoVideo&Audio>AudioSettingsandselectthedesiredmodefromtheAudiomodedrop-downlist.

24

AXISQ7414VideoEncoder

VideoandAudio

AudioInput

AnexternalmicrophoneoralinesourcecanbeconnectedtotheAudio-inconnector.ConguretheaudioinputsettingsunderVideo
&Audio>AudioSettings.

Note

IfusingunbalancedLineinamonocontactmustbeused.Signalontipandgroundonsleeve.

SelectMicrophonetouseanexternalmicrophoneorLinetouseaLineindevice,e.g.anaudiomixerformultiplemicrophones
oramicrophonewithabuilt-inamplier,asaudiosource.

Selectthemicrophonesensitivitylevel(High/Low)dependingonthesoundlevelinthemonitoredarea.Forexample,iftheAxis
productisinstalledinanoisyenvironment,trysettingtheinputsensitivitytoLow.

TheMicrophonepoweroptionprovidesDCpowerforanexternalmicrophone.

Touseaprofessionalmicrophonerequiring48Vphantompower,youneedanexternalpowersupplyandabalanced-unbalanced
converter(audiotransformer)inbetween.

UsetheInputgaintocontrolthevolumeoftheaudioinput.Ifthesoundistoolow,chooseahigherdBvalue,toamplifythe
sound.Ifthesoundistoohigh,choosealowerdBvalue.TheLevelbargivesavisualrepresentationoftheaudiosignallevelindB
relativetothefull-scaleinputlevel.

•Green—thesignalisatagoodlevel.

•Yellow—thesignalisbecomingdistorted.

•Red—thesignalisdistorted.

UsetheEncodingoptiontoselectdigitalaudioencodingformat.

•AACrequiresalicenseforbothencodinganddecoding.AACistheleastcomplicatedandmostwidelyusedcodec.If
achievingthebestpossibleaudioqualityisapriority,AACistherecommendedcodectouse.AnAAClicenseisincluded
intheAxisproduct.

•G71 1isanunlicensedstandardcodecthatisusefulwhenintegratingaudiointoaVoIPsystem

•G726isanunlicensedspeechcodecthatismostcommonlyusedwithinthesecurityindustry.

Note

Ifrecordingaudiotoedgestorage,suchasanetworkshare,useAACencoding.

TheSampleratedenesthenumberoftimespersecondthesoundissampled.Ahighersampleratewillprovidebetteraudio
quality,butalsorequiresagreaterbandwidth.

SettherequiredBitratedependingontheselectedencoding.Ahigherbitratewillgivebetteraudioquality.Alowerbitrate
mayhavelatencyordelay ,butwillrequirelessbandwidth.

Formoreinformationaboutthesesettings,pleaseseetheonlinehelp

.

AudioOutput

AnexternalspeakercanbeconnectedtotheAudio-outconnector(anactivespeakerwithbuilt-inamplierisrequiredforthis).The
outputcanbeconnectedtoanotheramplierwithspeakers.Astereoconnectormustbeusedfortheaudioout.

ConguretheaudiooutputsettingsunderVideo&Audio>AudioSettings.

Outputgain-Controlthevolumeofthelineaudiooutput.Ifthesoundistoolow,chooseahigherdBvalue.Ifthesoundis
toohigh,choosealowerdBvalue.

25

AXISQ7414VideoEncoder

VideoandAudio

AudioClips

AnaudioclipisasoundlethatcanbeplayedwheneventsoccurordirectlyfromtheLiveViewpage.Theaudioclipmustrstbe
uploadedtotheAxisproductorrecordedbyamicrophoneconnectedtotheproduct.

Toadd,download,modifyorremoveaudioclips,gotoVideo&Audio>AudioClips.Formoreinformationseetheonlinehelp

.

ToconguretheAxisproducttoplayaudioclipswhenaneventoccurs,anactionrulemustbesetup.Formoreinformation,
seeEventsonpage37.

Note

Audioclipscannotbeusediftheproduct’saudiofunctionalityisenabled.TheaudiofunctionalityisenabledontheAudio
tabunderVideo&Audio>VideoStream.

26

AXISQ7414VideoEncoder

ConfiguretheLiveViewPage

ConfiguretheLiveViewPage

YoucancustomizetheLiveViewpageandalterittosuityourrequirements.Itispossibletodenethefollowingfeaturesof
theLiveViewpage.

•StreamProle.Seepage2

1.

•

DefaultViewerforBrowser.Seepage27.

•ViewerSettings.Seepage28.

•ActionButtons.ThesearethebuttonsdescribedinControlsontheLiveViewPageonpage12.

•UserDenedLinks.Seepage28.

•OutputButtons.Seepage28.

DefaultViewerforBrowsers

FromLiveViewCong>DefaultViewerselectthedefaultmethodforviewingvideoimagesinyourbrowser.Theproductattempts
toshowthevideoimagesintheselectedvideoformatandviewer.Ifthisisnotpossible,theproductoverridesthesettingsand
selectsthebestavailablecombination.

27

AXISQ7414VideoEncoder

ConfiguretheLiveViewPage

BrowserViewerDescription

AMC

RecommendedviewerinInternetExplorer(H.264/MotionJPEG).

QuickTime

H.264.

WindowsInternetExplorer

StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrowsertoviewa

newimage.

ServerPush

Recommendedviewerforotherbrowsers(MotionJPEG).

QuickTime

H.264.

Otherbrowsers

StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrowsertoviewa

newimage.

Formoreinformation,pleaseseetheonlinehelp .

ViewerSettings

Tocongureoptionsfortheviewer ,gotoLiveViewCong>ViewerSettings.

•SelectShowviewertoolbartodisplaytheAXISMediaControl(AMC)ortheQuickTimeviewertoolbarunderthevideo
imageinyourbrowser.

•H.264decoderinstallation.TheadministratorcandisableinstallationoftheH.264decoderincludedwithAXISMedia
Control.Thisisusedtopreventinstallationofunlicensedcopies.Furtherdecoderlicensescanbepurchasedfromyour
Axisreseller.

•SelectShowcrosshairinPTZjoystickmodetoenableacrossthatwillindicatethecenteroftheimageinPTZjoystick
mode.

•SelectUsePTZjoystickmodeasdefaulttoenablejoystickmode.Themodecanbechangedtemporarilyfromthe
PTZcontrolpanel.

•SelectEnablerecordingbuttontoenablerecordingfromtheLiveViewpage.Thisbuttonisavailablewhenusingthe
AMCviewer.TherecordingsaresavedtothelocationspeciedintheAMCControlPanel.SeeAXISMediaControl
(AMC)onpage15.

UserDenedLinks

Todisplayuser-denedlinksintheLiveViewpage,selecttheShowcustomlinkoption,givethelinkanameandthenentertheURL
tolinkto.Whendeningaweblinkdonotremovethe'http://'fromtheURLaddress.Customlinkscanbeusedtorunscriptsor
activateexternaldevicesconnectedtotheproduct,ortheycanlinktoawebpage.Customlinksdenedascgilinkswillrunthe
scriptinthebackground,inahiddenframe.Deningthelinkasaweblinkwillopenthelinkinanewwindow.

OutputButtons

ExternalI/OdevicesconnectedtotheAxisproduct’soutputportscanbecontrolleddirectlyfromtheLiveViewpage.

TodisplayoutputbuttonsintheLiveViewpage:

1.GotoSetup>LiveViewCong.

2.UnderOutputButtons,selectthetypeofcontroltouse:

-Pulseactivatestheoutputforadenedperiodoftime.Thepulsetimecanbesetfrom1/100secondto60
seconds.

-Active/Inactivedisplaystwobuttons,oneoreachaction.

Toconguretheactiveandinactivestates,gotoSystemOptions>Ports&Devices>I/OPortsandsettheport’sNormalstate.

FormoreinformationaboutI/Oports,seeI/OPortsonpage53.

28

AXISQ7414VideoEncoder

PTZ(PanTiltZoom)

PTZ(PanTiltZoom)

ThePTZmenuisavailableifaPTZdriverhasbeenuploaded.SeeInstallPTZDriveronpage30.

PresetPositions

Apresetpositionisasavedviewthatcanbeusedtoquicklysteerthecameratoaspecicposition.Apresetpositionconsistsof
thefollowingvalues:

•Panandtiltpositions

•Zoomposition

•Focusposition(manualorautomatic)

•Irisposition(manualorautomatic)

GuardTour

Aguardtourdisplaysthevideostreamfromdifferentpresetpositions,one-by-one,inapredeterminedorderoratrandomandfor
congurabletimeperiods.Theenabledguardtourwillkeeprunningaftertheuserhasloggedofforclosedthebrowser .

Toaddaguardtour:

1.GotoPTZ>GuardTourandclickAdd.

2.Enteradescriptivename.

3.Specifythepauselengthbetweenruns.

4.SelectanavailablepresetpositionandclickApply.

5.SpecifytheMoveSpeed.

6.SpecifytheViewTimeinsecondsorminutes.

7.SpecifytheViewOrderorselecttheRandomvieworderoption.

8.ClickSave.

Tomodifyorremoveguardtours,gotoPTZ>GuardTour,selecttheguardtourintheGuardTourListandclickModify/Remove.

29

AXISQ7414VideoEncoder

PTZ(PanTiltZoom)

Note

ForproductsthatsupportLimitedGuardTour,theproducthasaxedminimumviewtime

Formoreinformationseetheonlinehelp

.

Advanced

DeviceSettings

TheDeviceSettingswindowdisplaysdriverspecicsettings.Theappearanceofthiswindowcanvarydependingonthedriver
installed.Optionsthatcanbeconguredinclude:

•DriverSpecicSettingsforVideoSource

•MechanicalLimitsforMovingVideoSource

•LightControlVideoSource

•ExtendedDriverSpecicSettingsforVideoSource

FordownloadandinstallationinformationaboutPTZdriversforyourAxisproductpleasevisitwww.axis.com/techsup/

Controls

AdvancedPTZsettingscanbeconguredunderPTZ>Advanced>Controls.

ThePanelShortcutCommandButtonslistshowstheuser-denedbuttonsthatcanbeaccessedfromtheLiveViewpage’sCtrl
panel.ThesebuttonscanbeusedtoprovidedirectaccesstocommandsissuedusingtheVAPIX®applicationprogramminginterface.
ClickAddtoaddanewshortcutcommandbutton.

ThefollowingPTZcontrolsareenabledbydefault:

•Pancontrol

•Tiltcontrol

•Zoomcontrol

•Focuscontrol

•Iriscontrol

Todisablespeciccontrols,deselecttheoptionsunderEnable/Disablecontrols.

Note

DisablingPTZcontrolswillnotaffectpresetpositions.Forexample,ifthetiltcontrolisdisabled,theproductcanstillmoveto
presetpositionsthatrequireatiltmovement.

OSDMenu

IfthePTZunitsupportsaninternalcongurationmenu,thiscanbeaccessedusingtheOn-ScreenDisplay(OSD).Congurethe
analogcamerabyopeningandnavigatingthroughitsinternalmenuinthisdisplay.

InstallPTZDriver

ThisAxisproductsupportsseveralPTZdevices.Pleaseseewww.axis.comforacompletelistofsupporteddevices,andtoobtainthe
correctdriver.ToinstallaPTZdeviceyouneedtoinstallthePTZdriver.

30

AXISQ7414VideoEncoder

PTZ(PanTiltZoom)

ToinstallthePTZdrivergotoPTZ>DriverSelection.Browsetondthedriver(e.g.driver .ptz)andUpload.Ifthedriverwas
successfullyuploaded,itappearsintheSelectdrivertousedrop-downlist.Fromthisdrop-downlist,selectthedrivertoinstall
orremove,andclickSave.

SelectActivatePTZtoenablePTZ.TheaddressoftheconnecteddeviceappearsagainstDeviceID.ChoosetheDevicetypefromthe
drop-downlist.Tondwhichdevicetypetouse,consultthedocumentationsuppliedbythePTZdriver .

TocompletetheinstallationgotoSystemOptions>Ports&Devices>COMPortandverifythesettings.

ControlQueue

Note

•TheadministratorcanenableanddisablePTZcontrolsforselectedusers.

•Toidentifydifferentusersintheviewergroup,cookiesmustbeenabledontheclient.

•TheControlqueuepolltimeismeasuredinseconds.Formoreinformationseetheonlinehelp .

TheadministratorcansetupaqueueforPTZcontrollersfromPTZ>ControlQueue.Oncesetup,thePTZControlQueuebuttons
appearintheLiveViewpageofferingoneviewerexclusivecontrolforalimitedperiodoftime.Otheruserswillbeplacedinqueue.

Auserwhobelongstoagroup(seeUsersonpage45)withahigherPTZprioritycangobeforeotherusersinthequeueandtake
controloftheproduct.Theorderofpriorityisasfollows:

1.Administrator—AnadministratortakesoverPTZcontrolregardlessofwhoisrstinqueue.Theadministratorwillbe
removedfromthequeue60secondsafterthelastPTZcontrolcommand.

2.Event—TheAxisproductcanbeconguredtogotoapresetpositionwhentriggeredbyanalarm(seeEventsonpage37).
Theeventwillimmediatelybeplacedrstinthequeueexceptwhenanadministratorisincontrol.

3.Operator—Sameasadministratorbutwithlowerpriority

4.GuardTour—Aguardtour(seepage29)hasPTZcontrolforanindeniteperiodoftime.Itmaybeoverriddenbyan
operator,eventoradministrator.Theguardtourwillresumewhenhigherprioritygroupsleavethequeue.

5.Viewer—Multipleviewersmustwaitfortheirturn.Theviewerhas60secondsPTZcontrolbeforecontrolispassed
ontothenextviewerinqueue.

31

AXISQ7414VideoEncoder

Detectors

Detectors

CameraTampering

CameraTamperingcangenerateanalarmwheneverthecameraisrepositioned,orwhenthelensiscovered,spray-paintedorseverely
defocused.Tosendanalarm,forexampleanemail,anactionrulemustbesetup.

Toconguretamperingdetection:

1.GotoDetectors>CameraTampering.

2.SettheMinimumduration,thatis,thetimethatmustelapsebeforeanalarmisgenerated.Increasetimetoprevent
falsealarmsforknownconditionsthataffecttheimage.

3.SelectAlarmfordarkimagesifanalarmshouldbegeneratediflightsaredimmedorturnedoff,orifthelensissprayed,
covered,orrenderedseverelyoutoffocus.

4.ClickSave.

Toconguretheproducttosendanalarmwhentamperingoccurs:

1.GotoEvents>ActionRules.

2.ClickAddtosetupanewactionrule.

3.EnteraNamefortheactionrule.

4.UnderCondition,selectDetectorsfromtheTriggerlist.

5.SelectTamperingfromthelistofdetectors.

6.Selectthevideochannel.

7.Optionally,selectascheduleandsetadditionalconditions.

8.Selecttheaction.Tosendanemail,selectSendNoticationandselectaRecipientfromthelistofdenedrecipients.

Note

TheWhiletheruleisactiveoptionunderDurationcannotbeusedwithcameratampering,sincecameratamperingdoesnot
haveadurationandonceithasbeentriggereditwillnotautomaticallyreturntoitsuntriggeredstate.

Formoreinformationonactionsrules,seeEventsonpage37.

MotionDetection

Motiondetectionisusedtogenerateanalarmwhenevermovementstartsorstopsinthecameraview.

Motiondetectionisconguredbydeningupto10IncludeandExcludewindows:

•Includewindows—deneareaswheremotionshouldbedetected

•Excludewindows—deneareaswithinanIncludewindowthatshouldbeignored(areasoutsideIncludewindows
areautomaticallyignored).

Forinstructions,seeSetUpMotionDetectionWindowsonpage33.

Tocontrolthenumberofmotiondetectionalarms,theparametersObjectSize,HistoryandSensitivitycanbeadjusted.See
MotionDetectionParametersonpage33.

Oncemotiondetectionwindowsarecongured,theAxisproductcanbeconguredtoperformactionswhenmotionisdetected.
Possibleactionsincludeuploadingimagesandstartrecording.Formoreinformation,seeSetUpActionRulesonpage37.

32

AXISQ7414VideoEncoder

Detectors

Note

•Usingthemotiondetectionfeaturemaydecreasetheproduct’soverallperformance.

•ThepositionoftheMotionDetectionWindowisrelativetotheorientationoftheCamera.Changingtheorientationofthe

camerawillalsochangethepositionoftheMotionDetectionWindow.

SetUpMotionDetectionWindows

TosetupamotiondetectionIncludeWindow,followtheseinstructions:

1.GotoDetectors>MotionDetection.

2.SelecttheCongureIncludedWindowsoptionandclickNew.Selectthenewwindowinthelistofwindowsand
enteradescriptivename.

3.Adjustthesize(dragthebottomright-handcorner)andtheposition(clickonthetextatthetopanddragtothedesired
position)ofthewindow.

4.AdjusttheObjectSize,HistoryandSensitivityprolesliders(seeMotionDetectionParametersfordetails).Anydetected
motionwithinanactivewindowisindicatedbyredpeaksintheActivitywindow.

5.ClickSave.

Toexcludepartsoftheincludewindow,selecttheCongureExcludedWindowsandpositiontheexcludewindowwithinthe
includewindow.

Todeleteanincludeorexcludewindow,selectthewindowinthelistofwindowsandclickDel.

MotionDetectionParameters

Theparameterscontrollingmotiondetectionaredescribedinthetablebelow:

Parameter

ObjectSize

History

Sensitivity

Description

Objectsizerelativetowindow
size.

Objectmemorylength.

Differenceinluminance
betweenbackgroundand
object.

Highlevel(100%)

Onlyverylargeobjectstrigger
motiondetection.

Anobjectthatappearsin
thewindowtriggersmotion
detectionforalongtime
beforeitisconsideredas
non-moving.

Ordinarycoloredobjectson
ordinarybackgroundstrigger
motiondetection.

33

AXISQ7414VideoEncoder

Detectors

Mediumlevel(50%)

Alargedifferenceinluminance
isrequiredtotriggermotion
detection.

Lowlevel(0%)

Evenverysmallobjectstrigger
motiondetection.

Anobjectthatappearsin
thewindowtriggersmotion
detectiononlyforaveryshort
timebeforeitisconsideredas
non-moving.

Onlyverybrightobjectson
adarkbackgroundtrigger
motiondetection.

Recommendedvalues

5–15%60–90%75–95%

Defaultvalues

15%90%90%

Note

•Totriggeronsmallobjectsormovements,useseveralsmallmotiondetectionwindowsratherthanonelargewindow,

andselectalowobjectsize.

•Toavoidtriggeringonsmallobjects,selectahighobjectsize.

•Whilemonitoringanareawheremovingobjectsarenotexpected,selectahighhistorylevel.Thiswillcausemotion

detectiontotriggeraslongastheobjectispresentinthewindow.

•Toonlydetectashinglight,selectalowsensitivity.Inothercaseshighsensitivityisrecommended.

AudioDetection

TheAxisproductcanbeconguredtogenerateanalarmwhenaudiorisesaboveorfallsbelowthethresholdvalue.Thethreshold
valuecanbesetintherange0–100where0isthemostsensitiveand100theleastsensitive.

1.GotoDetectors>AudioDetection.

2.SettheaudioalarmlevelandclickSave.

3.GotoEvents>ActionRulesandsetupanactionrule,seeSetUpActionRulesonpage37.

DetectedaudioisindicatedbycoloredpeaksintheActivityindicator.Aneventistriggeredwhendetectedaudiorisesaboveorfalls
belowthethresholdvalue,whichisrepresentedbythebar.

34

AXISQ7414VideoEncoder

Applications

Applications

AXISCameraApplicationPlatform(ACAP)isanopenplatformthatenablesthirdpartiestodevelopanalyticsandotherapplications
forAxisproducts.Forinformationaboutavailableapplications,downloads,trialsandlicenses,gotowww.axis.com/applications

Note

•Itisrecommendedtorunoneapplicationatatime.

•Avoidrunningapplicationswhenthebuilt-inmotiondetectionisactive.

ApplicationLicenses

Someapplicationsneedalicensetorun.Licensescanbeinstalledintwoways:

•Automaticinstallation—requiresaccesstotheInternet

•Manualinstallation—obtainthelicensekeyfromtheapplicationvendoranduploadthekeytotheAxisproduct

Torequestalicense,theAxisproductserialnumber(S/N)isrequired.Theserialnumbercanbefoundontheproductlabelandunder
SystemOptions>Support>SystemOverview.

UploadApplication

Touploadandstartanapplication:

1.GotoSetup>Applications.

2.UnderUploadApplication,clickBrowse.LocatetheapplicationleandclickUploadPackage.

3.Installthelicense(ifapplicable).Forinstructions,seethedocumentationprovidedbytheapplicationvendor.

4.Starttheapplication.GotopageApplications,selecttheapplicationinthelistofinstalledapplicationsandclickStart.

5.Conguretheapplication.Forinstructions,seethedocumentationprovidedbytheapplicationvendor.

Note

•Applicationscanbeuploadedbyproductadministrators.

•ApplicationsandlicensescanbeinstalledonmultipleproductsatthesametimeusingAXISCameraManagement,version

3.10andlater.

Togeneratealoglefortheapplication,gotoApplications.SelecttheapplicationandclickLog.

ApplicationConsiderations

Ifanapplicationisupgraded,applicationsettings,includingthelicense,willberemoved.Thelicensemustbereinstalledand
theapplicationrecongured.

IftheAxisproduct’srmwareisupgraded,uploadedapplicationsandtheirsettingswillremainunchanged,althoughthisisnot
guaranteedbyAxisCommunications.Notethattheapplicationmustbesupportedbythenewrmware.Forinformationabout
rmwareupgrades,seeUpgradetheFirmware.

IftheAxisproductisrestarted,runningapplicationswillrestartautomatically.

IftheAxisproductisrestored,uploadedapplicationsremainunchangedbutmustberestarted.Tostarttheapplication,goto
Setup>Applications.SelecttheapplicationinthelistofinstalledapplicationsandclickStart.Forinformationaboutrestoring
theAxisproduct,seeMaintenance.

35

AXISQ7414VideoEncoder

Applications

IftheAxisproductisresettofactorydefault,uploadedapplicationsandtheirsettingsareremoved.Forinformationaboutfactory
default,seeResettoFactoryDefaultSettings.

36

AXISQ7414VideoEncoder

Events

Events

TheEventpagesallowyoutoconguretheAxisproducttoperformactionswhendifferenteventsoccur.Forexample,theproduct
canstartarecordingorsendanemailnoticationwhenmotionisdetected.Thesetofconditionsthatdeneshowandwhen
theactionistriggerediscalledanactionrule.

SetUpActionRules

Anactionruledenestheconditionsthatmustbemetfortheproducttoperformanaction,forexamplerecordvideoorsendan
emailnotication.Ifmultipleconditionsaredened,allofthemmustbemettotriggertheaction.

Formoreinformationaboutavailabletriggersandactions,seeTriggersonpage37andActionsonpage38.

Thefollowingexampledescribeshowtosetupanactionruletorecordvideotoanetworkshareifthereismovementinthe
camera’seldofview.

Setupmotiondetectionandaddanetworkshare:

1.GotoDetectors>MotionDetectionandcongureamotiondetectionwindow.Seepage33.

2.GotoSystemOptions>Storageandsetupthenetworkshare.Seepage53.

Setuptheactionrule:

1.GotoEvents>ActionRulesandclickAdd.

2.SelectEnableruleandenteradescriptivenamefortherule.

3.SelectDetectorsfromtheTriggerdrop-downlist.

4.SelectMotionDetectionfromthedrop-downlist.Selectthemotiondetectionwindowtouse.

5.Optionally,selectaScheduleandAdditionalconditions.Seebelow.

6.UnderActions,selectRecordVideofromtheTypedrop-downlist.

7.SelectaStreamproleandconguretheDurationsettingsasdescribedbelow.

8.SelectNetworkSharefromtheStoragedrop-downlist.

Tousemorethanonetriggerfortheactionrule,selectAdditionalconditionsandclickAddtoaddadditionaltriggers.Whenusing
additionalconditions,allconditionsmustbemettotriggertheaction.

Topreventanactionfrombeingtriggeredrepeatedly,aWaitatleasttimecanbeset.Enterthetimeinhours,minutesandseconds,
duringwhichthetriggershouldbeignoredbeforetheactionrulecanbeactivatedagain.

TherecordingDurationofsomeactionscanbesettoincludetimeimmediatelybeforeandaftertheevent.SelectPre-triggertime
and/orPost-triggertimeandenterthenumberofseconds.WhenWhiletheruleisactiveisenabledandtheactionistriggered
againduringthepost-triggertime,therecordingtimewillbeextendedwithanotherpost-triggertimeperiod.

Formoreinformation,seetheonlinehelp

.

Triggers

Availableactionruletriggersandconditionsinclude:

•Applications–Useinstalledapplicationstotriggertherule.SeeApplicationsonpage35.

•Detectors

-AudioDetection–Triggertherulewhenaudioisdetected.SeeAudioDetectiononpage34.

37

AXISQ7414VideoEncoder

Events

-LiveStreamAccessed–Triggertherulewhenanystreamisaccessedandduringedgestorageplayback.
Thiscanforexamplebeusedtosendnotications.

-MotionDetection–Triggertherulewhenmotionisdetected.SeeMotionDetectiononpage32.

-Tampering–Triggertherulewhentamperingisdetected.SeeCameraTamperingonpage32.

•Hardware

-VideoSignal–Triggertheruleifvideosignalislost.

-Network–Triggertheruleifnetworkconnectionislostorrestored.

•InputSignal

-DigitalInputPort–TriggertherulewhenanI/Oportreceivesasignalfromaconnecteddevice.SeeI/O
Portsonpage53.

-ManualTrigger–TriggertheruleusingtheManualTriggerbuttonintheLiveViewpage.SeeControlson
theLiveViewPageonpage12.Thiscanforexamplebeusedtovalidateactionsduringproductinstallation
andconguration.

-VirtualInputs–canbeusedbyaVMS(VideoManagementSystem)totriggeractions.Virtualinputscan,for
example,beconnectedtobuttonsintheVMSuserinterface.

•PTZ

-Error–TriggertheruleifthePTZfunctionalityisnotworkingcorrectly.Thiscanforexamplebeusedto
sendmaintenancenotications.

-Ready–TriggertherulewhenthePTZfunctionalityisreadytobeused.Thiscanforexamplebeusedtosteer
thecameratoaspecicpresetpositionwhentheproductisstarted.

•Storage

-Disruption–Triggertheruleifstorageproblemsaredetected,forexampleifthestoragedeviceisunavailable,
removed,full,lockedorifotherreadorwriteproblemsoccur.Thiscanforexamplebeusedtosendmaintenance
notications.

•System

-SystemReady–Triggertherulewhentheproducthasbeenstartedandallservicesarerunning.Thiscanfor
examplebeusedtosendanoticationwhentheproductrestarts.

•Time

-Recurrence–Triggertheruleperiodically.SeeSetUpRecurrencesonpage40.Thiscanforexamplebeusedto
uploadanimageevery5minutes.

-UseSchedule–Triggertheruleaccordingtotheselectedschedule.SeeCreateSchedulesonpage40.

Actions

Availableactionsinclude:

•OutputPort–ActivateanI/Oporttocontrolanexternaldevice.

•OverlayText–Displayanoverlaytext.SeeHowtoincludeoverlaytextinanactionruleonpage22.

•PlayAudioClip–SeeAudioClipsonpage26.

•PTZControl

-PresetPosition–Gotoapresetposition.

38

AXISQ7414VideoEncoder

Events

-GuardTour–Startaguardtour .SeeGuardTouronpage29.

•RecordVideo–Recordvideoandaudiotoaselectedstorage.Torecordaudio,useAACaudioencodingandmakesurethat
audioisenabledintheselectedstreamprole.

•SendImages–Sendimagestoarecipient.

•SendNotication–Sendanoticationmessagetoarecipient.

•SendVideoClip–Sendavideocliptoarecipient.

•StatusLED–FlashtheLEDindicator.Thiscanforexamplebeusedtovalidatetriggerssuchasmotiondetectionduring
productinstallationandconguration.

AddRecipients

Theproductcansendmedialesandmessagestonotifyusersaboutevents.Beforetheproductcansendmedialesornotication
messages,youmustdeneoneoremorerecipients.Forinformationaboutavailableoptions,seeRecipientTypesonpage39.

Toaddarecipient:

1.GotoEvents>RecipientsandclickAdd.

2.Enteradescriptivename.

3.SelectarecipientType.

4.Entertheinformationneededfortherecipienttype.

5.ClickTesttotesttheconnectiontotherecipient.

6.ClickOK.

RecipientTypes

Thefollowingrecipientsareavailable:

RecipientUsewithactionNotes

Email

SendImages

SendNotication

SendVideoClip

Anemailrecipientcancontainmultipleemailaddresses.

FTP

SendImages

SendVideoClip

HTTP

SendImages

SendNotication

SendVideoClip

HTTPSSendImages

SendNotication

SendVideoClip

EncryptedletransferusingHyperTextTransferProtocol
Secure(HTTPS).

SpecifylogininformationfortheHTTPSserverandvalidate
theserver’scerticate.IfthereisaproxybetweentheAxis
productandtheHTTPSserver,alsospecifytheproxysettings.

39

AXISQ7414VideoEncoder

Events

NetworkShareSendImages

SendVideoClip

Anetworksharecanalsobeusedasastoragedevicefor
recordedvideo.GoSystemOptions>Storagetocongure
anetworksharebeforesettingupacontinuousrecordingor
anactionruletorecordvideo.Formoreinformationabout
storagedevices,seeStorageonpage53.

TCPSendNotication

SetUpEmailRecipients

Emailrecipientscanbeconguredbyselectingoneofthelistedemailproviders,orbyspecifyingtheSMTPserver,portand
authenticationusedby,forexample,acorporateemailserver.

Note

Someemailprovidershavesecurityltersthatpreventusersfromreceivingorviewinglargeamountofattachments,from
receivingscheduledemailsandsimilar.Checktheemailprovider’ssecuritypolicytoavoiddeliveryproblemsandlocked
emailaccounts.

Tosetupanemailrecipientusingoneofthelistedproviders:

1.GotoEvents>RecipientsandclickAdd.

2.EnteraNameandselectEmailfromtheTypelist.

3.EntertheemailaddressestosendemailstointheToeld.Usecommastoseparatemultipleaddresses.

4.SelecttheemailproviderfromtheProviderlist.

5.EntertheuserIDandpasswordfortheemailaccount.

6.ClickTesttosendatestemail.

Tosetupanemailrecipientusingforexampleacorporateemailserver,followtheinstructionsabovebutselectUserdenedas
Provider.EntertheemailaddresstoappearassenderintheFromeld.SelectAdvancedsettingsandspecifytheSMTPserver
address,portandauthenticationmethod.Optionally,selectUseencryptiontosendemailsoveranencryptedconnection.Theserver
certicatecanbevalidatedusingthecerticatesavailableintheAxisproduct.Forinformationonhowtouploadcerticates,
seeCerticatesonpage47.

CreateSchedules

Schedulescanbeusedasactionruletriggersorasadditionalconditions,forexampletorecordvideoifmotionisdetectedoutside
ofcehours.Useoneofthepredenedschedulesorcreateanewscheduleasdescribedbelow.

Tocreateanewschedule:

1.GotoEvents>SchedulesandclickAdd.

2.Enteradescriptivenameandtheinformationneededforadaily,weekly,monthlyoryearlyschedule.

3.ClickOK.

Tousethescheduleinanactionrule,selecttheschedulefromtheScheduledrop-downlistintheActionRuleSetuppage.

SetUpRecurrences

Recurrencesareusedtotriggeractionrulesrepeatedly,forexampleevery5minutesoreveryhour.

Tosetuparecurrence:

1.GotoEvents>RecurrencesandclickAdd.

40

AXISQ7414VideoEncoder

Events

2.Enteradescriptivenameandrecurrencepattern.

3.ClickOK.

Tousetherecurrenceinanactionrule,rstselectTimefromtheTriggerdrop-downlistintheActionRuleSetuppageandthen
selecttherecurrencefromtheseconddrop-downlist.

Tomodifyorremoverecurrences,selecttherecurrenceintheRecurrencesListandclickModifyorRemove.

41

AXISQ7414VideoEncoder

Recordings

Recordings

TheAxisproductcanbeconguredtorecordvideocontinuouslyoraccordingtoanactionrule:

•Tostartacontinuousrecording,seepage42.

•Tosetupactionrules,seepage37.

•Toaccessrecordings,seeRecordingListonpage42.

•Tocongurecameracontrolledstorage,seeStorageonpage53.

RecordingList

RecordedvideosarelistedontheRecordings>Listpage.Thelistshowseachrecording’sstartdateandtime,durationandthe
eventthattriggeredtherecording.

Toplayordownloadarecording,followthesesteps:

1.GotoRecordings>List.

2.Usetheltertonarrowthelistofrecordings.EnterthedesiredltercriteriaandclickFilter.Someltersmaytake
alongtimetocomplete.

3.Selecttherecording.

4.ClickPlaytoplaytherecording,orclickDownloadtodownloadtherecording.

Multiplerecordingscanbedownloadedatthesametime.SelecttherecordingsandclickDownload.Thedownloadedleisaziple
containingaminimumofthreeles,ofwhichtheMatroska(mkv)lesaretheactualrecordings.Therecordingsaretime-stamped
withthedateandtimetheyweredownloaded(asopposedtothedatetherecordingsweremade).

Note

ToplayrecordingsinWindowsMediaPlayer,AXISMatroskaFileSplittermustbeinstalled.AXISMatroskaFileSplitter
canbedownloadedfromwww.axis.com/techsup/software

Fordetailedrecordingandvideoinformation,selectarecordingandclickProperties.

Toremovearecording,selecttherecordingandclickRemove.

ContinuousRecording

TheAxisproductcanbeconguredtocontinuouslysavevideotoastoragedevice.Forinformationaboutstoragedevices,seeStorage
onpage53.Topreventthediskfrombecomingfull,itisrecommendedtocongurethedisktoautomaticallyremoveoldrecordings.

Ifanewstreamproleisselectedwhilearecordingisongoing,therecordingwillbestoppedandsavedintherecordinglistanda
newrecordingwiththenewstreamprolewillstart.Allpreviouscontinuousrecordingswillremainintherecordinglistuntilthey
areremovedmanuallyorthroughautomaticremovalofoldrecordings.

Tostartacontinuousrecording,followthesesteps:

1.GotoRecordings>Continuous.

2.SelectEnabled.

3.SelectthetypeofstoragedevicefromtheStoragelist.

4.SelectaStreamproletouseforcontinuousrecordings.Toincludeaudiointherecording,useAACaudioencodingand
makesurethataudioisenabledintheselectedstreamprole.

42

AXISQ7414VideoEncoder

Recordings

5.ClickSavetosaveandstarttherecording.

43

AXISQ7414VideoEncoder

Languages

Languages

MultiplelanguagescanbeinstalledintheAxisproduct.Allwebpagesincludingtheonlinehelpwillbedisplayedintheselected
language.Toswitchlanguages,gotoSetup>Languagesandrstuploadthenewlanguagele.Browseandlocatetheleandclick
theUploadLanguagebutton.SelectthenewlanguagefromthelistandclickSave.

Note

•Resettingtheproducttofactorydefaultsettingswilleraseanyuploadedlanguagelesandresettheproductlanguageto

English.

•ClickingtheRestorebuttonontheMaintenancepagewillnotaffectthelanguage.

•Armwareupgradewillnotaffectthelanguageused.Howeverifyouhaveuploadedanewlanguagetotheproductand

laterupgradethermware,itmayhappenthatthetranslationnolongermatchestheproduct'swebpages.Inthiscase,
uploadanupdatedlanguagele.

•Alanguagealreadyinstalledintheproductwillbereplacedwhenacurrentoralaterversionofthelanguageleisuploaded.

44

AXISQ7414VideoEncoder

SystemOptions

SystemOptions

Security

Users

UseraccesscontrolisenabledbydefaultandcanbeconguredunderSystemOptions>Security>Users.Anadministratorcan
setupotherusersbygivingthemusernamesandpasswords.Itisalsopossibletoallowanonymousviewerlogin,whichmeans
thatanybodymayaccesstheLiveViewpage.

Theuserlistdisplaysauthorizedusersandusergroups(accesslevels):

•ViewershaveaccesstotheLiveViewpage

•Operatorshaveaccesstoallsettingsexcept:

-creatingandmodifyingPTZpresets

-creatingandmodifyingPTZcontrolsettings

-creatingandmodifyingprivacymasksettings

-uploadingapplicationsandlanguageles

-anyofthesettingsincludedintheSystemOptions

•Administratorshaveunrestrictedaccesstoallsettings.Theadministratorcanadd,modifyandremoveotherusers.

Note

NotethatwhentheoptionEncrypted&unencryptedisselected,thewebserverwillencryptthepassword.Thisisthedefault
optionforanewunitoraunitresettofactorydefaultsettings.

UnderHTTP/RTSPPasswordSettings,selectthetypeofpasswordtoallow.Youmayneedtoallowunencryptedpasswordsifthereare
viewingclientsthatdonotsupportencryption,orifyouupgradedthermwareandexistingclientssupportencryptionbutneed
tologinagainandbeconguredtousethisfunctionality.

UnderUserSettings,selecttheEnableanonymousviewerloginoptiontoallowanonymoususersaccesstotheLiveViewpage.

SelecttheEnableanonymousPTZcontrollogintoallowanonymoususersaccesstothePTZcontrols.

DeselecttheEnableBasicSetupoptiontohidetheBasicSetupmenu.BasicSetupprovidesquickaccesstosettingsthatshouldbe
madebeforeusingtheAxisproduct.

ONVIF

ONVIF(OpenNetworkVideoInterfaceForum)isaglobalinterfacestandardthatmakesiteasierforendusers,integrators,consultants,
andmanufacturerstotakeadvantageofthepossibilitiesofferedbynetworkvideotechnology .ONVIFenablesinteroperability
betweendifferentvendorproducts,increasedexibility,reducedcostandfuture-proofsystems.

BycreatingauseryouautomaticallyenableONVIFcommunication.UsetheusernameandpasswordwithallONVIFcommunication
withtheproduct.Formoreinformationseewww.onvif.org

IPAddressFilter

IPaddresslteringisenabledontheSystemOptions>Security>IPAddressFilterpage.Onceenabled,thelistedIPaddressare
allowedordeniedaccesstotheAxisproduct.SelectAlloworDenyfromthelistandclickApplytoenableIPaddressltering.

Theadministratorcanaddupto256IPaddressentriestothelist(asingleentrycancontainmultipleIPaddresses).

45

AXISQ7414VideoEncoder

SystemOptions

HTTPS

HTTPS(HyperTextTransferProtocoloverSecureSocketLayer,orHTTPoverSSL)isawebprotocolprovidingencryptedbrowsing.
HTTPScanalsobeusedbyusersandclientstoverifythatthecorrectdeviceisbeingaccessed.Thesecuritylevelprovidedby
HTTPSisconsideredadequateformostcommercialexchanges.

TheAxisproductcanbeconguredtorequireHTTPSwhenusersfromdifferentusergroups(administrator,operator ,viewer)login.

TouseHTTPS,anHTTPScerticatemustrstbeinstalled.GotoSystemOptions>Security>Certicatestoinstallandmanage
certicates.SeeCerticatesonpage47.

ToenableHTTPSontheAxisproduct:

1.GotoSystemOptions>Security>HTTPS

2.SelectanHTTPScerticatefromthelistofinstalledcerticates.

3.Optionally,clickCiphersandselecttheencryptionalgorithmstouseforSSL.

4.SettheHTTPSConnectionPolicyforthedifferentusergroups.

5.ClickSavetoenablethesettings.

ToaccesstheAxisproductviathedesiredprotocol,intheaddresseldinabrowser,enterhttps://fortheHTTPSprotocol
andhttp://fortheHTTPprotocol.

TheHTTPSportcanbechangedontheSystemOptions>Network>TCP/IP>Advancedpage.

IEEE802.1X

IEEE802.1Xisastandardforport-basedNetworkAdmissionControlprovidingsecureauthenticationofwiredandwirelessnetwork
devices.IEEE802.1XisbasedonEAP(ExtensibleAuthenticationProtocol).

ToaccessanetworkprotectedbyIEEE802.1X,devicesmustbeauthenticated.Theauthenticationisperformedbyanauthentication
server,typicallyaRADIUSserver,examplesofwhichareFreeRADIUSandMicrosoftInternetAuthenticationService.

InAxisimplementation,theAxisproductandtheauthenticationserveridentifythemselveswithdigitalcerticatesusingEAP-TLS
(ExtensibleAuthenticationProtocol-TransportLayerSecurity).ThecerticatesareprovidedbyaCerticationAuthority(CA).
Youneed:

•aCAcerticatetoauthenticatetheauthenticationserver.

•aCA-signedclientcerticatetoauthenticatetheAxisproduct.

Tocreateandinstallcerticates,gotoSystemOptions>Security>Certicates.SeeCerticatesonpage47.ManyCAcerticates
arepreinstalled.

ToallowtheproducttoaccessanetworkprotectedbyIEEE802.1X:

1.GotoSystemOptions>Security>IEEE802.1X.

2.SelectaCACerticateandaClientCerticatefromthelistsofinstalledcerticates.

3.UnderSettings,selecttheEAPOLversionandprovidetheEAPidentityassociatedwiththeclientcerticate.

4.ChecktheboxtoenableIEEE802.1XandclickSave.

Note

Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbesynchronizedwithanNTP
server.SeeDate&Timeonpage47.

46

AXISQ7414VideoEncoder

SystemOptions

Certicates

Certicatesareusedtoauthenticatedevicesonanetwork.Typicalapplicationsincludeencryptedwebbrowsing(HTTPS),network
protectionviaIEEE802.1Xandsecureuploadofimagesandnoticationmessagesforexampleviaemail.Twotypesofcerticates
canbeusedwiththeAxisproduct:

Server/Clientcerticates-ToauthenticatetheAxisproduct.

CAcerticates-Toauthenticatepeercerticates,forexamplethecerticateofanauthenticationserverincasetheAxisproductis

connectedtoanIEEE802.1Xprotectednetwork.

Note

Installedcerticates,exceptpreinstalledCAcerticates,willbedeletediftheproductisresettofactorydefault.Preinstalled
CAcerticatesthathavebeendeletedwillbereinstalled.

AServer/Clientcerticatecanbeself-signedorissuedbyaCerticateAuthority(CA).Aself-signedcerticateofferslimited
protectionandcanbeusedbeforeaCA-issuedcerticatehasbeenobtained.

Toinstallaself-signedcerticate:

1.GotoSetup>SystemOptions>Security>Certicates.

2.ClickCreateself-signedcerticateandprovidetherequestedinformation.

TocreateandinstallaCA-signedcerticate:

1.Createaself-signedcerticateasdescribedabove.

2.GotoSetup>SystemOptions>Security>Certicates.

3.ClickCreatecerticatesigningrequestandprovidetherequestedinformation.

4.CopythePEM-formattedrequestandsendtotheCAofyourchoice.

5.Whenthesignedcerticateisreturned,clickInstallcerticateanduploadthecerticate.

Server/ClientcerticatescanbeinstalledasCerticatefromsigningrequestorasCerticateandprivatekey.SelectCerticate
andprivatekeyiftheprivatekeyistobeuploadasaseparateleorifthecerticateisinPKCS#12format.

TheAxisproductisshippedwithseveralpreinstalledCAcerticates.Ifrequired,additionalCAcerticatescanbeinstalled:

1.GotoSetup>SystemOptions>Security>Certicates.

2.ClickInstallcerticateanduploadthecerticate.

AudioSupport

SelectEnableaudiosupporttoallowclientstoretrieveaudiostreamsfromtheAxisproduct.Forinformationonhowtocongure
audiosettings,seeSetUpAudioonpage24.

Note

DeselectingthisoptionwilldisableaudiogloballyintheAxisproduct,forconguredeventsandproleswithaudioaswell.

Date&Time

TheAxisproduct’sdateandtimesettingsareconguredunderSystemOptions>Date&Time.

CurrentServerTimedisplaysthecurrentdateandtime(24hclock).Thetimecanbedisplayedin12hclockinthetextoverlay(see

below).

Tochangethedateandtimesettings,selectthepreferredTimemodeunderNewServerTime:

47

AXISQ7414VideoEncoder

SystemOptions

•Synchronizewithcomputertime–Setsdateandtimeaccordingtothecomputer’sclock.Withthisoption,dateand
timearesetonceandwillnotbeupdatedautomatically.

•SynchronizewithNTPServer–ObtainsdateandtimefromanNTPserver.Withthisoption,dateandtimesettingsare
updatedcontinuously.ForinformationonNTPsettings,seeNTPCongurationonpage50.

IfusingahostnamefortheNTPserver,aDNSservermustbecongured.SeeDNSCongurationonpage50.

•Setmanually–Allowsyoutomanuallysetdateandtime.

IfusinganNTPserver,selectyourTimezonefromthedrop-downlist.Ifrequired,checkAutomaticallyadjustfordaylightsaving
timechanges.

TheDate&TimeFormatUsedinImagesisthedateandtimeformatdisplayedasatextoverlayinthevideostream.Usethe

predenedformatsorseeFileNaming&Date/TimeFormatsintheonlinehelp

forinformationonhowtocreatecustomdateand

timeformats.Toincludedateandtimeintheoverlaytext,gotoVideo&AudioandselectIncludedateandIncludetime.

Network

BasicTCP/IPSettings

TheAxisproductsupportsIPversion4andIPversion6.Bothversionscanbeenabledsimultaneously,andatleastoneversion
mustalwaysbeenabled.

IPv4AddressConguration

Bydefault,theAxisproductissettouseIPv4(IPversion4)andtoobtaintheIPaddressautomaticallyviaDHCP.TheIPv4settingsare
conguredunderSystemOptions>Network>TCP/IP>Basic.

DHCP(DynamicHostCongurationProtocol)allowsnetworkadministratorstocentrallymanageandautomatetheassignmentof
IPaddresses.DHCPshouldonlybeenabledifusingdynamicIPaddressnotication,oriftheDHCPcanupdateaDNSserver.Itis
thenpossibletoaccesstheAxisproductbyname(hostname).

IfDHCPisenabledandtheproductcannotbeaccessed,runAXISIPUtilitytosearchthenetworkforconnectedAxisproducts,orreset
theproducttothefactorydefaultsettings(seepage56)andthenperformtheinstallationagain.

TouseastaticIPaddress,checkUsethefollowingIPaddressandspecifytheIPaddress,subnetmaskanddefaultrouter.

IPv6AddressConguration

IfIPv6(IPversion6)isenabled,theAxisproductwillreceiveanIPaddressaccordingtothecongurationinthenetworkrouter.

ToenableIPv6,gotoSystemOptions>Network>TCP/IP>Basic.OthersettingsforIPv6shouldbeconguredinthenetworkrouter.

ARP/Ping

Theproduct’sIPaddresscanbeassignedusingARPandPing.Forinstructions,seeAssignIPAddressUsingARP/Pingonpage48.

TheARP/Pingserviceisenabledbydefaultbutisautomaticallydisabledtwominutesaftertheproductisstarted,orassoonasanIP
addressisassigned.Tore-assignIPaddressusingARP/Ping,theproductmustberestartedtoenableARP/Pingforanadditional
twominutes.

Todisabletheservice,gotoSystemOptions>Network>TCP/IP>BasicandcleartheoptionEnableARP/PingsettingofIPaddress.

Pingingtheproductisstillpossiblewhentheserviceisdisabled.

AssignIPAddressUsingARP/Ping

Theproduct'sIPaddresscanbeassignedusingARP/Ping.Thecommandmustbeissuedwithin2minutesofconnectingpower.

48

AXISQ7414VideoEncoder

SystemOptions

1.AcquireafreestaticIPaddressonthesamenetworksegmentasthecomputer.

2.Locatetheserialnumber(S/N)ontheproductlabel.

3.Openacommandpromptandenterthefollowingcommands:

Linux/Unixsyntax

arp-s<IPaddress><serialnumber>temp
ping-s408<IPaddress>

Linux/Unixexample

arp-s192.168.0.12500:40:8c:18:10:00temp
ping-s408192.168.0.125

Windowssyntax(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s<IPaddress><serialnumber>
ping-l408-t<IPaddress>

Windowsexample(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s192.168.0.12500-40-8c-18-10-00
ping-l408-t192.168.0.125

4.Checkthatthenetworkcableisconnectedandthenrestarttheproductbydisconnectingandreconnectingpower.

5.ClosethecommandpromptwhentheproductrespondswithReplyfrom192.168.0.125:...orsimilar.

6.Openabrowserandtypehttp://<IPaddress>intheLocation/Addresseld.

ForothermethodsofassigningtheIPaddress,seethedocumentAssignanIPAddressandAccesstheVideoStreamonAxisSupport
webatwww .axis.com/techsup

Note

•ToopenacommandpromptinWindows,opentheStartmenuandtypecmdintheRun/Searcheld.

•TousetheARPcommandinWindows8/Windows7/WindowsVista,right-clickthecommandprompticonandselect

Runasadministrator.

•ToopenacommandpromptinMacOSX,opentheTerminalutilityfromApplication>Utilities.

AXISVideoHostingSystem(AVHS)

AVHSusedinconjunctionwithanAVHSservice,provideseasyandsecureInternetaccesstoliveandrecordedvideoaccessiblefrom
anylocation.FormoreinformationandhelptondalocalAVHSServiceProvidergotowww.axis.com/hosting

TheAVHSsettingsareconguredunderSystemOptions>Network>TCPIP>Basic.ThepossibilitytoconnecttoanAVHSservice
isenabledbydefault.Todisable,cleartheEnableAVHSbox.

One-clickenabled-Pressandholdtheproduct’scontrolbutton(seeHardwareOverviewonpage6)forabout3secondsto
connecttoanAVHSserviceovertheInternet.Onceregistered,AlwayswillbeenabledandtheAxisproductstaysconnectedto
theAVHSservice.Iftheproductisnotregisteredwithin24hoursfromwhenthebuttonispressed,theproductwilldisconnect
fromtheAVHSservice.

Always-TheAxisproductwillconstantlyattempttoconnecttotheAVHSserviceovertheInternet.Onceregisteredtheproductwill
stayconnectedtotheservice.Thisoptioncanbeusedwhentheproductisalreadyinstalledanditisnotconvenienttousethe
one-clickinstallation.

AXISInternetDynamicDNSService

AXISInternetDynamicDNSServiceassignsahostnameforeasyaccesstotheproduct.Formoreinformation,seewww.axiscam.net

49

AXISQ7414VideoEncoder

SystemOptions

ToregistertheAxisproductwithAXISInternetDynamicDNSService,gotoSystemOptions>Network>TCP/IP>Basic.Under
Services,clicktheAXISInternetDynamicDNSServiceSettingsbutton(requiresaccesstotheInternet).Thedomainnamecurrently

registeredatAXISInternetDynamicDNSservicefortheproductcanatanytimeberemoved.

Note

AXISInternetDynamicDNSServicerequiresIPv4.

AdvancedTCP/IPSettings

DNSConguration

DNS(DomainNameService)providesthetranslationofhostnamestoIPaddresses.TheDNSsettingsareconguredunderSystem
Options>Network>TCP/IP>Advanced.

SelectObtainDNSserveraddressviaDHCPtousetheDNSsettingsprovidedbytheDHCPserver.

Tomakemanualsettings,selectUsethefollowingDNSserveraddressandspecifythefollowing:

Domainname-Enterthedomain(s)tosearchforthehostnameusedbytheAxisproduct.Multipledomainscanbeseparatedby
semicolons.Thehostnameisalwaystherstpartofafullyqualieddomainname,forexample,myserveristhehostnameinthe
fullyqualieddomainnamemyserver.mycompany.comwheremycompany.comisthedomainname.

Primary/SecondaryDNSserver-EntertheIPaddressesoftheprimaryandsecondaryDNSservers.ThesecondaryDNSserveris
optionalandwillbeusediftheprimaryisunavailable.

NTPConguration

NTP(NetworkTimeProtocol)isusedtosynchronizetheclocktimesofdevicesinanetwork.TheNTPsettingsareconguredunder
SystemOptions>Network>TCP/IP>Advanced.

SelectObtainNTPserveraddressviaDHCPtousetheNTPsettingsprovidedbytheDHCPserver.

Tomakemanualsettings,selectUsethefollowingNTPserveraddressandenterthehostnameorIPaddressoftheNTPserver .

HostNameConguration

TheAxisproductcanbeaccessedusingahostnameinsteadofanIPaddress.ThehostnameisusuallythesameastheassignedDNS
name.ThehostnameisconguredunderSystemOptions>Network>TCP/IP>Advanced.

SelectObtainhostnameviaIPv4DHCPtousehostnameprovidedbytheDHCPserverrunningonIPv4.

SelectUsethehostnametosetthehostnamemanually.

SelectEnabledynamicDNSupdatestodynamicallyupdatelocalDNSserverswhenevertheAxisproduct’sIPaddresschanges.

Formoreinformation,seetheonlinehelp

.

Link-LocalIPv4Address

Link-LocalAddressisenabledbydefaultandassignstheAxisproductanadditionalIPaddresswhichcanbeusedtoaccess
theproductfromotherhostsonthesamesegmentonthelocalnetwork.TheproductcanhaveaLink-LocalIPandastatic
orDHCP-suppliedIPaddressatthesametime.

ThisfunctioncanbedisabledunderSystemOptions>Network>TCP/IP>Advanced.

HTTP

TheHTTPportusedbytheAxisproductcanbechangedunderSystemOptions>Network>TCP/IP>Advanced.Inadditiontothe
defaultsetting,whichis80,anyportintherange1024–65535canbeused.

50

AXISQ7414VideoEncoder

SystemOptions

HTTPS

TheHTTPSportusedbytheAxisproductcanbechangedunderSystemOptions>Network>TCP/IP>Advanced.Inadditionto
thedefaultsetting,whichis443,anyportintherange1024–65535canbeused.

ToenableHTTPS,gotoSystemOptions>Security>HTTPS.Formoreinformation,seeHTTPSonpage46.

NATtraversal(portmapping)forIPv4

Anetworkrouterallowsdevicesonaprivatenetwork(LAN)toshareasingleconnectiontotheInternet.Thisisdonebyforwarding
networktrafcfromtheprivatenetworktothe“outside”,thatis,theInternet.Securityontheprivatenetwork(LAN)isincreased
sincemostroutersarepre-conguredtostopattemptstoaccesstheprivatenetwork(LAN)fromthepublicnetwork(Internet).

UseNATtraversalwhentheAxisproductislocatedonanintranet(LAN)andyouwishtomakeitavailablefromtheother(WAN)side
ofaNATrouter.WithNATtraversalproperlycongured,allHTTPtrafctoanexternalHTTPportintheNATrouterisforwardedto
theproduct.

NATtraversalisconguredunderSystemOptions>Network>TCP/IP>Advanced.

Note

•ForNATtraversaltowork,thismustbesupportedbytherouter.TheroutermustalsosupportUPnP

TM

.

•Inthiscontext,routerreferstoanynetworkroutingdevicesuchasaNATrouter,Networkrouter,InternetGateway ,

Broadbandrouter,Broadbandsharingdevice,orasoftwaresuchasarewall.

Enable/Disable-Whenenabled,theAxisproductattemptstocongureportmappinginaNATrouteronyournetwork,usingUPnP

TM

.

NotethatUPnP

TM

mustbeenabledintheproduct(seeSystemOptions>Network>UPnP).

UsemanuallyselectedNATrouter-SelectthisoptiontomanuallyselectaNATrouterandentertheIPaddressfortherouterin
theeld.Ifnorouterisspecied,theproductautomaticallysearchesforNATroutersonyournetwork.Ifmorethanonerouteris
found,thedefaultrouterisselected.

AlternativeHTTPport-SelectthisoptiontomanuallydeneanexternalHTTPport.Enteraportintherange1024–65535.Ifthe
porteldisemptyorcontainsthedefaultsetting,whichis0,aportnumberisautomaticallyselectedwhenenablingNATtraversal.

Note

•AnalternativeHTTPportcanbeusedorbeactiveevenifNATtraversalisdisabled.ThisisusefulifyourNATrouterdoesnot

supportUPnPandyouneedtomanuallycongureportforwardingintheNATrouter.

•Ifyouattempttomanuallyenteraportthatisalreadyinuse,anotheravailableportisautomaticallyselected.

•Whentheportisselectedautomaticallyitisdisplayedinthiseld.Tochangethis,enteranewportnumberandclickSave.

FTP

TheFTPserverrunningintheAxisproductenablesuploadofnewrmware,userapplications,etc.TheFTPservercanbedisabled
underSystemOptions>Network>TCP/IP>Advanced.

Note

ThisFTPserverhasnothingtodowiththeproduct’sabilitytotransferimagesviaFTPtootherlocationsandservers.

RTSP

TheRTSPserverrunningintheAxisproductallowsaconnectingclienttostartanH.264stream.TheRTSPportnumbercanbe
changedunderSystemOptions>Network>TCP/IP>Advanced.Thedefaultportis554.

Note

H.264videostreamswillnotbeavailableiftheRTSPserverisdisabled.

51

AXISQ7414VideoEncoder

SystemOptions

SOCKS

SOCKSisanetworkingproxyprotocol.TheAxisproductcanbeconguredtouseaSOCKSservertoreachnetworksontheother
sideofarewallorproxyserver.ThisfunctionalityisusefuliftheAxisproductislocatedonalocalnetworkbehindarewall,and
notications,uploads,alarms,etcneedtobesenttoadestinationoutsidethelocalnetwork(forexampletheInternet).

SOCKSisconguredunderSystemOptions>Network>SOCKS.Formoreinformation,seetheonlinehelp

.

QoS(QualityofService)

QoS(QualityofService)guaranteesacertainlevelofaspeciedresourcetoselectedtrafconanetwork.AQoS-awarenetwork
prioritizesnetworktrafcandprovidesagreaternetworkreliabilitybycontrollingtheamountofbandwidthanapplicationmayuse.

TheQoSsettingsareconguredunderSystemOptions>Network>QoS.UsingDSCP(DifferentiatedServicesCodepoint)values,the
Axisproductcanmarkdifferenttypesoftrafc.

Note

LiveaudioDSCPwillbeequaltolivevideoDSCPifH.264overRTSPisused.

SNMP

TheSimpleNetworkManagementProtocol(SNMP)allowsremotemanagementofnetworkdevices.AnSNMPcommunityisthe
groupofdevicesandmanagementstationrunningSNMP.Communitynamesareusedtoidentifygroups.

ToenableandcongureSNMPintheAxisproduct,gototheSystemOptions>Network>SNMPpage.

Dependingonthelevelofsecurityrequired,selecttheversiononSNMPtouse.

TrapsareusedbytheAxisproducttosendmessagestoamanagementsystemonimportanteventsandstatuschanges.CheckEnable
trapsandentertheIPaddresswherethetrapmessageshouldbesentandtheTrapcommunitythatshouldreceivethemessage.

Note

IfHTTPSisenabled,SNMPv1andSNMPv2cshouldbedisabled.

TrapsforSNMPv1/v2areusedbytheAxisproducttosendmessagestoamanagementsystemonimportanteventsandstatus
changes.CheckEnabletrapsandentertheIPaddresswherethetrapmessageshouldbesentandtheTrapcommunitythat
shouldreceivethemessage.

Thefollowingtrapsareavailable:

•Coldstart

•Warmstart

•Linkup

•Authenticationfailed

SNMPv3providesencryptionandsecurepasswords.TousetrapswithSNMPv3,anSNMPv3managementapplicationisrequired.

TouseSNMPv3,HTTPSmustbeenabled,seeHTTPSonpage46.ToenableSNMPv3,checktheboxandprovidetheinitialuser
password.

Note

Theinitialpasswordcanonlybesetonce.Ifthepasswordislost,theAxisproductmustberesettofactorydefault,see
ResettoFactoryDefaultSettingsonpage56.

UPnP

TM

TheAxisproductincludessupportforUPnP

TM

.UPnP

TM

isenabledbydefaultandtheproductisautomaticallydetectedbyoperating

systemsandclientsthatsupportthisprotocol.

52

AXISQ7414VideoEncoder

SystemOptions

UPnP

TM

canbedisabledunderSystemOptions>Network>UPnP

RTP/H.264

TheRTPportrangeandmulticastsettingsareconguredunderSystemOptions>Network>RTP.

TheRTPportrangedenestherangeofportsfromwhichthevideo/audioportsareautomaticallyselected.Formulticaststreams,
onlycertainIPaddressesandportnumbersshouldbeused.

SelectAlwaysMulticastVideoand/orAlwaysMulticastAudiotostartmulticaststreamingwithoutopeninganRTSPsession.

Bonjour

TheAxisproductincludessupportforBonjour.Bonjourisenabledbydefaultandtheproductisautomaticallydetectedbyoperating
systemsandclientsthatsupportthisprotocol.

BonjourcanbedisabledunderSystemOptions>Network>Bonjour.

Storage

NetworkShare

NetworkshareallowsyoutoaddnetworkstoragesuchasaNAS(network-attachedstorage).TheNASshallbededicatedfor
recordingsanddatafromtheAxisproductsconnectedtothenetwork.ForinformationaboutreferenceNASdevices,goto

www.axis.com/products/axis-camera-companion/support-and-documentation

Note

ForNASrecommendationsseewww.axis.com

Toaddanetworkshare:

1.GotoSystemOptions>Storage.

2.ClickNetworkShare.

3.EntertheIPaddress,DNSorBonjournametothehostserverintheHosteld.

4.EnterthenameoftheshareintheShareeld.Subfolderscannotbeused.

5.Ifrequired,selectThesharerequiresloginandentertheusernameandpassword.

6.ClickConnect.

ToclearallrecordingsanddatafromtheAxisproduct’sfolderonthedesignatedshare,clickClearunderStorageTools.

Toavoidllingtheshare,itisrecommendedtoremoverecordingscontinuously.UnderRecordingSettings,selectRemoverecordings
olderthanandselectthenumberofdaysorweeks.

Tostopwritingtotheshareandprotectrecordingsfrombeingremoved,selectLockunderRecordingSettings.

Ports&Devices

I/OPorts

ConguretheinputandoutputportssupportedbyyourAxisproductfromSystemOptions>Ports&Devices>I/OPorts.Ports
canbegivendescriptivenames,andtheirNormalstatecanbecongured.Formoreinformationaboutthisseetheonlinehelp

.ForinformationregardinghowtoconnecttheinputandoutputonthisproductseePinAssignmentsfortheI/OConnectorof

theAXIS2911UVideoServerRackonpage7.

53

AXISQ7414VideoEncoder

SystemOptions

COMPort

TheAxisproducthasoneRS-485/RS-422serialport.Theportsupportsthefollowingmodes:

•GenericHTTPallowstheAxisproducttoreceivedataandsendcommandsviaHTTP.

•PanTiltZoomisusedtocontrolaPTZdevice.ThePTZdevicerequiresadriver.SeeInstallPTZDriverformoreinformation.
Driverscanbedownloadedfromwww.axis.com

•GenericTCP/IPallowstheAxisproducttoreceivedataandsendcommandsviaTCP/IP.

•DaisychainserverallowsDaisychainclientstocommunicatewiththeAxisproduct.

SelectthedesiredPortTypefromthedrop-downlist.Formoreinformation,seetheonlinehelp

.

PortStatus

ThelistontheSystemOptions>Ports&Devices>PortStatuspageshowsthestatusoftheproduct’sinputandoutputports.

Maintenance

TheAxisproductprovidesseveralmaintenancefunctions.TheseareavailableunderSystemOptions>Maintenance.

ClickRestarttoperformacorrectrestartiftheAxisproductisnotbehavingasexpected.Thiswillnotaffectanyofthecurrent
settings.

Note

ArestartclearsallentriesintheServerReport.

ClickRestoretoresetmostsettingstothefactorydefaultvalues.Thefollowingsettingsarenotaffected:

•thebootprotocol(DHCPorstatic)

•thestaticIPaddress

•thedefaultrouter

•thesubnetmask

•thesystemtime

•theIEEE802.1Xsettings

•uploadedapplicationsarekeptbutmustberestarted

ClickDefaulttoresetallsettings,includingtheIPaddress,tothefactorydefaultvalues.Thisbuttonshouldbeusedwithcaution.The
Axisproductcanalsoberesettofactorydefaultusingthecontrolbutton,seeResettoFactoryDefaultSettingsonpage56.

ToidentifytheproductortesttheStatusLED,clickFlashLEDunderIdentifyandspecifythedurationinseconds,minutesorhours.
Thiscanbeusefulforidentifyingtheproductamongotherproductsinstalledinthesamelocation.

Forinformationaboutrmwareupgrade,seeUpgradetheFirmwareonpage57.

Support

SupportOverview

TheSystemOptions>Support>SupportOverviewpageprovidesinformationontroubleshootingandcontactinformation,
shouldyourequiretechnicalassistance.

SeealsoTroubleshootingonpage57.

54

AXISQ7414VideoEncoder

SystemOptions

SystemOverview

TogetanoverviewoftheAxisproduct’sstatusandsettings,gotoSystemOptions>Support>SystemOverview.Informationthat
canbefoundhereincludesrmwareversion,IPaddress,networkandsecuritysettings,eventsettings,imagesettingsandrecentlog
items.ManyofthecaptionsarelinkstotheproperSetuppage.

Logs&Reports

TheSystemOptions>Support>Logs&Reportspagegenerateslogsandreportsusefulforsystemanalysisandtroubleshooting.If
contactingAxisSupport,pleaseprovideavalidServerReportwithyourquery.

SystemLog-Providesinformationaboutsystemevents.

AccessLog-Listsallfailedattemptstoaccesstheproduct.TheAccessLogcanalsobeconguredtolistallconnectionstothe

product(seebelow).

ServerReport-Providesinformationabouttheproductstatusinapop-upwindow.TheAccessLogisautomaticallyincluded
intheServerReport.

Youcanviewordownloadtheserverreport.Downloadingtheserverreportcreatesa.ziplethatcontainsacompleteserverreport
textleinUTF–8format.SelecttheIncludesnapshotwithdefaultimagesettingsoptiontoincludeasnapshotoftheproduct’sLive
View.Theserverreport.zipleshouldalwaysbeincludedwhencontactingsupport.

ParameterList-Showstheproduct'sparametersandtheircurrentsettings.Thismayproveusefulwhentroubleshootingor
whencontactingAxisSupport.

ConnectionList-Listsallclientsthatarecurrentlyaccessingmediastreams.

CrashReport-Generatesanarchivewithdebugginginformation.Thereporttakesseveralminutestogenerate.

TheloglevelsfortheSystemLogandtheAccessLogaresetunderSystemOptions>Support>Logs&Reports>Conguration.
TheAccessLogcanbeconguredtolistallconnectionstotheproduct(selectCritical,Warnings&Info).

Advanced

Scripting

Scriptingallowsexperienceduserstocustomizeandusetheirownscripts.

NO NO

NO

TICE TICE

TICE

ImproperusemaycauseunexpectedbehaviorandlossofcontactwiththeAxisproduct.

Axisstronglyrecommendsthatyoudonotusethisfunctionunlessyouunderstandtheconsequences.AxisSupportdoesnotprovide
assistanceforproblemswithcustomizedscripts.

ToopentheScriptEditor,gotoSystemOptions>Advanced>Scripting.Ifascriptcausesproblems,resettheproducttoits
factorydefaultsettings,seepage56.

Formoreinformation,seewww.axis.com/developer

FileUpload

Files,forexamplewebpagesandimages,canbeuploadedtotheAxisproductandusedascustomsettings.Touploadale,go
toSystemOptions>Advanced>FileUpload.

Uploadedlesareaccessedthroughhttp://<ipaddress>/local/<user>/<filename>where<user>isthe
selectedusergroup(viewer,operatororadministrator)fortheuploadedle.

55

AXISQ7414VideoEncoder

SystemOptions

PlainCong

PlainCongisforadvanceduserswithexperienceofAxisproductconguration.Mostparameterscanbesetandmodiedfrom
thispage.

ToopenPlainCong,gotoSystemOptions>Advanced>PlainCong.AxisSupportdoesnotprovideassistance.

ResettoFactoryDefaultSettings

Important

Resettofactorydefaultshouldbeusedwithcaution.Aresettofactorydefaultwillresetallsettings,includingtheIP
address,tothefactorydefaultvalues.

Note

Theinstallationandmanagementsoftwaretoolsareavailablefromthesupportpagesonwww.axis.com/techsup

Toresettheproducttothefactorydefaultsettings:

1.Pressandholdthecontrolbuttonandtherestartbuttonatthesametime.

2.Releasetherestartbuttonbutcontinuetoholddownthecontrolbuttonfor15–30secondsuntilthestatusLEDindicator
ashesamber.

3.Releasethecontrolbutton.TheprocessiscompletewhenthestatusLEDindicatorturnsgreen.Theproducthasbeenreset
tothefactorydefaultsettings.IfnoDHCPserverisavailableonthenetwork,thedefaultIPaddressis192.168.0.90

4.Usingtheinstallationandmanagementsoftwaretools,assignanIPaddress,setthepasswordandaccessthevideostream

Note

Toresetasinglechanneltotheoriginalfactorydefaultsettings,usethebuttonprovidedinthatproduct’swebpage.

Itisalsopossibletoresetparameterstofactorydefaultviathewebinterface.GotoSetup>SystemOptions>Maintenanceand
clickDefault.

56

AXISQ7414VideoEncoder

Troubleshooting

Troubleshooting

ChecktheFirmware

Firmwareissoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourrstactionswhentroubleshootingaproblem
shouldbetocheckthecurrentrmwareversion.Thelatestversionmaycontainacorrectionthatxesyourparticularproblem.The
currentrmwareversionintheAxisproductisdisplayedinthepageSetup>BasicSetupandinSetup>About.

UpgradetheFirmware

Important

•Yourdealerreservestherighttochargeforanyrepairattributabletofaultyupgradebytheuser.

•Preconguredandcustomizedsettingsaresavedwhenthermwareisupgraded(providingthefeaturesareavailableinthe

newrmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

Note

•Aftertheupgradeprocesshascompleted,theproductwillrestartautomatically.Ifrestartingtheproductmanuallyafterthe

upgrade,wait10minutesevenifyoususpecttheupgradehasfailed.

•WhenyouupgradetheAxisproductwiththelatestrmwarefromAxiswebsite,theproductreceivesthelatestfunctionality

available.Alwaysreadtheupgradeinstructionsandreleasenotesavailablewitheachnewreleasebeforeupgrading
thermware.

Toupgradetheproduct’srmware:

1.Downloadthelatestrmwareletoyourcomputer,availablefreeofchargeatwww.axis.com/techsup

2.GotoSetup>SystemOptions>Maintenanceintheproduct’swebpages.

3.UnderUpgradeServer,clickBrowseandlocatetheleonyourcomputer.

4.ClickUpgrade.

5.Waitapproximately10minuteswhiletheproductisbeingupgradedandrestarted.Thenaccesstheproduct.

AXISCameraManagementcanbeusedformultipleupgrades.Seewww.axis.comformoreinformation.

57

AXISQ7414VideoEncoder

Troubleshooting

EmergencyRecoveryProcedure

Ifpowerornetworkconnectionislostduringtheupgrade,theprocessfailsandtheproductmaybecomeunresponsive.Flashing
redStatusindicatorindicatesafailedupgrade.Torecovertheproduct,followthestepsbelow.Theserialnumberisfoundon
theproduct’slabel.

1.InUNIX/Linux,typethefollowingfromthecommandline:

arp-s<IPaddress><serialnumber>temp
ping-l408<IPaddress>

InWindows,typethefollowingfromacommand/DOSprompt(thismayrequirethatyourunthecommandpromptas
anadministrator):

arp-s<IPaddress><serialnumber>
ping-l408-t<IPaddress>

2.Iftheproductdoesnotreplyin30seconds,restartitandwaitforareply.PressCTRL+CtostopPing.

3.Openabrowserandtypeintheproduct’sIPaddress.Inthepagethatopens,usetheBrowsebuttontoselecttheupgrade
letouse.ThenclickLoadtorestarttheupgradeprocess.

4.Aftertheupgradeiscomplete(1–10minutes),theproductautomaticallyrestartsandshowsasteadygreenonthe
Statusindicator.

5.Reinstalltheproduct,referringtotheInstallationGuide.

Iftheemergencyrecoveryproceduredoesnotgettheproductupandrunningagain,contactAxissupportatwww.axis.com/techsup/

Symptoms,PossibleCausesandRemedialActions

ProblemssettingtheIPaddress

WhenusingARP/Ping

Trytheinstallationagain.TheIPaddressmustbesetwithintwominutesafterpowerhasbeen
appliedtotheproduct.EnsurethePinglengthissetto408.Forinstructions,seeAssignIPAddress
UsingARP/Pingonpage48.

Theproductislocatedona
differentsubnet

IftheIPaddressintendedfortheproductandtheIPaddressofthecomputerusedtoaccessthe
productarelocatedondifferentsubnets,youwillnotbeabletosettheIPaddress.Contactyour
networkadministratortoobtainanIPaddress.

TheIPaddressisbeingused
byanotherdevice

DisconnecttheAxisproductfromthenetwork.RunthePingcommand(inaCommand/DOS
window,typepingandtheIPaddressoftheproduct):

•Ifyoureceive:Replyfrom<IPaddress>:bytes=32;time=10...
thismeansthattheIPaddressmayalreadybeinusebyanotherdeviceonthenetwork.
ObtainanewIPaddressfromthenetworkadministratorandreinstalltheproduct.

•Ifyoureceive:Requesttimedout,thismeansthattheIPaddressisavailable
forusewiththeAxisproduct.Checkallcablingandreinstalltheproduct.

PossibleIPaddressconict
withanotherdeviceonthe
samesubnet

ThestaticIPaddressintheAxisproductisusedbeforetheDHCPserversetsadynamicaddress.
ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay
beproblemsaccessingtheproduct.

Theproductcannotbeaccessedfromabrowser

Cannotlogin

WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattempting
tologin.Youmayneedtomanuallytypehttporhttpsinthebrowser’saddresseld.

Ifthepasswordfortheuserrootislost,theproductmustberesettothefactorydefaultsettings.
SeeResettoFactoryDefaultSettingsonpage56.

58

AXISQ7414VideoEncoder

Troubleshooting

TheIPaddresshasbeen
changedbyDHCP

IPaddressesobtainedfromaDHCPserveraredynamicandmaychange.IftheIPaddresshas
beenchanged,useAXISIPUtilityorAXISCameraManagementtolocatetheproductonthe
network.Identifytheproductusingitsmodelorserialnumber,orbytheDNSname(ifthename
hasbeencongured).

Ifrequired,astaticIPaddresscanbeassignedmanually.Forinstructions,seethedocumentAssign
anIPAddressandAccesstheVideoStreamonAxisSupportwebatwww.axis.com/techsup.

Certicateerrorwhenusing
IEEE802.1X

Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbe
synchronizedwithanNTPserver.SeeDate&Timeonpage47.

Theproductisaccessiblelocallybutnotexternally

RoutercongurationTocongureyourroutertoallowincomingdatatrafctotheAxisproduct,enabletheNAT-traversal

featurewhichwillattempttoautomaticallyconguretheroutertoallowaccesstotheAxis
product,seeNATtraversal(portmapping)forIPv4onpage51.TheroutermustsupportUPnP

TM

.

Firewallprotection

ChecktheInternetrewallwithyournetworkadministrator.

Defaultroutersrequired

CheckifyouneedtoconguretheroutersettingsfromSystemOptions>Network>TCP/IP>

Basic.

ProblemswithstreamingH.264

ProblemswithAXISMedia
Control(InternetExplorer
only)

ToenabletheupdatingofvideoimagesinInternetExplorer,setthebrowsertoallowActiveX
controls.Also,makesurethatAXISMediaControlisinstalledonyourcomputer.

NoH.264displayedinthe
client

CheckthattherelevantH.264connectionmethodsandcorrectinterfaceareenabledintheAMC
ControlPanel(streamingtab).SeeAXISMediaControl(AMC)onpage15.

IntheAMCControlPanel,selecttheH.264tabandclickSettodefaultH.264decoder.

CheckthatRTSPisenabledunderSystemOptions>Network>TCP/IP>Advanced.

MulticastH.264only
accessiblebylocalclients

Checkifyourroutersupportsmulticasting,oriftheroutersettingsbetweentheclientandthe
productneedtobecongured.TheTTL(TimeToLive)valuemayneedtobeincreased.

NomulticastH.264
displayedintheclient

CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisproduct
arevalidforyournetwork.

Checkwithyournetworkadministratortoseeifthereisarewallpreventingviewing.

PoorrenderingofH.264
images

Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe
downloadedfromthemanufacturer’swebsite.

Colorsaturationisdifferent
inH.264andMotionJPEG

Modifythesettingsforyourgraphicsadapter.Refertotheadapter’sdocumentationformore
information.

Lowerframeratethan
expected

SeePerformanceConsiderationsonpage63.

Reducethenumberofapplicationsrunningontheclientcomputer.

Limitthenumberofsimultaneousviewers.

Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.

CheckintheAMCControlPanel(H.264tag)thatvideoprocessingisNOTsettoDecodeonly
keyframes.

Lowertheimageresolution.

59

AXISQ7414VideoEncoder

Troubleshooting

Videoandimageproblems,general

Imageunsatisfactory

CheckthevideostreamandcamerasettingsunderSetup>Video&Audio>VideoStreamand

Setup>Video&Audio>CameraSettings.

MotionDetectiontriggersunexpectedly

Changesinluminance

Motiondetectionisbasedonchangesinluminanceintheimage.Thismeansthatifthereare
suddenchangesinthelighting,motiondetectionmaytriggermistakenly .Lowerthesensitivity
settingtoavoidproblemswithluminance.

Noaudio

Incorrectsetup

Checkthesoundcardinthecomputer.Ensurethatmuteisnotselectedandthatthevolume
settingsarecorrect.

CheckthatEnableaudiosupportisselectedunderSetup>SystemOptions>Security>Audio
Support.

CheckthatthecorrectAudioInputsourceisselectedunderSetup>Video&Audio>Audio

Settings.

Pooraudioquality

Stuttering

Reducethenumberoflistenersandviewers.Decreaseimageresolutionandcompression.

Unsynchronizedaudioand
videousingH.264

Synchronizetheproduct’sdateandtimesettingswithanNTPserver.GotoSetup>System
Options>Date&Time.

Distortedaudio

CheckthatthecorrectAudioInputsourceisselectedunderSetup>Video&Audio>Audio
Settings.

FeedbackloopsFeedbackloopsmightappearinfull-duplexmode.Trymovingthemicrophoneorthespeaker,or

usehalf-duplexmodeinstead.

Storageanddiskmanagementproblems

Storagedisruption

Astoragedisruptionalarmissentifastoragedeviceisunavailable,removed,full,lockedorifother
readorwriteproblemsoccur.Toidentifythesourceoftheproblem,checktheSystemLogunder
SystemOptions>Support>Logs&Reports.Dependingontheproblem,itmightbenecessaryto
re-mountthestoragedevice.

Forinformationonhowtosetupastoragedisruptionalarm,seeEventsonpage37.

60

AXISQ7414VideoEncoder

TechnicalSpecifications

TechnicalSpecifications

Function/group

Item

Specications

Model

AXISQ7414

VideoEncoder

Pan/Tilt/Zoom

WiderangeofanalogPTZcamerassupported(driversavailablefordownloadat
www.axis.com)
100presets/camera,guardtour,PTZcontrolqueue
SupportsWindowscompatiblejoysticks

Video
compression

H.264(MPEG-4Part10/AVC)
MotionJPEG

Resolutions

NTSC:720x480(D1)to176x120(QCIF)
PAL:720x576(D1)to176x144(QCIF)

FramerateH.264

30/25(NTSC/PAL)fpsinallresolutions

Framerate
MotionJPEG

30/25(NTSC/PAL)fpsinallresolutions

Videostreaming

Multi-streamH.264andMotionJPEG:3simultaneous,individuallyconguredstreamsin
max.resolutionat30/25fps;morestreamsifidenticalorlimitedinframerate/resolution
ControllableframerateandbandwidthVBR/CBRH.264

Video

Imagesettings

Compression,color,brightness,contrast
Rotation:90°,180°,270°
Aspectratiocorrection
Mirroringofimages
Textandimageoverlay
Privacymask
Enhanceddeinterlacelter

Audiostreaming

Two-way,fullduplexandhalfduplex(unbalancedinput/lineoutput)Simplex
(balanced/unbalancedinput)

Audio
compression

In:
AAC-LC8or16kHz8-64kbit/s
G.71 1PCM8kHz64kbit/s
G.726ADPCM8kHz32kbit/sor24kbit/s
Out:
G.71 1PCM8kHz64kbit/s
µ-lawPCM16kHz128kbit/s
G.726ADPCM8kHz32kbit/sor24kbit/s

Audio

Audio
input/output

Externalmicrophoneinputorlineinput(balancedorunbalanced)andlineoutput
(unbalanced),PhantomPower

SecurityPasswordprotection,IPaddressltering,IEEE802.1X**networkaccesscontrol,HTTPS**

encryption,digestauthentication,useraccesslog.
**ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseintheOpenSSL
Toolkit.

Network

Supported
protocols

IPv4/v6,HTTP,HTTPS**,SSL/TLS**,QoSLayer3DiffServ,FTP,SMB,SMTP,Bonjour,UPnP,
SNMPv1/v2c/v3(MIB-II),DNS,DynDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,RTCP,ICMP,
DHCP,ARP,SOCKS
**ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseintheOpenSSL
Toolkit(http://www.openssl.org/),andcryptographicsoftwarewrittenbyEricYoung
([e-mail]).

61

AXISQ7414VideoEncoder

TechnicalSpecifications

Function/group

Item

Specications

Application
Programming
Interface

OpenAPIforsoftwareintegration,includingVAPIX®fromAxisCommunicationsavailable
atwww.axis.com
IncludestheONVIFProleS;specicationatwww.onvif.orgSupportforAXISVideo
HostingSystem(AVHS)withOne-ClickCameraconnection

Intelligentvideo

Videomotiondetection,activetamperingalarm,SupportforAXISCameraApplication
Platformenablinginstallationofadditionalapplications

EventtriggersIntelligentvideo,Audiodetection,externalinputs,edgestorageevents

System
Integration

EventsactionsFileuploadviaFTP,HTTPP,networkshareandemail

Noticationviaemail,HTTPandTCP
PTZpreset
Externaloutputactivation
Playaudioclip
Pre-andpost-alarmvideobuffering

Processor,
memory

4xARTPEC-3
4x256MBRAM
4x128MBFlash
Batterybacked-upreal-timeclock

Power

12VDC,max.13.0W

Connectors4xanalogcompositevideoBNCinputs

4x3.5mmjacksformonomicrophoneorlineinput(6Vppmax)andmonolineoutput
(1.8Vppat1kohmtypical)
10BASE-T/100BASE-TX/1000BaseTEthernet
8xcongurableexternalinputs/outputs
Upto4RS-485/422halfduplex,dependingontherack

Required
hardware

AXISQ7900chassi,AXISQ7920chassi,orAXIS2911Uchassi

Edgestorage

Supportforrecordingtonetworkshare(network-attachedstorageorleserver)

Operating
conditions

0–45°C(32–113°F)Humidity20–80%RH(non-condensing)

Approvals

EN55022ClassB
EN61000-3-2
EN61000-3-3
EN55024
EN61000-6-1
EN61000-6-2
FCCPart15SubpartBClassB
ICES-003ClassB
VCCIClassB
C-tickAS/NZSCISPR22ClassB
KCCKN22ClassA,KN24
IEC/EN/UL60950-1

Weight

229g(0.50lbs)

General

Included
accessories

InstallationGuide,CDwithinstallationandmanagementtools,softwareandUser
Manual,6Windowsdecoderuserlicense

Dimensions
(HxWxD)

30x129x255mm(1.2”x5.1”x10.0”)excludingconnectors

62

AXISQ7414VideoEncoder

TechnicalSpecifications

Connectors

AudioConnector

TheAxisproductisequippedwith3.5mmaudioinputandoutputconnectorscombined.Theconnectorsarecompatiblewith
M6x0.5threadedlockingcollars.

•In:Balancedorunbalancedinputforamonomicrophoneorlinesignal.

•Out:Audioout(linelevel),thatcanbeconnectedtoapublicaddress(PA)systemoranactivespeakerwithbuilt-in
amplier.Astereoconnectormustbeused.

Forbestaudioqualityandwhenusinglongcables,useabalancedmicrophoneandshieldedcables.Foramoresecureconnection,
threadedaudioconnectorsarerecommended.Inthiscase,theaudiomountingnutwillneedtoberemoved.

Pin

Full-duplex,half-duplex,simplex
unbalanced

•Microphonein(selectable2.0V,2.5V,3.0V
biasvoltage)

•Linein

•Lineout

Simplex
balanced

•Microphonein(selectable12Vphantom
power)

•Linein

1Tip

Microphone/Linein+Microphone/Linein

2RingLineout

-Microphone/Linein

3SleeveGroundGround

PerformanceConsiderations

Whensettingupyoursystem,itisimportanttoconsiderhowvarioussettingsandsituationswillaffectperformance.Somefactors
affecttheamountofbandwidth(thebitrate)required,otherscanaffecttheframerate,andsomeaffectboth.Iftheloadonthe
CPUreachesitsmaximum,thiswillalsoaffecttheframerate.

Thefollowingfactorsareamongthemostimportanttoconsider:

•Highimageresolutionand/orlowercompressionlevelsresultinimagescontainingmoredata.Bandwidthaffected.

•AccessbylargenumbersofMotionJPEGand/orunicastH.264clients.Bandwidthaffected.

•Simultaneousviewingofdifferentstreams(resolution,compression)bydifferentclients.Effectonframerateand
bandwidth.

•AccessingMotionJPEGandH.264videostreamssimultaneously.Framerateandbandwidthaffected.

•Heavyusageofeventsettingsaffecttheproduct’sCPUload.Framerateaffected.

63

AXISQ7414VideoEncoder

TechnicalSpecifications

•UsingHTTPSmayreduceframerate,inparticularifstreamingMotionJPEG.

•Heavynetworkutilizationduetopoorinfrastructure.Bandwidthaffected.

•Viewingonpoorlyperformingclientcomputerslowersperceivedperformance.Framerateaffected.

•RunningmultipleAXISCameraApplicationPlatform(ACAP)applicationssimultaneouslymayaffecttheframerateand
thegeneralperformance.

64

UserManualVer.M3.3
AXISQ7414VideoEncoder

Date:April2016

©AxisCommunicationsAB,2013-2016

PartNo.54418
