Datasheet
AXISQ6135-LEPTZNetworkCamera

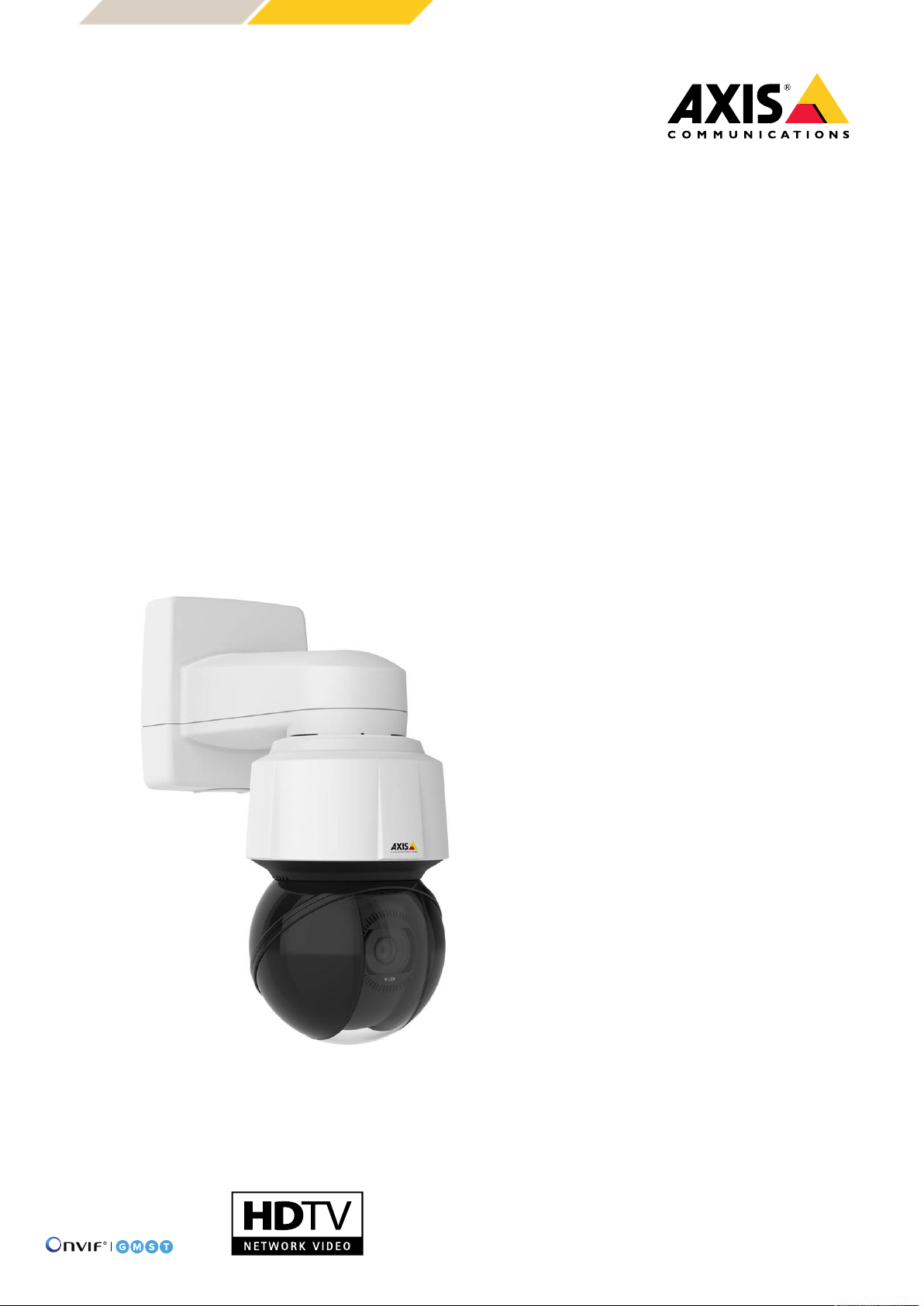

AXIS Q6135-LE PTZ Network Camera
High-speed PTZ with long-range optimizedIR
AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more
depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology
allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and
autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the
scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream
with support for H.264 and H.265.
> HDTV 1080p with 32x optical zoom
> OptimizedIR (250 m/820 ft range)
> Lightfinder 2.0
> Autotracking 2 and orientation aid
> TPM, FIPS 140-2 level 2 certified
Page 2
AXIS Q6135-LE PTZ Network Camera
Variants
AXIS Q6135-LE 50 Hz
AXIS Q6135-LE 60 Hz
Camera
Image sensor
1/2.8” Progressive scan CMOS
Lens
Varifocal, 4.3-137.6 mm, F1.4 - 4.0
Horizontal field of view: 58.3˚–2.4˚
Vertical field of view: 34.9˚–1.3˚
Autofocus, auto-iris
Day and night
Automatically removable infrared-cut filter
Minimum illumination
Color: 0.06 lux at 30 IRE F1.4
B/W: 0.008 lux at 30 IRE F1.4, 0 lux with IR
illumination on
Color: 0.09 lux at 50 IRE F1.4
B/W: 0.01 lux at 50 IRE F1.4, 0 lux with IR illumination
on
Shutter speed
1/66500 s to 2s
Pan/Tilt/Zoom
Pan: 360° endless, 0.05°–700°/s
Tilt: +20 to -90°, 0.05°–500°/s
Zoom: 32x optical, 12x digital, total 384x zoom
Nadir flip, 256 preset positions, tour recording (max 10,
max duration 16 minutes each), guard tour (max 100),
control queue, on-screen directional indicator,
orientation aid PTZ, set new pan 0°, adjustable zoom
speed, speed dry
System on chip (SoC)
Video
Video compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High
Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution
1920x1080p (HDTV 1080p) to 320x180
Frame rate
Up to 50/60 fps (50/60 Hz) in 1080p
Video streaming
Multiple, individually configurable streams in H.264,
H.265 and Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Low latency mode
Image settings
Compression, saturation, brightness, sharpness,
contrast, local contrast, white balance, exposure
control, exposure zones, Forensic WDR: Up to 120 dB
depending on scene, defogging, day/night shift level,
tone mapping, fine tuning of low-light behavior,
rotation: 0°, 180°, text and image overlay, image freeze
on PTZ, electronic image stabilization (EIS), scene
profiles, 32 individual polygon privacy masks
Signal-to-noise ratio
>55 dB
Audio
Audio input/output
Audio features through portcast technology: two-way
audio connectivity, voice enhancer
Model
ARTPEC-7
Memory
1024 MB RAM, 512 MB Flash
Compute capabilities
Machine learning processing unit (MLPU)
Page 3
Network
Network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS1, HTTP/
1
2, TLS
, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP,
mDNS (Bonjour), UPnP
DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS,
SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6,
ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog
(RFC 3164/5424, UDP/TCP/TLS), Link-Local address
(ZeroConf)
TM
, SNMP v1/v2c/v3 (MIB-II),
Event actions
Record video: SD card and network share
Pre- and post-alarm video or image buffering for
recording or upload
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS,
network share, and email
Notification: email, HTTP, HTTPS, TCP, and SNMP trap
PTZ: PTZ preset, guard tour
Overlay text, day/night mode
WDR mode
IR illumination
MQTT publish
System integration
Application Programming Interface
Open API for software integration, including VAPIX®
and AXIS Camera Application Platform; specifications at
axis.com
One-Click Cloud Connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S,
and ONVIF® Profile T, specification at onvif.org
Video management systems
Compatible with AXIS Camera Station Edge,
AXIS Camera Station Pro, AXIS Camera Station 5, and
video management software from Axis’ partners
available at axis.com/vms.
Event conditions
Analytics
Device status: above operating temperature, above or
below operating temperature, below operating
temperature, fan failure, IP address removed, network
lost, new IP address, shock detected, storage failure,
system ready, within operating temperature
Edge storage: recording ongoing, storage disruption
I/O: manual trigger, virtual input
MQTT subscribe
PTZ: PTZ malfunctioning, PTZ movement, PTZ preset
position reached, PTZ ready, PTZ autotracking
Scheduled and recurring: scheduled event
Video: live stream open,day/night mode
Built-in installation aids
Pixel counter, leveling guide
Analytics
Applications
Included
AXIS Object Analytics, AXIS Scene Metadata, AXIS Video
Motion Detection, AXIS Motion Guard, AXIS Fence
Guard, AXIS Loitering Guard, Autrotracking 2,
Active Gatekeeper
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/
acap
AXIS Object Analytics
Object classes: humans, vehicles
Scenarios: line crossing, object in area, crossline
counting, time in area
Up to 10 scenarios
Other features: triggered objects visualized with
trajectories, color-coded bounding boxes and tables
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event
AXIS Scene Metadata
Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: confidence, position
1. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software
written by Eric Young (eay@cryptsoft.com).
Page 4
Approvals
EMC
EN 55032 Class A, EN 55035,EN 55024, EN 50121-4,
IEC 62236-4, EN 61000-3-2, EN 61000-3-3,
EN 61000-6-1, EN 61000-6-2
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KC KN32 Class A, KN35
USA: FCC Part 15 Subpart B Class A
Safety
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22,
IEC/EN 62471 risk group 2, IS13252
Environment
IEC/EN 62262 IK08, IEC/EN 60529 IP66, NEMA 250,
Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1,
IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-78,
ISO4892-2
Network
NIST SP500-267
Cybersecurity
ETSI EN 303 645, BSI IT Security Label, FIPS 140
Documentation
AXIS OS Hardening Guide
Axis Vulnerability Management Policy
Axis Security Development Model
AXIS OS Software Bill of Material (SBOM)
To download documents, go to axis.com/support/
cybersecurity/resources
To read more about Axis cybersecurity support, go to
axis.com/cybersecurity
General
Casing
IK08, IK10 housing and mounting3, IP66- and NEMA
4X-rated
Repaintable metal casing (aluminum), hard coated
Polycarbonate (PC) clear dome with Sharpdome
technology
Sustainability
PVC free
Power
Axis High PoE midspan 1-port: 100–240 V AC, max
74 W
Camera consumption: typical 10.3 W (no IR), max 51 W
Axis PoE+ midspan 1-port: 100–240 V AC, max 37 W
IEEE 802.3at Type 2 Class 4
Camera consumption: typical 10.3 W (no IR), max 25 W
Features: power meter
For midspan approvals, see: axis.com/products/axis-
t8154-60-w-sfp-midspan
Cybersecurity
Edge security
Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 Client
Credential Flow/OpenID Authorization Code Flow for
centralized ADFS account management, password
protection, Axis Cryptographic Module (FIPS 140-2 level
1), AES-XTS-Plain64 256bit SD card encryption
Hardware: Axis Edge Vault cybersecurity platform
TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure
keystore, secure boot
Network security
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)2,
IEEE 802.1AE (MACsec PSK/EAP-TLS), HTTPS/HSTS
v1.2/v1.3
Certificate PKI, host-based firewall
2
, Network Time Security (NTS), X.509
2
, TLS
Connectors
RJ45 10BASE-T/100BASE-TX PoE
RJ45 Push-pull Connector (IP66)
Audio: Audio and I/O connectivity via portcast
technology
IR illumination
OptimizedIR with power-efficient, long life 850 nm IR
LEDs
With 30 W midspan: Range of reach 190 m (623 ft) or
more depending on the scene
With 60 W midspan: Range of reach 250 m (820 ft) or
more depending on the scene
Storage
Support for microSD/microSDHC/microSDXC card
Support for SD card encryption
Support for recording to network-attached storage
(NAS)
For SD card and NAS recommendations see axis.com
2. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software
written by Eric Young (eay@cryptsoft.com).
3. Mounting not included
Page 5
www.axis.com
Operating conditions
With 30 W midspan: -30 °C to 50 °C (-22 °F to 122 °F)
With 60 W midspan: -50 °C to 50 °C (-58 °F to 122 °F)
Maximum temperature according to NEMA TS 2 (2.2.7):
74 °C (165 °F)
Arctic Temperature Control: Start-up as low as -40 °C
(-40 °F)
Humidity 10–100% RH (condensing)
Storage conditions
-40 °C to 70 °C (-40 °F to 158 °F)
Humidity 5-95% RH (non-condensing)
Dimensions
Height: 241 mm (9.5 in)
ø 165 mm (6.4 in)
Weight
3 kg (6.6 lb)
T10144009/EN/M36.2/202506
Included accessories
IP66-rated RJ45 connector kit, AXIS High PoE 60 W SFP
Midspan, installation guide, Windows decoder 1-user
licence
Optional accessories
AXIS T91/T94 Mounting Accessories, Axis High PoE
midspans
For more accessories, see axis.com
Languages
English, German, French, Spanish, Italian, Russian,
Simplified Chinese, Japanese, Korean, Portuguese,
Traditional Chinese, Dutch, Czech, Swedish, Finnish,
Turkish, Thai, Vietnamese
Warranty
5-year warranty, see axis.com/warranty
