Page 1
AXISQ61-ESeries
RepaintingInstructions
Page 2
AXISQ61-ESeries
Impactonwarranty
Impactonwarranty
ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat
www.axis.com/warranty-implication-when-repainting
Riskswithrepainting
ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training
ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:
ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD
damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheequipment.
Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.
Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.
Paintoverspray-Maskingthedifferentcomponentsoftheequipmentiscritical.Failuretomasksensitiveareascancauseproblems
withassemblingtheequipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe
parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.
2
Page 3
AXISQ61-ESeries
Howtorepainttheproduct
Howtorepainttheproduct
Preparations
•Ifapplicable,theequipmentmustbedisassembledaccordingtotheinstructionsinthisdocument.
•Eachpartshouldbestrippedfromcomponentsandcrucialpartsmaskedtoensuresuccessfulreassembly.
•Allpartstoberepaintedshouldbestrippedofgaskets,screws,electricalcomponents,connectorsandplugs,windows
anddomes.
•Allpartstoberepaintedmustbethoroughlycleanedtoremovegrease,dustoroil.
•Toensurereassemblyandfunctionalityoftheproduct,openingsforscrews,LEDindicators,ormicrophonesmust
bemaskedbeforepainting.
Pretreatmentofparts
Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentsshouldbedoneforthenewpaintto
adhereaswellaspossible.Forallvariantsthough,propercleaningtoremoveoil,greaseanddustisstronglyrecommended.
Formoreinformationonthematerialsusedintheproduct,seeitsdatasheetatwww.axis.com
Powdercoatedparts-Usingnesandpaper,removetheoriginalpowdercoatingdowntothestainlesssteelsurfaceandcleanthe
partsbeforepainting,oruseaprimer.
Anodisedandchromatedparts-Useaprimer .
Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.
Plastic-Useaprimer.
Repainting

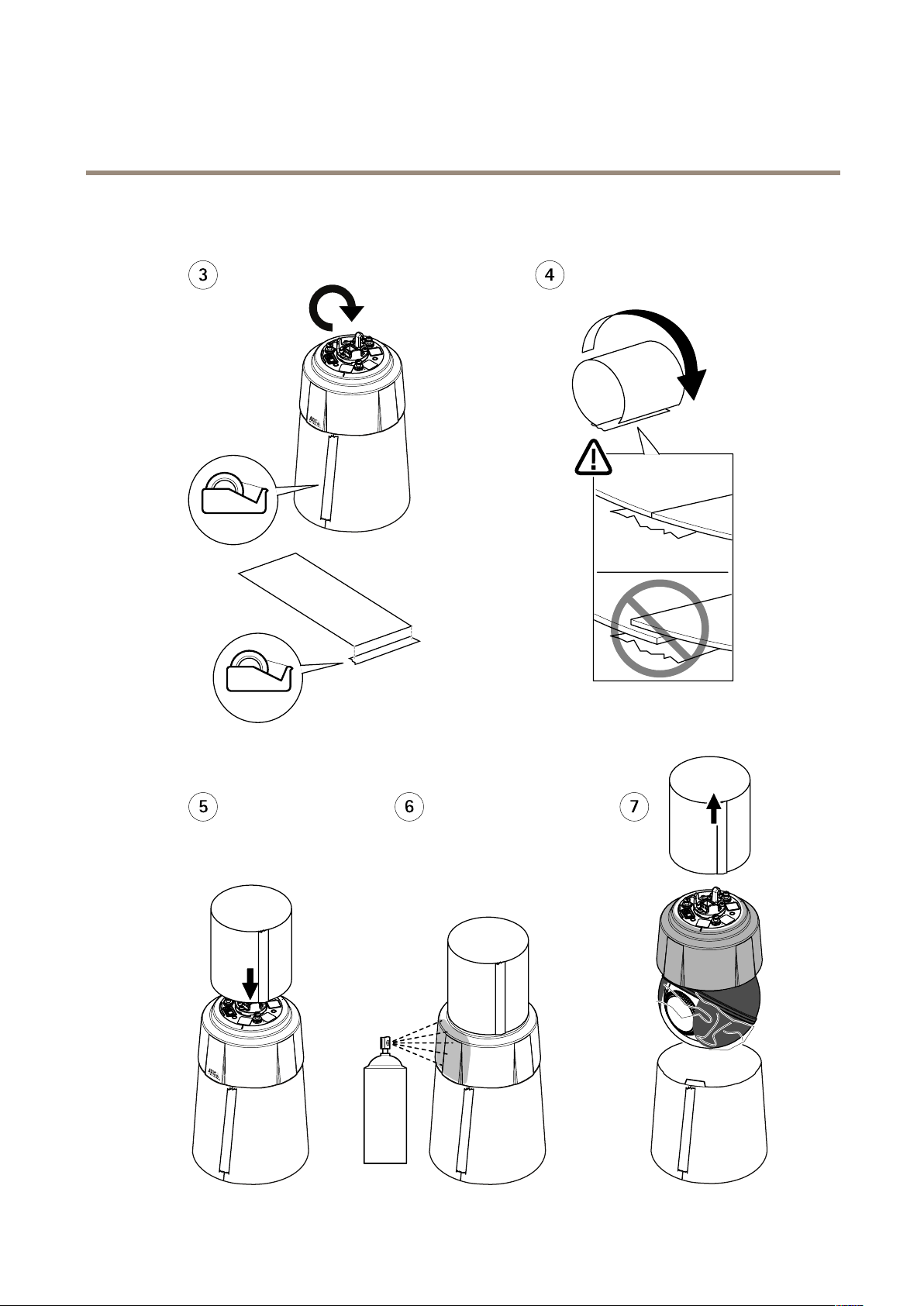

Usethetemplatesdeliveredwiththeproductandfollowtheinstructionsbelow.
3
Page 4
AXISQ61-ESeries
Howtorepainttheproduct
4
Page 5
AXISQ61-ESeries
Howtorepainttheproduct
5
Page 6
RepaintingInstructionsVer.M1.2
AXISQ61-ESeries
©AxisCommunicationsAB,2017
Date:July2017
PartNo.1764346
