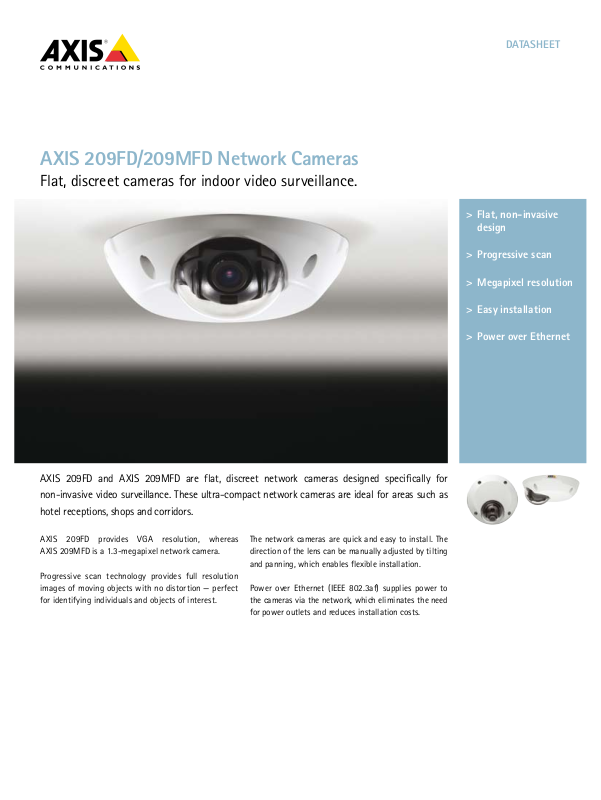

AXIS 209FD/209MFD Network Cameras

Flat, discreet cameras for indoor video surveillance.

DATASHEET

> Flat, non-invasive

design

> Progressive scan

> Megapixel resolution

> Easy installation

AXIS 209FD and AXIS 209MFD are flat, discreet network cameras designed specifically for
non-invasive video surveillance. These ultra-compact network cameras are ideal for areas such as
hotel receptions, shops and corridors.

AXIS 209FD provides VGA resolution, whereas
AXIS 209MFD is a 1.3-megapixel network camera.

Progressive scan technology provides full resolution
images of moving objects with no distortion — perfect
for identifying individuals and objects of interest.

The network cameras are quick and easy to install. The
direction of the lens can be manually adjusted by tilting
and panning, which enables flexible installation.

Power over Ethernet (IEEE 802.3af) supplies power to
the cameras via the network, which eliminates the need
for power outlets and reduces installation costs.

> Power over Ethernet

www.axis.com

75 mm (2.9”)

39 mm (1.5”)

22 mm (0.9”)

28 mm (1.1”)

23 mm (0.9”)

102 mm (4.0”)

100 mm (3.9”)

75 mm (2.9”)

39 mm (1.5”)

22 mm (0.9”)

28 mm (1.1”)

23 mm (0.9”)

102 mm (4.0”)

100 mm (3.9”)

75 mm (2.9”)

39 mm (1.5”)

22 mm (0.9”)

28 mm (1.1”)

23 mm (0.9”)

57.6mm (2.26")

77 mm (3.0”)

29 mm (1.1”)

Technical specifications – AXIS 209FD/209MFD Network Cameras

37723/EN/R2/0912

Camera

Models AXIS 209FD: VGA

AXIS 209MFD: Megapixel

Image sensor AXIS 209FD: 1/4” Progressive Scan RGB CMOS VGA

AXIS 209MFD: 1/3” Progressive Scan RGB CMOS 1.3 Megapixel

Lens AXIS 209FD: 3.0 mm, F2.0, fixed iris, horizontal angle of

view: 66°
AXIS 209MFD: 3.6 mm, F1.8, fixed iris , horizontal angle of
view: 74°

Light sensitivit y AXIS 209FD: 1.5 - 10000 lux, F2.0

AXIS 209MFD: 3 - 10000 lux, F1.8

Shutter time AXIS 209FD: 1/10000 s to 1/4 s

AXIS 209MFD: 1/15000 s to 1/4 s

Camera angle

Pan ±10°, tilt 0 - 90°, rotation ±10°

adjustment
Pan/Tilt/Zoom AXIS 209MFD: Digital PTZ, preset positions, guard tour

Video

Video
compression

MPEG-4 Part 2 (ISO/IEC 14496-2)
Motion JPEG

Resolutions AXIS 209FD: 160x120 - 640x480

AXIS 209MFD: 160x90 - 1280x1024

Frame rate
MPEG-4

AXIS 209FD: Up to 30 fps in max resolution
AXIS 209MFD: Up to 8 fps in max resolution, higher frame rate

in lower resolutions

Frame rate
Motion JPEG

AXIS 209FD: Up to 30 fps in max resolution
AXIS 209MFD: Up to 12 fps in max resolution, higher frame rate

in lower resolutions

Video streaming

Simultaneous MPEG-4 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR MPEG-4

Image settings

Compression, color, brightness, sharpness, white balance,
exposure control, mirroring, exposure zones, fine tuning of
behavior at low light
Text and image overlay
Privacy mask

Network

Security

Password protection, IP address filtering, HTTPS encryption,
Digest Authentication, User access log

Supported
protocols

IPv4/v6, HT TP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour,
UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS

System integration

Application
Programming

Open API for software integration, including VAPIX®
from Axis Communications available at www.axis.com

Interface
Intelligent video
Alarm triggers
Alarm events

Video motion detection
Intelligent video
File upload via FTP, HTTP and email

Notification via email, HTTP and TCP

Video buffer AXIS 209FD: 9 MB pre- and post alarm

AXIS 209MFD: 20 MB pre- and post alarm

General

Casing
Processors and

memory

Tamper-resistant casing

ARTPEC-A

AXIS 209FD: 32 MB RAM, 8 MB Flash

AXIS 209MFD: 64 MB RAM, 8 MB Flash
Power
Connectors

Operating
conditions

Storage

Power over Ethernet IEEE 802.3af Class 1

Female RJ-45 Ethernet 10BaseT/100BaseTX PoE

0 - 50 °C (32 - 122 °F)

Humidity 20 - 80% RH (non-condensing)

-30 - 70 °C (-22 - 158 °F)

conditions
Approvals

EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,

FCC Part 15 Subpart B Class B, VCCI Class B, ICES-003 Class B,

C-tick AS/NZS CISPR 22, MIC Class B, EN 60950

Weight
Included

accessories

180 g (0.40 lb.)

AXIS PoE Midspan 1-port, key for tamper-proof screws,

Installation Guide, CD with installation tool, recording software

and User’s Manual, Windows decoder 1-user license

More information is available at www.axis.com

Dimensions Optional accessories

©200 9 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETR AX, A RTPEC and VAPIX are registered trademar ks or trademark applications of A xis
AB in various jurisdictions. A ll other comp any names and p roduct s are trademarks or registered trademarks of their respecti ve companies. We res erve the
right to int roduce mo dificat ions without notice.

For information on A XIS Camera Station and video
management software from Axis’ Application
Development Partners, see
www.axis.com/products/video/software/
