Avolites TOTAL VISUAL CONTROL User Manual

CELEBRATING 40 YEARS OF

TOTAL VISUAL CONTROL

FROM ROCK TO OPERA

LIGHTING CONTROL

Sapphire Touch

Titan Net Processor Rack Splitter Truss Splitter

MEDIA CONTROL

Arena

Titan Mobile

Titan Net Switch

Tiger Touch II

Mobile Fader Wing

Tiger Touch Fader Wing

Titan OneQuartz

Innity RX

DIMMING CONTROL

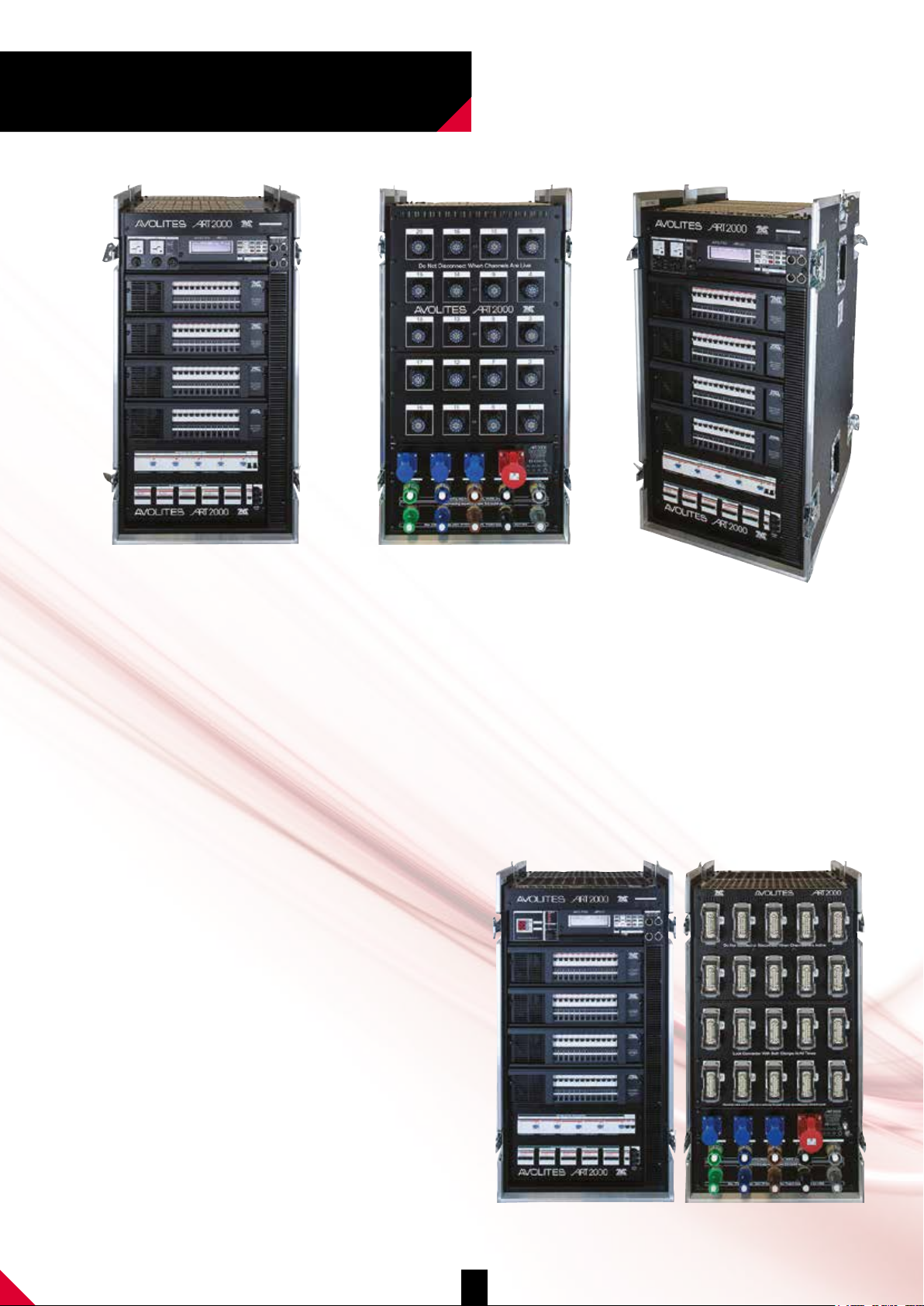

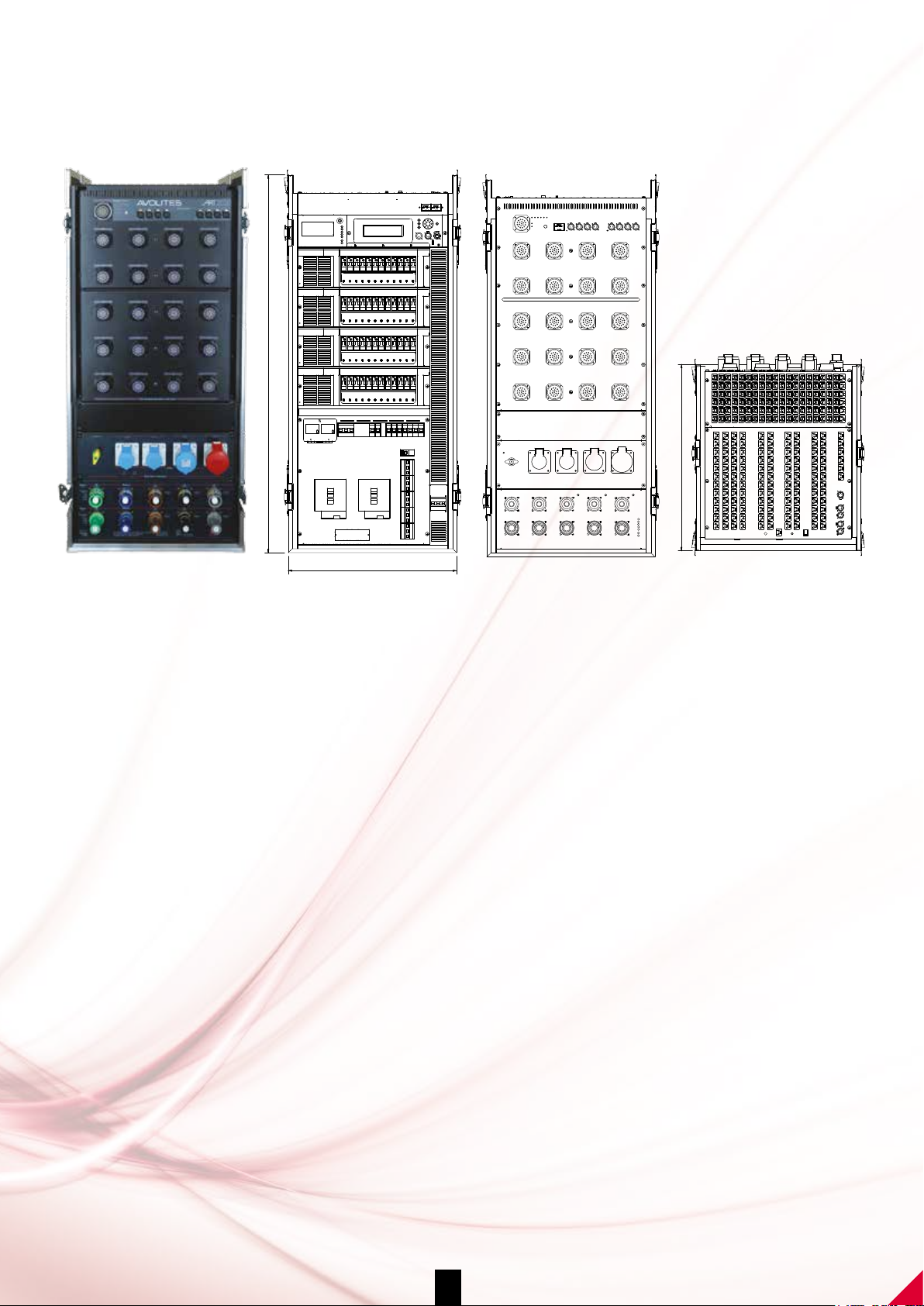

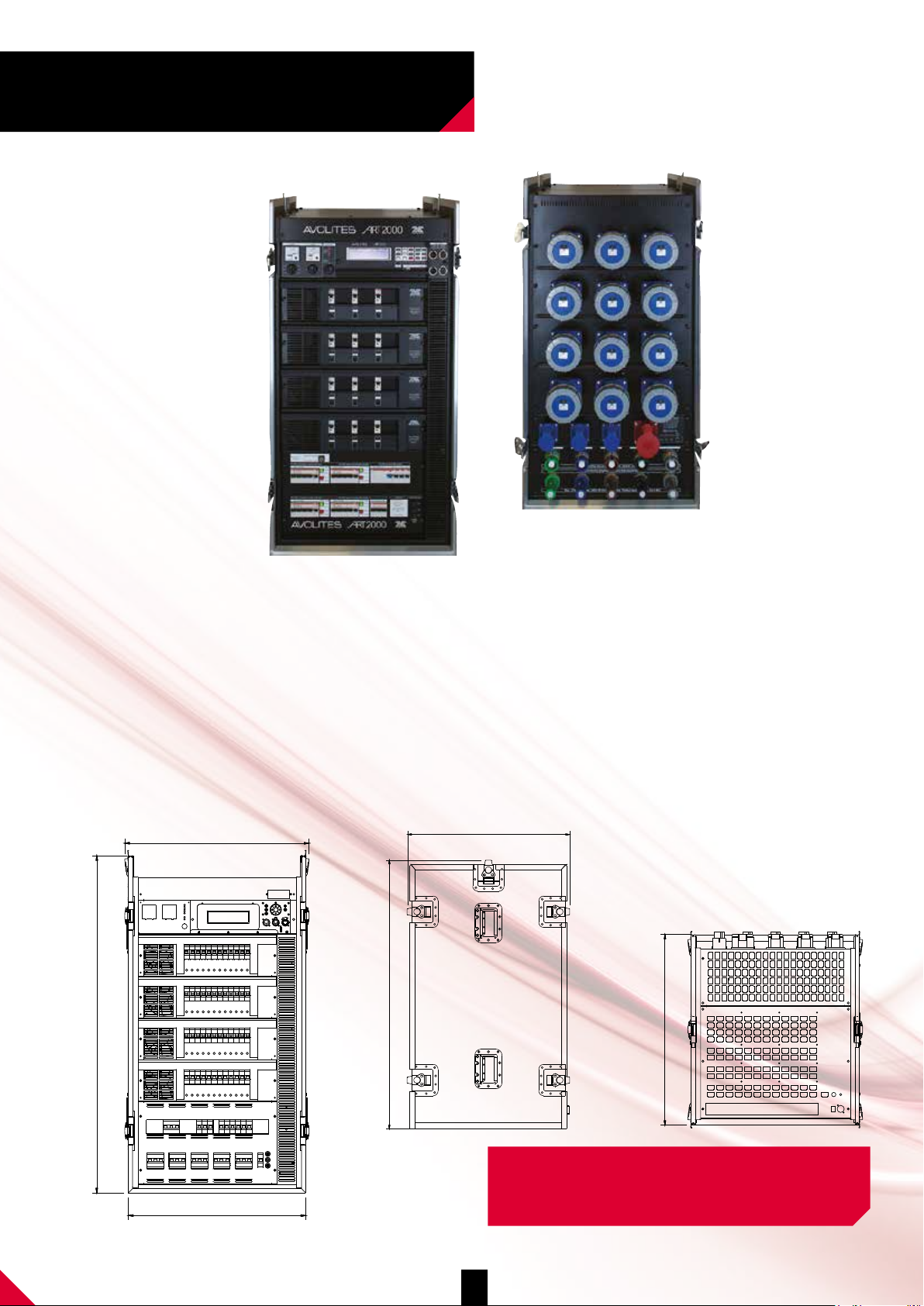

ART2020 ART2000 T4 ART2000TV Series

Innity R

Licence Keys

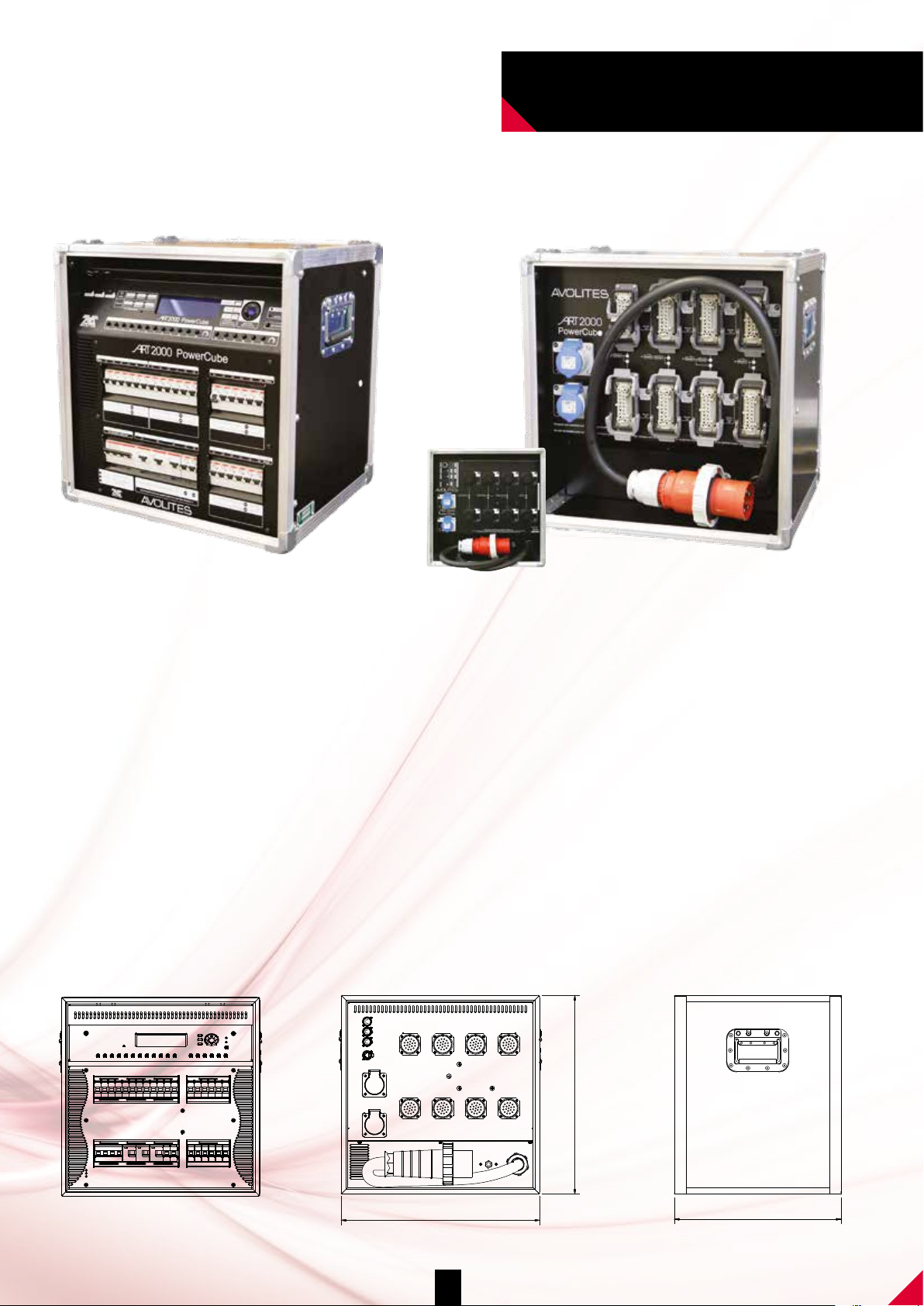

Power Cube

Designed and Manufactured in the UK

Full product information can be found at www.avolites.com

[phone]

[e-mail]

Avolites
184 Park Avenue
Park Royal, London
NW10 7XL
United Kingdom

Notable Titan Productions

Notable Ai Productions

Total Visual Control

Hozier UK & US Tour

Indian Premiere League Cricket Closing Ceremony

South East Asia Games

Red Bull Culture Clash

Arcade Fire Reektor World Tour

Katy B UK & Europe Tour

Blur World Tour

Level 42 UK & Europe Tour

Roberto Carlos Americas Tour

All Time Low & Good Charlotte UK Tour

London Olympics Opening & Closing Ceremonies

Sochi Winter Olympics Closing Ceremonies

Bon Jovi “Because We Can” World Tour

Peter Pan Theatrical World Tour

Electric Daisy Carnival, Las Vegas

Arcadia, Glastonbury Festival & Thailand

Eric Prydz EPIC 4.0 North America Tour

Coldplay World Tour

Latin Billboard Awards

Childish Gambino World Tour

National Day Parade - Singapore

South East Asia Games

Arcadia at Ultra - Miami

Omnia - Las Vegas

Jewel - Las Vegas

The Script World Tour

Cuckoo Nightclub - Piccadilly, London

Nottingham Trent University

Hunan Satellite TV Station - China

The White Club - Dubai

Eric Prydz - EPIC 4.0 American Tour Phase 1

2 x Ai S4 - Main and Back up Servers

Production Directors & Ai Server Suppliers - RES

Supported by PRG USA | Photo: Rukes

SAPPHIRE TOUCH

804mm

Performance engineering

for instant live access

The Sapphire Touch is high performance, with more submasters,

more ash and executor buttons, and the power to control the

larger, more challenging shows.

• 45 touch sensitive, motorised, automated master playbacks

• Massive wide screen programming windows

• Fast, live and hands on attribute controls

• Unique Tricolour illuminated tracker ball with Z axis control to give

fast control of distance related attributes – zoom, iris and focus

• 8 Physical DMX, up to 16 over ArtNet or streaming ACN

– 8192 channels

• Built in UPS battery back-up

• 100% brighter, vibrant 15.6” touch screens

• Dual etherCON port

• Direct SMPTE in

804mm

• Supports Titan Network Processors for DMX expansion up

to 64 universes

• Dedicated theatre cue stack control

• Huge programming surface – Capacity for 2 external touch screens/wings

• 20 programmable macro buttons

• Screen articulation

• Connectivity with Sapphire Touch Wing

• Expandable xture library for over 14,000 devices

• MIDI in, out and through

• Trigger input

• Compatible with Titan Remote (Wi-Fi access point required)

• Connect up to two Sapphire Touch Wings to each Sapphire Touch console

669mm

720mm

To p

[e-mail] www.avolites.com

4

Side

105mm

0mm
2
2

8mm
5
4

ARENA

150mm

Expandable with Tiger Touch Fader Wing

More live control than ever before…

The Avolites Arena is the ideal desk for festivals, theatres

and anywhere that a larger control surface is required. It

combines the popular interface of the Tiger Touch II with

more live control than ever before.

Alongside the vibrant main display, a second touch screen
provides an additional workspace window, also labelling
the adjacent macro buttons and rotary pots. These fully
assignable playback encoder pots, allow intuitive control of
channels and eects. The six LCD screens display electronic
legends for 30 faders, for speedy access to all your playbacks,
xtures and palettes.

The Arena has a TNS built in allowing the console to include a
brand new optical output, enabling bre connections directly
from the console, with no signal loss over long distances, from
front of house to the stage – essential for low latencies in
large and outdoor venues.

Oering seamless Multi User compatibility, the Arena can
be used as master, back-up or extra programming surface,
considerably cutting your programming time by allowing
multiple Titan programmers to work simultaneously, before
the main console takes charge.

428mm

• 40 precision playback faders in three

pageable groups

• 20 programmable macro executor

buttons

• 3 metal shaft optical attribute

encoders

• 4 optical playback encoder ports

• 15.6” vibrant main touch screen with

brightness control

• 7” vibrant secondary touch screen

• 6 mono LCD screens for digital fader

legends

• UPS battery back-up

• New six-position articulation stand

• Ergonomic trim and carry handles

• Robust stainless and zinc treated

steel construction – built for life on
the road

• OpticalCON Stage link output, with

an optional second link

• 8 physical 5-pin XLR opto-isolated

DMX out, up to 16 universes over
ArtNet or streaming ACN – total of
8192 console channels

• Compatible with the Titan Net

Processor – up to 64 universes, total
of 32, 768 system channels

• Sound to Light

• Supports multi-band audio triggering

• 4 etherCON Gigabit primary

network connection with a battery
maintained managed switch
supporting Titan Net, ArtNet and
streaming ACN

• 1 etherCON Gigabit secondary

Network connection for Titan Net,
ArtNet and streaming ACN

• 1 standard OpticalCON stage link

output, to connect to industry
standard network switches with
optical support

• SMPTE Timecode/LTC input 3-pin

XLR (transformer isolated)

• Trigger inputs on ¼” jack, suitable for

foot switches

• Audio in on stereo ¼” jack for Audio

Triggering

• Headphone 3.5mm jack conveniently

placed on the front panel

• 4 USB3 ports – 1 front, 3 rear

• DVI-D for external display

• 2 x 3-pin XLR dimmable lamp

connectors

• MIDI in, out and thru

• Compatible with Titan Remote

(Wi-Fi access point required)

• Optional extras: Flight Case,

Dimmable Lamp x2 and Cover

To p

1072mm

Front

[e-mail] www.avolites.com

Side

5

Optional Titan Network Switch - Details p.10

150mm

490mm

4

3

5

.0

0mm

675.00mm

TIGER TOUCH II

Expandable with Tiger Touch Fader Wing

The Most Specied Titan Console

Now featuring a clear, 100% brighter touch screen, more powerful

processor, and faster graphics engine, the Tiger Touch II is the most

specied Titan console.

• Live ‘hands on’ and Cue List control

• 100% brighter, vibrant 15.6” touch screen

• 4 Physical DMX, up to 16 over ArtNet or streaming ACN

– 8192 channels

• Supports Titan Network Processors for DMX expansion up

to 64 universes

675.00mm

• 20 submasters for Cues, Cue Lists and sequences

• Show le compatibility with Titan console range

• 10 direct Macro buttons and Macro library

• Support of ArtNet, CITP and streaming ACN

• Expandable Fixture library for over 14,000 devices

• Powerful processor, faster graphics, SSD drives and UPS tted

• Conveniently located front panel mounted USB

• Direct SMPTE in

• Trigger input

• Compatible with Titan Remote (Wi-Fi access point required)

• 30kg in ight case

0mm
.0
5
3
4

To p

Tiger Touch Fader Wing

Expand your control surface with 30 additional faders for instant access to

all of your playbacks, xtures and palettes. Programmable macro buttons

and independent paging control make for intuitive operation of world-

class shows. Each fader has an electronic legend on a back lit LCD.

Front

490mm

0mm
0

.
7
4
1

• 30 precision playback faders

• Each fader electronically labelled with an LCD screen

• Independent paging control for each row of 15 faders

• 60 user congurable ash or solo buttons

• 2 programmable macro buttons

• Independent pages for each row of faders

• Also compatible with Expert Pro, Sapphire Touch and Arena

[e-mail] www.avolites.com

To p

4mm
4
1

Front

426mm

Side

6

2

3

4

5

6

7

8

425mm

465mm

5

6

7

8

465mm

2

3

4

5

6

7

8

Expandable with Titan Mobile Wing

QUARTZ

The Full Power of Titan, Anywhere…

Quartz is the newest addition to the Titan Mobile family, complete

with on-board processing and a bright, clear 12.1” screen, in our

smallest full-featured console. Super compact, measuring only 42.5cm

wide, the Quartz is the ideal companion for all your lighting projects,

from touring and festivals to clubs and one-offs.

Featuring the same high quality faders and hardware you’ve come to
expect from Avolites, the Quartz can go anywhere you can, ideal for
life on the road.

Oering full compatibility with Multi-user, the Quartz is also perfect
for use as a back-up or extra programming surface, cutting your
programming time. Quartz is ready to benet from multi band Sound
to Light Triggering functionality, oered in Titan version 9.

• Super compact form – just 42.5 cm wide

• Expandable with Titan Mobile Wing through dedicated USB port

425mm

• 4 physical DMX, 5-pin XLR connectors

• 16 DMX universes from the console – 8192 channels

• Compatible with Titan Net - up to 64 universes

• Gigabit Network port for Titan Net, Artnet and streaming ACN

• Built in MIDI input

• 10 precision playback faders

• 3 high quality optical encoders

• 20 programmable executor buttons

• Bright and vibrant 12.1” angled touch screen with brightness control

• Supports multi band audio triggering

• Sound to Light

• Headphone output

• Robust construction – built for life on the road

• Conveniently located front panel mounted SuperSpeed USB3 port

• Compatible with Titan Remote (Wi-Fi access point required)

• Optional extras: Flight Case, Portable Travel Case, Dimmable

Desk Lamp and Cover

• Console weight 8.0 kg, weight in ight case 16.75 kg

To p

5mm
9

Quartz & Wing t

in the same travel case

[e-mail] www.avolites.com

1

Front Side

7

TITAN MOBILE &

Top view

Front view

5

6

7

8

282mm

Top view

5

6

7

8

TITAN MOBILE WING

The Power of Titan in its

Most Concentrated Form!

Avolites Titan Mobile binds the awesome power of Titan software with a compact and

lightweight unit that connects to your laptop to produce a fully featured moving light

control system. Small enough to carry as hand luggage, large enough for complex shows.

Shows transferrable to and from any other Titan console without any restrictions.

• 10 Playbacks with assignable controls

• 20 direct access workspaces, macros and executors

• 4 Physical DMX, up to 16 over ArtNet or streaming ACN – 8192 channels

• Supports Titan Network Processors for DMX expansion up to 64 universes

• USB powered – no need for mains connection

• Fast, live and hands on attribute controls

• Fast to programme and easy to use

• Weight 4.9 kg

282mmmm

Titan Mobile Wing

• 20 precision playback faders

• 30 programmable executor buttons

• Paging control

• Dedicated work space window in Titan

• USB powered - no need for mains connection

• Weight 4.5 kg

• Compatible with all Titan consoles

(except the Titan One)

282mm

mm

63mm

To p FrontSide

[e-mail] www.avolites.com

8

To p

388 mm

*Laptop not included

TITAN ONE

Titan One is the Cost Effective Solution
for Your Entry Level Lighting Application

Fast and Intuitive control of intelligent lighting, Dimmers and LED

effects from one on screen console.

The Titan One USB DMX dongle allows the user to output one line of
DMX with the full functionality of Avolites Titan Software.

Access powerful features such as Pixelmapper, Quicksketch, Media
Clip Select, Attribute Control, Blades and Shape Generator. Titan One
allows you unlimited usage which gives you uninterrupted programming
and playback time.

Global Guide Pricing:

£150 €220 $250

Contact your local distributor for

educational discounts, training and support

• Live music events – use the on-screen faders or touch screen

ash to control and interact with your performance. Live,
timed, Picture Palettes enable live busking at your ngertips

• Corporate events – Titan One provides centralized control of

media servers and multi-cell LED xtures. Display your client’s
logo instantly with the Pixel Mapping tool

• Museums , Retail and Son et Lumieres all run fully automated,

scheduled playback from the time of day cue control

• Theatre and Drama – benet from ‘Move in Dark’, Hot Key

‘Go Button’ control and fast plotting via keyboard syntax

• Clubs and bars – easy to use visual programming. Control any

xture with the huge, built in xture library

• TV and video studios - Live Edit and Update as well as Channel

Output Monitor produces seamless production workow

• On board immediate context sensitive help for whenever you

need a little assistance

• Technicians tool – Test, Address and Fault Find your rig

from backstage or the warehouse. Titan One provides a full
functionality diagnostic tool

• Allows you to edit on the move, then run the performance

from any Titan system

• Fully networkable with any Titan product

[e-mail] www.avolites.com

9

250.00mm

43.80mm

1

2

3

4

5

6

7

8

Title

AvolitesLtd

J.B.Toby

CreationDate

Designed

Drawn CreationDate

DwgNumber

Consoleweight:

Flig

htCase weight:

CopyrightAvolites Ltd.Writtenpermision from AvolitesLtd is requiredto reproducethis drawing.Do notcopy orin any otherway altert hisdrawing.

FlightCase dimensions:

R

ev

Titan Network Processor

TBA

TBA

TBA

1

3

2

.0

0mm

481.00mm

1

2

3

4

5

6

7

8

481.00mm

TITAN NET PROCESSOR
& TITAN NET SWITCH

Titan Net Processor

The backbone of your system. Unleash the
power of your Titan system with the Titan Net
Processor. TNP not only increases the capacity
of your system to up to 64 universes, but also
offers seamless integration with Titan Net back
up, and spreads the processing load for heightened
reliability of today’s channel intensive shows.

• 16 universes processed per TNP

• 8 DMX outlets, protected by optical and galvanic isolation

• 2 Gigabit ethernet ports to output ArtNet or streaming ACN front

tted as standard. Move to rear option

• Built in UPS - Maintain the network during mains outages

• Bright high resolution touch sensitive LCD screen for fast local control

• Built in UPS, 5 x 4 minute sessions without charging

• Compatible with all Titan consoles (except the Titan One)

• Fast, low latency for live applications

• Network Time Synchronisation

• Two USB sockets at the front

0mm
.0

8
6

0mm

3
.0
6
2
4

• 100-240 V AC mains input range

• Processing unit is housed in a shock mounted frame

• Rugged steel enclosure, 19” rack mountable

• Distributed Pixelmap rendering engine

0mm
.0

2
3
1

0mm

.0

8

5

426.00mm

To pFront

Optical Titan
Net Switch

For when reliability counts. The Optical TNS

is perfect for connecting FOH to stage using

cat5e ethernet cables for distances under 80 m,
and an Optical input for bre connections over
distances exceeding 80 m. The 1 Gigabit network
switch also features a built in UPS to ensure
the stability and resilience of your show setup.

• 1 opticalCON optical input

• 6 ethercCON outlets with status indication above the outlet for easy

status checking

• Integrated LCD display for easy conguration and status reporting

• Built in UPS - Maintain the network during mains outages

• Can be used by direct connection to the Avolites Arena console or in

pairs to any Avolites Titan console

• Connect FOH to the stage with cat5e ethernet cables, up to 100 m

dependent on cable quality

• The Optical port connection can be used to bridge distances larger

than the 100 m ethernet, depending on the bre used this can be 225
m-550 m (multimode) or 10 km (single mode)

Switch capacity

• Ports are usable at 10,100 and 1000 Mbps

• Bandwidth: 20 Gbps full duplex

• Network latency @1000Mbps: Less than 4 μs

[e-mail] www.avolites.com

Front

• 1 opticalCON optical input at the front

• 6 etherCON outlets with status indication above the outlet for easy

status checking

• 1 status indication for rear mounted etherCON outlet

Rear

• 1 etherCON outlet with status indication above the outlet for easy

status checking

• IEC mains inlet compatible with the ‘IECLock™’ connector

• Compatible with all Titan consoles (except the Titan One)

250.00mm

To p

43.80mm

482.60mm

Front

10

All Time Low & Good Charlotte - Back to The Future Hearts UK Tour 2016

2 x Sapphire Touch (Main & Backup)

LD: Je Maker | Photo: Adam Elmakias

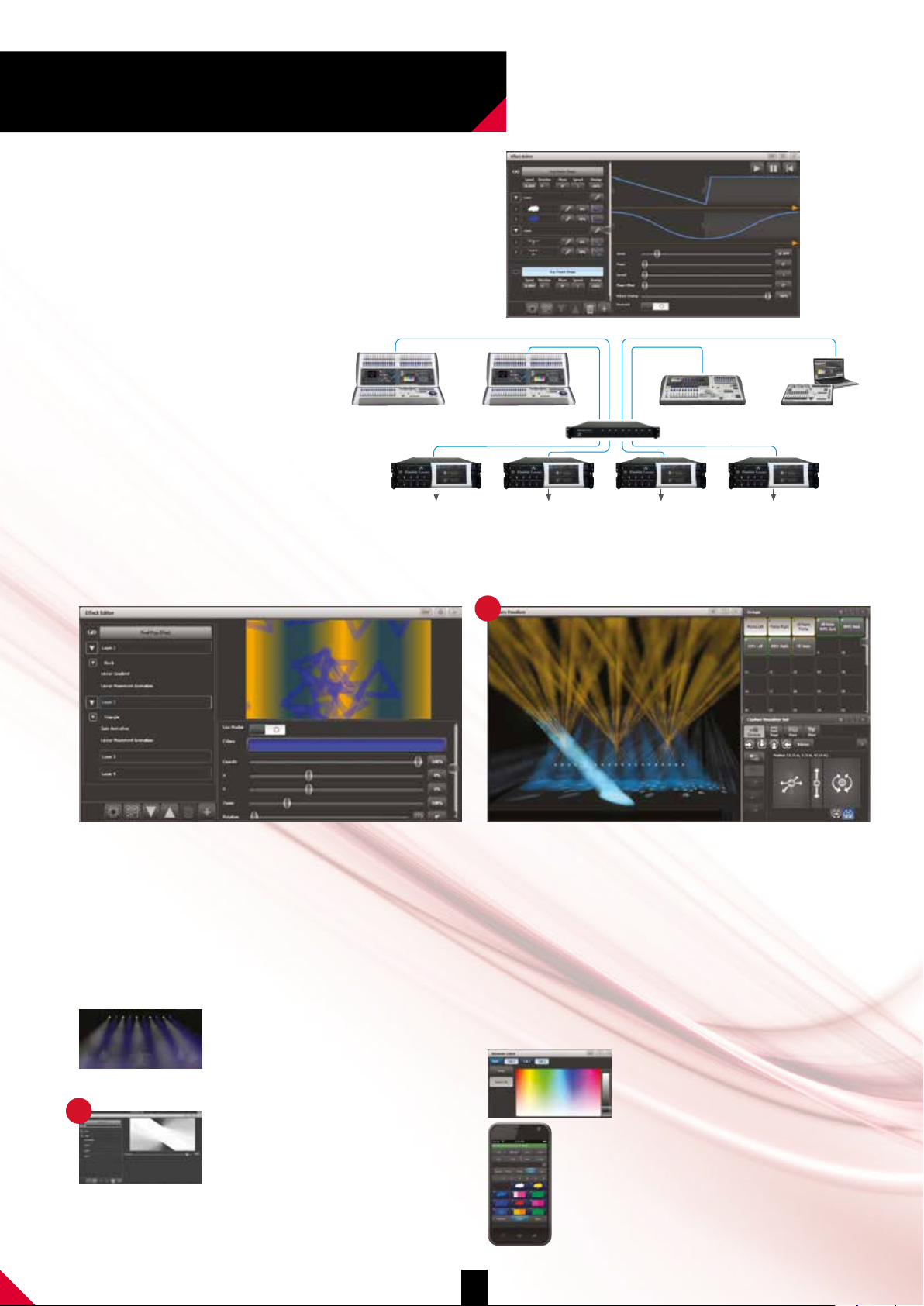

TITAN FEATURES

16 DMX universes 16 DMX universes 16 DMX universes 16 DMX universes

ol

Key Frame Shapes

Introducing the amazing Key Frame Shapes, providing the capability
to create spectacular eects from scratch. Using palettes or the
programmer to dene the frames, and powerful tools such as transition
curves, phase and spatial direction, it is possible to create radically
dierent looks for each channel in seconds. Synchronise these together
for dramatic impact. Integrate Pixel Mapper eects with Key Frames
using one simple interface.

Multi User Networking

Connect multiple consoles together to work
collaboratively or independently on the same
show. A show can have multiple users, each with
their own User Settings, Handle Worlds and
Selected Key Proles. With Multi User, consoles
can still be used as backups.
Backstage techs can exchange, reset or fault nd
on xtures, or even patch in oor packages,
without interrupting programming. Palettes made or edited on one
console automatically update to other connected consoles.

Main Console

Back-up Console TV Lights Access Back Stage Tec hnical Contr

Gigabit Network Switch

Networking of the outputs using the TNP increases system capabilities
to up to 64 DMX universes, catering for even the largest world class
spectaculars. All of this can used in conjunction with Titan Remote!

V10

Unmatched Pixel Mapping Capabilities

The industry’s best pixel mapper allows complex multi-layer eects
made in record time, across all xture groups, as if they were one
entity. Create and animate pre-programmed or custom content using
Avolites’ unique Quicksketch tool and image import. Use Gradient Fill
to create smooth, soft edge transitions and exciting layered eects, now
even quicker using cross-layer copy and move functions.

Align

Eortlessly copy values across xtures, either
in a recurring pattern or a smooth fade.

V10

Pixel Mapper with Motion Blur

Avolites’ industry-leading pixel mapper
gets even more powerful with the new
motion blur eect in Titan V10, allowing
for even more creative possibilities.

[e-mail] www.avolites.com

3D Visualiser

Titan features a new full 3D visualiser powered by the Capture engine.
Create and edit your show right inside the Titan interface. Lay out your
xtures in the space using your console’s encoder wheels.

Offset

Set an oset for any attribute of any xture to x common issues such
as incorrectly rigged xtures.

Flexible Colour Mixing: Up to Seven Channels

Get maximum punch and more accurate
colours from your LED xtures, thanks to new,
four-channel pixel mapping and colour mixing.

Titan Remote

For fast xture focusing or letting someone else update
palettes while you update show data. Program edit or

12

play back cues lists or sequences.

V10

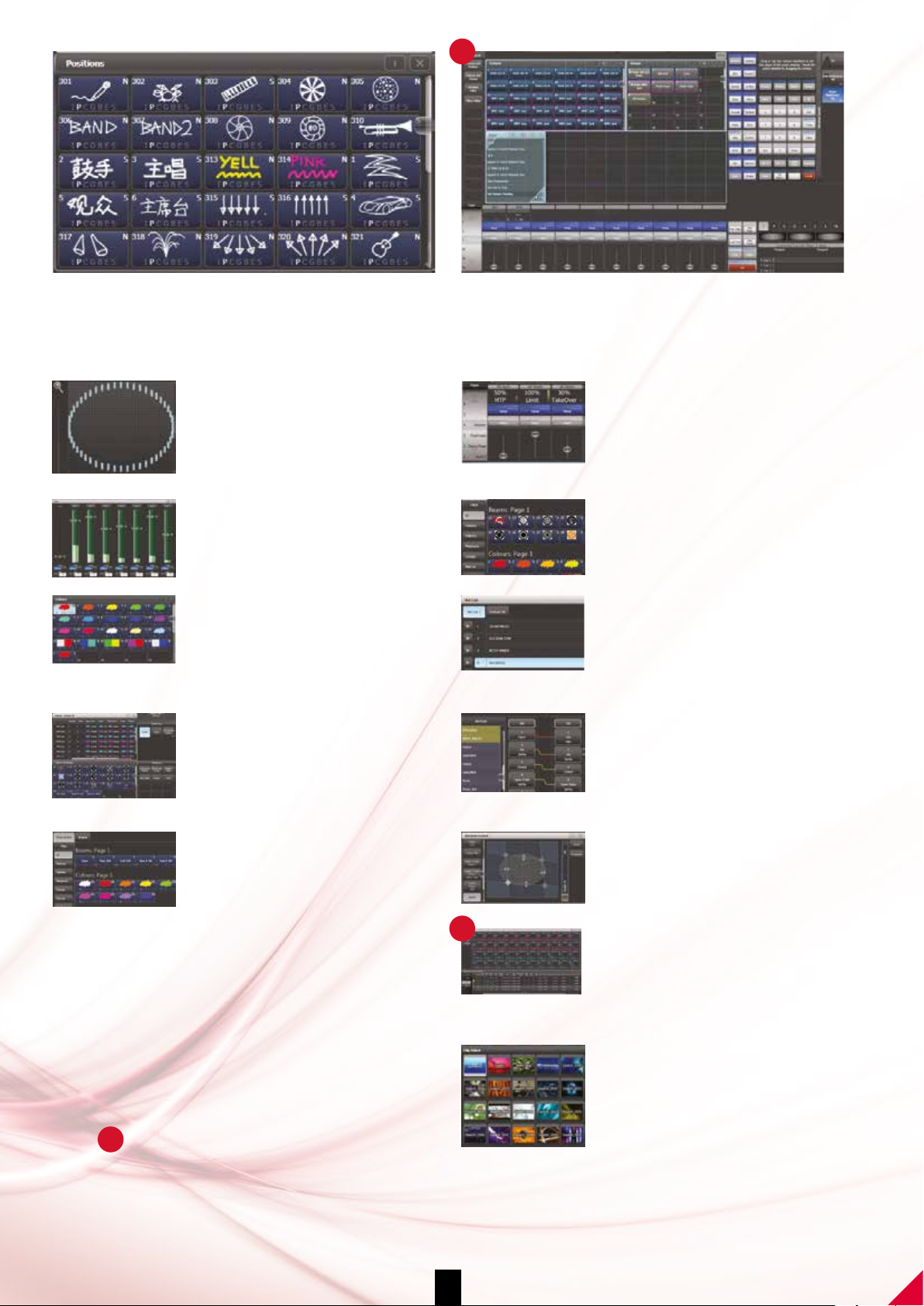

Quicksketch

Quicksketch icons are fast to find during show time. Create custom
icons instantly with Avolites’ unique Quicksketch drawing tool.

Group Layout Auto-Arrange

New tools for quickly arranging xtures in
rectangular, circular and triangular layouts,
when moving all xtures or a selection.

Audio Triggering

Trigger show content using seven-band audio
triggering. (Quartz & Arena only).

Global Palettes

Global palettes are importable between
shows, and allow users to apply information
universally to all xtures.

Nested Palettes

Create palettes which reference information
from another palette. When the originals are
updated, they will also update the nested palette.

Freeform Workspaces

No longer restricted to just 4 workspaces per screen, pick any
position and size for your windows in seconds and store them to your
workspaces for quick access to the information you need.

Group Intensity Masters

Fast control of entire groups of xtures.
Balance group intensities for TV or lm or
increase all Beam lights and reduce all washes
on your live production.

Show Import

Quickly create new shows from the best parts
of your past productions.

Set List

Cue pages can now follow the shows running
order – no matter how late you are given the
set list. Display helpful notes like songs, follow
spot colours or operator cues.

Exchange Mapping

Fixture exchange is revolutionised with a unique
visual, Attribute Mapping System. Customise
any xture exchange to t your needs; for
example, old Gobo 1 to new Gobo 3.

Show Library

Quickly access and organise all of your show
data from one central location including;
xtures, palettes and playbacks.

Powerful Cue Lists

Expansions to Titan’s tracking now make it possible to track changes
forwards and backwards. Cue lists now oer cue-only changes, and
you can lter data in cue view to show only relevant information.
Move-in-Dark makes for eortless moving light programming. MIDI Show
Control allows the show to be run by the stage manager using Q-lab.

Undo

Massively speed up programming with comprehensive Undo
functionality. Undo almost any action on the console including; delete,
merge, move and loads more. View history in the new undo window,
and click any point to undo back to that action.

V10

[e-mail] www.avolites.com

Keystone and Blade control

Control Keystone or Blades with intuitive
graphical workspace.

V10

Channel Intensity Grid

See all your intensity values in one place with
V10’s Intensity Grid. This clearly shows levels,
source of information, whether increasing or
decreasing and tracking information.

Clip Select

Video Media Integration with instant multilayer
patching and Video Clip Selection by image
preview. For servers supporting CITP.

Show Reports

Create a cue list hard copy for the director or arrive at the venue with your
rig pre-patched by sending in advance your fixture patch to the venue crew.

13

Sochi Winter Olympic Games

RES - S6 Media Server

Tiger Touch II

Sochi Winter Olympic Games

RES - S6 Media Server

Tiger Touch II

Ai R SERIES SERvERS

Innity R Series Servers

The Ai R4 and R8 oer 4 and 8 display port/DVI outputs and up to 4 layers
per xture group, with top spec, fully featured Miami licences.

Hardware includes the latest generation motherboards supporting PCI­Express Generation 3.0, AMD Gen 3 Graphics Cards and an Intel PCIe
SSD module with 1.2TB capacity.

Ai R4 & R8 servers oer MIDI Timecode inputs and supports ArtNet and
CK Ki-Net output protocols.

Innity R4 & R8 features

• Smooth playback of up to 8K media using the AiM Codec

• Up to 4 or 8 full 1080p HD outputs

• Soft-edge blending of multiple projectors

• Timeline, Timecode Sequencer

• Support for 3D displays

• Build and create in the 3D Stage Visualiser

• Remote vertex adjustment

• Map and warp onto any 3D surface

• Video map onto any moving scenery

• Intuitive modular LED support

• Congure multiple systems as Master or Slaves

• Internet and iPad remote control (via VNC)

• Salvation node based engine

• Supplied pre-installed with an extensive Media Library of 320 HD AiM clips

Capture input options

• Pro 1: 1x DVI/VGA input

• Pro 2: 2x HD/SDI inputs

• Studio 2+1: 1xDVI/VGA and 2x HD/SDI*

• Studio 4: 4x HD/SDI inputs*

Ai Innity RX4 & Innity RX8 Servers

The multi-award winning Ai Innity server is the perfect choice for your most
demanding video projects. The RX4 and RX8 have programmable, EDID
managed, WUXGA (1920x1200) outputs. Each is digitally amplied to give
you a preview and production output over DVI.

The back panel is full of I/O connectors, including LTC timecode input,
2 x Gigabit Network ports for connecting to Artnet networks, MIDI
in & out ports, 4 lines of DMX, Audio I/O, Genlock – essential for TV
projects, and 2 x sync network connections to guarantee vertical sync
across multiple systems.

The front 7 inch colour touch screen shows the Ai 3D visualiser, this gives
you networked control of your whole show from one integrated and

intuitive interface, no matter how many outputs you need.

Ai Innity RX4 & Innity RX8 features

(Additional to the R-Series & S6)

• Internal EDID Management for each output

• Hot swappable rear DVI connections

• Integrated front panel touch screen interface

• Genloc Camera Sync (option on RX4, Standard on RX8)

• LTC Timecode Input

• 4 DMX outputs

• Artnet and KiNet output protocols

• Anti Shock & Floating Sub Frame construction

Your production deserves the best content

Get state-of-the-art content by downloading clips from our online media lounge shop at contentshop.avolites.com

All Ai Innity servers are supplied pre-installed with an extensive stock content library of 320 HD AiM clips.

[e-mail] www.avolites.com

16

Ai R6

The Ai R6 is our most powerful server system. It oers a

maximum of 6 Display Port / DVI outputs. They feature the

latest generation motherboards supporting PCI-Express 3.0,

the fastest AMD Graphics Cards and newest high speed PCIe

3.0 SSD drive with 1.2TB capacity. All systems are supplied

with a fully featured Ai Miami licence which allows for approx.

16 media layers, separated between 1-16 xture groups.

Realise your most ambitious creative visions

Market Leading Features

• Smooth playback of up to 8K Media (using AiM Codec)

• Multi layer 4K media playback (up to 4 layers)

• Maximum output resolution of 4k per output

• Up to 6 full 1080p HD outputs simultaneously

• Approx. 16 media layers in any conguration

• Soft-edge blending of multiple projectors

• Timeline, Timecode Sequencer

• Support for 3D displays

• Build and create in the 3D Stage Visualiser

• Remote vertex adjustment

• Map and warp onto any 3D surface

• Video map onto any moving scenery

• Intuitive modular LED support

• Congure multiple systems as Master Slave

• Internet and iPad remote control (via VNC)

• Salvation node based engine

• Also available with 1 x VGA / DVi + 2 x HD / SDI capture inputs or

4 x HD / SDI capture inputs

Technical Specications

• Maximum display port output resolution DisplayPort output is

4096 x 2160 @ 60 Hz

• Capture Input options: 1 x DVI and VGA & 2 x HD-SDI or 4 x HD SDI

• Supports Apple™ Pro Res 4444 codec at 4K

• PCI Express Gen 3 Motherboard

• PCIe SSD storage (1.2Tb)

• Dual Intel i7 six core processor (24 simultaneous threads)

• AMD’s formidable W9100 gen 3 graphics cards

• 8Gb of ultra fast RAM

• High capacity, heat-pipe based, low speed and low noise CPU cooler

• 60 GB SSD for system OS

• 850 W auto ranging PSU

• Stereo Audio Output and Input

• 2 x ethernet 1 Gbit connection RJ45

• 3 USB inputs on the front panel and 3 x USB inputs on rear panel

• eSATA interface on the rear panel

• Provisions for 19” captive full length, Accuride rack slides

• Sturdy rack ears with integrated handles

• Provision for security cable attachment

To p

Front Side

Colour banding is history

Our revolutionary AiM Codec oers virtually un-compressed quality with smooth playback of up to 8K resolution media.
AiM is a cross platform Quicktime codec available exclusively to Ai users at no additional cost for use in any Quicktime
capable application.

This un-paralleled playback performance has been made possible through the use of the latest GPU technology bred for
the gaming industry but now re-developed with the support of AMD and Nvidia exclusively for Ai.

[e-mail] www.avolites.com

17

Ai SOFTWARE LICENCES

Ai SOFTWARE LICENSES

Childish Gambino by Moment Factory

Ai – The Industry’s Most Powerful and Flexible Media Server

Ai is the application running within Avolites Media’s cross platform family of products, distilling 25 years of engineering design expertise with

world-class show production skills.

Winner of both the PLASA Award for Innovation and the Live Design Projection Product of the Year award, the Ai media server uses this combined
experience to produce a unique “Production based Workow” oering the tools and features for faster delivery of even the most complex shows.

Features such as real time 3D project visualisation, an easily recongurable Node Based Engine and AiM, the industry leading codec make the Ai server
a clear choice for any video, projection or LED mapping project. Ai servers also incorporate elegant multi-timelines, extended DMX/Artnet control as
well as live video playback “Busking”.

Ai Software Licence Keys

Run Ai from your laptop and edit on the go!

A full range of Ai licence levels are available as a software only solution.
Licence Keys allow owners the exibility to run the Ai media server
software on their own servers or powerful laptops. Edit on the move
and arrive with everything you need by running Ai from your 3D capable
laptop.

The entry level ‘Anjuna’ licence includes Live Map, the Ai 3D Mapping
engine and Timeline.

Bondi, the standard-level licence oers up to 4 full HD outputs, increased
canvas resolution, 128 Artnet universes and up to 18 layers.

Miami, the advanced licence as found in the S-Series and Innity Servers,
oers 8 full HD outputs, a max canvas of 8,192 x 4,096 and up to 32
layers with CSV Import and Automation Support for large and complex
productions.

For full Ai software licence options, please refer to:

www.avolites.com/products/video/software-licences

[e-mail] www.avolites.com

Ai pre-visualisation | Finalised live show

Bon Jovi “Because We Can” - World Tour

18

The Arcadia Spider at Ultra on the Resistance Stage - Miami 2016

Two Sapphire Touch Lighting desks (Main & Backup), a Quartz - SFX Desk

2 x Ai EX8 - Main and Back up Servers ( 2 x projectors 1 x LED installation)

Ai FEATURES

Ai FEATURES

‘Supercharged’ New Software

Building on the already impressive, award winning versions of Ai we have
added even more new features to continue to deliver the ‘everything you
always wanted’ in a media server ethos.

Ai V8 won Live Design’s ‘Projection Product of the Year’ and the PLASA
‘Innovation Award’; Ai servers combine 36 years of engineering design

Output Conguration Page

The Output Conguration page
allows the user to congure all
parameters of their outputs using
a unique UI for each Fixture Group
tailored to the requirements of
the Fixture. All of your video
outputs and Artnet output can be
congured on this page. It includes
simple yet powerful tools for LED
screen conguration, a navigable
mapping editor for projection
mapping and an Artnet Pixel
mapping system. You can also apply
soft edge blends and use Ai’s Auto
Map feature from this page.

Surface Modelling Page

This page gives the non 3D application user the capability to create and
edit 3D stage sets. It combines the best bits of Max, Maya, Blender etc.
But with easy access to features
designed specically for our
market like linear and radial repeat
for object geometry.The user can
ip between the new Surface
Modelling Mode and Stage View
Mode to instantly see how the
screen you’re designing ts with
the rest of the stage.

Patch Editing Page

The journey to allow novice to intermediate users to congure their
show without using the node based environment is now complete.
Acknowledging that there is unrivalled power and exibility in the node
based capabilities of Ai, the node based interface has been rened to
allow users to feel more comfortable using it.

The Node based interface is now shown
within the Ai User Interface window
rather than in many sub windows. It is
displayed in a pseudo 3D style which
animates to zoom in when you enter a
sub patch.We have also added the capability to zoom into modules giving
you the option to work as small or large as you require.

and world-class show production experience in a unique “Production
based Workow”. Ai oers the tools for faster delivery of even the most
complex shows.

These are some more of the remarkable features that allow the award
winning Ai media servers to enable such breath-taking visual environments.

Automated Media Distribution

A function found within the System Settings window which allows up to
16 folders to be shared across the network.This automates the process of
content distribution between multiple networked systems allowing media
les or project assets to be auto synced between Ai servers.

Performance Improvements

The Ai developers have made a massive improvement in the performance
of Ai V8, optimising the render engine again to oer around a 50%
improvement in video throughput using our AiM Superstream codec.
Performance whilst live compositing high resolution background layers
with low resolution foreground layers has also been much improved.

Native HD SDI Input and Output

Support for up to 8 x 1080p HD SDI
inputs or up to 8 x 1080p outputs or
2 x 4k outputs as an option on the Ai S
series systems. The same cards can be used
as input or output (in groups of 4).The
outputs are frame synchronised so four
1080p outputs can be used as a single 4k
feed on four HD/SDI cables.

Camera Based Automated Warp and Blend

Ai oers a revolutionary camera based warp and blend feature. This
allows the user to congure a large projection screen surface across
all available video outputs
on the system using our
recommended webcam or
ethernet camera and custom
software to automatically
calculate the required
warping and blending of the
outputs.

Multiple servers are also supported in the automated warp and blend
process using an IP camera.This allows blends across huge surfaces.
Curved surfaces, domes and at screen arrays are all supported.This
feature comes as standard with all Ai products and Software Licences.*

Editable Scene Triggers

Ai V7 introduced Scene Triggers which allowed you to store a pre-set
state of all layers and attributes that could be recalled at the touch of a
button. Ai V8 makes the scene triggers editable so that you can congure
or remove triggering elements.This allows the user to decide exactly
which aspects of the system the scene trigger will control.

[e-mail] www.avolites.com

20

*Not included with Anjuna

Performance Units

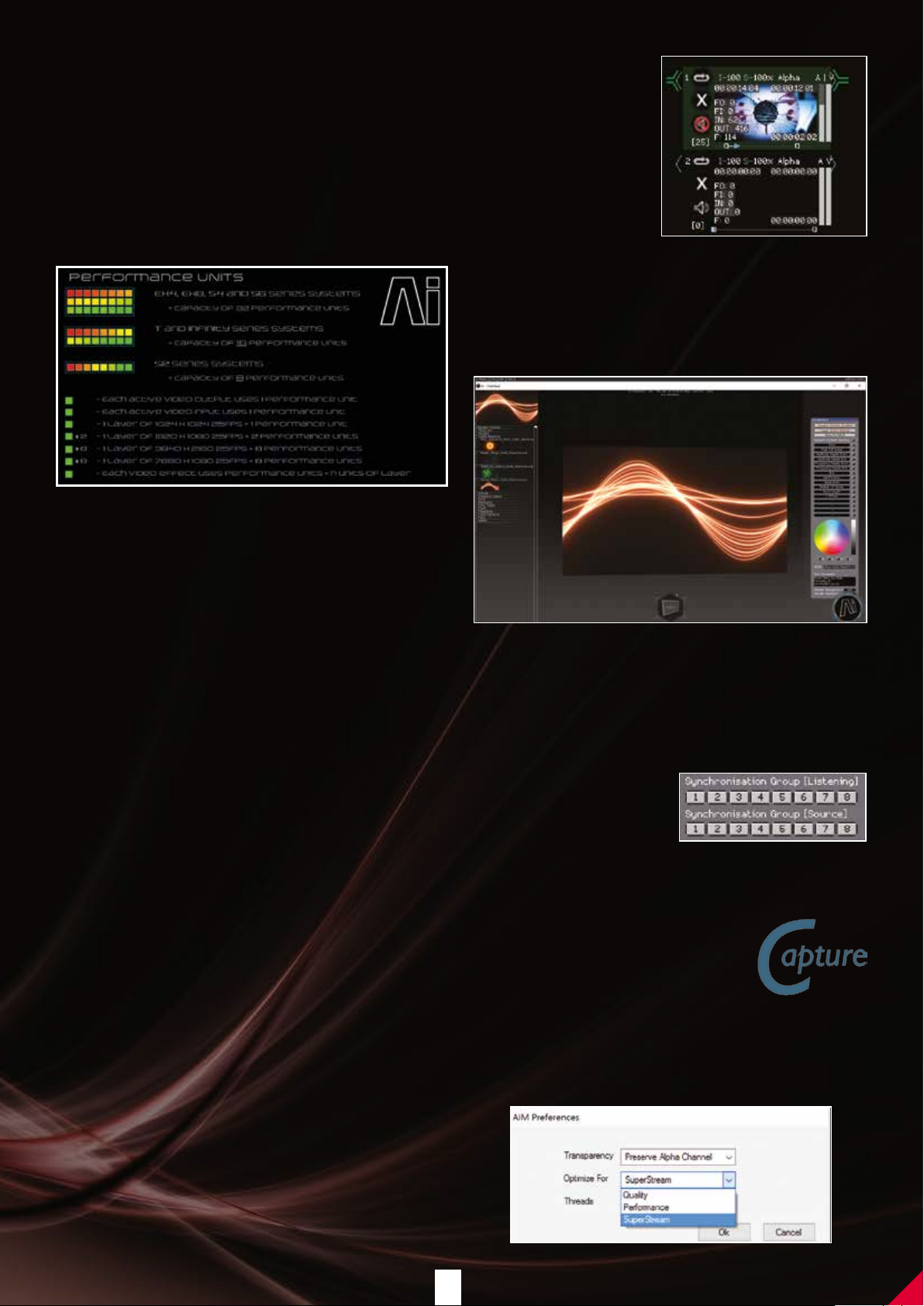

V8 introduced the notion of ‘Performance Units’, allowing you to gauge
how hard you’re pushing the system. The user interface will show the
user a power bar style meter which will indicate the load that the system
is under. As you add more layers and more outputs the power bar will
decrease according to the capabilities of the system.

The Performance Units indication system will tie in with the marketing
of the systems so that when you buy an Ai server you will know how
many performance units the system is capable of. We will also publish a
corresponding guide to what a performance unit is.

In summary, for those who are technically minded, one Performance
Unit is equal to one Million pixels of data being transferred over the PCI
express bus twenty ve times per second. Our Third Generation systems
such as the S4, S8, S6 and the EX4 & EX8 will support an absolute
maximum of thirty two performance units when running Ai. That is
almost 1 Billion pixels per second.

Audio Engine

Ai’s audio engine now allows
the playback of samples at any
frequency as well as the ability to
adjust the playback speed in real
time. An audio fader has been
added to the layer controls along
with the mute button, both of
which can be controlled locally
or remotely.

Dynamic Content Page

This page gives quicker and easier access to using patches during your
show as well as providing a streamlined approach to the their creation
when using the supplied templates. Any combination of modules, GLSL
and Java can be used to create real-time audio reactive content, live text
and generative imagery.

User Customizable Eects

Ai’s Eects system (SVFX) allows users to use the node based
programming system to create their own eects and add them into the
system.These eects can utilise the Salvation set of tools and input/output
modules along with GLSL, Java script, MIDI, the list goes on and on. In
fact, pretty much any of the other features of Ai can be plugged into your
own customizable eects.This eects system has proven to be so ecient
that we have converted all of our existing eects library to this standard.
With every new version of Ai, the library of eects keeps growing.

User Customizable Blend Mode system

Using the same system (SVFX) support has been added for user
customizable blend modes.We have re-written the current set of blend
modes to use this approach and we make a template available for any
user who wishes to use this system to create their own blend modes.

Layer Reference Module

Pull in media from anywhere in your mix - this module allows the user to
reference a texture from a specic xture and layer. This oers signicant
performance improvements when a user needs to play the same media
out onto multiple screen surfaces or onto multiple layers.

AiM Multi-threaded Encoder

The AiM Quicktime encoder now supports multi-core compression. This
means that the AiM conversion process can now be done in faster than
real time for HD footage and close to real time for 4k media on high
spec systems.

Syncgroups

Syncgroups oers a solution when you need to ensure that multiple
clips are being played in synchronicity without the inexibility and
preprogramming traditionally associated with timecode. Set one clip
as Source and others as Listening and all clips will progress a frame
when when the Source does. With
support for multiple Syncgroups,
this function can work within a
single machine or across a group
of networked servers, giving you
greater exibility in show performance.

Capture Support

Ai now supports MSEX streaming directly into
Capture. Choose from individual layers, screen
xture mixes or even your entire 3d visualization and
apply them to xtures within Capture to get a true
view of your lighting and video working together.

AiM Codec

Ai’s own AiM is a revolutionary codec which makes use of hardware
acceleration from the graphics card to ensure smooth playback of high
resolution media whilst maintaining exceptional image quality.

Interface Updates

New features and a constantly developing software require updated ways
to control them. Including an intuitive page widget, a more intelligent
layer controller which re sizes automatically, live update of controls from
ArtNet sources and extra parameters added to the ArtNet personality.

[e-mail] www.avolites.com

21

My rst ever experience on an Avo console was in 1987 on a Rolacue 30, the build quality and ease of programming hooked me right away.

Avolites provided control for our major arena tours; Justin Timberlake Sexy Back World Tour, Alicia Keys, Kylie Minogue X Tour and the
Coldplay X&Y Tour, just an amazing console which revolutionised programming for me.

An unbroken partnership with the nest team I have ever had the privilege to work with, and never, ever once have they ever let me down,
not a single show ever failed to go up on time.

Bryan Leitch from Mirrad

Glastonbury Main Stage

792-strong par can rig controlled by 16 x Avolites ART2000 48 way 16A Dimmers

and 2 x Avolites Power Cubes

The products created and built by AVO have certainly enabled Hawthorn to deliver a huge variety of work during the 28 years we have used
AVO equipment. From the latest Ai servers, desks with features and capabilities not even dreamed about at the start, to more fundamental
dimmers, hot power with rugged use and exible patching is such an industry favourite AVO is synonymous with lighting and its control.

Martin Hawthorn from Hawthorn

Glastonbury Main Stage

792-strong par can rig controlled by 16 x Avolites ART2000 48 way 16A Dimmers

and 2 x Avolites Power Cubes

ART2020

The ART2020 was designed with contributions from industry leading
users and companies combined with 16 years of ART2000 and 40
years of Avolites dimmer knowledge to create a exible and capable
distribution and dimming system.

There is no need to have separate mains distribution or DMX splitters
making set up times faster and lowering the number of individual
components needed to put a show together.

The available modules are 12 x 16A RCBO dimmer, 12 x 16A RCBO
distribution circuits or 12 x 16A RCBO contactor module to provide
switchable mains to xtures. The modules are freely interchangeable
by the user.

The main input and the loop-out connectors are protected with an
electronically adjustable MCB and RCB combination, allowing the
breaker parameters to be controlled easily and comfortably from the
dimmer user interface.

The breaker controls enable the user to coordinate MBC and RCB
breakers in the larger system to assure isolation of faults, and prevent
large scale outages during live events.

The overcurrent range can be selected on both breaker combinations
as 125, 160, 250 and 320A, and the RCB dierential current from
30mA, 100mA, 300mA, 1A, 3A, 5A and 10A as well as the RCB delay
ranging from 20mS to 10 seconds in 10 steps.

The main and loop-out breaker electronic settings are a vital tool
to assure compliance with new regulations for temporary electrical
systems that are being enforced more and more.

The ART2020 is tted with a comprehensive set of safety and reliability
features which includes the ability to test the connected mains before
the system energizes, over-voltage or a missing neutral connection will

not allow the system to energize. The control system is supplied from
all three phases at the same time.

Clear indication lights are provided for the mains input both on the
front and near the mains input and loop-out connectors to show mains
connection status and if the loop-out is energized.

The three phases and the neutral current are measured and displayed,
as well as the individual main and loop-out phase and neutral currents.
The system can also display Var and Powerfactor which are important
variables when working with generators.

The dierential (earth leakage) current for the main and loop-out
connectors as well as the total dierential current is displayed along
with the headroom actually setting headroom.

The dimmer is tted with a Wieland ST17 (2-pin) or ST18 (3-pin) patch
system comprising of 120 circuit outlets and up to 20 multi circuit
outlets like the 19-pin and 6 or 8 circuit Harting.

The patch is located on the top of the rack to ensure it is easily
accessible. The layout is intuitive and exible with four outlets for the
rst 12 circuits and two outlets for the remaining 36 circuits. Six single
outlets for the xed mains are provided. The patch has a switchable
patch light to allow working in the dark.

The separately supplied ST17 patch leads are tted with a custom
Avolites clip to retain the patch leads in the patch during transport.
The high retention force of the ST18 patch does not require a clip.

The familiar load test facility is provided, which is battery operated, as
well as the new load tester that can test a whole multi-core at once for
connected load and earth faults. The tester is battery operated to allow
testing before the mains connection has been provided, and is six and
eight channel multi-pin outlet standards compatible.

[e-mail] www.avolites.com

24

4

5

6

7

8

645 mm

(with Lid and wheels 1000 mm

)

2

3

4

5

6

7

8

Title Dwg Number Rev.

K-Factor

Vee Size

Copyright Avolites Ltd 2000. Written permision from Avolites Ltd is required to reproduce this drawing, or produce goods from this drawing. Do not copy or in any other way alter this drawing

)

645 mm

(with Lid and wheels 1000 mm

)

6

7

8

645 mm

(with Lid and wheels 1000 mm

)

1260 mm (with Lid 1380 mm

580 mm

To pFront Back

The Dimmer modules have 'load check' indicators for each dimmable
channel to give a positive indication that a load is present and the local
test fader on each dimmer channel to ensure that you can easily check
the connected load without having to use a console.

The multi-functional DMX distribution can act as a dual DMX splitter
with four outlets for each of the two DMX-512 5-pin XLR inputs. The
same splitter outlets can be driven from Art-net or sACN generating
two independent universes.

The ART2020 system can be provided with data either though a single
DMX-512 5 pin XLR connector or additionally with ethernet either
using Art-net or sACN protocols. The two data inputs can be HTP
merged splitter. The user can select to use one DMX-512 5-pin XLR
input as an input to the dimmer, allowing for two DMX 5-pin inputs
to be merged.

The Dimmer supports a full range of control features such as soft patch
for each channel, simple start address for a universe, curve, pre-heat
and proportional limit setting per channel.

A host of information and diagnostics tools are provided, like isolated
level data for each data input, and LED indication that Art-net or sACN
universe data is present for the two splitter universes. This all assists the
user in the complex world of mains and data distribution.

The ART2020 is supplied in a custom ight-case with wheels on the
back panel, and three lids with ergonomically placed handles. The
rack has RGB LED strips incorporated to aid working safely in dark
environments. The LEDs can be set to any of the nine colours and when
the system requires user attention the LEDs can change in colour to
clearly indicate which rack. The module RCBO breakers are discretely
lit to allow the breaker state to be seen in the dark.

• 48 dimmer or distribution circuits

• 6 additional Direct out circuits

• All nal circuits are protected with a European made RCBO

(30mA/20mS)

• Main System input breaker with adjustable trip current of 125, 160,

250 and 320A

• Separate Loop Out Breaker adjustable trip current of 125, 160, 250

and 320A

• Loop Out and System input RCB protection with Current and Trip

Delay adjustment

• Overvoltage protection during start-up

• Clear indication of Phase, neutral and dierential currents and Voltages

• Integral multi pin connector load tester

• Ergonomic layout and User Interface

• DMX-512, Art-net and sACN control input

• Build in two Universe Art-net and sACN Node with 4 outlets per universe

• USB Phone Charging point

• RGB Rack lighting, Backlit switches and illuminated Breakers

• Dedicated FOH 32A RCBO and Connector

• Fast test function with local faders

• Designed to meet new standards in temporary electrical systems

[e-mail] www.avolites.com

25

ART2000 SERIES

ART2000 T4 48 X 16A

Providing a complete solution to Dimming, Moving Light Power and
Data distribution.

No need to have separate mains distribution or DMX splitters making
set up times faster and lowering the number of individual components
needed to put a show together. The ART2000 controls up to 48
individual channels using four plug-in modules of 12 channels each.

The available modules types are:

• 16 amp 12 channel continuously rated dimming module with 250μs

rise time and local controls

• 16 amp 12 channel switch module for powering moving lights or

other equipment

• 16 amp 12 Channel Contactor module, allowing remote switching of

ballasted xtures

• 48 channels at 16 amps per channel

• Channels can be specied as dimmable, manual switch or contactor

• Excellent noise suppression with 250 μs chokes

• 100% duty cycle

• Single Pole and Neutral Disconnect breakers are available

• C-type breakers allow for high inrush currents

• Three Phase and Single Phase operation (requires option)

• Individual faders for each channel for use as channel test, scene setting

or for controlling the twelve on-board memories

• Analogue Volt & Amp meter as standard. Digital combined V&A

meter optional

ART2000 T4 48 x 16A ST18

[e-mail] www.avolites.com

26

ART2000 SERIES

ART2000 T4 48 X 16A ELDC

Film and TV Dimmers

The ART2000 range has been developed to meet the growing and
changing demands of the television, lm and industrial show and
exhibition lighting, where the use of dimmable xtures is becoming
an increasingly popular, cost effective method of lighting these
specic environments.

Within the ART2000 T4 range there are two channel
capacities, 24 x 32 amp, 12 x 63 amp and 14 x 16 amp.
The channel breakers are type C allowing for high inrush current
associated with the larger capacity luminaires. Both channels sizes
are continuously rated at 40°C ambient, and use custom made noise
suppression chokes with a rise time of 240 μs.

The ART2000 system can also be tted with Earth Leakage Breakers
that can be individually disabled per bay by the user, a “No Volt Return”
circuit assures that the RCB function is maintained after each power
cycle or re-hire, therefore adhering to the future recommendation of
the BS7909 standard for temporary mains distribution systems.

The ‘Load Check’ indicators for each dimmable channel give a positive
indication that a load is present and the local test fader on each dimmer
channel ensure that you can easily check the connected load without
having the use of a console.

The design incorporates full monitoring and status feedback via the
backlit LCD display. Static state environments are catered for using the
front panel control faders. Further 12 memories can be recorded for
later replaying either as a simple show in the event a console is not
available.

Other features include full DMX patch and merge (2 DMX lines),
dimmer curve and limit selection per channel, power OK indicators.
Analog Volt and Amp metering or optional Digital metering.

• The direct output panel for the 32 A channel has 24 x Ceeform 32 A

single phase connectors.

• 8 x 7-pin XLR Ceeform 32 A 3 phase 3 neutral connector in parallel to

each 3 channels can be added as an option, which is particularly suitable
for sub-distribution on set, thereby reducing cabling runs and cost.

• The direct output panel for the 63 A channel has 12 x 63 A Ceeform

single phase connectors tted.

• The mains input can be on Single Pole Connectors such as Powerlock,

Camlock with an optional Loop out.

• ELDC breaker system option available

ART2000 T4 24 x 32A

[e-mail] www.avolites.com

27

ART2000 SERIES

4

5

6

7

8

Title

JB Toby

Creation DateDesigned

Dwg Number

Console weight:

Copyright Avolites Ltd.Written permision from Avolites Ltd is required to reproduce this drawing.Do not copy or in any other way alter this drawing.

Flight Case dimensions:

Rev

1190 (H) x 590 (W) x 870 (D) 1000 inc. wheels

ART2000 T4

2

3

4

5

6

7

8

Title

Avolites Ltd
184 Park Avenue
Lonodn NW10 7Xl

JB Toby

toby.roworth

Creation DateDesigned

Drawn

Creation Date

Dwg Number

Console weight:

Flight Case weight:

Cardboard box dimensions:

Copyright Avolites Ltd.Written permision from Avolites Ltd is required to reproduce this drawing.Do not copy or in any other way alter this drawing.

Flight Case dimensions:

Rev

636mm

1085mm

inc. latches

654mm inc. latches

1190 (H) x 590 (W) x 870 (D) 1000 inc. wheels

1195 (H) x 595 (W) x 880 (D) 1005 inc. wheels

200 kg

ART2000 T4

18/05/2016

2

3

4

5

6

7

8

654mm inc. latches

The mains input can be on Single Pole Connectors such as Powerlock,
Camlock with an optional Loop out.

The ‘Load Check’ indicators for each dimmable channel give a positive
indication that a load is present and the local test fader on each dimmer
channel ensure that you can easily check the connected load without
having the use of a console.

The design incorporates full monitoring and status feedback via the
backlit LCD display.

583mm inc. latches

inc. latches

ART2000 T4 12 X 63A

Static state environments are catered for using the front panel control
faders. Further 12 memories can be recorded for later replaying either
as a simple show in the event a console is not available.

Other features include full DMX patch and merge (2 DMX lines),
dimmer curve and limit selection per channel, power OK indicators.
Analog Volt and Amp metering or optional Digital metering.

• ELDC breaker system option available

654mm inc. latches

1067mm

561mm

Front

ART2000 T4 dimensions - other versions may vary

[e-mail] www.avolites.com

1085mm

636mm

Side

To p

Avolites Film and TV dimmers have been used on The Harry

Potter series, The Lord of the Rings, Avengers Assemble, James

Bond, Game of Thrones, Mission Impossible, and many more…

28

POWER CUBE

A Complete Dimming, Mains and Data
Distribution Solution in One Box

The compact box with proven ART2000 technology is quick
to set up. It boasts 12 dimmer circuits at 10amp each, 6
combined dimmer and xed mains.

• Dimmer and distribution channels – 10 A C type ABB breakers

• Distribution channels 16 A C type ABB breakers (5 - 10x I

nominal inrush current)

• Captive Mains tail of 1.2m H07R 5x 10 mm² tted with a

63 A 5-pin Cee connector

• Mains supplies either 63 A 3phase+N TN-S or 63 A single

Phase +N

• Mains inlet breaker 63 A D type ABB breakers (10 - 15x I

nominal inrush current)

• Three individual single phase 63 A 30 mA residual current

breakers to protect operators. Each RCB protects one phase,
therefore increasing the selectivity of the RCB protection.
(BS7909 requirement)

• Mains breaker is a four pole unit that also protects the Neutral

wire which is important in case of single phase operation

• Socapex or Harting output connectors available

• Flight-case and dimmer provide for easy storage of this cable

• Weight 43 kg

520.00mm

512.00mm

[e-mail] www.avolites.com

29

440.00mm

SideFront Back

Omnia by Hakkasan

Caesaers Palace, Las Vegas

Innity EX8, Sapphire Touch and Quartz

Omnia by Hakkasan

Caesaers Palace, Las Vegas

Innity EX8, Sapphire Touch and Quartz

CELEBRATING 40 YEARS OF

TOTAL VISUAL CONTROL

FROM ROCK TO OPERA

DESIGNED & MANUFACTURED IN THE UK SINCE 1976
