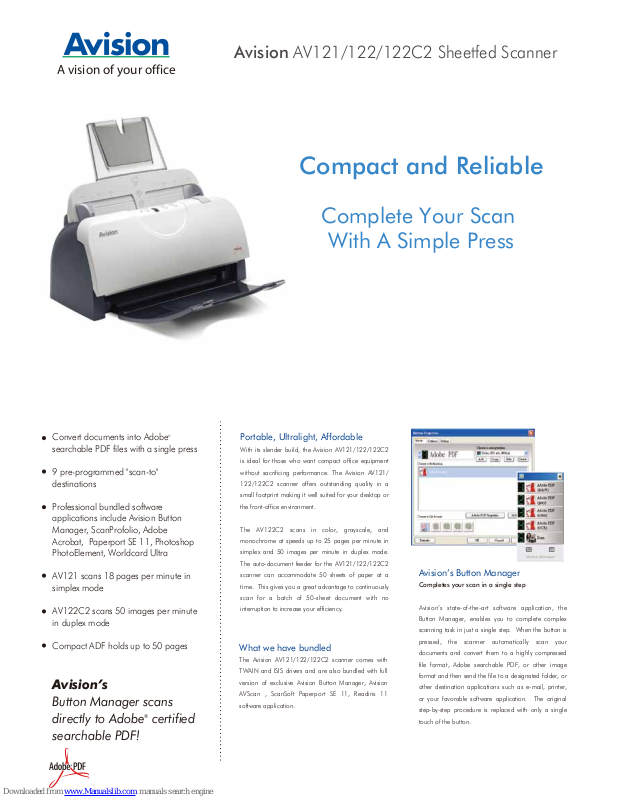

Avision AV122AV, 122C2 Specifications

A vision of your office

Portable, Ultralight, Affordable

With its slender build, the Avision AV121/122/122C2

is ideal for those who want compact office equipment

without sacrificing performance. The Avision AV121/

122/122C2 scanner offers outstanding quality in a

small footprint making it well suited for your desktop or

the front-office environment.

The AV122C2 scans in color, grayscale, and

monochrome at speeds up to 25 pages per minute in

simplex and 50 images per minute in duplex mode.

The auto-document feeder for the AV121/122/122C2

scanner can accommodate 50 sheets of paper at a

time. This gives you a great advantage to continuously

scan for a batch of 50-sheet document with no

interruption to increase your efficiency.

What we have bundled

The Avision AV121/122/122C2 scanner comes with

TWAIN and ISIS drivers and are also bundled with full

version of exclusive Avision Button Manager, Avision

AVScan , ScanSoft Paperport SE 11, Readiris 11

software application.

Convert documents into Adobe®
searchable PDF files with a single press

9 pre-programmed "scan-to"
destinations

Professional bundled software
applications include Avision Button
Manager, ScanProfolio, Adobe
Acrobat, Paperport SE 11, Photoshop
PhotoElement, Worldcard Ultra

AV121 scans 18 pages per minute in
simplex mode

AV122C2 scans 50 images per minute
in duplex mode

Compact ADF holds up to 50 pages

Avision’s

Button Manager scans
directly to Adobe

®

certified

searchable PDF!

Compact and Reliable

Complete Your Scan

With A Simple Press

Avision AV121/122/122C2 Sheetfed Scanner

Avision’s Button Manager

Completes your scan in a single step

Avision’s state-of-the-art software application, the

Button Manager, enables you to complete complex

scanning task in just a single step. When the button is

pressed, the scanner automatically scan your

documents and convert them to a highly compressed

file format, Adobe searchable PDF, or other image

format and then send the file to a designated folder, or

other destination applications such as e-mail, printer,

or your favorable software application. The original

step-by-step procedure is replaced with only a single

touch of the button.

www.avision.com

No. 20, Creation Rd. I
Hsinchu Science Park 30077, Taiwan
Tel: [phone] Fax: [phone]

Minimum System Requirements

.

Pentium 4 or higher

.

Windows®XP/2000/Vista

.

128MB RAM (256MB RAM for Windows XP)

.

CD-ROM drive

.

USB port

Contents

.

AV121/122/122C2 scanner

.

Power Supply

.

USB 2.0 Cable

.

CD-ROM includes:

-Scanner Driver

(TWAIN/ISIS Driver)

-Avision Button Manager

-Avision AVScan

-ScanSoft PaperPort

-Readiris (AV121/122)

AV121: 18 PPM

AV122: 18 PPM / 36 IPM

AV122C2: 25 PPM / 50 IPM

AV121: Simplex

AV122: Duplex

AV122C2: Duplex

Color Charged-Coupled Device ( CCD )

48 bits ( input )

24 bits ( output )

Up to 2,500 pages per day

600 dpi

CCFL

75, 100, 150, 200, 300, 400, and 600 dpi

216 mm x 355.6 mm (8.5 in. x 14 in.)

63 mm x 50 mm (2.5 in. x 2.0 in.)

16 - 28 lb. paper

Up to 50 sheets of 20 lb. paper

USB 2.0 (cable included only)

TWAIN and ISIS drivers

TIFF G4, JPEG

PDF, Multi-page TIFF and JPEG, GIF, BMP.

One-year

Input: 100-240 VAC, 50/60 Hz

Output: 24V, 2.0A

<30 W

Throughput Speed:

(at 200 dpi, A4 size)

Scanning Mode:

Scanning Technology:

Color Depth

Recommended Daily Volume:

Optical Resolution:

Light Source:

Output Resolutions:

Maximum Document Size:

Minimum Document Size:

Paper Thickness and Weight:

ADF Capacity:

Connectivity:

Interface Support:

File Compression:

File Format Outputs:

Warranty:

Electrical Requirements:

Power Consumption:

The registered brand names and product names mentioned in this document belong to each
respective holder.

The Avision scanners come with TWAIN and ISIS-compatible drivers.
Avision Button Manager scans your documents directly to Adobe certified searchable PDF file!

Avision AV121/122/122C2 Product Specifications

Avision AV121/122/122C2 Sheetfed Scanner

* Readiris: For Europe a western language edition

will be provided. For Asia except China,

an Asian edition will be provided.

A vision of your office

Button Manager

Button Manager

Energy Star name and marks, registered marks owned by the U.S. government

262-0028-0 V200

The information contained in this document(s) is subject to change without notice.

138 mm x 305 mm x 152 mm

5.4 in x 12 in x 5.9 in

AV121 2.3 Kg (5.06 lbs)

AV122 2.7 Kg (5.9 lbs)

AV122C2 2.7 kg (5.9 lbs)

Dimensions:

Weight:

PaperPort 11SE

PaperPortR provides the easiest way to turn paper

into organized digital documents that everybody in

an office can quickly find and use. PaperPort works

with scanners, multifunction printers, and networked

digital copiers to turn paper documents into digital

documents. It then helps you to manage them along

with all other electronic documents in one convenient

and easy-to-use filing system.

Readiris – Powerful and Accurate OCR
Software

Readiris is the best OCR solution for home and

professional users. Save an incredible amount of time

when converting any paper document, PDF, or image file

into digital files you can edit, archive, and share! OCR

software allowing you to convert your paper documents,

PDF files, and image files into information you can edit,

archive, and share. What is best, Readiris Pro lets you

reproduce your documents into more than 20 different

applications such as: Word, Excel, Adobe Acrobat, Internet

Explorer, Netscape, and many others.

Button Manager

Delivers and Manages Your Document
Better on the Internet

Fit for both first-time and experienced users alike

For first-time users, Avision’s Button Manager provides a

true ease-of-use with the 9 pre-configured file formats and

destinations. For advanced users, Avision’s Button

Manager makes full customization possible. For example,

you can change scan settings, file formats, or even add

new destination software application to fit your own

scanning needs.

Automatically converts to Adobe certified searchable

PDF

Incorporated with Adobe’s PDF scan library, Avision’s

Button Manager allows users to scan and convert

document to a increasingly popular and effective

compression file format, Adobe searchable PDF, to share

and manage high volume or high-resolution color

documents on the internet in an unprecedented high

quality and speed.

Avision AV Scan–
Scanning & Imaging Solution

AVScan is an intelligent scanning and electronic

filing solution. AVScan possesses distinct features

that convert and index scanned information into

electronic documents for easy storage and fast

retrieval.

The AVScan main screen

The PaperPort11SE main screen
