Avid MTRX STUDIO Data Sheet

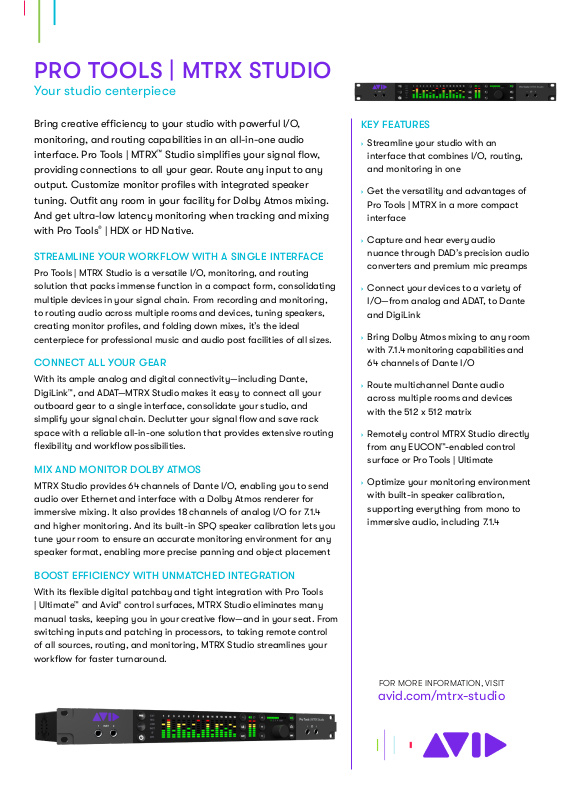

PRO TOOLS | MTRX STUDIO
Your studio centerpiece
Bring creative eciency to your studio with powerful I/O,
monitoring, and routing capabilities in an all-in-one audio
interface. Pro Tools | MTRX™ Studio simplifies your signal flow,
providing connections to all your gear. Route any input to any
output. Customize monitor profiles with integrated speaker
tuning. Outfit any room in your facility for Dolby Atmos mixing.
And get ultra-low latency monitoring when tracking and mixing
with Pro Tools® | HDX or HD Native.
STREAMLINE YOUR WORKFLOW WITH A SINGLE INTERFACE
Pro Tools | MTRX Studio is a versatile I/O, monitoring, and routing
solution that packs immense function in a compact form, consolidating
multiple devices in your signal chain. From recording and monitoring,
to routing audio across multiple rooms and devices, tuning speakers,
creating monitor profiles, and folding down mixes, it’s the ideal
centerpiece for professional music and audio post facilities of all sizes.
CONNECT ALL YOUR GEAR
With its ample analog and digital connectivity—including Dante,
DigiLink™, and ADAT—MTRX Studio makes it easy to connect all your
outboard gear to a single interface, consolidate your studio, and
simplify your signal chain. Declutter your signal flow and save rack
space with a reliable all-in-one solution that provides extensive routing
flexibility and workflow possibilities.
MIX AND MONITOR DOLBY ATMOS
MTRX Studio provides 64 channels of Dante I/O, enabling you to send
audio over Ethernet and interface with a Dolby Atmos renderer for
immersive mixing. It also provides 18 channels of analog I/O for 7.1.4
and higher monitoring. And its built-in SPQ speaker calibration lets you
tune your room to ensure an accurate monitoring environment for any
speaker format, enabling more precise panning and object placement
KEY FEATURES
› Streamline your studio with an
interface that combines I/O, routing,
and monitoring in one
› Get the versatility and advantages of
Pro Tools | MTRX in a more compact
interface
› Capture and hear every audio
nuance through DAD’s precision audio
converters and premium mic preamps
› Connect your devices to a variety of
I/O—from analog and ADAT, to Dante
and DigiLink
› Bring Dolby Atmos mixing to any room
with 7.1.4 monitoring capabilities and
64 channels of Dante I/O
› Route multichannel Dante audio
across multiple rooms and devices
with the 512 x 512 matrix
› Remotely control MTRX Studio directly
from any EUCON™-enabled control
surface or Pro Tools | Ultimate
› Optimize your monitoring environment
with built-in speaker calibration,
supporting everything from mono to
immersive audio, including 7.1.4
BOOST EFFICIENCY WITH UNMATCHED INTEGRATION
With its flexible digital patchbay and tight integration with Pro Tools
| Ultimate™ and Avid® control surfaces, MTRX Studio eliminates many
manual tasks, keeping you in your creative flow—and in your seat. From
switching inputs and patching in processors, to taking remote control
of all sources, routing, and monitoring, MTRX Studio streamlines your
workflow for faster turnaround.
FOR MORE INFORMATION, VISIT
avid.com/mtrx-studio
PRO TOOLS | MTRX STUDIO—Your studio centerpiece
SPECIFICATIONS
ANALOG AND DIGITAL I/O
Configurability Static I/O configuration
Mic/Instrument inputs 2 x 1/4"
Analog Line I/O 16 x 16 (DB25)
ADAT I/O 16 x 16
Dante I/O 64 x 64
DigiLink I/O Two 32-channel DigiLink Mini connectors (64 channels total)
Dedicated monitor outputs 2 x 1/4"
Headphone outputs 2 x 1/4"
MONITORING AND ROUTING
Cross-point digital matrix 512 x 512
Summing matrix with monitor profiles 256 x 16
Monitor Groups
Fold Downs
Group Formats
Integrated speaker calibration Built-in SPQ speaker processing with 256 filters on 16 channels;
delay management adjustable up to 150 ms per channel
ADDITIONAL SPECIFICATIONS
EUCON integration Yes
System sync Word Clock and Loop Sync via BNC connectors; Dante Sync
Supported sample rates 44.1 kHz–192 kHz
Power supply Single
Chassis 1U 19" rack-mountable unit
SYSTEM REQUIREMENTS
Pro Tools | HDX or HD Native system running Pro Tools | Ultimate
2019.12 or later and DADman 5.4.1 or later
WHAT’S INCLUDED
› Pro Tools | MTRX Studio audio interface
› Pro | Mon 3 monitoring control
› DADman software
› Two BNC cables
› DigiLink I/O License
› AC power cable
