AVer FX3000R User Manual

AVer IP Camera
User Manual
Table of Contents
LIVE VIEW .......................................................................................................................... 1
SYSTEM > GENERAL ........................................................................................................... 4
SYSTEM > GENERAL > MAINTENANCE ................................................................................... 4
To Upgrade the IP Camera Firmware ......................................................................... 5
SYSTEM > GENERAL > DATE & TIME ..................................................................................... 6
SYSTEM > GENERAL > SYSTEM LOG .................................................................................... 7
SYSTEM > USER MANAGEMENT ........................................................................................... 8
SYSTEM > USER MANAGEMENT > ACCOUNT .......................................................................... 8
To Create a User Account .......................................................................................... 8
To Delete or Edit a User Account ................................................................................ 9
SYSTEM > USER MANAGEMENT > CONNECTION................................................................... 10
SYSTEM > NETWORK ........................................................................................................ 11
SYSTEM > NETWORK > SETTING ........................................................................................ 11
SYSTEM > NETWORK > SERVER ......................................................................................... 13

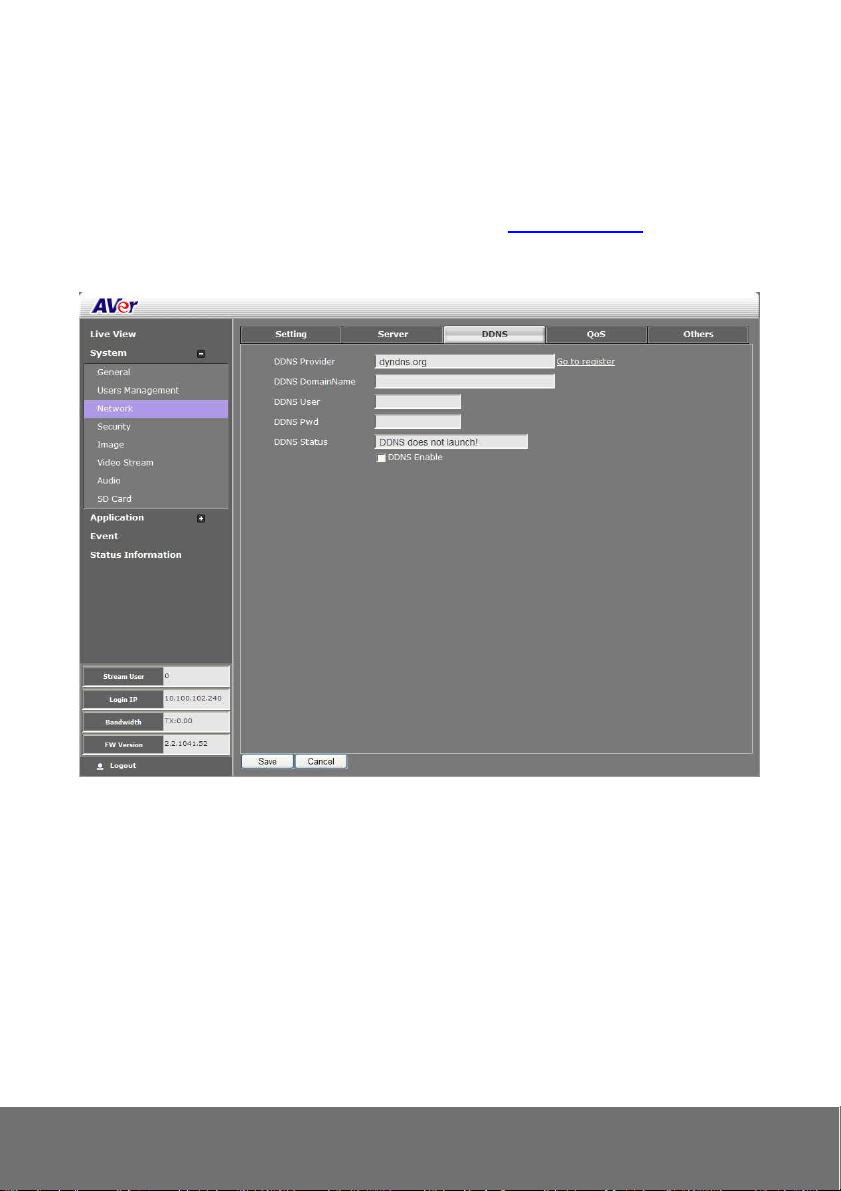

SYSTEM > NETWORK > DDNS .......................................................................................... 14
SYSTEM > NETWORK > QOS ............................................................................................. 15

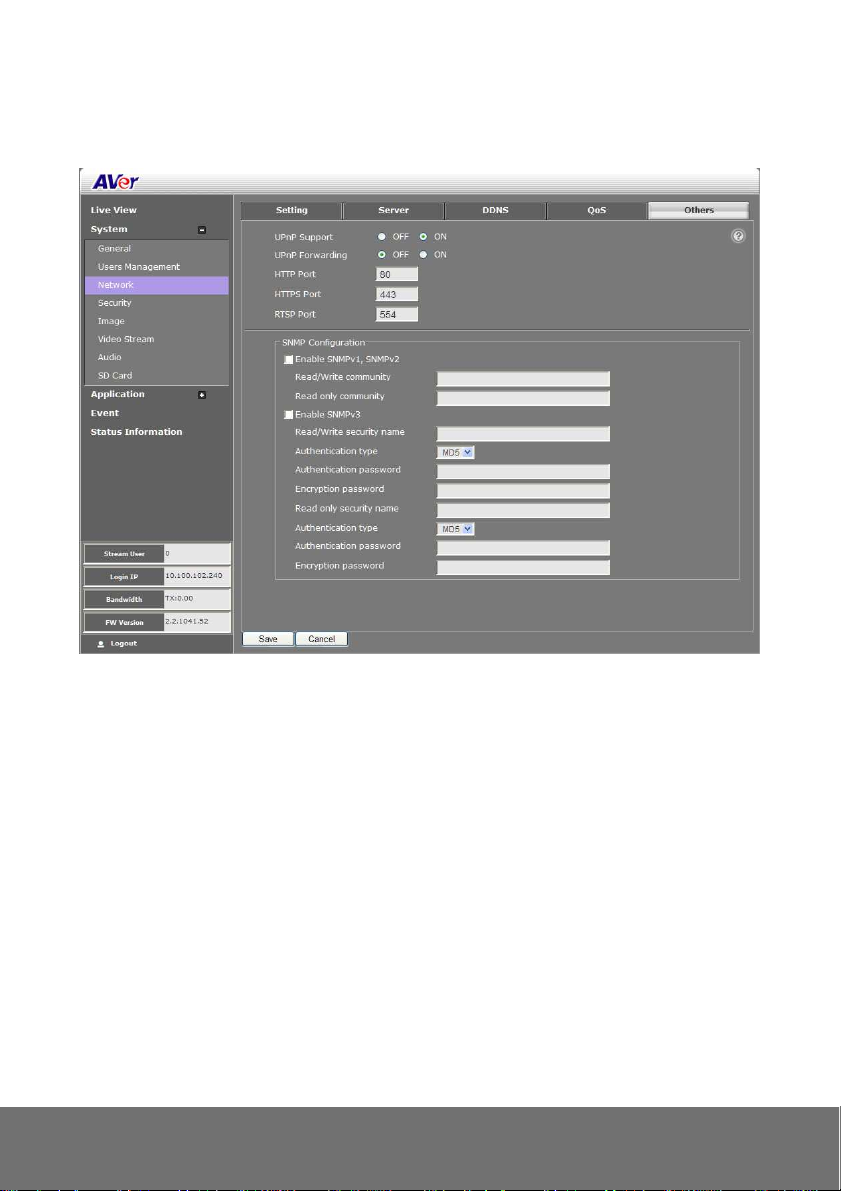

SYSTEM > NETWORK > OTHERS ........................................................................................ 16
SYSTEM > SECURITY ........................................................................................................ 18
SYSTEM > SECURITY > IP FILTER ....................................................................................... 18
To Add Filter ............................................................................................................. 18
SYSTEM > SECURITY > 802.1X ......................................................................................... 20
SYSTEM > SECURITY > RTSP AUTH. .................................................................................. 21
SYSTEM > IMAGE .............................................................................................................. 22
SYSTEM > IMAGE > OSD .................................................................................................. 22

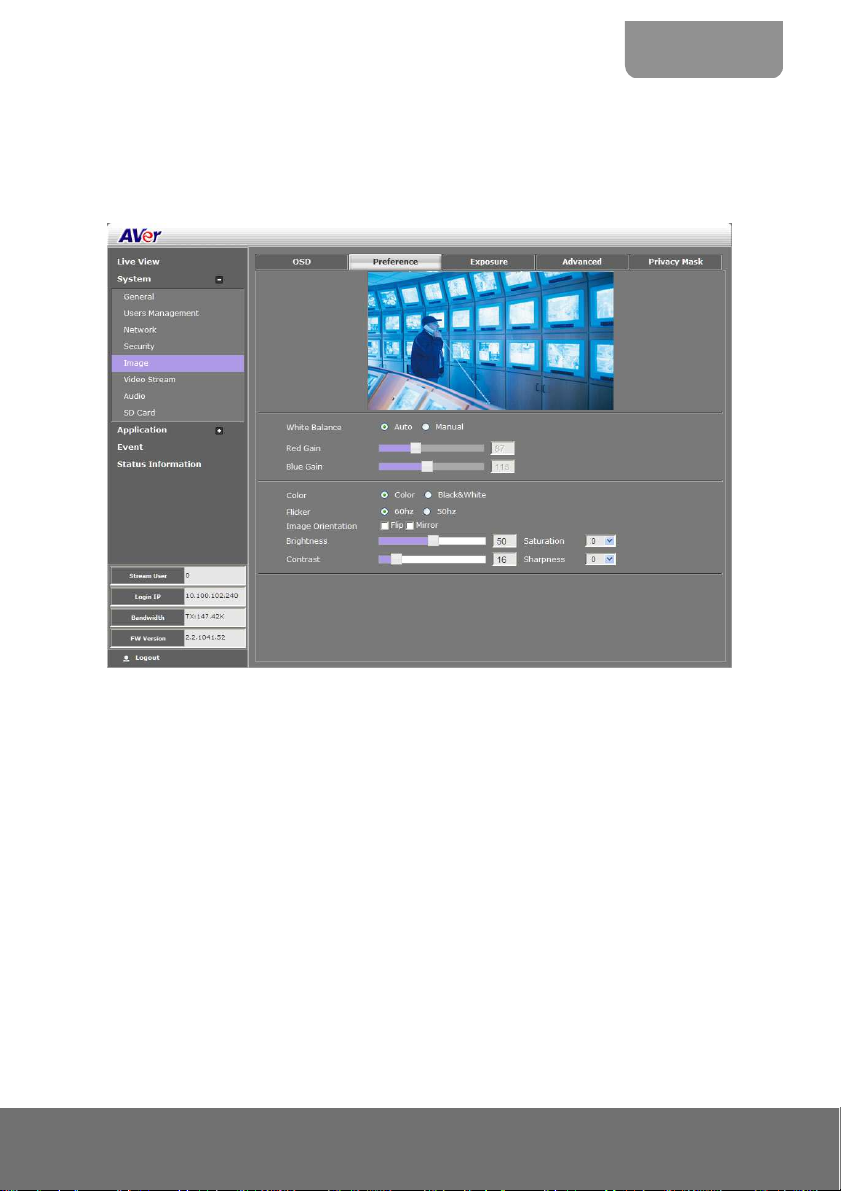

SYSTEM > IMAGE > PREFERENCE ....................................................................................... 23
SYSTEM > IMAGE > EXPOSURE .......................................................................................... 24

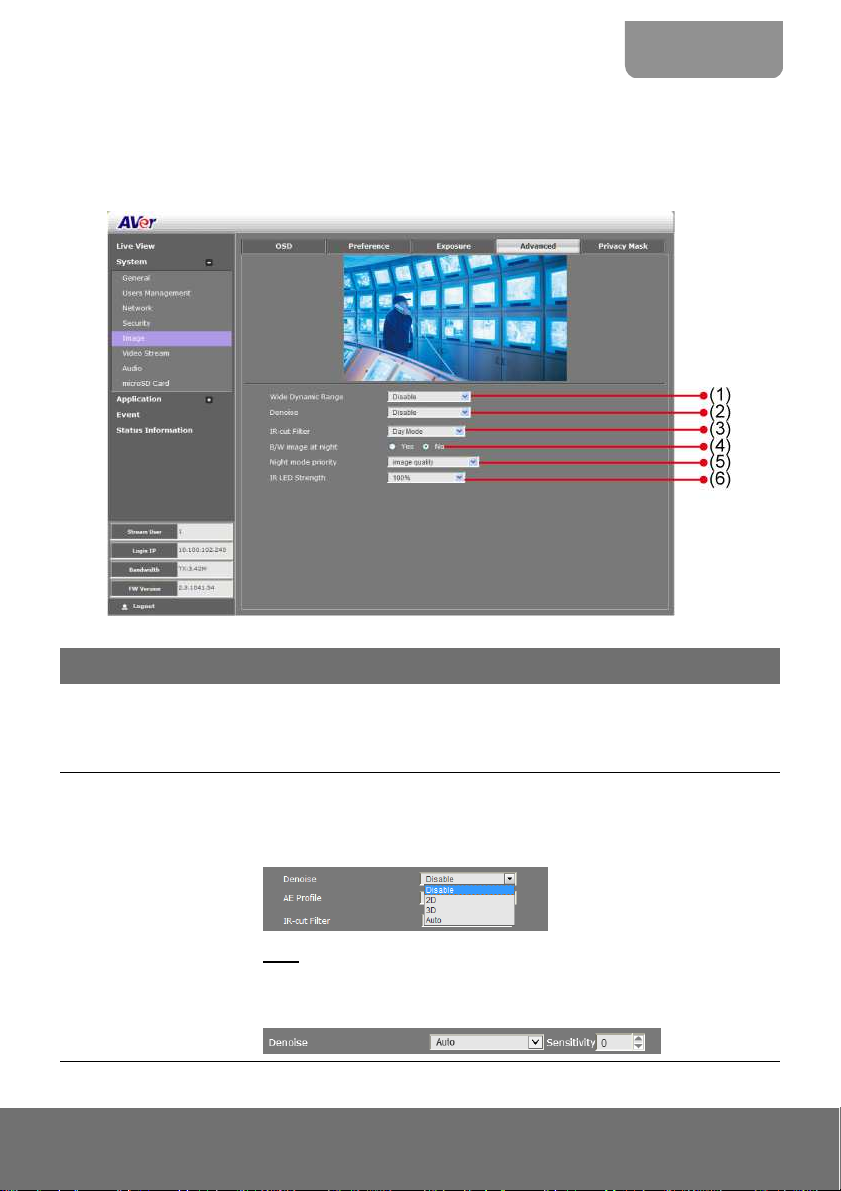

SYSTEM > IMAGE > ADVANCED........................................................................................... 25

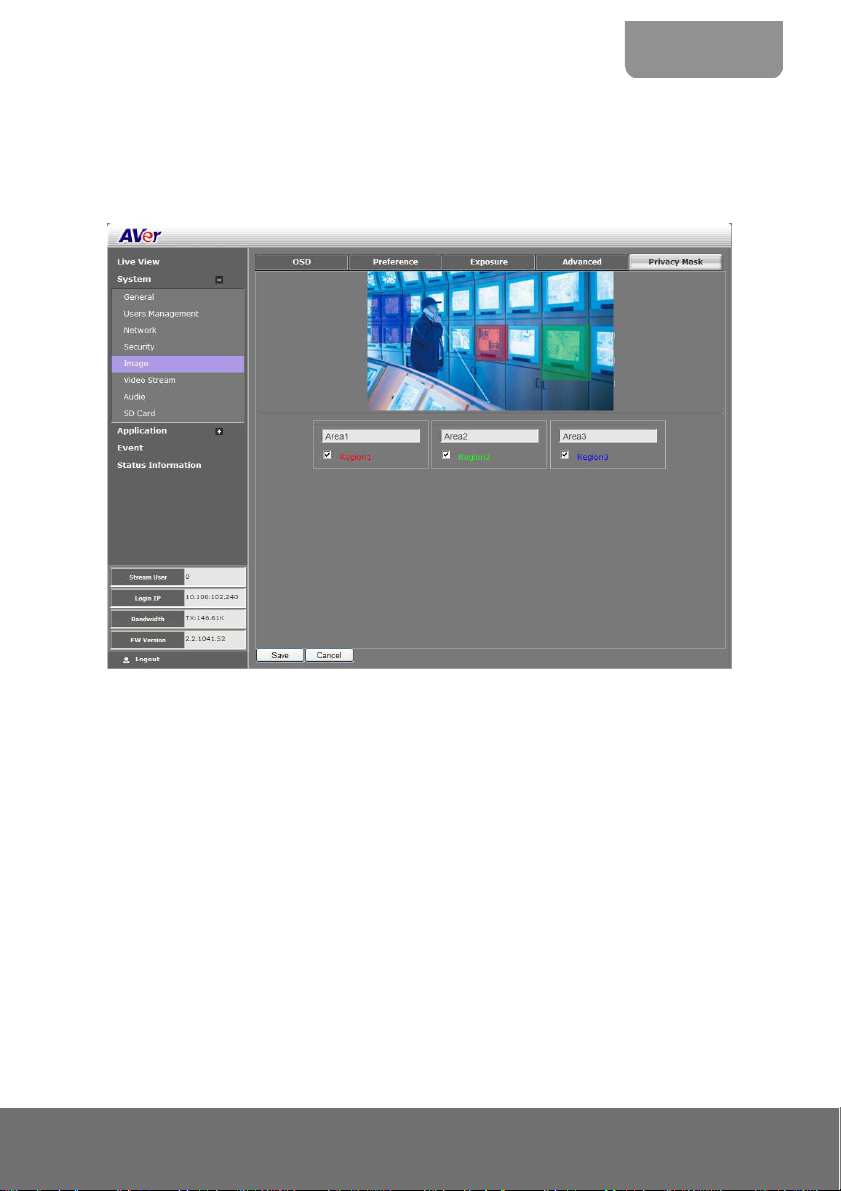

SYSTEM > IMAGE > PRIVACY MASK .................................................................................... 27

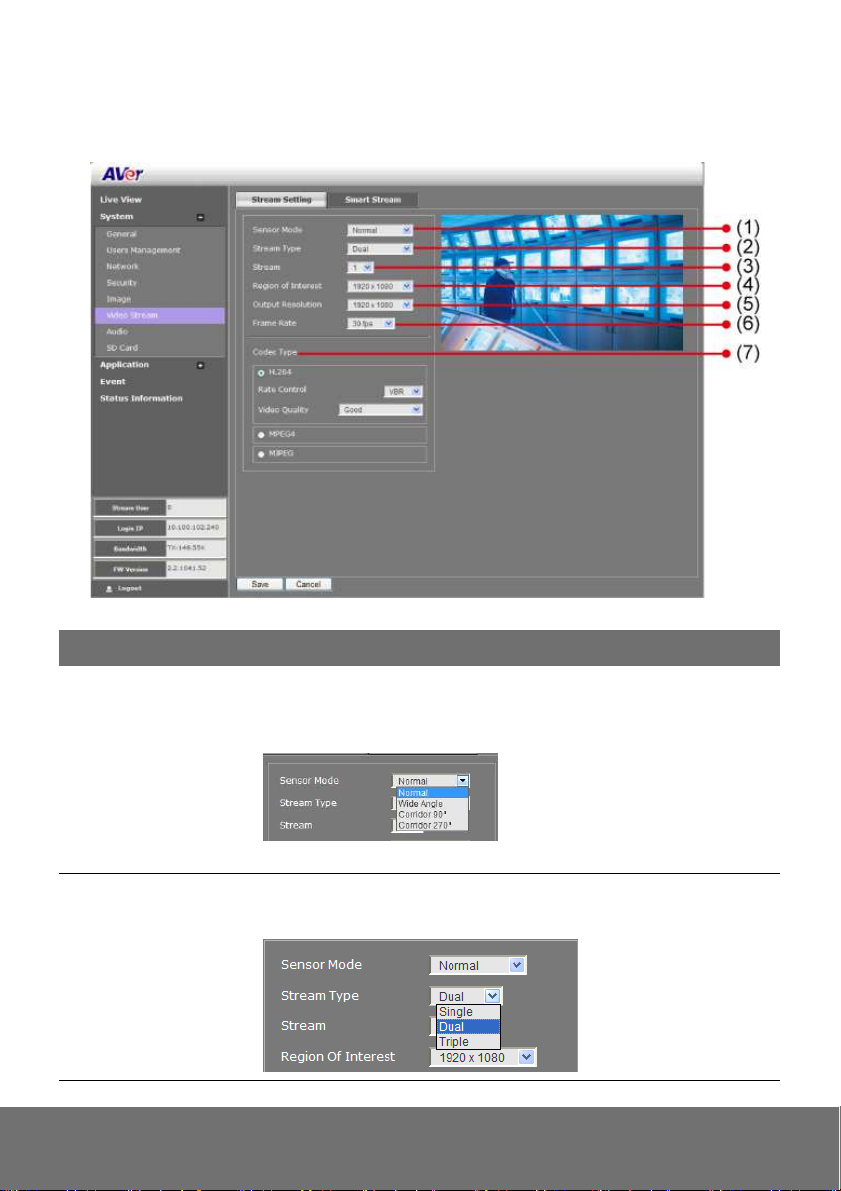

SYSTEM > VIDEO STREAM ................................................................................................. 28

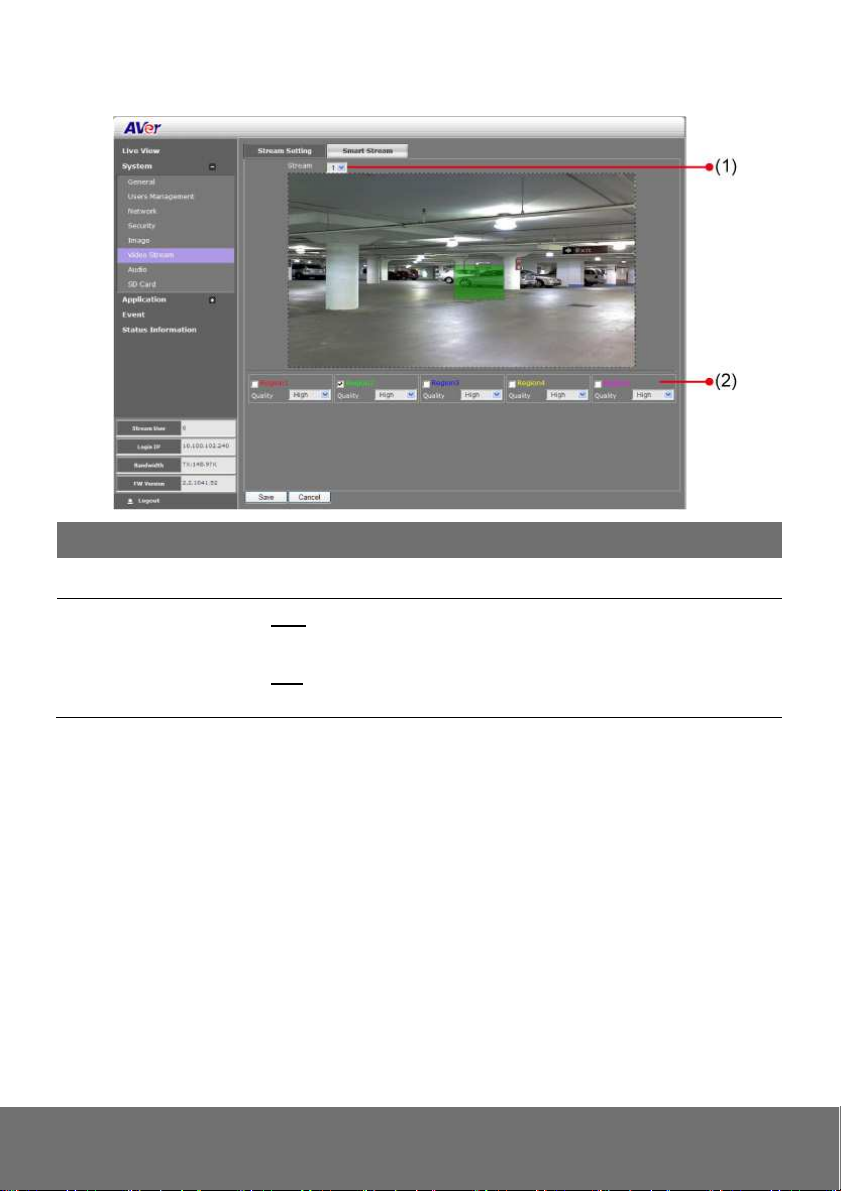

SMART STREAM ............................................................................................................... 30
SYSTEM > AUDIO .............................................................................................................. 31
SYSTEM > SD/MICROSD CARD > MANAGEMENT ................................................................. 32
SYSTEM > SD/MICROSD CARD > FILE SEARCH ................................................................... 33
APPLICATION > MOTION DETECTION ................................................................................... 34
To Set the Motion Detection ..................................................................................... 34
APPLICATION > IVA ........................................................................................................... 35
Application > IVA > Cross Detection ......................................................................... 36

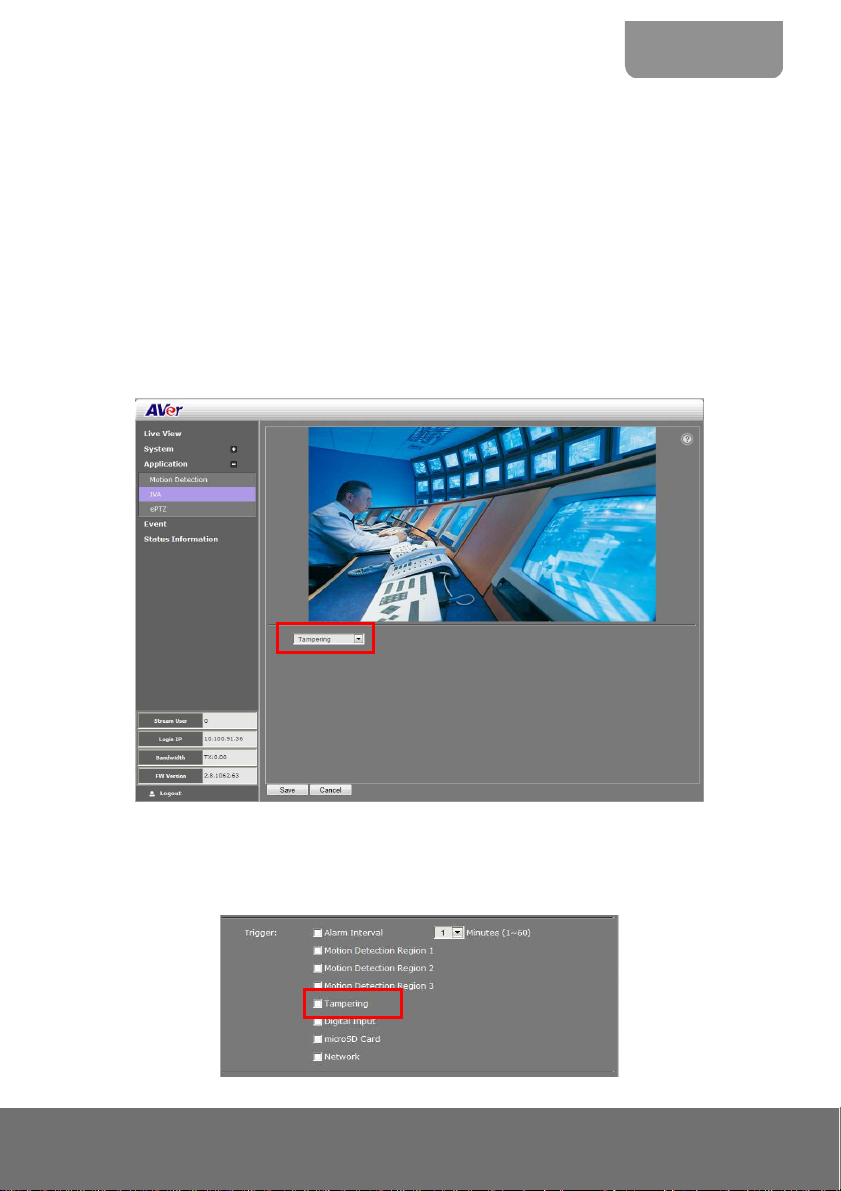

Application > IVA > Tampering ................................................................................. 37
Application > IVA > Missing Object ........................................................................... 38

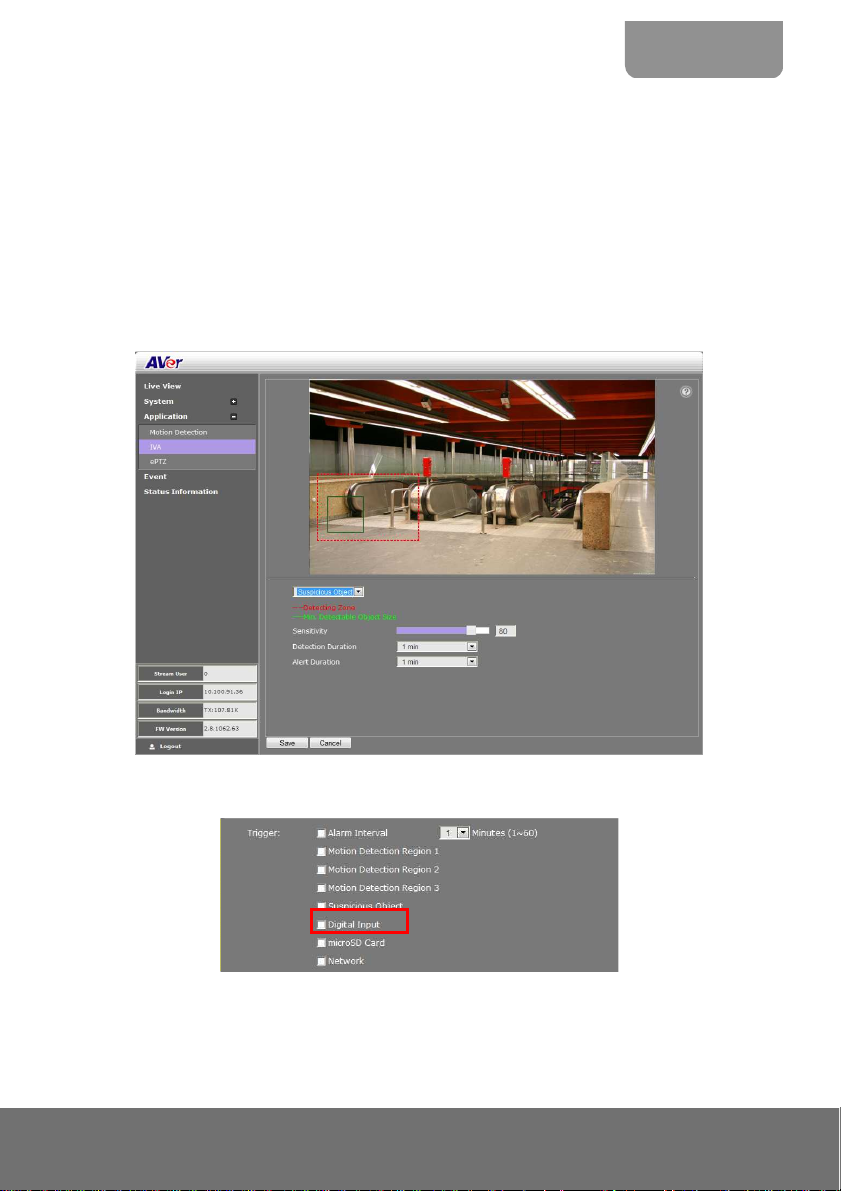

Application > IVA > Suspicious Object ...................................................................... 39
APPLICATION > EPTZ ........................................................................................................ 40
To Setup the ePTZ .................................................................................................... 40

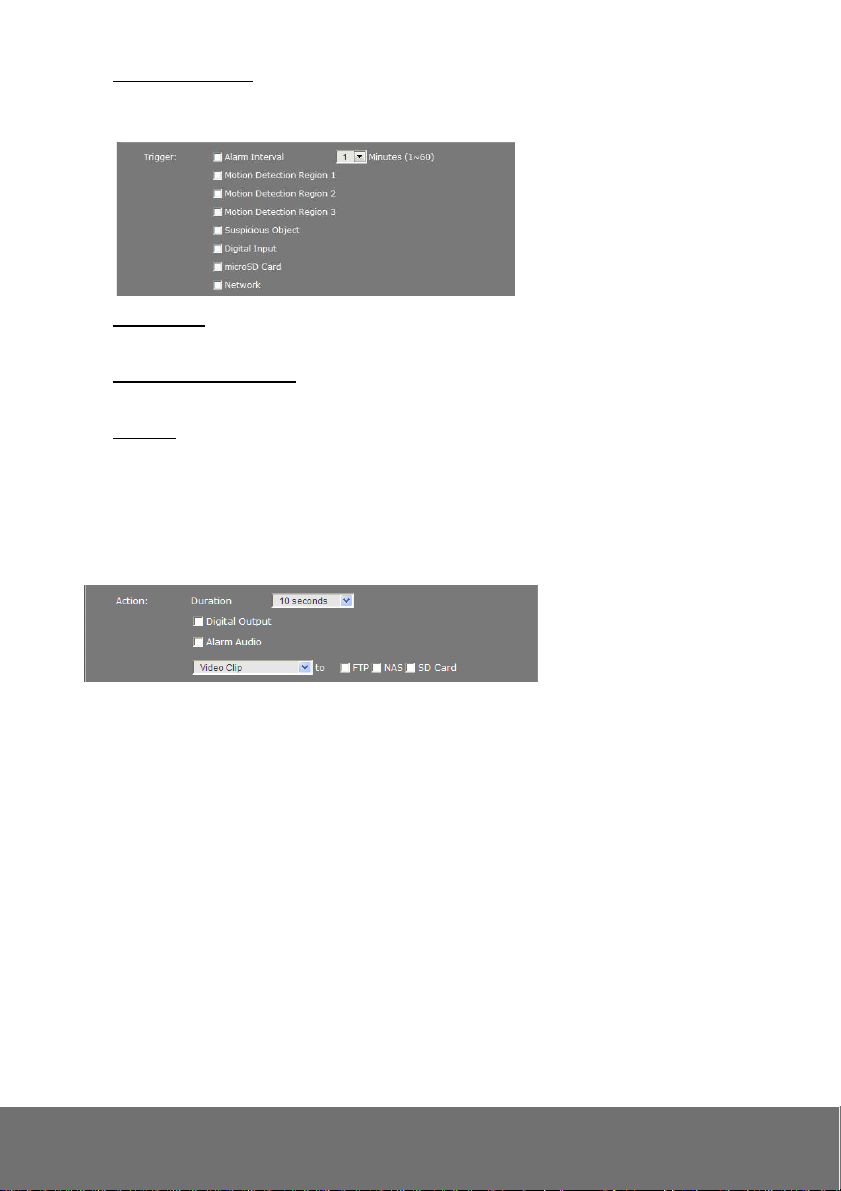

EVENT SETTING ............................................................................................................... 42
To Setup the Event ................................................................................................... 42
STATUS INFORMATION ....................................................................................................... 45

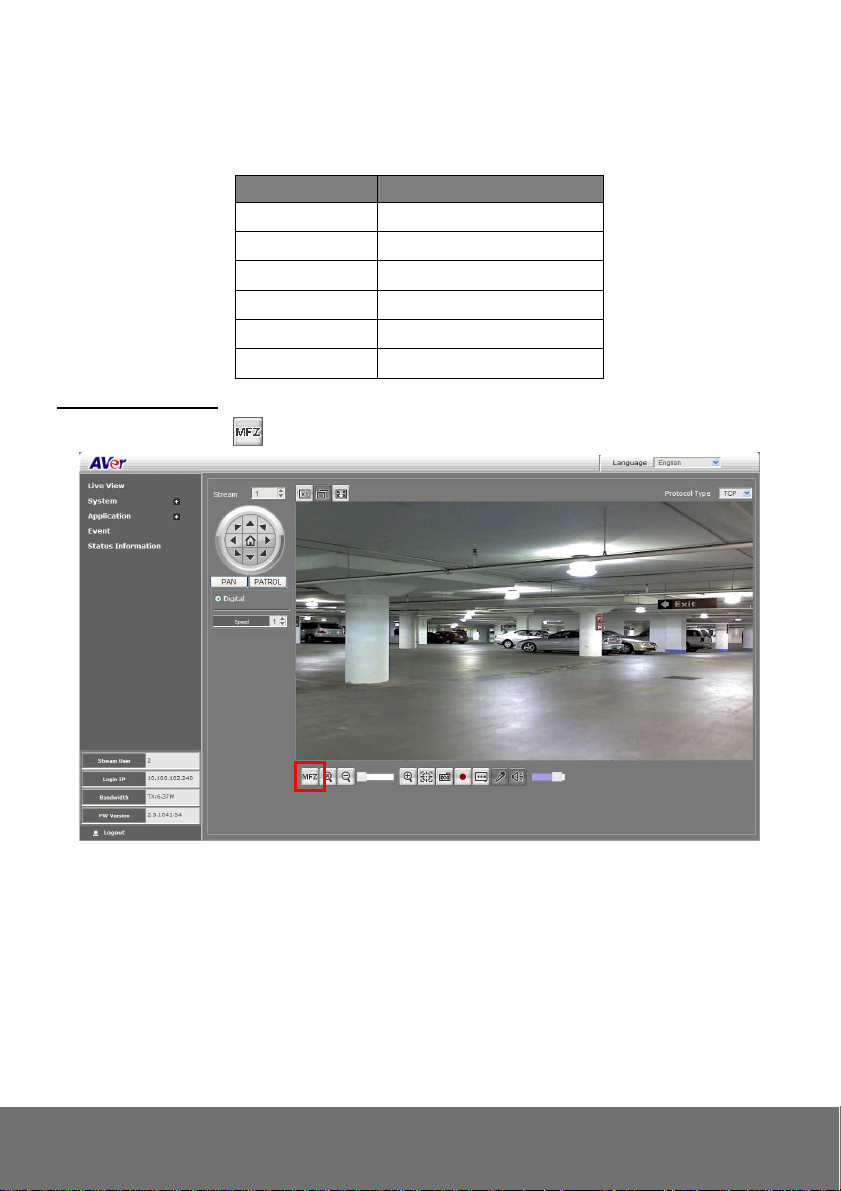

USING MFZ FUNCTION ..................................................................................................... 46
USING QUICK FOCUS ........................................................................................................ 49
USING RTSP AND ONVIF PROTOCOL TO ACCESS THE IP CAMERA ....................................... 51
COPYRIGHT ...................................................................................................................... 52
NOTICE .............................................................................................................................. 52
Using the IP Camera Browser Interface
The admin have the full access to the IP camera browser interface. The menu on the left, you can expand and navigate to access all the features.
Open the IE browser and enter the IP address of IP camera to access the IP camera Web configuration interface. In login dialog, enter the ID and Password (default is admin/admin).
ENGLISH
Live View
In the Live View page, all three user levels can view and change the language setting, the IP camera video stream setting, use the digital or RS-485 Pan and Patrol control, capture screen shot, record video, turn on/off 2-way talk, mic and volume, and adjust the zoom and volume level.
Name Function
(1) Language Select the browser interface language. (2) Protocol Type Select the protocol for the live view video stream.
1
Name Function
(3) Video screen
(4) Stream
(5) Direction buttons
(6) Pan & Patrol button
(7) Digital /RS-485
(8) Speed control (9) MFZ function
Change the video screen display.
Display the actual video pixel size. Display the video screen in compact size. Display the video on the entire screen. Press ESC to exit full
screen mode.
Switch to view the video stream type. The IP camera can send multiple video streams of up to 3 types. To change the video stream setting, go to System > Video Stream.
- Use to move the position of the view point while in zoom mode.
- Use to control the position of the RS-485 pan tilt device Pan: automatically move the view point from left to right when in
zoom in mode. Patrol: automatically move the view point around the preset locations in Application > Patrol.
- Select Digital to control the IP camera ePTZ operation. This allows you to closely view the target area without having to physically move the IP camera. The image will be zoomed in and you can use the direction control to pan the zoomed image.
- Select RS-485 to control the PTZ driver or scanner via RS-485 connection to I/O terminal block. The IP camera is mounted on an RS-485 pan tilt device.
Set the speed when panning, tilting, or zooming. Motorized focus and zoom the IP camera(see aslo Using MFZ
Function)
(10) Zoom control
(11) Quick Focus
(12) Capture
Reset zoom level. Increase zoom level. Decrease zoom level.
It help user to adujst foucs of IP camera more easily(see aslo Using
Quick Focus).
Capture and save the image on the screen in *.bmp format.
2
Name Function
ENGLISH
(13) Record
(14) 2-way talk (15) Mic (16) Sound (17) Volume bar
Start/stop audio and video recording. The recorded video will be
saved in *.mp4 format.
Enable/disable mic from IP camera browser side. Enable/disable mic from the IP camera side. Enable/disable audio from the IP camera side.
Adjust the volume.
3
System > General
In this section, only admin level is authorized to configure the IP camera general settings. There are 3 tabs in General settings: Maintenance, Date & Time, and System Log.
System > General > Maintenance
In the Maintenance tab, the admin can easily backup and restore the IP camera setting, reboot the IP camera, reset all the settings to factory default, and upgrade the IP camera firmware.
Name Function
(1) Reboot Restart the IP camera.
(2) Information Displays the explanation of Reboot, Reset, and Factory default.
(3) Reset Set all the configuration settings back to default except the user
management and network settings.
(4) Factory Default Set all the configuration settings back to factory default.
(5) Export Settings Backup all the configuration settings.
4
Name Function
(6) Import Settings Restore or replace the current settings with the backup file.
ENGLISH
(7) Firmware Upgrade
Upgrade the firmware to the latest version.
To Upgrade the IP Camera Firmware
1. Download the file from our website and save it in your computer hard disk.
2. Click Browse. Locate and select the file and click Open.
3. Click Apply. Wait till you see the massage “Firmware Upgrade OK!!”. You may now click the IE browser refresh button or press F5. The login page will appear.
5
System > General > Date & Time
In the Date & Time tab, admin can manually set the date and time setting or synchronize it with the Internet time server or the computer date and time setting. This is used to record the time whenever there is a significant occurrence listed in system log and is also used in event scheduling. After completing the setting, click Save to apply the new setting and Cancel to keep the old setting.
Name Function
(1) Current Date & Time Display the current date and time setting.
(2) Date Format Select the date display format.
(3) Time Zone Set the local time zone.
6
Name Function
(4) Setting Method Select the date & time setting method.
Sync with current PC: obtain the date and time setting on the current login computer. Sync with NTP Server: obtain the date and time setting from NTP server. In the drop-down list, select the NTP host name.
Manual: manually set the date and time. Click Now to set the date base on the computer time setting and Done to close the date and time interface.
System > General > System Log
ENGLISH
In the System Log, admin can view and search the significant event occurred in the IP camera.
7
System > User Management
In User Management, only admin level is authorized to create, delete, and edit account to connect to the IP camera and configure the client connection setting. There are 2 tabs in User Management setting: Account and Connection.
System > User Management > Account
In Account page, admin can create, delete and set the access level of the user account.
To Create a User Account
1.
Click System > User Management > Account tab.
2.
Enter the User Name, User Info, and select the User Type. Then, click Create.
User Type Access rights
Admin Allow to access all the configuration pages.
Operator Allow to preview live image, modify and adjust certain settings; except in
System > General, User Management, Network, and SD/microSD Card > Management. As for the I/O Control, admin could enable/disable to allow operator to access it.
Viewer Only allow to access the preview and status information pages.
8
3.
Enter the same password in Password and Confirm Password column. Then click Add.
ENGLISH
To Delete or Edit a User Account
Select the user account that you want to delete or edit.
Click Cancel to cancel the operation. Click Modify to apply the new changes. Make sure to edit the account before clicking the Modify
button.
Click Remove to delete the account.
9
System > User Management > Connection
In Connection page, admin can set the total number of user for accessing the IP camera, and filtering the IP address to allow or deny accessing the IP camera.
Http Connection: Select the connection type. For higher security data transmission level, select http & https or http only. The authenticated and encrypted the data is over the SSL (Secure Socket Layer).
Maximum Number of Clients: Select the max number of users to simultaneously access the IP camera.
10
System > Network
ENGLISH
In this section, only admin level is authorized to configure the Network settings.
System > Network > Setting
In Setting page, you can configure the type of network connection for IP camera and assign name for the IP camera. Depending on the network connection, IP camera can be accessed from the computer within the same local area network (LAN) or anywhere with Internet connection. After completing the setting, click Save to apply the new setting and Cancel to keep the old setting.
Name Function
(1) Device Name Assign name for the IP camera.
(2) Network HW Switch
Enable/disable to use the IP camera DIP switch network setting. If this is enabled, make sure the DIP switch behind the IP camera is set properly. * ( Available for FX series and SF2121H-R Box type only )
11
Name Function
(3) Network Type Select the type of IP camera network connection.
DHCP: select this option to automatically obtain an IP address from the DHCP server, whenever the IP camera is connected to the network. You can use the IP camera UPnP Discovery software in the CD to easily setup the IP camera network.
Static IP: select this option to manually assign a fix IP address to the IP camera.
PPPoE: select this option to access the IP camera anywhere with Internet connection. To use this option, this requires an account provided by the ISP. Set this setting while connected to the LAN and click Save. Connect the IP camera directly to DSL or cable modem.
(4) IPv6 Settings Enable IPv6 support
Select “Manually set the IP address” to specify IP address manually.
12
ENGLISH
System > Network > Server
In Server page, you can configure the Email, FTP, and NAS setting. It is necessary to configure the server settings so that IP camera can perform the task in the Event setting when a trigger is activated. You can configure either one or all of it. After completing the setting, click Save to apply the new setting and Cancel to keep the old setting.
13
