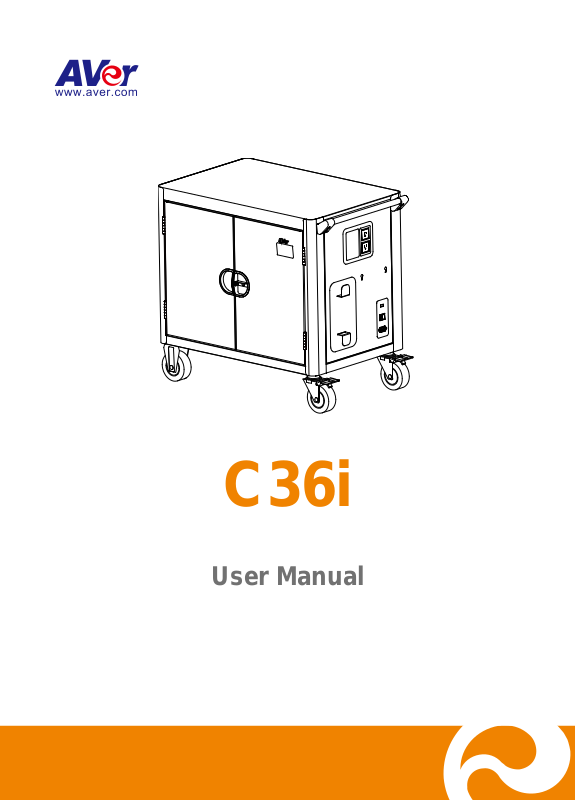

Aver C36I User Manual

C36i

User Manual

FCC NOTICE (Class A)

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Federal Communications Commission Statement

NOTE- This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by tuning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/television technician for help.

Class A ITE

Class A ITE is a category of all other ITE which satisfies the class A ITE limits but
not the class B ITE limits. Such equipment should not be restricted in its sale but
the following warning shall be included in the instructions for use:

Warning - This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.

European Community Compliance Statement (Class A)

This product is herewith confirmed to comply with the requirements set
out in the Council Directives on the Approximation of the laws of the
Member States relating to Electromagnetic Compatibility Directive

2014/30/EU.
Warning - This is a Class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take adequate
measures to correct this interference.

DISCLAIMER

The mark of Crossed-out wheeled bin indicates that this product must
not be disposed of with your other household waste. Instead, you need
to dispose of the waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and electronic
equipment. For more information about where to drop off your waste
equipment for recycling, please contact your household waste disposal
service or the shop where you purchased the product.

No warranty or representation, either expressed or implied, is made with respect
to the contents of this documentation, its quality, performance, merchantability, or
fitness for a particular purpose. Information presented in this documentation has
been carefully checked for reliability; however, no responsibility is assumed for
inaccuracies. The information contained in this documentation is subject to
change without notice.
In no event will AVer Information Inc. be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to use this
product or documentation, even if advised of the possibility of such damages.

TRADEMARKS

“AVer” is a trademark owned by AVer Information Inc. Other trademarks used
herein for description purpose only belong to each of their companies.

COPYRIGHT

© 2016 AVer Information Inc. All rights reserved.
All rights of this object belong to AVer Information Inc. Reproduced or transmitted

in any form or by any means without the prior written permission of AVer
Information Inc. is prohibited. All information or specifications are subject to
change without prior notice.

CAUTION

 To reduce risk of electric shock only use indoors.
 Only adults should move the C36i cart.
 Do not allow anyone to sit, stand, or climb on the C36i cart.
 Do not lift the C36i cart.
 Do not block the ventilation holes used for air circulation.
 Do not overload objects on the C36i shelves. (work platform maximum loading

= 45kg / 99.20lbs; each pull-off shelf maximum loading = 27kg / 59.52lbs)

 Before moving C36i cart, disconnect the power from the wall outlet.
 While moving C36i cart, make sure the power cord is secured and tightly

wrapped.

Contents

INTRODUCTION ...................................................................................................... 1

Package Contents ................................................................................................ 1

Dimensions ........................................................................................................... 2

Diagram ................................................................................................................ 2

Front ............................................................................................................... 2

Back ................................................................................................................ 3

Side ................................................................................................................. 3

Door Lock ....................................................................................................... 4

LED Indicators ...................................................................................................... 4

INSTALLATION ........................................................................................................ 5

Cable Management .............................................................................................. 5

Charging the Cart ................................................................................................. 9

Intellignet Timer .................................................................................................. 10

FIRMWARE ............................................................................................................ 10

SPECIFICATIONS ................................................................................................... 11

TROUBLESHOOTING ........................................................................................... 13

SERVICE AND WARRANTY .................................................................................. 13

Introduction

User Manual

Power Cord

C36i Cart

Slot Number Stickers x 4

C36i is an intelligent charging cart supporting that allows to charge, secure and
store a variety of mobile devices such as Chromebooks, laptops and tablets up to
14”. The embedded intelligent charging mechanism assures the devices are
safely charged in the most efficient manner. The pull-off shelves, individual
adaptor compartment, innovative plastic partition and other innovations allow
easy device management and easy cable management.

Package Contents

The following items are included in the package. Please check if each item is
available before using.

1

Dimensions

Name Card Holder

Diagram

Front

2

Back

Side

3

Door Lock

LED

Signal

Power x1

1. Solid Green: ON

2. Solid Orange: Over Current

3. Red Blink: abnormal
(Call Support)

Device Status x4

1. OFF: No Charging

2. Solid Blue: Charging

[Note]
The shackle dimension of front and back doors are limited to Ø 8mm (0.31”).

LED Indicators

4

Installation

[Note]

1. It is recommended to use cable ties (optional) to secure and manage cables.

2. It is recommended to allocate 2 human resources for efficient device cabling.

Cable Management

Back

1. Open rear door.

2. Pre-route the power adaptor cables to leave approximately 100cm (39.37”)
excess DC-end cable and 25cm (9.84”) excess AC-end power cord. Secure
the bundle cables with existing cable tie or zip-tie (not supplied).

3. Place the power adapter in to the individual adapter compartment.

4. Plug-in the AC-end power cord to the corresponding power AC socket.

5. Pass the DC-end of the adapter cable to the front of the cart through the
space provided.

[Note]
To be compatible with different power adaptor types, the bottom power strip #3 is
adjustable if necessary.

5

Front

180°

1. Open front double doors

2. Pull out each shelf until it is fully extended.

3. Release the Partition locking piece.

4. Route the adaptor DC-end cable. Along with the V-shape routing groove.

5. Snap the locking piece to firmly secure the DC-end cable.

6. Place the mobile device into the bay.

7. Plug in the DC-connector to the mobile device.

6

Adjustable Width: Configuration

The slot width can be adjusted to fit mobile devices with larger height (>3.4cm /

1.34”). C36i provides two options:

 15 bays per shelf with 4.1cm / 1.61” per slot width.
 13 bays per shelf with 4.8cm / 1.89” per slot width.

Follow the steps as below to adjust the slot width:

Remove the Plastic Partition

1. Release the locking piece.

2. Loosen the front clip.

3. Push back the plastic partition.

Paste Slot Number Stickers

1. Align the middle line.

2. Paste the left sticker (13 bays: No.1~7 / 15 bays: No.1~8)

3. Paste the right sticker (13 bays: No.8~13 / 15 bays: No. 9~15)

7

4. Repeat steps 2 and 3 to paste the stickers on bottom Shelf.

- Left: 13bays: No. 14-20 / 15bays: No. 16~23

- Right: 13 bays: No. 21-~26 / 15 bays: No. 24~30

Install the Plastic Partition

Based on the marks and aligned the slot to install the plastic partition back in.

[Note]
Release the partition docking piece before installing back in

8

Charging the Cart

1 Connect power cord to C36i cart and wall outlet.

○

2 Set the power switch to ON position to begin charging.

○

[Note]

1. Set the power switch to the OFF position before plugging the cart to wall outlet.

2.* Auxiliary outlet and power inlet type may vary as they are country dependent.

9

Intellignet Timer

36 bays for C36i are divided into 3 zones (12 bays for each zone).

Firmware

Firmware can be upgraded from the external USB type-A port via typical USB
thumb-drive. Please follow the steps as below to upgrade your Firmware:

1. Prior use, the USB thumb-drive is formatted to FAT or FAT32 filesystem

2. Copy the Firmware binary file ( *.bin) to USB thumb-drive

3. Turn OFF C36i and then insert the USB thumb-drive

4. Turn ON C36i, and the Firmware upgrade will be processed automatically. The

Power LED displays RED  AMBER  GREEN  RED…by turns and Status
LEDs are OFF during the upgrading.

5. Once the Firmware upgrade is completed, Power LED is flashing GREEN, and

Status LEDs are all ON.

6. Turn OFF C36i, remove USB thumb-drive.

[Note]
C36i supports USB thumb-drive for the following criteria:

1. FAT or FAT32 filesystem (need to format if necessary).

2. 32GB capacity maximum.

3. USB 2.0 high speed interface.

10

Specifications

Model

C36i

Capacity

36 (two shelves, 18 bays per shelf)

Tablet Support

Chromebook/Notebooks/Tablets up to 14”

AUX Outlets

2

LEDs Status Indicators

Status LED (x4): Solid Blue when charging

Charging Type

AC Receptacle

Power Specification

Two different power specification provided by
region:

100-120V~50/60Hz

- AC IN: 12A

- Power Strip (x36 ports): 8A

- AUX outlet (x2 ports): 4A

220-240V~50/60Hz

- AC IN: 8A

- Power Strip (x36 ports): 6A

- AUX outlet (x2 ports): 2A

Security

Front Door: 3-point locking mechanism with
padlock hole
Rear Door: Padlock hole

[Note] Padlock is not included in the package

Casters

Four 5” casters: two are lockable

Pull-off Shelves

Yes (x2)

Intelligent Charging
Mechanism

Yes

Working Temperature

0o~30oC

Working RH%

10%~90%

Storage Temperature

-40oC~60oC

Storage RH%

5%~95%

11

Warranty

10 years cart and tray

5 years electrical components

Cart Dimensions
(W x D x H)

97.7(W) x 60(D) x 88 (H) cm

38.46”(W) x 23.62”(D) x 34.65”(H)

Slot Dimensions
(W x D x H)

Adjustable Slot Width (36 bays/30 bays/26 bays)
36 bays: (W, D, H)

3.4(W) x 36(D) x 26(H) cm

1.34”(W) x 14.17”(D) x 10.24”(H)

30 bays: (W, D, H)

4.1(W) x 36(D) x 26(H) cm

1.61”(W) x 14.17”(D) x 10.24”(H)

26 bays: (W, D, H)

4.8 (W) x 36(D) x 26(H) cm

1.89”(W) x 14.17”(D) x 10.24”(H)

Weight without Devices

66kg / 145.5lbs

12

Troubleshooting

Q: Why do all my devices have plugged in, but they can not be charged?

A: 1. Make sure power cords are undamaged.

2. Make sure power cords have firmly inserted into the available socket with
stable current.

3. Make sure the power plug and current consumption are compliance with the
standard; the specifications to each country are different.

Q: My power cord or components are damaged. Are they covered under

warranty?

A: For the cart and tray, we supply up to 10 years warranty, and about the included

electrical components we supply up to 5 years warranty.

Q: How can I know if my devices will accept how much more than allowed

current?

A: Have a qualified electrician to verify the current consumption of your devices.

Perform the test with devices installed and batteries discharged.

Q: When I plug in the device it trips the circuit breaker. What is wrong?

A: Maybe you have other equipment or appliances to share the same circuit that

you may be overloading it. Have a qualified electrician check that adequate
power is available in the circuit.

SERVICE AND WARRANTY

All of our products come with a quality and safety assurance.
To activate your FREE service, please go on-line and register at

http://registration.aver.com/Global/Login.aspx so that we can serve you better.

13
