New in this release

The following sections detail what is new in IP Phone 1210 User Guide — CICM , (NN10300-902) for this release.
“Features” (page 7)
“Other changes” (page 7)

Features

This document is new for release CICM0110.

Other changes

There are no other changes for this release.
7
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
8 New in this release
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Overview

Nortel IP Phone 1210 brings voice and data to the desktop by connecting directly to a Local Area Network (LAN) through an Ethernet connection.
When you are logged on the system, the handset and keypad of the IP Phone 1210 operate in the same way as a standard Meridian Business Set (MBS) telephone. With the correct permissions, additional services and features can be accessed using the softkeys of the function display area. The four softkeys located below the display area can consist of a Menu softkey and three feature softkeys. The navigation keys can be used to select a particular menu option. The three feature softkeys can be configured by your system administrator to activate features provisioned on the line without having to use the dedicated feature key. The default Centrex features available on the softkeys are Transfer, Forward, and Conference. For more information, see “Softkey functionality” (page 12).
The following figure shows the location of the keys and the components of the IP Phone 1210.
9
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
10 Overview
Figure 1 IP Phone 1210 components

IP Phone terminal description

Nortel IP Phone 1210 supports the following telephony features:
four context-sensitive soft keys
volume control bar to adjust ringer, speaker, handset, and headset
volume
ability to change the programmable line DN/feature key labels
two specialized feature keys fixed telephony keys (three with LED
status)
Services
Copy
six call-processing fixed keys:
Mute
Handsfree
Goodbye
Applications
Headset
Hold
standard telephone dialpad
functional attributes:
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
multifield LCD screen, 5 line x 25 character display with antiglare

Terminal display

Nortel IP Phone 1210 display has three distinct areas:
Terminal display 11
IEEE 10/100 integrated switch with both LAN and PC ports
active Ethernet link LED indication
integrated headset port for optional third-party wired headset
visual ringing alert/Message Waiting Indicator
four-way Navigation Cluster plus Enter Key
coating
automatic network configuration
supports standard TFTP or Nortel UFTP (Unistim FTP) for firmware download.
The upper area shows line and feature key status.
The middle area shows single-line information for items such as caller number, caller name, feature prompt strings, user-entered digits, date and time information, and telephone information.
When a hard key value is all digits, the display shows a maximum of seven digits and not ten.
The lower area displays labels for the configurable softkeys. For more information, see “Softkey functionality” (page 12).
The following figure identifies each section of the display, and shows the location of the user-defined feature keys and the soft keys.
Figure 2 IP Phone 1210 display
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
12 Overview

Softkey functionality

Softkey functionality allows access to a small subset of Centrex features on Nortel IP Phone 1210 softkeys, located below the main display and to the right of the Menu softkey. The administrator has the ability to change, enable, or disable the softkeys. The default features for these softkeys are Transfer, Forward, and Conference. The softkeys can be utilized when you are not navigating the CICM menus.
The softkeys share the same display lines that are used to display information to the user, therefore, the softkey labels disappear during a call or when a feature such as call forward is provisioned.
For more information, see
CICM IP Phones Fundamentals,
(NN10300-135).

Terminal indicators

The IP Phone terminal uses light-emitting diodes (LEDs) of different colors to indicate the current state of the terminal. The following table describes each color its associated state.
A steady indicator means that the extension or feature beside it is active. A flashing indicator means the line is on hold or the feature is in the process of being programmed.
Indicator LED color Meaning
Message waiting Red (located at the top of the set) Indicates when a message is
waiting, or a call is missed. If you miss a call and the caller does not leave a voice message, the indicator is illuminated without interruption. If you miss a call and the caller leaves a voice message, the indicator may be illuminated without interruption, or it may flash or flicker or wink or twinkle or blink, depending on system administrator configuration.
Handsfree Red (located on the front near the
handsfree key)
Headset Red (located on the front near the
headset key)
IP Phone 1210
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
Lit when the handsfree feature is active.
Lit when the headset is in use.
Indicator LED color Meaning
Terminal indicators 13
Mute Red (located on the front near the
Mute key)
Link/Data Green (located on the back cover
near the network Ethernet jack)
Lit when the mute feature is active. The system administrator can configure the mute lamp to be steady on or blinking.
Lit when the link is alive and flashes to indicate activity.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
14 Overview
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

IP Phone 1210 menu systems

After you successfully log on, the menu systems are active and available. An up or down arrow beside an item indicates the navigation key you can press to scroll to the next item. Labels appear next to the soft keys, in response to items selected on the screen.
The IP Phone main menu system provides access to these menus and functions.

Logoff

Use this item to log off from the network.
See “Logging off” (page 29).

Audio

If you have permission to change the default volume on the handset, headset, and handsfree speaker, an item called Audio appears in the main menu. If you do not have permission, Audio Profile appears instead.
15

Display

Features

Use the audio menu to:
view and edit your audio profile
change the volume of the handset, headset, and handsfree speaker
select a ring tone
See “Using the Audio menu” (page 49).
Use this item to adjust the contrast level of the display.
See “Adjusting the contrast level of the display” (page 53).
Use the Feature menu to access these submenus:
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
16 IP Phone 1210 menu systems

Assign

Use the Assign menu to:
define the key type
enable and disable autoscroll
enable and disable the Inbox
See “Using the Assign menu” (page 55).

Label

Use the Label item to change a label associated with a feature key.
See “Labeling a feature key” (page 59).

Options

Use the Options menu to:
enable and disable auto hide
define your default feature
enable the Outbox feature

Reset

Language

Time

See “Using the Options menu” (page 59).
Use the Reset item to reset the feature keys to the default settings.
See “Resetting the feature key to the default settings” (page 61).
Use the Language item to select the language used in the display.
See “Selecting a language” (page 63).
Use the Time menu to:
select a time zone
enable or disable Daylight Saving Time
select the format used to display the time
select the format used to display the date
reset the time to the defaults
See “Using the Time menu” (page 65).
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210

User

History

Diagnostics

Use the User menu to:
view your user name
view your login type
enable or disable auto login feature
change your password
See “Using the User menu” (page 69).
Use the History menu to:
reset the Inbox
reset the Outbox
Use the Diagnostics item to test the local mode.
Menu hierarchy 17
See “Testing the local mode” (page 73).

Upgrade

Use the Upgrade item to perform a firmware upgrade. Use the Upgrade item to perform a firmware upgrade. This item appears in the menu only if a firmware upgrade is available.
See “Performing a firmware upgrade” (page 75).

Menu hierarchy

The following figure shows the hierarchy of the IP Phone 1210 menus.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
18 IP Phone 1210 menu systems
Figure 3 IP Phone 1210 menu hierarchy

How to use the navigation keys

The IP Phone terminal has five keys that you use to navigate the menus, and to help you to enter text in the display. See Figure 1 "IP Phone 1210
components" (page 10) for the location of these keys.
When the menu system is active, the navigation keys behave this way:
up key—return to the previous menu item
down key—go to the next menu item
left/right key—active when you can enter text. To move the cursor to
the left, press the left key. Press the right key to move the cursor to the right.
send key—select the menu item
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
.
Configuring Local Tools Menu Options
Many of the options in this section are for administrator use only. Do not make changes unless instructed by an administrator.
Your system administrator can establish a password for the Local Tools menu. When the password is enabled, a password prompt dialog box appears when you attempt to access this menu. If this happens, contact your system administrator.
Your IP Phone 1210 has both local and server-based options. Press the
Services key twice to access the Local Tools menu, which is organized
into the following submenus:
“Preferences” (page 21)
“Local Diagnostics” (page 22)
“Network Configuration ” (page 22)
“Lock Menu” (page 23)
19
If a menu entry has a number in front of it, you can select that entry by pressing the associated key on the dialpad. For example, in the Local
Tools menu, you can access 2. Local Diagnostics by pressing the 2 key
on the dialpad.
The function of some keys on the IP Phone varies depending on the situation. Navigation key functions in the menus are described in the following table:
Table 1 Navigation key functions in menus
Key Function
down key Moves the highlight down
up key Moves the highlight up
right key Select the current menu item
left key Close the menu
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
IP Phone 1210
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
20 Configuring Local Tools Menu Options
send key Select the current menu item
Enter digits on the dialpad Select the associated menu item
Stop soft key Close the menu
Navigation key functions in dialog boxes are described in the following table
Table 2 Navigation key functions in dialog boxes
Key Function
down key Scroll the window down
up key Scroll the window up
right key Go to the next Edit item
left key Go to the previous Edit item
send key Toggle Edit mode on or off
Toggle the check box status
If you are working in Edit mode, the first field of the item is highlighted and a blinking cursor is to the right of the current edit position. The navigation key functions in Edit mode are described in the following table:
Table 3 Navigation key functions in Edit mode
Key Function
down key Open the list
Move the highlight down the list
up key Move the highlight up the list
right key Select the current list item
Move the cursor to the right
left key Delete a character in the edit field
send key Select the highlighted item in the Exit edit mode
box
Enter characters or digits on the dialpad Insert characters or digits at the current cursor
position
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210

Preferences

Display Settings

Preferences 21
The Local Tools menu Preferences submenu offers the following choices:
“Display Settings” (page 21)
“Languages” (page 21)
Use the Contrast tool to alter the physical settings of the display.
Changes you make to contrast in this menu are lost if the phone is reset. Nortel recommends following “Adjusting the contrast level of the display”
(page 53).
Step Action 1 Press the Services key twice.
The Local Tools menu is displayed.
2 From the Preferences menu, select Display Settings. 3 Press the send key. 4 Press the up/down arrow keys to increase or decrease the
5 Press the Exit soft key. Changes are saved automatically.

Languages

The Languages option allows you to select the language used on your phone.
This language setting controls the language used in the local menus on your phone only. To select the language used by features on your phone, see “Selecting a language” (page 63).

Selecting the language used in local menus

Step Action 1 Press the Services key twice.
selected value.
--End--
The Local Tools menu is displayed.
2 From the Preferences menu, select Languages. 3 Press the up/down navigation keys to scroll and highlight the
desired language (for example, German [Deutsche]).
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
22 Configuring Local Tools Menu Options
4 Choose one of the following:
Press the Select soft key to save the desired language.
Press the Cancel soft key to keep existing configurations.
5 Press the Exit soft key. Changes are saved automatically.

Local Diagnostics

The Local Tools menu Local Diagnostics submenu offers the following choices:
“IP Set and DHCP Information” (page 22)
“Network Diagnostic Tools” (page 22)
“Ethernet Statistics” (page 22)
“IP Network Statistics” (page 22)
Press the Return soft key at any time while working with tools in the Local
Diagnostics submenu to return to the Local Diagnostics submenu. Use
the Return key in this way to quickly gather information and run tests
without exiting and reentering the Local Tools menu. For example, you can
check the Ethernet Statistics, then press Return and enter the Network
Diagnostics Tools to ping an IP address.
--End--

IP Set and DHCP Information

The Network Configuration tool is used to view reports about IP set and DHCP operation. This tool is for administrator use only.

Network Diagnostic Tools

The Network Diagnostic Tools menu contains tools that are used to diagnose network problems. This menu is for administrator use only.

Ethernet Statistics

The Ethernet Statistics tool is used to view reports about Ethernet operation. This tool is for administrator use only.

IP Network Statistics

The IP Networks Statistics tool is used to view reports about network operation. This tool is for administrator use only.
Network Configuration
The Network Configuration tool displays information that was configured when the IP Phone was installed. This tool is for administrator use only.
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.

Lock Menu

Lock Menu 23
Your system administrator can use the lock menu tool to protect the Local Tools menu items from accidental or unwanted changes. This tool is for administrator use only.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
24 Configuring Local Tools Menu Options
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Connecting the IP Phone to the LAN

Follow this procedure to connect the terminal to the Local Area Network (LAN), and to a power source. See Figure 4 "IP Phone connectors" (page
26).
Prerequisites
IP Phones can be powered by an AC adapter or over a LAN. Contact your installation technician to identify the correct power option.
CAUTION
Risk of equipment damage
Do not plug the IP Phone 1210 into a regular telephone jack. This causes severe damage to the terminal. Consult your system administrator to ensure that you plug your telephone into a 10/100BaseT Ethernet jack.
Step Action
25
1 Connect one end of the CAT-5 line cable to the LAN Ethernet
port, identified with a LAN icon, located on the back of the terminal.
2 Connect the other end of the CAT-5 line cable to the IP network
jack.
For a terminal sharing LAN access with a PC, connect a second CAT-5 line cable to the PC Ethernet port located on the back of the terminal, identified by the PC icon. Connect the other end of the cable to the Ethernet port on the computer.
3 For a secure power connection, thread the cord around the strain
relief, retaining hook, and channel on the back of the terminal.
4 Secure the terminal footstand to the terminal base.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
IP Phone 1210
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
26 Connecting the IP Phone to the LAN
Procedure job aid

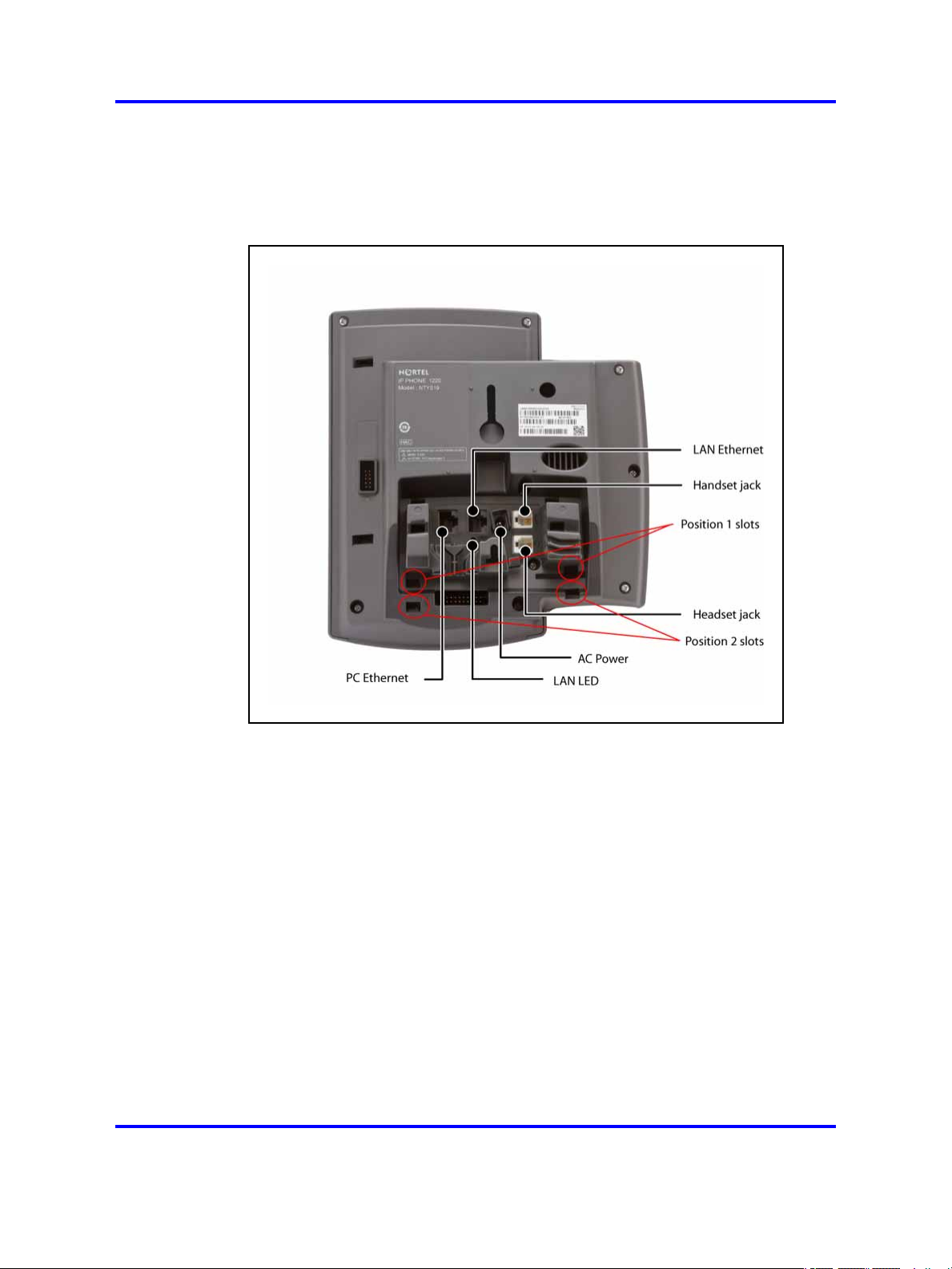

The following figure identifies and shows the location of the connectors on the back of IP Phone 1210.
Figure 4 IP Phone connectors
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
.

Logging on

Follow this procedure to log on to the network. If the Centrex IP Client Manager (CICM) is set up as part of a group of CICMs, you can choose which CICM to connect to. After you select a gateway, the terminal directs itself at that CICM and the Username screen appears.
If a firmware upgrade for the IP Phone is available, the system prompts you to upgrade when you log on. If the firmware level is between the minimum and maximum level set by the administrator, Yes and No options appear on the soft keys. If the terminal is below the minimum level, the only option available is Yes. You cannot log on until you perform the upgrade.
To perform an upgrade, see “Performing a firmware upgrade” (page 75).
Step Action
27
1 If the Selective Gateway Login feature is configured on your
system, navigate through the list to select the gateway.
2 When the gateway you want appears, press Ok, or start entering
your user name.
If the Username screen appears when you start to enter your user name, the characters you already entered appear at the beginning of the field.
3 If you make a mistake, press Clear to clear the field, and then
enter the user name again.
If your user name is too long for the display (longer than 15 characters), the digits scroll to the left and an ellipsis appears to the left of the user name.
4 Press Ok, or press the send key.
The password screen appears.
5 Enter your password. For security, the password characters are
displayed as asterisks (*).
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
IP Phone 1210
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
28 Logging on
6 If you make an error, press Clear to clear the field, and then
enter the password again.
7 Press Ok, or press the send key.
You are logged on and the Menu screen appears.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
.

Logging off

Follow this procedure to log off from the network.
Step Action 1 From the main menu, select Logoff.
2 Press Ok, or press the send key.
3 Confirm the action.
29
A confirmation screen appears.
You are logged off from the network.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
30 Logging off
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Making a call

Follow one of these procedures to make a call.
Navigation
“Making a call using off-hook dialing” (page 31)
“Making a call using handsfree dialing” (page 31)
“Making a call using predial” (page 32)
“Editing a predialed number” (page 32)

Making a call using off-hook dialing

Follow this procedure to make a call using off-hook dialing.
Step Action
31
1 Lift the handset from the cradle.
The primary line is active and you hear a dial tone.
2 Use the dialpad to enter the number. 3 When the call is answered, begin speaking.

Making a call using handsfree dialing

Follow this procedure to make a call using handsfree dialing.
See Figure 1 "IP Phone 1210 components" (page 10) for the location of the handsfree key.
Step Action 1 Press a line key.
IP Phone 1210
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
--End--
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
32 Making a call
A line is selected and you hear a dial tone.
2 Use the dialpad to enter the number. 3 When the call is answered, begin speaking. 4 For privacy, lift the handset. 5 To return to handsfree mode, press the handsfree key and place
the handset in the cradle.
The handsfree feature is active.

Making a call using predial

Follow this procedure to use the predial feature to make a call.
Step Action 1 Before you press a line key or lift the handset, use the dialpad to
enter the number.
--End--
The number is entered into the terminal.
2 When you want to make the call, press Ok, or press the send
key.
The number is dialed.
3 When the call is answered, begin speaking.

Editing a predialed number

Follow this procedure to edit a number held in the predialed state.
Prerequisites
A number must be predialed.
Step Action 1 Perform one of these steps.
To delete numbers that appear to the left of the cursor, press
Bkspc.
--End--
To delete numbers that appear to the right of the cursor,
press Delete.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
Editing a predialed number 33
2 Use the dialpad to enter the new number.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
34 Making a call
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Answering calls

Follow these procedures to answer calls. Incoming calls cause the telephone to sound and the message indicator lamp to flash.
See Figure 1 "IP Phone 1210 components" (page 10) for the location of the keys.

Answering a call

Follow this procedure to answer a call.
Step Action 1 Perform one of these actions to answer a call:
Lift the handset.
To answer a call using the handsfree feature, press the handsfree key.
35
To answer a call while wearing a headset, press the headset
key.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
IP Phone 1210
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
36 Answering calls
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Ending a call

Follow this procedure to terminate an active call.
The Goodbye key is useful for dropping out of a conference call or exiting voice mail. See Figure 1 "IP Phone 1210 components" (page 10) for the location of the key.
Step Action 1 Perform one of these actions:
Return the handset to the cradle.
The call ends.
37
Press the Goodbye key.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
38 Ending a call
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

While on an active call

Follow these procedures to put a call on hold, transfer a call, use the Mute key, and use the conference call feature.
Navigation
“Using call hold” (page 39)
“Transferring a call” (page 39)
“Using conference call” (page 40)
“Using the mute feature” (page 41)

Using call hold

The Hold feature allows you to suspend a call without terminating it. Follow this procedure to use the hold feature.
39
Step Action 1 To put a call on hold, press the Hold key.
2 Press the key beside the flashing indicator in the display.

Transferring a call

Follow this procedure to transfer a call to another extension.
The call is suspended. On the display, an indicator flashes beside the line on which the call is held.
The call is active again.
--End--
IP Phone 1210
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
40 While on an active call
Step Action 1 During an active call, press the key to which the transfer feature
is assigned.
The call is put on hold and a dial tone sounds. On the display, an indicator flashes beside the line on which the call is held.
2 Use the dialpad to enter the number to which to transfer the call. 3 When that number rings or is answered, press the transfer key
again.
The call is transferred.
4 If the call is not answered, press the line key to resume and
terminate the call.

Using conference call

Follow this procedure to engage in a conference call.
--End--
The Three Way Call (3WC) feature allows you to add three calls to a conference. If six port conference is available, you can add a maximum of
six calls to a conference. If six port conference is available, Conf appears
beside a feature key in the display.
Step Action 1 During a call, press the key to which the conference call feature
is assigned, either 3WC or Conf.
The call is put on hold and a dial tone sounds. On the display, an indicator flashes beside the line on which the call is held.
2 Dial the number of the person you want to add to the call.
At this time, you can talk privately to the person you are adding, to announce the conference.
3 Press the conference key again to merge the calls. 4 Repeat steps 2 and 3, to include a maximum of six calls. 5 If you make a mistake dialing, or a party does not want to be
included in the conference, press the extension key of the conference call to reconnect to the conference.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210

Using the mute feature

Muting prevents the transmission of sounds through the microphone. Follow this procedure to use the mute feature.
Step Action 1 While on a call, press the Mute key.
A red light is turned on to indicate the mute feature is enabled.
2 To turn off the feature, press the Mute key again.
The light turns off and the feature is disabled.
Using the mute feature 41
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
42 While on an active call
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Using call forward

Follow this procedure to forward calls to another IP Phone when you are away from your desk.
Step Action 1 To activate call forward without lifting the handset, press the key
to which the Forward feature is assigned.
2 Use the dialpad to enter the extension to which you want to
forward your incoming calls.
3 Press the forward key again.
An icon appears in the display, beside the forward key label.
4 To turn off call forward, press the forward key.
The feature is deactivated and the icon disappears from the display.
43
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
IP Phone 1210
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
44 Using call forward
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Navigating the menu system

Follow these procedures to navigate and select items from the main menu.
Menu items can be selected with a shortcut key. The shortcut key is the number on the dialpad that corresponds to the number of the menu item. Only items numbered 0 through 9 can be opened by a shortcut key.
Use the navigation keys to scroll through menus and screens. See “How
to use the navigation keys” (page 18), for details.
Navigation
“Navigating the main menu” (page 45)
“Navigating the Audio menu” (page 46)
“Navigating the Feature menu” (page 46)
“Navigating the Time menu” (page 47)
“Navigating the User menu” (page 47)
45

Navigating the main menu

Follow this procedure to open the main menu.
Step Action 1 Press Menu, or press the services key.
The main menu appears.
2 To select an item in a menu, perform one of these actions:
Select the item, and press Ok, or press the send key.
Press the shortcut key.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
46 Navigating the menu system
The selected menu appears.

Navigating the Audio menu

If you have permission to change the default volume on the handset, headset, and handsfree speaker, an item called Audio appears in the main menu. If you do not have permission, Audio Profile appears instead.
Follow this procedure to use the Audio menu.
Step Action 1 From the main menu, select and open Audio.
The Audio menu appears.
2 Perform one of these actions:
Select and open Profile.
See “Viewing and editing the audio profile” (page 49).
--End--
Select and open Default Volumes.
See “Resetting a default volume” (page 51).
Select and open Play Ring Patterns.
See “Selecting a ring tone” (page 52).

Navigating the Feature menu

Follow this procedure to open the Feature menu.
Step Action 1 From the main menu, select and open Feature.
The Feature menu appears.
2 Perform one of these actions:
Select and open Assign.
See “Using the Assign menu” (page 55).
Select and open Label.
See “Labeling a feature key” (page 59).
--End--
Select and open Options.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
See “Using the Options menu” (page 59).
Select and open Reset.
See “Resetting the feature key to the default settings” (page
61).

Navigating the Time menu

Follow this procedure to navigate the Time menu. Use this menu to configure the formats used by the display to show the time and date.
Step Action 1 From the main menu, select and open Time.
The Time menu appears.
2 Perform one of these actions:
Navigating the User menu 47
--End--
Select and open Hours from GMT.
See “Selecting the time zone” (page 65).
Select and open Daylight Saving.
See “Enabling Daylight Saving Time” (page 65).
Select and open Time Forma.
See “Setting the time format” (page 66).
Select and open Date Format.
See “Setting the date format” (page 67).
Select and open Reset.
See “Resetting the default time” (page 68).

Navigating the User menu

Follow this procedure to open the User menu.
Step Action 1 From the main menu, select and open User.
--End--
The User menu appears.
2 Perform one of these actions:
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
48 Navigating the menu system
Select and open Username.
See “Viewing your user name” (page 69).
Select and open Login Type.
See “Viewing your login type” (page 69).
Select and open Auto Login.
See “Viewing, disabling, or enabling the auto login feature”
(page 70).
Select and open Password.
See “Changing your password” (page 71).
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
.

Using the Audio menu

Follow these procedures to view and edit your audio settings. Your system administrator must grant you permission to edit your audio settings.
Navigation
“Viewing and editing the audio profile” (page 49)
“Viewing and editing the default volumes” (page 50)
“Resetting a default volume” (page 51)
“Selecting a ring tone” (page 52)
Viewing and editing the audio profile
Follow this procedure to view and edit your audio profile.
The audio profiles available to you depend on those selected by the system administrator. The administrator sets various CODECs, for example, G711, G729, and Quality of Service levels. Contact your administrator for recommended profiles.
49
Prerequisites
You must have permission to edit the audio profile. If the administrator has granted you permission, a check mark appears beside the active profile in the display.
Step Action 1 From the main menu, perform ones of these actions:
If Audio appears in the main menu, select and open Audio. Then from the Audio menu, select and open Profile.
If Audio Profile appears in the main menu, select and open it.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
50 Using the Audio menu
The Profile screen appears, showing your audio profile. If you have permission to edit your profile, a check mark appears beside the active profile.
2 If you have permission and want to edit, you audio profile, press
Ok or press the send key.
A list of available profiles appears.
3 Select the profile you want.
A check mark appears beside the selection.
4 Press Ok or press the send key, to save the setting.
The new profile is saved and you return to the main menu.

Viewing and editing the default volumes

Follow this procedure to change the default volume of the handset, headset, handsfree speaker, ringer, or buzzer.
--End--
Step Action 1 From the main menu, select Audio.
2 From the Audio menu, use the up/down cursor keys to select
Default Volumes and press Ok.
3 You are now presented with a list of audio devices whose default
volumes may be adjusted. Use the up/down cursor keys to find
the device you wish to adjust and press Ok.
4 If you selected Handset or Handsfree, another menu opens.
The selected audio device is listed on the screen and the current default volume setting is depicted in a bar graph display on the screen.
5 Press the right cursor key to increase the default volume level of
the selected audio device; press the left cursor key to decrease
the default volume level of the selected audio device. Press Ok and the settings will be saved. Press Cancel to exit this menu
without saving any changes made to the default volume level for the selected audio device. Pressing reset will set the volume level to the nominal level of 0dB and save this new setting.
6 If you selected Ringer or Buzzer, another menu opens. The
selected audio device is listed on the screen and the current default volume setting is depicted in a bar graph display on the screen.
7 Press the right cursor key to increase the default volume level of
the selected audio device; press the left cursor key to decrease
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
the default volume level of the selected audio device. Press cancel to exit this menu without saving any changes made to the default volume level for the selected audio device. Pressing
reset will set the volume level to the nominal level. Press Ok and
the settings will be saved.
8 You may also press Play to hear the volume level of the ringer
or buzzer volume settings.
9 Also included in the menu for default volumes is the Help option.

Viewing and editing the dialpad feedback

Follow this procedure to view and edit the dialpad feedback.
Step Action 1 From the main menu, select Audio.
2 From the Audio menu, use the up/down cursor keys to select
Dialpad feedback.
Resetting a default volume 51
--End--
You are now presented with a list of options for Dialpad feedback. A check mark appears beside the current selection.
3 To change the settings, use the up/down cursor keys to find the
option you want and then press Ok.

Resetting a default volume

Follow this procedure to reset the default volume of the handset, the headset, or the handsfree speaker.
Step Action 1 From the main menu, select and open Audio.
The Audio menu appears.
2 Navigate through the menu and select Default Volumes. 3 Select the transducer you want to reset to the default. 4 Press Ok, or the send key.
The Default Volumes menu appears.
--End--
5 Scroll through the menu and select Default.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
52 Using the Audio menu
6 Press Apply to confirm the action.

Selecting a ring tone

Follow this procedure to select a ring tone.
You can listen to a ring tone before you select it, through the Play and Stop options.
Prerequisites
The system administrator must grant you permission to change your ring tone.
Step Action
The default volume is applied the next time the transducer is used.
--End--
1 From the main menu, select and open Audio.
The Audio menu appears.
2 Scroll through the menu and select Play Ring Patterns.
The list of ring tones appears.
3 To hear a ring tone before you select it, select a ring tone from
the list and press Play.
Press Stop to stop the ring tone from playing.
4 To select a ring tone, press Apply.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
.

Adjusting the contrast level of the display

Follow this procedure to adjust the contrast level of the display.
Step Action 1 From the main menu, select and open Display
The Contrast screen appears.
2 Perform one of these actions:
To decrease the contrast, press the left navigation key.
To increase the contrast, press the right navigation key.
The percentage scale on the screen shows the degree of change. The level decreases or increases each time you press the key.
53
3 Stop pressing the key when you find the contrast you like. 4 Press Ok, or press the send key.
The current contrast level is saved and you return to the previous screen.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
IP Phone 1210
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
54 Adjusting the contrast level of the display
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Using the Feature menu

Follow these procedures to use the Feature menu.
When you access the Feature menu, a numbered list of the features provisioned on each key is displayed. The number displayed indicates the key to which the feature is assigned to your line on the Communications Server 2000.
Features are assigned by your system administrator, so the features you have available may differ from those described in this User Guide.
Changing the keys to which a feature is associated does not create new functionality.
Navigation
“Using the Assign menu” (page 55)
“Defining the key type” (page 56)
55
“Assigning a directory entry to a feature key” (page 57)
“Enabling or disabling autoscroll” (page 57)
“Enabling or disabling the Inbox feature” (page 58)
“Labeling a feature key” (page 59)
“Using the Options menu” (page 59)
“Enabling or disabling auto hide” (page 59)
“Selecting the default line key” (page 60)

Using the Assign menu

Follow this procedure to open the Assign menu.
Step Action 1 From the main menu, open the Feature menu.
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
56 Using the Feature menu
2 On the terminal, select the key that you want to assign to a
3 From the Feature menu, select and open Assign. 4 Press Ok, or press the send key.
Defining the key type
Follow this procedure to define the key type.
Each feature key can be defined in one of two ways: Central or Local. A feature key defined as Central can have a Centrex feature, such as Call Forward, assigned to it. A feature key defined as Local can have a directory entry assigned to it. By default, all feature keys are defined as Central.
different feature.
The Assign menu appears.
--End--
For further information about Centrex features, see
CICM
Fundamentals, (NN10044-111).
Step Action 1 From the main menu, open the Feature menu.
A list of the feature keys and their current assignments appears.
2 Select a key to change.
The Feature submenu appears.
3 Select and open Assign.
If the key you selected in step 2 is assigned to a Centrex feature, these soft key labels appear: Key Type and Autoscroll.
4 Press Key Type.
The Key Type screen appears. A check mark appears beside the type currently assigned to the key.
5 Perform one of these actions:
To change Central to Local, select Local.
To change Local to Central, select Central.
6 Press Ok, or press the send key.
The key type is changed and a check mark appears beside the selection.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
7 To assign a directory entry to a Local key, see “Assigning a
directory entry to a feature key” (page 57).
--End--

Assigning a directory entry to a feature key

Follow this procedure to assign a directory entry to a feature key. Assigning a directory entry to a feature key gives you the ability to speed dial that number when you press the key.
Prerequisites
The feature key you select must be defined as Local, see “Defining the
key type” (page 56).
Step Action 1 From the main menu, open the Feature menu.
A list of the feature keys and their current assignments appears.
Using the Assign menu 57
2 Select the key defined as Local.
The Assign menu appears.
3 Press Feature.
The directory contact list appears.
4 Scroll through the list and select the entry to assign to the feature
key.
5 Press Ok, or press the send key.
A check mark appears beside that entry in the directory. The number is dialed when you press the key.

Enabling or disabling autoscroll

If autoscroll is enabled, the IP Phone automatically directs you to the screen for the active feature. For example, if your secondary Directory Number (DN) is configured on screen two, and you get a call to that number, the feature screens scroll to page two. You can answer the call immediately without searching for the screen.
Follow this procedure to enable or disable the autoscroll feature.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
58 Using the Feature menu
Step Action 1 From the main menu, open the Feature menu.
2 From the Feature menu, select and open Assign.
3 From the Assign menu, select AutoScroll. 4 Press Ok, or press the send key.
5 Perform one of these actions:
6 Press Ok, or press the send key.
The Assign menu appears.
The AutoScroll screen appears.
To enable AutoScroll, select Enable.
To disable AutoScroll, select Disable.
A check mark appears beside the item to indicate your choice. You return to the Assign menu.

Enabling or disabling the Inbox feature

Follow this procedure to enable the Inbox feature. The Inbox maintains a log of the 10 most recent incoming calls.
Step Action 1 From the main menu, open the Feature menu.
2 From the Feature menu, select and open Assign.
The Assign menu appears.
3 From the Assign menu, select Inbox.
The Inbox screen appears.
4 Perform one of these actions:
To enable the Inbox, select Enable.
To disable the Inbox, select Disable.
5 Press Ok, or press the send key.
--End--
A check mark appears beside the item to indicate your choice. You return to the Assign menu.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210

Labeling a feature key

Follow this procedure to change the label associated with a feature.
If you are unfamiliar with how to use the dialpad to enter text, see “Using
the dialpad to enter text” (page 77) before you begin this procedure.
Step Action 1 From the main menu, open the Feature menu.
2 From the Feature menu, select and open Label.
The Enter Label screen appears.
3 Press Clear to delete the current label. 4 Use the dialpad to enter the new label. 5 To correct the label, press Bkspc. 6 When you have correctly entered the new label, press Ok,or
press the send key.
The new label is applied. You return to the Feature menu.
Using the Options menu 59

Using the Options menu

Follow this procedure to open the Options menu.
Step Action 1 From the main menu, open the Feature menu.
2 From the Feature menu, select Options. 3 Press Ok, or press the send key.
The Options menu appears.

Enabling or disabling auto hide

When you enable the Auto Hide feature, only those features that are relevant to the current activity on your phone appear in the display.
For example, the Call Transfer and Three Way call features can only be activated when a user has a call in progress. Auto Hide prevents features such as Call Transfer and Three Way Call from being displayed on a IP Phone while the user’s line is idle. Instead, Auto Hide will display a feature
--End--
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
60 Using the Feature menu
provisioned on the user’s line that is relevant to their current call state, such as Call Forward and Make Set Busy, (which can only be activated while the user’s line is idle). Conversely, displaying either of these features against a key while the user is active in a call is not necessary.
Some features are configured so that they are never hidden, because they are relevant when the user’s line is both idle and active.
The features relevant states are configured by your administrator.
You cannot change the administrator settings for each feature, but you can enable Auto Hide (to show only the relevant features), or disable Auto Hide (to show all features all of the time, regardless of their relevance to the current state of the phone).
Follow this procedure to enable or disable the Auto Hide feature. When you complete this procedure, you must log out, and then log back in for the functionality to take effect.
Step Action 1 From the main menu, open the Feature menu.
2 From the Feature menu, select and openOptions.
The Options menu appears.
3 From the Options menu, select Auto Hide.
The Auto Hide screen appears.
4 Perform one of these actions:
To enable Auto Hide, select Enable.
To disable Auto Hide, select Disable.
5 Press Ok, or press the send key.
A check mark appears beside your selection. You return to the Options menu.

Selecting the default line key

Follow this procedure to select a feature key to be your default line key.
--End--
Step Action 1 From the main menu, open the Feature menu.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
Resetting the feature key to the default settings 61
2 From the Feature menu, select and open Options.
The Options menu appears.
3 From the Options menu, select Default Feature.
The Default Features screen appears, showing a list of available keys.
4 Scroll through the list to select the key that you want to assign
as your default line key.
5 Press Ok, or press the send key.
The selected key is now your default line key. You return to the Options menu.
--End--

Resetting the feature key to the default settings

Follow this procedure to reset the feature keys to the default settings.
Step Action 1 From the main menu, open the Feature menu.
2 From the Feature menu, select and open Reset.
The Reset screen appears.
3 Press Yes, or press the send key.
The keys are reset to the default settings. You return to the Feature menu.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
62 Using the Feature menu
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Selecting a language

Follow this procedure to select your language preference.
Step Action 1 From the main menu, select and open Language.
A list of available languages appears.
2 Scroll through the list and select your preferred language. 3 Press Ok, or press the send key.
The terminal now displays text in the selected language.
4 Press Cancel.
You return to the main menu.
63
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
64 Selecting a language
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Using the Time menu

Follow procedures in this section to configure time and date formats.
Navigation
“Selecting the time zone” (page 65)
“Enabling Daylight Saving Time” (page 65)
“Disabling Daylight Saving Time” (page 66)
“Setting the time format” (page 66)
“Setting the date format” (page 67)
“Resetting the default time” (page 68)

Selecting the time zone

Follow this procedure to select the time zone.
65
Step Action 1 From the main menu, open the Time menu.
2 From the Time menu, select and open Hours from GMT.
The Hours from GMT screen appears.
3 Scroll through the list and select the time zone. 4 Press Ok, or press the send key.
The time displayed changes to that of the selected zone.

Enabling Daylight Saving Time

Follow this procedure to set Daylight Saving Time.
IP Phone 1210
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
--End--
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
66 Using the Time menu
Step Action 1 From the main menu, open the Time menu.
2 From the Time menu, select and open Daylight Saving.
The Daylight Saving screen appears. The word Off appears with a check mark beside it, to indicate that the feature is disabled.
3 Select On. 4 Press Ok, or press the send key.
Daylight Savings Time is enabled. The word On appears with a check mark beside it, to indicate the feature is enabled.
You return to the previous screen.

Disabling Daylight Saving Time

Follow this procedure to disable Daylight Saving Time.
--End--
Step Action 1 From the main menu, open the Time menu.
2 From the Time menu, select and open Daylight Saving.
The Daylight Saving screen appears. The word On appears with a check mark beside it, if the feature is enabled.
3 Select Off.
Daylight Saving Time is disabled. The word Off appears in the display, with a check mark beside it.
You return to the previous screen.

Setting the time format

Follow this procedure to set the time format the terminal uses to display the current time. The time format choices are:
12-hour clock
French
24-hour clock
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
Setting the date format 67
Step Action 1 From the main menu, open the Time menu.
2 From the Time menu, select and open Time Format.
The Time Format screen appears.
3 Scroll through the Time Format options to select the format you
want.
A check mark appears beside the format currently in use.
4 To enable a format, select it and press Ok, or press the send
key.
A check mark appears beside the option, to indicate that it is enabled. The time is displayed in the selected format. You return to the previous screen.
--End--

Setting the date format

Follow this procedure to set the date format the terminal uses to display the current date. When month (mmm) is selected, the display shows an abbreviated name, Oct for example, and not a number.
The date format choices are:
mmmdd
ddmmm
mm/dd
dd/mm
Step Action 1 From the main menu, open the Time menu.
2 From the Time menu, select and open Date Format. 3 Press Ok, or press the send key.
The Date Format screen appears.
4 Scroll through the Date Format options to select the format you
want.
A check mark appears beside the format currently in use.
5 To enable a format, select it and press Ok or press the send key.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
68 Using the Time menu
A check mark appears beside the option, to indicate that it is enabled. The date is displayed in the selected format. You return to the previous screen.

Resetting the default time

Follow this procedure to reset the terminal to the default time.
Step Action 1 From the main menu, open the Time menu.
2 Form the Time menu, select and open Reset.
A confirmation screen appears.
3 Confirm the action.
The terminal reverts to the default time settings. You return to the previous screen.
--End--
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
.

Using the User menu

Follow procedures in this section to view and edit your User profile.
Navigation
“Viewing your user name” (page 69)
“Viewing your login type” (page 69)
“Viewing, disabling, or enabling the auto login feature” (page 70)
“Changing your password” (page 71)

Viewing your user name

Follow this procedure to view your user name.
Step Action
69
1 From the main menu, open the User menu. 2 From the User menu, select Username.
The Username screen appears, showing your user name.

Viewing your login type

Follow this procedure to view your login type.
The terminal can operate in one of two login types:
Unique—the ability to join a session with an m6350 SoftClient is not
enabled.
Joint—the ability to operate in a joint session with an m6350 SoftClient
is enabled.
--End--
IP Phone 1210
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
70 Using the User menu
Step Action 1 From the main menu, open the User menu.
2 From the User menu, select and open Login Type.
The Unique screen appears. If Unique is enabled, Ok appears above the far left soft key.
3 Press the down navigation key to view the Joint screen.
If Joint is enabled, Ok appears above the far left soft key.
--End--

Viewing, disabling, or enabling the auto login feature

Any maintenance activity, for example a firmware upgrade, forces a log off from the network. If you enable auto login, you are automatically logged on to the IP Client Manager when the terminal is available again.
Prerequisites
You must have permission to edit the auto login feature. If you have permission, a check mark appears next to Enabled when the screen appears.
Follow this procedure to view, enable, or disable the auto login feature.
Step Action 1 From the main menu, open the User menu.
2 From the User menu, select and open Auto Login.
The Auto Login screen appears displaying your Auto Login profile.
If you do not have permission to edit this feature, the procedure is finished.
3 If you have permission to edit this feature, press Ok, or press
the send key.
The Enabled screen appears. A check mark appears if the feature is enabled.
4 Perform one of these steps.
To enable Auto Login, select Enable.
To disable Auto Login, select Disable.
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
5 Press Ok, or press the send key.
A check mark appears beside the item you selected. You return to the Auto Login screen.

Changing your password

Follow this procedure to change your password.
If you are unfamiliar with how to use the dialpad to enter text, see “Using
the dialpad to enter text” (page 77) before you perform this procedure.
Step Action 1 From the main menu, open the User menu.
2 From the User menu, select and open Password.
The Old Password screen appears. They system prompts you to enter your old password.
Changing your password 71
--End--
3 Use the dialpad to enter the old password. 4 After you enter the old password, use the dialpad to enter the
new password in the same screen.
5 Press Ok, or press the send key.
The password is changed and you return to the previous menu.
Use the new password the next time you log on.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
72 Using the User menu
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Testing the local mode

The Diagnostics menu is mainly used by an administrator for registering the terminal with a Survivable Remote Gateway.
Follow this procedure to test the local mode.
Step Action 1 From the main menu, open the Diagnostics menu.
2 From the Diagnostics menu, select Test Local Mode. 3 Press Ok, or press the send key.
A confirmation screen appears.
4 Press Yes.
The terminal transitions to its secondary IP address and temporarily disconnects from the IP Client Manager.
73
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
IP Phone 1210
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
74 Testing the local mode
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.
Performing a firmware upgrade
If a firmware upgrade for the IP Phone is available, the system prompts you to upgrade when you log on. If the firmware level is between the minimum and maximum level set by the administrator, Yes and No options appear on the soft keys. If the terminal is below the minimum level, the only option is yes. You cannot log on until you perform the upgrade.
While an upgrade is in progress, the terminal reboots and becomes temporarily unavailable.
Follow this procedure to upgrade the IP Phone firmware.
Step Action 1 From the main menu, select and open Upgrade.
The Upgrade confirmation screen appears.
2 Confirm the action.
75
A second confirmation screen appears.
3 Press Yes, or press the send key.
The firmware is downloaded.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
IP Phone 1210
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
76 Performing a firmware upgrade
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
.

Using the dialpad to enter text

Follow this procedure to use the dialpad to enter text.
On the dialpad, keys numbered 2 through 9 each have three letters associated with them. When entering text, press the key once to enter the first letter, twice to enter the second letter, and three times to enter the third letter.
Step Action 1 To enter text, find the number key associated with the letter you
want to enter, and perform one of these actions:
To enter the first letter, press the key once.
To enter the second letter, press the key twice.
To enter the third letter, press the key three times.
77
The letter appears on the display.
2 To enter special characters perform theses actions. See
“Procedure job aid” (page 78) for the list of special characters
that are available.
Press the Symbol soft key.
A list of symbols opens.
Scroll through the list and select the symbol.
Press Ok, or press the send key, to enter the symbol.
--End--
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
IP Phone 1210
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
78 Using the dialpad to enter text
Procedure job aid

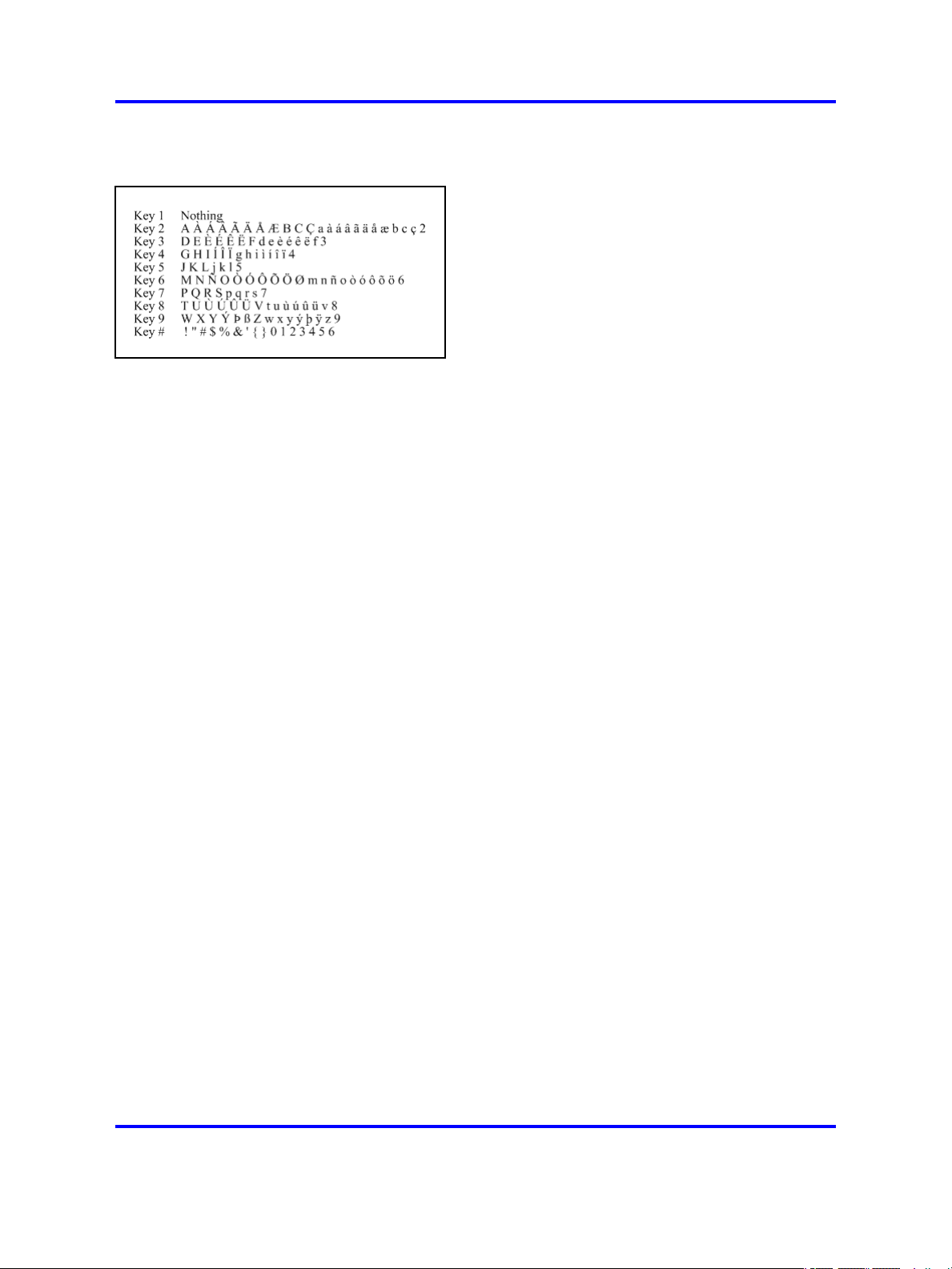

Figure 5 Special characters
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
.

Access Code summary

Contact you system administrator for a list of features available on your IP Phone, and the corresponding Access Codes.
Use this table to keep track of the feature Access Codes.
Feature Access Code Feature Access Code
79
IP Phone 1210 User Guide — CICM
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
80 Access Code summary
IP Phone 1210 User Guide — CICM
IP Phone 1210
NN10300-902 01.01 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
IP Phone 1210
IP Phone 1210 User Guide — CICM
Release: CICM0110 Publication: NN10300-902 Document revision: 01.01 Document release date: 23 July 2009
Copyright © 2006-2010 Nortel Networks. All Rights Reserved.
While the information in this document is believed to be accurate and reliable, except as otherwise expressly agreed to in writing NORTEL PROVIDES THIS DOCUMENT "AS IS" WITHOUT WARRANTY OR CONDITION OF ANY KIND, EITHER EXPRESS OR IMPLIED. The information and/or products described in this document are subject to change without notice.
Nortel, Nortel Networks, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
All other trademarks are the property of their respective owners.www.nortel.com
Loading...
