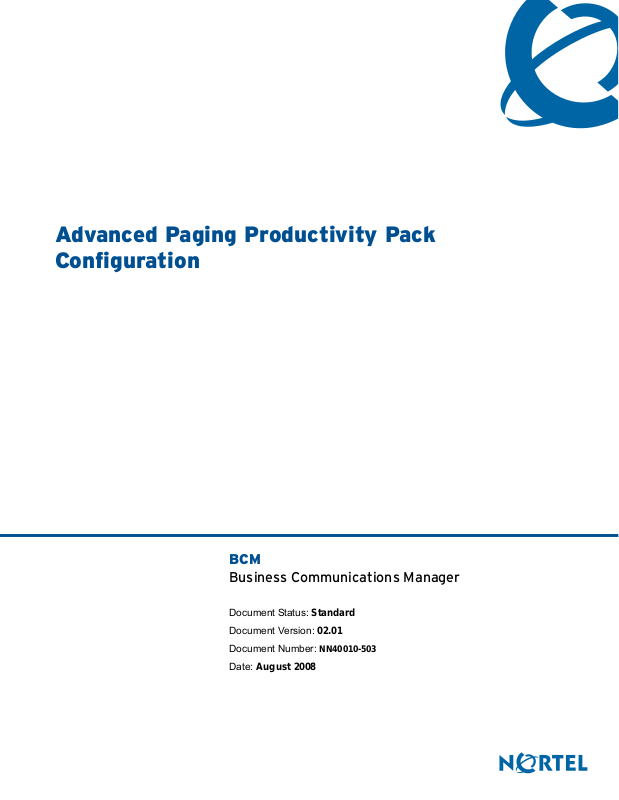

Advanced Paging Productivity Pack
Configuration
BCM
Business Communications Manager
Document Status: Standard
Document Version: 02.01
Document Number:
Date: August 2008
NN40010-503
Copyright © Nortel Networks 2007–2008, All rights reserved.
The information in this document is subject to change without notice. The statements, configurations, technical data, and
recommendations in this document are believed to be accurate and reliable, but are presented without express or implied
warranty. Users must take full responsibility for their applications of any products specified in this document. The
information in this document is proprietary to Nortel Networks.
Trademarks
Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
All other trademarks and registered trademarks are the property of their respective owners.
Contents
How to get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 1: New in this release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
One Button Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
One Button Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Customer Assistance Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Schedule Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 2: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter 3: Features description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
One Button Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
One Button Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Customer Assistance Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Schedule Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reporting for Customer Assistance Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reporting for One Button Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Reporting for One Button Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Contents 3
Chapter 4: Installing software and applying the keycode . . . . . . . . . . . . . . . . . . 15
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installing the APPP software update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Applying the APPP keycode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 5: Configuring the APPP features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Configuring the One Button Page feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Configuring the One Button Text feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Configuring global settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Configuring features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Configuring the Schedule Page feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Configuring the Customer Assistance Page feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Configuring the CAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Advanced Paging Productivity Pack Configuration
4 Contents
Chapter 6: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Troubleshooting procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Verifying that the APPP software update is installed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Verifying that the APPP keycode is applied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Verifying the name of the customer assistance box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Verifying the target node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Accessing the target node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Checking the CallPilot Manager event report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Verifying the One Button Text settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Verifying the Schedule Page settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Programming the symbol kiosk (or Web device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Configuring the symbol kiosk (or Web device) in Element Manager . . . . . . . . . . . . . . . . 26
NN40010-503
How to get help
This section explains how to get help for Nortel products and services.
Getting Help from the Nortel Web site
The best way to get technical support for Nortel products is from the Nortel Technical Support
Web site:
www.nortel.com/support
This site provides quick access to software, documentation, bulletins, and tools to address issues
with Nortel products. More specifically, the site enables you to:
• download software, documentation, and product bulletins
• search the Technical Support Web site and the Nortel Knowledge Base for answers to
technical issues
• sign up for automatic notification of new software and documentation for Nortel equipment
5
• open and manage technical support cases
Getting Help over the phone from a Nortel Solutions Center
If you do not find the information you require on the Nortel Technical Support Web site, and you
have a Nortel support contract, you can also get help over the phone from a Nortel Solutions
Center.
In North America, call 1-800-4NORTEL (1-800-466-7835).
Outside North America, go to the following Web site to obtain the phone number for your region:
www.nortel.com/callus
Getting Help from a specialist by using an Express Routing Code
To access some Nortel Technical Solutions Centers, you can use an Express Routing Code (ERC)
to quickly route your call to a specialist in your Nortel product or service. To locate the ERC for
your product or service, go to:
www.nortel.com/erc
Getting Help through a Nortel distributor or reseller
If you purchased a service contract for your Nortel product from a distributor or authorized
reseller, contact the technical support staff for that distributor or reseller.
Advanced Paging Productivity Pack Configuration
6 How to get help
NN40010-503
Chapter 1
New in this release
The following sections detail what’s new in Advanced Paging Productivity Pack Configuration
(NN40020-200).
Features
See the following sections for information about feature changes:
• One Button Page (page 7)
• One Button Text (page 7)
• Customer Assistance Page (page 7)
• Schedule Page (page 8)
• Reporting (page 8)
7
One Button Page
A user presses a feature key (or a sequence of keys on the telephone dialpad) to initiate a
previously programmed page in a defined paging zone.
For more information about the One Button Page feature, see the following sections:
• One Button Page (page 11)
• Configuring the One Button Page feature (page 17)
One Button Text
A user presses a feature key (or a sequence of keys on the telephone dialpad) to send a previously
programmed text message to a fixed or wireless telephone.
For more information about the One Button Text feature, see the following sections:
• One Button Text (page 11)
• Configuring the One Button Text feature (page 18)
Customer Assistance Page
A user presses a button on a call box (or telephone) or uses a symbol kiosk to initiate a customer
assistance page in the designated paging zone.
For more information about the Customer Assistance Page feature, see the following sections:
• Customer Assistance Page (page 12)
• Configuring the Customer Assistance Page feature (page 22)
Advanced Paging Productivity Pack Configuration
8 Chapter 1 New in this release
Schedule Page
Configure previously programmed announcements to play automatically in the designated
paging zones according to a defined schedule.
For more information about the Schedule Page feature, see the following sections:
• Schedule Page (page 13)
• Configuring the Schedule Page feature (page 20)
Reporting
Perform administration for the APPP features through Business Element Manager (Element
Manager) or Network Configuration Manager (NCM).
The BCM system generates and stores reports for the One Button Page and Customer
Assistance Page features. These reports are supported through CallPilot Manager.
For more information about APPP reporting, see the following section:
• Reporting (page 13)
NN40010-503
Chapter 2
Introduction
This document provides information about installing and configuring the Advanced Paging
Productivity Pack (APPP). Installation and configuration of APPP is supported through Business
Element Manager (Element Manager) and Network Configuration Manager (NCM).
Unless otherwise indicated, this information applies to:
• BCM 4.0 and later software
• BCM50 2.0 and later software
• BCM450 1.0 and later software
Prerequisites
• You have experience with BCM systems.
• You can use Element Manager to configure and administer BCM systems. For more
information, see the Administration Guide for your BCM system.
• If using NCM, you can use NCM to configure and administer BCM systems. For more
information, see the NCM documentation for your system.
• You understand keycodes. For details about keycodes, see the Keycode Installation Guide
(NN40010-301).
• You can use CallPilot Manager to configure Park and Page nodes in custom call routing
(CCR) trees, program one-button access to Park and Page nodes, administer company
greetings, and manage reports. For more information, see the CallPilot Manager Set Up
and Operation Guide for your BCM system.
• You understand F*3 to program feature codes on telephone memory buttons. For more
information, see the CallPilot Manager Reference Guide for your BCM system.
• You can program and configure a TDM telephone on a BCM system through Element
Manager. For more information, see the Device Configuration Guide for your BCM
system.
9
Navigation
• Features description (page 11)
• Installing software and applying the keycode (page 15)
• Configuring the APPP features (page 17)
• Troubleshooting (page 27)
Advanced Paging Productivity Pack Configuration
10 Chapter 2 Introduction
NN40010-503
Chapter 3
Features description
The Advanced Paging Productivity Pack (APPP) includes the following features:
• One Button Page (page 11)
• One Button Text (page 11)
• Customer Assistance Page (page 12)
• Schedule Page (page 13)
• Reporting (page 13)
Enable the APPP features through a single keycode that you apply to the BCM system. If you
require the APPP on multiple BCM systems, apply a unique keycode file to each BCM system.
Configure and administer the One Button Text and Schedule Page features with Business Element
Manager or Network Configuration Manager (NCM). Administration through Telset Admin or
CallPilot Manager is not supported for these two features.
Configure and administer the One Button Page and Customer Assistance Page features through
CallPilot Manager.
11
The BCM system reserves a total of 56 feature codes that you can use for One Button Page, One
Button Text, and one-button access to Park and Page.
One Button Page
A user presses a feature key (or a sequence of keys on the telephone dialpad) to initiate a
pre-programmed page. The pre-programmed page is played in the appropriate paging zone.
If the page zone or overhead page system is in use at the time of the page, the BCM system queues
the page and plays it when the resource becomes available.
As an extension of the CallPilot Park and Page feature, One Button Page uses the one-button
access to custom call routing (CCR) trees. You configure Park and Page nodes in CallPilot
Manager and then program one-button access to the required nodes.
One Button Text
A user presses a feature key (or a sequence of keys on the telephone dialpad) to send a
pre-programmed text message to a fixed or wireless telephone. Program this feature in Element
Manager by typing the text message, adding the destination directory number (DN), and assigning
it to a feature key (through a feature code). The BCM system stores up to 50 text messages.
You can enable or disable an alert tone that signals to the user that a message is received and you
can specify the amount of time to wait for the recipient to respond to the message.
Advanced Paging Productivity Pack Configuration
12 Chapter 3 Features description
The alert tone is always enabled on the following IP Phones (changing the value in Element
Manager has no effect): IP Phone 2004 (phase 1 and phase 2), IP Phone 2006, IP Phone 2007,
IP Phone 1140E, IP Phone 2050, and WLAN Handsets 2210/2211/2212.
The sent message is pre-pended with the originating telephone DN followed by a colon. When
the message arrives, the destination telephone sounds an audible tone (if enabled). Then, the
recipient selects an appropriate response. The response is also pre-pended with the telephone
DN followed by a colon:
• If the message is more than 16 characters long, press the MORE soft key (or 3 on the
dialpad) to show the remainder of a message.
• Press the OK soft key (or 1 on the dialpad) to indicate that you will take appropriate
action in response to the request.
• Press the Cancel soft key (or 2 on the dialpad) to indicate that you will not take any
action in response to the request.
You cannot use the numbers on the dialpad to respond to a message on the following
IP Phones (you can only use soft keys): IP Phone 2004 (phase 1 and phase 2),
IP Phone 2006, IP Phone 2007, IP Phone 1140E, IP Phone 2050, and
WLAN Handsets 2210/2211/2212.
After the recipient responds, or the timeout time expires, the originating telephone receives an
audible tone (if enabled) and one of the following messages:
• Msg recv: indicates that the recipient viewed your message and is taking appropriate
action (presses the OK button or 1 on the dialpad).
• Msg cncl: indicates that the recipient viewed your message and is not taking any action
(presses the Cancel button or 2 on the dialpad). If the recipient viewed the message and
does not taking any action, then the sender receives a message nack when the timeout
time expires.
• Msg nack: indicates that the recipient did not view your message within the defined
time or the recipient viewed your message but did not take any action within the defined
time.
On the WLAN Handsets 2210/2211/2212, pressing the Menu key releases the session
within ten seconds and sends Msg nack back to the sender.
If a sent message fails, the user receives the message Fxxx:Snd fail. A message can fail if the
message text and destination DN were not entered in Element Manager.
Customer Assistance Page
A user presses a call button on a customer assistance box (CAB) or uses a symbol kiosk to
request assistance. The system plays the appropriate announcement stating that a customer
requires assistance. An employee responds to the page and presses a button on the CAB or uses
the symbol kiosk to cancel the page.
If the page zone or overhead page system is in use at the time of the page, the BCM system
queues the page and plays it when the resource becomes available.
NN40010-503
Schedule Page
Configure pre-programmed announcements to play automatically in the designated page zones
according to a pre-determined schedule. If the page zone or overhead page system is in use at
the time of the page, the BCM system queues the page and plays it when the resource becomes
available.
Reporting
The supported CallPilot Manager reports are extended to the APPP features such that the BCM
system tracks and generates reports for the APPP activities. Access the reports through the Call
Detail Recording (CDR) functionality in Element Manager (Configuration > Telephony >
Call Detail Recording). For details about CDR functionality, see the Call Detail Recording
System Administration Guide (NN40010-602).
For details about reporting for CallPilot, see the CallPilot Manager Set Up and Operation
Guide for your BCM system.
For details about reporting for APPP features, see the following sections:
• Reporting for Customer Assistance Page (page 13)
• Reporting for One Button Page (page 14)
• Reporting for One Button Text (page 14)
Features description Chapter 3 13
There is no reporting for the Schedule Page feature.
Reporting for Customer Assistance Page
For the Customer Assistance Page feature, the reporting feature generates a daily (at midnight)
CSV file located in the CDR Push/Pull directory. The CSV file is generated:
• When the Customer Assistance Page service initiates
• Daily at midnight
• Whenever the current CSV file is pulled/pushed by a CDR client
This file is named Record.cab<yyyymmddHHMMSS>, where yyyy is the year, mm is the
month, dd is the day, HH is the hour, MM are the minutes, and SS are the seconds.
This file contains one record for each help request, where each record contains the following
fields:
• DN—DN of the CAB or the name of the symbol kiosk that generated the request.
• Feature code (F9xy)—where x is the number of the CCR tree that contains the Park and
Page node, and y is the number of the Park and Page node within the CCR tree.
• Start time—local time of day (previously described format of HHMMSS) when a
customer pressed the Help button.
• End time—local time of day (previously described format of HHMMSS) when a
salesperson pressed the Cancel button, or the time of the system timeout if no
salesperson pressed the Cancel button.
• Feature (F9xy)—where x and y are the last two digits of the CAB name.
Advanced Paging Productivity Pack Configuration
14 Chapter 3 Features description
Reporting for One Button Page
For the One Button Page feature, the reporting feature generates a CSV file located in the CDR
Push/Pull directory. The CSV file is generated:
• When the One Button Page service initiates
• Daily at midnight
• Whenever the current CSV file is pulled/pushed by a CDR client
The CSV file is named Record.obp.<yyyymmddHHMMSS>, where yyyy is the year, mm is the
month, dd is the day, HH is the hour, MM are the minutes, and SS are the seconds.
This file contains one record for each time the One Button Page feature is used. Each record
contains the following fields:
• DN—DN of the telephone where the One Button Page feature was initiated.
• Feature code (F9xy)—where x is the number of the CCR tree that contains the Park and
Page node, and y is the number of the Park and Page node within the CCR tree.
• StartTime—local time of day (previously described format of HHMMSS) when One
Button Page was initiated.
Reporting for One Button Text
For the One Button Text feature, the reporting feature generates a CSV file located in the CDR
Push/Pull directory. The CSV file is generated:
• When the One Button Text service initiates
• Daily at midnight
• Whenever the current CSV file is pulled/pushed by a CDR client
The CSV file is named Record.OBT.<yyyymmddHHMMSS>, where yyyy is the year, mm is
the month, dd is the day, HH is the hour, MM are the minutes, and SS are the seconds.
This file contains one record for each time the One Button Text feature is used. Each record
contains the following fields:
• DN—DN of the telephone where the One Button Text feature was initiated.
• Feature Code—feature code of the One Button Text feature.
• Date and Time—date and local time of day when the One Button Text feature was
initiated. The date and time takes the format yyyymmddHHMMSS as described
previously.
• Result—this field has one of three values:
— Acked and Responded: recipient pressed the OK soft key in response to the
message.
— Acked Only: recipient pressed the Cancel soft key in response to the message.
— Not Acked: recipient did not acknowledge the message within the allowed time.
NN40010-503
Chapter 4
Installing software and applying the keycode
Download and install the Advanced Paging Productivity Pack (APPP) software, and then apply the
APPP keycode file to enable the APPP features. If required, you can uninstall the APPP using
Business Element Manager (Element Manager) or Network Configuration Manager (NCM).
Navigation
• Installing the APPP software update (page 15)
• Applying the APPP keycode (page 16)
Installing the APPP software update
Install the APPP software using the software updates process in Element Manager or NCM.
15
Procedure steps
Step Action
1 From the Nortel Technical Support Web site, download the software update for
the APPP.
2 Install the APPP software update using Element Manager or NCM:
• From the Element Manager navigation panel, select
• From the NCM navigation panel, select
Administration > Software Management > Software Updates.
For more information about performing software updates with Element
Manager, see the Administration Guide for your BCM system.
Administration > Configuration Data, and then select your BCM
systems.
For more information about performing software updates with NCM, see the
NCM documentation for your system.
End
Advanced Paging Productivity Pack Configuration
16 Chapter 4 Installing software and applying the keycode
Applying the APPP keycode
Enable the APPP by applying a valid keycode file to your BCM systems.
Prerequisites
• Ensure you have installed the APPP software. For more information, see Installing the
APPP software update (page 15).
• Ensure you have the APPP authorization code. You need this code to generate a
keycode file for your BCM systems.
Procedure steps
Step Action
1 Using the Nortel Keycode Retrieval System (KRS) and your APPP
authorization code, generate a new keycode file for each BCM system to
update.
For information about keycodes, see the Keycode Installation Guide
(NN40010-301).
2 Apply the APPP keycode file to your BCM systems using Element Manager
or NCM:
• From the Element Manager navigation panel, select
Configuration > System > Keycodes.
For more information about performing software updates with Element
Manager, see the Keycode Installation Guide (NN40010-301).
• From the NCM navigation panel, select
Administration > Configuration Data > Wizards tab > Keycode
Wizard.
For more information about performing software updates with NCM, see
the NCM documentation for your system.
End
NN40010-503
Chapter 5
Configuring the APPP features
Configure the features in the Advanced Paging Productivity Pack (APPP).
Prerequisites
• Ensure the APPP software is installed and the APPP keycode file is applied to the BCM
systems. For more information, see Installing software and applying the keycode
(page 15).
Navigation
• Configuring the One Button Page feature (page 17)
• Configuring the One Button Text feature (page 18)
• Configuring the Schedule Page feature (page 20)
• Configuring the Customer Assistance Page feature (page 22)
17
Configuring the One Button Page feature
Configure the One Button Page feature to enable a user to initiate the desired page in a defined
paging zone by pressing a feature key (or a sequence of keys on the telephone dialpad).
The One Button Page feature is an extension of the Park and Page feature, and uses the one-button
access to custom call routing (CCR) trees available in CallPilot Manager.
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications > Voice Messaging/Contact Center.
2 Click Launch CallPilot Manager.
3 From CallPilot Manager, select Auto-Attendant > General Properties.
4 From the Auto-Attendant Properties page, type a number for the starting feature
code in the Starting CCR tree feature code field.
5 Type a number for the range of feature codes in the Number of CCR tree
feature codes field.
Advanced Paging Productivity Pack Configuration
18 Chapter 5 Configuring the APPP features
6 Create your custom call routing (CCR) tree with the required Park and Page
nodes.
For more information about CCR trees and Park and Page nodes, see the
CallPilot Manager Set Up and Operation Guide (NN40090-300).
7 Program one-button access to the required Park and Page nodes. Use F*3 to
program memory buttons on the telephone that correspond to the feature codes
assigned in the Auto Attendant properties page.
For more information about one-button access to CCR trees, see the CallPilot
Manager Set Up and Operation Guide (NN40090-300).
For more information about programming memory buttons with feature codes
using F*3, see the CallPilot Reference Guide (NN40090-100).
End
Configuring the One Button Text feature
Configure the One Button Text feature using Business Element Manager (Element Manager):
• Configuring global settings (page 18)
• Configuring features (page 19)
Prerequisites
• The alert tone is always enabled on the following IP Phones (you cannot disable this
variable): IP Phone 2004 (phase 1 and phase 2), IP Phone 2006, IP Phone 2007, IP Phone
1140E, IP Phone 2050, and WLAN Handsets 2210/2211/2212.
Configuring global settings
Configure global settings to enable or disable an alert tone that signals to the user that a message is
received. You can also specify the amount of time to wait for the recipient to respond.
For more information about the variables on the One Button Text panel (Global Settings tab), see
the table One Button Text panel—Global Settings tab (page 19).
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications >Advanced Paging Productivity
Pack > One Button Text.
NN40010-503
2 From the One Button Text panel, select the Global Settings tab.
3 Select or clear the Alert Tone check box to enable or disable an alert tone.
4 In the Display Timeout(s) field, type a timeout value in seconds.
End
Configuring the APPP features Chapter 5 19
Variable definitions
Table 1 One Button Text panel—Global Settings tab
Variable Value Description
Alert Tone Enable or Disable A toggle to enable or disable an alert tone that
signals to the user that a message is received.
The alert tone is always enabled on the following IP
Phones (you cannot disable this variable): IP Phone
2004 (phase 1 and phase 2), IP Phone 2006,
IP Phone 2007, IP Phone 1140E, IP Phone 2050,
and WLAN Handsets 2210/2211/2212.
Display Timeout(s) 60–300 seconds The amount of time for the recipient to respond to
the message. When the time expires, a no response
message is returned to the sender, indicating that
the message was not received.
Configuring features
Configure up to 50 feature codes on your BCM system to send a programmed text message to a
specific telephone directory number (DN). Each feature code is associated with a different text
message. Access each feature by pressing the appropriate key on your telephone dialpad.
Program the feature codes on the Auto-Attendant Properties page in CallPilot Manager (CallPilot
Manager > Auto-Attendant > General Properties page).
For more information about the variables on the One Button Text panel (Feature Configuration
tab), see the table One Button Text panel—Global Settings tab (page 19).
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications > Advanced Paging Productivity
Pack > One Button Text.
2 From the One Button Text panel, select the Feature Configuration tab.
3 Click Add.
4 From the Add Feature Code box, type the feature code in the Feature Code
field.
5 Click OK.
6 From the Feature Configuration tab, select the feature code to modify.
7 In the Details for Feature Code panel, type a text message in the Text
Message field.
8 Type the number of the destination DN in the Destination DN field.
Advanced Paging Productivity Pack Configuration
20 Chapter 5 Configuring the APPP features
9 To add more feature codes and associated text messages, repeat steps 3 to 8.
Variable definitions
Table 2 One Button Text panel—Feature Configuration tab
Variable Value Description
Feature Code F9xy An available feature code must begin with a 9 (for
Text Message 1–24 characters The message to send to the destination DN when
End
example, F9xy).
the feature key is pressed.
Destination DN a valid DN from 3
to 7 digits in length
The DN of the telephone that receives the text
message.
The DN can be a TDM, Unistim, Dect Mobility, or a
wireless handset. It cannot be an analog telephone
or a telephone without an LCD display.
Configuring the Schedule Page feature
Configure the Schedule Page feature by creating and configuring up to 50 schedule plans. A
schedule plan defines the variables for each page in your system.
For more information about the variables on the Schedule Page panel, see the table Schedule Page
panel—Schedule Plan tab (page 21).
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications > Advanced Paging Productivity
Pack > Schedule Page.
NN40010-503
2 From the Schedule Page panel, select the Schedule Plan tab.
3 Click Add.
4 In the Add Schedule Plan box, type a name in the Schedule Plan Name field.
5 Click OK.
6 In the Schedule Plan table, select the Schedule Plan to modify.
7 In the Schedule Plan table, double-click the Greeting ID field for the schedule
plan to modify.
8 From the Greeting ID list, select the number of the greeting to play.
9 In the Schedule Plan table, double-click the Page Type field for the schedule
plan to modify.
Configuring the APPP features Chapter 5 21
10 From the Page Type list, select the type of page.
11 In the Schedule Plan table, double-click the Page Zone field for the schedule
plan to modify.
12 From the Page Zone list, select the number of the page zone.
13 From the Details for Scheduling Plan panel, configure any remaining
variables. For information about the variables, see the table Schedule Page
panel—Schedule Plan tab (page 21).
14 To add more schedule plans, repeat steps 3 to 13.
End
Variable definitions
Table 3 Schedule Page panel—Schedule Plan tab (Sheet 1 of 2)
Variable Value Description
Schedule Plan alphanumeric:
_
@
:
.
Schedule Detail read-only The automatically generated description of the
Time Fixed Time, Periodic,
After Opening Time,
Before Closing Time
The name or identifier for the schedule plan.
schedule plan.
The type of time value for the schedule plan.
Fixed Time—the page occurs at a specific time of
day (in local time) as entered in the Time of Day
field.
Periodic—the page repeats periodically depending
on the value entered in the Repeat(Mins) field. If
the value is 0, then the page plays only once at the
start of business hours. The opening time is
defined in CallPilot Greeting Table 1. The value is
0–360 minutes.
After Opening Time—the page occurs a specific
number of minutes after opening time as entered
in the Minutes After Opening field. The opening
time is defined in CallPilot Greeting Table 1. The
value is 0–360 minutes.
Before Closing Time—the page occurs a specific
number of minutes before closing time as entered
in the Minutes Before Closing field. The closing
time is defined in CallPilot Greeting Table 1. The
value is 0–360 minutes.
Advanced Paging Productivity Pack Configuration
22 Chapter 5 Configuring the APPP features
Table 3 Schedule Page panel—Schedule Plan tab (Sheet 2 of 2)
Variable Value Description
Day Everyday, Specific
Day, Specific Date
Company Greeting
Number
Page Type Overhead Paging,
Page Zone 1–6 or All The number of the zone where the page is
1–250 The number of the greeting to play as defined in
Internal Zone, Both
The type of day value for the schedule plan.
Everyday—the page occurs every day.
Specific Day—the page occurs only on the
selected day as entered in the Day field. A plan
with this value takes precedence over plans that
are set to Everyday.
Specific Date—the page occurs only on a specific
date each year as shown in the Date and Month
fields. A plan with this value has precedence over
plans with values of Everyday or Specific Day.
the Company Greetings.
The location where the page is broadcast. The
default value is Overhead Paging.
broadcast. Page Zone is available only if the Page
Type is set to Internal Zone or Both. The default
value is 1.
Configuring the Customer Assistance Page feature
Configure the Customer Assistance Page feature so a user can generate the appropriate page by
pressing a call button on a customer assistance box (CAB) or by sending the appropriate URL
through a symbol kiosk (Web device) to the BCM system.
If you are using a CAB, perform the procedure Configuring the CAB (page 22).
If you are using a symbol kiosk (or Web device), perform the procedures Programming the symbol
kiosk (or Web device) (page 24) and Configuring the symbol kiosk (or Web device) in Element
Manager (page 26).
Configuring the CAB
Configure the CAB to use the Park and Page nodes in a custom call routing (CCR) tree to send a
customer assistance page.
Prerequisites
• After the CAB is installed, wait 2 minutes for the CAB to boot before initiating any
functionality.
• The CAB emulates a TDM device.
NN40010-503
Configuring the APPP features Chapter 5 23
• When a user presses the call button on the CAB, feature F970 is initiated, and when a user
presses the Cancel button, feature F970 is released.
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications > Voice Messaging/Contact Center.
2 Click Launch CallPilot Manager.
3 From CallPilot Manager, configure the required Park and Page nodes in a
custom call routing (CCR) tree.
For more information about Park and Page nodes, see the CallPilot Manager
Set Up and Operation Guide (NN40090-300).
4 Connect the CAB to an available TDM port on your BCM system.
The CAB is automatically assigned a DN.
The CAB takes approximately 2 minutes to boot. Do not use the CAB during the
boot process. To find the CAB DN check the port through Element Manager or
plug in a TDM set and press F*0.
5 In Element Manager, change the DN of the CAB, if required.
The CAB appears in the DN list as a 7208 telephone. If there are other 7208
telephones on the system, then you can determine the CAB DN by unplugging
the CAB, plugging in a telephone, and pressing F*0 on the intercom to see the
CAB DN.
6 In Element Manager (Configuration > Telephony > Sets > All DNs >
Capabilities and Preferences tab), set the name of the CAB. The CAB name
must have the format nnnnnXY.
For more information about the variable definitions for the CAB name format,
see the table CAB name format (page 23).
For more information about configuring a CAB (or TDM device), see the Device
Configuration Guide for your BCM system.
Variable definitions
Table 4 CAB name format
Variable Value Description
nnnnn up to five
characters
A descriptive name for the CAB.
End
Advanced Paging Productivity Pack Configuration
24 Chapter 5 Configuring the APPP features
Table 4 CAB name format
Variable Value Description
X 1–9 The number of the CCR tree that contains the
desired Park and Page node.
Y 1–8 The number of the Park and Page node within the
CCR tree.
Programming the symbol kiosk (or Web device)
Program the symbol kiosk (or Web device) to send the correct URL to the BCM system to initiate
or cancel a customer assistance page. The URL must have one of the specific formats described in
the following procedure.
Prerequisites
• This procedure is performed by the client’s technical support personnel.
• Some Web browsers do not support embedding a user name and password into the URL.
In this case use the URL option without the user name and password.
Procedure steps
Step Action
1 In Element Manager, create an nnpage account (Configuration > Administrator
Access > Accounts and Privileges > View by Account tab).
For more information about creating user accounts, see the Administration
Guide (NN40020-600) for your BCM system.
2 Program the symbol kiosk (or Web device) to initiate or cancel a page by
sending an appropriate URL to the BCM system. The URL must have one of the
following formats:
• URL with user name and password:
• URL without user name and password:
For more information about the variable definitions of the URL format, see the
table Symbol kiosk (or Web device) URL format (page 25).
3 Ensure that you program a cancel action for every initiated page.
4 Repeat steps 2 and 3 to program the number of pages required.
http://<nnpage>:<nnpagePassword>@<BCMIPAddress>/
Voicemail-cgi-bin/
BCMPage?station=<KioskName>&page=<xy>&status=<action>
<http://<BCMIPAddress>/Voicemail-cgi-bin/
BCMPage?station=<KioskName>&page=<xy>&status=<action>
NN40010-503
End
Configuring the APPP features Chapter 5 25
Variable definitions
Table 5 Symbol kiosk (or Web device) URL format
Variable Value Description
nnpage as defined in
Element Manager
nnpagePassword as defined in
Element Manager
BCMIPAddress as defined in
Element Manager
KioskName The name assigned to the kiosk for reporting
x 1–9 The number of the CCR tree that contains the
y 1–8 The number of the Park and Page node within the
action new, cancel Indicates to the BCM system which action to
An account created in Element Manager to have
the same privileges as the nnguest account.
The nnpage account password.
The IP address of your BCM system.
purposes (for example, Electronics01).
desired Park and Page node.
defined CCR tree.
perform, where:
• new initiates a new page.
• cancel cancels the current page.
Advanced Paging Productivity Pack Configuration
26 Chapter 5 Configuring the APPP features
Configuring the symbol kiosk (or Web device) in Element Manager
Configure the symbol kiosk (or Web device) to use the Park and Page nodes in a custom call
routing (CCR) tree to send a customer assistance page to the BCM system through a URL.
Prerequisites
• The client’s technical support personnel must program the symbol kiosk (or Web device).
For more information, see Programming the symbol kiosk (or Web device) (page 24).
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications > Advanced Paging Productivity
Pack > Schedule Page.
2 From the Schedule Page panel, select the CAB Settings tab.
3 Select the Allow URL check box to enable the symbol kiosk (Web device).
End
Variable definitions
Table 6 Schedule Page panel—CAB Settings tab
Variable Value Description
Allow URL
invocation
enable, disable A user can enable or disable the symbol kiosk (or
Web device) functionality for the APPP. The default
value is disable.
NN40010-503
Chapter 6
Troubleshooting
Use the procedures in this section to troubleshoot the Advanced Paging Productivity Pack (APPP).
27
Advanced Paging Productivity Pack Configuration
28 Chapter 6 Troubleshooting
Troubleshooting procedures
This task flow shows you the sequence of procedures you perform to troubleshoot the APPP
features. To link to any procedure, click on the procedure title in the flow chart.
Figure 1 APPP troubleshooting task flow
Troubleshoot the APPP
Verifying that the APPP software update is installed
Verifying that the APPP keycode is applied
Problem with Customer Assistance
Page or One Button
Page?
No
Problem with
One Button Text?
Yes
Yes
Problem with Customer Assistance
Page?
No
Verifying the
target node
Accessing the
target node
Checking the CallPilot
Manager event report
Verifying the One
Button Text settings
Yes
Verifying the name of
the customer assistance box
Veri f ying the Schedule Page settings
NN40010-503
No
End
Troubleshooting Chapter 6 29
Navigation
• Verifying that the APPP software update is installed (page 29)
• Verifying that the APPP keycode is applied (page 29)
• Verifying the name of the customer assistance box (page 30)
• Verifying the target node (page 30)
• Accessing the target node (page 31)
• Checking the CallPilot Manager event report (page 31)
• Verifying the One Button Text settings (page 32)
• Verifying the Schedule Page settings (page 32)
Verifying that the APPP software update is installed
If any of the APPP features are not functioning correctly, use Business Element Manger
(Element Manager) to verify that the APPP software update is installed on your BCM system.
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Administration > Software Management > Software Update History.
2 Verify that the software update for the APPP is in the list.
3 If the software update for the APPP is not listed, download and install the
software update. For more information, see Installing software and applying
the keycode (page 15).
End
Verifying that the APPP keycode is applied
If any of the APPP features are not functioning correctly, use Element Manger to verify that the
APPP keycode is applied to your BCM system.
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > System > Keycode.
2 In the Feature licenses list, verify that the APPP keycode is Active.
3 If the keycode is not Active, generate and apply a keycode for the APPP. For
more information, see Installing software and applying the keycode
(page 15).
End
Advanced Paging Productivity Pack Configuration
30 Chapter 6 Troubleshooting
Verifying the name of the customer assistance box
If Customer Assistance Page (CAB) is not functioning correctly, verify that the name of the
CAB has the correct format.
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Telephony > Sets > All DNs > Capabilities and
Preferences tab.
2 Verify that the name has the correct format as described in Configuring the
Customer Assistance Page feature (page 22).
End
Verifying the target node
If One Button Page or Customer Assistance Page is not functioning correctly, verify that the
target node is a valid Park and Page node.
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications > Voice Messaging/Contact Center.
2 Click Launch CallPilot Manager.
3 With CallPilot Manager, verify that the node is a valid Park and Page node.
4 If it is not a valid Park and Page node, create a valid Park and Page node in
a CCR tree.
For more information about Park and Page nodes, see the CallPilot Manager
Set Up and Operation Guide (NN40090-300).
End
NN40010-503
Troubleshooting Chapter 6 31
Accessing the target node
If One Button Page is not functioning correctly, access the node with a regular call.
Procedure steps
Step Action
1 Initiate an external call into your CallPilot system.
2 Answer the call at a telephone that is configured for one-button access to the
Park and Page node in question.
3 Use F986 to access the Park and Page node.
4 If you cannot access the target node, verify that the one-button access to this
node is correctly configured.
For more information about Park and Page nodes and one-button access,
see the CallPilot Manager Set Up and Operation Guide (NN40090-300).
End
Checking the CallPilot Manager event report
If One Button Page or Customer Assistance Page is not functioning correctly, examine the
CallPilot Manager event log.
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications > Voice Messaging/Contact Center.
2 Click Launch CallPilot Manager.
3 From the CallPilot Manager navigation panel, select Reports > Event Log.
4 Examine the Event Log for any issues that might cause the APPP to function
incorrectly.
End
Advanced Paging Productivity Pack Configuration
32 Chapter 6 Troubleshooting
Verifying the One Button Text settings
If One Button Text is not functioning correctly, use Element Manager to verify that the settings
are correct.
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications > Advanced Paging Productivity
Pack > One Button Text.
2 From the One Button Text panel, select the Global Settings tab.
3 Verify that the settings are correct.
4 From the Element Manager navigation panel, select
Configuration > Applications > Advanced Paging Productivity
Pack > One Button Text.
5 From the One Button Text panel, select the Feature Configuration tab.
6 Verify that the settings are correct.
For more information, see Configuring the One Button Text feature (page 18).
End
Verifying the Schedule Page settings
If Schedule Page is not functioning correctly, use Element Manager to verify that the settings
are correct.
Procedure steps
Step Action
1 From the Element Manager navigation panel, select
Configuration > Applications > Advanced Paging Productivity
Pack > Schedule Page.
2 Verify that the settings are correct.
For more information, see Configuring the Schedule Page feature (page 20).
End
