JAN/07/2003
THIS PRODUCT IS DESIGNED FOR PROFESI
ONAL INSTALLATION ONLY
RS-850lcd
PROFESSIONAL REMOTE CAR STARTER
WITH ALARM SYSTEM
&
2-WAY LCD COMMUNICATION
OPERATION MANUAL
RS850 OP 1
JAN/07/2003
TABLE OF CONTENTS:
A. REMOTE TRANSMITTER OPERATION …………………….………. 4
B. BUTTON LOCK ……………………………………………….……...…. 5
C. LED DISPLAY .……………..……..……………………….……………. 5
D. CHIRP INDICATOR ..………..………..……………………………..…. 5
E. PARKING LIGHT ………..………………………………………..….…. 6
F. ALARM OPERATION CONDITION .…..…………………………...…. 6
G. ACTIVE ARMING – ARM & LOCK .……..……………...……………. 6
Defective Sensor Reminder
Silent Arming / Disarming
Shock Sensor By-Pass
H. PASSIVE ARMING .………………………………………….…………. 7
Passive Arming with Passive Door Locking
Passive Arming By-Pass
I. ACTIVE DISARMING – UNLOCK & DISARM .………………………..7
Tamper Disarmin
Pathway Illumination
Two Steps Door Unlock
Automatic Re-Arm
J. DISARMING WITHOUT A TRANSMITTER .…………….………...…. 8
Overrides the Alarm without Password Pin Code
Overrides the Alarm With Password Pin Code
K. VALET MODE .………………………………………….…………...….. 9
Enter Valet Mode
Exit Valet Mode
L. CAR LOCATOR .………………………………………………………... 9
M. PANIC FUNCTION .…………………….……………..….……….…... 9
N. TRIGGER THE SYSTEM ..……..………………..………….….……...10
Clear The Trigger Icons and Melody Sound
Stop The Melody Sound Only
Noise Abatement Circuit
O. ANTI CAR- JACKING .………………………………………….……...11
Active Anti Car Jacking
Passive Anti Car Jacking
Trigger The Anti Car Jacking Mode
Override The System To Turn Off Anti Car Jacking
P. SYSTEM’S TRIGGER CHECK …………………….….….…..….…..11
Q. SYSTEM’S STATUS CHECK …………………..……….…….….…..12
R. DRIVER PAGING (OPTIO..…………..…………………….…………..12
S. DOME LIGHT CONVENIENCE DELAY & SUPERVISION ………..12
T. IGNITION CONTROL THE DOOR LOCK/UNLOCK. ……….….…..13
RS850 OP 2
JAN/07/2003
U. TRUNK RELEASE (CHANNEL 3) OUTPUT ………..……….………13
V. CHANNEL 4 TIMER CONTROL OUTPUT ………..…………………13
W. CHANNEL 5 TIMER CONTROL OUTPUT ………..……………….. 13
X. CHANNEL 6 TIMER CONTROL OUTPUT ………..………………... 13
Y. POWER ON MEMONRY: ………..…………...………….…….…..…. 13
REMOTE START OPERATION:
A. TO REMOTE START THE VEHICLE ………..…………..…………. 14
Safe Start (Child safety mode)
B. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE
STTART………………………………………………………………………14
C. TEMPORARY STOP FEATURE …………………..………...….…… 14
D. TIMER / TEMPERATURE START ……………….………..………… 15
3 Hours Timer Start With Temperature-Control Off
3 Hours Timer Start With Temperature-Control
Daily Timer Start
Exit the Timer Start
E. TEMPERATURE CHECK …………………….….……….…….….… 16
F. TO TURN OFF THE REMOTE START ………………………..…...…16
G. SHUT-DOWN INPUT FOR REMOTE STARTER ………...….…...… 16
H. DISABLING THE REMOTE START SYSTEM …………………...… 16
LCD REMOTE TRANSMITTER:
A. BATTERY REPLACEMENT ………………………………………..… 17
B. THE REMOTE LCD ICONS WITH FUNCTION ……………..…...… 18
C. PROGRAMMING OF THE LCD REMOTE TRANSMITTER ……… 19
1. Screen Lamp ON
2. Power Save Mode
3. Clear The Flash Icon and Melody Sound
4. Stop The Melody Sound.
5. Button Lock
6. Vibration / Melody Mode
7. Enable / Disable Bi Sound While Pressing Button:
8. Low Battery Indication.
9. Set Up Fixed Count Down Timer
10. Out Of The Range Check
D. TIMER SETTING ……………………………….………………….… 21
1. Timer Setting.
2. Alert Alarm Timer Setting
3. Count Down Timer Setting
4. Time Set -Up For “Daily Timer Start”
WARNINGS:
RS850 OP 3
JAN/07/2003
As with any product that performs automatic functions, there are certain safety
precautions that you must practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or garage.
5. Always apply the parking brake and lock the vehicle as you exit the vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is corrected.
8. The use and operations of this system is the sole responsibility of the operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle running on public
streets.
10. Do not start the vehicle by remote while the standard transmission vehicle is parked
at a steep place.
OPERATION:
A. REMOTE TRANSMITTER OPERATION:
Transmitter
Button
-
+
+
-
-
-
( )
+
+
+
System Function Remark
Lock Doors & Arm System
Panic function Press and Hold for 3 seconds.
Car Locator Under armed mode
Arm and Delete The 2 Stage
Shock Sensor.
Silent Arming / Disarming Ignition in "off" position.
Active Anti Car-Jacking Mode Ignition in "on" position press and
Unlock Doors & Disarm System
Two Steps Door Unlock &
Disarm System
Trunk Release (Channel 3) Press and Hold for 2 seconds
Passive Arming By-pass While the system Disarmed.
Button Lock Press within 3 seconds and Hold
Activate or Turn Off The Remote
Start
Channel # 4 Timer Output (4)
Channel # 5 Timer Output (5)
Channel # 6 Timer Output (6)
Press twice within 3 seconds
hold for 2 seconds
Press twice within 3 seconds.
button for 2 seconds
Press twice within 3 seconds.
RS850 OP 4
JAN/07/2003
LCD DISPLAY TRANSMITTER OPERATION ONLY:
Transmitter Button System Function Remark
- (C)
- -
(C)
- ( )
- ( )
- ( )
- ( )
- -
System’s Trigger Record
Check
System’s Status Check Press within 3 seconds
Button Lock Press within 3 seconds and
Optional Driving Pager Press within 3 seconds
Monitor Indoor Temperature Press within 3 seconds
Daily Timer Start Press within 3 seconds
LCD screen lamp turns on for
5 seconds.
Clear the Flash Icon and
Melody Sound on the LCD
Screen Transmitter
Warning: Press the button two times when the battery
compartment is empty, then insert the new battery.
B. BUTTON LOCK:
It is useful if you want to disable the transmission function of the remote
control temporarily to prevent from any inadvertent pressing of buttons by
others.
1. The regular remote control transmitter:
Press within 3 seconds
Hold
button for 2 seconds
Press and hold for 1 second
Press within 3 seconds
Press the button first, within 3 seconds press and hold the ( )
button for 2 seconds to activate or cancel the button lock function. The
“Red LED” will pause flash for few seconds to indicate the remote control
transmitter is on “Button Lock” mode while press the transmitter button.
2. The 2-way remote control transmitter:
Press the button first, within 3 seconds press
and hold the ( ) button for 2 seconds to activate
or cancel the button lock function.
The icon will displayed on the LCD screen to
show the LCD remote transmitter
is on “Button Lock”.
RS850 OP 5
JAN/07/2003
C. LED display:
LED Function LED Function
Off Disarmed Zone 1 / Warn-Away Trigger
Slow
Flash
Flash Passive Starter Disable 3 flashes...
Fast Flash Passive Arming 4 flashes...
On (Solid) Valet Mode 5 flashes...
Armed 2 flashes...
pause
pause
pause
pause
Zone 2 / Trigger on Trunk/Hood
Zone 3 / Trigger on Door Switch
Zone 4 / Trigger on Shock
Sensor
Zone 5 / Trigger on Ignition
Switch
D. CHIRP INDICATORS: E. PARKING LIGHT:
Chirp Function Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Defective Reminder 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote
Start
F. ALARM OPERATING CONDITION:
Siren / Horn
1. Arming 1 or 3 Chirps 1 Flash
2. Disarming 2 or 4 Chirps
3. Trigger Alarming Flashes
4. Passive
Starter
Disable
5. Panic Alarming Flashes Flashes
6. Car-Jacking Alarming Flashes Disable Flashes
7. Car Locator 6 Chirps 12 Flashes Locking
G. ACTIVE ARMING – LOCK & ARM:
1. Press button on the transmitter.
2.The siren will chirp once and parking light will flash once indicating that the
system is now armed. The vehicle door will lock upon arming when
interfaced with the security system.
Parking
Light
2 or 3
Flashes
LED Doors Starter Dome Light
Slow
Flash
Unlocking
Slow
Flash
Fast
Flash
Locking Disable
Turns on for 30
-second
Disable Flashes
Disable
RS850 OP 6
JAN/07/2003
will clear the flash icon
System Arm
DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you have
left a door, trunk, or hood
lid ajar. (See Alarm Feature “I - 4 Programming)
SILENT ARMING / DISARMING: Press the transmitter and button at
the same time will arm or disarm your security system, No chirp sound will
be heard, arm / disarm confirmation will be through the vehicles parking
lights only.
SHOCK SENSOR BY-PASS: Press the button on the transmitter two times
within 3 seconds will arm the se curity system and by-pass the shock sensor.
The system will chirp one additional time to confirm the sensor bypass
mode was activated. The sensor bypass feature is programmed to activate
for one arming cycle only. The security system will return to normal operation
during the next arming cycle.
H. PASSIVE ARMING
Active arming / disarming is controlling your security system via the remote
transmitter. This security system is equipped with an optional Passive
Arming feature, which allows the security system to arm 30 seconds after the
last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30
seconds. If you reopen any door / hood / trunk, the security system LED
will stop flashing. It will begin flashing again once the vehicle all entrances
are closed.
3. After 30-second timer has elapsed, the security system will automatically
“ARM”. The siren will chirp [1] time and the parking lights will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING (See Alarm Feature “I 2” Programming):
The vehicle doors will automatically lock after passive arming cycle has
been completed.
PASSIVE ARMING BY-PASS: While the system disarmed, Press the
buttons twice, the security will respond with [1] chirp and LED will turn “ON”.
The security system will remain in this temporary state for as long as you
Door Ajar
Trunk / Hood Ajar
Clear The Flash Icon:
Press the button 3
times within 3 seconds
on
the LCD screen
transmitter.
wish. To exit passive by-pass, press the transmitter or button and
the system will return to normal status.
RS850 OP 7
JAN/07/2003
Ignition Trigger
I. ACTIVE DISARMING – UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and parking light flash twice to indicating that
the security system is now disarmed. The vehicle’s door will unlock and
dome light turns on for 30 seconds upon disarming when interfaced
with the security system.
System Disarm
Doors Trigger
Trunk/HoodTrgr Warn away Trigger
Shock SensorTrgr
TAMPER DISARMING: If alarm triggered, upon disarm the system, siren chirp 4
times, parking light flash 3 times.
PATHWAY ILLUMINATION (See Alarm Feature “II - 3” Programming): This
feature turns the parking light “ON” for 30 seconds upon a unlock signal
and for 10 seconds upon the lock signal.
TWO STEPS DOOR UNLOCK (See Alarm Feature “III - 2” Programming): This
feature will independently unlock the driver’s door only when disarming the
security system. Pushing the button a second time within 3 seconds will
unlock the other doors.
AUTOMATIC RE-ARM (See Alarm Feature “I - 3” Programming): If this feature
is selected, the security system will automatically re-arm itself in 60 seconds
after disarming with remote transmitter. Automatic rearm will cancel if any
door is opened before the 60 seconds timer has elapsed.
Clear The Flash Icon:
Press the button 3
times within 3 seconds will
clear the flash icon on the
LCD screen transmitter.
J. DISARMING WITHOUT A TRANSMITTER
( Alarm Feature III - 1 Programming )
RS850 OP 8
JAN/07/2003
OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE:
(Factory Default Setting)
The Override function may be used if the remote transmitter is lost or
inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON’ position.
2. (Alarm will sound.)
3. Within 10 seconds push and release the valet switch, The alarm will stop
sounding and enter the disarm mode. You can now start and operate the
vehicle normally.
OVERRIDE THE ALARM WITH PASSWORD PIN CODE:
(Alarm Feature III - 1 Programming)
Unlike valet switch easily found, and defeated, this security system allows
the consumer to program a password pin code. Offering a higher level of
security.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will
sound.)
2. Within 5 seconds, enter your chosen the first digit code by press and
release the Valet Switch. (When finished above procedures, system's
siren stop alarming, lights stop flashing, but the vehicle can’t be started.)
3. Within 15 seconds of the last digit code enter (the 1st code), turn the
Ignition Switch “OFF” and then “ON”.
4. Within 15 seconds, enter your chosen of the second digit code by press
and release the Valet Switch.
5. Turn the ignition switch “OFF” position. 4] Chirps form siren/horn, [3] flash
from parking light to indicate the system was disarmed.
Note 1: You must override the alarm within 60 seconds. If not, the system will
automatically re-arm.
EXAMPLE: To Override The System With The Password Code 83,
1. Enter the vehicle and turn the ignition switch to 'ON’ position.
(Alarm will sound.)
2. Within 5 seconds, Press and Release the Valet Switch 8 times, (When
finished above procedures, system's siren stops alarming, lights stop flashing,
and sensor stops trigger, but the vehicle can not be start and drive away.)
3. Within 15 seconds of the last digit code enter (the 1st code), turn the Ignition
Switch “Off” and then “ON”.
4. Within 15 seconds, Press and Release the Valet Switch 3 times
5. Turn the Ignition Switch to “Off” position. [4] Chirps form siren/horn, [3] flash
from parking light to indicate the system was disarmed.
K. VALET MODE: (Sy stem in Disarm or Valet mode)
The valet switch allows you to temporarily bypass all alarm function,
eliminating the need to hand your transmitter to parking attendants or
garage mechanics. When the system is in valet mode, all alarm function
and remote sta rt function are bypassed, however the remote panic feature
and remote door locks will remain operational. To use the valet mode, the
RS850 OP 9
JAN/07/2003
From the disarmed condition,
Push and hold valet switch for 2
seconds until the LED turns on.
The LED wills remain on as long
to active
car locator function. The siren will chirp 6 times.
The parking light will flash 12 times, for you to
system must first be disarmed either by using your remote transmitter, or by
operating the Manual override sequence.
Enter Valet Mode:
1.
turn the ignition to “ON” position.
2.
Remote Door Lock
Remote Door Unlock
as the system is in 'valet mode'.
Exit Valet Mode:
1.Return to normal operation, turn ignition 'on'.
2. Push and hold valet switch for 2 seconds, The LED wills turns off
indicate the system are exiting the valet mode.
L. CAR LOCATOR
Under armed mode, press the button
easily locate your car.
M. PANIC FUNCTION: (See Alarm Feature I – 7 Programming.)
The transmitter can be used as a remote panic switch to ma nually trigger the
alarm in case emergency.
1. Press and hold the button for 3 second. The alarm
will immediately sound.
2. During panic mode, the normal function of this
transmitter button will be suspended. The transmitter
and buttons can be used to lock and unlock
the door (if the option is installed), however once the
button is pressed, the vehicle’s starter disable
device, (where installed) will be enable allowing the
vehicle to start.
3. To stop the alarm, press and hold the transmitter or button on the
transmitter again for 3 seconds. Also if any transmitter button other than
or button is pressed and released, the panic mode will be turned
off immediately.
4. If the button is not pressed, the alarm will automatically stop after 60
seconds.
RS850 OP 10
JAN/07/2003
Shock Sensor
N. TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
1. Light impact will trigger the warn-away signal.
2. Heavy impacts / Doors open / Hood open / Trunk open / Turn on the
ignition key will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from
cranking. The siren, horn, parking lights, and dome light will turn on to
alerting of an intrusion for 60 seconds. Then it will stop and automatic reset
and re-arm. If the one of sensors or detectors still active, the alarm system
will sound a maximum of 3 times of 60 seconds cycles.
Door Trigger
Trunk/Hood Trigger Warn-away
Trigger
Trigger
Ignition Trigger
NOISE ABATEMENT CIRCUIT: You system has “Noise Abatement Circuit”. It
prevents annoying repetitive trigger sequences due to faulty door pin
switches or environmental condition such as thunder, jackhammers airport
noise, etc.
Here’s how “Nois e Abatement Circuit” works: The alarm triggers five times.
Each time, the same sensor or switch is triggering the alarm. “Noise
Abatement Circuit” will interpret this pattern of triggers as false alarm. After
the fifth trigger, “Noise Abatement Circuit” ignores, or bypasses, that sensor
or switch until the other sensor or switch is trigger.
“Noise Abatement Circuit” covers doors (Hood/Trunk) differently: If the alarm
is triggered by an open door for three full cycles, the doors will be bypassed
until the trigger ceases.
CLEAR THE FLASH ICON AND MELODY SOUND: While
triggering the alarm the LCD screen will alert user through
melody sound and flashing trigger icon, press the
button 3 times within 3 seconds will clear the flash icon
and stop melody sound on the LCD screen transmitter.
STOP THE MELODY SOUND ONLY: While triggering the
alarm the LCD screen will alert user through melody
sound and flashing trigger icon, press any button on the
LCD remote transmitter to stop melody sound only
RS850 OP 11
JAN/07/2003
O. ANTI CAR- JACKING
Warning: If you don't need the car jacking function in this alarm system, be
sure to set car jacking feature “OFF”. This system is default setting all
car-jacking “OFF”. (See Alarm Feature I - 6 Programming.)
ACTIVE ANTI CAR JACKING:
1. Press and hold the transmitter and button at the same time for 2
seconds while the vehicle’s ignition is ON. The parking lights will turns on
for 1.5 seconds to indicate this enter.
2. Once the system is armed, If you are forced from the vehicle, the system
will trigger when the door is opened and closed while the ignition is “ON”.
PASSIVE ANTI CAR- JACKING:
It operate as below:
1. Turn the ignition switch to “ON” position, the system will arm.
2. Once the system is armed, If you are forced from the vehicle, the system
will trigger when the door is opened and closed while the ignition is “ON”.
TRIGGER THE ANTI CAR -JACKING MODE:
3-timer circuits will function as follows:
First timer:
a. 50 seconds after the system has been triggered. The siren will start
chirping for 15 seconds.
b. During this 15 seconds period of chirping, you will be alerting to push
the valet switch once to turn off the car-jacking feature.
c. If not, it will enter second timer car jacking.
Second timer:
65 seconds after the system has been triggered. The siren starts
alarming and the parking light starts flashing.
Third timer:
90 seconds after the system has been triggered
a. The siren still alarming and the parking light flashing, and
b. The starter disable will activate to prevent the vehicle from starting.
c. It will remain active until the vehicle's battery power exhausted.
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet
switch, the siren will stop and the system disarmed
Note: If you use password pin code to double protect the vehicle security, you
will need to use it to completely disarm the system.
RS850 OP 12
JAN/07/2003
P. SYSTEM’S TRIGGER CHECK
Press the transmitter first, within 3 seconds press
(C) button. It responds with one melody sound and all
trigger’s records will immediately displayed on the LCD
screen.
Q. SYSTEM’S STATUS CHECK
When you want to check the system’s present status
through the LCD screen, Press the transmitter
button twice, within 3 seconds press (C) button.
It responds with one melody sound.
R. DRIVER PAGING
It is useful the event that someone wants to page the driver of the parked
vehicle.
In Ca r Driver Paging
Under the ignition switch “off” condition, press and hold the valet switch for 2
seconds to page the driver, one chirp sound shall be emitted from the
vehicle and the paging melody sound continues sounding from you Remote
LCD Transmitter and “ ” indication flashes on the LCD screen.
Out of Car Driver Paging
If someone tries to page you by tapping the paging (knock) sensor (optional)
which is usually mounted on the bottom part of front window, the paging
melody sound continues sounding from you Remote LCD Transmitter and
“ ” indication flashes on the LCD screen.
RS850 OP 13
JAN/07/2003
1. Press the transmitter button first, within 3
seconds press ( ) button to activate outdoor
driver paging function, It responds with chirps of the
vehicle, a melody sound and " " indication flashes
on the LCD screen to confirm the function is on.
2. When tapping the paging (knock) sensor, one chirp
sound shall be emitted from the vehicle and the
paging melody sound continues sounding from you
Remote LCD Transmitter and “ ” indication flashes
on the LCD screen.
3. Turn on the ignition switch; OR press the button to
arm the system; OR press the button to
disarm the system, this outdoor driver paging function
will exit.
S. DOME LIGHT CONVENIENCE DELAY & SUPERVISION
The alarm with a unique feature which will turn on your vehicle dome light as
following:
1. Upon disarming, the interior light will remain on for 30 seconds.
2. If the vehicle is intruded, the interior light will flash for the same duration as
the siren.
Note: Turn on the ignition switch or arm the alarm will turn off the dome light.
T. IGNITION CONTROL DOOR LOCK/UNLOCK.
(See Alarm Feature II – 2 Programming).
If the vehicles door locks have been interfaced to the security system, the
system will automatically lock the vehicle's doors when the ignition is turned
“ON” and /or unlock the vehicle’s doors when the ignition is turned “OFF”.
U. TRUNK RELEASE (CHANNEL 3) OUTPUT.
Press and hold button on the transmitter for two
seconds to remote control the trunk release or other
electric devices.
V. CHANNEL 4 TIMER CONTROL OUTPUT
(See Alarm Feature III – 5 Programming.)
RS850 OP 14
JAN/07/2003
Press the transmitter (4) and (4) button at the same time to active
Channel 4 function. Channel 4 is user-programmable timer output. You may
program the built -in timer to send a ground signal for any time duration from 1
second to 120 seconds. For instance, this timer output may be used to turn on
the headlight, power window or sunroof. (Factory defaults setting at momentary
output.)
W. CHANNEL 5 TIMER CONTROL OUTPUT
(See Alarm Feature III – 6 Programming.)
Press the transmitter (5) and (5) buttons at the same time to
active Channel 5 function. Channel 5 is user-programmable timer output.
You may program the built -in timer to send a ground signal for any time
duration from 1 second to 120 seconds. For instance, this timer output may
be used to turn on the headlight, power window or sunroof. (Factory
defaults setting at momentary output.)
X. CHANNEL 6 TIMER CONTROL OUTPUT
(See Alarm Feature III – 7 Programming.)
Press the transmitter (6) and (6) buttons at the same time to
active Channel 6 function. Channel 6 is user-programmable timer output.
You may program the built -in timer to send a ground signal for any time
duration from 1 second to 120 seconds. For instance, this timer output may
be used to turn on the headlight, power window or sunroof. (Factory
defaults setting at momentary output.)
Y. POWER ON MEMORY:
This security system is equipped with circuitry that will allow the unit to
remember its alarm state if the power is lost and then reconnected.
REMOTE START OPERATION:
A. TO REMOTE START THE VEHICLE:
RS850 OP 15
JAN/07/2003
When you want to start your vehicle,
1. Press button once on the transmitter.
2. The parking light will activate to indicate the remote start
received the signal.
3. The engine will start approximately 5 seconds.
4. Once the engine is running, after couple seconds the parking
light will turn on again and climate controls will activate and adjust
the vehicles interior temperature to your preset setting. (While the
vehicle is running, the “minutes” digit on the LCD screen will flash
and the will indicate count down timer based on the 5, 10, 20 or
30 minute run time set up by your installation center.)
5. The vehicle will run for 5 to 30 minute cycle automatically shut
down. (When the unit shuts off the count down timer will turn off
and the transmitter will play a melody.)
following conditions exists:
1. The hood is opened.
2. The brake pedal is pressed.
3. Move the optional remote start enable toggle switch to OFF
position. (If installed)
4. The gear selector is in any gear other then “PARK” or
“NEUTRAL”
Activate Remote
Start
Engine Running
SAFE START (Child safety mode)
(See Start Feature I – 5 Programming.)
Factory defaults setting to press the button twice on the transmitter to
start the vehicle. Programming this feature to eliminate an accidental remote
start,
1. The user presses the transmitter buttons twice within 3 seconds to
start the vehicle. or
2. The user presses the transmitter and buttons at the same time to
start the vehicle.
B. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE
START:
To operate the vehicle while engine running on the remote start.
1. Insert the ignition key and turn it to “ON” (not the start) position.
2. Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the ON position, the
engine will shut down.
C. TEMPORARY STOP FEATURE:
This feature allows the vehicle to remain running after the key has been
removed from the ignition. This feature is useful for occasions when you
wish to exit and lock the vehicle for short periods of time, but would like to
leave the motor running and the climate control on.
RS850 OP 16
JAN/07/2003
1.Before turning off the engine, press the button twice on the transmitter
and the LED indicator will flash 3 times to confirm enter.
2.Turn the ignition key to OFF position. (The engine will stay running.)
3.The engine will run until the pre-programmed time elaps ed or shutdown
input is received.
D. TIMER / TEMPERATURE START:
This unit can be programmed to start and run the engine every 3 hours or
punctually at the same time next morning, The engine will run for the
programmed running time and then shut down.
IMPORTANT: Timer Start should be used only in open areas, Never start and run the
vehicle in on enclosed space as a garage or carport.
3 hours timer start with Temperature-control OFF: This feature is design
for an extreme cold climate usage. The system will auto start the vehicle
every 3 hours, to prevent engine freezing and hard to start.
A MAXIMUM OF SIX CYCLES CAN OCCUR.
3 hours timer start with Temperature-control:
(See Start Feature I – 8 Programming.)
If you installed the optional Temperature Sensor and programmed the
temperature ON to operate. The system can be programmed to automatically
start the vehicle engine whenever the temperature inside the vehicle reaches
or drops below the preprogrammed temperature level. The system will
monitor the air temperature every 3 hour and will only start the engine during
extreme cold temperatures. There are three temperature level to choose
form.
Daily Timer Start: The feature is very useful for the driver who wants to run
the vehicle punctually at the same tim e next morning. Before set-up of the
“Daily Timer Start”, you should set you time for engine start.( see Timer
Setting / Timer set -up for “Daily Timer Start, page 16)

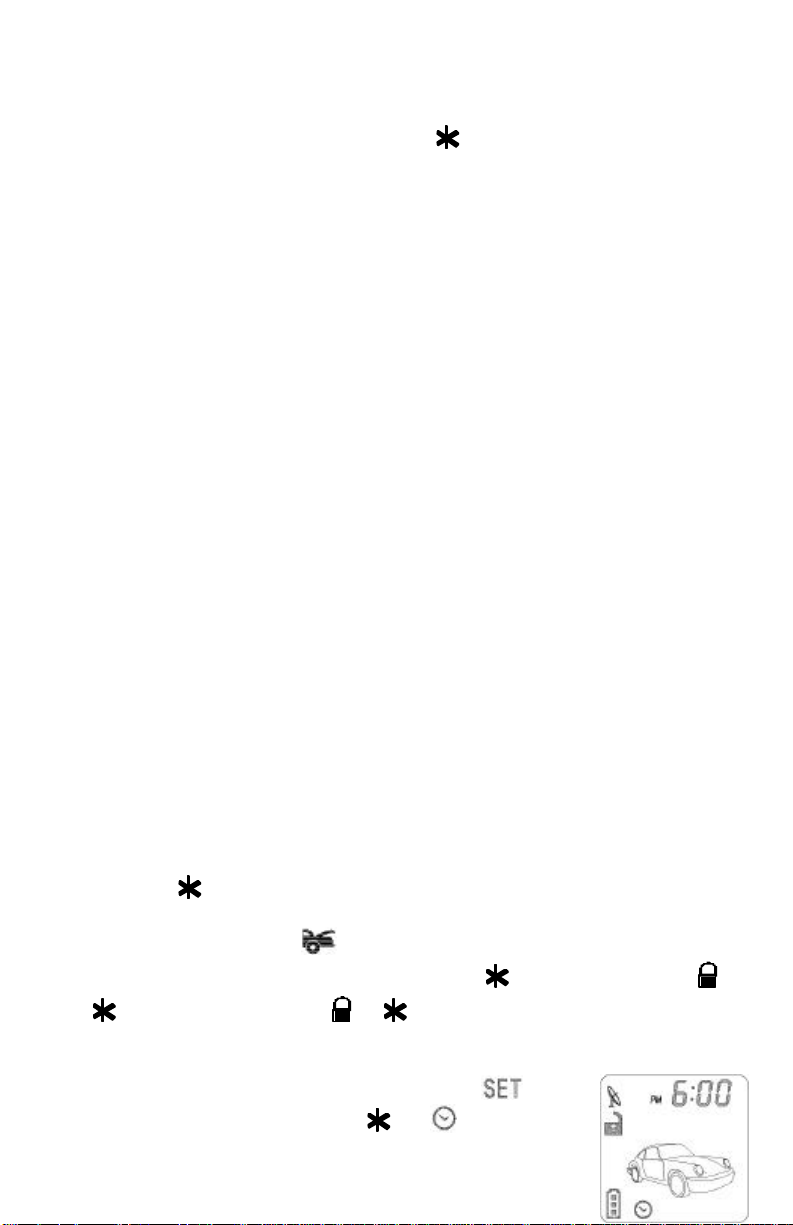

ENTER:
1. Press the button once to remote start the vehicle. As soon as the vehicle
is running and the parking light have turned on or flashing.
2. Immediately depress the button once, within 2 seconds
3-a. 3 Hours Timer Start: Rapidly depresses the button (or depresses
+ buttons, if you program + buttons = Start / Stop button.) The
parking light will flash (3) times. The siren or horn chirps (3) times. The vehicle
is now programmed to start every (3) hours.
3-b. Daily Timer Start: Depress the transmitter button
first, within 3 seconds press ( ) button. The
RS850 OP 17
JAN/07/2003
When the engine is running (by remote start), if you want
button once on the remote transmitter under
Move the optional remote start enable toggle switch to
The vehicle will shut down and turn off the parking light to
parking light will flash (6) times. The siren chirps (6)
times. The vehicle is now programmed to start at the
real time of the next day. Your set time for the next
day engine start flashes for approx. 3 seconds on
the LCD screen. After 3 seconds the icon stays
displayed on the LCD screen.
4. Press the brake pedal to stop the vehicle running.
Exit the timer start: Timer start can be exited manually as follows:
1. Make sure the remote start system is not operating the engine.
2. Turn the ignition on. The LED and parking light will flash (4) times. The horn
chirps (4) times. Or
1. Press the button twice to remote start the vehicle. As soon as the vehicle is
running and the parking light have turned on or flashing.
2. Immediately depress the button then press and hold the button for 2
seconds. (or depresses + buttons, if you program + buttons =
Start / Stop button.) The parking light will flash (4) times. The siren or horn
chirps (4) times. The vehicle is no longer programmed to start automatically.
E. TEMPERATURE CHECK (OPTIONAL)
If you installed the optional temperature sensor, you can
monitor, Through the LCD screen, the present indoor
temperature of the passenger compartment before cooling
or heating your vehicle.
Press the transmitter buttons first, within 3 seconds
press the ( ) buttons, the in-door temperature will be
shown on the LCD screen. This reading may be higher than
actual ambient temperature due to the greenhouse and is
relative only the inside vehicle temperature.
F. TO TURN OFF THE REMOTE START:
to stop it,
1. Press
remote start mode.
2.
OFF position. (If installed)
3. Press the brake pedal
indicate engine stopped.
G. SHUT-DOWN INPUT FOR REMOTE STARTER:
If any of the following conditions exist while the system is operating, the
engine will not start or will shut down immediately:
RS850 OP 18
JAN/07/2003
1. The hood is opened.
2. The brake pedal is pressed.
3. Engine is over-revved. {“Tachometer checking type” only}
4. The pre-programmed run time (5 /10 / 20 / 30 minutes) has elapsed.
5. Press button once on the remote transmitter under remote start
mode .
6. Move the optional remote start enable toggle switch to OFF position. (If
installed)
7. The vehicle refused to start running after {3} unsuccessful attempts.
H. DISABLING THE REMOTE START SYSTEM: (If installed)
This feature allows your system’s remote start unit to be temporarily
disabled to prevent the vehicle from being remote started accidentally. This
feature is useful if the vehicle is being serviced or stored in an enclosed area.
To disable the remote start, move the optional remote start enable toggle
switch to the OFF position.
LCD REMOTE CONTROL TRANSMITTER:
RS850 OP 19
JAN/07/2003
Note: If the system is interfered by stronger radio
frequency around, sources of high voltage electric
power or such Obstacles like tall buildings and so
on, the transmission range may get shorter as the
system uses low out put powered frequency.

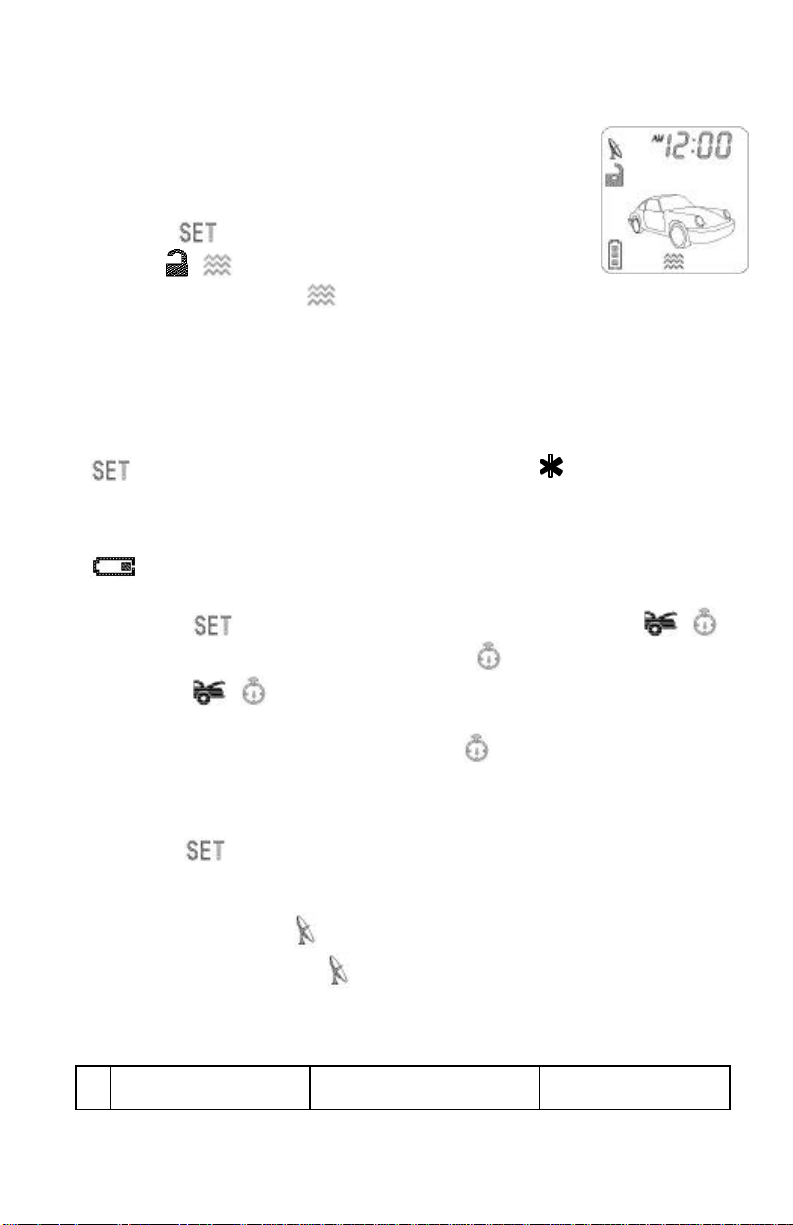

A. BATTERY REPLACEMENT:
A 1.5V type AAA Alkaline battery powers
the Remote Transmitter. When the power of
the battery weakens a icon shall be
displayed on the LCD screen. When the old
battery is replaced to new one, there will be
beep sounds indicate the power is up and
the clock on the LCD screen returns to
AM12:00 after displaying all the icons.
Correct the time by pressing for 3
seconds before using (See Timer Setting).
RS850 OP 20
JAN/07/2003
Your vehicle is in armed
You are transmitting the
Your are within the remote
Indoor temperature of your
B. THE REMORE LCD ICONS WITH FUNCTION:
Door Lock
Your vehicle doors are
locked
Armed Mode
mode
Remote
Transmission
signal to control unit
Door Open Warning
Doors are illegally
opened (Zone 3)
Shock Sensor
Trigger
Trigger on Shock
Sensor (Zone 4)
Engine Starting
Your vehicle engine
starting by remote
control
Timer Control Start
Engine start
automatically at the
same time next day or
every 3-hour.
Time Monitor
Count Down Timer
Reminder when time is
up for parking
Door Unlock
Your vehicle doors are
unlocked and the system
is Disarmed
Valet Mode
All the function shall be
temporarily on hold.
In – Range Indicator
control range.
Trunk/Hood Trigger
Trunk or Hood is illegally
opened (Zone 2)
Warn Away trigger
Trigger on Shock Sensor
(Zone 1)
Engine Running
Your vehicle's engine is
running
Temperature Monitor
vehicle
Alert Alarm
You have set morning call
alarm
Power Save Mode
Save the battery power
RS850 OP 21
JAN/07/2003
tes
Vibration Mode
Remote Control vibra
when the system is
triggered
Driver paging
Someone is paging you
in front of your vehicle
Button Lock
Disable the transmission
function temporarily
Low Battery
You have to replace the
battery of remote control.
C. PROGRAMMING OF THE LCD REMOTE TRANSMITTER:
Transmitter Button Description Operation
(1 second)
(3 seconds)
(5 seconds)
- -
- (2-second)
- (2-second)
- (2-second)
LCD screen lamp turns on
for
5 seconds.
Timer Programming Mode. Press and hold for 3
Power Save Mode Press and hold for 5
Clear the Flash Icon and
Melody Sound on the LCD
Screen Transmitter
Button Lock ( ) enable /
disable
Melody / Vibration ( )
Mode
Program Count Down Timer
( ) (10-Minute / 20M / 30
M /1Hour /1.5H / 2.0H)
Press and hold for 1 second
1 melody sound to confirm
enters.
seconds
2-melody sounds to confirm
enter.
seconds
1 melody sound to confirm
enters.
Press within 3 seconds
Press within 3 seconds
Press within 3 seconds
Press within 3 seconds
cycling
*leave the buttons starting
count
down then flashes
- (2-second)
Enable / Disable Bi Sound
(Bi) While Pressing Button
RS850 OP 22
JAN/07/2003
1. Screen Lamp ON: Press and hold the button one second, with one
melody sound and the LCD
screen lamp will turns on for 5 seconds
2. Power Save Mode: While the power save mode, the LCD remote
transmitter uses “0” current to save the battery power.
Entry: 1. Press & hold the button for 5 seconds, with one
melody sound and icon on the LCD screen to indicate
entry the “power save mode”.
2. Under the “Active Arming Mode” and Disarm mode. Turn the
ignition switch to on, the LCD remote transmitter will automatically
entry the “Power Save Mode”
Exit: Press any button of the LCD remote transmitter to exit the
“Power Save Mode”.
3. Clear the Flash Icon and Melody Sound: Press the button 3
times within 3 seconds will clear the
flash icon and melody sound on the LCD screen transmitter
4. Stop The Trigger Melody Sound: While triggering the alarm the LCD
screen will alert user through melody sound and flashing trigger icon, press
any button on the LCD remote transmitter to stop melody sound only.
5. Button Lock: It is useful if you want to disable the
transmission function of the remote control temporarily to
prevent from any inadvertent pressing of buttons by others.
Press the button first, within 3 seconds press and
hold the ( ) button for 2 seconds to activate or cancel
the button lock function, the icon will displayed on the
LCD screen to show the LCD remote transmitter is on
“Button Lock”.
6. Vibration / Melody Mode:
RS850 OP 23
JAN/07/2003
It is useful when you are in a noisy place and difficult to hear
beep sound from the remote control as the remote control
in this mode, vibrates itself if your security system is
triggered.
Press the button first, within 3 seconds press and
hold the ( ) button for 2 seconds to select the mode
of vibration or melody, the icon will displayed
on the LCD screen to show the LCD remote transmitter is
on vibration mode.
7. Enable / Disable Bi Sound While Pressing Button:
It has a short “bi” sound while pressing the button of the LCD screen
transmitter
If you want mut e the “bi” sound mute always while press button. Press the
button first, within 3 seconds press and hold the (Bi) button for 2
seconds to disable the “bi” sound.
8. Low Battery Indication:
When the power of the battery weakens, it has two short “bi” sound and flash
icon while pressing the button of the LCD screen transmitter.
9. Set Up Fixed Count Down Timer:
1. Press the button first, within 3 seconds press and hold the ( )
button for 2 seconds, the LCD screen will shows icon and timer (ie. 0:10) ,
2. Press the ( ) button again showing next order time on the screen
(ie.0: 20), press them again (ie.0: 30)…..and so on.
3. L eave the buttons starting count down then icon flashes
Note: 1.The count down period is fixed as 10 minutes, 20 minutes, 30
minutes, 1 hour, 1.5 hours and 2 hours maximum.
a. When count down timer showing 0:00 means to turn off the timer.
b. Press button for real time indication when the timer is counting
down.
10. Out Of Range Indicati on:
1. If within the range, the icon will display on the LCD screen.
2. If you are out of range, the icon will disappear on the LCD screen.
D. TIMER SETTING:
Transmitter Button Description Press Transmitter
Button
RS850 OP 24
JAN/07/2003
1
Press & Hold the
button for 3 seconds
Press the button
once
2
Press the button
once.
Press the button
once
Press the button
once
3
Press the button
once
Press the button
once
Press the button
once
4
Press & hold the
button for 2 seconds.
EXIT: Press and hold the button for 2 seconds or leave it for 10seconds,
the system will exit the
programming mode.
1. Timer Setting: Example to AM10:30
1. Press & hold the button for 3 seconds, with two-melody sound and
the “Hours” digit flashes for adjusting.
2. Press the or button to decrease or increase the “Hour” digit until
AM10:xx
3. Press the button once again then the “Minute” digit flashes for
adjusting.
4..Press the or button to decrease or increase the “Minutes” digit
until AM 10: 30
5. Press the button for 2 seconds with one-melody sound to confirm
exit the timer program mode.
2. Alert Alarm Timer Setting: Example to PM 6:30
Timer Setting (Hour)
*Flash digit for adjusting
Time setting (Minute)
*Flash digit for adjusting
Alert Alarm Time Setting
(Hour)
*Flash digit for adjusting
Alert Alarm Time Setting
(Minute)
*Flash digit for adjusting
Alert Alarm Setting ON / OFF
Count Down Timer
Setting (Hour)
*Flash digit for adjusting
(Max.19 hours 59 minutes)
Count down Timer Setting
(Minute)
*Flash digit for adjusting
Count down Timer Setting
ON / OFF
Daily Timer Start Timer
Setting Flash /
icon and “Hours” for
adjusting
for – and
for +
for – and for
+
for – and for
+
for – and
for +
for OFF and
for ON
for – and
for +
for – and
for +
for OFF and
for ON
for – and
for +
RS850 OP 25
JAN/07/2003
1. Press & hold the button for 3 seconds, with two-melody sound and
the “Hours” digit flashes for
adjusting.
2. Press the button twice, the LCD screen will shows icon and
“Hours” digit is flashes for adjusting.
3. Press the or button to decrease or increase the “Hour” digit until
PM 6:xx
4. Press the button once again then the “Minutes” digit flashes for
adjusting.
5. Press the or button to decrease or increase the “Minutes” digit until
PM 6:30
6. Press the button once again then icon flashes for alert alarm “ON /
OFF” setting
7. Press the button to start the “Alert Alarm Timer”, and the “ON” icon will
show on the LCD screen. Press the button to stop the “Alert Alarm Timer”,
and the “OFF” icon will show on the LCD screen.
8. Press button for 2 seconds with one-melody sound to confirm exit the
timer program mode.
3. Count Down Timer Setting: Example Set count down timer at 2:30
1. Press & hold the button for 3 seconds, with two-melody sound
and the “Hours” digit flashes for
adjusting.
2. Press the button 5 times, the LCD screen will shows icon
and “Hours” digit is flashes for
adjusting.
3.Press the or button to decrease or increase the “Hour” digit
until 2:xx
4.Press the button once again then the “Minutes” digit flashes for
adjusting.
5. Press the or button to decrease or increase the “Minute”
digit until 2:30
6. Press the button once again then icon flashes for alert
alarm “ON / OFF” setting
7. Press the button to start the count down timer, and the “ON”
icon will show on the LCD screen.
RS850 OP 26
JAN/07/2003
Press the button to stop the count down timer, and the “OFF” icon
will show on the LCD screen.
8. Press the button for 2 seconds with one-melody sound to
confirm exit the timer program mode.
Note: Maximum is 19 hours.
4. Time Set-Up For “Daily Timer Start”: Example to AM 6:30
1. Press & hold the button for 3 seconds, with two-melody sound
and the “Hours” digit flashes for
adjusting.
2. Press & hold the button for 2 seconds, the LCD screen will fl ash
/ icon and “Hours”
digit for Hour set -up.
3. Press the or button to decrease or increase the hour digit
until AM 6:00
4. Press the button once again then the minute digit flashes.
5. Press the or button to decrease or increase the minutes
digit until AM 6:30
6. Press the button for 2 seconds with one-melody sound to
confirm exit the timer program mode.
RS850 OP 27
JAN/07/2003
LIMITED LIFETIME WARRANTY PROVISIONS
( U.S. and Continental U.S. Only)
1. AutoPage, Inc. WARRANTS that this new unit has been thoroughly inspected and
tested at the factory prior to delivery. Your AutoPage equipment is guaranteed for
“life” to the original purchaser/user of the equipment under the following conditions: If
the product proves defective (according to AutoPage’s testing) within the first year, the
defective unit may be exchanged or repaired free of charge. “Proof of Purchase”
(dated sales receipt) must accompany all warranty returns; otherwi se, your return
will be rejected and sent back. After one (1) year, the purchaser should ship the unit
prepaid to AutoPage with a money order in the amount of $20.00 to cover shipping and
handling charges. Note: The enclosed Warranty Card may be required to receive
warranty services.
2. This WARRANTY will be considered void if the equipment has been misused, neglected,
improperly serviced, altered, dropped or damaged by water, contrary to the AutoPage
OPERATIONS MANUAL. Or, if used with accessories not approved by AutoPage,
which may have contributed to the defect. See note below regarding product
installation.
3. The purchaser’s remedies under this WARRANTY shall be limited to the repair or
replacement of electronic components only. THE FOLLOWING IS NOT
COVERED: Damages or deterioration to cases, batteries, covers and cabinets; the cost
of repairs, replacement and labor of which shall be borne by the purchaser even if
occurring during the WARRANTY period.
RS850 OP 28
JAN/07/2003
4. Any equipment or parts which are claimed to be defective under this WARRANTY must
be sent to the AutoPage Service center with “proof of purchase” at the purchaser’s
expense prior to such return, a Return Authorization Number should be obtained.
AutoPage will return the equipment, charges prepaid. Warranty Service can be
provided through the dealer where the equipment is originally purchased.
5. Any unexpired WARRANTY shall be applicable to equipment and parts in the
possession of the original purchaser only.
6. THIS WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
7. AutoPage shall not be liable, under the foregoing WARRANTIES or otherwise, for: Any
personal injury of any kind to the purchaser, its employees or agents or anyone else
whomsoever resulting directly or indirectly from the use or presence of the equipment
or parts; Consequential damages of any kind; any inability of the purchaser to use the
equipment.
IMPORTANT NOTE: Any damages to the alarm system resulting from an
installation performed by anyone other than a professional installation
technician authorized by a dealer of Auto Page will void the product’s warranty.
This WARRANTY CARD is for your record. However, AutoPage reserves the
right to request you to submit this WARRANTY CARD, which must have
complete information to receive warranty service. Please keep this card in a
secured place.
AUTOPAGE WARRANTY SERVICE CARD
Model: _______________
RS850 OP 29
JAN/07/2003
Serial # _______________
CUSTOMER TO COMPLETE DEALER TO COMPLETE
Mr./Mrs./Ms.
___________________________ ________________________________
Your Name (Please Print) Company Name
___________________________ ________________________________
Address Dealer’s Address
___________________________ ________________________________
City, State, Zip Code City, State, Zip Code
___________________________ ________________________________
Telephone Number Dealer’s Telephone Number
___________________________ ________________________________
Year / Make / Model of Vehicle Date of Installation / Purchase
________________________________
Dealer’s Signature
“Proof of Purchase” which includes the store name and date of purchase must
accompany all warranty returns.
It is the purchaser’s responsibility to keep this card for any future warranty
service.
RS850 OP 30
JAN/07/2003
1815 West 205th Street Suite 101
Torrance, California 90501-1525
Main Office: 310-618-2002
Customer Service: 800-262-2527 Ext. 462
www.autopageusa.com
RS850 OP 31
Loading...
