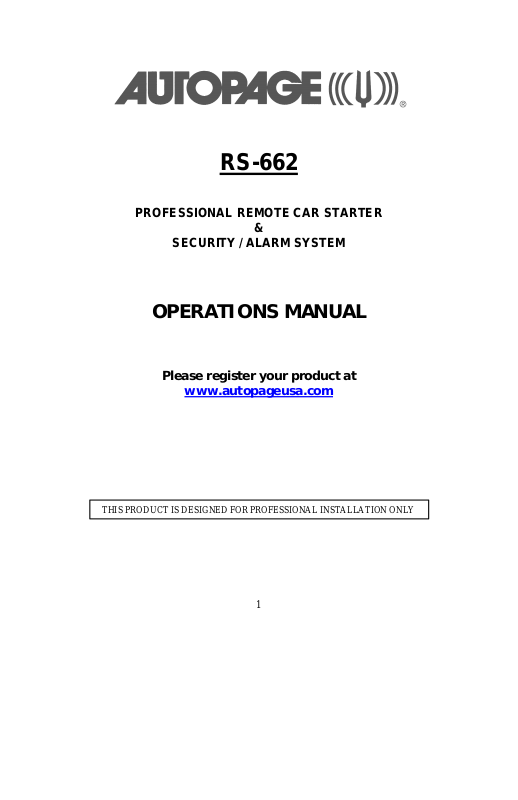

THIS PRODUCT I

S DESIGNED FOR PROFESSIONAL INSTALLATION ONLY

RS-662

PROFESSIONAL REMOTE CAR STARTER

SECURITY / ALARM SYSTEM

OPERATIONS MANUAL

Please register your product at

www.autopageusa.com

SYSTEM OPERATIONS:

WARNINGS:

As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of.

1. Keep the transmitter out of children’s reach.

2. Do not leave anyone in the vehicle while running on remote control.

3. Alert servicing personnel that the vehicle can be started automatically.

4. Do not start the vehicle by remote while it’s in an enclosed area or garage.

5. Always apply the parking brake and lock the vehicle as you exit the vehicle.

6. The vehicle windows must be rolled up.

7. Should the unit malfunction, disconnect the fuse until the problem is corrected.

8. The use and operations of this system is the sole responsibility of the operator.

9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets.

10. It is not safe to remote start the vehicle if the vehicle is parked on a steep

incline.

Transmitter

Button

System Function Remark

Lock Doors (Arm System) Arm System Panic function Car Locator Push while the system is armed

Arm system & Delete sensor Press twice within 3 seconds Silent Lock / Unlock Ignition in "off" position. Unlock Doors (Disarm System)

Two Step Door Unlock (Driver’s door on the first push; Passenger’s door on the second push) Optional

Trunk Release (Channel 2) Press and Hold for 2 seconds Passive Arming By-pass While the system Disarmed.

Channel # 4 Timer Output (4) Optional Activate or Turn Off The Remote

Start Switching Code For 2nd Car Operation.

Press and Hold for 3 seconds. Press to stop panic.

Press twice within 3 seconds.

Push once or twice depending on system settings (Program)

Push Before Command

CHANGING THE BATTERY IN YOUR TRANSMITTERS XT-33: This transmitter uses two (2) 3-volt lithium ion batteries

(#CR2016) that are sandwiched together with the (+) side facing upward. To replace the battery, you will need to use a small flat blade screwdriver. Locate the small notch on the lower right side of the transmitter case next to the key ring. Using the flat blade screwdriver, carefully pry the top case from the bottom case. It should snap apart after breaking the seal. Before removing the batteries note the direction of the positive (+) terminal. Place the new batteries in exactly the same manner, being careful not to bend or damage the contact terminal. Snap the cases back together and then test the transmitter to insure it arms and disarms the alarm. XT-65: This transmitter uses one 3-volt battery. Please use the procedure above to replace this battery.

XT-65 Extended XT-33 Standard Remote Range Sliding Cover remote

(2) CR2016

3-Volt Batteries

CR2032

3-Volt Battery

ACTIVE LOCK & ARM:

1. Press button on the transmitter.

2. The Siren will chirp once and parking lights will flash once indicating that the system is now active. The vehicle doors will lock upon activating only when interfaced with the factory keyless entry system.

SILENT ARMING / DISARMING: Pressing the + buttons together on the transmitter will lock or unlock your system, No chirp sound will be heard. Lock / unlock confirmation will be seen through the vehicle’s parking lights only.

DEFECTIVE SENSOR REMINDER:

If the siren sounds 3 chirps when

arming, then you have left a door, trunk or hood lid ajar.

SHOCK SENSOR / OPTIONAL SENSOR BY-PASS:

Press the button once: The siren chirps once, the system is armed. Press the button a second time within 5 seconds: The siren chirps

twice, the Shock Sensor is now bypassed. The sensor bypass feature is programmed to activate for one arming cycle only. The security system will return to normal operation during the next arming cycle.

PASSIVE ARMING

Active arming / disarming are controlling your security system via the remote transmitter. This security system is equipped with an optional Passive Arming feature, which allows the security system to arm 30 seconds after the last door is closed. Operation is as follows:

1. Turn the ignition to the “OFF” position and exit the vehicle.

2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you re-open any door / hood / trunk, the security system LED will stop flashing. It will begin flashing again once all vehicle entrances are closed.

After 30-second timer has elapsed, the security system will automatically “ARM”. The siren will chirp [1] time and the parking lights will flash [1] time.

PASSIVE ARMING WITH PASSIVE DOOR LOCKING The vehicle doors will automatically lock after passive arming cycle has been completed. Please refer to your installing dealer to activate this feature.

PASSIVE ARMING BY-PASS: While the LED is flashing fast for passive arming or Automatic re-arm, Press the buttons twice, the security

will respond with [1] chirp and LED will turn “ON”. The security system will remain in this temporary state for as long as you wish.

To exit passive by-pass, press the or button and the system will return to normal status.

ACTIVE UNLOCK & DISARMING:

1. Press button on the transmitter.

2. The siren will chirp twice and parking light will flash twice to indicating that the keyless system is now unlocked. The vehicle doors will unlock and dome lights will turn on for 30 seconds.

TAMPER DISARMING: If the alarm was triggered in your absence, upon disarming the system, the siren will chirp 4 times, the parking lights will flash 3 times. This will notify you that the alarm has been triggered.
