deutsch english italiano français
AUF – ZU open – closed aperto – chiuso ouvert - fermé
Sekundärluftschieber secondary air supply Regolazione aria secondaria Coulisseau d’entrée d’air second.
Primärluftschieber primary air supply Regolazione aria primaria Coulisseau d’entrée d’air primaire
deutsch english italiano français
Inhalt Contents Indice sommaire
1. Techn. Daten 1 1. Techn. data 4 1. Dati tecnici 7 1. Caractéristiques 10
2. Wichtige Informationen 1 2. Important information 4 2. Informazioni importanti 7 2. Infos importantes 10
3. So bedienen Sie Ihren 3. Correct operation 3. Per un uso corretto della 3. Bien utiliser votre
Kaminofen richtig 2 of your stove 5 vostra Kaminofen 8 poêle 11
4. Die wichtigsten 4. The most important 4. Prospetto dei ricambi 4. Principales pièces
Ersatzteile - Übersicht 3 spare parts - overview 6 principali 9 détachées 12
Garantie 13 Guarantee 13 Garanzia 14 Garantie 14
Page 3
G3 1 deutsch
g
g
g
1. TECHNISCHE DATEN
Als Gussofen der Bauart 1 ist ein Anschluß an
einen bereits mit anderen Öfen und Herden für
feste und flüssige Brennstoffe belegten
Schornstein möglich, sofern die
Schornsteinbemessung gemäß DIN 4705, Teil 3,
dem nicht widerspricht.
TECHNISCHE DATEN
Höhe 793 mm
Breite 453 mm
Tiefe 510 mm
Gewicht 120 k
Gewicht mit Keramikmantel 170 k
Rauchrohrabgang Durchmesser 130 mm
Nennwärmeleistung lt. DIN 18891 6 kW
Kleinste Heizleistun
Raumheizvermögen (abhängig
3 kW
48–124 m³
von der Hausisolierung)
Abgaswerte für die Mehrfachbelegung des Schornsteines nach DIN 4705, Teil 3 bzw. zur Bemessung
des Schornsteines nach DIN 4705, Teil 2
Abgasmassenstrom geschlossen 7 g/s
Abgastemperatur geschlossen 380 °C
Mindestförderdruck bei
Nennwärmeleistung (Nwl)
bei 0,8facher
geschlossen 0,12 mbar
0,08 mbar
Nwl
2. WICHTIGE INFORMATIONEN
Die Informationen in diesem Handbuch sind
allgemeiner Natur. Vorschriften können von Land
zu Land unterschiedlich sein; regionale
Vorschriften können Vorrang haben.
Allgemeine Sicherheitshinweise
zum Betrieb Ihres Gussofens
• Lesen Sie vor der Inbetriebnahme des Ofens
das gesamte Handbuch gründlich durch und
beachten Sie die Warnhinweise.
• Für den Transport Ihres Heizgerätes dürfen
nur zugelassene Transporthilfen mit ausreichender
Tragfähigkeit verwendet werden.
• Ihr Heizgerät ist nicht zur Verwendung als
Leiter oder Standgerüst geeignet.
• Durch den Abbrand von Brennmaterial wird
Wärmeenergie frei, die zu einer starken Erhitzung
der Oberfläche des Heizgerätes, der Türen, der
Tür- und Bediengriffe, der Türgläser, der
Rauchrohre und gegebenenfalls der Frontwand
des Heizgerätes führt. Die Berührung dieser Teile
ohne entsprechende Schutzbekleidung oder
Hilfsmittel wie z.B. Hitzeschutzhandschuhe oder
Betätigungsmittel (kalte Hand), ist zu unterlassen.
• Machen Sie Ihre Kinder auf diese besondere
Gefahr aufmerksam und halten Sie sie während
des Heizbetriebes vom Heizgerät fern.
• Verbrennen Sie ausschließlich das im Kapitel
„saubere Verbrennung“ angeführte genehmigte
Heizmaterial.
• Das Verbrennen oder Einbringen von leicht
brennbaren oder explosiven Stoffen, wie leere
Spraydosen und dgl. in den Brennraum, sowie
deren Lagerung in unmittelbarer Nähe Ihres
Heizgerätes, ist wegen Explosionsgefahr
strengstens verboten.
• Beim Nachheizen sollen keine weiten, oder
leicht brennbaren Kleidungsstücke getragen
werden.
• Das Abstellen von nicht hitzebeständigen
Gegenständen auf dem Heizgerät oder in dessen
Nähe ist verboten.
• Legen Sie keine Wäschestücke zum
Trocknen auf den Ofen.
• Ständer zum Trocknen von Kleidungsstücken
oder dgl. müssen in ausreichendem Abstand vom
Heizgerät aufgestellt werden - Brandgefahr.
• Beim Betrieb Ihres Heizgerätes ist das
Verarbeiten von leicht brennbaren und explosiven
Stoffen im selben oder in anschließenden Räumen
verboten.

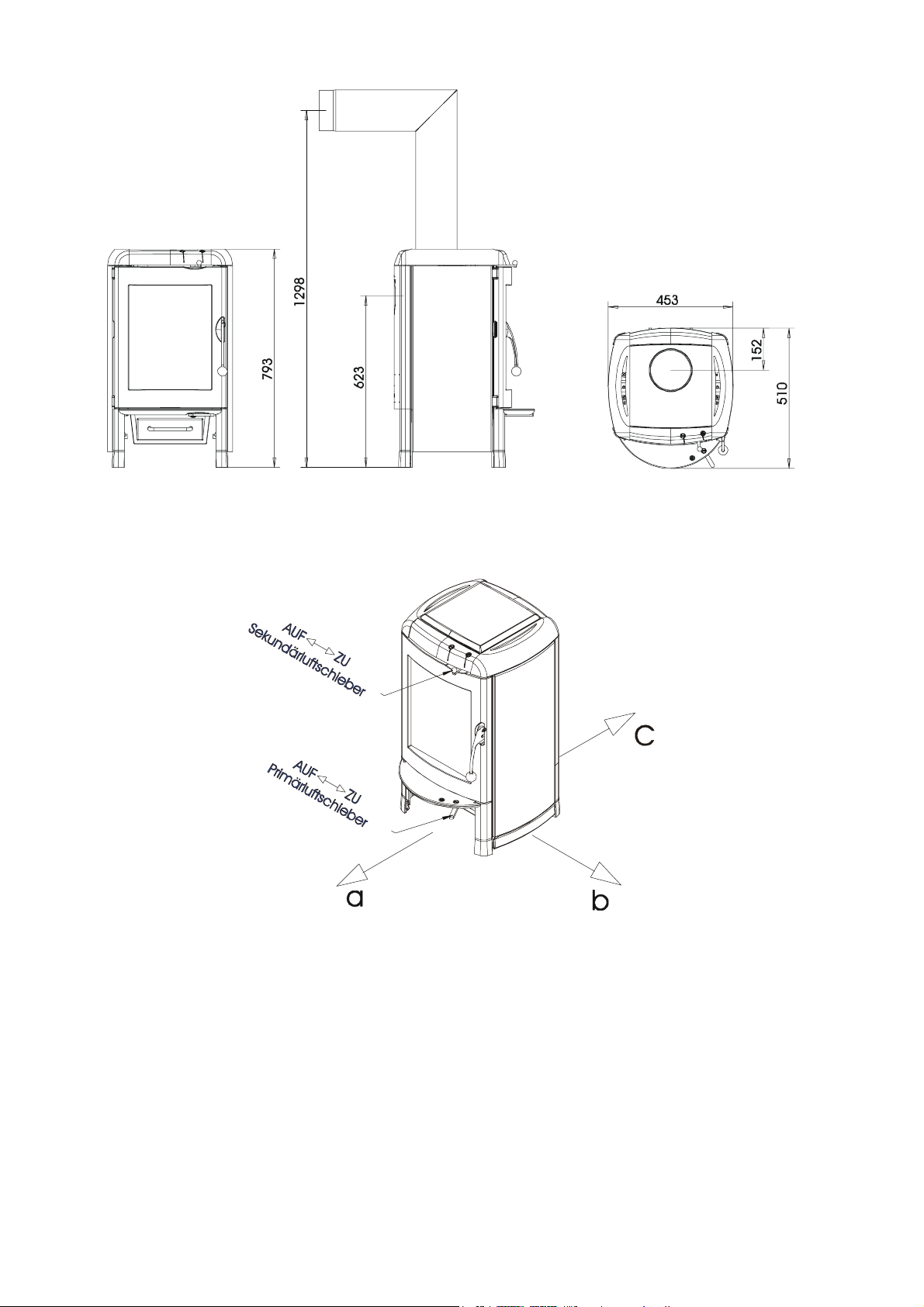

Ofenaufstellung
Sicherheitsabstände(Mindestabstände)
Fig. 2
1. Zu nicht brennbaren Gegenständen:
a > 400 mm b > 200 mm c > 300 mm
2. Zu brennbaren Gegenständen und zu tragenden Wänden
aus Stahlbeton:
I a > 800 mm b > 200 mm c > 300 mm
II a > 800 mm b > 300 mm c > 300 mm
III a > 800 mm b > 500 mm c > 300 mm
I = mit Edelstahlverkleidung, II = mit Konvektionsmantel,
III = ohne Konvektionsmantel
(a - nach vorne im Strahlungsbereich)
(b - seitlich) (c – hinten)
Erfolgt die Aufstellung auf einem brennbaren bzw.
temperaturempfindlichen Boden, so muß er auf eine nicht
brennbare Unterlage gestellt werden, z.B. auf eine Metallplatte, die den Ofen vorne um 50 cm und seitlich um 30 cm
überragt. Vor dem Ofen darf sich im Strahlungsbereich der
Sichtscheibe unterhalb von 80 cm kein brennbares bzw.
temperaturempfindliches Material befinden.
Bitte beachten Sie, daß der Aufstellungsraum
mind. eine Türe / ein Fenster ins Freie aufweisen
oder mit einem derartigen Raum direkt verbunden
sein muß.
Technische und optische Änderungen, Satz- und Druckfehler vorbehalten.
Page 4
deutsch 2 G3
Bodentragfähigkeit
Prüfen Sie vor dem Aufstellen ob die Tragfähigkeit
der Unterkonstruktion dem Gewicht Ihres
Gussofen standhält.
Rauchrohranschluß
Für den Anschluß der Rauchrohre an den
Schornstein gibt es zu Ihrer eigenen Sicherheit
strenge Richtlinien. Ihr Ofen-Fachhändler kennt
diese. Beauftragen Sie daher unbedingt Ihren
Fachhändler mit dem Rauchrohranschluß.
3. SO BEDIENEN SIE IHREN GUSSOFEN RICHTIG
Die erste Inbetriebnahme Ihres
Gussofens
Ihr Gussofen wurde mit einem umweltverträglichen
Speziallack lackiert. Die Lackoberfläche ist bei
Auslieferung Ihres Ofen noch weich. Die
Aushärtung des Lacks erfolgt bei der ersten
Inbetriebnahme. Die Lackoberfläche darf während
dieses Vorganges nicht berührt werden. Der
Gussofen muß mindestens 1,5 Stunden stark
aufgeheizt werden. Bei der Aushärtung des Lackes
können sichtbare Dämpfe freiwerden. Öffnen Sie
daher vor der ersten Inbetriebnahme die Fenster.
Dadurch können die Dämpfe schnell abziehen.
BITTE BERÜCKSICHTIGEN SIE:
mehreren Heizvorgängen ist der Betrieb Ihres
Gussofen nur mehr vom heimeligen Geruch des
verbrennenden Holzes geprägt.
Erst nach
Zugelassene Brennstoffe
Trockenes, gut abgelagertes, naturbelassenes
Holz, Holzbriketts.
Maximale Brennstoffmenge
Maximal aufzugebende Brennstoffmenge: ca. 1,6
kg Holz oder ca. 1,8 kg Holzbriketts.
Größere Brennstoffmengen können zu
Überhitzung und Beschädigungen am Ofen führen!
Saubere Verbrennung
Das Brennholz muß trocken (rel. Holzfeuchte
< 15 %) und unbehandelt sein und die richtige
Brennholzmenge muß verbrannt werden, um eine
saubere, emissionsarme Verbrennung zu
erreichen.
Richtig Feuer machen
Bereiten Sie alles zum Anheizen vor –
Weichholzspäne, Anzündhilfe (wie zB Thermohit
Holz-Kohleanzünder), unbeschichtetes Papier,

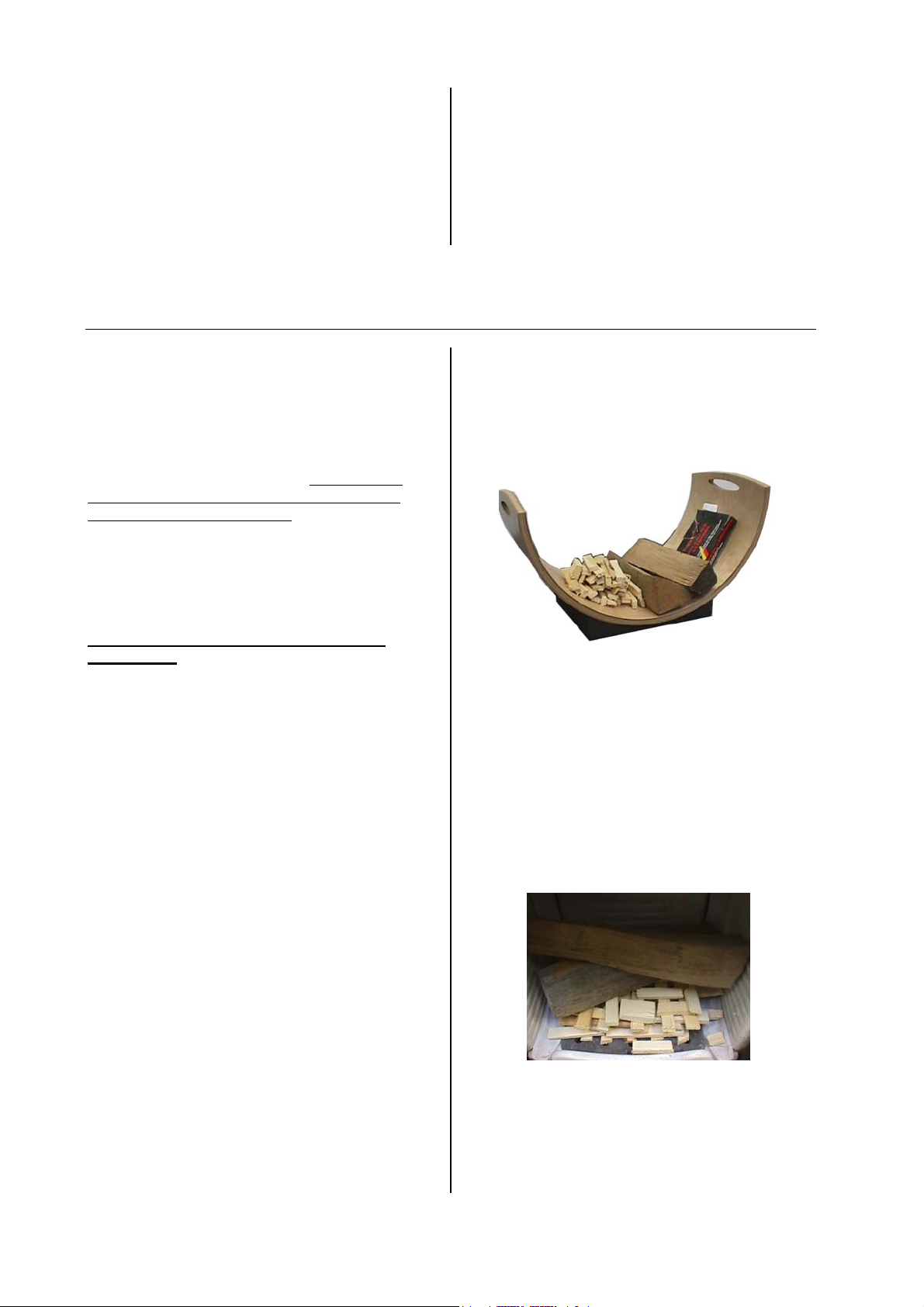

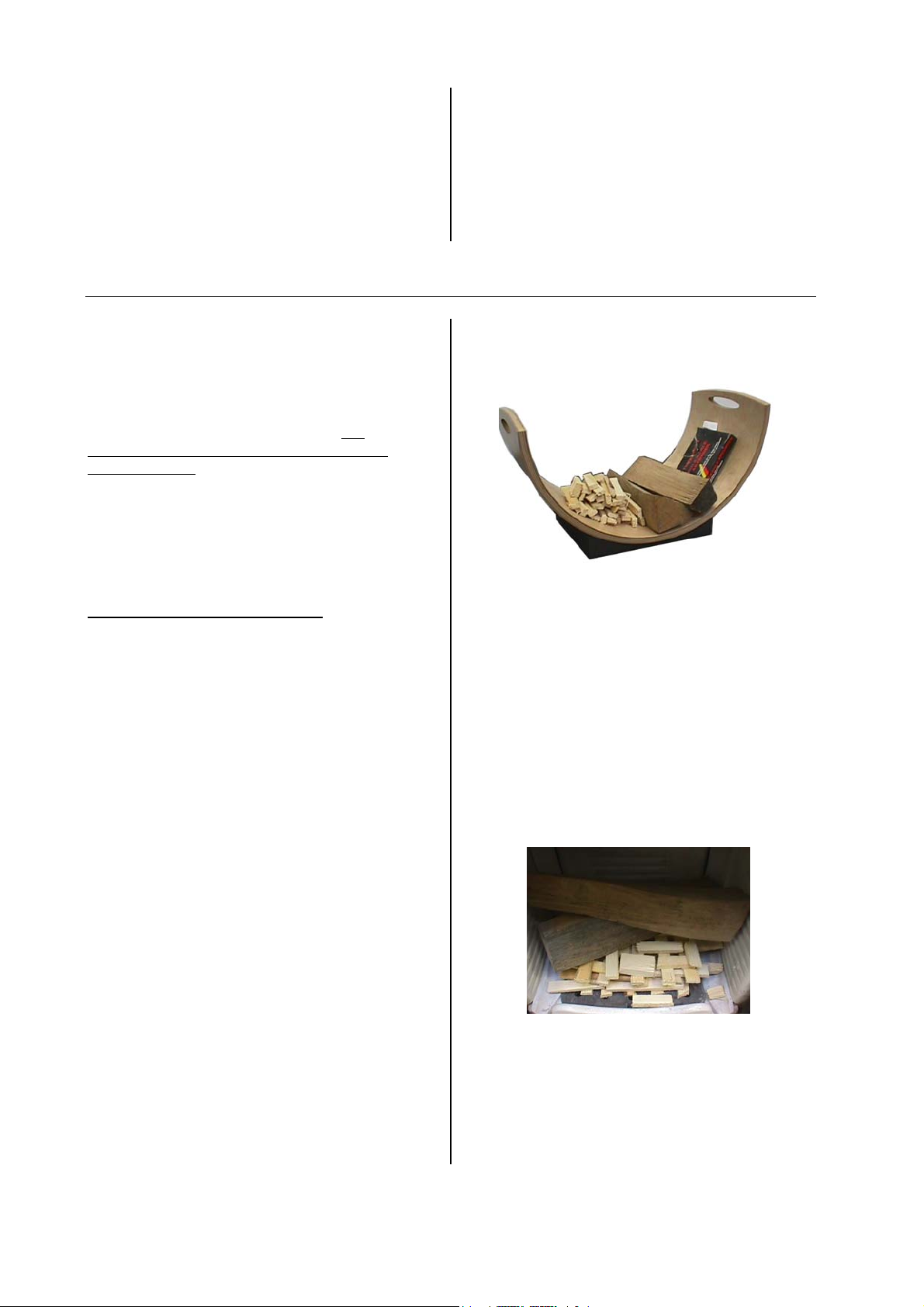

Brennholz. Fig. 3 gibt Ihnen eine Richtlinie
hinsichtlich der Menge an Heizmaterial.

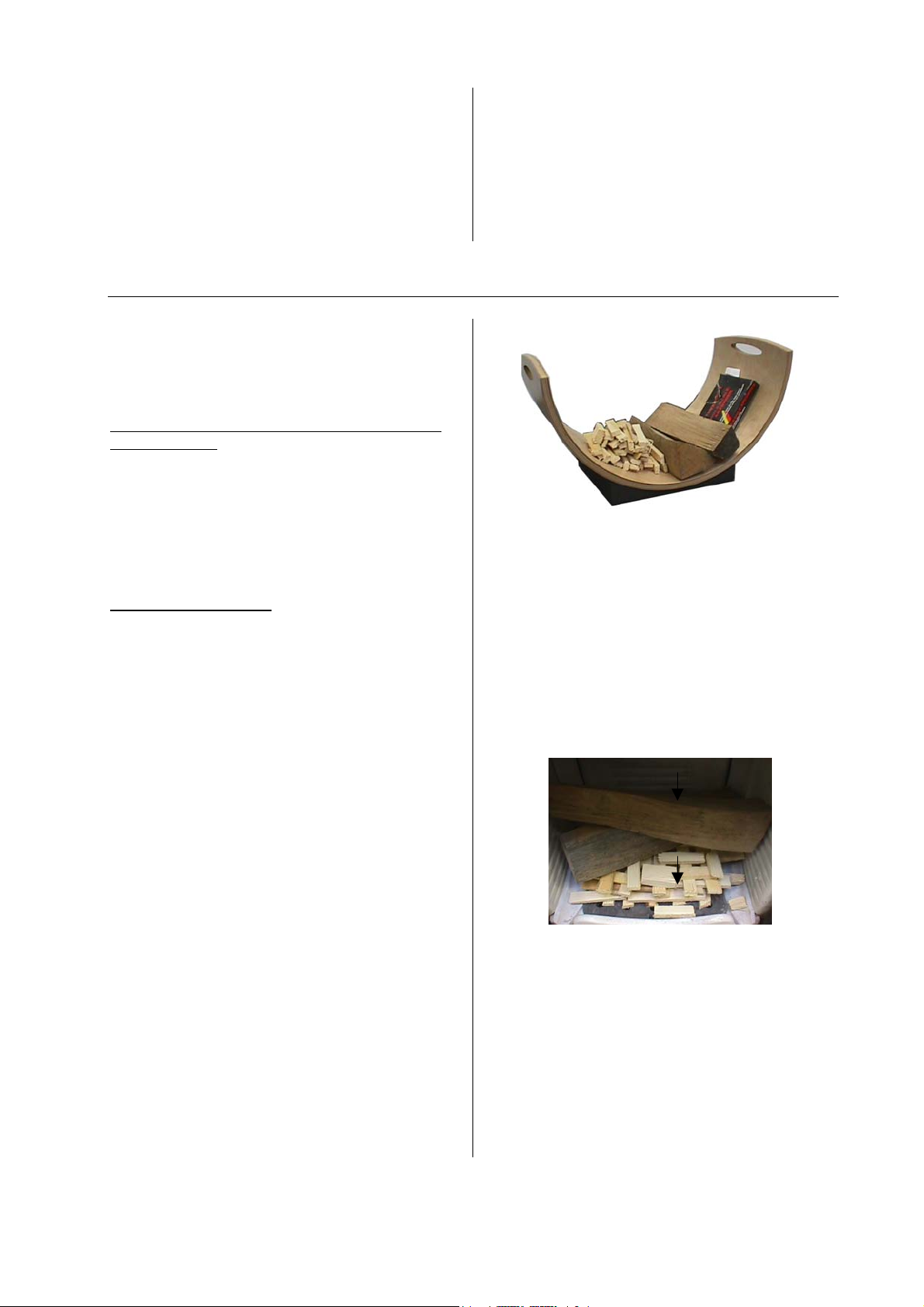

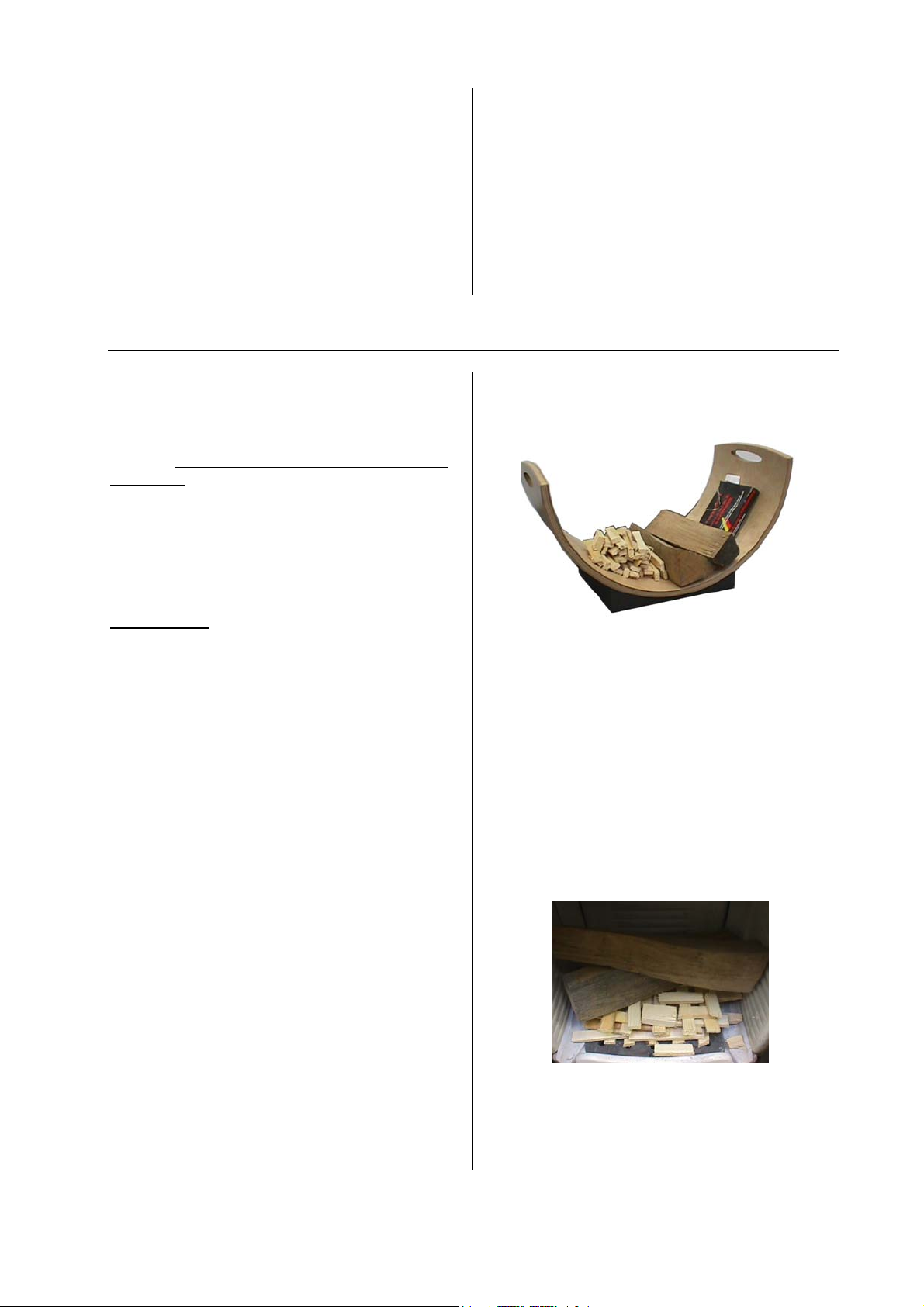

Fig. 3: Heizmaterial
Öffnen Sie die Primär- und Sekundärluftzufuhr
maximal. Bewegen Sie dazu beide Schieber siehe
Fig. 2 „AUF“.
Öffnen Sie die Gussofentür.
Legen Sie unbeschichtetes Papier auf den
Feuerraumboden.
Legen Sie darauf eine handvoll Weichholzspäne.
Legen Sie auf diese Späne 1 – 2 Scheite Holz.
Fig. 4: Anzünden
Zünden Sie nun das Papier an.
Schließen Sie die Feuerraumtür.
Sobald die Weichholzspäne gut brennen,
schließen Sie den Primärluftschieber.
Symbolabbildungen
Page 5
G3 3 deutsch
Sobald die Holzscheite gut brennen, können Sie
mit dem Sekundärluftschieber die Heizleistung
regulieren (Schieber auf Maximalstellung „AUF“ =
maximale Heizleistung – siehe Fig. 2).
Beim Nachlegen gehen Sie prinzipiell wie beim
Anheizen vor: Primärluftschieber öffnen,
Sekundärluftschieber öffnen, Ofentüre vorsichtig
öffnen, Holz nachlegen, Gussofentüre schließen.
Warten Sie, bis das nachgelegte Holz brennt.
Dann schließen Sie den Primärluftschieber. Regeln
Sie in der Folge die Heizleistung mit dem
Sekundärluftschieber.

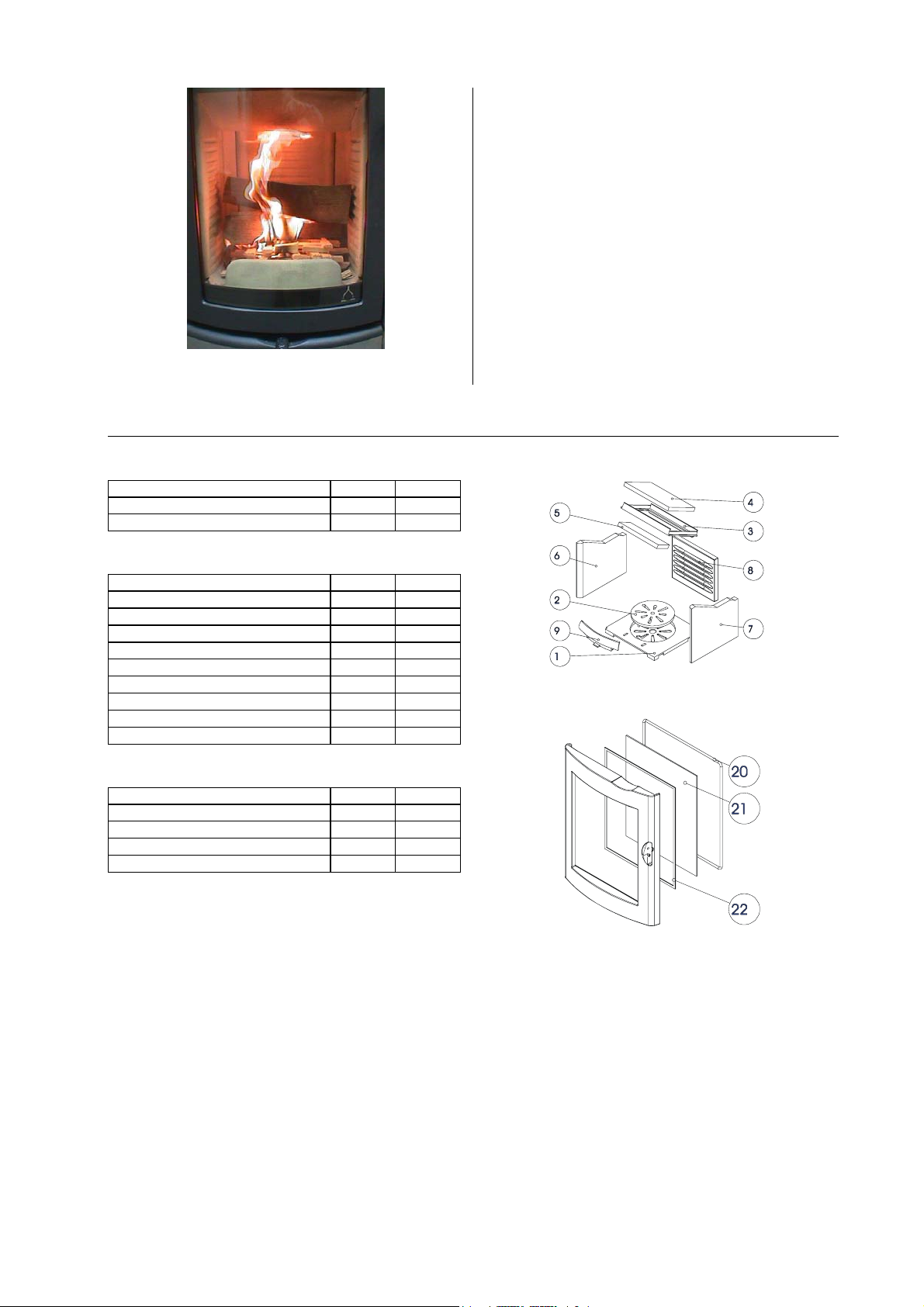

Fig. 5: Primärluftschieber schließen

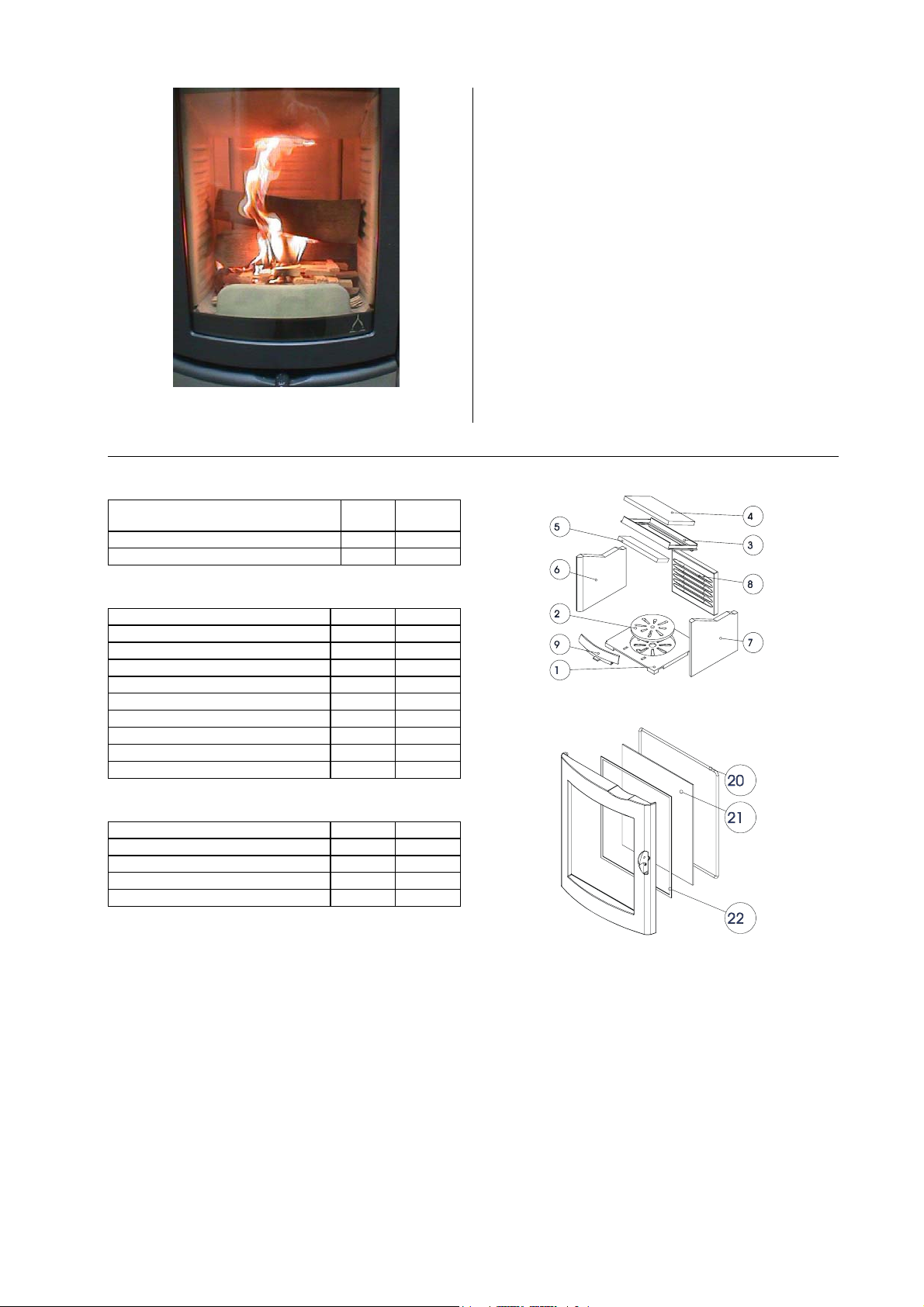

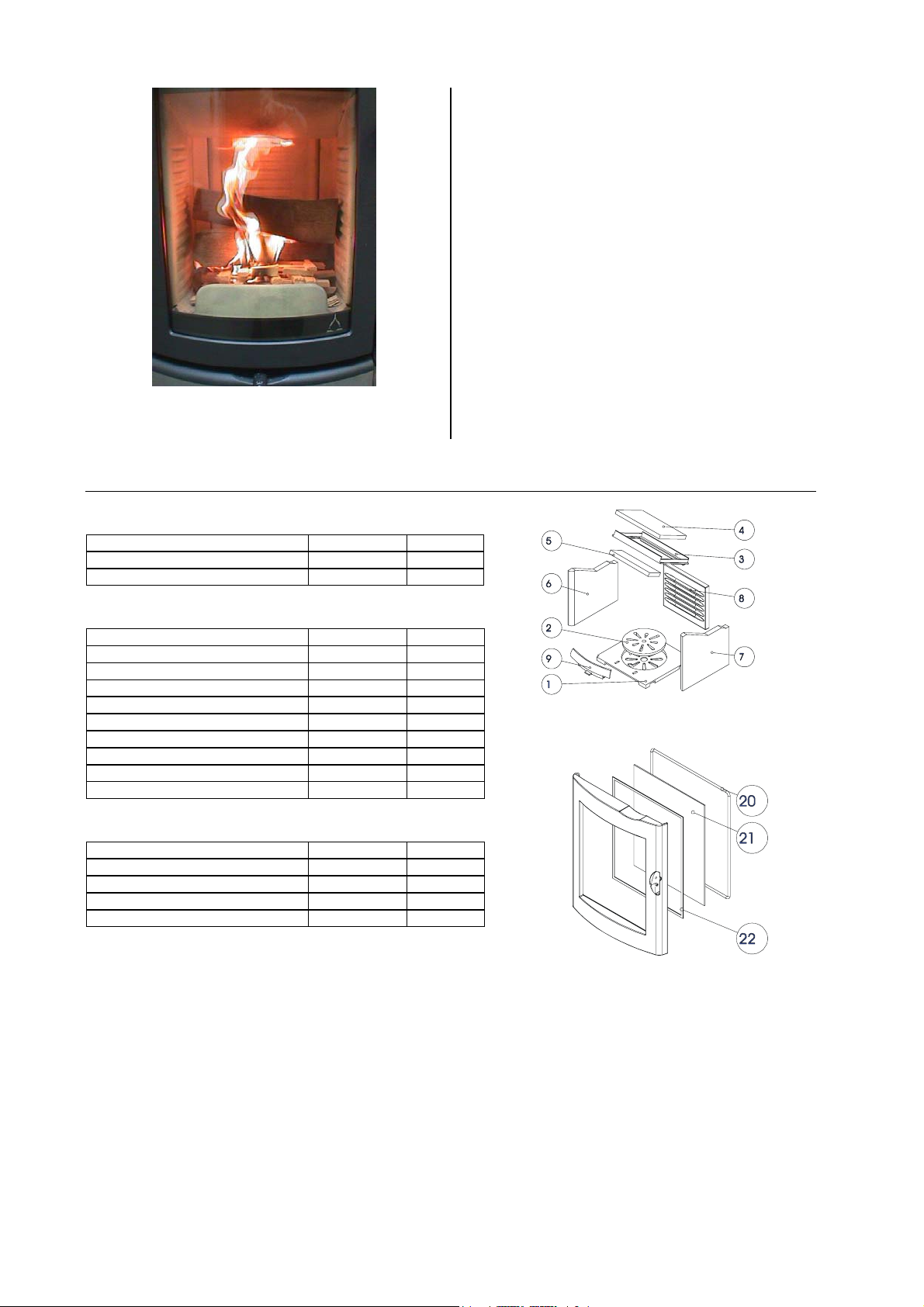

4. DIE WICHTIGSTEN ERSATZTEILE - ÜBERSICHT
Dichtungen
Bezeichnung Nr.-Skizze Artikelnr.
Dichtung flach 8 x 2 mm, L = 1440 mm 22 710096
Dichtung rund 12 mm, L = 1560 mm 20 710338
Bei Ihrem Fachhändler erhalten Sie Bodenplatten aus Glas oder Stahl, Kaminbestecke und Pflegemittel.
WICHTIG: Lassen Sie defekte Teile ausschließlich von Ihrem Gussofenfachhändler austauschen.
Damit ist gewährleistet, daß Ihr Gussofen sicher und funktionstüchtig ist und bleibt.
Pflege
Zur Glasreinigung verwenden Sie bitte ein Spezialprodukt wie Thermohit Glasreiniger. Lackierte
Oberflächen dürfen nur mit einem Tuch (ev. feucht) gereinigt werden. Für Edelstahloberflächen gibt es
ebenfalls Spezialreiniger.
Numerierung Keramott = Einbauanleitung!
Numerierung Keramott = Einbauanleitung!
Page 6
G3 4 english
g
g
1. TECHNICAL DATA
As a stove of construction type 1, it is possible to
connect it to the flue pipe of an existing other stove
or another furnace for solid and liquid fuels, as
long as the chimney does complies with DIN 4705,
Part 3.
TECHNICAL DATA
Height 793 mm
Width 453 mm
Depth 510 mm
Weight 120 k
Weight with ceramic shell 170 k
Flue pipe outlet diameter 130 mm
Nominal thermal output (DIN 18891) 6 kW
Maximum thermal capacity 8 kW
Room heating capacity (depending on
48–124 m³
building insulation)
Exhaust values for multiple use of the chimney in
accordance with DIN 4705, Part 3 and for the
calculation of the chimney measurements in
accordance with DIN 4705, Part 2
Fluegas mass flow closed 7 g/s
Fluegas temperature closed 380 °C
Minimum feed pressure
Nominal thermal output
at 0.8 times
closed 0.12 mbar
0.08 mbar
n. ther. outp.
2. IMPORTANT INFORMATION
The installation and operation information given
here is of a general nature, exact regulations may
vary from country to country. The rules in force in
your country should always take precedence.
General Safety Instructions for
the Operation of Your Stove
• Thoroughly read the entire manual before
starting up your stove and ensure compliance with
the warnings.
• Your heating unit may not be moved without
approved means of transport with sufficient loadbearing capacity.
• Your heating unit is not suitable to be used as
a stand or as a ladder.
• The burning of fuel releases thermal energy
that leads to a substantial heating up of the surface
of the heating unit, the doors, the parts mounted
on the door, door glass, flue pipe and in some
cases the front wall of the heating unit. Do not
touch any of these surfaces without respective
protective clothing or without the help of
accessories such as heat-resistant gloves or a cold
hand.
• Make your children aware of this particular
danger and keep them at a distance from the
heating unit whenever it is in operation.
• Only burn approved fuels and materials listed
in the section entitled Clean Burning.
• The burning or introduction of flammable or
explosive materials, such as empty spray cans and
the like into the firebox as well as the storage of
such materials in the immediate vicinity of your
heating unit is strictly forbidden due the danger of
explosion.
• Do not wear loose or flammable clothing when
adding fuel to the fire.
• Placing non-heat-resistant objects on the
heating unit or in the vicinity of the heating unit is
forbidden.
• Do not lay laundry onto the stove for drying.
• Laundry hung up to dry must be kept at a safe
distance from the stove because of the danger of
fire.
• When operating your heating unit it is
forbidden to use flammable or explosive materials
in the same or an adjacent room to the one in
which your heating unit is located.
•
Setting Up Your Stove
Safety Clearances (Minimum Distances in
Fig. 2)
1. to nonflammable objects:
a > 400 mm b > 200 mm c > 300 mm
2. to flammable objects and to supporting walls of
reinforced-concrete construction with convection
shell:
I - a > 800 mm b > 200 mm c > 300 mm
II - a > 800 mm b > 300 mm c > 300 mm
III - a > 800 mm b > 500 mm c > 300 mm
I = with stainless steel cladding
II = with convection cladding
III = without convection cladding
(a – toward the front in the radiated area)
(b – to the side) (c – to the back)
If the installation of the stove is being made on a flammable or
heat-sensitive floor, the stove must be placed on a nonflammable floor plate (e.g. a metal floor plate), which exceeds
the stove dimensions, by 50 cm to the front and by 30 cm to the
sides. You must not place any flammable or heat-sensitive
materials 80 cm towards the front of the radiated area of the
door glass.
Make sure that the room in which the stove is set
up has at least one door or window to the outside
or is directly adjacent to such a room.
Subject to technical and optical modifications. Formatting and printing errors excepted.
Page 7
english 5 G3
Floor Load Capacity
Before the heating unit is installed, make sure that
the load capacity of the supporting construction is
sufficient to carry the weight of the entire unit.
Stovepipe Connection
For your own safety stringent laws apply to the
connecting of the stovepipe to the chimney. Your
professional dealer or distributor knows these laws.
Please have your certified retailer carry out the
connection of your stove.
3. CORRECT OPERATION OF YOUR STOVE
Initial startup of your stove
Your stove was treated with a special
environmentally friendly lacquer. The lacquer
surface is still soft at the time the stove is shipped.
The lacquer will harden when your stove is used
for the first time. The lacquer surface may not be
touched when it is heated for the first time. The
stove must be initially heated to a high temperature
for at least 1.5 hours. Visible vapors may appear
during the hardening of the lacquer. For this
reason it will be necessary to open windows during
initial operation in order let the vapors escape into
the outdoors.
PLEASE TAKE NOTE:
sessions before for your stove releases only the
pleasant smell of burning wood.
It takes several heating
Approved Fuels
Dry, well cured and natural wood, wood briquettes.
Maximum Amount of Fuel
Maximum amount of fuel to be added: appr. 1,6 kg
wood or appr. 1,8 kg wood briquettes. Larger
amounts of fuel can lead to overheating and thus
damage the stove.
Clean Burning
The wood must be dry (relative wood moisture <
15%) and untreated and the right amount of wood
must be burned in order to ensure a clean fire that
releases only small amounts of emissions.
Making a Fire
Prepare everything you need for starting the fire—
soft wood chips, igniter materials (such as
Thermohit wood/coal igniter), uncoated paper,
wood. Figure 1 provides a good overview of the
materials you will need.
Figure 3: Heating Material
Open the primary and secondary air all the way.
Move both sliders. See Figure 2.
Open the stove door.
Lay uncoated paper on the floor of the firebox.
Lay soft wood chips onto the paper.
Lay one or two logs of wood on the wood chips.
Figure 4: Igniting the Fire
Light the paper.
Close the firebox.
As soon as the chips are burning well, close the
primary air supply.
symbol figures
Page 8
G3 6 english
As soon as the wood logs are burning well, you
can regulate the heating capacity with the
secondary air slider. (Slider set to the maximum
(“AUF”) setting produces maximum heat – see
Figure 2.)
When adding wood to the fire, follow the same
procedure as when igniting the fire: Open primary
air, open secondary air, carefully open firebox
door, lay wood on the fire, close the firebox door.
Wait until the added wood catches fire and is
burning. Then close the primary air. Subsequently
regulate the fire with the secondary air supply.
Figure 5: Close the Primary Air
4. THE MOST IMPORTANT SPARES—OVERVIEW
Gaskets
Description Nr. drawing Part number
Flat gasket 8 x 2 mm, 1440 mm long 22 710096
Round gasket 12 mm, 1560 mm l 20 710338
Keramott
Description Nr. drawing Part number
G3 keramott rear 8 716080
G3 keramott lateral right 7 716082
G3 keramott lateral left 6 716081
G3 wood retainer 9 716075
G3 vermiculit baffle plate large 4 716175
G3 baffle plate 3 716194
G3 vermiculit baffle plate small 5 716253
G3 bottom grate 1 716025
G3 grate 2 716122
Keramott numbering = installation instructions!
Other parts
Description Nr. drawing Part number
G3 door glass 21 716065
Stove lacquer -- 650002
Wood/coal igniter -- 640067
Glass cleaner ½ litre -- 640070
Accessories
You can obtain floor plates of glass or steel, fireplace utensils or care products from your certified dealer.
IMPORTANT: Have defective parts replaced by your certified dealer. This will guarantee that your
stove functions properly and safely.
Maintenance
To clean the glass, please use a specialized product such as Thermohit glass cleaner. Lacquered
surfaces are to be cleaned only with a cloth (may be damp). Special cleaning agents should also be used
for stainless steel surfaces.
Page 9
G3 7 italiano
A
g
g
1. DATI TECNICI
Questa stufa-caminetto (Kaminofen del tipo Bauart
1) è adatta per essere collegata ad una canna
fumaria già utilizzata per altre stufe o fonti di calore
che impiegano combustibili solidi o liquidi, se le
dimensioni della canna fumaria lo consentono
(norma DIN 4705, Parte 3).
DATI TECNICI
ltezza 793 mm
Larghezza 453 mm
Profondità 510 mm
Peso 120 k
Peso con rivestimento in ceramica 170 k
Diametro uscita fumi 130 mm
Rendimento nominale (secondo DIN 6 kW
Rendimento massimo 8 kW
Volume riscaldabile (m3) (dipende
dalle condi-
Valori delle emissioni per allacciamento multiplo
alla canna fumaria (secondo norma DIN 4705,
Parte 3) e per il calcolo delle dimensioni della
canna fumaria (secondo DIN 4705, Parte 2)
Flusso fumi chiuso 7 g/s
Temperatura fumi chiuso 380 °C
Depressione minima
chiuso 0,12 mbar
con rendimento
con r.nom. di
0,8 volte
48–124 m
0,08 mbar
2. INFORMAZIONI IMPORTANTI
Questo manuale contiene informazioni generali. Le
normative possono cambiare da paese a paese; le
normative locali possono risultare prioritarie.
Avvertenze generali e precauzioni
nell'impiego della Kaminofen
• Prima di mettere in funzione la stufa vi
raccomandiamo di leggere attentamente l'intero
manuale che vi fornisce importanti informazioni e
avvertimenti.
• Per il trasporto della stufa utilizzate mezzi
idonei, la cui portata sia sufficiente a sostenerne il
peso.
• Non utilizzate la stufa come se fosse una
scala o un'impalcatura per salirvi sopra.
• In seguito alla combustione si libera energia
termica, che provoca un forte riscaldamento della
superficie della stufa e del tubo uscita fumi. Fate
attenzione quindi ed evitate di toccare componenti
come l'antina, la maniglia, le leve di regolazione
delle prese d'aria, il vetro ceramico, il tubo di uscita
fumi ed eventualmente la parte frontale della stufa
senza una protezione adeguata, ad esempio un
guanto o altri utensili (gancio smuovicenere,
”manofredda”).
• Istruite i vostri bambini su questi inconvenienti
e teneteli lontani dalla stufa quando è accesa.
• Utilizzate solo i combustibili indicati nel
capitolo „Combustibili adatti“.
• Nella camera di combustione non devono
essere introdotte e bruciate sostanze facilmente
infiammabili od esplosive, come bombolette spray
vuote e simili. Non lasciate tali oggetti nelle
immediate vicinanze della stufa (pericolo di
esplosione).
• Quando si aggiunge legna nella stufa accesa
è consigliabile non portare capi di abbigliamento
che possano prendere fuoco facilmente.
• Non appoggiate oggetti non resistenti al
calore sulla stufa o nelle sue immediate vicinanze.
• Non mettete ad asciugare biancheria sopra la
stufa.
• Stendibiancheria o simili devono essere
collocati ad una distanza adeguata dalla stufa
(pericolo di incendio).
• Quando la stufa è in funzione è sconsigliabile
lavorare con sostanze facilmente infiammabili o
esplosive nella stessa stanza o in stanze adiacenti.
Installazione della stufa
Distanze di sicurezza (distanze minime)
Fig. 2
1. Da oggetti non infiammabili:
a > 400 mm b > 200 mm c > 300 mm
2. Da oggetti infiammabili e pareti portanti in cemento armato:
I - a > 800 mm b > 200 mm c > 300 mm
II - a > 800 mm b > 300 mm c > 300 mm
III - a > 800 mm b > 500 mm c > 300 mm
I = con rivestimento in acciaio inox
II = con mantello convettivo
III = senza mantello convettivo
(a - anteriormente nell’area di irradiazione)
(b – lateralmente) (c - posteriormente)
Se la stufa è installata sopra un pavimento in materiale
infiammabile, occorre posizionare un elemento ininfiammabile fra la stufa ed il pavimento, come per esempio
una base di protezione in acciaio che superi la stufa di 50
cm anteriormente e 30 cm lateralmente.
E’importante che non vi siano materiali infiammabili
posizionati a meno di 80 cm dalla base del vetro fuoco.
Il luogo in cui installate la stufa deve disporre di almeno una
porta / finestra che dia all’esterno oppure deve essere collegato
direttamente ad un ambiente con accesso all’esterno
.
3
Salvo modifiche di carattere tecnico ed estetico o errori di fotocomposizione e stampa.
Page 10
italiano 8 G3
Portata del pavimento
Prima di installare la stufa, accertatevi che la
struttura sottostante al punto in cui volete
sistemarla sia in grado di sopportarne il peso.
Collegamento del tubo di uscita
fumi
Per garantire la vostra sicurezza, il collegamento
dei tubi di uscita fumi alla canna fumaria è regolato
da apposite norme. Per l’installazione e il
collegamento rivolgetevi quindi al vostro
rivenditore, che è a conoscenza di tali disposizioni.
3. PER UN USO CORRETTO DELLA VOSTRA
KAMINOFEN
Quando mettete in funzione la
stufa per la prima volta
La vostra Kaminofen è stata rifinita con una
speciale vernice ecocompatibile. Al momento della
fornitura le superfici laccate e verniciate non sono
ancora completamente indurite. L'indurimento
definitivo avviene con il calore che si sviluppa
durante la prima accensione. Durante questa
fase, che deve durare almeno 1,5 ore e a calore
intenso, non toccate le superfici della stufa e
arieggiate bene l'abitazione, per eliminare
rapidamente eventuali odori e vapori causati
dall'indurimento della vernice.
VI PREGHIAMO DI TENERE CONTO DEL
FATTO CHE solo dopo aver acceso la stufa varie
volte per un periodo continuato, avvertirete il
caratteristico (e piacevole) odore della legna che
arde.
Combustibili adatti
Legna naturale e non trattata, secca e ben
conservata, tronchetti di legno pressato.
Quantità massime di combustibili
La massima quantità di combustibile consigliata:
ca. 1,6 kg di legna oppure ca. 1,8 kg di tronchetti di
legno pressato per volta. Non introducete quantità
eccessive di combustibile per evitare un
surriscaldamento ed un conseguente
danneggiamento della stufa.
Combustione ed ecologia
Per ottenere una combustione corretta con un
minimo di emissioni la legna deve essere secca (<
15 % di umidità relativa) e non trattata e non si
devono superare le quantità di combustibile
consigliate.
Per una corretta accensione
Preparate tutto l'occorrente per accendere la stufa:
trucioli di legno dolce, accendifuoco (ad es.
Thermohit), carta (non patinata), e legna.
L'illustrazione 1 vi fornisce le indicazioni circa le
giuste quantità per l‘accensione.
Ill. 1: Materiali per l'accensione
Aprite al massimo la presa per l'aria primaria e
quella per l’aria secondaria, spostando le due
levette come indicato nella fig. 2 “AUF / aperto”.
Aprite ora l'antina.
Disponete dapprima della carta (non patinata) sul
fondo della camera di combustione, sopra di essa
una manciata di trucioli di legno dolce e poi 1 o 2
ceppi di legna.
Ill. 2: Accensione
Dopo aver dato fuoco alla carta, chiudete l'antina e
attendete fino a quando i trucioli stanno bruciando
per poi chiudere la presa dell'aria primaria.
Spiegazione dei simboli
Page 11
G3 9 italiano
Quando anche i ceppi avranno incominciato a
prendere ben fuoco, potete regolare il rendimento
della stufa con la levetta dell'aria secondaria
(portandola nella posizione massima otterrete il
massimo del rendimento).
Questa operazione va ripetuta per ogni strato di
legna che vorrete aggiungere: aprite la presa
dell'aria primaria e quella dell'aria secondaria, poi
l'antina (facendo attenzione), aggiungete la legna e
richiudete infine l'antina. Attendete fino a quando
anche la nuova legna abbia preso ben fuoco e poi
chiudete nuovamente la presa dell'aria primaria,
regolando infine il rendimento con la levetta
dell'aria secondaria.
Ill. 3: Chiudere la presa dell'aria primaria
4. PROSPETTO DEI RICAMBI PRINCIPALI
Guarnizioni
Denominazione N. su
dis.
Guarnizione piatta 8 x 2 x 1440 mm 22 710096
Guarnizione tonda 12 x 15600 mm 20 710338
Keramott
Denominazione N. su dis. N. art.
G3 keramott posteriore 8 716080
G3 keramott lateral destra 7 716082
G3 keramott lateral sinistra 6 716081
G3 fermalegna 9 716075
G3 vermiculite grande 4 716175
G3 tagliafiamme 3 716194
G3 vermiculite piccolo 5 716253
G3 griglia 1 716025
G3 griglia 2 716122
Altre parti
Denominazione N. su dis. N. art.
Vetroceramico antina G3 21 716065
Vernice -- 650002
Accendifuoco -- 640067
Detergente vetroceramico 0,5 l -- 640070
Accessori
Presso il vostro rivenditore potete acquistare basi di protezione in vetro o acciaio, vari utensili per la stufa
ed prodotti per la cura e pulizia.
IMPORTANTE: per la sostituzione di parti difettose rivolgetevi esclusivamene al vostro rivenditore di
Kaminofen, in questo modo avrete la garanzia che la vostra stufa continuerà a funzionare in modo
corretto e sicuro.
Pulizia
Per la pulizia del vetro ceramico dell'antina utilizzate gli appositi prodotti in vendita presso i rivenditori di
stufe (ad es. Thermohit). Le superfici laccate della stufa vanno pulite solamente con un panno
(eventualmente umido). Anche per le superfici in acciaio inox vanno trattate con gli appositi detergenti.
N. art.
Numerazione dei refrattari = istruzioni di
montaggio!
Page 12
G3 10 français
1. CARACTÉRISTIQUES TECHNIQUES
Le poêle de type 1 peut être raccordé à une
cheminée déjà occupée par d’autres poêles ou
cuisinières à combustibles solides et liquides, à
condition toutefois que les dimensions de la
cheminée selon la norme DIN 4705 Partie 3
l’autorisent.
CARACTÉRISTIQUES TECHNIQUES
Hauteur 793 mm
Largeur 453 mm
Profondeur 510 mm
Poids 120 kg
Poids avec habillage céramique 170 kg
Diamètre à la base du carneau 130 mm
Puissance calorifique selon DIN 18891 6 kW
Puissance calorifique maximale 8 kW
Caractéristiques des gaz de combustion en vue de l’installation
de plusieurs appareils sur une cheminée selon DIN 4705 Partie
3 ou du dimensionnement de la cheminée selon DIN 4705
Partie 2
Débit de gaz de combustion fermé 7 g/s
Température des gaz de
combustion
Pression d’extraction
minimale à la puissance
nominale
à 0,8 fois la
fermé 380 °C
fermé 0,12 mbar
0,08 mbar
puissance
nominale
2. INFORMATIONS IMPORTANTES
Les informationes dans ce manuel, sont présentés
d’une façon générale. Car les règlements peuvent
varier de pays en pays ; et les règlements
régionaux peuvent être prioritaires.
Remarques générales concernant
la sécurité
• Lisez attentivement l’ensemble du manuel
avant de mettre le poêle en service et
respectez les avertissements relatifs à la
sécurité.
• Le transport de l’appareil doit toujours être
effectué au moyen d’un appareillage de
capacité suffisante.
• Le poêle ne doit pas être utilisé comme
marchepied ou estrade.
• La combustion libère de l’énergie
thermique qui entraîne un fort
échauffement de la surface de l’appareil,
des portes, des poignées, des vitres des
portes, du carneau et parfois de la face
avant de l’appareil. Ne touchez ces
éléments qu’avec une protection
adéquate, par exemple des gants isolants
ou un instrument d’actionnement.
• Expliquez bien le risque de brûlures à vos
enfants et tenez-les loin de l’appareil
lorsque celui-ci fonctionne.
• Utilisez toujours le combustible autorisé
selon le chapitre « Combustion non
polluante ».
• La combustion ou l’introduction de
matières très inflammables ou explosives
dans le foyer, par exemple de bombes
aérosols vides, est strictement interdite en
raison du risque d’explosion, de même que
Installation du poêle
Distances de sécurité minimales
(Fig. 2)
1. Par rapport à des objets ininflammables :
2. Par rapport à des objets inflammables et aux murs porteurs
I - a > 800 mm b > 200 mm c > 300 mm
II - a > 800 mm b > 300 mm c > 300 mm
III - a > 800 mm b > 500 mm c > 300 mm
I = avec habillage inox
II = avec habillage de convection
III = sans habillage de convection
la conservation de tels produits à proximité
de l’appareil.
• Ne rechargez pas le poêle alors que vous
portez des vêtements amples ou en
matières inflammables.
• Il est interdit de déposer des objets ne
résistant pas à la chaleur sur l’appareil ou
à proximité.
• Ne faites pas sécher de linge sur le poêle.
• Les étendages et égouttoirs à linge ou
autres doivent être placés suffisamment
loin de l’appareil pour éviter tout risque
d’incendie.
• Lorsque le poêle est en marche, ne
travaillez jamais avec des matières
facilement inflammables ou combustibles
dans le local où il se trouve ni dans une
pièce adjacente.
a > 300 mm b > 300 mm c > 300 mm
en béton armé :
(a : sur l’avant dans la zone de rayonnement)
(b : sur les côtés) (c - sur l’arrière)
Si le montage s’effectue sur un sol combustible ou sensible
à la temperature, le poêle devra être installé sur un support
non combustible, par ex. sur une plaque en métal (de 50
cm de longueur et de 30 cm de largeur). Devant le poêle,
dans la zone de rayonnement de la vitre, environ 80 cm, il
ne doit pas se trouver de matériel combustible ou sensible
à la température.
Sous réserve de modifications techniques et optiques, ainsi que d'erreurs de composition et d'impression.
Page 13
français 11 G3
Attention : le local dans lequel vous installez le
poêle doit être pourvu au minimum d’une porte ou
d’une fenêtre donnant à l’extérieur, ou
communiquer avec une autre pièce donnant à
l’extérieur.
Capacité portante du sol
Avant d’installer l’appareil, vérifiez si le sol pourra
en supporter le poids.
Raccordement du carneau
Pour votre sécurité, des consignes strictes doivent
être respectées pour le raccordement des
carneaux à la cheminée. Votre installateur
professionnel connaît bien ces règles. Il faut donc
impérativement confier à ce professionnel le
raccordement du carneau.
3. POUR BIEN UTILISER VOTRE POÊLE
Première mise en service
Votre poêle a été peint avec un vernis spécial non
polluant. Cet enduit est encore mou lors de la
livraison. Il ne durcit que lors de la première mise en service. En attendant, ne touchez pas la
surface peinte. Laissez le poêle chauffer fortement
pendant au moins 1 heure 1/2. Le vernis peut
dégager des vapeurs visibles pendant qu’il durcit.
Il faut donc ouvrir une fenêtre avant la première
mise en service, afin d’évacuer rapidement ces
vapeurs.
ATTENTION :
votre poêle pour qu’il ne sente plus que l’odeur
habituelle du bois qui brûle.
Il faut faire chauffer plusieurs fois
Combustibles autorisés
Bois naturel sec et bien conservé, briquettes de
bois.
Quantité maximale de
combustible
Au maximum ca. 1,6 kg de bois ou ca. 1,8 kg de
briquettes de bois. N’utilisez pas plus de
combustible, sous peine de provoquer une
surchauffe qui endommagera le poêle.
Combustion non polluante
Le bois doit être sec (humidité relative < 15 %) et
non traité. Il doit être utilisé en quantité adéquate
pour obtenir une combustion propre et dégageant
peu d’émissions.
Pour bien faire du feu
Préparez tout ce dont vous avez besoin pour
allumer le poêle : copeaux de bois tendre, allumefeu, papier non enduit, bois de chauffage. La
Figure 3 indique la bonne quantité de matériaux à
disposer dans le foyer.
Fig. 3 : Matériaux combustibles
Ouvrez au maximum les arrivées d’entrée d’air
primaires et secondaires, en déplaçant les deux
coulisseaux (voir la Figure 2).
Ouvrez la porte du poêle.
Déposez du papier (non enduit) sur le fond du
foyer.
Déposez par-dessus une poignée de copeaux
puis 1 ou 2 bûches.
Fig. 4 : Allumage
Allumez le papier.
Fermez la porte du foyer.
Dès que les copeaux brûlent bien, fermez le
coulisseau d’entrée d’air primaire.
Représentation des symboles
Page 14
G3 12 français
Dès que les bûches brûlent bien, réglez la
puissance de chauffage avec le coulisseau
d’entrée d’air secondaire (position maximale du
coulisseau = puissance maximale).
Pour recharger le poêle, suivez la même séquence
que pour l’allumage : ouvrez les coulisseaux
d’entrée d’air primaire puis d’entrée d’air
secondaire, ouvrez prudemment la pote du poêle,
ajoutez du bois et refermez la porte.
Attendez que le bois ajouté s’enflamme, puis
refermez le coulisseau d’entrée d’air primaire.
Réglez la puissance de chauffage avec le
coulisseau d’entrée d’air secondaire.
Fig. 5 : Fermeture du coulisseau d’entrée d’air
primaire
4. PRINCIPALES PIÈCES DÉTACHÉES
Joints
Désignation N° sur schéma Réf. article
Joint plat 8 x 2 mm, L = 1440 mm 22 710096
Joint ronde 12 mm, L = 1560 mm 20 710338
Céramique réfractaire
Désignation N° sur schéma Réf. article
G3 keramott au centre 8 716080
G3 keramott côte droit 7 716082
G3 keramott côte gauche 6 716081
G3 pare-bûche 9 716075
G3 vermiculite grande 4 716175
G3 déflecteur 3 716194
G3 vermiculite petit 5 716253
G3 grille en bas 1 716025
G3 grille en bas 2 716122
Numérotation des céramiques réfractaires =
instructions de montage !
Autres
Désignation N° sur schéma Réf. article
Porte verre G3 21 716065
Vernis pour poêle -- 650002
Allume-feu bois et charbon -- 640067
Nettoyant pour vitres 0,5 l -- 640070
Accessoires
Vous trouverez chez votre revendeur spécialisé des plaques de fond en verre ou en métal, des
instruments de cheminée et des produits d’entretien.
IMPORTANT : Les pièces défectueuses doivent toujours être remplacées par votre revendeur
spécialisé, afin que le poêle reste sûr et en bon état de marche.
Entretien
Pour le nettoyage de la vitre, utilisez un produit pour vitre comme "Thermohit". Les parties laquées
doivent être nettoyés uniquement avec un chiffon (éventuellement humide). Utilisez pour les superficies
en inox, des produits spéciaux prévus pour ce revêtement.
Page 15
GARANTIE / GUARANTEE / GARANZIA / GARANTIE
2 Jahre Garantie
Für Ihren AUSTROFLAMM-Kaminofen garantieren
wir für die einwandfreie Funktion aller Bauteile aus
Stahl und Guß 2 Jahre ab dem Erstverkaufsdatum.
Stahl- und Gußteile, die während der Garantiezeit
Material- und / oder Verarbeitungsmängel
aufweisen, werden gegen Neuteile ersetzt.
Wir gewähren keine Garantie auf Verschleißteile
(z. B.: Keramott, Dichtungen, Bodenrost),
Oberflächenbeschichtungen, Lack, Glas und
Keramiken.
Voraussetzungen für unsere Garantieleistung sind
1. Ihr AUSTROFLAMM-Kaminofen wurde gemäß
dem Benutzerhandbuch betrieben und von
einem Fachmann installiert.
2. Der Garantieanspruch wird mit der vollständig
ausgefüllten Garantiekarte und der Rechnung
bei einem AUSTROFLAMM-Fachhändler
geltend gemacht.
WICHTIG: Unsere Garantieleistung umfaßt die
kostenlose Lieferung der Neuteile. Arbeits- und
Wegzeiten werden dadurch nicht umfaßt. Eine
ungerechtfertigte Garantieinanspruchnahme wird
dem Betreiber rückbelastet.
Im Garantiefall herausschneiden und Ihrem AUSTROFLAMM-Fachhändler vorlegen!
In the event of claims to the guarantee, separate here and present this proof of purchase to your certified AUSTROFLAMM dealer.
GARANTIE / GUARANTEE / GARANZIA / GARANTIE
Two-Year Guarantee
We guarantee full functionality of all
AUSTROFLAMM stove components made of steel
or cast iron for a full two years from the date of
purchase. Steel and cast-iron components which
show defect in materials or workmanship during
the guarantee period shall be replaced with new
components.
We do not guarantee wearable components (such
as Keramott, gaskets, floor grid), surface coatings,
lacquer, glass and ceramics.
:
Conditions of the Guarantee
1. Your AUSTROFLAMM stove was installed by
a certified professional and is operated in
accordance with the operator’s manual.
2. Claims to the guarantee shall be subject to a
completely filled-out Guarantee Card and
submittal of the original invoice issued by a
certified AUSTROFLAMM sales agent.
IMPORTANT: Our guarantee includes free
shipping of new components. Work and travel
times are not included. Unwarranted claims shall
be re-invoiced to the operator.
:
Händlerstempel / Dealer’s Stamp/ Timbro concessionario /
tampon du concessionnaire
angeschlossen von / Installed by / installato da / raccordée par
Kaufdatum / date of purchase / Data d’acquisto / date
d’achat
Modellname / Name of Model / tipo del modello / nom du
produit
G 3
Serien No. / serial no. / No. di serie / no. de série
Noi garantiamo il buon funzionamento di tutti i
componenti in acciaio e ghisa della vostra
Kaminofen AUSTROFLAMM per una durata di 2
anni a partire dalla data della prima vendita. Le
parti in acciaio e ghisa che dovessero presentare
difetti di materiale e/o lavorazione durante il
periodo di garanzia verranno sostituite con parti
nuove.
Sono escluse dalla garanzia le parti soggette ad
usura (ad es. elementi in keramott, guarnizioni,
griglie della camera di combustione), nonché i
rivestimenti delle superfici, vernici, vetroceramico
ed elementi in ceramica.
Per avere diritto alle prestazioni di garanzia
1. La vostra Kaminofen AUSTROFLAMM deve
essere installata da personale specializzato e
fatta funzionare osservando le istruzioni del
manuale.
2. Occorre presentare la cartolina di garanzia
correttamente compilata e lo scontrino / la
fattura / la ricevuta fiscale ad uno dei
rivenditori AUSTROFLAMM.
IMPORTANTE: la nostra Garanzia copre la
fornitura gratuita delle parti nuove e non include
né la durata dell'intervento né la trasferta. I costi
collegati ad una richiesta ingiustificata di
prestazione di garanzia saranno addebitati
all'utente.
In caso di richiesta di garanzia, ritagliare la cartolina e presentarla al rivenditore AUSTROFLAMM!
Découpez selon les pointillés et présentez ce coupon à votre revendeur AUSTROFLAMM.
:
Garantie 2 ans
Nous garantissons le bon fonctionnement de tous
les éléments en acier et en fonte des poêles
AUSTROFLAMM pendant 2 ans à compter de la
date du premier achat. Les pièces en acier et en
fonte présentant un défaut de matériau et/ou de
fabrication pendant la durée de la garantie seront
remplacées par des pièces neuves.
Nous déclinons toute garantie pour les pièces
d’usure (par ex. céramique réfractaire, joints, grille
de fond), les joints de surfaces, le vernis, les vitres
et les céramiques.
Conditions d’application de la garantie :
1. Votre poêle AUSTROFLAMM doit avoir été
installé par un spécialiste et utilisé
conformément au mode d’emploi.
2. La demande de garantie doit être présentée à
un revendeur spécialisé AUSTROFLAMM en
même temps que la carte de garantie
complétée et que la facture.
IMPORTANT : Notre service sous garantie
couvre le remplacement gratuit par des pièces
neuves. Les temps de travail et de déplacement
ne sont pas inclus. En cas de demande abusive
d’application de la garantie, nous présenterons à
l’utilisateur une facture correspondante.
Austroflamm GmbH, Gfereth 101, 4631 Krenglbach, Austria, Stand 08/02
GARANTIE / GUARANTEE / GARANZIA / GARANTIE
Kunde / Customer/ cliente / client
an/ to / per / pour
Marke
Stamp
Francobollo
affranchi
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
