Model AS-9950
Owner's Manual
Starter Interrupt System
Congratulations! Your purchase of this state-of-the-art security
system expresses a deep concern for the security of your vehicle,
its contents, and passengers. To fully appreciate the many
functions and safeguards incorporated in this system, please
spend a few minutes reading this manual. You may find unexpected
features that could mean the difference b etween “protected” and
“fully protected”.
FEATURES :
M Quick Disconnect Relay Sockets
M Flashing Red LED Light
M Pre-Wired Valet Toggle Switch
M Low Current Draw
M Optional Negative Horn Output (Requires Additional Relay)
M Positive Siren Output for Optional Siren
M Override Switch Can Be Any 12 Volt On/Off Switch Existing in the Vehicle
(Brake Light, Parking Light, Turn Signal, Window Roll Up, etc.)
M Passive Arming
STARTER INTERRUPT SYSTEM
The Starter Interrupt System automatically prevents your vehicle from being started after your
ignition key is turned off. As an option, if an attempt is made to start the vehicle, the horn or
a siren will be activated if so equipped, until the AS-9950 is disarmed if using positive output.
Using the negative output, the siren will turn off the moment the potential thief stops cranking
the starter.
OPERATION
TO ARM SYSTEM:
When the ignition key is turned to the “off” position, the starter interrupt system is enabled
which is confirmed by a continuously flashing red LED. The system has a low current draw
(less power than your vehicle's clock).
TO DISARM SYSTEM:
Turn your ignition key to ignition position. Turn your secret switch on and off. The system will
disarm, confirmed by the red LED turning off. The vehicle will now start as long as the ignition
key is in the “on” position.
VALET SWITCH:
Turn “off” the hidden toggle switch to allow vehicle to start during extended stop overs such as
the service station, washing, valet parking, etc. Turn “on” the hidden toggle switch to allow the
passive arming operation to continue.
INSTALLATION
Two relays plugged in on the sockets of the relay harness are required to operate this system's
starter interrupt, LED and positive output trigger. One relay can be plugged in the optional
socket location and used for the negative horn output. This optional relay is to be plugged in
only if you want a negative output for horn activation when a theft attempt is made.
MOUNTING VALET SWITCH:
Find a location in an accessible, but hidden area of the passenger compartment to mount the
toggle switch. Drill a 1/4" hole in the chosen area and secure the toggle switch with the hardware
provided.
MOUNTING RED FLASHING LED INDICATOR LIGHT:
Drill a 3/8” hole. Pull the LED. light out of the housing from the backside, and slide the
housing through the 3/8” hole. Now push LED light back in to the housing.
Page 2
WIRING
THIN RED WIRE FROM FLASHING LED LIGHT: (12 Volts Positive Input)
This wire supplies a constant positve 12 volts to operate the LED. The connection should be
made to a location that has a constant positive 12 volts at all times.
BLACK WIRE FROM VALET TOGGLE SWITCH: (Ground Input)
This wire provides a path to ground for all the circuits on AS-9950. This wire should be secured
to the metal ground frame of vehicle or directly to the battery ground terminal.
scrape away all dirt and grease to get good ground connection.
YELLOW WIRE FROM AS-9950: (Ignition 12 Volt Input)
When the ignition key is in the “off” position, the starter interrupt function is enabled preventing
the vehicle from being started again. When ignition key is in the “on” position, applying 12 volts
to the secret switch circuit will disable starter interrupt function. This will allow the vehicle to
be started. Connect this wire to an ignition wire in the car which has 12 volts in the on and crank
positions of the ignition key and 0 volts when the key is off.
PINK WIRE FROM AS-9950: (To Secret Override Switch)
When the ignition key is in the “on” position, momentarily applying positive 12 volts to this wire
will override the starter interrupt function allowing the vehicle to be started. Once the ignition
key is turned to the “off” position, the starter interrupt function will automatically be enabled,
preventing the vehicle from being started. This wire can be connected in two manners. Refer
to option A or B.
A) Connect this wire to any on/off switch that when in the “on” position, positive 12 volts
is applied. Some examples are the brake light switch, parking light switch, positive type
doorlock switch, window roll up switch, turn signal switch, etc. Using an existing switch
eliminates the need to install another switch in the vehicle.
B) Connect this wire to any additionally installed momentary pushbutton switch that when
in the “on” position, supplies positive 12 volts.
Make sure to
SECRET OVERRIDE
SWITCH
PINK OVERRIDE WIRE +12V
Page 3

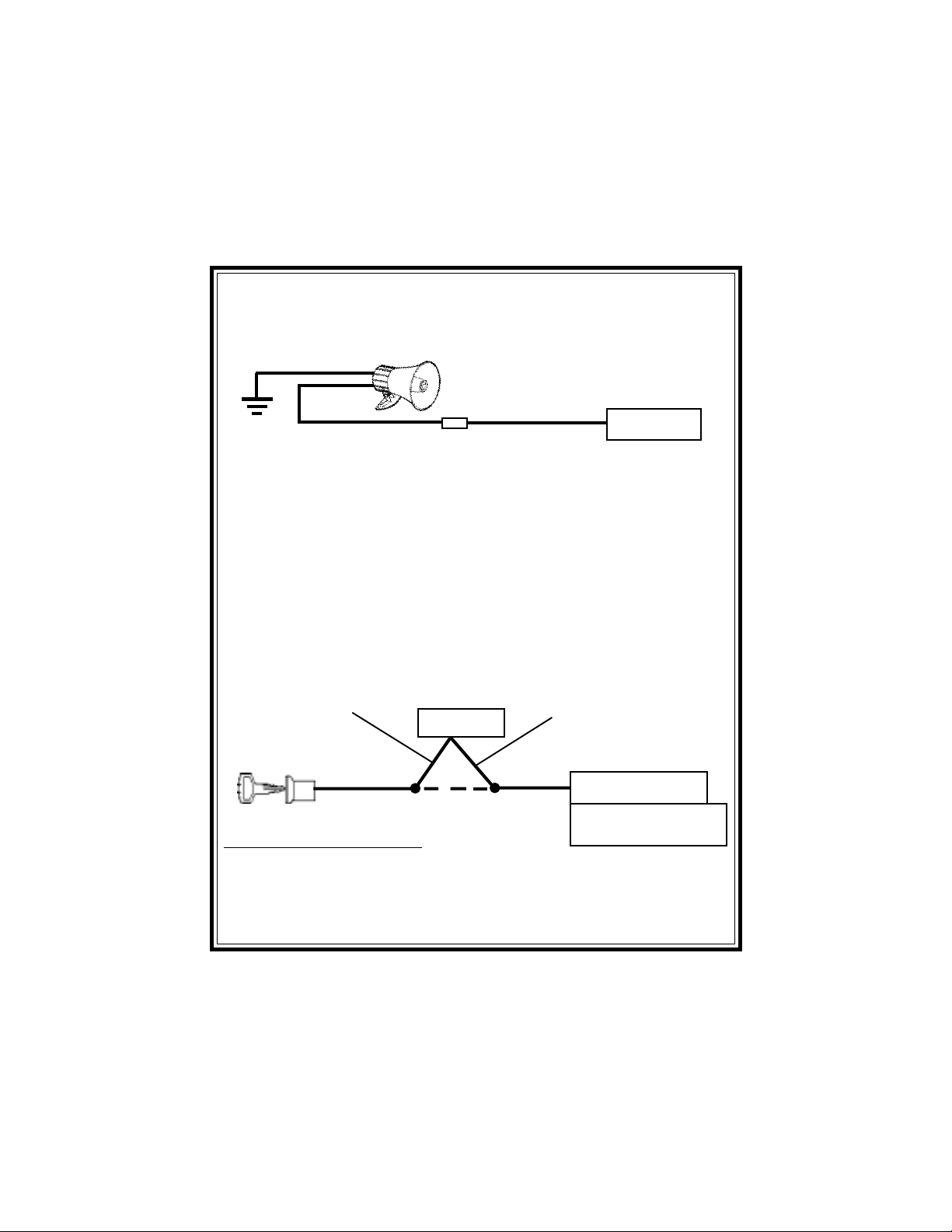

WHITE/BLACK WIRE (18 GAUGE) FROM AS-9950: (Positive Horn/Siren Output)
Positive Horn/Siren output: When an attempt is made to start the vehicle the optional horn/
siren will be activated the moment you start cranking the starter and will stop sounding the
moment you stop cranking the starter.
WHITE/BLACK WIRE 18G
AS-9950
WHITE/BLACK (12 GAUGE) AND BLACK WIRE (12 GAUGE) FROM AS-9950: (Ignition Key
Starter Solenoid Wires)
BLACK (12 Gauge Wire )
When in the disarmed condition this wire supplies positive 12 volts to the vehicle’s starter relay
allowing the vehicle starter to engage. Refer to White/Black for connection information.
WHITE/BLACK (12 Gauge)
When in the armed condition this wire supplies positive 12 volts to a relay which prevents the
starter from engaging. This wire also supplies positive 12 volts from the white/black wire to
the optional horn/siren output while attempting to engage the starter.
The wire is connected by cutting the wire from the ignition key going to the starter solenoid. This
wire contains 12 volts only when ignition key is in the "Start" position. Connect the white/black
wire (12 Gauge) to the wire from the ignition key and connect the black wire (12 Gauge) to the
remaining cut wire going to the starter solenoid.
WHITE/BLACK WIRE
(12 GAUGE)
AS-9950
BLACK WIRE (12 GAUGE)
IGNITION KEY
X
CUT WIRE
BLACK/WHITE (18 GAUGE WIRE):
This wire provides ground to sound the vehicle’s horn when unauthorized attempts to start
the vehicle are made when the system is armed. Connect this wire to the negative horn trigger
of the vehicle. This wire will provide an output only if the optional relay is installed into it's
socket in the relay harness.
SOLENOID
STARTER
Page 4

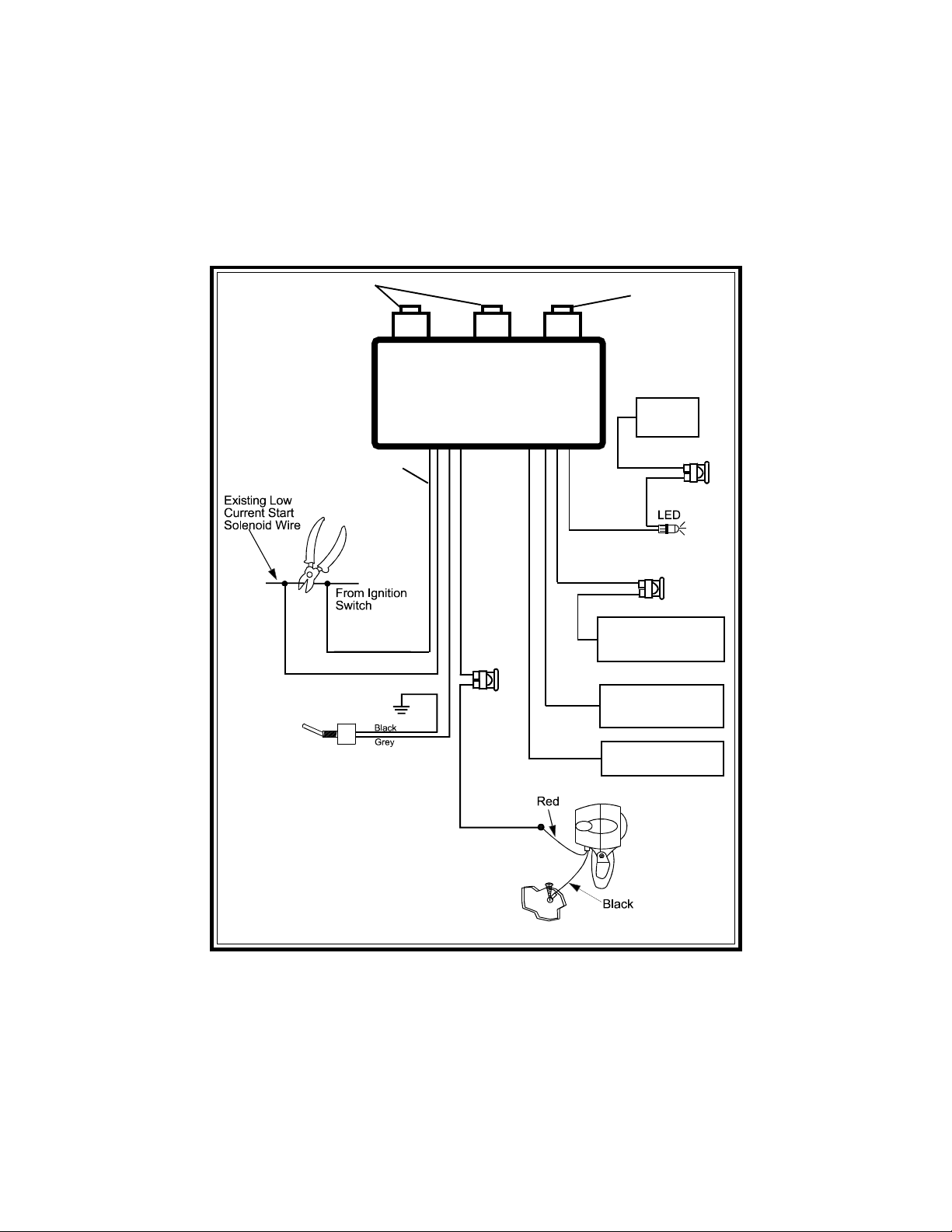

Required Relays
Optional Horn
Relay
AS-9950
+12 Volts
Constant
To Starter
Solenoid
Valet Toggle
Switch
White/Black
12 Gauge
Black 12 Gauge
2A FUSE
White/Black
(18 Gauge)
Yellow
Pink
Black/White
Red
2A FUSE
Blue
2A FUSE
Ignition Source
Connect To +12 Volts
Ignition/Crank
To Secret Override
Switch (+12V when
activated)
Ground Output
To Operate Horn
(Optional Siren)
Page 5
12 MONTH LIMITED WARRANTY
Applies to control modules, relays,
transmitters, sensors, and sirens.
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this
product that should this product or any part thereof, under normal use and conditions, be proven
defective in material or workmanship within 12 months from the date of original purchase, such
defect(s) will be repaired or replaced (at the Company's option) without charge for parts and
repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered
with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s), transportation
prepaid, to an approved warranty station or the Company at the address shown below.
This Warranty does not cover costs incurred for removal or reinstallation of the product, or
damage to vehicle electrical systems.
This Warranty does not cover batteries nor apply to any product or part thereof which, in the
opinion of the Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial
number/bar code label(s).
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED
TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 30 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY,
EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to
assume for the Company any liability other than expressed herein in connection with the sale
of this product.
The Company does not warrant that this product cannot be compromised or circumvented.
THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO
THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE
COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE
PRODUCT.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not
apply to you. This Warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
U.S.A. : AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 1-800-645-9449
CANADA: CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA
Form No. 128-4118E
© 2000 Audiovox Corporation, 150 Marcus Blvd., Hauppauge, NY 11788 128-5814
