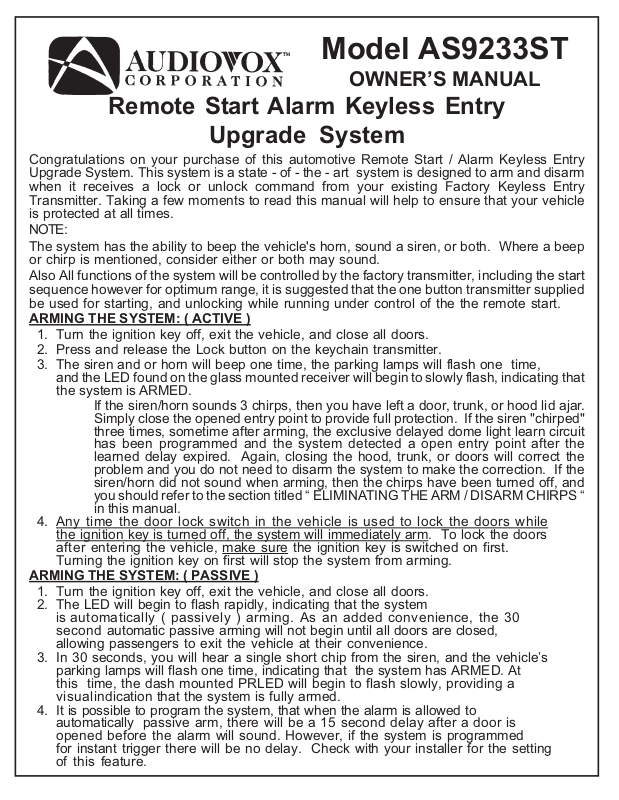

Audiovox AS9233ST User Manual
Model AS9233ST
OWNER’S MANUAL
Remote Start Alarm Keyless Entry
Upgrade System
Congratulations on your purchase of this automotive Remote Start / Alarm Keyless Entry
Upgrade System. This system is a state - of - the - art system is designed to arm and disarm
when it receives a lock or unlock command from your existing Factory Keyless Entry
Transmitter. Taking a few moments to read this manual will help to ensure that your vehicle
is protected at all times.
NOTE:
The system has the ability to beep the vehicle's horn, sound a siren, or both. Where a beep
or chirp is mentioned, consider either or both may sound.
Also All functions of the system will be controlled by the factory transmitter, including the start
sequence however for optimum range, it is suggested that the one button transmitter supplied
be used for starting, and unlocking while running under control of the the remote start.
ARMING THE SYSTEM: ( ACTIVE )
1. Turn the ignition key off, exit the vehicle, and close all doors.
2. Press and release the Lock button on the keychain transmitter.
3. The siren and or horn will beep one time, the parking lamps will flash one time,
and the LED found on the glass mounted receiver will begin to slowly flash, indicating that
the system is ARMED.
If the siren/horn sounds 3 chirps, then you have left a door, trunk, or hood lid ajar.
Simply close the opened entry point to provide full protection. If the siren "chirped"
three times, sometime after arming, the exclusive delayed dome light learn circuit
has been programmed and the system detected a open entry point after the
learned delay expired. Again, closing the hood, trunk, or doors will correct the
problem and you do not need to disarm the system to make the correction. If the
siren/horn did not sound when arming, then the chirps have been turned off, and
you should refer to the section titled “ ELIMINATING THE ARM / DISARM CHIRPS “
in this manual.
Any time the door lock switch in the vehicle is used to lock the doors while
4.
the ignition key is turned off, the system will immediately arm. To lock the doors
after entering the vehicle,
Turning the ignition key on first will stop the system from arming.
ARMING THE SYSTEM: ( PASSIVE )
1. Turn the ignition key off, exit the vehicle, and close all doors.
2. The LED will begin to flash rapidly, indicating that the system
is automatically ( passively ) arming. As an added convenience, the 30
second automatic passive arming will not begin until all doors are closed,
allowing passengers to exit the vehicle at their convenience.
3. In 30 seconds, you will hear a single short chip from the siren, and the vehicle’s
parking lamps will flash one time, indicating that the system has ARMED. At
this time, the dash mounted PRLED will begin to flash slowly, providing a
visual indication that the system is fully armed.
4. It is possible to program the system, that when the alarm is allowed to
automatically passive arm, there will be a 15 second delay after a door is
opened before the alarm will sound. However, if the system is programmed
for instant trigger there will be no delay. Check with your installer for the setting
of this feature.
make sure the ignition key is switched on first.
IMPORTANT! When the system is programmed for passive arming, the system
will always arm, even when the keychain transmitter has not been used to
lock the doors.
When you leave the vehicle, and a door has been left opened, the system will arm
after 10 minutes. If you plan to vacuum the car, or if service work is being
performed, either leave the key in the ignition and switched to the on position,
or put the system into valet mode. If you do not do this, the system will arm in
10 minutes, and you may inadvertently trip the alarm.
PROTECTION WHILE THE SYSTEM IS ARMED :
1. Opening any door, hood, or trunk will cause the alarm to immediately sound.
The alarm will continue to sound for 30 seconds, then stop and
automatically rearm the vehicle. If the potential thief left a door opened, the
alarm will sound for three more 30 second cycles, then re - arm and ignore the
opened door zone.
2. Whenever the system is armed, the on glass receiver's LED indicator will
slowly flash. This serves as a visual deterrent to the potential thief. The LED
is a very low current bulb, and will not cause the vehicle’s battery to drain, even
when the vehicle is left unattended for extended periods.
3. Whenever the system is triggered, the vehicle’s parking lights will flash for the
30 second alarm cycle, attracting added visual attention to the vehicle.
4. Whenever the system is armed, the vehicle’s starter will be disabled. The
vehicle will not start.
DISARMING THE SYSTEM :
1. As you approach the vehicle, press and release the unlock button on the
keychain transmitter.
2. The siren and or horn will beep two times, the parking lamps will flash two
times, and the on glass receiver's LED will turn off, indicating that the
system is DISARMED. If the optional entry illumination feature has been
installed, the vehicle’s interior lights will turn on for 30 seconds, or until the
ignition key is turned on.
NOTE: If your system has been programmed for “ passive arming “, then it will
begin to re-arm immediately after disarming. This is indicated by a
rapid flashing of the on glass receiver's LED. Opening one of the
vehicle’s doors will suspend the passive arming process until all doors
have been closed, or until the ignition key has been turned on.
INTRUSION WARNING SIGNALS :
The system will inform you if an intrusion attempt has occurred while you were away from
the vehicle. If an intrusion attempt has occurred, the siren and or horn will beep four times
when the system is disarmed. The vehicle’s parking lights will also flash three times to indicate
an intrusion has occurred.
Enter the vehicle and observe the on glass receiver's LED for further information.
1. If the LED is flashing one time...pause...one time...pause...etc., then an
intrusion attempt was made to a voltage sensing, light activated entry point, or
to an optional sensor that has been connected to zone 1.
2. If the LED is flashing two times...pause...two times...pause...etc., then an
intrusion attempt was made to the hood or trunk, or to an optional sensor that
has been connected to zone 2.
3. If the PRLED is flashing three times...pause...three times...pause...etc., then an
intrusion attempt was made through one of the vehicle’s doors.
These intrusion warning indicators are stored in the system’s memory, and will only be erased
when the ignition key is turned to the “ on “ position.
OPERATING THE EMERGENCY PANIC:
The buttons on your keychain transmitter will allow you to immediately activate the alarm in
emergency situations. To use the remote panic switch;
1. Press the unlock, then lock, then unlock buttons on your keychain transmitter
Page 2
within 3 seconds. The alarm will immediately sound, and continue to sound for
30 seconds.
2. To stop the alarm before the 30 second cycle has expired, simply press
and release the unlock button on your keychain transmitter.
NOTE: If the factory system has a panic mode, it is suggested that the factory panic feature
be used instead of the PRO9233ST to prevent any potiential problem of turning off the panic
mode.
USING THE VALET SWITCH :
The valet switch allows you to temporarily bypass all alarm functions, eliminating the need
to hand your transmitter to parking attendants or garage mechanics. When the system is in
valet mode, all alarm functions are bypassed, however the remote panic feature and
remote door locks will remain operational. To use the valet mode, the system must first be
disarmed either by using your keychain transmitter, or by overriding the system as
explained in the Manual Override Section of this manual.
TO ENTER THE VALET MODE:
1. Disarm the unit by use of the factory transmitter or by use of the manual override
sequence.
2. Turn the ignition switch to the “On” position.
3. Press and hold the pushbutton switch found on the glass mounted receiver assembly
for 5 seconds, until the LED turns on, indicating valet mode has been successfully
entered.
TO EXIT VALET:
With the ignition switch in the on position, press and release the pushbutton switch one time
. The LED turns off indicating the valet mode has successfully been exited.
MANUALLY OVERRIDING YOUR SYSTEM:
USING SIMPLE VALET SWITCH MANUAL OVERRIDE
If your factory transmitter is lost, broken, or otherwise rendered inoperable your Security
System can be disarmed without the use of the keychain transmitter. This is necessary,
since you will need the ability to operate your vehicle if the transmitter is lost or its battery
fails. If your system has been selected for Valet Switch manual override as indicated on the
last page of this manual, to override the alarm system;
1. Open the vehicle door. The alarm will sound.
2. Turn the ignition key to the on position.
3. Within 5 seconds, press and hold the valet pushbutton switch found on the glass
mounted receiver.
The alarm system will stop sounding and enter the (bypassed) mode. You can now start
and operate the vehicle normally.
Typically this override mode is used only if the transmitter has become inoperative.
USING CUSTOM CODE MANUAL OVERRIDE:
If your factory transmitter is lost, broken, or otherwise rendered inoperable, your system
can be overridden allowing operation of the vehicle. The manual override code is preprogrammed at the factory to 11. This code can be changed by the operator to a more
familiar two digit number. Once you’ve become familiar with the system’s operation and
override procedure, we suggest you change the code for added security.
NOTE: The override procedure below describes use, assuming that the factory
preset code has not been changed and is still set to the factory default 11.
The on glass receiver's LED valet/override push button switch is used to enter the
tenths and units digits, pressing and releasing this button one time for each
digit required.
If your system has been selected for Custom Code manual override as indicated on the last
page of this manual, to bypass the alarm system; with a code of 11, follow the sequence
listed below:
1. The LED is flashing indicating the unit is armed, enter the vehicle, the siren
will sound, turn the ignition switch to the “on” position.
Page 3
2. Within 10 seconds begin to enter tenths digit of override code. (In this example the code is 11, so press and release the push-button switch found on the glass
mounted receiver assembly one time).
3. Within 10 seconds of entering the last tenths digit, turn ignition “off then on”.
4. Within 10 seconds of turning the ignition switch on, begin to enter units digit
of override code. (In this example the code is 11, so press and release
the push-button switch found on the glass mounted receiver assembly one time).
5. Within 5 seconds after the last units digit is entered, turn the ignition switch
off, then on, and start your vehicle.
If the manual override code is entered properly, the unit stops sounding, the LED turns off,
indicating a successful override. The system is now disarmed and you can start and
operate your vehicle. The unit will allow three attempts to disarm via the manual override
sequence. If the code is not successfully entered within the three attempts, disarming with
the manual override switch will be locked for 10 minutes.
In many cases, to increase the security of your system, you may elect to change the manual
override code to a number that is more familiar to you, or simply to have a different code
than was pre-assigned from the factory. To Change the pre-assigned override code follow
the steps outlined below.
It is advised you read both sections under the headings “Programming Your Custom Override Code” and, “Custom Code Programming Example”, To completely understand the procedure before beginning:
Programming Your Custom Override Code:
Unlike override switches easily found, and defeated, this system allows the consumer to program a personal override code, offering a higher level of security. The system
comes from the factory with a pre-programmed override code of 11. To change this default
override code, do the following:
1. Disarm the system by use of the transmitter, or by use of the emergency
override sequence. Turn the ignition switch to the on position.
2. Within 10 seconds, press and release the push-button switch found on the receiver
assembly 3 times.
3. Within 10 seconds turn the ignition switch off, on, off, on, off, on.
(The siren or horn will beep and the lights will flash one time.)
4. Within 10 seconds, begin to enter your chosen 10ths digit by pressing
and releasing the push-button switch from 1 up to 9 times.
5. Within 10 seconds of the last entered 10ths digit, turn the ignition switch off then
on.
6. Within 10 seconds, begin to enter your chosen units digit by pressing
and releasing the push-button switch from 1 up to 9 times.
7. Finish by turning the ignition switch to the off position.
If the new code was accepted, the unit will report back the newly entered code, by flashing
the LED, first indicating the 10ths digit, pause and then the units digit. The unit will report the
new code three times with a one second pause between each code, then the system will
begin arming. If the LED flash pattern reports the previously stored code, the new code
was not entered correctly. Please repeat steps 1 through 7 above considering the following.
NOTE: Acceptable digits 10ths or units are 1 through 9. The unit will not recognize
a 0 (Zero), or no digit entered in any place, units or tenths.
NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for
more then 5 seconds during any of the above steps, the unit will revert back
to the last successfully stored code.
Custom Code Programming Example:
To Change the code from the factory pre-assigned code of 11 to “52” you
would do the following:
1. Disarm the system by use of the transmitter, or by use of the emergency
override sequence.
Page 4
2. Turn the ignition switch to the on position.
3. Within 10 seconds, press and release the push-button switch found on the receiver
assembly 3 times.
4. Within 10 seconds turn the ignition switch off, on, off, on, off, on.
(The siren or horn will beep and the lights will flash one time.)
5. Within 10 seconds, begin to press and release the push-button switch to set the tenths
digit.
(As per the example, press and release 5 times to set the tenths digit to 5)
6. Within 10 seconds of the last press of the push-button, turn the ignition switch
of f then on.
7. Within 10 seconds, begin to press and release the push-button switch to set the units
digit.
(As per the example, press and release 2 times to set the units digit to 2).
8. Turn the ignition switch to the off position. Immediately observe the LED
flash pattern.
You will note the LED flashing five times, pause, and then flash two times, pause. This
pattern will be repeated three times indicating the new code (52) has been accepted and
stored in memory.
NOTE: If after step 7, the LED flashes a code other than what was just entered,
this indicates that the code has not been changed. You will have to repeat
steps 1 through 7 above being certain to note the following:
Acceptable digits 10ths or units are 1 through 9. The unit will not recognize a 0 (Zero), or no digit entered in any place, units or tenths.
NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for
more then 5 seconds during any of the above steps, the unit will revert back
to the last successfully stored code.
OPTIONAL IGNITION LOCK/UNLOCK FEATURE :
If your existing factory installed keyless entry system did not include an ignition on/off door
lock and unlock feature, this feature can be activated from this upgrade system. When this
accessory has been added, any time the ignition key is turned to the on position and all vehicle
doors are closed, the doors will lock in 4 seconds. Additionally, any time the ignition key is
turned to the off position, the doors will unlock.
ELIMINATING THE ARM / DISARM CHIRPS :
The normal arming and disarming confirmation chirps can easily be turned off using the valet
pushbutton switch found on the glass mounted receiver assembly. To do this;
1. Turn the ignition key on, and then off.
2. Within 10 seconds of turning the ignition key off, press and release the push-button
valet/override switch 3 times.
3. a. If, before proceeding with step 1, the chirps were on, then you will hear 2
chirps to indicate that the chirps have been turned off.
b. If, before proceeding with step 1, the chirps were off, then you will hear 1 chirp
to indicate that the chirps have been turned on.
4. Whenever power to the system has been disconnected ( for repair or service
to the vehicle ), the chirps will be activated when the power is re - connected.
To turn the chirps off, simply execute steps 1 through 3 above.
NOTE : Whenever the Arm/Disarm chirps are bypassed, the 3 chirp defective
zone and the 4 chirp intrusion indicator will continue to operate. This
feature will always warn you if a door was left ajar when arming, or the
vehicle was tampered with in your absence.
REMOTE STARTING THE VEHICLE
The System WILL NOT start the vehicle if any one of the following conditions exists:
1. The Vehicle Hood Is Opened.
2. The Gear Selector Is In Any Gear Other Then Park.
3. The Brake Is Depressed.
4. The glass mounted push-button safety control Is In The Remote Start By-Pass mode.
CAUTION! Be certain that the vehicle is outdoors before using this or any remote vehicle
Page 5
starting device. A running engine produces dangerous carbon monoxide fumes which can be
harmful or fatal if prolonged exposure occurs. DO NOT remote start the vehicle if the car is
garaged.
To Remote Start The Vehicle:
Press and release the button of your Remote Start transmitter two times in
succession to activate the remote start system. The vehicle will start
and remain running for the pre-programmed 5, 10, 15, 20, 45, or 60
minutes. As a visual indication, the parking lights will flash or turn on as preselected by your installation center at time of installation. You may also start
the vehicle with the factory transmitter by pressing lock, unlock, lock in
succession.
When you arrive at your car, unlock the vehicle by pressing and releasing
the unlock button of your factory keychain transmitter, or pressing and
holding for 3 seconds the start button of the single button start transmitter
supplied with this kit. Enter the vehicle and turn the ignition key to the on but
NOT START position.
NOTE: The system may have been configured to allow start by pressing the
transmitter start button once instead of twice. Please consult your installation center as to the configuration of your partictular system.
CAUTION! Do not turn the key to the start position. This will cause the starter
motor to engage with the already running engine which could result in damage.
Step on the brake pedal to disengage the remote start unit. The vehicle will
continue to run on it's own power.
NOTE: The engine will stop running before the expiration of the pre-programmed run timer if
you complete any of the following:
1. Pressing the button of your Remote Start transmitter two times in succession while running
under control of the remote start system will turn the vehicle off.
2. Depress the vehicles brake pedal.
3. Opening of the the hood.
4. Racing the RPM of the engine to above 4000.
NOTE: If the vehicle is running under control of the remote start unit, and the
transmitter button is operated a second two times in succession, the
vehicle will immediately turn off.
Also note, if this option is installed, as you approach the vehicle while running under control of
the remote start unit, the single button transmitter can be used to unlock the doors, simply
press and hold the unlock button until the doors unlock.
OPERATING ON AUTOMATIC START UP TIMER MODE
The system has the ability to automatically start the vehicle every 2 or 4 hours over a 48 hour
period. This feature is especially useful in cold climates where the only means to keep the
engine and engine fluids warm is to periodically start the engine.
CAUTION! Be certain that the vehicle is outdoors before using this or any remote vehicle
starting device. A running engine produces dangerous carbon monoxide fumes which
can be harmful or fatal if prolonged exposure occurs.
DO NOT remote start the vehicle if the car is garaged.
TO BEGIN THE AUTOMATIC START UP TIMER
1. Turn the ignition key on then off.
2. Within 10 seconds, activate the RF start command two times by pressing the
button of the keychain transmitter four times in succession.
The parking lights will flash 4 times indicating the timed start mode is activated.
The vehicle, on a 2 or 4 hour interval basis, will automatically start, run for the preprogrammed time (5,10, 15, or 20 minutes), and then shut off. This will continue for 48 hours.
NOTE: The automatic start up timer can also be initiated from the keychain
transmitter.
To do this:
1. Start the vehicle using the keychain transmitter by pressing and releasing the
remote start transmitter button two times in succession. (The vehicle will start)
Page 6
2. Shut off the vehicle using the keychain transmitter by pressing and releasing
the remote start transmitter button a second two times in succession.
3. Within 10 seconds of step 2, activate the RF start command two times. In other
words, press and release the transmitter button 4 times in succession.
The parking lights will flash 4 times indicating the timed start mode is activated.
CANCELING THE AUTOMATIC START UP TIMER
To cancel the automatic start up timer do one of the following;
1. Start the vehicle manually with the use of the ignition key and depress the brake pedal.
2. Remote start the vehicle using your keychain RF transmitter.
And then shut off the vehicle using the keychain RF transmitter.
On Glass Mounted Push-Button SAFETY CONTROL SWITCH
The Push-Button LED safety control switch allows you to temporarily disable the remote
starting function of the system. This recommended whenever the vehicle is being serviced. To
place the system in the service mode:
1. With the system disarmed/unlocked, and the ignition switch off Press and Hold the push button switch found on the glass mounted receiver assembly.
2. Turn the ignition switch on, off, on, off, on, off.
3. The LED begins to flash two short flashes followed by one long flashes and continues
this pattern until returned to normal mode of operation.
This puts the unit into the R/S Override mode indicating that the remote start is in the service
mode and will not start from RF or any other input Posse or otherwise.
To Exit R/S Override Mode
1. With the system disarmed, Press and Hold the push-button switch on.
2. Turn the ignition switch on, off, on, off, on, off.
3. The LED turns off indicating that the R/S unit is fully functional one again.
BATTERY REPLACEMENT
Your one button transmitter includes a battery #GP27a that will need to be
replaced from time to time. If you notice diminished range, or if the LED on
the transmitter lights dimly, the battery should be replaced. To do so:
1. Remove the 0 point philips head screw found at the lower portion in the rear of the case.
2. Carefully separate the two transmitter case halves.
3. Remove the battery noting the proper orientation/polarity of the battery. Properly dispose of
the discharged battery.
4. Install the new battery being certain to correctly arrange the proper polarity.
5. Carefully close the case halves, finish by re-install the screw removed in step 1.
SYSTEM FUNCTIONS AT A GLANCE
DASH LED INDICATORS
AS 9233ST
RAPID FLASHING ..........................................................
SLOW FLASHING ...........................................................................
OFF ...........................................................................................
ON - SOLID ............................................................................
3 FLASH ... PAUSE .....................................................
2 FLASH ... PAUSE .....................................................
1 FLASH ... PAUSE .....................................................
CHIRP INDICATORS
1 CHIRP * ............................................................................................
2 CHIRPS* .....................................................................................
3 CHIRPS ...................................................................
3 CHIRPS .......................................
4 CHIRPS .................................................................
2 SHORT CHIRPS - 1 LONG CHIRP.....................
10 MIN. PASSIVE ARM / DOOR OPEN
DISARM / INTRUSION
DISARM / AFTER 10 MIN.
PASSIVE ARMING
ARMED
DISARMED
VALET MODE
INTRUSION ZONE 3
INTRUSION ZONE 2
INTRUSION ZONE 1
ARM
DISARM
ARM / DOOR OPEN
PASSIVE ARM
4 SHORT CHIRPS - 1 LONG ................................
PASSIVE ARM AND INTRUSION
* These chirps are optional, and can be de-activated.
DISARM / AFTER 10 MIN.
PARKING LAMPS
1 FLASH ..................................................................................................
2 FLASH .........................................................................................
3 FLASH ...................................................................
DISARM / INTRUSION
Your System Has These Features Activated:
Starter Disable When Armed
Passive Arming
Instant Trigger
Remote Car Starter
Remote Window Open
Remote Window Closure
Key Activated Auto Lock/Unlock
Shock Detector
Vehicle Horn
Hardwire
Valet Override
Custom Code Override
ARM
DISARM
© 2009 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, N.Y. 11788
Form No. 128-8604
Model AS9233ST
Installation Manual
SELECTABLE FEATURES
The selectable features can be set manually as explained below, or with the RF feature programmer.
To set features using the RF programmer, follow the instructions packaged with the programmer.
Factory default settings are indicated by bold text.
Note : The method of manual override can either be selected to operate from the valet switch or operate as custom code.
Be certain to place a check mark indicating the method used in the box located on the last page of the owner's manual.
NOTE: Keyless Entry Models with no horn output will Flash the Parking Lights instead of chirp where chirp is indicated.
Also, No data will be indicated if a feature is not available for a particular model. The unit will enter the feature but no selection will be available.
RF Programmable Feature Bank 1 Is For Transmitter Programming See Transmitter Programming Guide.
RF Programmable Features Bank 2 Is Alarm Selectable Features:
Feature Selection 1 Chirp 2 Chirps 3 Chirps 4 Chirps 5 Chirps 6 Chirps
1st DoorL/UL 1 Sec. 3.5 Sec. 1 Sec L, Dbl. U/L Dbl L, 1 Sec UL Dbl L, Dbl UL 1 S l/350mS ul
2nd Accy Lock Auto Lock On Auto Lock Off
3rd Accy. UL Auto UL On Auto UL Off
4th Headlights Not Available
1
5th Passive Locks Passive Active
6th Pass/Act Arm Passive Arm Active Arm
7th Siren/Horn Siren/Horn Siren Only Horn Only
8th Horn Chirp 10mS 16mS 30mS 40mS 50mS
9th O/R Method Custom Code Valet
10th 2 Step U/L NA
11th Chp Del Tx NA
12th Volts/HdWire N A
13th Trigger Circuits N A
14th L/UL Poll 120mS 80mS
15th Aux Channel 5 Select NA
16th Aux Channel 6 Select NA
17th Aux Channel 7 Select NA
18th Trigger Delay Instant Delayed
When using the RF programmer, enter the program mode as follows:
Turn the ignition on.
Press and release valet switch 3 times;
turn ignition off then on.
Press and hold valet switch for 5 seconds.
Siren chirps 2 times indicating access to RF feature program mode.
Note: Where indicated, press transmitter lock button to change, the Factory Transmitter Lock button, Door Lock Switch, or the
supplied transmitter can be used.
To program these selectable features;
First Press and release the valet switch 1 time 1 chirp = 1 second door lock & unlock
Second Press and release the valet switch 2 chirps = auto locks off
Third Press and release the valet switch 3 chirps = auto unlock off
Fourth Press and release the valet switch Non Functional On This Unit
Fifth Press and release the valet switch 2 chirps = active locks
Sixth Press and release the valet switch 2 chirps = active arming
Seventh Press and release the valet switch 1 chirp = siren and horn output
Eighth Press and release the valet switch 2 chirps = horn chirp output 16mS
Ninth Press and release the valet switch 2 chirps = valet switch override operation
Tenth Press and release the valet switch Non Functional On This Unit
Eleventh Press and release the valet switch Non Functional On This Unit
Twelfth Press and release the valet switch Non Functional On This Unit
Thirteenth Press and release the valet switch Non Functional On This Unit
Fourteenth Press and release the valet switch 1 chirp = 120mS Polling
Fifteenth Press and release the valet switch Non Functional On This Unit
Sixteenth Press and release the valet switch Non Functional On This Unit
Seventeenth Press and release the valet switch Non Functional On This Unit
Eighteenth Press and release the valet switch 1 chirp = Trigger Instant
Press and release the valet switch or turn the ignition off to: Exit Programming Mode
Turn ignition switch off then on to advance to feature Bank 3:
Action System Response
Turn ignition on No response
Press and release the valet switch 3 times 1 Chirp - LED 1 flash
Within 3 seconds, turn ignition Off Then On Short chirp, then long chirp
This Action Accesses Feature Bank 2 Alarm Selectable Features
Press transmitter lock button to change 2 chirps = 3.5 second door lock & Unlock
Press transmitter lock button to change 3 chirps = 1 sec. lock, dbl 1 sec. unlock
Press transmitter lock button to change 4 chirps = dbl 1 sec lock, 1 sec unlock
Press transmitter lock button to change 5 chirps = dbl 1 sec lock, dbl 1 sec unlock
Press transmitter lock button to change 6 chirps = 350mS unlock. 1 sec lock
Press transmitter lock button to change 1 chirp = auto locks on
Press transmitter lock button to change 1 chirp = auto unlock drivers door only
Press transmitter lock button to change 2 chirps = auto unlock all doors
Press transmitter lock button to change 1 chirp = passive locks
Press transmitter lock button to change 1 chirp = passive arming
Press transmitter lock button to change 2 chirps = siren output only
Press transmitter lock button to change 3 chirps = horn output only
Press transmitter lock button to change 3 chirps = horn chirp output 30mS
Press transmitter lock button to change 4 chirps = horn chirp output 40mS
Press transmitter lock button to change 5 chirps = horn chirp output 50mS
Press transmitter lock button to change 1 chirp = horn chirp output 10 mS
Press transmitter lock button to change 1 chirp = custom code override operation
Press transmitter lock button to change 2 chirps = 80mS Polling
Press transmitter lock button to change 2 chirps = Trigger Delayed
or
or
or
or
or
or
or
or
or
or
or
or
or
or
or
or
or
or
or
2
To exit program mode, turn ignition off, or press and release valet switch.
RF Programmable Features Bank 3 Is Remote Start Selectable Features:
Feature Selection 1 Chirp 2 Chirps 3 Chirps 4 Chirps 5 Chirps 6 Chirps
1st Defrost Output NA
2nd RF Start Chirp Off On On & Carfinder
3rd Run Time 5 Mins 10 Mins 15 Mins 20 Mins 45 Mins 60 Mins
4th Parking Lights On Steady Flashing
5th Input Check Voltage Tach DBI Tach Hybrid
6th Voltage Level >0.5V B4 Start < 0.5V B4 Start
7th Ign. 2 Select Off During Crank On During Crank Same As Accy.
8th Ign. 3 Select NA
9th Diagnostics Off On
10th Crank Time 0.8 Sec 1.0 Sec 1.5 Sec 2.0 Sec
11th Gas/Diesel Gas Diesel 10 Diesel 15 Diesel 20
12th Transponder O/P While R/S On During Start Until Ign. Off
13th Temp Start N A
3
14th Crank Averaging Averaging Preset Time
Note: When averaging, the engine must be started 4 times with the key to be effective.
15th R/S Shock Shunt Until Clear Shunt R/S Cycle Shunt From Tx
16th Turbo Select NA
17th Black/Blue (Aux O/P) Single Pulse As Feat #1 Bank 2
18th 1 or 2 Pulse to Start 2 Pulse 1 Pulse
When using the RF programmer, enter the program mode as follows:
Turn the ignition on.
Press and release valet switch 3 times.
Turn ignition off then on.
Press and hold valet switch for 5 seconds.
The siren chirps 2 times indicating access to RF feature program mode.
When using the RF programmer, exit the program mode as follows:
To exit program mode, turn ignition off, or press and release valet switch.
Loading...
