Audio-Technica AT-LP3 Users Manual

AT-LP3

User Manual

Fully Automatic Belt-Drive Turntable

Manuel de l’utilisateur

Tourne-disque à entraînement par courroie

entièrement automatique

Manual de usuario

Tocadiscos de transmisión por correa

totalmente automático

Manual do Usuário

Toca-discos acionado por correia

totalmente automático

IMPORTANT:

Turntable belt needs to be attached or turntable will not operate. See page 6 for instructions.

For assistance, contact our Audio Solutions Department at 330-686-2600 x5000 or audio-solutions@atus.com.

Introduction

Thank you for purchasing this Audio-Technica product. Read through this user manual before using the product to ensure its correct use. Also, keep this manual, along with the warranty, for future reference.

This product is only for use in the following countries. Make sure that the operating voltage of the product is correct for the country you live in. Country list: USA, Canada

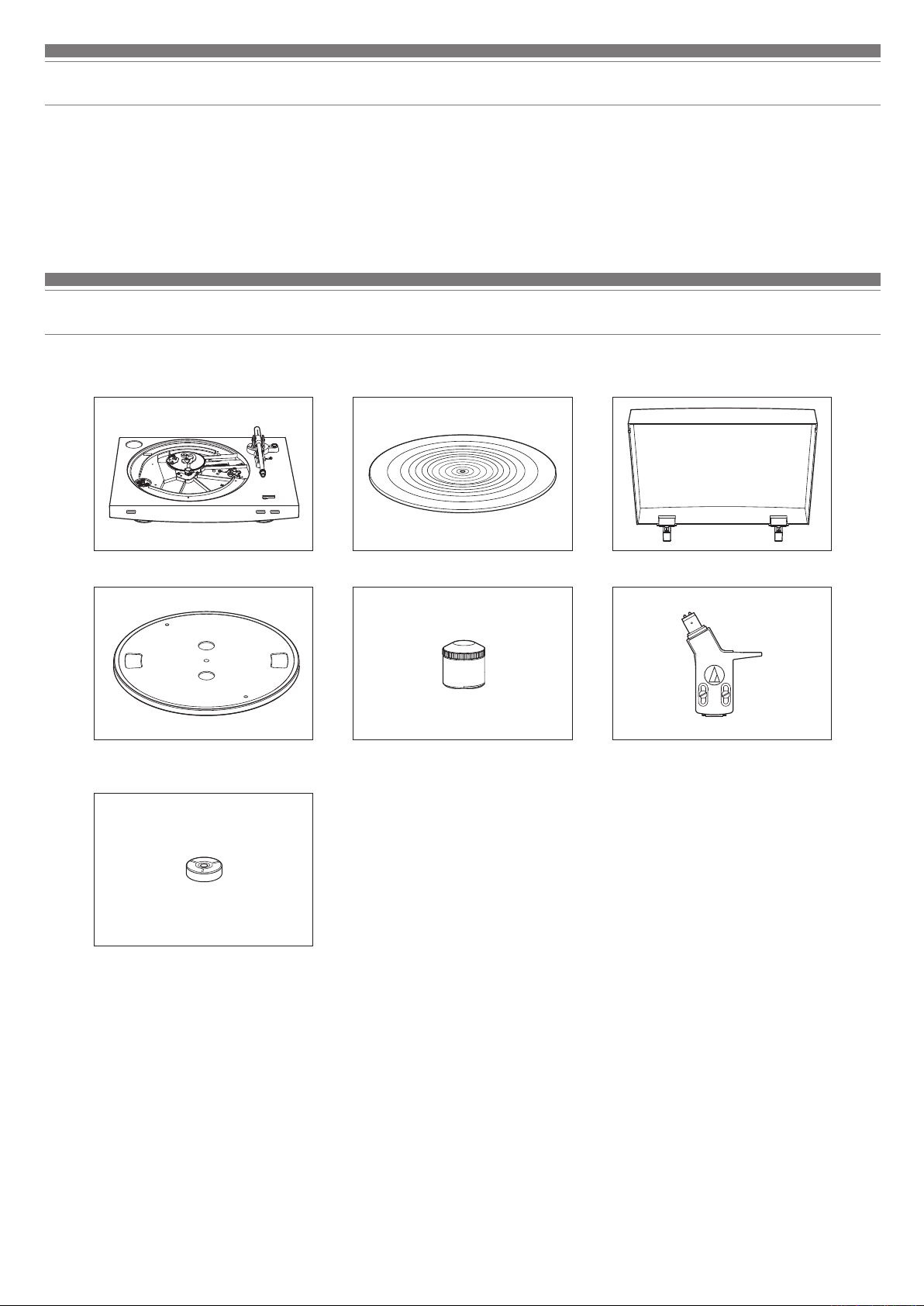

Package contents

Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Audio-Technica dealer.

•

Turntable body

•

Platter (with drive belt)

•

45 RPM adapter

•

Power cable

•

User manual (this document)

•

Rubber mat

•

Counterweight

•

After purchase, we suggest that you save all packaging materials for possible future storage, moving, or shipping.

•

Dust cover

Headshell (AT-HS3) with VM stereo cartridge

(AT91R)

Safety precautions

Important information

Warning:

To prevent fire or shock hazard, do not expose this apparatus to rain or moisture.

Caution:

Do not expose this apparatus to drips or splashes. To avoid electric shock, do not open the cabinet. Refer servicing to qualified personnel only. Do not expose this apparatus to excessive heat such as sunshine, fire or the like. Do not subject this apparatus to strong impact. This apparatus should be located close enough to the AC outlet so that you can easily grasp the power cord plug at any time. In case of emergency, disconnect the power cord plug of this apparatus quickly. Do not place any objects filled with liquids, such as vases, on this apparatus. To prevent fire, do not place any naked flame sources (such as lighted candles) on this apparatus. Do not install this apparatus in a confined space such as a bookcase or similar unit. To install this apparatus only in the place where ventilation is good.

For customers in the USA/Canada

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Caution: To prevent electric shock, do not remove the cover. There are

no user-serviceable parts inside. Internal adjustments are for qualified professionals only. Refer all servicing to qualified service personnel.

Important safety instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of shock to persons.

The exclamation point symbol within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

FCC Notice

Warning:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution:

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

IC statement:

CAN ICES-3 (B)/NMB-3(B)

Notes on use

Turntable body

•

Do not set and use the product in locations that are considerably hot or humid, dirty, or subject to extreme vibrations.

•

The product should be positioned on a flat, level surface.

Cartridge

•

Attach the provided protector to the cartridge when the product is not in use.

•

Do not touch the stylus of the cartridge with your finger.

•

Do not allow the stylus to bump against the platter, rubber mat, or edge of the record.

Part names and functions

Overall diagram

8 9

45 RPM adapter (shown in receptacle)

Select the platter speed (33-1/3 or 45 RPM).

Platter

Rubber mat

Spindle

Dust cover hinge holders

Attachment points for dust cover hinges.

Tonearm part

For details, refer to “Tonearm” on p. 5.

Size selector

Switch between 12" and 7", according to the size of the record.

Platter speed button

Select the platter speed (33-1/3 or 45 RPM).

START button

Spins the platter and moves the tonearm.

STOP button

Returns the tonearm to its original position and stops the platter.

12 13

Dust cover

Pre-amplifier selector switch

If using an amplifier with a PHONO input jack, set this switch to the PHONO position. If connecting to the AUX jack of an amplifier, set this switch to the LINE position.

MM (VM)/MC cartridge selector switch

If using an MM (VM) cartridge, set this switch to the MM position. If using an MC cartridge, set this switch to the MC position.

RCA audio cable (with grounding wire)

Connect to PHONO input jack (grounding wire to ground terminal, if available) or AUX (LINE) input jack of a receiver, amplifier or other connectable equipment.

AC inlet

Insert the power cable here.

Part names and functions

Tonearm

Counterweight

Balances the tonearm and adjusts to provide the proper tracking force.

Tracking force gauge ring

Use to adjust the tracking force.

Tonearm lift

Moves the tonearm vertically to and from the face of the record.

Tonearm rest

Anti-skate control dial

While the record is playing, a force acts on the stylus tip to pull it inward. This force can be counteracted by setting the same values for anti-skate and the tracking force.

Tonearm lift control lever

Operates the tonearm lift.

Tonearm

Locking ring

Rotate the ring to the left (counterclockwise) to secure the headshell. To remove the headshell, rotate the ring to the right.

Headshell and cartridge

The cartridge (AT91R) is mounted to the headshell (AT-HS3).

1 2

Preparation for use

Installing the turntable

•

Mount the product on a level surface.

•

To avoid the effects of vibrations and acoustic pressure, do not mount the product next to such items as speakers.

•

The product may pick up radio static if placed next to a radio. Therefore, try to keep the product away from radios.

•

If the product is near equipment (cell phone, etc.) that emits strong radio waves, noise may occur.

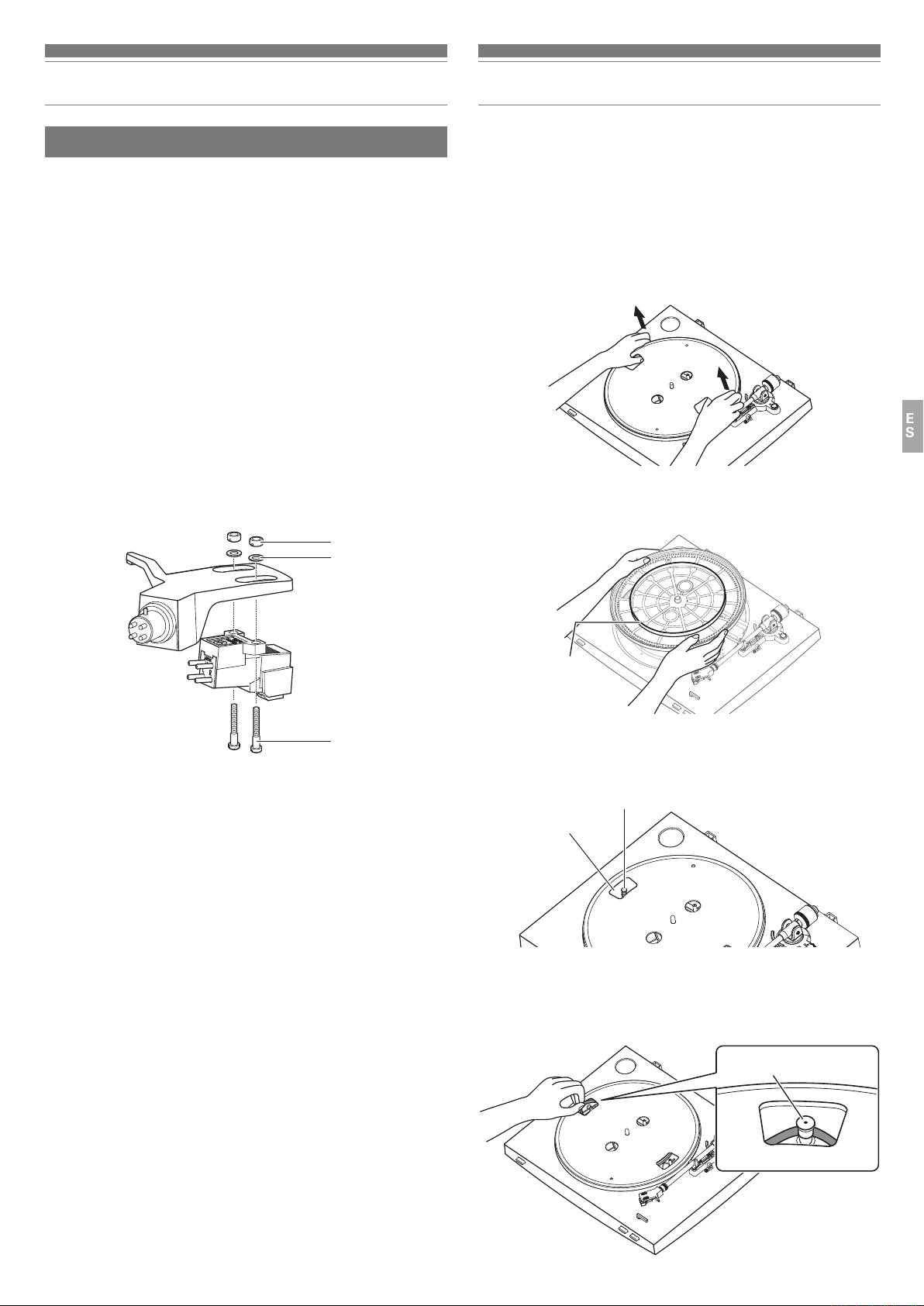

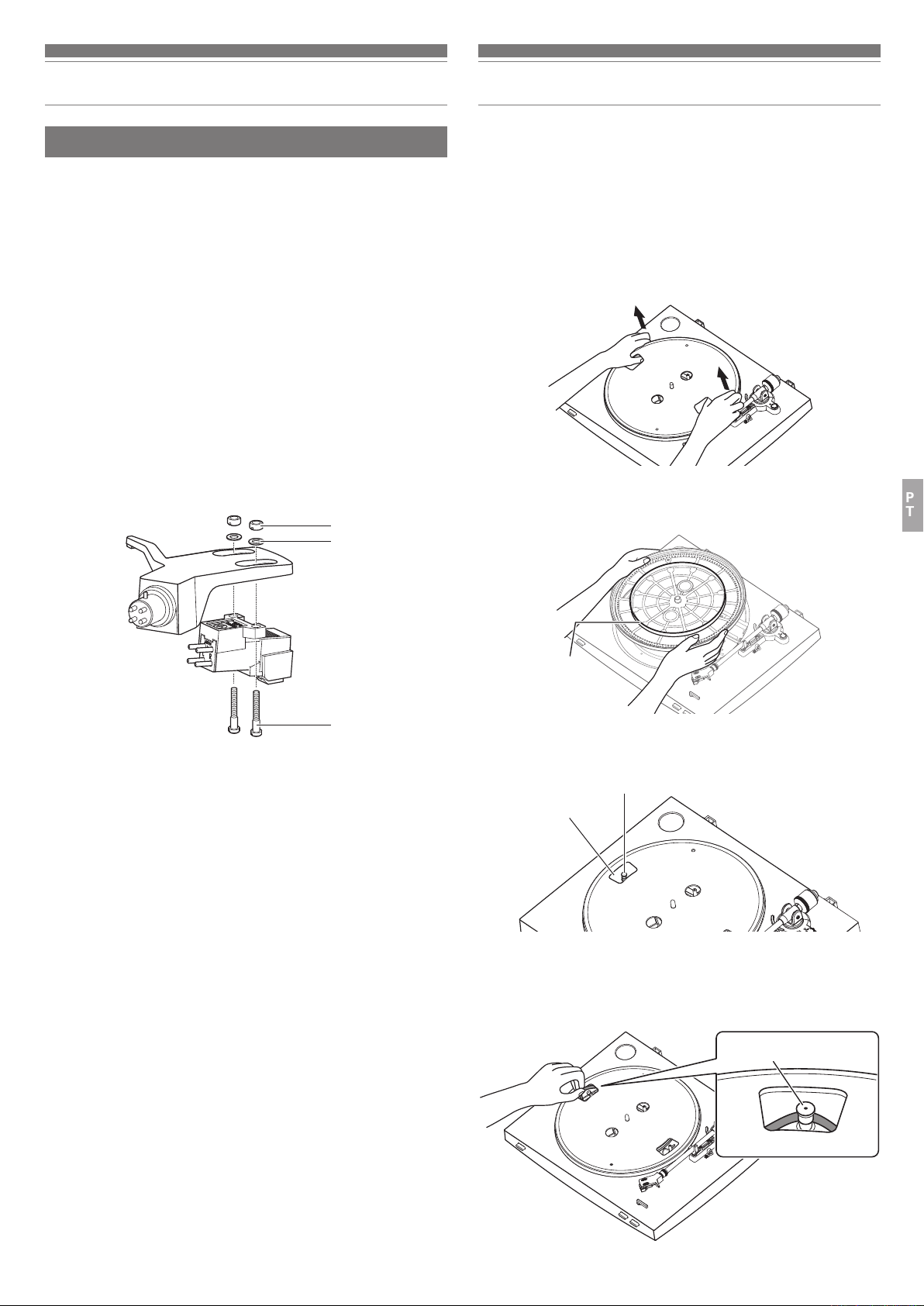

Placing the platter and the rubber mat

This product requires some assembly before using it for the first time. Do not connect the power cable until assembly is complete.

1. Set the platter on the spindle.

•

Make certain that the platter is fully seated on the spindle.

PlatterOpening

3. Remove the red ribbon from the belt.

4. Set the rubber mat on the platter.

•

After setting the rubber mat, put the 45 RPM adapter into the space made for it on the upper left.

Rubber mat45 RPM adapter

Spindle

Motor pulley

(brass-colored)

2. Place the belt on the motor pulley (brass-colored).

•

Align one of the platter openings with the brass motor pulley, and, while pulling both ends of the red ribbon that comes attached to the belt, place the belt on the motor pulley, as per the diagram. When doing this, be careful not to twist the belt.

Motor pulley

Red ribbon

(brass-colored)

Belt

Straight Twisted

Preparation for use

Assembling the tonearm

1. Insert the headshell into the locking ring.

•

Hold the right and left edges of the headshell so that you do not damage the stylus or cut the cartridge’s wires.

Locking ring

2. With the headshell inserted, turn the locking ring counterclockwise (to the left).

3. With the tracking force gauge ring facing forward, attach the counterweight to the back of the tonearm, and slowly turn it counterclockwise (to the left).

Tonearm balance and tracking force

In order for the cartridge to pick up sound correctly from the record’s grooves, the tonearm’s balance and tracking force must be adjusted to fit the specifications of the cartridge. If the tonearm’s balance and tracking force are not properly adjusted, the record or the cartridge’s stylus may become damaged.

•

Do not drag the cartridge’s stylus across the record or rubber mat when adjusting the tonearm’s balance or tracking force. Doing so may damage the stylus.

Setting tonearm balance

1. Remove the cartridge’s protector.

2. While holding headshell, remove the cable tie used to secure the tonearm at the time of delivery.

3. While still lightly holding the headshell, turn the counterweight to adjust the tonearm’s balance.

•

Adjust the balance so that the tonearm is level when you release the headshell.

Tonearm Counterweight

Adjust so that tonearm is level

4. Return the tonearm to the tonearm rest.

Preparation for use

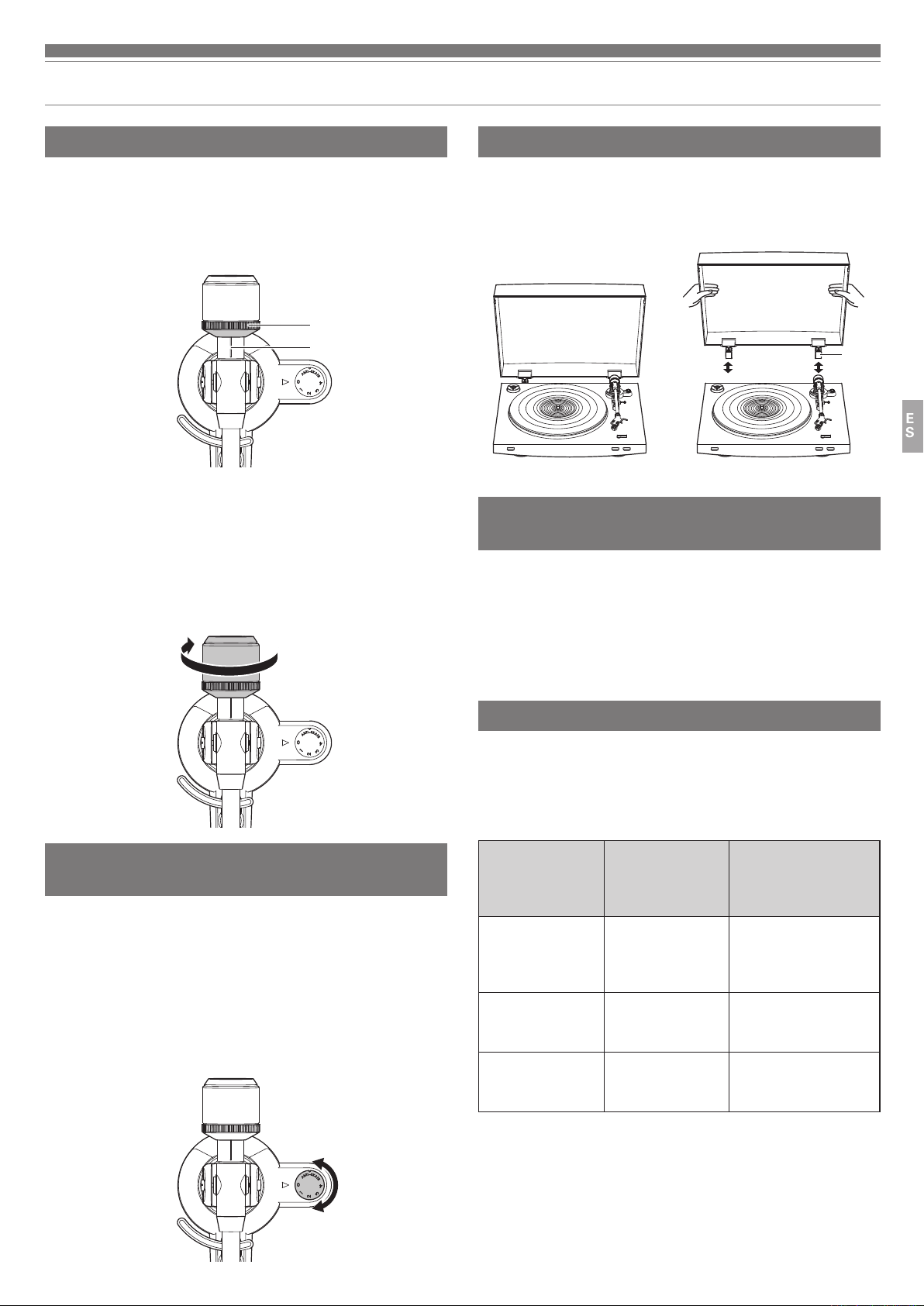

Setting tracking force

1. While supporting the counterweight so that it does not move, turn the tracking force gauge ring so that its “0” position lines up with the centerline on the back of the tonearm (the tracking force is not adjusted simply by turning the tracking force gauge ring).

Tracking force gauge ring Centerline

2. Turn the counterweight and the tracking force gauge ring together counterclockwise until the centerline value matches the recommended tracking force value for the cartridge you are using.

•

Refer to the cartridge maker’s specifications for the recommended tracking force value.

•

The tracking force value for the cartridge provided with this product is 2.0 g.

Installing/removing the dust cover

When attaching the dust cover, insert the hinges of the dust cover into the two dust cover hinge holders on the back of the body. When removing the dust cover, slowly pull the dust cover out from the dust cover hinge holders.

Hinge

Setting MM (VM)/MC Cartridge Selector Switch

If using a moving magnet (MM or VM) cartridge, set this switch to the MM position. If using a moving coil (MC) cartridge, set this switch to the MC position.

•

This switch is set to the MM position at the time of purchase. This is the correct setting for the AT91R VM stereo cartridge included with the product.

Setting the anti-skate adjustment

While the record is playing, a force acts on the stylus tip to pull it inward. This force can be counteracted by setting the same values for anti-skate and the tracking force.

1. Adjust the anti-skate control dial to have the same value as the tracking force value.

•

The tracking force value for the cartridge provided with this product is 2.0 g.

Setting pre-amplifier selector switch

This product has a built-in phono equalizer function. You can use the product, even if you do not have a phono amplifier or connectable equipment with a built-in phono amplifier. Use the pre-amplifier selector switch to set the output, as shown below.

Connectable equipment being used

Device with phono input

Device without phono input

PC sound card LINE PC sound card’s line input

An audio adapter (sold separately) may be required to connect the RCA audio cable to the line input jack of the PC sound card.

Position of pre-amplifier

Where to connect RCA audio cable

selector switch

PHONO Phono input jack and

ground (earth) terminal of connectable equipment

LINE AUX or line input jack of

connectable equipment

jack

Preparation for use

Connecting the device

Align the settings for the pre-amplifier selector switch and connect the RCA audio cable to an input jack that is compatible with the connectable equipment you are using (amplifier, receiver, active speakers, sound card, etc.).

•

The RCA audio cable's red jack is for the right (R) channel, and the white jack is for the left (L) channel.

With PHONO

Depending on the connectable equipment you are using, a ground

Without PHONO

(earth) terminal may be present near the phono input jack. If this is the case, connect the grounding wire of the RCA audio cable to it. This will help prevent a low humming noise that might otherwise be heard during playback.

Rotating the platter

1. Using your hands, rotate the platter ten times.

•

Raise the tonearm lift control lever to lift the tonearm. Slowly rotate the turntable ten times by hand in the direction of the arrow.

•

You may want to hold the tonearm to prevent it from moving. This step is for resetting the auto mechanism, getting rid of any twists in the belt and making sure the belt rides smoothly along the drive rim on the underside of the platter.

Connectable equipment

(Amplifier, etc.)

To outlet

Tonearm

Connecting the power cable

This product does not have a power switch. A standby current is always running through the product, even when it is not being used; disconnect the power cable plug from the outlet when not using the product for a long period of time.

1. Connect the power cable plug to the outlet.

•

For safety, raise the tonearm by lifting the tonearm lift control lever to the UP position.

•

Connect the power cable plug to the outlet without removing the cartridge’s protector. If the platter has rotated, press the STOP button without touching the tonearm, and then wait until the tonearm returns to its original position.

•

If you play a record immediately after inserting the power cable, the sound that is played may be garbled. Wait a short time (about 30 seconds) after plugging the power cable plug into the outlet before playing a record.

Playing a record

Before playing a record

1. Remove the cartridge’s protector.

•

Pull the protector straight forward to remove it.

•

Applying a downward force may cause the stylus to come off the body. Only low volume is output if the stylus has come off, or is about to come off, so refer to “Replacing the stylus” on p. 11 to reattach the stylus correctly.

protector

2. Place the record on the rubber mat so that the center hole aligns with the spindle.

•

If playing a 45 RPM record with a large center hole, attach the 45 RPM adapter (see the right side of the diagram below).

45 RPM adapter

Manual operation

Lower the volume of the amplifier, speakers, etc. sufficiently.

1. Raise the tonearm by lifting the tonearm lift control lever to the UP position.

Tonearm lift control lever

2. Position the tonearm over the desired location (groove) on the record.

Automatic operation

Lower the volume of the amplifier, speakers, etc. sufficiently.

1. Select the size with the size selector.

•

Select “12"” for an LP record with a 12" diameter, and “7"” for a 45 RPM record with a 7" diameter.

2. Press the speed with the platter speed button.

•

Select “33” for a 33-1/3 RPM record, and “45” for a 45 RPM record.

3. Press the START button.

•

Do not bump the product while the record is playing.

•

Do not switch the record size selection while the record is playing. Doing either of these can cause the product to malfunction.

3. Lower the tonearm by moving the tonearm lift control lever to the DOWN position. The tonearm descends slowly onto the record and play begins.

•

Alternatively, you can skip steps 1 to 3, and use the finger-lift on the headshell to position the tonearm over the desired location on the record. Carefully lower the tonearm to the record surface.

•

Do not subject the product to strong impact during playback.

Pausing the record

1. After lowering the volume of the amplifier, speakers, etc. sufficiently, lift the tonearm with the tonearm lift control lever.

Playing a record

Replacing the stylus

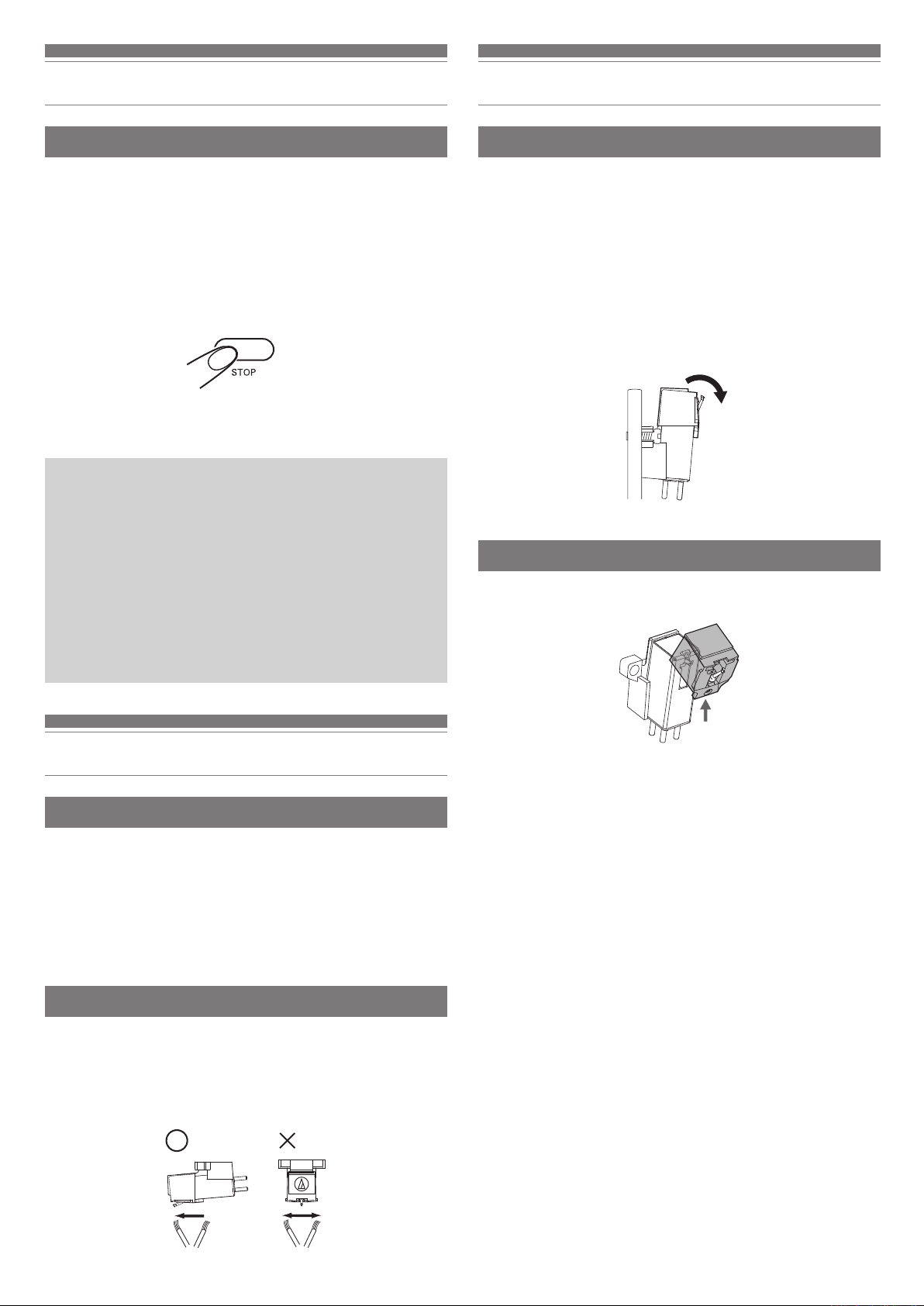

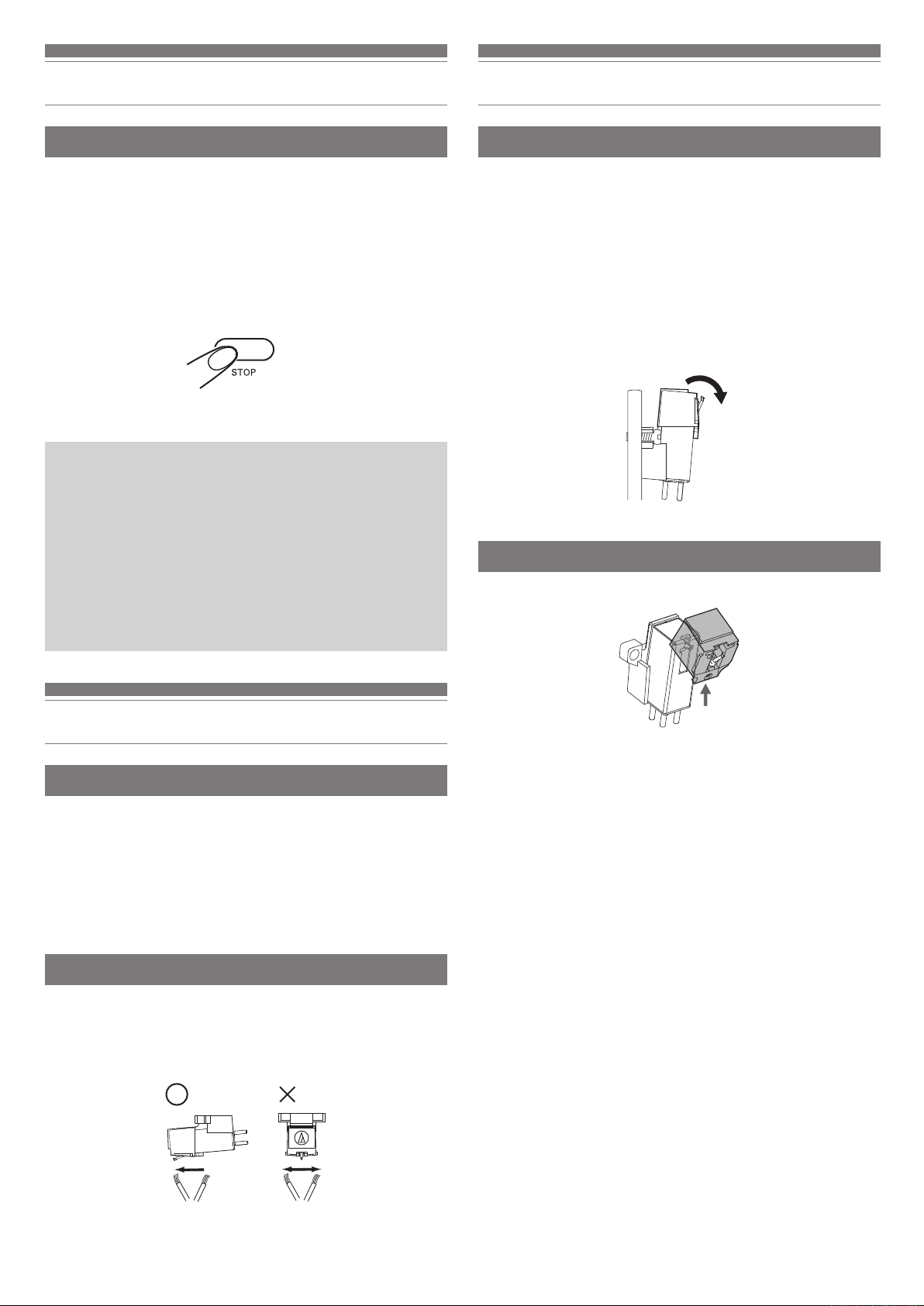

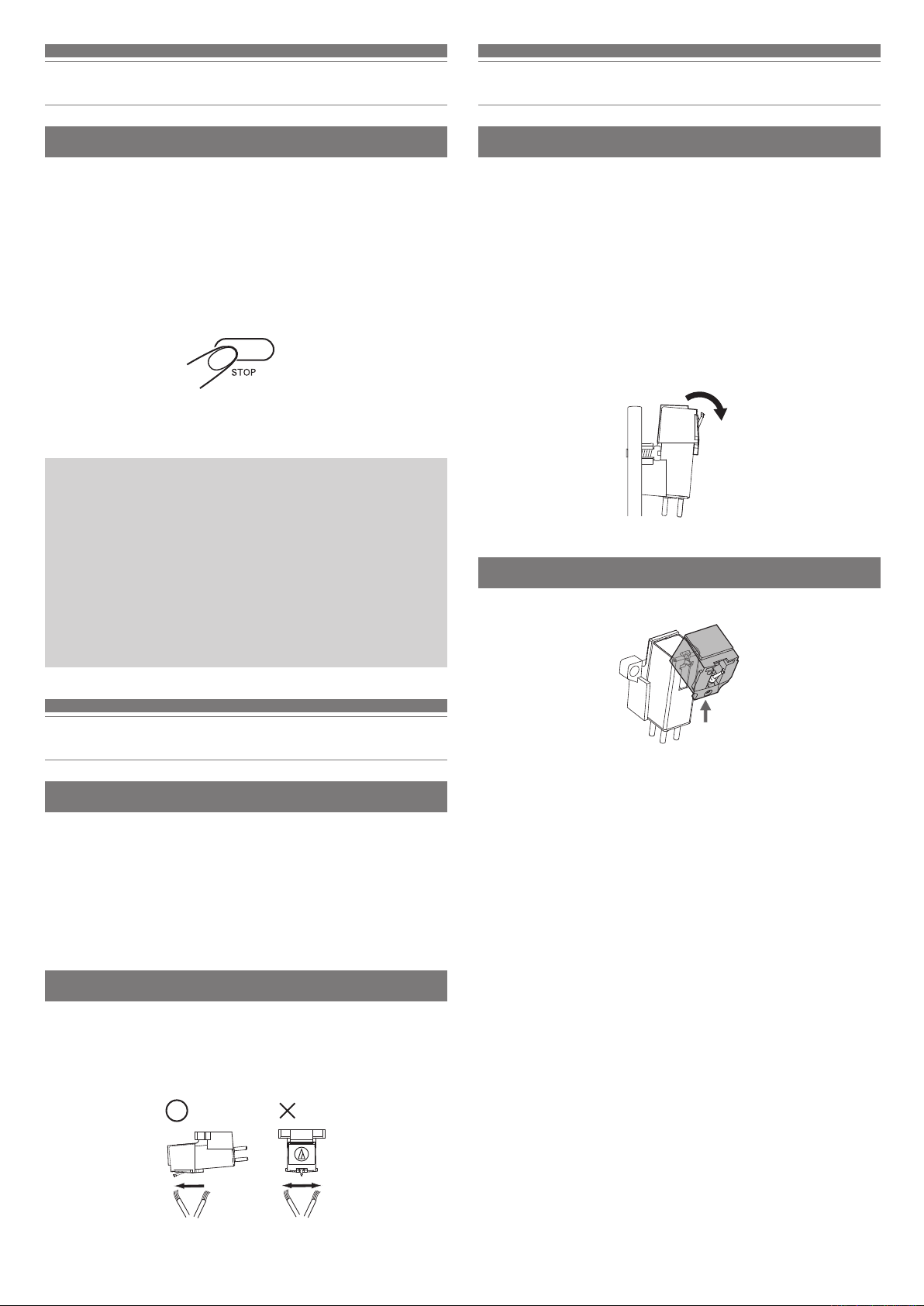

Stopping the record

Once the record has been played until the end, the tonearm automatically returns to the tonearm rest. To manually stop the record, do the following.

1. Lower the volume of the amplifier, speakers, etc. sufficiently.

2. Press the STOP button.

•

Once the record stops playing, the tonearm automatically returns to the tonearm rest.

3. Remove the record after the platter has come to a complete stop.

•

When the tonearm reaches the end (center) of the record, it will automatically lift and return to the tonearm rest. Do not interfere with its motion. Doing so can cause the product to malfunction. If the tonearm does not lift and return to the tonearm rest, press the STOP button to complete this operation.

•

If the rubber mat gets dirty, it can easily scratch the record, so remove the rubber mat periodically and wipe off any dust.

•

To prevent the record from scratches and warping, remove it after use.

•

Do not use a disk stabilizer.

•

Do not use a platter other than the one provided.

•

This product is not intended for DJs. Do not touch the record or the platter while the record is playing.

Removing the stylus

•

In addition to the deterioration of sound quality, records may also be damaged as the cartridge’s stylus tip wears down.

•

As a rule of thumb, replace the stylus after 300 to 500 hours of use.

•

Be sure to disconnect the product’s power cable plug from the outlet.

1. Release the headshell from the tonearm.

•

Hold the tonearm tightly and then remove the headshell gently.

2. Remove the protector from the cartridge.

3. Remove the stylus by pulling in the direction of the arrow.

Installing a new replacement stylus

1. Mount the new replacement stylus to the cartridge.

Care

Turntable body

•

When the turntable body is dirty or dusty, first disconnect the power cable plug, and then wipe off the dirt and dust with a soft, dry cloth.

•

Do not use benzenes, thinners, etc.

•

When storing the product for a long time, disconnect the power cable plug from the outlet and wrap the equipment in plastic; do not allow it to become damp.

Stylus tip

•

If dirt and grime are stuck to the stylus tip, clean it with a commercially sold brush.

•

We recommend using a stylus cleaner (sold separately) if the stylus tip is considerably dirty. Clean the stylus tip by moving the brush from the rear to the front of the stylus tip.

Engage rear tab first.

2. Mount the protector onto the cartridge.

3. Mount the headshell onto the tonearm.

Replacing a cartridge

Replacing a new cartridge

Refer to the user manual for the cartridge that you will be using if you are replacing the cartridge (AT91R) included with this product with another, commercially sold cartridge. After you replace the old cartridge with a new one, you must readjust the overhang and the tonearm’s balance and tracking force.

1. Release the headshell from the tonearm.

•

Hold the tonearm tightly and then remove the headshell gently.

2. Remove the stylus from the cartridge.

•

Refer to “Removing the stylus” on p. 11.

3. Remove the lead wires.

•

Be careful not to damage the lead wires.

4. Using a commercially sold, non-metallic slotted screwdriver, remove the installation screws, and then remove the cartridge from the headshell.

Replacing the belt

•

The belt is a consumable part. Replace the belt if the speed of playback slows down or irregular rotation occurs. As a rule of thumb, we suggest replacing the belt once a year.

•

Before replacing the belt, be sure to disconnect the product’s power cable plug from the outlet.

1. Remove the rubber mat.

2. Remove the platter, turn the platter over, and then remove the old belt.

•

Place your thumbs in the openings and pull up strongly.

5. Refer to the user manual for the new cartridge for mounting instructions.

Nuts Plastic washers

Installation screws

6. Using a commercially sold, non-metallic slotted screwdriver, tighten the screws in both places, and then adjust the overhang.

•

Refer to "Adjusting the overhang" on p. 13.

•

After the adjustments are complete, tighten the screws securely.

7. Attach the headshell to the tone arm.

3. Place the new belt around the inner circle.

•

Be careful not to twist the belt while doing this.

Belt

4. Attach the platter.

•

Align one of the openings with the position of the motor pulley (brass-colored).

Motor pulley (brass-colored)

Opening

8. Adjust the tonearm balance and tracking force.

•

Refer to “Tonearm balance and tracking force” on p. 7 to perform the readjustments.

5. Place the belt on the motor pulley (brass-colored).

•

Grasp the belt that was attached in step 3 and, while pulling it, place it on the brass motor pulley.

Motor pulley (brass-colored)

Place the belt

Replacing the belt

Adjusting the overhang

6. Using your hands, rotate the platter ten times.

•

Raise the tonearm lift control lever to lift the tonearm. Slowly rotate the turntable ten times by hand in the direction of the arrow.

When the turntable is moved

Using the product's original packing materials, wrap the turntable in the reverse order from when you unwrapped it. If you do not have the packaging materials, take the following measures:

•

After disconnecting the power cable plug from the outlet, remove the rubber mat and platter, and then wrap them so that they do not get damaged.

•

Use a string or something similar to tie the tonearm to the rest so that it does not move.

•

Remove the counterweight.

•

Remove the headshell from the tonearm with the protector attached to the cartridge, and then wrap the entire headshell assembly so that it does not get damaged.

•

Wrap the turntable body with paper or a soft cloth so that it does not get damaged.

The position of the cartridge must be accurately determined (adjusting the overhang) when mounting a cartridge or headshell other than the one provided.

1. Mount the cartridge so it is parallel to the headshell.

•

Match up the positions of the cartridge and headshell to the figure below and mount the cartridge so it is parallel to the headshell.

Overhang adjustment guide

This illustration represents the actual size. Place the headshell on the figure below, and then adjust the stylus tip of the new cartridge along the lines for the "Stylus tip" of the cartridge.

Underside of headshell

Stylus tip

45.0 mm

2. Mount the cartridge it is perpendicular to the top of the headshell.

Front of headshell

Troubleshooting

Problem Solution

•

The platter does not spin.

The platter spins, but there is no sound or the volume is not loud enough.

The stylus skips.

There is howling.

There is noise when the record is playing.

The sound when the record is playing is either too fast or too slow.

Playback speed slows down or there is irregular rotation.

Hum is heard during playback.

Is the power cable plug connected to the outlet? Connect the power cable plug to the outlet.

•

Has the belt slipped from the platter? Correctly place the belt on the platter.

•

Is the belt placed on the motor pulley? Check that the belt is placed on the motor pulley (brass-colored) correctly.

•

Has the belt been damaged? Replace it with a new belt.

•

Are the function settings and input for connected equipment (amplifier, etc.) selected correctly? Check whether the settings for the connected equipment are correct.

•

Is the stylus damaged? Check the stylus and replace it, if necessary.

•

Is the stylus placed correctly on the body of the cartridge? Check the cartridge and adjust it, if necessary.

•

Are the setting positions for the pre-amplifier selector switch correct? Check that the pre-amplifier settings are correct, noting the following common problems and their causes:

– If there is no sound, or if the volume is not loud enough, the product is set to the “PHONO” position and connected

to the amplifier’s AUX/LINE input.

– If the volume is too loud or is distorted, the product is set to the “LINE” position, and the connectable equipment is

connected to the PHONO input.

•

Is the tracking force set too heavy? Adjust the tracking force.

•

Is the tracking force set too light? Adjust the tracking force.

•

Is the anti-skate set improperly? Verify anti-skate is set for same value as cartridge tracking force.

•

Is the record warped? Check the record.

•

Is the record scratched? Check the record.

•

Is the product picking up excessive vibrations from the floor, surfaces of the walls, or nearby speakers? Decrease the vibrations or mount the product on a surface that is not subject to the effects of vibrations.

•

Is the product mounted on an unstable surface? Check whether the surface on which the product is mounted is suitable.

•

Is there dust on the cartridge’s stylus tip? If dust is stuck to the stylus tip, clean it with a commercially sold brush.

•

Are the speed settings for this product correct? Use the platter speed button to select the correct speed for the type of record being played.

•

Is the belt stretched out? Replace it with a new belt.

•

Is the ground line connected correctly? Make sure the ground line is properly connected.

•

Is the headshell attached to the tonearm firmly? Make sure the locking ring is tight.

Dimensions

353

435

(Unit: mm)

128

Specifications

Turntable specifications

Type 2-Speed, fully automatic operation

Motor DC motor

Drive method Belt drive

Speeds 33-1/3 RPM, 45 RPM

Turntable platter Die-cast aluminium

Wow and flutter < 0.2 % WRMS (33 RPM) at 3 kHz

Signal-to-noise ratio > 60 dB

Outputs levels “PHONO” “LINE (MM)”

Phono Pre-amp gain (MM) Phono Pre-amp gain (MC)

Tonearm specifications

Type Static balanced straight shaped w/soft

Effective length 221.5 mm

Overhang 19 mm

Maximum tracking error angle Less than 3°

Stylus pressure adjustment range 1 to 4 g

Applicable cartridge weight range (including headshell)

3.5 mV nominal at 1 kHz, 5 cm/sec 220 mV nominal at 1 kHz, 5 cm/sec

36 dB nominal, RIAA equalized 56 dB nominal, RIAA equalized

damping control

14.5 to 20 g

General specifications

Power supply requirements 120 V / 60 Hz

Power consumption 2 W

Dimensions 435 mm (17.13")×353 mm (13.90")×

128 mm (5.04") (W×D×H)

Weight 5.4 kg (11.91 lbs)

Accessories included Rubber mat, Dust cover, Platter (with

drive belt), Counterweight, Headshell (AT-HS3) with VM stereo cartridge (AT91R), 45 RPM adapter, Power cable

Replacement stylus (sold separately)

Replacement headshell (sold separately)

Replacement belt (sold separately) AT-LP3 exclusive belt

Specifications are subject to change without notice due to improvements.

ATN91R

AT-HS3

Cartridge and headshell specifications

Cartridge Model AT91R

Cartridge Type VM Dual Magnet

Recommended load impedance 47,000 ohms

Output voltage 3.5 mV (mV at 1 kHz, 5 cm/sec)

Stylus 0.6 mil bonded conical

Cantilever Aluminum pipe

Tracking force range 1.5 to 2.5 g (standard 2.0 g)

Cartridge weight 5.0 g

Headshell model AT-HS3

Headshell weight 11.1 g

Headshell overhang adjustment 8 mm

Memo

Introduction

Nous vous remercions d’avoir fait l’acquisition de ce produit Audio-Technica. Avant utilisation, merci de lire attentivement ce manuel pour vous assurer du bon usage du produit. De meme, veuillez conserver ce manuel ainsi que la garantie pour consultations ultérieures.

Ce produit n’est destiné qu’à une utilisation dans les pays suivants. Veillez à ce que la tension d’utilisation du produit corresponde à celle utilisée dans le pays où vous vivez. Liste des pays : États-Unis, Canada

Contenu de l’emballage

Assurez-vous que tous les articles inclus répertoriés sur la liste ci-dessous soient présents avant d’utiliser le produit. Si certains éléments sont manquants ou endommagés, contactez votre distributeur local Audio-Technica.

•

Corps du plateau de la platine

•

Plateau (avec courroie d’entraînement)

•

Adaptateur 45 tours

•

Tapis amortissant en caoutchouc

•

Contrepoids

•

Câble d’alimentation

•

Manuel d’utilisation (ce document)

•

Couvercle anti-poussière

•

Porte-cellule (AT-HS3) avec cellule stéréo VM

Après l’achat, nous vous suggérons de conserver tous les emballages pour un éventuel stockage, déménagement, ou transport.

(AT91R)

Consignes de sécurité

Informations importantes

Avertissement:

Pour éviter tout risque de choc électrique ou d’incendie, n’exposez pas cet appareil à la pluie ou à l’humidité.

Mise en garde:

Protégez cet appareil des projections et des gouttes d’eau. Pour éviter tout risque de choc électrique, n’ouvrez pas le boîtier. Confiez tous travaux d’entretien à un technicien qualifié. N’exposez pas cet équipement à des températures excessives, telles que celles de la lumière directe du soleil, d’une flamme ou autres. Ne soumettez pas cet équipement à de forts impacts. Placez l’appareil à proximité d’une prise de courant pour une utilisation aisée du câble d’alimentation. En cas d’urgence, déconnectez immédiatement la prise du câble d’alimentation de l’appareil. Ne placez pas d’objets remplis de liquides, tels que des vases, sur l’appareil. Pour éviter tout risque d’incendie, ne placez pas de flammes nues (telles que des bougies allumées) sur l’appareil. N’installez pas cet appareil dans un espace confiné tel qu’une étagère ou un endroit similaire. Installez cet appareil uniquement dans des endroits avec une bonne ventilation.

Pour les clients aux États-Unis/Canada

ATTENTION

RISQUE D’ÉLECTROCUTION

NE PAS OUVRIR

Attention : Afin d’éviter toute électrocution, n’enlevez pas le couvercle.

Aucune pièce à l’intérieur ne peut être réparée par l’utilisateur. Les réglages internes ne peuvent être effectués que par des professionnels qualifiés. Confiez toutes les tâches de réparation à un personnel technique qualifié.

Consignes de sécurité importantes

1. Lisez ce mode d’emploi.

2. Conservez ce mode d’emploi.

3. Tenez compte de tous les avertissements.

4. Suivez toutes les instructions.

5. N’utilisez pas cet appareil à proximité d’eau.

6. Nettoyez-le uniquement avec un tissu sec.

7. N’obstruez aucun des orifices d’aération. Installez-le conformément aux instructions du fabricant.

8. Ne l’installez pas à proximité d’une source de chaleur comme un radiateur, une bouche d’air chaud, un poêle ou tout autre appareil (amplificateurs compris) générant de la chaleur.

9. Ne retirez en aucun cas le dispositif de sécurité de la fiche polarisée ou de la fiche de mise à la terre. Une fiche polarisée comporte deux lames dont une est plus large que l’autre. Une fiche de mise à la terre comporte deux lames ainsi qu’une broche de mise à la terre. La lame large ou la troisième broche assurent votre sécurité. Si la fiche fournie ne s’insère pas dans votre prise, consultez un électricien afin qu’il remplace cette dernière.

10. Évitez que le câble d’alimentation ne soit piétiné ou pincé en particulier au niveau des fiches, des prises de courant ou du point de sortie de l’appareil.

11. Utilisez uniquement des équipements/accessoires recommandés par le fabricant.

12. Utilisez uniquement un chariot, un pied, un trépied, un support ou une table recommandé par le fabricant ou fourni avec l’appareil. Lorsque vous utilisez un chariot, faites attention lors du déplacement chariot/appareil afin d’éviter toute blessure en cas de renversement.

13. Débranchez l’appareil en cas d’orage ou lorsqu’il n’est pas utilisé pendant une période prolongée.

14. Confiez toutes les tâches de réparation à un personnel technique qualifié. Une réparation est nécessaire si l’appareil a été endommagé d’une quelconque manière, par exemple si le câble ou la fiche d’alimentation a été endommagé, si un liquide y a été versé ou si des objets sont tombés à l’intérieur, si l’appareil a été exposé à la pluie ou à l’humidité, s’il ne fonctionne pas normalement ou s’il a subi une chute.

L’éclair terminé par une flèche et inscrit dans un triangle équilatéral signale à l’utilisateur la présence d’une “tension électrique dangereuse” non isolée à l’intérieur du boîtier du produit d’un niveau suffisant pour présenter un risque d’électrocution.

Le symbole du point d’exclamation inscrit dans un triangle équilatéral signale à l’utilisateur la présence d’instructions importantes relatives au fonctionnement et à l’entretien (réparation) dans le manuel accompagnant cet appareil.

Avertissement de la FCC

Avertissement:

Cet appareil est conforme au point 15 du règlement FCC. Le fonctionnement est soumis aux deux conditions suivantes: (1) Cet appareil ne peut causer d’interférences nuisibles, et (2) cet appareil doit accepter toute interférence reçue, notamment celles pouvant entraîner un dysfonctionnement.

Mise en garde:

Toute modification apportée à l’appareil et qui n’est pas expressément préconisée dans ce manuel invalide votre droit à utiliser cet appareil.

Remarque: Cet appareil a été testé et respecte les limitations d’un appareil numérique de classe B, conformément au point 15 du règlement FCC. Ces limitations sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans un environnement domestique. Cet équipement produit, utilise et peut émettre de l’énergie radio électrique, et s’il n’est pas installé et utilisé conformément aux instructions, il peut provoquer des interférences nuisibles aux communications radio. Il n’existe toutefois aucune garantie que de telles interférences ne se produiront pas dans une installation particulière. Si cet appareil cause des interférences nuisibles à la réception des signaux de radio ou de télévision, ce qui peut être détecté en mettant l’appareil sous et hors tension, l’utilisateur est invité à corriger ce problème en prenant une ou plusieurs des mesures suivantes:

– Réorientez ou repositionnez l’antenne de réception. – Augmentez la distance séparant l’équipement et le récepteur. – Branchez l’appareil sur un circuit différent de celui du récepteur. – Contactez votre revendeur ou technicien radio/TV qualifié pour obtenir

de l’aide.

Déclaration IC:

CAN ICES-3 (B)/NMB-3(B)

Remarques d’utilisation

Corps du plateau de la platine

•

Ne placez pas et n’utilisez pas le produit dans des endroits soumis à de fortes chaleurs ou une humidité élevée, très sales ou soumis à des vibrations extrêmes.

•

Le produit doit être placé sur une surface plane et lisse.

Cellule

•

Fixez la protection fournie sur la cellule lorsque le produit n’est pas utilisé.

•

Ne touchez pas la pointe de lecture de la cellule avec votre doigt.

•

Empêchez la pointe de lecture de percuter le plateau, le tapis amortissant en caoutchouc ou le bord du disque.

Noms des pièces et fonctions

Schéma de l’ensemble

8 9

Adaptateur 45 tours (affiché dans le réceptacle)

Sélectionnez la vitesse du plateau (33-1/3 ou 45 tours).

Plateau

Tapis amortissant en caoutchouc

Axe

Supports de charnières du couvercle anti-poussière

Points de fixation pour les charnières du couvercle anti-poussière.

Bras de lecture

Pour plus de détails, reportez-vous à la section “Bras de lecture” en p. 5.

Sélecteur de taille

Permuter entre 12" et 7", en fonction de la taille du disque.

Bouton de vitesse du plateau

Sélectionnez la vitesse du plateau (33-1/3 ou 45 tours).

Bouton START

Fait tourner le plateau et déplace le bras de lecture.

Bouton STOP

Replace le bras de lecture dans sa position d’origine et arrête le plateau.

12 13

Couvercle anti-poussière

Sélecteur de préamplificateur

Si vous utilisez un amplificateur avec une prise entrée PHONO, placez le sélecteur en position PHONO. En cas de connexion d’un amplificateur à la prise AUX, placez ce sélecteur sur la position LINE.

Sélecteur de cellule MM (VM)/MC

Si vous utilisez une cellule MM (VM), placez ce sélecteur en position MM. Si vous utilisez une cellule MC, placez ce sélecteur en position MC.

Câble audio RCA (avec câble de mise à la terre)

Raccordez la prise d’entrée PHONO (câble de mise à la terre à la borne de mise à la terre, si disponible) ou la prise d’entrée AUX (LINE) d’un récepteur, amplificateur ou autre équipement connecté.

Entrée d’alimentation

Insérez le câble d’alimentation ici.

+ 47 hidden pages
