AudioCodes Mediant 1000B Quick Start Guide

Mediant™ 1000B Gateway & E-SBC

Quick Setup Guide

Welcome

Congratulations on purchasing your AudioCodes Mediant 1000B Gateway and Enterprise Session Border
Controller (E-SBC), hereafter referred to as the device!

This document is intended to provide basic setup instructions for initial access to the device and for connecting
it to your network. For advanced configuration and cabling, refer to the User's Manual and Hardware Manual
respectively, which can be downloaded from AudioCodes website at

https://www.audiocodes.com/library/technical-documents.

Before you begin, please read the Safety Precautions on page 7.

Pour consulter le guide rapide de l’équipement en français, consultez le site web AudioCodes suivant :

https://www.audiocodes.com/library/technical­documents?productFamilyGroup=1637&productGroup=1641&docTypeGroup=Quick+Guides.

Package Contents

Make sure that the following items (in addition to any separate-orderable items that you may have purchased)
are shipped with your device:

 4 x anti-slide bumpers for desktop mounting

 1 or 2 x AC power cables (depending on order)

 Regulatory Information document

1 | Page

1

Telephony port interfaces and DSP resources, which can include any one or a

Media Processing Module (MPM) interfaces.

FXS

FXS port status LED:

Green On

Phone is in off-hook position.

Green Flashing

Phone is ringing.

Red On

Malfunction in line or out of service due to Serial

Port is disabled.

Off

Phone is in on-hook position or no power.

FXO

FXO port status LED:

Green On

FXO line with PBX is in off-hook position.

Green Flashing

Ringing is detected from PBX.

Red On

 Malfunction in line or out of service due to SPI

Port is disabled.

Off

FXO line is in on-hook position or no power.

BRI

BRI port status LED

Green On

Physical Layer 1 is synchronized (normal operation).

Red On

Physical Layer 1 is not synchronized.

Off

BRI trunk is not active.

TRUNKS

PRI (E1/T1) port status LED:

Green On

Trunk is synchronized (normal operation).

Red On

Loss due to one of the following signals:

RAI (Remote Alarm Indication - Yellow Alarm)

Off

Failure or disruption in power supply or power is not

Physical Description of Front Panel

[The number and type of port interfaces depend on your ordered hardware configuration.]

combination of FXS (RJ-11), FXO (RJ-11), ISDN BRI (RJ-45), ISDN PRI (RJ-48), and



Peripheral Interface (SPI) failure.



failure.



 LOS (Loss of Signal)
 LOF (Loss of Frame)
 AIS (Alarm Indication Signal - Blue Alarm)


being supplied to the device through the power supply
entry.

2 | Page

2

CRMX

CRMX module, providing

through or crossover cable detection. Each port has a status LED:

Green On

Ethernet link established.

Green Flashing

Data is being received or transmitted.

Off

No Ethernet link.

The WAN / STATUS LED indicates the following:

Red On

Reset button has been pressed.

Red Flashing

Under-voltage condition on CRMX module.

is WAN (despite no WAN interfaces).

Green On

Dry contact relay alarm: No Alarm (Dry Contact I Closed
and II Open).

Orange On

Dry contact relay alarm: Minor Alarm (Dry Contact I and
II Open).

Red On

Dry contact relay alarm:

3

SWX

LAN Extension (SWX) module, providing four additional Gigabit Ethernet LAN port

4

Power 1

Secondary Power Supply module, providing load sharing with and power

5 Power 2

Primary Power Supply module with a status LED:

Green On

AC power is received by device.

Off

No power.

6 - Fan Tray module and a schematic on its front panel showing the chassis' slot

numbers.

 RS-232 serial interface port (flat connector).
 Dry-contact relay connector for interfacing with a third-party, external alarm

system (separate orderable item).

 Reset pinhole button for resetting the device or restoring it to factory defaults.

To restore to defaults, press and hold down the button for at least 15 seconds
(but no more than 25 seconds).

 Gigabit Ethernet LAN interface ports (RJ-45) for connecting IP phones,

computers, or switches. The ports support 1+1 Ethernet port redundancy
(active-standby), half- and full-duplex modes, auto-negotiation, and straight-


 Booting up phase (U-boot) of the operating system

kernel has completed successfully.

Note: When the device is ordered with dry-contact relay
interfaces, the LED label is STATUS; otherwise, the label

 Major Alarm (Dry Contact I and II Closed).
 Critical Alarm (Dry Contact I Open and II Closed).

interfaces.
Note: The SWX module is a separate orderable item.

redundancy in case of failure in primary Power Supply module.

Note: The secondary Power Supply module is a separate orderable item.

3 | Page

Mounting the Device

You can mount the device on a desktop using the four anti-slide bumpers (supplied), which you need to stick on
the grooves located on the underside of the device.

Alternatively, you can mount the device in a standard 19-inch rack, using one of the following methods:

 Attaching the device to the rack posts using the pre-attached front-mounting brackets. When using this

method, it is highly recommended that the device be placed on a pre-installed rack shelf (not supplied)
for additional support.

 Attaching the device to the rack posts using the pre-attached front-mounting brackets and rear-

mounting brackets (separate orderable item).

Cabling the Device to Power

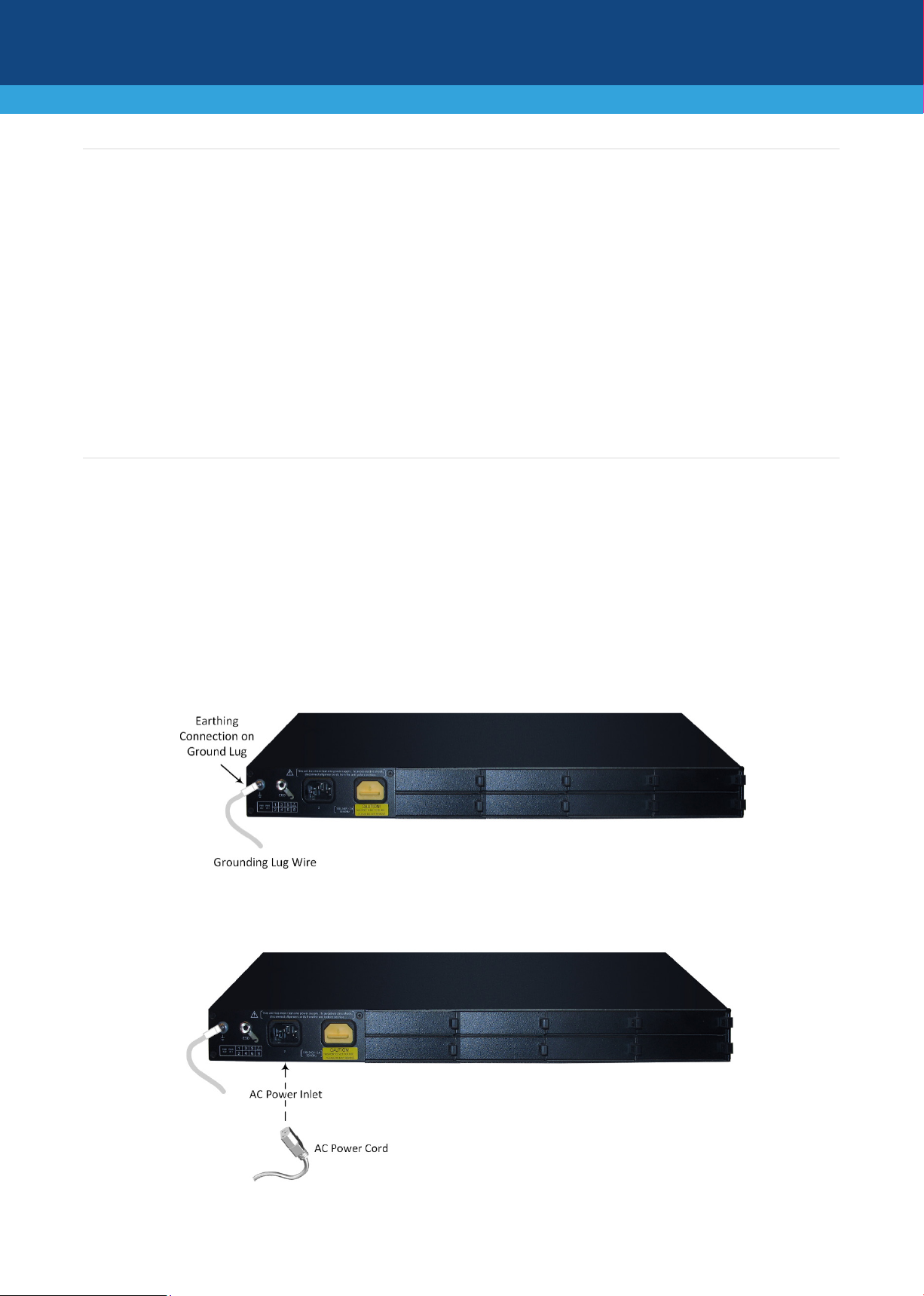

1. GROUNDING: Ground (earth) the device by connecting an electrically earthed strap of 16-AWG

(minimum) wire to the device's grounding screw located on the rear panel, using the supplied washer.
Connect the other end of the strap to protective earthing. This should be in accordance with
regulations enforced in the country of installation. The grounding screw must be connected to the
equipotential grounding bus bar located in the Telecommunication rack, using a wire of 6 mm
wire. This line must be connected to the equipotential bus bar of the electrical circuit board located in
the Telecommunication room, using a stranded cable with surface area of 25 mm
cable must be as short as possible (no longer than 3 meters).

2

. The length of this

2

surface

2. Connect the line socket of the AC power cord (supplied) to the device's AC power inlet (left) located on

the rear panel. Connect the plug at the other end of the AC power cord to a standard electrical outlet.

4 | Page

Assigning an IP Address to the Device

Use the device's factory default IP address (192.168.0.2/24 and Default Gateway 0.0.0.0) to initially access the
device's Web-based management interface and then change it to suit your networking addressing scheme for
subsequent connectivity.

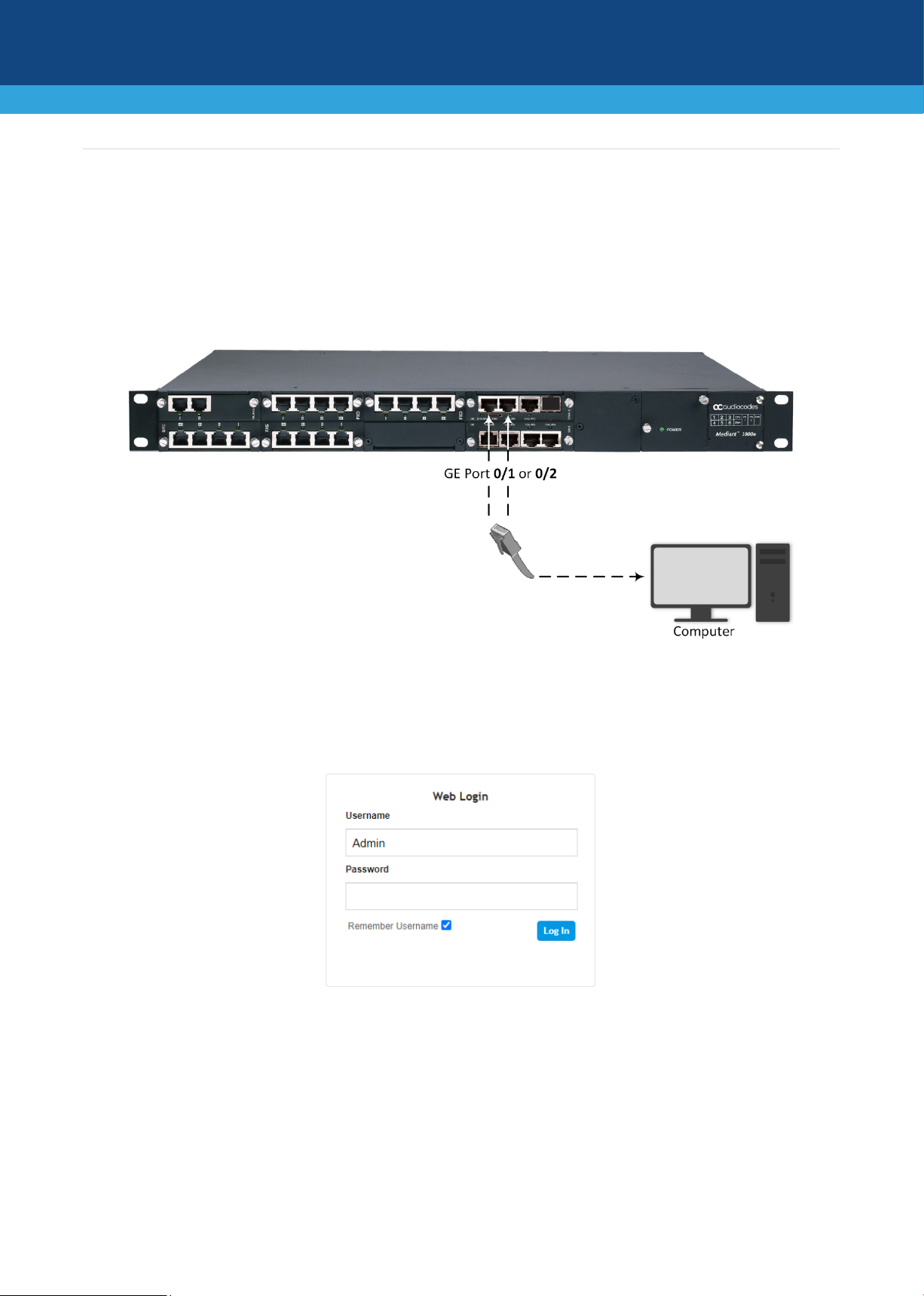

1. Using a CAT-5e/6 straight-through RJ-45 Ethernet cable, connect the device's Ethernet port GE 0/1 or

0/2 (front panel) to the LAN port of your computer.

2. Change the IP settings of your computer to correspond with the device's default IP address and subnet

mask.

3. On your computer, open a standard Web browser (for example, Google Chrome), and then in the URL

field, enter the device's default IP address; the Web Login screen appears:

4. Type in the default username (Admin) and password (Admin), and then click Log In.

5. Open the IP Interfaces table (Setup menu > IP Network tab > Core Entities folder > IP Interfaces).

5 | Page

6. Select the OAMP interface ('Application Type' with OAMP + Media + Control), click Edit, and then in

the dialog box, modify the device's OAMP interface.

7. Click Apply to submit your changes; your connection with the device becomes unavailable at the

default IP address (due to the new IP address).

8. Change the IP settings of your computer to correspond with the new OAMP IP addresses and subnet of

the device.

9. Access the device again, but at its' new IP address, and then on the Web interface's toolbar, click the

Save button; the new IP address is now saved to the device's flash memory.

10. Re-cable the device to the required network. You can now access the device's management interfaces

remotely, using the new IP address.

6 | Page

Safety Precautions

 This device is an indoor unit and therefore, must not be installed outdoors. Ethernet cabling must be

routed only indoors and must not exit the building.

 The device must be installed and serviced only by qualified service personnel.

 Do not open or dismantle the device.

 Do not expose the device to water or moisture.

 Make sure the device is installed in a well-ventilated location to avoid over heating of internal

components and subsequent damage.

 Make sure that all unoccupied module slots are covered with blank panels to ensure optimal airflow

pressure inside the chassis.

 Do not place any object on top of the device and make sure that sufficient clearance from the top and

sides are maintained to ensure proper airflow to avoid over heating of internal components.

 Operate the device in an ambient temperature (Tma) that does not exceed 40°C (104°F).

 The device must be installed only in restricted access locations.

 Connect FXO, E1/T1, and BRI interfaces utilizing 26-AWG minimum wiring.

 Use only the supplied AC power cord for connection to the power source.

 When using only one Power Supply module, the second AC power socket on the rear panel is covered

with a plastic sticker. Please do not remove the sticker and connect anything to this power socket.
Remove the sticker only when the device is ordered with two Power Supply modules.

 When using two Power Supply modules, connect each Power Supply module to a different AC supply

circuit and make sure that the two AC power sources have the same ground potential.

 The device must be connected to an electrical socket-outlet providing a protective earthing connection.

 Operate the device only from the type of power source indicated on the chassis.

 Installation of the device must be in accordance with national wiring codes and conform to local

regulations.

 The device must be installed only in telecommunication sites in compliance with ETS 300-253

requirements "Earthing and Bonding of Telecommunication Equipment in Telecommunication
Centers".

 Prior to installation, earth loop impedance test must be performed by a certified electrician to ensure

grounding suitability at the power outlet intended to feed the device. It is essential that impedance is
kept below 0.5 ohms.

 The device includes an integrated secondary surge protection, but does not provide primary telecom

protection! When the FXS / FXO lines are routed outside the building, additional protection - usually a
350V three-electrode Gas Discharge Tube (GDT) as described in ITU-T K.44 - must be provided at the
entry point of the telecom wires into the building (usually on the main distribution frame / MDF), in
conjunction with proper grounding. The center pin of the GDT (MDF grounding bar) must be connected
to the equipotential grounding bus bar of the Telecommunication room.

7 | Page
