AT&T 1224, 2448 User Guide
Lucent Technologies
Bell Labs Innovations
®
SPIRIT
Communications System
Model 2448
1224 Controller
Customer Installation Instructions
999-500-232
Intellectual property related to this product (including trademarks) and registered to
AT&T Corporation has been transferred to Lucent Technologies Incorporated.
Any references within this text to American Telephone and Telegraph Corporation or
AT&T should be interpreted as references to Lucent Technologies Incorporated. The
exception is cross references to books published prior to December 31, 1996, which
retain their original AT&T titles.
Lucent Technologies – formed as a result of AT&T’s planned restructuring – designs,
builds and delivers a wide range of public and private networks, communication
systems and software, consumer and business telephone systems, and microelectronic
components. The world-renowned Bell Laboratories is the research and development
arm for the company.
Table of Contents
Overview of System
Step 1 Plan Your System
Step 2 Check Outlet Grounding
Step 3 Mount Controller
Mount the Power Supply Unit
Mount Controller on Wall
Install Line and Station Cards
Test the Incoming Telephone Lines
Test the Controller
Connect Telephone Lines to Controller
Step 4 Wiring Runs
Business (4-Pair) Wiring
List of Materials
Mount Jack Panel Boxes
Run Cable to All Telephone Locations
Install Modular Connecting Blocks
Customer Convenience Wiring
List of Materials
Install Modular Plugs and Wire Junction Boxes
Secure Telephone Wire
Install Modular Connecting Blocks
Step 5 Install Telephone Sets
Record Installation Date
Desk Mount
Wall Mount
Label Intercom Extension Number
Step 6 Connect Controller to Wiring Runs
Step 7 Install Optional Equipment
Step 8 Put the Panel Back On
Step 9 Power Up the System
Troubleshooting
Service Technician Diagnostics
Controller Self Test
What Each Test Does
Repairing a Problem
Key to Indicator Lights During Controller Self Test
Replacement Parts
Interference Information; FCC Regulations
Pertaining to this Equipment
1
2
3
3
3
4
4
5
5
6
7
8
8
9
10
11
13
13
13
13
13
15
15
15
15
15
16
17
18
18
19
20
20
21
21
24
24
25
Notice: While reasonable efforts were made to ensure that the information
in this document was complete and accurate at the time of printing, AT&T
assumes no responsibility for any errors. Changes or corrections to the
information contained in this document may be incorporated into future
re-issues.
IMPORTANT SAFETY INSTRUCTIONS
SPIRIT® Communications System - 2448 Controller/2448 Expansion Unit
The exclamation point within an equilateral triangle is
intended to alert you to the presence of important operating
and maintenance instructions in the literature accompanying
the product.
When using your telephone equipment basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and injury.
1.
2.
10.
Read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Use a damp cloth for
3.
cleaning. Do not use liquid or aerosol cleaners.
4.
Slots and openings in the housing are provided for ventilation. To protect it
from overheating, these openings must not be blocked or covered. This product
should never be installed near or over a radiator or heat register. This product
should not be placed in a built-in installation unless proper ventilation is
provided.
This product should be operated only from the type of power source indicated
5.
on the marking label. If you are not sure of the type of power supply to your
home or business, consult your dealer or local power company.
This product is equipped with a three wire grounding type plug. This plug will
6.
only fit into a grounding type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to replace your
outlet. Do not defeat the safety purpose of the grounding type plug.
Do not allow anything to rest on the power cord. Do not locate this product
7.
where the cord will be abused by persons walking on it.
Do not overload wall outlets and extension cords as this can result in the risk of
8.
fire or electric shock.
Never push objects of any kind into this product through housing slots as they
9.
may touch dangerous voltage points or short out parts that could result in a risk
of fire or electric shock. Never spill liquid of any kind on the product.
To reduce the risk of electric shock, do not disassemble this product. Call your
AT&T representative when service or repair work is required. Opening or
removing covers may expose you to dangerous voltages or other risks. Incorrect
reassembly may cause electric shock when the appliance is subsequently used.
11.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
●
when the power supply cord or plug is damaged or frayed.
●
if liquid has been spilled into the product.
●
if the product has been exposed to rain or water.
●
if the product has been dropped or the housing has been damaged.
●
if the product exhibits a distinct change in performance.
Avoid using a telephone during an electrical storm. There may be a remote risk
12.
of electric shock from lightning.
Do not use the telephone in the vicinity of a gas leak. To report a gas leak, use
13.
a telephone away from the area of the leak.
Basic safety precautions should always be followed when your telephone equipment is
installed.
WARNING: The SPIRIT Communications System, Model 2448 must be installed by
an AT&T service technician or a qualified installer.
WARNING: If you need to install a SPIRIT Communications System telephone in a
different building but not more than 1000 feet from the control unit, In
Range-Out of Building (IROB) protectors, AT&T Order Number 31304
(TII Model 371 or ITW Model SP69073), are required. The IROB
protectors must be installed by an AT&T service technician or a qualified
installer. Contact your AT&T representative for additional information.
Never install telephone wiring during a lightning storm.
1.
2.
Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
Never touch uninsulated telephone wires or terminals unless the telephone line
3.
has been disconnected at the network interface.
4.
Use caution when installing or modifying telephone lines.
5.
Do not attach the power supply cord to building surfaces.
SAVE THESE INSTRUCTIONS
Overview of System
This instruction manual will show you how to install your
SPIRIT® Communications System.
Please read the instructions carefully before beginning installation.
What You Should Find in the Boxes
With the Controller:
controller (408 configuration)
power supply unit
four 7’ line cords
System Directory Label
(attached to the back of the panel)
With Each Telephone:
telephone
14’ telephone cord
designation labels and plastic strips
User Manual
Reference Card and plastic sleeve
label sheets
Administration Manual
Customer Installation Instructions
If your network interface jack (where the telephone company lines come into your building or
office) has two lines on a single jack you should purchase a 267D adapter and a line cord
(D4BU) from your AT&T PhoneCenter store or from your authorized AT&T representative.
If you need longer line and telephone cords you should purchase them also.
Controller
CONTROLLER SECTION
(Standard 120 VAC)
WIRING SECTION
TELEPHONE SECTION
Power Supply
Unit
AC Outlet
Network Interface Jack
a jack field installed
near your control
unit location
cable extending from
the jack field to each
telephone location
jumper cords
plugged into the
jack field and into
the control unit
a modular jack at the end of
each cable (telephones will be
plugged in later)
SPIRIT
is a registered trademark of AT&T
1
Step 1 Plan Your System
Draw a floor plan of your business, showing the location of the network interface jacks,
where your local telephone lines come into the building or office. Install your controller
close to these jacks. Be sure an AC outlet not controlled by a switch is available.
Show on the floor plan the location of each telephone in your system and the distances of
the wiring run from the controller to each telephone location.
Below is a sample floor plan to guide you in making your own floor plan.
NOTE: If you need to install
but not more than 1000 feet from the controller, an in-range, out-of-building (IROB) protection device is required. Contact your AT&T representative and order part number 31304.
INCOMING TELEPHONE LINE
(also called Network Interface Jacks)
SPIRIT
Set 10 30’
Set 11 40’
Set 12 50’
Set 13 60’
Set 14 30’
Commmunications System telephones in another building,
Set 15 75’
Set 16 90’
Set 17 105’
Set 18 120’
Set 19 45’
Set 20 100’
Set 21 90’
Set 22 105’
Set 23 130’
Set 24 150’
Set 25 170’
Set 26 115’
Set 27 100’
NOTE: Be sure cords do not cross hallways. Do not run cords inside air plenums and ducts or
along hot pipes.
Step 2 Check Outlet Grounding
Your
SPIRIT
and central office line voltage surges caused by lightning strikes or other power
anomalies, provided the system is properly grounded.
Using a circuit tester, check (or have checked by a qualified technician) the outlet into
which your
any of these faults, have this corrected before installation of the control unit:
— open ground
— reversed polarity
— open hot
If necessary, have a qualified electrician repair the electrical outlet in the manner
specified by the applicable electrical codes to prevent service interruption and continue
warranty protection. If you have two-wire outlets with no ground wire, a non-switched,
three-wire grounded outlet should be installed.
2
Communications System control unit has been protected against AC line
SPIRIT
system control unit will be plugged. If the circuit tester detects
— open neutral
— hot and ground reversed
— hot on neutral with hot open
Step 3 Mount Controller
You will need the following to mount your controller on the wall:
eight screws
●
For drywall, tile, or masonry use size 6 to 8 x ¾ inch plastic anchors with size 6 x 1 inch
slotted screws. For wood, use size 6 x 1 inch slotted round head wood screws. These screws
are available at your local hardware store.
●
12-inch ruler
●
flathead screwdriver
●
drill with the drill bit recommended for the type of screws
●
pencil
Choose a location within five feet of the network interface jacks, where the local telephone
company lines enter the building, and within five feet of a grounded (three-prong) AC outlet
that is not controlled by a switch. The power supply unit will be plugged into this outlet and
the controller connected to the power supply unit. The controller and power supply unit must be
within six inches of each other with the power supply on the left side of the controller.
NOTE: Try to position the controller so that there is an additional two feet of free wall space to
the right to allow for future expansion.
Be sure that the controller is in a well-ventilated area with a temperature range of 40° F to
100° F, and free of excessive dust and moisture. The controller should be at least two feet
from the floor.
■
A. Mount the Power Supply Unit
Mount the power supply unit on the far left side of the chosen location, making sure it is
within five feet of a grounded AC outlet not controlled by a switch.
Drill two holes 4¼ inches apart and install two mounting screws. Loosen the screws enough to
hang the power supply unit. Mark the location of the two holes on the bottom of the unit and
remove the unit from the wall. Drill two more holes. Reinstall the power supply unit onto the
wall. Insert the two bottom mounting screws, and firmly tighten all four screws.
3
■
B. Mount Controller on Wall
If you are installing the 2448 expansion unit when you first put in your
SPIRIT
system,

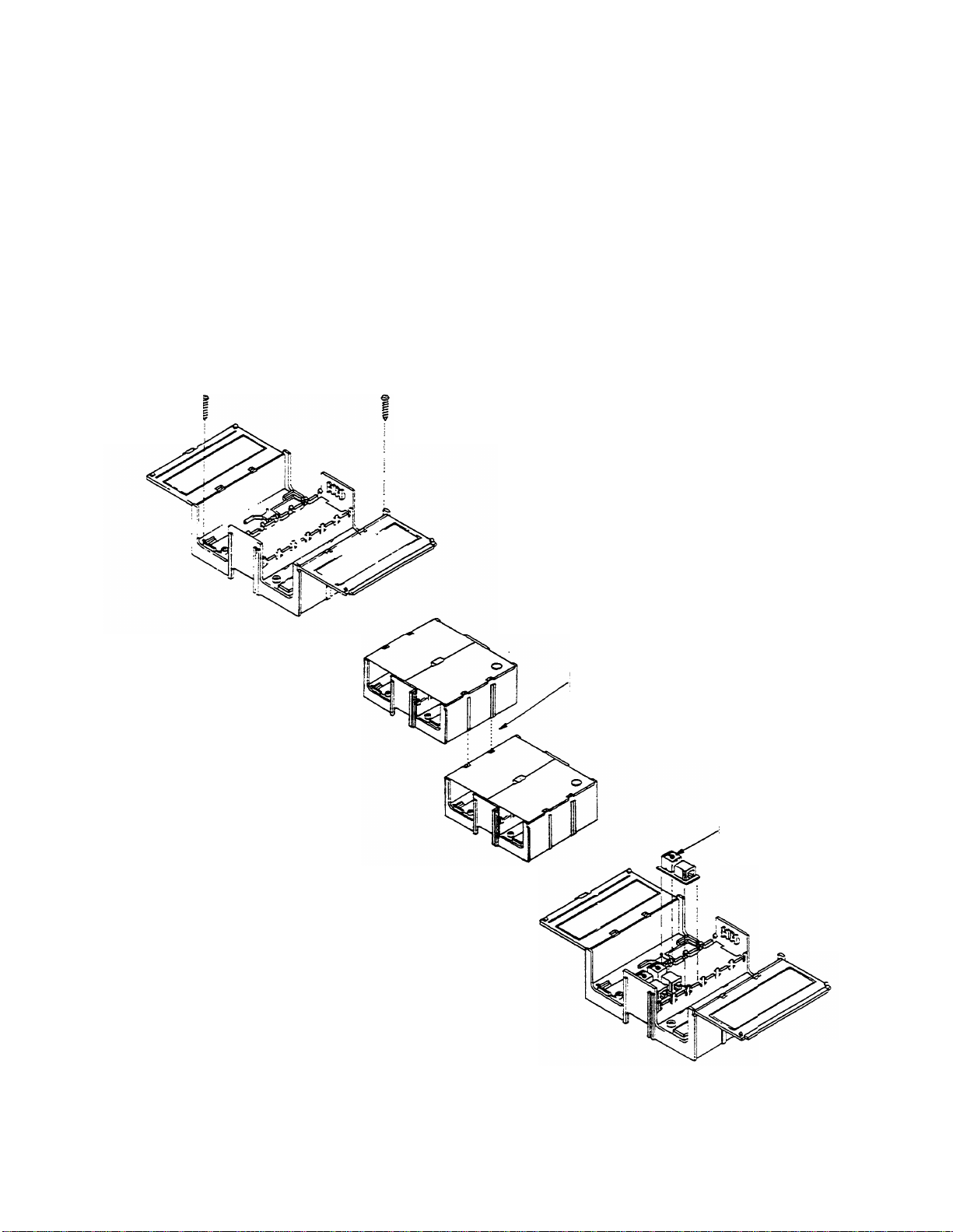

follow the instructions provided with the expansion unit instead of those in part B.
Be sure to mount the controller within six inches of where the power cable will connect to the
power supply unit. Make two level marks 11 inches apart. Drill holes at these marks and install
two of the eight mounting screws so that the screw heads are about 3/16 inches from the wall.
NOTE: If a ruler is unavailble, the panel (front cover) can be used as a guide. Remove the panel
from the controller (see panel removal instructions in part F on page 6). Along the top edge of
the panel there are four little ribs. The two ribs closest to each edge of the panel are 11 inches apart.
Temporarily hang the controller on the mounting screws, by placing the two keyholes on the
top back of the controller on the screws and pulling down gently. Make a mark at the center
of each slot on the bottom back of the controller. Remove the controller by lifting it up and away
from the mounting screws. Drill a hole at each of the two marks. Install two more mounting
screws so that the screw heads are about 3/16” from the wall.
Place the controller on all four mounting screws and pull down. Firmly tighten the bottom
mounting screws.
Write the date on the date installed label (DATE INST:) located on the label sheet and place it
on the left side of the controller.
NOTE: The controller and power supply may be installed on a table or desktop without mounting.
Take special care to reduce the possibility of the equipment moving or falling.
■
C. Install Line and Station Cards
If you purchased additional line and/or station cards, install them in the controller following
the instructions provided with the cards.
4
Loading...
