ATMEL ATtiny2313 User Manual

Features

• Utilizes the AVR

• AVR – High-performance and Low-power RISC Architecture

– 120 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 20 MIPS Throughput at 20 MHz

• Data and Non-volatile Program and Data Memories

– 2K Bytes of In-System Self Programmable Flash

Endurance 10,000 Write/Erase Cycles

– 128 Bytes In-System Programmable EEPROM

Endurance: 100,000 Write/Erase Cycles – 128 Bytes Internal SRAM – Programming Lock for Flash Program and EEPROM Data Security

• Peripheral Features

– One 8-bit Timer/Counter with Separate Prescaler and Compare Mode – One 16-bit Timer/Counter with Separate Prescaler, Compare and Capture Modes – Four PWM Channels – On-chip Analog Comparator – Programmable Watchdog Timer with On-chip Oscillator – USI – Universal Serial Interface – Full Duplex USART

• Special Microcontroller Features

– debugWIRE On-chip Debugging – In-System Programmable via SPI Port – External and Internal Interrupt Sources – Low-power Idle, Power-down, and Standby Modes – Enhanced Power-on Reset Circuit – Programmable Brown-out Detection Circuit – Internal Calibrated Oscillator

• I/O and Packages

– 18 Programmable I/O Lines – 20-pin PDIP, 20-pin SOIC, 20-pad QFN/MLF

• Operating Voltages

– 1.8 - 5.5V (ATtiny2313V) – 2.7 - 5.5V (ATtiny2313)

• Speed Grades

– ATtiny2313V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V – ATtiny2313: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V

• Typical Power Consumption

– Active Mode

1 MHz, 1.8V: 230 µA

32 kHz, 1.8V: 20 µA (including oscillator) – Power-down Mode

< 0.1 µA at 1.8V

RISC Architecture

8-bit

Microcontroller with 2K Bytes In-System Programmable Flash

ATtiny2313/V

Preliminary

Rev. 2543H–AVR–02/05

Pin Configurations Figure 1. Pinout ATtiny2313

PDIP/SOIC

(RESET/dW) PA2

(RXD) PD0

(TXD) PD1 (XTAL2) PA1 (XTAL1) PA0

(CKOUT/XCK/INT0) PD2

(INT1) PD3

(T0) PD4

(OC0B/T1) PD5

GND

1 2 3 4 5 6 7 8 9 10

20 19 18 17 16 15 14 13 12 11

MLF

PD0 (RXD)

PA2 (RESET/dW)

VCC

PB7 (UCSK/SCK/PCINT7)

(TXD) PD1

XTAL2) PA1

(XTAL1) PA0

(CKOUT/XCK/INT0) PD2

(INT1) PD3

6 7 8 9 10

(T0) PD4

NOTE: Bottom pad should be soldered to ground.

GND

(ICP) PD6

(OC0B/T1) PD5

VCC PB7 (UCSK/SCK/PCINT7) PB6 (MISO/DO/PCINT6) PB5 (MOSI/DI/SDA/PCINT5) PB4 (OC1B/PCINT4) PB3 (OC1A/PCINT3) PB2 (OC0A/PCINT2) PB1 (AIN1/PCINT1) PB0 (AIN0/PCINT0) PD6 (ICP)

PB6 (MISO/DO/PCINT6)

PB5 (MOSI/DI/SDA/PCINT5)

PB4 (OC1B/PCINT4)

PB3 (OC1A/PCINT3)

PB2 (OC0A/PCINT2)

PB1 (AIN1/PCINT1)

(AIN0/PCINT0) PB0

Overview The ATtiny2313 is a low-power CMOS 8-bit microcontroller based on the AVR

enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny2313 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

ATtiny2313/V

2543H–AVR–02/05

Block Diagram

ATtiny2313/V

Figure 2. Block Diagram

VCC

GND

DATA REGISTER

PORTA

PROGRAM COUNTER

PROGRAM

FLASH

INSTRUCTION

DECODER

CONTROL

LINES

PA0 - PA2

PORTA DRIVERS

REG. PORTA

STACK

POINTER

SRAM

GENERAL PURPOSE

ALU

STATUS

DATA DIR.

8-BIT DATA BUS

INTERNAL CALIBRATED OSCILLATOR

INTERNAL OSCILLATOR

WATCHDOG

TIMER

MCU CONTROL

MCU STATUS

TIMER/

COUNTERS

INTERRUPT

UNIT

EEPROM

USI

XTAL1

OSCILLATOR

TIMING AND

CONTROL

XTAL2

ON-CHIP

DEBUGGER

RESET

2543H–AVR–02/05

PROGRAMMING

LOGIC

DATA REGISTER

ANALOG

COMPARATOR

PORTB

SPI

REG. PORTB

PORTB DRIVERS

PB0 - PB7

DATA DIR.

USART

DATA REGISTER

PORTD

PORTD DRIVERS

PD0 - PD6

DATA DIR.

REG. PORTD

The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

The ATtiny2313 provides the following features: 2K bytes of In-System Programmable Flash, 128 bytes EEPROM, 128 bytes SRAM, 18 general purpose I/O lines, 32 general purpose working registers, a single-wire Interface for On-chip Debugging, two flexible Timer/Counters with compare modes, internal and external interrupts, a serial programmable USART, Universal Serial Interface with Start Condition Detector, a programmable Watchdog Timer with internal Oscillator, and three software selectable power saving modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, and interrupt system to continue functioning. The Power-down mode saves the register contents but freezes the Oscillator, disabling all other chip functions until the next interrupt or hardware reset. In Standby mode, the crystal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast start-up combined with low-power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The On-chip ISP Flash allows the program memory to be reprogrammed In-System through an SPI serial interface, or by a conventional non-volatile memory programmer. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a monolithic chip, the Atmel ATtiny2313 is a powerful microcontroller that provides a highly flexible and cost effective solution to many embedded control applications.

The ATtiny2313 AVR is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation kits.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Pin Descriptions

VCC Digital supply voltage.

GND Ground.

Port A (PA2..PA0) Port A is a 3-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port A output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port A pins that are externally pulled low will source current if the pull-up resistors are activated. The Port A pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port A also serves the functions of various special features of the ATtiny2313 as listed on page 52.

Port B (PB7..PB0) Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port B also serves the functions of various special features of the ATtiny2313 as listed on page 52.

Port D (PD6..PD0) Port D is a 7-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port D output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port D pins that are externally pulled low will source current if the pull-up resistors are activated. The Port D pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port D also serves the functions of various special features of the ATtiny2313 as listed on page 55.

RESET

XTAL1 Input to the inverting Oscillator amplifier and input to the internal clock operating circuit.

XTAL2 Output from the inverting Oscillator amplifier. XTAL2 is an alternate function for PA1.

About Code Examples

Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset, even if the clock is not running. The minimum pulse length is given in Table 15 on page 33. Shorter pulses are not guaranteed to generate a reset. The Reset Input is an alternate function for PA2 and dW.

XTAL1 is an alternate function for PA0.

This documentation contains simple code examples that briefly show how to use various parts of the device. These code examples assume that the part specific header file is included before compilation. Be aware that not all C compiler vendors include bit definitions in the header files and interrupt handling in C is compiler dependent. Please confirm with the C compiler documentation for more details.

Disclaimer Typical values contained in this data sheet are based on simulations and characteriza-

tion of other AVR microcontrollers manufactured on the same process technology. Min and Max values will be available after the device is characterized.

2543H–AVR–02/05

AVR CPU Core

Introduction This section discusses the AVR core architecture in general. The main function of the

CPU core is to ensure correct program execution. The CPU must therefore be able to access memories, perform calculations, control peripherals, and handle interrupts.

Architectural Overview Figure 3. Block Diagram of the AVR Architecture

Data Bus 8-bit

Flash

Program

Memory

Instruction

Decoder

Control Lines

Program

Counter

Direct Addressing

Status

and Control

32 x 8

General

Purpose

Registrers

ALU

Indirect Addressing

Data

SRAM

EEPROM

Interrupt

Unit

SPI

Unit

Watchdog

Timer

Analog

Comparator

I/O Module1

I/O Module 2

I/O Module n

I/O Lines

In order to maximize performance and parallelism, the AVR uses a Harvard architecture – with separate memories and buses for program and data. Instructions in the program memory are executed with a single level pipelining. While one instruction is being executed, the next instruction is pre-fetched from the program memory. This concept enables instructions to be executed in every clock cycle. The program memory is InSystem Reprogrammable Flash memory.

The fast-access Register File contains 32 x 8-bit general purpose working registers with a single clock cycle access time. This allows single-cycle Arithmetic Logic Unit (ALU) operation. In a typical ALU operation, two operands are output from the Register File,

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

the operation is executed, and the result is stored back in the Register File – in one clock cycle.

Six of the 32 registers can be used as three 16-bit indirect address register pointers for Data Space addressing – enabling efficient address calculations. One of the these address pointers can also be used as an address pointer for look up tables in Flash program memory. These added function registers are the 16-bit X-, Y-, and Z-register, described later in this section.

The ALU supports arithmetic and logic operations between registers or between a constant and a register. Single register operations can also be executed in the ALU. After an arithmetic operation, the Status Register is updated to reflect information about the result of the operation.

Program flow is provided by conditional and unconditional jump and call instructions, able to directly address the whole address space. Most AVR instructions have a single 16-bit word format. Every program memory address contains a 16- or 32-bit instruction.

During interrupts and subroutine calls, the return address Program Counter (PC) is stored on the Stack. The Stack is effectively allocated in the general data SRAM, and consequently the Stack size is only limited by the total SRAM size and the usage of the SRAM. All user programs must initialize the SP in the Reset routine (before subroutines or interrupts are executed). The Stack Pointer (SP) is read/write accessible in the I/O space. The data SRAM can easily be accessed through the five different addressing modes supported in the AVR architecture.

The memory spaces in the AVR architecture are all linear and regular memory maps.

A flexible interrupt module has its control registers in the I/O space with an additional Global Interrupt Enable bit in the Status Register. All interrupts have a separate Interrupt Vector in the Interrupt Vector table. The interrupts have priority in accordance with their Interrupt Vector position. The lower the Interrupt Vector address, the higher the priority.

The I/O memory space contains 64 addresses for CPU peripheral functions as Control Registers, and other I/O functions. The I/O Memory can be accessed directly, or as the Data Space locations following those of the Register File, 0x20 - 0x5F.

ALU – Arithmetic Logic Unit

The high-performance AVR ALU operates in direct connection with all the 32 general purpose working registers. Within a single clock cycle, arithmetic operations between general purpose registers or between a register and an immediate are executed. The ALU operations are divided into three main categories – arithmetic, logical, and bit-functions. Some implementations of the architecture also provide a powerful multiplier supporting both signed/unsigned multiplication and fractional format. See the “Instruction Set” section for a detailed description.

Status Register The Status Register contains information about the result of the most recently executed

arithmetic instruction. This information can be used for altering program flow in order to perform conditional operations. Note that the Status Register is updated after all ALU operations, as specified in the Instruction Set Reference. This will in many cases remove the need for using the dedicated compare instructions, resulting in faster and more compact code.

2543H–AVR–02/05

The Status Register is not automatically stored when entering an interrupt routine and restored when returning from an interrupt. This must be handled by software.

The AVR Status Register – SREG – is defined as:

Bit 76543210

ITHSVNZCSREG

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

• Bit 7 – I: Global Interrupt Enable

The Global Interrupt Enable bit must be set for the interrupts to be enabled. The individual interrupt enable control is then performed in separate control registers. If the Global Interrupt Enable Register is cleared, none of the interrupts are enabled independent of the individual interrupt enable settings. The I-bit is cleared by hardware after an interrupt has occurred, and is set by the RETI instruction to enable subsequent interrupts. The Ibit can also be set and cleared by the application with the SEI and CLI instructions, as described in the instruction set reference.

• Bit 6 – T: Bit Copy Storage

The Bit Copy instructions BLD (Bit LoaD) and BST (Bit STore) use the T-bit as source or destination for the operated bit. A bit from a register in the Register File can be copied into T by the BST instruction, and a bit in T can be copied into a bit in a register in the Register File by the BLD instruction.

• Bit 5 – H: Half Carry Flag

The Half Carry Flag H indicates a Half Carry in some arithmetic operations. Half Carry Is useful in BCD arithmetic. See the “Instruction Set Description” for detailed information.

• Bit 4 – S: Sign Bit, S = N

⊕ V

General Purpose Register File

The S-bit is always an exclusive or between the negative flag N and the Two’s Complement Overflow Flag V. See the “Instruction Set Description” for detailed information.

• Bit 3 – V: Two’s Complement Overflow Flag

The Two’s Complement Overflow Flag V supports two’s complement arithmetics. See the “Instruction Set Description” for detailed information.

• Bit 2 – N: Negative Flag

The Negative Flag N indicates a negative result in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

• Bit 1 – Z: Zero Flag

The Zero Flag Z indicates a zero result in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

• Bit 0 – C: Carry Flag

The Carry Flag C indicates a carry in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

The Register File is optimized for the AVR Enhanced RISC instruction set. In order to achieve the required performance and flexibility, the following input/output schemes are supported by the Register File:

• One 8-bit output operand and one 8-bit result input

• Two 8-bit output operands and one 8-bit result input

• Two 8-bit output operands and one 16-bit result input

• One 16-bit output operand and one 16-bit result input

Figure 4 shows the structure of the 32 general purpose working registers in the CPU.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Figure 4. AVR CPU General Purpose Working Registers

7 0 Addr.

R0 0x00

R1 0x01

R2 0x02

…

R13 0x0D

General R14 0x0E

Purpose R15 0x0F

Working R16 0x10

Registers R17 0x11

…

R26 0x1A X-register Low Byte

R27 0x1B X-register High Byte

R28 0x1C Y-register Low Byte

R29 0x1D Y-register High Byte

R30 0x1E Z-register Low Byte

R31 0x1F Z-register High Byte

Most of the instructions operating on the Register File have direct access to all registers, and most of them are single cycle instructions.

The X-register, Y-register, and Z-register

As shown in Figure 4, each register is also assigned a data memory address, mapping them directly into the first 32 locations of the user Data Space. Although not being physically implemented as SRAM locations, this memory organization provides great flexibility in access of the registers, as the X-, Y- and Z-pointer registers can be set to index any register in the file.

The registers R26..R31 have some added functions to their general purpose usage. These registers are 16-bit address pointers for indirect addressing of the data space. The three indirect address registers X, Y, and Z are defined as described in Figure 5.

Figure 5. The X-, Y-, and Z-registers

15 XH XL 0

X-register 707 0

R27 (0x1B) R26 (0x1A)

15 YH YL 0

Y-register 707 0

R29 (0x1D) R28 (0x1C)

15 ZH ZL 0

Z-register 70 7 0

R31 (0x1F) R30 (0x1E)

In the different addressing modes these address registers have functions as fixed displacement, automatic increment, and automatic decrement (see the instruction set reference for details).

2543H–AVR–02/05

Stack Pointer The Stack is mainly used for storing temporary data, for storing local variables and for

storing return addresses after interrupts and subroutine calls. The Stack Pointer Register always points to the top of the Stack. Note that the Stack is implemented as growing from higher memory locations to lower memory locations. This implies that a Stack PUSH command decreases the Stack Pointer.

The Stack Pointer points to the data SRAM Stack area where the Subroutine and Interrupt Stacks are located. This Stack space in the data SRAM must be defined by the program before any subroutine calls are executed or interrupts are enabled. The Stack Pointer must be set to point above 0x60. The Stack Pointer is decremented by one when data is pushed onto the Stack with the PUSH instruction, and it is decremented by two when the return address is pushed onto the Stack with subroutine call or interrupt. The Stack Pointer is incremented by one when data is popped from the Stack with the POP instruction, and it is incremented by two when data is popped from the Stack with return from subroutine RET or return from interrupt RETI.

The AVR Stack Pointer is implemented as two 8-bit registers in the I/O space. The number of bits actually used is implementation dependent. Note that the data space in some implementations of the AVR architecture is so small that only SPL is needed. In this case, the SPH Register will not be present.

Bit 151413121110 9 8

––––––––SPH

SP7 SP6 SP5 SP4 SP3 SP2 SP1 SP0 SPL

76543210

Read/WriteRRRRRRRR

R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

00000000

Instruction Execution Timing

This section describes the general access timing concepts for instruction execution. The AVR CPU is driven by the CPU clock clk

, directly generated from the selected clock

CPU

source for the chip. No internal clock division is used.

Figure 6 shows the parallel instruction fetches and instruction executions enabled by the Harvard architecture and the fast-access Register File concept. This is the basic pipelining concept to obtain up to 1 MIPS per MHz with the corresponding unique results for functions per cost, functions per clocks, and functions per power-unit.

Figure 6. The Parallel Instruction Fetches and Instruction Executions

T1 T2 T3 T4

clk

CPU

1st Instruction Fetch

1st Instruction Execute

2nd Instruction Fetch

2nd Instruction Execute

3rd Instruction Fetch

3rd Instruction Execute

4th Instruction Fetch

Figure 7 shows the internal timing concept for the Register File. In a single clock cycle an ALU operation using two register operands is executed, and the result is stored back to the destination register.

ATtiny2313/V

2543H–AVR–02/05

Figure 7. Single Cycle ALU Operation

T1 T2 T3 T4

clk

CPU

Total Execution Time

ALU Operation Execute

Result Write Back

ATtiny2313/V

Reset and Interrupt Handling

The AVR provides several different interrupt sources. These interrupts and the separate Reset Vector each have a separate program vector in the program memory space. All interrupts are assigned individual enable bits which must be written logic one together with the Global Interrupt Enable bit in the Status Register in order to enable the interrupt.

The lowest addresses in the program memory space are by default defined as the Reset and Interrupt Vectors. The complete list of vectors is shown in “Interrupts” on page 43. The list also determines the priority levels of the different interrupts. The lower the address the higher is the priority level. RESET has the highest priority, and next is INT0 – the External Interrupt Request 0. Refer to “Interrupts” on page 43 for more information.

When an interrupt occurs, the Global Interrupt Enable I-bit is cleared and all interrupts are disabled. The user software can write logic one to the I-bit to enable nested interrupts. All enabled interrupts can then interrupt the current interrupt routine. The I-bit is automatically set when a Return from Interrupt instruction – RETI – is executed.

There are basically two types of interrupts. The first type is triggered by an event that sets the interrupt flag. For these interrupts, the Program Counter is vectored to the actual Interrupt Vector in order to execute the interrupt handling routine, and hardware clears the corresponding interrupt flag. Interrupt flags can also be cleared by writing a logic one to the flag bit position(s) to be cleared. If an interrupt condition occurs while the corresponding interrupt enable bit is cleared, the interrupt flag will be set and remembered until the interrupt is enabled, or the flag is cleared by software. Similarly, if one or more interrupt conditions occur while the Global Interrupt Enable bit is cleared, the corresponding interrupt flag(s) will be set and remembered until the Global Interrupt Enable bit is set, and will then be executed by order of priority.

2543H–AVR–02/05

The second type of interrupts will trigger as long as the interrupt condition is present. These interrupts do not necessarily have interrupt flags. If the interrupt condition disappears before the interrupt is enabled, the interrupt will not be triggered.

When the AVR exits from an interrupt, it will always return to the main program and execute one more instruction before any pending interrupt is served.

Note that the Status Register is not automatically stored when entering an interrupt routine, nor restored when returning from an interrupt routine. This must be handled by software.

When using the CLI instruction to disable interrupts, the interrupts will be immediately disabled. No interrupt will be executed after the CLI instruction, even if it occurs simulta-

neously with the CLI instruction. The following example shows how this can be used to avoid interrupts during the timed EEPROM write sequence..

Assembly Code Example

in r16, SREG ; store SREG value

cli ; disable interrupts during timed sequence

sbi EECR, EEMPE ; start EEPROM write

sbi EECR, EEPE

out SREG, r16 ; restore SREG value (I-bit)

C Code Example

char cSREG;

cSREG = SREG; /* store SREG value */

/* disable interrupts during timed sequence */

__disable_interrupt();

EECR |= (1<<EEMPE); /* start EEPROM write */

EECR |= (1<<EEPE);

SREG = cSREG; /* restore SREG value (I-bit) */

When using the SEI instruction to enable interrupts, the instruction following SEI will be executed before any pending interrupts, as shown in this example.

Assembly Code Example

sei ; set Global Interrupt Enable

sleep; enter sleep, waiting for interrupt

; note: will enter sleep before any pending

; interrupt(s)

C Code Example

__enable_interrupt(); /* set Global Interrupt Enable */

__sleep(); /* enter sleep, waiting for interrupt */

/* note: will enter sleep before any pending interrupt(s) */

Interrupt Response Time The interrupt execution response for all the enabled AVR interrupts is four clock cycles

minimum. After four clock cycles the program vector address for the actual interrupt handling routine is executed. During this four clock cycle period, the Program Counter is pushed onto the Stack. The vector is normally a jump to the interrupt routine, and this jump takes three clock cycles. If an interrupt occurs during execution of a multi-cycle instruction, this instruction is completed before the interrupt is served. If an interrupt occurs when the MCU is in sleep mode, the interrupt execution response time is increased by four clock cycles. This increase comes in addition to the start-up time from the selected sleep mode.

A return from an interrupt handling routine takes four clock cycles. During these four clock cycles, the Program Counter (two bytes) is popped back from the Stack, the Stack Pointer is incremented by two, and the I-bit in SREG is set.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

AVR ATtiny2313 Memories

In-System Reprogrammable Flash Program Memory

This section describes the different memories in the ATtiny2313. The AVR architecture has two main memory spaces, the Data Memory and the Program Memory space. In addition, the ATtiny2313 features an EEPROM Memory for data storage. All three memory spaces are linear and regular.

The ATtiny2313 contains 2K bytes On-chip In-System Reprogrammable Flash memory for program storage. Since all AVR instructions are 16 or 32 bits wide, the Flash is organized as 1K x 16.

The Flash memory has an endurance of at least 10,000 write/erase cycles. The ATtiny2313 Program Counter (PC) is 10 bits wide, thus addressing the 1K program memory locations. “Memory Programming” on page 158 contains a detailed description on Flash data serial downloading using the SPI pins.

Constant tables can be allocated within the entire program memory address space (see the LPM – Load Program Memory instruction description).

Timing diagrams for instruction fetch and execution are presented in “Instruction Execution Timing” on page 10.

Figure 8. Program Memory Map

Program Memory

0x0000

2543H–AVR–02/05

0x03F

SRAM Data Memory Figure 9 shows how the ATtiny2313 SRAM Memory is organized.

The lower 224 data memory locations address both the Register File, the I/O memory, Extended I/O memory, and the internal data SRAM. The first 32 locations address the Register File, the next 64 location the standard I/O memory, and the next 128 locations address the internal data SRAM.

The five different addressing modes for the data memory cover: Direct, Indirect with Displacement, Indirect, Indirect with Pre-decrement, and Indirect with Post-increment. In the Register File, registers R26 to R31 feature the indirect addressing pointer registers.

The direct addressing reaches the entire data space.

The Indirect with Displacement mode reaches 63 address locations from the base address given by the Y- or Z-register.

When using register indirect addressing modes with automatic pre-decrement and postincrement, the address registers X, Y, and Z are decremented or incremented.

The 32 general purpose working registers, 64 I/O Registers, and the 128 bytes of internal data SRAM in the ATtiny2313 are all accessible through all these addressing modes. The Register File is described in “General Purpose Register File” on page 8.

Figure 9. Data Memory Map

Data Memory

32 Registers

64 I/O Registers

Internal SRAM

(128 x 8)

Data Memory Access Times This section describes the general access timing concepts for internal memory access.

The internal data SRAM access is performed in two clk

10.

0x0000 - 0x001F 0x0020 - 0x005F 0x0060

0x00DF

cycles as described in Figure

CPU

ATtiny2313/V

2543H–AVR–02/05

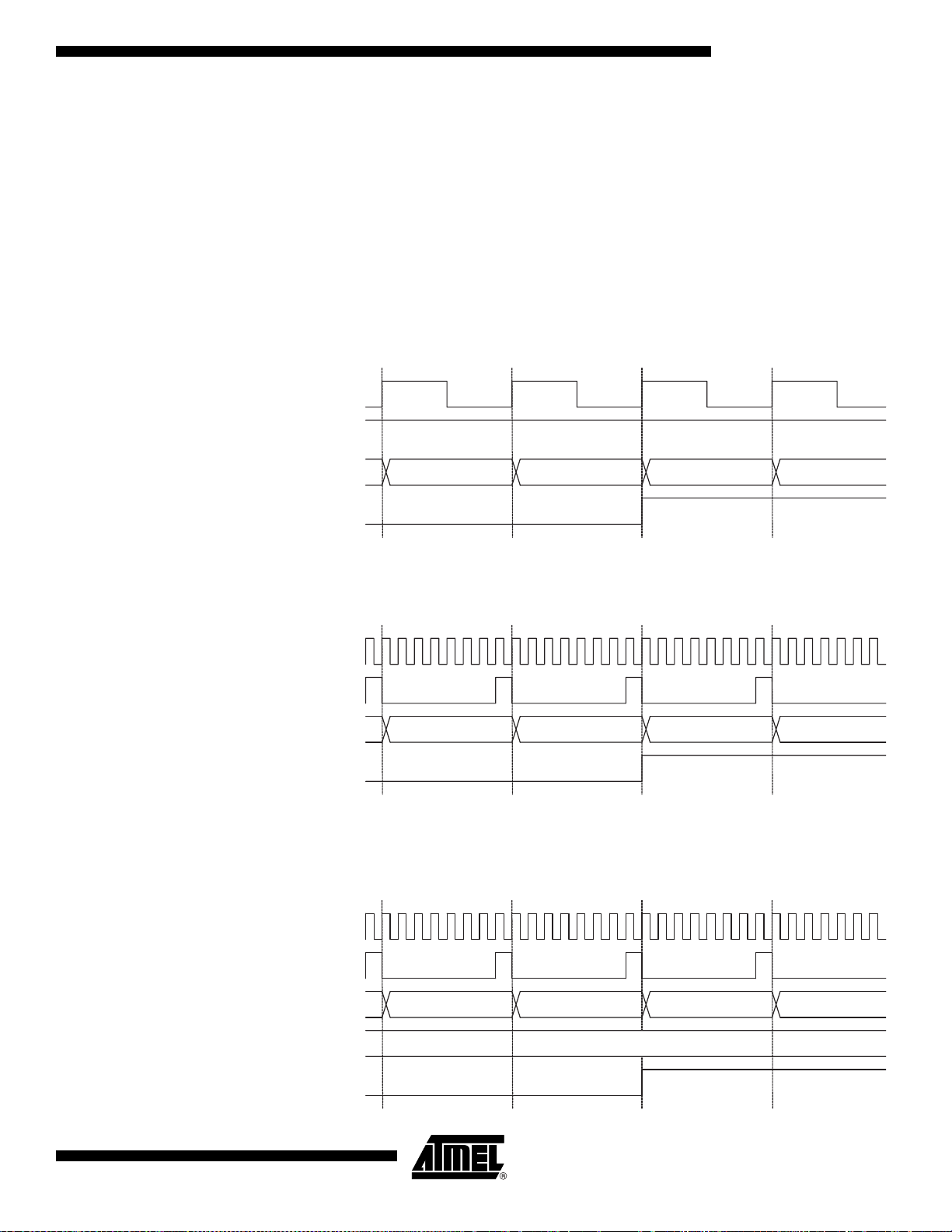

Figure 10. On-chip Data SRAM Access Cycles

T1 T2 T3

clk

CPU

Address

Compute Address

Address valid

Data

ATtiny2313/V

Write

Data

Memory Access Instruction

Next Instruction

Read

EEPROM Data Memory The ATtiny2313 contains 128 bytes of data EEPROM memory. It is organized as a sep-

arate data space, in which single bytes can be read and written. The EEPROM has an endurance of at least 100,000 write/erase cycles. The access between the EEPROM and the CPU is described in the following, specifying the EEPROM Address Registers, the EEPROM Data Register, and the EEPROM Control Register. For a detailed description of Serial data downloading to the EEPROM, see page 172.

EEPROM Read/Write Access The EEPROM Access Registers are accessible in the I/O space.

The write access time for the EEPROM is given in Table 1. A self-timing function, however, lets the user software detect when the next byte can be written. If the user code contains instructions that write the EEPROM, some precautions must be taken. In heavily filtered power supplies, V causes the device for some period of time to run at a voltage lower than specified as minimum for the clock frequency used. See “Preventing EEPROM Corruption” on page

19. for details on how to avoid problems in these situations.

is likely to rise or fall slowly on power-up/down. This

The EEPROM Address Register

2543H–AVR–02/05

In order to prevent unintentional EEPROM writes, a specific write procedure must be followed. Refer to the description of the EEPROM Control Register for details on this.

When the EEPROM is read, the CPU is halted for four clock cycles before the next instruction is executed. When the EEPROM is written, the CPU is halted for two clock cycles before the next instruction is executed.

Bit 76543210

– EEAR6 EEAR5 EEAR4 EEAR3 EEAR2 EEAR1 EEAR0 EEAR

Read/Write R R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 X X X X X X X

• Bit 7 – Res: Reserved Bit

This bit is reserved in the ATtiny2313 and will always read as zero.

• Bits 6..0 – EEAR6..0: EEPROM Address

The EEPROM Address Register – EEAR specify the EEPROM address in the 128 bytes EEPROM space. The EEPROM data bytes are addressed linearly between 0 and 127. The initial value of EEAR is undefined. A proper value must be written before the EEPROM may be accessed.

The EEPROM Data Register – EEDR

The EEPROM Control Register – EECR

Bit 76543210

MSB LSB EEDR

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bits 7..0 – EEDR7..0: EEPROM Data

For the EEPROM write operation, the EEDR Register contains the data to be written to the EEPROM in the address given by the EEAR Register. For the EEPROM read operation, the EEDR contains the data read out from the EEPROM at the address given by EEAR.

Bit 765432 10

– – EEPM1 EEPM0 EERIE EEMPE EEPE EERE EECR

Read/Write R R R/W R/W R/W R/W R/W R/W

Initial Value 0 0 X X 0 0 X 0

• Bits 7..6 – Res: Reserved Bits

These bits are reserved bits in the ATtiny2313 and will always read as zero.

• Bits 5, 4 – EEPM1 and EEPM0: EEPROM Programming Mode Bits

The EEPROM Programming mode bits setting defines which programming action that will be triggered when writing EEPE. It is possible to program data in one atomic operation (erase the old value and program the new value) or to split the Erase and Write operations in two different operations. The Programming times for the different modes are shown in Table 1. While EEPE is set, any write to EEPMn will be ignored. During reset, the EEPMn bits will be reset to 0b00 unless the EEPROM is busy programming.

ATtiny2313/V

Table 1 . EEPROM Mode Bits

Programming

EEPM1 EEPM0

0 0 3.4 ms Erase and Write in one operation (Atomic Operation)

0 1 1.8 ms Erase Only

1 0 1.8 ms Write Only

1 1 – Reserved for future use

Time Operation

• Bit 3 – EERIE: EEPROM Ready Interrupt Enable

Writing EERIE to one enables the EEPROM Ready Interrupt if the I-bit in SREG is set. Writing EERIE to zero disables the interrupt. The EEPROM Ready Interrupt generates a constant interrupt when Non-volatile memory is ready for programming.

2543H–AVR–02/05

ATtiny2313/V

• Bit 2 – EEMPE: EEPROM Master Program Enable

The EEMPE bit determines whether writing EEPE to one will have effect or not.

When EEMPE is set, setting EEPE within four clock cycles will program the EEPROM at the selected address. If EEMPE is zero, setting EEPE will have no effect. When EEMPE has been written to one by software, hardware clears the bit to zero after four clock cycles.

• Bit 1 – EEPE: EEPROM Program Enable

The EEPROM Program Enable Signal EEPE is the programming enable signal to the EEPROM. When EEPE is written, the EEPROM will be programmed according to the EEPMn bits setting. The EEMPE bit must be written to one before a logical one is written to EEPE, otherwise no EEPROM write takes place. When the write access time has elapsed, the EEPE bit is cleared by hardware. When EEPE has been set, the CPU is halted for two cycles before the next instruction is executed.

• Bit 0 – EERE: EEPROM Read Enable

The EEPROM Read Enable Signal – EERE – is the read strobe to the EEPROM. When the correct address is set up in the EEAR Register, the EERE bit must be written to one to trigger the EEPROM read. The EEPROM read access takes one instruction, and the requested data is available immediately. When the EEPROM is read, the CPU is halted for four cycles before the next instruction is executed. The user should poll the EEPE bit before starting the read operation. If a write operation is in progress, it is neither possible to read the EEPROM, nor to change the EEAR Register.

Atomic Byte Programming Using Atomic Byte Programming is the simplest mode. When writing a byte to the

EEPROM, the user must write the address into the EEAR Register and data into EEDR Register. If the EEPMn bits are zero, writing EEPE (within four cycles after EEMPE is written) will trigger the erase/write operation. Both the erase and write cycle are done in one operation and the total programming time is given in Table 1. The EEPE bit remains set until the erase and write operations are completed. While the device is busy with programming, it is not possible to do any other EEPROM operations.

Split Byte Programming It is possible to split the erase and write cycle in two different operations. This may be

useful if the system requires short access time for some limited period of time (typically if the power supply voltage falls). In order to take advantage of this method, it is required that the locations to be written have been erased before the write operation. But since the erase and write operations are split, it is possible to do the erase operations when the system allows doing time-consuming operations (typically after Power-up).

Erase To erase a byte, the address must be written to EEAR. If the EEPMn bits are 0b01, writ-

ing the EEPE (within four cycles after EEMPE is written) will trigger the erase operation only (programming time is given in Table 1). The EEPE bit remains set until the erase operation completes. While the device is busy programming, it is not possible to do any other EEPROM operations.

Write To write a location, the user must write the address into EEAR and the data into EEDR.

If the EEPMn bits are 0b10, writing the EEPE (within four cycles after EEMPE is written) will trigger the write operation only (programming time is given in Table 1). The EEPE bit remains set until the write operation completes. If the location to be written has not been erased before write, the data that is stored must be considered as lost. While the device is busy with programming, it is not possible to do any other EEPROM operations.

2543H–AVR–02/05

The calibrated Oscillator is used to time the EEPROM accesses. Make sure the Oscillator frequency is within the requirements described in “Oscillator Calibration Register – OSCCAL” on page 25.

The following code examples show one assembly and one C function for writing to the EEPROM. The examples assume that interrupts are controlled (e.g. by disabling interrupts globally) so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_write:

; Wait for completion of previous write

sbic EECR,EEPE

rjmp EEPROM_write

; Set up address (r17) in address register

out EEAR, r17

; Write data (r16) to data register

out EEDR,r16

; Write logical one to EEMPE

sbi EECR,EEMPE

; Start eeprom write by setting EEPE

sbi EECR,EEPE

ret

C Code Example

void EEPROM_write(unsigned int uiAddress, unsigned char ucData)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEPE))

;

/* Set up address and data registers */

EEAR = uiAddress;

EEDR = ucData;

/* Write logical one to EEMPE */

EECR |= (1<<EEMPE);

/* Start eeprom write by setting EEPE */

EECR |= (1<<EEPE);

}

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

The next code examples show assembly and C functions for reading the EEPROM. The examples assume that interrupts are controlled so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_read:

; Wait for completion of previous write

sbic EECR,EEWE

rjmp EEPROM_read

; Set up address (r17) in address register

out EEAR, r17

; Start eeprom read by writing EERE

sbi EECR,EERE

; Read data from data register

in r16,EEDR

ret

C Code Example

unsigned char EEPROM_read(unsigned int uiAddress)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEWE))

;

/* Set up address register */

EEAR = uiAddress;

/* Start eeprom read by writing EERE */

EECR |= (1<<EERE);

/* Return data from data register */

return EEDR;

}

Preventing EEPROM Corruption

2543H–AVR–02/05

During periods of low V

the EEPROM data can be corrupted because the supply volt-

CC,

age is too low for the CPU and the EEPROM to operate properly. These issues are the same as for board level systems using EEPROM, and the same design solutions should be applied.

An EEPROM data corruption can be caused by two situations when the voltage is too low. First, a regular write sequence to the EEPROM requires a minimum voltage to operate correctly. Secondly, the CPU itself can execute instructions incorrectly, if the supply voltage is too low.

EEPROM data corruption can easily be avoided by following this design recommendation:

Keep the AVR RESET active (low) during periods of insufficient power supply voltage. This can be done by enabling the internal Brown-out Detector (BOD). If the detection level of the internal BOD does not match the needed detection level, an external low V

reset Protection circuit can be used. If a reset occurs while a write operation is in

progress, the write operation will be completed provided that the power supply voltage is sufficient.

I/O Memory The I/O space definition of the ATtiny2313 is shown in “Register Summary” on page

211.

All ATtiny2313 I/Os and peripherals are placed in the I/O space. All I/O locations may be accessed by the LD/LDS/LDD and ST/STS/STD instructions, transferring data between the 32 general purpose working registers and the I/O space. I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI and CBI instructions. In these registers, the value of single bits can be checked by using the SBIS and SBIC instructions. Refer to the instruction set section for more details. When using the I/O specific commands IN and OUT, the I/O addresses 0x00 - 0x3F must be used. When addressing I/O Registers as data space using LD and ST instructions, 0x20 must be added to these addresses.

For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written.

Some of the status flags are cleared by writing a logical one to them. Note that, unlike most other AVRs, the CBI and SBI instructions will only operate on the specified bit, and can therefore be used on registers containing such status flags. The CBI and SBI instructions work with registers 0x00 to 0x1F only.

The I/O and peripherals control registers are explained in later sections.

General Purpose I/O Registers The ATtiny2313 contains three General Purpose I/O Registers. These registers can be

used for storing any information, and they are particularly useful for storing global variables and status flags. General Purpose I/O Registers within the address range 0x00 0x1F are directly bit-accessible using the SBI, CBI, SBIS, and SBIC instructions.

General Purpose I/O Register 2 – GPIOR2

General Purpose I/O Register 1 – GPIOR1

General Purpose I/O Register 0 – GPIOR0

Bit 76543210

MSB LSB GPIOR2

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

Bit 76543210

MSB LSB GPIOR1

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

Bit 76543210

MSB LSB GPIOR0

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

ATtiny2313/V

2543H–AVR–02/05

System Clock and Clock Options

ATtiny2313/V

Clock Systems and their Distribution

Figure 11 presents the principal clock systems in the AVR and their distribution. All of the clocks need not be active at a given time. In order to reduce power consumption, the clocks to modules not being used can be halted by using different sleep modes, as described in “Power Management and Sleep Modes” on page 29. The clock systems are detailed below.

Figure 11. Clock Distribution

General I/O

Modules

clk

CPU Core RAM

I/O

AVR Clock

Control Unit

Source clock

Clock

Multiplexer

clk

CPU

clk

FLASH

Reset Logic

Watchdog Timer

Watchdog clock

Watchdog

Oscillator

Flash and EEPROM

CPU Clock – clk

I/O Clock – clk

I/O

Flash Clock – clk

CPU

FLASH

External Clock

Crystal

Oscillator

Calibrated RC

Oscillator

The CPU clock is routed to parts of the system concerned with operation of the AVR core. Examples of such modules are the General Purpose Register File, the Status Register and the data memory holding the Stack Pointer. Halting the CPU clock inhibits the core from performing general operations and calculations.

The I/O clock is used by the majority of the I/O modules, like Timer/Counters, and USART. The I/O clock is also used by the External Interrupt module, but note that some external interrupts are detected by asynchronous logic, allowing such interrupts to be detected even if the I/O clock is halted. Also note that start condition detection in the USI module is carried out asynchronously when clk

is halted, enabling USI start condition

I/O

detection in all sleep modes.

The Flash clock controls operation of the Flash interface. The Flash clock is usually active simultaneously with the CPU clock.

2543H–AVR–02/05

Clock Sources The device has the following clock source options, selectable by Flash Fuse bits as

shown below. The clock from the selected source is input to the AVR clock generator, and routed to the appropriate modules.

Table 2 . Device Clocking Select

Device Clocking Option CKSEL3..0

External Clock 0000

Calibrated Internal RC Oscillator 4MHz 0010

Calibrated internal RC Oscillator 8MHz 0100

Watchdog Oscillator 128kHz 0110

External Crystal/Ceramic Resonator 1000 - 1111

Reserved 0001/0011/0101/0111

Note: 1. For all fuses “1” means unprogrammed while “0” means programmed.

(1)

The various choices for each clocking option is given in the following sections. When the CPU wakes up from Power-down, the selected clock source is used to time the start-up, ensuring stable Oscillator operation before instruction execution starts. When the CPU starts from reset, there is an additional delay allowing the power to reach a stable level before commencing normal operation. The Watchdog Oscillator is used for timing this real-time part of the start-up time. The number of WDT Oscillator cycles used for each time-out is shown in Table 3. The frequency of the Watchdog Oscillator is voltage dependent as shown in “ATtiny2313 Typical Characteristics” on page 181.

Table 3 . Number of Watchdog Oscillator Cycles

Typ Time-out (VCC = 5.0V) Typ Time-out (VCC = 3.0V) Number of Cycles

4.1 ms 4.3 ms 4K (4,096)

65 ms 69 ms 64K (65,536)

Default Clock Source The device is shipped with CKSEL = “0100”, SUT = “10”, and CKDIV8 programmed.

The default clock source setting is the Internal RC Oscillator with longest start-up time and an initial system clock prescaling of 8. This default setting ensures that all users can make their desired clock source setting using an In-System or Parallel programmer.

Crystal Oscillator XTAL1 and XTAL2 are input and output, respectively, of an inverting amplifier which can

be configured for use as an On-chip Oscillator, as shown in Figure 12 on page 23. Either a quartz crystal or a ceramic resonator may be used.

C1 and C2 should always be equal for both crystals and resonators. The optimal value of the capacitors depends on the crystal or resonator in use, the amount of stray capacitance, and the electromagnetic noise of the environment. Some initial guidelines for choosing capacitors for use with crystals are given in Table 4 on page 23. For ceramic resonators, the capacitor values given by the manufacturer should be used.

ATtiny2313/V

2543H–AVR–02/05

Figure 12. Crystal Oscillator Connections

ATtiny2313/V

XTAL2

XTAL1

GND

The Oscillator can operate in three different modes, each optimized for a specific frequency range. The operating mode is selected by the fuses CKSEL3..1 as shown in Table 4.

Table 4 . Crystal Oscillator Operating Modes

CKSEL3..1 Frequency Range

(2)

100

101 0.9 - 3.0 12 - 22

110 3.0 - 8.0 12 - 22

111 8.0 - 12 - 22

Notes: 1. The frequency ranges are preliminary values. Actual values are TBD.

2. This option should not be used with crystals, only with ceramic resonators.

0.4 - 0.9 –

(1)

(MHz)

Recommended Range for Capacitors C1

and C2 for Use with Crystals (pF)

The CKSEL0 Fuse together with the SUT1..0 Fuses select the start-up times as shown in Table 5.

2543H–AVR–02/05

Table 5 . Start-up Times for the Crystal Oscillator Clock Selection

Start-up Time from

Power-down and

CKSEL0 SUT1..0

0 00 258 CK

0 01 258 CK

010 1K CK

011 1K CK

100 1K CK

Notes: 1. These options should only be used when not operating close to the maximum fre-

01 16K CK 14CK Crystal Oscillator, BOD

10 16K CK 14CK + 4.1 ms Crystal Oscillator, fast

11 16K CK 14CK + 65 ms Crystal Oscillator,

quency of the device, and only if frequency stability at start-up is not important for the application. These options are not suitable for crystals.

2. These options are intended for use with ceramic resonators and will ensure frequency stability at start-up. They can also be used with crystals when not operating close to the maximum frequency of the device, and if frequency stability at start-up is not important for the application.

Power-save

(1)

(2)

Additional Delay

from Reset

(VCC = 5.0V) Recommended Usage

14CK + 4.1 ms Ceramic resonator, fast

rising power

14CK + 65 ms Ceramic resonator,

slowly rising power

14CK Ceramic resonator,

BOD enabled

14CK + 4.1 ms Ceramic resonator, fast

rising power

14CK + 65 ms Ceramic resonator,

slowly rising power

enabled

rising power

slowly rising power

Calibrated Internal RC Oscillator

The calibrated internal RC Oscillator provides a fixed 8.0 MHz clock. The frequency is nominal value at 3V and 25°C. If 8 MHz frequency exceeds the specification of the device (depends on V

), the CKDIV8 Fuse must be programmed in order to divide the

internal frequency by 8 during start-up. The device is shipped with the CKDIV8 Fuse programmed. This clock may be selected as the system clock by programming the CKSEL Fuses as shown in Table 6. If selected, it will operate with no external components. During reset, hardware loads the calibration byte into the OSCCAL Register and thereby automatically calibrates the RC Oscillator. At 3V and 25°C, this calibration gives a frequency within ± 10% of the nominal frequency. Using calibration methods as described in application notes available at www.atmel.com/avr it is possible to achieve ± 2% accuracy at any given V

and Temperature. When this Oscillator is used as the

chip clock, the Watchdog Oscillator will still be used for the Watchdog Timer and for the Reset Time-out. For more information on the pre-programmed calibration value, see the section “Calibration Byte” on page 160.

Table 6 . Internal Calibrated RC Oscillator Operating Modes

CKSEL3..0 Nominal Frequency

0010 - 0011 4.0 MHz

0100 - 0101 8.0 MHz

Note: 1. The device is shipped with this option selected.

(1)

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

When this Oscillator is selected, start-up times are determined by the SUT Fuses as shown in Table 7.

Table 7 . Start-up times for the internal calibrated RC Oscillator clock selection

Oscillator Calibration Register – OSCCAL

Start-up Time from Power-

SUT1..0

00 6 CK 14CK BOD enabled

01 6 CK 14CK + 4.1 ms Fast rising power

(1)

11 Reserved

Note: 1. The device is shipped with this option selected.

Bit 76543210

Read/Write R R/W R/W R/W R/W R/W R/W R/W

Initial Value Device Specific Calibration Value

down and Power-save

6 CK 14CK + 65 ms Slowly rising power

– CAL6 CAL5 CAL4 CAL3 CAL2 CAL1 CAL0 OSCCAL

Additional Delay from

Reset (VCC = 5.0V) Recommended Usage

• Bits 6..0 – CAL6..0: Oscillator Calibration Value

Writing the calibration byte to this address will trim the internal Oscillator to remove process variations from the Oscillator frequency. This is done automatically during Chip Reset. When OSCCAL is zero, the lowest available frequency is chosen. Writing nonzero values to this register will increase the frequency of the internal Oscillator. Writing 0x7F to the register gives the highest available frequency. The calibrated Oscillator is used to time EEPROM and Flash access. If EEPROM or Flash is written, do not calibrate to more than 10% above the nominal frequency. Otherwise, the EEPROM or Flash write may fail. Note that the Oscillator is intended for calibration to 8.0/4.0 MHz. Tuning to other values is not guaranteed, as indicated in Table 8.

Avoid changing the calibration value in large steps when calibrating the Calibrated Internal RC Oscillator to ensure stable operation of the MCU. A variation in frequency of more than 2% from one cycle to the next can lead to unpredictable behavior. Changes in OSCCAL should not exceed 0x20 for each calibration.

Table 8 . Internal RC Oscillator Frequency Range.

Min Frequency in Percentage of

OSCCAL Value

0x00 50% 100%

0x3F 75% 150%

0x7F 100% 200%

Nominal Frequency

Max Frequency in Percentage of

Nominal Frequency

2543H–AVR–02/05

External Clock To drive the device from an external clock source, XTAL1 should be driven as shown in

Figure 13. To run the device on an external clock, the CKSEL Fuses must be programmed to “0000”.

Figure 13. External Clock Drive Configuration

EXTERNAL

CLOCK

SIGNAL

XTAL2

XTAL1

GND

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in Table 10.

Table 9 . Crystal Oscillator Clock Frequency

CKSEL3..0 Frequency Range

0000 - 0001 0 - 16 MHz

Table 10. Start-up Times for the External Clock Selection

Start-up Time from Power-

SUT1..0

00 6 CK 14CK BOD enabled

01 6 CK 14CK + 4.1 ms Fast rising power

10 6 CK 14CK + 65 ms Slowly rising power

down and Power-save

Additional Delay from

Reset (VCC = 5.0V) Recommended Usage

11 Reserved

When applying an external clock, it is required to avoid sudden changes in the applied clock frequency to ensure stable operation of the MCU. A variation in frequency of more than 2% from one clock cycle to the next can lead to unpredictable behavior. It is required to ensure that the MCU is kept in Reset during such changes in the clock frequency.

Note that the System Clock Prescaler can be used to implement run-time changes of the internal clock frequency while still ensuring stable operation.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

128 kHz Internal Oscillator

Clock Prescale Register – CLKPR

The 128 kHz Internal Oscillator is a low power Oscillator providing a clock of 128 kHz. The frequency is nominal at 3 V and 25°C. This clock may be selected as the system clock by programming the CKSEL Fuses to “0110 - 0111”.

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in Table 11.

Table 11. Start-up Times for the 128 kHz Internal Oscillator

Start-up Time from Power-

SUT1..0

00 6 CK 14CK BOD enabled

01 6 CK 14CK + 4 ms Fast rising power

10 6 CK 14CK + 64 ms Slowly rising power

11 Reserved

Bit 76543210

Read/Write R/W R R R R/W R/W R/W R/W

Initial Value 0 0 0 0 See Bit Description

down and Power-save

CLKPCE – – – CLKPS3 CLKPS2 CLKPS1 CLKPS0 CLKPR

Additional Delay from

Reset Recommended Usage

• Bit 7 – CLKPCE: Clock Prescaler Change Enable

The CLKPCE bit must be written to logic one to enable change of the CLKPS bits. The CLKPCE bit is only updated when the other bits in CLKPR are simultaneously written to zero. CLKPCE is cleared by hardware four cycles after it is written or when CLKPS bits are written. Rewriting the CLKPCE bit within this time-out period does neither extend the time-out period, nor clear the CLKPCE bit.

• Bits 3..0 – CLKPS3..0: Clock Prescaler Select Bits 3 - 0

These bits define the division factor between the selected clock source and the internal system clock. These bits can be written run-time to vary the clock frequency to suit the application requirements. As the divider divides the master clock input to the MCU, the speed of all synchronous peripherals is reduced when a division factor is used. The division factors are given in Table 12.

To avoid unintentional changes of clock frequency, a special write procedure must be followed to change the CLKPS bits:

1. Write the Clock Prescaler Change Enable (CLKPCE) bit to one and all other bits in CLKPR to zero.

2. Within four cycles, write the desired value to CLKPS while writing a zero to CLKPCE.

Interrupts must be disabled when changing prescaler setting to make sure the write procedure is not interrupted.

The CKDIV8 Fuse determines the initial value of the CLKPS bits. If CKDIV8 is unprogrammed, the CLKPS bits will be reset to “0000”. If CKDIV8 is programmed, CLKPS bits are reset to “0011”, giving a division factor of 8 at start up. This feature should be used if the selected clock source has a higher frequency than the maximum frequency of the device at the present operating conditions. Note that any value can be written to the CLKPS bits regardless of the CKDIV8 Fuse setting. The Application software must ensure that a sufficient division factor is chosen if the selected clock source has a higher

2543H–AVR–02/05

frequency than the maximum frequency of the device at the present operating conditions. The device is shipped with the CKDIV8 Fuse programmed.

Table 12. Clock Prescaler Select

CLKPS3 CLKPS2 CLKPS1 CLKPS0 Clock Division Factor

0000 1

0001 2

0010 4

0011 8

0100 16

0101 32

0110 64

0111 128

1000 256

1001 Reserved

1010 Reserved

1011 Reserved

1100 Reserved

1101 Reserved

1110 Reserved

1111 Reserved

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Power Management and Sleep Modes

MCU Control Register – MCUCR

Sleep modes enable the application to shut down unused modules in the MCU, thereby saving power. The AVR provides various sleep modes allowing the user to tailor the power consumption to the application’s requirements.

To enter any of the three sleep modes, the SE bit in SMCR must be written to logic one and a SLEEP instruction must be executed. The SM1 and SM0 bits in the MCUCR Register select which sleep mode (Idle, Power-down, or Standby) will be activated by the SLEEP instruction. See Table 13 for a summary. If an enabled interrupt occurs while the MCU is in a sleep mode, the MCU wakes up. The MCU is then halted for four cycles in addition to the start-up time, executes the interrupt routine, and resumes execution from the instruction following SLEEP. The contents of the register file and SRAM are unaltered when the device wakes up from sleep. If a reset occurs during sleep mode, the MCU wakes up and executes from the Reset Vector.

Figure 11 on page 21 presents the different clock systems in the ATtiny2313, and their distribution. The figure is helpful in selecting an appropriate sleep mode.

The Sleep Mode Control Register contains control bits for power management.

Bit 76543210

PUD SM1 SE SM0 ISC11 ISC10 ISC01 ISC00 MCUCR

Read/Write R R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bits 6, 4 – SM1..0: Sleep Mode Select Bits 1 and 0

These bits select between the five available sleep modes as shown in Table 13.

Table 13. Sleep Mode Select

SM1 SM0 Sleep Mode

00Idle

0 1 Power-down

1 1 Power-down

1 0 Standby

Note: 1. Standby mode is only recommended for use with external crystals or resonators.

• Bit 5 – SE: Sleep Enable

The SE bit must be written to logic one to make the MCU enter the sleep mode when the SLEEP instruction is executed. To avoid the MCU entering the sleep mode unless it is the programmer’s purpose, it is recommended to write the Sleep Enable (SE) bit to one just before the execution of the SLEEP instruction and to clear it immediately after waking up.

Idle Mode When the SM1..0 bits are written to 00, the SLEEP instruction makes the MCU enter

Idle mode, stopping the CPU but allowing the UART, Analog Comparator, ADC, USI, Timer/Counters, Watchdog, and the interrupt system to continue operating. This sleep mode basically halts clk

Idle mode enables the MCU to wake up from external triggered interrupts as well as internal ones like the Timer Overflow and UART Transmit Complete interrupts. If wakeup from the Analog Comparator interrupt is not required, the Analog Comparator can be powered down by setting the ACD bit in the Analog Comparator Control and Status Register – ACSR. This will reduce power consumption in Idle mode.

CPU

and clk

, while allowing the other clocks to run.

FLASH

2543H–AVR–02/05

Power-down Mode When the SM1..0 bits are written to 01 or 11, the SLEEP instruction makes the MCU

enter Power-down mode. In this mode, the external Oscillator is stopped, while the external interrupts, the USI start condition detection, and the Watchdog continue operating (if enabled). Only an External Reset, a Watchdog Reset, a Brown-out Reset, USI start condition interrupt, an external level interrupt on INT0, or a pin change interrupt can wake up the MCU. This sleep mode basically halts all generated clocks, allowing operation of asynchronous modules only.

Note that if a level triggered interrupt is used for wake-up from Power-down mode, the changed level must be held for some time to wake up the MCU. Refer to “External Interrupts” on page 58 for details.

When waking up from Power-down mode, there is a delay from the wake-up condition occurs until the wake-up becomes effective. This allows the clock to restart and become stable after having been stopped. The wake-up period is defined by the same CKSEL Fuses that define the Reset Time-out period, as described in “Clock Sources” on page

22.

Standby Mode When the SM1..0 bits are 10 and an external crystal/resonator clock option is selected,

the SLEEP instruction makes the MCU enter Standby mode. This mode is identical to Power-down with the exception that the Oscillator is kept running. From Standby mode, the device wakes up in six clock cycles.

Table 14. Active Clock Domains and Wake-up Sources in the Different Sleep Modes.

Active Clock Domains Oscillators Wake-up Sources

Minimizing Power Consumption

CPU

Sleep Mode

Idle X X XXXX

Power-down X

Standby

Notes: 1. Only recommended with external crystal or resonator selected as clock source.

(1)

2. For INT0, only level interrupt.

clk

There are several issues to consider when trying to minimize the power consumption in an AVR controlled system. In general, sleep modes should be used as much as possi-

FLASH

clk

Enabled

INT0, INT1 and

Pin Change

(2)

USI Start

Condition

SPM/EEPROM

Ready

Other I/O

ble, and the sleep mode should be selected so that as few as possible of the device’s functions are operating. All functions not needed should be disabled. In particular, the following modules may need special consideration when trying to achieve the lowest possible power consumption.

Analog Comparator When entering Idle mode, the Analog Comparator should be disabled if not used. In

other sleep modes, the Analog Comparator is automatically disabled. However, if the Analog Comparator is set up to use the Internal Voltage Reference as input, the Analog Comparator should be disabled in all sleep modes. Otherwise, the Internal Voltage Reference will be enabled, independent of sleep mode. Refer to “Analog Comparator” on page 149 for details on how to configure the Analog Comparator.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Brown-out Detector If the Brown-out Detector is not needed by the application, this module should be turned

off. If the Brown-out Detector is enabled by the BODLEVEL Fuses, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to “Brown-out Detection” on page 34 for details on how to configure the Brown-out Detector.

Internal Voltage Reference The Internal Voltage Reference will be enabled when needed by the Brown-out Detec-

tion or the Analog Comparator. If these modules are disabled as described in the sections above, the internal voltage reference will be disabled and it will not be consuming power. When turned on again, the user must allow the reference to start up before the output is used. If the reference is kept on in sleep mode, the output can be used immediately. Refer to “Internal Voltage Reference” on page 37 for details on the start-up time.

Watchdog Timer If the Watchdog Timer is not needed in the application, the module should be turned off.

If the Watchdog Timer is enabled, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to “Interrupts” on page 43 for details on how to configure the Watchdog Timer.

Port Pins When entering a sleep mode, all port pins should be configured to use minimum power.

The most important is then to ensure that no pins drive resistive loads. In sleep modes where the I/O clock (clk This ensures that no power is consumed by the input logic when not needed. In some cases, the input logic is needed for detecting wake-up conditions, and it will then be enabled. Refer to the section “Digital Input Enable and Sleep Modes” on page 49 for details on which pins are enabled. If the input buffer is enabled and the input signal is left floating or have an analog signal level close to V sive power.

) is stopped, the input buffers of the device will be disabled.

I/O

/2, the input buffer will use exces-

For analog input pins, the digital input buffer should be disabled at all times. An analog signal level close to V

/2 on an input pin can cause significant current even in active

mode. Digital input buffers can be disabled by writing to the Digital Input Disable Registers (DIDR). Refer to “Digital Input Disable Register – DIDR” on page 150.

2543H–AVR–02/05

System Control and

]

Reset

Resetting the AVR During reset, all I/O Registers are set to their initial values, and the program starts exe-

cution from the Reset Vector. The instruction placed at the Reset Vector must be an RJMP – Relative Jump – instruction to the reset handling routine. If the program never enables an interrupt source, the Interrupt Vectors are not used, and regular program code can be placed at these locations. The circuit diagram in Figure 14 shows the reset logic. Table 15 defines the electrical parameters of the reset circuitry.

The I/O ports of the AVR are immediately reset to their initial state when a reset source goes active. This does not require any clock source to be running.

After all reset sources have gone inactive, a delay counter is invoked, stretching the internal reset. This allows the power to reach a stable level before normal operation starts. The time-out period of the delay counter is defined by the user through the SUT and CKSEL Fuses. The different selections for the delay period are presented in “Clock Sources” on page 22.

Reset Sources The ATtiny2313 has four sources of reset:

• Power-on Reset. The MCU is reset when the supply voltage is below the Power-on Reset threshold (V

• External Reset. The MCU is reset when a low level is present on the RESET longer than the minimum pulse length.

• Watchdog Reset. The MCU is reset when the Watchdog Timer period expires, the Watchdog is enabled, and Watchdog Interrupt is disabled.

• Brown-out Reset. The MCU is reset when the supply voltage V Brown-out Reset threshold (V

POT

pin for

is below the

) and the Brown-out Detector is enabled.

BOT

Figure 14. Reset Logic

BODLEVEL [2..0]

Pull-up Resistor

SPIKE FILTER

Power-on Reset

Circuit

Brown-out

Reset Circuit

Watchdog Oscillator

Clock

Generator

CKSEL[3:0]

SUT[1:0

DATA BUS

MCU Status

BORF

PORF

WDRF

EXTRF

Delay Counters

TIMEOUT

ATtiny2313/V

2543H–AVR–02/05

Table 15. Reset Characteristics

Symbol Parameter Condition Min

Power-on Reset

= -40 - 85°C1.2 V

TA = -40 - 85°C1.1 V

POT

Threshold Voltage (rising)

Power-on Reset Threshold Voltage

(2)

(falling)

ATtiny2313/V

(1)

Typ

(1)

Max

(1)

Units

RST

RESET Pin Threshold Voltage

Minimum pulse width on RESET

= 1.8 - 5.5V 0.2 V

= 1.8 - 5.5V 2.5 µs

0.9 V

Notes: 1. Values are guidelines only. Actual values are TBD.

2. The Power-on Reset will not work unless the supply voltage has been below V

POT

(falling)

Power-on Reset A Power-on Reset (POR) pulse is generated by an On-chip detection circuit. The detec-

tion level is defined in Table 15. The POR is activated whenever V

is below the

detection level. The POR circuit can be used to trigger the start-up Reset, as well as to detect a failure in supply voltage.

A Power-on Reset (POR) circuit ensures that the device is reset from Power-on. Reaching the Power-on Reset threshold voltage invokes the delay counter, which determines how long the device is kept in RESET after V again, without any delay, when V

Figure 15. MCU Start-up, RESET

RESET

POT

RST

decreases below the detection level.

Tied to V

rise. The RESET signal is activated

2543H–AVR–02/05

TIME-OUT

INTERNAL

RESET

TOUT

Figure 16. MCU Start-up, RESET Extended Externally

RESET

TIME-OUT

INTERNAL

RESET

POT

RST

TOUT

External Reset An External Reset is generated by a low level on the RESET

pin. Reset pulses longer than the minimum pulse width (see Table 15) will generate a reset, even if the clock is not running. Shorter pulses are not guaranteed to generate a reset. When the applied signal reaches the Reset Threshold Voltage – V counter starts the MCU after the Time-out period – t

– on its positive edge, the delay

RST

TOUT –

has expired.

Figure 17. External Reset During Operation

Brown-out Detection ATtiny2313 has an On-chip Brown-out Detection (BOD) circuit for monitoring the V

level during operation by comparing it to a fixed trigger level. The trigger level for the BOD can be selected by the BODLEVEL Fuses. The trigger level has a hysteresis to ensure spike free Brown-out Detection. The hysteresis on the detection level should be interpreted as V

Table 16. BODLEVEL Fuse Coding

BOT+

= V

BOT

+ V

HYST

/2 and V

(1)

BOT-

= V

BOT

- V

HYST

/2.

ATtiny2313/V

BODLEVEL 2..0 Fuses Min V

111 BOD Disabled

110 1.8

100 4.3

BOT

Typ V

BOT

Max V

BOT

Units

2543H–AVR–02/05

V101 2.7

ATtiny2313/V

Table 16. BODLEVEL Fuse Coding

BODLEVEL 2..0 Fuses Min V

(1)

BOT

Typ V

BOT

Max V

BOT

Units

011

010

Reserved

001

000

Note: 1. V

may be below nominal minimum operating voltage for some devices. For

BOT

devices where this is the case, the device is tested down to VCC = V

BOT

during the production test. This guarantees that a Brown-Out Reset will occur before VCC drops to a voltage where correct operation of the microcontroller is no longer guaranteed. The test is performed using BODLEVEL = 110 for ATtiny2313V and BODLEVEL = 101 for ATtiny2313L.

Table 17. Brown-out Characteristics

Symbol Parameter Min Typ Max Units

HYST

BOD

When the BOD is enabled, and VCC decreases to a value below the trigger level (V

Brown-out Detector Hysteresis 50 mV

Min Pulse Width on Brown-out Reset 2 ns

BOT-

in Figure 18), the Brown-out Reset is immediately activated. When VCC increases above the trigger level (V out period t

has expired.

TOUT

The BOD circuit will only detect a drop in V for longer than t

BOD

in Figure 18), the delay counter starts the MCU after the Time-

BOT+

if the voltage stays below the trigger level

given in Table 15.

Figure 18. Brown-out Reset During Operation

RESET

TIME-OUT

INTERNAL

RESET

BOT-

BOT+

TOUT

2543H–AVR–02/05

Watchdog Reset When the Watchdog times out, it will generate a short reset pulse of one CK cycle dura-

tion. On the falling edge of this pulse, the delay timer starts counting the Time-out period t

. Refer to page 43 for details on operation of the Watchdog Timer.

TOUT

Figure 19. Watchdog Reset During Operation

MCU Status Register – MCUSR

The MCU Status Register provides information on which reset source caused an MCU reset.

Bit 76543210

– – – – WDRF BORF EXTRF PORF MCUSR

Read/Write R R R R R/W R/W R/W R/W

Initial Value 0 0 0 See Bit Description

• Bit 3 – WDRF: Watchdog Reset Flag

This bit is set if a Watchdog Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 2 – BORF: Brown-out Reset Flag

This bit is set if a Brown-out Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 1 – EXTRF: External Reset Flag

This bit is set if an External Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 0 – PORF: Power-on Reset Flag

This bit is set if a Power-on Reset occurs. The bit is reset only by writing a logic zero to the flag.

To make use of the Reset flags to identify a reset condition, the user should read and then reset the MCUSR as early as possible in the program. If the register is cleared before another reset occurs, the source of the reset can be found by examining the reset flags.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Internal Voltage Reference

Voltage Reference Enable Signals and Start-up Time

ATtiny2313 features an internal bandgap reference. This reference is used for Brownout Detection, and it can be used as an input to the Analog Comparator.

The voltage reference has a start-up time that may influence the way it should be used. The start-up time is given in Table 18. To save power, the reference is not always turned on. The reference is on during the following situations:

1. When the BOD is enabled (by programming the BODLEVEL [2..0] Fuse).

2. When the bandgap reference is connected to the Analog Comparator (by setting the ACBG bit in ACSR).

Thus, when the BOD is not enabled, after setting the ACBG bit, the user must always allow the reference to start up before the output from the Analog Comparator is used. To reduce power consumption in Power-down mode, the user can avoid the three conditions above to ensure that the reference is turned off before entering Power-down mode.

Table 18. Internal Voltage Reference Characteristics

Symbol Parameter Condition Min Typ Max Units

Bandgap reference voltage VCC = 2.7V,

Bandgap reference start-up time VCC = 2.7V,

Bandgap reference current consumption

(1)

TA=25°C

=25°C

VCC = 2.7V,

TA=25°C

1.0 1.1 1.2 V

40 70 µs

15 µA

Note: 1. Values are guidelines only. Actual values are TBD.

2543H–AVR–02/05

Watchdog Timer ATtiny2313 has an Enhanced Watchdog Timer (WDT). The main features are:

•

Clocked from separate On-chip Oscillator

• 3 Operating modes

– Interrupt – System Reset – Interrupt and System Reset

• Selectable Time-out period from 16ms to 8s

• Possible Hardware fuse Watchdog always on (WDTON) for fail-safe mode

Figure 20. Watchdog Timer

128kHz

OSCILLATOR

OSC/2K

OSC/4K

OSC/8K

OSC/16K

OSC/32K

OSC/64K

OSC/128K

OSC/256K

OSC/512K

OSC/1024K

WDP0

WATCHDOG RESET

WDP1 WDP2 WDP3

WDE

WDIF

WDIE

MCU RESET

INTERRUPT

The Watchdog Timer (WDT) is a timer counting cycles of a separate on-chip 128 kHz oscillator. The WDT gives an interrupt or a system reset when the counter reaches a given time-out value. In normal operation mode, it is required that the system uses the WDR - Watchdog Timer Reset - instruction to restart the counter before the time-out value is reached. If the system doesn't restart the counter, an interrupt or system reset will be issued.

In Interrupt mode, the WDT gives an interrupt when the timer expires. This interrupt can be used to wake the device from sleep-modes, and also as a general system timer. One example is to limit the maximum time allowed for certain operations, giving an interrupt when the operation has run longer than expected. In System Reset mode, the WDT gives a reset when the timer expires. This is typically used to prevent system hang-up in case of runaway code. The third mode, Interrupt and System Reset mode, combines the other two modes by first giving an interrupt and then switch to System Reset mode. This mode will for instance allow a safe shutdown by saving critical parameters before a system reset.

The Watchdog always on (WDTON) fuse, if programmed, will force the Watchdog Timer to System Reset mode. With the fuse programmed the System Reset mode bit (WDE) and Interrupt mode bit (WDIE) are locked to 1 and 0 respectively.

To further ensure program security, alterations to the Watchdog set-up must follow timed sequences. The sequence for clearing WDE and changing time-out configuration is as follows:

1. In the same operation, write a logic one to the Watchdog change enable bit (WDCE) and WDE. A logic one must be written to WDE regardless of the previous value of the WDE bit.

2. Within the next four clock cycles, write the WDE and Watchdog prescaler bits (WDP) as desired, but with the WDCE bit cleared. This must be done in one operation.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

The following code example shows one assembly and one C function for turning off the Watchdog Timer. The example assumes that interrupts are controlled (e.g. by disabling interrupts globally) so that no interrupts will occur during the execution of these functions.

Assembly Code Example

WDT_off:

; Turn off global interrupt

cli

; Reset Watchdog Timer

wdr

; Clear WDRF in MCUSR

in r16, MCUSR

andi r16, (0xff & (0<<WDRF))

out MCUSR, r16

; Write logical one to WDCE and WDE

; Keep old prescaler setting to prevent unintentional time-out

in r16, WDTCSR

ori r16, (1<<WDCE) | (1<<WDE)

out WDTCSR, r16

; Turn off WDT

ldi r16, (0<<WDE)

out WDTCSR, r16

; Turn on global interrupt

sei

ret

C Code Example

(1)

2543H–AVR–02/05

void WDT_off(void)

{

__disable_interrupt();

__watchdog_reset();

/* Clear WDRF in MCUSR */

MCUSR &= ~(1<<WDRF);

/* Write logical one to WDCE and WDE */

/* Keep old prescaler setting to prevent unintentional time-out

WDTCSR |= (1<<WDCE) | (1<<WDE);

/* Turn off WDT */

WDTCSR = 0x00;

__enable_interrupt();

}

Note: 1. The example code assumes that the part specific header file is included.

Note: If the Watchdog is accidentally enabled, for example by a runaway pointer or brown-out condition, the device will be reset and the Watchdog Timer will stay enabled. If the code is not set up to handle the Watchdog, this might lead to an eternal loop of time-out resets. To avoid this situation, the application software should always clear the

Watchdog System Reset Flag (WDRF) and the WDE control bit in the initialisation routine, even if the Watchdog is not in use.

The following code example shows one assembly and one C function for changing the time-out value of the Watchdog Timer.

Assembly Code Example

WDT_Prescaler_Change:

; Turn off global interrupt

cli

; Reset Watchdog Timer

wdr

; Start timed sequence

in r16, WDTCSR

ori r16, (1<<WDCE) | (1<<WDE)

out WDTCSR, r16

; -- Got four cycles to set the new values from here -

; Set new prescaler(time-out) value = 64K cycles (~0.5 s)

ldi r16, (1<<WDE) | (1<<WDP2) | (1<<WDP0)

out WDTCSR, r16

; -- Finished setting new values, used 2 cycles -

; Turn on global interrupt

sei

ret

C Code Example

void WDT_Prescaler_Change(void)

{

__disable_interrupt();

__watchdog_reset();

/* Start timed equence */

WDTCSR |= (1<<WDCE) | (1<<WDE);

/* Set new prescaler(time-out) value = 64K cycles (~0.5 s) */

WDTCSR = (1<<WDE) | (1<<WDP2) | (1<<WDP0);

__enable_interrupt();

}

(1)

Note: 1. The example code assumes that the part specific header file is included.

Note: The Watchdog Timer should be reset before any change of the WDP bits, since a change in the WDP bits can result in a time-out when switching to a shorter time-out period.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Watchdog Timer Control Register - WDTCSR

Bit 76543210

WDIF WDIE WDP3 WDCE WDE WDP2 WDP1 WDP0 WDTCSR

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value0000X000

• Bit 7 - WDIF: Watchdog Interrupt Flag

This bit is set when a time-out occurs in the Watchdog Timer and the Watchdog Timer is configured for interrupt. WDIF is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, WDIF is cleared by writing a logic one to the flag. When the I-bit in SREG and WDIE are set, the Watchdog Time-out Interrupt is executed.

• Bit 6 - WDIE: Watchdog Interrupt Enable

When this bit is written to one and the I-bit in the Status Register is set, the Watchdog Interrupt is enabled. If WDE is cleared in combination with this setting, the Watchdog Timer is in Interrupt Mode, and the corresponding interrupt is executed if time-out in the Watchdog Timer occurs.

If WDE is set, the Watchdog Timer is in Interrupt and System Reset Mode. The first time-out in the Watchdog Timer will set WDIF. Executing the corresponding interrupt vector will clear WDIE and WDIF automatically by hardware (the Watchdog goes to System Reset Mode). This is useful for keeping the Watchdog Timer security while using the interrupt. To stay in Interrupt and System Reset Mode, WDIE must be set after each interrupt. This should however not be done within the interrupt service routine itself, as this might compromise the safety-function of the Watchdog System Reset mode. If the interrupt is not executed before the next time-out, a System Reset will be applied.

Table 19. Watchdog Timer Configuration

WDTON WDE WDIE Mode Action on Time-out

0 0 0 Stopped None

0 0 1 Interrupt Mode Interrupt

0 1 0 System Reset Mode Reset

011

1 x x System Reset Mode Reset

Interrupt and System Reset Mode

Interrupt, then go to System Reset Mode

• Bit 4 - WDCE: Watchdog Change Enable

This bit is used in timed sequences for changing WDE and prescaler bits. To clear the WDE bit, and/or change the prescaler bits, WDCE must be set.

Once written to one, hardware will clear WDCE after four clock cycles.

• Bit 3 - WDE: Watchdog System Reset Enable

WDE is overridden by WDRF in MCUSR. This means that WDE is always set when WDRF is set. To clear WDE, WDRF must be cleared first. This feature ensures multiple resets during conditions causing failure, and a safe start-up after the failure.

• Bit 5, 2..0 - WDP3..0: Watchdog Timer Prescaler 3, 2, 1 and 0

The WDP3..0 bits determine the Watchdog Timer prescaling when the Watchdog Timer is running. The different prescaling values and their corresponding time-out periods are shown in Table 20 on page 42.

2543H–AVR–02/05

Table 20. Watchdog Timer Prescale Select

Number of WDT Oscillator

WDP3 WDP2 WDP1 WDP0

0 0 0 0 2K (2048) cycles 16 ms

0 0 0 1 4K (4096) cycles 32 ms

0 0 1 0 8K (8192) cycles 64 ms

0 0 1 1 16K (16384) cycles 0.125 s

0 1 0 0 32K (32768) cycles 0.25 s

0 1 0 1 64K (65536) cycles 0.5 s

0 1 1 0 128K (131072) cycles 1.0 s

0 1 1 1 256K (262144) cycles 2.0 s

1 0 0 0 512K (524288) cycles 4.0 s

1 0 0 1 1024K (1048576) cycles 8.0 s

1010

1011

1100

1101

1110

1111

Cycles

Reserved

Typical Time-out at

VCC = 5.0V

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Interrupts This section describes the specifics of the interrupt handling as performed in

ATtiny2313. For a general explanation of the AVR interrupt handling, refer to “Reset and Interrupt Handling” on page 11.

Interrupt Vectors in ATtiny2313

Table 21. Reset and Interrupt Vectors

Vector

No.

10 0x0009 USART0, TX USART0, Tx Complete

11 0x000A ANALOG COMP Analog Comparator

12 0x000B PCINT Pin Change Interrupt

13 0x000C TIMER1 COMPB Timer/Counter1 Compare Match B

14 0x000D TIMER0 COMPA Timer/Counter0 Compare Match A

15 0x000E TIMER0 COMPB Timer/Counter0 Compare Match B

16 0x000F USI START USI Start Condition

Program Address Source Interrupt Definition

1 0x0000 RESET External Pin, Power-on Reset, Brown-out Reset,

and Watchdog Reset

2 0x0001 INT0 External Interrupt Request 0

3 0x0002 INT1 External Interrupt Request 1

4 0x0003 TIMER1 CAPT Timer/Counter1 Capture Event

5 0x0004 TIMER1 COMPA Timer/Counter1 Compare Match A

6 0x0005 TIMER1 OVF Timer/Counter1 Overflow

7 0x0006 TIMER0 OVF Timer/Counter0 Overflow

8 0x0007 USART0, RX USART0, Rx Complete

9 0x0008 USART0, UDRE USART0 Data Register Empty

2543H–AVR–02/05

17 0x0010 USI OVERFLOW USI Overflow

18 0x0011 EE READY EEPROM Ready

19 0x0012 WDT OVERFLOW Watchdog Timer Overflow

The most typical and general program setup for the Reset and Interrupt Vector Addresses in ATtiny2313 is:

Address Labels Code Comments

0x0000 rjmp RESET ; Reset Handler

0x0001 rjmp INT0 ; External Interrupt0 Handler

0x0002 rjmp INT1 ; External Interrupt1 Handler

0x0003 rjmp TIM1_CAPT ; Timer1 Capture Handler

0x0004 rjmp TIM1_COMPA ; Timer1 CompareA Handler

0x0005 rjmp TIM1_OVF ; Timer1 Overflow Handler

0x0006 rjmp TIM0_OVF ; Timer0 Overflow Handler

0x0007 rjmp USART0_RXC ; USART0 RX Complete Handler

0x0008 rjmp USART0_DRE ; USART0,UDR Empty Handler

0x0009 rjmp USART0_TXC ; USART0 TX Complete Handler

0x000A rjmp ANA_COMP ; Analog Comparator Handler

0x000B rjmp PCINT ; Pin Change Interrupt

0x000C rjmp TIMER1_COMPB ; Timer1 Compare B Handler

0x000D rjmp TIMER0_COMPA ; Timer0 Compare A Handler

0x000E rjmp TIMER0_COMPB ; Timer0 Compare B Handler

0x000F rjmp USI_START ; USI Start Handler

0x0010 rjmp USI_OVERFLOW ; USI Overflow Handler

0x0011 rjmp EE_READY ; EEPROM Ready Handler

0x0012 rjmp WDT_OVERFLOW ; Watchdog Overflow Handler

;

0x0013 RESET: ldi r16, low(RAMEND); Main program start

0x0014 out SPL,r16 Set Stack Pointer to top of RAM

0x0015 sei ; Enable interrupts

0x0016 <instr> xxx

... ... ... ...

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

I/O-Ports

Introduction All AVR ports have true Read-Modify-Write functionality when used as general digital

I/O ports. This means that the direction of one port pin can be changed without unintentionally changing the direction of any other pin with the SBI and CBI instructions. The same applies when changing drive value (if configured as output) or enabling/disabling of pull-up resistors (if configured as input). Each output buffer has symmetrical drive characteristics with both high sink and source capability. The pin driver is strong enough to drive LED displays directly. All port pins have individually selectable pull-up resistors with a supply-voltage invariant resistance. All I/O pins have protection diodes to both V

and Ground as indicated in Figure 21. Refer to “Electrical Characteristics” on page

177 for a complete list of parameters.

Figure 21. I/O Pin Equivalent Schematic

Pxn

All registers and bit references in this section are written in general form. A lower case “x” represents the numbering letter for the port, and a lower case “n” represents the bit number. However, when using the register or bit defines in a program, the precise form must be used. For example, PORTB3 for bit no. 3 in Port B, here documented generally as PORTxn. The physical I/O Registers and bit locations are listed in “Register Description for I/O-Ports” on page 57.

Three I/O memory address locations are allocated for each port, one each for the Data Register – PORTx, Data Direction Register – DDRx, and the Port Input Pins – PINx. The Port Input Pins I/O location is read only, while the Data Register and the Data Direction Register are read/write. However, writing a logic one to a bit in the PINx Register, will result in a toggle in the corresponding bit in the Data Register. In addition, the Pull-up Disable – PUD bit in MCUCR disables the pull-up function for all pins in all ports when set.

See Figure

"General Digital I/O" for

Logic

Details

2543H–AVR–02/05

Using the I/O port as General Digital I/O is described in “Ports as General Digital I/O” on page 46. Most port pins are multiplexed with alternate functions for the peripheral features on the device. How each alternate function interferes with the port pin is described in “Alternate Port Functions” on page 50. Refer to the individual module sections for a full description of the alternate functions.

Note that enabling the alternate function of some of the port pins does not affect the use of the other pins in the port as general digital I/O.

Ports as General Digital I/O

The ports are bi-directional I/O ports with optional internal pull-ups. Figure 22 shows a functional description of one I/O-port pin, here generically called Pxn.

Figure 22. General Digital I/O

Pxn

(1)

SLEEP

SYNCHRONIZER

DLQ

PINxn

PUD

DDxn

CLR

RESET

PORTxn

CLR

RESET

RRx

WDx

RDx

RPx

WPx

DATA B US

WRx

clk

I/O

PUD: PULLUP DISABLE SLEEP: SLEEP CONTROL clk

: I/O CLOCK

I/O

WDx: WRITE DDRx RDx: READ DDRx WRx: WRITE PORTx RRx: READ PORTx REGISTER RPx: READ PORTx PIN

WPx: WRITE PINx REGISTER

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port.

clk

, SLEEP, and PUD are common to all ports.

I/O

Configuring the Pin Each port pin consists of three register bits: DDxn, PORTxn, and PINxn. As shown in

“Register Description for I/O-Ports” on page 57, the DDxn bits are accessed at the DDRx I/O address, the PORTxn bits at the PORTx I/O address, and the PINxn bits at the PINx I/O address.

The DDxn bit in the DDRx Register selects the direction of this pin. If DDxn is written logic one, Pxn is configured as an output pin. If DDxn is written logic zero, Pxn is configured as an input pin.

If PORTxn is written logic one when the pin is configured as an input pin, the pull-up resistor is activated. To switch the pull-up resistor off, PORTxn has to be written logic zero or the pin has to be configured as an output pin. The port pins are tri-stated when reset condition becomes active, even if no clocks are running.

If PORTxn is written logic one when the pin is configured as an output pin, the port pin is driven high (one). If PORTxn is written logic zero when the pin is configured as an output pin, the port pin is driven low (zero).

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Toggli n g t h e P in Writing a logic one to PINxn toggles the value of PORTxn, independent on the value of

DDRxn. Note that the SBI instruction can be used to toggle one single bit in a port.

Switching Between Input and Output

When switching between tri-state ({DDxn, PORTxn} = 0b00) and output high ({DDxn, PORTxn} = 0b11), an intermediate state with either pull-up enabled {DDxn, PORTxn} = 0b01) or output low ({DDxn, PORTxn} = 0b10) must occur. Normally, the pull-up enabled state is fully acceptable, as a high-impedant environment will not notice the difference between a strong high driver and a pull-up. If this is not the case, the PUD bit in the MCUCR Register can be set to disable all pull-ups in all ports.

Switching between input with pull-up and output low generates the same problem. The user must use either the tri-state ({DDxn, PORTxn} = 0b00) or the output high state ({DDxn, PORTxn} = 0b11) as an intermediate step.

Table 22 summarizes the control signals for the pin value.

Table 22. Port Pin Configurations

PUD (in

DDxn PORTxn

0 0 X Input No Tri-state (Hi-Z)

0 1 0 Input Yes

0 1 1 Input No Tri-state (Hi-Z)

1 0 X Output No Output Low (Sink)

1 1 X Output No Output High (Source)

MCUCR2) I/O Pull-up Comment

Pxn will source current if ext. pulled low.

Reading the Pin Value Independent of the setting of Data Direction bit DDxn, the port pin can be read through

the PINxn Register bit. As shown in Figure 22, the PINxn Register bit and the preceding latch constitute a synchronizer. This is needed to avoid metastability if the physical pin changes value near the edge of the internal clock, but it also introduces a delay. Figure 23 shows a timing diagram of the synchronization when reading an externally applied pin value. The maximum and minimum propagation delays are denoted t

pd,max

and t

pd,min

respectively.

Figure 23. Synchronization when Reading an Externally Applied Pin value

SYSTEM CLK

INSTRUCTIONS

XXX in r17, PINx

XXX

SYNC LATCH

PINxn

r17

0x00 0xFF

pd, max

pd, min

2543H–AVR–02/05

Consider the clock period starting shortly after the first falling edge of the system clock. The latch is closed when the clock is low, and goes transparent when the clock is high, as indicated by the shaded region of the “SYNC LATCH” signal. The signal value is latched when the system clock goes low. It is clocked into the PINxn Register at the succeeding positive clock edge. As indicated by the two arrows tpd,max and tpd,min, a single signal transition on the pin will be delayed between ½ and 1½ system clock period depending upon the time of assertion.

When reading back a software assigned pin value, a nop instruction must be inserted as indicated in Figure 24. The out instruction sets the “SYNC LATCH” signal at the positive edge of the clock. In this case, the delay tpd through the synchronizer is 1 system clock period.

Figure 24. Synchronization when Reading a Software Assigned Pin Value

SYSTEM CLK

r16

INSTRUCTIONS

SYNC LATCH

PINxn

r17

0xFF

out PORTx, r16 nop in r17, PINx

0x00 0xFF

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

The following code example shows how to set port B pins 0 and 1 high, 2 and 3 low, and define the port pins from 4 to 7 as input with pull-ups assigned to port pins 6 and 7. The resulting pin values are read back again, but as previously discussed, a nop instruction is included to be able to read back the value recently assigned to some of the pins.

Assembly Code Example

...

; Define pull-ups and set outputs high

; Define directions for port pins

ldi r16,(1<<PB7)|(1<<PB6)|(1<<PB1)|(1<<PB0)

ldi r17,(1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0)

out PORTB,r16

out DDRB,r17

; Insert nop for synchronization

nop

; Read port pins

in r16,PINB

...

(1)

C Code Example

unsigned char i;

...

/* Define pull-ups and set outputs high */

/* Define directions for port pins */

PORTB = (1<<PB7)|(1<<PB6)|(1<<PB1)|(1<<PB0);

DDRB = (1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0);

/* Insert nop for synchronization*/

__no_operation();

/* Read port pins */

i = PINB;

...

Digital Input Enable and Sleep Modes

2543H–AVR–02/05

Note: 1. For the assembly program, two temporary registers are used to minimize the time

from pull-ups are set on pins 0, 1, 6, and 7, until the direction bits are correctly set, defining bit 2 and 3 as low and redefining bits 0 and 1 as strong high drivers.

As shown in Figure 22, the digital input signal can be clamped to ground at the input of the Schmitt Trigger. The signal denoted SLEEP in the figure, is set by the MCU Sleep Controller in Power-down mode, and Standby mode to avoid high power consumption if some input signals are left floating, or have an analog signal level close to V

/2.

SLEEP is overridden for port pins enabled as external interrupt pins. If the external interrupt request is not enabled, SLEEP is active also for these pins. SLEEP is also overridden by various other alternate functions as described in “Alternate Port Functions” on page 50.

If a logic high level (“one”) is present on an asynchronous external interrupt pin configured as “Interrupt on Rising Edge, Falling Edge, or Any Logic Change on Pin” while the external interrupt is not enabled, the corresponding External Interrupt Flag will be set when resuming from the above mentioned Sleep mode, as the clamping in these sleep mode produces the requested logic change.

Alternate Port Functions Most port pins have alternate functions in addition to being general digital I/Os. Figure

25 shows how the port pin control signals from the simplified Figure 22 can be overridden by alternate functions. The overriding signals may not be present in all port pins, but the figure serves as a generic description applicable to all port pins in the AVR microcontroller family.

Figure 25. Alternate Port Functions

Pxn

(1)

PUOExn

PUOVxn

DDOExn

DDOVxn

PVOExn

PVOVxn

DIEOExn

DIEOVxn

SLEEP

SYNCHRONIZER

SET

DLQ

PINxn

CLR

PUD

DDxn

CLR

RESET

PORTxn

CLR

RESET

CLR

WDx

RDx

RRx

RPx

clk

PTOExn

WPx

WRx

I/O

DATA BU S

DIxn

AIOxn

PUOExn: Pxn PULL-UP OVERRIDE ENABLE PUOVxn: Pxn PULL-UP OVERRIDE VALUE DDOExn: Pxn DATA DIRECTION OVERRIDE ENABLE DDOVxn: Pxn DATA DIRECTION OVERRIDE VALUE PVOExn: Pxn PORT VALUE OVERRIDE ENABLE PVOVxn: Pxn PORT VALUE OVERRIDE VALUE DIEOExn: Pxn DIGITAL INPUT-ENABLE OVERRIDE ENABLE DIEOVxn: Pxn DIGITAL INPUT-ENABLE OVERRIDE VALUE SLEEP: SLEEP CONTROL PTOExn: Pxn, PORT TOGGLE OVERRIDE ENABLE

PUD: PULLUP DISABLE WDx: WRITE DDRx RDx: READ DDRx RRx: READ PORTx REGISTER WRx: WRITE PORTx RPx: READ PORTx PIN WPx: WRITE PINx clk

: I/O CLOCK

I/O

DIxn: DIGITAL INPUT PIN n ON PORTx AIOxn: ANALOG INPUT/OUTPUT PIN n ON PORTx

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port.

clk

, SLEEP, and PUD are common to all ports. All other signals are unique for each

I/O

pin.

Table 23 summarizes the function of the overriding signals. The pin and port indexes from Figure 25 are not shown in the succeeding tables. The overriding signals are generated internally in the modules having the alternate function.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Table 23. Generic Description of Overriding Signals for Alternate Functions

Signal Name Full Name Description

PUOE Pull-up Override

Enable

If this signal is set, the pull-up enable is controlled by the PUOV signal. If this signal is cleared, the pull-up is enabled when {DDxn, PORTxn, PUD} = 0b010.

PUOV Pull-up Override

Valu e

DDOE Data Direction

Override Enable

DDOV Data Direction

Override Value

PVOE Port Value

Override Enable

PVOV Port Value

Override Value

PTOE Port Toggle

Override Enable

DIEOE Digital Input

Enable Override Enable

DIEOV Digital Input

Enable Override Valu e

If PUOE is set, the pull-up is enabled/disabled when PUOV is set/cleared, regardless of the setting of the DDxn, PORTxn, and PUD Register bits.

If this signal is set, the Output Driver Enable is controlled by the DDOV signal. If this signal is cleared, the Output driver is enabled by the DDxn Register bit.

If DDOE is set, the Output Driver is enabled/disabled when DDOV is set/cleared, regardless of the setting of the DDxn Register bit.

If this signal is set and the Output Driver is enabled, the port value is controlled by the PVOV signal. If PVOE is cleared, and the Output Driver is enabled, the port Value is controlled by the PORTxn Register bit.

If PVOE is set, the port value is set to PVOV, regardless of the setting of the PORTxn Register bit.

If PTOE is set, the PORTxn Register bit is inverted.

If this bit is set, the Digital Input Enable is controlled by the DIEOV signal. If this signal is cleared, the Digital Input Enable is determined by MCU state (Normal mode, sleep mode).

If DIEOE is set, the Digital Input is enabled/disabled when DIEOV is set/cleared, regardless of the MCU state (Normal mode, sleep mode).

2543H–AVR–02/05

DI Digital Input This is the Digital Input to alternate functions. In the

figure, the signal is connected to the output of the schmitt trigger but before the synchronizer. Unless the Digital Input is used as a clock source, the module with the alternate function will use its own synchronizer.

AIO Analog

Input/Output

This is the Analog Input/output to/from alternate functions. The signal is connected directly to the pad, and can be used bi-directionally.

The following subsections shortly describe the alternate functions for each port, and relate the overriding signals to the alternate function. Refer to the alternate function description for further details.

MCU Control Register – MCUCR

Bit 7 6 5 4 3 2 1 0

PUD

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

SM1 SE SM0 ISC11 ISC10 ISC01 ISC00 MCUCR

• Bit 7 – PUD: Pull-up Disable

When this bit is written to one, the pull-ups in the I/O ports are disabled even if the DDxn and PORTxn Registers are configured to enable the pull-ups ({DDxn, PORTxn} = 0b01). See “Configuring the Pin” on page 46 for more details about this feature.

Alternate Functions of Port A The Port A pins with alternate functions are as shown in Table 5.

Table 24. Port A Pins Alternate Functions

Port Pin Alternate Function

PA2 RESET, dW

PA 1 X TAL 2

PA0 XTAL1

Alternate Functions of Port B The Port B pins with alternate functions are shown in Table 25.

Table 25. Port B Pins Alternate Functions

Port Pin Alternate Functions

PB7 USCK/SCL/PCINT7

PB6 DO/PCINT6

PB5 DI/SDA/PCINT5

PB4 OC1B/PCINT4

PB3 OC1A/PCINT3

PB2 OC0A/PCINT2

PB1 AIN1/PCINT1

PB0 AIN0/PCINT0

The alternate pin configuration is as follows:

• USCK/SCL/PCINT7 - Port B, Bit 7

USCK: Three-wire mode Universal Serial Interface Clock.

SCL: Two-wire mode Serial Clock for USI Two-wire mode.

PCINT7: Pin Change Interrupt source 7. The PB7 pin can serve as an external interrupt source.

• DO/PCINT6 - Port B, Bit 6

DO: Three-wire mode Universal Serial Interface Data output. Three-wire mode Data output overrides PORTB6 value and it is driven to the port when data direction bit DDB6 is set (one). However the PORTB6 bit still controls the pull-up enabling pull-up, if direction is input and PORTB6 is set (one).

PCINT6: Pin Change Interrupt Source 6. The PB6 pin can serve as an external interrupt source.

• DI/SDA/PCINT5 - Port B, Bit 5

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

DI: Three-wire mode Universal Serial Interface Data input. Three-wire mode does not override normal port functions, so pin must be configured as an input. SDA: Two-wire mode Serial Interface Data.

PCINT5: Pin Change Interrupt Source 5. The PB5 pin can serve as an external interrupt source.

• OC1B/PCINT4 – Port B, Bit 4

OC1B: Output Compare Match B output: The PB4 pin can serve as an external output for the Timer/Counter1 Output Compare B. The pin has to be configured as an output (DDB6 set (one)) to serve this function. The OC1B pin is also the output pin for the PWM mode timer function.

PCINT4: Pin Change Interrupt Source 4. The PB4 pin can serve as an external interrupt source.

• OC1A/PCINT3 – Port B, Bit 3

OC1A: Output Compare Match A output: The PB3 pin can serve as an external output for the Timer/Counter1 Output Compare A. The pin has to be configured as an output (DDB3 set (one)) to serve this function. The OC1A pin is also the output pin for the PWM mode timer function.

PCINT3: Pin Change Interrupt Source 3: The PB3 pin can serve as an external interrupt source.

• OC0A/PCINT2 – Port B, Bit 2

OC0A: Output Compare Match A output. The PB2 pin can serve as an external output for the Timer/Counter0 Output Compare A. The pin has to be configured as an output (DDB2 set (one)) to serve this function. The OC0A pin is also the output pin for the PWM mode timer function.

PCINT2: Pin Change Interrupt Source 2. The PB2 pin can serve as an external interrupt source.

• AIN1/PCINT1 – Port B, Bit 1

AIN1: Analog Comparator Negative input nal pull-up switched off to avoid the digital port function from interfering with the function of the analog comparator.

PCINT1: Pin Change Interrupt Source 1. The PB1 pin can serve as an external interrupt source.

• AIN0/PCINT0 – Port B, Bit 0

AIN0: Analog Comparator Positive input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the Analog Comparator.

PCINT0: Pin Change Interrupt Source 0. The PB0 pin can serve as an external interrupt source.

Table 26 and Table 27 relate the alternate functions of Port B to the overriding signals shown in Figure 25 on page 50. SPI MSTR INPUT and SPI SLAVE OUTPUT constitute the MISO signal, while MOSI is divided into SPI MSTR OUTPUT and SPI SLAVE INPUT.

. Configure the port pin as input with the inter-

2543H–AVR–02/05

Table 26. Overriding Signals for Alternate Functions in PB7..PB4

Signal Name

PUOE 0 0 0 0

PUOV 0 0 0 0

DDOE USI_TWO_WIRE 0 USI_TWO_WIRE 0

DDOV (USI_SCL_HOLD

PVOE USI_TWO_WIRE

PVOV 0 DO 0 0OC1B_PVOV

PTOE USI_PTOE 0 0 0

DIEOE (PCINT7•PCIE)

DIEOV 1 1 1 1

DI PCINT7 INPUT

AIO – – – –

PB7/USCK/ SCL/PCINT7 PB6/DO/PCINT6

0(SDA

+ PORTB7

• DDRB7

+USISIE

USCK INPUT SCL INPUT

)•DDB7

USI_THREE_WIRE USI_TWO_WIRE

(PCINT6•PCIE) (PCINT5•PCIE) +

PCINT6 INPUT PCINT5 INPUT

PB5/SDA/ DI/PCINT5

+ PORTB5)•

DDRB5

• DDRB5

USISIE

SDA INPUT DI INPUT

PB4/OC1B/ PCINT4

OC1B_PVOE

(PCINT4•PCIE)

PCINT4 INPUT

Table 27. Overriding Signals for Alternate Functions in PB3..PB0

Signal Name

PUOE 0 0 0 0

PUOV 0 0 0 0

DDOE 0 0 0 0

DDOV 0 0 0 0

PVOE OC1A_PVOE OC0A_PVOE 0 0

PVOV OC1A_PVOV OC0A_PVOV 0 0

PTOE 0 0 0 0

DIEOE (PCINT3 • PCIE) (PCINT2 • PCIE) (PCINT1 • PCIE) (PCINT0 • PCIE)

DIEOV 1 1 1 1

DI PCINT7 INPUT PCINT6 INPUT PCINT5 INPUT PCINT4 INPUT

AIO – – AIN1 AIN0

PB3/OC1A/ PCINT3

PB2/OC0A/ PCINT2

PB1/AIN1/ PCINT1

PB0/AIN0/ PCINT0

ATtiny2313/V

2543H–AVR–02/05

Alternate Functions of Port D The Port D pins with alternate functions are shown in Table 28.

Table 28. Port D Pins Alternate Functions

Port Pin Alternate Function

PD6 ICP

PD5 OC0B/T1

PD4 T0

PD3 INT1

PD2 INT0/XCK/CKOUT

PD1 TXD

PD0 RXD

The alternate pin configuration is as follows:

• ICP – Port D, Bit 6

ICP: Timer/Counter1 Input Capture Pin. The PD6 pin can act as an Input Capture pin for Timer/Counter1

• OC1B/T1 – Port D, Bit 5

ATtiny2313/V

OC0B: Output Compare Match B output: The PD5 pin can serve as an external output for the Timer/Counter0 Output Compare B. The pin has to be configured as an output (DDB5 set (one)) to serve this function. The OC0B pin is also the output pin for the PWM mode timer function.

T1: Timer/Counter1 External Counter Clock input is enabled by setting (one) the bits CS02 and CS01 in the Timer/Counter1 Control Register (TCCR1).

• T0 – Port D, Bit 4

T0: Timer/Counter0 External Counter Clock input is enabled by setting (one) the bits CS02 and CS01 in the Timer/Counter0 Control Register (TCCR0).

• INT1 – Port D, Bit 3

INT0: External Interrupt Source 0. The PD3 pin can serve as an external interrupt source to the MCU.

• INT0/XCK/CKOUT – Port D, Bit 2

INT1: External Interrupt Source 1. The PD2 pin can serve as en external interrupt source to the MCU.

XCK: USART Transfer Clock used only by Synchronous Transfer mode.

CKOUT: System Clock Output

•TXD – Port D, Bit 1

TXD: UART Data Transmitter.

• RXD – Port D, Bit 0

2543H–AVR–02/05

RXD: UART Data Receiver.

Table 29 and Table 30 relates the alternate functions of Port D to the overriding signals shown in Figure 25 on page 50.

Table 29. Overriding Signals for Alternate Functions PD7..PD4

Signal Name PD6/ICP PD5/OC1B/T1 PD4/T0

PUOE000

PUOV000

DDOE 0 0 0

DDOV 0 0 0

PVOE 0 OC1B_PVOE 0

PVOV 0 OC1B_PVOV 0

PTOE000

DIEOE ICP ENABLE T1 ENABLE T0 ENABLE

DIEOV111

DI ICP INPUT T1 INPUT T0 INPUT

AIO––AIN1

Table 30. Overriding Signals for Alternate Functions in PD3..PD0

Signal Name PD3/INT1

PUOE 0 0 TXD_OE RXD_OE

PUOV 0 0 0 PORTD0 • PUD

DDOE 0 0 TXD_OE RXD_EN

DDOV 0 0 1 0

PVOE 0 XCKO_PVOE TXD_OE 0

PVOV 0 XCKO_PVOV TXD_PVOV 0

PTOE 0 0 0 0

DIEOE INT1 ENABLE INT0 ENABLE/

DIEOV 1 1 0 0

DI INT1 INPUT INT0 INPUT/

AIO – – – –

PD2/INT0/XCK/ CKOUT PD1/TXD PD0/RXD

00 XCK INPUT ENABLE

– RXD INPUT XCK INPUT

ATtiny2313/V

2543H–AVR–02/05

Register Description for I/O-Ports

ATtiny2313/V

Port A Data Register – PORTA

Port A Data Direction Register – DDRA

Port A Input Pins Address – PINA

Port B Data Register – PORTB

Port B Data Direction Register – DDRB

Bit 76543210

–––––PORTA2PORTA1PORTA0

Read/WriteRRRRRR/WR/WR/W

Initial Value00000000

Bit 76543210

–––––

Read/WriteRRRRRR/WR/WR/W

Initial Value00000000

Bit 76543210

–––––

Read/WriteRRRRRR/WR/WR/W

Initial Value N/A N/A N/A N/A N/A N/A N/A N/A

Bit 76543210

PORTB7 PORTB6 PORT B5 PORTB 4 PORTB3 PORTB2 PORTB1 PORTB0 PORTB

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

Bit 76543210

DDB7 DDB6 DDB5 DDB4 DDB3 DDB2 DDB1 DDB0 DDRB

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

DDA2 DDA1 DDA0 DDRA

PINA2 PINA1 PINA0 PINA

PORTA

Port B Input Pins Address – PINB

Port D Data Register – PORTD

Port D Data Direction Register – DDRD

Port D Input Pins Address – PIND

Bit 76543210

PINB7 PINB6 PINB5 PINB4 PINB3 PINB2 PINB1 PINB0 PINB

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value N/A N/A N/A N/A N/A N/A N/A N/A

Bit 76543210

– PORTD6 PORTD5 PORTD4 PORTD3 PORTD2 PORTD1 PORTD0 PORTD

Read/Write R R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

Bit 76543210

– DDD6 DDD5 DDD4 DDD3 DDD2 DDD1 DDD0 DDRD

Read/Write R R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

Bit 76543210

– PIND6 PIND5 PIND4 PIND3 PIND2 PIND1 PIND0 PIND

Read/Write R R/W R/W R/W R/W R/W R/W R/W

Initial Value N/A N/A N/A N/A N/A N/A N/A N/A

2543H–AVR–02/05

External Interrupts The External Interrupts are triggered by the INT0 pin, INT1 pin or any of the PCINT7..0

pins. Observe that, if enabled, the interrupts will trigger even if the INT0, INT1or PCINT7..0 pins are configured as outputs. This feature provides a way of generating a software interrupt. The pin change interrupt PCI1 will trigger if any enabled PCINT7..8 pin toggles. Pin change interrupts PCI0 will trigger if any enabled PCINT7..0 pin toggles. The PCMSK1 and PCMSK0 Registers control which pins contribute to the pin change interrupts. Pin change interrupts on PCINT7..0 are detected asynchronously. This implies that these interrupts can be used for waking the part also from sleep modes other than Idle mode.

The INT0 and INT1 interrupts can be triggered by a falling or rising edge or a low level. This is set up as indicated in the specification for the External Interrupt Control Register A – EICRA. When the INT0 or INT1 interrupt is enabled and is configured as level triggered, the interrupt will trigger as long as the pin is held low. Note that recognition of falling or rising edge interrupts on INT0 and INT1 requires the presence of an I/O clock, described in “Clock Systems and their Distribution” on page 21. Low level interrupt on INT0 and INT1 is detected asynchronously. This implies that this interrupt can be used for waking the part from sleep modes other than Idle mode. The I/O clock is halted in all sleep modes except Idle mode.

Note that if a level triggered interrupt is used for wake-up from Power-down, the required level must be held long enough for the MCU to complete the wake-up to trigger the level interrupt. If the level disappears before the end of the Start-up Time, the MCU will still wake up, but no interrupt will be generated. The start-up time is defined by the SUT and CKSEL Fuses as described in “System Clock and Clock Options” on page 21.

Pin Change Interrupt Timing

An example of timing of a pin change interrupt is shown in Figure 26.

Figure 26.

PCINT(0)

clk

PCINT(n)

pin_lat

pin_sync

pcint_in_(n)

pcint_syn

pcint_setflag

pin_lat

D Q

clk

pin_sync

PCINT(0) in PCMSK(x)

pcint_in_(0)

clk

pcint_syn

pcint_setflag

PCIF

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

MCU Control Register – MCUCR

The External Interrupt Control Register A contains control bits for interrupt sense control.

Bit 76543210

PUD SM1 SE SMD ISC11 ISC10 ISC01 ISC00 MCUCR

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bit 3, 2 – ISC11, ISC10: Interrupt Sense Control 1 Bit 1 and Bit 0

The External Interrupt 1 is activated by the external pin INT1 if the SREG I-flag and the corresponding interrupt mask are set. The level and edges on the external INT1 pin that activate the interrupt are defined in Table 32. The value on the INT1 pin is sampled before detecting edges. If edge or toggle interrupt is selected, pulses that last longer than one clock period will generate an interrupt. Shorter pulses are not guaranteed to generate an interrupt. If low level interrupt is selected, the low level must be held until the completion of the currently executing instruction to generate an interrupt.

Table 31. Interrupt 0 Sense Control

ISC11 ISC10 Description

0 0 The low level of INT1 generates an interrupt request.

0 1 Any logical change on INT1 generates an interrupt request.

1 0 The falling edge of INT1 generates an interrupt request.

1 1 The rising edge of INT1 generates an interrupt request.

General Interrupt Mask Register – GIMSK

• Bit 1, 0 – ISC01, ISC00: Interrupt Sense Control 0 Bit 1 and Bit 0

The External Interrupt 0 is activated by the external pin INT0 if the SREG I-flag and the corresponding interrupt mask are set. The level and edges on the external INT0 pin that activate the interrupt are defined in Table 32. The value on the INT0 pin is sampled before detecting edges. If edge or toggle interrupt is selected, pulses that last longer than one clock period will generate an interrupt. Shorter pulses are not guaranteed to generate an interrupt. If low level interrupt is selected, the low level must be held until the completion of the currently executing instruction to generate an interrupt.

Table 32. Interrupt 0 Sense Control

ISC01 ISC00 Description

0 0 The low level of INT0 generates an interrupt request.

0 1 Any logical change on INT0 generates an interrupt request.

1 0 The falling edge of INT0 generates an interrupt request.

1 1 The rising edge of INT0 generates an interrupt request.

Bit 76543210

INT1 INT0 PCIE

Read/Write R/W R/W R/W R R R R R

Initial Value 0 0 0 0 0 0 0 0

– – – – –GIMSK

• Bit 7 – INT1: External Interrupt Request 1 Enable

2543H–AVR–02/05

When the INT1 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The Interrupt Sense Control1 bits 1/0 (ISC11 and ISC10) in the MCU Control Register – MCUCR – define whether the external interrupt is

activated on rising and/or falling edge of the INT1 pin or level sensed. Activity on the pin will cause an interrupt request even if INT1 is configured as an output. The corresponding interrupt of External Interrupt Request 1 is executed from the INT1 Interrupt Vector.

• Bit 6 – INT0: External Interrupt Request 0 Enable

When the INT0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The Interrupt Sense Control0 bits 1/0 (ISC01 and ISC00) in the MCU Control Register – MCUCR – define whether the external interrupt is activated on rising and/or falling edge of the INT0 pin or level sensed. Activity on the pin will cause an interrupt request even if INT0 is configured as an output. The corresponding interrupt of External Interrupt Request 0 is executed from the INT0 Interrupt Vector.

• Bit 5 – PCIE: Pin Change Interrupt Enable

When the PCIE bit is set (one) and the I-bit in the Status Register (SREG) is set (one), pin change interrupt 1 is enabled. Any change on any enabled PCINT7..0 pin will cause an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from the PCI Interrupt Vector. PCINT7..0 pins are enabled individually by the PCMSK Register.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

External Interrupt Flag Register – EIFR

Bit 76543210

INTF1 INTF0 PCIF

Read/Write R/W R/W R/W R R R R R

Initial Value 0 0 0 0 0 0 0 0

– – – – –EIFR

• Bit 7 – INTF1: External Interrupt Flag 1

When an edge or logic change on the INT1 pin triggers an interrupt request, INTF1 becomes set (one). If the I-bit in SREG and the INT1 bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. This flag is always cleared when INT1 is configured as a level interrupt.

• Bit 6 – INTF0: External Interrupt Flag 0

When an edge or logic change on the INT0 pin triggers an interrupt request, INTF0 becomes set (one). If the I-bit in SREG and the INT0 bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. This flag is always cleared when INT0 is configured as a level interrupt.

• Bit 5 – PCIF: Pin Change Interrupt Flag

When a logic change on any PCINT7..0 pin triggers an interrupt request, PCIF becomes set (one). If the I-bit in SREG and the PCIE bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it.

Pin Change Mask Register – PCMSK

Bit 76543210

PCINT7 PCINT6 PCINT5 PCINT4 PCINT3 PCINT2 PCINT1 PCINT0 PCMSK

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bit 7..0 – PCINT7..0: Pin Change Enable Mask 15..8

Each PCINT7..0-bit selects whether pin change interrupt is enabled on the corresponding I/O pin. If PCINT7..0 is set and the PCIE bit in GIMSK is set, pin change interrupt is enabled on the corresponding I/O pin. If PCINT7..0 is cleared, pin change interrupt on the corresponding I/O pin is disabled.

2543H–AVR–02/05

8-bit Timer/Counter0 with PWM

Timer/Counter0 is a general purpose 8-bit Timer/Counter module, with two independent Output Compare Units, and with PWM support. It allows accurate program execution timing (event management) and wave generation. The main features are:

Two Independent Output Compare Units

•

• Double Buffered Output Compare Registers

• Clear Timer on Compare Match (Auto Reload)

• Glitch Free, Phase Correct Pulse Width Modulator (PWM)

• Variable PWM Period

• Frequency Generator

• Three Independent Interrupt Sources (TOV0, OCF0A, and OCF0B)

Overview A simplified block diagram of the 8-bit Timer/Counter is shown in Figure 27. For the

actual placement of I/O pins, refer to “Pinout ATtiny2313” on page 2. CPU accessible I/O Registers, including I/O bits and I/O pins, are shown in bold. The device-specific I/O Register and bit locations are listed in the “8-bit Timer/Counter Register Description” on page 73.

Figure 27. 8-bit Timer/Counter Block Diagram

Timer/Counter

TCNTn

Count

Clear

Direction

Control Logic

TOP BOT TOM

clk

= 0

TOVn

(Int.Req.)

Clock Select

Edge

Detector

( From Prescaler )

OCnA

(Int.Req.)

Wavefor m Generation

OCnA

OCRnA

DATA BUS

OCRnB

TCCRnA TCCRnB

Fixed

TOP

Value

OCnB

(Int.Req.)

Wavefor m Generation

OCnB

Registers The Timer/Counter (TCNT0) and Output Compare Registers (OCR0A and OCR0B) are

8-bit registers. Interrupt request (abbreviated to Int.Req. in the figure) signals are all visible in the Timer Interrupt Flag Register (TIFR). All interrupts are individually masked with the Timer Interrupt Mask Register (TIMSK). TIFR and TIMSK are not shown in the figure.

The Timer/Counter can be clocked internally, via the prescaler, or by an external clock source on the T0 pin. The Clock Select logic block controls which clock source and edge the Timer/Counter uses to increment (or decrement) its value. The Timer/Counter is inactive when no clock source is selected. The output from the Clock Select logic is referred to as the timer clock (clk

The double buffered Output Compare Registers (OCR0A and OCR0B) is compared with the Timer/Counter value at all times. The result of the compare can be used by the Waveform Generator to generate a PWM or variable frequency output on the Output

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Compare pins (OC0A and OC0B). See “Output Compare Unit” on page 64. for details. The Compare Match event will also set the Compare Flag (OCF0A or OCF0B) which can be used to generate an Output Compare interrupt request.

Definitions Many register and bit references in this section are written in general form. A lower case

“n” replaces the Timer/Counter number, in this case 0. A lower case “x” replaces the Output Compare Unit, in this case Compare Unit A or Compare Unit B. However, when using the register or bit defines in a program, the precise form must be used, i.e., TCNT0 for accessing Timer/Counter0 counter value and so on.

The definitions in Table 33 are also used extensively throughout the document.

Table 33. Definitions

BOTTOM The counter reaches the BOTTOM when it becomes 0x00.

MAX The counter reaches its MAXimum when it becomes 0xFF (decimal 255).

TOP The counter reaches the TOP when it becomes equal to the highest

value in the count sequence. The TOP value can be assigned to be the fixed value 0xFF (MAX) or the value stored in the OCR0A Register. The assignment is dependent on the mode of operation.

Timer/Counter Clock Sources

The Timer/Counter can be clocked by an internal or an external clock source. The clock source is selected by the Clock Select logic which is controlled by the Clock Select (CS02:0) bits located in the Timer/Counter Control Register (TCCR0B). For details on clock sources and prescaler, see “Timer/Counter0 and Timer/Counter1 Prescalers” on page 80.

Counter Unit The main part of the 8-bit Timer/Counter is the programmable bi-directional counter unit.

Figure 28 shows a block diagram of the counter and its surroundings.

Figure 28. Counter Unit Block Diagram

TOVn

top

(Int.Req.)

clk

Clock Select

Edge

Detector

( From Prescaler )

DATA BUS

count

TCNTn Control Logic

clear

direction

bottom

Signal description (internal signals):

count Increment or decrement TCNT0 by 1.

2543H–AVR–02/05

direction Select between increment and decrement.

clear Clear TCNT0 (set all bits to zero).

clk

Timer/Counter clock, referred to as clkT0 in the following.

top Signalize that TCNT0 has reached maximum value.

bottom Signalize that TCNT0 has reached minimum value (zero).

Depending of the mode of operation used, the counter is cleared, incremented, or decremented at each timer clock (clk

). clkT0 can be generated from an external or internal

clock source, selected by the Clock Select bits (CS02:0). When no clock source is selected (CS02:0 = 0) the timer is stopped. However, the TCNT0 value can be accessed by the CPU, regardless of whether clk

is present or not. A CPU write overrides (has

priority over) all counter clear or count operations.

The counting sequence is determined by the setting of the WGM01 and WGM00 bits located in the Timer/Counter Control Register (TCCR0A) and the WGM02 bit located in the Timer/Counter Control Register B (TCCR0B). There are close connections between how the counter behaves (counts) and how waveforms are generated on the Output Compare output OC0A. For more details about advanced counting sequences and waveform generation, see “Modes of Operation” on page 94.

The Timer/Counter Overflow Flag (TOV0) is set according to the mode of operation selected by the WGM01:0 bits. TOV0 can be used for generating a CPU interrupt.

Output Compare Unit The 8-bit comparator continuously compares TCNT0 with the Output Compare Regis-

ters (OCR0A and OCR0B). Whenever TCNT0 equals OCR0A or OCR0B, the comparator signals a match. A match will set the Output Compare Flag (OCF0A or OCF0B) at the next timer clock cycle. If the corresponding interrupt is enabled, the Output Compare Flag generates an Output Compare interrupt. The Output Compare Flag is automatically cleared when the interrupt is executed. Alternatively, the flag can be cleared by software by writing a logical one to its I/O bit location. The Waveform Generator uses the match signal to generate an output according to operating mode set by the WGM02:0 bits and Compare Output mode (COM0x1:0) bits. The max and bottom signals are used by the Waveform Generator for handling the special cases of the extreme values in some modes of operation (see “Modes of Operation” on page 94).

Figure 29 shows a block diagram of the Output Compare unit.

Figure 29. Output Compare Unit, Block Diagram

DATA BUS

OCRnx

= (8-bit Comparator )

top

bottom

FOCn

Waveform Generator

WGMn1:0

COMnX1:0

TCNTn

OCFnx (Int.Req.)

OCnx

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

The OCR0x Registers are double buffered when using any of the Pulse Width Modulation (PWM) modes. For the normal and Clear Timer on Compare (CTC) modes of operation, the double buffering is disabled. The double buffering synchronizes the update of the OCR0x Compare Registers to either top or bottom of the counting sequence. The synchronization prevents the occurrence of odd-length, non-symmetrical PWM pulses, thereby making the output glitch-free.

The OCR0x Register access may seem complex, but this is not case. When the double buffering is enabled, the CPU has access to the OCR0x Buffer Register, and if double buffering is disabled the CPU will access the OCR0x directly.

Force Output Compare In non-PWM waveform generation modes, the match output of the comparator can be

forced by writing a one to the Force Output Compare (FOC0x) bit. Forcing Compare Match will not set the OCF0x Flag or reload/clear the timer, but the OC0x pin will be updated as if a real Compare Match had occurred (the COM0x1:0 bits settings define whether the OC0x pin is set, cleared or toggled).

Compare Match Blocking by TCNT0 Write

Using the Output Compare Unit

Compare Match Output Unit

All CPU write operations to the TCNT0 Register will block any Compare Match that occur in the next timer clock cycle, even when the timer is stopped. This feature allows OCR0x to be initialized to the same value as TCNT0 without triggering an interrupt when the Timer/Counter clock is enabled.

Since writing TCNT0 in any mode of operation will block all Compare Matches for one timer clock cycle, there are risks involved when changing TCNT0 when using the Output Compare Unit, independently of whether the Timer/Counter is running or not. If the value written to TCNT0 equals the OCR0x value, the Compare Match will be missed, resulting in incorrect waveform generation. Similarly, do not write the TCNT0 value equal to BOTTOM when the counter is down-counting.

The setup of the OC0x should be performed before setting the Data Direction Register for the port pin to output. The easiest way of setting the OC0x value is to use the Force Output Compare (FOC0x) strobe bits in Normal mode. The OC0x Registers keep their values even when changing between Waveform Generation modes.

Be aware that the COM0x1:0 bits are not double buffered together with the compare value. Changing the COM0x1:0 bits will take effect immediately.

The Compare Output mode (COM0x1:0) bits have two functions. The Waveform Generator uses the COM0x1:0 bits for defining the Output Compare (OC0x) state at the next Compare Match. Also, the COM0x1:0 bits control the OC0x pin output source. Figure 30 shows a simplified schematic of the logic affected by the COM0x1:0 bit setting. The I/O Registers, I/O bits, and I/O pins in the figure are shown in bold. Only the parts of the general I/O Port Control Registers (DDR and PORT) that are affected by the COM0x1:0 bits are shown. When referring to the OC0x state, the reference is for the internal OC0x Register, not the OC0x pin. If a system reset occur, the OC0x Register is reset to “0”.

2543H–AVR–02/05

Figure 30. Compare Match Output Unit, Schematic

COMnx1

COMnx0 FOCn

clk

I/O

Waveform

Generator

OCnx

PORT

DATA BU S

DDR

OCn

The general I/O port function is overridden by the Output Compare (OC0x) from the Waveform Generator if either of the COM0x1:0 bits are set. However, the OC0x pin direction (input or output) is still controlled by the Data Direction Register (DDR) for the port pin. The Data Direction Register bit for the OC0x pin (DDR_OC0x) must be set as output before the OC0x value is visible on the pin. The port override function is independent of the Waveform Generation mode.

The design of the Output Compare pin logic allows initialization of the OC0x state before the output is enabled. Note that some COM0x1:0 bit settings are reserved for certain modes of operation. See “8-bit Timer/Counter Register Description” on page 73.

Compare Output Mode and Waveform Generation

The Waveform Generator uses the COM0x1:0 bits differently in Normal, CTC, and PWM modes. For all modes, setting the COM0x1:0 = 0 tells the Waveform Generator that no action on the OC0x Register is to be performed on the next Compare Match. For compare output actions in the non-PWM modes refer to Figure 29 on page 64. For fast PWM mode, refer to Table 26 on page 54, and for phase correct PWM refer to Table 27 on page 54.

A change of the COM0x1:0 bits state will have effect at the first Compare Match after the bits are written. For non-PWM modes, the action can be forced to have immediate effect by using the FOC0x strobe bits.

Modes of Operation The mode of operation, i.e., the behavior of the Timer/Counter and the Output Compare

pins, is defined by the combination of the Waveform Generation mode (WGM02:0) and Compare Output mode (COM0x1:0) bits. The Compare Output mode bits do not affect the counting sequence, while the Waveform Generation mode bits do. The COM0x1:0 bits control whether the PWM output generated should be inverted or not (inverted or non-inverted PWM). For non-PWM modes the COM0x1:0 bits control whether the output should be set, cleared, or toggled at a Compare Match (See “Compare Match Output Unit” on page 65.).

For detailed timing information refer to Figure 34, Figure 35, Figure 36 and Figure 37 in “Timer/Counter Timing Diagrams” on page 71.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Normal Mode The simplest mode of operation is the Normal mode (WGM02:0 = 0). In this mode the

counting direction is always up (incrementing), and no counter clear is performed. The counter simply overruns when it passes its maximum 8-bit value (TOP = 0xFF) and then restarts from the bottom (0x00). In normal operation the Timer/Counter Overflow Flag (TOV0) will be set in the same timer clock cycle as the TCNT0 becomes zero. The TOV0 Flag in this case behaves like a ninth bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV0 Flag, the timer resolution can be increased by software. There are no special cases to consider in the Normal mode, a new counter value can be written anytime.

The Output Compare Unit can be used to generate interrupts at some given time. Using the Output Compare to generate waveforms in Normal mode is not recommended, since this will occupy too much of the CPU time.

Clear Timer on Compare Match (CTC) Mode

In Clear Timer on Compare or CTC mode (WGM02:0 = 2), the OCR0A Register is used to manipulate the counter resolution. In CTC mode the counter is cleared to zero when the counter value (TCNT0) matches the OCR0A. The OCR0A defines the top value for the counter, hence also its resolution. This mode allows greater control of the Compare Match output frequency. It also simplifies the operation of counting external events.

The timing diagram for the CTC mode is shown in Figure 31. The counter value (TCNT0) increases until a Compare Match occurs between TCNT0 and OCR0A, and then counter (TCNT0) is cleared.

Figure 31. CTC Mode, Timing Diagram

OCnx Interrupt Flag Set

TCNTn

OCn (Toggle)

Period

1 4

2 3

(COMnx1:0 = 1)

An interrupt can be generated each time the counter value reaches the TOP value by using the OCF0A Flag. If the interrupt is enabled, the interrupt handler routine can be used for updating the TOP value. However, changing TOP to a value close to BOTTOM when the counter is running with none or a low prescaler value must be done with care since the CTC mode does not have the double buffering feature. If the new value written to OCR0A is lower than the current value of TCNT0, the counter will miss the Compare Match. The counter will then have to count to its maximum value (0xFF) and wrap around starting at 0x00 before the Compare Match can occur.

2543H–AVR–02/05

For generating a waveform output in CTC mode, the OC0A output can be set to toggle its logical level on each Compare Match by setting the Compare Output mode bits to toggle mode (COM0A1:0 = 1). The OC0A value will not be visible on the port pin unless the data direction for the pin is set to output. The waveform generated will have a maxi-

mum frequency of f

OC0

= f

/2 when OCR0A is set to zero (0x00). The waveform

clk_I/O

frequency is defined by the following equation:

OCnx

------------------------------------------------- -=

2 N 1 OCRnx+()⋅⋅

clk_I/O

The N variable represents the prescale factor (1, 8, 64, 256, or 1024).

As for the Normal mode of operation, the TOV0 Flag is set in the same timer clock cycle that the counter counts from MAX to 0x00.

Fast PWM Mode The fast Pulse Width Modulation or fast PWM mode (WGM02:0 = 3 or 7) provides a high

frequency PWM waveform generation option. The fast PWM differs from the other PWM option by its single-slope operation. The counter counts from BOTTOM to TOP then restarts from BOTTOM. TOP is defined as 0xFF when WGM2:0 = 3, and OCR0A when WGM2:0 = 7. In non-inverting Compare Output mode, the Output Compare (OC0x) is cleared on the Compare Match between TCNT0 and OCR0x, and set at BOTTOM. In inverting Compare Output mode, the output is set on Compare Match and cleared at BOTTOM. Due to the single-slope operation, the operating frequency of the fast PWM mode can be twice as high as the phase correct PWM mode that use dual-slope operation. This high frequency makes the fast PWM mode well suited for power regulation, rectification, and DAC applications. High frequency allows physically small sized external components (coils, capacitors), and therefore reduces total system cost.

In fast PWM mode, the counter is incremented until the counter value matches the TOP value. The counter is then cleared at the following timer clock cycle. The timing diagram for the fast PWM mode is shown in Figure 30. The TCNT0 value is in the timing diagram shown as a histogram for illustrating the single-slope operation. The diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT0 slopes represent Compare Matches between OCR0x and TCNT0.

Figure 32. Fast PWM Mode, Timing Diagram

OCRnx Interrupt Flag Set

OCRnx Update and TOVn Interrupt Flag Set

TCNTn

OCn

Period

2 3

4 5 6 7

(COMnx1:0 = 2)

(COMnx1:0 = 3)

The Timer/Counter Overflow Flag (TOV0) is set each time the counter reaches TOP. If the interrupt is enabled, the interrupt handler routine can be used for updating the compare value.

In fast PWM mode, the compare unit allows generation of PWM waveforms on the OC0x pins. Setting the COM0x1:0 bits to two will produce a non-inverted PWM and an

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

inverted PWM output can be generated by setting the COM0x1:0 to three: Setting the COM0A1:0 bits to one allows the AC0A pin to toggle on Compare Matches if the WGM02 bit is set. This option is not available for the OC0B pin (See Table 26 on page

54). The actual OC0x value will only be visible on the port pin if the data direction for the port pin is set as output. The PWM waveform is generated by setting (or clearing) the OC0x Register at the Compare Match between OCR0x and TCNT0, and clearing (or setting) the OC0x Register at the timer clock cycle the counter is cleared (changes from TOP to BOTTOM).

The PWM frequency for the output can be calculated by the following equation:

OCnxPWM

The N variable represents the prescale factor (1, 8, 64, 256, or 1024).

The extreme values for the OCR0A Register represents special cases when generating a PWM waveform output in the fast PWM mode. If the OCR0A is set equal to BOTTOM, the output will be a narrow spike for each MAX+1 timer clock cycle. Setting the OCR0A equal to MAX will result in a constantly high or low output (depending on the polarity of the output set by the COM0A1:0 bits.)

A frequency (with 50% duty cycle) waveform output in fast PWM mode can be achieved by setting OC0x to toggle its logical level on each Compare Match (COM0x1:0 = 1). The waveform generated will have a maximum frequency of f set to zero. This feature is similar to the OC0A toggle in CTC mode, except the double buffer feature of the Output Compare unit is enabled in the fast PWM mode.

clk_I/O

----------------- -=

N 256⋅

OC0

= f

/2 when OCR0A is

clk_I/O

Phase Correct PWM Mode The phase correct PWM mode (WGM02:0 = 1 or 5) provides a high resolution phase

correct PWM waveform generation option. The phase correct PWM mode is based on a dual-slope operation. The counter counts repeatedly from BOTTOM to TOP and then from TOP to BOTTOM. TOP is defined as 0xFF when WGM2:0 = 1, and OCR0A when WGM2:0 = 5. In non-inverting Compare Output mode, the Output Compare (OC0x) is cleared on the Compare Match between TCNT0 and OCR0x while upcounting, and set on the Compare Match while down-counting. In inverting Output Compare mode, the operation is inverted. The dual-slope operation has lower maximum operation frequency than single slope operation. However, due to the symmetric feature of the dual-slope PWM modes, these modes are preferred for motor control applications.

In phase correct PWM mode the counter is incremented until the counter value matches TOP. When the counter reaches TOP, it changes the count direction. The TCNT0 value will be equal to TOP for one timer clock cycle. The timing diagram for the phase correct PWM mode is shown on Figure 33. The TCNT0 value is in the timing diagram shown as a histogram for illustrating the dual-slope operation. The diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT0 slopes represent Compare Matches between OCR0x and TCNT0.

2543H–AVR–02/05

Figure 33. Phase Correct PWM Mode, Timing Diagram

TCNTn

OCnx Interrupt Flag Set

OCRnx Update

TOVn Interrupt Flag Set

OCn

Period

1 2 3

(COMnx1:0 = 2)

(COMnx1:0 = 3)

The Timer/Counter Overflow Flag (TOV0) is set each time the counter reaches BOTTOM. The Interrupt Flag can be used to generate an interrupt each time the counter reaches the BOTTOM value.

In phase correct PWM mode, the compare unit allows generation of PWM waveforms on the OC0x pins. Setting the COM0x1:0 bits to two will produce a non-inverted PWM. An inverted PWM output can be generated by setting the COM0x1:0 to three: Setting the COM0A0 bits to one allows the OC0A pin to toggle on Compare Matches if the WGM02 bit is set. This option is not available for the OC0B pin (See Table 27 on page 54). The actual OC0x value will only be visible on the port pin if the data direction for the port pin is set as output. The PWM waveform is generated by clearing (or setting) the OC0x Register at the Compare Match between OCR0x and TCNT0 when the counter increments, and setting (or clearing) the OC0x Register at Compare Match between OCR0x and TCNT0 when the counter decrements. The PWM frequency for the output when using phase correct PWM can be calculated by the following equation:

OCnxPCPWM

clk_I/O

----------------- -=

N 510⋅

The N variable represents the prescale factor (1, 8, 64, 256, or 1024).

The extreme values for the OCR0A Register represent special cases when generating a PWM waveform output in the phase correct PWM mode. If the OCR0A is set equal to BOTTOM, the output will be continuously low and if set equal to MAX the output will be continuously high for non-inverted PWM mode. For inverted PWM the output will have the opposite logic values.

At the very start of period 2 in Figure 33 OCn has a transition from high to low even though there is no Compare Match. The point of this transition is to guarantee symmetry around BOTTOM. There are two cases that give a transition without Compare Match.

• OCR0A changes its value from MAX, like in Figure 33. When the OCR0A value is MAX the OCn pin value is the same as the result of a down-counting Compare

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Match. To ensure symmetry around BOTTOM the OCn value at MAX must correspond to the result of an up-counting Compare Match.

• The timer starts counting from a value higher than the one in OCR0A, and for that reason misses the Compare Match and hence the OCn change that would have happened on the way up.

Timer/Counter Timing Diagrams

The Timer/Counter is a synchronous design and the timer clock (clkT0) is therefore shown as a clock enable signal in the following figures. The figures include information on when Interrupt Flags are set. Figure 34 contains timing data for basic Timer/Counter operation. The figure shows the count sequence close to the MAX value in all modes other than phase correct PWM mode.

Figure 34. Timer/Counter Timing Diagram, no Prescaling

clk

I/O

clk

(clk

/1)

I/O

TCNTn MAX - 1 MAX BOTTOM BOTTOM + 1

TOVn

Figure 34 shows the same timing data, but with the prescaler enabled.

Figure 35. Timer/Counter Timing Diagram, with Prescaler (f

clk

I/O

clk

(clk

/8)

I/O

clk_I/O

/8)

2543H–AVR–02/05

TCNTn

TOVn

MAX - 1 MAX BOTTOM BOTTOM + 1

Figure 36 shows the setting of OCF0B in all modes and OCF0A in all modes except CTC mode and PWM mode, where OCR0A is TOP.

Figure 36. Timer/Counter Timing Diagram, Setting of OCF0x, with Prescaler (f

clk

I/O

clk

(clk

/8)

I/O

TCNTn

OCRnx

OCFnx

OCRnx - 1 OCRnx OCRnx + 1 OCRnx + 2

OCRnx Value

clk_I/O

/8)

Figure 37 shows the setting of OCF0A and the clearing of TCNT0 in CTC mode and fast PWM mode where OCR0A is TOP.

Figure 37. Timer/Counter Timing Diagram, Clear Timer on Compare Match mode, with Prescaler (f

clk

I/O

clk

(clk

/8)

I/O

TCNTn

(CTC)

clk_I/O

/8)

TOP - 1 TOP BOTTOM BOTTOM + 1

OCRnx

OCFnx

TOP

ATtiny2313/V

2543H–AVR–02/05

8-bit Timer/Counter Register Description

ATtiny2313/V

Timer/Counter Control Register A – TCCR0A

Bit 7 6 5 4 3 2 1 0

COM0A1 COM0A0 COM0B1 COM0B0 – – WGM01 WGM00 TCCR0A

Read/Write R/W R/W R/W R/W R R R/W R/W

Initial Value 0 0 0 0 0 0 0 0

• Bits 7:6 – COM0A1:0: Compare Match Output A Mode

These bits control the Output Compare pin (OC0A) behavior. If one or both of the COM0A1:0 bits are set, the OC0A output overrides the normal port functionality of the I/O pin it is connected to. However, note that the Data Direction Register (DDR) bit corresponding to the OC0A pin must be set in order to enable the output driver.

When OC0A is connected to the pin, the function of the COM0A1:0 bits depends on the WGM02:0 bit setting. Table 34 shows the COM0A1:0 bit functionality when the WGM02:0 bits are set to a normal or CTC mode (non-PWM).

Table 34. Compare Output Mode, non-PWM Mode

COM0A1 COM0A0 Description

0 0 Normal port operation, OC0A disconnected.

0 1 Toggle OC0A on Compare Match

1 0 Clear OC0A on Compare Match

1 1 Set OC0A on Compare Match

Table 35 shows the COM0A1:0 bit functionality when the WGM01:0 bits are set to fast PWM mode.

Table 35. Compare Output Mode, Fast PWM Mode

COM0A1 COM0A0 Description

0 0 Normal port operation, OC0A disconnected.

0 1 WGM02 = 0: Normal Port Operation, OC0A Disconnected.

WGM02 = 1: Toggle OC0A on Compare Match.

1 0 Clear OC0A on Compare Match, set OC0A at TOP

1 1 Set OC0A on Compare Match, clear OC0A at TOP

Note: 1. A special case occurs when OCR0A equals TOP and COM0A1 is set. In this case,

the Compare Match is ignored, but the set or clear is done at TOP. See “Fast PWM Mode” on page 68 for more details.

(1)

2543H–AVR–02/05

Table 36 shows the COM0A1:0 bit functionality when the WGM02:0 bits are set to phase correct PWM mode.

Table 36. Compare Output Mode, Phase Correct PWM Mode

COM0A1 COM0A0 Description

0 0 Normal port operation, OC0A disconnected.

0 1 WGM02 = 0: Normal Port Operation, OC0A Disconnected.

WGM02 = 1: Toggle OC0A on Compare Match.

1 0 Clear OC0A on Compare Match when up-counting. Set OC0A on

Compare Match when down-counting.

1 1 Set OC0A on Compare Match when up-counting. Clear OC0A on

Compare Match when down-counting.

Note: 1. A special case occurs when OCR0A equals TOP and COM0A1 is set. In this case,

the Compare Match is ignored, but the set or clear is done at TOP. See “Phase Correct PWM Mode” on page 69 for more details.

(1)

• Bits 5:4 – COM0B1:0: Compare Match Output B Mode

These bits control the Output Compare pin (OC0B) behavior. If one or both of the COM0B1:0 bits are set, the OC0B output overrides the normal port functionality of the I/O pin it is connected to. However, note that the Data Direction Register (DDR) bit corresponding to the OC0B pin must be set in order to enable the output driver.

When OC0B is connected to the pin, the function of the COM0B1:0 bits depends on the WGM02:0 bit setting. Table 37 shows the COM0A1:0 bit functionality when the WGM02:0 bits are set to a normal or CTC mode (non-PWM).

Table 37. Compare Output Mode, non-PWM Mode

COM0B1 COM0B0 Description

0 0 Normal port operation, OC0B disconnected.

0 1 Toggle OC0B on Compare Match

1 0 Clear OC0B on Compare Match

1 1 Set OC0B on Compare Match

Table 38 shows the COM0B1:0 bit functionality when the WGM02:0 bits are set to fast PWM mode.

Table 38. Compare Output Mode, Fast PWM Mode

COM0B1 COM0B0 Description

0 0 Normal port operation, OC0B disconnected.

01Reserved

1 0 Clear OC0B on Compare Match, set OC0B at TOP

1 1 Set OC0B on Compare Match, clear OC0B at TOP

Note: 1. A special case occurs when OCR0B equals TOP and COM0B1 is set. In this case,

the Compare Match is ignored, but the set or clear is done at TOP. See “Fast PWM Mode” on page 68 for more details.

(1)

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Table 39 shows the COM0B1:0 bit functionality when the WGM02:0 bits are set to phase correct PWM mode.

Table 39. Compare Output Mode, Phase Correct PWM Mode

COM0B1 COM0B0 Description

0 0 Normal port operation, OC0B disconnected.

01Reserved

1 0 Clear OC0B on Compare Match when up-counting. Set OC0B on

Compare Match when down-counting.

1 1 Set OC0B on Compare Match when up-counting. Clear OC0B on

Compare Match when down-counting.

Note: 1. A special case occurs when OCR0B equals TOP and COM0B1 is set. In this case,

the Compare Match is ignored, but the set or clear is done at TOP. See “Phase Correct PWM Mode” on page 69 for more details.

(1)

• Bits 3, 2 – Res: Reserved Bits

These bits are reserved bits in the ATtiny2313 and will always read as zero.

• Bits 1:0 – WGM01:0: Waveform Generation Mode

Combined with the WGM02 bit found in the TCCR0B Register, these bits control the counting sequence of the counter, the source for maximum (TOP) counter value, and what type of waveform generation to be used, see Table 40. Modes of operation supported by the Timer/Counter unit are: Normal mode (counter), Clear Timer on Compare Match (CTC) mode, and two types of Pulse Width Modulation (PWM) modes (see “Modes of Operation” on page 94).

Table 40. Waveform Generation Mode Bit Description

Timer/Counter Mode of

Mode WGM2 WGM1 WGM0

0 0 0 0 Normal 0xFF Immediate MAX

1 0 0 1 PWM, Phase

2 0 1 0 CTC OCRA Immediate MAX

3 0 1 1 Fast PWM 0xFF TOP MAX

41 0 0Reserved – – –

5 1 0 1 PWM, Phase

61 1 0Reserved – – –

7 1 1 1 Fast PWM OCRA TOP TOP

Notes: 1. MAX = 0xFF

2. BOTTOM = 0x00

Operation TOP

0xFF TOP BOTTOM

Correct

OCRA TOP BOTTOM

Correct

Update of

OCRx at

TOV Flag

Set on

(1)(2)

2543H–AVR–02/05

Timer/Counter Control Register B – TCCR0B

Bit 7 6 5 4 3 2 1 0

FOC0A FOC0B – – WGM02 CS02 CS01 CS00 TCCR0B

Read/Write W W R R R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

• Bit 7 – FOC0A: Force Output Compare A

The FOC0A bit is only active when the WGM bits specify a non-PWM mode.

However, for ensuring compatibility with future devices, this bit must be set to zero when TCCR0B is written when operating in PWM mode. When writing a logical one to the FOC0A bit, an immediate Compare Match is forced on the Waveform Generation unit. The OC0A output is changed according to its COM0A1:0 bits setting. Note that the FOC0A bit is implemented as a strobe. Therefore it is the value present in the COM0A1:0 bits that determines the effect of the forced compare.

A FOC0A strobe will not generate any interrupt, nor will it clear the timer in CTC mode using OCR0A as TOP.

The FOC0A bit is always read as zero.

• Bit 6 – FOC0B: Force Output Compare B

The FOC0B bit is only active when the WGM bits specify a non-PWM mode.

However, for ensuring compatibility with future devices, this bit must be set to zero when TCCR0B is written when operating in PWM mode. When writing a logical one to the FOC0B bit, an immediate Compare Match is forced on the Waveform Generation unit. The OC0B output is changed according to its COM0B1:0 bits setting. Note that the FOC0B bit is implemented as a strobe. Therefore it is the value present in the COM0B1:0 bits that determines the effect of the forced compare.

A FOC0B strobe will not generate any interrupt, nor will it clear the timer in CTC mode using OCR0B as TOP.

The FOC0B bit is always read as zero.

• Bits 5:4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny2313 and will always read as zero.

• Bit 3 – WGM02: Waveform Generation Mode

See the description in the “Timer/Counter Control Register A – TCCR0A” on page 73.

• Bits 2:0 – CS02:0: Clock Select

The three Clock Select bits select the clock source to be used by the Timer/Counter. See Table 41 on page 77.

ATtiny2313/V

2543H–AVR–02/05

Table 41. Clock Select Bit Description

CS02 CS01 CS00 Description

0 0 0 No clock source (Timer/Counter stopped)

ATtiny2313/V

Timer/Counter Register – TCNT0

001clk

010clk

011clk

100clk

101clk

/(No prescaling)

I/O

/8 (From prescaler)

I/O

/64 (From prescaler)

I/O

/256 (From prescaler)

I/O

/1024 (From prescaler)

I/O

1 1 0 External clock source on T0 pin. Clock on falling edge.

1 1 1 External clock source on T0 pin. Clock on rising edge.

If external pin modes are used for the Timer/Counter0, transitions on the T0 pin will clock the counter even if the pin is configured as an output. This feature allows software control of the counting.

Bit 76543210

TCNT0[7:0] TCNT0

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

The Timer/Counter Register gives direct access, both for read and write operations, to the Timer/Counter unit 8-bit counter. Writing to the TCNT0 Register blocks (removes) the Compare Match on the following timer clock. Modifying the counter (TCNT0) while the counter is running, introduces a risk of missing a Compare Match between TCNT0 and the OCR0x Registers.

Output Compare Register A – OCR0A

Output Compare Register B – OCR0B

Bit 76543210

OCR0A[7:0] OCR0A

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

The Output Compare Register A contains an 8-bit value that is continuously compared with the counter value (TCNT0). A match can be used to generate an Output Compare interrupt, or to generate a waveform output on the OC0A pin.

Bit 76543210

OCR0B[7:0] OCR0B

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

The Output Compare Register B contains an 8-bit value that is continuously compared with the counter value (TCNT0). A match can be used to generate an Output Compare interrupt, or to generate a waveform output on the OC0B pin.

2543H–AVR–02/05

Timer/Counter Interrupt Mask Register – TIMSK

Bit 76543210

TOIE1 OCIE1A OCIE1B – ICIE1 OCIE0B TOIE0 OCIE0A TIMSK

Read/Write R/W R/W R/W R R/W R/W R/W R/W

Initial Value00000000

• Bit 4 – Res: Reserved Bit

This bit is reserved bit in the ATtiny2313 and will always read as zero.

• Bit 2 – OCIE0B: Timer/Counter0 Output Compare Match B Interrupt Enable

When the OCIE0B bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter Compare Match B interrupt is enabled. The corresponding interrupt is executed if a Compare Match in Timer/Counter occurs, i.e., when the OCF0B bit is set in the Timer/Counter Interrupt Flag Register – TIFR.

• Bit 1 – TOIE0: Timer/Counter0 Overflow Interrupt Enable

When the TOIE0 bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter0 Overflow interrupt is enabled. The corresponding interrupt is executed if an overflow in Timer/Counter0 occurs, i.e., when the TOV0 bit is set in the Timer/Counter 0 Interrupt Flag Register – TIFR.

• Bit 0 – OCIE0A: Timer/Counter0 Output Compare Match A Interrupt Enable

When the OCIE0A bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter0 Compare Match A interrupt is enabled. The corresponding interrupt is executed if a Compare Match in Timer/Counter0 occurs, i.e., when the OCF0A bit is set in the Timer/Counter 0 Interrupt Flag Register – TIFR.

Timer/Counter Interrupt Flag Register – TIFR

Bit 76543210

TOV1 OCF1A OCF1B – ICF1 OCF0B TOV0 OCF0A TIFR

Read/Write R/W R/W R/W R R/W R/W R/W R/W

Initial Value00000000

• Bit 4 – Res: Reserved Bit

This bit is reserved bit in the ATtiny2313 and will always read as zero.

• Bit 2 – OCF0B: Output Compare Flag 0 B

The OCF0B bit is set when a Compare Match occurs between the Timer/Counter and the data in OCR0B – Output Compare Register0 B. OCF0B is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, OCF0B is cleared by writing a logic one to the flag. When the I-bit in SREG, OCIE0B (Timer/Counter Compare B Match Interrupt Enable), and OCF0B are set, the Timer/Counter Compare Match Interrupt is executed.

• Bit 1 – TOV0: Timer/Counter0 Overflow Flag

The bit TOV0 is set when an overflow occurs in Timer/Counter0. TOV0 is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, TOV0 is cleared by writing a logic one to the flag. When the SREG I-bit, TOIE0 (Timer/Counter0 Overflow Interrupt Enable), and TOV0 are set, the Timer/Counter0 Overflow interrupt is executed.

The setting of this flag is dependent of the WGM02:0 bit setting. Refer to Table 40, “Waveform Generation Mode Bit Description” on page 75.

• Bit 0 – OCF0A: Output Compare Flag 0 A

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

The OCF0A bit is set when a Compare Match occurs between the Timer/Counter0 and the data in OCR0A – Output Compare Register0 A. OCF0A is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, OCF0A is cleared by writing a logic one to the flag. When the I-bit in SREG, OCIE0A (Timer/Counter0 Compare Match Interrupt Enable), and OCF0A are set, the Timer/Counter0 Compare Match Interrupt is executed.

2543H–AVR–02/05

Timer/Counter0 and Timer/Counter1

Timer/Counter1 and Timer/Counter0 share the same prescaler module, but the Timer/Counters can have different prescaler settings. The description below applies to both Timer/Counter1 and Timer/Counter0.

Prescalers

Internal Clock Source The Timer/Counter can be clocked directly by the system clock (by setting the CSn2:0 =

1). This provides the fastest operation, with a maximum Timer/Counter clock frequency

equal to system clock frequency (f caler can be used as a clock source. The prescaled clock has a frequency of either f

CLK_I/O

/8, f

CLK_I/O

/64, f

CLK_I/O

/256, or f

Prescaler Reset The prescaler is free running, i.e., operates independently of the Clock Select logic of

the Timer/Counter, and it is shared by Timer/Counter1 and Timer/Counter0. Since the prescaler is not affected by the Timer/Counter’s clock select, the state of the prescaler will have implications for situations where a prescaled clock is used. One example of prescaling artifacts occurs when the timer is enabled and clocked by the prescaler (6 > CSn2:0 > 1). The number of system clock cycles from when the timer is enabled to the first count occurs can be from 1 to N+1 system clock cycles, where N equals the prescaler divisor (8, 64, 256, or 1024).

It is possible to use the prescaler reset for synchronizing the Timer/Counter to program execution. However, care must be taken if the other Timer/Counter that shares the same prescaler also uses prescaling. A prescaler reset will affect the prescaler period for all Timer/Counters it is connected to.

). Alternatively, one of four taps from the pres-

CLK_I/O

/1024.

CLK_I/O

External Clock Source An external clock source applied to the T1/T0 pin can be used as Timer/Counter clock

(clk

/clkT0). The T1/T0 pin is sampled once every system clock cycle by the pin syn-

chronization logic. The synchronized (sampled) signal is then passed through the edge detector. Figure 38 shows a functional equivalent block diagram of the T1/T0 synchronization and edge detector logic. The registers are clocked at the positive edge of the internal system clock (

clk

). The latch is transparent in the high period of the internal

I/O

system clock.

The edge detector generates one clk

/clk

pulse for each positive (CSn2:0 = 7) or neg-

ative (CSn2:0 = 6) edge it detects.

Figure 38. T1/T0 Pin Sampling

clk

I/O

DQDQ

Edge DetectorSynchronization

Tn_sync

(To Clock Select Logic)

The synchronization and edge detector logic introduces a delay of 2.5 to 3.5 system clock cycles from an edge has been applied to the T1/T0 pin to the counter is updated.

Enabling and disabling of the clock input must be done when T1/T0 has been stable for at least one system clock cycle, otherwise it is a risk that a false Timer/Counter clock pulse is generated.

ATtiny2313/V

Each half period of the external clock applied must be longer than one system clock cycle to ensure correct sampling. The external clock must be guaranteed to have less than half the system clock frequency (f

ExtClk

< f

/2) given a 50/50% duty cycle. Since

clk_I/O

2543H–AVR–02/05

ATtiny2313/V

the edge detector uses sampling, the maximum frequency of an external clock it can detect is half the sampling frequency (Nyquist sampling theorem). However, due to variation of the system clock frequency and duty cycle caused by Oscillator source (crystal, resonator, and capacitors) tolerances, it is recommended that maximum frequency of an external clock source is less than f

An external clock source can not be prescaled.

clk_I/O

/2.5.

General Timer/Counter Control Register – GTCCR

Figure 39. Prescaler for Timer/Counter0 and Timer/Counter1

clk

I/O

PSR10

Synchronization

clk

Clear

(1)

clk

Note: 1. The synchronization logic on the input pins (T1/T0) is shown in Figure 38.

Bit 7 6 5 4 3 2 1 0

— – – – – – — PSR10 GTCCR

Read/Write R R R R R R R R/W

Initial Value 0 0 0 0 0 0 0 0

2543H–AVR–02/05

• Bits 7..1 – Res: Reserved Bits

These bits are reserved bits in the ATtiny2313 and will always read as zero.

• Bit 0 – PSR10: Prescaler Reset Timer/Counter1 and Timer/Counter0

When this bit is one, Timer/Counter1 and Timer/Counter0 prescaler will be Reset. This bit is normally cleared immediately by hardware. Note that Timer/Counter1 and Timer/Counter0 share the same prescaler and a reset of this prescaler will affect both timers.

16-bit Timer/Counter1

The 16-bit Timer/Counter unit allows accurate program execution timing (event management), wave generation, and signal timing measurement. The main features are:

True 16-bit Design (i.e., Allows 16-bit PWM)

•

• Two independent Output Compare Units

• Double Buffered Output Compare Registers

• One Input Capture Unit

• Input Capture Noise Canceler

• Clear Timer on Compare Match (Auto Reload)

• Glitch-free, Phase Correct Pulse Width Modulator (PWM)

• Variable PWM Period

• Frequency Generator

• External Event Counter

• Four independent interrupt Sources (TOV1, OCF1A, OCF1B, and ICF1)

Overview Most register and bit references in this section are written in general form. A lower case

“n” replaces the Timer/Counter number, and a lower case “x” replaces the Output Compare unit channel. However, when using the register or bit defines in a program, the precise form must be used, i.e., TCNT1 for accessing Timer/Counter1 counter value and so on.

A simplified block diagram of the 16-bit Timer/Counter is shown in Figure 40. For the actual placement of I/O pins, refer to “Pinout ATtiny2313” on page 2. CPU accessible I/O Registers, including I/O bits and I/O pins, are shown in bold. The device-specific I/O Register and bit locations are listed in the “16-bit Timer/Counter Register Description” on page 104.

Figure 40. 16-bit Timer/Counter Block Diagram

Count

Clear

Control Logic

Direction

TOP BOTTOM

Timer/Counter

TCNTn

OCRnA

DATA B U S

OCRnB

ICRn

TCCRnA TCCRnB

Fixed

TOP

Values

ICFn (Int.Req.)

(1)

clk

= 0

Edge

Detector

TOVn

(Int.Req.)

Clock Select

Edge

Detector

( From Prescaler )

OCnA

(Int.Req.)

Wavefo rm

Generation

OCnB

(Int.Req.)

Wavefo rm

Generation

Noise

Canceler

OCnA

OCnB

( From Analog

Comparator Ouput )

ICPn

Note: 1. Refer to Figure 1 on page 2 for Timer/Counter1 pin placement and description.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Registers The Timer/Counter (TCNT1), Output Compare Registers (OCR1A/B), and Input Capture

Register (ICR1) are all 16-bit registers. Special procedures must be followed when accessing the 16-bit registers. These procedures are described in the section “Accessing 16-bit Registers” on page 84. The Timer/Counter Control Registers (TCCR1A/B) are 8-bit registers and have no CPU access restrictions. Interrupt requests (abbreviated to Int.Req. in the figure) signals are all visible in the Timer Interrupt Flag Register (TIFR). All interrupts are individually masked with the Timer Interrupt Mask Register (TIMSK). TIFR and TIMSK are not shown in the figure.

The Timer/Counter can be clocked internally, via the prescaler, or by an external clock source on the T1 pin. The Clock Select logic block controls which clock source and edge the Timer/Counter uses to increment (or decrement) its value. The Timer/Counter is inactive when no clock source is selected. The output from the Clock Select logic is referred to as the timer clock (clk

The double buffered Output Compare Registers (OCR1A/B) are compared with the Timer/Counter value at all time. The result of the compare can be used by the Waveform Generator to generate a PWM or variable frequency output on the Output Compare pin (OC1A/B). See “Output Compare Units” on page 91.. The compare match event will also set the Compare Match Flag (OCF1A/B) which can be used to generate an Output Compare interrupt request.

The Input Capture Register can capture the Timer/Counter value at a given external (edge triggered) event on either the Input Capture pin (ICP1) or on the Analog Comparator pins (See “Analog Comparator” on page 149.) The Input Capture unit includes a digital filtering unit (Noise Canceler) for reducing the chance of capturing noise spikes.

The TOP value, or maximum Timer/Counter value, can in some modes of operation be defined by either the OCR1A Register, the ICR1 Register, or by a set of fixed values. When using OCR1A as TOP value in a PWM mode, the OCR1A Register can not be used for generating a PWM output. However, the TOP value will in this case be double buffered allowing the TOP value to be changed in run time. If a fixed TOP value is required, the ICR1 Register can be used as an alternative, freeing the OCR1A to be used as PWM output.

Definitions The following definitions are used extensively throughout the section:

Table 42. Definitions

BOTTOM The counter reaches the BOTTOM when it becomes 0x0000. MAX The counter reaches its MAXimum when it becomes 0xFFFF (decimal 65535).

The counter reaches the TOP when it becomes equal to the highest value in the

TOP

count sequence. The TOP value can be assigned to be one of the fixed values: 0x00FF, 0x01FF, or 0x03FF, or to the value stored in the OCR1A or ICR1 Register. The assignment is dependent of the mode of operation.

Compatibility The 16-bit Timer/Counter has been updated and improved from previous versions of the

16-bit AVR Timer/Counter. This 16-bit Timer/Counter is fully compatible with the earlier version regarding:

• All 16-bit Timer/Counter related I/O Register address locations, including Timer Interrupt Registers.

• Bit locations inside all 16-bit Timer/Counter Registers, including Timer Interrupt Registers.

• Interrupt Vectors.

2543H–AVR–02/05

The following control bits have changed name, but have same functionality and register location:

• PWM10 is changed to WGM10.

• PWM11 is changed to WGM11.

• CTC1 is changed to WGM12.

The following bits are added to the 16-bit Timer/Counter Control Registers:

• FOC1A and FOC1B are added to TCCR1A.

• WGM13 is added to TCCR1B.

The 16-bit Timer/Counter has improvements that will affect the compatibility in some special cases.

Accessing 16-bit Registers

The TCNT1, OCR1A/B, and ICR1 are 16-bit registers that can be accessed by the AVR CPU via the 8-bit data bus. The 16-bit register must be byte accessed using two read or write operations. Each 16-bit timer has a single 8-bit register for temporary storing of the high byte of the 16-bit access. The same temporary register is shared between all 16-bit registers within each 16-bit timer. Accessing the low byte triggers the 16-bit read or write operation. When the low byte of a 16-bit register is written by the CPU, the high byte stored in the temporary register, and the low byte written are both copied into the 16-bit register in the same clock cycle. When the low byte of a 16-bit register is read by the CPU, the high byte of the 16-bit register is copied into the temporary register in the same clock cycle as the low byte is read.

Not all 16-bit accesses uses the temporary register for the high byte. Reading the OCR1A/B 16-bit registers does not involve using the temporary register.

To do a 16-bit write, the high byte must be written before the low byte. For a 16-bit read, the low byte must be read before the high byte.

The following code examples show how to access the 16-bit timer registers assuming that no interrupts updates the temporary register. The same principle can be used directly for accessing the OCR1A/B and ICR1 Registers. Note that when using “C”, the compiler handles the 16-bit access.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Assembly Code Examples

...

; Set TCNT1 to 0x01FF

ldi r17,0x01

ldi r16,0xFF

out TCNT1H,r17 out TCNT1L,r16

; Read TCNT1 into r17:r16

in r16,TCNT1L in r17,TCNT1H

...

C Code Examples

unsigned int i;

...

/* Set TCNT1 to 0x01FF */ TCNT1 = 0x1FF; /* Read TCNT1 into i */ i = TCNT1;

...

Note: 1. The example code assumes that the part specific header file is included.

For I/O Registers located in extended I/O map, “IN”, “OUT”, “SBIS”, “SBIC”, “CBI”, and “SBI” instructions must be replaced with instructions that allow access to extended I/O. Typically “LDS” and “STS” combined with “SBRS”, “SBRC”, “SBR”, and “CBR”.

(1)

The assembly code example returns the TCNT1 value in the r17:r16 register pair.

It is important to notice that accessing 16-bit registers are atomic operations. If an interrupt occurs between the two instructions accessing the 16-bit register, and the interrupt code updates the temporary register by accessing the same or any other of the 16-bit timer registers, then the result of the access outside the interrupt will be corrupted. Therefore, when both the main code and the interrupt code update the temporary register, the main code must disable the interrupts during the 16-bit access.

2543H–AVR–02/05

The following code examples show how to do an atomic read of the TCNT1 Register contents. Reading any of the OCR1A/B or ICR1 Registers can be done by using the same principle.

Assembly Code Example

TIM16_ReadTCNT1:

; Save global interrupt flag

in r18,SREG

; Disable interrupts

cli

; Read TCNT1 into r17:r16

in r16,TCNT1L in r17,TCNT1H

; Restore global interrupt flag

out SREG,r18

ret

C Code Example

unsigned int TIM16_ReadTCNT1( void )

{

unsigned char sreg;

unsigned int i;

/* Save global interrupt flag */

sreg = SREG;

/* Disable interrupts */

__disable_interrupt();

/* Read TCNT1 into i */ i = TCNT1;

/* Restore global interrupt flag */

SREG = sreg;

return i;

}

(1)

Note: 1. The example code assumes that the part specific header file is included.

The assembly code example returns the TCNT1 value in the r17:r16 register pair.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

The following code examples show how to do an atomic write of the TCNT1 Register contents. Writing any of the OCR1A/B or ICR1 Registers can be done by using the same principle.

Assembly Code Example

TIM16_WriteTCNT1:

; Save global interrupt flag

in r18,SREG

; Disable interrupts

cli

; Set TCNT1 to r17:r16

out TCNT1H,r17 out TCNT1L,r16

; Restore global interrupt flag

out SREG,r18

ret

C Code Example

void TIM16_WriteTCNT1( unsigned int i )

{

unsigned char sreg;

unsigned int i;

/* Save global interrupt flag */

sreg = SREG;

/* Disable interrupts */

__disable_interrupt();

/* Set TCNT1 to i */ TCNT1 = i;

/* Restore global interrupt flag */

SREG = sreg;

}

(1)

Reusing the Temporary High Byte Register

2543H–AVR–02/05

Note: 1. The example code assumes that the part specific header file is included.

The assembly code example requires that the r17:r16 register pair contains the value to be written to TCNT1.

If writing to more than one 16-bit register where the high byte is the same for all registers written, then the high byte only needs to be written once. However, note that the same rule of atomic operation described previously also applies in this case.

Timer/Counter Clock Sources

The Timer/Counter can be clocked by an internal or an external clock source. The clock source is selected by the Clock Select logic which is controlled by the Clock Select (CS12:0) bits located in the Timer/Counter control Register B (TCCR1B). For details on clock sources and prescaler, see “Timer/Counter0 and Timer/Counter1 Prescalers” on page 80.

Counter Unit The main part of the 16-bit Timer/Counter is the programmable 16-bit bi-directional

counter unit. Figure 41 shows a block diagram of the counter and its surroundings.

Figure 41. Counter Unit Block Diagram

DATA BUS (8-bit)

TOVn

(Int.Req.)

TEMP (8-bit)

Count

TCNTnH (8-bit) TCNTnL (8-bit)

TCNTn (16-bit Counter)

Clear

Direction

Control Logic

TOP BOTTOM

Signal description (internal signals):

Count Increment or decrement TCNT1 by 1.

clk

Clock Select

Edge

Detector

( From Prescaler )

Direction Select between increment and decrement.

Clear Clear TCNT1 (set all bits to zero).

clk

Timer/Counter clock.

TOP Signalize that TCNT1 has reached maximum value.

BOTTOM Signalize that TCNT1 has reached minimum value (zero).

The 16-bit counter is mapped into two 8-bit I/O memory locations: Counter High (TCNT1H) containing the upper eight bits of the counter, and Counter Low (TCNT1L) containing the lower eight bits. The TCNT1H Register can only be indirectly accessed by the CPU. When the CPU does an access to the TCNT1H I/O location, the CPU accesses the high byte temporary register (TEMP). The temporary register is updated with the TCNT1H value when the TCNT1L is read, and TCNT1H is updated with the temporary register value when TCNT1L is written. This allows the CPU to read or write the entire 16-bit counter value within one clock cycle via the 8-bit data bus. It is important to notice that there are special cases of writing to the TCNT1 Register when the counter is counting that will give unpredictable results. The special cases are described in the sections where they are of importance.

Depending on the mode of operation used, the counter is cleared, incremented, or decremented at each timer clock (clk

). The clk

can be generated from an external or

internal clock source, selected by the Clock Select bits (CS12:0). When no clock source is selected (CS12:0 = 0) the timer is stopped. However, the TCNT1 value can be accessed by the CPU, independent of whether clk

is present or not. A CPU write over-

rides (has priority over) all counter clear or count operations.

The counting sequence is determined by the setting of the Waveform Generation mode bits (WGM13:0) located in the Timer/Counter Control Registers A and B (TCCR1A and TCCR1B). There are close connections between how the counter behaves (counts) and

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

how waveforms are generated on the Output Compare outputs OC1x. For more details about advanced counting sequences and waveform generation, see “Modes of Operation” on page 94.

The Timer/Counter Overflow Flag (TOV1) is set according to the mode of operation selected by the WGM13:0 bits. TOV1 can be used for generating a CPU interrupt.

Input Capture Unit The Timer/Counter incorporates an Input Capture unit that can capture external events

and give them a time-stamp indicating time of occurrence. The external signal indicating an event, or multiple events, can be applied via the ICP1 pin or alternatively, via the analog-comparator unit. The time-stamps can then be used to calculate frequency, dutycycle, and other features of the signal applied. Alternatively the time-stamps can be used for creating a log of the events.

The Input Capture unit is illustrated by the block diagram shown in Figure 42. The elements of the block diagram that are not directly a part of the Input Capture unit are gray shaded. The small “n” in register and bit names indicates the Timer/Counter number.

Figure 42. Input Capture Unit Block Diagram

DATA BUS (8-bit)

TEMP (8-bit)

ICPn

WRITE

ICRnH (8-bit)

ICRn (16-bit Register)

ACO*

Analog

Comparator

ICRnL (8-bit)

ACIC* ICNC ICES

Noise

Canceler

TCNTnH (8-bit) TCNTnL (8-bit)

TCNTn (16-bit Counter)

Edge

Detector

ICFn (Int.Req.)

When a change of the logic level (an event) occurs on the Input Capture pin (ICP1), alternatively on the Analog Comparator output (ACO), and this change confirms to the setting of the edge detector, a capture will be triggered. When a capture is triggered, the 16-bit value of the counter (TCNT1) is written to the Input Capture Register (ICR1). The Input Capture Flag (ICF1) is set at the same system clock as the TCNT1 value is copied into ICR1 Register. If enabled (ICIE1 = 1), the Input Capture Flag generates an Input Capture interrupt. The ICF1 flag is automatically cleared when the interrupt is executed. Alternatively the ICF1 flag can be cleared by software by writing a logical one to its I/O bit location.

2543H–AVR–02/05

Reading the 16-bit value in the Input Capture Register (ICR1) is done by first reading the low byte (ICR1L) and then the high byte (ICR1H). When the low byte is read the high byte is copied into the high byte temporary register (TEMP). When the CPU reads the ICR1H I/O location it will access the TEMP Register.

The ICR1 Register can only be written when using a Waveform Generation mode that utilizes the ICR1 Register for defining the counter’s TOP value. In these cases the Waveform Generation mode (WGM13:0) bits must be set before the TOP value can be written to the ICR1 Register. When writing the ICR1 Register the high byte must be written to the ICR1H I/O location before the low byte is written to ICR1L.

For more information on how to access the 16-bit registers refer to “Accessing 16-bit Registers” on page 84.

Input Capture Trigger Source The main trigger source for the Input Capture unit is the Input Capture pin (ICP1).

Timer/Counter1 can alternatively use the Analog Comparator output as trigger source for the Input Capture unit. The Analog Comparator is selected as trigger source by setting the Analog Comparator Input Capture (ACIC) bit in the Analog Comparator Control and Status Register (ACSR). Be aware that changing trigger source can trigger a capture. The Input Capture Flag must therefore be cleared after the change.

Both the Input Capture pin (ICP1) and the Analog Comparator output (ACO) inputs are sampled using the same technique as for the T1 pin (Figure 38 on page 80). The edge detector is also identical. However, when the noise canceler is enabled, additional logic is inserted before the edge detector, which increases the delay by four system clock cycles. Note that the input of the noise canceler and edge detector is always enabled unless the Timer/Counter is set in a Waveform Generation mode that uses ICR1 to define TOP.

An Input Capture can be triggered by software by controlling the port of the ICP1 pin.

Noise Canceler The noise canceler improves noise immunity by using a simple digital filtering scheme.

The noise canceler input is monitored over four samples, and all four must be equal for changing the output that in turn is used by the edge detector.

The noise canceler is enabled by setting the Input Capture Noise Canceler (ICNC1) bit in Timer/Counter Control Register B (TCCR1B). When enabled the noise canceler introduces additional four system clock cycles of delay from a change applied to the input, to the update of the ICR1 Register. The noise canceler uses the system clock and is therefore not affected by the prescaler.

Using the Input Capture Unit The main challenge when using the Input Capture unit is to assign enough processor

capacity for handling the incoming events. The time between two events is critical. If the processor has not read the captured value in the ICR1 Register before the next event occurs, the ICR1 will be overwritten with a new value. In this case the result of the capture will be incorrect.

When using the Input Capture interrupt, the ICR1 Register should be read as early in the interrupt handler routine as possible. Even though the Input Capture interrupt has relatively high priority, the maximum interrupt response time is dependent on the maximum number of clock cycles it takes to handle any of the other interrupt requests.

Using the Input Capture unit in any mode of operation when the TOP value (resolution) is actively changed during operation, is not recommended.

Measurement of an external signal’s duty cycle requires that the trigger edge is changed after each capture. Changing the edge sensing must be done as early as possible after the ICR1 Register has been read. After a change of the edge, the Input Capture Flag (ICF1) must be cleared by software (writing a logical one to the I/O bit location). For measuring frequency only, the clearing of the ICF1 flag is not required (if an interrupt handler is used).

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Output Compare Units The 16-bit comparator continuously compares TCNT1 with the Output Compare Regis-

ter (OCR1x). If TCNT equals OCR1x the comparator signals a match. A match will set the Output Compare Flag (OCF1x) at the next timer clock cycle

1), the Output Compare Flag generates an Output Compare interrupt. The OCF1x flag is

automatically cleared when the interrupt is executed. Alternatively the OCF1x flag can be cleared by software by writing a logical one to its I/O bit location. The Waveform Generator uses the match signal to generate an output according to operating mode set by the Waveform Generation mode (WGM13:0) bits and Compare Output mode (COM1x1:0) bits. The TOP and BOTTOM signals are used by the Waveform Generator for handling the special cases of the extreme values in some modes of operation (See “Modes of Operation” on page 94.)

A special feature of Output Compare unit A allows it to define the Timer/Counter TOP value (i.e., counter resolution). In addition to the counter resolution, the TOP value defines the period time for waveforms generated by the Waveform Generator.

Figure 43 shows a block diagram of the Output Compare unit. The small “n” in the register and bit names indicates the device number (n = 1

for Timer/Counter 1), and the “x”

indicates Output Compare unit (A/B). The elements of the block diagram that are not directly a part of the Output Compare unit are gray shaded.

Figure 43. Output Compare Unit, Block Diagram

DATA BUS (8-bit)

. If enabled (OCIE1x =

TEMP (8-bit)

OCRnxH Buf. (8-bit)

OCRnx Buffer (16-bit Register)

OCRnxH (8-bit) OCRnxL (8-bit)

OCRnx (16-bit Register)

OCRnxL Buf. (8-bit)

TCNTnH (8-bit) TCNTnL (8-bit)

TCNTn (16-bit Counter)

= (16-bit Comparator )

OCFnx (Int.Req.)

TOP

BOTTOM

Waveform Generator

COMnx1:0WGMn3:0

OCnx

The OCR1x Register is double buffered when using any of the twelve Pulse Width Modulation (PWM) modes. For the Normal and Clear Timer on Compare (CTC) modes of

operation, the double buffering is disabled. The double buffering synchronizes the update of the OCR1x Compare Register to either TOP or BOTTOM of the counting sequence. The synchronization prevents the occurrence of odd-length, non-symmetrical PWM pulses, thereby making the output glitch-free.

2543H–AVR–02/05

The OCR1x Register access may seem complex, but this is not case. When the double buffering is enabled, the CPU has access to the OCR1x Buffer Register, and if double buffering is disabled the CPU will access the OCR1x directly. The content of the OCR1x

(Buffer or Compare) Register is only changed by a write operation (the Timer/Counter does not update this register automatically as the TCNT1 and ICR1 Register). Therefore OCR1x is not read via the high byte temporary register (TEMP). However, it is a good practice to read the low byte first as when accessing other 16-bit registers. Writing the OCR1x Registers must be done via the TEMP Register since the compare of all 16 bits is done continuously. The high byte (OCR1xH) has to be written first. When the high byte I/O location is written by the CPU, the TEMP Register will be updated by the value written. Then when the low byte (OCR1xL) is written to the lower eight bits, the high byte will be copied into the upper 8-bits of either the OCR1x buffer or OCR1x Compare Register in the same system clock cycle.

For more information of how to access the 16-bit registers refer to “Accessing 16-bit Registers” on page 84.

Force Output Compare In non-PWM Waveform Generation modes, the match output of the comparator can be

forced by writing a one to the Force Output Compare (FOC1x) bit. Forcing compare match will not set the OCF1x flag or reload/clear the timer, but the OC1x pin will be updated as if a real compare match had occurred (the COM11:0 bits settings define whether the OC1x pin is set, cleared or toggled).

Compare Match Blocking by TCNT1 Write

Using the Output Compare Unit

All CPU writes to the TCNT1 Register will block any compare match that occurs in the next timer clock cycle, even when the timer is stopped. This feature allows OCR1x to be initialized to the same value as TCNT1 without triggering an interrupt when the Timer/Counter clock is enabled.

Since writing TCNT1 in any mode of operation will block all compare matches for one timer clock cycle, there are risks involved when changing TCNT1 when using any of the Output Compare channels, independent of whether the Timer/Counter is running or not. If the value written to TCNT1 equals the OCR1x value, the compare match will be missed, resulting in incorrect waveform generation. Do not write the TCNT1 equal to TOP in PWM modes with variable TOP values. The compare match for the TOP will be ignored and the counter will continue to 0xFFFF. Similarly, do not write the TCNT1 value equal to BOTTOM when the counter is downcounting.

The setup of the OC1x should be performed before setting the Data Direction Register for the port pin to output. The easiest way of setting the OC1x value is to use the Force Output Compare (FOC1x) strobe bits in Normal mode. The OC1x Register keeps its value even when changing between Waveform Generation modes.

Be aware that the COM1x1:0 bits are not double buffered together with the compare value. Changing the COM1x1:0 bits will take effect immediately.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

Compare Match Output Unit

The Compare Output mode (COM1x1:0) bits have two functions. The Waveform Generator uses the COM1x1:0 bits for defining the Output Compare (OC1x) state at the next compare match. Secondly the COM1x1:0 bits control the OC1x pin output source. Figure 44 shows a simplified schematic of the logic affected by the COM1x1:0 bit setting. The I/O Registers, I/O bits, and I/O pins in the figure are shown in bold. Only the parts of the general I/O port control registers (DDR and PORT) that are affected by the COM1x1:0 bits are shown. When referring to the OC1x state, the reference is for the internal OC1x Register, not the OC1x pin. If a system reset occur, the OC1x Register is reset to “0”.

Figure 44. Compare Match Output Unit, Schematic

COMnx1

COMnx0 FOCnx

Waveform Generator

OCnx

PORT

DATA B U S

DDR

clk

I/O

The general I/O port function is overridden by the Output Compare (OC1x) from the Waveform Generator if either of the COM1x1:0 bits are set. However, the OC1x pin direction (input or output) is still controlled by the Data Direction Register (DDR) for the port pin. The Data Direction Register bit for the OC1x pin (DDR_OC1x) must be set as output before the OC1x value is visible on the pin. The port override function is generally independent of the Waveform Generation mode, but there are some exceptions. Refer to Table 43, Table 44 and Table 45 for details.

The design of the Output Compare pin logic allows initialization of the OC1x state before the output is enabled. Note that some COM1x1:0 bit settings are reserved for certain modes of operation. See “16-bit Timer/Counter Register Description” on page 104.

The COM1x1:0 bits have no effect on the Input Capture unit.

2543H–AVR–02/05

Compare Output Mode and Waveform Generation

The Waveform Generator uses the COM1x1:0 bits differently in normal, CTC, and PWM modes. For all modes, setting the COM1x1:0 = 0 tells the Waveform Generator that no action on the OC1x Register is to be performed on the next compare match. For compare output actions in the non-PWM modes refer to Table 43 on page 104. For fast PWM mode refer to Table 44 on page 104, and for phase correct and phase and frequency correct PWM refer to Table 45 on page 105.

A change of the COM1x1:0 bits state will have effect at the first compare match after the bits are written. For non-PWM modes, the action can be forced to have immediate effect by using the FOC1x strobe bits.

Modes of Operation The mode of operation, i.e., the behavior of the Timer/Counter and the Output Compare

pins, is defined by the combination of the Waveform Generation mode (WGM13:0) and Compare Output mode (COM1x1:0) bits. The Compare Output mode bits do not affect

the counting sequence, while the Waveform Generation mode bits do. The COM1x1:0 bits control whether the PWM output generated should be inverted or not (inverted or non-inverted PWM). For non-PWM modes the COM1x1:0 bits control whether the output should be set, cleared or toggle at a compare match (See “Compare Match Output Unit” on page 93.)

For detailed timing information refer to “Timer/Counter Timing Diagrams” on page 102.

Normal Mode The simplest mode of operation is the Normal mode (WGM13:0 = 0). In this mode the

counting direction is always up (incrementing), and no counter clear is performed. The counter simply overruns when it passes its maximum 16-bit value (MAX = 0xFFFF) and then restarts from the BOTTOM (0x0000). In normal operation the Timer/Counter Over- flow Flag (TOV1) will be set in the same timer clock cycle as the TCNT1 becomes zero. The TOV1 flag in this case behaves like a 17th bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV1 flag, the timer resolution can be increased by software. There are no special cases to consider in the Normal mode, a new counter value can be written anytime.

Clear Timer on Compare Match (CTC) Mode

The Input Capture unit is easy to use in Normal mode. However, observe that the maximum interval between the external events must not exceed the resolution of the counter. If the interval between events are too long, the timer overflow interrupt or the prescaler must be used to extend the resolution for the capture unit.

The Output Compare units can be used to generate interrupts at some given time. Using the Output Compare to generate waveforms in Normal mode is not recommended, since this will occupy too much of the CPU time.

In Clear Timer on Compare or CTC mode (WGM13:0 = 4 or 12), the OCR1A or ICR1 Register are used to manipulate the counter resolution. In CTC mode the counter is cleared to zero when the counter value (TCNT1) matches either the OCR1A (WGM13:0 = 4) or the ICR1 (WGM13:0 = 12). The OCR1A or ICR1 define the top value for the counter, hence also its resolution. This mode allows greater control of the compare match output frequency. It also simplifies the operation of counting external events.

The timing diagram for the CTC mode is shown in Figure 45 on page 95. The counter value (TCNT1) increases until a compare match occurs with either OCR1A or ICR1, and then counter (TCNT1) is cleared.

ATtiny2313/V

2543H–AVR–02/05

Figure 45. CTC Mode, Timing Diagram

TCNTn

ATtiny2313/V

OCnA Interrupt Flag Set or ICFn Interrupt Flag Set (Interrupt on TOP)

OCnA (Toggle)

Period

1 4

2 3

(COMnA1:0 = 1)

An interrupt can be generated at each time the counter value reaches the TOP value by either using the OCF1A or ICF1 flag according to the register used to define the TOP value. If the interrupt is enabled, the interrupt handler routine can be used for updating the TOP value. However, changing the TOP to a value close to BOTTOM when the counter is running with none or a low prescaler value must be done with care since the CTC mode does not have the double buffering feature. If the new value written to OCR1A or ICR1 is lower than the current value of TCNT1, the counter will miss the compare match. The counter will then have to count to its maximum value (0xFFFF) and wrap around starting at 0x0000 before the compare match can occur. In many cases this feature is not desirable. An alternative will then be to use the fast PWM mode using OCR1A for defining TOP (WGM13:0 = 15) since the OCR1A then will be double buffered.

For generating a waveform output in CTC mode, the OC1A output can be set to toggle its logical level on each compare match by setting the Compare Output mode bits to toggle mode (COM1A1:0 = 1). The OC1A value will not be visible on the port pin unless the data direction for the pin is set to output (DDR_OC1A = 1). The waveform generated will have a maximum frequency of f

OC1A

= f

/2 when OCR1A is set to zero (0x0000). The

clk_I/O

waveform frequency is defined by the following equation:

OCnA

-------------------------------------------------- -=

2 N 1 OCRnA+()⋅⋅

clk_I/O

The N variable represents the prescaler factor (1, 8, 64, 256, or 1024).

As for the Normal mode of operation, the TOV1 flag is set in the same timer clock cycle that the counter counts from MAX to 0x0000.

2543H–AVR–02/05

Fast PWM Mode The fast Pulse Width Modulation or fast PWM mode (WGM13:0 = 5, 6, 7, 14, or 15) pro-

vides a high frequency PWM waveform generation option. The fast PWM differs from the other PWM options by its single-slope operation. The counter counts from BOTTOM to TOP then restarts from BOTTOM. In non-inverting Compare Output mode, the Output Compare (OC1x) is set on the compare match between TCNT1 and OCR1x, and cleared at TOP. In inverting Compare Output mode output is cleared on compare match and set at TOP. Due to the single-slope operation, the operating frequency of the fast PWM mode can be twice as high as the phase correct and phase and frequency correct PWM modes that use dual-slope operation. This high frequency makes the fast PWM mode well suited for power regulation, rectification, and DAC applications. High frequency allows physically small sized external components (coils, capacitors), hence reduces total system cost.

The PWM resolution for fast PWM can be fixed to 8-, 9-, or 10-bit, or defined by either ICR1 or OCR1A. The minimum resolution allowed is 2-bit (ICR1 or OCR1A set to 0x0003), and the maximum resolution is 16-bit (ICR1 or OCR1A set to MAX). The PWM resolution in bits can be calculated by using the following equation:

FPWM

TOP 1+()log

---------------------------------- -=

2()log

In fast PWM mode the counter is incremented until the counter value matches either one of the fixed values 0x00FF, 0x01FF, or 0x03FF (WGM13:0 = 5, 6, or 7), the value in ICR1 (WGM13:0 = 14), or the value in OCR1A (WGM13:0 = 15). The counter is then cleared at the following timer clock cycle. The timing diagram for the fast PWM mode is shown in Figure 46. The figure shows fast PWM mode when OCR1A or ICR1 is used to define TOP. The TCNT1 value is in the timing diagram shown as a histogram for illustrating the single-slope operation. The diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT1 slopes represent compare matches between OCR1x and TCNT1. The OC1x interrupt flag will be set when a compare match occurs.

Figure 46. Fast PWM Mode, Timing Diagram

OCRnx/TOP Update and TOVn Interrupt Flag Set and OCnA Interrupt Flag Set or ICFn Interrupt Flag Set (Interrupt on TOP)

TCNTn

OCnx

Period

1 7

2 3 4 5 6 8

(COMnx1:0 = 2)

(COMnx1:0 = 3)

The Timer/Counter Overflow Flag (TOV1) is set each time the counter reaches TOP. In addition the OC1A or ICF1 flag is set at the same timer clock cycle as TOV1 is set when either OCR1A or ICR1 is used for defining the TOP value. If one of the interrupts are enabled, the interrupt handler routine can be used for updating the TOP and compare values.

ATtiny2313/V

2543H–AVR–02/05

ATtiny2313/V

The procedure for updating ICR1 differs from updating OCR1A when used for defining the TOP value. The ICR1 Register is not double buffered. This means that if ICR1 is changed to a low value when the counter is running with none or a low prescaler value, there is a risk that the new ICR1 value written is lower than the current value of TCNT1. The result will then be that the counter will miss the compare match at the TOP value. The counter will then have to count to the MAX value (0xFFFF) and wrap around starting at 0x0000 before the compare match can occur. The OCR1A Register however, is double buffered. This feature allows the OCR1A I/O location to be written anytime. When the OCR1A I/O location is written the value written will be put into the OCR1A Buffer Register. The OCR1A Compare Register will then be updated with the value in the Buffer Register at the next timer clock cycle the TCNT1 matches TOP. The update is done at the same timer clock cycle as the TCNT1 is cleared and the TOV1 flag is set.

Using the ICR1 Register for defining TOP works well when using fixed TOP values. By using ICR1, the OCR1A Register is free to be used for generating a PWM output on OC1A. However, if the base PWM frequency is actively changed (by changing the TOP value), using the OCR1A as TOP is clearly a better choice due to its double buffer feature.

In fast PWM mode, the compare units allow generation of PWM waveforms on the OC1x pins. Setting the COM1x1:0 bits to two will produce a non-inverted PWM and an inverted PWM output can be generated by setting the COM1x1:0 to three (see Table 43 on page 104). The actual OC1x value will only be visible on the port pin if the data direction for the port pin is set as output (DDR_OC1x). The PWM waveform is generated by setting (or clearing) the OC1x Register at the compare match between OCR1x and TCNT1, and clearing (or setting) the OC1x Register at the timer clock cycle the counter is cleared (changes from TOP to BOTTOM).

The PWM frequency for the output can be calculated by the following equation:

clk_I/O

OCnxPWM

---------------------------------- -=

N 1 TOP+()⋅

The N variable represents the prescaler divider (1, 8, 64, 256, or 1024).

The extreme values for the OCR1x Register represents special cases when generating a PWM waveform output in the fast PWM mode. If the OCR1x is set equal to BOTTOM (0x0000) the output will be a narrow spike for each TOP+1 timer clock cycle. Setting the OCR1x equal to TOP will result in a constant high or low output (depending on the polarity of the output set by the COM1x1:0 bits.)

A frequency (with 50% duty cycle) waveform output in fast PWM mode can be achieved by setting OC1A to toggle its logical level on each compare match (COM1A1:0 = 1). The waveform generated will have a maximum frequency of f

OC1A

= f

/2 when OCR1A is

clk_I/O

set to zero (0x0000). This feature is similar to the OC1A toggle in CTC mode, except the double buffer feature of the Output Compare unit is enabled in the fast PWM mode.

2543H–AVR–02/05

Phase Correct PWM Mode The phase correct Pulse Width Modulation or phase correct PWM mode (WGM13:0 = 1,

2, 3, 10, or 11) provides a high resolution phase correct PWM waveform generation option. The phase correct PWM mode is, like the phase and frequency correct PWM mode, based on a dual-slope operation. The counter counts repeatedly from BOTTOM (0x0000) to TOP and then from TOP to BOTTOM. In non-inverting Compare Output mode, the Output Compare (OC1x) is cleared on the compare match between TCNT1 and OCR1x while upcounting, and set on the compare match while downcounting. In inverting Output Compare mode, the operation is inverted. The dual-slope operation has lower maximum operation frequency than single slope operation. However, due to the symmetric feature of the dual-slope PWM modes, these modes are preferred for motor control applications.

The PWM resolution for the phase correct PWM mode can be fixed to 8-, 9-, or 10-bit, or defined by either ICR1 or OCR1A. The minimum resolution allowed is 2-bit (ICR1 or OCR1A set to 0x0003), and the maximum resolution is 16-bit (ICR1 or OCR1A set to MAX). The PWM resolution in bits can be calculated by using the following equation:

PCPWM

TOP 1+()log

---------------------------------- -=

2()log

In phase correct PWM mode the counter is incremented until the counter value matches either one of the fixed values 0x00FF, 0x01FF, or 0x03FF (WGM13:0 = 1, 2, or 3), the value in ICR1 (WGM13:0 = 10), or the value in OCR1A (WGM13:0 = 11). The counter has then reached the TOP and changes the count direction. The TCNT1 value will be equal to TOP for one timer clock cycle. The timing diagram for the phase correct PWM mode is shown on Figure 47. The figure shows phase correct PWM mode when OCR1A or ICR1 is used to define TOP. The TCNT1 value is in the timing diagram shown as a histogram for illustrating the dual-slope operation. The diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT1 slopes represent compare matches between OCR1x and TCNT1. The OC1x interrupt flag will be set when a compare match occurs.

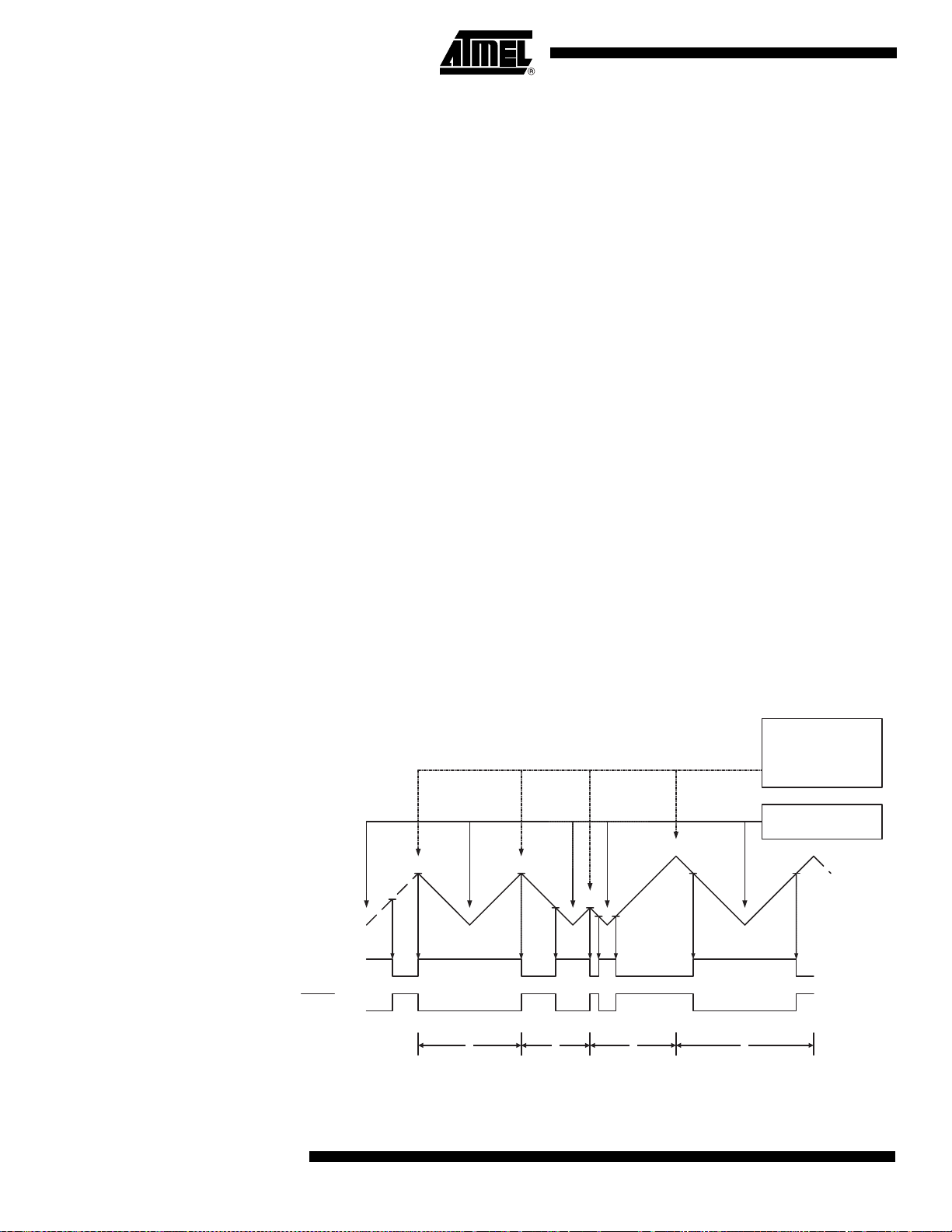

Figure 47. Phase Correct PWM Mode, Timing Diagram

OCRnx/TOP Update and OCnA Interrupt Flag Set or ICFn Interrupt Flag Set (Interrupt on TOP)

TOVn Interrupt Flag Set (Interrupt on Bottom)

ATtiny2313/V

TCNTn

OCnx

Period

(COMnx1:0 = 2)

(COMnx1:0 = 3)

1 2 3 4

2543H–AVR–02/05

ATtiny2313/V

The Timer/Counter Overflow Flag (TOV1) is set each time the counter reaches BOTTOM. When either OCR1A or ICR1 is used for defining the TOP value, the OC1A or ICF1 flag is set accordingly at the same timer clock cycle as the OCR1x Registers are updated with the double buffer value (at TOP). The interrupt flags can be used to generate an interrupt each time the counter reaches the TOP or BOTTOM value.

When changing the TOP value the program must ensure that the new TOP value is higher or equal to the value of all of the Compare Registers. If the TOP value is lower than any of the Compare Registers, a compare match will never occur between the TCNT1 and the OCR1x. Note that when using fixed TOP values, the unused bits are masked to zero when any of the OCR1x Registers are written. As the third period shown in Figure 47 illustrates, changing the TOP actively while the Timer/Counter is running in the phase correct mode can result in an unsymmetrical output. The reason for this can be found in the time of update of the OCR1x Register. Since the OCR1x update occurs at TOP, the PWM period starts and ends at TOP. This implies that the length of the falling slope is determined by the previous TOP value, while the length of the rising slope is determined by the new TOP value. When these two values differ the two slopes of the period will differ in length. The difference in length gives the unsymmetrical result on the output.

It is recommended to use the phase and frequency correct mode instead of the phase correct mode when changing the TOP value while the Timer/Counter is running. When using a static TOP value there are practically no differences between the two modes of operation.

In phase correct PWM mode, the compare units allow generation of PWM waveforms on the OC1x pins. Setting the COM1x1:0 bits to two will produce a non-inverted PWM and an inverted PWM output can be generated by setting the COM1x1:0 to three (See Table 44 on page 104). The actual OC1x value will only be visible on the port pin if the data direction for the port pin is set as output (DDR_OC1x). The PWM waveform is generated by setting (or clearing) the OC1x Register at the compare match between OCR1x and TCNT1 when the counter increments, and clearing (or setting) the OC1x Register at compare match between OCR1x and TCNT1 when the counter decrements. The PWM frequency for the output when using phase correct PWM can be calculated by the following equation:

OCnxPCPWM

The N variable represents the prescaler divider (1, 8, 64, 256, or 1024).

The extreme values for the OCR1x Register represent special cases when generating a PWM waveform output in the phase correct PWM mode. If the OCR1x is set equal to BOTTOM the output will be continuously low and if set equal to TOP the output will be continuously high for non-inverted PWM mode. For inverted PWM the output will have the opposite logic values.

clk_I/O

--------------------------- -=

2 NTOP⋅⋅

2543H–AVR–02/05

Phase and Frequency Correct PWM Mode

The phase and frequency correct Pulse Width Modulation, or phase and frequency cor- rect PWM mode (WGM13:0 = 8 or 9) provides a high resolution phase and frequency correct PWM waveform generation option. The phase and frequency correct PWM mode is, like the phase correct PWM mode, based on a dual-slope operation. The counter counts repeatedly from BOTTOM (0x0000) to TOP and then from TOP to BOTTOM. In non-inverting Compare Output mode, the Output Compare (OC1x) is cleared on the compare match between TCNT1 and OCR1x while upcounting, and set on the compare match while downcounting. In inverting Compare Output mode, the operation is inverted. The dual-slope operation gives a lower maximum operation frequency compared to the single-slope operation. However, due to the symmetric feature of the dualslope PWM modes, these modes are preferred for motor control applications.

The main difference between the phase correct, and the phase and frequency correct PWM mode is the time the OCR1x Register is updated by the OCR1x Buffer Register, (see Figure 47 and Figure 48).

The PWM resolution for the phase and frequency correct PWM mode can be defined by either ICR1 or OCR1A. The minimum resolution allowed is 2-bit (ICR1 or OCR1A set to 0x0003), and the maximum resolution is 16-bit (ICR1 or OCR1A set to MAX). The PWM resolution in bits can be calculated using the following equation:

PFCPWM

TOP 1+()log

---------------------------------- -=

2()log

In phase and frequency correct PWM mode the counter is incremented until the counter value matches either the value in ICR1 (WGM13:0 = 8), or the value in OCR1A (WGM13:0 = 9). The counter has then reached the TOP and changes the count direction. The TCNT1 value will be equal to TOP for one timer clock cycle. The timing diagram for the phase correct and frequency correct PWM mode is shown on Figure 48. The figure shows phase and frequency correct PWM mode when OCR1A or ICR1 is used to define TOP. The TCNT1 value is in the timing diagram shown as a histogram for illustrating the dual-slope operation. The diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT1 slopes represent compare matches between OCR1x and TCNT1. The OC1x interrupt flag will be set when a compare match occurs.

Figure 48. Phase and Frequency Correct PWM Mode, Timing Diagram

OCnA Interrupt Flag Set or ICFn Interrupt Flag Set (Interrupt on TOP)

OCRnx/TOP Updateand TOVn Interrupt Flag Set (Interrupt on Bottom)

100

ATtiny2313/V

TCNTn

OCnx

Period

(COMnx1:0 = 2)

(COMnx1:0 = 3)

1 2 3 4

2543H–AVR–02/05

ATMEL ATtiny2313 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features

Pin Configurations Figure 1. Pinout ATtiny2313

Overview The ATtiny2313 is a low-power CMOS 8-bit microcontroller based on the AVR

Block Diagram

Pin Descriptions

Port A (PA2..PA0) Port A is a 3-bit bi-directional I/O port with internal pull-up resistors (selected for each

Port B (PB7..PB0) Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

Port D (PD6..PD0) Port D is a 7-bit bi-directional I/O port with internal pull-up resistors (selected for each

RESET

XTAL1 Input to the inverting Oscillator amplifier and input to the internal clock operating circuit.

XTAL2 Output from the inverting Oscillator amplifier. XTAL2 is an alternate function for PA1.

About Code Examples

Disclaimer Typical values contained in this data sheet are based on simulations and characteriza-

AVR CPU Core

Introduction This section discusses the AVR core architecture in general. The main function of the

Architectural Overview Figure 3. Block Diagram of the AVR Architecture

Status Register The Status Register contains information about the result of the most recently executed

General Purpose Register File

The X-register, Y-register, and Z-register

Stack Pointer The Stack is mainly used for storing temporary data, for storing local variables and for

Instruction Execution Timing

Reset and Interrupt Handling

Interrupt Response Time The interrupt execution response for all the enabled AVR interrupts is four clock cycles

AVR ATtiny2313 Memories

In-System Reprogrammable Flash Program Memory

SRAM Data Memory Figure 9 shows how the ATtiny2313 SRAM Memory is organized.

Data Memory Access Times This section describes the general access timing concepts for internal memory access.

EEPROM Data Memory The ATtiny2313 contains 128 bytes of data EEPROM memory. It is organized as a sep-

EEPROM Read/Write Access The EEPROM Access Registers are accessible in the I/O space.

The EEPROM Address Register

Atomic Byte Programming Using Atomic Byte Programming is the simplest mode. When writing a byte to the

Split Byte Programming It is possible to split the erase and write cycle in two different operations. This may be

Erase To erase a byte, the address must be written to EEAR. If the EEPMn bits are 0b01, writ-

Write To write a location, the user must write the address into EEAR and the data into EEDR.

Preventing EEPROM Corruption

I/O Memory The I/O space definition of the ATtiny2313 is shown in “Register Summary” on page

General Purpose I/O Registers The ATtiny2313 contains three General Purpose I/O Registers. These registers can be

System Clock and Clock Options

Clock Systems and their Distribution

Clock Sources The device has the following clock source options, selectable by Flash Fuse bits as

Default Clock Source The device is shipped with CKSEL = “0100”, SUT = “10”, and CKDIV8 programmed.

Crystal Oscillator XTAL1 and XTAL2 are input and output, respectively, of an inverting amplifier which can

Calibrated Internal RC Oscillator

External Clock To drive the device from an external clock source, XTAL1 should be driven as shown in

128 kHz Internal Oscillator

Power Management and Sleep Modes

Idle Mode When the SM1..0 bits are written to 00, the SLEEP instruction makes the MCU enter

Power-down Mode When the SM1..0 bits are written to 01 or 11, the SLEEP instruction makes the MCU

Standby Mode When the SM1..0 bits are 10 and an external crystal/resonator clock option is selected,

Minimizing Power Consumption

Analog Comparator When entering Idle mode, the Analog Comparator should be disabled if not used. In

Brown-out Detector If the Brown-out Detector is not needed by the application, this module should be turned

Internal Voltage Reference The Internal Voltage Reference will be enabled when needed by the Brown-out Detec-

Watchdog Timer If the Watchdog Timer is not needed in the application, the module should be turned off.

Port Pins When entering a sleep mode, all port pins should be configured to use minimum power.

Resetting the AVR During reset, all I/O Registers are set to their initial values, and the program starts exe-

Reset Sources The ATtiny2313 has four sources of reset:

Power-on Reset

External Reset An External Reset is generated by a low level on the RESET

Brown-out Detection ATtiny2313 has an On-chip Brown-out Detection (BOD) circuit for monitoring the V

Watchdog Reset When the Watchdog times out, it will generate a short reset pulse of one CK cycle dura-

Internal Voltage Reference

Voltage Reference Enable Signals and Start-up Time

Figure 20. Watchdog Timer

Watchdog Timer Control Register - WDTCSR

Interrupts This section describes the specifics of the interrupt handling as performed in

Interrupt Vectors in ATtiny2313

I/O-Ports

Introduction All AVR ports have true Read-Modify-Write functionality when used as general digital

Ports as General Digital I/O

Configuring the Pin Each port pin consists of three register bits: DDxn, PORTxn, and PINxn. As shown in

Toggli n g t h e P in Writing a logic one to PINxn toggles the value of PORTxn, independent on the value of

Switching Between Input and Output

Reading the Pin Value Independent of the setting of Data Direction bit DDxn, the port pin can be read through

Digital Input Enable and Sleep Modes

Figure 25. Alternate Port Functions
