Simplicity safety success
A
B C
A
B C
+ =
Use me to
engage your students and
help them learn.
Atlas Learn provides an easy to
use sound reinforcement solution
that addresses the needs of both
students and teachers to improve the
education experience.
Simplicity
A
B C
A
B C
+ =
Safety
Success
Installation is quick and easy!
Just select from several
preconfigured component
offerings to best match your
room and user requirements.
System components include two wireless microphone options with matching charging stations,
a versatile multi-media amplifier / receiver combination plus a large selection of Atlas Sound
The Atlas Learn system provides
priority paging and emergency
notification capabilities that
when integrated with Atlas
Sound ControlKom2.0™ or other
notification/intercom solutions
instantly alerts school personnel
of an emergency.
loudspeakers and related accessories.
AtlasLearn.com
Quite simply, student
engagement is the foundation
for effective learning. Atlas
Learn delivers high quality,
intelligible audio throughout the
classroom to ensure that every
student has the chance to hear
and understand every word.
Amplified Learning™
myna
– wireless IR classroom microphone
– integrated soft touch controls include
power, volume, and panic
– integrated belt clip
– includes breakaway lanyard with ID clip
and rechargeable AA Batteries
”...I love the Atlas Learn system that
I have in my classroom...It saved my
voice to be sure and it is much easier
to get and keep my first graders’
attention.” Ms. Cahoon, Orangeville, IL
School District
Magpie
Actual Size
Did You Know?
Atlas Learn sound reinforcement is
perfect for education facilities or
anywhere a room constrained public
address system is required.
– ultra compact wireless IR classroom microphone
weighs only 2.24 oz.
– integrated soft touch controls include power, volume,
and panic
– rechargeable battery included
– up to 8 hours of use between charges
– includes breakaway lanyard
AtlasLearn.com
Actual Size
Magpie and magpie-nest myna and myna-nest
The AL-MAGPIE-NEST is the remote charging/
docking station for AL-MAGPIE wireless
infrared microphones. This low profile charging
unit has the ability to charge the high capacity,
lithium-ion batteries of two MAGPIE wireless
microphones simultaneously.
(Wireless Microphones Sold Separately.)
Detachable Lanyards
Each wireless microphone in the Atlas Learn
product family includes a detachable lanyard for
convenient, hands free microphone use. The
MAGPIE’s lanyard features a magnetic safety
breakaway connection for easy and quick removal.
MYNA lanyard also features a breakaway safety
release and includes an ID badge clip.
The AL-MYNA-NEST is the remote charging/
docking station for the AL-MYNA wireless
infrared microphone. This charging unit has the
capability of charging the NiMH batteries of two
MYNA wireless microphones simultaneously and
features a removable panel that covers a charging
bay for 4 additional rechargeable NiMH batteries.
(Wireless Microphones Sold Separately.)
AtlasLearn.com
Did You Know?
The system can support up to two wireless
microphones, a “teacher” version with full
functionality and a “student” version with
limited functionality.
Amplified Learning™
AL2430 Receiver / Amplifier
The versatile AL2430 receiver/amplifier coordinates all Atlas
Learn functions in a compact, easy to use control center.
Front panel volume controls are provided for two microphones (A and B), as well as four other external audio
sources like Computer, TV, CD, or Auxiliary audio. The rear panel includes all connections and adjustments
needed to maximize performance in any size classroom. Inputs are provided to accommodate up to three
infrared (IR) domes, which receive signal from the wireless microphones and transmit back to the amplifier /
receiver via UL Listed coaxial cable. Three bands of equalization are provided to help
eliminate feedback and optimize sound quality, a priority page input allows local
audio to be overridden when a page is initiated from external bell or intercom
systems and a line output is included for connection to an external amplifier,
recording device, or hearing assistance system. “Panic” contact closure
may be triggered from any AL system IR microphone transmitter and is
easily integrated with Atlas ControlKom 2.0 hardware & software (sold
separately) to provide instant dial out to office or security personnel
phones in the event of a classroom emergency.
The AL2430 includes Atlas Sound’s patent pending through chassis
design, which allows the unit to be pole mounted above the projector
if security is a concern. Optional mounting kits are also available for rack
installation or the system can be easily shelf or desk mounted with no
additional hardware.
AtlasLearn.com
Atlas Learn Accessories

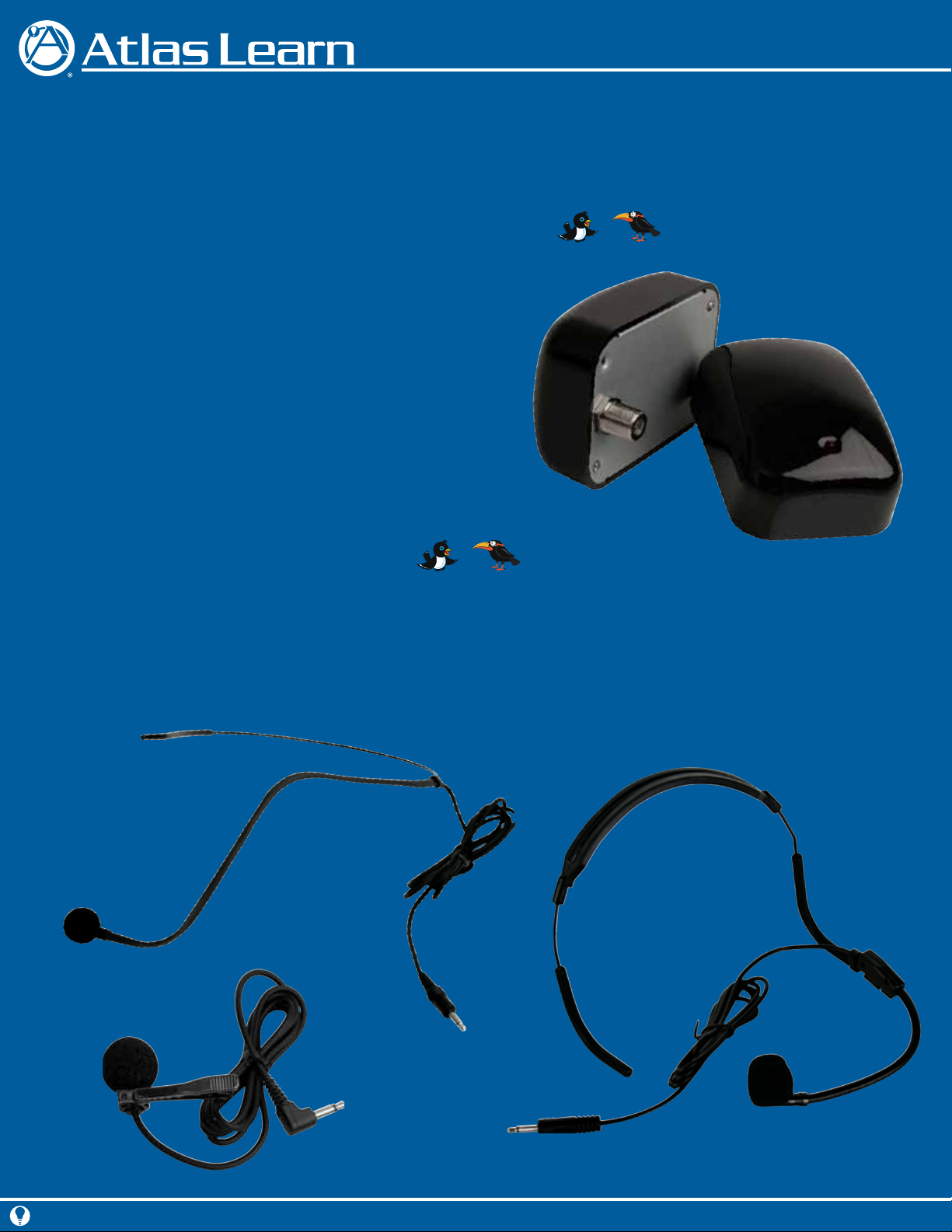

AL-IRDS Infrared Dome Sensor
Infrared is advantageous because it does not operate on
frequencies that can be disrupted by wireless Internet routers,
cordless phones, or other devices. Additionally, infrared
eliminates the possibility of cross talk between two adjoining
rooms as the IR dome(s) in each room receive only the signal
from microphones used in their proximity.
Optional Microphones
AL-MAGPIE and AL-MYNA wireless microphones include a 3.5mm connection that can be used in conjunction
with an external microphone. Atlas Learn offers the AL-HSM headset microphone, the AL-CM collar microphone,
and the AL-LM lapel microphone. The AL-HSM is ergonomically designed to fit over the ear and behind the head
with a jaw line microphone for optimal sound pick up.
AL-HSM
AL-LM
AL-CM
AtlasLearn.com
Amplified Learning™
Atlas Learn line-up
Model Description Compatibility
AL-MYNA Myna IR Microphone
AL-MYNA-NEST Myna Charging Station
AL-MAGPIE Magpie IR Microphone
AL-MAGPIE-NEST Magpie Charging Station
AL2430 IR Receiver / Amplifier
AL-IRDS IR Dome Sensor for AL2430 with 10m Cable
AL-HSM Headset Mic for Myna & Magpie
AL-CM Collar Mic for Myna & Magpie
AL-LM Lapel Mic for Myna & Magpie
AL2430-RMK Rack Mount Kit for AL2430
Atlas Learn PACKAGES
Atlas Learn packages are complete in-classroom sound reinforcement solutions that are available in a
variety of configurations designed to meet the needs of any classroom.
Model Contents
MAGPIE1-1 (1) MAGPIE, (1) MAGPIE-NEST, (1) IRDS, (1) AL2430
MAGPIE1-2 (1) MAGPIE, (1) MAGPIE-NEST, (2) IRDS, (1) AL2430
MAGPIE2-1 (2) MAGPIE, (1) MAGPIE-NEST, (1) IRDS, (1) AL2430
MAGPIE2-2 (2) MAGPIE, (1) MAGPIE-NEST, (2) IRDS, (1) AL2430
MYNA1-1 (1) MYNA, (1) MYNA-NEST, (1) IRDS, (1) AL2430
MYNA1-2 (1) MYNA, (1) MYNA-NEST, (2) IRDS, (1) AL2430
MYNA2-1 (2) MYNA, (1) MYNA-NEST, (1) IRDS, (1) AL2430
MYNA2-2 (2) MYNA, (1) MYNA-NEST, (2) IRDS, (1) AL2430
FLOCK2-1 (1) MAGPIE, (1) MAGPIE-NEST, (1) MYNA, (1) MYNA-NEST,
(1) IRDS, (1) AL2430
FLOCK2-2 (1) MAGPIE, (1) MAGPIE-NEST, (1) MYNA, (1) MYNA-NEST,
(2) IRDS, (1) AL2430
(All Systems Include UL Listed Power Supplies)
AtlasLearn.com
AL2430 Receiver/Amp
Power Output 30 Watts RMS (8Ω, 25V or
70V Output)
Multimedia Input Sensitivity -10dB
Priority Page Input Sensitivity 14dB
Computer Input Impedance 56K
Multimedia Input Impedance 22K
Multimedia Input
Connector Type (4) Dual RCA
AUX Front Input
Connector Type 3.5mm
Magpie Transmitter Mic
IR LEDs 6
Headset/AUX Input 1, 3.5mm Phono Jack, Mic Level
External Controls Mic Volume Up/Down
Power, “Panic”
Internal Controls Lockout, Mic A/B Channel
Height 3.8" 97mm
Width 1.15" 29mm
Depth 1" 25mm
Weight (with Battery) 2.24 oz. (65g)
Line Output Impedance 1K
Line Output Voltage 1.3V
Line Output Connector Type Dual RCA
Mic EQ (100Hz, 3kHz,
& 10kHz) Adjustment
IR Input Impedance /
Connector Type 75Ω F Connector
Panic Output Contact Rating 5A @ 36V
Height 1.75" (45mm)
Width 8.5" (216mm)
Depth 13.5" (343mm)
Receiver Weight 5.75 lbs (2.6kg)
UL Listed Power Supply 100-240V (50/60Hz) 1.7A In/
±10dB
24VDC 2.5A out
Magpie “Nest” Charging Station
Height 1.75" (44mm)
Width 6.5" (165mm)
Depth 2.75" (70mm)
Weight .125 lbs (.06kg)
AL-MAGPIE Ports Two Charging Ports
Charge Indicator LEDs Two Charge Indicator LEDs
UL Listed Power Supply 100-240V (50/60Hz) .2A In/ .5VDC
1A out
Weight (without Battery) 1.28 oz (36g)
Battery (1) LIR17500 Lithium-ion (3.7V)
UL Listed Power
Supply (included) 100-240V (50/60Hz) .2A In/ .5VDC
1A out
Myna “Nest” Charging Station
Height 4.17" (106mm)
Width 7.44" (189mm)
Depth 2.75" (70mm)
Weight .5 lbs (.23kg)
AL-MYNA Ports 2
Charge Indicator LEDs 4 (Red – Charging,
Green –Charged)
UL Listed Power Supply 100-240V (50/60Hz) .5A In/ .9VDC
1.5A out
Myna Transmitter Mic
IR LEDs 6 Total in 2 Groups
Headset/AUX Input 3.5MM 2kΩ
External Controls Power, Mode, Volume,
Panic Mute
Internal Controls Channel A/B, Student
“Lock Out”
Indicator LEDs Mode (2 Blue), Lockout (1 Red),
PWR /BATT (1 Green / Red)
Weight (with Battery) 4.23oz (120g)
Weight (without Battery) 2.1oz (60g)
