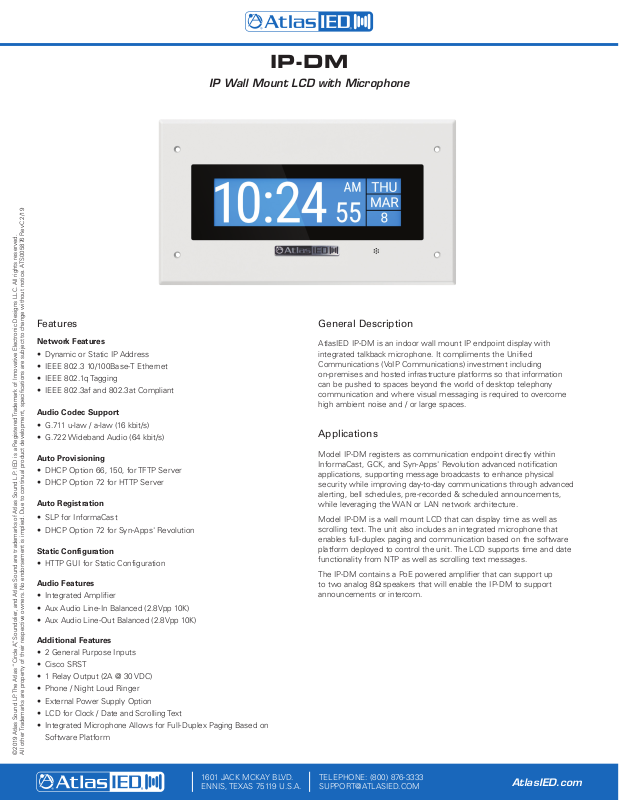

Atlas IED IP-DM Datasheet

IP-DM

IP Wall Mount LCD with Microphone

Features

Network Features

• Dynamic or Static IP Address

• IEEE 802.3 10/100Base-T Ethernet

• IEEE 802.1q Tagging

• IEEE 802.3af and 802.3at Compliant

Audio Codec Support

• G.711 u-law / a-law (16 kbit/s)

• G.722 Wideband Audio (64 kbit/s)

Auto Provisioning

• DHCP Option 66, 150, for TFTP Server

• DHCP Option 72 for HTTP Server

Auto Registration

• SLP for InformaCast

• DHCP Option 72 for Syn-Apps' Revolution

Static Configuration

• HTTP GUI for Static Configuration

Audio Features

• Integrated Amplifier

• Aux Audio Line-In Balanced (2.8Vpp 10K)

• Aux Audio Line-Out Balanced (2.8Vpp 10K)

Additional Features

• 2 General Purpose Inputs

• Cisco SRST

• 1 Relay Output (2A @ 30 VDC)

• Phone / Night Loud Ringer

• External Power Supply Option

• LCD for Clock / Date and Scrolling Text

• Integrated Microphone Allows for Full-Duplex Paging Based on

Software Platform

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005876 RevC 2/19

General Description

AtlasIED IP-DM is an indoor wall mount IP endpoint display with integrated talkback microphone. It compliments the Unified Communications (VoIP Communications) investment including on-premises and hosted infrastructure platforms so that information can be pushed to spaces beyond the world of desktop telephony communication and where visual messaging is required to overcome high ambient noise and / or large spaces.

Applications

Model IP-DM registers as communication endpoint directly within InformaCast, GCK, and Syn-Apps' Revolution advanced notification applications, supporting message broadcasts to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN or LAN network architecture.

Model IP-DM is a wall mount LCD that can display time as well as scrolling text. The unit also includes an integrated microphone that enables full-duplex paging and communication based on the software platform deployed to control the unit. The LCD supports time and date functionality from NTP as well as scrolling text messages.

The IP-DM contains a PoE powered amplifier that can support up to two analog 8Ω speakers that will enable the IP-DM to support announcements or intercom.

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

System

Type IP LCD with Talkbalk Microphone

Operation Mode PoE, PoE+, or 24VDC

Indicators Network Status (On Back)

General Purpose Interface Two Trigger Inputs / One Relay Output (2A @ 30 VDC)

Amplication

Type Single-Channel Class D Topology

AC Power Input PoE or PoE+ and External 24VDC

Power Rating (RMS) 12 Watts Max (802.3af) / 25 Watts Max (802.3at)

THD <0.2%

Cooling Passive / Convection

Microphone

Sensitivity Minus 35 (±4dB) / (0db = 1V/pa, 1kHz)

Impedance Less than 2.2kΩ

Directivity Omnidirectional

Frequency Range 20Hz – 20kHz

Standard Operation Voltage 2V

Max. Operation Voltage 10V

Current Consumption Max. 0.5 mA

Sensitivity Reduction Within Minus 3dB @ 1.5V

S/N Ratio More than 62dB

Audio Inputs and Outputs

Input: Analog Audio Type(s) One Balanced Analog

Input: Analog Connectivity Secured Screw Terminal Block

Input: Network Audio Type(s) G.711 U-Law / A-Law and G.722 Capable

Input: Network Connectivity RJ-45 Female

Output: Analog Audio Type(s) One Balanced Line Level

Output: Analog Connectivity Secured Screw Terminal Block

Output: Digital Audio Type(s) G.711 U-Law / A-Law and G.722 Capable Multicast)

Output: Digital Connectivity N/A

Output: Speaker Level 12 Watts Max (802.3af) / 25 Watts Max (802.3at)

Output: Speaker Connectivity Two x Secured Screw Terminal Block

Display

Display Type High Resolution Back-Lit Color LCD

Display Color Range Backlit Display - Red, Blue, Green - (With GCK)

Surface Lumens 1900 cd/m^2 Minimum, All White Pixels

Character Max Height 480 Pixels

Viewable Dimensions (HxW) 8.66" (221mm) x 2.23" (57mm)

Control Time via NTP - Text Controlled via Software

Software

GCK Compatible Version 3.0+

InformaCast Advanced Compatible Version 8.0+

InformaCast Fusion Compatible Version 3.0+

SA-Announce Compatible Versions 9.0.18+

Standard - Blue Text White

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005876 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

Network

Ethernet IEEE 802.3 10/100Base-T

PoE IEEE 802.3 AF/AT Compliant

VLAN IEEE 802.1q Tagging

Protocols

IP Addressing DHCP / Static

Auto-Provisioning HTTP / TFTP

Auto-Registration HTTP / Service Location Protocol / IEDNet

Time NTP

Telephony SIP

Enclosure

Color White

Mounting / Rigging Provisions 4 x Screws, Optional Surface or Flush Mount Enclosures

Safety Agency Ratings ETL Listed to Comply with 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC

Ingress Protection N/A

Logo Black and Silver

Product Dimensions (HxWxD) 13.88" x 7.75" x 1.73" (353mm x 197mm x 44mm)

Shipping Dimensions (HxWxD) 15.9" x 10" x 6" (404mm x 254mm x 152mm)

Net Weight - lbs 2.52lb (1.14kg)

Shipping Weight - lbs 3.43lb (1.56kg)

Warranty Coverage

Warranty Period 1 Year

NOTES:

1. Sensitivity: Half space pink noise measurement at 6 ft (1.8 m) at 20% power; extrapolated to 1 meter and an input of 2.83 volts RMS.

2. Watts: All wattage figures are calculated using the rated nominal impedance.

3. Frequency response and sensitivity are half-space measurements.

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005876 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

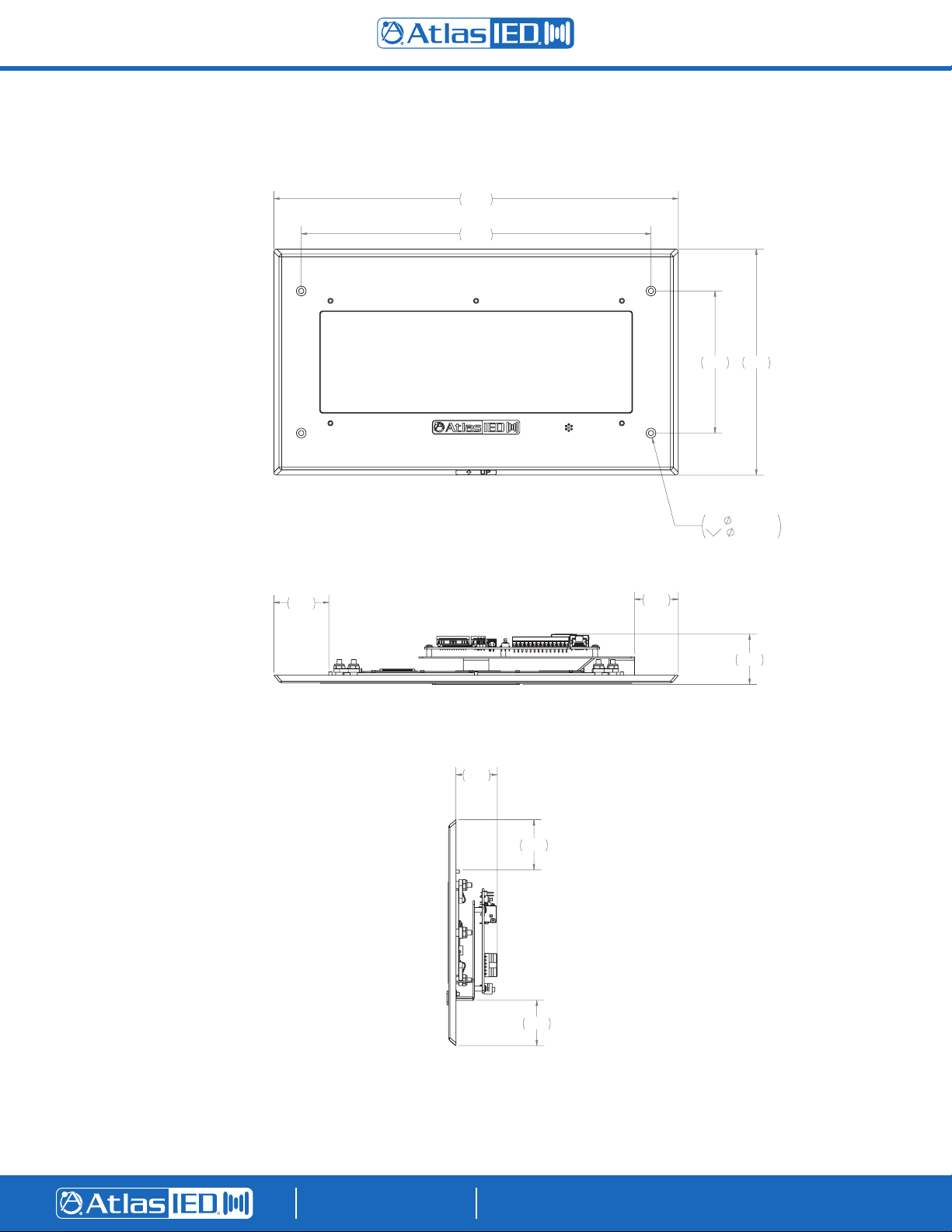

Dimensional Drawings

1.72

1.55

1.42

1.73

1.50

1.88

IP SPEAKER CONNECTOR BLOCK (PIN1)

SERVICE SWITCH

RJ45 NETWORK

AUX POWER 24VDC @ 1A

MICROPHONE

IP SPEAKER CONNECTOR BLOCK (PIN1)

SERVICE SWITCH

RJ45 NETWORK

AUX POWER 24VDC @ 1A

MICROPHONE

13.88

12.00

4X

7.75 4.88

.18 THRU

.33 X 82°

1.88

1.50

1.73

1.42

1.72

1.55
