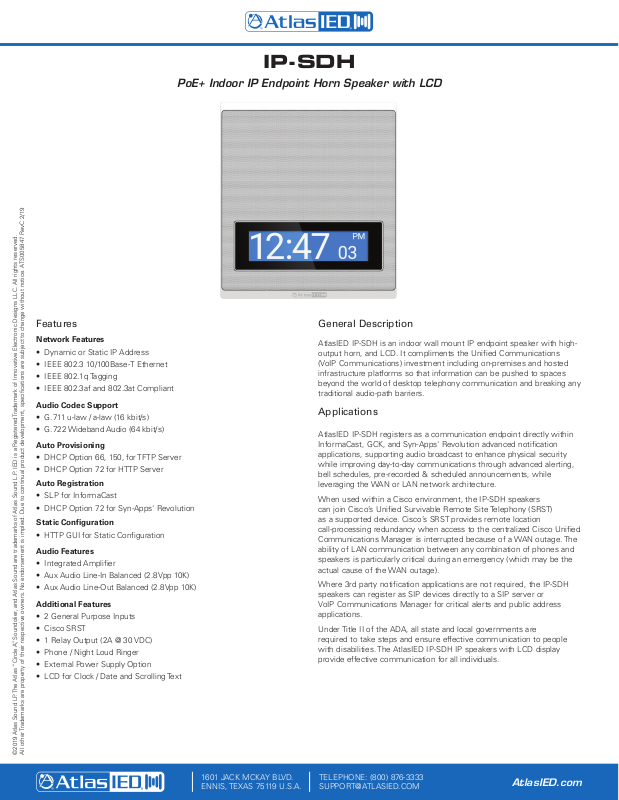

Atlas IED IP-SDH Datasheet

IP-SDH

PoE+ Indoor IP Endpoint Horn Speaker with LCD

Features

Network Features

• Dynamic or Static IP Address

• IEEE 802.3 10/100Base-T Ethernet

• IEEE 802.1q Tagging

• IEEE 802.3af and 802.3at Compliant

Audio Codec Support

• G.711 u-law / a-law (16 kbit/s)

• G.722 Wideband Audio (64 kbit/s)

Auto Provisioning

• DHCP Option 66, 150, for TFTP Server

• DHCP Option 72 for HTTP Server

Auto Registration

• SLP for InformaCast

• DHCP Option 72 for Syn-Apps' Revolution

Static Configuration

• HTTP GUI for Static Configuration

Audio Features

• Integrated Amplifier

• Aux Audio Line-In Balanced (2.8Vpp 10K)

• Aux Audio Line-Out Balanced (2.8Vpp 10K)

Additional Features

• 2 General Purpose Inputs

• Cisco SRST

• 1 Relay Output (2A @ 30 VDC)

• Phone / Night Loud Ringer

• External Power Supply Option

• LCD for Clock / Date and Scrolling Text

General Description

AtlasIED IP-SDH is an indoor wall mount IP endpoint speaker with highoutput horn, and LCD. It compliments the Unified Communications (VoIP Communications) investment including on-premises and hosted infrastructure platforms so that information can be pushed to spaces beyond the world of desktop telephony communication and breaking any traditional audio-path barriers.

Applications

AtlasIED IP-SDH registers as a communication endpoint directly within InformaCast, GCK, and Syn-Apps' Revolution advanced notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN or LAN network architecture.

When used within a Cisco environment, the IP-SDH speakers can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

Where 3rd party notification applications are not required, the IP-SDH speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts and public address applications.

Under Title II of the ADA, all state and local governments are required to take steps and ensure effective communication to people with disabilities. The AtlasIED IP-SDH IP speakers with LCD display provide effective communication for all individuals.

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005847 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

System

Type PoE+ Indoor IP Endpoint Horn Speaker with LCD

Operation Mode Self Powered

Indicators Network Status (On Back)

Operating Range (-10db) 600Hz - 14kHz

Frequency Response (+/- 5dB) 600 - 14,000 Hz (Nominal)

Vertical Coverage 95° (-6dB, 2000 Hz Octave Band)

Horizontal Coverage 95° (-6dB, 2000 Hz Octave Band)

Max SPL at 1m (Passive) 120dB at 15 Watts (Peak)

General Purpose Interface Two Trigger Inputs / One Relay Output (2A @ 30 VDC)

Transducers

Transducer Qty and Size 3.8"

Voice Coil Size 1.25"

Cone Material Double Entrant Compression Driver

Amplication

Type Single-Channel Class D Topology with Primary and Secondary Outputs

AC Power Input PoE or PoE+ and External 24VDC

Power Rating (RMS) 12 Watts Max (802.3AF) / 25 Watts Max (802.3AT)

THD <0.2%

Cooling Passive / Convection

Driver Protection Built-In Limiter

Audio Inputs and Outputs

Input: Analog Audio Type(s) One Balanced Line Level

Input: Analog Connectivity Secured Screw Terminal Block

Input: Network Audio Type(s) G.711 U-Law / A-Law and G.722 Capable

Input: Network Connectivity RJ-45 Female

Output: Analog Audio Type(s) One Balanced Line Level

Output: Analog Connectivity Secured Screw Terminal Block

Output: Digital Audio Type(s) G.711 U-Law / A-Law and G.722 Capable (Multicast)

Output: Digital Connectivity N/A

Output: Speaker Level 8Ω, 12W (802.3AF), 25W (802.3AT)

Output: Speaker Connectivity Primary and Slave Secured Screw Terminal Block

Display

Display Type High Resolution Back-Lit Color Liquid Crystal Display

Display Color Range Backlit Display - Red, Blue, Green - (With GCK)

LCD Display Scrolling Text Character Count - 160

Surface Luminance 1900 cd/m^2 Minimum, All White Pixels

Character Max Height 480 Pixels

Viewable Dimensions (H x W) 8.66" (221mm) x 2.23" (57mm)

Control Time via NTP - Text Controlled via Software

Software

®

Compatible Version 3.0+

GCK

InformaCast Advanced Compatible Version 8.0+

InformaCast Fusion Compatible Version 3.0+

SA-Announce Compatible Versions 9.0.18+

Standard - Blue Text White

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005847 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

Network

Ethernet IEEE 802.3 10/100Base-T

PoE IEEE 802.3 AF/AT Compliant

VLAN IEEE 802.1q Tagging

Protocols

IP Addressing DHCP / Static

Auto-Provisioning HTTP / TFTP

Auto-Registration HTTP / Service Location Protocol / IEDNet

Time NTP

Telephony SIP

Enclosure

Color White

Grille Material Powder Coated Steel

Baffle Material Plastic

Mounting / Rigging Provisions 4 x Screws

Safety Agency Ratings ETL Listed to Comply with 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC

Ingress Protection N/A

Logo One Color Print

Product Dimensions (HxWxD) 14.37" x 12.87" x 4.18" (365mm x 327mm x 106mm)

Shipping Dimensions (HxWxD) 15.5" x 13.9" x 5.5" (394mm x 353mm x 140mm)

Net Weight - lbs 5.21lb (2.36kg)

Shipping Weight - lbs 6.66lb (3.02kg)

Warranty Coverage

Warranty Period 1 Year

NOTES:

1. Sensitivity: Half space pink noise measurement at 6 ft (1.8 m) at 20% power; extrapolated to 1 meter and an input of 2.83 volts RMS.

2. Watts: All wattage figures are calculated using the rated nominal impedance.

3. Frequency response and sensitivity are half-space measurements.

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005847 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

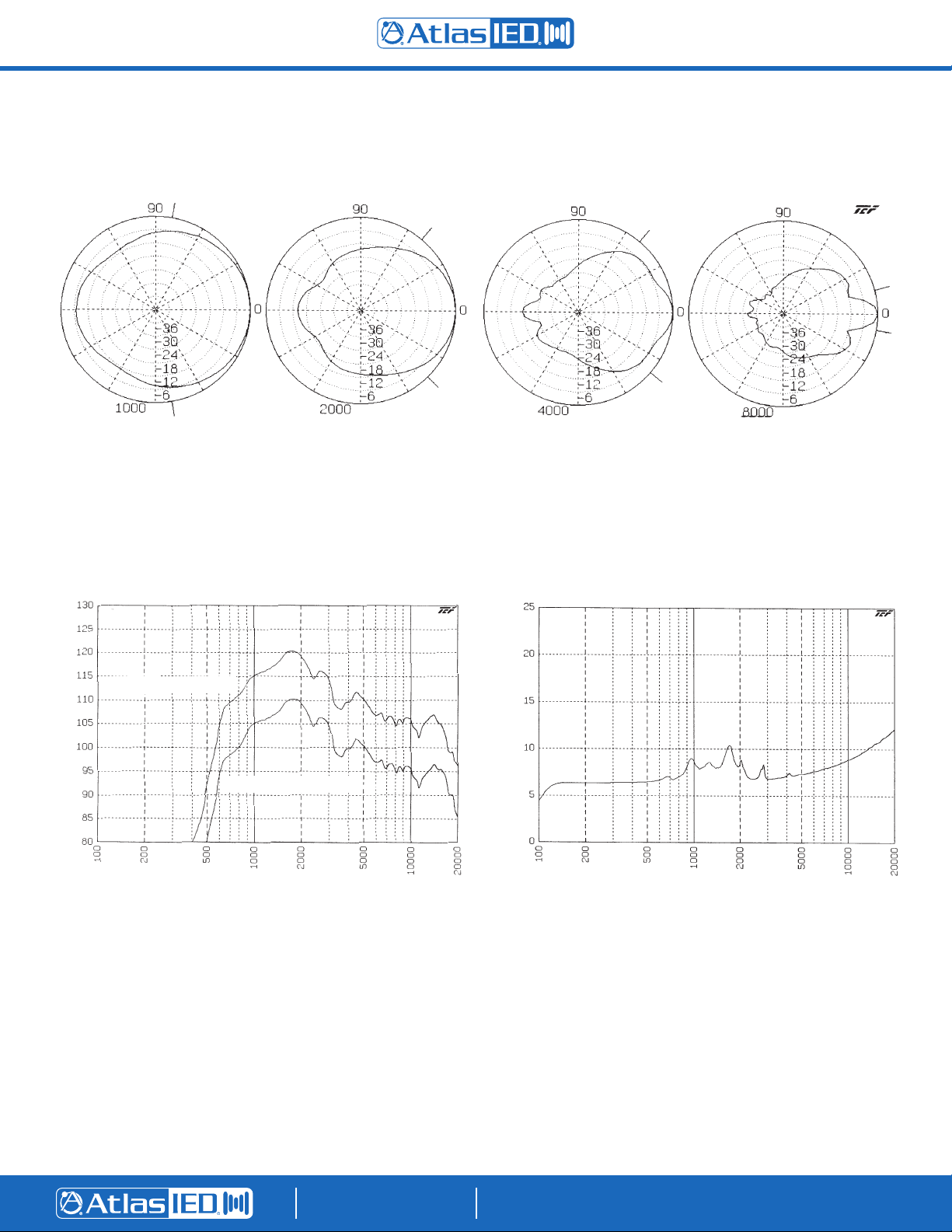

Polars Are Normalized To Zero On Axis

15 watts @1 meter

SPL in dB

Frequency Response

1 watt @ 1 meter

Frequency (Hz)

Impedance

Ohms

Frequency (Hz)

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005847 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

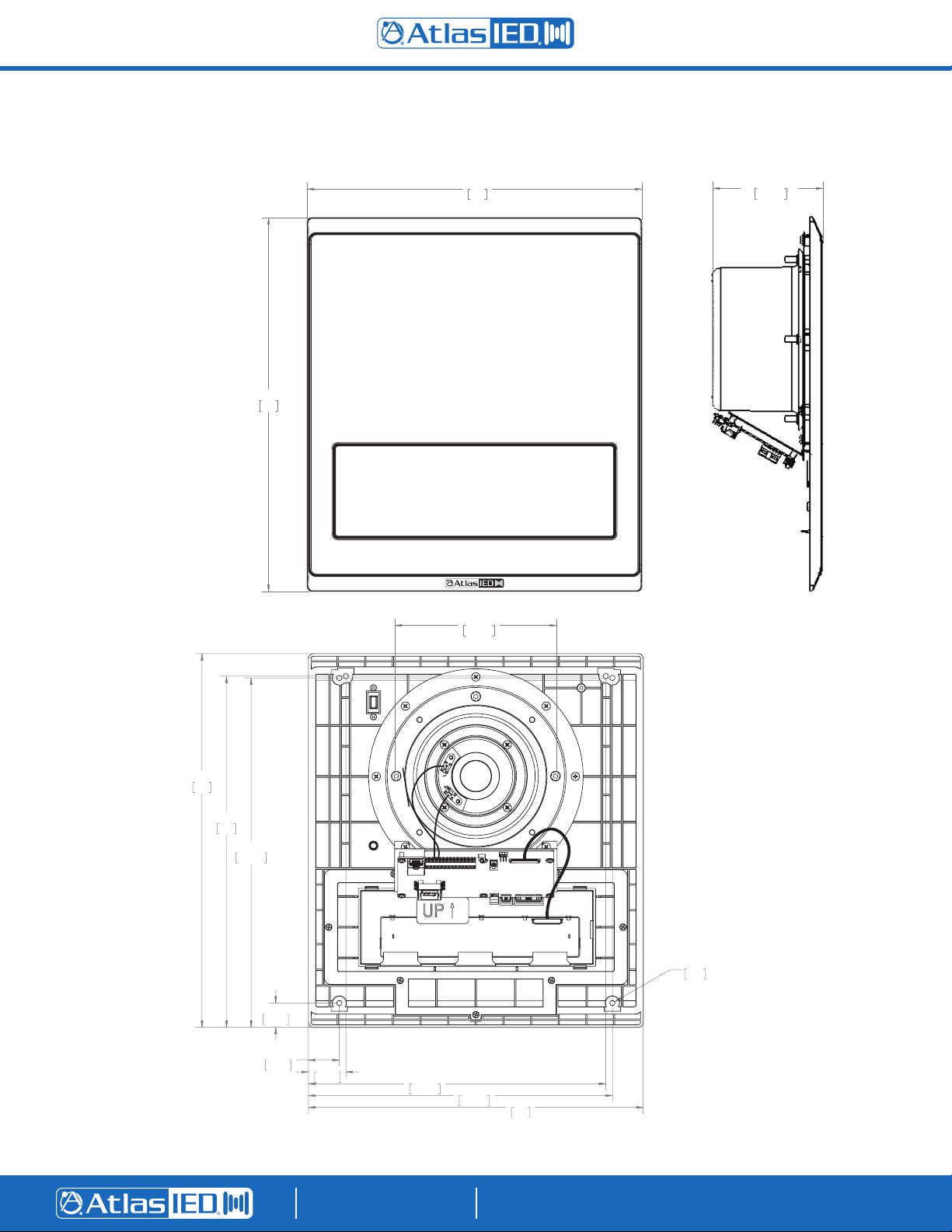

Dimensional Drawings

327

.94

23.75

13.44

341.25

13.50 343

14.37 365

6.25

158.75

12.87 327

14.37 365

.94

23.75

13.44

341.25

13.50 343

14.37 365

6.25

158.75

14.37 365

12.87 327

6.25

158.75

4.18

106.17

14.37 365

13.50 343

13.44

341.25

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005847 RevC 2/19

.94

23.75

1.19

30.15

1.44

36.50

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

290.50

11.44

11.69

296.85

12.87

TELEPHONE: (800) 876-3333

R.10

2.50

[email protected]

AtlasIED.com

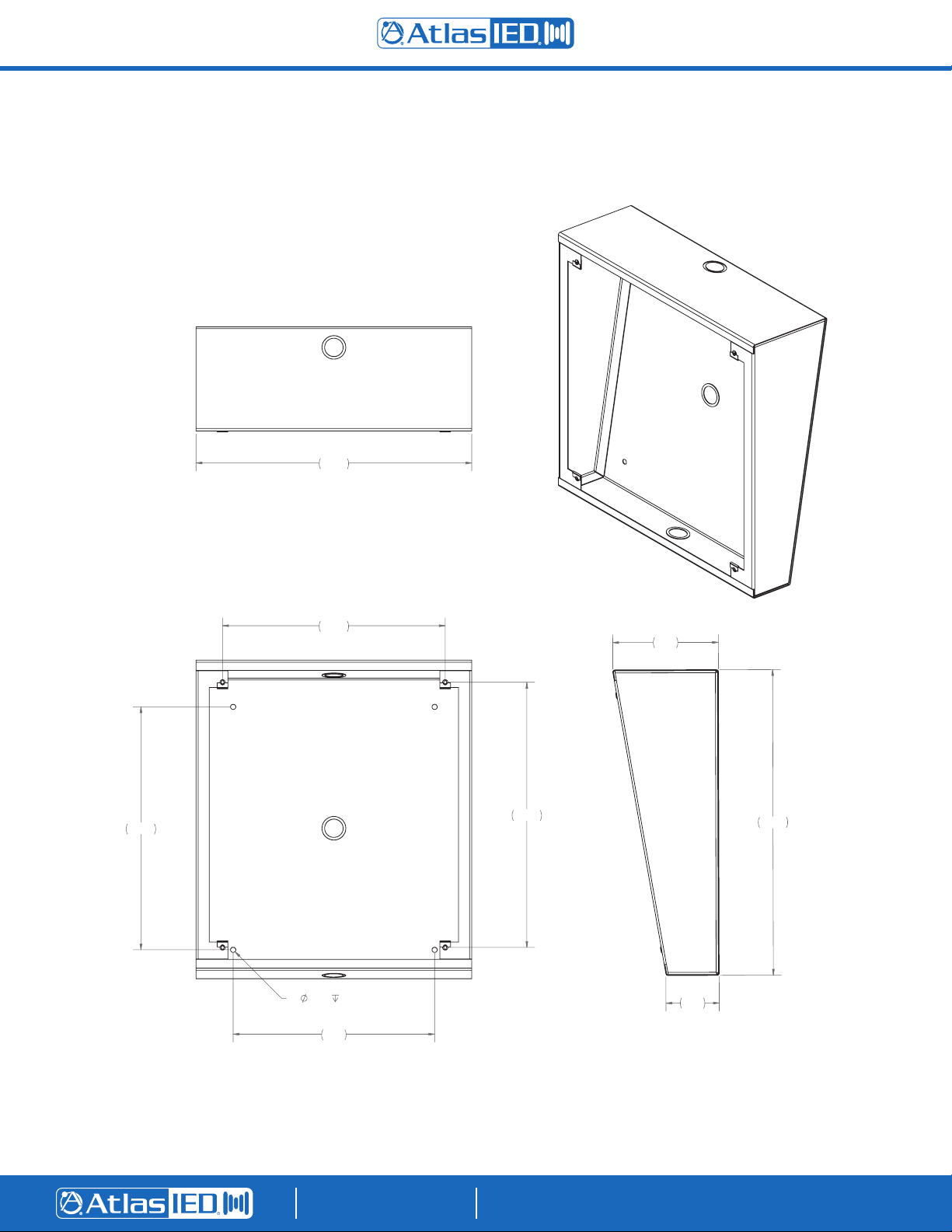

Accessories

IP-SEA-SD

13.00

11.63

4X

.250

10.50

9.50

.034

12.50

4.98

14.41

2.51

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005847 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

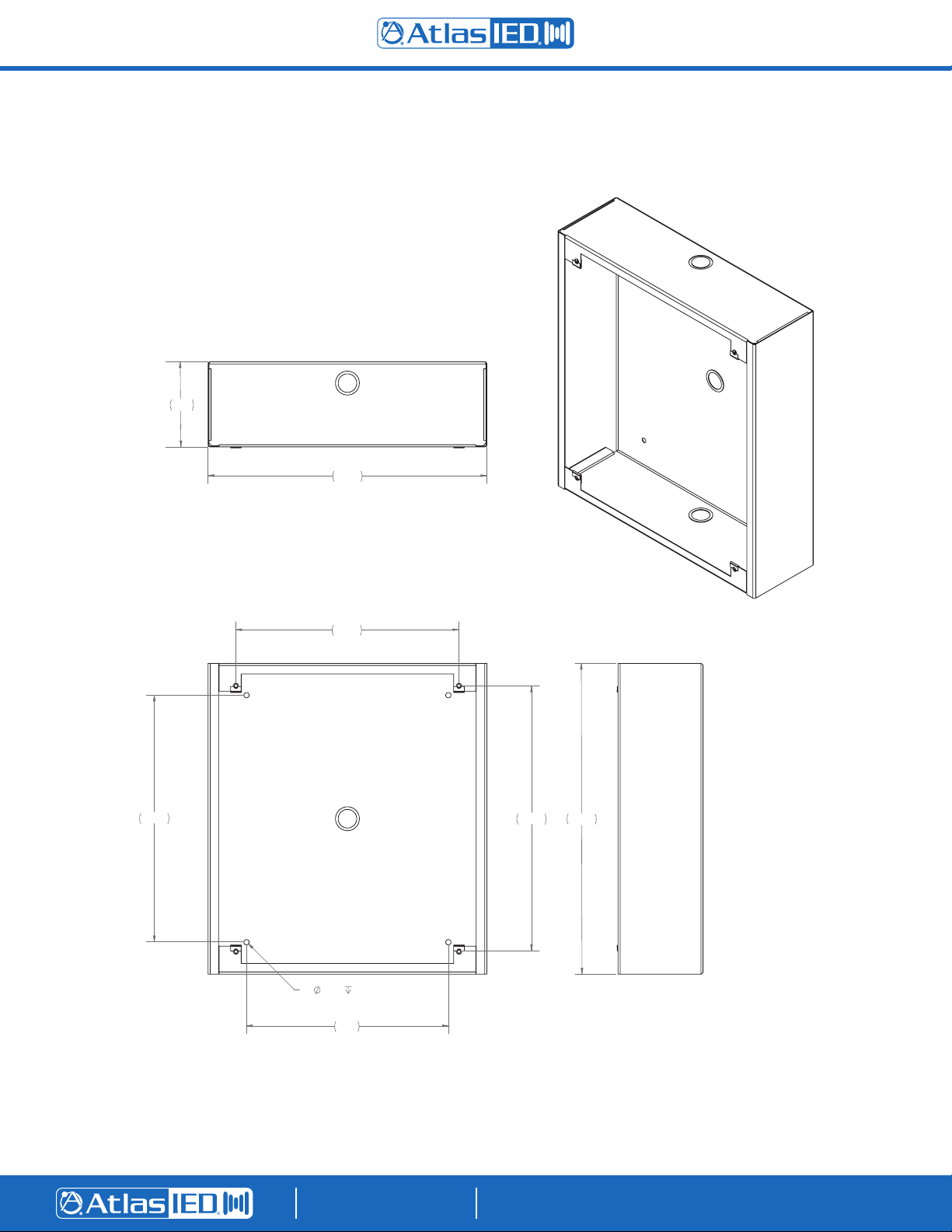

Accessories

IP-SEST-SD

4.00

13.13

11.63

4X

.250

10.50

9.50

.034

12.50

14.63

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005847 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

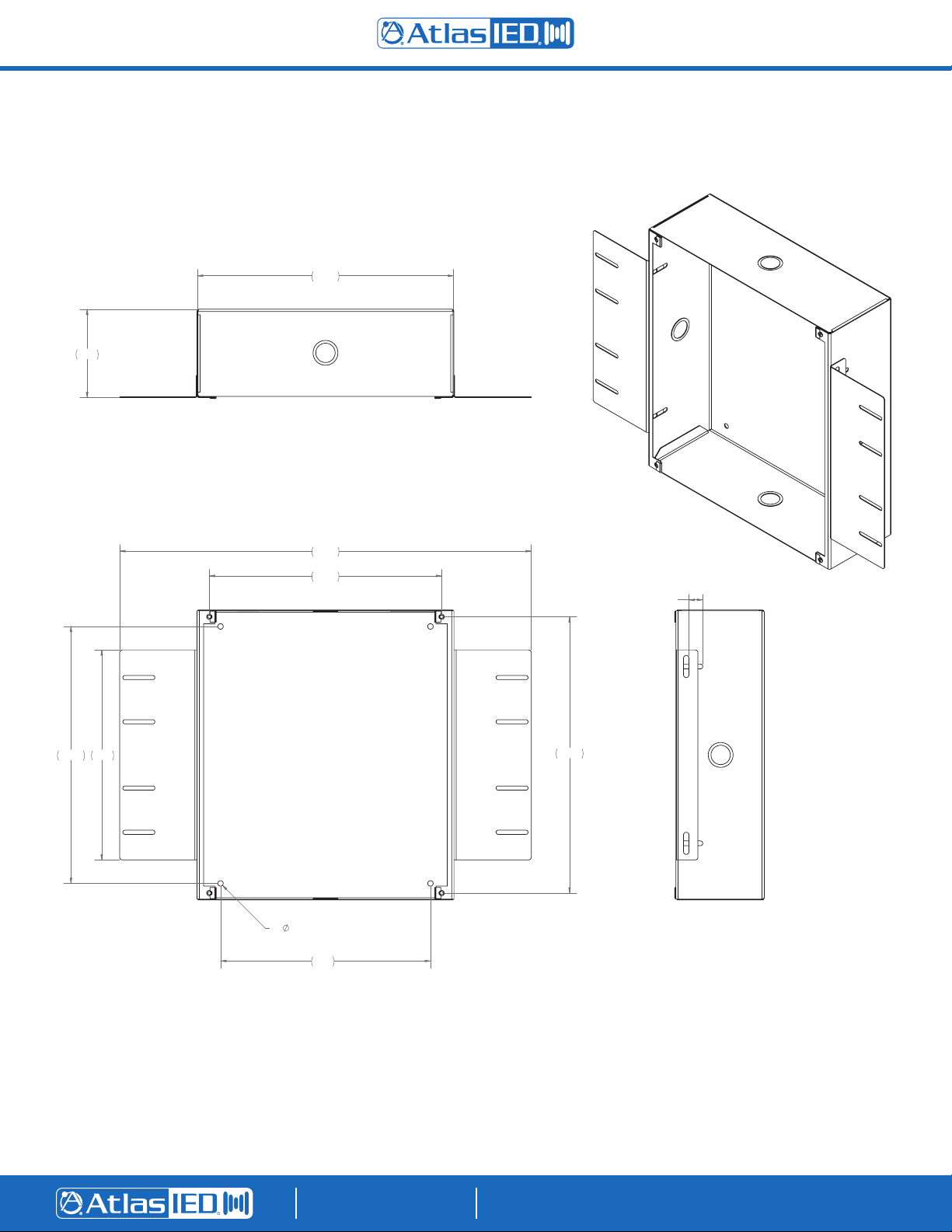

Accessories

IP-FEST-SD

4.00

11.63

18.63

10.50

.625

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005847 RevC 2/19

11.63 9.50

.250 THRU

4X

9.50

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

12.50

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

Architect and Engineer Specications

The unit shall be AtlasIED model IP-SDMF. The PoE+ Indoor IP Endpoint Horn System shall include factory assembled Horn, IP addressable PCB amplifier / control, LCD multi-color display, and plastic baffle.

The horn shall be a double re-entrant type with a 3.8" high-output compression driver mounted within weather-resistant housing. The impedance shall be 8 ohm and a voice coil diameter of 1.25" (32mm). Frequency response shall be 600-14,000 Hz (nominal), 700-5500 Hz (± 5dB). Sound pressure level shall be 114dB (15W/1m), 104dB (1W/1m), and max peak output at 1W/1m shall be 120dB SPL. Sound dispersion angle shall be 95°. The Horn dimensions shall be Dia 5
