Atlas IED IPDSC-DSE+ Data Sheet

IPDSC-DSE+

IP Dual Sided LED Display With Loudspeakers and Flasher

1/6

Features

Network Features

• Dynamic or Static IP Address

• IEEE802.3 10/100Base-T Ethernet

• IEEE 802.1q Tagging

• IEEE 802.11AT Compliant

VoIP Standard Audio

• G.711 u-law/a-law (64 kbit/s)

• G.729 Wideband Audio (64 kbit/s)

Auto Provisioning

• DHCP Option 66, 150, or TFTP Server

• DHCP Option 72 for HTTP Server

Auto Registration

• SLP for InformaCast

• DHCP Option 72 for SA-Announce or GCK

Static Configuration

• HTTP GUI for Static Configuration

• Cisco SRST

Audio Features

• Integrated Amplifier

• 15-Watt Tot al Power

ATS005422 RevA 3/16

• Primary Speaker Output 8Ω

• Aux Audio Line-In Unbalanced (2.8Vpp 10K)

• Aux Audio Line-Out Unbalanced (2.8Vpp 10K)

Additional Features

• 2 General Purpose Inputs

• 1 Relay Output (2A @ 30 VDC)

• Phone/Night Loud Ringer

• External Power Supply Option

• 8 x 64 LED Display for Clock or Scrolling Text

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice.

General Description

Model IPDSC-DSE+ is an indoor dual sided display incorporating
loudspeakers and LED flasher. It can display time as well as scrolling text
and leverages the VoIP communication solution to extend notifications
with effective visual text alerts for high ambient noise areas or large
spaces.

Applications

AtlasIED IPDSC-DSE+ registers as a communication endpoint directly within
InformaCast, SA-Announce, and GCK advanced notification applications,
supporting both visual text and audio broadcast to enhance physical security
while improving day-to-day communications through advanced alerting,
bell schedules, pre-recorded, scheduled announcements & intercom, while
leveraging the WAN/LAN network architecture.

When used within a Cisco Environment, these same IP dual sided LED
displays with loudspeakers from AtlasIED can join Cisco’s Unified Survivable
Remote Site Telephony (SRST) as a supported device within SRST endpoint
Architecture. Cisco’s SRST provides remote location call-processing
redundancy when access to the centralized Cisco Unified Communications
Manager is interrupted because of a WAN outage. The ability of LAN
communication between any combination of phones and loudspeakers is
particularly critical during an emergency (which may be the actual cause of
the WAN outage).

When receiving an emergency notification, the flasher on the IPDSC-DSE+
becomes active and blinks. When the emergency notification is complete, the
IPDSC-DSE+ flasher stops blinking.

In addition to visual signaling, the IPDSC-DSE+ can provide audio via its
integrated loudspeakers or to support distributed analog public address
systems with the convenience of line level audio outputs. This line level
output is ideal for use with AtlasIED AA, PA, DPA, or CP series amplifiers to
power large zones of traditional 25V, 70.7V, or 100V AtlasIED loudspeakers or
paging horn loudspeakers.

It also includes 2 GPI inputs, 1 GPI output, and microphone input for talk
back or listen applications. The GPI/O ports offer triggering for critical alert
notification or unified connectivity of third party systems.

Under Title II of the ADA, all state and local governments are required to
take steps and ensure effective communication to people with disabilities.
The AtlasIED IPDSC-DSE+ is an indoor dual sided display incorporating
loudspeakers and flasher provides effective communication for all individuals.

1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: [phone]
FAX [phone]

AtlasIED.com

System

Type IP Dual Sided LED Display with Loudspeakers

Operation Mode Self Powered

Indicators Network Status (On Back)

Operating Range (-10db) 250Hz - 9kHz

Coverage 95° 800Hz - 4kHz

Max SPL at 1 m (passive) 93 dB SPL Continuous / 96 dB SPL Peak

Recommended Signal Processing Built-In Processing

General Purpose Interface Two Trigger Inputs / One Relay Output (2A @ 30 VDC)

Transducers

Transducer Qty and Size 2" x 4" - per side

Voice Coil Size .5"

Cone Material Treated Industrial Paper

Driver Protection Built-In Limiter

Amplication

Type Single-Channel Class D Topology

AC Power Input PoE or PoE+ and External 24VDC

Power Rating (RMS) 15 Watts Max (802.3AT)

THD <.02%

Cooling Passive/Convection

Audio Inputs and Outputs

Input: Analog Audio Type(s) One Unbalanced Analog

Input: Analog Connectivity Secured Screw Terminal Block

Input: Network Audio Type(s) G.711 U-Law/A-Law and G.722 Capable

Input: Network Connectivity RJ-45 Female

Output: Analog Audio Type(s) One Unbalanced Line Level

Output: Analog Connectivity Secured Screw Terminal Block

Output: Digital Audio Type(s) N/A

Output: Digital Connectivity N/A

Output: Loudspeaker Level 8Ω, 9W (802.3AF), 15W (802.3AT)

Output: Loudspeaker Connectivity Two x Secured Screw Terminal Block

Display

Display Type LED Display

Display Color Range Red Only

Display Lumens 162lux

LED's Per Character 16 x 64

Character Max Height 2.125" (54mm)

Viewable Dimensions (H x W) 10.125" (257mm) x 2.5625" (65mm)

Control Time via NTP - Text Controlled via Software

Flasher

Flasher Type LED

ATS005422 RevA 3/16

Flash Color Range RGB

Flasher Lumens 310lux (Red), 348lux (Green), 352lux (Blue)

Flash Rate(s) Multi Speed Capable

Viewable Dimensions (HxW) .5" (12mm) x 3.5" (89mm)

Control Controlled via Software

2/6

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice.

1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: [phone]
FAX [phone]

AtlasIED.com

Software

SA-Announce Compatible Versions 9.0.18+

InformaCast Compatible Version 8.0+

GCK Compatible Version 3.0+

Network

Ethernet IEEE802.3 10/100Base-T

PoE IEEE802.3AF/AT Compliant

VLAN IEEE802.1q Tagging

Protocols

IP Addressing DHCP/Static

Auto-Provisioning HTTP/TFTP

Auto-Registration HTTP/Service Location Protocol/IEDNet

Time NTP

Telephony SIP

Enclosure

Color Black with Brushed Silver

Mounting/Rigging Provisions Mounting Plate provided with Various Hole Patterns

Safety Agency Ratings ETL Listed to Comply with UL-60950-1, and CAN/CSA-C22.2 No. 60950-1

Ingress Protection

Logo Blue and Removable

Product Dimensions (HxWxD) 9.9" (251mm) x 19.94 (506.5mm) x 7" (177mm)

Shipping Dimensions (HxWxD) 10.6" (269mm) x 25.4" (645mm) x 12.8" (325mm)

Net Weight - lbs 5 lbs (2.27kg)

Shipping Weight - lbs 13 lbs (5.89 kg)

Warranty Coverage

Warranty Period 1 Year

IP-XX (Not provided)

3/6

NOTES:

1. Sensitivity: Half space pink noise measurement at 6 ft (1.8 m) at 20% power; extrapolated to 1 meter and an input of 2.83 volts RMS.

2. Watts: All wattage figures are calculated using the rated nominal impedance.

3. Frequency response and sensitivity are half-space measurements.

ATS005422 RevA 3/16

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice.

1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: [phone]
FAX [phone]

AtlasIED.com

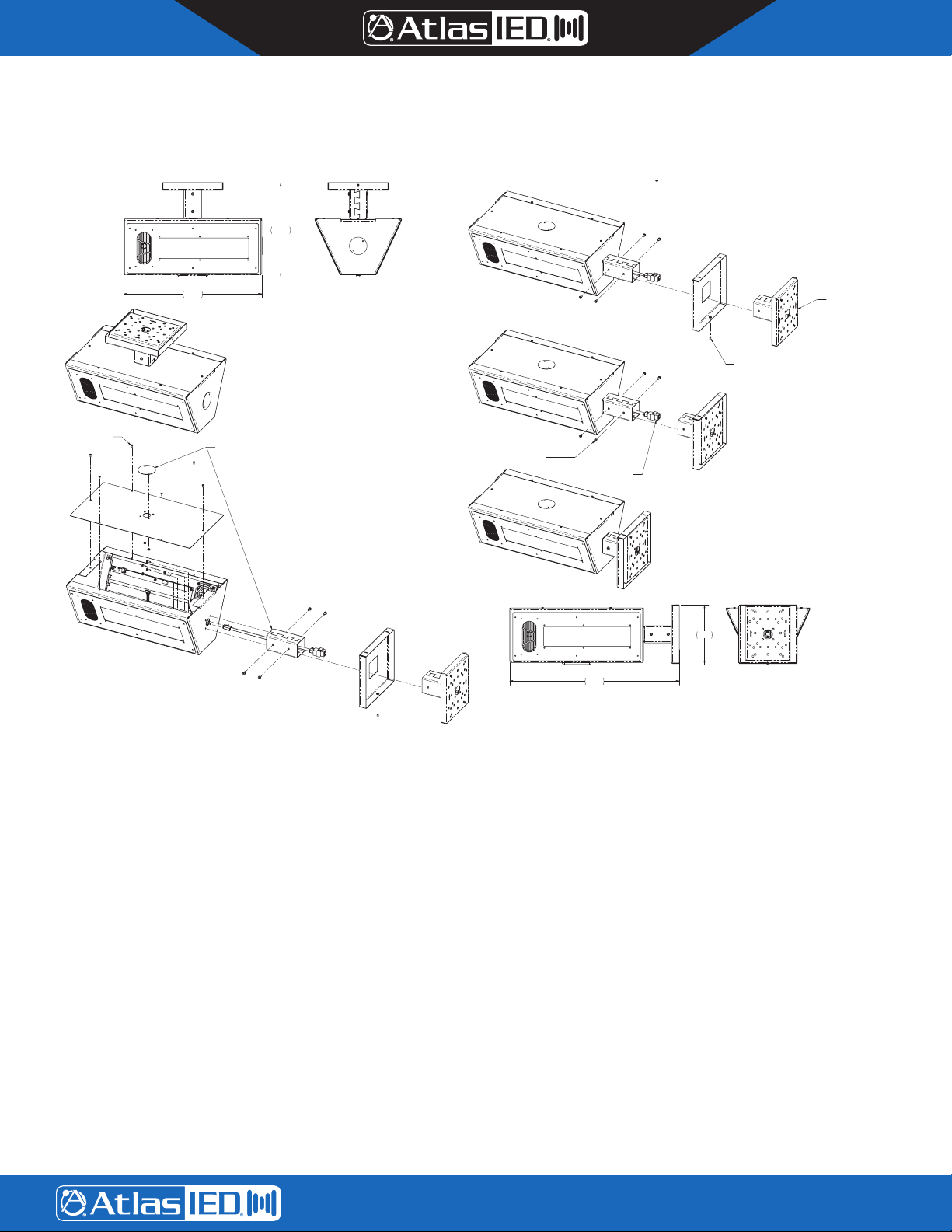

Mounting Options

SWAP POSITIONS

REMOVE 6 SCREWS

TO REMOVE TOP

15.73

10.77

15.73

10.77

4/6

MAY BE MOUNTED ON
MOST STYLES OF WALL

OR CEILING BOXES

REMOVE 6 SCREWS

TO REMOVE TOP

SWAP POSITIONS

REMOVE 4 SCREWS TO

REMOVE FROM WALL

BRACKET

POE NETWORK
CONNECTION

19.94

7.00

REMOVE SET SCREW AND

UNHOOK TO REMOVE

COVER PLATE FROM WALL

BRACKET

ATS005422 RevA 3/16

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice.

1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: [phone]
FAX [phone]

AtlasIED.com

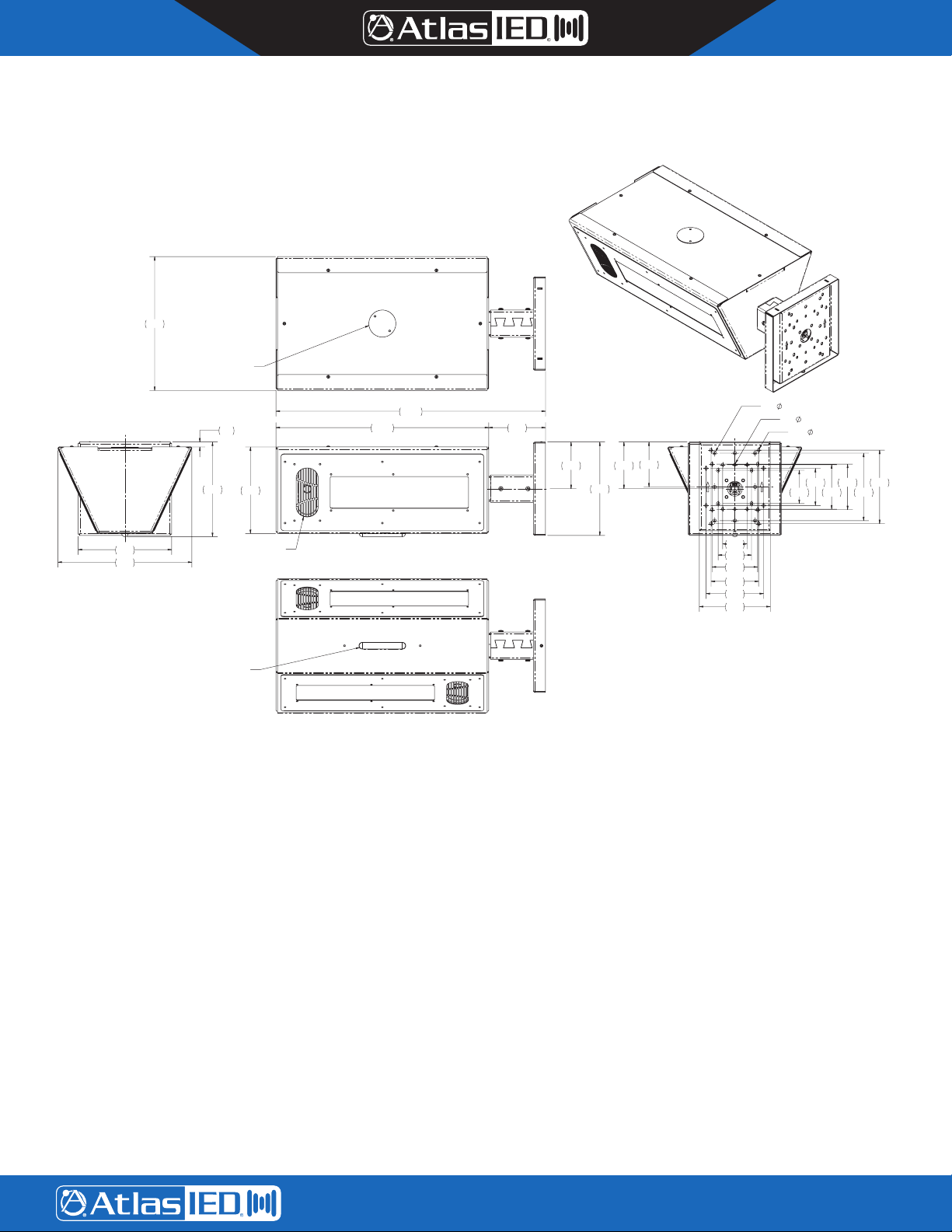

Dimensions

9.91

MAY BE CEILING

MOUNTED (SEE SHEET 2)

7.00

.36

6.41

19.94

15.73

LED DISPLAY

4.21

3.46

6.91

3.46

3.32

HOLE
C

L

UNIT
C

L

(8X)

(6X)

.25

(12X)

2.47

.16 X .22

.19 X .25

2.75

3.28

5/6

3.38

5.00

5.44

6.91

9.91

RGB LED STROBE

SPEAKER

NOTE: IPDC-DSE+ does not include loudspeaker drivers. A blank panel is placed behind the cutout.
IPDSC-DSE+ provides integrated loudspeaker drivers.

1.81

2.47

3.38

3.52

4.25

5.25

ATS005422 RevA 3/16

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice.

1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: [phone]
FAX [phone]

AtlasIED.com

Architect and Engineer Specications

Model IPDSC-DSE+ shall consist of a factory assembled double sided
wall or ceiling mount enclosure containing dual 16 H x 64 W LED
resolution displays that can display time as well as scrolling text. The
model shall also feature LED flasher located below the display that
can be used to alert room occupants of an incoming scrolling text
message in accordance with ADA compliance. The unit shall incorporate
loudspeaker drivers on each side of the display. The amplifier/control
board shall be capable of producing up to 15-watts RMS into the 8Ω
loudspeakers provided by IEEE 802.3at (PoE+) and up to 9-watts RMS
when using standard 802.3af compliant PoE switches.

The unit shall incorporate a LED display with viewable dimensions of

10.125" (2577mm) wide x 2.56" (65mm) high. The LEDs per character
shall be 16 high x 64 wide and character max height of 2.125" (54mm). It
shall produce the color red and be controlled by Time via NTP. The display
shall produce 162 lux brightness and display text and/or time.

The unit shall incorporate a LED flasher with viewable dimensions of .5"
(12mm) height x 3.5" (89mm) wide. The LEDs shall be able to produce
RGB color spectrum with brightness of 310-lux (Red), 348-lux (Green),
352-lux (Blue). It shall have the capability of multi-speed flash rate and
will be software controllable.

All control functionality shall be determined via software. The metal
loudspeaker baffle overall dimensions shall be 9.9" (251mm) x 19.94"
(506.5mm) x 7" (177mm) HxWxD.

6/6
