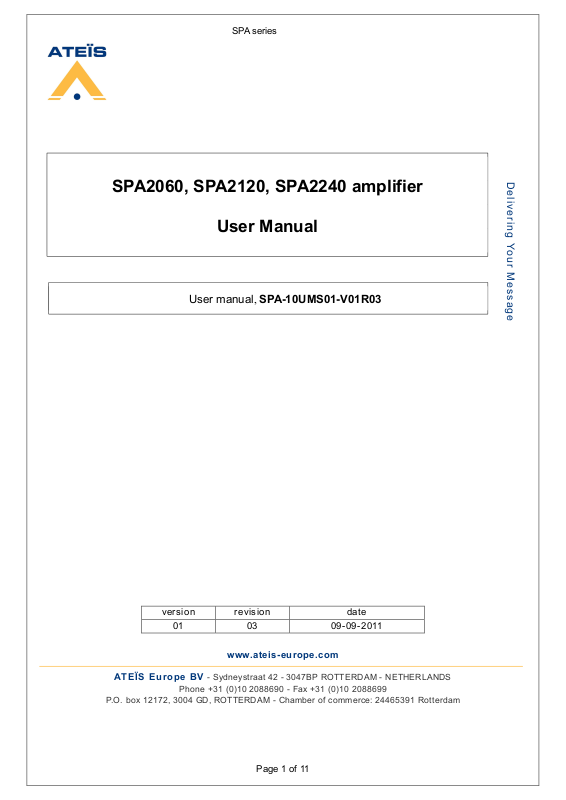

ATEIS SPA 2120 User Manual

SPA series

SPA2060, SPA2120, SPA2240 amplifier

User Manual

User manual, SPA-10UMS01-V01R03

ATEÏ S Eu rope BV

P.O. box 12172, 3004 GD, ROTTERDAM - Chamber of commerce: 24465391 Rotterdam

version revision date

01 03 09-09-2011

www.ateis-europe.com

- Sydneystraat 42 - 3047BP ROTTERDAM - NETHERLANDS

Phone [phone] - Fax [phone]

Deliver i n g Yo u r Message

Page 1 of 11

SPA series

1. Table of Content

1. Table of Content ..................................................................................................................... 2

2. Welcome: ............................................................................................................................... 2

3. EC Declaration of conformity ................................................................................................. 4

3.1. DIVA8 .............................................................................................................................. 4

3.2. IDA8 ................................................................................................................................ 5

4. Product Description: ............................................................................................................... 6

5. SPA Series Front Panel Features:.......................................................................................... 6

6. SPA Series Rear Panel Features: .......................................................................................... 7

7. Technical Data Overview:....................................................................................................... 8

8. Wiring examples .................................................................................................................... 8

8.1. DIVA8 .............................................................................................................................. 8

8.2. IDA8 ................................................................................................................................ 9

8.2.1. Safety Declaration ..................................................................................................... 9

9. International sales and service points .................................................................................. 11

2. Welcome:

Thank you for choosing ATEÏS SPA amplifiers. We (at ATEÏS) hope you will enjoy using this exciting piece of
technology as much as we enjoy developing and building it.

This manual is intended to provide users the necessary understanding to safely uses SPA amplifiers as well as
guide users through all configuration procedures.

This manual can be updated at any time without prior notice in order to keep this manual up to date.

In case of errors in this manual or not clear process description, feel free to submit us mistakes, suggestions or
questions by sending an email.

This document intends to be a complete manual and ATEIS hopes that this Help file manual will provide you all
information or answers needed. However if you have any questions, feel free to contact us.

Ateis Presentation

With more than twenty years of experience, ATEÏS has quickly established itself as a leading manufacturer of Public
Address, Voice Alarm systems and counter intercoms. The constant growth of market share in Europe provides
confirmation of the quality of ATEÏS’s commercial and technical approach.

Page 2 of 11

SPA series

Products:

The company now offers a full range of sound equipment: microphones, preamplifiers, digital processors, digital
audio matrixes, loud-speaker monitoring systems, amplifiers, etc. ATEÏS designs and manufactures leading
products in the voice alarm systems market which have been certified EN60849 compliant by the TÜV.

Development:

Thanks to a development team that includes thirty engineers, and to constant investment, we are able to respond
rapidly to the demands of our various markets with specific solutions and cutting edge technology. We have
distributors in more than fifteen countries in Europe and the Middle East, with whom we have carried out major
projects. In choosing ATEÏS, you are guaranteed a trustworthy partner that can be counted on for the long term.

ATEÏS Field:

ATEÏS's audio systems have been installed in the following markets:

- Railways

- Subways

- Airports

- High raise buildings

- Hotels

- Restaurants

- Shopping malls

- Theme parks

- Places of worship

- Stadia.

- Museums.

- Industrial buildings

- Industrial plants

- Commercial buildings

Page 3 of 11

SPA series

Certification Body:

Certification Body:

3. EC Declaration of conformity

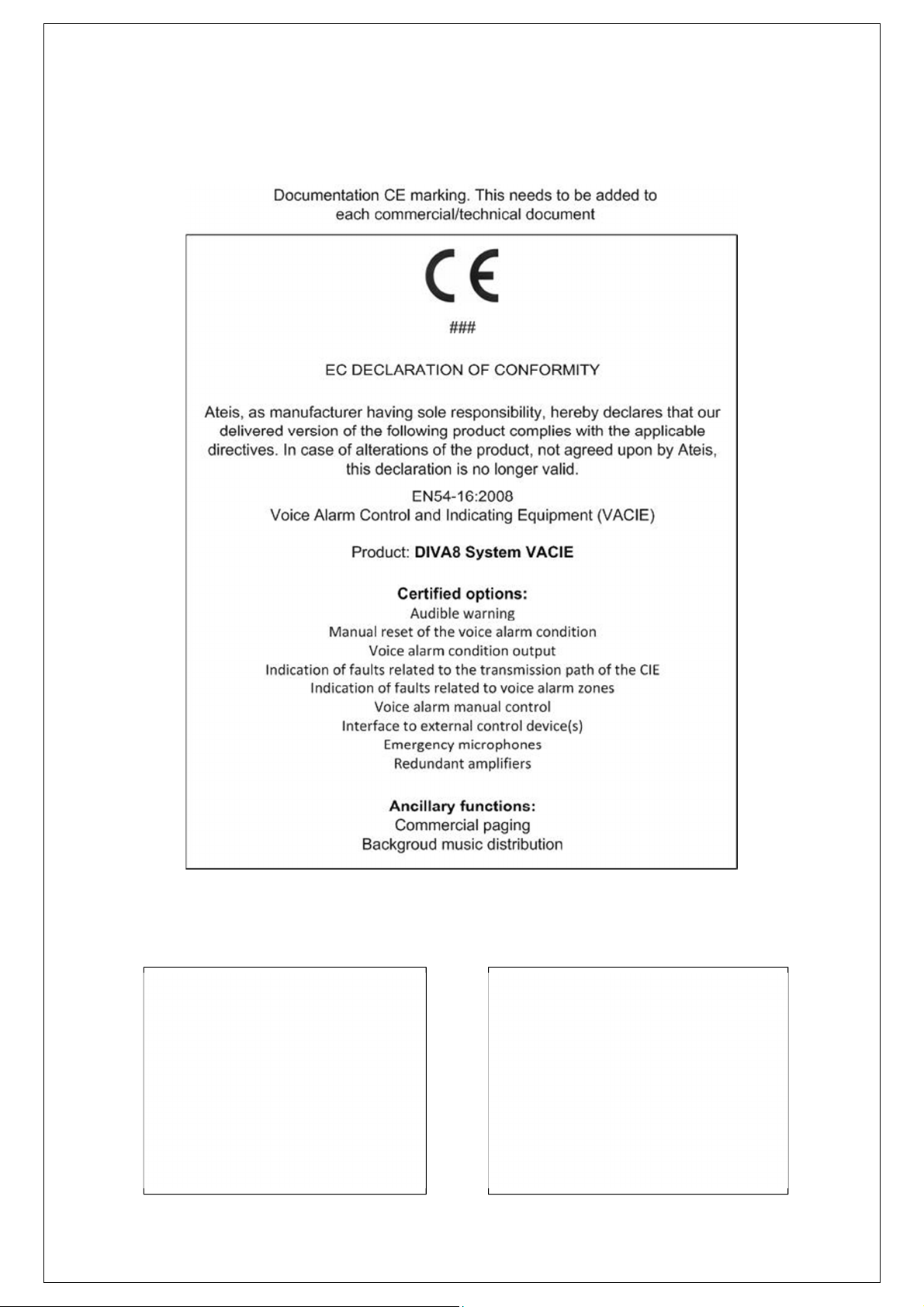

3.1. DIVA8

Intertek commercial and

electrical
Intertek House, Cleeve Road
Leatherhead, Surrey, KT22
7SB
Phone: [phone]
Fax: [phone]

Intertek commercial and
electrical
Intertek House, Cleeve Road
Leatherhead, Surrey, KT22 7SB
Phone: [phone]
Fax: [phone]

Page 4 of 11

SPA series

Distributed by:

Certification Body:

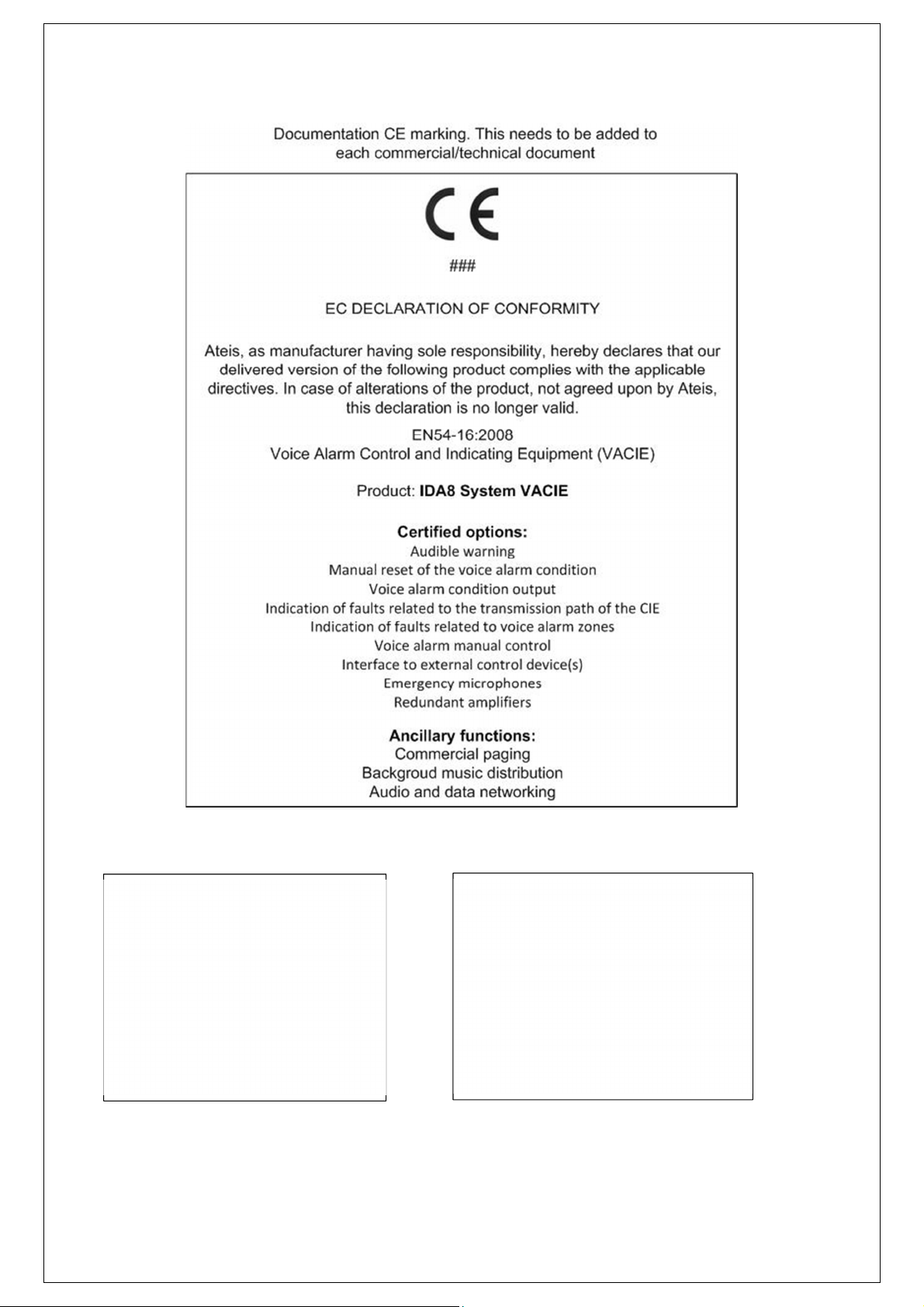

3.2. IDA8

Ateis Europe bv

Sydneystraat 42 – 3047BP ­ROTTERDAM
The Netherlands
Phone: [phone]
Fax: [phone]

http//www.ateis-europe.com
mailto: info@ateis­europe.com

Page 5 of 11

Intertek commercial and
electrical
Intertek House, Cleeve Road
Leatherhead, Surrey, KT22 7SB
Phone: [phone]
Fax: [phone]

SPA series

4. Product Description:

The SPA (Security Power Amplifier) is designed for perfect integration into the SINAPS system, but thanks to its
flexibility, it can also be used for any Public Address application.

The SPA amplifiers were specifically developed to meet the requirements of EN 60849 for safety installations. Each
amplifier module is fitted with its own 220 VAC/24 VDC power supply for increased system reliability. To avoid
handling errors, the volume output is set using the potentiometer located at the back of the apparatus. In addition to
standard protection via fuses, SPA amplifiers also have electronic and thermal protection to protect them from all
potential hazards.

A fan provides forced cooling for the final power shelves and internal parts of the apparatus. It starts up
automatically when the temperature reaches a certain threshold, and stops when it returns to normal values.

Four LEDs display the status of each amplifier: AC or DC power supply, Line Overload and Temperature overload.
Furthermore, a three LEDs Vu-Meter indicates the presence and level of audio signal.

A surveillance circuit continuously monitors the temperature and the presence of AC and DC power supplies for both
amplifiers. In case of a problem, the overload LEDs will be switched ON and the Fault relay will be activated.

SPA series can be ordered with optional 115V power supply. Please contact your local dealer or your regional Ateis
branch office.

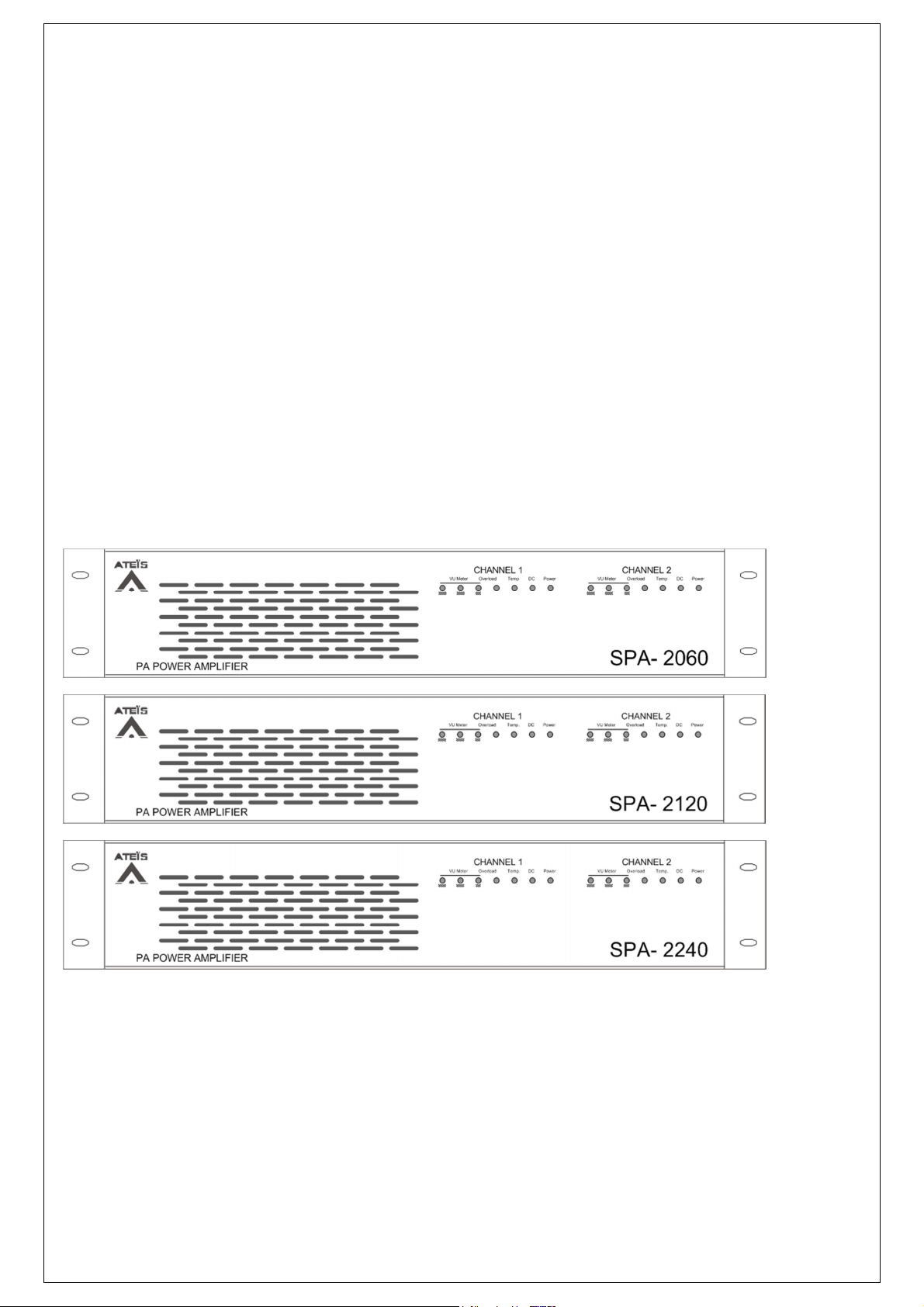

5. SPA Series Front Panel Features:

For each amplifier channel, there are indicators LEDs in order to indicate the amplifier status.

VU Meter:

The VU-meter is composed of three LEDs that represent three different level thresholds: -40dB, -20dB and 0dB.
When the input signal reaches those thresholds, the corresponding LED will blink.

Overload:

The overload LED will blink as soon as the output power exceeds the nominal value. If the Overload LED is blinking,
check that the output load is well connected and still in good condition as well as checking the level of the input
signal.

Page 6 of 11

SPA series

Temp.:

If the device internal temperature exceeds 95 degrees C, the TEMP LED will light and the pre-amp will stop working
until the temperature falls below 95 degrees C. The pre-amp will come back to a working state automatically. To
avoid temperature failure, please insert an external fan to the rack system.

DC:

The DC LED indicates that the SPA amplifier is powered by a 24VDC power supply.

Power:

The Power LED indicates the ON/OFF status of the SPA amplifier.

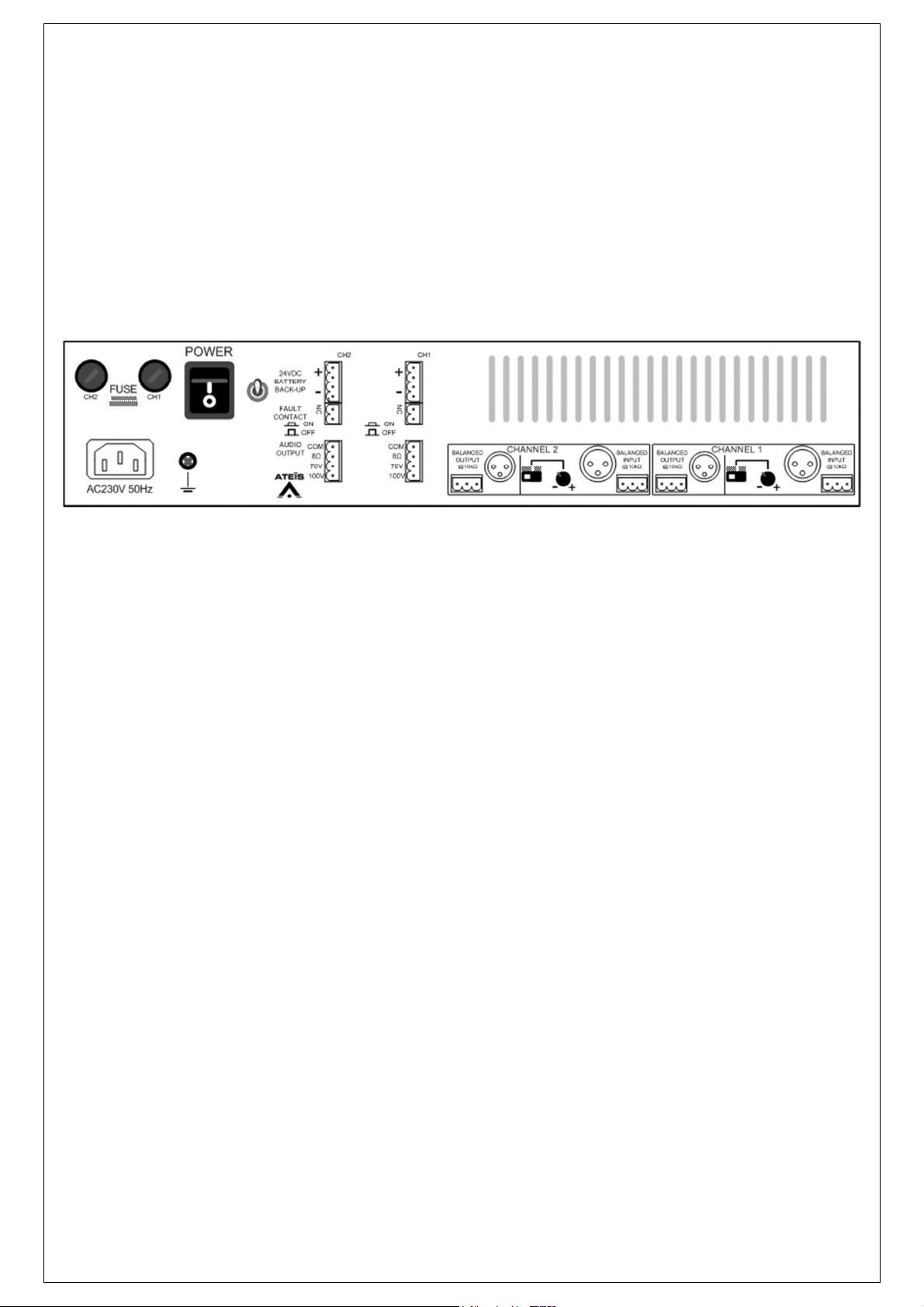

6. SPA Series Rear Panel Features:

AC Power Inlet:

The 3 pin IEC connector is located on the left of the amplifier’s rear panel. It accepts a standard mains power lead
fitted with an IEC connector.

DC Fuse Receptacles:

Two DC fuse receptacles are located on the left of the amplifier’s rear panel. To access each fuse, unscrew the cap
with a screwdriver. For 115 V operations please use T2.5A fuses. For 230 V operations please use T1.25A fuses.

Power Switch:

The power switch is located at the left of the rear panel and is a two position switch. Pushing up the power switch (I
is pushed) will power on the device, pushing it down (0 is pushed) will power it off. When the power switch is on the
I position, the front panel power LED will be lit.

Indicator switch:

The small switch besides the Power switch is added to disable the local indicators on the SPA’s front.
Disabling the indicators is mandatory to make the total system compliant to the EN54-16.

Channel 1/2 24VDC battery backup connector:

The SPA amplifier can be operated with battery backup. Use the channel 1 and channel 2 “24VDC Battery Backup”
connector to do so. These connectors are located on the upper part of the channel connectors on the rear panel.
This 24VDC power supply can be used where no AC power is available. When in use, the front panel Power LED
will be lit as well as the front panel DC LED.

Fault Contact:

The fault contact indicates an amplifier fault by an opening contact.

Channel 1/2 Audio Output:

For each amplifier channel, there is a dedicated Audio Output connector for connection of either 8 Ohm speakers,
75V speakers or 100V speakers. For the 8 Ohm connection and if you are using more than 1 speaker, please
ensure that speakers are wired in a way that the total impedance load is between 8 Ohm and 16 Ohm. The Com
point is the – terminal and 8 Ohm, 75V and 100V are the + terminals.

Channel 1/2 Inputs:

For each channel, there is an XLR balanced input and a Euro-terminal block balanced input. Each input can be gain
adjusted to suit the user’s needs. The On/Off gain switch can instantaneously bypass the gain controller and set the
channel gain amplifier to maximum.

Page 7 of 11

SPA series

Audio

Inputs/Outputs

Dimensions/Weight

Power supply

Current consumption with 28 VDC supply (per channel)

Standby

1/8

1/4

1/2

Nominal

SPA2060

SPA2120

SPA2240

Current consumption with 230 AC supply (per channel)

SPA2060

SPA2120

SPA2240

Channel 1/2 Outputs:

Each channel outputs a replica of the corresponding balanced audio input signal either on XLR or on Euro-terminal
block.

7. Technical Data Overview:

Frequency response: 40 - 20 000 Hz
Distortion at nominal power: < 1%
Signal/noise ratio: > 90 dB
Power output: 100 V
Main line input: 770 mV
Input impedance: 20 KOhms
Size SPA2060, SPA2120 (LxHxD):483 x 88 x 305 mm
Size SPA2240 (LxHxD): 483 x 88 x 420mm
Weight: SPA2060 : 10.6 Kg - SPA2120 :12.3 Kg - SPA2240: 18.5 kg
Mains power supply: 230 V +/- 10% 50/60 Hz
Continuous external power supply: 21-28 V

0.19 A 1.5 A 1.8 A 2.75 A 3.2 A

0.25 A 2.9 A 3.9 A 5.5 A 6.4 A

Power

Consumpti

on

0.30 A 5.47 A 7.5 A 10.4 A 12.3 A

0.07 A 0.32 A 0.42 A 0.53 A 0.67 A

0.12 A 0.65 A 0.89 A 1.15 A 1.4 A

0.28 A 1.25 A 1.65 A 2.20 A 2.85 A

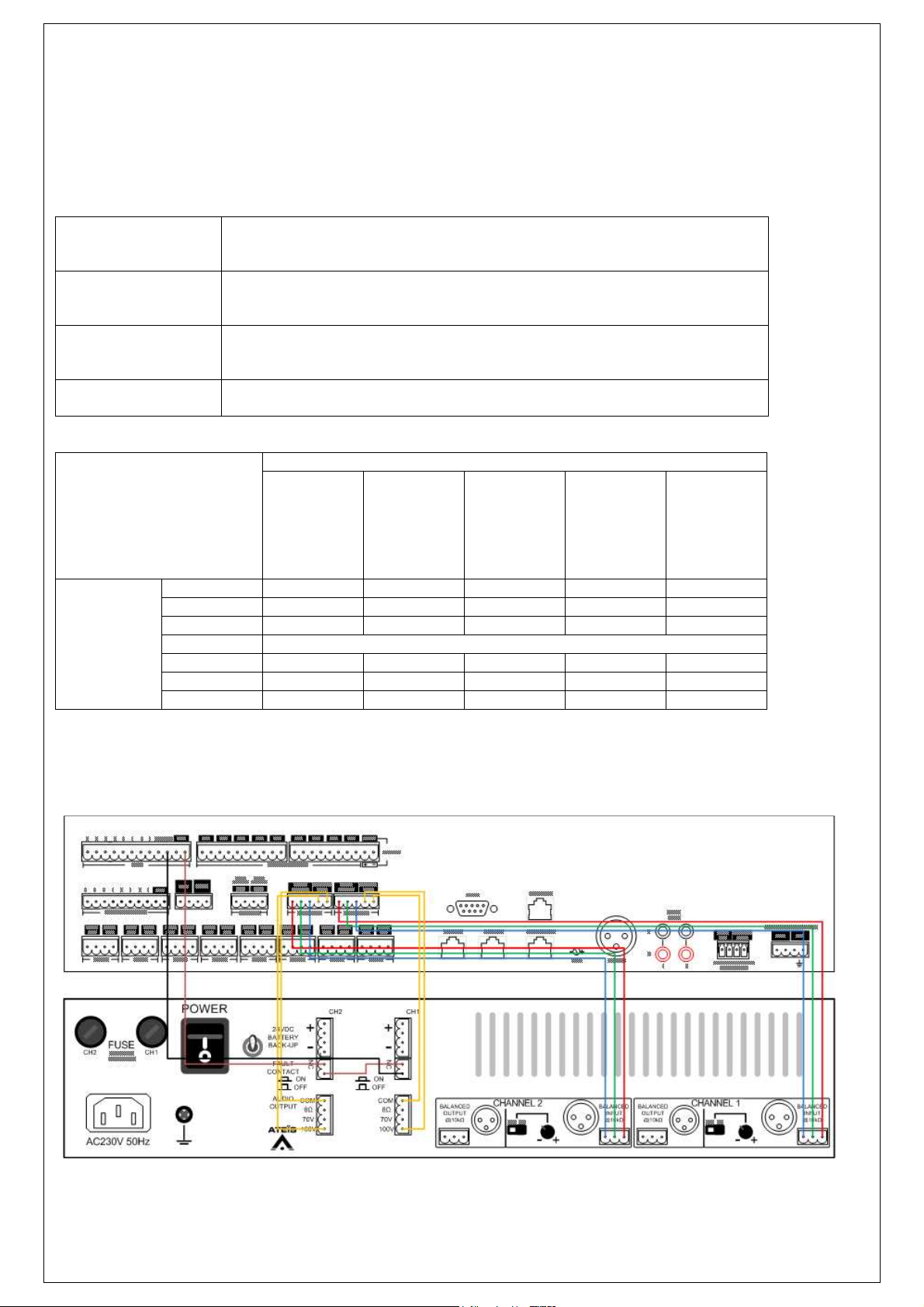

8. Wiring examples

8.1. DIVA8

Nominal
Power
(Audi
Messages)

Nominal
Power
(50%
Message,
50% Siren)

Nominal
Power
Siren

Power

Page 8 of 11

SPA series

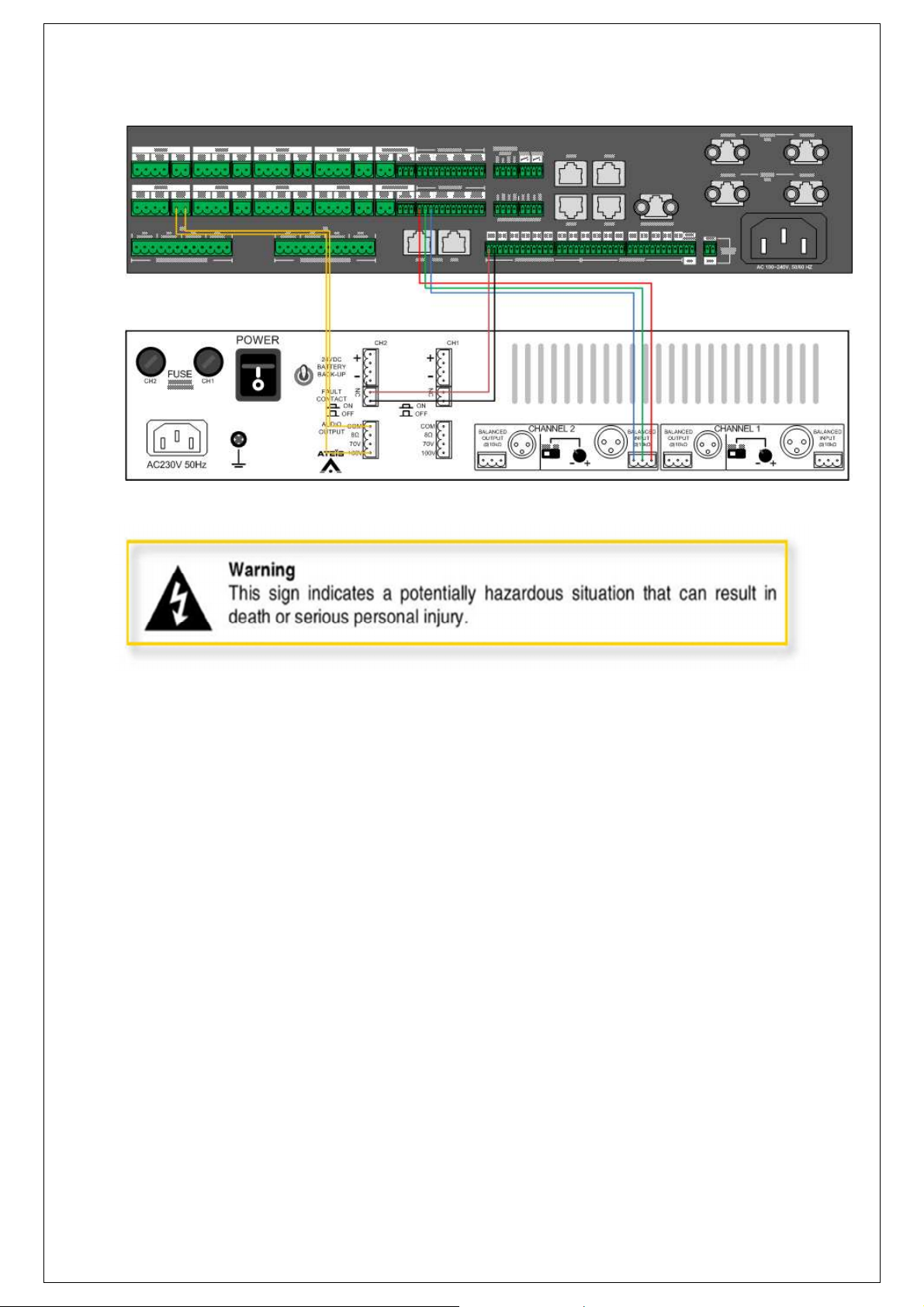

8.2. IDA8

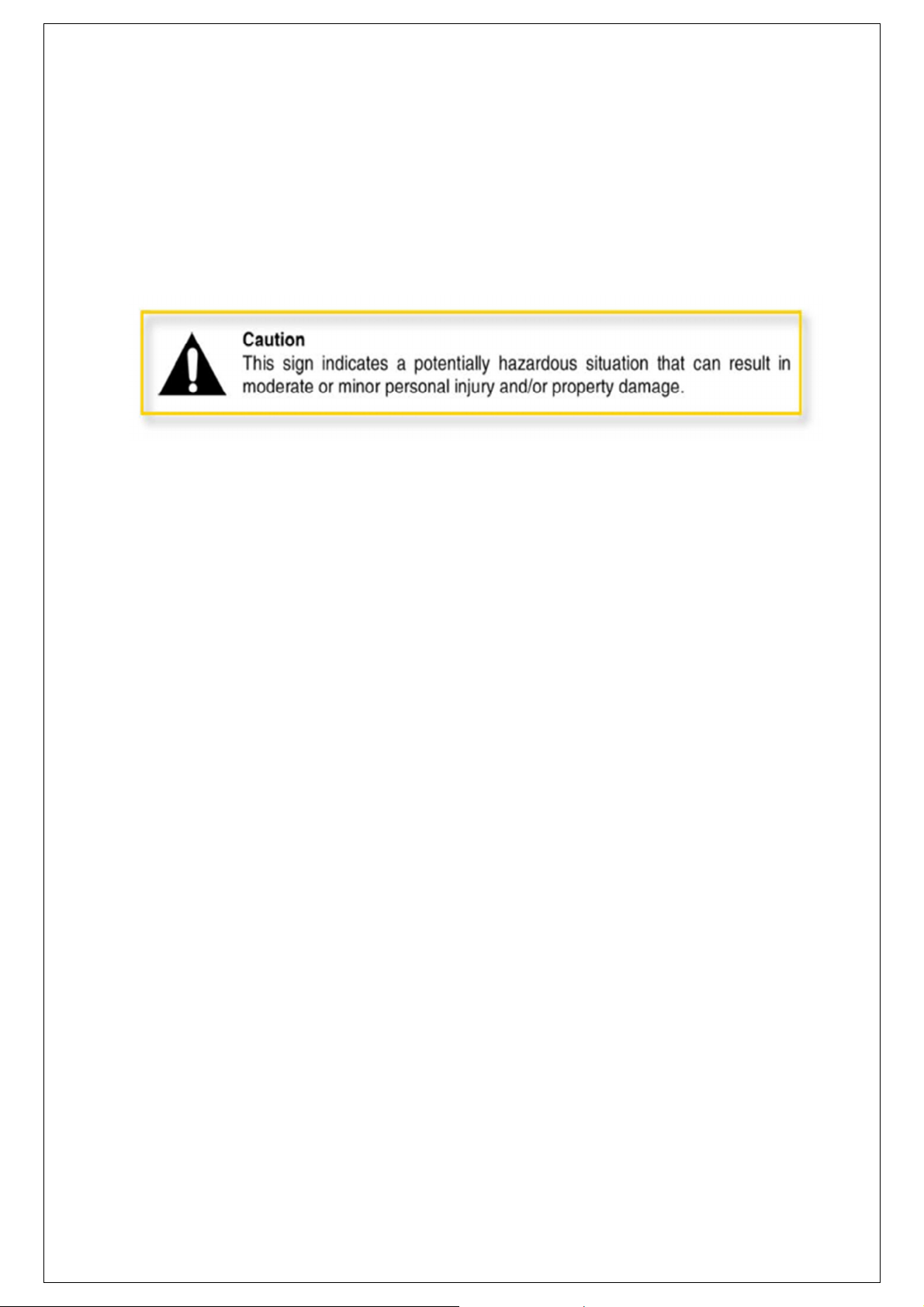

8.2.1. Safety Declaration

•

electrical shock hazard.

•

•

Owner's Manual. Otherwise fire and electrical shock hazard results.

•

•

•

Do not expose the SPA to extreme temperatures, direct sunlight, humidity, or dust, which could cause fire or

Keep away water or other liquids from the SPA. Otherwise fire or electrical shock may result.

In case of using external power supply, connect the SPA only to an 24 VDC outlet of the type stated in this

When disconnecting the power cord from an AC outlet always grab the plug. Never pull the cord. A
damaged power cord is a potential risk of fire and electrical shock hazard.

Avoid touching power plugs with wet hands. Doing so is a potential electrical shock hazard.

Take care for correct polarity when operating the SPA from a DC power source. Reversed polarity may
cause damage to the unit or the batteries.

•

•

•

•

•

•

Avoid placing heavy objects on power cords. A damaged power cord is a fire and electrical shock hazard.

Do not cut, scratch, bend, twist, pull, or heat the power cord. A damaged power cord is a fire and electrical
shock hazard. Ask your ATEÏS dealer for replacement.

Turn off immediately the unit, remove the power cord from the AC outlet and consult your ATEÏS dealer in
any of the following circumstances:

Smoke, odor, or noise getting out of the unit.

Foreign objects or liquids get inside the SPA.

The unit has been dropped or the shell is damaged.

Page 9 of 11

SPA series

•

•

•

•

•

•

(32 °F and 104 °F).

The power cord is damaged.
If you continue using the SPA, fire and electrical shock may result.

Do not drop or insert metallic objects or flammable materials into the unit as this may result in fire and
electrical shock.

Do not remove the SPA's cover, as there are exposed parts inside carrying high voltages that may cause an
electrical shock. Contact your ATEÏS dealer if internal inspection, maintenance, or repair is necessary.

Do not try to make any modifications to the SPA. This is a potential fire and electrical shock hazard.

To prevent the unit from falling down and causing personal injury and/or property damage, avoid installing or
mounting the unit in unstable locations.

Operate the SPA in an environment with a free-air temperature of between 0 °C and 40 °C

•

•

Do not use benzene, thinner, or chemicals to clean the SPA. Use only a soft, dry cloth.

If the SPA is moved from a cold place (e.g., overnight in a car) to a warmer environment, condensation may
form inside the unit, which may affect performance. Allow the SPA to acclimatize for about one hour before

use.

Page 10 of 11

SPA series

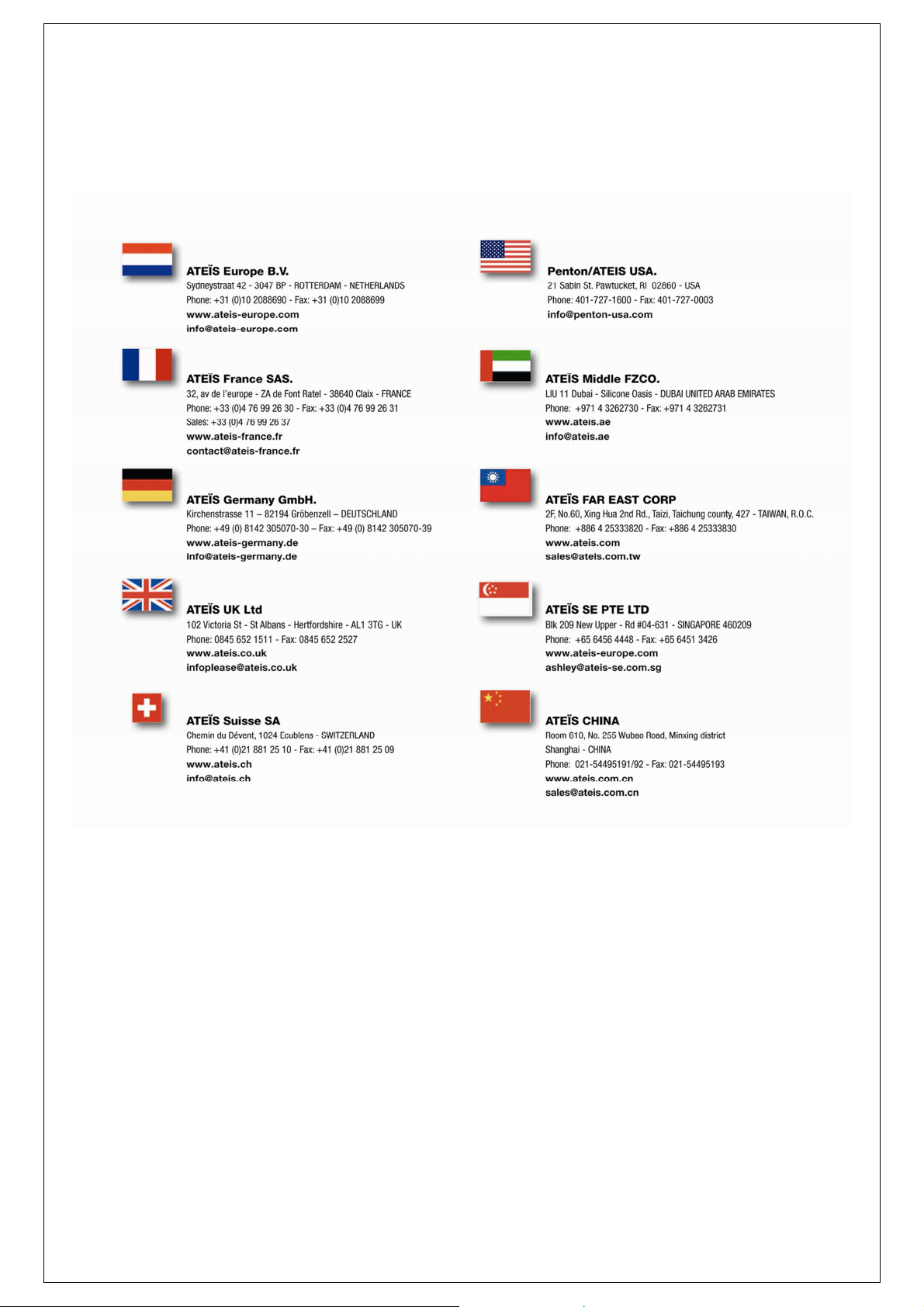

9. International sales and service points
