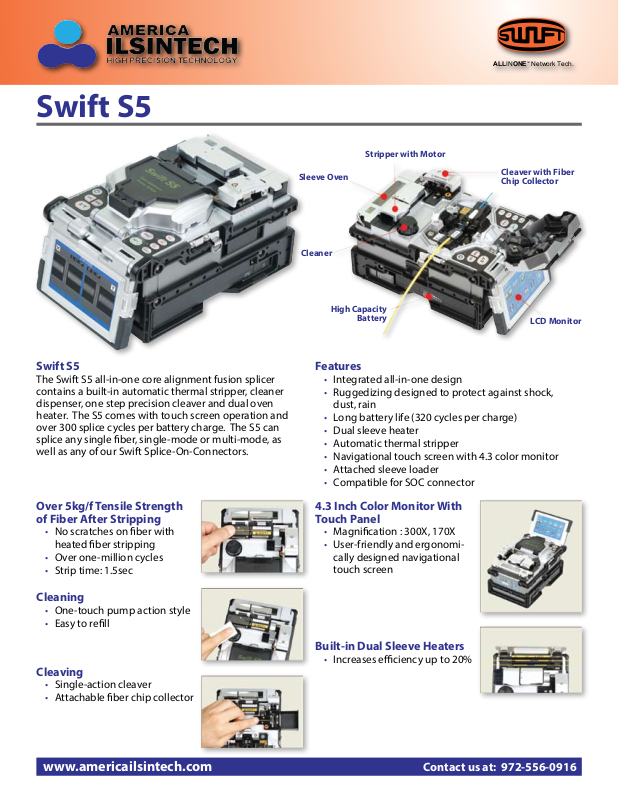

Swift S5

Stripper with Motor

Swift S5

The Swift S5 all-in-one core alignment fusion splicer contains a built-in automatic thermal stripper, cleaner dispenser, one step precision cleaver and dual oven heater. The S5 comes with touch screen operation and over 300 splice cycles per battery charge. The S5 can splice any single ber, single-mode or multi-mode, as well as any of our Swift Splice-On-Connectors.

Sleeve Oven

Cleaner

High Capacity

Features

Integrated all-in-one design• Ruggedizing designed to protect against shock, • dust, rain Long battery life (320 cycles per charge)• Dual sleeve heater• Automatic thermal stripper • Navigational touch screen with 4.3 color monitor• Attached sleeve loader• Compatible for SOC connector•

Battery

Cleaver with Fiber Chip Collector

LCD Monitor

Over 5kg/f Tensile Strength of Fiber After Stripping

No scratches on ber with • heated ber stripping Over one-million cycles• Strip time: 1.5sec•

Cleaning

One-touch pump action style• Easy to rell•

Cleaving

Single-action cleaver• Attachable ber chip collector•

4.3 Inch Color Monitor With Touch Panel

Magnication : 300X, 170X• User-friendly and ergonomi-• cally designed navigational touch screen

Built-in Dual Sleeve Heaters

Increases eciency up to 20%•

LLINONETM Network Tech.

Compatible with Swift Splice-On Connectors (Telcordia-GR-326)

SC Connector

LC Connector

FC Connector

ST Connector

Specifications

Subject Description

Alignment IPAS Core to Core Alignment (Image Pattern Analysis Alignment System) Applicable Fibers SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655),

EDFA, EI980, Splicing available with different type fiber(SM/MM), ITU-T G.657 Fiber Diameter cladding : 80μm ~ 150μm , coating : 100μm ~ 1000μm (single) Fiber Cleave Length 250μm (Coat) : 8 ~ 16mm, 900μm : 16mm Typical Splice Loss SMF : 0.02dB, MMF : 0.01dB, DSF : 0.04dB, NZDSF : 0.04dB Return Loss Less then -60dB SPLICE Time SPLICE : Typical 9sec, Tube Heat : Typical 20 ~ 26sec with S-160(60mm) Tube Program SPLICE Mode : 100, Heat Mode : 50 Storage Of Splice Result the last 2,000 results (Image 100 results) Operating Altitude 0 ~ 5000m above sea level Operating Condition -10 ºC to 50 ºC, humidity : 95%, non-Condensing Storage Condition -40 ºC to 80 ºC, 0 to 95% RH Protection Wind 15 m/s , shock proof, water proof, dust proof SIZE, Weight 140W 225L 125H (include Monitor & Rubber), 2.95Kg (include Battery) Terminal USB, RCA, External Power Power DC 14.8V Battery (7700mAh), 100 ~ 240V AC Adapter Additional Power DC 12V automobile ciger jack available No. of Splice/Heating with Battery 320 cycle, lithium polymer batteries Electrode more than 2,000 times splicing without exchange Mechanical Proof Test 2N / 4.4N (OPTION) Display Two CMOS cameras and 4.3 color LCD monitor, with touch panel Fiber View and Magnification X/Y 300X, 170X

Standard Package Optional Items

Description Model # Qty Description Model #

Fusion Splicer with Auto Stripper, Cleaner Unit and Cleaver

S5 1 Set Spare Battery S513

AC Adapter S311 1 Spare Cleaver CI-05 Sleeve Loader S312 2 Cleaver Blade BI-05 Spare Electrodes EI-21 1 Electrode EI-21 Battery Pack S513 1 Protection Sleeves S-160(60mm), S-140(40mm) Carrying Case – 1 SOC Connector SC, LC, FC, ST, CH Refer to SOC catalog User Manual – 1 Connector Holder HS - SC, LC, FC, ST
