Ribbon All In One Fusion Splicer
Features
Integrated to All In One
Rugged Design Against Shock, Dust, Rain
Long Battery Life more than 320times Full-Cycles
Dual Sleeve Heater
No Scratches on Bare Fiber by Heating Stripping
Navigational Touch Screen with 4.3 Color Monitor
Attached Sleeve Loader
Compatible for SOC Connector (Option)
Economical Solution for Integrated Fiber Preparation Tool Demand.
US Patent 11/912,109
The Revolution of a Splicer
The Swift R5’s ergonomic design enables the user to complete all five processes of
optical fiber splicing (stripping, cleaning, cleaving, splicing and sleeving) quickly and
conveniently. The All In One design eliminates the need for a large work space of a
traditional fusion splicer design that uses all of the prep tools (manual stripper, cleaver,
alcohol bottle) separately. Also, the automatic thermal stripper conveniently strips 250um
and 900um without scratching the fiber that is typical when using hand held mechanical
fiber strippers. This, in turn, reduces the chances of failure that may be caused by the
scratches introduced when using mechanical strippers.
AutoMatic Thermal
Stipper with Motor
Cleaver with Fiber
Chip Collector
LCD Monitor
Battery
Cleaner
Sleeve Oven
Fusion Splicer

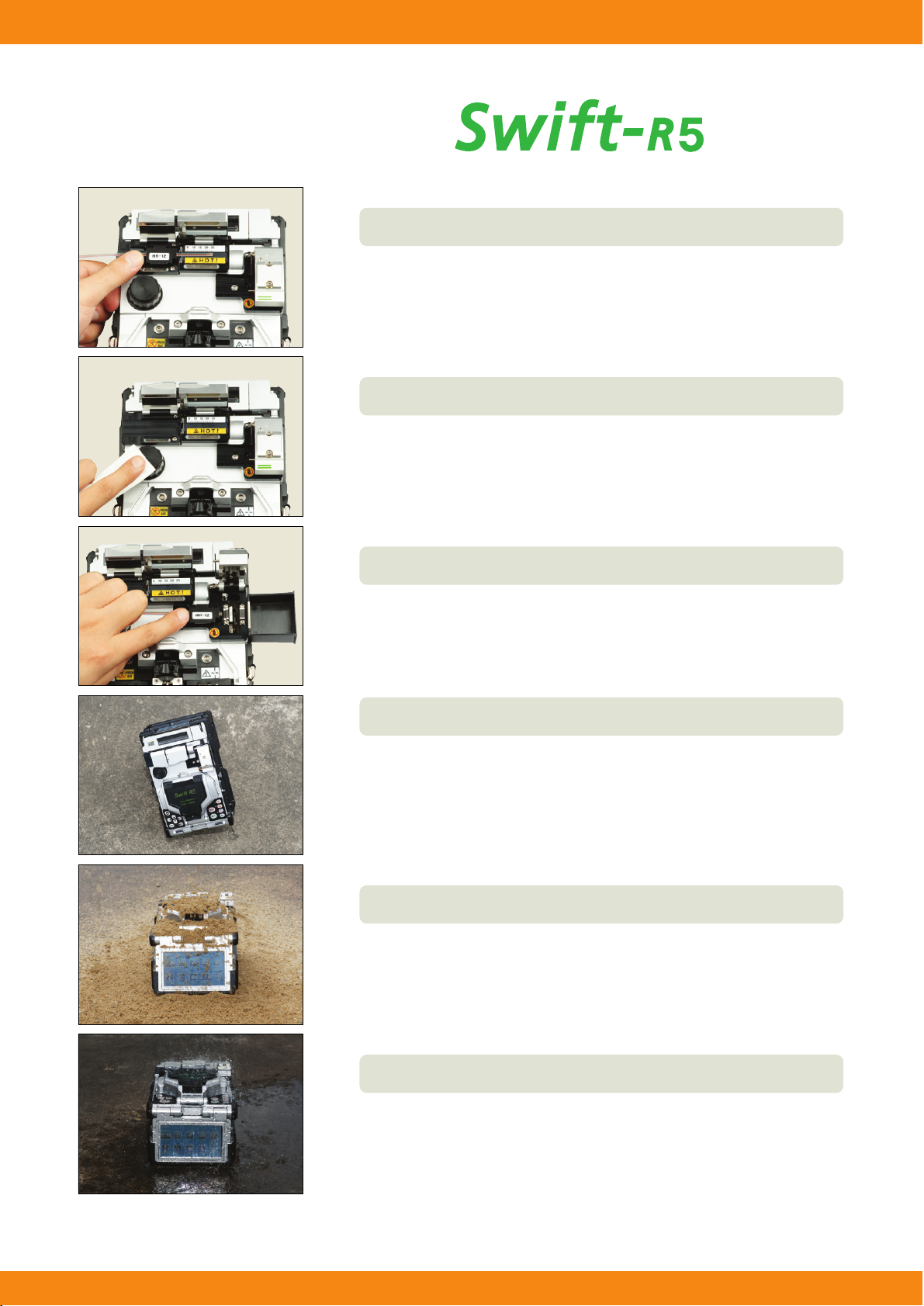

Benefits and Features
- No scratches with heating stripping
- Over one-million cycle motorized
- Strip time : 1.5sec
Over 5kg/f Tensile strength of fiber after stripping
- One-touch pump type
- Easy to refill cleaning alcohol
Cleaning
- Single-action cleaving
- Fiber chip collector is attached
Cleaving
- The splicer with high reliability has stable performance
even in a harsh environment
- Shock - Free Fall : 76cm from 5 sides
- Waterproof : IPx2
- Dustproof : IPx5
Resistant Shock, Dust and Rain
- More than 320 times for full cycling of splicing and
sleeving when fully charged.
Powerful Lithium Polymer Battery with Large Capacity
- Detects the temperature, the humidity, the pressure for
automatically to calibrate the ARC discharge properly.
Automatic Execution of Discharge Calibration
SC Connector - APC, UPC FC Connector - APC, UPC LC Connector - APC, UPC ST Connector - APC, UPC
Refer to Swift SOC Catalog
SC Connector
FC Connector
LC Connector
ST Connector
Fiber Holders
HR-12 HR-8
HR-4 HR-2
HR-250 HR-900
Indoor Cable HR-IN
HR-12
Cleaving
Single Action Cleave Fiber Chip Collector Attached
Oil Damper System
Over 1 Million Cleave Life Diamond Blade (Option)
Cleaner
Easy to Supplement Alcohol
Cleaning Fiber and V-Groove is Very Important
Fiber to Fiber Splicing & Fiber Holder Types.
Sleeve size
3mm 5.0mm
45mm
Ribbon Sleeve
HR-12
HR-8
HR-4
HR-2
HR-12
HR-8
HR-4
HR-2
12 Fiber
8 Fiber
4 Fiber
2 Fiber
Fiber Stripper
Over One Million Cycle time Using MAXON DC Motor from
Switzerland
No Crack on the Fiber by Thermal Auto Stripping
Description
Subject
Arc Fusion Splicer
AC Adapter
Sleeve Loader
Spare Electrodes
Battery Pack
Cooling Tray
Holder
Tool Box
User Manual
Carrying Case
R5
S311
S312
EI-22
S513
CT-03
H5-?
Hard Case
1
1
2
1set
1
1
Option 1set(2ea)
1
1
1
Model Q’tyDescription
STANDARD PACKAGE
Applicable type of fibers
Fiber count
Applicable fiber dimensions
Fiber setting and cleaved length
Splicing modes
Typical Splice Loss
Return Loss
Splicing Time
Splice loss estimate
Sleeve heating time
Applicable protection sleeve
Storage of splice result
Tension test
Operating condition
Storage condition
Dimensions
Weight
Viewing method and display
Fiber view and magnification
Power supply
No. of splice cycles with battery
Electrode life
Terminals
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655)
Single fiber, 2~12 fiber
Single: Cladding diameter 125
, Coating diameter 250, 900
Ribbon: Cladding diameter 125 , Ribbon fiber thickness 0.27 to 0.32mm
8mm
Splice mode: 100, Heat mode: 50
SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB
> 60dB
Typical 20sec with standard SM(ITU-T G.652)
Available
35sec
45mm(fiber), 28mm or 32mm(connector)
The last 1,000 results to be stored in the internal memory.(Image 100 results)
2N / 4,4N(Option)
Altitude: 0~3,660m above sea level, Temperature: -10
~50 ,
Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, shock proof
Temperature: -40
~80 , Humidity: 0~95%
140(W)
225(L) 125(H)mm(Include monitor, rubber)
2.3kg(Include battery 2ea)
Two CMOS cameras and 3.5" color LCD monitor with touch panel
X/Y : 300X/170X
DC 14.8V Battery(7,700mAh), 100 ~ 240V AC Adapter
320cycle, Lithium polymer battery
More than 1,000 times splicing without exchange
USB, External power(DC 12V Available for car cigar jack)
Battery Pack
Cleaver Blade
Electrode
Fiber Holder
Sleeve
Sleeving Clamp
Manual Stripper
SOC Connector
S513
BI-05
EI-22
H5-12, H5-10, H5-8, H5-6, H5-4, H5-2,
H5-250, H5-900, H5-IN, H5-2.5,
H5-SC, H5-FC, H5-LC, H5-ST
R-F40(40mm)
SC-01
MS-01
Refer to Swift Connector Catalog
ModelDescription
OPTION PACKAGE
SPECIFICATIONS
STANDARD PACKAGE OPTION PACKAGE
Design is subject to change without any notice for the improvement purpose. 2012. 08
