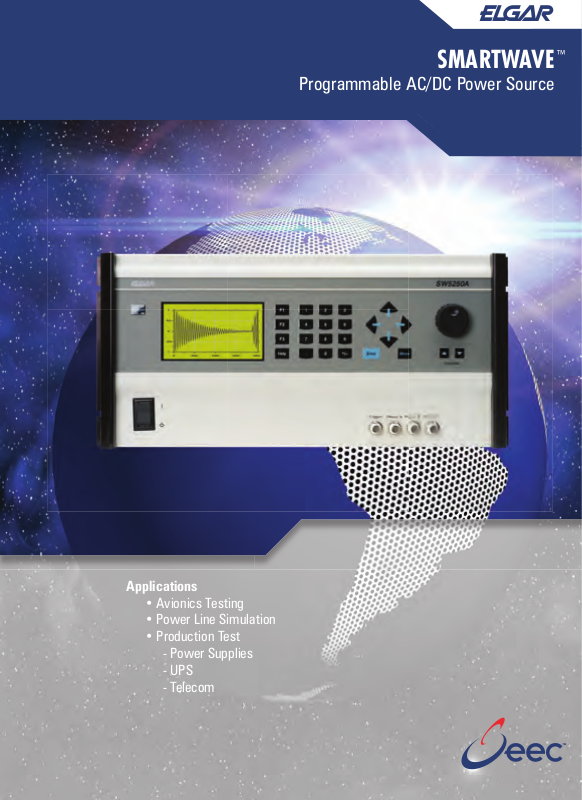

SMARTWAVE

Programmable AC/DC Power Source

™

Applications

• Avionics Testing

• Power Line Simulation

• Production Test

- Power Supplies

- UPS

- Telecom

SMARTWAVETM (SW)

PRODUCT OVERVIEW

of cycles for each segment, the user can create waveform sequences that allow automatic testing for most any standard.

AC and/or DC

A direct coupled, transformerless design allows AC and DC on separate phases or on the same phase. The SmartWave can be used as a true DC power supply. High DC content waveforms (up to 312 volts) can be created with no derating of output power, even with 100% reactive loads, eliminating the need for a separate DC supply.

Product Overview

The SmartWave™ (SW) Series of AC power sources offers powerful waveform creation for ATE and power line disturbance simulation testing. Three separate arbitrary waveform generators enable the SmartW waveforms on all three phases simultaneously. The SmartWave is designed to meet waveform requirements including DC content (up to 312V), low distortion (THD 0.25% to 100 Hz), ripple, plus full compliance testing to various EMC and avionics standards.

At only 8-3/4 inches high for the SW 5250A SmartWave delivers the most power in the smallest package. It weighs only 127 pounds, and offers the highest power density in the industry. The SW Series is expandable from 1.75 kVA to 21 kVA. Unlike other AC power sources, the SmartWave delivers full rated power to 45ºC.

ave to create independent, complex

low noise and

, the

Features and Beneﬁ ts

Powerful Waveshape and Waveform Creation

The SmartWave can easily create fractional or multi-cycle dropouts, spikes, surges, sags and distorted waveforms from the front panel. To simulate these complex real-world power occurrences, the SmartWave comes with a library of 50 built-in waveshapes (see examples on page 3). Users can create and store an additional 50 waveshapes of their own design. Output voltages are created by adding amplitude, frequency and other parameters to the waveshapes. The user can also create over 50 custom front panel

setups with all parameters included and store them for quick recall, making the SmartWave ideal for manual testing.

Sequences can be constructed with segments defined by time or number of cycles.

Sequence Programming

Complex sequence or event programming is easy with time or cycle based transient segments. The sequence library is made up of a total of 1000 segments stored as labeled sequences.

A sequence of up to 100 segments using up to 32 different waveshapes, arranged in any combination, can be run at any one time. The 32 waveshapes can be selected from the 50 factory supplied and 50 user created waveshapes. By setting the time or number

Graphic LCD Display

The SmartWave has a graphic LCD display for previewing and conﬁ rming the waveforms before connecting the output to the load. Users can select menus, and slew voltage and frequency with a handy knob on the front panel. Front panel signal and sync outputs allow three phase scope viewing.

Powerful DSP2 Waveform Programming W

aveform programming is easily accomplished using the optional DSP PC software. The software allows freehand creation of waveforms, using a mouse or mathematical expressions. Real-world waveforms can be uploaded and modiﬁ ed when using a digital scope. The waveforms can then be downloaded to the SmartWave via GPIB and output to exactly simulate real-world conditions.

WaveForm DSP2 Creation Software Screen

SMARTWAVETM (SW)

WAVEFORMS & APPLICATIONS

As shown by this photo, the SmartWave can create time coincident spikes on 3 phases, fractional or multi-cycle dropouts, sags and surges, waveforms distortion, DC and noise.

Flexibility in Power Ranges

The SmartWave series includes the SW 1750 (single phase only), SW 3500 (single or dual phase), and SW 5250A. The 5250A three phase unit can be switched to single phase or vice versa, simply by menu selection (and appropriate output wiring changes). The SW Series is factory upgradable from 1750 VA to 3500 VA or 5250 VA. Utilizing a master/slave arrangement, SW 5250A can be paralleled for incrementally higher power requirements, e.g. one master/one slave = SW 10500 (10.5 kVA). As many as 3 slave chassis may be paralled with a master to form a 21 kVA system. Options include input power factor correction, measurement capability, plus 5 and 26 VAC auxiliary outputs.

Fourier square wave with first, third, fifth and seventh harmonics

Sine wave with spikes from 85° - 95° and 265° - 275°

Sine wave with first quarter (0° - 90°) at 0 volts

Sine wave with a dropout from 45° - 60°

Waveshape Library

There are 50 factory-supplied waveshapes in the SmartWave. Following are examples of the types of waveshapes in the library:

• Sine wave

• Square wave

• Triangle wave

• Clipped sine waves

• Sine waves with spikes

• Fractional dropouts

• Sine wave with dropout (0V from 0° to 90°)

• Sine waves with ±1-50% DC offset

• ±DC with 3% and 10% ripple

• Fourier square waves with harmonics

• Taylor series waves

• Sine wave with noise at zero crossing

SWCS Measurement Screen

Applications

The SmartWave is designed for testing today’s complex electronics, including avionics, telecommunications and commercial electronics requiring low proﬁ Other applications include:

• Testing for real world power conditions using different waveforms on all 3 phases (including DC)

• Load susceptibility testing with sequence or event programming and multiple voltage harmonics

• Power line disturbance simulation testing

• MIL-STD-704, DO-160 and ABD100 avionics testing

• Power supply testing for AC-DC, DC-DC converters and UPS’s

le, light weight power supplies.

•

Fluorescent lighting

characteristics testing (IES LM-41-1985)

•

Transients on 12 & 24 VDC for

automotive applications

martWave Control Suite

(SWCS)

SWCS is a Windows based software pack

age for computer

control of the SmartWave Series

and SWAE AC power sources.

With the SWCS you have complete control of the instrument including programming

, waveform selection, creation and sequencing. SWCS enhances the standard SmartW

ave features with an additional harmonic waveform analysis capability with data logging features for all measurements.

Six step sine wave

Sine wave with the positive halfcycle clipped at OV from 50° - 130°

SWCS WaveForm Screen
