Product specifications and characteristics
Agilent EPM Series Power Meters E-Series and 8480 Series Power Sensors
Data Sheet
2
EPM series E4418B and E4419B power meters
Specifications describe the instru­ment’s warranted performance and apply after a 30 minute warm-up. These specifications are valid over its operating/environmental range unless otherwise stated and after performing a zero and calibration procedure.
Supplemental characteristics
Supplemental characteristics (shown in italics) are intended to provide additional information, useful in applying the instrument by giving typical (expected), but not warrant­ed performance parameters. These characteristics are shown in italics or labeled as “typical”, “nominal” or “approximate”.
For information on measurement uncertainty calculations, refer to Application Note 64-1C, “Funda-
mentals of RF and Microwave Power Measurements”, literature
number 5965-6380E.
Frequency range: 9 kHz to 110 GHz, sensor dependent
Power range: –70 dBm to +44 dBm (100 pW to 25 W), sensor dependent.
Power sensors: Compatible with all 8480 series and E-series sensors
Single sensor dynamic range:
90 dB maximum (E-series sensors), 50 dB maximum ( 8480 series sensors).
Display units:
Absolute: Watts or dBm. Relative: Percent or dB.
Display resolution: Selectable resolution of 1.0, 0.1, 0.01, and 0.001 dB in Log mode, or 1 to 4 digits in linear mode.
Default resolution: 0.01 dB in log mode, 3 digits in linear mode.
Accuracy
Instrumentation
Absolute: ±0.02 dB (log) or ±0.5%

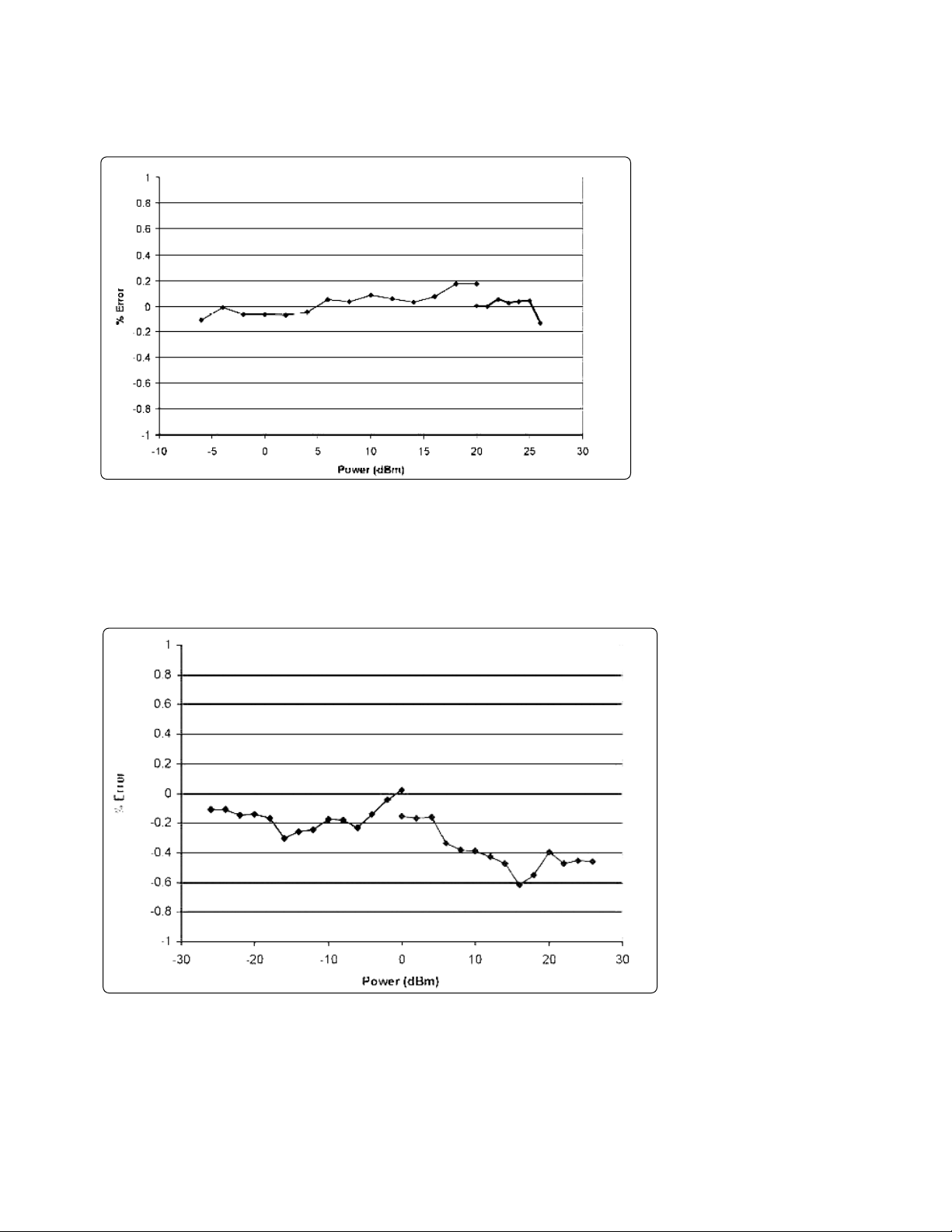

(linear). Please add the correspond­ing power sensor linearity percent­age from tables 7 and 10 (for the E-series sensors) and table 15 (for the 8480 series sensors).
Relative: ±0.04 dB (Log) or ±1.0% (linear). Please add the correspond­ing power sensor linearity percent­age from table 16 (for the 8480 series sensors).
Zero set (digital settability of zero):
sensor dependent (refer to table 1). For E-series sensors, this specification applies to a ZERO performed when the sensor input is not connected to the POWER REF.
Power reference
Power output: 1.00 mW (0.0 dBm).
Factory set to ±0.4% traceable to the National Physical Laboratory (NPL), UK
1
.
Accuracy: For two years: ±0.5% (23 ± 3°C) ±0.6% (25 ± 10°C) ±0.9% (0 to 55°C)
Frequency: 50 MHz nominal
SWR: 1.06 maximum
(1.08 maximum for Option 003)
Connector type: Type N (f), 50
Table 1 Model ZERO SET
8481A, 8482A, 8483A, 8485A, ±50 nW 8487A, R8486A, Q8486A,
8481B, 8482B ±50 µW
8481D, 8485D, 8487D ±20 pW
8481H, 8482H ±5 µW
R8486D, Q8486D ±30 pW
V8486A, W8486A ±200 nW
E4412A, E4413A ±50 pW
E9300A, E9301A,E9304A
2
±500 pW
E9300B, E9301B
2
±500 nW
E9300H, E9301H
2
±5 nW
1. National metrology institutes of member states of the Metre Convention, such as the National Institute of Standards and Technology in the USA, are signatories to the ComitÈ International des Poids et Mesures Mutual Recognition Arrangement. Further information is available from the Bureau International des Poids et Mesures, at http://www.bipm.fr/
2. Specification applies to the low power path 15% to 75% relative humidity.
3
Supplemental characteristics
Power reference
Frequency: 50 MHz nominal. SWR: 1.05 maximum.
Connector: Type N (f), 50 Ω.
Measurement speed
Three measurement speed modes, over the GPIB, are available as shown, along with the typical maxi­mum measurement speed for each mode.
With the E4418B power meter
Normal: 20 readings/second x2: 40 readings/second Fast: 200 readings/second
With the E4419B, the measurement speed is reduced, for example, with both channels in FAST mode, the typical maximum measurement speed is 100 readings/second.
Fast mode is for E-series sensors only.
Maximum measurement speed is obtained using binary output and in free run trigger mode.
Zero drift of sensors: Sensor depen­dent, refer to table 2. For E9300 sensors, refer to table 12 for complete data.
Measurement noise: Sensor depen­dent, refer to table 2 and table 3. For E9300 sensors, refer to table 12.
Effects of averaging on noise: Averaging over 1 to 1024 readings is available for reducing noise. Table 2 provides the measurement noise for a particu­lar sensor with the number of averages set at 16 (for normal mode) and 32 (for x2 mode). Use the noise multiplier, for the appropriate mode (normal or x2) and number of averages, to determine the total mea­surement noise value.
Example:
8481D power sensor, normal mode, number of averages = 4.
Measurement noise calculation:
(< 45 pW x 2.75) = < 121 pW.
Table 2 Model Zero drift
1
Measurement noise
2
8481A, 8482A, 8483A, 8485A, < ±10 nW < 110 nW 8487A, R8486A, Q8486A
8481B, 8482B < ±10 µW < 110 µW
8481D, 8485D, 8487D < ±4 pW < 45 pW
8481H, 8482H < ±1µW < 10 µW
R8486D, Q8486D < ±6 pW < 65 pW
V8486A, W8486A < ±40 nW < 450 nW
E4412A, E4413A < ±15 pW < 70 pW
E9300A, E9301A, E9304A
3
< ±150 pW < 700 pW
E9300B, E9301B
3
< ±150 nW < 700 nW
E9300H, E9301H
3
< ±1.5 nW < 7 nW
1. Within 1 hour after zero set, at a constant temperature, after a 24-hour warm-up of the power meter.
2. The number of averages at 16 for normal mode and 32 for x2 mode, at a constant temperature, measured over a one minute interval and two standard deviations. For E-series sensors, the measurement noise is measured within the low range. Refer to the relevant sensor manual for further information.
3. Specification applies to the low power path, 15% to 75% relative humidity.
Table 3 Number of averages 1 2 4 8 16 32 64 128 256 512 1024
Noise multiplier 5.5 3.89 2.75 1.94 1 0.85 0.61 0.49 0.34 0.24 0.17 (normal mode) Noise multiplier 6.5 4.6 3.25 2.3 1.63 1 0.72 0.57 0.41 0.29 0.2 (x2 mode)
4
For E-series sensors:
In FAST mode (using free run trigger), within the range –50 dBm to +17 dBm, for a 10 dB decreasing power step, the settling time is:
E4418B: 10 ms
2
E4419B: 20 ms
2
EPM series E4418B and E4419B power meters
Settling time
1
For 8480 series sensors:
Manual filter, 10 dB decreasing power step.
Table 4 Number of 1 2 4 8 16 32 64 128 256 512 1024 averages
Settling time(s) 0.15 0.2 0.3 0.5 1.1 1.9 3.4 6.6 13 27 57 (normal mode) Settling time(s) 0.15 0.18 0.22 0.35 0.55 1.1 1.9 3.5 6.9 14.5 33 x2 modes):
Auto filter, default resolution, 10 dB decreasing power step (normal and x2 modes):
Table 5. Manual filter, 10 dB decreasing power step (not across the range switch point)
Number of 1 2 4 8 16 32 64 128 256 512 1024 averages
Settling time(s) 0.07 0.12 0.21 0.4 1 1.8 3.3 6.5 13 27 57 (Normal mode) Settling time(s) 0.04 0.07 0.12 0.21 0.4 1 1.8 3.4 6.8 14.2 32
1. Settling time: 0 to 99% settled readings over the GPIB
2. When a power step crosses through the sensor’s auto-range switch point, add 25 mS. Refer to the relevant sensor manual for switch point information.
5
For E4412A and E4413A sensors
Auto filter, default resolution, 10 dB decreasing power step (not across the range switch point)
For E-series E9300A sensors
For E-series E9300B and H sensors
6
Power meter functions
Accessed by key entry: either hardkeys,
or softkey menu, and programmable.
Zero: Zeros the meter. (Power refer­ence calibrator is switched off during zeroing.)
Cal: Calibrates the meter using internal (power reference calibrator) or external source. Reference cal factor settable from 1% to 150%, in
0.1% increments.
Frequency: Entered frequency range is used to interpolate the calibration factors table.
Range: 1 kHz to 999.9 GHz, settable in 1 kHz steps.
Cal factor: Sets the calibration Factor for the meter. Range: 1% to 150%, in 0.1% increments.
Relative: Displays all successive measurements relative to the last displayed value.
Offset: Allows power measurements to be offset by –100 dB to +100 dB, settable in 0.001dB increments, to compensate for external loss or gain.
Save/recall: Store up to 10 instru­ment states via the save/recall menu.
dBm/W: Selectable units of either Watts or dBm in absolute power; or percent or dB for relative measurements.
Filter (averaging): Selectable from 1 to 1024. Auto-averaging provides automatic noise compensation.
Duty cycle: Duty cycle valuesbetween
0.001% to 99.999%, in 0.001% incre­ments, can be entered to display a peak power representation of measured power. The following equation is used to calculate the displayed peak power value: peak power = measured power/dutycycle.
Sensor cal tables: Selects cal factor versus frequency tables correspond­ing to specified sensors ( 8480 series only).
Limits: High and low limits can be set in the range –150.000 dBm to +230.000 dBm, in 0.001 dBm increments.
Preset default values: dBm mode, rel off, power reference off, duty cycle off, offset off, frequency 50 MHz, AUTO average, free run, AUTO range (for E-series sensors).
Display: Selectable single and split screen formats are available. A quasi-analog display is available for peaking measurements. The dual channel power meter can simultane­ously display any two configurations of A, B, A/B, B/A, A-B, B-A and relative.
General characteristics
Rear panel connectors
Recorder outputs: Analog 0 to
1 Volt, 1 koutput impedance, BNC
connector. E4419B recorder outputs are dedicated to channel A and channel B.
Remote input/output: A TTL logic level is output when the measure­ment exceeds a predetermined limit. TTL inputs are provided to initiate zero and calibration cycles. RJ-45 series shielded modular jack assem­bly connector. TTL Output: high =4.8V max; low = 0.2V max TTL
Input: high = 3.5V min, 5V max; low = 1V max, -0.3V min.
GPIB: Allows communication with an external controller.
RS-232/442: Allows communication with an external RS-232 or RS-422 controller. Male/plug 9 position D-subminiature connector
Ground: Binding post, accepts 4 mm plug or bare-wire connection.
Line power
Input voltage range: 85 to 264 VAC,
automatic selection.
Input frequency range: 50 to 440 Hz.
Power requirement: approximately 50
VA (14 Watts) for E4418B and E4419B.
7
Battery Option 001 operational characteristics
1
The following information describes characteristic performance based at a temperature of 25°C unless other­wise noted.
Typical operating time: up to 3.5 hours with LED backlight on; up to
5.5 hours with LED backlight off (E4418B power meter).
Charge time: 2 hours to charge fully from an empty state; 50 minutes charging enables 1 hour of operation with LED backlight on; 35 minutes charging enables 1hr operation with LED backlight off. Power meter is operational whilst charging.
Service life: (to 70% of initial capacity at 25°C): 450 charge/ discharge cycles
Chemistry: nickel metal hydride
Weight: 1kg
Environmental characteristics
General conditions: Complies with
the requirements of the EMC Directive 89/336/EEC. This includes Generic Immunity Standard EN 50082-1: 1992 and Radiated Interference Standard EN 55011: 1991/CISPR11:1990, Group 1 ­Class A.
Operating environment
Temperature: 0°C to 55°C. Maximum humidity: 95% at 40°C
(non-condensing). Minimum humidity: 15% at 40°C (non-condensing). Maximum altitude: 3000 meters (9840 feet).
Storage conditions
Storage temperature:
–20°C to +70°C.
Non-operating maximum humidity:
90% at 65°C (non-condensing).
Non-operating maximum altitude:
15240 meters (50,000 feet).
General
Dimensions: The following dimensions
exclude front and rear protrusions.
212.6 mm W x 88.5 mm H x 348.3 mm D (8.5 in x 3.5 in x 13.7 in)
Weight
Net: E4418B: 4.0 kg (8.8 lb).
E4419B: 4.1 kg (9.0 lb).
Shipping:
E4418B: 7.9 kg (17.4 lb). E4419B: 8.0 kg (17.6 lb).
Remote programming
Interface: GBIB interface operates
to IEEE 488.2. RS-232 and RS-422 serial interface supplied as standard.
Command language: SCPI standard interface commands. 436A and 437B code compatible (E4418B only); 438A code compatible (E4419B only).
GPIB compatibility: SH1, AH1, T6, TE0, L4, LE0, SR1, RL1, PP1, DC1, DT1, C0.
Non-volatile memory
Battery: Lithium polycarbon
Monoflouride, approximate lifetime 5 years at 25°C.
Safety
Conforms to the following product specifications: EN61010-1: 1993/IEC 1010-1: 1990 +A1/CSA C22.2 No. 1010-1: 1993 EN60825-1: 1994/IEC 825-1: 1993 Class 1 Low Voltage Directive 72/23/EEC
Accessories supplied
Power sensor cable
11730A: E4418B has one
1.5 meter (5 ft) sensor cable. E4419B has two 1.5 meter (5 ft) sensor cables. Power cord: One 2.4 meter (7.5 ft) cable. Power plug matches destination requirements.
1. Characteristics describe product performance that is useful in the application of the product, but is not covered by the product warranty.
