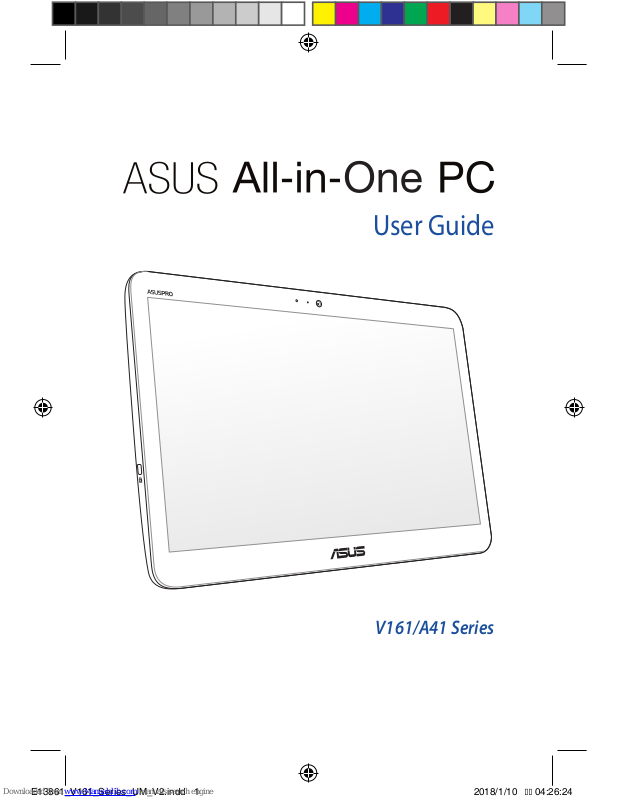

Asus V161, A41 User Manual

V161/A41 Series
User Guide
E13861_V161_Series_UM_V2.indd 1
2018/1/10 �� 04:26:24
2
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2018 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at https://www.asus.com/support
E13861 Revised Edition V2 January 2018
E13861_V161_Series_UM_V2.indd 2
2018/1/10 �� 04:26:24
3
Contents
About this manual .....................................................................................................6
Conventions used in this manual ........................................................................7
Typography ....................................................................................................................... 7
Icons .................................................................................................................................... 8
Safety information .....................................................................................................9
Setting up your system .................................................................................................9
Care during use ............................................................................................................... 10
Sound Pressure Warning .............................................................................................. 11
Adapter...............................................................................................................................11
DC Fan Warning ............................................................................................................... 11
Package contents ......................................................................................................12
Chapter 1: Hardware Setup
Getting to know your ASUS All-in-One PC .......................................................13
Front view ..........................................................................................................................13
Rear view ........................................................................................................................... 15
Top view ............................................................................................................................. 18
Left side view ................................................................................................................... 19
Right side view ................................................................................................................ 19
Chapter 2: Using your ASUS All-in-One PC
Positioning your ASUS All-in-One PC .................................................................21
Connecting a wired keyboard and mouse ............................................................ 22
Connecting a wireless keyboard and mouse (optional) ...................................23
Mounting your ASUS All-in-One PC to a wall ....................................................... 24
Powering on your ASUS All-in-One PC ...................................................................27
Using the touch screen ............................................................................................28
Gestures for the touch screen panel ...................................................................29
Using touch screen panel gestures on Windows® 10 ........................................ 29
E13861_V161_Series_UM_V2.indd 3
2018/1/10 �� 04:26:24
4
Chapter 3: Working with Windows® 10
Starting for the rst time .........................................................................................33
Start menu ...................................................................................................................34
Launching the Start menu .......................................................................................... 35
Opening programs from the Start menu ............................................................... 35
Windows® apps ..........................................................................................................36
Working with Windows® apps....................................................................................37
Customizing Windows® apps ..................................................................................... 37
Task view .......................................................................................................................40
Snap feature ................................................................................................................41
Snap hotspots .................................................................................................................. 41
Action Center ..............................................................................................................43
Other keyboard shortcuts ......................................................................................44
Connecting to wireless networks ........................................................................46
Wi-Fi ..................................................................................................................................... 46
Bluetooth .......................................................................................................................... 47
Connecting to wired networks .............................................................................48
Conguring a dynamic IP/PPPoE network connection .................................... 48
Conguring a static IP network connection ......................................................... 49
Turning your ASUS All-in-One PC o .................................................................. 50
Putting your ASUS All-in-One PC to sleep ........................................................51
Activating Wake on Touch ......................................................................................52
Chapter 4: Recovering your system
Entering the BIOS Setup .......................................................................................... 55
Quickly enter the BIOS .................................................................................................. 55
Recovering your system ..........................................................................................56
Performing a recovery option .................................................................................... 57
E13861_V161_Series_UM_V2.indd 4
2018/1/10 �� 04:26:24
5
Appendix
Notices ...........................................................................................................................59
Federal Communication Commission Interference Statement ..................... 59
RF exposure warning ..................................................................................................... 60
Radio Frequency (RF) Exposure Information ........................................................ 62
India RoHS ......................................................................................................................... 62
Wireless Operation Channel for Dierent Domains ........................................... 62
CE Mark Warning ............................................................................................................. 63
REACH ................................................................................................................................. 64
ASUS Recycling/Takeback Services .......................................................................... 64
Global Environmental Regulation Compliance and Declaration .................. 65
Prevention of Hearing Loss ........................................................................................ 65
Coating Notice ................................................................................................................. 66
ENERGY STAR complied product .............................................................................. 66
E13861_V161_Series_UM_V2.indd 5
2018/1/10 �� 04:26:24
6
About this manual
This manual provides information about the hardware and software features of your ASUS All-in-One PC, organized through the following chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your ASUS All­in-One PC.
Chapter 2: Using your ASUS All-in-One PC
This chapter provides you with information on using your ASUS All-in-One PC.
Chapter 3: Working with Windows® 10
This chapter provides an overview of using Windows® 10 in your ASUS All-in-One PC.
Chapter 4: Recovering your system
This chapter provides recovery options for your ASUS All-in-One PC.
Appendix
This section includes notices and safety statements for your ASUS All-in-One PC.
E13861_V161_Series_UM_V2.indd 6
2018/1/10 �� 04:26:24
7
Conventions used in this manual
To highlight key information in this manual, some texts are presented as follows:
IMPORTANT! This message contains vital information that must be followed to complete a task.
NOTE: This message contains additional information and tips that can help complete tasks.
WARNING! This message contains important information that must be followed to keep you safe while performing tasks and prevent damage to your device’s data and components.
Typography
Bold =This indicates a menu or an item that must be selected.
Italic = This indicates sections that you can refer to in this manual.
E13861_V161_Series_UM_V2.indd 7
2018/1/10 �� 04:26:24
8
All illustrations and screenshots in this manual are for reference only. Actual product specications and software screen images may vary with territories. Visit the ASUS website at www.asus.com for the latest information.
Icons
The icons below indicate the devices you can use for completing a series of tasks or procedures on your ASUS All-in-One PC.
= Use the touch screen panel.
= (optional) Use the wired/wireless mouse.
= (optional) Use the wired/wireless keyboard.
E13861_V161_Series_UM_V2.indd 8
2018/1/10 �� 04:26:24
9
Safety information
Your ASUS All-in-One PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.
Setting up your system
• Readandfollowallinstructionsinthedocumentationbeforeyou
operate your system.
• Donotusethisproductnearwateroraheatedsourcesuchasa
radiator.
• Setupthesystemonastablesurface.
• Openingsonthechassisareforventilation.Donotblockorcover
these openings. Ensure that you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
• Usethisproductinenvironmentswithambienttemperatures
between 0˚C and 40˚C.
• Ifyouuseanextensioncord,ensurethatthetotalampererating
of the devices plugged into the extension cord does not exceed its ampere rating.
E13861_V161_Series_UM_V2.indd 9
2018/1/10 �� 04:26:24
10
Care during use
• Donotwalkonthepowercordorallowanythingtorestonit.
• Donotspillwateroranyotherliquidsonyoursystem.
• Whenthesystemisturnedo,asmallamountofelectrical
current still remains in the product. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.
• The touch screen requires periodic cleaning to perform at optimal touch sensitivity. Keep the screen clean from foreign objects or excessive dust accumulation. To clean the screen:
- Turn o the system and disconnect the power cord from the wall.
- Spray a small amount of household glass cleaner on the supplied cleaning cloth and gently wipe the surface of the screen.
- Do not spray the cleaner directly on the screen.
• Donotuseanabrasivecleaneroracoarseclothwhencleaning
the screen.
• If you encounter the following technical problems with the product, unplug the power cord and contact a qualied service technician or your retailer.
- The power cord or plug is damaged.
- Liquid has been spilled into the system.
- The system does not function properly even if you follow the operating instructions.
- The system was dropped or the cabinet is damaged.
- The system performance changes.
E13861_V161_Series_UM_V2.indd 10
2018/1/10 �� 04:26:25
11
Sound Pressure Warning
Excessive sound pressure from earphones or headphones can cause hearing loss or permanent damage to hearing. Increasing the volume and equalizer beyond default levels increases the output voltage and sound pressure produced by the earphones or headphones.
Adapter
1. Adapter specications
Input voltage: 100–240Vac
Input frequency: 50–60Hz
Rating output voltage: 19Vdc
2. It is recommended that the power socket is in close proximity to the ASUS All-in-One PC.
DC Fan Warning
Please note that the DC fan is a moving part and can cause harm when used improperly. Keep away from the fan when using the product.
E13861_V161_Series_UM_V2.indd 11
2018/1/10 �� 04:26:25
12
Package contents
NOTE:
• Ifanyoftheitemsisdamagedormissing,contactyourretailer.
• Thekeyboard,mouse,andpowersupplyillustrationsareforreference
only. Actual product specications may vary with territories.
ASUS All-in-One PC Power adapter
Wall mount screws
(optional)
Warranty card
Keyboard (optional) Mouse (optional)
Quick User Guide
Quick Start Guide
E13861_V161_Series_UM_V2.indd 12
2018/1/10 �� 04:26:25
13
Getting to know your ASUS All-in­One PC
Chapter 1: Hardware Setup
Front view
Microphone
This built-in microphone can be used for video conferencing, voice narration, audio recording, and multimedia applications.
Webcam LED
Indicates that the built-in webcam is enabled.
E13861_V161_Series_UM_V2.indd 13
2018/1/10 �� 04:26:25
14
Camera
The built-in camera allows you to take pictures or record videos using your ASUS All-in-One PC.
LCD display panel
The LCD display panel provides excellent viewing features for photos, videos, and other multimedia les. The multi-touch support allows you to operate your ASUS All-in-One PC using touch gestures.
E13861_V161_Series_UM_V2.indd 14
2018/1/10 �� 04:26:25
15
Rear view
Power button
Press this button to turn on your ASUS All-in-One PC.
Volume increase button
Press to increase the volume.
Volume decrease button
Press to decrease the volume.
E13861_V161_Series_UM_V2.indd 15
2018/1/10 �� 04:26:26
16
Turn o display
Press this button to turn o the display.
Serial port (COM port)
The 9-pin serial (COM) connector allows you to connect devices that have serial ports such as mouse, modem, or printers.
VGA port
This port allows you to connect your ASUS All-in-One PC to an external display.
USB 3.1 Gen1 port
This USB 3.1 Gen1 (Universal Serial Bus) port provides a transfer rate of up to 5 Gbit/s and is backward compatible to USB 2.0.
HDMI output port
This port allows you to connect your ASUS All-in-One PC to another HDMI-compatible device for le sharing or extending your display monitor.
LAN port
This 8-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network.
E13861_V161_Series_UM_V2.indd 16
2018/1/10 �� 04:26:26
17
Power input
The bundled power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the ASUS All-in-One PC. To prevent damage to the ASUS All-in-One PC, always use the bundled power adapter.
WARNING! The power adapter may become warm or hot when in use. Do not cover the adapter and keep it away from your body.
Audio speakers
The built-in audio speaker allows you to hear audio straight from the ASUS All-in-One PC. Audio features are software-controlled.
E13861_V161_Series_UM_V2.indd 17
2018/1/10 �� 04:26:26
18
NOTE: The descriptions of these items are in the section Rear View.
Drive activity indicator
This indicator lights up when your ASUS All-in-One PC is accessing the internal storage drives.
Power indicator
This LED power indicator lights up when the ASUS All­in-One PC is turned on.
Top view
E13861_V161_Series_UM_V2.indd 18
2018/1/10 �� 04:26:26
19
Kensington® security slot
The Kensington® security slot allows you to secure your ASUS All-in-One PC using Kensington® compatible security products.
Headphone jack
This port allows you to connect amplied speakers or headphones.
Microphone jack
The microphone jack is designed to connect to a microphone used for video conferencing, voice narrations, or simple audio recordings.
Right side viewLeft side view
E13861_V161_Series_UM_V2.indd 19
2018/1/10 �� 04:26:27
20
USB 3.1 Gen1 port
This USB 3.1 Gen1 (Universal Serial Bus) port provides a transfer rate of up to 5 Gbit/s and is backward compatible to USB 2.0.
Memory card reader
This ASUS All-in-One PC has a built-in memory card reader slot that supports MMC, SD, SDHC, SDXC, MS, and MS PRO cards.
E13861_V161_Series_UM_V2.indd 20
2018/1/10 �� 04:26:27
21
Chapter 2: Using your ASUS All-in-One PC
Positioning your ASUS All-in-One PC
Place your ASUS All-in-One PC on a at surface such as a table or desk then pull the stand open until it locks into place.
Gently push the display panel until the hinge makes a “click” sound to adjust your All-in-One PC from a 15° angle to a 38° angle.
IMPORTANT!
• UsebothhandswhensettingupyourAll-in-OnePC.
• OrientyourAll-in-OnePCwithinthegivenrangetoavoiddamaging
it.
38o (+2o)
15o (+2o)
E13861_V161_Series_UM_V2.indd 21
2018/1/10 �� 04:26:27
Loading...
+ 47 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
