ASUS Tablet
User Manual
English
P1801-T
English
E7909
December 2012
P1801-T ASUS Tablet can be used with P1801 ASUS All-in-One PC
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO
EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING
FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective
companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE
SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING
THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from
ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no
more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other
actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the
listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this
Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are
collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR
ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR
RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
Table of Contents
About this manual ................................................................................................................................................ 5
Conventions used in this manual ....................................................................................................................... 5
Typography ................................................................................................................................................................. 5
Safety information ................................................................................................................................................ 6
Setting up your system...........................................................................................................................................6
Care during use ......................................................................................................................................................... 6
Sound Pressure Warning ........................................................................................................................................ 7
Package contents .................................................................................................................................................. 8
Chapter 1: Hardware Setup
Getting to know your ASUS Tablet ................................................................................................................. 9
Front view .................................................................................................................................................................... 9
Side views ....................................................................................................................................................................10
Bottom view ...............................................................................................................................................................11
Rear view .....................................................................................................................................................................12
Chapter 2: Using your ASUS Tablet
Placing your ASUS Tablet on the table or desk ........................................................................................... 13
Charging your ASUS Tablet ................................................................................................................................ 14
Using Gestures ....................................................................................................................................................... 14
Chapter 3: Working with Android®
Basics ......................................................................................................................................................................... 16
Unlocking your device ............................................................................................................................................ 16
Entering the camera mode ...................................................................................................................................16
Home Screen .............................................................................................................................................................. 17
Screen Views...............................................................................................................................................................18
Connecting to the world .................................................................................................................................... 19
Connecting to Wi-Fi networks .............................................................................................................................19
Using Bluetooth ........................................................................................................................................................20
Using apps and widgets ..................................................................................................................................... 22
Managing Apps ......................................................................................................................................................... 22

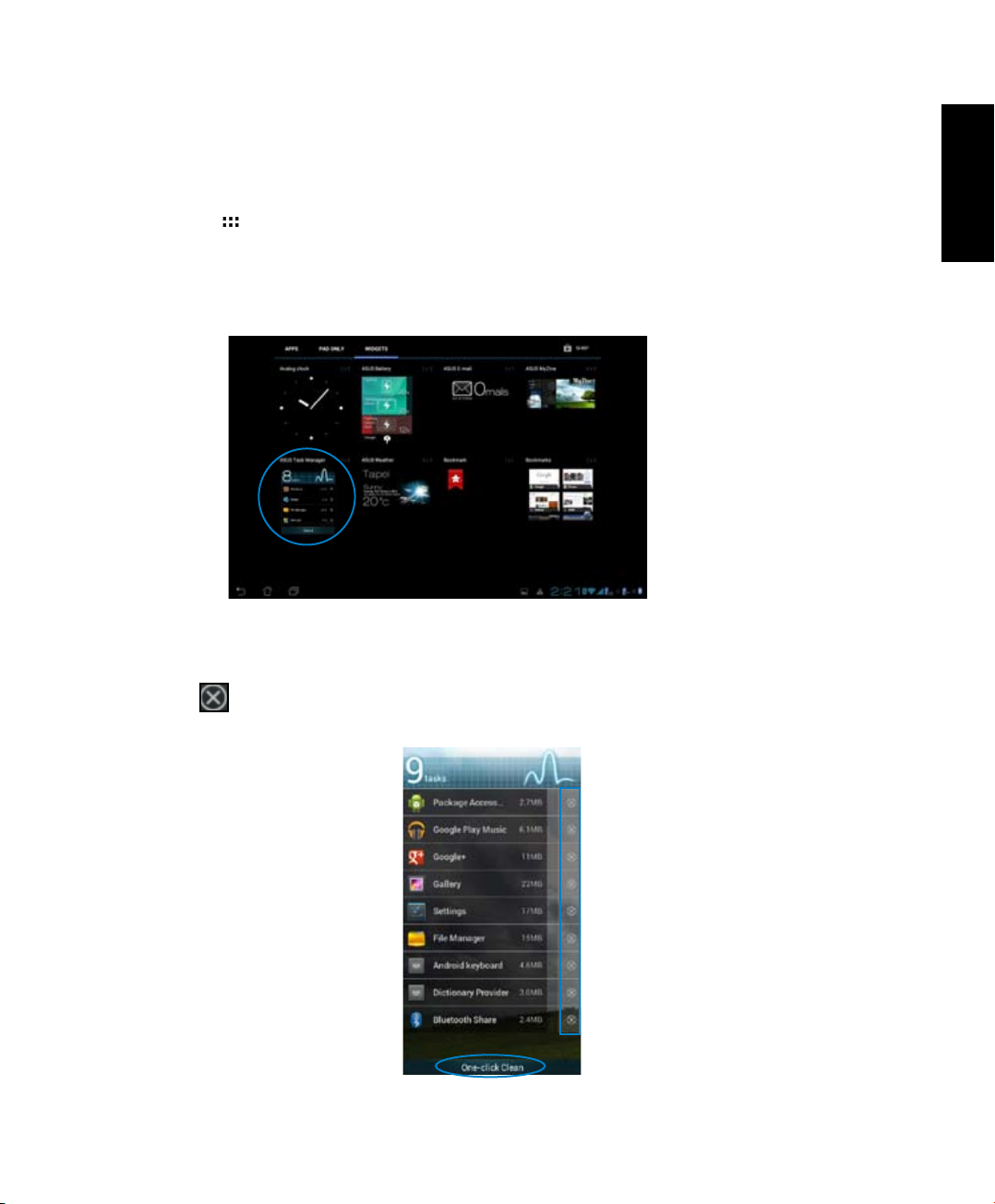

Task Manager ............................................................................................................................................................. 25

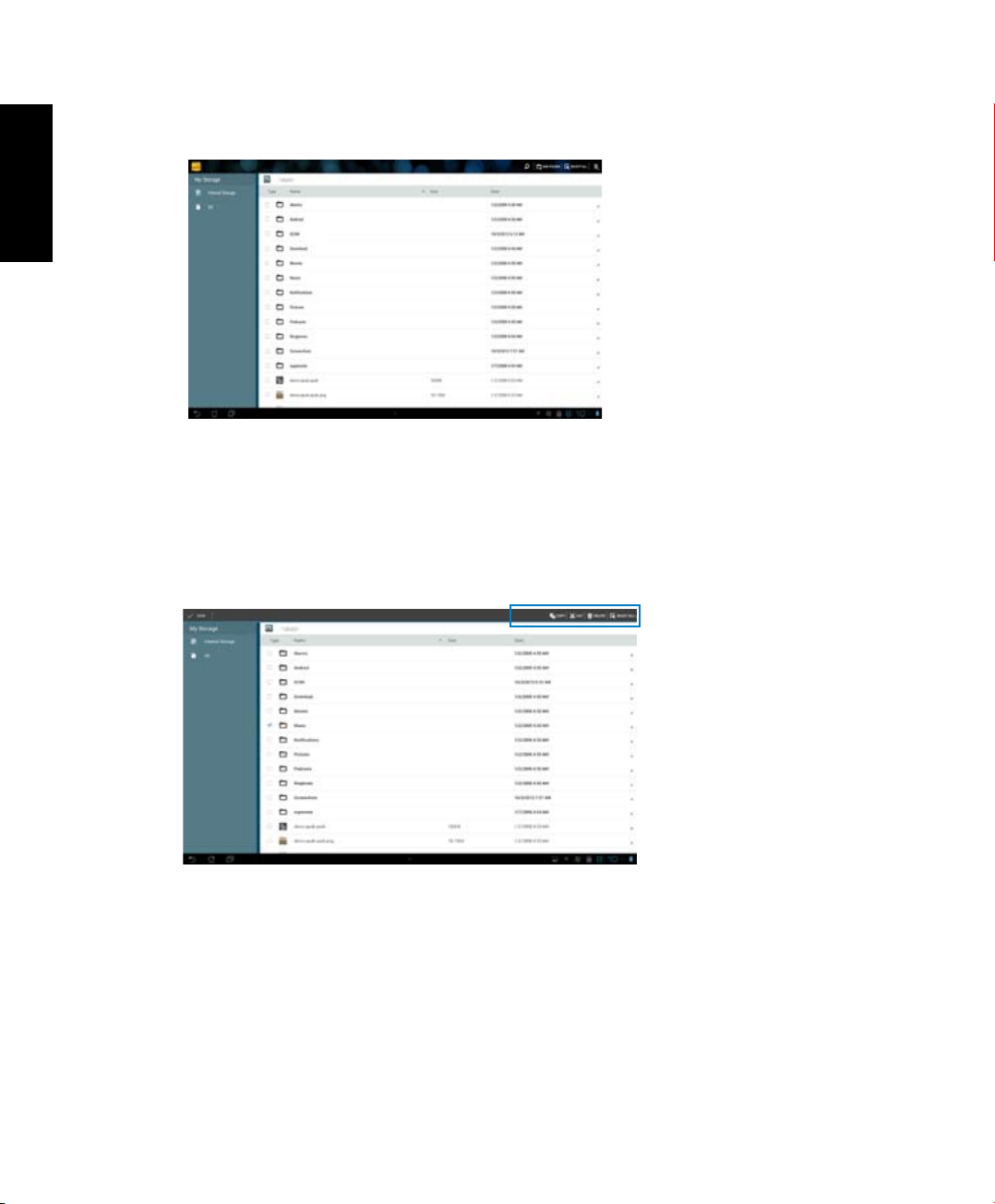

File Manager ...............................................................................................................................................................26

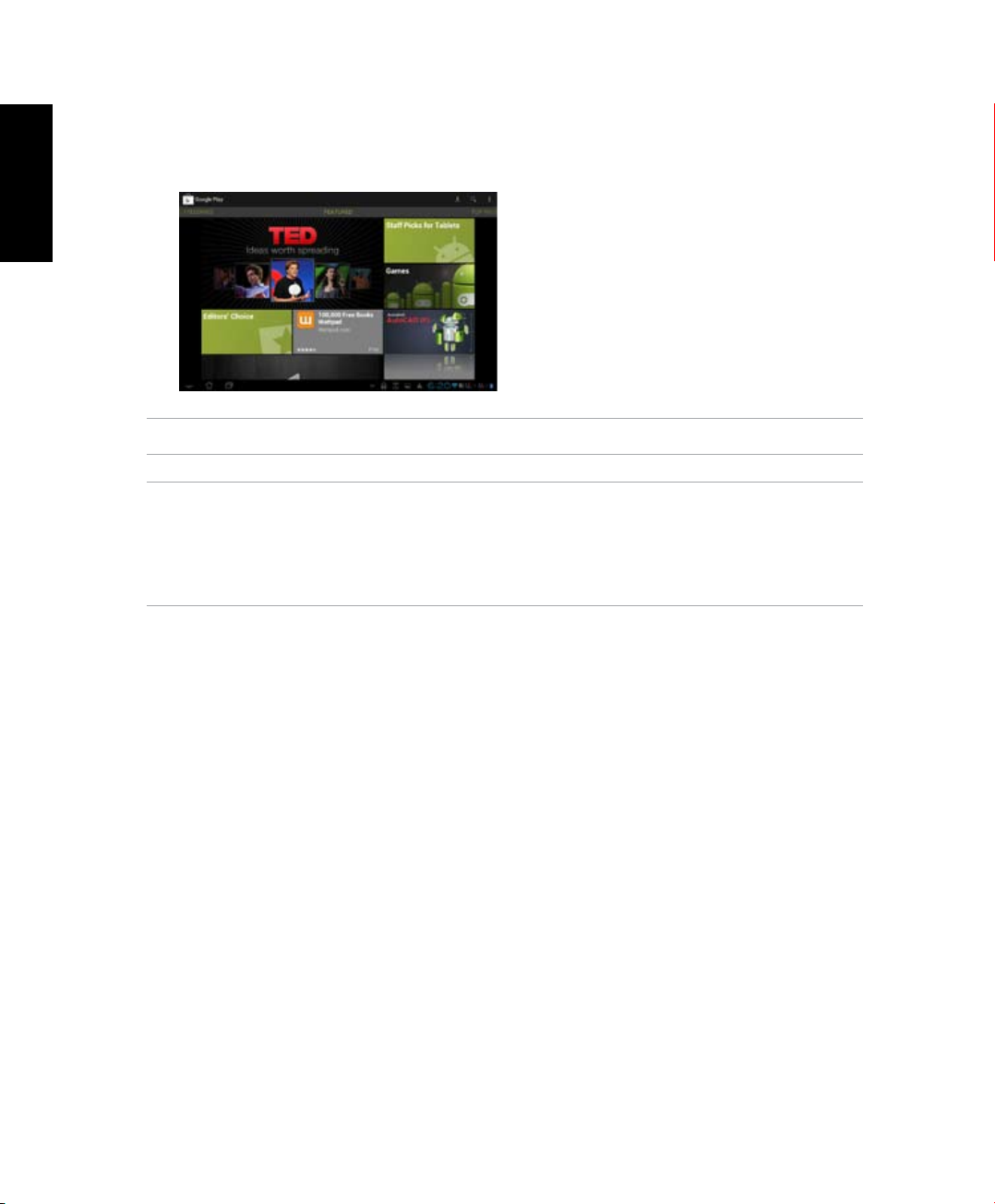

Play Store ..................................................................................................................................................................... 29
Settings ........................................................................................................................................................................31
Music ............................................................................................................................................................................ 34
English
ASUS Tablet
3
English
Table of Contents
Gallery ...........................................................................................................................................................................35
Camera .........................................................................................................................................................................39
Email ..............................................................................................................................................................................39
Gmail ............................................................................................................................................................................ 41
MyLibrary .....................................................................................................................................................................43
Polaris® Office ............................................................................................................................................................. 47
MyNet .........................................................................................................................................................................49
App Locker .................................................................................................................................................................. 51
SuperNote .................................................................................................................................................................. 52
Adding widgets .........................................................................................................................................................54
ASUS Battery ..............................................................................................................................................................55
Appendices
Notices ...................................................................................................................................................................... 56
4
ASUS Tablet
About this manual
This manual provides information about the hardware and software features of your ASUS
Tablet, organized through the following chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your ASUS Tablet.
Chapter 2: Using your ASUS Tablet
This chapter provides you with information on using your ASUS Tablet.
Chapter 3: Working with Android®
This chapter provides an overview of using Android® in your ASUS Tablet.
Conventions used in this manual
To highlight key information in this manual, some text are presented as follows:
IMPORTANT! This message contains vital information that must be followed to complete a task.
NOTE: This message contains additional information and tips that can help complete tasks.
English
WARNING! This message contains important information that must be followed to keep you safe
while performing tasks and prevent damage to your ASUS Tablet's data and components.
Typography
Bold This indicates a menu or an item that must be selected.
Italic This indicates sections that you can refer to in this manual.
All illustrations and screenshots in this manual are for reference only. Actual product
specications and software screen images may vary with territories. Visit the ASUS
website at www.asus.com for the latest information.
ASUS Tablet
5
English
Safety information
Your ASUS Tablet is designed and tested to meet the latest standards of safety for information
technology equipment. However, to ensure your safety, it is important that you read the
following safety instructions.
Setting up your system
Read and follow all instructions in the documentation before you operate your system.
•
Do not use this product near water or a heated source such as a radiator.
•
Set up the system on a stable surface.
•
Openings on the chassis are for ventilation. Do not block or cover these openings. Ensure
•
that you leave plenty of space around the system for ventilation. Never insert objects of any
kind into the ventilation openings.
Use this product in environments with ambient temperatures between 0˚C and 40˚C.
•
If you use an extension cord, ensure that the total ampere rating of the devices plugged
•
into the extension cord does not exceed its ampere rating.
Care during use
Do not walk on the power cord or allow anything to rest on it.
•
Do not spill water or any other liquids on your system.
•
When the system is turned o, a small amount of electrical current still ows. Always
•
unplug all power, modem, and network cables from the power outlets before cleaning the
system.
The touch screen requires periodic cleaning to achieve the best touch sensitivity. Keep the
•
screen clean from foreign objects or excessive dust accumulation. To clean the screen:
Turn o the system and disconnect the power cord from the wall.
•
Spray a small amount of a household glass cleaner onto the supplied cleaning cloth
•
and gently wipe the screen surface.
Do not spray the cleaner directly on the screen.
•
Do not use an abrasive cleaner or a coarse cloth when cleaning the screen.
•
If you encounter the following technical problems with the product, unplug the power cord
•
and contact a qualied service technician or your retailer.
The power cord or plug is damaged.
•
Liquid has been spilled into the system.
•
The system does not function properly even if you follow the operating instructions.
•
6
ASUS Tablet
The system was dropped or the cabinet is damaged.
•
The system performance changes.
•
Sound Pressure Warning
Excessive sound pressure from earphones or headphones can cause hearing damage or loss.
Adjustment of the volume control as well as the equalizer to settings other than the center
position may increase the earphones or headphones output voltage and the sound pressure
level.
English
ASUS Tablet
7
English
Quick Guide
Package contents
ASUS Tablet Power adapter
Quick Start Guide Warranty Card Cleaning cloth
NOTES:
• Contact your retailer if any of the items are damaged or missing.
• Contents may vary per country or region.
8
ASUS Tablet
Chapter 1: Hardware Setup
Getting to know your ASUS Tablet
Front view
English
Webcam
The built-in webcam allows you to start video chats online.
ASUS Tablet
9
English
Side views
Kensington® lock port
The Kensington® lock port allows you to secure your ASUS Tablet using Kensington®
compatible security products.
Power button
Press this button to turn on your ASUS Tablet.
10
Volume control
Press to turn the volume up/down.
Mode button
Press this button to switch your operating system from Windows® 8 to Android™.
Mini USB port
This mini Universal Serial Bus (USB) 2.0 port allows you to connect compatible USB 2.0
or USB 1.1 devices to your ASUS Tablet using a mini USB cable.
MicroSD card reader
Your ASUS Tablet comes with an additional built-in memory card reader that supports
microSD and microSDHC card formats.
ASUS Tablet
Microphone
The built-in microphone can be used for video conferencing, voice narrations, or
simple audio recording.
Headphone output/microphone input combo port
This port allows you to connect your ASUS Tablet to amplied speakers or
headphones. You can also use this port to connect your ASUS Tablet to an external
microphone.
Power input
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage to the
PC, always use the supplied power adapter.
WARNING! The power adapter may get warm or hot when in use. Do not cover the
adapter and keep it away from your body.
Bottom view
English
Connecting holes
Align and insert the guiding poles into these holes to securely attach the tablet to the
PC Station.
ASUS Tablet
11
English
Rear view
12
Audio speakers
Your ASUS Tablet is equipped with built-in high quality speakers.
Tablet stand
Pull out and adjust the stand to provide stable support for your tablet when it is
placed on a table or desk.
Tablet handle
Carry the tablet easily using the ergonomic tablet handle.
NOTE: The magnet at the back of your ASUS Tablet may de-magnetize nearby objects.
ASUS Tablet
Chapter 2: Using your ASUS Tablet
Placing your ASUS Tablet on the table or desk
To place your ASUS Tablet on the table or desk:
1. Pull and adjust the tablet stand.
2. Place your ASUS Tablet on a at surface such as a table or desk.
English
ASUS Tablet
13
English
1
1
0V
-
220V
Charging your ASUS Tablet
Connect the power adapter to your ASUS Tablet’s DC-in port and plug to the correct socket
outlet with the correct input rating. The input voltage of the adapter is 100Vac~240Vac.
Using Gestures
The gestures allow you to launch programs and access the settings of your ASUS Tablet. The
functions can be activated by using the hand gestures to your ASUS Tablet’s display panel.
Zoom out Zoom in
Bring together your two ngers on the
touch panel.
14
Spread apart your two ngers on the touch
panel.
ASUS Tablet
Tap/Double tap Tap and hold
Tap an app to launch it. To move an app, tap and hold the app tile
and drag it to a new location.
Flip
English
Use your nger back and forth between
home screens, through dierent images
in the Gallery, or pages in MyLibrary and
SuperNote.
ASUS Tablet
15
English
Chapter 3: Working with Android®
Basics
Unlocking your device
Touch and drag the lock icon to the unlocked icon.
Entering the camera mode
Touch and drag the lock icon to the camera icon.
16
ASUS Tablet
Home Screen
Open Google Text search
Open Google Voice search
Display recent apps
Return to Home Screen
Return to the previous screen
Display local date
Display local weather information. Touch
to customize weather widget settings,
location, and frequency updates.
Shortcuts
Displays your e-mail inbox. Touch to
congure the email account for the
rst time, and touch to read
the e-mail inbox folder.
Open All apps
screen
Notication area & Settings
e-mails in
English
NOTE: The Home Screen may update and change with Android OS.
ASUS Tablet
17
English
Screen Views
The screen view rotates automatically when you hold the tablet horizontally to vertically, and
vice versa.
Landscape view Portrait view
18
ASUS Tablet
Connecting to the world
Connecting to Wi-Fi networks
Wi-Fi wireless networking technology allows you to exchange data wirelessly over a network.
To use Wi-Fi, enable the Wi-Fi feature in your ASUS Tablet and connect to a wireless network.
Some wireless networks are secured with a key or protected with digital certicates and
requires additional steps to set up; others are open and you can easily connect to them.
NOTE: Turn OFF Wi-Fi when you’re not using it to help save battery power.
To enable Wi-Fi and connect to a Wi-Fi network:
1. Touch
2. Slide the Wi-Fi switch to ON. When enabled, your ASUS Tablet scans for available Wi-Fi
networks.
3. Touch a network name to connect to it. If the network is secured or protected, you are
prompted to key in a Password or key in other credentials.
IMPORTANT! If your ASUS Tablet nds a network that you have connected to previously, it
automatically connects to it.
to go to the All apps screen then touch Settings .
English
ASUS Tablet
19
English
Using Bluetooth
Enabling or disabling Bluetooth in your device
Bluetooth is a wireless standard used for exchanging data over short distances. Bluetooth
exists in many products, such as smartphones, computers, tablet devices, and headsets.
Bluetooth is very useful when transferring data between two or more devices that are near
each other.
The rst time you connect to a Bluetooth device, you must pair it with your ASUS Tablet.
TIP: Turn OFF Bluetooth in your ASUS Tablet when you’re not using it to help save battery
power.
To enable or disable Bluetooth in your ASUS Tablet, touch to go to the All apps screen then
touch Settings . Slide the Bluetooth switch to ON/ OFF.
Pairing your ASUS Tablet with a Bluetooth device
Before you can connect to a device, you must rst pair your ASUS Tablet to that device. Once
paired, the devices stay paired unless you unpair them.
To pair your ASUS Tablet to a device:
1. Touch
to go to the All apps screen then touch Settings . Slide the Bluetooth
switch to ON.
2. Touch
Bluetooth to display all available Bluetooth devices within range. If the device you
want to pair with is not in the list, ensure that its Bluetooth feature is turned ON and set as
Discoverable. See the technical documentation that came with the device to learn how to
turn its Bluetooth ON and how to set it to discoverable.
20
ASUS Tablet
3. If your ASUS Tablet has nished scanning before your Bluetooth device is ready, touch
Search for devices.
4. In the list of available devices, touch the Bluetooth device you want to pair with. Follow
the succeeding screen instructions to complete the pairing. If necessary, refer to the
technical documentation that came with the device.
Connecting your ASUS Tablet to a Bluetooth device
After you have paired your ASUS Tablet to a Bluetooth device, you can easily reconnect to it
again manually, after it is back in range.
To connect:
1. Touch
to go to the All apps screen then touch Settings . Slide the Bluetooth
switch to ON.
2. In the list of
PAIRED DEVICES, touch the name of the paired device.
Unpairing and conguring a Bluetooth device
To unpair or congure a Bluetooth device:
1. Touch
switch to ON.
to go to the All apps screen then touch Settings . Slide the Bluetooth
English
2. Touch
Bluetooth to display the Bluetooth settings.
3. Touch the Bluetooth Quick Settings icon beside the connected Bluetooth device you want
to unpair or congure.
4. From the Bluetooth Quick Settings screen, you can do any of the following:
• Touch
• Touch
Unpair to unpair the device.
Rename to rename the Bluetooth device.
• Touch any of the listed proles to enable or disable prole.
5. Touch
ASUS Tablet
when you’re nished.
21
English
Using apps and widgets
Managing Apps
App shortcut
You can create shortcuts for your favorite apps on your ASUS Tablet Home Screen.
1. Touch
2. From the
and place the app on the Home Screen.
to go to the All apps screen.
All apps screen, touch and hold the icon of the app you wish to move then drag
App info
You can view the detailed app information while you are creating a shortcut for the app. While
holding an app from the All apps screen to the Home Screen, the App info will appear on the
top of the Home Screen page. Drag the app to App info to display its detailed information.
Removing App from Home Screen
You can remove app shortcuts from your ASUS Tablet Home Screen. The original app will
remain in your All apps screen. To remove an app in your Home Screen:
1. Touch and hold an app on your Home Screen until
2. Drag the app to
X Remove
to remove it from the Home Screen.
X Remove
appears.
22
ASUS Tablet
App Folder
Create folders to organize your applications and shortcuts on your ASUS Tablet Home Screen.
1. On your ASUS Tablet’s Home Screen, touch and drag an app or shortcut onto another app
and a folder will appear.
2. Touch the new folder and tap
Unnamed Folder to rename the folder.
English
ASUS Tablet
23
English
Recent Apps
Recent apps are displayed on the left panel of the Home Screen. You can nd detailed
information and manage your apps from the Recent Apps list.
1. Touch the
2. Swipe up or down the list to view
Recent Apps icon at the lower left corner of the Home Screen.
Recent Apps. Swipe a recent app to the left or right to
remove from the list.
3. Touch and hold a recent app to display the menu. Select to remove app from list or display
app information.
24
ASUS Tablet
Task Manager
ASUS widget displays a list of currently running utilities and applications and their usages in
percentages on your ASUS Tablet.
1. Touch
2. Touch
3. Touch and hold
to go to the All apps screen.
WIDGETS to display the widgets menu.
ASUS Task Manager to display the ASUS Task Manager box on the Home
Screen.
4. Touch and hold the widget to display the sizing brackets. Pull the sizing bracket upward or
downward to show the complete list of tasks.
5. Tap
beside each running app to close the app. Touch One-click Clean to close
running apps all at once.
English
ASUS Tablet
25
English
File Manager
File Manager allows you to easily locate and manage your data either on the internal storage
device or the connected external storage devices.
To access the internal storage device:
1. Touch
2. Touch
to go to the All apps screen.
File Manager then go to My Storage.
3. The Internal Storage (/sdcard/) and any connected external storage devices (/Removable/)
are displayed on the left panel. Touch the source icon on the left panel to display the
content list, and touch to select an item.
26
ASUS Tablet
4. Touch the
Return folder icon to return to the root directory of My Storage.
To access the external storage device:
English
1. Touch the USB or SD card icon
display the notication box.
on the bottom right corner of your Home Screen to
ASUS Tablet
27
English
2. Touch the USB or SD card icon to display its contents.
To copy, cut, delete, or share les:
Tick the le you wish to copy, cut, share, or delete and touch the action icon found at the tool
bar on the upper right corner of they File Manager screen.
You can also tick the le and drag/drop it to your desired destination folder.
28
ASUS Tablet
Play Store
Access lots of fun games and tools in the Play Store using your Google account. If you don’t
have a Google account, please create one.
To access the Play Store:
1. From the Home screen, tap
Play Store .
3. You need a Google account to access Google Play. If you don’t have an existing account,
tap New.
4. Type your Email and Password to Sign in if you already have an account.
English
ASUS Tablet
29
English
5. After signing in, you can start downloading and adding apps to your device from the Play
Store.
IMPORTANT! Download the latest Adobe Flash Player version 11.1.112.60 for Jelly Bean devices.
NOTES:
• You cannot restore the deleted applications, but you can login with the same ID and
download them again.
• Some applications are free and some might charge you through a credit card.
30
ASUS Tablet
Settings
Settings screen allows you to congure the settings of your ASUS Tablet, including Wireless &
networks, Device, Personal, and System settings. Touch the tabs on the left to switch screens
and do the congurations.
There are two ways to go to the Settings screen.
From the All apps screen:
Touch Settings to display the settings menu.
English
ASUS Tablet
31
English
From ASUS Quick Setting:
Touch the notication area on the bottom right corner to launch the ASUS Quick Settings
panel.
Display local date and time
Internet
connection
status
Performance
setting
Display settings
Brightness Manual Adjustment
Dock / Tablet Battery Status
Settings Menu
Quick Setting Adjustment Panel.
Touch the individual icons to turn on/
o the function.
Auto Brightness
32
ASUS Tablet
ASUS Quick Setting Adjustment Panel
Touch any of the following icons to enable or disable its assigned function.
Performance mode
Power Saving
Wi-Fi
Silent mode
English
GPS
Auto-rotate screen
Balanced mode
Icon and baseline light
up when enabled
Bluetooth
Auto-Sync
IMPORTANT!
• Balanced mode [Default mode]:
• Performance mode:
• Power saving mode:
Maximizes the system’s performance but consumes more battery power.
Energy saving mode
Balances the system’s performance and power usage.
Notication Panels
Notication panels will appear under the Quick Setting panel for alerts or updates in apps,
incoming emails, and utillity status.
IMPORTANT! Swipe a notication to the right or to the left to remove item from the list.
ASUS Tablet
33
English
Music
Touch Play Music on the Home Screen to play your music les. This application automatically
collects and displays all the audio les stored in your ASUS Tablet and connected external
storage devices.
You can shue and play all audio les randomly or ip to select an album for your listening
pleasure.
Use the buttons on the top to conveniently sort or search your audio les.
Sort the audio les by Recent, Albums,
Artists, Songs, Playlists, and Genres
NOTE:
The audio and video codec supported by your ASUS Tablet:
Settings for Music
Search for a music le
34
Decoder
Audio Codec: AAC LC/LTP, HE-AACv1(AAC+), HE-AACv2(enhanced AAC+), AMR-NB, AMR-WB,
MP3, FLAC, MIDI, PCM/WAVE, Vorbis, WAV a-law/mu-law, WAV linear PCM, WMA 10, WMA
Lossless, WMA Pro LBR
Video Codec: H.263, H.264, MPEG-4, VC-1/WMV, VP8
Encoder
Audio Codec: AAC LC/LTP, AMR-NB, AMR-WB
Video Codec: H.263, H.264, MPEG-4
ASUS Tablet
Gallery
Touch Gallery on the Home Screen to browse for images or video les. This app automatically
collects and displays all the images and video les stored in your ASUS Tablet.
From the Gallery, you can display images in a slideshow or touch to select for image or video
les.
You can also use the menu buttons on the upper right corner of the Gallery screen to sort the
les by album, by location, by time, by people, or by tags.
Gallery settings
Quick launch camera
Videos and photos
English
ASUS Tablet
35
English
Sharing and deleting albums
Touch and hold an album in the Gallery until the Tool bar on top appears.
Using the Tool bar options, you can upload, delete, or share selected albums online.
Tool bar
36
Share the selected album through
Bluetooth®, Picasa®, MyBitCast,
Google+®, or Gmail
®
Delete icon
ASUS Tablet
Sharing, deleting, and editing images
Touch an image in the Gallery and use the tool bar on the upper right corner to share, delete,
or edit a selected image.
Tool bar
English
Share the selected album through
Bluetooth®, Picasa®, MyBitCast,
Google+®, or Gmail
CAUTION! You cannot restore a deleted le.
ASUS Tablet
Delete icon
®
37
English
Gallery widget
The Photo Gallery widget allows immediate access to your favorite photos or albums right
from the Home Screen.
1. Touch
2. Touch
3. Touch and hold
to go to the All apps screen.
Widgets to display the widgets menu.
Photo Gallery until the gallery widget box moves to the Home Screen
and displays the Choose images menu box.
4. Choose the album or image that you wish to place as a widget on the Home Screen.
38
ASUS Tablet
Camera
Touch Camera from the All apps screen to take pictures, record videos, or create panoramic
images. You can use the front camera or the back camera to take pictures or record videos.
The image and video les are saved to Gallery.
Email allows you to add several e-mail accounts and conveniently browse and manage your
e-mails.
To set up an email account:
1. Touch
2. Touch
3. From the email app screen,key in your
address and Password, then touch Next.
4. Wait while your ASUS Tablet automatically
checks your incoming and outgoing mail
server settings.
to go to the All apps screen.
Email to launch the email app.
Email
English
5. Congure the Account options and
touch Next.
ASUS Tablet
39
English
6. Provide a name for the account and key in the
name you want displayed on the outgoing
messages. Touch Next to log into your mail
inbox.
To add email accounts:
1. Touch
to go to the All apps screen, touch
Email and login using the account
that you’ve previously set up.
2. Touch
then Settings. Touch Add account
on the upper right corner to add new email
accounts.
NOTE: You can include all your e-mail
accounts in Email.
40
ASUS Tablet
Gmail
Gmail (Google mail) allows you to access your Gmail account, receive, and compose e-mails.
To set up a Gmail account:
English
1. Touch
Gmail from the Home screen. Touch
Existing and type your existing Email and
Password, then touch Sign in.
NOTE: Touch New if you do not own a Google Account.
2. Wait while your ASUS Tablet communicates with
Google servers to set up your account.
ASUS Tablet
41
English
3. You can use your Google account to backup and
restore your settings and data. Touch Done to
sign in to your Gmail.
IMPORTANT: If you have several e-mail accounts in addition to Gmail, use Email to set up and
access all your e-mail accounts at same time.
42
ASUS Tablet
MyLibrary
MyLibrary, an integrated interface for your e-book collections, allows you to place your
purchased or downloaded e-books into dierent bookshelves and genres.
Touch to go to the All apps screen, then touch MyLibrary.
NOTE: Log into asus@vibe to download more e-books.
IMPORTANT:
• MyLibrary supports e-books in ePub, PDF and TXT format.
®
• You may need Adobe Flash
before using MyLibrary.
player to open some e-books. Download Adobe Flash® player
English
All your bookshelves
Search for an e-book
Sort by title, author, date, or My Array
Recent Read List and other settings
Selection mode
Books on the selected bookshelf
ASUS Tablet
43
English
Reading your e-books
To read e-books:
1. Touch to select an e-book on the bookshelf.
2. Touch and hold the screen to show the tool bar on the top.
Use text-to-speech
function for this page
Marker
Search key words
Chapter list
Zoom out/ Zoom in
Insert bookmark
Bookmark list and Day/ Night mode
Page scroll
NOTES:
• Android initiates the download and installation of necessary resource if you would like to use
the text-to-speech function.
• Tap on the Bookmark list and select the marked page to show the bookmark icon on the
upper right corner of the screen.
44
ASUS Tablet
3. Flip pages like a real book or move the page scroll at the bottom.
Making notes on your e-books
1. Touch and hold on a desired word or sentence until the tool menu and the dictionary
denition are displayed.
English
2. Once selected, you either highlight the selected word with a marker, add a note, use
text-to-speech function for the selected text, or simply copy the word.
3. Move the selection point to extend the selected region to a whole phrase or sentence if
needed.
ASUS Tablet
45
English
Maps
Google Maps allows you to nd establishments, view maps, and get directions. Use the tool
bar on the top to get directions or create your own maps.
Touch to go to the All apps screen, then touch Maps.
46
ASUS Tablet
Polaris® Oce
Polaris® Oce is a set of interrelated desktop applications that allows you to create, read, and
edit documents, spreadsheets, and presentations.
To use Polaris® Oce:
1. Touch
2. In the
to go to the All apps screen.
All apps screen, touch Polaris® Oce.
3. Touch any of the following:
• Touch
• Touch
Browser to view the les/folders in the local storage.
Clouds to add a cloud service account.
English
• Touch
• Touch
ASUS Tablet
Form type to view all documents by type.
Favorites to view your favorite les.
47
English
Adding new les
To add new les, touch then select New:
• Touch
Document (.doc) or Document (.docx) to start the word processor to edit
documents.
• Touch
Sheet (.xls) or Sheet (.xlsx) to start the spreadsheet to perform calculation and
manage information.
• Touch
Slide (.ppt) or Slide (.pptx) to start the application to create and share
presentations.
• Touch
Text to create text les.
Adding Accounts
You are allowed to edit your les with Polaris® Oce from other accounts, including Google
docs and Box.net.
1. Touch
2. Select a desired service to add.
3. Key in your e-mail account and password and touch
Clouds.
OK to add the account.
48
ASUS Tablet
MyNet
MyNet allows you to store, save, and stream audio, video, and image les between your ASUS
Tablet and a DLNA device such as your computer, TV, or speakers.
NOTE: DLNA (Digital Living Network Alliance) is the networking standard that allows network
devices to seamlessly communicate with each other.
IMPORTANT:
• MyNet works with Microsoft Media Player 11 or later version only.
• MyNet will not work if the devices are connected via 3G network.
• Your ASUS Tablet and the DLNA device such as computer, TV, or speakers must be connected
to the same wireless network. Otherwise, MyNet will not function.
1. Ensure that your ASUS Tablet and your computer are connected to the same wireless
network.
English
2. Click and enable
Allow remote control of my Player and Automatically allow devices
to play my media in Windows Media Player on your computer. Go to More streaming
options to congure, if necessary.
ASUS Tablet
49
English
3. On the Server list, select the source device on the left panel to view the contents.
Source device
Search and Settings
Current source
Content
4. You can do any of the following:
• Select a le and touch
Play to on the bottom right to start playing on the target
device.
• Touch and hold a le to upload or download it to and from the connecting devices.
• You can also select a le from the
Playlist. The Playlist oers a common space for the
connected devices to share les. Tap the plus sign (+) to create new lists.
5. To enable
Digital Media Server, touch Settings on the upper right corner and tick
Digital Media Server Settings to allow the other connecting devices to access media
les on your ASUS Tablet. You can also select the location of the le you want to share.
50
ASUS Tablet
App Locker
App Locker allows you to password-protect your apps.
To use App Locker:
1. From the
All apps screen, touch on
App Locker .
2. Set up your password.
3. Tick the apps you would like to lock.
4. Activate App Locker from Settings
on the the upper right corner.
English
NOTES:
• Locked apps will have lock icons on the Home Screen.
• You will be asked for your password everytime you access the locked apps.
ASUS Tablet
51
English
SuperNote
SuperNote is a convenient app used for writing and painting on your ASUS Tablet. You can take
notes, send instant messages, draw sketches, create e-cards with audio recordings or diaries
with video, and lots more.
Notebooks,
Bookmarks, All
Pages
Create a new
notebook
Launch ASUS
WebStorage
All your notebooks
Search for notebooks
Sort by page or last
modied
Settings
Sort/Import/Hide
Notebook, Account
Sync Settings
52
ASUS Tablet
Using SuperNote
To create a new notebook:
1. Touch New Notebook.
2. Key in a name for the le and choose the notebook type to start writing on the page.
The following screen describes the SuperNote screen features on your ASUS Tablet:
Goes back to SuperNote 3.0’s
main page
Favorites
Delete page
New page
Share and Export
Settings
Page Scroll
English
ASUS Tablet
Previous page Next page
Page number
53
English
Adding widgets
Use widgets to conveniently access useful and fun applications on your ASUS Tablet Home
Screen. You can nd them in the Widgets tab in the All Apps screen, ready to be moved into
your Home Screen.
To see your widgets, touch to go to the All apps screen, then touch Widgets.
From the main Widgets screen, you can:
•
Drag a widget to another screen.
•
Swipe left or right to move between screens and view more widgets.
IMPORTANT:
• You may be prompted to perform additional tasks (such as registration, activation) before you
can use a selected widget.
• If there is not enough room on the screen where you placed a widget, the widget won’t get
added to that screen.
To remove a widget:
•
Touch and hold the widget until
the widget into
X Remove
.
X Remove
appears then without lifting your nger, drag
54
ASUS Tablet
ASUS Battery
This special widget shows the individual battery status of your ASUS Tablet by percentage and
color. The more battery power, the brighter the color.
1. Touch
2. Touch
3. Touch and hold
to go to the All apps screen.
Widgets to display the widgets menu.
ASUS Battery to display the ASUS Battery app.
4. The ASUS Quick Setting and the notications panel also display the battery status. The
battery status of the ASUS Tablet is shown separately. When battery is low, the battery
icon turns from blue to red with an exclamation mark. There will also be a warning sound
to notify you when the battery is running low.
English
ASUS Tablet
55
English
Appendices
Notices
REACH
Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of
Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS
REACH website at http://csr.asus.com/english/REACH.htm
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards
for protecting our environment. We believe in providing solutions for you to be able to
responsibly recycle our products, batteries, other components, as well as the packaging
materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling
information in dierent regions.
COATING NOTICE
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is
applied to insulate the device except on the areas where the I/O ports are located.
Beschichtungshinweis
WICHTIG!Um die elektrische Isolation und die elektrische Sicherheit zu gewährleisten, ist das
Gehäuse mit einer Beschichtung zur Isolation versehen. Diese Beschichtung ist an den E/AAnschlüssen des Gerätes nicht vorhanden.
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference, and
•
This device must accept any interference received including interference that may cause
•
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
manufacturer’s instructions, may cause harmful interference to radio communications.
56
ASUS Tablet
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit dierent from that to which the receiver is
•
connected.
Consult the dealer or an experienced radio/TV technician for help.
•
IMPORTANT! Outdoor operations in the 5.15~5.25 GHz band is prohibited.
CAUTION: Any changes or modications not expressly approved by the guarantee of this
device could void the user’s authority to operate the equipment.
RF exposure warning
This equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment. The equipment must not be co-located or operating in conjunction with any
antenna or transmitter.
The highest SAR value for this device is 0.614 W/kg.
English
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
This class B digital apparatus complies with Canadian ICES-003.
ASUS Tablet
57
English
IC Radiation Exposure Statement for Canada
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. To maintain compliance with IC RF exposure compliance requirements, please
avoid direct contact to the transmitting antenna during transmitting. End users must follow
the specic operating instructions for satisfying RF exposure compliance.
Operation is subject to the following two conditions:
This device may not cause interference and
•
This device must accept any interference, including interference that may cause undesired
•
operation of the device.
Canada, Industry Canada (IC) Notices
This Class B digital aparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: 1) this device may not cause interference,
and 2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the wireless device is below the Industry Canada (IC) radio
frequency exposure limits. The wireless device should be used in such a manner such that the
potential for human contact during normal operation is minimized.
This device has been evaluated for and shown compliant with the IC Specic Absorption
Rate (“SAR”) limits when installed in specic host products operated in portable exposure
conditions.
The highest SAR value for this device is 0.614 W/kg.
Canada, avis d’Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-
210.
Son fonctionnement est soumis aux deux conditions suivantes: 1) cet appareil ne doit pas
causer d’interférence et 2) cet appareil doit accepter toute interférence, notamment les
interférences qui peuvent aecter son fonctionnement.
Informations concernant l’exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans l est inférieure à la limite d’exposition aux
fréquences radio d’Industry Canada (IC). Utilisez l’appareil de sans l de facon à minimiser les
contacts humains lors du fonctionnement normal.
Ce périphérique a été évalué et démontré conforme aux limites SAR (Specic Absorption Rate
- Taux d’absorption spécique) d’IC lorsqu’il est installé dans des produits hotes particuliers qui
fonctionnent dans des conditions d’exposition à des appareils portables.
58
ASUS Tablet
Declaration of Conformity (R&TTE directive 1999/5/EC)
The following items were completed and are considered relevant and sucient:
Essential requirements as in [Article 3]
•
Protection requirements for health and safety as in [Article 3.1a]
•
Testing for electric safety according to [EN 60950]
•
Protection requirements for electromagnetic compatibility in [Article 3.1b]
•
Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17]
•
Eective use of the radio spectrum as in [Article 3.2]
•
Radio test suites according to [EN 300 328-2]
•
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the EEC directives
2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low voltage directive”.
English
/
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the European
Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications
Equipment and mutual recognition of conformity.
is for class II device.
The highest SAR value for this device is 0.163 W/kg.
Wireless Operation Channel for Dierent Domains
N. America 2.412-2.462 GHz Ch01 through CH11
Japan 2.412-2.472 GHz Ch01 through Ch13
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
ASUS Tablet
59
English
NO DISASSEMBLY
The warranty does not apply to the products that
have been disassembled by users
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
No Exposure to Liquids
DO NOT expose to or use near liquids, rain, or moisture. This product is not
waterproof or oil-proof.
This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic
equipment, and mercury-containing button cell battery) should not be placed in municipal
waste. Check local regulations for disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin
indicates that the battery should not be placed in municipal waste.
60
請勿將電池當作一般垃圾丟棄。這個標誌表示電池不應視為一般垃圾丟棄。
ASUS Tablet
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume levels for long periods.
English
ASUS Tablet
61
English
Global Environmental Regulation Compliance and Declaration
ASUS follows the green design concept to design and manufacture our products, and
makes sure that each stage of the product life cycle of ASUS product is in line with global
environmental regulations. In addition, ASUS disclose the relevant information PC Stationd on
regulation requirements.
Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure based
on regulation requirements ASUS is complied with:
Japan JIS-C-0950 Material Declarations
EU REACH SVHC
Korea RoHS
Swiss Energy Laws
ENERGY STAR complied product
ENERGY STAR is a joint program of the U.S. Environmental Protection Agency
and the U.S. Department of Energy helping us all save money and protect
the environment through energy ecient products and practices.
All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR
standard, and the power management feature is enabled by default. The
monitor and computer are automatically set to sleep after 15 and 30 minutes
of user inactivity. To wake your computer, click the mouse or press any key
on the keyboard.
Please visit http://www.energy.gov/powermanagement for detail information on power
management and its benets to the environment. In addition, please visit http://www.
energystar.gov for detail information on the ENERGY STAR joint program.
NOTE: ENERGY STAR is NOT supported on Freedos and Linux-based products.
62
ASUS Tablet
English
Manufacturer ASUSTeK Computer Inc.
Tel: +886-2-2894-3447
Address: 4F, No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN
Authorised
representative in
ASUSTeK Computer GmbH
Address: HARKORT STR. 21-23, 40880 RATINGEN, GERMANY
Europe
64
ASUS Tablet
Loading...
