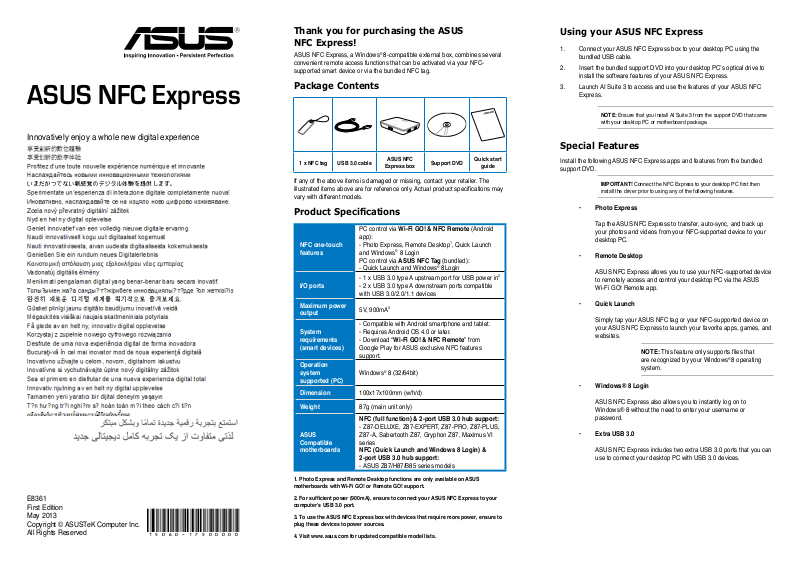

Asus NFC EXPRESS User Manual
ASUS NFC Express
Innovatively enjoy a whole new digital experience
E8361
First Edition
May 2013
Copyright © ASUSTeK Computer Inc.
All Rights Reserved
15060-17500000
Thank you for purchasing the ASUS
NFC Express!
ASUS NFC Express, a Windows® 8-compatible external box, combines several
convenient remote access functions that can be activated via your NFCsupported smart device or via the bundled NFC tag.
Package Contents
1 x NFC tag USB 3.0 cable
If any of the above items is damaged or missing, contact your retailer. The
illustrated items above are for reference only. Actual product specications may
vary with different models.
ASUS NFC
Express box
Support DVD
Quick start
guide
Product Specications
PC control via Wi-Fi GO! & NFC Remote (Android
NFC one-touch
features
I/O ports
Maximum power
output
System
requirements
(smart devices)
Operation
system
supported (PC)
Dimension 100x17x100mm (w/h/d)
Weight 87g (main unit only)
ASUS
Compatible
motherboards
1. Photo Express and Remote Desktop functions are only available on ASUS
motherboards with Wi-Fi GO! or Remote GO! support.
2. For sufcient power (900mA), ensure to connect your ASUS NFC Express to your
computer’s USB 3.0 port.
3. To use the ASUS NFC Express box with devices that require more power, ensure to
plug these devices to power sources.
4. Visit www.asus.com for updated compatible model lists.
app):
- Photo Express, Remote Desktop1, Quick Launch
and Windows® 8 Login
PC control via ASUS NFC Tag (bundled):
- Quick Launch and Windows® 8 Login
- 1 x USB 3.0 type A upstream port for USB power in
- 2 x USB 3.0 type A downstream ports compatible
with USB 3.0/2.0/1.1 devices
5V, 900mA
- Compatible with Android smartphone and tablet.
- Requires Android OS 4.0 or later.
- Download “Wi-Fi GO! & NFC Remote” from
Google Play for ASUS exclusive NFC features
support.
Windows® 8 (32/64bit)
NFC (full function) & 2-port USB 3.0 hub support:
- Z87-DELUXE, Z87-EXPERT, Z87-PRO, Z87-PLUS,
Z87-A, Sabertooth Z87, Gryphon Z87, Maximus VI
series
NFC (Quick Launch and Windows 8 Login) &
2-port USB 3.0 hub support:
- ASUS Z87/H87/B85 series models
3
2
Using your ASUS NFC Express
1. Connect your ASUS NFC Express box to your desktop PC using the
bundled USB cable.
2. Insert the bundled support DVD into your desktop PC’s optical drive to
install the software features of your ASUS NFC Express.
3. Launch AI Suite 3 to access and use the features of your ASUS NFC
Express.
NOTE: Ensure that you install AI Suite 3 from the support DVD that came
with your desktop PC or motherboard package.
Special Features
Install the following ASUS NFC Express apps and features from the bundled
support DVD.
IMPORTANT! Connect the NFC Express to your desktop PC rst then
install the driver prior to using any of the following features.
• Photo Express
Tap the ASUS NFC Express to transfer, auto-sync, and back up
your photos and videos from your NFC-supported device to your
desktop PC.
• Remote Desktop
ASUS NFC Express allows you to use your NFC-supported device
to remotely access and control your desktop PC via the ASUS
Wi-Fi GO! Remote app.
• Quick Launch
Simply tap your ASUS NFC tag or your NFC-supported device on
your ASUS NFC Express to launch your favorite apps, games, and
websites.
NOTE: This feature only supports les that
are recognized by your Windows® 8 operating
system.
• Windows® 8 Login
ASUS NFC Express also allows you to instantly log on to
Windows® 8 without the need to enter your username or
password.
• Extra USB 3.0
ASUS NFC Express includes two extra USB 3.0 ports that you can
use to connect your desktop PC with USB 3.0 devices.
Product Overview
EC Declaration of Conformity
We, the undersigned,
Manufacturer:
ASUSTeK COMPUTER INC.
Address, City:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Country:
TAIWAN
Authorized representative in Europe:
ASUS COMPUTER GmbH
Address, City:
HARKORT STR. 21-23, 40880 RATINGEN
Country:
GERMANY
declare the following apparatus:
Product name : NFC sensor box with USB 3.0 hub
Model name : NFC-EXPRESS
conform with the essential requirements of the following directives:
2004/108/EC-EMC Directive
EN 55022:2010
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2008
EN 55020:2007+A11:2011
1999/5/EC-R &TTE Directive
EN 300 328 V1.7.1(2006-10)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V5.2.1(2011-05)
EN 301 908-2 V5.2.1(2011-07)
EN 301 893 V1.6.1(2011-11)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001
EN 62479:2010
EN 50385:2002
EN 62311:2008
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.4.1(2002-08)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.1.1(2009-05)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)
2006/95/EC-LVD Directive
EN 60950-1 / A12:2011 EN 60065:2002 / A12:2011
2009/125/EC-ErP Directive
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
2011/65/EU-RoHS Directive
Ver. 130208
CE marking
Declaration Date: 17/05/2013
Year to begin affixing CE marking:2013
Position : CEO
Name : Jerry Shen
Signature :
__________
(EC conformity marking)
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name:
Asus Computer International
Address: 800 Corporate Way, Fremont
, CA 94539.
Phone/Fax No: (510)739-3777/(510)608-4555
hereby declares that the product
Product Name : NFC sensor box with USB 3.0 hub
Model Number : NFC-EXPRESS
Conforms to the following specifications:
FCC Part 15, Subpart B, Unintentional Radiators
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Representative Person’s Name : Steve Chang / President
Signature :
Date : May 10, 2013
Ver. 120601
Notices
NCC Warning
ASUS NFC Express box
ASUS NFC tag
Power LED
NFC sensing
area
USB 3.0 port for PC connection
NFC sensing area
USB 3.0 ports
Parts and description
• Power LED
This LED indicator lights up when the NFC Express is currently in use.
• NFC sensing area
To use the NFC, put the NFC tag or another NFC-enabled device on this
area to enable the connection.
• USB 3.0 port for PC connection
Insert the bundled USB cable into this port to supply power to your ASUS
NFC Express box while connected to your desktop PC.
• USB 3.0 ports
These two USB (Universal Serial Bus) ports support USB 3.0 devices.
NOTES:
- DO NOT connect a keyboard/mouse to any USB 3.0 port when
- Use USB 3.0 devices under Windows® 8 and ensure that you have
- USB 3.0 devices can only be used for data storage.
- We strongly recommend that you connect USB 3.0 devices to USB
installing the Windows® operating system.
installed the USb 3.0 driver.
3.0 ports for faster and better performance of your USB 3.0 devices.
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! The use of shielded cables for connection of the monitor to the graphics card
is required to assure compliance with FCC regulations. Changes or modications to this
unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate this equipment.
Labeling requirements
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IC: Canadian Compliance Statement
Complies with the Canadian ICES-003 Class B specications. This device complies with RSS 210 of Industry
Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment
regulations.
This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Cut appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Cet appareil numérique
de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
Cet appareil est conforme aux normes CNR exemptes de licence d’Industrie Canada. Le fonctionnement est
soumis aux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement
non souhaité de l’appareil.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out
in the Radio Interference Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
Australia statement notice
From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer
Law. For the latest product warranty details please visit http://support.asus.com. Our goods come with
guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at http://
support.asus.com
CE: European Community Compliance Statement
The equipment complies with the RF Exposure Requirement 1999/519/EC, Council Recommendation of 12 July
1999 on the limitation of exposure of the general public to electromagnetic elds (0–300 GHz). This wireless
device complies with the R&TTE Directive.
KCC Warning
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”), under
the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software Licenses. Such
software in this product is distributed without any warranty to the extent permitted by the applicable law. Copies
of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data, you
may obtain it for a period of three years after our last shipment of the product, either (1) for free by downloading
it from http://support.asus.com/download or (2) for the cost of reproduction and shipment, which is dependent on
the preferred carrier and the location where you want to have it shipped to, by sending a request to: ASUSTeK
Computer Inc. Legal Compliance Dept.15 Li Te Rd.,Beitou, Taipei 112, Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the product
for which you wish to obtain the corresponding source code and your contact details so that we can coordinate
the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as the
corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software
licenses. If however you encounter any problems in obtaining the full corresponding source code we would be
much obliged if you give us a notication to the email address gpl@asus.com, stating the product and describing
the problem (please DO NOT send large attachments such as source code archives, etc. to this email address).
Loading...
