1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC
There may be differences between your Notebook PC and the drawings shown in this
manual. Please accept your Notebook PC as being correct.
Photos and icons in this manual are used for artistic purposes only and do not show
what is actually used in the product itself.
5
1 Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides information on the various components in the Notebook PC and how to use them. The following
are major sections of this User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the PartsGives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PCGives you information on using the Notebook PC’s components.
5. AppendixIntroduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order
to complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for special situations.
TIP: Tips and useful information for completing tasks.
IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons.
WARNING! Important information that must be followed for safe operation.
< >
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
[ ]
6
Introducing the Notebook PC 1
Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualied personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,
benzene, or other chemicals on or near the surface.
IMPORTANT! Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened
with a solution of nonabrasive detergent and a few drops of warm water and remove
any extra moisture with a dry cloth.
DO NOT
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT
panel. Do not place together with
small items that may scratch or enter
the Notebook PC.
DO NOT expose to dirty or dusty environments. DO NOT operate during
a gas leak.
DO NOT
your lap or any part of the body in
order to prevent discomfort or injury
from heat exposure.
SAFE TEMP:
should only be used in environments
with ambient temperatures between
5°C (41°F) and 35°C (95°F)
DO NOT carry or cover a Notebook PC that is powered ON with any materials that will
reduce air circulation such as a carrying bag.
place on uneven or unstable
press or touch the display
leave the Notebook PC on
This Notebook PC
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT
or electrical elds.
DO NOT
rain, or moisture. DO NOT use the
modem during an electrical storm.
Battery safety warning:
DO NOT
DO NOT short circuit the contacts.
DO NOT disassemble the battery.
INPUT RATING: Refer to the rating
label on the bottom of the Notebook
PC and be sure that your power adapter
complies with the rating.
expose to strong magnetic
expose to or use near liquids,
throw the battery in re.
DO NOT throw the Notebook PC in municipal waste. This product has been designed
to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment and mercury-containing button
cell battery) should not be placed in municipal waste. Check local regulations for disposal
of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin
indicates that the battery should not be placed in municipal waste.
7
1 Introducing the Notebook PC
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external peripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the power is turned
OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport
the Notebook PC while the power is still ON. Close the display panel and check that it is latched securely
in the closed position to protect the keyboard and display panel.
CAUTION! The Notebook PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape the Notebook PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and scratches.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have restrictions for using electronic devices. Most airlines will allow electronic use only between and not during
takeoffs and landings.
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walking
through security checks), and magnetic wands (hand-held devices used on people or
individual items). You can send your Notebook PC and diskettes through airport X-ray
machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
8
Introducing the Notebook PC 1
1
2
1
2
3
OFF
ON
OFF
ON
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed information on using your Notebook PC.
1. Install the battery pack2. Connect the AC Power Adapter
3. Open the Display Panel4. Turn ON the Notebook PC
IMPORTANT! When opening, do not
force the display panel down to the table
or else the hinges may break! Never lift
the Notebook PC by the display panel!
The power switch turns ON and OFF the Notebook
PC or putting the Notebook PC into sleep or hibernation modes. Actual behavior of the power switch
can be customized in Windows Control Panel >
Power Options > System Settings.
9
1 Introducing the Notebook PC
10
2. Knowing the Parts
Basic sides of the Notebook PC
There may be differences between your Notebook PC and the drawings shown in this
manual. Please accept your Notebook PC as being correct.
Photos and icons in this manual are used for artistic purposes only and do not show
what is actually used in the product itself.
11
2 Knowing the Parts
5
9
10
1
2
11
12
3
4
6
7
8
Top Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
The keyboard will be different for each territory.
12
Knowing the Parts 2
1
2
3
4
5
Keyboard Lighting LEDs (appearance varies by model)
The keyboard LEDs help to improve the quality of your working environment. Press the Keyboard Lighting key to light the LEDs when you need to work in a badly-lit environment.
Camera Indicator (on selected models)
The camera indicator shows when the built-in camera is in use. The camera may be auto-activated
by supported software.
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video conferencing and other interactive applications.
Microphone (Built-in)
The built-in mono microphone can be used for video conferencing, voice narrations, or simple
audio recordings.
Display Panel
The Notebook PC uses an active matrix TFT LCD, which provides excellent viewing like
that of desktop monitors. Unlike traditional desktop monitors, the LCD panel does not
produce any radiation or ickering, so it is easier on the eyes. Use a soft cloth without
chemical liquids (use plain water if necessary) to clean the display panel.
6
7
8
Status Indicators (top)
Status indicators represent various hardware/software conditions. See indicator details in section 3.
Instant Keys
Instant keys allow you to launch frequently used applications with one push of a button.
Details are described in section 3.
Power Switch
The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into sleep
or hibernation modes. Actual behavior of the power switch can be customized in Windows
Control Panel “Power Options.”
13
2 Knowing the Parts
9
10
11
12
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the keys
can be depressed) and palm rest for both hands. Two Windows function keys are provided
to help ease navigation in the Windows operating system.
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a
desktop mouse. A software-controlled scrolling function is available after setting up the
included touchpad utility to allow easy Windows or web navigation.
Fingerprint Scanner (on selected models)
The built-in ngerprint scanner allows use of security software using your ngerprint as
your identication key.
Status Indicators (front)
Status indicators represent various hardware/software conditions. See indicator details in section 3.
14
Knowing the Parts 2
132
4
7
5
6
8

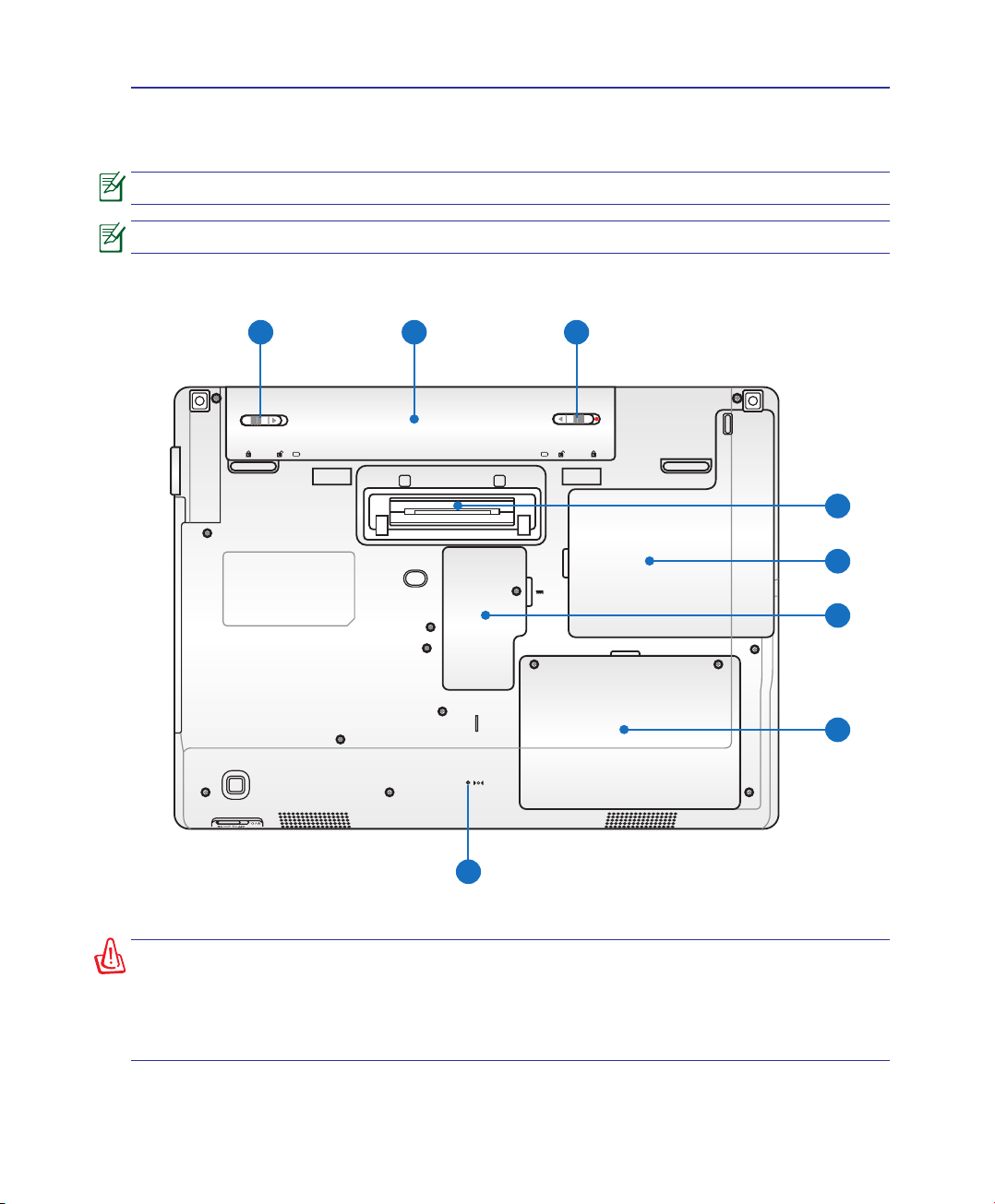

Bottom Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
The bottom side may vary in appearance depending on model.
The battery pack size will vary depending on model.
WARNING! The bottom of the Notebook PC can get very hot. Be careful when handling
the Notebook PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. Do not use on soft surfaces such as
beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.
15
2 Knowing the Parts
1
2
3
4
5
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is inserted, it will automatically lock. To remove the battery pack, this spring lock must be held in
the unlocked position.
Battery Pack
The battery pack is automatically charged when the Notebook PC is connected to an AC
power source and maintains power to the Notebook PC when AC power is not connected.
This allows use when moving temporarily between locations. Battery time varies by usage
and by the specications for this Notebook PC. The battery pack cannot be disassembled and
must be purchased as a single unit.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the
unlocked position to insert or remove the battery pack. Move the manual lock to the locked
position after inserting the battery pack.
Power Station Connector
The power station connector allows the Notebook PC to interface with the optional
power station.
Central Processor Unit (CPU) Compartment
Some Notebook PC models feature a socketed-processor design to allow upgrading to faster
processors in the future. Some models feature a ULV design for compactness and may not
be upgraded. Visit an authorized service center or retailer for information on upgrades.
WARNING! End-user removal of the CPU or hard disk drive will void the warranty.
16
Knowing the Parts 2
6
7
8
Memory (RAM) Compartment
The memory compartment provides expansion capabilities for additional memory. Additional memory will increase application performance by decreasing hard disk access.
The BIOS automatically detects the amount of memory in the system and congures
accordingly. There is no hardware or software (including BIOS) setup required after the
memory is installed. Visit an authorized service center or retailer for information on memory upgrades
for your Notebook PC. Only purchase expansion modules from authorized retailers of this Notebook PC
to ensure maximum compatibility and reliability.
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Visit an authorized service center or retailer
for information on hard disk drive upgrades for your Notebook PC. Only purchase hard disk
drives from authorized retailers of this Notebook PC to ensure maximum compatibility and
reliability.
Shutdown Button (Emergency)
In case your operating system cannot properly turn OFF or restart, the shutdown button
can be pressed with a straightened paper clip to shutdown the Notebook PC.
17
2 Knowing the Parts
123121110
5
6
4
7
8
9
Right Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
1
2
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone or output
signals from audio devices. Using this jack automatically disables the built-in microphone. Use
this feature for video conferencing, voice narrations, or simple audio recordings.
SPDIF Output Jack
This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices for digital audio output. Use this feature to turn the Notebook PC into a hi- home
entertainment system.
Combo
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplied speakers or headphones. Using this jack automatically disables the built-in speakers.
3
4
ExpressCard Slot
One 26pin Express card slot is available to support one ExpressCard/34mm or one
ExpressCard/54mm expansion card. This new interface is faster by using a serial bus
supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC
card slot. (Not compatible with previous PCMCIA cards.)
Flash Memory Slot
Normally an external memory card reader must be purchased separately in order to use
memory cards from devices such as digital cameras, MP3 players, mobile phones, and
PDAs. This Notebook PC has a built-in high-speed memory card reader that can conveniently
read from and write to many ash memory cards as mentioned later in this manual.
5
Optical Drive (on selected models)
The Notebook PC comes in various models with different optical drives. The Notebook
PC’s optical drive may support compact discs (CD) and/or digital video discs (DVD) and
may have recordable (R) or re-writable (RW) capabilities. See the marketing specica-
tions for details on each model.
18
Knowing the Parts 2
2.0
6
7
8
9
10
Optical Drive Activity Indicator (location varies by model)
The optical drive activity indicator shows when data is being transferred by the optical disk drive.
This indicator will light in proportion to the data size transferred.
Optical Drive Electronic Eject
The optical drive eject has an electronic eject button for opening the tray. You can also eject
the optical drive tray through any software player or by right clicking the optical drive in
Windows “Computer” and selecting Eject.
Optical Drive Emergency Eject (location varies by model)
The emergency eject is used to eject the optical drive tray in case the electronic eject does
not work. Do not use the emergency eject in place of the electronic eject.
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a
standard Ethernet cable for connection to a local network. The built-in connector allows
convenient use without additional adapters.
Modem Port (on selected models)
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports
a standard telephone cable. The internal modem supports up to 56K V.90 transfers. The
built-in connector allows convenient use without additional adapters.
11
12
IMPORTANT! The built-in modem does not support the voltage used in digital
phone systems. Do not connect the modem port to a digital phone system or
else damage will occur to the Notebook PC.
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such
as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in
a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices
to run simultaneously on a single computer, with some peripherals acting as additional plug-in sites or
hubs. USB supports hot-swapping of devices so that most peripherals can be connected or disconnected
without restarting the computer.
IEEE1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hotplugging capabilities like USB. The interface IEEE1394 has a bandwidth of 100-400
Mbits/sec and can handle up to 63 units on the same bus. IEEE1394 is also used in
high-end digital equipment and should be marked “DV” for Digital Video port.
19
2 Knowing the Parts
2.0
E-SA
T
A
HDMI
2314
35

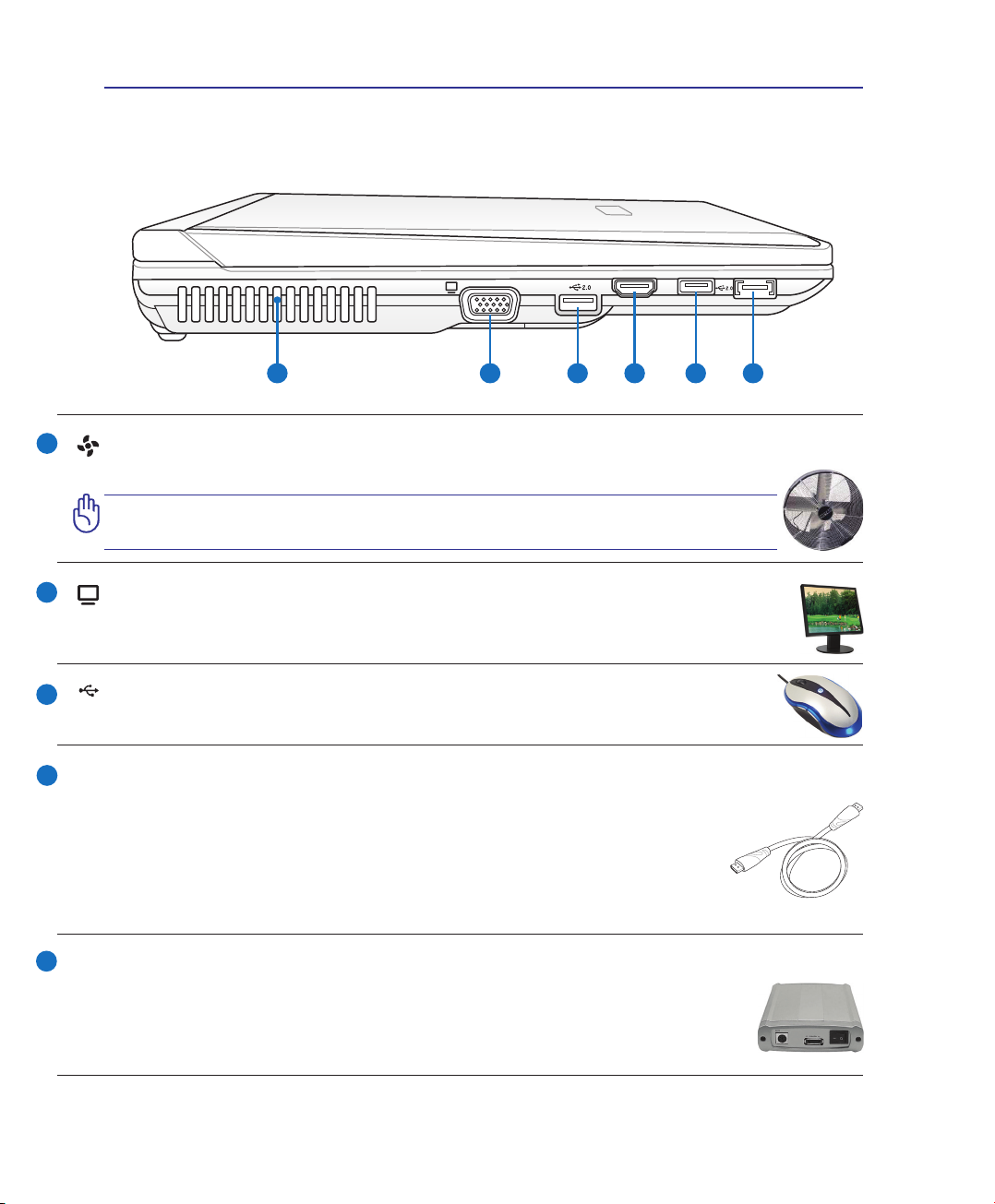

Left Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
1
2
3
4
5
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects
do not block any of the air vents or else overheating may occur.
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a monitor
or projector to allow viewing on a larger external display.
USB Port (2.0/1.1)
(See other side for description.)
HDMI
HDMI Port
HDMI (High-Denition Multimedia Interface) is an uncompressed all-digital audio/
video interface between any audio/video source, such as a set-top box, DVD player,
and A/V receiver and an audio and/or video monitor, such as a digital television
(DTV). Supports standard, enhanced, or high-denition video, plus multi-channel
digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-
channel digital audio, with bandwidth to spare to accommodate future enhancements or requirements.
E-SATA
E-SATA Port
External SATA or eSATA allows external connection of Serial-ATA devices originally
designed for use inside the computer. It is up to six times faster than existing USB 2.0,
& 1394 for external storage solutions and is also hot pluggable using shielded cables
and connectors up to two meters.
20
Knowing the Parts 2
OFF
ON
112
Front Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
1
2
Audio Speaker System
The built-in stereo speaker system allows you to hear audio without additional attachments.
The multimedia sound system features an integrated digital audio controller that produces
rich, vibrant sound (results improved with external stereo headphones or speakers). Audio
features are software controlled.
Wireless Switch
Enables or disables the built-in wireless LAN and Bluetooth (selected models). When
enabled, the wireless status indicator will light. Windows software settings are necessary
before use.
21
2 Knowing the Parts
213
Rear Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
1
2
3
Status Indicators (outside)
Status indicators represent various hardware/software conditions. See indicator details in section 3.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack. Power supplied
through this jack supplies power to the Notebook PC and charges the internal battery pack. To
prevent damage to the Notebook PC and battery pack, always use the supplied power adapter.
CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO
COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
Kensington® Lock Port
The Kensington® lock port allows the Notebook PC to be secured using Kensington®
compatible Notebook PC security products. These security products usually include a
metal cable and lock that prevent the Notebook PC to be removed from a xed object. Some may also include a motion detector to sound an alarm when moved.
22
3. Getting Started
Using AC Power
Using Battery Power
Powering ON the Notebook PC
Checking Battery Power
Powering Options
Power Management Modes
Special Keyboard Functions
Switches and Status Indicators
There may be differences between your Notebook PC and the drawings shown in this
manual. Please accept your Notebook PC as being correct.
Photos and icons in this manual are used for artistic purposes only and do not show
what is actually used in the product itself.
23
3 Getting Started
1
2
3
Power System
Using AC Power
The Notebook PC power is comprised of two parts,
the power adapter and the battery power system.
The power adapter converts AC power from a wall
outlet to the DC power required by the Notebook
PC. Your Notebook PC comes with a universal
AC-DC adapter. That means that you may connect
the power cord to any 100V-120V as well as 220V240V outlets without setting switches or using
power converters. Different countries may require
that an adapter be used to connect the provided
US-standard AC power cord to a different standard.
Most hotels will provide universal outlets to support different power cords as well as voltages. It is always best to ask an experienced traveler about AC
outlet voltages when bringing power adapters to another country.
You can buy travel kits for the Notebook PC that includes power and modem adapters
for almost every country.
WARNING! DO NOT connect the AC power cord to an AC outlet prior to connecting
the DC plug to the Notebook PC. Doing so may damage the AC-DC adapter.
IMPORTANT! Damage may occur if you use a different adapter to power the Notebook
PC or use the Notebook PC’s adapter to power other electrical devices. If there is
smoke, burning scent, or extreme heat coming from the AC-DC adapter, seek servicing. Seek servicing if you suspect a faulty AC-DC adapter. You may damage both your
battery pack(s) and the Notebook PC with a faulty AC-DC adapter.
This Notebook PC may come with either a two or three-prong plug depending on territory. If a three-prong plug is provided, you must use a grounded AC outlet or use a
properly grounded adapter to ensure safe operation of the Notebook PC.
WARNING! THE POWER ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE
SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
Unplug the power adapter or switch off the AC outlet to minimize the power consumption when the Notebook PC is not in use.
24
Getting Started 3
1
2
1
3
2
Using Battery Power
The Notebook PC is designed to work with a removable battery pack. The battery pack consists of a set
of battery cells housed together. A fully charged pack will provide several hours of battery life, which
can be further extended by using power management features through the BIOS setup. Additional battery
packs are optional and can be purchased separately through a Notebook PC retailer.
Installing and Removing the Battery Pack
Your Notebook PC may or may not have its battery pack installed. If your Notebook PC does not have
its battery pack installed, use the following procedures to install the battery pack.
IMPORTANT! Never attempt to remove the battery pack while the Notebook PC is
turned ON, as this may result in the loss of working data.
To install the battery pack:
IMPORTANT! Only use battery packs and power adapters supplied with this Notebook
PC or specically approved by the manufacturer or retailer for use with this model or
else damage may occur to the Notebook PC.
To remove the battery pack:
Battery Care
The Notebook PC’s battery pack, like all rechargeable batteries, has a limit on the number times it can
be recharged. The battery pack’s useful life will depend on your environment temperature, humidity, and
how your Notebook PC is used. It is ideal that the battery be used in a temperature range between 5˚C
and 35˚C (41˚F and 95˚F). You must also take into account that the Notebook PC’s internal temperature
is higher than the outside temperature. Any temperatures above or below this range will shorten the life
of the battery. But in any case, the battery pack’s usage time will eventually decrease and a new battery
pack must be purchased from an authorized dealer for this Notebook PC. Because batteries also have a
shelf life, it is not recommended to buy extras for storing.
WARNING! For safety reasons, DO NOT throw the battery in re, DO NOT
short circuit the contacts, and DO NOT disassemble the battery. If there is
any abnormal operation or damage to the battery pack caused by impact,
turn OFF the Notebook PC and contact an authorized service center.
25
3 Getting Started
Powering ON the Notebook PC
The Notebook PC’s power-ON message appears on the screen when you turn it ON. If necessary, you
may adjust the brightness by using the hot keys. If you need to run the BIOS Setup to set or modify the
system conguration, press [F2] upon bootup to enter the BIOS Setup. If you press [Tab] during the
splash screen, standard boot information such as the BIOS version can be seen. Press [ESC] and you will
be presented with a boot menu with selections to boot from your available drives.
Before bootup, the display panel ashes when the power is turned ON. This is part of
the Notebook PC’s test routine and is not a problem with the display.
IMPORTANT! To protect the hard disk drive, always wait at least 5 seconds after turning OFF your Notebook PC before turning it back ON.
WARNING! DO NOT carry or cover a Notebook PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.
The Power-On Self Test (POST)
When you turn ON the Notebook PC, it will rst run through a series of software-controlled diagnostic tests called the Power-On Self Test (POST). The software that controls the POST is installed as a
permanent part of the Notebook PC’s architecture. The POST includes a record of the Notebook PC’s
hardware conguration, which is used to make a diagnostic check of the system. This record is created
by using the BIOS Setup program. If the POST discovers a difference between the record and the exist-
ing hardware, it will display a message on the screen prompting you to correct the conict by running
BIOS Setup. In most cases the record should be correct when you receive the Notebook PC. When the
test is nished, you may get a message reporting “No operating system found” if the hard disk was not
preloaded with an operating system. This indicates that the hard disk is correctly detected and ready for
the installation of a new operating system.
Self Monitoring and Reporting Technology
The S.M.A.R.T. (Self Monitoring and Reporting Technology) checks the hard disk
drive during POST and gives a warning message if the hard disk drive requires
servicing. If any critical hard disk drive warning is given during bootup, backup
your data immediately and run Windows disk checking program. To run Window’s
disk checking program: click Start > select Computer > right-click a hard disk
drive icon > choose Properties > click the Tools tab > click Check Now > click Start. You can also select “Scan ... sectors” for more effective scan and repair but
the process will run slower.
IMPORTANT! If warnings are still given during bootup after running a software disk
checking utility, you should take your Notebook PC in for servicing. Continued use
may result in data loss.
26
Getting Started 3
Checking Battery Power
The battery system implements the Smart Battery standard under the Windows environment, which
allows the battery to accurately report the amount of charge left in the battery. A fully-charged battery
pack provides the Notebook PC a few hours of working power. But the actual gure varies depending
on how you use the power saving features, your general work habits, the CPU, system memory size,
and the size of the display panel.
Screen captures shown here
are examples only and may
not reect what you see in
your system.
You will be warned when battery power is low. If you continue to ignore the low battery
warnings, the Notebook PC
eventually enters suspend
mode (Windows default uses
STR).
Left-click the battery icon
WARNING! Suspend-to-RAM (STR) does not last long when the battery power is
depleted. Suspend-to-Disk (STD) is not the same as power OFF. STD requires a small
amount of power and will fail if no power is available due to complete battery depletion
or no power supply (e.g. removing both the power adapter and battery pack).
Right-click the battery icon
Pointer over the battery icon without
power adapter�
Pointer over the battery icon with
power adapter�
Charging the Battery Pack
Before you use your Notebook PC on the road, you will have to charge the battery pack. The battery pack
begins to charge as soon as the Notebook PC is connected to external power using the power adapter.
Fully charge the battery pack before using it for the rst time. A new battery pack must completely charge
before the Notebook PC is disconnected from external power. It takes a few hours to fully charge the battery when the Notebook PC is turned OFF and may take twice the time when the Notebook PC is turned
ON. The battery status indicator on the Notebook PC turns OFF when the battery pack is charged.
The battery starts charging when the charge remaining in the battery drops below 95%.
This prevents the battery from charging frequently. Minimizing the recharge cycles
helps prolong battery life.
The battery stops charging if the temperature is too high or the battery voltage is too
high.
WARNING! DO NOT leave the battery pack discharged. The battery pack will discharge
over time. If not using a battery pack, it must continued to be charged every three
months to extend recovery capacity or else it may fail to charge in the future.
27
Loading...
+ 61 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
