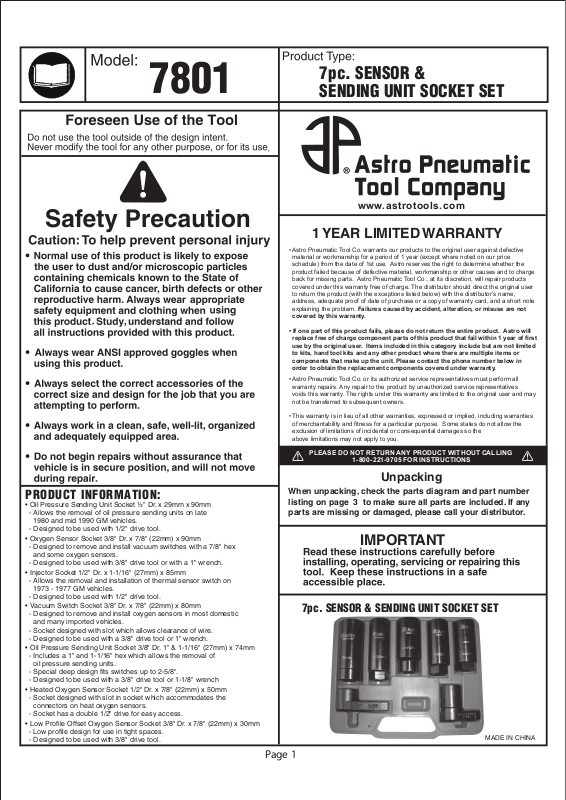

Astro 7801 User Manual

7801

PRODUCT INFORMATION:

• Oil Pressure Sending Unit Socket ½" Dr. x 29mm x 90mm

- Allows the removal of oil pressure sending units on late
1980 and mid 1990 GM vehicles.

- Designed to be used with 1/2" drive tool.

• Oxygen Sensor Socket 3/8" Dr. x 7/8" (22mm) x 90mm

- Designed to remove and install vacuum switches with a 7/8" hex
and some oxygen sensors.

- Designed to be used with 3/8" drive tool or with a 1" wrench.

• Injector Socket 1/2" Dr. x 1-1/16" (27mm) x 85mm

- Allows the removal and installation of thermal sensor switch on
1973 - 1977 GM vehicles.

- Designed to be used with 1/2" drive tool.

• Vacuum Switch Socket 3/8" Dr. x 7/8" (22mm) x 80mm

- Designed to remove and install oxygen sensors in most domestic
and many imported vehicles.

- Socket designed with slot which allows clearance of wire.

- Designed to be used with a 3/8" drive tool or 1" wrench.

• Oil Pressure Sending Unit Socket 3/8" Dr. 1" & 1-1/16" (27mm) x 74mm

- Includes a 1" and 1-1/16" hex which allows the removal of
oil pressure sending units.

- Special deep design fits switches up to 2-5/8".

- Designed to be used with a 3/8" drive tool or 1-1/8" wrench

• Heated Oxygen Sensor Socket 1/2" Dr. x 7/8" (22mm) x 50mm

- Socket designed with slot in socket which accommodates the
connectors on heat oxygen sensors.

- Socket has a double 1/2" drive for easy access.

• Low Profile Offset Oxygen Sensor Socket 3/8" Dr. x 7/8" (22mm) x 30mm

- Low profile design for use in tight spaces.

- Designed to be used with 3/8" drive tool.

Page 1

7pc. SENSOR &
SENDING UNIT SOCKET SET

www.astrotools.com

1 YEAR LIMITED WARRANTY

• Astro Pneumatic Tool Co. warrants our products to the original user against defective
material or workmanship for a period of 1 year (except where noted on our price
schedule) from the date of 1st use. Astro reserves the right to determine whether the
product failed because of defective material, workmanship or other causes and to charge
back for missing parts. Astro Pneumatic Tool Co., at its discretion, will repair products
covered under this warranty free of charge. The distributor should direct the original user
to return the product (with the exceptions listed below) with the distributor’s name,
address, adequate proof of date of purchase or a copy of warranty card, and a short note
explaining the problem. Failures caused by accident, alteration, or misuse are not

covered by this warranty.

• If one part of this product fails, please do not return the entire product. Astro will
replace free of charge component parts of this product that fail within 1 year of first
use by the original user. Items included in this category include but are not limited
to kits, hand tool kits and any other product where there are multiple items or
components that make up the unit. Please contact the phone number below in
order to obtain the replacement components covered under warranty.

• Astro Pneumatic Tool Co. or its authorized service representatives must perform all
warranty repairs. Any repair to the product by unauthorized service representatives
voids this warranty. The rights under this warranty are limited to the original user and may
not be transferred to subsequent owners.

• This warranty is in lieu of all other warranties, expressed or implied, including warranties
of merchantability and fitness for a particular purpose. Some states do not allow the
exclusion of limitations of incidental or consequential damages so the
above limitations may not apply to you.

PLEASE DO NOT RETURN ANY PRODUCT WITHOUT CALLING

When unpacking, check the parts diagram and part number
listing on page 3 to make sure all parts are included. If any
parts are missing or damaged, please call your distributor.

7pc. SENSOR & SENDING UNIT SOCKET SET

1-800-221-9705 FOR INSTRUCTIONS

Unpacking

IMPORTANT

MADE IN CHINA

7801

7pc. SENSOR &
SENDING UNIT SOCKET SET

7801-01 - Oil Pressure
Sending Unit Socket
½" Dr. x 29mm x 90mm

Allows the removal of
oil pressure sending
units on late 1980 and
mid 1990 GM vehicles.
Designed to be used
with 1/2" drive tool.

7801-05 - Oil Pressure
Sending Unit Socket
3/8" Dr. 1" & 1-1/16"
(27mm) x 74mm

7801-02 - Oxygen
Sensor Socket 3/8" Dr.
x 7/8" (22mm) x 90mm

Designed to remove
and install vacuum
switches with 7/8" hex
and some oxygen
sensors. Designed to
be used with 3/8" drive
tool or with a 1" wrench.

7801-06 - Heated
Oxygen Sensor
Socket 1/2" Dr. x
7/8" (22mm) x 50mm

7801-03 - Injector
Socket 1/2" Dr. x
1-1/16" (27mm) x 85mm

Allows the removal and
installation of thermal
sensor switch on
1973-1977 GM
vehicles. Designed to
be used with 1/2"
drive tool.

7801-07 - Low Profile
Offset Oxygen Sensor
Socket 3/8" Dr. x
7/8" (22mm) x 30mm

7801-04 - Vacuum
Switch Socket 3/8" Dr.
x 7/8" (22mm) x 80mm

Designed to remove and
install oxygen sensors in
most domestic and many
imported vehicles.
Socket designed with slot
which allows clearance
of wire. Designed to be
used with 3/8" drive tool
or 1" wrench.

Includes a 1" and
1-1/16" hex which
allows the removal of oil
pressure sending units.
Special deep design fits
switches up to 2-5/8"
Designed to be use with
a 3/8" drive tool or
1-1/8" wrench.

Socket designed with
slot in socket which
accommodates the
connectors on heat
oxygen sensors.
Socket has a double
1/2" drive for easy
access.

Low profile design for
use in tight spaces.
Designed to be used
with 3/8" drive tool.

Page 2
