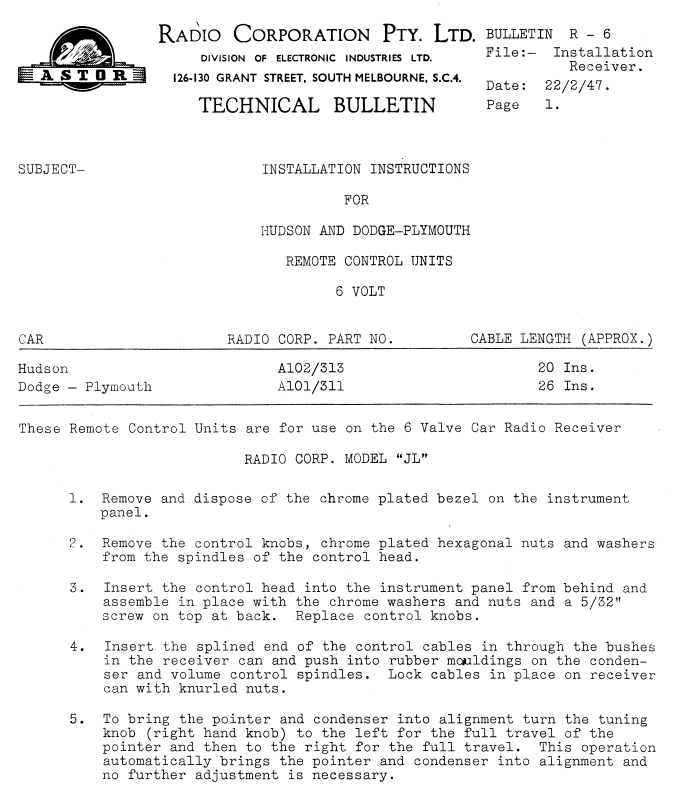

Astor A101-311, A102-313 User Manual

R ad io C o rp o r a tio n P ty. Ltd. b u l l e t i n r - e

DIVISION OF ELECTRONIC INDUSTRIES LTD.

126-130 G RANT STREET, S O U TH MELBOURNE , S.C.4.

TECHN I CAL BULLETIN

SUBJECT- INSTALLATION INSTRUCTIONS

FOR

HUDSON AND D0DGE-PLYM0UTH

REMOTE CONTROL UNITS

6 VOLT

PileInstallation

Receiver.
Date: 22/2/47.
Page 1.

CAR

Hudson
Dodge — Plymouth

These Remote Control Units are for use on the 6 Valve Car Radio Receiver

1. Remove and dispose of the chrome plated bezel on the instrument
pan el .

2. Remove the control knobs, chrome plated hexagonal nuts and washers

from the spindles of the control head.

3. Insert the control head into the instrument panel from behind and

assemble in place with the chrome washers and nuts and a 5/ 32”
screw on top at back. Replace control knobs.

4. Insert the splined end of the control cables in through the bushes

in the receiver can and push into rubber moiuldings on the conden
ser and volume control spindles. Lock cables in place on receiver
can with knurled nuts.

5. To bring the pointer and condenser into alignment turn the tuning

knob (right hand knob) to the left for the full travel of the
pointer and then to the right for the full travel. This operation
automatically brings the pointer and condenser into alignment and
no further adjustment is necessary.

RADIO CORP. PART NO.

A102/313
A101/311

RADIO CORP. MODEL “JL”

CABLE LENGTH (APPROX.)

20 Ins.
26 Ins.

BULLETIN R - 6

PileInstallation

Receiver.
Date: 22/2/47.
Page 2.

SUBJECT-

6. Connect the dial lamp lead from the control head into the receiver
through the grommet behind the battery lead.

7. Plug the shielded tone control lead into its socket located in
front of the battery lead.

RECEIVER HEIGHT

Important:

To obtain smooth tuning the receiver should be mounted on the firewall of
the car in a position of sufficient height to provide a direct cable con
nection or a gradual downward sweep of the cables without sharp bends.

DIAL LAMP REPLACEMENT:

— — —— —-————— ————— ^

The dial lamp may be replaced by removing the two screws at the rear of
the control head holding the small strip to which is attached the pilot lamp
socket. On removal of these screws the socket may be withdrawn and the lamp
replaced.

REPLACEMENT LAMP:

6-8 volt .15 amp. miniature bayonet base, G3-J· bulb.

TUNING CONTROL

g»/ BUSH
